USER MANUAL DRA295 DENON

We greatly appreciate your purchase of this unit.
To be sure you take maximum advantage of all the features this unit has to offer, read these instructions carefully and use the set properly. Be sure to keep this manual for future reference should any questions or problems arise.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION

TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

ATTENTION

POUR EVITER LES CHOCS ELECTRIQUES, INTERODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRESE ET POUSSER JUSQU' AU FOND.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This Class B digital apparatus meets all requirements of the Canadian Interference-Caising Equipment Regulations.

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. HeedWarnings-All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow Instructions - All operating and use instructions should be followed.
5. Water and Moisture - The appliance should not be used near water - for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, and the like.
6. Carts and Stands - The appliance should be used only with a cart or stand that is recommended by the manufacturer.

6A. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

1. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
2. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
3. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
4. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.

5. Grounding or Polarization - Precautions should be taken so that the grounding or polarization means of an appliance is not defeated.

6. Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.

7. Cleaning - The appliance should be cleaned only as recommended by the manufacturer.
8. Power Lines - An outdoor antenna should be located away from power lines.

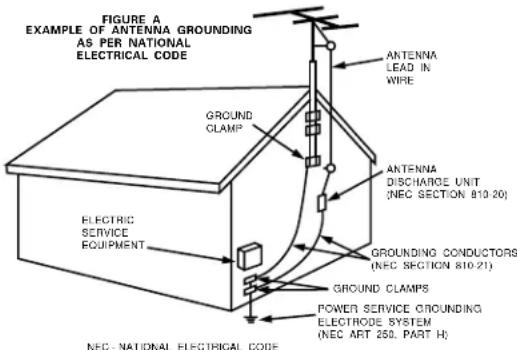

9. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure A.
10. Nonuse Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
11. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
12. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged; or
B. Objects have fallen, or liquid has been spilled into the appliance; or
C. The appliance has been exposed to rain; or
D. The appliance does not appear to operate normally or exhibits a marked change in performance; or
E. The appliance has been dropped, or the enclosure damaged.

1. Servicing - The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

INTRODUCTION

Thank you for choosing the DENON AM-FM Stereo receiver. This remarkable component has been engineered to provide outstanding high fidelity reproduction of your favorite music sources.

As this product is provided with an immense array of features, we recommend that before you begin hookup and operation that you review the contents of this manual before proceeding.

TABLE OF CONTENTS

1 Before Using 4
2 Cautions on Installation 5
3 Cautions on Handling 5
4 Features 5
5 Connections 6~10
6 Part Names and Functions 10, 11

7 Operations 12-15
8 Listening to the Radio 16~18
9 Initialization of the Microprocessor 19
10 Last function memory 19
11 Troubleshooting 20
12 Specifications 21

■ ACCESSORIES

Check that the following parts are included in addition to the main unit:

① Operating instructions.
② Warranty 1
③ Service station list. 1
Remote control unit (RC-895) 1

⑤ Batteries (R6P/AA) 2
⑥ AM loop antenna. 1
⑦ FM indoor antenna. 1
FM antenna adapter. 1

4× 5× 6× 7× 8

- Inserting the batteries:

①Press as shown by the arrow and slide off.

②Insert the R6P/AA batteries properly, as shown on the diagram.

③Close the lid.

NOTES:

• Be sure the polarities are correct. (See the illustration inside the battery compartment.)
• Remove the batteries if the remote control transmitter will not be used for an extended period of time.
• If batteries leak, dispose of them immediately. Avoid touching the leaked material or letting it come in contact with clothing, etc. Clean the battery compartment thoroughly before installing new batteries.
• Even if less than a year has passed, replace the batteries with new ones if the set does not operate even when the remote control unit is operated nearby the set. (The included battery is only for verifying operation. Replace it with a new battery as soon as possible.)
• When replacing the batteries, after removing them wait for about one minute before inserting the new batteries.

1 BEFORE USING

Pay attention to the following before using this unit:

- Moving the set

To prevent short circuits or damaged wires in the connection cords, always unplug the power cord and disconnect the connection cords between all other audio components when moving the set.

- Before turning the power operation switch on

Check once again that all connections are proper and that there are not problems with the connection cords. Always set the power operation switch to the standby position before connecting and disconnecting connection cords.

- Store this instructions in a safe place.

After reading, store this instructions along with the warranty in a safe place.

Note that the illustrations in this instructions may differ from the actual set for explanation purposes.

2 CAUTIONS ON INSTALLATION

Noise or disturbance of the picture may be generated if this unit or any other electronic equipment using microprocessors is used near a tuner or TV.

If this happens, take the following steps:

Install this unit as far as possible from the tuner or TV.
- Set the antenna wires from the tuner or TV away from this unit's power cord and input/output connection cords.
- Noise or disturbance tends to occur particularly when using indoor antennas or 300 Ω/ohms feeder wires. We recommend using outdoor antennas and 75 Ω/ohms coaxial cables.

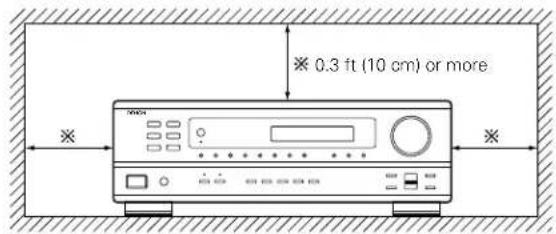

For heat dispersal, leave at least 0.3 ft (10 cm) of space between the top, back and sides of this unit and the wall or other components.

3 CAUTIONS ON HANDLING

• Switching the input function when input jacks are not connected

A clicking noise may be produced if the input function is switched when nothing is connected to the input jacks. If this happens, either turn down the VOLUME control or connect components to the input jacks.

• Muting of PRE OUT jacks, HEADPHONE jack and SPEAKER terminals

The PRE OUT jacks, HEADPHONE jack and SPEAKER terminals include a muting circuit. Because of this, the output signals are greatly reduced for several seconds after the power operation switch is turned on.

If the volume is turned up during this time, the output will be very high after the muting circuit stops functioning. Always wait until the muting circuit turns off before adjusting the volume.

• Whenever the power operation switch is in the STANDBY state, the apparatus is still connected on some AC line voltages.

Please be sure to unplug the cord when you leave home for, say, a vacation.

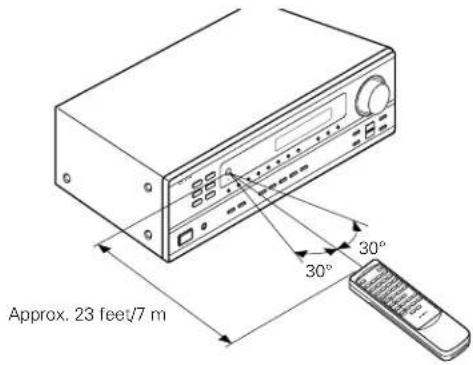

• Range of operation of the remote control unit

Point the remote control unit at the remote control sensor as shown on the diagram at the left.

NOTES:

• The remote control unit can be used from a straight distance of approximately 23 feet/7 meters, but this distance will shorten or operation will become difficult if there are obstacles between the remote control unit and the remote control sensor, if the remote control sensor is exposed to direct sunlight or other strong light, or if operated from an angle.
• Neon signs or other devices emitting pulse-type noise nearby may result in malfunction, so keep the set as far away from such devices as possible.

4 FEATURES

1. Powerful, Versatile Amplifier

High-Quality Power Amplifier:

High-speed, high-power transistors employed in a rational circuit configuration reflect DENON'S advanced amplifier technology and ensure a very hefty, clean power output.

1. Signal Level Divided Construction (SLDC)

The circuits handling low-level and high-level signals have been divided into separate blocks to ensure that influences from these signals on each other are held to an absolute minimum. This chassis design in this unit is called the Signal Level Divided Construction (SLDC). Signals for output are cleaner than before, allowing them to be reproduced with even greater fidelity and clarity.

1. Remote Control Functions

The Remote Control (RC-895) commands not only the receiver but can also operate the main functions of a DENON CD player and a cassette deck.

5 CONNECTIONS

• Do not plug in the power cord until all connections have been completed.
• Be sure to connect the left and right channels properly (left with left, right with right).
• Insert the plugs securely. Incomplete connections will result in the generation of noise.
• Use the AC OUTLETS for audio equipment only. Do not use them for hair driers, etc.

Note that binding pin plug cords together with power cords or placing them near a power transformer will result in generating hum or other noise.
If hum or other noise is produced when the ground wire is connected, disconnect it.
- Noise or humming may be generated if a connected component is used independently without turning the power of this unit on. If this happens, turn on the power of the this unit.

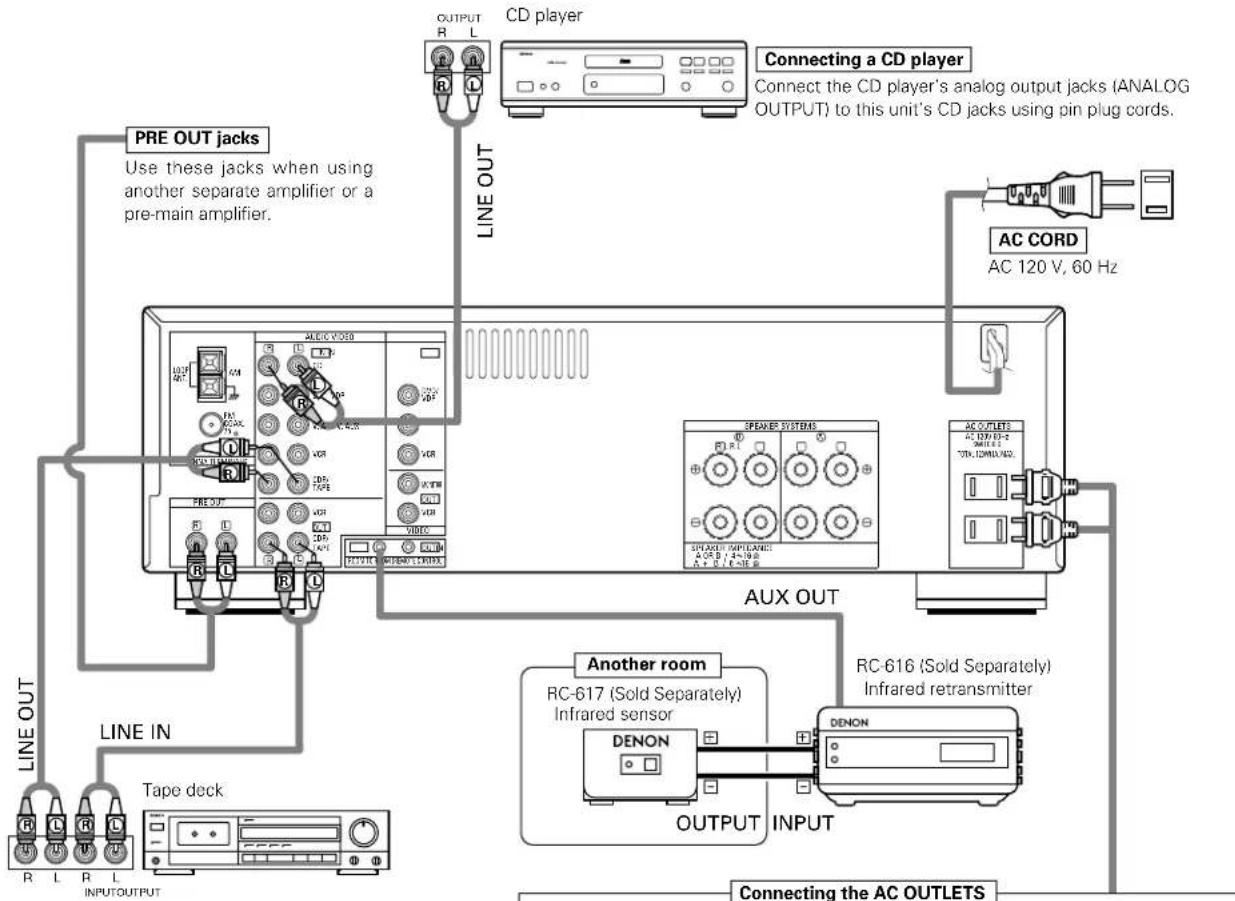

Connecting the audio components

Connecting a tape deck

Connections for recording:

Connect the tape deck's recording input jacks (LINE IN or REC) to this unit's tape recording (OUT) jacks using pin plug cords.

Connections for playback:

Connect the tape deck's playback output jacks (LINE OUT or PB) to this unit's tape playback (IN) jacks using pin plug cords.

AC OUTLETS

SWITCHED (total capacity - 120 W (1 A.)

The power to this outlet is turned on and off in conjunction with the POWER operation switch on the main unit, and when the power is switched between on and standby from the remote control unit.

No power is supplied from these outlets when this unit's power is at standby. Never connect equipment whose total capacity is above 120 W (1 A.)

NOTE:

Use the AC OUTLETS for audio equipment only. Do not use them for hair driers, etc.

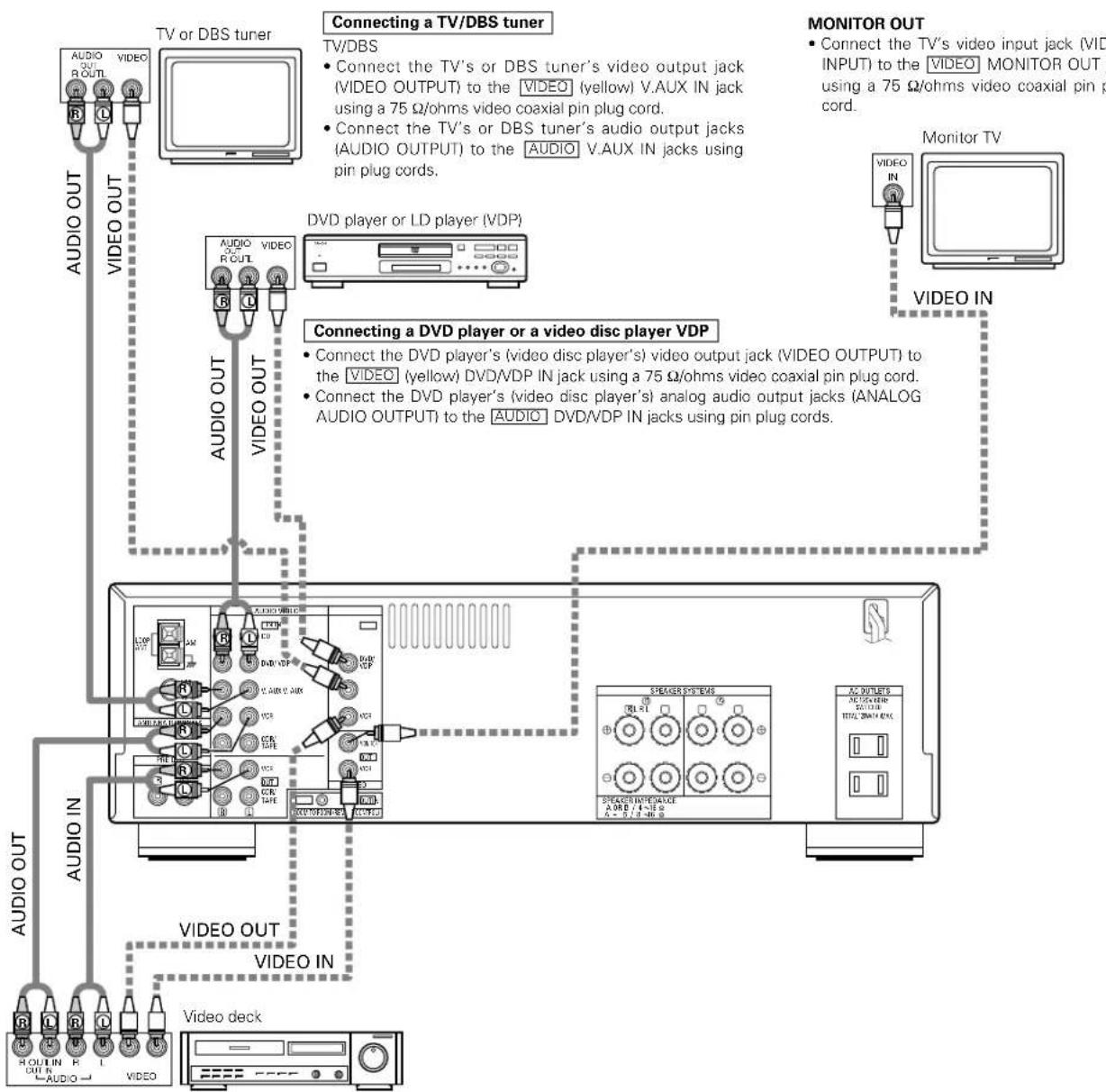

Connecting the video equipments

To connect the video signal, connect using a 75 ohms video signal cable cord. Using an improper cable can result in a drop in sound quality.
- When making connections, also refer to the operating instructions of the other components.

Connecting a video decks

Video input/output connections:

• Connect the video deck's video output jack (VIDEO OUT) to the [VIDEO] (yellow) VCR IN jack, and the video deck's video input jack (VIDEO IN) to the [VIDEO] (yellow) VCR OUT jack using 75Ω/ohms video coaxial pin plug cords.

Connecting the audio output jacks

• Connect the video deck audio output jacks (AUDIO OUT) to the AUDIO VCR IN jacks, and the video deck's audio input jacks (AUDIO IN) to the AUDIO VCR OUT jacks using pin plug cords.

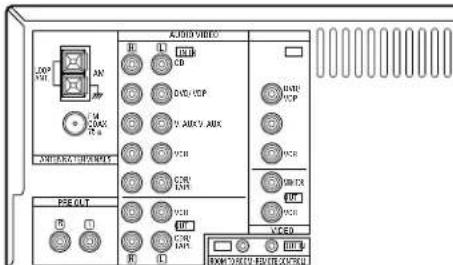

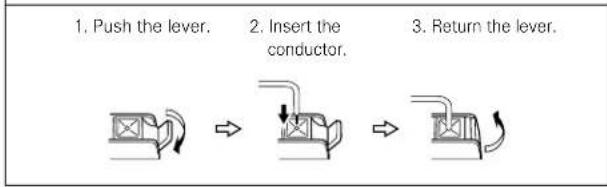

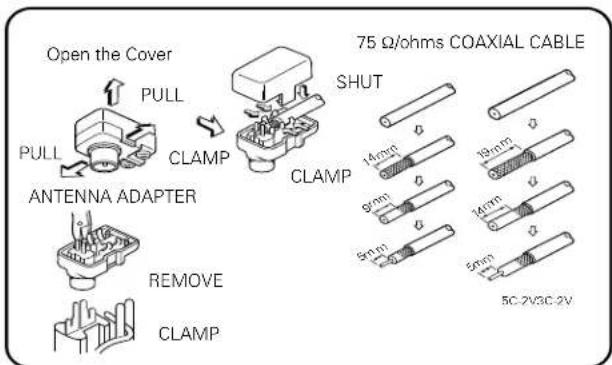

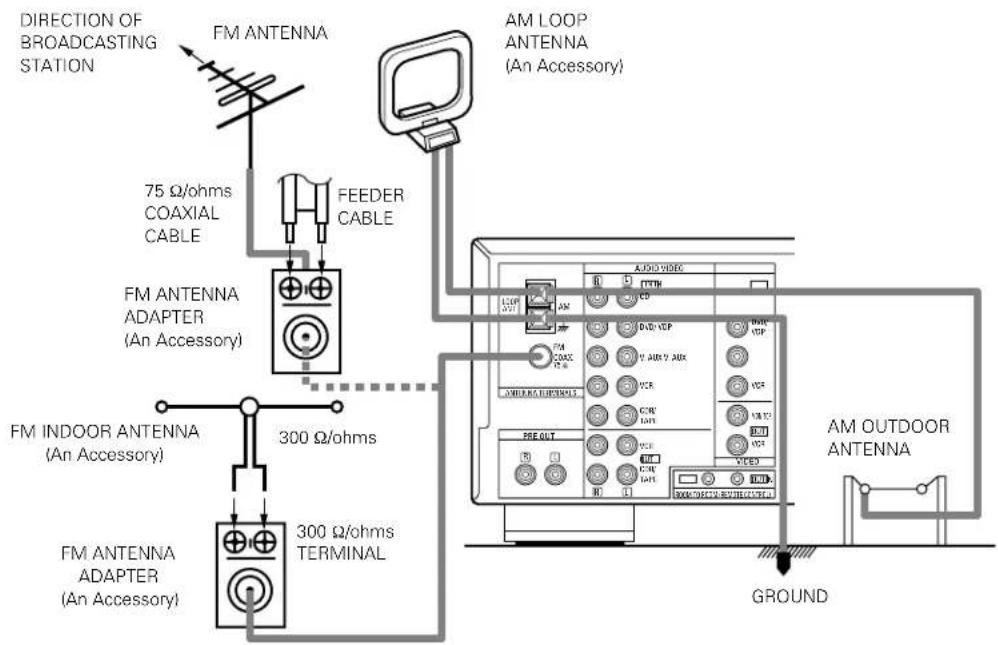

Connecting the antenna terminals

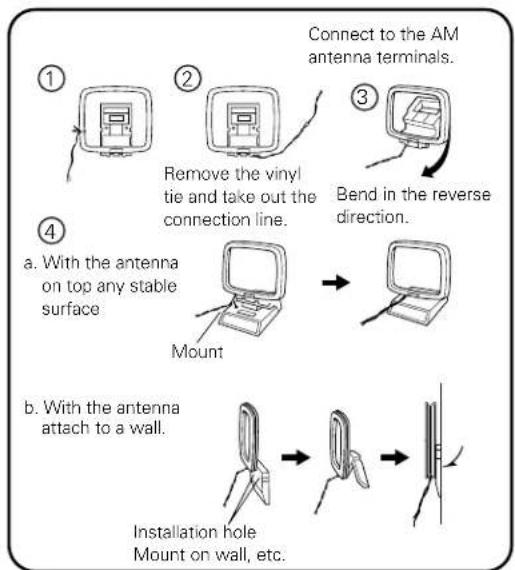

AM loop antenna assembly

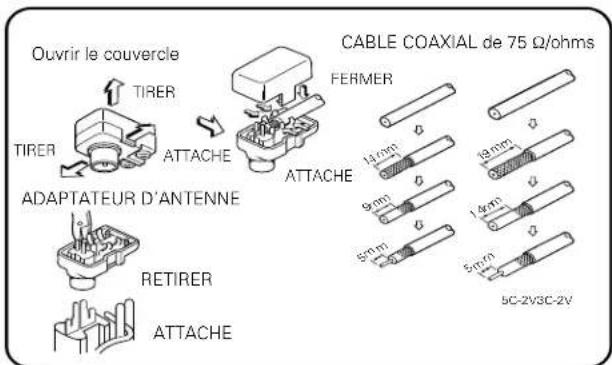

FM antenna adapter assembly

Connection of AM antennas

Note to CATV system installer:

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

NOTES:

• Do not connect two FM antennas simultaneously.
• Even if an external AM antenna is used, do not disconnect AM loop antenna.
• Make sure AM loop antenna lead terminals do not touch metal parts of the panel.

Speaker system connections

• Connect the speaker terminals with the speakers making sure that like polarities are matched (⊕ with ⊕, ⊙ with ⊙). Mismatching of polarities will result in weak central sound, unclear orientation of the various instruments, and the sense of direction of the stereo being impaired.
• When making connections, take care that none of the individual conductors of the speaker cord come in contact with adjacent terminals, with other speaker cord conductors, or with the rear panel.

Speaker Impedance

• When speaker systems A and B are use separately, speakers with an impedance of 4 to 16/ohms can be connected for use as speakers.
• Be careful when using two pairs of speakers (A + B) at the same time, since use of speakers with an impedance of 8 to 16 Ω/ohms.
• The protector circuit may be activated if the set is played for long periods of time at high volumes when speakers with an impedance lower than the specified impedance are connected.

NOTE:
NEVER touch the speaker terminals when the power is on.
Doing so could result in electric shocks.

Connecting the speaker terminals

1. Loosen by turning counterclockwise.

1. Insert the cord. 3. Tighten by turning

clockwise.

Connecting banana plugs

SPEAKER SYSTEMS

Turn clockwise to tighten, then insert the banana plug.

• Precautions when connecting speakers If a speaker is placed near a TV or video monitor, the colors on the screen may be disturbed by the speaker's magnetism. If this should happen, move the speaker away to a position where it does not have this effect.

System B

SPEAKER SYSTEMS

System A

10000000000

Protector circuit

• This unit is equipped with a high-speed protection circuit. This circuit protects the internal circuitry from damage due to large currents flowing if the speaker jacks are not completely connected or if an output is generated by a short circuit. In such a case, the protection circuit will operate to cut off the output to the speakers. Should this happen, turn the power off and check the speaker connections. Then turn the power on again. After muting for several seconds, the receiver should be operating normally.

If the protection circuit is activated again even though there are no problems with the wiring or the ventilation around the unit, switch off the power and contact a DENON service center.

Note on speaker impedance

• The protector circuit may be activated if the set is played for long periods of time at high volumes when speakers with an impedance lower than the specified impedance (for example speakers with an impedance of lower than 4 Ω/ohms) are connected. If the protector circuit is activated, the speaker output is cut off. Turn off the set's power, wait for the set to cool down, improve the ventilation around the set, then turn the power back on.

6 PART NAMES AND FUNCTIONS

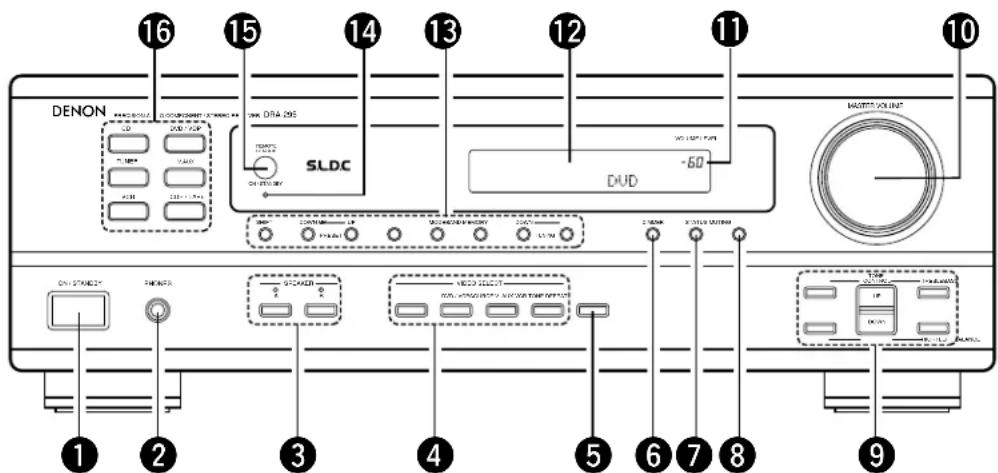

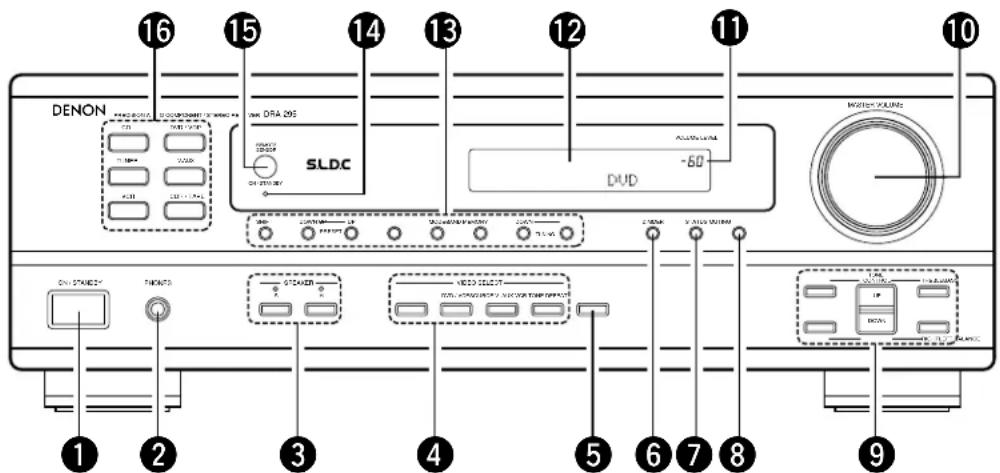

Front Panel

• For details on the functions of these parts, refer to the pages given in parentheses ( ).

Power operation switch. (12, 16)
2 Headphone jacks (PHONES) (14)
3 SPEAKER A/B buttons (12, 14, 19)
VIDEO SELECT buttons. (14)
TONE DEFEAT button. (13)
DIMMER button. (15)
STATUS button (15)
8 MUTING button. (14)

9 TONE and BALANCE buttons. (13)
16 MASTER VOLUME control (12)
11 MASTER VOLUME indicator (VOLUME LEVEL) (12)
12 Display
13 Tuning/Preset memory selector buttons. (16, 17, 18)
14 Power indicator. (12)
Remote control sensor (REMOTE SENSOR) (5)
16 Input source selector buttons. (12, 17)

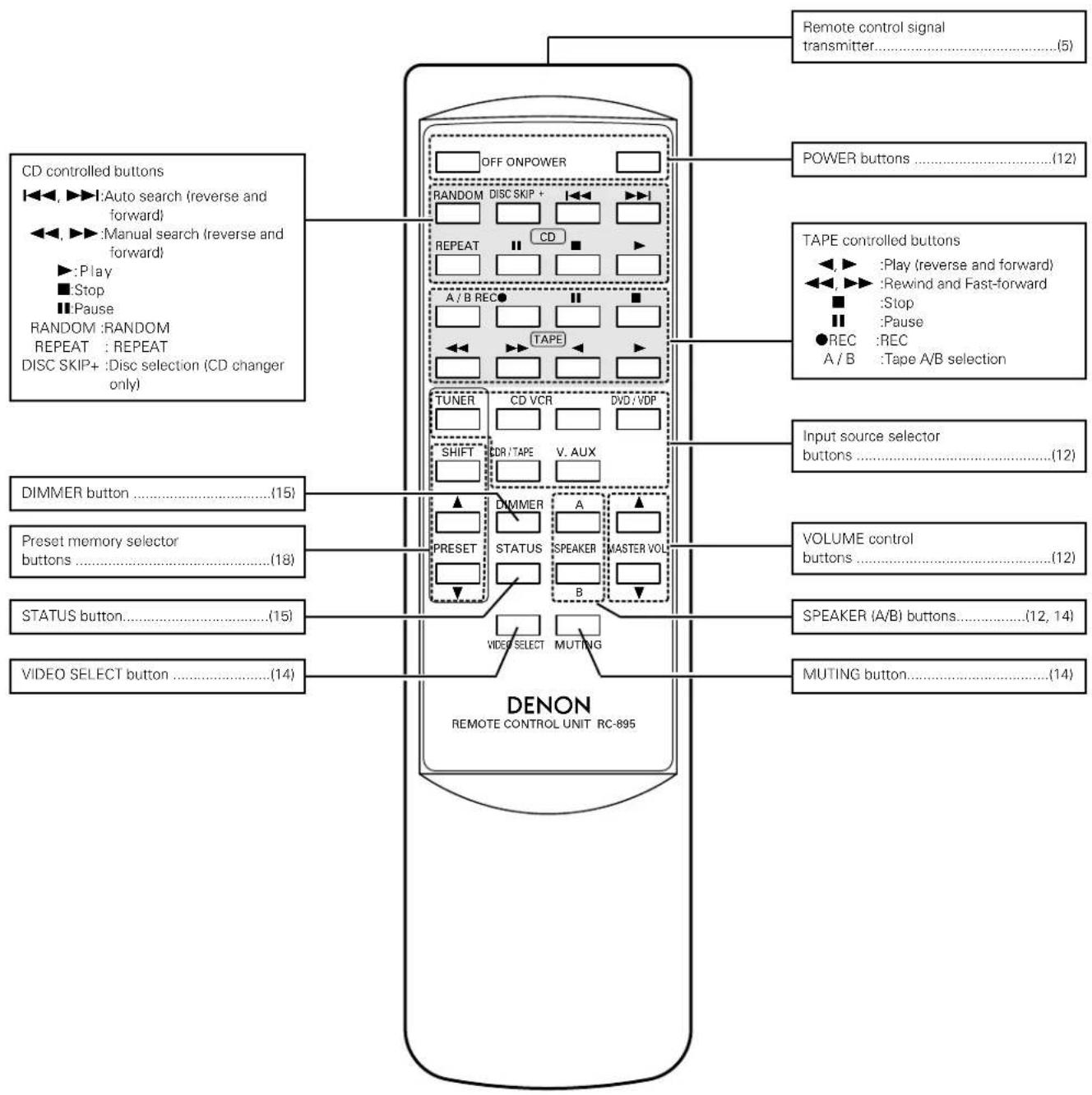

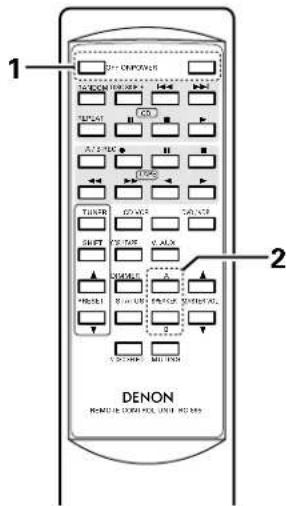

Remote control unit

For details on the functions of these parts, refer to the pages given in parentheses ( ).
DENON remote-controllable CD player and tape deck (TAPE) can be controlled using this unit's remote control unit (RC-895).

7 OPERATIONS

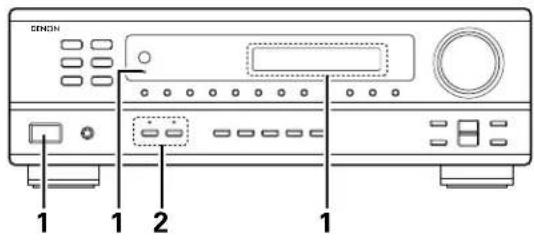

Before operating

Preparations:

• Check that all connections are proper.
• Plug the unit's power cord into a wall outlet.

1 Turn on the power. Press the power operation switch (button).

(Main unit)

(Remote control unit)

ON/STANDBY

When the button is pressed, the power turns on and the display lights.

When pressed again, the power turns off, the standby mode is set and the display turns off.

Several seconds are required from the time the power operation switch is set to the "ON" position until sound is output. This is due to the built-in muting circuit that prevents noise when the power operation switch is turned on and off.

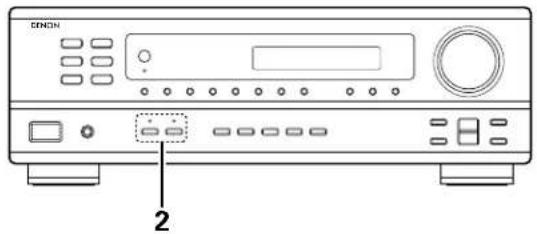

2 Select the front speakers. Press the SPEAKER A or B button turn the speaker on.

(Main unit)

(Remote control unit)

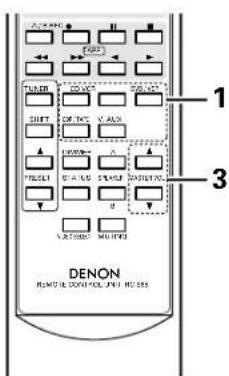

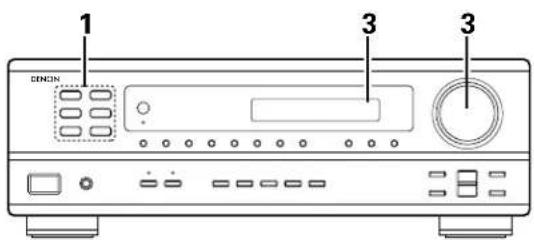

Playing the input source

Press the button for the program source to be played.

EX:CD
{Main unit}

(Remote control Unit)

2 Start playback on the selected component. For operating instructions, refer to the various components' manuals.

3 Adjust the volume.

The volume level is displayed on the master volume level display.

(Main unit)

(Remote control unit)

The volume can be adjusted within the range of -60 to 0 to 18 dB, in steps of 1 dB. However, when the channel level is set as described on page 13, if the volume for any channel is set at +1 dB or greater, the volume cannot be adjusted up to 18 dB. (In this case the maximum volume adjustment range is "18 dB — (Maximum value of channel level)".)

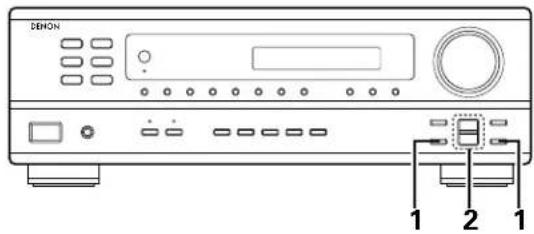

Adjusting the BALANCE control

1 Select the channel whose level you want to adjust.

{L channel) IR channel}

2 Adjust the level of the selected channel. The volume can be adjusted between -12 dB and +12 db in units of 1 dB.

If the volume is set to 7 dB or greater with the MASTER VOLUME control, the maximum channel level is the maximum level of the MASTER VOLUME control 18 dB minus the level at which the MASTER VOLUME control is set.

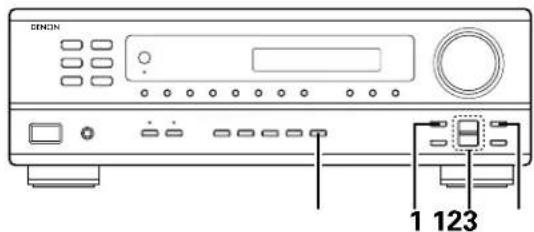

Adjusting the sound quality (TONE CONTROL)

1 Select the BASS or TREBLE whose you want to adjust.

Press the select button to adjust the level.

To increase the bass or treble: Press the select UP button. (The bass or treble sound can be increased to up to +10 dB in steps of 2 dB.)
To decrease the bass or treble: Press the select DOWN button. (The treble sound can be decreased to up to -10 dB in steps of 2 dB.)

3 If you do not want the bass and treble to be adjusted, turn on the tone defeat mode.
The signals do not pass through the bass and treble adjustment circuits providing higher quality sound.

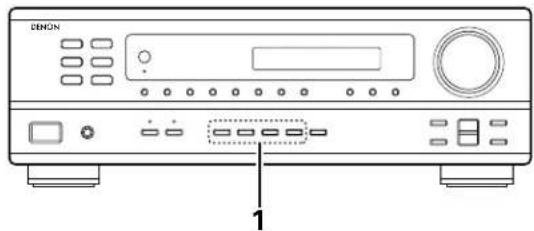

Simulcast playback

Use this switch to monitor a video source other than the audio source.

To select from the remote control unit.

• Holding the VIDEO SELECT button until the desired source appears on the display.

(Remote control unit)

The video source switches as follows each time the button is pressed:

To select from the main unit.

• Hold the button whose function you want to monitor.

Cancelling simulcast playback.
- Press the VIDEO SELECT button and select the source.
- Switch the program source to the component connected to the video.

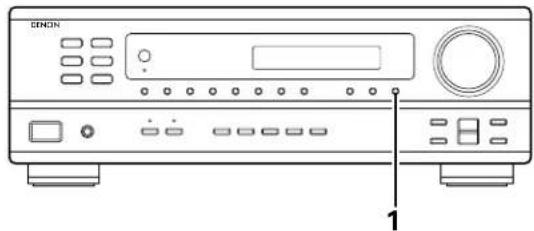

Using the muting function

Use this to turn off the audio output temporarily.

Press the MUTING button.

(Main unit)

(Remote control unit)

Cancelling MUTING mode.

Press the MUTING button again.

Muting will also be cancelled when Master volume is adjusted up or down.

Caution:

Switching off the power of the unit will cancel the settings.

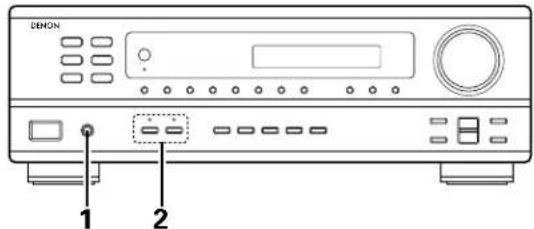

Listen with headphones

Connect the headphones to the headphones jack of the front panel.

Press the SPEAKER A or B button turn the speaker off.

(Main unit)

(Remote control unit)

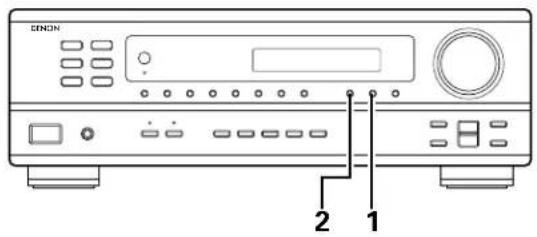

Checking the currently playing program source, etc.

When an operation is performed on the remote control unit, that operation appears on the display, making it possible to check the operation visually.

The set's operating status can also be checked on the display using the procedure described below.

1 Front panel display

• Descriptions of the unit's operations are also displayed on the front panel display. In addition, the display can be switched to check the unit's operating status while playing a source by pressing the STATUS button.

(Man unit)

(Remote control unit)

Using the dimmer function

• Use this to change the brightness of the display.

The display brightness changes in four steps (bright, medium, dim and off) by pressing the main unit's DIMMER button repeatedly.

(Main unit)

(Remote control unit)

The brightness changes in 3 steps each time the button is pressed, and finally the display turns off.

Recording the program source (recording the source currently being monitored)

1 Follow steps 1 to 3 under "Playing the input source" (page 12).

2 Start recording on the tape or video deck. For instructions, refer to the component's operating instructions.

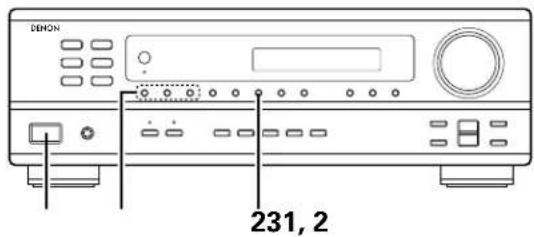

Simultaneous recording

The signals of the source selected with the function selector button are output simultaneously to the CDR/TAPE and VCR REC OUT jacks. If a total of two tape and/or video decks are connected and set to the recording mode, the same source can be recorded simultaneously on every decks.

This unit is equipped with a function for automatically searching for FM broadcast stations and storing them in the preset memory.

Switch off this unit.
2 Switch on the unit using the main unit's power operation switch while holding in the MEMORY button. The unit automatically begins searching for FM broadcast stations.

{Main unit}

3 When the first FM broadcast station is found, that station is stored in the preset memory at channel A1. Subsequent stations are automatically stored in order at preset channels A2 to A8, B1 to B8, C1 to C8, D1 to D8 and E1 to E8, for a maximum of 40 stations.
4 Channel A1 is tuned in after the auto preset memory operation is completed.

NOTES:

• If an FM station cannot be preset automatically due to poor reception, use the "Manual tuning" operation to tune in the station, then preset it using the manual "Preset memory" operation.
• To interrupt this function, press the power operation button.

DEFAULT VALUE

AUTO TUNER PRESETS
A1 ~ A8 87.5/89.1/98.1/107.9/90.1/90.1/90.1 MHz
B1 ~ B8 520/600/1000/1400/1500/1710 kHz/90.1/90.1 MHz
C1 ~ C8 90.1 MHz
D1 ~ D8 90.1 MHz
E1 ~ E8 90.1 MHz

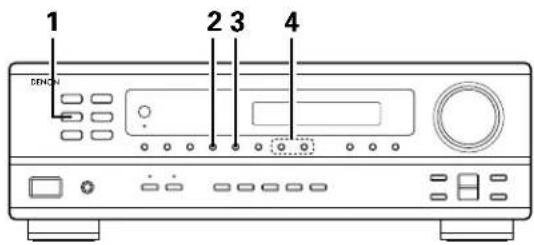

Auto tuning

1 Set the input function to "TUNER".

2 Watching the display, press the BAND button to select the desired band (AM or FMI).

Press the MODE button to set the auto tuning mode.

Press the TUNING UP or DOWN button.

Automatic searching begins, then stops when a station is tuned in.

NOTE:

• When in the auto tuning mode on the FM band, the "STEREO" indicator lights on the display when a stereo broadcast is tuned in. At open frequencies, the noise is muted and the "TUNED" and "STEREO" indicators turn off.

Manual tuning

1 Set the input function to "TUNER".
2 Watching the display, press the BAND button to select the desired band (AM or FM).

Press the MODE button to set the manual tuning mode. Check that the display's "AUTO" indicator turns off.
Press the TUNING UP or DOWN button to tune in the desired station. The frequency changes continuously when the button is held in.

NOTE:

• When the manual tuning mode is set, FM stereo broadcasts are received in monaural and the "STEREO" indicator turns off.

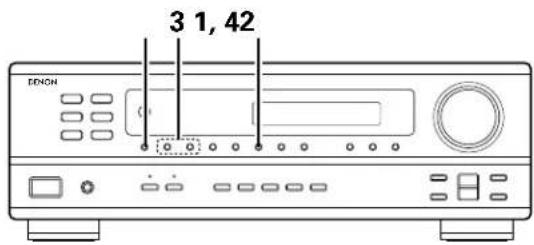

Preset memory

Preparations:

Use the "Auto tuning" or "Manual tuning" operation to tune in the station to be preset in the memory.

Press the MEMORY button.

2

Press the SHIFT button and select the desired memory block (A to E).

(Main unit)

(Remote control unit)

NOTE: Please make sure the "AUDIO" position of the slide switch on the remote control unit.

3

Press the PRESET UP or DOWN button to select the desired preset channel (1 to 8).

(Main unit)

(Remote control unit)

4

Press the MEMORY button again to store the station in the preset memory.

(Main unit)

To preset other channels, repeat steps 1 to 4. A total of 40 broadcast stations can be preset -8 stations (channels 1 to 8) in each of blocks A to E.

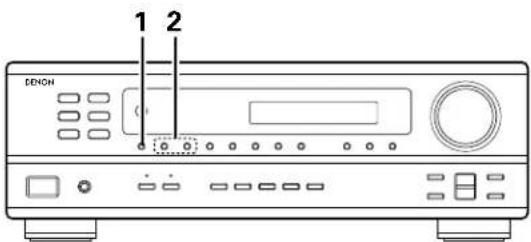

Recalling preset stations

1

Watching the display, press the SHIFT button to select the preset memory block.

(Main unit)

(Remote control unit)

NOTE: Please make sure the "AUDIO" position of the slide switch on the remote control unit.

2

Watching the display, press the PRESET UP or DOWN button to select the desired preset channel.

(Main unit)

(Remote control unit)

9 INITIALIZATION OF THE MICROPROCESSOR

When the indication of the display is not normal or when the operation of the unit does not shows the reasonable result, the initialization of the microprocessor is required by the following procedure.

Switch off the unit and remove the AC cord from the wall outlet.

2 Hold the following SPEAKER A button and B button, and plug the AC cord into the outlet.

3 Check that the entire display is flashing with an interval of about 1 second, and release your fingers from the 2 buttons and the microprocessor will be initialized.

NOTES:

• If step 3 does not work, start over from step 1.
• If the microprocessor has been reset, all the button settings are reset to the default values (the values set upon shipment from the factory).

10 LAST FUNCTION MEMORY

This unit is equipped with a last function memory which stores the input and output setting conditions as they were immediately before the power is switched off.
The unit also equipped with a back-up memory. This function provides approximately one week of memory storage when the main unit's power operation switch is off and with the power cord disconnected.

11 TROUBLESHOOTING

If a problem should arise, first check the following.

1.Are all connections correct?
2. Have you operated the receiver according to the Operating Instructions?
3. Are the speakers, turntable other components operating property?

If this unit is not operating properly, check the items listed in the table below. Should the problem persist, there may be a malfunction

Disconnect the power immediately and contact your store of purchase.

	Symptom	Cause Measures		Page
Common problems arising when listening to the DVD, CD, tapes, and FM broadcasts, etc.	DISPLAY not lit and sound not produced when power operation switch set to on.	• Power cord not plugged in securely.	• Check the insertion of the power cord plug.• Turn the power on with the remote control unit or this unit's Power operation switch.	612
	DISPLAY lit but sound not produced.	• Speaker cords not securely connected.• Improper position of the audio function button.• Volume control set to minimum.• MUTING is on.	• Connect securely.• Set to a suitable position.• Turn volume up to suitable level.• Switch off MUTING.	9, 10121214
	DISPLAY not displayed and the "ON/STANDBY" LED flashes at a high rate.	• Speaker terminals are short-circuited.• Block the ventilation holes of the set.• The unit is operating at continuous high power conditions and/or inadequate ventilation.	• Switch power off, connect speakers properly, then switch power back on.• Turn off the set's power, then ventilate it well to cool it down.Once the set is cooled down, turn the power back on.• Turn off the set's power, then ventilate it well to cool it down.Once the set is cooled down, turn the power back on.	9, 1055
	Sound produced only from one channel.	• Incomplete connection of speaker cords.• Incomplete connection of input/output cords.	• Connect securely.• Connect securely.	9, 106~8
	Positions of instruments reversed during stereo playback.	• Reverse connections of left and right speakers or left and right input/output cords.	• Check left and right connections. 6 ~ 10
Remote control unit.	This unit does not operate properly when remote control unit is used.	• Batteries dead.• Remote control unit too far from this unit.• Obstacle between this unit and remote control unit.• Different button is being pressed.• ⊕ and ⊕ ends of battery inserted in reverse.	• Replace with new batteries.• Move closer.• Remove obstacle.• Press the proper button.• Insert batteries properly.	4555-4

12 SPECIFICATIONS

Audio section

(Power amplifier)

Rated output: 50 W + 50 W (8 Ω/ohms, 20 Hz ~ 20 kHz with 0.08 % T.H.D.)

Output terminals: A or B 4 to 16 Ω/ohms

A+B 8to16Ω/ohms

(Analog)

LINE input - PRE OUT

Input sensitivity/input impedance: 200mV / 47k / kohms

Frequency response: 10Hz 50kHz ± 1.5 dB

S/N ratio: 98 dB (IHFA weighted)

Total harmonic distortion: 0.009 % (-3 dB at rated output,8 Ω/ohms) (1 kHz)

Rated output: 1.2V

Video section

(standard video jacks)

Input/output level and impedance: 1V p-p, 75 /ohms

Frequency response: 5Hz 10MHz + 1 -3 dB

Tuner section

[FM] (note: V at 75 / ohms, 0 dBf = 1 x 10-15 W) [AM]

Receiving range: 87.5 MHz ~ 107.9 MHz 520 kHz ~ 1710 kHz

Usable sensitivity: 1.4 V (14.2 dBf) 18 μV

50 dB quieting sensitivity: MONO 2.8 μV (20.2 dBf)

STEREO 23 V (38.5 dBf)

S/N ratio: MONO 80 dB (IHFA weighted)

STEREO 75 dB (IHF-A weighted)

Total harmonic distortion: MONO 0.15% (1kHz)

STEREO 0.3% (1kHz)

• General

Power supply: AC 120 V, 60 Hz

Power consumption: 3.0 A

Maximum external dimensions: 434 (W) x 147 (H) x 417 (D) mm (17-3/32" x 5-25/32" x 16-27/64")

Weight: 9.2 kg (20 lbs 4.5 oz)

• Remote control unit (RC-895)

Batteries: R6P/AA Type (two batteries)

External dimensions: 50 (W) x 179 (H) x 22 (D) mm (1-31/32" x 7-3/64" x 55/64")

Weight: 125 g (Approx. 7.5 oz) (including batteries)

• For purposes of improvement, specifications and design are subject to change without notice.

FRANCAIS

INTRODUCTION

FM antenna adapter assembly

Connexion des antennes AM

For details on the functions of these parts, refer to the pages given in parentheses ( ).

1 Interrupteur de mise en marche (30, 34)
2 Prise de casque d'ecoute (PHONES) (32)
3 Touches SPEAKER A/B (30, 32, 37)
4 Touches VIDEO SELECT. (32)
5 Touche TONE DEFEAT (31)
6 Touche DIMMER (33)
7 Touche STATUS. (33)
8 Touche MUTING. (32)

(Canal Li) (Canai Rl)

(Prises video standard)
