MW 170 G - Microwave Oven ELTA - Free user manual and instructions
Find the device manual for free MW 170 G ELTA in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Brand | ELTA |
| Model | MW 170 G |
| Product type | Microwave with grill |
| Power supply | 230 V ~ 50 Hz |
| Microwave power | 700 W |
| Grill power | 800 W |
| Capacity | 17 liters |
| Power levels | Low (119 W), Defrost (259 W), Med (462 W), M.High (595 W), High (700 W), Grill (800 W) |
| Timer | 0 to 30 minutes |
| Functions | Microwave, Grill, Combi (1, 2, 3), Defrost |
| Control type | Mechanical (rotary knobs) |
| Turntable | Yes, with ball bearing |
| Door opening | Mechanical handle |
| Safety | Automatic stop at end of cycle, stop when door is opened |
| Maintenance and cleaning | Clean with mild detergent and damp cloth; do not immerse; remove turntable and bearing for cleaning |
| Spare parts and repairability | Removable turntable and ball bearing; repairs by qualified technician only |
| Warranty | 2 years against manufacturing defects |
Frequently Asked Questions - MW 170 G ELTA
Which utensils can I use in this microwave?
Use only microwave-safe utensils: heat-resistant glass, heat-resistant ceramic, special microwave plastics. Avoid metal, recycled paper, wood, and sealed containers. For the grill, metal dishes are acceptable.
How to set the power and time?

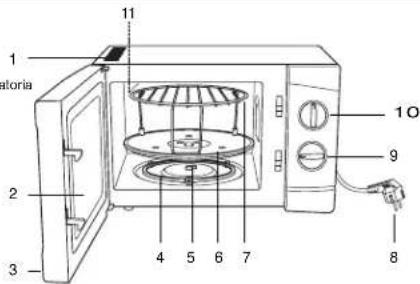

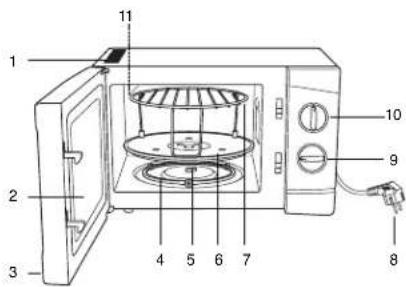

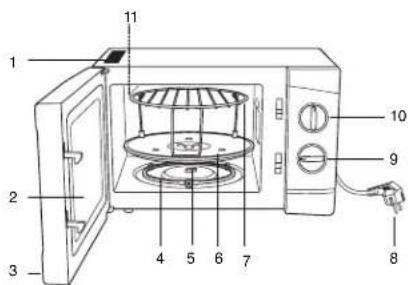

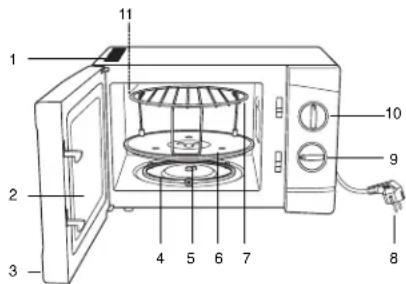

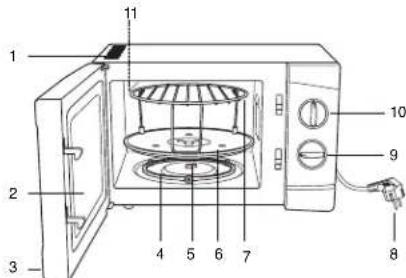

Use the Power Control knob (9) to select the level (Low, Defrost, Med, M.High, High, Grill). Turn the Time Setting knob (10) to set the duration from 0 to 30 minutes. The appliance starts automatically.
What to do if smoke comes out?
Turn off the appliance immediately and unplug it. Keep the door closed to smother the flames. Do not open the door. If the fire persists, use a suitable fire extinguisher.
Can I heat liquids safely?
Yes, but remove metal objects (spoons). Liquids can heat without visible boiling and experience delayed boiling. Stir and let stand before removing. Use wide-mouthed containers.
How to clean the inside of the oven?
Unplug the appliance and let it cool. Remove the turntable and ball bearing. Clean the interior with a soft cloth dampened with warm water and mild detergent. Dry thoroughly. Never immerse the appliance.
Why is my microwave making noise?
A slight hum is normal (magnetron operation). If the noise is loud or abnormal, check that the turntable is properly in place and that no object is rubbing. If the noise persists, contact a technician.
Can I use the grill without the turntable?
No, the turntable and ball bearing must always be in place for even cooking and to avoid damaging the appliance.
How to defrost meat?
Select the Defrost mode (259 W). Place the meat on the turntable, with the thinnest parts outward. Turn over halfway. Let it rest after defrosting to complete the process. Refer to the time table in the manual.
What to do if the turntable doesn't turn?
Check that the ball bearing (4) is correctly installed and that the turntable (6) is properly centered on the drive (5). Clean the bearing if necessary. If the problem persists, contact after-sales service.
What is the power consumption of the appliance?
The appliance operates at 230 V ~ 50 Hz. The microwave power is 700 W and the grill power is 800 W. The total consumption depends on the mode used.
User questions about MW 170 G ELTA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Microwave Oven in PDF format for free! Find your manual MW 170 G - ELTA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MW 170 G by ELTA.

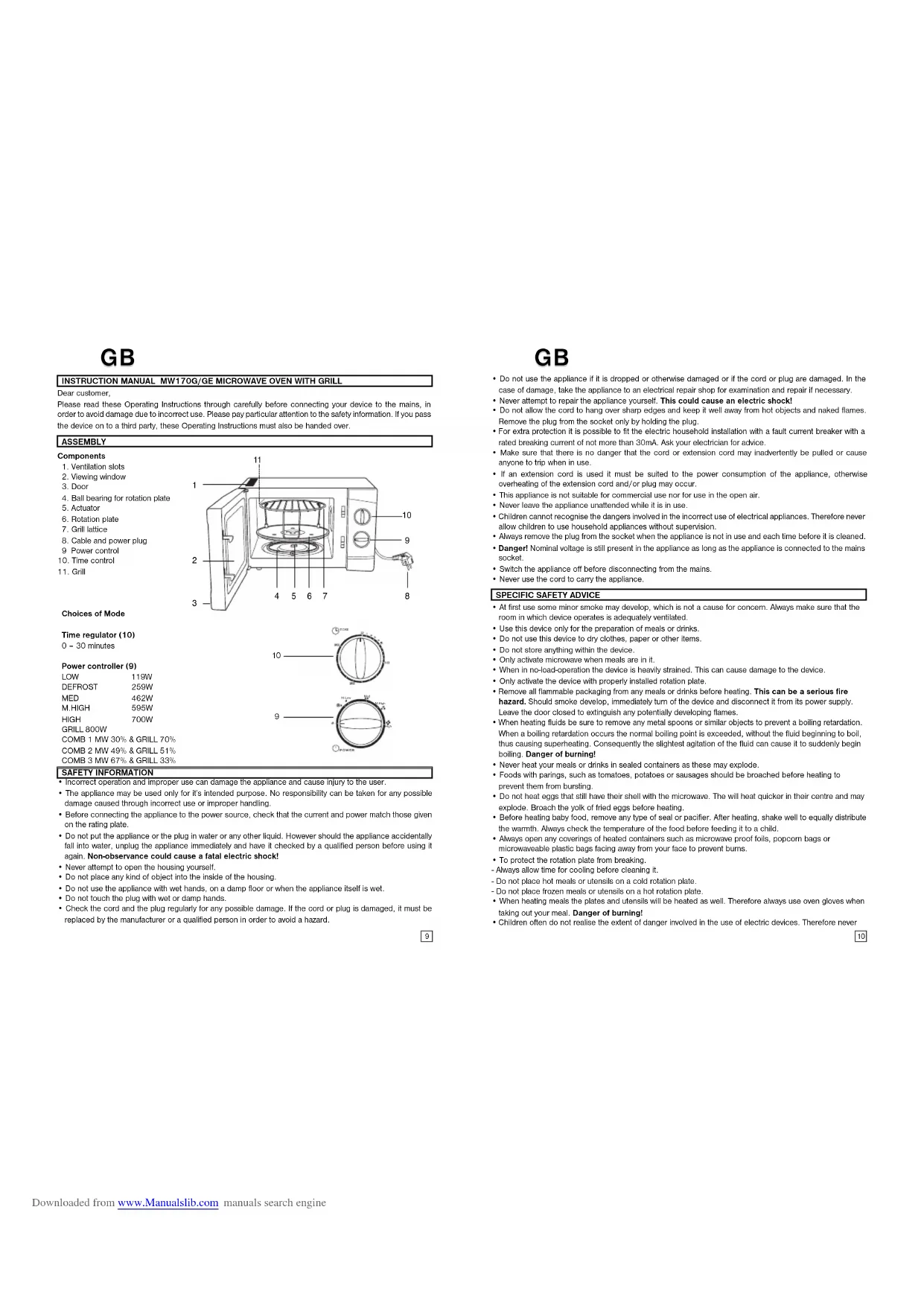

USER MANUAL MW 170 G ELTA
