GWK-2200.2 - Kettle ELTA - Free user manual and instructions

USER MANUAL GWK-2200.2 ELTA

elta® Germany

Clear glass water heater with black handle and volume markings (no text or symbols on body)

Glas-Wasserkocher

Glass kettle

Bouilloire en verre

Glazen waterkoker

Szklany czajnik

Hervidor de vidrio

GWK-2200.2

CE

Exterior view of a modern glass coffee maker with a black handle and water level indicator (no text or symbols on the device itself)

Exterior view of a modern glass coffee maker with a black handle and water level indicator (no text or symbols on the device itself)

Voltage: 220-240V\~50Hz

Power: 1800-2200W Max.

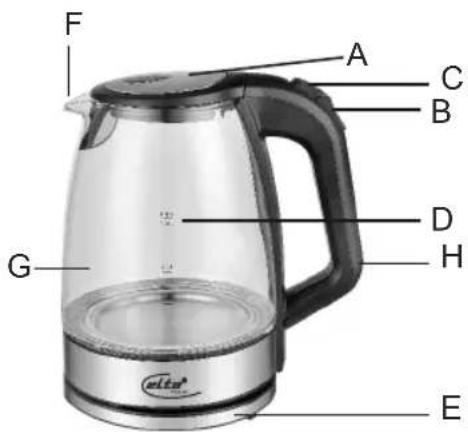

Structure Illustration

A. Lid
B. On/Off Switch
C. Lid Button
D. Water Level Gauge
E. Power Base
F. Spout
G. Kettle Body
H. Lid Handle

F A C B D H G E mLta®

Important Instruction

• Referring to the enclosed Illustration, read these instructions carefully before using the kettle for the first time.
• Before using the kettle, make sure whether the voltage indicated on the kettle corresponds with the mains voltage in your home. if not, do not use it.
• Please place the kettle on a stable flat surface to avoid any accident or possible damage to the kettle.
• Be sure to fill the kettle first, then connect it to the power.
• Keep the power plug connecting to an earthed wall socket while using the kettle.
• The automatic safety cut-off will protect the kettle from any damage causing by overheated.
• If the kettle runs dry while operating, first remove the power plug from the wall socket, then pour in appropriate water to cool the heating element down. The safety cut-off will reset by itself.
• Pour away the very first water boiled with this kettle, the appliance then is ready for use.

Warning

• The product is only used for heating water.
• Do not fill the kettle over its MAS capacity as the boiling water may be ejected.
• The cordless kettle can only work with its equipped power base.
• The power can be connected only through on/off switch (B), i.e. While the on/off switch is under "I" status, connecting the power or placing the kettle body on the power base is not permitted.

- Keep children and patients away or not let them use the kettle.

- To ensure safety, do not hang up the power cord on the side of table or other similar place.

- Never immerse the kettle in water to allow water to erode the electrical components inside the kettle. Detailed instruction refer to the following "Cleaning

& Descaling".

- If power cord provided is damaged, return it to our manufacturer or our service personnel.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

Using Method

Filling

• Open the lid and fill the kettle.
• Fill water between "MIN" and "MAX" indicated on the water level gauge.
• Close the lid well.

Switching On

• Insert the power plug into the earthed wall socket corresponding with the kettle's requirements.
• Press the on/off switch to “on” (marks “l”), then the indicator lamp will light up, witch means the kettle is under working.

Switching Off

- The kettle can automatically switch off when water has boiled, at the same time, the indicator lamp will go out, and the on/off switch will go back to "off" (marks "0") position.

- Switching off the kettle at any time manually is allowed, that is, you can directly press the on/off switch to "off" (marks "0") position.

Cleaning & Descaling

Cleaning

• Before clean, read the "Important Instruction" carefully.
• Remove the power plug and cool the kettle down.
• Scrub the outside and the base lid of the kettle with a damp cloth, then a dry one instead. Please do not use rough things or else that'll scrape the kettle.
• Both soap solution and cleanser are workable of cleaning the kettle, but strong acid and other erosive cleanser are strictly forbidden.

Descaling

• Descale regularly will make the kettle's life longer.
• Descale the kettle with normal use at least twice a year.
• Add vinegar to "MAX" indicated on the gauge and boiled it.
• Disconnect from the power plug.
• Leave the vinegar in the kettle overnight, then pour it out the next morning.

Fill the kettle with clean water up to “MAX” and boiled again, then remove the remaining scale and vinegar.

- Rinse the inside of the kettle with clean water.

Attention:

DO NOT FORCE THE "ON/OFF" SWITCH BACK TO "ON" (MARK "I") POSITION WHEN IT SWITCH OFF AUTOMATICALLY AS IT WILL DO GRAVE DAMAGES TO THE KETTLE.

If the kettle is over filled, boiling water may be ejected.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

Waste Management

The symbol above and on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life.

The Waste of Electrical and Electronic Equipment (WEEE) Directive (2012/19/EU) has been put in place to recycle products using best available recovery and recycling techniques to minimise the impact on the environment, treat any hazardous substances and avoid the increasing landfill. Contact local authorities for information on the correct disposal of Electrical or Electronic equipment.

Exterior view of a modern glass coffee maker with black handle and water level indicator (no text or symbols on the device itself)

Tension: 220-240V\~50Hz

Puissance: 1800-2200W Max.

Exterior view of a modern glass coffee maker with a black handle and water level indicator (no text or symbols on the device itself)

Voltage: 220-240V\~50Hz

Power: 1800-2200W Max.

Structuurafbeelding

Exterior view of a modern glass coffee maker with a black handle and visible branding (no text or symbols on the device itself)

Exterior view of a modern glass coffee maker with Max 1.8L and 1.2L labels (no additional text or symbols)

Voltaje: 220-240V\~ 50Hz Poder: 1800-2200W Max.

F A C B D H G E
