USER MANUAL WK-1800.1 ELTA

elta® Germany

Exterior view of a modern silver and black water heater with 'eltsi' branding (no additional text or symbols visible)

Exterior view of a modern silver water heater with black handle and brand logo (no text or symbols on body)

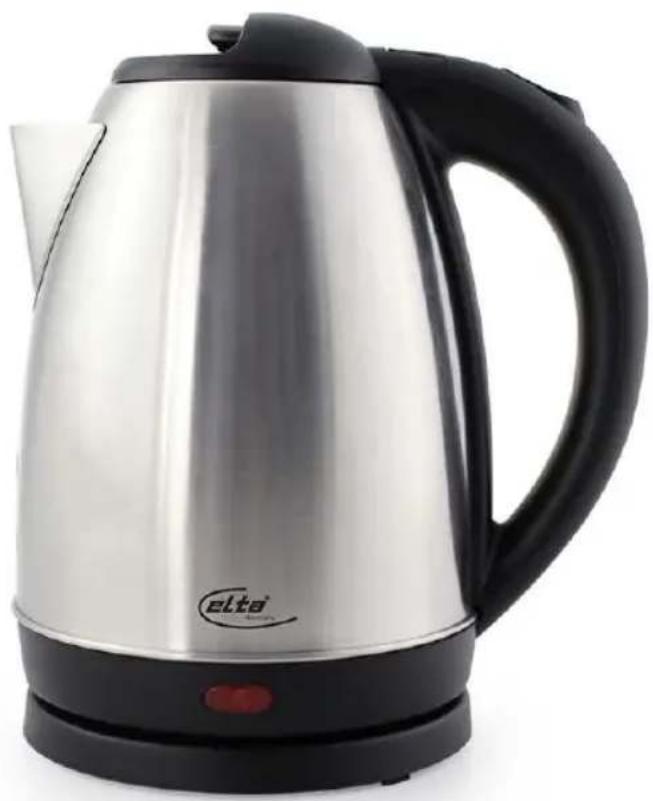

Instruction Manual Water kettle

Exterior view of a modern silver and black water heater with 'elta' branding (no additional text or symbols visible)

Voltage: 220-240V\~ 50/60Hz

Power: 1500-1800W Max.

CE

Before using this kettle, please read this instruction manual completely. Thank you for choosing our products. It is just one of a complete range of cleverly designed, safe and practical products which will help to make your life easier. Please read these instructions carefully to get the best results from this product.

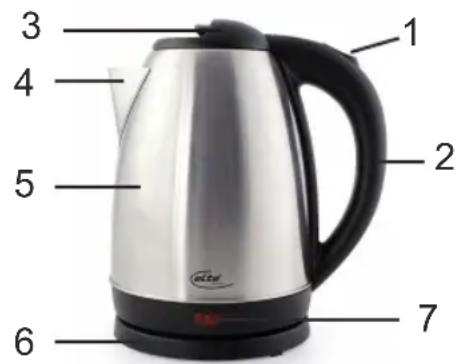

PARTS DESCRIPTION

1. On/Off Switch
2. Handle
3. Hinged lid
4. Spout
5. Boiler body
6. Kettle base
7. Indicator light

1 2 3 4 5 6 7

SAFETY INSTRUCIONS

1. No responsibility is accepted for damage resulting from improper use or non-compliance with the instructions.
2. The kettle is designed for heating water only. Never put any other liquid into the kettle, nor should it use another cooking appliance.
3. Before inserting the main plug into the socket check whether the supply line voltage and current rating are in compliance with the rated electric parameter shown on the kettle label.
4. Keep children away from the kettle which is either in heating or filled with boiling water.
5. Prevent from scalding water or steam.
6. Pour away the very first water boiled with this kettle. Then it is ready for use.
7. Do not touch any part of the kettle except the handle when the kettle is fully filled with boiling water.
8. Pour out the boiling water in one time, in order to enable the temperature of the kettle to decline.
9. Remove the plug from the wall socket never pull on the power cord.

a) after use

b) malfunction comes up

c) before cleaning

1. When removing the plug from the wall socket never pull on the power cord.

1. Regularly clean and scour out the kettle, but can't allow the kettle, especially the heating base, be immersed in water.
2. The appliance must not be immersed in water.
3. This appliance is not intender for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience any knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety;
4. Children should be supervised to ensure that they do not play with the appliance.
5. If the supply cord is damaged, it must be replaced by the manufacture, its service agent or similarly qualified persons in order to avoid a hazard.

1. Filling water

2. The capacity of filled water is limited by the ultimate lime graduated on the kettle body.
   It should not be higher than the max line, nor lower than the minimum line.

3. On filling water, care should be taken to avoid water column flowing on the kettle's outside surface.

4. Placement

5. Place the kettle on a stable flat surface.

6. Never heat the kettle on any wet surface, do not allow water to penetrate the electrical parts inside the kettle

7. Do not position the kettle on or near hot surface or near open flames.

8. Switching on

9. Insert the main plug on the power cord into the wall socket.

10. Please take care that the power cord must be well located any can't be caught on by a passerby.
11. Push the restoring switch.

12. The red indicator lamp brights, it indicates that the kettle is heating.

13. Boiling

14. The kettle is automatically switched off several seconds after the water is boiling.

15. The red indicator lamp goes out as switch off.
16. After the kettle has switch off, it will need sometime to cool down. Almost after 15 seconds, the kettles can be switched on again by manual

restoring. If the red indicator lamp still goes out after pushing the restoring switch, it may be the case that the temperature sensing controller is still in hot condition and time must be taken for re-operating the kettle.

FEATURES

1) Concealed heating element with stainless steel kettle bottom, resulting in convenience to clean.
2) Temperature sensing controller-automatic switch-off when water is boiling.
3) Dry boiling protector-boil-dry safety cutoff.
4) Easy-lift hinged lid.
5) Rotary (360) cordless base lead to the convenience for use.

Waste Management

The symbol above and on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life.

The Waste of Electrical and Electronic Equipment (WEEE) Directive (2012/19/EU) has been put in place to recycle products using best available recovery and recycling techniques to minimise the impact on the environment, treat any hazardous substances and avoid the increasing landfill. Contact local authorities for information on the correct disposal of Electrical or Electronic equipment.

Exterior view of a modern silver water heater with black handle and brand logo (no text or symbols on body)

Tension: 220-240V\~ 50/60Hz

Puissance: 1500-1800W Max.

CE

La directive Waste of Electrical and Electronic Equipment (WEEE)

Exterior view of a modern silver water heater with black handle and brand logo (no text or symbols on body)

Voltage: 220-240V\~ 50/60Hz

Power: 1500-1800W Max.

CE

Exterior view of a modern silver and black water heater with 'elta' branding (no additional text or symbols visible)

Exterior view of a modern silver water heater with black handle and brand logo (no text or symbols on body)

Voltaje: 220-240V\~ 50/60Hz

Poder: 1500-1800W Max.

CE
