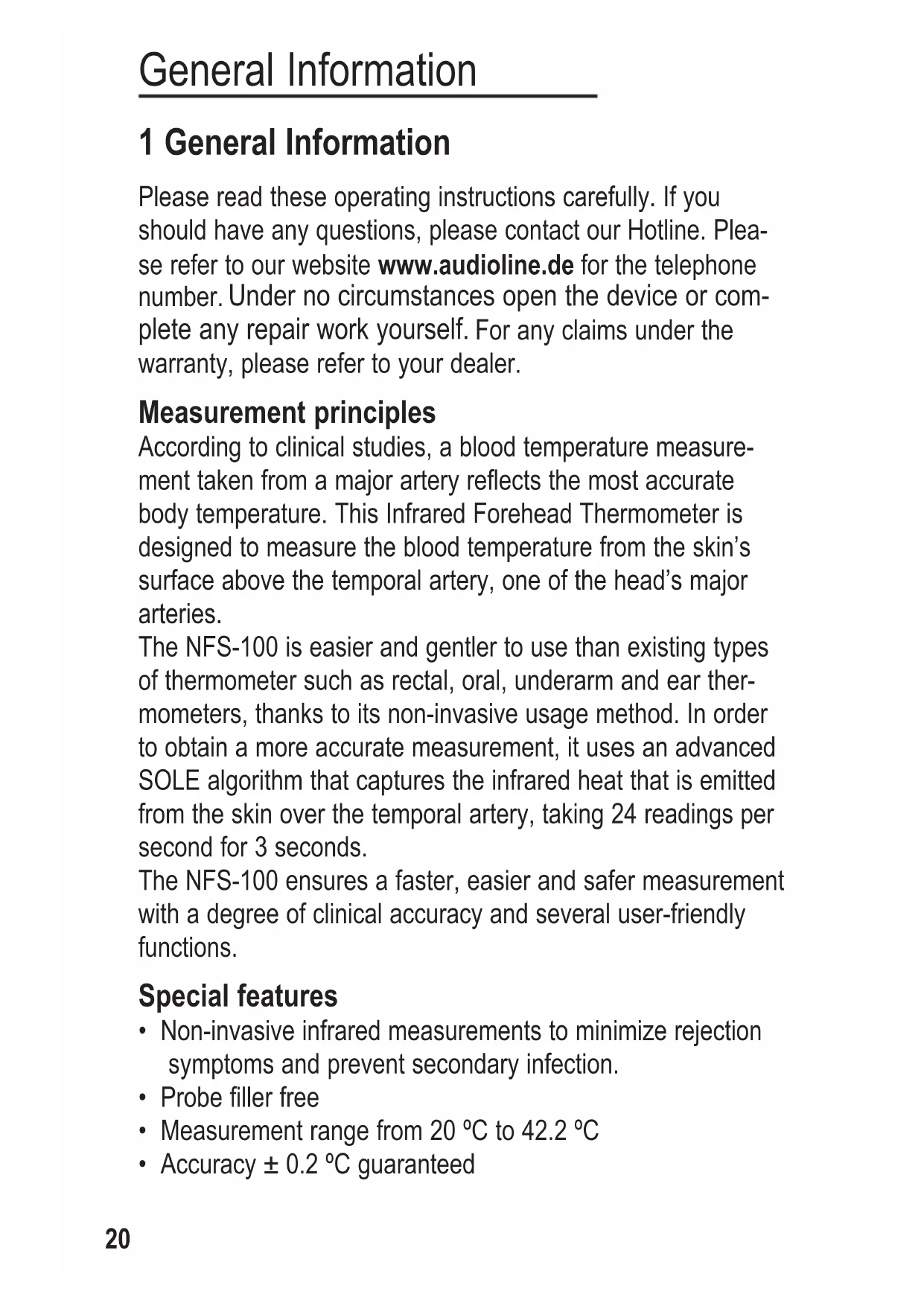

1 General Information

Please read these operating instructions carefully. If you should have any questions, please contact our Hotline. Please refer to our website www.audioline.de for the telephone number. Under no circumstances open the device or complete any repair work yourself. For any claims under the warranty, please refer to your dealer.

Measurement principles

According to clinical studies, a blood temperature measurement taken from a major artery reflects the most accurate body temperature. This Infrared Forehead Thermometer is designed to measure the blood temperature from the skin's surface above the temporal artery, one of the head's major arteries.

The NFS-100 is easier and gentler to use than existing types of thermometer such as rectal, oral, underarm and ear thermometers, thanks to its non-invasive usage method. In order to obtain a more accurate measurement, it uses an advanced SOLE algorithm that captures the infrared heat that is emitted from the skin over the temporal artery, taking 24 readings per second for 3 seconds.

The NFS-100 ensures a faster, easier and safer measurement with a degree of clinical accuracy and several user-friendly functions.

Special features

• Non-invasive infrared measurements to minimize rejection symptoms and prevent secondary infection.

• Probe filler free
  • Measurement range from 20 °C to 42.2 °C
  • Accuracy ± 0.2 °C guaranteed

• Three second measurement time (24 readings per second), re-measurement time of 0.1 second.
  • Stores the 8 most recent data readings
  • Power saving mode after 1 minute of non-use
  • Protective case for safekeeping

• Ergonomic, slim design for convenient usage

Instructions

• Read through this manual before using the product for the first time.
• Only use this product for its intended purpose, as described in this manual.
• A measurement taken by this product does not represent a doctor's medical examination.
• Consult with a doctor if any abnormality is found.
• Do not take temperature readings over scar tissue or open sores.
• Follow the safety instructions when using this product on an infant or baby.
• Use this product in ambient temperatures from 16 °C \~ 40 °C.
• Do not expose this product to temperatures below -20 °C or above 50 °C or to environments with humidity of over 95% (≥ 95%RH).
• Do not drop this product or take temperatures with it when in the vicinity of hot objects/areas such as fireplaces, stoves and boiling water.
• Before taking a temperature, measure the ambient temperature or that of a general object (general mode), check that the user's temperature is within the normal body temperature range (35.8 \~ 38 °C)

General Information

• Follow the cleaning instructions as described in this manual.
• Do not use this product if it is not working properly.
• To change the battery and to clean the device, follow the instructions in this manual.
• If this product is not used regularly, remove the battery to prevent chemical leakage. If the battery leaks, never expose bare skin to the leaked fluid and remove the battery carefully.
• Dispose of used batteries properly.
  • Examine the product regularly.

Note on forehead temperature measurement

To understand how to correctly use this thermometer, please read the manual carefully. It is important to understand the measurement instructions in order to produce an accurate measurement.

Line drawing of a person applying makeup to the forehead (no text or symbols)

Illustration of a person applying a medical or cosmetic tool to their face (no text or symbols visible)

Illustration of a person receiving neck massage or pressure technique (no text or symbols)

• Only measure a side of the forehead that is exposed to the air. Anything covering the area, such as hair, will increase the temperature reading.
• Slide the NFS-100 straight across the forehead, not down the side of the face, which may result in a low reading (Refer to measuring methods).

• If there is perspiration on the forehead, take the temperature behind the ear lobe area. First, push away any hair to expose the area and wait approximately 30 seconds before taking the measurement (Refer to measuring methods).

• It can be difficult to take an infant's temperature because they are usually wrapped up in blankets or clothes. Push aside any clothing or blankets covering the neck area for 30 seconds or so and repeat the measurement. If you feel that the temperature behind the ear lobe is too low, or if there is no perspiration, compare the reading with the forehead temperature reading at least once.

• Sweating causes extra cooling of the skin, which results in an incorrectly low reading. For this reason, it is not recommended to take the temperature after wiping the forehead.
• Wait about 30 seconds before measuring the same area again to prevent excessive cooling of the skin.

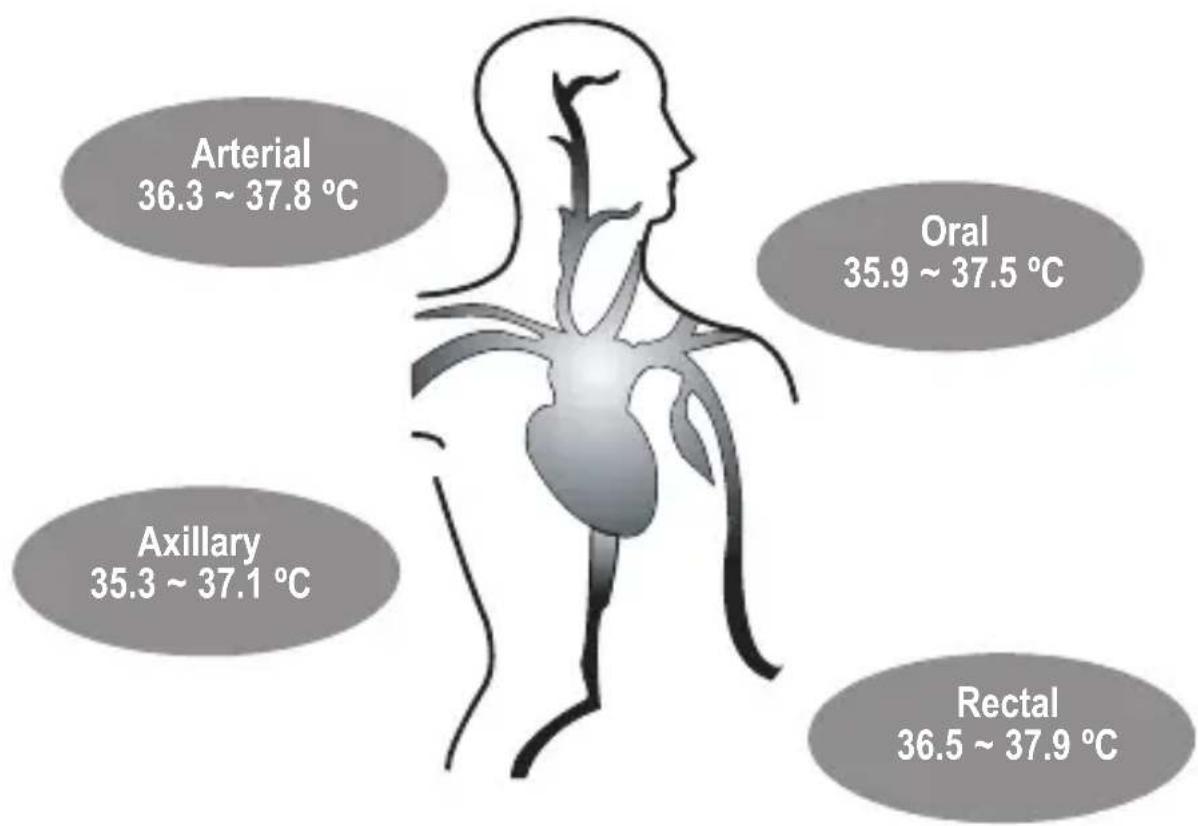

Temperature Ranges

Body temperature means the body's internal temperature. The normal temperature of even a healthy person varies a little within a short range. The temperature of a person measured in the evening is normally 0.5^ higher than in the early morning. It can also be affected by the environment, time and activity. Refer to the picture below to determine the normal body temperature ranges.

GB

Normal temperature range of each part of the body

Armpit 34.7 \~ 37.3 °C

Mouth 35.5 \~ 37.5 °C

Rectum 36.6 \~ 38.0 °C

Ear 35.8 \~ 38.0 °C

Normal temperature according to age

0 \~ 2 years 36.4 \~ 38.0 °C

3 \~ 10 years 36.1 \~ 37.8 °C

11 \~ 65 years 35.9 \~ 37.6 °C

Above 65 years 35.8 \~ 37.5 °C

• As the normal temperature range is different according to each person, it is recommended to first calculate a person's healthy body temperature.
• A forehead reading is normally 1 °C higher than an ear reading.

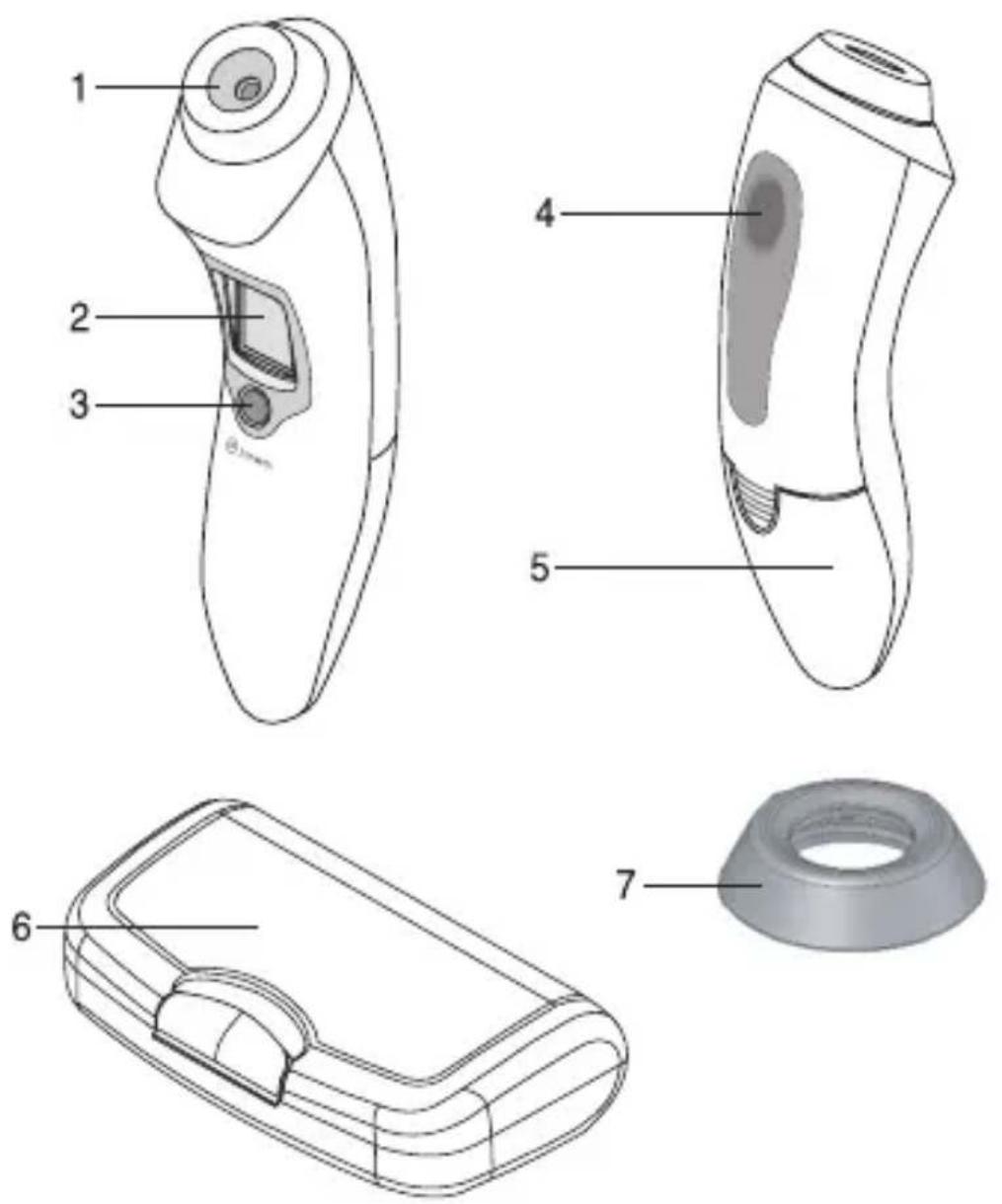

2 Operating Elements

1 Probe
2 LCD Display
3 Power/Memory Button
4 Measurement Button
5 Battery Cover
6 Carrying Case
7 Spare Probe

GB

3 How to use NFS-100

Close-up of a hand pressing a button on a device (no text or symbols visible)

MEM 188.8 °F °C

- - - °C

Line drawing of a hand holding a rectangular object (no text or symbols)

Line drawing of a person applying makeup to their forehead (no text or symbols)

(○) (×)

1. Press ☉/mem button as illustrated.
2. All symbols are displayed on the LCD screen when starting up.
3. When ready, the symbol (_____) appears on the display and the thermometer is ready to use.
4. Gently hold the NFS-100 as illustrated. When starting a measurement, press the measure button once and firmly place the probe flat on the skin.
5. Slowly slide the probe from the middle of the forehead to the hairline, keeping the instrument flat and in contact with skin. You should scan the forehead slowly, just like wiping the skin, for 3 seconds. The measurement should start from the centre of the forehead, with the probe parallel to the eyebrows, toward the temporal area and not down the side of the face. The probe and the forehead should be at right angles to each other.

36.8 ℃

1. You will hear beeping sounds three times per second, a 'bi' sound twice and a "beep" sound when the measurement is finished. The total measurement takes 3 seconds.
2. Read the temperature on the display.
3. A new measurement can be taken after the ready symbol (____.) is displayed on the LCD screen.
4. Automatically shuts off after one minute of non-use.

NOTE

Illustration of a person receiving neck massage or pressure technique (no text or symbols)

- If there is perspiration on the forehead, take the temperature from behind the ear lobe. In this case, disregard point number 5. All of the other points still apply.

• Brush any hair aside if it covers the ear and wait approximately 30 seconds for a more accurate measurement. Gently place the NFS-100 on the neck directly behind the ear lobe and scan following the directions of the arrows over approximately 1 \~ 2 cm of skin as illustrated for 3 seconds.
• You should slide the product until you hear the "beep" sound, which indicates the end of the measurement. It can then be removed from the skin.
• Normally, the artery behind the ear lobe does not provide a sufficiently accurate reading. However, in the case of a fall in skin temperature due to sweating, taking the temperature from behind the ear lobe may give a more accurate reading.

Warning

Many people may not have an elevated temperature even if they are ill. For the following cases, consult with a medical doctor before using this product.

• Babies who are under 90 days old.
• People on steroids, antibiotics or antipyretics.
• People with compromised immune systems.

Caution

• If a child moves while taking its temperature, it will result in an inaccurate measurement because the probe may have lost contact with the skin. Calm them down and try to take the measurement again.
• When taking a forehead measurement, slowly move the product from the starting point to the end point during 3 seconds.
• When taking a second measurement, wait for 30 seconds. A temperature difference between the probe and the skin may result in inaccuracy.
• Similarly to other thermometers, measurement errors may occur within a range of ± 0.1 ± 0.2 °C.
• Measurement should be taken during complete rest in a normal room temperature.
• For accurate measurements, remove any substances or make-up from the forehead.
• The temperature between the right and left forehead may be different. Take temperature readings from the same side.
• Measurements may be incorrect when the low battery ( ) signal is indicated. Replace the battery and take the measurement again.

- When measuring liquids, such as water or milk, place the probe as close to the liquid surface as possible (do not immerse it in liquid).

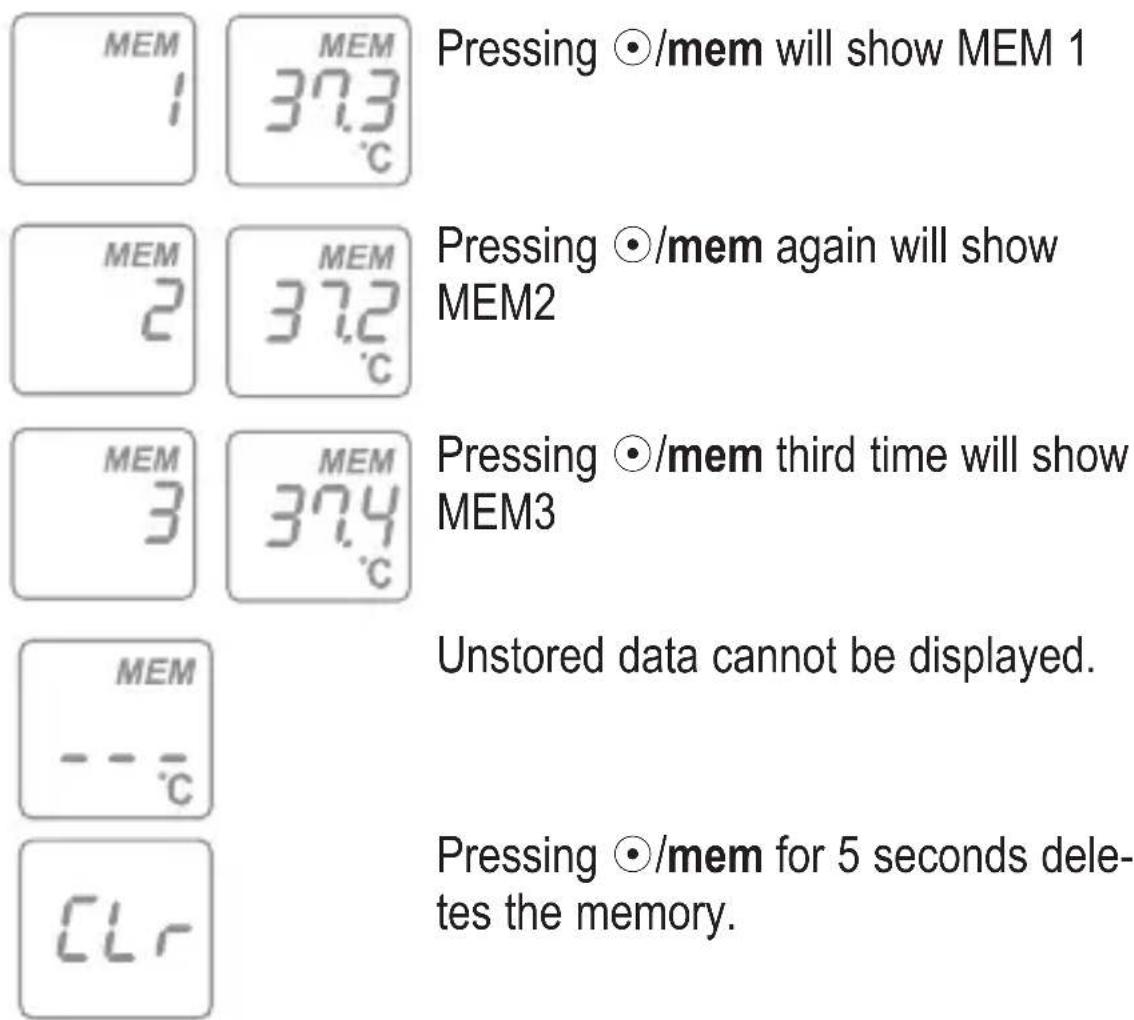

Memory feature

NFS-100 stores a total of 8 readings.

The most recently measured data is automatically stored. To review stored temperatures:

Pressing ⬙/mem will show MEM 1

Pressing /mem again will show MEM2

Pressing /mem third time will show MEM3

Unstored data cannot be displayed.

Pressing ♟/mem for 5 seconds deletes the memory.

GB

Mode change (°C / °F)

Press ♟/mem button and press the measurement button for 2 seconds.

Battery replacement

This product contains one lithium battery when shipped. When the low battery indicator ( ) is displayed on the LCD screen, replace the battery using the following steps:

Close-up of a white pen tip with a black arrow pointing to the tip area (no text or symbols visible)

Press on the lock using a sharp object and open the cover in the direction of the arrow.

Close-up of a mechanical device with a knob and handle (no visible text or symbols)

Insert the new battery with the "+" mark visible. Close the battery cover.

Recycle the used battery to prevent pollution.

Probe replacement

An additional probe is included in the original package. If the probe is contaminated or the probe surface is damaged, please replace the probe. Turn the probe counter-clockwise, holding the product in one hand. The probe is then easily disassembled.

Please contact your nearest distributor or agent to purchase additional probes.

Cleaning and storing

Illustration of a hand using a screwdriver to adjust a circular component (no text or symbols visible)

Abstract line drawing of a curved, spiral-like shape with no text or symbols

• The sensor on the front of the probe is extremely sensitive. For accurate measurements, always keep it clean and protect it from damage.

• Place the sensor facing downwards to prevent any liquid from dropping on the sensor. Carefully clean the sensor using a cotton bud dipped in alcohol. After cleaning, allow at least one hour drying time before taking any measurement.

• Both the exterior and the probe of the product should be cleaned with a soft cloth moistened with alcohol or water.

• Do not place excessive pressure on the probe.
• Do not immerse the product in water or any other liquid.
• Keep the product away from direct sunlight, dust and any contaminating substances.
• Keep the product at a normal room temperature. The operating atmospheric temperature range for this thermometer is 18 °C to 40 °C.
• When exposing the product to an abnormal room temperature, only use the product after keeping it at normal room temperature for 30 minutes.

GB

4 Appendix

Error Indication

	Q: The outside temperature is below 10 °C or above 40 °CA: Place the product where the temperature is between 10 °C and 40 °C for 30 minutes.
	Q: The measured object is above 42.2 °CA: Recheck the measured object before measuring (extremely hot object cannot be measured).
	Q: The measured object is below 20 °CA: Recheck the measured object before measuring (extremely cold object cannot be measured).
	Q: System ErrorA1: Turn off for 1 minute and turn on againA2: Remove and replace the battery and turn on again.A3: Consult the nearest authorized dealer.
	Q: Battery replacement is indicatedA: Replace the battery
	Q: Inactivity due to low battery is indicatedA: Replace the battery
Inaccurate measurements	Q: After bathing or returning homeA: Take time to relax.Q: Measured value is differentA: The probe and forehead must be at right angles to each other.
3 short “bi” sounds	Q: Low battery indication, system error or malfunction.A: Take out the battery and replace it, then tum on the power.

Product specifications

Measurement method Infrared measurement

Measuring time 3 seconds for forehead

Temperature range 20 \~ 42.2 °C

Inaccuracy ±0.2 °C: 20 \~ 42.2 °C

Display type LCD (Liquid Crystal Display)

Memory stores 8 readings

Power save mode Automatic shutdown after 1 minute of non-use

Battery = 3V / CR2032 x 1 EA

(about 6,000 readings)

Dimensions 33 mm (W) x 42 mm (D) x 143 mm (H)

Weight 60 g without battery

Operating condition 16 \~ 40 °C, Humidity: below 95%,

Athmospheric pressure (hPa)

700 \~ 1060

Transport and -20 \~ 50 °C, Humidity: below 95%,

storage condition Athmospheric pressure (hPa)

700 \~ 1060

This product confirms to the provisions of the EC directive 93/42/EEC (Medical Device Directive).

Manufacturer: HuBDIC CO., LTD

B-301, Taekwang-industrial Building, 191-1, Anyang 7-dong, Manan-gu, Anyang-si, Gyeonggi-do, Korea (zip 430-815)

EC REP: Inter KOTRA GmbH

In order to dispose of your device, take it to a collection point provided by your local public waste authorities (e.g. recycling centre). According to laws on the disposal of electronic and electrical devices, owners are obliged to dispose of old electronic and electrical devices in a separate waste container.

The adjacent symbol indicates that the device must not be disposed of in normal domestic waste!

Batteries represent a hazard to both health and the environment! Never open, damage or swallow batteries, nor allow them to get into the environment.

They may contain toxic and ecologically hazardous heavy metals.

You are legally obliged to dispose of batteries at the point of sale or at appropriate collection points provided by your local public waste authorities. Disposal

is free of charge. The adjacent symbols indicate that batteries must not be disposed of in normal domestic waste and but at authorised collection points.

Packaging materials must be disposed of according to local regulations.

Guarantee

AUDIOLINE equipment is produced and tested according to the latest production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble-free functioning and a long service life.

The terms of guarantee do not apply to the batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase.

All deficiencies related to material or manufacturing errors within the period of guarantee will be redressed free of charge. Rights to claims under the terms of guarantee are annulled following tampering by the purchaser or third parties. Damage caused as the result of improper handling or operation, normal wear and tear, incorrect positioning or storage, improper connection or installation or Acts of God and other external influences are excluded from the terms of guarantee. In the case of complaints, we reserve the right to repair defect parts, replace them or replace the entire device. Replaced parts or devices become our property. Rights to compensation in the case of damage are excluded where there is no evidence of intent or gross negligence by the manufacturer.

If your device shows signs of defect during the period of guarantee, please return it to the sales outlet in which you purchased the AUDIOLINE device together with the purchase receipt. All claims under the terms of guarantee in accordance

Appendix

with this agreement can only be asserted at the sales outlet. No claims under the terms of guarantee can be asserted after a period of two years from the date of purchase and hand-over of the product.

Line drawing of a person applying a hair to their forehead (no text or symbols)

Illustration of a hand using a tool to interact with a face, showing a medical or therapeutic procedure (no text or symbols present)

Illustration of a person receiving neck massage or pressure technique (no text or symbols)

Close-up of a hand pressing a button on a vehicle side panel (no text or symbols visible)

MEM 188.8 °F °C

- - - °C

Line drawing of a hand holding a small object (no text or symbols)

Line drawing of a person applying makeup to their forehead (no text or symbols)

(○) (×)

Illustration of a person receiving neck massage or pressure technique (no text or symbols)

Close-up of a white object with a black arrow pointing to a curved edge (no text or symbols visible)

Close-up of a mechanical component with a knob and base, no visible text or symbols

Hand holding a tool inside a circular mechanical component (no text or symbols visible)

Abstract line drawing of a curved, spiral-like shape with no text or symbols

Line drawing of a person applying a hair to their forehead (no text or symbols)

Illustration of a person applying a medical or cosmetic tool to their face (no text or symbols visible)

Illustration of a person receiving neck massage or pressure technique (no text or symbols)

Close-up of a hand pressing a button on a device (no text or symbols visible)

MEM 188.0 °F °C

- - - °C

Line drawing of a hand holding a rectangular object (no text or symbols)

Line drawing of a person applying makeup to their forehead (no text or symbols)

(○) (×)

Illustration of a person receiving neck massage from a medical device (no text or symbols visible)

Close-up of a white pen tip with a black arrow pointing to the tip area (no text or symbols visible)

Close-up of a white cylindrical device with a black top and small component, possibly a brush or tool (no visible text or symbols)

Illustration of a hand using a screwdriver to adjust a circular component (no text or symbols visible)

Abstract line drawing of a curved, spiral-like shape with no text or symbols

In the event of technical problems, you can contact our hotline service. For the telephone number please refer to our website www.audioline.de.
