1 Introduction

Thank you for purchasing the UCOM Twintalker 4700. It's a short range, low powered radio communication device with a range of maximum 3Km . It has no running costs other than the minimal cost of re-charging the batteries.

TheTwinTalker operates on 8 channels. It can be used in any country where the service is authorised as indicated on the packing box and in this manual.

The Twintalker is protected against vertically falling water drops when enclosure tilted up to 15^ according to the IPX2 standard.

2 Intended purpose

It can be used for different professional purposes. For example: support crane operation. It can be used for recreational purposes. For example: to keep in contact during travelling with 2 or more cars, biking, skiing. It can be used to keep in contact with your children when they are playing outside, etc...

3 CE Mark en restrictions

Restriction:

Check the local regulations before using it outside the country where it was purchased. The standard may be prohibited in this country.

The CE symbol on the unit, user guide and giftbox indicates that the unit complies with the essential requirements of the R&TTE directive 1995/5/EC.

The ⑥ symbol next to the CE mark, indicates that the PMR standard is not allowed in all European countries.

PMR is allowed in the next countries:

Belgium, Holland, Germany, Sweden, Denmark, Norway, Finland, Spain, Italy, Portugal, Greece, Czech, Luxemburg, Hungary, Slovakia, Suisse, France, UK, Ireland, Austria, Poland

4 Safety instructions

4.1 General

Please read carefully through the following information concerning safety and proper use. Make yourself familiar with all functions of the device. Keep this manual on a safe place for future use.

4.2 Burning injuries

• If the cover of the antenna is damaged, do not touch because when an antenna comes in contact with the skin, a minor burn may result when transmitting.
• Batteries can cause property damage such as burns if conductive material such as jewellery, keys or beaded chains touches exposed terminals. The material may complete an electrical circuit (short circuit) and become quite hot. Exercise care in handling any charged battery, particularly when placing it inside a pocket, purse or other container with metal objects.

4.3 Injuries

• Do not place your device in the area over an air bag or in the air bag deployment area. Air bags inflate with great force. If a PMR is placed in the bag deployment area and the air bag inflates, the communicator may be propelled with great force and cause serious injury to the occupants of the vehicle.
• Keep the PMR at least 15 centimetres away from a pacemaker.
• Turn your PMR OFF as soon as interference is taking place with medical equipment.

4.4 Danger of explosion

• Do not replace batteries in a potentially explosive atmosphere. Contact sparking may occur while installing or removing batteries and cause an explosion.
• Turn your PMR off when in any area with a potentially explosive atmosphere. Sparks in such areas could cause an explosion or fire resulting in bodily injury or even death.
• Never throw batteries in fire as they may explode.

Areas with potentially explosive atmospheres are often, but not always, clearly marked. They include fuelling areas such as below deck on boats, fuel or chemical transfer or storage facilities; areas where the air contains chemicals or particles, such as grain, dust or metal powders; and any other area where you would normally be advised to turn off your vehicle engine.

4.5 Poisoning danger

• Keep batteries away from small children

4.6 Legal

• In some countries it is prohibited to use your PMR while driving a vehicle. In this case leave the road before using the device.
• Turn your PMR OFF when on board an aircraft when instructed to do so. Any use of the PMR must be in accordance with airline regulations or crew instructions.
• Turn your PMR OFF in any facilities where posted notices instruct you to do so. Hospitals or health care facilities may be using equipment that is sensitive to external RF energy.
• Replacing or modifying the antenna may affect the PMR radio specifications and violate the CE regulations. Unauthorized antennas could also damage the radio.

4.7 Notes

• Do not touch the antenna while transmitting, it could affect the range.
• Remove the battery if the device is not going to be used for a long period.

5 Cleaning and maintenance

• To clean the unit, wipe with a soft cloth dampened with water. Don't use a cleaner or solvents on the unit; they can damage the case and leak inside, causing permanent damage.
• Battery contacts may be wiped with a dry lint-free cloth.
• If the unit gets wet, turn it off and remove the batteries immediately. Dry the battery compartment with a soft cloth to minimize potential water damage. Leave the cover off the battery compartment overnight or until completely dry. Do not use the unit until completely dry.

6 Disposal of the device (environment)

At the end of the product lifecycle, you should not throw this product into the normal household garbage but bring the product to a collection point for the recycling of electrical and electronic equipments. The symbol on the product, user guide and/or box indicate this.

Some of the product materials can be re-used if you bring them to a recycling point. By reusing some parts or raw materials from used products you make an important contribution to the protection of the environment. Please contact your local authorities in case you need more information on the collection points in your area.

7 Using a PMR device

To communicate between PMR devices they need to be set all on the same channel and within receiving range (up to max. 3 km in open field). Since these devices use free frequency bands (channels), all devices in operation share these channels(total 8 channels). Therefore, privacy is not guaranteed. Anybody with a PMR set to your channel can overhear the conversation. If you want to communicate (transmitting a voice signal) you need to press the PTT-button 12.

Once this button pressed, the device will go into transmit mode and you can speak into the microphone. All other PMR devices in range, on the same channel and in standby mode (not transmitting) will hear your message. You need to wait until the other party stops transmitting before you can reply to the message. At the end of each transmission the unit will send a beep. To reply, just press the PTT-button ⑫ and speak into the microphone.

If 2 or more users press the PTT- button at the same time the receiver will receive only the stongest signal and the other signal(s) will be suppressed. Therefore you should only transmit a signal (press PTT- button when the channel is free.

8 Included in the package

• 2 x Twintalker 4700
• 2 x Beltclip
  Use r g uide
• Card with service address and Hotline

9 Getting started

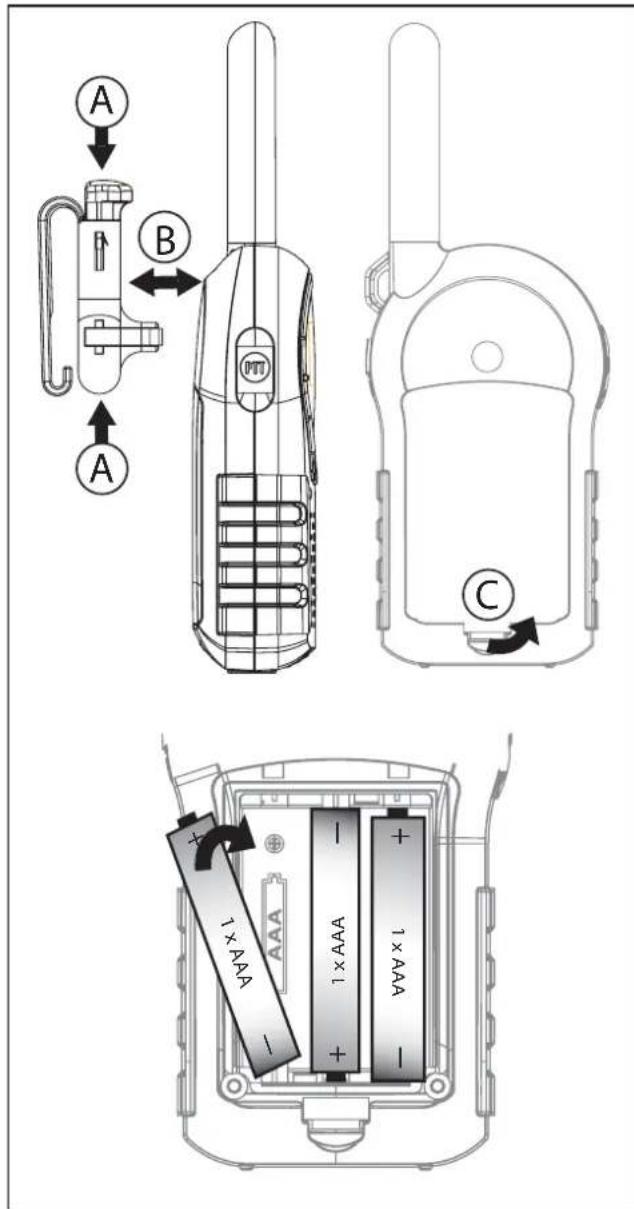

9.1 Installing/Removing the Belt Clip

1. To install the belt clip, align the pin with the hole in the backside. Gently push until it clicks into position.
2. To remove the belt clip from the unit, push the belt clip (A), while pulling the clip away from the unit (B).

9.2 Battery Installation

1. Remove the belt clip (See 9.1).
2. Pull the battery cover tab (C) and gently remove the battery cover.
3. Install three 'AAA' alkaline or rechargeable batteries following the polarity as shown.
4. Re-install the Battery Cover and Belt Clip (See 9.1).

10 Battery Charge Level

The BATTERY CHARGE LEVEL is indicated by the number of squares present inside the BATTERY icon on the LCD Display.

Battery Full
Battery 2/3 charged
Battery 1/3 charged
Battery empty

When the battery charge level is low, a beep will be heard.

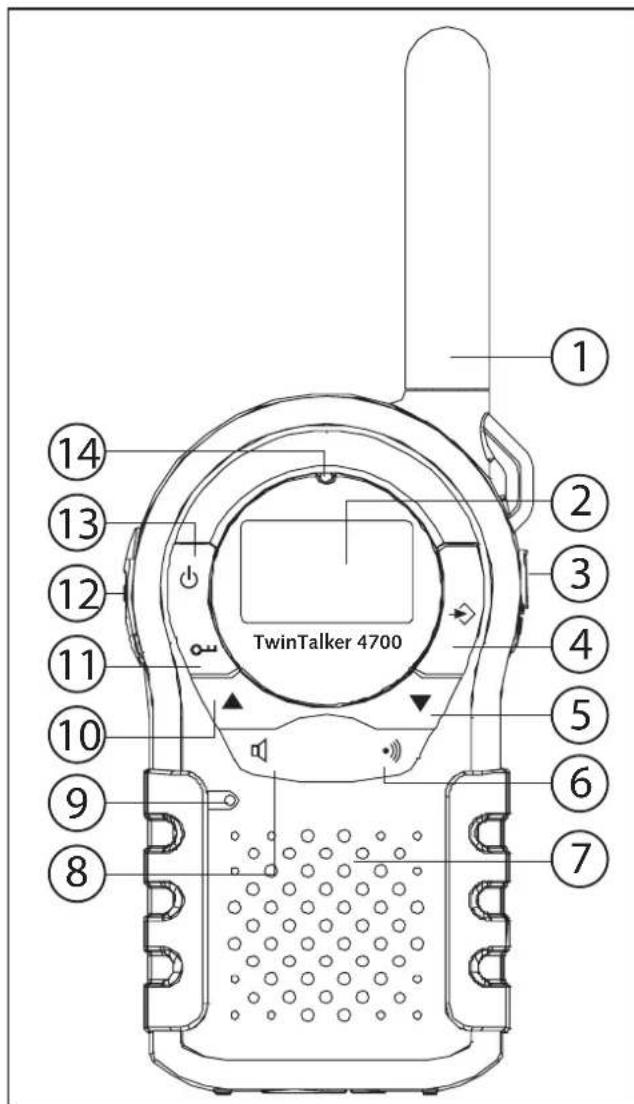

11 Buttons

1. Antenna
2. LCD Display
3. Charger / Earpiece connector

4. MENU

5. Enter the setting menu

6. DOWN button

Decrease the speaker volume
- Select the previous value in the menu.

1. CALL button

2. Speaker

3. SCAN/MONITOR button

4. Microphone

5. UP button

6. Increase the speaker volume

7. Select the next value in the menu.

8. Lock button

9. PUSH TO TALK button
10. ON-OFF button
11. TX LED
12. Burns during transmission

12 LCD Display information

161517 Monitor TX 88 RX 188 APO VOX 21222324

15. Channel number / Volume level indication 16. Monitor icon 17. Roger Beep icon 18. CTCSS code 19. Call Tone icon. Displayed when sending a call tone 20. VOX icon 21. Key pad lock icon 22. Auto Power Off icon 23. Scan icon. Displayed during the CHANNEL SCAN mode. 24. Battery level indication 25. RX icon. Displayed when receiving 26. TX icon. Displayed when transmitting

13 Using the Twintalker 4700

13.1 Turning the Unit ON/OFF

To turn ON:

• Press and hold the - button . The button will "beep" and the LCD display will display the current channel.

To switch OFF

• Press and hold the - button . The 13nit will "beep" and the LCD display will turn blank.

13.2 Adjusting Speaker Volume

• Press the - button in stand-by-mode to increase the speaker volume. The volume level is displayed.

• Press the - button ⑤ to decrease the speaker volume.

13.3 Receiving a Signal

The unit is continuously in the RECEIVE mode when the unit is switched ON and not transmitting.

In order for other people to receive your transmission, they must also be on the same channel and have set the same CTCSS code. (See 13.5)

13.4 Transmitting a Signal

• Press and hold the PTT - button to TRANSMIT. The TX symbol is displayed.
• Hold the unit in a vertical position with the MICROPHONE 10cm from the mouth and speak into the microphone.
• Release the PTT - button when you want to stop transmitting.

To check the channel activity use the monitor function (See 13.11). The maximum transmitting time is limited to 1 minute. Release and press PTT - button restart transmitting.

13.5 Changing Channels

• Press the - button once, the current channel number flashes on the display.
• Press the - button or the0 - button to change the channel.
• Press the PTT - button ⑫ to confirm and return to stand-by mode.

13.6 CTCSS (Continuous Tone Coded Squelch System)

The 2 digit CTCSS code corresponds to a specific tone frequency the radio emits. Two users, with the same channel and CTCSS set can hear one another. They will not be able to hear anyone else on the channel unless the other radios have the same exact CTCSS code enabled. The Twintalker 4700 has 38 CTCSS codes available.

• Press the - button twice, the current CTCSS code flashes on the display.
• Press the - button or the - button to change to another code
• Press the PTT - button ⑫ to confirm and return to stand-by mode.

• Any PMR set on the same channel can receive and listen to the conversation, also when the other use a CTCSS code.
• To disable CTCSS code, set the code to '00'.

13.7 VOX Selection

The PMR is capable of voice activated (VOX) transmission. In VOX mode, the radio will transmit a signal when it is activated by your voice or other sound around you. VOX operation is not recommended If you plan to use your radio in a noisy or windy environment.

• Press the - button 3 times, the current VOX setting flashes on the display and the VOX icon is displayed.
• Press the -button to turn the VOX feature ON. Press the -button again to select the VOX sensitivity level which displayed. Press the button until OFF appears on the display, to turn VOX OFF.
• Press the PTT - button ⑫ to confirm and return to stand-by mode.

13.8 Call Tones

A call tone alerts others that you want to talk.

13.8.1 Sending a call Tone

Press the button briefly. The call tone will be transmitted for 3 seconds on the set channel.

13.8.2 Setting the Call Tone

The Twintalker 4700 has 10 call tones

• Press the - button 4 times, flashes on the display.
• Press the - button or the - button▼ to change to another Call Tone
• Press the PTT - button ⑫ to confirm and return to stand-by mode.

13.9 Roger Beep On/Off

After the PTT - button ⑫ is released, the unit will send out a roger beep to confirm that you have stopped talking.

• Press the - button 5 times, the current Roger Beep setting flashes on the display.
• Press the - button or this - button to enable (6N) or disable (OF) the Roger Beep.
• Press the PTT- button (12) to confirm and return to stand-by mode.

13.10 Automatic Power Off (APO)

To save energy, you can activate the Automatic Power Off function. In case you forgot to Power Off the unit, it will switch Off automatically after the set time.

• Press the - button 6 times, the current Power OFF time flashes on the display.
• Press the - button or the - button to change t5 another Time (0 - 12 hour)
• Press the PTT - button ⑫ to confirm and return to stand-by mode.

13.11 Monitor

You can use the MONITOR feature to check for weaker signals in the current channel.

• Press and hold the -button to activate channel monitoring.
• Release the -button to stop monitoring.

13.12 Channel Scan

CHANNEL SCAN performs searches for active signals in an endless loop from channel 1 to 8 including the CTCSS codes

• Press the - button briefly to activate Channel Scan. The channel scan icon is displayed.
• When an active signal (one of 8 channels) is detected, press the PTT - button fix the channel and starts communicating over the active channel.
• Press the - button or the - button to bypass the current channel and continue to search for another active channel
• Press the PTT - button ⑫ to leave channel scan and return to stand-by mode.

13.13 Button Lock

• Press and hold the - button for 3 seconds to activate or deactivate the BUTTON LOCK mode. The BUTTON LOCK icon is displayed on the LCD Screen.
• Press and hold the - button again (to)deactivate BUTTON LOCK

13.14 Display backlight

To activate the backlight of the LCD display press a button briefly. The LCD backlight will burn for 5 seconds.

14 Connection for optional earpiece and charger

The Twintalker 4700 can be used with an optional external earpiece and charger (not included).

This earpiece and charger with rechargeable battery pack can be ordered at www.ucom.be

Only use the optional AC/DC ADAPTER with the special optional rechargeable battery pack (not included). Do not charge this unit with regular rechargeable AAA or 'LR03'-alkaline batteries installed. Do not connect other accessories (charger and earpiece). This may damage your device.

15 Troubleshooting

No power Clean the battery contacts with a soft cloth. Replace the batteries
No transmission Make sure the PTT- button is pressed ⑫ completely before you speak. Monitor the channel activity and switch to another channel if the current is used.
No reception Check the speaker volume Make sure that you are in the reception range of the sender and change if necessary your location
Limited Range and noise during transmission	The talking range depends on the terrain. Steal constructions, concrete buildings or the use in vehicles have a bad influence on the range. Try to avoid as many obstacles as possible and communicate in a clear line of sight. Change your locations.
Interference The receiver and transmitter are to close. The minimum distance between 2 units is 1,5m.

16 Technical specifications

Channels

Sub-code

Frequency

Range

Batteries

Transmission Power

Modulation Type

Channel spacing

Charger

8

CTCTSS38

446.00625MHz - 446.09375 MHz

Up to 3 Km (Open field)

3 × AAA Alkaline or NiMH rechargeable

= < 500mW ERP

FM-F3E

12,5 kHz

In: 230VAC/50Hz/4VA

Out: 5VDC/130mA(max)

Channel Frequency Chart: C		CSS Code Chart
Channel Frequency (MHz)		Code Frequency (Hz) Code Freq. (Hz) Code Freq. (Hz) Code Freq. (Hz)
1 446,00625 0 Disabled 10	94,8 20	131,8 30	186,2
2	446,01875	1	67,0	11	97,4	21	136,5	31
3	446,03125	2	71,9	12	100,0	22	141,3	32
4	446,04375	3	74,4	13	103,5	23	146,2	33
5	446,05625	4	77,0	14	107,2	24	151,4	34
6	446,06875	5	79,7	15	110,9	25	156,7	35
7	446,08125	6	82,5	16	114,8	26	162,2	36
8	446,09375	7	85,4	17	118,8	27	167,9	37
		8	88,5	18	123,0	28	173,8	38
		9	91,5	19	127,3	29	179,9

17 Service address and hotline support

The service addresses are printed on the extra service card included in the package or can be found on www.ucom.be

18 Declaration of conformity and manufacturer

Topcom Europe Nv.

Grauwmeer 17

3001 Heverlee

Belgium

The declaration of conformity can be found on the last page of this user guide

19 Warranty

19.1 Warranty period

Ucom units have a 36-month warranty period. The warranty period starts on the day the new unit is purchased. Consumables or defects causing a negligible effect on operation or value of the equipment are not covered.

The warranty has to be proven by presentation of a copy of the original purchase receipt, on which the date of purchase and the unit-model are indicated.

19.2 Warranty handling

A faulty unit needs to be returned to an authorized service centre including a valid purchase note. If the unit develops a fault during the warranty period, the service centre will repair any defects caused by material or manufacturing faults free of charge.

The service centre will at its discretion fulfil its warranty obligations by either repairing or exchanging the faulty units or parts of the faulty units. In case of replacement, colour and model can be different from the original purchased unit.

The initial purchase date shall determine the start of the warranty period. The warranty period is not extended if the unit is exchanged or repaired by the appointed service centres.

19.3 Warranty exclusions

Damage or defects caused by incorrect treatment or operation and damage resulting from use of non-original parts or accessories are not covered by the warranty.

The warranty does not cover damage caused by outside factors, such as lightning, water and fire, nor any damage caused during transportation.

No warranty can be claimed if the serial number on the units has been changed, removed or rendered illegible.

13.6 CTCSS (Continuous Tone Coded Squelch System)

13.6 CTCSS (Continuous Tone Coded Squelch System)

13.6 CTCSS (Continuous Tone Coded Squelch System)

DECLARATION OF CONFORMITY

We, TE Nv, Grauwmeer 17, 3001 Heverlee, Belgium, declare that our product :Product name: Twintalker 4700is in compliance with the essential requirements and other relevant provisions of theR&TTE directive 1999/5/EC and carries the CE mark accordingly.Supplementary information:The product complies with the requirements of:Low Voltage Directive 73/23/EEC- EN 60950-1 : 2001Efficient use of frequency spectrum- ETSI EN 300 296-1 V1.1.1 (2001-03)- ETSI EN 300 296-2 V1.1.1 (2001-03)EMC- ETSI EN 301 489-1 V1.4.1(2002-08)- ETSI EN 301 489-5 V1.3.1(2002-08)Date: 13/04/2005.Place: Heverlee, BelgiumName: Verheyden GeertFunction: Technical DirectorSignature:

European contact: Topcom Europe Nv, R&D department, Research Park, Grauwmeer 17,3001 Heverlee, Belgium. Tel : [phone] , Fax : [phone]

TwinTalker 4700
