Product Type	GPS navigation system with touch screen
Brand and model	Pioneer AVIC-F980DAB
Power supply	12 V DC (vehicle battery, negative ground)
Battery compatibility	12 V with negative ground only
Main functions	GPS navigation, Apple CarPlay, Android Auto, audio/video playback, rear view camera, smartphone connectivity
Connectivity	USB ports (x2), HDMI, AUX input, video input, rear video output, rear view camera input
Smartphone compatibility	iPhone (Lightning and 30-pin), iPod, Android via HDMI/MHL/USB
GPS reception	GPS antenna included, indoor or outdoor installation
Audio output	Maximum power: 50 W per channel, impedance 4-8 Ω, mono subwoofer output
Front panel	Retractable LCD panel (depending on model), tiltable
Maintenance and cleaning	Clean with a soft, dry cloth; do not use chemical products
Safety	Parking brake lock for some functions; do not use while driving except navigation
Supplied parts	Product, power cord, GPS antenna, microphone, USB cables (x2), fasteners, metal plate, wire ties, adhesive tape
Repairability	Professional installation recommended; spare parts available from authorized dealer
Dimensions (approximate)	Approximately 178 x 100 x 160 mm (2 DIN standard)
Weight (approximate)	Approximately 1.5 kg
Operating temperature	Avoid high temperatures and humidity; convection necessary
Warranty	Manufacturer's warranty, covers manufacturing defects (excluding improper installation)

Frequently Asked Questions - AVICF980DAB PIONEER

Can I install the Pioneer AVIC-F980DAB myself?

Pioneer recommends installation by a certified professional. Non-professional installation may pose risks of electric shock or damage the product. If you have experience, carefully follow the installation manual.

Which smartphones are compatible with this system?

It is compatible with iPhone (Lightning and 30-pin), iPod, and Android devices via USB, HDMI, or MHL ports. Apple CarPlay and Android Auto are supported.

How to connect a rear view camera?

Connect the light green wire (PARKING BRAKE) and the camera video cable to the designated input. The camera activates automatically in reverse (REVERSE). The image can be mirrored depending on the setting.

Why does the screen display an incorrect position?

Make sure the pink wire (CAR SPEED SIGNAL INPUT) is connected to the vehicle's speed detection circuit. Without it, location errors increase. Also check that the GPS antenna is properly installed.

Can I watch videos while driving?

No, it is illegal in many countries. The product locks video display when the parking brake is not engaged. Navigation remains active for safety reasons.

How to clean the screen and the unit?

Use a soft, dry cloth. Never use solvents, alcohol, or abrasive products as they could damage the surface. Do not spray liquid directly.

What cables are needed to connect an iPhone with Lightning connector?

You need the USB interface cable for iPod/iPhone (CD-IU52) sold separately. For Apple CarPlay, connect the iPhone to USB port 1. For HDMI connection, add a Lightning Digital AV adapter.

What to do if the system does not turn on?

Check the battery connection (12 V) and the fuse. Ensure the ignition switch has an ACC position. If the problem persists, press the RESET button with a pointed object.

Where to install the GPS antenna for better reception?

Install the antenna on a flat surface, preferably on the dashboard or rear shelf, with a clear view of the sky. Avoid cutting or extending the cable. Use the supplied metal plate.

Is the installation manual included?

Yes, the installation manual is provided with the product. It describes in detail the wiring, connections, and mounting. Keep it for future reference.

USER MANUAL AVICF980DAB PIONEER

Precautionsbeforeconnectingthesystem5

Beforeinstallingthisproduct5

Topreventdamage6

-Noticefortheblue/whitelead6

Partssupplied7

Connectingthepowercord(1)8

Connectingthepowercord(2)10

Connectingthesystem12

Connectingoseparatelysoldpower amp13

ConnectinganiPod/iPhoneorangAndroid device14

AttachingidentificationlabelstoUSB cables15

ConnectinganiPhonewithLightning connector15

-ConnectingviatheUSBport (iPhone)15

-ConnectingviatheHDMIport (iPhone)16

-ConnectingviatheRGBinput (iPhone)16

ConnectinganiPhonewith30-pin connector17

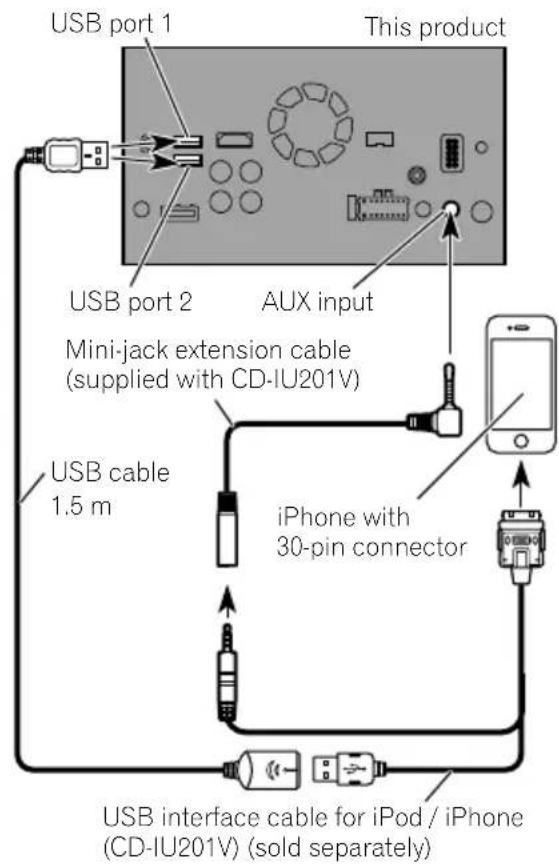

-ConnectingviatheAUXinput (iPhone)17

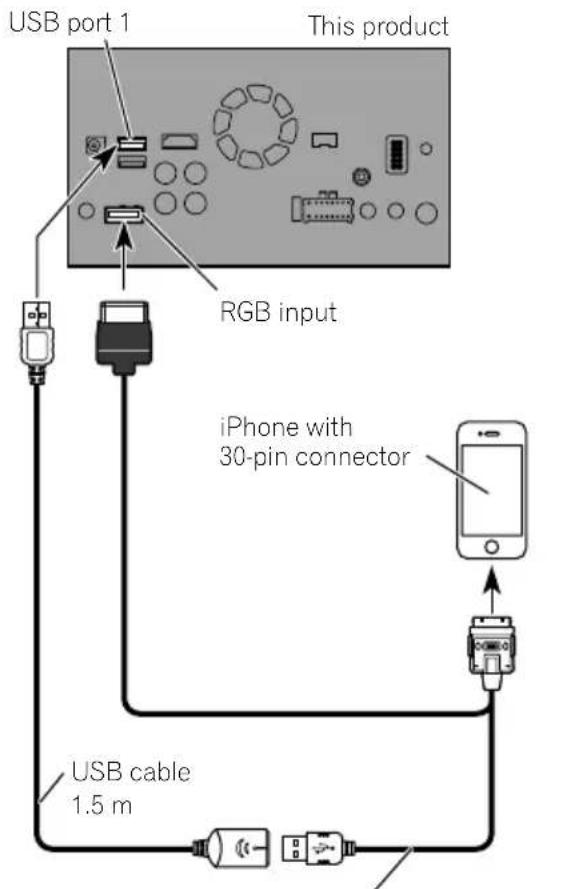

-ConnectingviatheRGBinput (iPhone)18

ConnectingtheAndroid ™ device18

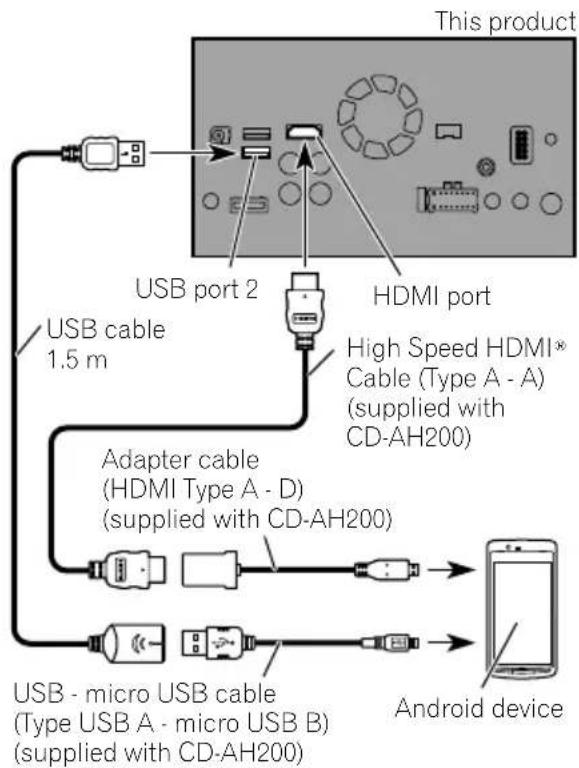

-ConnectingviatheHDMIport(Android device)18

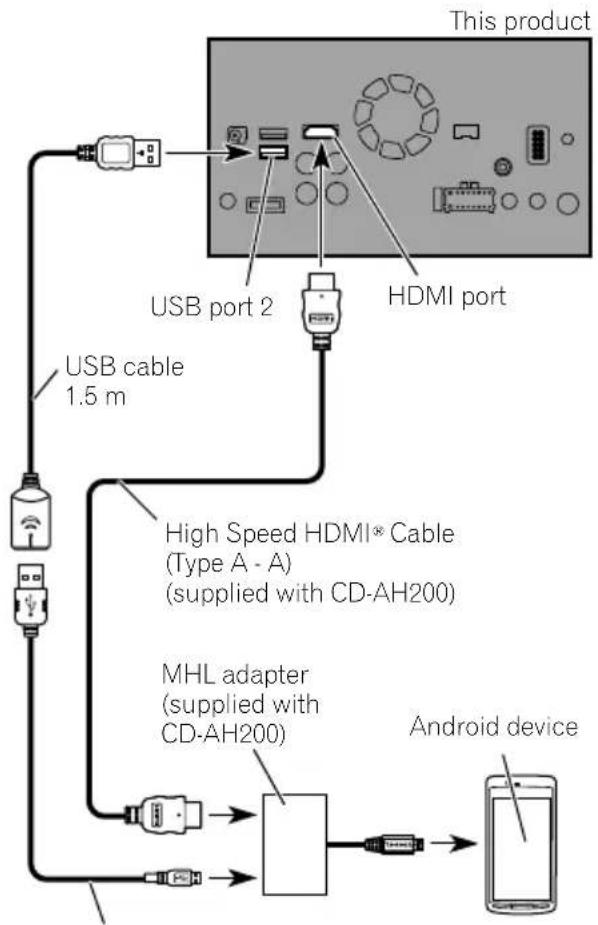

-ConnectingviatheMHLport(Android device)19

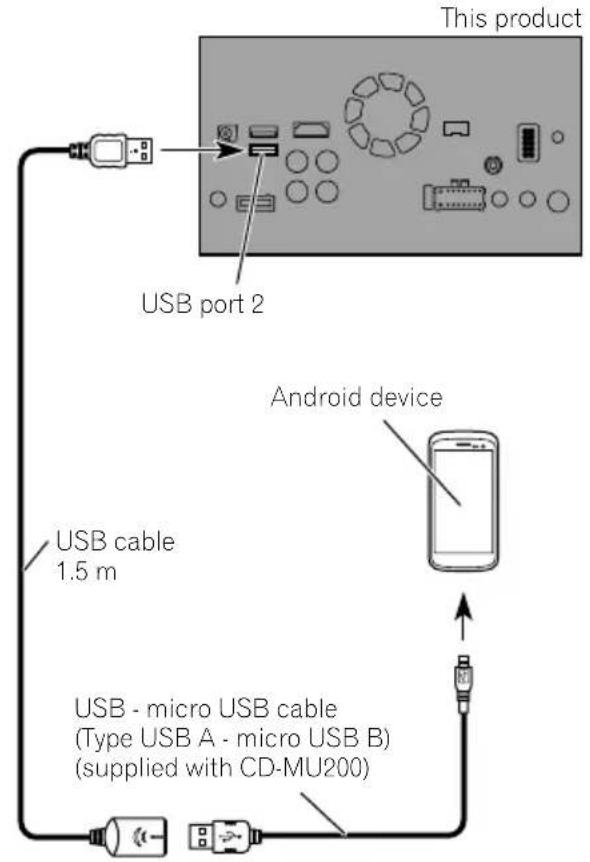

ConnectingviatheUSBport(Android device)19

SecuringtheHighSpeedHDMI Cable20

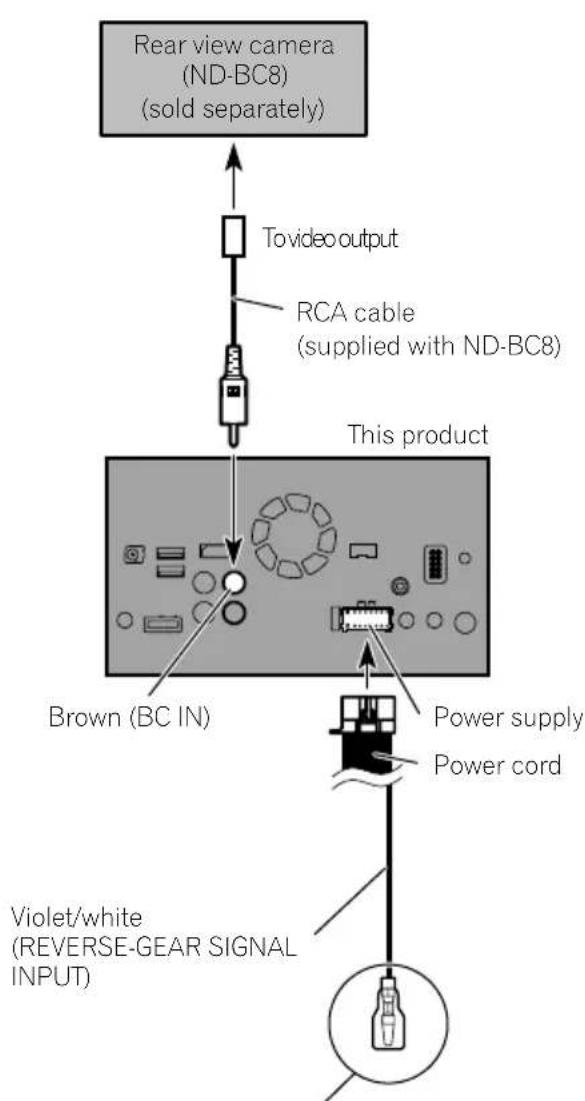

Connectingarearviewcamera20

Connectingtheexternalvideo component21

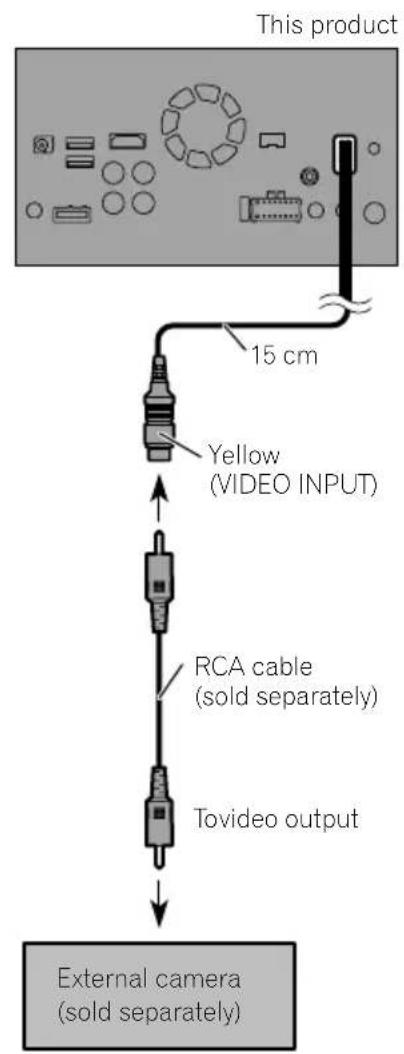

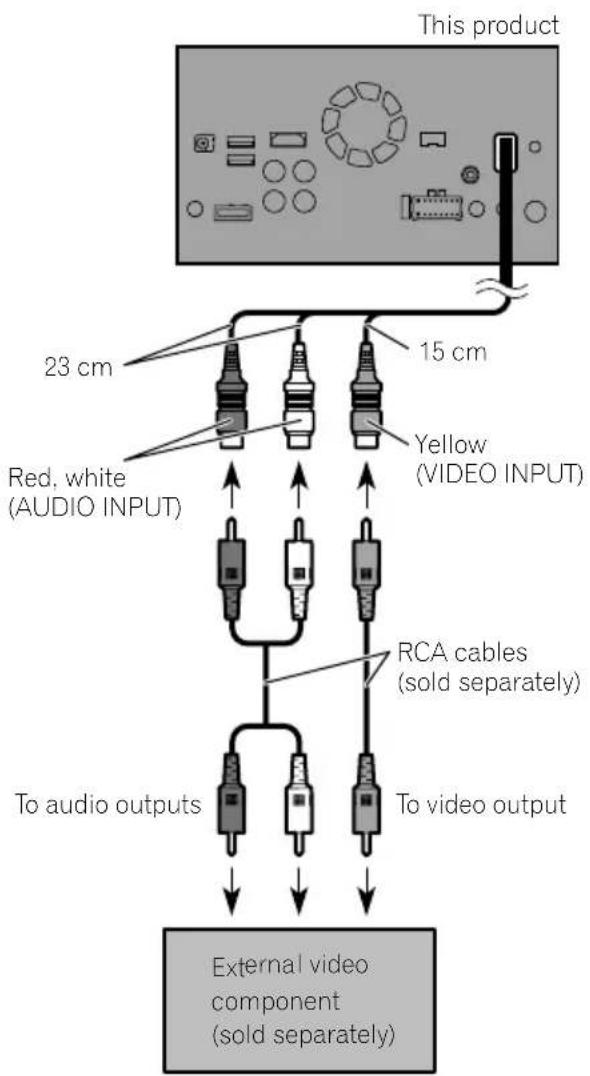

-UsingAVinput21

-UsinganAUXinput22

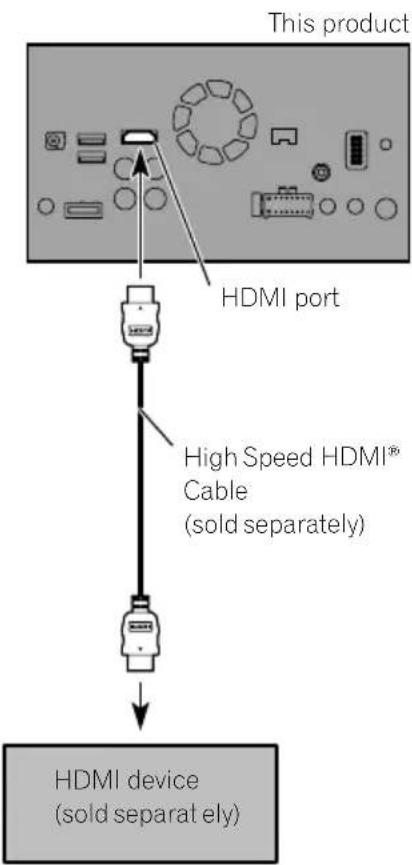

ConnectinganHDMIdevice23

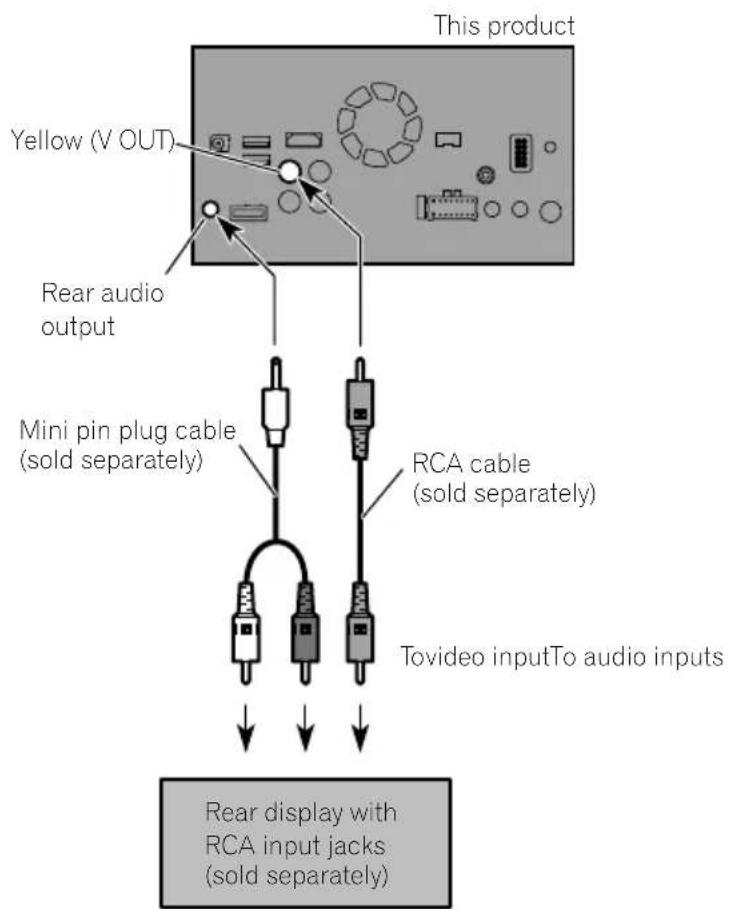

Connectingthereardisplay24

-Whenusingareardisplayconnectedto
rearvideooutput24

Installation

Precautionsbeforeinstallation25

Toavoidelectromagneticinterference25

Beforeinstalling25

-ForAVIC-F88DABandAVIC-F80DAB users26

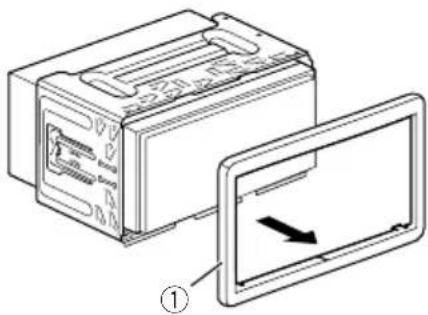

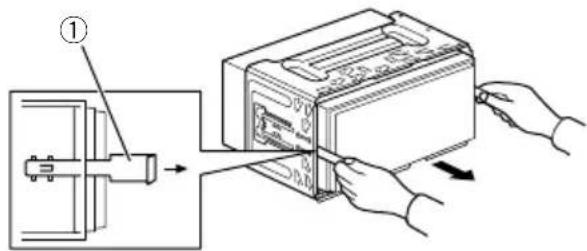

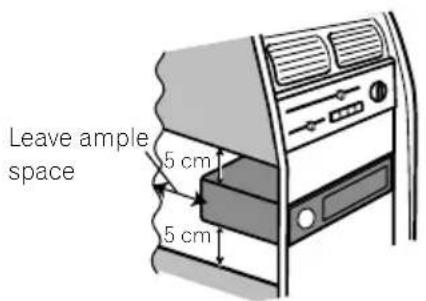

Installingthisproduct26

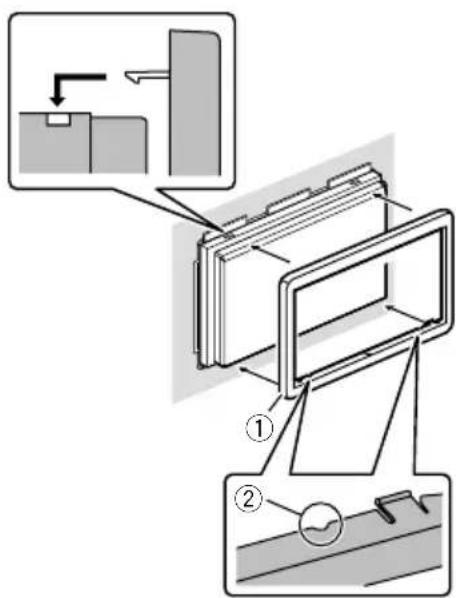

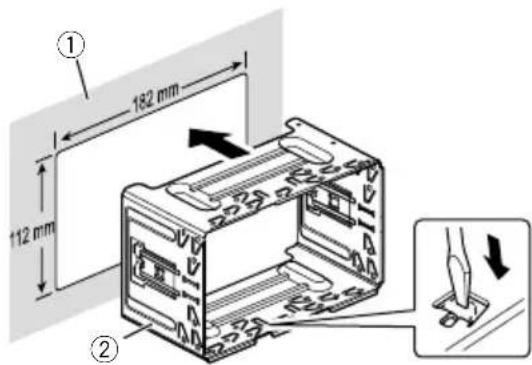

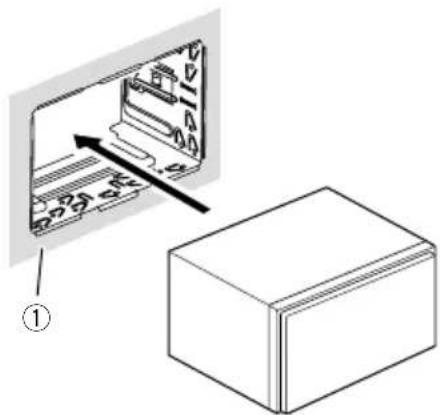

-Installationwiththeholder27

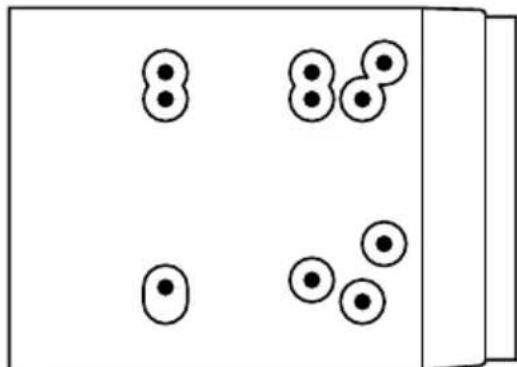

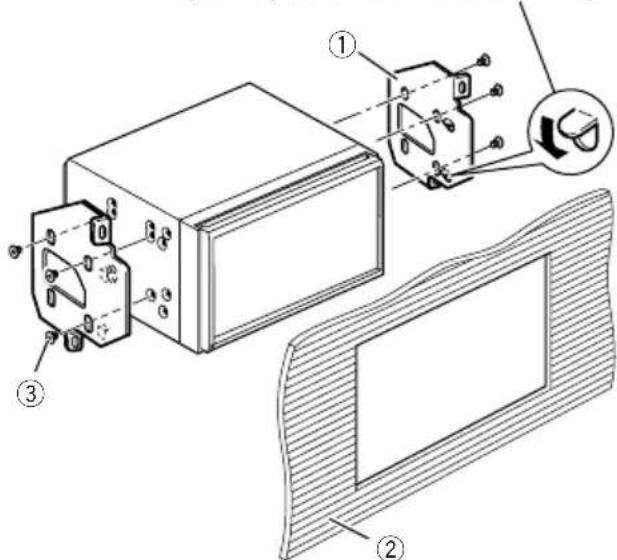

-Installationusingthescrewholeson thesideofthisproduct28

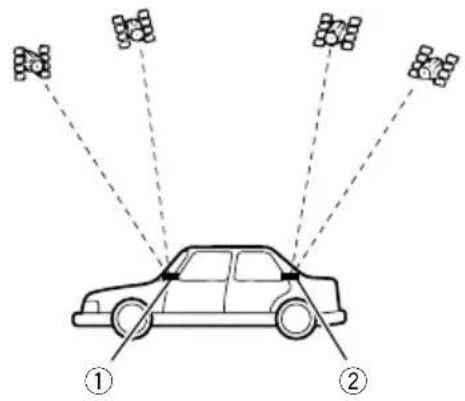

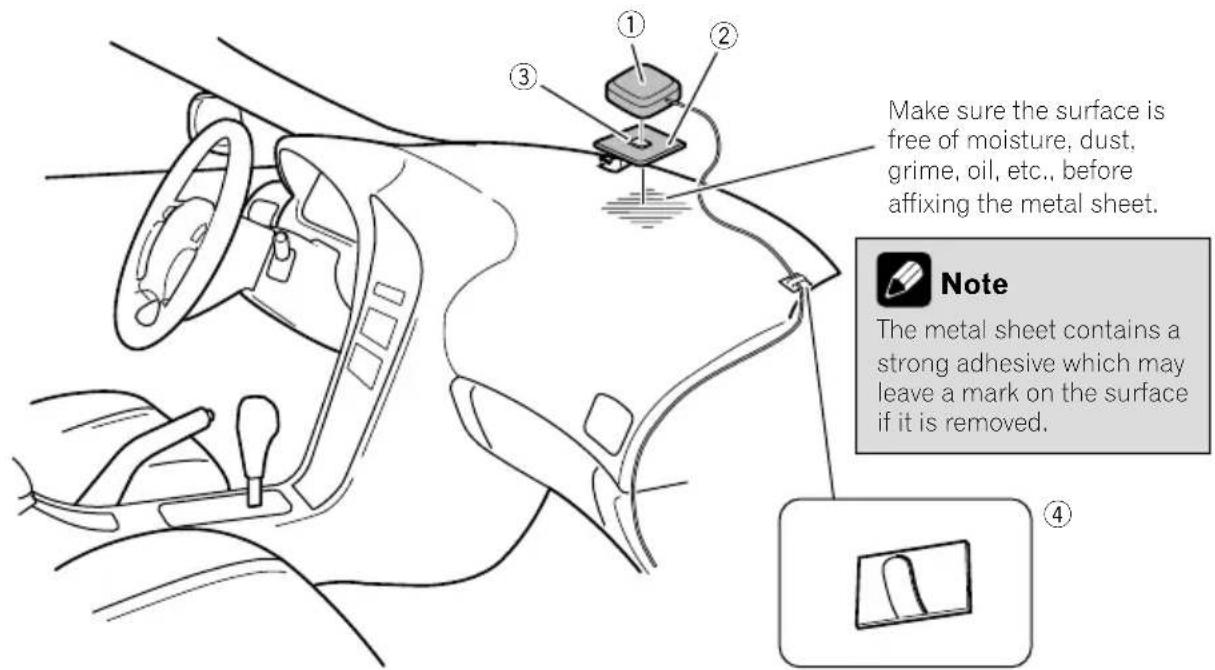

InstallingtheGPSaerial29

-Wheninstallingtheaerialinsidethe vehicle(onthedashboardorrear shelf)30

Installingthemicrophone31

-Partssupplied31

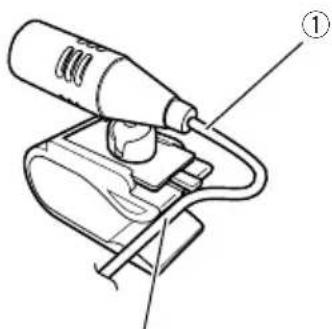

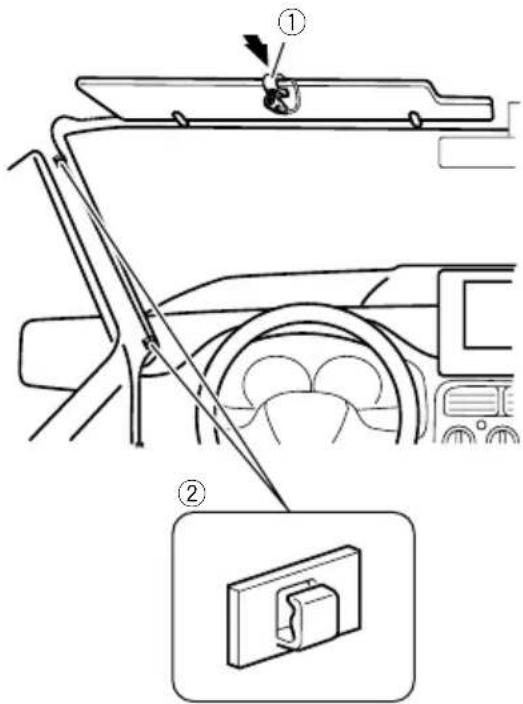

-Mountingonthesunvisor31

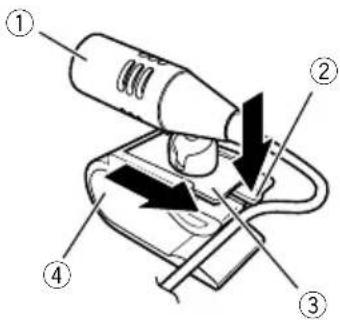

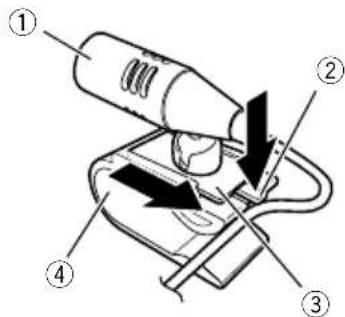

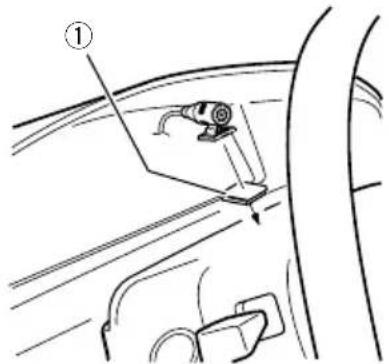

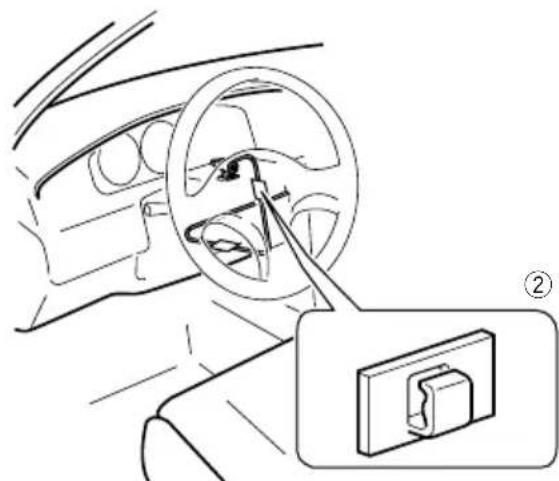

-Installationonthesteeringcolumn32

-Adjustingthemicrophoneangle32

Afterinstallation

Afterinstallingthisproduct33

Yournewproductandthis manual

• Thenavigationfeaturesofthisproduct (andtherearviewcameraoptionifpurchased)areintendedsolelytoaidyouin theoperationofyourvehicle.Itisnotasubstituteforyourattentiveness,judgement andcarewhendriving.
• Neverusethisproducttoroutetohospitals,policestations,orsimilarfacilitiesinanemergency.Pleasecalltheappropriateemergencynumber.
• Donotoperatethisproduct,anyapplications,orthearviewcameraoption(ifpurchased)ifdoingssowilddivertyourattentioninanywayfromthesafeoperationofyourvehicle.Alwaysobservafedrivingsrulesandfollowallexistingtrafficregulations.Ifyouexperienceddifficultyinoperatingthisproductorreadingthedisplay,parkyourvehicleinasafelocationandapplythehandbrakebeforemakingthenecessaryadjustments.
• This manualexplainshowtoinstallthis productinyourvehicle. Operationofthis productisexplainedintheseparatemuals.
• Donotinstallthisproductwhereitmay(i) obstructthedriver'svision,(ii)impairthe performanceofanyofthevehicle'soperatingsystemsofsafetyfeatures,including airbags,hazardlampbuttons,or(iii)impair thedriver'sabilitytosafelyoperatorethevehic1e.Insomecases,itmaynotbepossible toinstallthisproductbecauseofthevehic1eypeortheshapeofthevehicleinterior.
• Modeliconssshowninthismanualindicate thatthedescriptionisintendedforthe modelsindicatedbytheicons. Ifthefollowingiconisshown,thedescriptionisappliedonlytothemodelshown. e.g.)

F88DAB

The graphical symbol placed on the product means direct current.

Important safeguards

WARNING

Pioneerdoesn'trecommendthatyouinstall thisproductyourself.Thisproductdesignedforprofessionalinstallationonly.We recommendthatonlyauthorisedPioneerservicepersonnel,whohavespecialtraining andexperienceinmobileelectronics,setup andinstallthisproduct.NEVERSERVICE THISPRODUCTYOURSELF.Installingor servicingthisproductanditsconnecting cablesmayexposeoutotheriskofelectric shockorotherhazards,andcausedamagetothisproductthatisnotcoveredby warranty.

• Readthismanuallyandcarefullybefore installing this product.
• Keepthismanualhandyforfuturereference.
• Paycloseattentiontoall warningsinthis manualandfollowtheinstructionscarefully.
• Thisproductmayincertaintcircumstances displayinaccuratepositionofyourvehicle, thedistanceofobjectsshownonthescreen,andcompassdirections.Inaddition,thesystemhascertainlimitations,includingtheinabilitytoidifyone-way streets,temporarytrafficrestrictionsand potentiallyunsafedrivingsareas.Pleaseexerciseourownjudgementinthelightof actualdrivingconditions.
• Aswithanyaccessoryinyourvehicle'sinterior, thisproductshouldnotdivertyourattentionfromthesafeoperationofyourvehicleasitmayresultinseriousinjuryordethatyouexperienceddifficultyinoperatingthesystemorreadingthedisplay,pleasemakeadjustmentswhilesafelyparked.
• Pleaseremembertowearyourseatbeltat alltimeswhileoperatingyourvehicle.If youareinanaccident,yourinjuriescanbe considerablymoreseverifyourseatbelt isnotproperlyfastened.

01 (Precautions

• Certain country and government laws may prohibit or restrict the placement and use of this product in your vehicle. Please comply with all applicable laws and regulations regarding the use, installation and operation of this product.

Connection

Precautionsbefore connectingthesystem

WARNING

Donottakeanystepstotamperwithordis- ablethehandbrakeinterlocksystemwhich isinplaceforyourprotection.Tampering withordisablingthehandbrakeinterlock systemcouldresultinseriousinjuryor death.

CAUTION

• Ifyoudecidetoperformtheinstallation yourself,andhavespecialtrainingandexperienceinthemobileelectronicsinstallations,pleasecarefullyfollowallofthestepsintheinstallationmanual.
• Secureallwiringwithcableclampsorelectricaltape.Donotallowanybarewiringtoremainexposed.
• Donotdirectlyconnecttheyellowleadof thisproducttothevehiclebattery.Ifthe leadisdirectlyconnectedtothebattery, enginevibrationmayeventuallycause theinsulationofailatthepointwhere theywirepassesfromthepassengercompartmentintotheenginecompartment.If theyellowlead'sinsulationtearsasaresultofcontactwithmetalparts,short-circuitingcanoccur,resultingin considerabledanger.
• Itisextremelydangeroustoallowcables tobecomewoundaroundthesteeringcolumngearstick. Besuretoinstallthis product,itscables,andwiringawayinsuchsothattheywillnotobstructorhinderdriving.
• Makesurethatthecablesandwireswill notinterferewithorbecomecaughtin anyofthevehicle'smovingparts,especiallythesteeringwheel,gearstick,handbrake,slidingseatacks,doors,oranyof thevehicle'scontrols.
• Donotrouwireswheretheywillbeexposedtohightemperatures.Iftheinsulationheatsup, wiresmaybecome

damaged, resulting in a short circuitor malfunction and permanent damaget to the product.

• DonotcuttheGPSaerialcabletoshorten itoruseanextensionomakeitlonger. Alteringtheaerialcablecouldresultina shortcircuitormalfunction.
• Donotshortanyleads.Ifyoudo,the protectioncircuit(fuseholder,fuseresistororfilter,etc.)mayfailtoworkproperly.
• Neverfeedpowertootherelectronic productsbucuttingtheinsulationof the powersupplyleadofthisproductandtappingintothelead.Thecurrentcapacity of theleadwillbeexceeded,causingoverheating.

Beforeinstallingthisproduct

• Usethisproductwitha12-voltbattery and negativeearthingonly. Failure to dosomay resultina fireormalfunction.

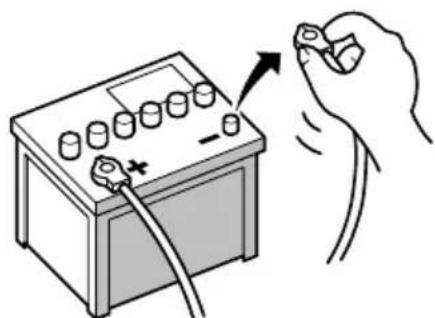

• Toavoidshortsintheelectricalsystem, be suretodisconnectthe(-)batterycablebeforeinstallation.

Topreventdamage

WARNING

• Usespeakersover50W(maximuminput power)andbetween4Ωto8Ω(impedancevalue).Donotuse1Ωto3Ωspeakersforthisproduct.
  Theblackleadisearth.Pleaseearththis leadseparatelyfromtheearthhofhigh-currentproductssuchaspoweramps.Donot earthmorethanoneproducttogether withtheearthfromanotherproduct.For example,youmustseparatelyearthy ampunitawayfromtheearthhofthis product.Connectionearthstogathering can causeafireand/ordamagetheproductsif theirearthsbecamedetached.

• Whenreplacingthefuse,besuretoonly useafuseoftheratingprescribedonthis product.

• Whendisconnectingaconnector, pull the connectoritself.Donotpullthelead, as youmaypullitoutoftheconnector.

• ThisproductcannotbeinstalledinvehiclewithoutACC(accessory)positionontheignitionswitch.

ACCpositionNoACCposition

• Toavoid short-circuiting, coverthedisconnectedleadwithinsulatingtape. Itisespeciallyimportanttoinsulateallunused speakerleads, whichifleultuncoveredmay causeashortcircuit.
• Attachtheconnectorsoftthesamecolour tothecorrespondingcolouredport,i.e., blueconnectortotheblueport,blackto black,etc.

• Refertotheowner's manualfordetailson connectingthepowerampandotherunits, thenmakeconnectionsaccordingly.

• SinceauniqueBPTLCircuitisemployed, donotdirectlyearththe sideofthespeakerleadorconnectthe sideofan-othersideofthespeakerleadtogether.Be suretoconnectthe sideofthespeaker leadtothe sideofthespeakerleadon thisproduct.

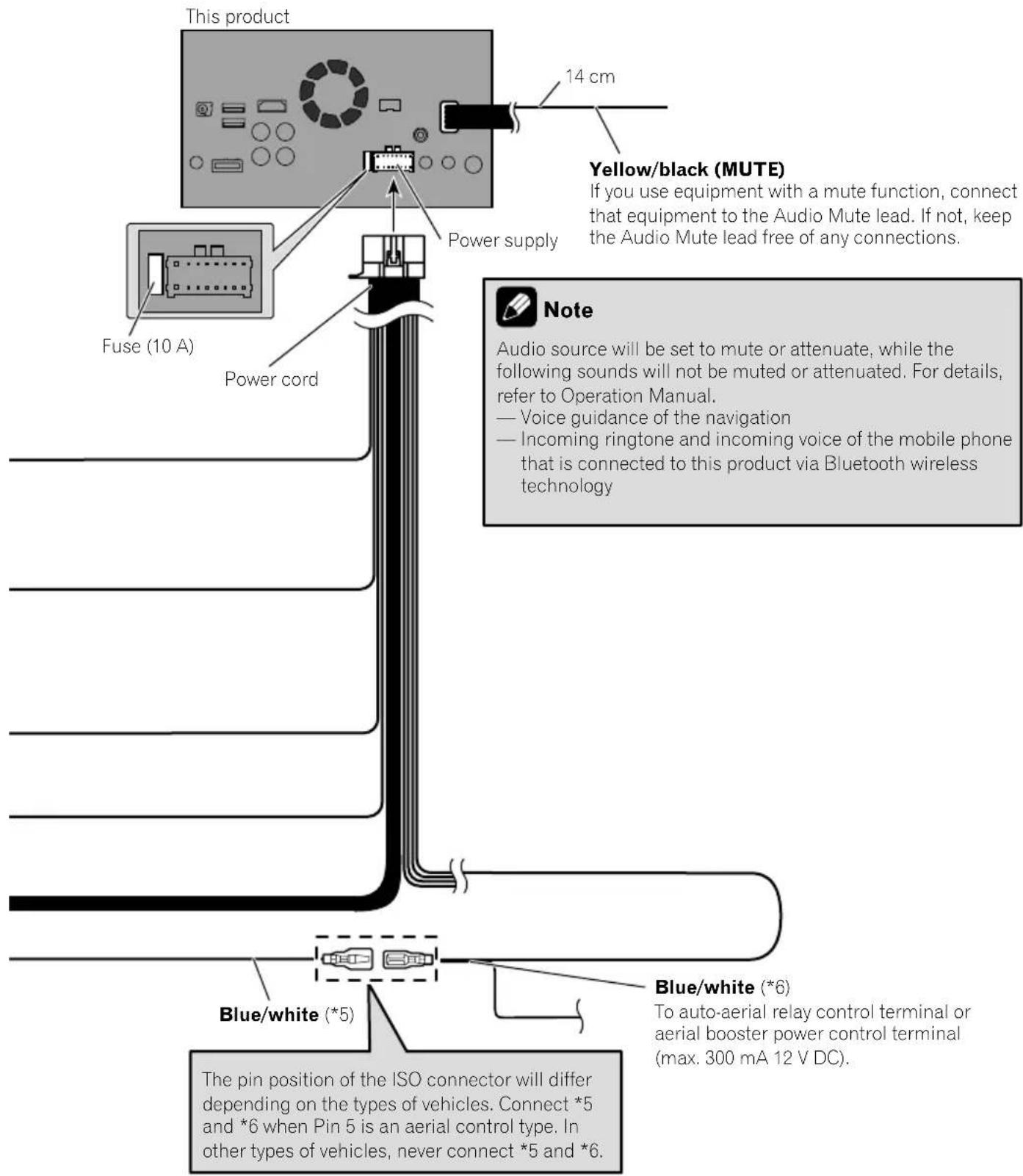

Noticefortheblue/whitelead

Important

Whenthisproductisin"PowerOFF"mode,the controlsignalisalsoturnedoff.If"PowerOFF" modeiscancelled,thecontrolsignalisoutput againandtheaerialisextendedwiththeautoaerialfunction(iftheaerialisbeingused).Becareful sothatthextendederaialdoesnotcomeinto contactwithanyobstacles.

• Whentheignitionswitchisturnedon(ACC ON), a controlsignalisoutputthrough the blue/whitelead. Connecttoanexternal poweramp'systemremotecontrolterminal, theauto-aerialrelaycontrolterminal, ortheaerialboosterpowercontrolterminal (max.300mA12VDC). The controlsignal isoutputthroughtheblue/whitelead, even if theaudiosourceisswitchedoff.
• Besurenottousethisleadasthepower supplyleadfortheexternalpoweramps. Suchconnectioncouldcauseexcessive currentdrainandmalfunction.
• Besurenottousethisleadasthepower supplyleadfortheauto-aerialoraerial booster.Suchconnectioncouldcauseexcessivecurrentdrainandmalfunction.

Connection

Partssupplied

ThisproductPowercord

GPSaerialMicrophone

USBcableidentificationlabels

USBcable (2pcs.)

Locktie1VehicleBusconversion cable2

MetalsheetClamp(3pcs.)
Double-sidedtape

Notes

(^1) ThesepartsaresuppliedwithAVICF88DAB.
(^2) ThesepartsaresuppliedwithAVICF88DAB,AVIC-F80DABandAVICF980DAB.

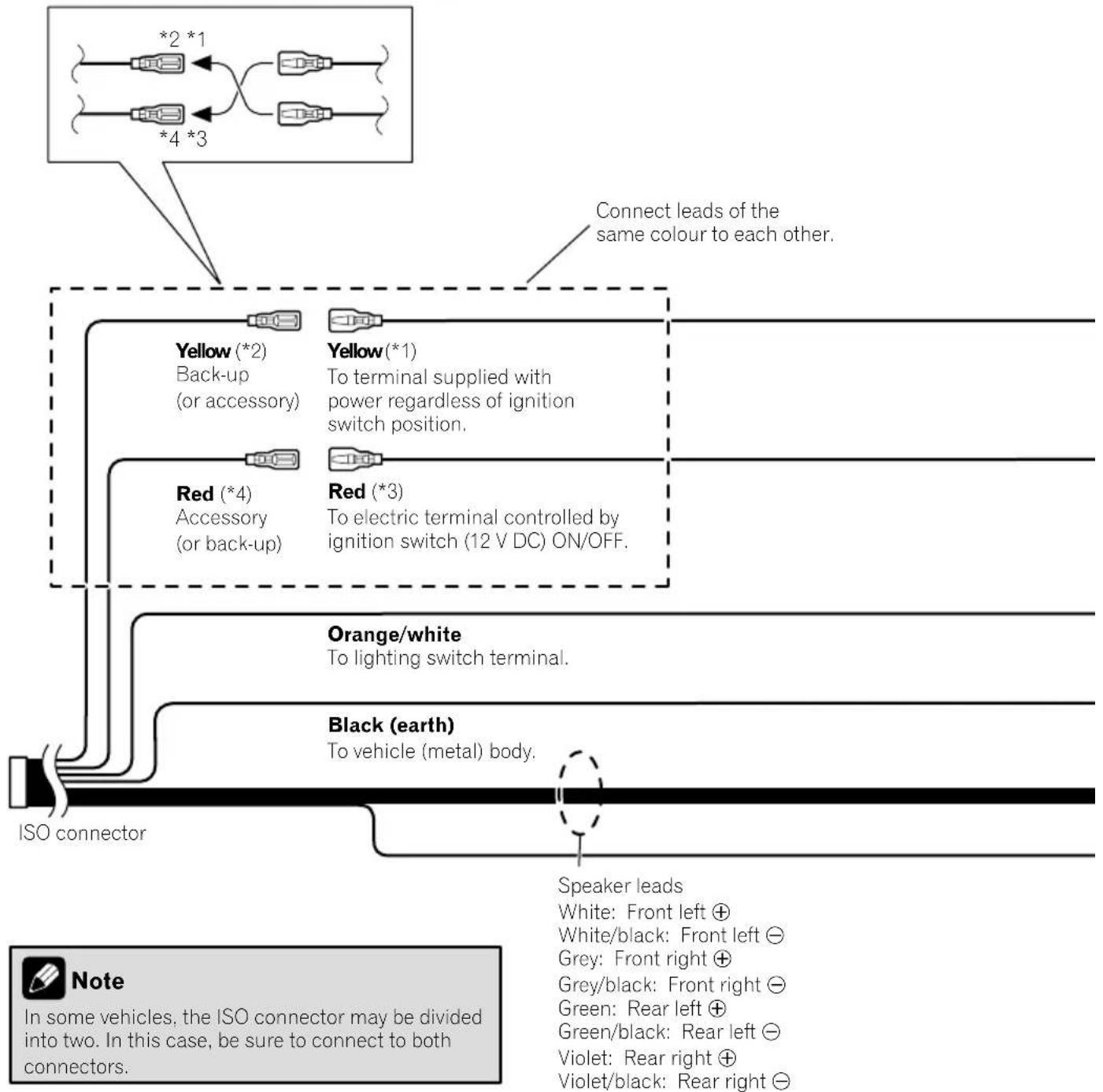

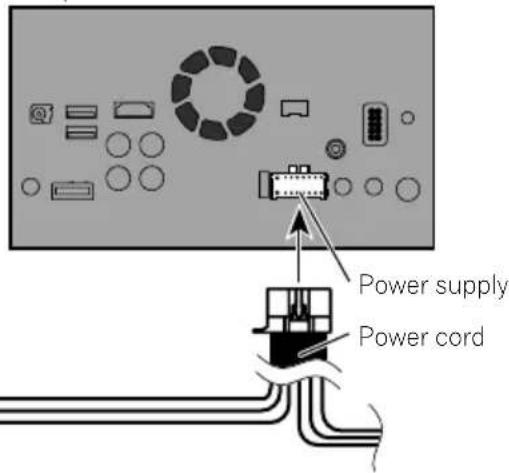

Connectingthepowercord(1)

Note

Depending on the types of vehicles, the function of 2 and 4 may be different. In this case, be sure to connect 1 to 4 and 3 to 2 as shown in the figure.

Connection

Connectingthepowercord(2)

Pink (CAR SPEED SIGNAL INPUT)

This product is connected here to detect the distance the vehicle travels. Always connect the vehicle's speed detection circuit. Failure to make this connection will increase errors in the vehicle's location display.

WARNING

IMPROPER CONNECTION MAY RESULT IN SERIOUS DAMAGE OR INJURY INCLUDING ELECTRICAL SHOCK, AND INTERFERENCE WITH THE OPERATION OF THE VEHICLE'S ANTILOCK BRAKING SYSTEM, AUTOMATIC GEARBOX AND SPEEDOMETER INDICATION.

CAUTION

It is strongly suggested that the speed pulse wire be connected for accuracy of navigation and better performance.

Note

The position of the speed detection circuit and the position of the handbrake switch vary depending on the vehicle model. For details, consult your authorised Pioneer dealer or an installation professional.

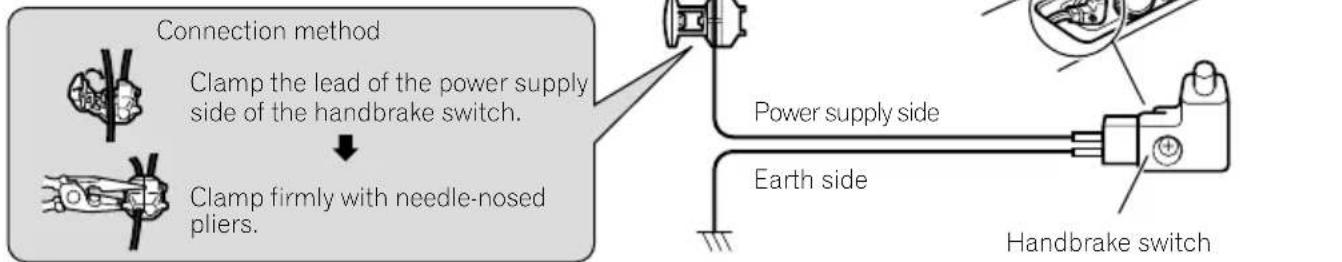

Light green (PARKING BRAKE)

Used to detect the ON/OFF status of the handbrake. This lead must be connected to the power supply side of the handbrake switch.

If this connection is made incorrectly or omitted, certain functions of this product will be unusable.

WARNING

LIGHT GREEN LEAD AT POWER CONNECTOR IS DESIGNED TO DETECT PARKED STATUS AND MUST BE CONNECTED TO THE POWER SUPPLY SIDE OF THE HANDBRAKE SWITCH. IMPROPER CONNECTION OR USE OF THIS LEAD MAY VIOLATE APPLICABLE LAW AND MAY RESULT IN SERIOUS INJURY OR DAMAGE.

Connection

This product

Violet/white (REVERSE-GEAR SIGNAL INPUT)

This is connected so that this product can detect whether the vehicle is moving forwards or backwards. Connect the violet/white lead to the lead whose voltage changes when the reverse gear is engaged. Unless connected, the sensor may not detect your vehicle travelling forward/backward properly, and thus the position of your vehicle detected by the sensor may be misaligned from the actual position.

Note

When you use a rear view camera, please make sure to connect this lead. Otherwise you cannot switch to the rear view camera picture.

Connectingthesystem

WARNING

• To avoid the risk of accident and the potential violation of applicable laws, this product should never be used while the vehicle is being driven except for navigation purposes. And, also rear displays should not be in a location where it is a visible distraction to the driver.
• In some countries, the viewing of images on a display inside a vehicle even by persons other than the driver may be illegal. Where such regulations apply they must be obeyed and this product's video source should not be used.

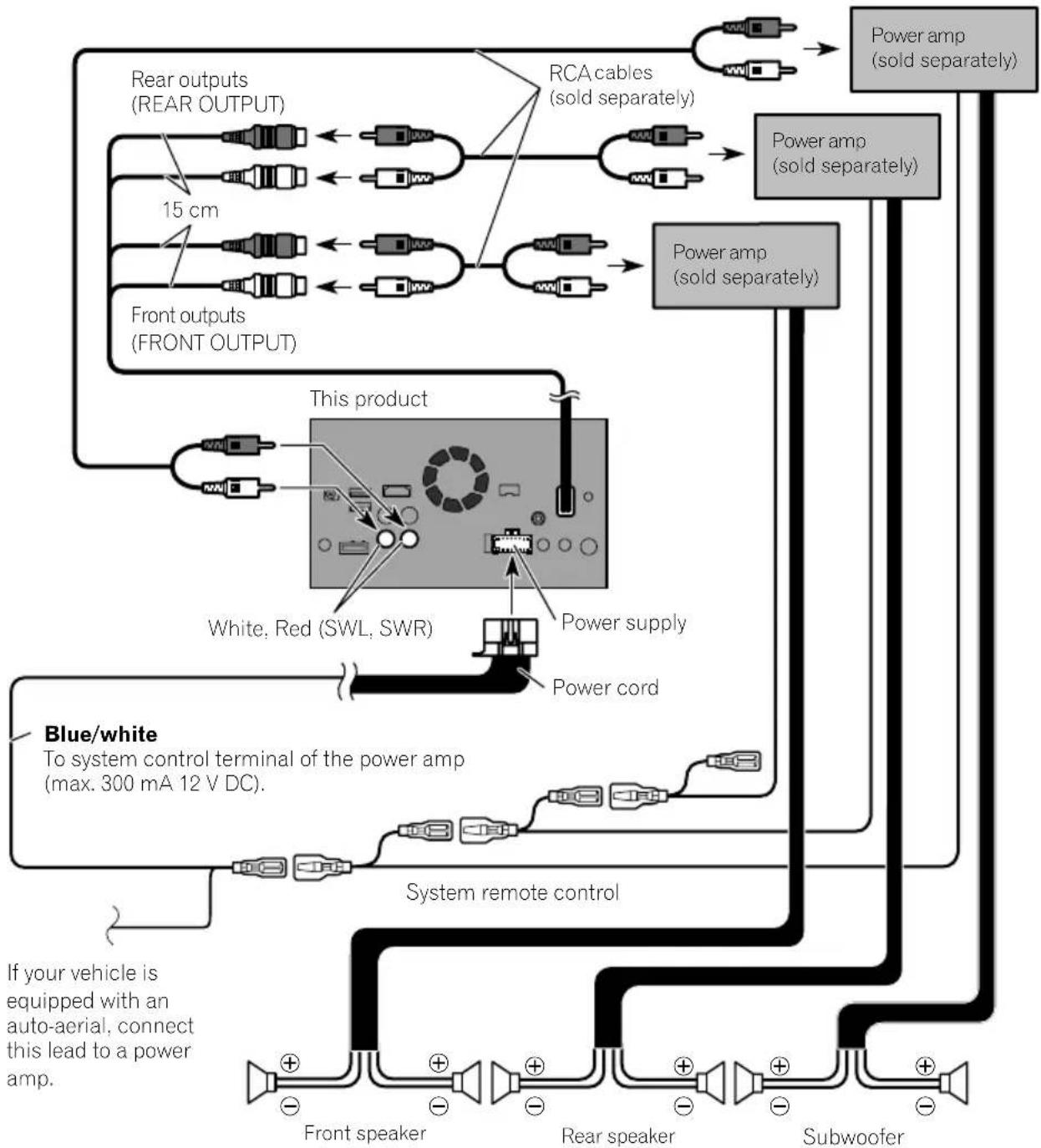

Connectingoseparatelysoldpoweramp

Notes

• You can change the RCA output of the subwoofer depending on your subwoofer system. (Refer to Operation Manual.)
• The subwoofer output of this product is monaural.

ConnectinganiPod/iPhoneorangAndroiddevice

Findourdeviceandthefunctionyouwanttooperatefromthelistbelow,andrefertothepagefortheconnection.

Dependingonthedevic,somefunctionsmaynotbeavailable.

iPhone(5,5c,5s,6,6Plus)/iPodtouch(5thgeneration)
iPod.audio
AppleCarPlay	RefertoConnectingviatheUSBport(iPhone)onpage15.
AVICSYNCApp
AppRadioMode	F88DAB
	RefertoConnectingviatheHDMIport(iPhone)onpage16.
AVICSYNCApp	F80DABf 980DAB F980BT F9880DAB F9880BT
	RefertoConnectingviatheRGBinput(iPhone)onpage16.
iPhone3GS/iPodtouch(2nd,3rdgeneration)/iPodclassic(80GB,160GB)/iPodnano(3rd,4th,5th,6th generation)
iPod.audio	RefertoConnectingviatheAUXinput(iPhone)onpage17.
iPod(video)
iPhone(4,4s)/iPodtouch(4thgeneration)
iPod.audio
iPod(video)	RefertoConnectingviatheRGBinput(iPhone)onpage18.
AppRadioMode
AVICSYNCApp
iPodnano(7thgeneration)
iPod (audio)	Refer to Connecting via the USB port (iPhone) on page 15.
Androiddevice
F88DAB	HDMIport
AppRadioMode	RefertoConnectingviatheHDMIport(Androiddevice)onpage18.
AVICSYNCApp	MHLport
	RefertoConnectingviatheMHLport(Androiddevice)onpage19.
F88DAB F80DAB
AndroidAuto	RefertoConnectingviatheUSBport(Androiddevice)onpage19.
AVICSYNCApp

Attachingidentification labelstoUSBcables

AttachidentificationlabelstoUSBcablesbeforeinstallingthisproductinvehicle.

1ConnectUSBcablestotheUSBport1 and2ontherearofthisproduct.

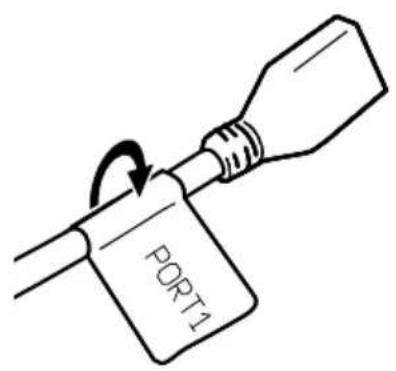

2AttachtheidentificationlabelscorrespondingtoeachporttotheUSBcablesas illustratedbelow.

Attachthe"PORT1"labeltotheUSBcable connectedtotheUSBport1.
Attachthe"PORT2"labeltotheUSBcable connectedtotheUSBport2.

ConnectinganiPhonewith Lightningconnector

• Fordetailsonhowtoconnectanexternal deviceusingaseparatelysoldcable,refertothe manualforthecable.
• Fordetailsconcerningtheconnection, operationsandcompatibilityofiPhone,refertoOperationManual.

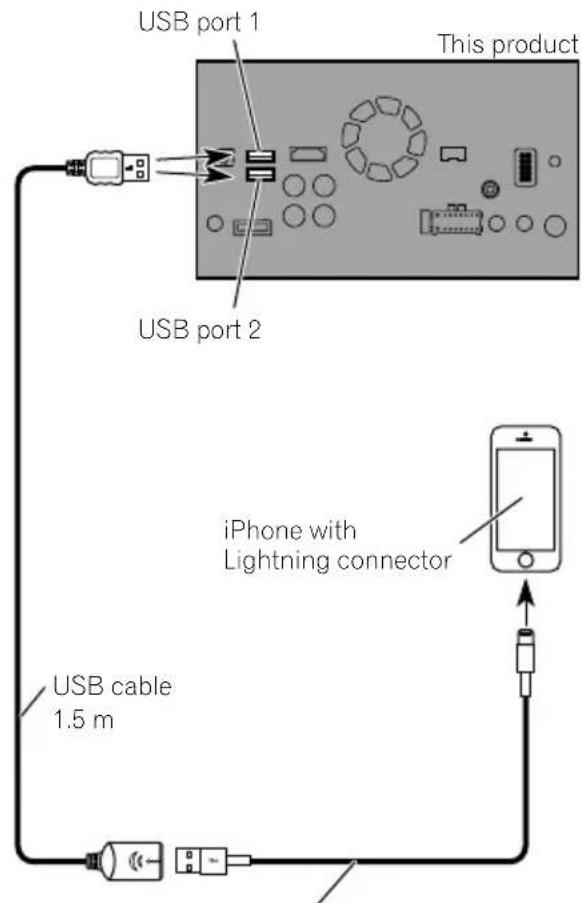

ConnectingviatheUSBport (iPhone)

TheUSBInterfacecableforiPod/iPhone(CD-IU52)(soldseparately)isrequiredforthecom- nnection.
- When using Apple CarPlay, connect the iPhone to USB port1.

USB interface cable for iPod / iPhone (CD-IU52) (sold separately)

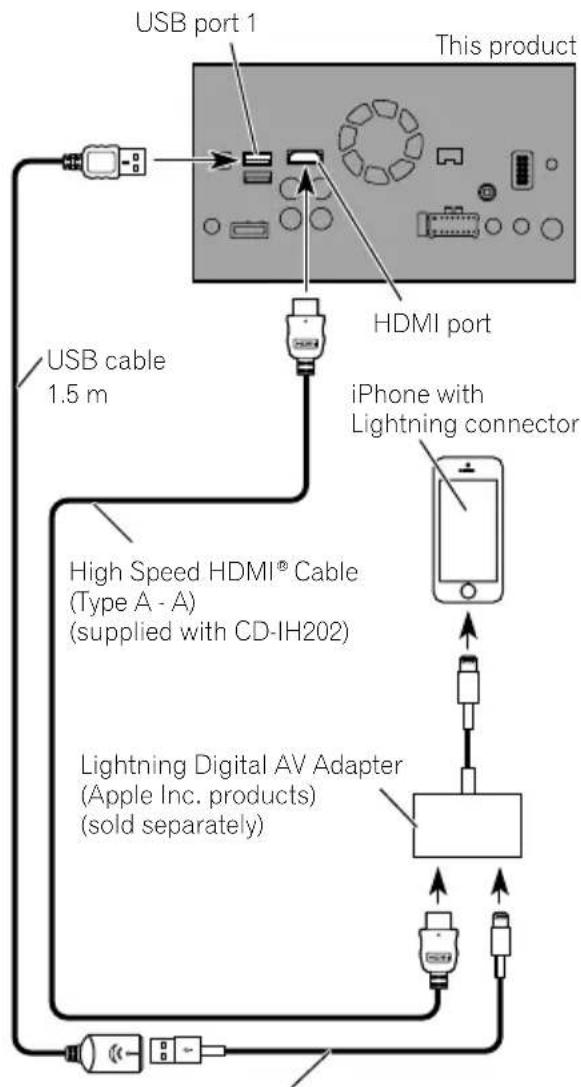

ConnectingviatheHDMIport (iPhone)

F88DAB

Thefollowingcablesarerequiredforthecom- nection.

• HDMIinterfacecableforiPod/iPhone (CD-IH202)(soldseparately)
• USBInterfacecableforiPod/iPhone(CD-IU52)(soldseparately)
  LightningDigitalAVAdapter(AppleInc. products)(soldseparately)

USB interface cable for iPod / iPhone (CD-IU52) (sold separately)

Note

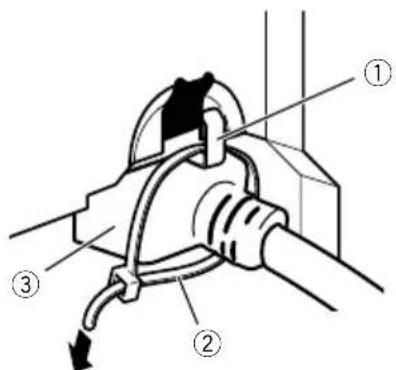

WhenyouconnecttheHighSpeedHDMI Cable, usethelocktietofixitsecurely.
Fordetails,refertoSecuringtheHighSpeed HDMI® Cableonpage20.

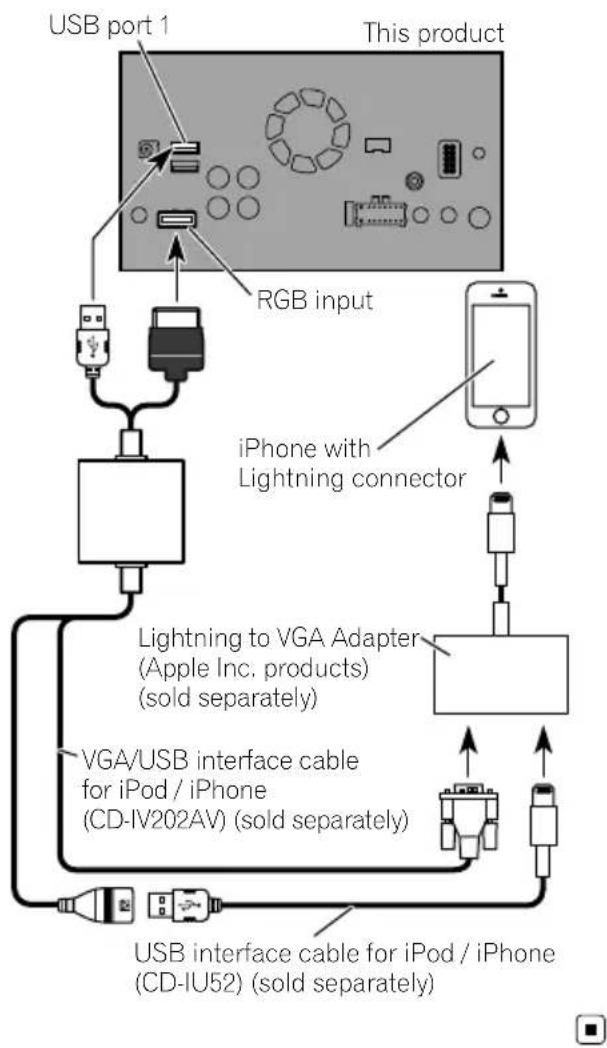

ConnectingviatheRGBinput (iPhone)

F80DAB

980DABFG

30BT

F9880DAB

F9880BT

Thefollowingcablesarerequiredforthecom- nection.

VGA/USBinterfacecableforiPod/iPhone (CD-IV202AV)(soldseparately)
- USBInterfacecableforiPod/iPhone(CD-U52)(soldseparately)
LightningtoVGAAAdapter(AppleInc.pro
ducts)(sold separately)

Connection

ConnectingviatheAUXinput (iPhone)

TheUSBInterfacecableforiPod/iPhone(CD-IU201V)(soldseparately)isrequiredforthe connection.

ConnectinganiPhonewith 30-pinconnector

Notes

• Fordetailsonhowtoconnectanexternal deviceusingaseparatelysoldcable,refertothe manualforthecable.
• Fordetailsconcerningtheconnection, operationsandcompatibilityofiPhone,refertoOperationManual.

ConnectingviatheRGBinput (iPhone)

TheUSBInterfacecableforiPod/iPhone(CD-IU201S)(soldseparately)isrequiredforthe connection.

USB interface cable for iPod / iPhone (CD-IU201S) (sold separately)

ConnectingtheAndroid device

F88DAB

AppConnectivityKit(CD-AH200)(soldseparately)isrequiredfortheconnection.

Notes

• Fordetailsonhowtoconnectanexternal deviceusingaseparatelysoldcable,referto the manualforthecable.
• FordetailsconcerningtheconnectionandoperationsofAndroiddevice,refertoOperation Manual.
• WhenyouconnecttheHighSpeedHDMI Cable,usethelocktietofixitsecurely.

Fordetails,refertoSecuringtheHigh SpeedHDMI Cableonpage20.

ConnectingviatheHDMIport (Androiddevice)

ConnectingviatheMHLport (Androiddevice)

USB - micro USB cable
(Type USB A - micro USB B)
(supplied with CD-AH200)

ConnectingviatheUSB port(Androiddevice)

TheUSBInterfaceableforusewithAndroid devices(CD-MU200)(soldseparately)isrequiredfortheconnection.

Note

Fordetailsonhowtoconnectanexternaldevice usingaseparatelysoldcable,refertothemanual forthecable.

SecuringtheHighSpeed HDMI® Cable

F88DAB

BesuretofixtheHighSpeedHDMI Cable withthelocktie,whenyouconnecttheexternaldevicewiththeHighSpeedHDMI Cable.

1InserttheHighSpeedHDMI Cableinto theHDMIport.

2Wrapthelocktiearoundthehook abovetheHDMIportandtheHighSpeed HDMI Cable,andthentightenittosecure theHighSpeedHDMI Cable.

① Hook
②Locktie
③ HighSpeedHDMI Cable
Donottightenupthelocktiemorethan necessary.

Connectingarearviewcamera

Whenthisproductisusedwitharearview camera,itispossibletoautomaticallyswitch fromthevideotorearviewimagewhenthe gearstickismovedtoREVERSE(R).Camera Viewmodealsoallowsyoutocheckwhatis behindyouwhiledriving.

WARNING

USEINPUTONLYFORREVERSEORMIRROR
IMAGEREARVIEWCAMERA.OTHERUSEMAY
RESULTINJURYORDamage.

CAUTION

• Thescreenshotimagemayappearreversed.
• Therearviewcameraisusedasanaidto keeppaneyeontrailers,orbackingintoatight parkingspot.Donotusethisfunctionforentertainmentpurposes.
• Objectsinrearviewmayappearcloserormoredistantthaninreality.
• Please notethat the imageareashown by the rearviewcameramaydifferslightlywhen full-screenimagesaredisplayed when backing andwhen checkingtherearofthevehicle whilemovingforward.

Connection

Formoredetailsaboutthewiring,refertoConnecting thepowercord(2)onpage10.

Notes

• Thismodeisavailablewhentherearview camerasettingissetto "On".(Fordetails, refereToOperationManual.)
• Connectthisproducttotherearviewcamera only. Donotconnecttoanyother equipment.

Connectingtheexternal videocomponent

UsingAVinput

You can connect an external video component or external camerat this product.

Connectinganexternalcamera

Note

ThismodeisavailablewhentheshettingofAV inputissetto"Camera".(Fordetails,refertoOperationManual.)

Connectingthevideocomponent

Note

ThismodeisavailablwwhenthesettingofAV input is set to "Source". (For details, refer to OperationManual.)

UsinganAUXinput

Notes

• Thismodeisavailablewhenthesettingof AUX input is set to "On". (For details, refer to OperationManual.)
• Whenconnectinganexternalvideo component usingamini-jackAVcable,usease separately soldAUXextensioncableasnecessary.

Connection

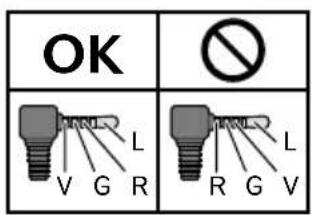

CAUTION

Besuretouseamini-jackAVcable(CD-RM10) (soldseparately)forwiring.Ifyouuseother cables,thewiringpositionmightdifferresulting indisturbedimagesounds.

L: Left audio (White)
R:Rightaudio(Red)
V: Video (Yellow)
G:Earth

ConnectinganHDMIdevice

F88DAB

Notes

• FordetailsconcerningtheoperationsofHDMI device,refertoOperationManual.
• WhenyouconnecttheHighSpeedHDMI Cable,usethelocktietofixitsecurely.
  Fordetails,refertoSecuringtheHigh SpeedHDMI Cableonpage20.

Connectingthereardisplay

Whenusingareardisplay connectedorearvideooutput

WARNING

NEVERinstallthereardisplayalocation thatenablesthedrivertowatchthevideo sourcewhiledriving.

Thisproduct'searvideooutputisforconnection ofadisplaytoenablepassengersintherear seatstwatchthevideosource.

Precautionsbefore installation

CAUTION

• Neverinstallthisproductinplaceswhere, orinamannerthat:
  —Couldinjurethedriverorpassengersif thevehiclestopssuddenly.
  Mayinterferewiththedriver'soperationofthevehicle,suchasonthefloorinfrontofthedriver'sseat,orclosetothesteeringwheelorgearstick.
• Makesurethereisnothingbehindthedashboardorpanellingwhendrillingholesinthem.Becarefulnottodamagefuellines,brakelines,electroniccomponents,communicationwiresorpowercables.
• Whenusingscrews, donotallowthemto comeintocontactwithanyelectricallead. Vibrationmaydamagewiresorinsulation, leadingtoashortcircuitorotherdamage tothevehicle.
  Toensureproperinstallation,besureto usethesuppliedpartsinthemannerspecified.Ifanypartsarenotsuppliedwith thisproduct,usecompatiblepartsinthe mannersspecifiedafteryouhavetheparts' compatibilitycheckedbyyourdealer.If partsotherthansuppliedorcompatible onesareused,theymaydamageinternal partsofthisproductortheymaywork looseandtheproductmaybecometdetached.
• Itisextremelydangeroustoallowcables tobecomewoundaroundthesteeringcolumngearstick.Besuretoinstallthis product,itscables,andwiringawayinsuchsothattheywillnotobstructorhinderdriving.
• Makesurethatleadscannotgetcaughtin adoorortheslidingmechanismofaseat, resultinginashortcircuit.

• Please confirm the proper function of your vehicle'sotherequipment after installation of this product.

• Donotinstallthisproductwhereitmay(i) obstructthedriver'svision,(ii)impairthe performanceofanyofthevehicle'soperatingsystemsaftetyfeatures,includingairbags,hazardlampbuttonstoriii) impairthedriver'sabilitytosafelyoperatethevehicle.
  Installthisproductbetweendriver's seatandfrontpassengerseatsothatit willnotbehitbythederiverorpassengerif thevehiclestopsquickly.

• Neverinstallthisproductinfrontoforenttotheplaceinthedashboard,door, orpillarfromwhicheveroneofyourvehicle'sairbagswoulddeploy.Pleaserefotourvehicle'sowner'smanualforreference to thedeploymentareaofthefrontalairbags.
• Failuretofollowalloftheseprecautions mayresultinseriousinjuryordeath.

Toavoidelectromagnetic interference

Inordertopreventinterference,setthefollowingitemsfasfaraspossiblefromthisproduct,othercablesorleads:

FM,MW/LWaerialanditslead
DABaerialanditslead(forAVIC-F88DAB, AVIC-F80DABandAVIC-F980DAB)
GPSaerialanditslead Inaddition,youshouldlayorrouteeachaerial leadasfaraspossiblefromotheraerialleads. Donotbind,layorroutethemtogether,or crossthem.Electromagneticnoisewillincreaseasethepotentiaforerrorsinthevehicle's locationdisplay.

Beforeinstalling

• Consultwithyournearestdealerinstallationrequiresdrillingholesorthermodificationsofthevehicle.

Installation

• Beforemakingafinalinstallationofthis product, temporarily connect the wiring to confirm that the connections are correct and the system works properly.

ForAVIC-F88DABandAVIC-F80DABusers

Donotinstallthisproductinpositionwhere theopeningoftheLCDpanelisobstructedby anyobstacles,suchasthegearstick.Before installingthisproduct,besuretoleavesuftificientspacesothattheLCDpaneldoesnobot-structthegearstickwhenitisfullyopened. Thismaycauseinterferencewiththegearstick,oramalfunctionofthemechanismof thisproduct.

Installingthisproduct Installationnotes

• Donotinstallthisproductinplacesubject tohightemperaturesorhumidity,suchas:
  -Placesclosetoahater,ventorairconditioner.
  -Placesexposedtodirectsunlight,such asontopofthedashboard.
  —Placesthatmaybeexposedtorain, suchasclosetothedoororontevehi- cle'sfloor.
  Installthisproductinanareastrongenoughtobearitsweight.Chooseposition wherethisproductcanbefirmlyinstalled, andinstallitsecurely.Ifthisproductisnot securelyinstalled,thecurrentlocation of thevehiclecannotbedisplayedcorrectly.

Installthisproducthorizontallyonasurfacewithin0to30degreestolerance(within5degreestotheleftorright).Improperinstallationoftheproductwiththesurface tiltedmorethanthesetolerancesincreases thepotentialforerrorsinthevehicle'slocationdisplay,andmightotherwisecausereduceddisplayperformance.

• Wheninstalling, toensureproperheatdispersalwhenusingthisproduct, makesure youleaveamplespacebehindtherear panelandwrapanyloosecablessothey arenotblockingthevents.

Installation

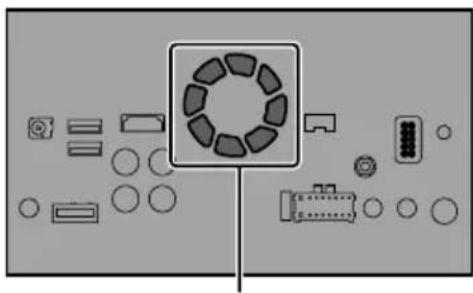

Thecordsmustnotcovertheareashown inthefigurebelow.Thisisnecessaryto allowtheamspsandnavigationmechanism todissipateheat.

Donotcoverthisarea.

• Thesemiciconductorlaserwillbedamaged ifitoverheats,sodon'tinstallthisproduct anywherehot—foreinstanee,nearaheater outlet.

Partssupplied

Partsmarked(*)arepre-installed.

ThisproductHolder*

Trussheadscrew (5mm×8mm) (6pcs.)

Flushsurfacescrew (5mm×9mm) (6pcs.)

Trimming*ExtractionKey

Beforeinstallingthisproduct

1Removethetrimring.

Extendopandbottomofthetrimringoutwardstoremovethetrimring.

①Trimming

2Insertthesuppliedextractionkeysinto bothsidesoftheunituntiltheyclickinto place.

3Pulltheunitoutoftheholder.

①Extractionkey

Installationwiththeholder

1Installtheholderintothedashboard.

2Securethemountingsleevebyusinga screwdrivertobendthemetaltabs (90^) intoplace.

① Dashboard
②Holder

3Installthisproducttotheholder.

① Dashboard

4Attachthetrimring.

①Trimming
②Groove

Attachthetrimringwiththesidewithagroovefacingdownward.

Installationusingthescrew holesonthesideofthisproduct

- Fasteningthisproducttothefactory radio-mountingbracket.

Positionthisproductsothatitsscrewholes arealignedwiththescrewholesofthebracket,andtightenthescrewsatthreelocations oneachside.

Useeitherthetrussheadscrews(5mm× 8mm)orflushsurfacedres(5mm× 9mm),dependingontheshapeofthebracket'sscrewholes.

If the pawl interferes with installation, you may bend it down out of the way.

①Factoryradio-mountingbracket
②Dashboardorconsole
③ Trussheadscreworflushsurfacescrew Besuretousethescrewssuppliedwith thisproduct.

InstallingtheGPSaerial

CAUTION

DonotcuttheGPSaerialleadtoshortenit oruseanextensionomakeitlonger.Alteringtheaerialcablecouldresultinashortcircuitormalfunctionandpermanentdamage tothisproduct.

Installationnotes

• Theaerialshouldbeinstalledonalevelsurfacewhereradiowaveswillbeblockedaslittleaspossible.Radiowavescannnotbereceivedbytheaerialifreecctionfromthesateliteisblocked.

① Dashboard

(2)Rearshelf

• WheninstallingtheGPSaerialinsidethe vehicle, besuretousethemetalsheetprovidedwithyoursystem.Ifthisisnotused, thereceptionsensitivitywillbepoor.
• Donotcuttheaccessymetalsheet.This wouldreducethesensitivityoftheGPSaerial.
  Takecarenottopulltheaerialleadwhen removingtheGPSaerial.Theleadmaybe- comedetached.
• DonotpainttheGPSaerial, asthismayeffectitsperformance.

Wheninstallingtheaerialinsidethevehicle(onthedashboardor rearshelf)

WARNING

DonotinstalltheGPSaerialoveranysensorsorventsonthedashboardofthevehicle, asdoingsomayinterferewiththeproperfunctioningofsuchsensororsventsandmaycompromisetheabilityofthemetalsheetundertheGPSaerialtoproperlyandscurelyaffixtothedashboard.

①GPSaerial
② Metalsheet

Peelofftheprotectivesheetonthear.

③Double-sidedtape
④ Clamps

Useclampstosecurtheleadwherenecessaryinsidethevehicle.

Affixthemetalssheetontthesurfaceaslevelas possiblewhereetheGPSaerialfacesthewindow.AffixtheGPSaerialonthemetalssheet usingthedouble-sidedtape.

Notes

• Whenattachingthemetalsheet,donotcut itintosmallpieces.
• Somemodelsusewindowglasssthatdoesn'tallowssignalsfromGPSsatellitestopassthrough.Onsuchmodels,installtheGPSaerialontheoutsideofthevehicle.

Installation

Installingthemicrophone

Installhemicrophoneinaplacewhereits directionanddistancefromthedriver makeiteasiesttopickupthedriver'svoice.
- Besuretoturnoff(ACCOFF)theproduct beforeconnectingthemicrophone.
- Dependingonthevehiclemodel,themicrophonecablelengthmaybetooshortwhenyoumountthemicrophoneonthe sunvisor.Insuchcases,installthemicrophoneonthesteeringcolumn.

Partssupplied

MicrophoneDouble-sidedtape

Mountingonthesunvisor 1Fitthemicrophoneleadintothe groove.

②

① Microphonelead
②Groove

2Attachemicrophonecliptothesun visor.

① Microphoneclip
② Clamps

Useseparatelysoldclampstosecurethe leadwherenecessaryarsinsidethevehicle.

Installthemicrophoneonthesunvisorwhen itisintheupposition.Itcannotrecognisethe driver'svoiceifthesunvisorisinthedownposition.

Installationonthesteeringcolumn

1Detachthemicrophonebasefromthe microphoneclipbyslidingthemicrophone basewhilepressingthetab.

① Microphone
②Tab
③ Microphonebase
④ Microphoneclip

2Mountthemicrophoneonthesteering column.

Installthemicrophoneonthesteeringcolumn,keepingitawayfromthesteeringwheel.

①Double-sidedtape
② Clamps

Useseparatelysoldclampstosecarethe leadwherenecessaryarsidethevehicle.

Adjustingthemicrophoneangle

Themicrophoneanglecanbeadjusted.

Afterinstallation

Afterinstallingthisproduct

1Reconnectthenegative(-)terminalof thevehicle'sbattery.

First, double-check that all connections are correct and that this product is installed correctly. Reassemble all vehicle components that you previously removed. Then reconnect thenegative(-) cable tothenegative(-) terminal of the battery.

2Starttheengine.

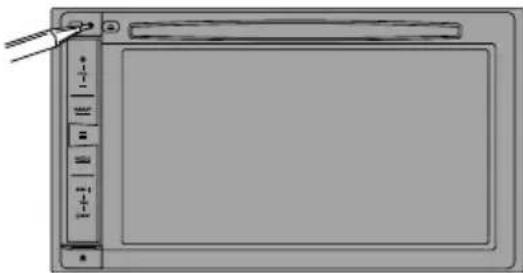

3PresstheRESETbutton.

PresstheRESETbuttononthisproductwithapointedobjectsuchasthetipofapen.

F88DABF30DAB

F980DAB F980BT F9880DAB F9880BT

Someofthesettingsandrecordedcontents willnotbereset.

4Changethesettingsasdesired.

Fordetailsconcerningoperations,referto OperationManual.

5Drivennanunobstructedroaduntil theGPSstartsreceivingthesignalnormally.

Note

Afterinstallingthisproduct, besuretocheckata safeplacethathevehicleisperformingnormally.

Précautions

Installationdumicrophone64

-Piècesfournies64

-Installationsurlepare-soleil64

-Installationsurlacolonned direction65

-Réglagedel'angledumicrophone65

Apresl'installation

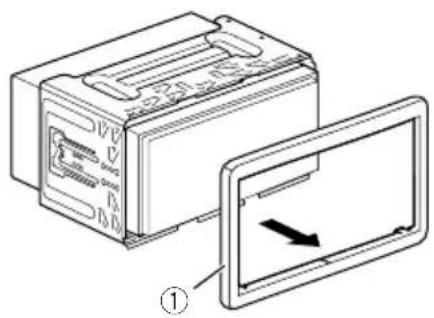

1Retirezl'anneaudegarniture.

Étirezversl'extérieurlapartiessupérieureetinférieuredel'anneaudegarniturepourleretirer.

①Anneaudegarniture

Installationdumicrophone

Installationsurlepare-soleil

Installationsurlacolonned direction

1Retirezlabasedumicrophonedel'a-grafepourmicroenfaitglisserlabase dumicrophonetoutenenfoncantlalanguette.

① Microphone
② Languette
③ Basedumicrophone
④Agrafepourmicro

2Montezlemicrophonesurlacolonne dedirection.

Installezlemicrophonesurlacolonnededirection,adistanceduvolant.

©2016PIONEERCORPORATION.

Allrightsreserved.

©2016PIONEERCORPORATION.

Tousdroitsdereproductionetde
