USER MANUAL AEX13BE SHARP

Do not pull or deform the power supply cord. Pulling and misuse of the power supply cordcan result in damage to the unit and cause electrical shock. Be careful not to expose your body directly to the outlet air for a long time. It may affectyour physical conditions. When using the air conditioner for infants, children, elderly, bedridden, or disabled peoplemake sure the room temperature is suitable for those in the room. Never insert objects into the unit. Inserting objects can result in injury due to the highspeed rotation of internal fans. Ground the air conditioner without fail. Do not connect the grounding wire to gas pipe,water pipe, lightning rod or telephone grounding wire. Incomplete grounding may causeelectric shock. If anything is abnormal with the air conditioner (ex. a burning smell), stop the operationimmediately and turn the circuit breaker OFF. Follow local rules and regulations for power supply cord cabling. Improper cableconnection can cause the power supply cord, plug and the electrical outlet to overheatand cause fire. Use only the manufacture-specified power cord for replacement. Replacement should beperformed by a qualified technician or a service person.

WARNINGS FOR INSTALLATION / REMOVAL / REPAIR

• Do not attempt to install/remove/repair the unit by yourself. Incorrect work will cause electric shock, water leak, fire etc. Consult your dealer or other qualified service personnel for theinstallation/removal/repair of the unit.This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC. PRECAUTIONSPRECAUTIONS

Open a window or door periodically to ventilate the room, especially when using gas appliances. Insufficient ventilation may cause oxygen shortage.

Do not operate the buttons with wet hand. It may cause electric shock.

For safety, turn the circuit breaker off when not using the unit for an extended period of time.

Check the outdoor unit mounting rack periodically for wear and to make sure it is firmly in place.

Do not put anything on the outdoor unit nor step on it. The object or the person may fall down or drop, causing injury.

This unit is designed for residential use. Do not use for other applications such as in a kennel or greenhouse to raise animals or grow plants.

Do not place a vessel with water on the unit. If water penetrates into the unit, electrical insulations may deteriorate and cause electric shock.

Do not block the air inlets nor outlets of the unit. It may cause insufficient performance or troubles.

Be sure to stop the operation and turn the circuit breaker off before performing any maintenance or cleaning. A fan is rotating inside the unit and you may get injured.

This appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance.

CAUTIONS FOR LOCATION / INSTALLATION

• Make sure to connect the air conditioner to power supply of the rated voltage and frequency. Use of a power supply with improper voltage and frequency can result in equipment damage and possible fire.

• Do not install the unit in a place where inflammable gas may leak. It may cause fire. Install the unit in a place with minimal dust, fumes and moisture in the air.

• Arrange the drain hose to ensure smooth drainage. Insufficient drainage may cause wetting of the room, furniture etc.

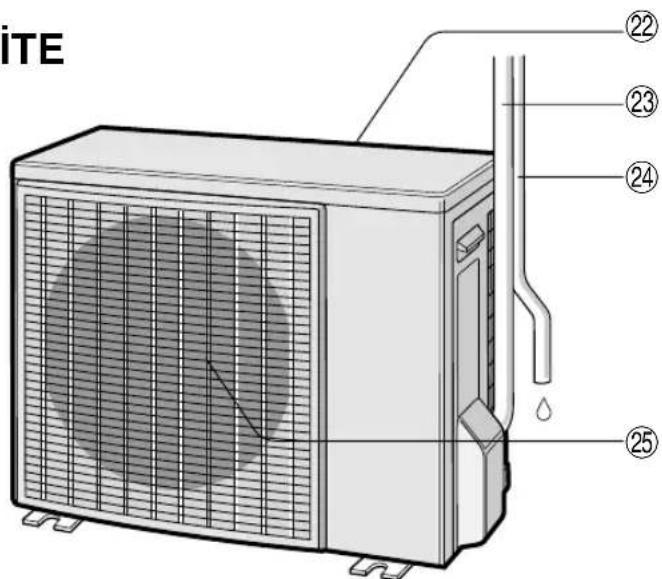

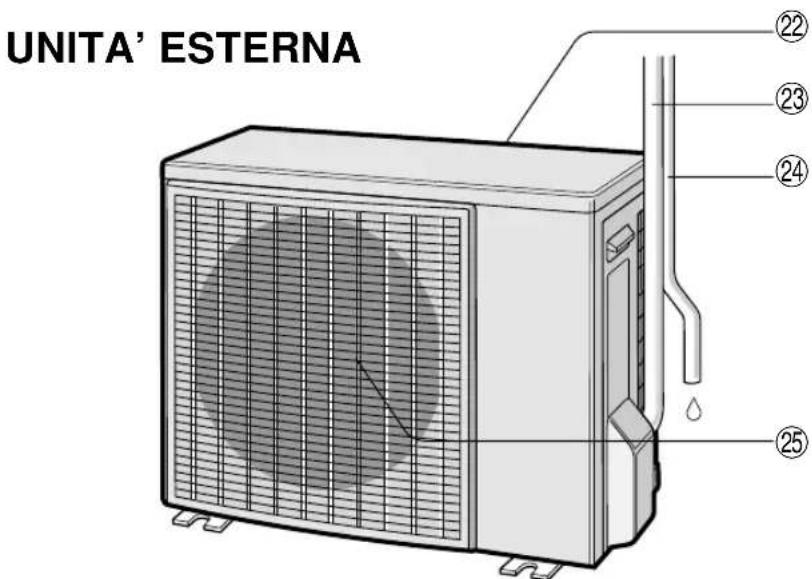

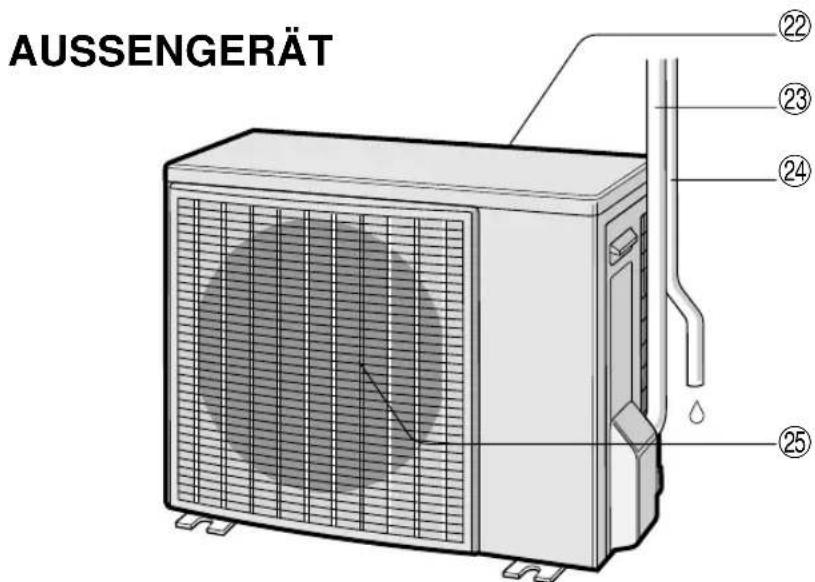

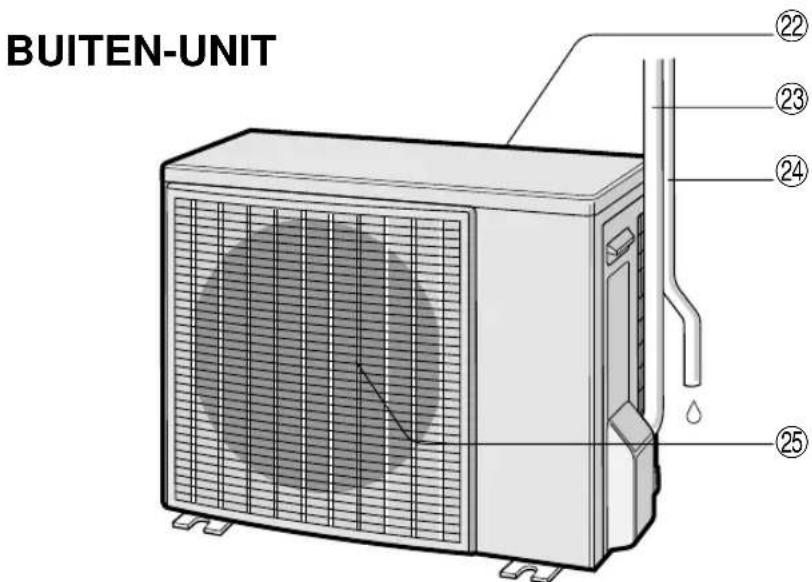

• Make sure a leak breaker or a circuit breaker is installed, depending on the installation location, to avoid electrical shock. E-2ENGLISH PART NAMES

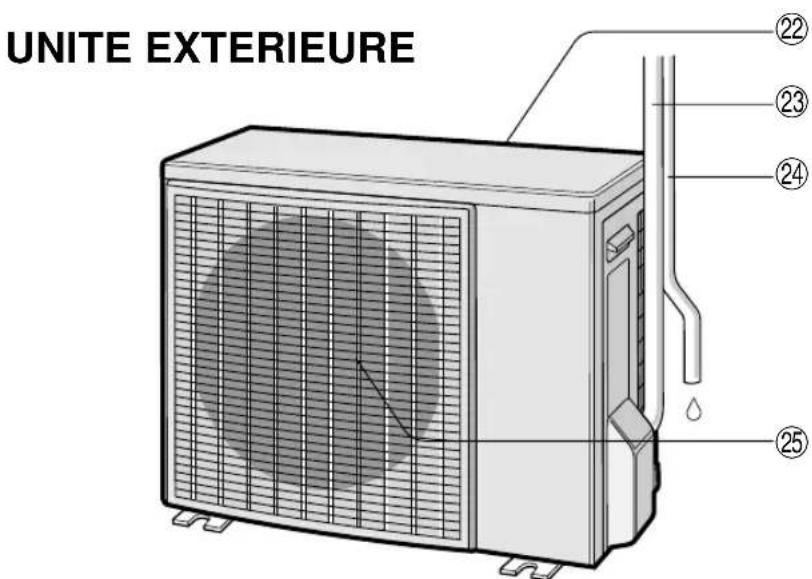

gDISPLAY FULL POWERSWINGCLEAN FAN MODE SET/C

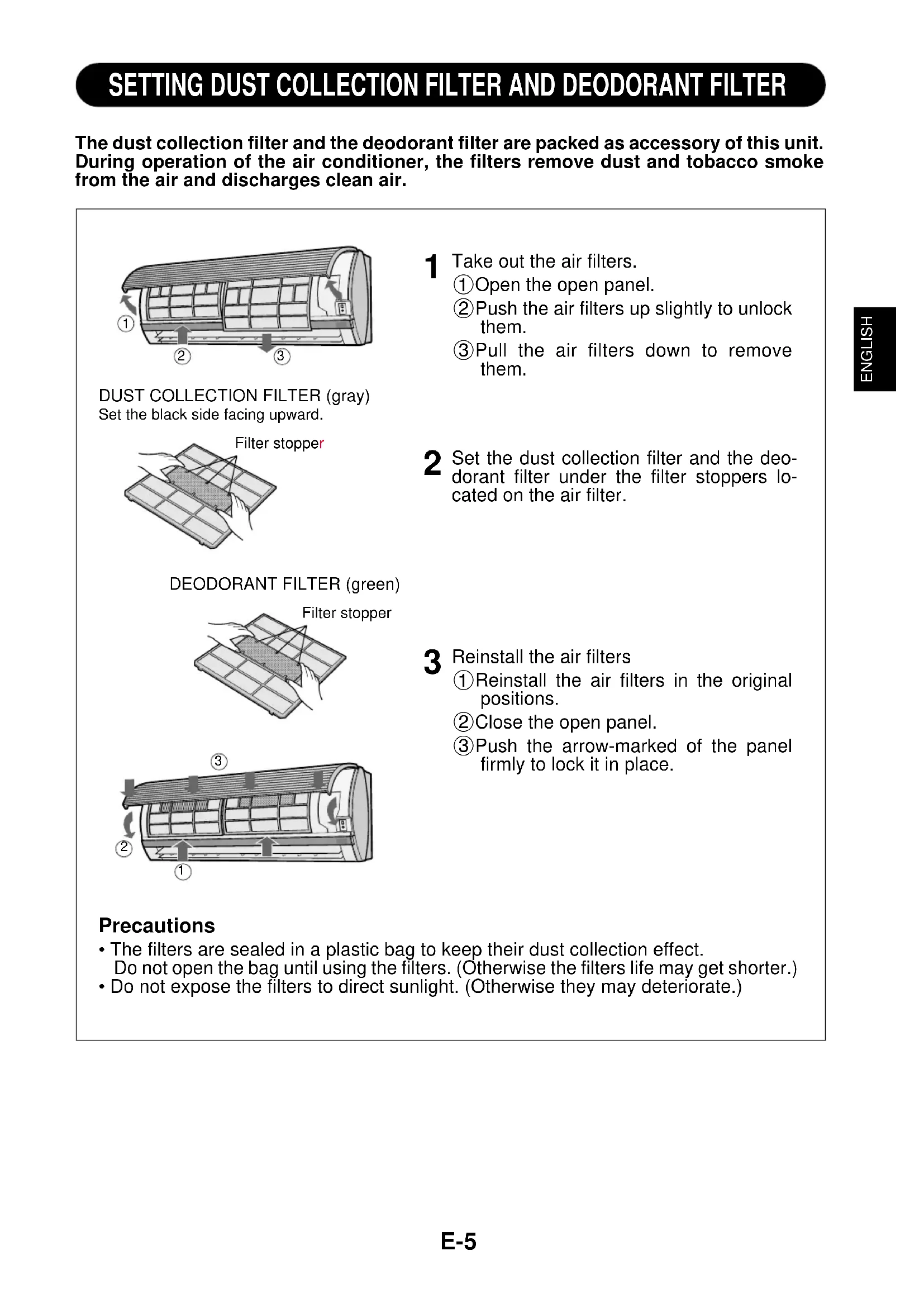

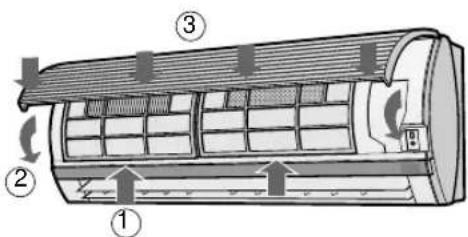

AUTOENGLISH SETTING DUST COLLECTION FILTER AND DEODORANT FILTER The dust collection filter and the deodorant filter are packed as accessory of this unit. During operation of the air conditioner, the filters remove dust and tobacco smoke from the air and discharges clean air.

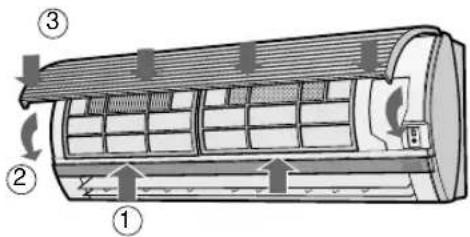

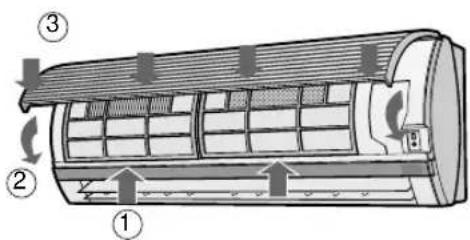

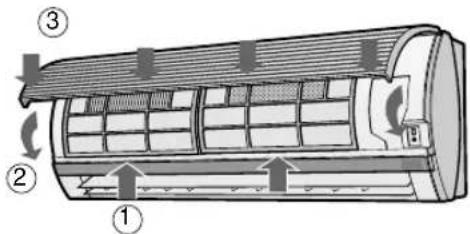

Take out the air filters. 1 Open the open panel. 2 Push the air filters up slightly to unlock them. 3 Pull the air filters down to remove them.

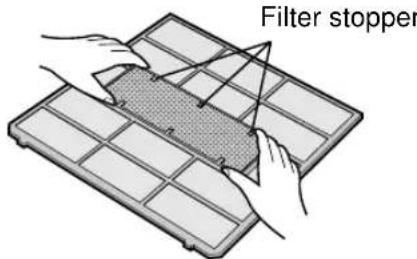

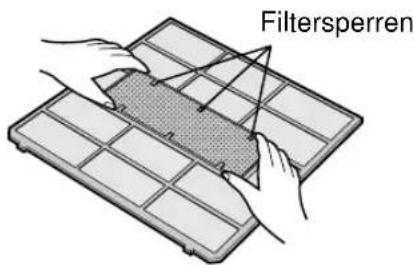

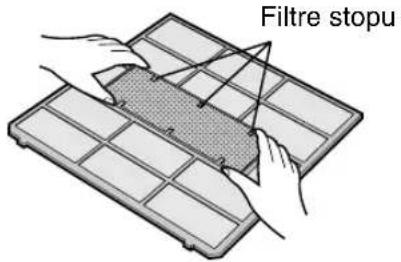

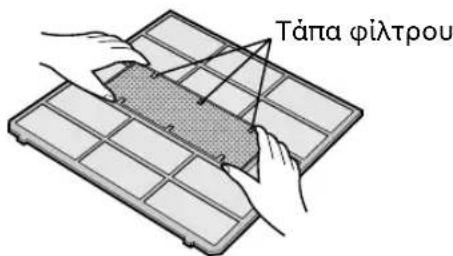

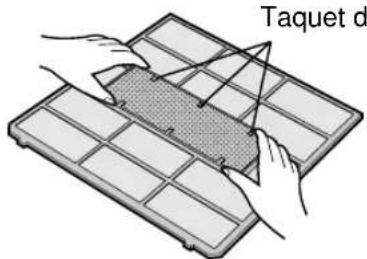

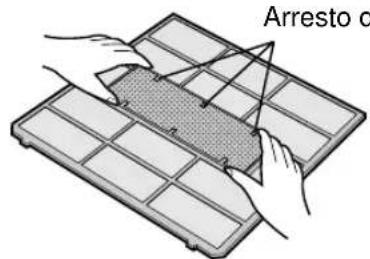

Set the dust collection filter and the deo- dorant filter under the filter stoppers lo- cated on the air filter.

Reinstall the air filters 1 Reinstall the air filters in the original positions. 2 Close the open panel. 3 Push the arrow-marked of the panel firmly to lock it in place. Precautions

• The filters are sealed in a plastic bag to keep their dust collection effect. Do not open the bag until using the filters. (Otherwise the filters life may get shorter.)

• Do not expose the filters to direct sunlight. (Otherwise they may deteriorate.) DUST COLLECTION FILTER (gray)Set the black side facing upward.Filter stopperDEODORANT FILTER (green)Filter stopper E-5

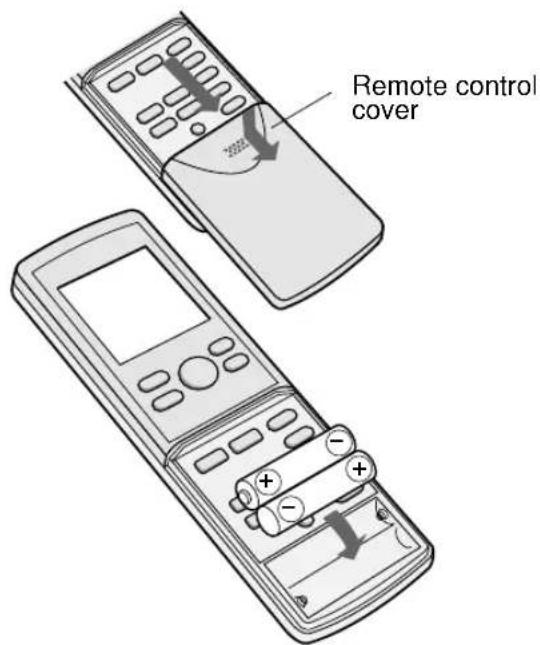

Remove the remote controlcover. Insert batteries in the compart-ment, making sure the ± and— polarities are correctlyaligned.• The display indicates "AM6:00" when batteries are prop-erly installed. Reinstall the cover.

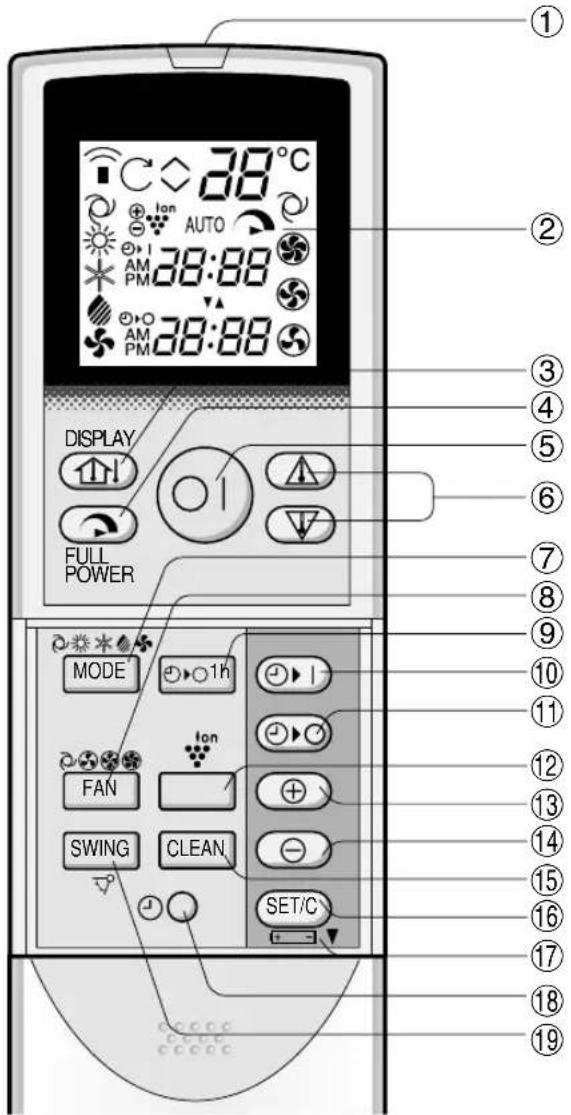

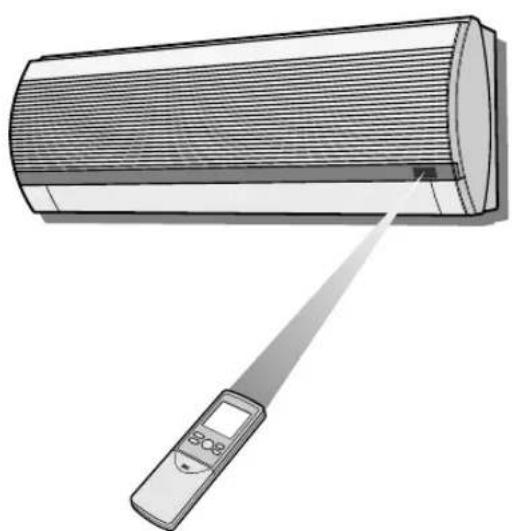

USING THE REMOTE CONTROL

• The battery life is approximately one year in normal use.• When you replace the batteries, always change both batteries, and make surethey are the same type.• If the remote control does not operate properly after replacing the batteries, takeout the batteries and reinstall them again after 30 seconds.• If you will not be using the unit for a long time, remove the batteries from theremote control. Point the remote control towards the unit’s signal receiver window and press the desired button. The unit generates a beep when it re- ceives the signal.
• Make sure there is no curtain or otherobject between the remote control andthe unit.• The remote control can send signalsfrom up to 7 metres away. LOADING BATTERIES Use two size-AAA (R03) batteries.

• Do not allow the signal receiver window to receive strong direct sunlight, since it can adversely affect its operation. If the signal receiver window is exposed to direct sunlight, close a curtain to block the light.

• Using a fluorescent lamp with a quick starter in the same room may interfere with transmission of the signal.

• The unit can be affected by signals transmitted from the remote control of a television, VCR or other equipment used in the same room.

• Do not leave the remote control in direct sunlight or near a heater. Also, protect the unit and remote control from moisture and shock which can discolour or damage them.

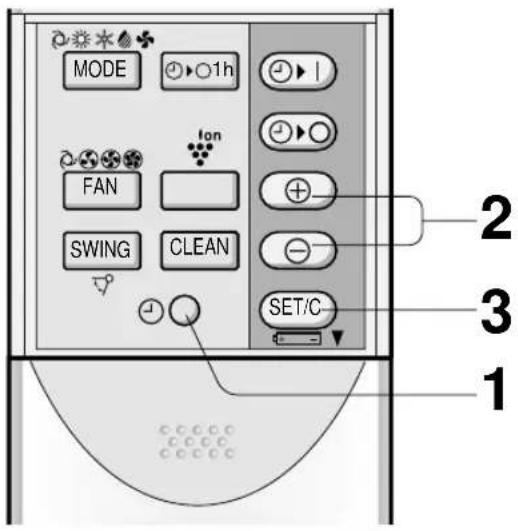

SET CURRENT CLOCK TIME

There are two clock modes: 12-hour mode and 24-hour mode.

To set to the 12-hour mode, press the CLOCK button once in the first step. To set to the 24-hour mode, press the CLOCK button twice in the first step.

Press the TIME ADVANCE or REVERSE button to set the current time.

• Keep the button pressed to advance or reverse the time display quickly.

Press the SET/C button.

• The colon (:) blinks to indicate that the clock is functioning. NOTE:

• The current time cannot be set when the timer is operating.

Example: 5 o'clock in the afternoon Clock Display 12-hour mode PM 5:00 24-hour mode 17:00 SWINGCLEAN FAN MODE SET/C 1hAM DISPLAY FULL POWERSWINGCLEAN FAN MODE SET/C

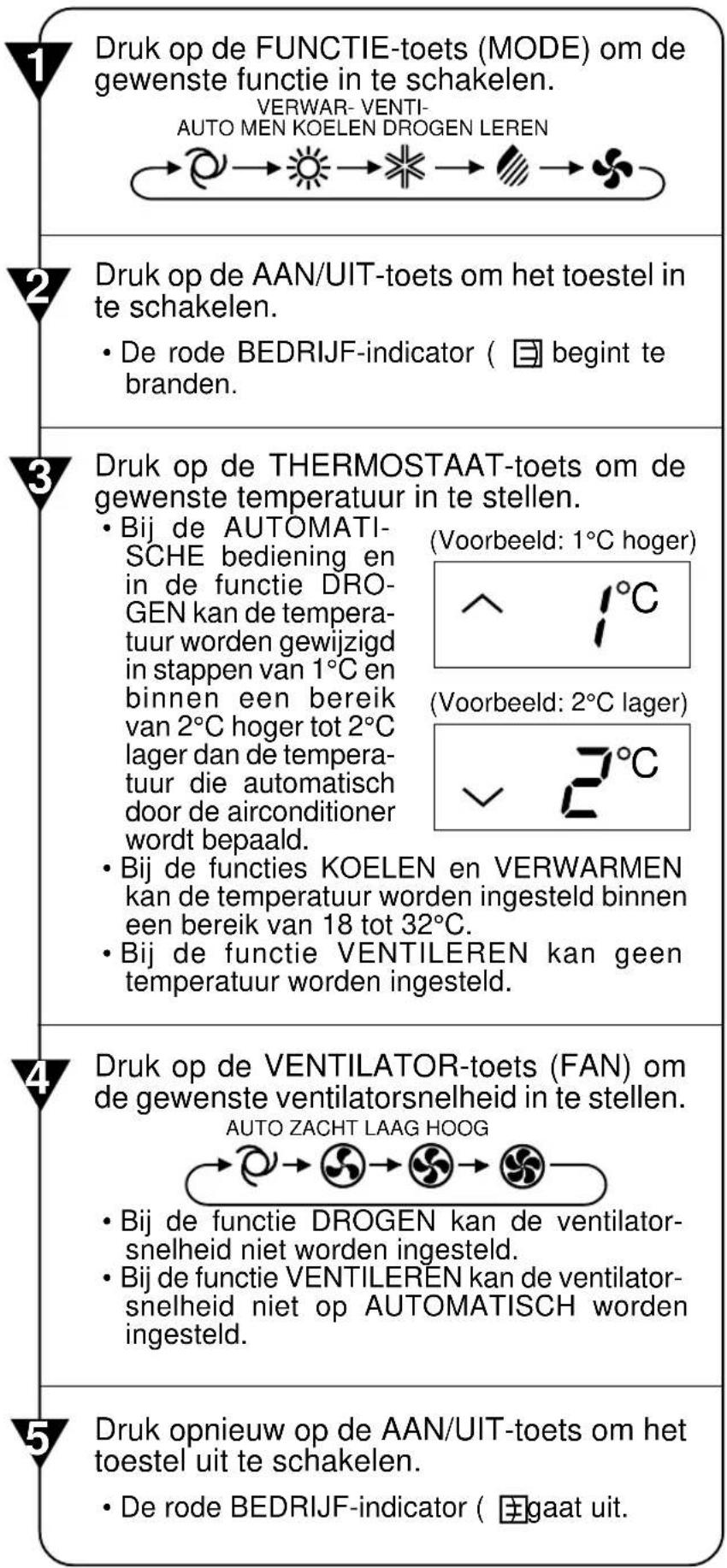

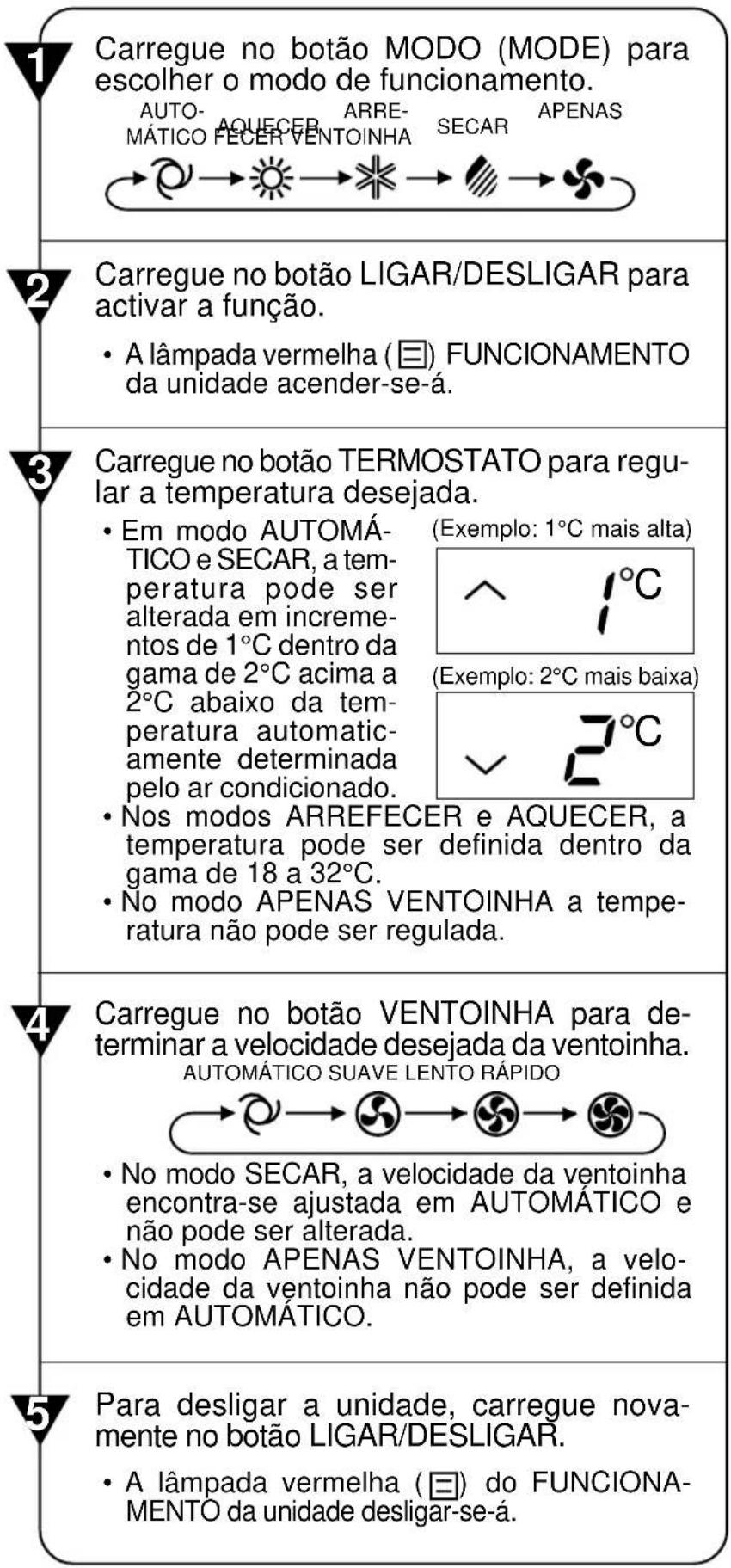

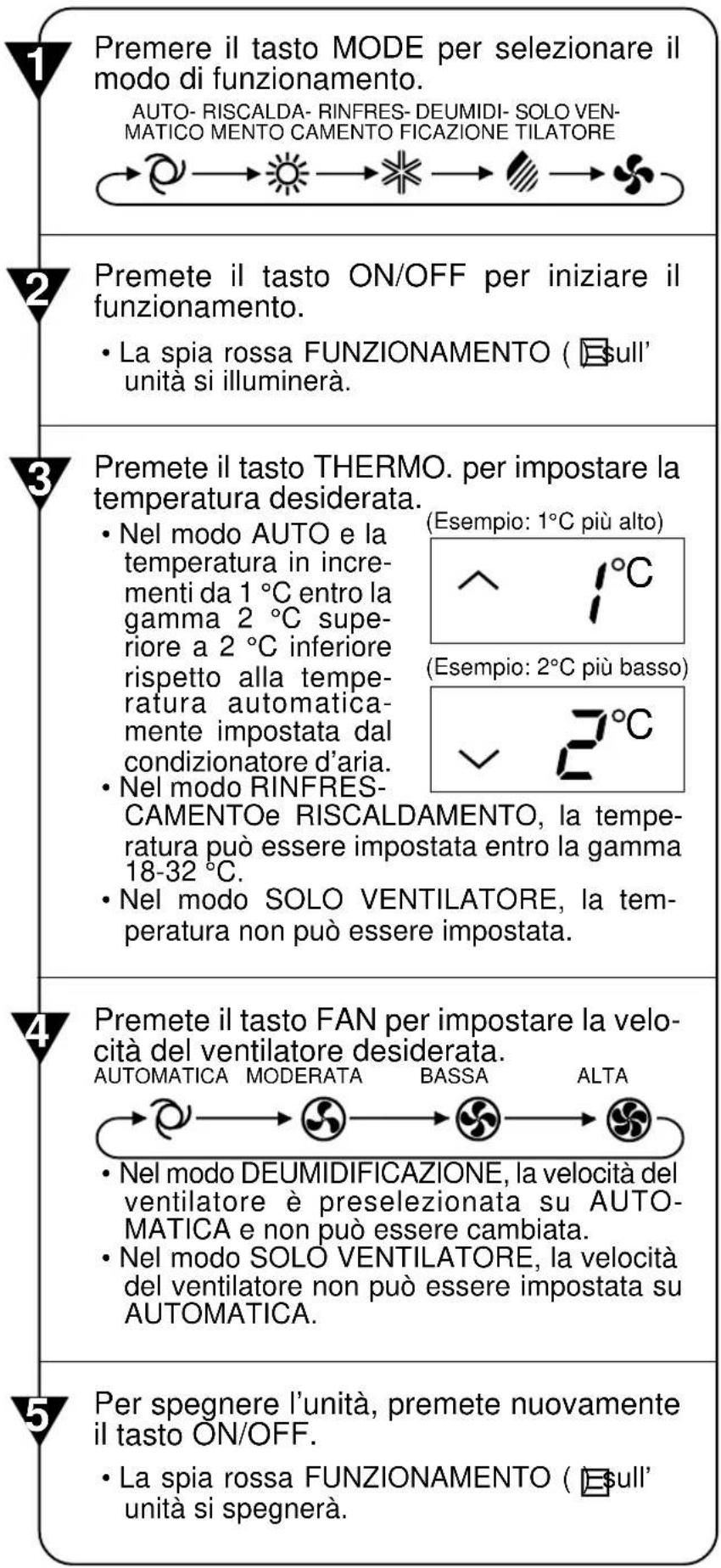

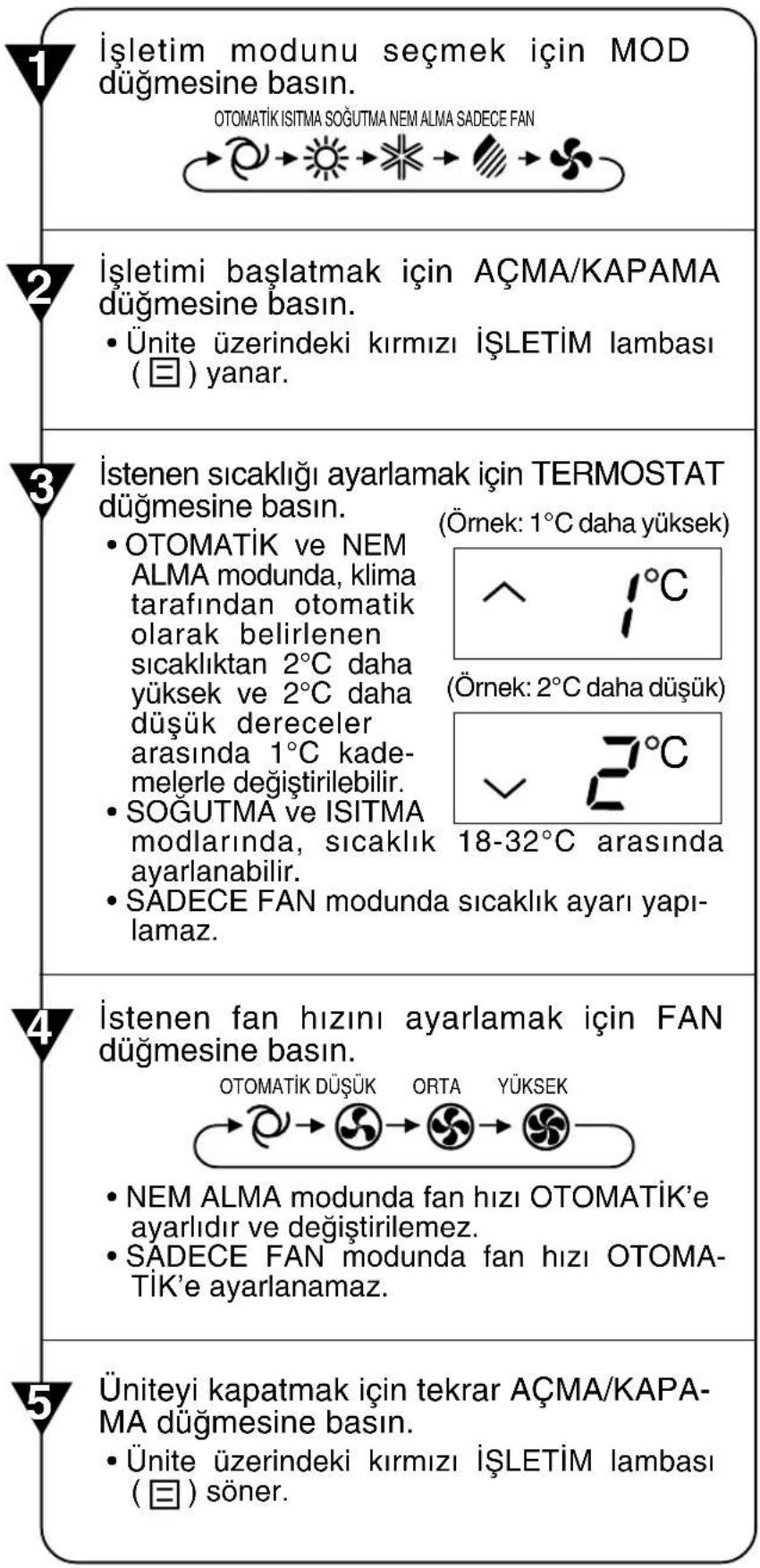

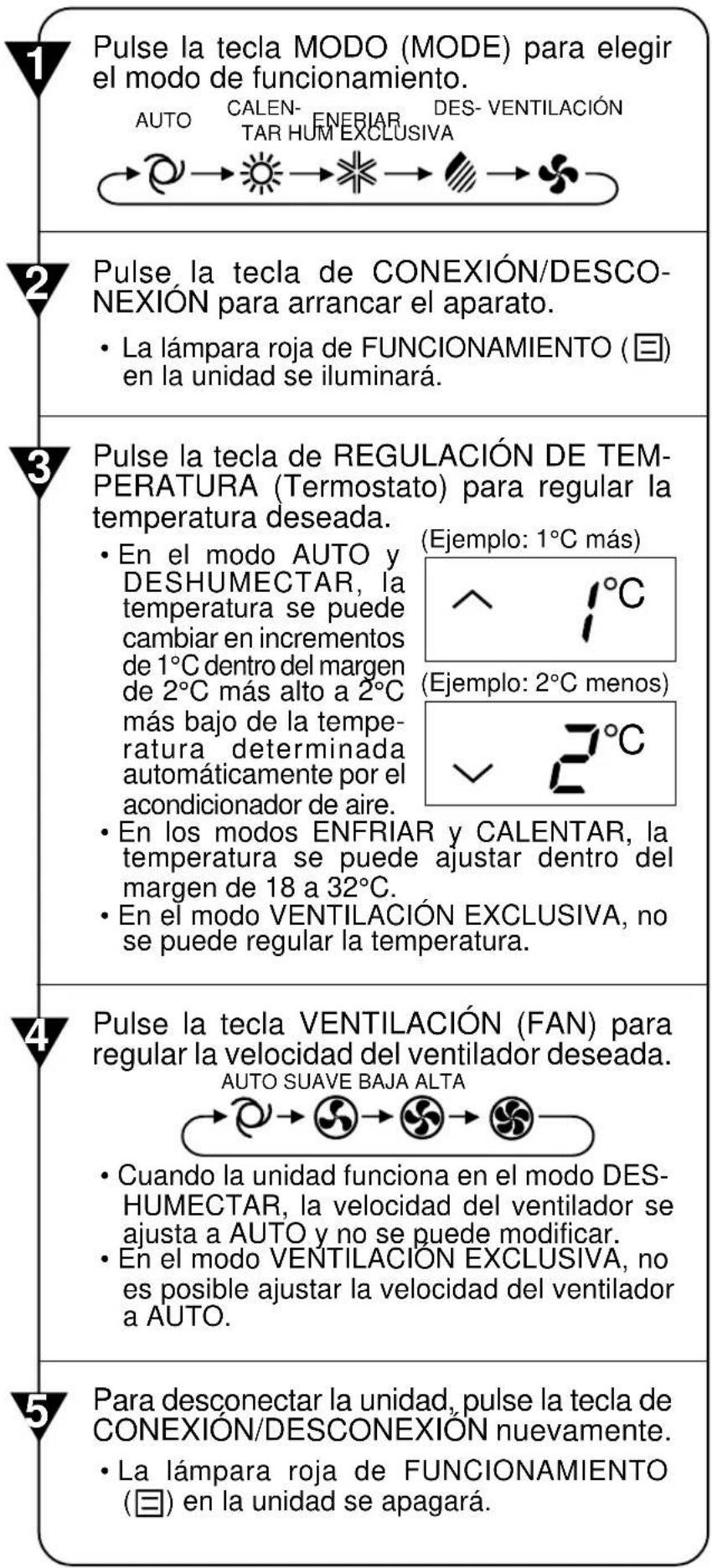

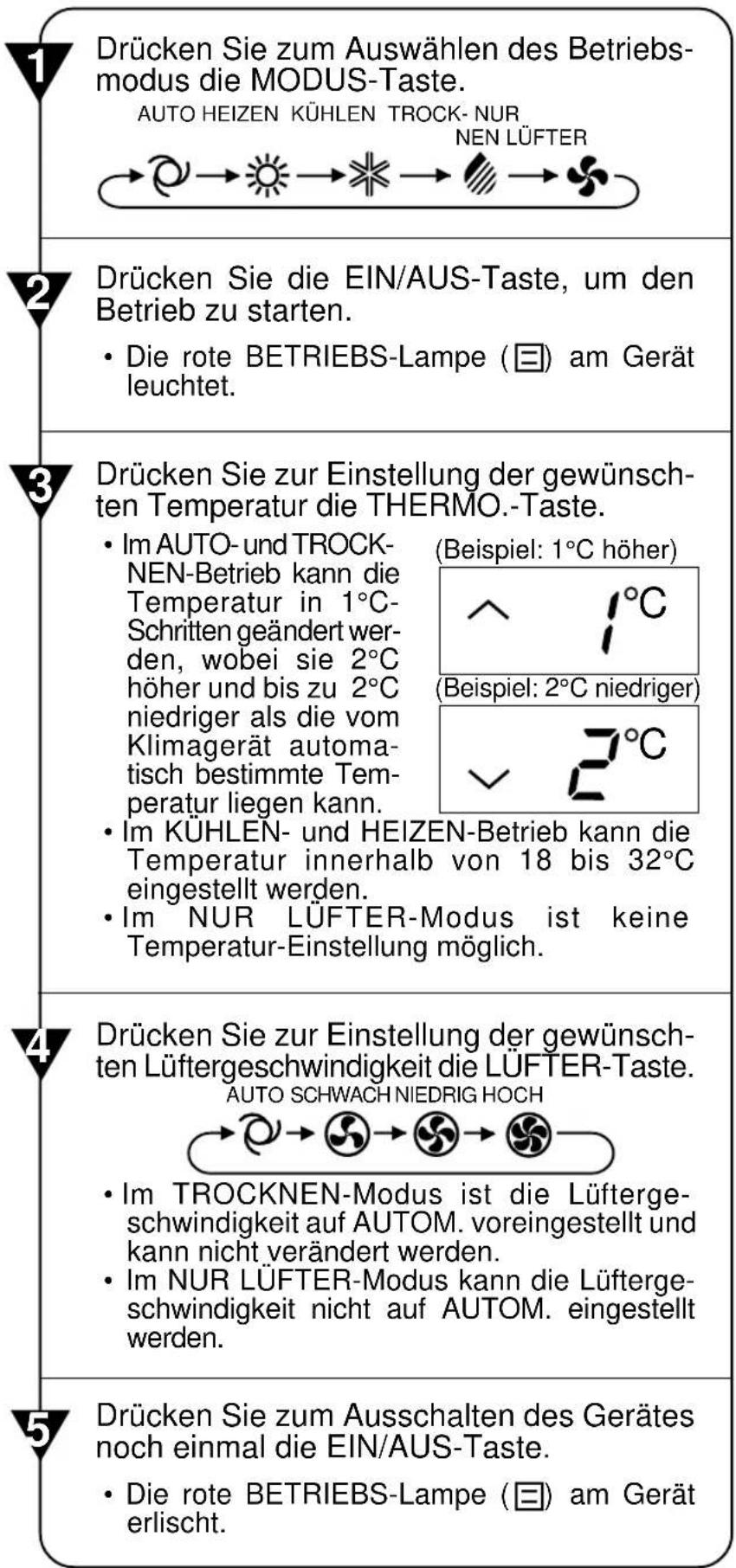

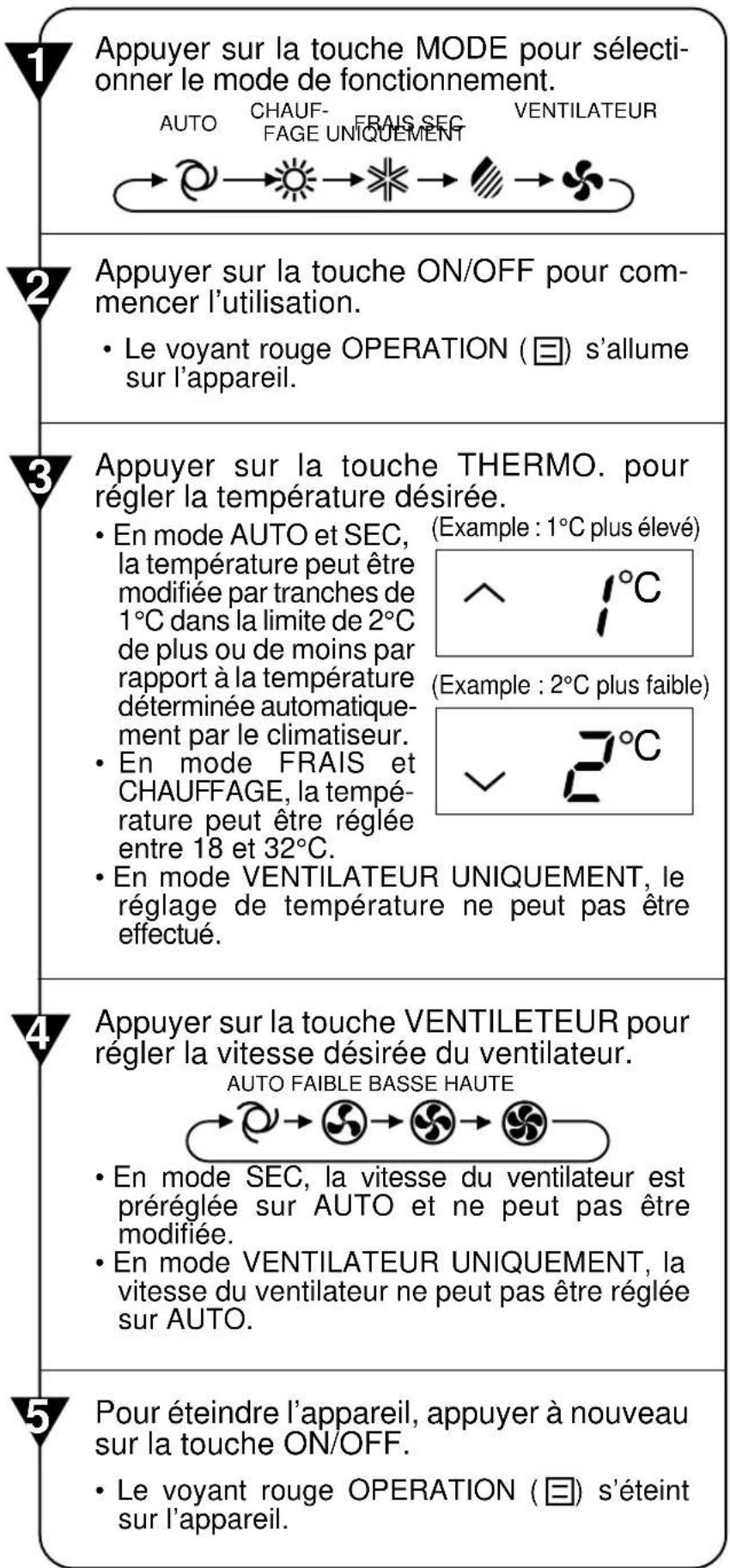

Press the THERMO. button to set the de- sired temperature.

• In the AUTO and DRY mode, the tem- perature can be changed in 1°C incerments within the range of 2°C higher to 2°C lower from the temperature auto- matically determined by the air conditioner.

• In the COOL and HEAT modes, the tempera- ture can be set within the range of 18 to 32°C

• In the FAN ONLY mode, the temperature setting cannot be made.

• The red OPERATION lamp ( ) on the unit will light.

• In the DRY mode, the fan speed is preset to AUTO and cannot be changed.

• In the FAN ONLY mode, the fan speed can- not be set to AUTO. To turn off the unit, press the ON/OFF but- ton again.

• The red OPERATION lamp ( ) on the unit will turn off. Press the FAN button to set the desired fan speed. AUTO SOFT LOW HIGH(Example: 1°C higher)

(Example: 2°C lower)ENGLISH2921 (¡C)(¡C)Cool(24¡C)FanCool(25¡C)Heat(22¡C)Dry()Heat(23¡C)Heat(24¡C)Cool(26¡C)outdoortemp.indoor temp.Room Temp.-2¡C ECO ECO E-9 During operation, if the outdoor temperature changes, the temperature settings will automati- cally slide as shown in the chart. MODE CHANGEOVER During seasons when you need COOLING at daytime and HEATING at night, or if the room temperature should become extremely higher than the temperature setting, due to supplemen- tary heating equipment, the mode will automatically switch between HEAT and COOL mode to keep the comfortable room temperature.

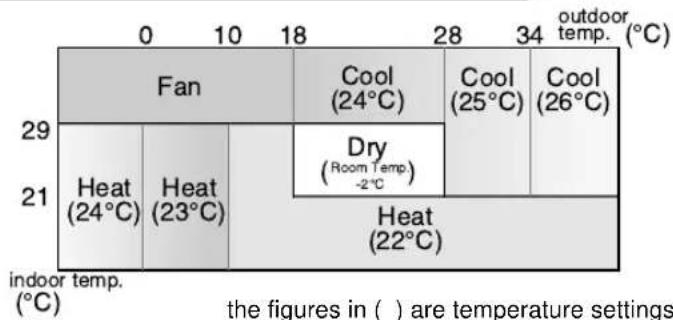

TIPS ABOUT AUTO MODE

In the AUTO mode, the temperature setting and mode are automatically selected according to the room temperature and outdoor temperature when the unit is turned on. Modes and Temperature Settings

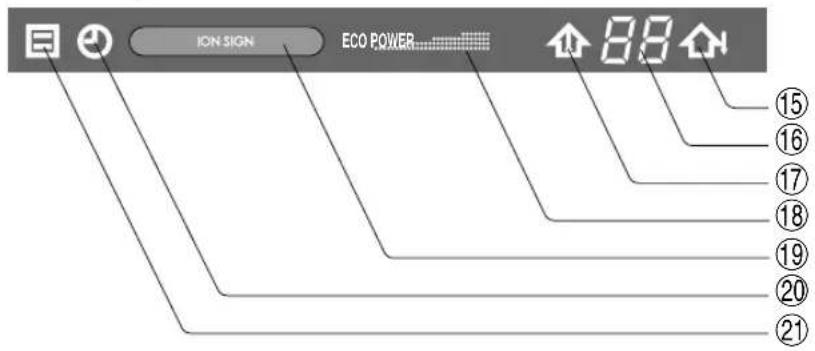

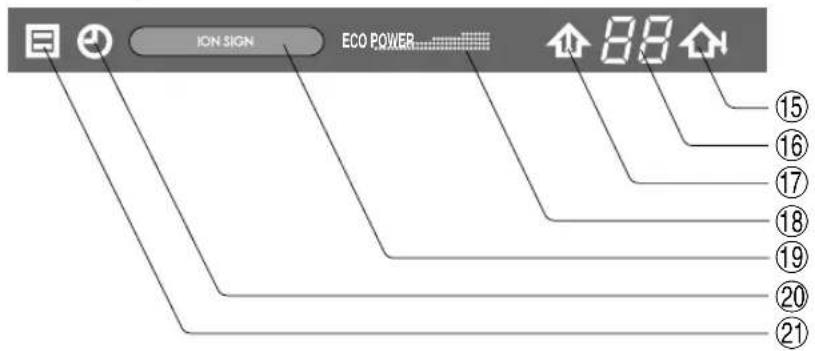

TIPS ABOUT INDICATOR PANEL

The indicator panel will change each time you press the DISPLAY button in the following manner. The room temperature and POWER MONITOR are displayed. The outdoor temperature and POWER MONITOR are displayed. No display. POWER MONITOR When the room temperature or the outdoor temperature is displayed, the POWER MONITOR will light up in 4 levels for COOL and HEAT modes (3 levels for DRY mode), to indicate the operation power. When the air conditioner is operating at maximum power in the COOL and HEAT modes, "Power" will light and "Eco" will turn off on the indicator panel. NOTES:

• The displayed temperatures are rough estimates and may vary from the actual temperatures.

• Temperature display ranges Room temperature: 0°C ~ 40°C ( is displayed when less than 0°C and when higher than 40°C) Outdoor temperature: -9°C ~ 45°C ( is displayed when less than -9°C and when higher than 45°C)

is displayed during the first 90 seconds of operation while the temperatures are being detected.

• Only the room temperature can be displayed for 5 seconds when the unit is not in operation. Room Temp. Lamp Temperature Indicator POWER MONITOR Outdoor Temp. Lamp DISPLAY FULL POWER the figures in ( ) are temperature settingsCOOL and DRY modes Horizontal air flow FAN ONLY and HEAT modes Diagonal air flow E-10

ADJUSTING THE AIR FLOW DIRECTION

VERTICAL AIR FLOW DIRECTION

The air flow direction is automatically preset in each mode as follows for optimum comfort: HOW TO ADJUST THE AIR FLOW DIRECTION COOL and DRY modesFAN ONLY and HEATmodesThe adjustment rangeis narrower the SWINGrange in order to pre-vent condensation fromdripping.The range is wide so theair flow can be directedtoward the floor. Hold the horizontal adjustment louvre as shown in the diagram and adjust the air flow direction. Press the SWING button on the remote control once.

• The vertical adjustment louvre will change its angle continu- ously. Press the SWING button again when the vertical adjustment louvre is at the desired position.

• The louvre will stop moving within the range shown in the diagram.

• The adjusted position will be memorized and will be automati- cally set to the same position when operated the next time. Adjustment range CAUTION Never attempt to adjust the vertical adjustment louvres manually.

• Manual adjustment of the vertical adjustment louvre can cause the unit to malfunction when the remote control is used for the adjustment.

• When the vertical adjustment louvre is positioned at the lowest position in the COOL or DRY mode for an extended period of time, condensation may result. Do not adjust the horizontal adjustment louvre extremely to the right or left when operating the air conditioner with fan speed "SOFT" for an extended period of time. Condensation may form on the louvres.

In this operation, the air conditioner works at maximum power to makes the room cool or warm so rapidly that you can use it just after you come home.

• The remote control displays “ ”.• The orange TIMER lamp ( ) on the unit will light up.• The unit will stop operating after one hour. TO CANCEL Press the TIMER CANCEL (SET/C) button.
• The orange TIMER lamp ( ) on the unit will turn off. Or, turn the unit off by pressing the ON/OFF button.
• The red OPERATION lamp ( ) and the orangeTIMER lamp ( ) on the unit will turn off.

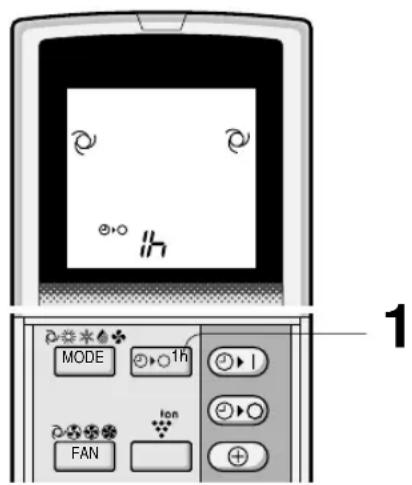

When the ONE-HOUR OFF TIMER is set, the unit will stop operating after one hour.

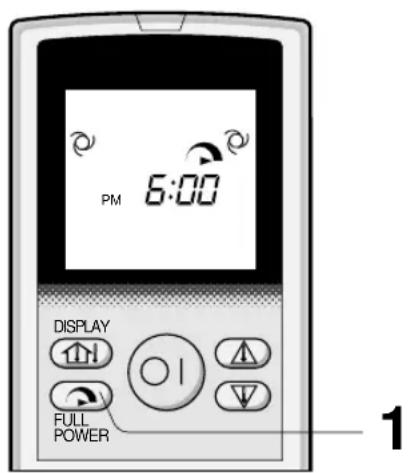

To activate the FULL POWER operation, press the FULL POWER button during operation.

• The remote control will display .• The temperature display will go off. TO CANCEL Press the FULL POWER button again.
• FULL POWER operation will also be cancelled whenthe operation mode is changed, or when the unit isturned off. NOTES:
• You cannot use the FULL POWER operation during the FAN ONLY mode.• You cannot set the temperature and fan speed during the FULL POWER operation. NOTES:
• The ONE-HOUR OFF TIMER operation has priority over TIMER ON and TIMER OFFoperations.• When the ONE-HOUR OFF TIMER is set while the unit is not operating, the unit willoperate for an hour with the formerly set condition.• If you wish to operate the unit for another hour before the ONE-HOUR OFF TIMERactivates, press the ONE-HOUR OFF TIMER button again during operation.• If TIMER ON and/or TIMER OFF are set, TIMER CANCEL button cancels every setting.

DISPLAY FULL POWER FAN MODE 1hE-12 The ionizer inside the air conditioner will release cluster ions, which are collective mass of positive and negative ions, into the room. The cluster ions eliminate airborne mold fungus and deodorize / decompose odor-causing molecules.

Cluster ions released into the air will keep your room air clean. REFRESHING OPERATION Negative cluster ions which also exist in natural environment will be released into the air of your room in an increased rate, and help your physical and mental refreshment.

PLASMACLUSTER AUTO OPERATION

Allergen sensor and odor sensor will detect foul air in the room. Air Clean Operation will be performed for one minute after the air conditioner is operated to detect foul air. Air Clean Operation and Refreshing Operation will be selected and be performed automatically depending on the air foul degree. Air Clean Operation will be performed when the air is detected to be foul, Refreshing Operation will be performed when the air is clean.

SELF CLEAN OPERATION

Plasmacluster Operation will be performed with FAN or HEAT mode, in order to reduce the growth of mold fungus, and dry inside of the air conditioner unit. Utilize the operation at seasonal change over terms. Mold fungus already grown can not be eliminated by this operation. TIPS ABOUT ALLERGEN SENSOR AND ODOR SENSOR What does Allergen Sensor react to?

• Alergen sensor reacts to mold fungus, plants/flowers pollen, dead ticks, dust, tobacco smoke etc. What to Odor Sensor react to?

• Odor Sensor reacts to tobacco smoke, motor exhaust, odor emitted from animals, etc. Allergen and Odor Sensor also may react to vapour of insecticides, cosmetics, alcohol, chemicals and the like, and to extreme change of temperature/humidity. Ionizer Cluster ions Mold fungus Odor Eliminate, deodorize, decompose

TIPS ABOUT PLASMACLUSTER OPERATIONENGLISH

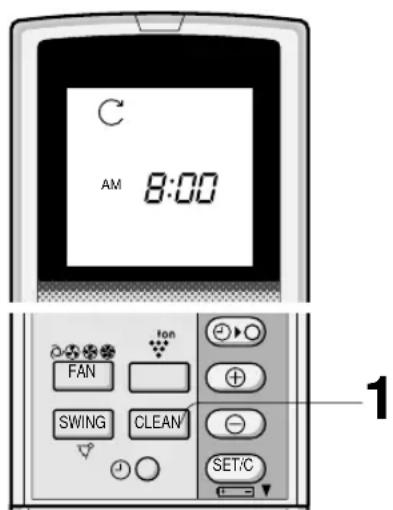

Press the SELF CLEAN button when the unit is not operating.

• The remote control displays "

• The red OPERATION lamp ( ) and the blue PLASMACLUSTER lamp on the unit will light up.

• The unit will stop operation after forty minutes.

• The remaining operation time will be indicated on the TEMPERATURE INDICATOR of the indoor unit in minute decrements. TO CANCEL Press the SELF CLEAN button. Or, turn the unit off by pressing the ON/OFF button.

• The red OPERATION lamp ( ),the blue PLASMACLUSTER lamp and the TEMPERATURE INDICATOR on the unit will turn off. E-13 PLASMACLUSTER OPERATION You can choose PLASMACLUSTER AUTO OPERATION, AIR CLEAN OPERATION or REFRESHING OPERATION

During operation, press the PLASMACLUSTER button to select the mode.

PLASMACLUSTER AUTO AIR CLEAN REFRESHING CANCEL

• In the AIR CLEAN operation, the blue PLASMACLUSTER lamp on the unit will light up.

• In the REFRESHING operation, the green PLASMACLUSTER lamp on the unit will light up. TO CANCEL Press the PLASMACLUSTER button until PLASMACLUSTER symbol on the remote control display goes off.

• The PLASMACLUSTER lamp on the unit will turn off. NOTE:

• You cannot set the temperature, fan speed, air flow direction or timer setting during the SELF CLEAN operation. SWINGCLEAN FAN MODE SET/C

SWING CLEAN FAN SET/C

• Setting of the PLASMACLUSTER operation will be memorized and will operate in the same mode, the next time you turn on the air conditioner.

1AM DISPLAY FULL POWERSWINGCLEAN FAN MODE SET/C

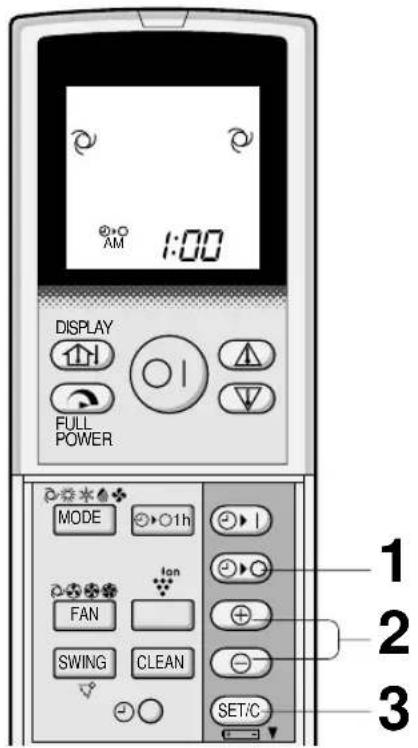

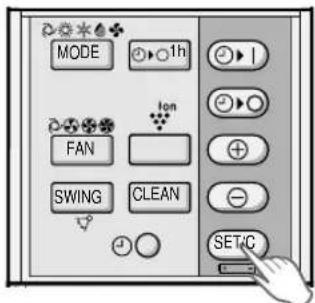

Press the TIMER OFF ( ) button. The TIMER OFF indicator will blink; press theTIME ADVANCE or REVERSE buttons to setthe desired time. (The time can be set in 10-minute increments.) Point the remote control at the signal receiverwindow on the unit and press the TIMER SET(SET/C) button.• The orange TIMER lamp ( ) on the unit willlight.• The unit will generate a beep when it re-ceives the signal. NOTE: Before setting the timer, make sure the clock is properly set with the current time. TIMER OPERATION TIMER OFF Cancel the TIMER seting first, then set itagain.TO CHANGE TIME SETTINGTO CANCEL TIMER MODEPress the TIMER CANCEL (SET/C) button.• The orange TIMER lamp ( ) on the unitwill turn off.• The current clocktime will be dis-played on the re-mote control.TIPS ABOUT TIMER OFF OPERATIONWhen the TIMER OFF mode is set, thetemperature setting is automaticallyadjusted to prevent the room frombecoming excessively hot or too coldwhile you sleep. (Auto Sleep function) COOL/DRY MODE:

• One hour after the time operation begins,the temperature setting rises 1°C higherthan the original thermostat setting. HEAT MODE:
• One hour after the timer operationbegins, the temperature setting drops3°C lower than the original thermostatsetting. NOTE:
• The Auto Sleep function will not acti-vate during the FAN ONLY mode.

• If any TIMER ON, TIMER OFF and ONE-HOUR OFF TIMER are set, the TIMERCANCEL button cancels all settings. E-14 SWING CLEAN FAN MODE SET/C 1hENGLISH DISPLAY FULL POWERSWINGCLEAN FAN MODE SET/C

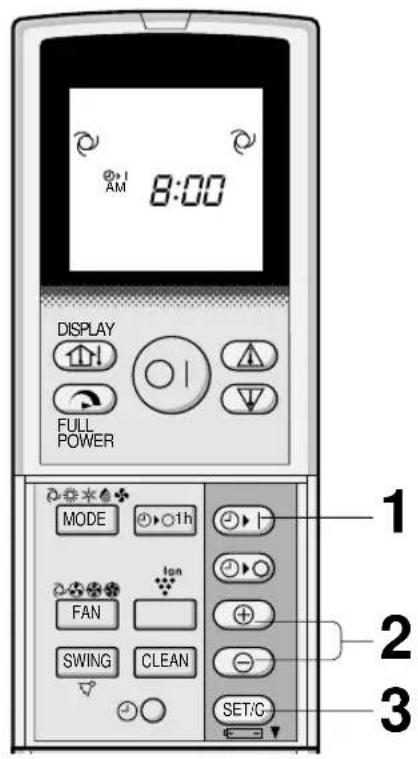

Point the remote control at the signal receiver window on the unit and press the TIMER SET (SET/C) button.

• The orange TIMER lamp ( ) on the unit will light.

• The unit will generate a beep when it receives the signal.

Select the operation condition.

• The unit will turn on prior to the set time to allow the room to reach the desired temperature by the programmed time. (Awaking function) Example: To stop operation at 11:00 p.m. and resume opera- tion (With the same mode and temperature settings) to bring the room temperature to the desired level by 7:00 a.m.

Set the TIMER OFF to 11:00 p.m. during opera- tion.

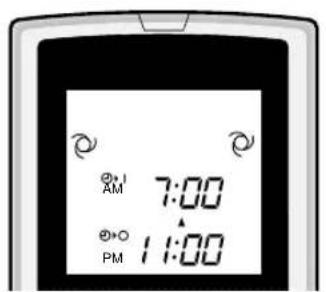

Set the TIMER ON to 7:00 a.m. The arrow ( or ) between the TIMER ON indicator and the TIMER OFF indicator shows which timer will activate first. E-15 NOTES:

• You cannot programme the ON-TIMER and OFF-TIMER to operate the unit at different temperatures or other settings.

• Either timer can be programmed to activate prior the other. You can use the ON and OFF timers in combination. COMBINED USE OF ON AND OFF TIMERS

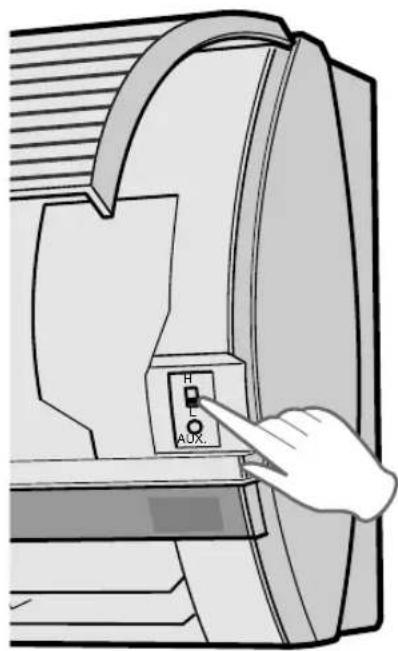

Lift the front panel of the indoor unit and press theAUX. button on the operation panel.• The red OPERATION lamp ( ) on the unit willlight and the unit will start operating in the AUTOmode.• The fan speed and temperature setting are setto AUTO.

Press the AUX. button on the operation panelagain.• The red OPERATION lamp ( ) on the unit willturn off. NOTE: If the AUX. button is pressed during normal opera-tion, the unit will turn off. POWER SELECTOR (only for model AY-XP13CE) When installing the air-conditioner to a residencewith small electrical current capacity, switch thePOWER SELECTOR to "L". The air conditionerwill operate with reduced power, and the circuitbreaker tripping or fuse blowing caused by excesspower consumption can be avoided.• COOLING or HEATING capacity will be reducedwhen operating at "L" setting.• Consult your dealer or qualified technician if con-tinuous breaker tripping or fuse blowing is expe-rienced even by switching to "L" setting.AY-XP13CEMaximum ampere 12A at "H" settingMaximum ampere at "L" settingAUX.

• The built-in protective de-vice may prevent the unitfrom operating when usedout of this range.• Condensation may form onthe air outlet if the unit op-erates continuously in theCOOL or DRY mode whenhumidity is over 80 percent. D.B. = Dry-bulb W.B. = Wet-bulb PREHEATING FUNCTION In the HEAT operation, the indoor fan may not start for two to five minutes after the unit is turned on to prevent cold air from blowing out of the unit. DE-ICING FUNCTION

• When ice forms on the heat exchanger in the outdoor unit during the HEAT operation, an automatic de-icer provides heat for about 5 to 10 minutes to remove the ice. During de-icing, the inside and outside fans stop operating.

• After de-icing is completed, the unit automatically resumes operation in the HEAT mode. HEATING EFFICIENCY

• The unit employs a heat pump that draws heat from the outside air and releases it into the room. The outside air temperature therefore greatly affects the heating efficiency.

• If the heating efficiency is reduced due to low outside temperatures, use an additional heater.

• It takes time to warm up and heat the entire room because of the forced air circulation system.

WHEN POWER FAILURE OCCURS

This air conditioner has a memory function to store settings when a power failure occurs. After power recovery, the unit will automatically re-start in the same settings which were active before the power failure, except for timer settings. If the timers were set before a power failure, they will need to be re-set after power recovery. E-17

TIPS ON SAVING ENERGY

Below are some simple ways to save energy when you use your air conditioner.

SET THE CORRECT TEMPERATURE

• Setting the thermostat 1°C higher than the desired temperature in the COOL mode and 2°C lower in the HEAT mode will save approximately 10 percent in power consumption.

• Setting the temperature lower than necessary during cooling operation will result in increased power consumption.

BLOCK DIRECT SUNLIGHT AND PREVENT DRAFTS

• Blocking direct sunlight during cooling operation will reduce power consumption.

• Close the windows and doors during cooling and heating operations. SET PROPER AIR FLOW DIRECTION TO OBTAIN THE BEST AIR CIRCULATION KEEP FILTER CLEAN TO ENSURE THE MOST EFFICIENT OPERATION MAKE MOST OF THE TIMER OFF FUNCTION DISCONNECT THE POWER CORD WHEN THE UNIT IS NOT USED FOR AN

EXTENDED PERIOD OF TIME

• The indoor unit still consumes a small amount of power when it is not operating.MAINTENANCE E-18 Be sure to disconnect the power cord from the wall outlet or turn off the circuit breaker before performing any maintenance.

Operate the unit in the SELF CLEAN OPERATION to allow the mechanism to thoroughly dry.

Stop the operation and unplug the unit. Turn off the circuit breaker, if you have one exclusively for the air conditioner.

Clean the filters, then reinstall them. MAINTENANCE BEFORE

Make sure that the air filters are not dirty.

Make sure that nothing obstructs the air inlet or outlet.

Check the outdoor mounting rack periodically for wear and to make sure it is firmly in place.

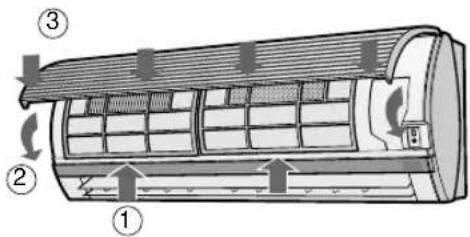

1 Lift the open panel. 2 Push the air filters up slightly to unlock them. 3 Pull the air filters down to remove them.

Use a vacuum cleaner to remove dust. If the filters are dirty, wash them with warm water and a mild detergent. Dry filters in the shade before reinstalling.

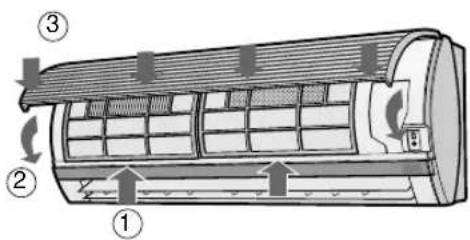

1 Reinstall the filters in the original positions. 2 Close the front panel. 3 Push the arrow-marked of the panel firmly to lock it in place.

CLEANING THE FILTERS

The air filters should be cleaned every two weeks. CLEANING THE UNIT AND THE REMOTE CONTROL

• Wipe them with a soft cloth.

• Do not directly splash or pour water on them. We can cause electrical shock or equipment damage.

• Do not use hot water, thinner, abrasive powders or strong solvents.

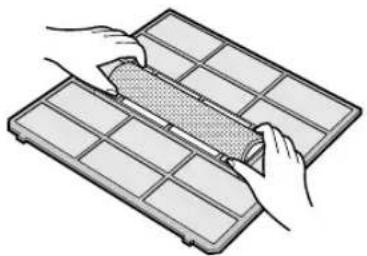

2ENGLISH CLEANING THE DEODORANT FILTER (GREEN) The filter should be cleaned every 3~6 months

1 Take off the deodorant filter from the air filters. 2 Soak the deodorant filter in mild detergent dilution for 10 to 20 minutes. Rinse thoroughly with water, dry completely under sunlight. 3 Set the clean deodorant filter under the fil- ter stoppers located on the air filters.

• Replacement is necessary at the interval of 3 years, as the deodorising effect will deteriorate. The new filters are available at your nearest dealer. Replacement filter: Type AZ-F910C CHANGING THE DUST COLLECTION FILTER (GRAY) The filter should be changed every 3~6 months

1 Take off the old dust collection filter from the air filters. 2 Set the new dust collection filter, the black side facing upward, under the filter stop- pers located on the air filters.

• The dirty dust collection filter is not washable for reuse. The new filters are available at your nearest dealer. Replacement filter: Type AZ-F900C E-19 Filter stopperFilter stopperIF THE UNIT FAILS TO RECEIVE THE REMOTE CONTROL SIGNAL Check whether the remote con-trol batteries have become oldand weak.Try to send the signal again withthe remote control pointed prop-erly towards the unit’s signal re-ceiver window.Check whether the remote con-trol batteries are installed withthe polarities properly aligned. E-20

BEFORE CALLING FOR SERVICE

The following conditions do not denote equipment malfunctions

UNIT DOES NOT OPERATE

The unit will not operate if it is turned on immediatelyafter it is turned off. The unit will not operateimmediately after the mode is changed. This is toprotect the internal mechanisms. Wait 3 minutesbefore operating the unit. UNIT DOES NOT SEND OUT WARM AIR The unit is preheating or de-icing. CRACKING NOISE The unit may produce a cracking noise. This sound isgenerated by the friction of the front panel and othercomponents expanding or connecting due to atemperature change. If the unit appears to be malfunctioning, check the following points before calling for service.

IF THE UNIT FAILS TO OPERATE

Check to see if the circuit breaker has tripped or the fuse has blown. IF THE UNIT FAILS TO COOL (OR HEAT) THE ROOM EFFECTIVELY Check the filters. If dirty, cleanthem.Check the outdoor unit to makesure nothing is blocking the air in-let or outlet.Check the thermostat is propersetting.Make sure windows and doorsare closed tightly.A large number of people in theroom can prevent the unit fromachieving the desired tempera-ture.Check whether any heat-gen-erating appliances are operat-ing in the room. ODORS Carpet and furniture odors that entered into the unitand the air conditioner's inner component odors atthe early stage of installation may be sent out fromthe unit. Please call for service when OPERATION Lamp, TIMER Lamp and TEMPERATURE INDICATOR on the indicator panel blink.

A LOW BUZZ NOISE EMITTED

This is a sound emitted when the unit is generating ionclusters. SWISHING NOISE The soft, swishing noise is the sound of therefrigerant flowing inside the unit. WATER VAPOUR

• In the COOL and DRY operation, water va-pour can sometimes be seen at the air outletdue to the difference between the room airtemperature and the air discharged by theunit.• In the HEAT operation, water vapour mayflow out of the outdoor unit during de-icing.

THE OUTDOOR UNIT DOES NOT

STOP After stopping the operation, the outdoor unitwill rotate its' fan for about a minute to cooldown the unit.

ODOR EMITTED FROM THE

PLASMACLUSTER AIR OUTLET

This is the smell of ozone generated from theionizer. Density of the ozone is very little, hav-ing no adverse effect over your health. Theozone released into the air will decompose soon,and its density in the room will not increase.During PLASMACLUSTER AUTO OPERATION, the air conditioner operates in the REFRESHING OP-ERATION even when there is odor in the room.

• In case for example, when the room is full of tobacco smokes before the air conditioner is turned on, the ODOR SENSOR may become unreactive.DEUTSCH D-1 DEUTSCH Vielen Dank für den Kauf dieses SHARP-Erzeugnisses. Bitte lesen Sie sich dieseBedienungsanleitung sorgfältig durch, bevor Sie das Klimagerät betreiben.• VORSICHTSMASSNAHMEN ........................D-1• TEILEBEZEICHNUNGEN ..............................D-3• EINSETZEN DES STAUBAUFFANGFILTERSUND DESODORIERUNGSFILTERS .............D-5• VERWENDUNG DER FERNBEDIENUNG ....D-6• GRUNDLAGEN DES BETRIEBS ..................D-8• EINSTELLUNG DER RICHTUNG DESLUFTSTROMS.............................................. D-10• VOLLLEISTUNGSBETRIEB ......................... D-11• EIN-STUNDEN-AUSSCHALT-ZEITSCHALTER ........................................... D-11 TIPPS ZUM PLASMACLUSTER-BETRIEB .......... D-12 INHALT

gDISPLAY FULL POWERSWINGCLEAN FAN MODE SET/C

SWING CLEAN FAN SET/C

AM LUFTAUSLASS DES PLASMA-

gDISPLAY FULL POWERSWINGCLEAN FAN MODE SET/C

SWING CLEAN FAN SET/C

UN FAIBLE BOURDONNEMENT EST EMIS

gDISPLAY FULL POWERSWINGCLEAN FAN MODE SET/C

SWINGCLEAN FAN MODE SET/C 1hAM DISPLAY FULL POWERSWINGCLEAN FAN MODE SET/C

SWING CLEAN FAN SET/C

gDISPLAY FULL POWERSWINGCLEAN FAN MODE SET/C

SWING CLEAN FAN SET/C

1AM DISPLAY FULL POWERSWINGCLEAN FAN MODE SET/C

SWINGCLEAN FAN MODE SET/C

SWING CLEAN FAN SET/C

1AM DISPLAY FULL POWERSWINGCLEAN FAN MODE SET/C

DISPLAY FULL POWERSWINGCLEAN FAN MODE SET/C

gDISPLAY FULL POWERSWINGCLEAN FAN MODE SET/C

SWING CLEAN FAN SET/C

DISPLAY FULL POWERSWINGCLEAN FAN MODE SET/C

gDISPLAY FULL POWERSWINGCLEAN FAN MODE SET/C

SWINGCLEAN FAN MODE SET/C

SWING CLEAN FAN SET/C

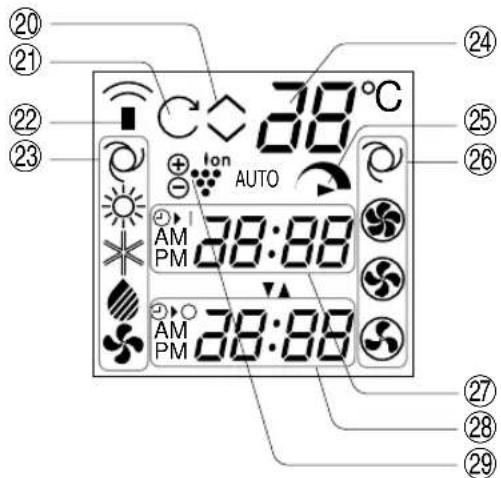

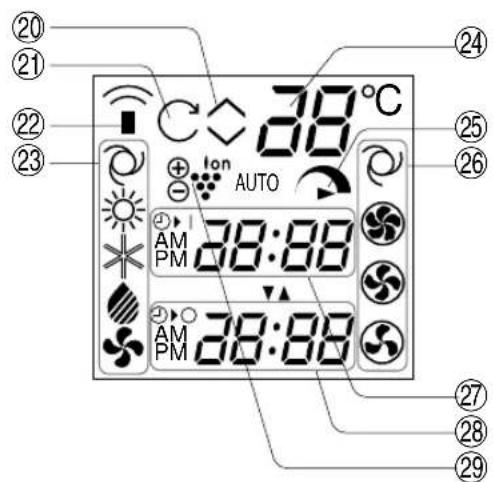

gDISPLAY FULL POWERSWINGCLEAN FAN MODE SET/C

SWINGCLEAN FAN MODE SET/C

(25˚C) Soπutma (24˚C) Soπut-

B∑R SAAT SONRA KAPANMA AYARI

SWING CLEAN FAN SET/C

), mavi PLASMACLUSTER lambas∂ ve SICAKLIK GÖSTERGES∑ söner. 1AM DISPLAY FULL POWERSWINGCLEAN FAN MODE SET/C

PLASMACLUSTER’IN HAVA
