USER MANUAL Innovis 770E BROTHER

• Transferring embroidery patterns to the machine

• Easily upgrading your machine

Bedienungsanleitung

USB-Funktion

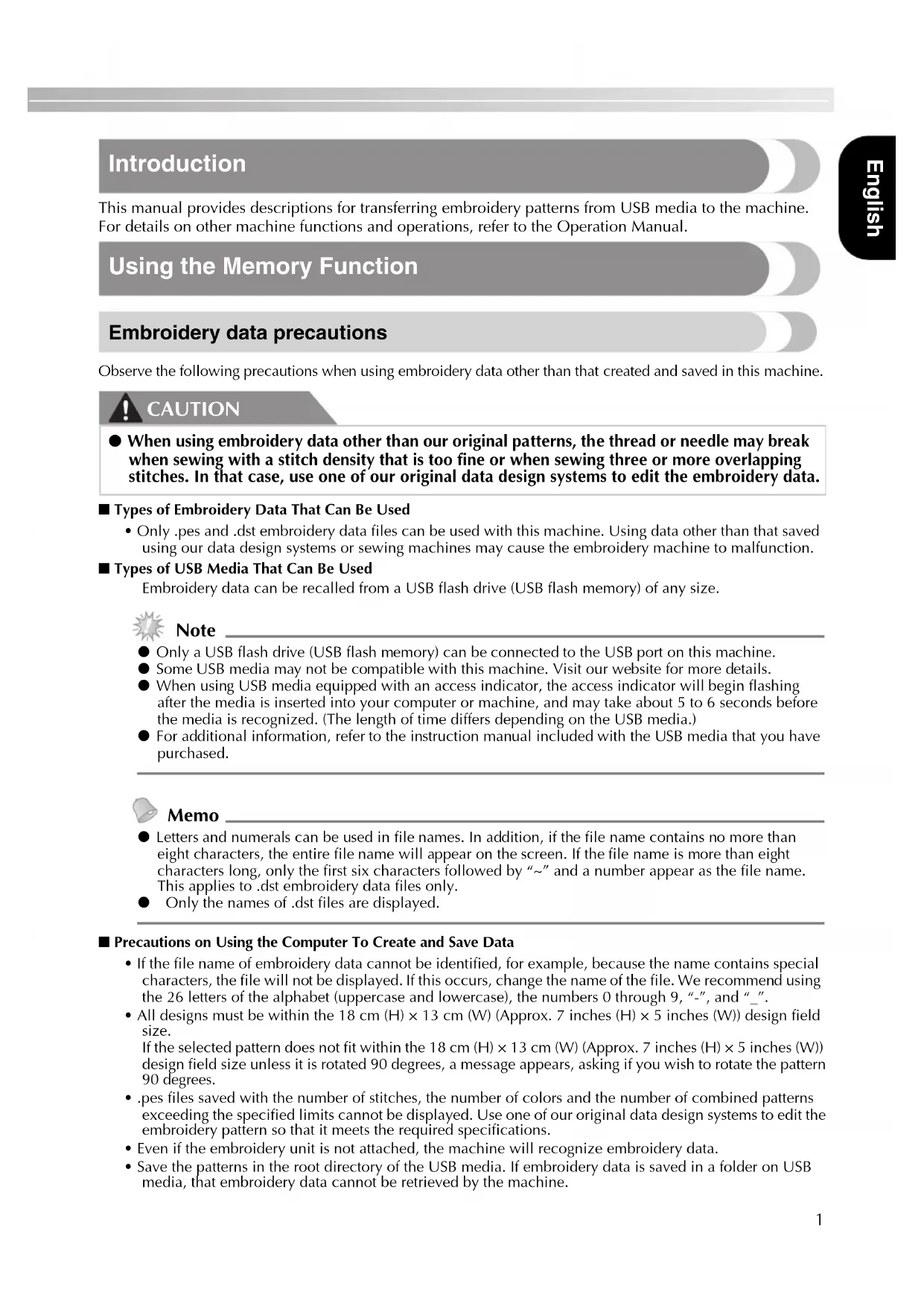

This manual provides descriptions for transferring embroidery patterns from USB media to the machine. For details on other machine functions and operations, refer to the Operation Manual.

Using the Memory Function

Embroidery data precautions

Observe the following precautions when using embroidery data other than that created and saved in this machine.

CAUTION

• When using embroidery data other than our original patterns, the thread or needle may break when sewing with a stitch density that is too fine or when sewing three or more overlapping stitches. In that case, use one of our original data design systems to edit the embroidery data.

Types of Embroidery Data That Can Be Used

• Only .pes and .dst embroidery data files can be used with this machine. Using data other than that saved using our data design systems or sewing machines may cause the embroidery machine to malfunction.

Types of USB Media That Can Be Used

Embroidery data can be recalled from a USB flash drive (USB flash memory) of any size.

Note

• Only a USB flash drive (USB flash memory) can be connected to the USB port on this machine.
  Some USB media may not be compatible with this machine. Visit our website for more details.
• When using USB media equipped with an access indicator, the access indicator will begin flashing after the media is inserted into your computer or machine, and may take about 5 to 6 seconds before the media is recognized. (The length of time differs depending on the USB media.)
• For additional information, refer to the instruction manual included with the USB media that you have purchased.

Memo

• Letters and numerals can be used in file names. In addition, if the file name contains no more than eight characters, the entire file name will appear on the screen. If the file name is more than eight characters long, only the first six characters followed by "~" and a number appear as the file name. This applies to .dst embroidery data files only.
• Only the names of .dst files are displayed.

Precautions on Using the Computer To Create and Save Data

• If the file name of embroidery data cannot be identified, for example, because the name contains special characters, the file will not be displayed. If this occurs, change the name of the file. We recommend using the 26 letters of the alphabet (uppercase and lowercase), the numbers 0 through 9, " - ", and " _".
• All designs must be within the 18cm (H)× 13 cm (W) (Approx. 7 inches (H)× 5 inches (W)) design field size.
• If the selected pattern does not fit within the 18cm (H)× 13 cm (W) (Approx. 7 inches (H)× 5 inches (W)) design field size unless it is rotated 90 degrees, a message appears, asking if you wish to rotate the pattern 90 degrees.
• .pes files saved with the number of stitches, the number of colors and the number of combined patterns exceeding the specified limits cannot be displayed. Use one of our original data design systems to edit the embroidery pattern so that it meets the required specifications.
• Even if the embroidery unit is not attached, the machine will recognize embroidery data.
• Save the patterns in the root directory of the USB media. If embroidery data is saved in a folder on USB media, that embroidery data cannot be retrieved by the machine.

Tajima (.dst) Embroidery Data

• When a .dst file is imported, the only way that you can view the design is by selecting the pattern (file name).

Then press display the design on the screen.

Transferring embroidery patterns from the computer to machine

Note

• Only a USB flash drive (USB flash memory) can be connected to the USB port on this machine.
  An embroidery pattern can be transferred to the machine from USB media containing data for no more than 200 embroidery patterns.
• Embroidery patterns cannot be transferred to the machine if the USB media contains data for more than 200 embroidery patterns. In this case, reduce the number of designs saved on the USB media.
• In addition, if the embroidery designs contain too many colors (this number may vary within the designs themselves), it may not be possible to transfer an embroidery pattern to the machine, even if there are less than 200 embroidery patterns that have been saved on the USB media. In this case also, reduce the number of designs saved on the USB media.
• Save the patterns in the root directory of the USB media. If embroidery data is saved in a folder on USB media, that embroidery data cannot be retrieved by the machine.

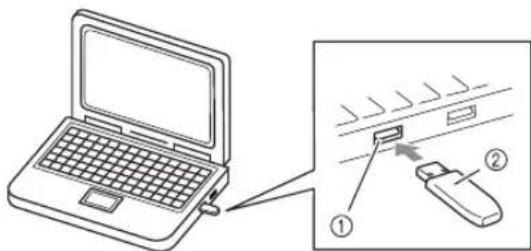

Insert the USB media into the USB port on the computer.

① USB port on the computer
② USB media

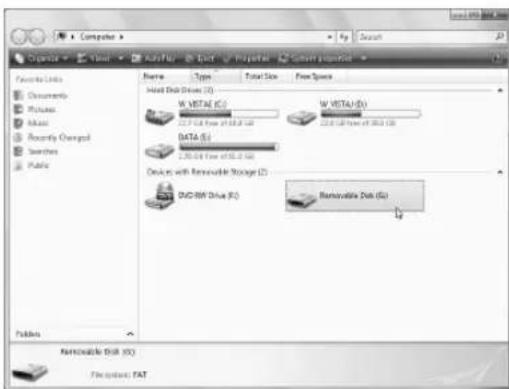

The "Removable Disk" icon appears in Computer (My computer) on the computer.

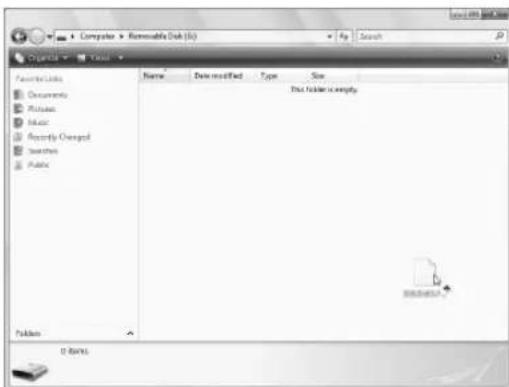

Copy the pattern data to "Removable Disk".

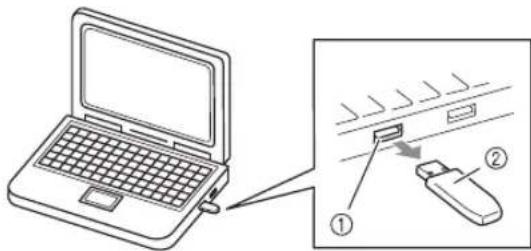

Safely remove the USB media from the USB port on the computer.

① USB port on the computer
② USB media

CAUTION

Before disconnecting the USB media, click the "Unplug or Eject Hardware" icon in the taskbar of Windows® 2000 or the "Safely Remove Hardware" icon in the taskbar of Windows® XP/Windows Vista®.

Then, when the removable disk can safely be removed, disconnect the USB media from the computer.

Windows® XP

Windows Vista®

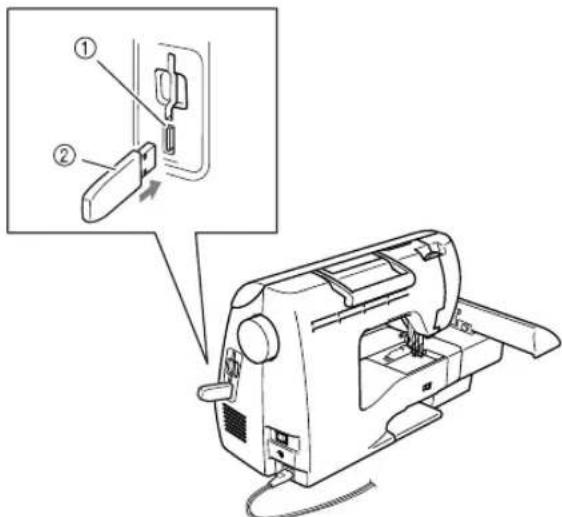

Insert the USB media into the USB port on the machine.

① USB port (for a USB flash drive (USB flash memory))
② USB media

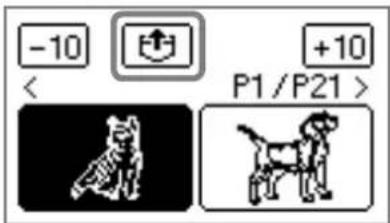

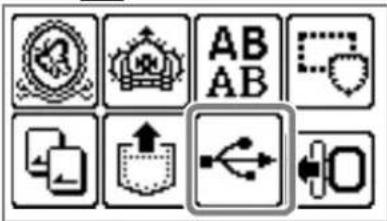

Press

The saved patterns are displayed.

Note

• If the message "Reduce the number of patterns." appears, the USB media may contain either more than 200 embroidery patterns or the embroidery designs may contain too many colors (although there may be no more than 200 patterns).

In this case, unplug the USB media from the machine, plug it back into the computer, and then delete a few designs at a time from the USB media.

Close the error message on the machine, and then repeat procedures starting from step 5.

Memo

The pattern file names appear in alphabetical order.
- Only the names of .dst files are displayed.

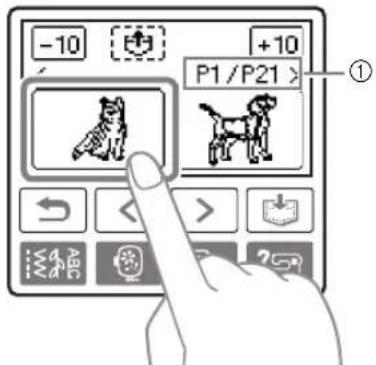

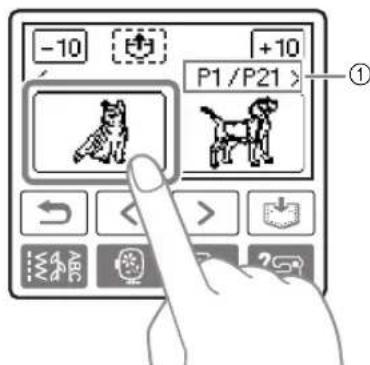

Select the pattern you wish to retrieve.

Switch screens using (Previous page key) and (Next page key).

Number of the currently displayed page from the total number of pages
- When 10 is presented, the display of patterns moves forward or backward in increments of 10 designs.
The selected pattern is shown in reverse highlighting.

Press

The saved pattern is retrieved.

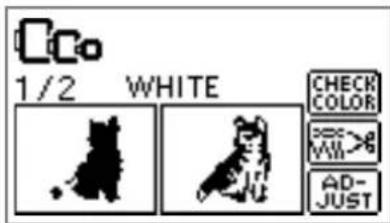

The embroidery screen appears, and you can embroider the retrieved pattern.

Adjust the pattern as desired, and then begin.
embroidering.

Error messages

Memo

This manual describes the error messages concerning the USB connection. For details on other error messages, refer to the Operation Manual.

Error Message Probable Cause
① Do not change the USB media while it is being read.	You attempted to select a pattern after the USB media containing the pattern has been disconnected, then reconnected.
① Load USB media.	You recalled a pattern while no USB media is connected.
① Reduce the number of patterns.	A pattern was being retrieved from a USB flash drive (USB flash memory) containing more than 200 embroidery patterns. In addition, this message will appear if embroidery patterns containing many colors have been saved on the USB media, even if it contains data for no more than 200 patterns.
Retrieving the pattern. Wait a moment.	Retrieving the pattern

Upgrading Your Machine's Software Using USB Media

You can use USB media and a computer to download software upgrades for your sewing machine. When an upgrade program is available on our website at "http://solutions.brother.com", please download the file(s) following the instructions on the website and steps listed below.

Note

• When using USB media to upgrade the software, check that no data other than the upgrade file is saved on the USB media being used before starting to upgrade.
• Upgrade file can be recalled from a USB flash drive (USB flash memory) of any size.

Memo

• When the machine's software is upgraded, saved combinations of character and decorative stitches are erased. However, saved embroidery patterns are not erased.

Press and hold the (Settings key) while turning on the machine.

The following screen appears.

Connect the USB media containing the upgrade file.

LOAD

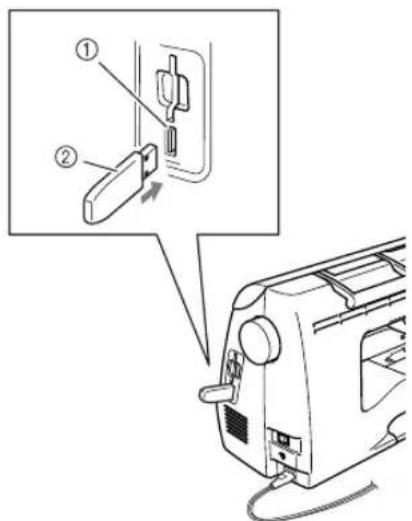

Insert the USB media into the USB port on the machine. The media device should only contain the upgrade file.

① USB port for media
② USB media

Note

• When using USB media equipped with an access indicator, the access indicator will begin flashing after the media is inserted into your computer or machine, and may take about 5 to 6 seconds before the media is recognized. (The length of time differs depending on the USB media.)

Press LOAD

The following screen appears.

Saving the
upgrade file.
Do not turn
main power to OFF.

Note

If an error occurred, a text error message will appear. At this time, turn the machine off, and then start the procedure again from step 1.

When the following screen appears, upgrading is completed.

Remove the USB media, and turn the machine off and on again.

Einführung

(PerexoHa cneyoucuTpaHcy).

① Homep OTo6paKaemOB TEkyuMOMeHT cTpaHnIbI N o6Iee YNCNo cTpaHnU.

-ПинхаатиКНОпк -10 ]ИИ +10 Ha ьранe OTOбрахаetcPnCyHOK, HaxOДЯшсяHa 10 pncyHkoB paHee nI IN NO3Ke TeKyuIero pncyHka.

BbI6paHHbI pncyHOK OTo6paxaetcB INHBePTnPOBaHOM BIne.

Haxmnte KhONky

CoxpaHHeHHbI pncyHOK nOlyeH.

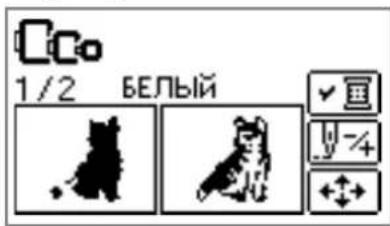

PONBJIeTcA 3KpaH BbIuINBaHn, n TeNepb MOXHO BbIIOJIHHTb BbluINBaHne NO PONyHeHHOMy pncyHKy.

Pn Heo6xOaMocTn HacTpoTe pncyHok n npctynaTe K BbIuBaHHIO.

Coo6eHn8 o6 own6kax

HanomHaHne

B HacToIeM pyKoBOcTBe OINcaHb coO6eHnO 6 OIN6kax, OTHOaIeCe K NOdkHoueHNo USB. POnpo6Hoe OINcaHne Dpyrnx CoO6eHnO 6 OIN6kax cm. B PyKOBoCTBe NOnb3OBaTeJIa.

Сообшени об ошибке	Возможнaya причниа
①HeuseskayteUSB-hocitelbeO evemra cH-Tbivahnia.	Bby nonbtaiinsb bbl6paTb pncyHok, nocsne toro kak USB-hocitelb c3aPncAHbIM Ha hem pncyHKom 6blJ OTCoeDIneHn 3aTeM ChOBaПОДКПЮЧEN.
①ПОДКПЮЧЕUSB-hocitelb.	Bby nonbtaiinsb bbl6paTb pncyHok, korgda USB-hocitelb HeПОДКПЮЧEN.
①	ПОЛБТК ПОЛУECHENI рисунka cФлэш-нakОпITeRЯ USB (Флэш-namЯтNi USB), Na кOTOpOM 3aPncAHO 6OJIeE 200 pncyHKOBbIshBaHnia.ЗTOже coobseHene 6 ошибke NOBnTcRc, ecnHa USB-hocitelcoXpAHbI pncyHKn C 6OJIbShIM KOLNUeCTBOM 4CBeTOB, dajke ecnNixOБшee чсно He npebblsæT 200.
	ПОЛУECHENI рисунka

OboHbHeHpePpamMHO oecneueHHBbIaBbHcMaHHbICnmoosbU8HocnteJI

3arpykaobHOBneHn nporpaMMHOro oecneHn dIy BbINBaJIbHO MaUNHbIO MoxHo Ha USB-HocnteN Hn HA KOMnbOTep.
Ecni Ha haem Be6-caTe "http://solutions.brother.com" mMeTc nporpMaMoHOBHeHn, 3arpy3nte
faiu(b), BblONHH INCTpyKUHN, npNBedeHHbE Ha Be6-caTe N B ONCAHN HIXe.

Ppimechne

Pn nncno30baHn USB-HocnteIy IIO hOBHeH nporpaMMHO oecneueHn nepe 3anyckOM 6HOBHeH y6eHTecb, YTO Ha nCNOJIb3yeMOM USB-HocnteI He coXpaHeHO HkaKnx daHHbIX, KpOme
-Файл obновся может 6ыт b поуес с Фпш-hakонитег USB (фпш-namгТ USB) nio6oro obbeema.

HanomnHaHne

• Pn O6HOBJIeHn IporpAMMHorO OecneHeHn MaunHbI COxpaHeHHbI KOM6HaUN CmB0NbHbIX N DeKopaTINHBbIX CTpoEck CTnpaOTc. Ho coXpaHeHHbIe pucyHKn BbluBaHn He CTnpaIOTc.

HaxMnte n ydepXnBaIte KnaBnSy (HaCTpoNka) BO BpeMa BKnIOueHn MaunHbI.

PoiBntcCneDyHouN3KpaH.

Connect the USB media containing the upgrade file.

LOAD

Bctabte USB-HocnteB USB-nopt MaunHbI. HocnteB doJxeh coepkaTb TObko paui OboHOBHeHn.

① USB-nopt dЯ nodknquehna HocnteJ daHHbIX
② USB-Hocntenb

Ppimechane

Ecnnncnoj3yeTc USB-HocnteIb c HNDKATOPOM COCTOHN, NOCNE NOKNIOUeHINHOCHTeJI K KOMNBIOTepy INN BblNBaJIbHOJ MaUNHe INDNIKAToP COCTOHN HAHTe MIRaTB; pacNO3HaBaHne HOCNTeJI KOMNBOTEpOM INN MaUNHOJ MOKeT 3aHrTb npIMepHO 5-6 CEkyH. (Heo6xOJNMoe BpeM paCNO3HaBaHnpa3NJuaeTcB 3aBNCUMOCTn OT USB-HocnteJIa.)

HaxMMTe KONky LOAD □IoBNTcraCJeDyUOuN3Kp

Saving the
upgrade file.
Do not turn
main power to OFF.

Ppimechane

PnB03HKnHOBeHHN OUn6Kn OTo6pa3ntc4 COOTBECTBYIOOee COo6IeHHe 06 OUn6Ke. B 3TOM Cnyae BbIKNoHTe MaunHy n HauHInTe onepaun 3aHOBO c NyHKTa 1.

Korda o6HOBHeHne 3aBepWntcra, nOBtca cneDyUoee coo6eHne:

Upgrade complete.

OTcoeHNHTe USB-HocntEnb,3aTeM BblKIOUHTe N CHOBA BKIOUHTe MaunHy.
