Product Type	Monoblock portable air conditioner (Pinguino)
Brand	DeLonghi
Model	PAC FX180 ECO
Dimensions (W × H × D)	452 × 800 × 415 mm
Weight	33.5 kg
Power supply	See rating plate (typ. 220-240 V, 50 Hz)
Max. air flow	310 m³/h
Operating modes	Cooling, Dehumidification, Fan, Full Auto, Night (Sleep)
Filter type	Washable anti-bacteria filter + Disposable FILTRETE™ filter
Filter maintenance	Clean the anti-bacteria filter every week; replace the FILTRETE™ at end of season
Condensate water tank capacity	Collection tray with manual emptying and rear drain
Remote control	Yes, with display and batteries (alkaline recommended)
Timer	Delayed start/stop programming (ON/OFF timer)
Night function (Sleep)	Automatically adjusts temperature (increases by 1°C after 1 hour, 2°C after 2 hours)
Installation	No installation (window) or semi-permanent (hole in wall/window)
Fan speeds	Low, Medium, High, Auto, Silent
Recommended operating temperature	Room: 21-32°C; Outside: 21-43°C
Remote control batteries	2 non-rechargeable alkaline batteries (type not specified)
Warranty	Not mentioned, refer to authorized service

Frequently Asked Questions - PAC FX180 ECO DELONGHI

How to install the air conditioner without drilling a hole?

Attach the exhaust hose to the back of the unit, then place the window adapter in the opening. Slightly open the window and position the adapter as shown in the manual. Use the provided suction cups to keep the window slightly open.

What to do if the three indicator lights flash?

This indicates that the condensation water collection tray is full. Empty it by removing the drain cap at the rear or unscrewing the drain hose cap. Then unplug and replug the unit. If the problem persists, contact after-sales service.

How to clean the air filters?

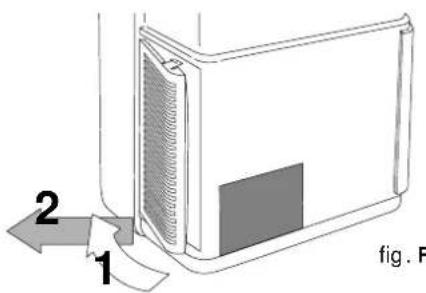

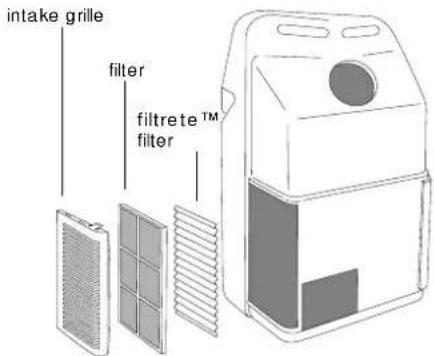

Remove the intake grilles by turning them outward. Remove the FILTRETE™ filter (white) and the filter holder. Clean the anti-bacteria filter with a vacuum cleaner or lukewarm water (max 40°C). Let it dry completely before reassembling. Do not wash the FILTRETE™, replace it at end of season.

How often to replace the FILTRETE™ filter?

The FILTRETE™ filter should be replaced at the end of each cooling season, or sooner if visibly dirty. Follow the indications near the filter housing on the unit.

The remote control no longer works, what to do?

First check the batteries: replace them with new alkaline batteries respecting polarity (+/-). Make sure there is no obstacle between the remote and the receiver (max distance 7 m). In an emergency, use the manual operation button 14 on the unit.

How to empty the condensation water?

Remove the collection tray located at the back of the unit and empty it. You can also use the drain hose at the back (remove the cap) to drain water directly into a container. Perform this operation regularly, especially in dehumidification mode.

The air conditioner does not cool enough, why?

Check that the exhaust hose is not bent, obstructed, or poorly connected. Make sure windows and doors are closed, filters are clean, and there is no heat source (lamp, stove) nearby. If the power is insufficient for the room, consider a semi-permanent installation.

How to program the timer?

Turn on the air conditioner, then press the ON button on the remote to program a delayed start. The ON TIME symbol flashes. Set the time with ▲/▼ buttons, then confirm with SET. For a programmed stop, use the OFF button in the same way. Cancel with CANCEL.

What does the Sleep (Night) function mean?

The Sleep function automatically adjusts the temperature for nighttime comfort: after 60 minutes, the temperature increases by 1°C, after 2 hours by 2°C. The fan switches to silent mode. You can program the duration from 1 to 7 hours. Activate it with the Sleep button on the remote.

How to use Full Auto mode?

Press the MODE button on the remote until the FULL AUTO symbol appears. The unit automatically selects the mode (cooling, dehumidification, or fan) and fan speed based on room temperature to optimize comfort.

USER MANUAL PAC FX180 ECO DELONGHI

Thank you for having purchased an appliance made by De' Longhi, the international leader in portable air conditioning units. Thanks to our years of experience all around the world we are constantly improving the quality and performance of Pinguino. We are confident that you will be satisfied with your purchase and enjoy the cool comfort created by the Pinguino for many years to come. You should spend some time reading this instruction manual and keep it handy to refer to in order to use your Pinguino in conditions of maximum efficiency and peace of mind.

Chère Cliente, Cher Client,

Abstract gray gradient shape with wavy white outline on white background (no text or symbols)

Geachte Client,

Abstract gray gradient shape with wavy white outline on left (no text or symbols)

G A FULL AUTO 88 °C B AUTO SILENT H I C D ON TIME OFF TIME 88:88 ★8 -R E F K MODE L M N TEMPERATURE ON OFF SET O P Q CANCEL U R TIMER FUNCTIONS T S

Avvertenze

Sketch of a person in uniform pushing a machine (no text or symbols visible)

Hand-drawn sketch with a person holding an airplane and a large 'X' symbol over a suitcase, likely indicating cancellation or rejection.

Technical line drawing of a coiled cable or hose assembly with mounting brackets and wiring (no text or symbols)

Line drawing of a coiled hose connecting a vehicle to a car hood (no text or symbols)

Diagram showing two vertical panels with scattered circular patterns, no text or symbols present

Simple line drawing of a human arm and a rectangular object with bidirectional arrow (no text or symbols)

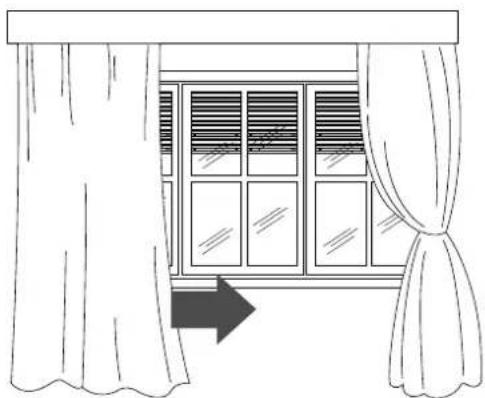

Line drawing of a window with curtains and sheer curtains, showing a black arrow pointing to the right pan (no text or symbols)

PROBLEMI CAUSE RIMEDI

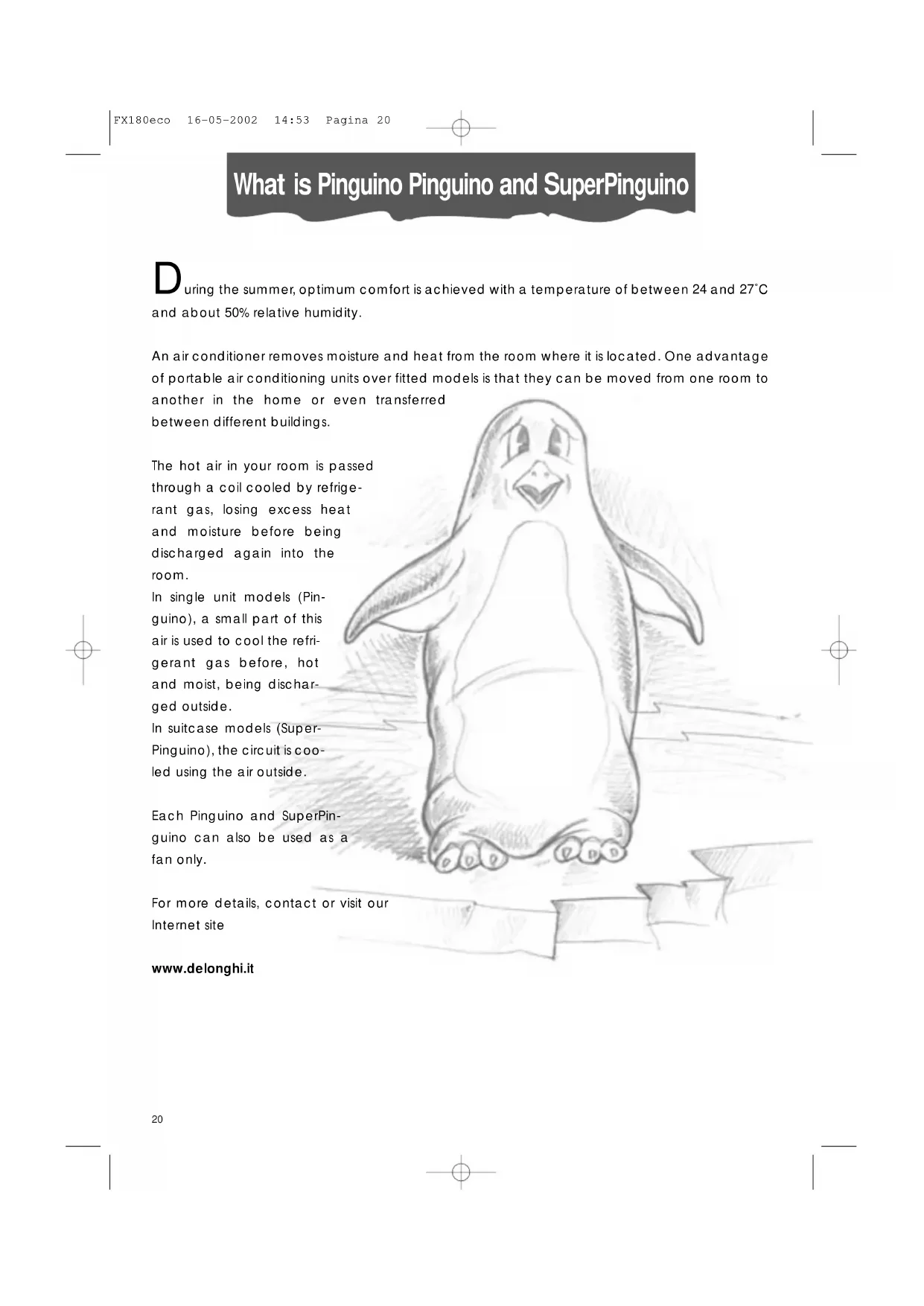

What is Pinguino Pinguino and SuperPinguino

During the summer, optimum comfort is achieved with a temperature of between 24 and 27°C and about 50% relative humidity.

An air conditioner removes moisture and heat from the room where it is located. One advantage of portable air conditioning units over fitted models is that they can be moved from one room to another in the home or even transferred between different buildings.

The hot air in your room is passed through a coil cooled by refrigerant gas, losing excess heat and moisture before being discharged again into the room.

In single unit models (Pinguino), a small part of this air is used to cool the refrigerant gas before, hot and moist, being discharged outside.

In suitcase models (Super-Pinguino), the circuit is cooled using the air outside.

Each Pinguino and SuperPinguino can also be used as a fan only.

For more details, contact or visit our Internet site

www.delonghi.it

Important Safe-guards

• This appliance has been manufactured to cool and de-humidify domestic environments and should not be used for other purposes.
• It is dangerous to alter or modify the unit's characteristics in any way.
• The appliance must be installed in conformity with the relevant national legislation.
• Should repairs be necessary, contact the nearest authorised Repair Service Centre. Unauthorised servicing can be dangerous.
• This appliance is to be used by adults only; keep children away from it.
  • Always ground the appliance. Have the electrical system checked by a qualified electrician.
  • A void using extension leads with the unit.
• Before cleaning or maintenance operations, always unplug the unit from the socket.
• Do not pull on or place strain on the power cable when moving the appliance.
  • In the case that the power cable becomes damaged, this must be substituted only by specialised personnel authorised by the manufacturer.
  • The appliance should not be installed where the atmosphere may contain combustible gases, oil or sulphur, or near heat sources.
• Do not rest hot or heavy objects onto the appliance.
• Clean the filters at least once a week.
  • A void using heaters near the unit.
• If it is not possible to transport the appliance in an upright position, then either lay it on its side.
• Before transporting the unit drain the condensation collecting-tray and basin. After transportation, wait at least 1 hour before switching on the unit.
• The packaging materials can be recycled. You are therefore recommended to place them in the special containers for differentiated waste collection.

Sketch of a person using a portable device (no text or symbols visible)

Hand-drawn sketch of a person sitting on a suitcase with a large 'X' symbol overlaid, possibly indicating cancellation or prohibition.

Setting up

The following instructions will help you set up your air conditioning unit as efficiently as possible.

AIR CONDITIONING WITHOUT INSTALLATION

With just a few simple operations, Pinguino will restore comfortable conditions in your room:

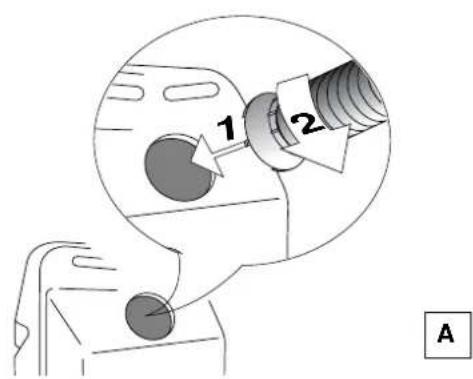

- Fix the air outlet tube to the coupling 5 on the back of the unit as shown in figure A.

1 2 A

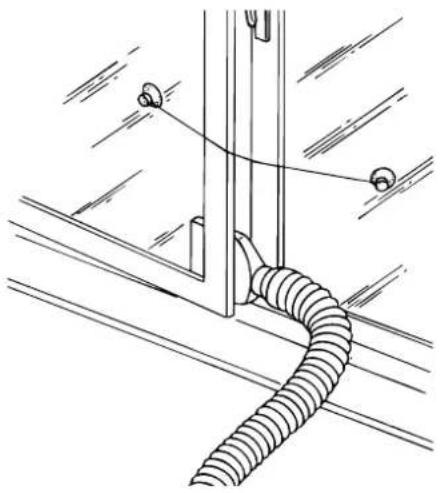

- With a double casement window, use the suckers provided to hold the two halves of the window together (fig. C).

Technical line drawing of a coiled cable or hose assembly with mounting brackets (no text or symbols)

• Fix the window attachment to the end of the tube .18
• Place the unit near a window or a French window.

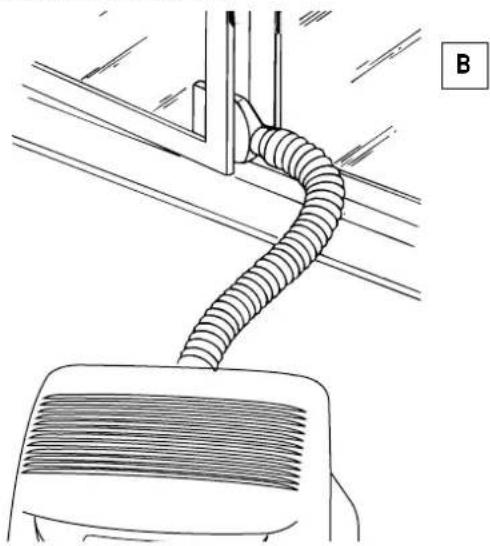

• Open the window or French window slightly and place the window attachment 18 as shown in figure B.

Line drawing of a coiled hose connecting a wall-mounted device (no text or symbols)

Setting up

AIR CONDITIONING WITH INSTALLATION

Pinguino can also be semi-permanently installed

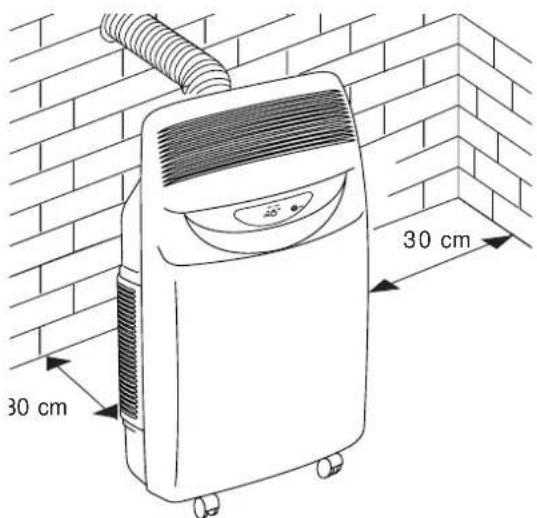

30 cm 30 cm

To install, proceed as follows:

- Make a hole in a wall communicating with the outside or through the pane of a window. Respect the height and dimensions given in figure D

• Fit the flange supplied to the hole.
• Fix the tube to the coupling on the back of the unit (figure A).
• Attach the end of the tube to the flange as shown in the figure E.

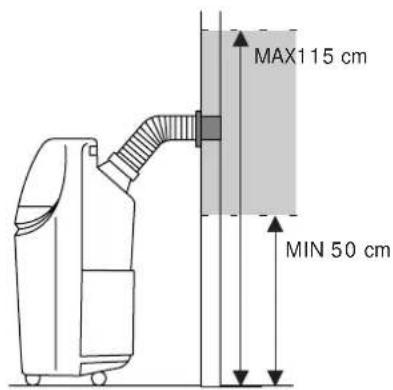

MAX115 cm MIN 50 cm

When the tube 17 not attached, close the hole with the bung on the flange .16

Ø 106 mm

in a window pane

in the wood sill of a window

Diagram showing two vertical panels with irregularly shaped patterns, no text or symbols present

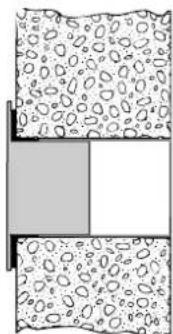

in the wall: for optimum results, insulate the section of the wall with suitable insulating material.

D

NOTE:

When the unit is installed semi-permanently, we recommend leaving a door slightly open (1 cm is enough) to ensure an adequate exchange of air.

DEHUMIDIFICATION

Position the appliance in the room without inserting the tube; in this way the dehumidified air will exhaust directly into the room.

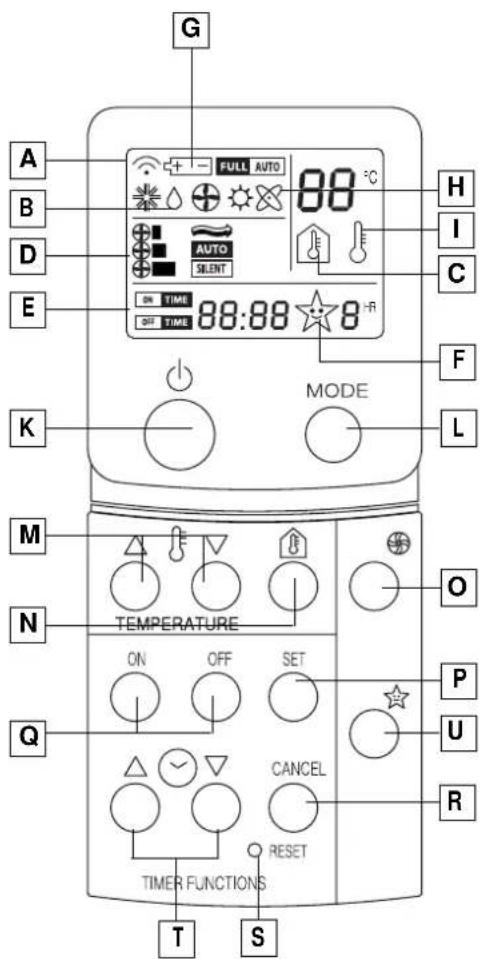

Description of the remote control/ Electrical connection

THE DISPLAY 2

Once the air-conditioner is turned on, all the symbols will be shown.

When the appliance is turned off, only the clock will remain visible.

A. Beep

Display of beef and start of the air-conditioner; it also activates every time an operation is carried out.

B. Symbols

Air-conditioning, dehumidifying, ventilation, heating (only on some models), Full Auto.

C. Room temperature

Shows the room temperature.

D. Fan speed

Shows the various speeds: minimum, medium, maximum, automatic and silent.

E. On/Off Timer

Shows the times programmed for turning the appliance on and off.

F. Sleep/Silent Timer

Shows the function and the desired operating time, with the sleep function

G. Battery-replacement indicator

H. Air purification

The symbol remains on permanently because when appliance is on, air is continuously filtered of impurities.

I. Set temperature

Shows the temperature set.

J. Clock

Shows the time.

BUTTONS

K. On / Off

L. MODE: Function selecting

This button selects the various functions: air-conditioning, dehumidifying, Ventilation/Purification, Heating (only on some models) and Full Auto

M. Room thermostat

These two buttons select the desired room temperature.

N. Room temperature display

Gives you the current room temperature. After about four (4) seconds, the display will show the temperature set previously.

O. Fan speed

Determines fan speed: minimum, medium, maximum, automatic and silent.

P.SET: Clock and timer verification

Confirms the setting of the clock and the ON/OFF timer.

Cancels the setting on the ON/OFF timer.

S. RESET

T. ON / OFF: Timer programming

These buttons program the turning on and off of the air-conditioner.

U. Sleep

This button controls the night-time operations.

ELECTRICAL CONNECTION

Before plugging in check that:

• the mains supply corresponds to the value shown in the specifications table;
• the socket and the mains lead correspond to the power requirements of the appliance;
• the socket is suited to the plug 10, otherwise have the socket replaced;
• the socket is properly grounded. The manufactures cannot be held responsible for any damages due to failure in following normal safety procedures.

Replacement of the power cable must be carried out by qualified personnel.

If when selecting the air-conditioning function while concurrently there would be a decrease in the voltage of the electrical current, a security device could intervene. This blocks the functioning of the refrigerator circuit, in a way that the appliance operates as if it were in the ventilation/purification mode. In order to restore the air-conditioning function, you must turn off the appliance and remove the plug from the outlet for at least thirty seconds. Then plug it back in.

Warning lights/ Forced operations

THE LEDS

Led displays come on depending on the selected function or as warning of possible anomalies.

FUNZIONE	RED LIGHT 11	YELLOW LIGHT 12	GREEN LIGHT 13
OFF	-	-	-
AIR-CONDITIONING	-	-	on
DEHUMIDIFYING	on - on
PURIFYING	- on -
FULL AUTO	As soon as this function is selected, all LED displays will remain on for some seconds until the control unit selects which mode to function in (whether air-conditioning, dehumidifier, fan or heater).
TIMER	All 3 LEDs remain on when machine is off, if at least one TIMER function is selected.

ANOMALY	RED LIGHT 11	YELLOW LIGHT 12	GREEN LIGHT 13
DIRTY FILTERS (1)	- blinking -
ALARM	blinking blinking	blinking

(1) A flashing LED indicator means that the anti-bacterial filters need cleaning. To switch off the LED indicator, after having cleaned the filters, press the manual function button until a beep followed by a double-beep is heard. This procedure can be carried out also while the unit is operating.

FORCED OPERATIONS

This is a way of operating to be selected if there are problems with the remote control (broken or lost, or the batteries run-down).

Push the button 4 start the unit and then press it again to get the sequence of the different operational procedures (air-conditioning, dehumidifying, ventilation, full auto, turn off) with an automatic setting.

Description of the remote control

REMOTE CONTROL

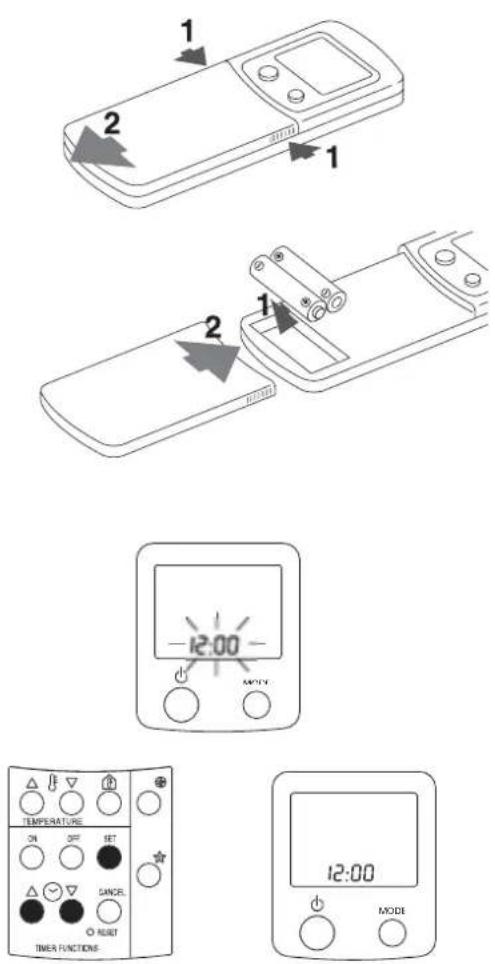

Inserting the batteries

• Slide the cover as shown in figure.
• Insert two new non-rechargeable batteries, being careful to place them in the correct positions (+) and (-).
• Put the cover back on, letting it slide into its original position.
• The Display will show all of the remote control's symbols for several seconds.

At this point the clock on the display will start to blink showing 12:00 o'clock; at this point set the correct time.

Note: WE SUGGEST USING ALKALINE BATTERIES.

If the remote control is to be replaced or thrown away, the batteries must be removed and disposed of in accordance with the current laws as it represents an environmental hazard.

SETTING THE CLOCK

• If the time is not set within two minutes of the reset or of battery replacement, the remote control will automatically read 12:00.
• T o programme the hour, push the▲ ⏻▼ keys to move ahead or back. The segments are of one minute. If you hold the buttons down, the minute designations will run more quickly.
• The clock will continue to blink. Push the SET button to confirm the time set: the clock will then stop blinking.
• If you have to adjust the time, you must push the RESET button and then enter the correct time. (There is no other way to do this).

PROPER USE

• Point the remote control toward the air-conditioner's signal receiver 10
  • Maximum distance: about seven (7) metres (without any obstacle between remote control and receiver).
• The remote control must be handled with great care: do not drop it, expose it to direct sunlight, or leave it close to heat sources.

Simple line drawing of a human figure with a right-angle arm and directional arrow, no text or symbols present

Selecting functions

AIR-CONDITIONING FUNCTION

This operation is ideal on especially hot days.

• First press the button to turn the appliance on. A beep will indicate that the air-conditioner has turned on, and the symbol will begin to blink.
• Now press the MODE button until the air-conditioning symbol appears on the display.
• At this point, set the temperature: to lower it, press the button.
• To select the fan speed, simply press the button repeatedly until you obtain the speed desired (minimum, medium, maximum, automatic and silent).

Note:

In air conditioning mode, the appliance automatically removes excess humidity from the atmosphere.

20°C AUTO SILENT

ENGLISH

It is a good idea to activate this operation when there is high humidity.

• First press the button to turn the appliance on. A beep will indicate that the air-conditioner has turned on and the symbol will begin to blink.
• Now press the MODE button until the dehumidifying symbol appears on the display.
• Rememeber that the set temperature must be lower than the room temperature by pressing the ⏻ ▼ button.
• To select the fan speed, simply press the ⊕ button until you get the desired speed.

Remember that the fan speed can be chosen automatically by the appliance, depending on the room and the selected temperature.

20°C AUTO SILENT

Selecting functions

VENTILATION FUNCTION/PURIFICATION

On humid but not particularly hot days, it may be sufficient to operate the appliance in ventilation/purification mode.

• Press the button. A beep will indicate that the air-conditioner has turned on, and the symbol will begin to blink.
• Now press the MODE button until the ventilation symbol appears on the display.
• Once the ventilation has been activated, press the ⏻button repeatedly until you get the desired fan speed (min, med, max, auto,silent).

It should be pointed out that when the automatic ventilation functions are activated, the appliance itself will choose the proper speed.

AUTO SILENT

FULL AUTO FUNCTION

FULL AUTO automatically activates the air-conditioner, including the temperature, fan speed thus assuring the best possible conditions for the room.

• Press the button. A beep will indicate that the air-conditioner has turned on, and the symbol will begin to blink.
• Now use the MODE button until the FULL AUTO symbol appears on the display.

The appliance will automatically establish the optimum mode (air conditioning, dehumidification, ventilation) and speed.

FULL AUTO AUTO

Selecting functions

AUTOMATIC SLEEP FUNCTION

Ideal for those wanting a peaceful night's sleep in a perfectly air conditioned room.

• Press the button to start the appliance.
• A beep will indicate that the air-conditioner has turned on, and the symbol will begin to blink.
• Now use the MODE button until you get the symbol for the function you want.
• Next select the desired temperature by pushing the ▲ 8 buttons.
• Now press the ☆ to set up the night-time function: the ☆ symbol will appear. By pushing the ☆ button repeatedly until you get the number of hours you want (from 1 to 7), you will set the time for the appliance to switch off.

In this function, the fan functions automatically.

N.B: The night-time function makes it possible to keep a room at a perfect temperature, thus preventing an excessive rise or a drop in temperature while the silent operation is in effect. The air-flow will decrease, while the room temperature will vary gradually to provide the ideal condition; the temperature will increase by 2°C after 60 minutes and by 2°C after two hours.

20 °C SILENT 7 HR

ENSOLIDH

PROGRAMMING THE TIMER

Programming the ON function

With the air-conditioner already running, press the ON button: the ON TIME symbol will start blinking and the clock will read 12:00.

Remember that the timer turns the air-conditioner on, thereby resetting all the functions and procedures operating before the appliance was last turned off.

• If the programming is the one you want, simply press the button.
• The increase or decrease will be in ten-minute (10-minute) segments for each press of the button, whereas if you hold the button down the time will change more quickly.
• The ON TIME marking will continue to blink. By pressing down on the SET button again, you will get confirmation of the time set for the appliance to turn on.
• To cancel the programming, push the ON button: the ON TIME marking will blink while showing the turn-on time.
• At this point, use the CANCEL button: the clock will show the correct time at that moment.

Programming the turn-off function

The procedure for programming the turn-off and cancellation operations is similar to the one just described: the only difference is that you must push the OFF instead of the ON button.

ON TIME 12:00

ON TIME 20:00

ON TIME 12:00

OFF TIME 12:00

Recommendations

Follow these recommendations to achieve maximum efficiency from your air conditioning unit:

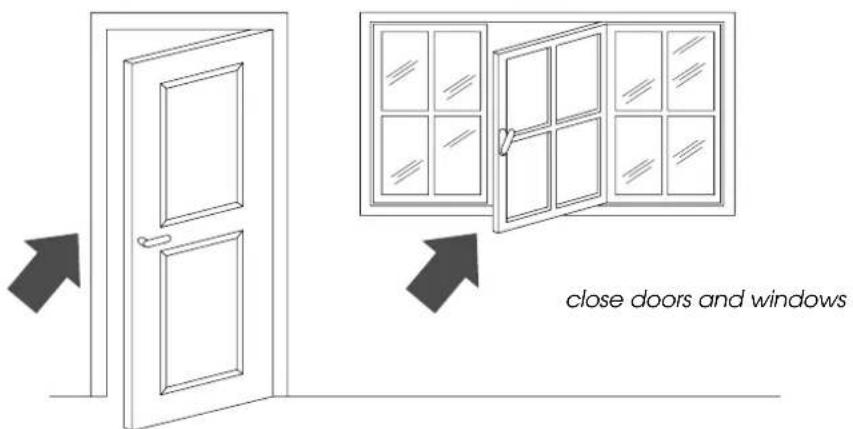

- Close the doors and windows in the room where the unit is functioning. The only exception is in the case of installation through a hole in the wall. In this case, you are recommended to allow a small amount of air to enter through a door or window to guarantee an adequate exchange of air.

• Do not install the heater in humid environments.
• Do not use the appliance outdoors.
• Keep the appliance a safe distance from combustible surfaces

close doors and windows

• P rotec the room from direct exposure to the sun's rays by drawing the curtains and/or partially lowering the blinds so as to maximise energy savings.
• Do not rest objects on the air conditioning unit.
• Do not obstruct the air intake or outlet 1.
• Make sure there are no heat sources in the room.

do not cover

Line drawing of a window with curtains and sheer curtains, showing a black arrow pointing to the left pan (no text or symbols)

lower the blinds or draw the curtains

- Make sure the unit is located on a level floor. If necessary, place the two blocking devices 20 under the front wheels. 3

Cleaning

Before cleaning or maintenance, always turn the unit off and unplug from the mains.

CLEANING THE EXTERNAL UNIT

We recommend cleaning the unit with a slightly damp cloth then drying with a dry cloth. For safety reasons, do not wash the air conditioner with water.

Precautions

Never clean with benzene, alcohol or solvents. Never spray liquid insecticide or similar.

CLEANING THE AIR FILTERS.

To maintain the air conditioning unit at peak efficiency, you are recommended to:

1. Clean the anti-bacteria filter weekly.
2. Replace the FILTRETE™ filter at the end of each season or when spent (follow the instructions on the unit near the filter).

The air purification filters are located behind the two intake grilles. The grilles in fact house the filters themselves.

To clean the filters:

1. Remove the intake grilles by rotating them outwards (Fig. F).

2 1 fig. F

1. Remove the first FILTRETETM filter (white).
2. Remove the filter holder holding the filter by unhooking it from the external grille.

intake grille filter filtrete™ filter

ENGLISH

To remove dust deposited on the anti-bacteria filter, use a vacuum cleaner. If very dirty, rinse repeatedly in warm water at a temperature of not more than 40°C.

After washing, dry the filter. To replace, put the filters back into the filter holder, then hook the latter to the unit.

Do not clean the FILTRETE™ filter as this would reduce its filtering capacity.

END OF SEASON OPERATIONS

Take out the condensation basin located in the rear of the unit and empty it.

Empty the residual water by removing the bung in the drainage tube.

After replacing the bung, put the condensation basin back.

Clean the filters and dry well before replacing.

BEGIN OF SEASON CHECKS

Check that the power cable and socket are undamaged and that the earth installation is efficient.

Troubleshooting

PROBLEMS CAUSES SOLUTIONS

The air conditioner doesn't work	·the power is off·the plug is not inserted into the electrical outlet·the fan is blocked·the security float was triggered	·plug in the appliance·call the Service Centre·empty the basin
The air conditioner works for a short time only	·the exhaust tube is twisted·the exhaust tube is blocked·the drain tube is bent	·position exhaust tube correctly·check if there are obstacles blocking the exhaust of air out of the appliance·unbend the tube
The air conditioner works but doesn't cool the room	·a window is open·i n the room there is some source of heat (lamp, burner, etc.) or there are many people in the room·the exhaust tube has come out of place·the air filter is dirty·the air conditioner has a capacity not adequate for the conditions or the dimensions of the room	·close the open window·r remove the heat source·r einsert the tube into its place·clean the filter or replace
Strange odour in the room	·air filters dirty	·clean the filter or replace it
Leaking condensation from the unit around of the conditioner	·condensation collection basin isf8||·incorrect installation of the appliance	·empty the basin and drain the water with the drainage tube9found on the back side of the appliance·see page 22 to properly install the appliance
The air conditioner doesn't work for about 3 minutes from turning on the appliance	·the appliance's security system has intervened	·wait for 3 minutes
The 3 LED indicators are flashing	·Condensation collecting-basin is full ·empty out the basin.·r remove the plug and reinsert, If LEDs remain on, call the Qualified Service
Remote control signals are weak or inexistent	·Batteries run down·Batteries may be inserted incorrectly	·Change the batteries·Check the batteries' (+) and (-) poles

Technical specification

RECOMMENDED OPERATING CONDITIONS

Room temperature 21 ÷ 32°C

Outside temperature 21 ÷ 43°C

TECHNICAL SPECIFICATION

Power supply see rating plate

Max. absorbed power in air conditioning "

Max. absorbed power when dehumidifying "

Refrigerating capacity* "

Dimensions of internal unit:

• width 452 mm
• height 800 mm
• depth 455
• weight 33,5 kg
  * Standard conditions:

Room temperature 27°C

47% relative humidity

Outside temperature 35°C

41% relative humidity

ELECTRICAL CONNECTION (U.K. ONLY)

A) If your appliance comes fitted with a plug, it will incorporate a 13 Amp fuse. If it does not fit your socket, the plug should be cut off from the mains lead, and on appropriate plug fitted, as below. warning: Very carefully dispose of the cut off plug after removing the fuse: do not insert in a 13 Amp socket elsewhere in the house as this could cause a shock hazard. With alternative plugs not incorporating a fuse, the circuit must be protected by a 15 Amp fuse. If the plug is a moulded-on type, the fuse cover must be re-fitted when changing the fuse using a 13 Amp Asta approved fuse to BS 1362. In the event of losing the fuse cover, the plug must NOT be used until a replacement fuse cover can be obtained from your nearest electrical dealer. The colour of the correct replacement fuse cover is that as marked on the base of the plug.
B) If your appliance is not fitted with a plug, please follow the instructins provided below:

WARNING - THIS APPLIANCE MUST BE EARTHED IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

Green and yellow Earth

Blue

Brown

Neutral

Live

As the colours of the wires in the mains lead may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The green and yellow wire must be connected to the terminal in the plug marked with the letter E or the earth symbol

± or coloured green or green and yellow.

The blue wire must be connected to the terminal marked with the letter N or coloured black.

The brown wire must be connected to the terminal marked with the letter L or coloured red.

Sketch of a person in a hat pushing a box near a machine (no text or symbols)

Hand-drawn sketch with a person sitting in a suitcase and a plane holding an airplane, overlaid with a large 'X' symbol.

Technical line drawing of a coiled cable or hose assembly with mounting brackets and wiring (no text or symbols)

Line drawing of a coiled hose connecting a vehicle (no text or symbols)

CLIMATISATION AVEC INSTALLATION

Abstract diagram with irregular shapes and a central rectangular cutout (no text or symbols)

Simple line drawing of a car door with a circular button and arrow pointing to the interior (no text or symbols)

Diagram showing two views of a remote control device with labeled components and directional arrows indicating movement or assembly.

Simple line drawing of a human arm and a rectangular object with bidirectional arrow (no text or symbols)

Line drawing of a window with curtains and sheer curtains, showing a black arrow pointing to the right pan (no text or symbols)

PROBLEMES CAUSES SOLUTIONS

Hand-drawn sketch of an elderly person with a suitcase and airplane, featuring a large 'X' symbol above the figure.

Line drawing of a coiled hose connecting a wall-mounted device (no text or symbols)

Technical line drawing of a coiled cable or hose assembly with mounting brackets and wiring (no text or symbols)

Diagram showing two layered structures with irregular circular patterns on top and bottom, separated by a vertical division (no text or symbols)

Simple line drawing of a human figure in a bent arm connected to a rectangular block (no text or symbols)

Funktionswahl

Line drawing of a window with curtains and a horizontal bar, no text or symbols present

Technical line drawing of a coiled cable or hose assembly with mounting brackets and wiring (no text or symbols)

Diagram of a coiled cable or hose connecting a vehicle, with no visible text or symbols

Diagram showing two rectangular regions with scattered circular patterns, no text or symbols present

Simple line drawing of a human figure with arm and body, connected by an arrow indicating bidirectional movement (no text or symbols)

Line drawing of a window with curtains and sheer curtains, showing a black arrow pointing to the right pan (no text or symbols)

Sketch of a person using a portable device (no text or symbols visible)

X

Technical line drawing of a coiled cable or hose assembly mounted on a structural frame (no text or symbols)

Diagram of a coiled cable or hose connecting two vertical lines, with a base component partially visible (no text or symbols)

Diagram showing two rectangular regions with irregularly shaped patterns inside, separated by a vertical line (no text or symbols)

Diagram showing two views of a remote control device with labeled parts and directional arrows indicating movement or assembly.

Simple line drawing of a human figure interacting with a rectangular object, no text or symbols present

Line drawing of a window with curtains and sheer curtains, showing a black arrow pointing to the right pan (no text or symbols)

Sketch of a person wearing a hat and handling a device (no text or symbols visible)

Hand-drawn sketch of a person sitting on a suitcase with a large 'X' symbol overlaid, possibly indicating cancellation or prohibition.

Technical line drawing of a coiled cable or hose assembly with mounting brackets and a vertical support (no text or symbols)

Line drawing of a coiled hose connecting a vehicle to a roof, with no text or symbols present.

Diagram showing two rectangular regions with scattered circular patterns, no text or symbols present

F. Timer sleep/silent

Como colocar as pilhas

Technical diagram showing two views of a remote control device with numbered components and directional arrows indicating assembly or movement.

Simple line drawing of a human figure in a bent arm connected to a rectangular block (no text or symbols)

Seleção das funções

Line drawing of a window with curtains and sheer curtains, showing a black arrow pointing to the right pan (no text or symbols)

PROBLEMAS CAUSAS SOLUÇÕES

Sketch of a person in uniform pushing a machine (no text or symbols visible)

Hand-drawn sketch of a person sitting on a suitcase with a large 'X' symbol overlaid, possibly indicating cancellation or prohibition.

Technical line drawing of a coiled cable or hose assembly with mounting brackets and wiring (no text or symbols)

Diagram of a coiled hose connecting a vehicle to a car hood, showing rope routing (no text or symbols)

Diagram showing two vertical panels with wavy patterns and scattered circular shapes, no text or symbols present.

Simple line drawing of a person sitting with a right arm and an arrow indicating direction (no text or symbols)

Line drawing of a window with curtains and sheer curtains, showing a black arrow pointing to the right pan (no text or symbols)
