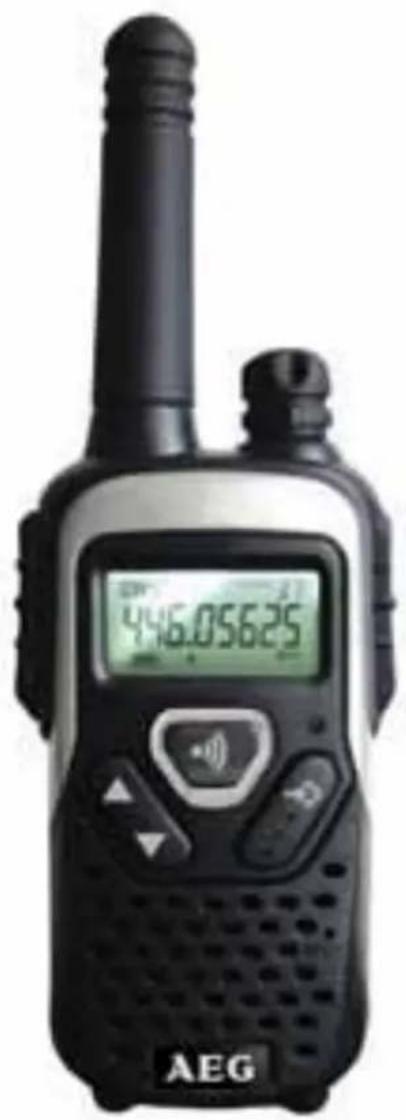

USER MANUAL Voxtel R320 AEG

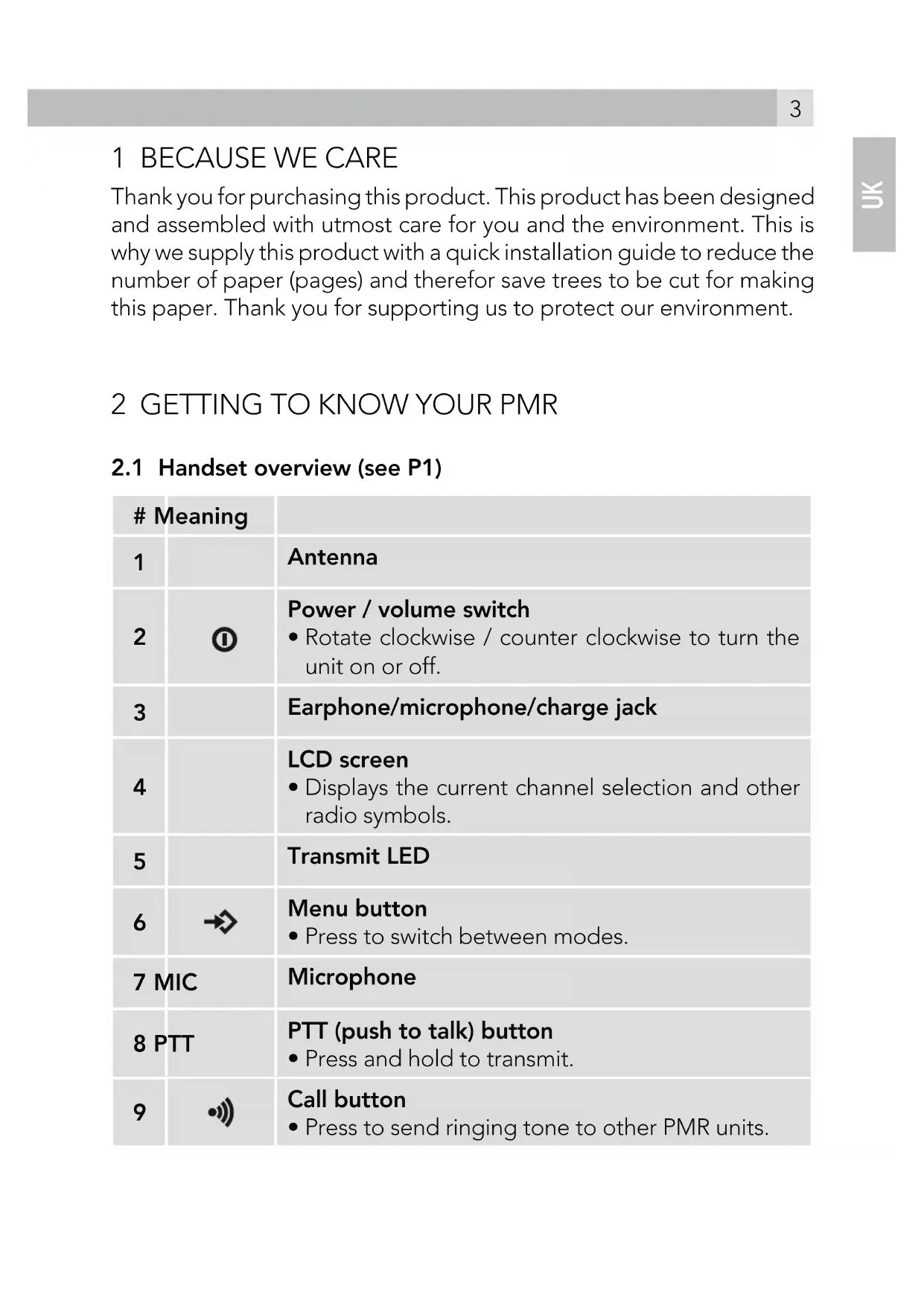

1 BECAUSE WE CARE Thank you for purchasing this product. This product has been designed

and assembled with utmost care for you and the environment. This is

why we supply this product with a quick installation guide to reduce the

number of paper (pages) and therefor save trees to be cut for making

this paper. Thank you for supporting us to protect our environment.

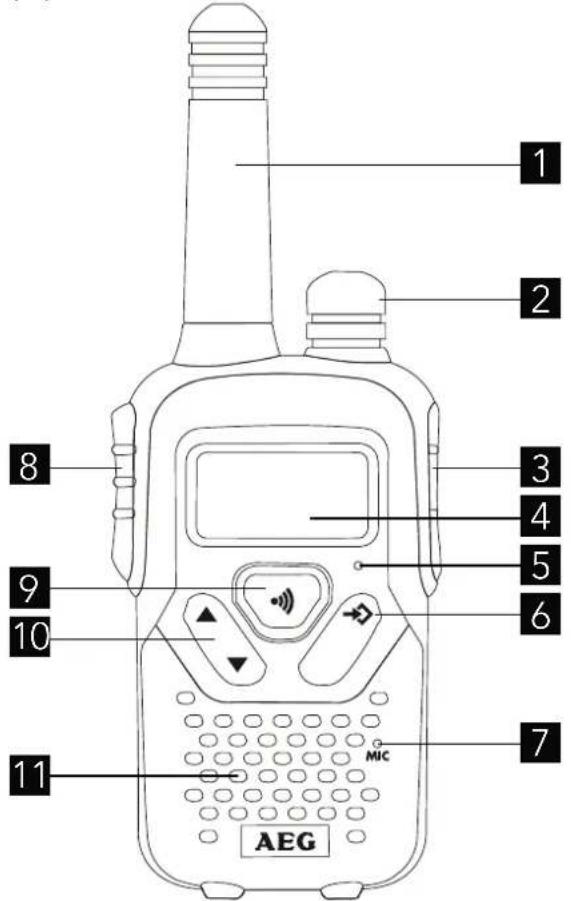

2 GETTING TO KNOW YOUR PMR

tRotate clockwise / counter clockwise to turn the

tDisplays the current channel selection and other

tPress to switch between modes.

8 PTT PTT (push to talk) button

tPress and hold to transmit.

tPress to send ringing tone to other PMR units.4

tPress to change channels, volume and to select

settings during programming.

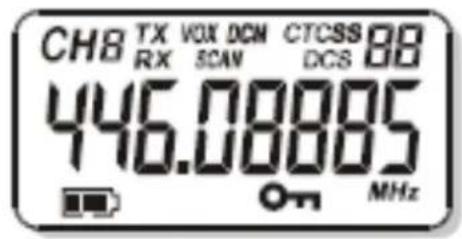

2.2 LCD screen (see P2)

Changes from 1 to 8 as selected by the user.

Changes from 1 to 38 as selected by the user.

Displays the battery change level. When the bars are

reduced, the battery needs recharging.

TX Displayed when transmitting a signal.

RX Displayed when receiving a signal.

DCM Displayed when the dual watch function is turned on.

DCS Displayed when the Digital Code System is turned

VOX Displayed when the VOX feature is enabled.

SCAN Displays when the PMR is scanning all channels.

Displayed when the key lock feature is activated.

Displays the current speaker volume level.5

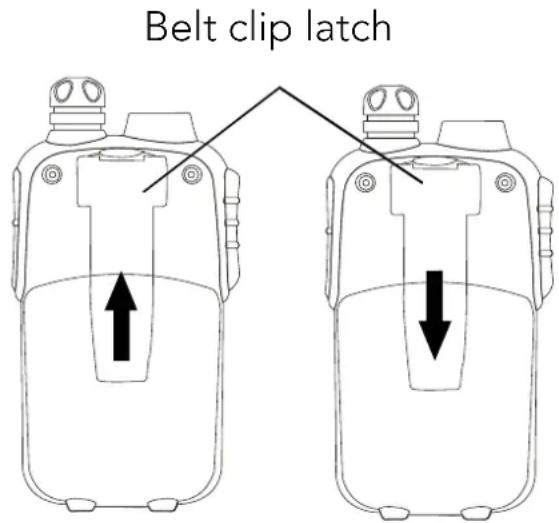

3.1 Removing the belt clip

tPull the belt clip latch forward

(away from the PMR).

tWhile pulling the belt clip latch,

push up the belt clip as shown in

3.2 Installing the belt clip

tSlide the belt clip into the slot as

>A “click” indicates the belt clip

is locked into its position.

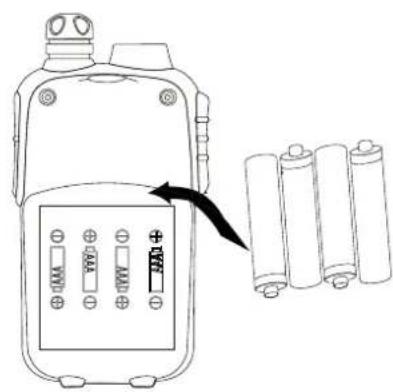

3.3 Installing the batteries (see P3)

batteries. Incorrect positioning can damage both the batteries and

tSlide down the battery compartment cover.

tInsert the rechargeable batteries following the orientation as shown

tReplace the battery compartment cover.

Read these safety warnings before you charge the batteries.

tWhen placing the PMR in the charger, use only the power supplies

listed in the user instructions supplied with the devices

tDon’t try to recharge non-rechargeable batteries.

tMake sure the battery compartment cover is securely locked in place

when you are charging the batteries.

tDispose of used batteries safely and in a way that will not harm the

environment, never try to burn them or put them anywhere, they

could get burnt or punctured.

tDon’t leave dead batteries in your PMR units. They might leak if you

do and damage the PMR.

3.4 Charging the batteries

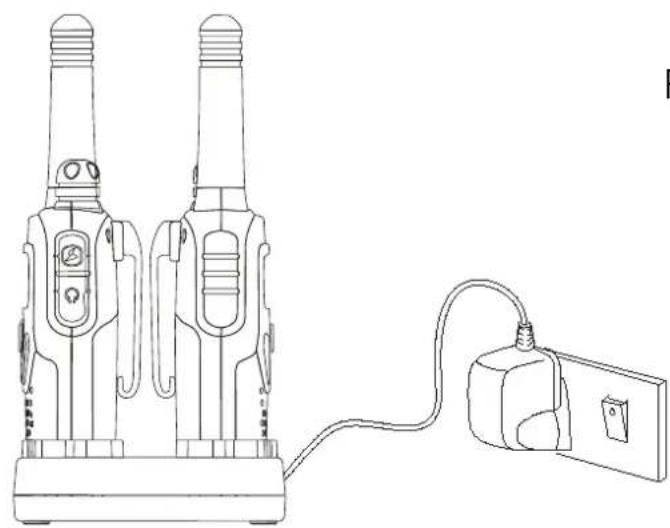

3.4.1 Using the desktop charger (model R320) (see P4)

tInsert the small plug on the end of the mains adaptor into the power-

in connection jack at the back of the desktop charger.

tPlug the mains adaptor into a 240 V AC, 50 Hz main socket.

tPlace the PMR units in the charge cradle in an upright position. The

charge LED indicators will light up.

tIt takes about 10 hours to fully recharge the batteries if they are

completely run down. New batteries take up to 14 hours to fully

tThe unit must be charged using the mains adaptor provided. Using

any other adaptor will result in non-compliance with EN60950-1 and

will invalidate any approvals and warranty.

tAlways turn off the PMR units when charging. This will shorten the

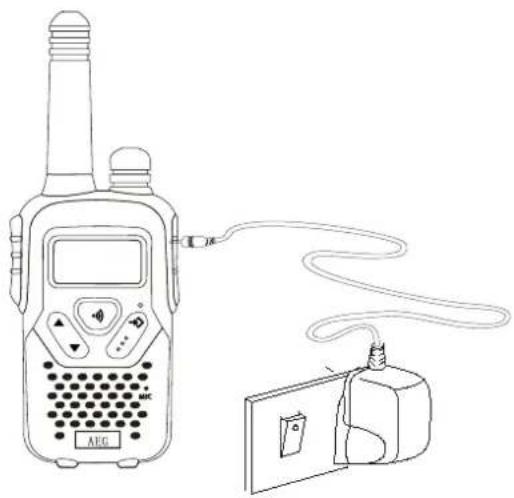

3.4.2 Using the adapter (model R300/ R320) (see P5)

tLift the charge socket cover located on the right side of the PMR.

tInsert the round connector of the 9V DC / 200 mA adaptor into the

tPlug the mains adaptor into a 240 V AC, 50 Hz main socket.

tUse only power supplies listed in this user instruction. Csec AC Adaptor brand ; Model -CSD0900200G power supply.

The battery meter is located in the left corner of the LCD screen. It

appears like a battery with three bars inside. These indicate the amount

of power available. When the battery level reaches it minimum level

in PMR on mode, the unit will emit two beep tones and automatically

the unit will power off.

The unit can detect the battery charge in 4 levels:

Battery charge at high level.7

UK Battery charge at medium level.

Battery charge at low level. At this level, the unit will

emit a “beep” sound for every 10 seconds in normal

Important: Charge the unit for 10-14 hours.

Battery charge at very low level. When the battery

level reach its minimum level in on mode, the unit

will emit two beep tone and automatically turn off the

power and proceeds to watch mode.

The unit has a built in power saver to make the batteries last longer.

But when you are not using the units, turn them off to conserve battery

4.1 Transmitting range

The talk range depends on the environmental and terrain. It will be

reach up to about 10 km in wide open spaces, without obstructions

such as hills or buildings. Don’t try to use two PMR units which are less

than 1,5 m apart. Otherwise, you may have experience interference.

Important safety warning:

tTo reduce radio frequency exposure when you are using your PMR,

hold the unit at least 5 cm away from your face.

tNever use your unit outdoors during a thunderstorm.

tDon’t use the unit in the rain.

tIf your unit gets wet, turn it off and remove the batteries. Dry the

battery compartment and leave the cover off for a few hours. Don’t

use the unit until it is completely dry.

tKeep the unit out of reach for babies and young children.8

4.2 Turning the unit on/off

tRotate the power button

clockwise until the LCD screen turns on

and displays the current channel.

tRotate the power button

counter clockwise until the LCD screen

Every time you rotate the power button

to turn on, the volume will

also open. The volume level will increase or decrease by rotating the

4.3 Changing channels

The unit has 8 available channels, to communicate with other PMR

users within a range, you must all have your PMR tuned to the same

tPress the menu button

once, the current channel number flashes

or down button to select the desired channel.

>The channel changes from 1 to 8, or vice versa.

tPress the PTT button to confirm the channel setting.

Refer to the “Channel frequency table“ section of this owner’s manual

for detailed frequency listing.

4.3.1 Setting the CTCSS sub-channel

Each channel also has 38 sub-channels to let you set up group of users

within the same channel for more private communication. If you have

set the sub-channel, you can only communicate with other PMR users

tuned to the same channel and sub-channel.

To turn the sub-channel function off, simply set the sub- channel to

0 (zero). You can communicate with any PMR user set to the same

channel who also turns off the sub-channel operation.9

tPress the menu button twice, the current CTCSS sub-channel

number flashes on the LCD screen.

or down button to select one of the 38 CTCSS

tPress the PTT button to confirm the sub-channel setting.

4.3.2 Setting the DCS advanced digital code

Each channel also has 83 digital codes to let you set up group of users

for more secured private communication.

tPress the menu button

3 times. DCS code is blinking on the LCD

tPress the PTT button to confirm the DCS channel setting.

Transmitting and receiving

tThe PMR transmission is “one way-at-a-time.” While you

are speaking, you can not receive a transmission.

tThe PMR is an open-license band. Always identify yourself

when transmitting on the same channel.

The unit is continuously in the receive mode when the unit is turned on

and not transmitting. When a signal is received on the current channel,

icon will be displayed on the LCD screen and the receiver LED

4.5 Transmitting (sending a speech)

tPress and hold the PTT (push to talk) button to transmit your voice.

icon will be displayed on the LCD screen.

tHold the unit in a vertical position with the microphone 5 cm away

from the mouth. While holding the PTT button, speak into the

microphone in a normal tone of voice.

tRelease the PTT button when you have finished speaking.

You can use the monitor feature to check for weak signals on the

tPress and hold the menu

and down buttons at the same time.

icon will be displayed on the LCD screen. Your PMR will pick up

signals on the current channel, including background noise.

tPress the menu button

to stop the channel monitoring.

4.7 Setting the VOX (voice activated) sensitivity

In VOX mode, the unit will transmit a signal only when it is activated by

your voice or other sounds around you. The unit will transmit further

for 2 seconds even if you stop talking.

The level of VOX sensitivity is shown by a number on the LCD screen.

At the highest level, the units will pickup softer noise (including

background noise); at the lowest level, it will pick up only louder noise.

tPress the menu button

“OF” flashes on the LCD screen.

tPress the up button

to set the VOX sensitivity into maximum level

(the maximum level is 3.)

tTo deactivate the VOX function, press the down button

appears on the LCD screen.

tPress the PTT button to confirm your setting.

appear on the LCD screen as along as the VOX feature is activated.

VOX operation is not recommended if the unit will be used in a noisy

or windy environment.

4.8 Activating the auto channel scan

Channel scan perform searches for active signals in an endless loop for

all 8 channels, 38 CTCSS codes and all 83 DCS codes.

tPress the menu button

or down button to begin scanning channels when

an active signal is detected, channel scan pauses on the active

tPress the menu button

six times, CTCSS flashes on the LCD

or down button to begin scanning the

tPress the menu button seven times, DCS flashes on the LCD

screen. Press the up

or down button to begin scanning DCS

tPress the PTT button to confirm your setting.

Your PMR can alert you to incoming signal by emitting an audible call

4.9.1 Call-ring tone

You can send a call-ring tone to other PMR users to give an alert that

you want to communicate with them.

tPress the call button

You will hear a ring tone for about two seconds;

the LCD screen. Any other units within the transmitting range and

tuned to the same channel and sub-channel (if applicable) will hear

4.9.2 Selecting a call- ring tone

The unit is equipped with15 different types of call-ring tones.

tPress the menu button

8 times, the “C 1” icon will display and is

blinking on the LCD screen.

or down button to select the desired call-ring

>The respective call- ring tone sound will be played when changing

from one tone to another.

tPress the PTT button to confirm your setting.

4.10 Setting the Roger beep

The Roger beep is a tone which is automatically transmitted whenever

the PTT button is released. This alerts the receiving party to inform

that you have intentionally ended the transmission and you are now

tPress the menu button

9 times, the “R0” icon will be displayed

while the “ON” icon is blinking on the LCD screen.

or down button to select the roger beep on/off.

tPress the PTT button to confirm your setting.12

4.11 Setting the key tone on or off

This feature allows the unit to emit a confirmation tone on pressing a

tPress the menu button

while “ON” icon is blinking on the LCD screen.

or down button to select the key tone on/off.

tPress the PTT button to confirm your setting.

4.12 Setting the dual watch mode

Your unit is capable of monitoring two channels, the current and

another (dual watch) channel. If the unit detects a signal on either

channel, it will stop and receive the signal.

tPress the menu button

11 times, “DCM” icon will be displayed

while “OF ” flashes on the LCD screen.

or down button to select the dual watch channel

(1-8, except the current channel).

tContinue pressing the menu button

to change the CTCSS code.

or down button to select the desired CTCSS code

tContinue pressing the menu button

to change the DCS code.

or down button to select the desired DCS code

tPress the PTT button to confirm your setting.

5 AUXILIARY FEATURES

The key lock feature allows user to disable the up

buttons so that the PMR settings could not be changed

tTo activate the key lock feature, press and hold the menu button

appears on the LCD screen.

tTo deactivate the key Lock feature, press and hold the menu button

until key lock icon disappears on the LCD screen.13

and power buttons will remain functional even if

the key lock feature is activated.

5.2 LCD screen back Light

Every time a button is pressed (except PTT and call

LCD screen back light will illuminate for 5 seconds

5.3 Microphone/earphone/charge jack

The unit is equipped with an auxiliary microphone, earphone, and

charge jack located at the opposite side of the PTT button. For more

information check www.aegtelphones.eu

6 SPECIFICATIONS Channels available 8 channels

CTCSS sub-channel 38 for each channel

Output power (TX) 0,5 W (Max)

Channel frequency table

Channel Frequency (MHz) Channel Frequency (MHz)

1 446.006255446.05625

Do not use any PMR that has a damaged antenna. If a

damaged antenna comes in contact with the skin, a minor

Rechargeable batteries

All batteries can cause property damage and/or bodily

injury such as burns if conductive material such as jewelry,

keys, or beaded chains touches exposed terminals. The

material may complete an electrical circuit (short circuit) and

become quite hot. Exercise care in handling any charged

battery, particularly when placing it inside a pocket, purse

or other container with metal objects.

Warning for vehicles with an air bag

Do not place your unit in the area over an air bag or in the

air bag deployment area. Air bags inflate with great force.

If a unit is placed in the air bag deployment area and the air

bag inflates, the device may be propelled with great force

and cause serious injury to the occupants of the vehicle.

Potentially explosive atmospheres

Turn your unit off when in any area with a potentially

explosive atmosphere, unless it is a type especially qualified

for such use (for example, factory mutual approved). Sparks

in such areas could cause an explosion or fire resulting in

injury or even death.

Do not replace or charge batteries in a potentially explosive

atmosphere. Contact sparking may occur while installing or

removing batteries and cause an explosion.

Blasting caps and areas

To avoid possible interference with blasting operations,

turn your device off near electrical blasting caps or in a

“blasting area” or in areas posted: “Turn off the two way

radio.” Obey all signs and instructions.15

Areas with potentially explosive atmospheres are often, but not always

clearly marked. They include fueling areas such as below deck on

boats; fuel or chemical transfer or storage facilities; areas where the air

contains chemicals or particles, such as grain, dust, or metal powders;

and any other area where you would normally be advised to turn off

your vehicle engine.

8 CE DECLARATION This product is in compliance with the essential requirements and

other relevant provisions of the R&TTE directive 1999/5/EC.

The Declaration of conformity can be found on:

www.aegtelephones.eu

9 DISPOSAL OF THE DEVICE

At the end of the product lifecycle, you should not throw this

product into the normal household garbage but bring the product

to a collection point for the recycling of electrical and electronic

equipments. The symbol on the product, user guide and/or box

indicate this. Some of the product materials can be re-used if you bring

them to a recycling point. By reusing some parts or raw materials from

used products you make an important contribution to the protection

of the environment. Please contact your local authorities in case you

need more information on the collection points in your area.

Batteries must be removed before disposing of the device.

Dispose of the batteries in an environmental manner according to

your country regulations.16

10 CLEANING AND CARE Do not clean any part of your unit with benzene, thinners or other

solvent chemicals as this may cause permanent damage which is not

covered by the guarantee.

When necessary, clean it with a damp cloth.

Keep your unit away from hot, humid conditions or strong sunlight,

and don‘t let it get wet.

11 GUARANTEE AND SERVICE The unit is guaranteed for 24 months from the date of purchase

shown on your sales receipt. This guarantee does not cover any

faults or defects caused by accidents, misuse, fair wear and tear,

neglect,tampering with the equipment, or any attempt at adjustment

or repair other than through approved agents.

Please keep your sales (till) receipt this is your proof of guarantee.

11.1 While the unit is under Guarantee

tPack up all parts of your unit, using the original package.

tReturn the unit to the shop where you bought it, making sure you

take your sales receipt.

tRemember to include the mains adapter. (if applicable)

11.2 After the Guarantee has expired

If the unit is no longer under Guarantee, contact us via

www.aegtelephones.eu17

8 PTT PTT (push to talk)-Taste

8 PTT Touche PTT (push to talk)

8 PTT PTT-toets (push to talk)

4.12 Dual Channel monitor

8 PTT Tasto PTT (Push to Talk)

8 PTT PTT-knapp (Push to talk)

:\FLĈJDMĈF ]DWU]DVN NOLSVD

RQ SRVWDþ EDWHULL ] WU]HPD NUHVNDPL Z ĤURGNX .UHVNL ZVND]XMĈ

4.1 =DVLčJQDGDZDQLD

PDWHULDãDPL SU]HZRG]ĈF\PL WDNLPL MDN ELİXWHULD

QD SU]\NãDG GROQH SRNãDG\ VWDWNyZ RELHNW\ Z NWyU\FK VĈ

>Å.OLNQXWt´ LQGLNXMH çH MH NOLS

3.5 8ND]DWHOVWDYXEDWHULt

Y\GiY\VtODĀNDGYD]YXNRYpVLJQiO\DXWRPDWLFN\

QHERÅGROĪ´ D]YROWH

6WLVNQďWHWODĀtWNRYROiQt

=YXNRYì VLJQiO SĢtMPX MH DXWRPDWLFN\ RGHVOiQ SR XYROQďQt

QHERÅGROĪ´ D]YROWH

]DSQXWtY\SQXWtVLJQiOXSĢtMPX

3URSRWYU]HQtQDVWDYHQtVWLVNQďWHWODĀtWNR337

4.11 =DSQXWtDY\SQXWt]YXNXWODĀtWHN

6WLVNQďWHVPďURYpWODĀtWNRÅY]KĪUX´

QHERÅGROĪ´ D]YROWH

]DSQXWtY\SQXWt]YXNXWODĀtWHN

3URSRWYU]HQtQDVWDYHQtVWLVNQďWHWODĀtWNR337

QHERÅGROĪ´ D]YROWH

6WLVNQďWHVPďURYpWODĀtWNRÅY]KĪUX´ QHERÅGROĪ´ D]YROWH

QHERÅGROĪ´ D]YROWH

Subject to avaibility. Rights of modification reserved.

AEG is a registered trademark used under license from AB Electrolux (publ)

www.aegtelephones.eu
