USER MANUAL STM5200 AEG

GB Instruction book. 17-22

Before using the appliance for the first time, please read the safety advice on page 18.

DC

Teile

This page is left blank intentionally

GB

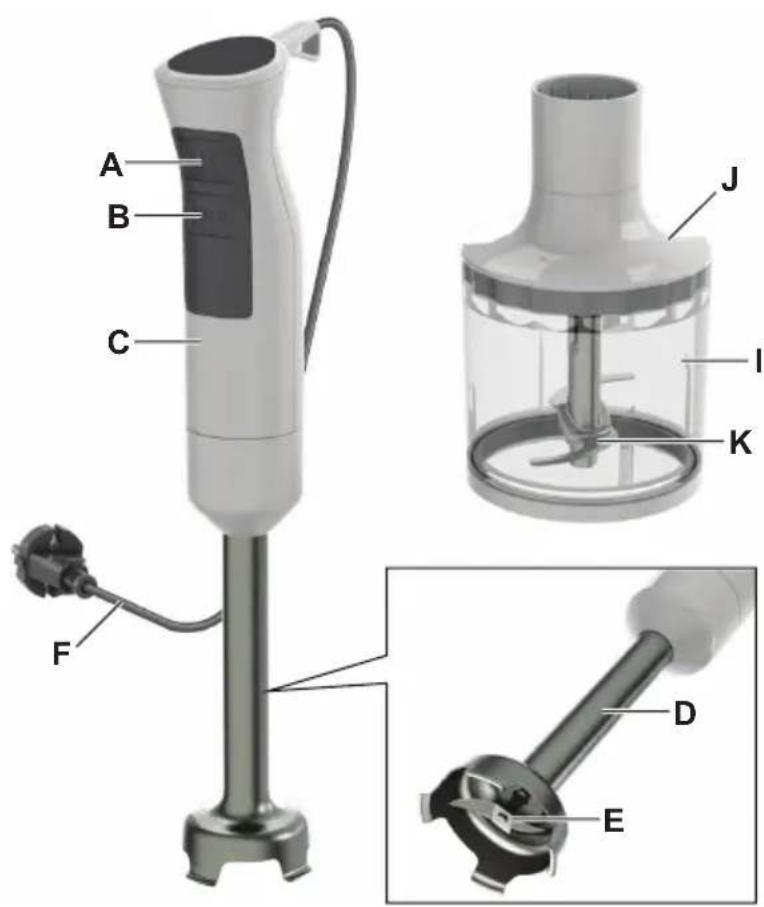

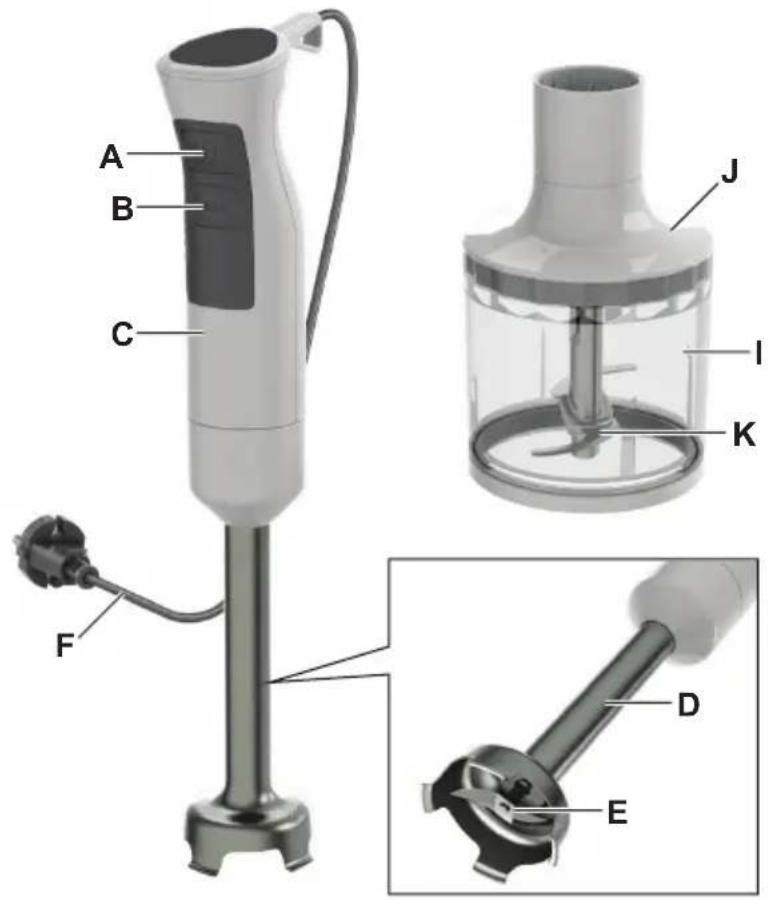

Components

A. Normal speed button
B. Turbo button
C. Handheld part
D. Metal mixing foot
E. Knife
F. Power cord

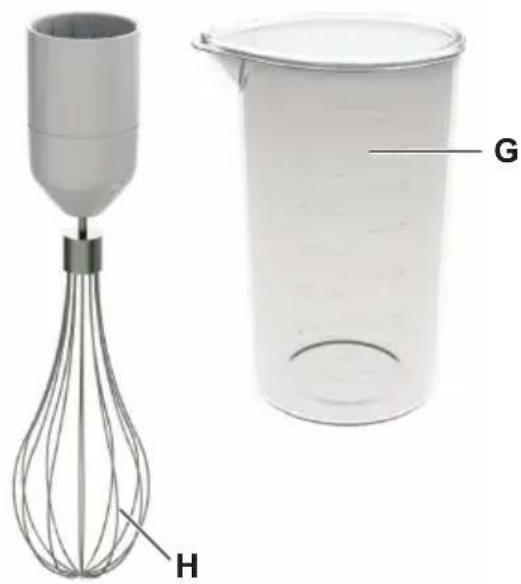

G. Beaker
H. Traditional whisk
I. Chopper bowl
J. Chopper bowl lid
K. Chopper bowl knife

*depending on model

GB

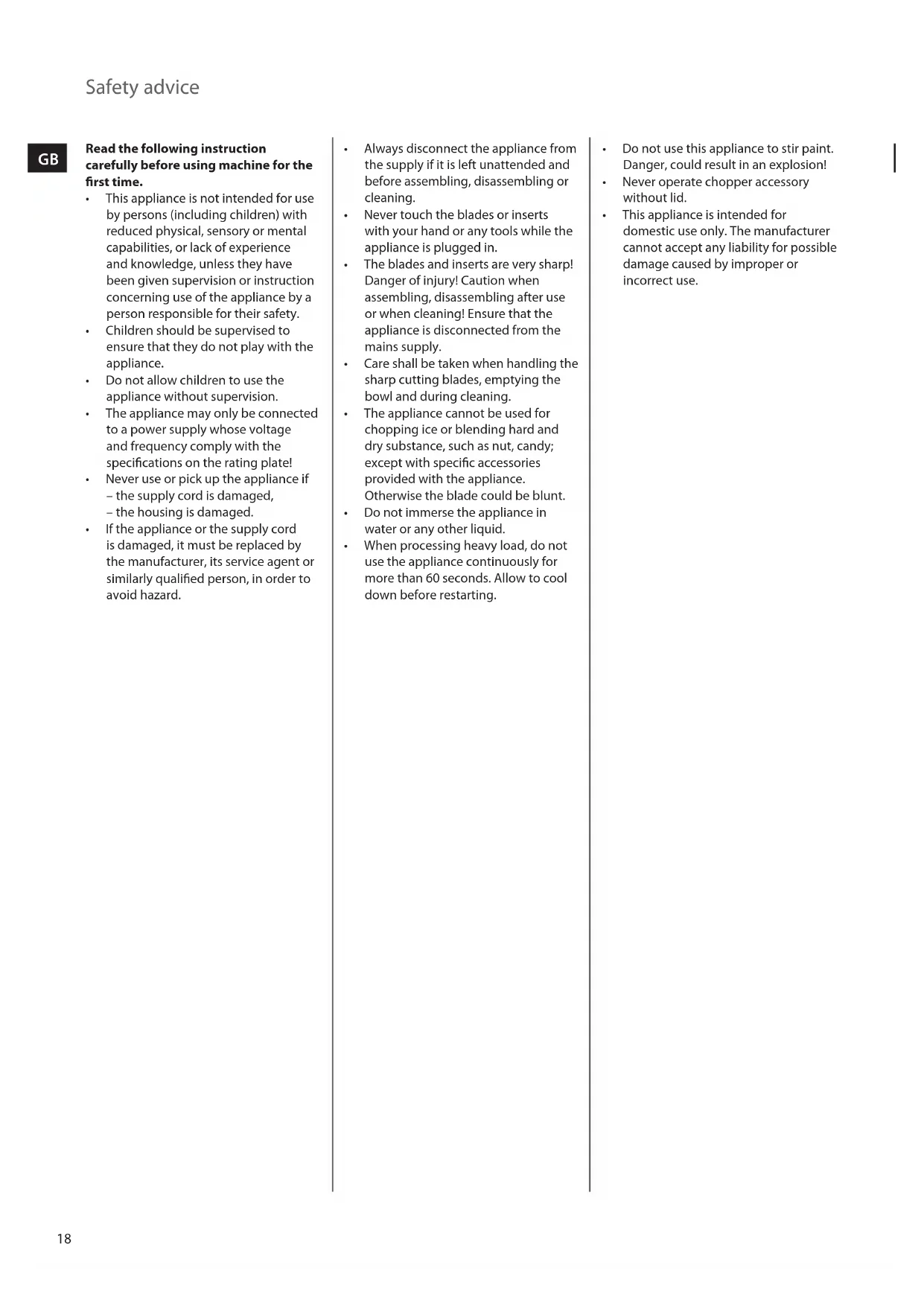

Read the following instruction carefully before using machine for the first time.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.
• Do not allow children to use the appliance without supervision.
  The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never use or pick up the appliance if
• the supply cord is damaged,
• the housing is damaged.
  If the appliance or the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified person, in order to avoid hazard.

Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
- Never touch the blades or inserts with your hand or any tools while the appliance is plugged in.
- The blades and inserts are very sharp! Danger of injury! Caution when assembling, disassembling after use or when cleaning! Ensure that the appliance is disconnected from the mains supply.
- Care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
The appliance cannot be used for chopping ice or blending hard and dry substance, such as nut, candy; except with specific accessories provided with the appliance. Otherwise the blade could be blunt.
- Do not immerse the appliance in water or any other liquid.
- When processing heavy load, do not use the appliance continuously for more than 60 seconds. Allow to cool down before restarting.

• Do not use this appliance to stir paint. Danger, could result in an explosion!
• Never operate chopper accessory without lid.
  This appliance is intended for domestic use only. The manufacturer cannot accept any liability for possible damage caused by improper or incorrect use.

Getting started

GB

1. Before first use, be sure to clean mixing foot and let dry. Before inserting or removing mixing foot, remove plug from power outlet.

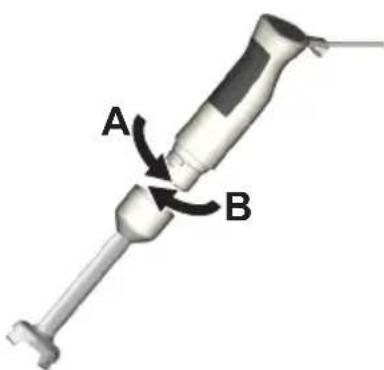

2. Insert the mixing foot to handheld part, turn clockwise (A) and lock into position. To remove, turn mixing foot counter clockwise (B).

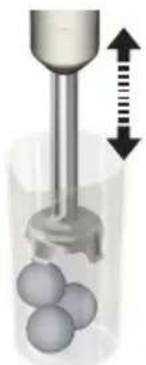

3. Insert the stick mixer deep into the beaker, begin mixing by starting at normal speed. Make sure the beaker is no more than 2/3 (600 ml) full. If you do not use the beaker, do not immerse the mixing foot more than 2/3 of its length. Release switch to stop.

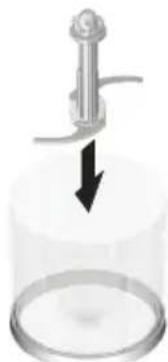

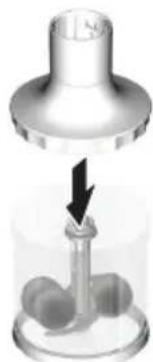

4. Using the mini chopper*. Place chopper bowl on a clean, level surface. Put stainless steel blade into place.

5. Place food into the chopper bowl*. Amount of food to be chopped cannot exceed 300g (Indicated max level). Close the lid.

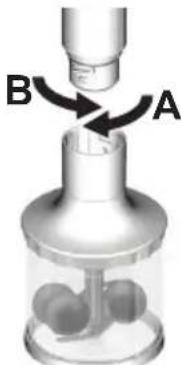

6. Insert handheld part into the chopper lid, turn clockwise (A) and lock into position. Plug into power outlet and press switch to start. Release to stop. Remove handheld part by turning counter clockwise (B).

Getting started

GB

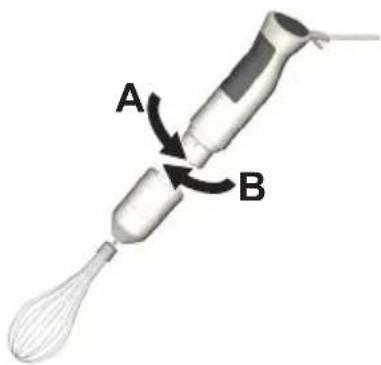

1. Working with the traditional whisk*. To assemble whisk with handheld part, turn handheld part clockwise until tightened. To disassemble, turn counter clockwise.

Cleaning

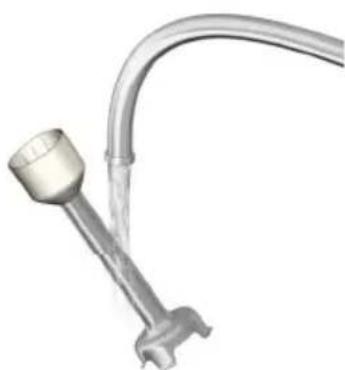

1. Before cleaning, always unplug the appliance. Do not immerse mixing foot in water, just wash under running water (no abrasive cleaner or detergents). Place upright to let dry.

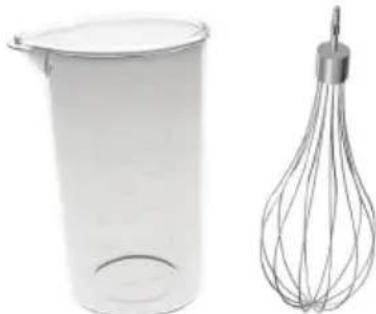

1. Beaker and whisks detached from the plastic holder can be washed in the dishwasher.

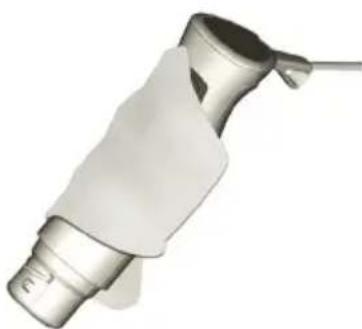

1. Disassemble the handheld part. Wipe with a damp cloth and dry thoroughly. Never immerse in water due to risk of electric shock.

Blending quantities and Processing Times

Accessory Metal mixing foot and Beaker
Recipe Ingredients Quantity	Time Speed
Pineapple-apricots Smoothie	Pineapple in slices 250 g		60 sec TurboDried Apricots 40 g
	Yoghurt 300 g
Raspberries Smoothie	Frozen raspberries 250 g		60 sec Turbo
	Banana 1/2 pcs
	Water 100 g
	Caster sugar 1 Tbs
	Yoghurt 300 g

Chopping quantities and Processing Times

Accessory Mini Chopper
Ingredients	Quantity	Quality	Time	Quality	Time	Quality	Time	Speed
Carrots	100-200 g	Coarse	--	Medium	5-10 sec	Fine	10-20 sec	Turbo
Onions	100-200 g		3-5 sec				10-20 sec	Turbo
Almonds	100-200 g		3-5 sec		7-10 sec		10-20 sec	Turbo
Meat	100-200 g		--				5 sec	Turbo
Ice	100-200 g		--		5 Pulses ON for 3 sec,OFF for 2sec		10 Pulses ON for 3 sec, OFF for 2 sec	Turbo

Whisking/Whipping quantities and Processing Times

Accessory Professional doubleisk
Ingredients Quantity		Time	Speed
Cream	500 g	50-70 sec	Turbo
Egg whites	4 units	60 sec	Turbo
Note: it is possible to use the Professional Double Whisk for whipping cream in the Beaker, as long as the temperature of the cream is between 4 and 8 Degree Celcius. For whisking eggs, please use a 1,5 Litre bowl.

Troubleshooting

Problem Possible cause Solution
The mini chopper* does not work. The chopper lid is not correctly fastened. Make sure the lid and the chopper bowl are properly assembled.	chopper bowl are properly assembled.
The mixing foot/traditional whisk* does not work.	The mixing foot/traditional whisk* is not correctly assembled.	Make sure to lock mixing foot/traditional whisk* into position.
* depending on model

Disposal

Disposal

Packaging materials

The packaging materials are environ
mentally friendly and can be recycled.
The plastic components are identified by markings, e.g. >PE<, >PS<, etc.
Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.

Old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences

for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
