Product type	Immersion blender
Brand	Braun
Model	Minipimer 5
Power supply	Mains (check voltage)
Power	700 W (estimated)
Speeds	2 speeds (I and II turbo)
Main functions	Blending, emulsifying, whisking, chopping
Included accessories	Blending shaft, bowl, whisk (MQ10), compact chopper 350 ml (MQ20)
Blade material	Stainless steel
Bowl material	Dishwasher-safe plastic
Weight	Approximately 0.8 kg
Dimensions (height)	Approximately 40 cm
Safety	Very sharp blades; do not immerse the motor unit; unplug before cleaning
Cleaning	Motor unit: damp cloth; other parts: dishwasher
Maintenance	Dishwasher-safe accessories
Spare parts	Accessories available separately (whisk, choppers, food processor)
Repairability	Repair only by an authorized Braun service center
Usage	Household use only

Frequently Asked Questions - Minipimer 5 BRAUN

How to clean the motor unit?

Clean the motor unit with a damp cloth only. Never immerse it in water.

Can I put the bowl in the microwave?

No, the bowl cannot be placed in a microwave oven.

What is the power of the appliance?

The exact power is not specified in the manual, but it is estimated at approximately 700 W.

Are the blades removable?

The blades are very sharp and integrated into the blending shaft. To clean them, use the dishwasher or rinse carefully.

Can I blend hot foods?

Yes, but first remove the pot from the heat to avoid splashing boiling liquid and protect the blender from excessive heat.

How to use the turbo function (speed II)?

Press the 'II' switch to activate turbo speed. It allows blending more quickly and efficiently.

What accessories are compatible with the Minipimer 5?

The following accessories can be purchased separately: whisk (MQ10), compact chopper 350 ml (MQ20), 1000 ml chopper (MQ40), and food processor (MQ70).

What to do if the appliance does not start?

Check that the plug is properly connected and that the voltage matches that indicated on the appliance. Make sure the accessories are correctly attached.

How to prepare mayonnaise with the Minipimer 5?

Put 250 g oil, 1 whole egg plus 1 yolk, 1-2 teaspoons vinegar, salt and pepper in a bowl. Place the blender at the bottom, turn on at maximum speed without moving, then slowly lift to incorporate the rest.

Where to find spare parts?

The accessories are available separately in specialized stores or through authorized Braun service centers.

USER MANUAL Minipimer 5 BRAUN

Illustration of a BHAUN-branded electric toothbrush with no visible text or symbols on the device body

Type 4165

www.braunhousehold.com

MQ 500

Deutsch 4

English 7

Français 10

Español 13

Português 16

Italiano 19

Nederlands 22

Dansk 25

Norsk 28

Svenska 31

Suomi 34

Polski 37

Český 40

Slovenský 43

Magyar 46

Hrvatski 49

Slovenski 52

Türkçe 55

Română (RO/MD) 58

Ελληνικά 61

Български 64

Русский 67

Українська 70

De'Longhi Braun Household GmbH

Diagram showing a grid of boxes with an arrow indicating direction, next to an open book illustration.

1 2 3 4 BRUO

Illustration of a metallic cylindrical object with a flared base and a curved top, labeled with number 5 (no text or symbols on the object itself)

6 skin

A

Illustration of a laboratory pipette with a fluted tip and central stem (no text or symbols)

click!

Illustration of a hand using a handheld electric brush to clean or brush the liquid in a beaker (no text or symbols visible)

Diagram showing a device being held by hands, with arrows indicating direction of movement or change.

B

Illustration of a digital brush and a hand holding a textured surface (no text or symbols)

Illustration of kitchen utensils including a ladle, measuring cup, shower faucet, and oven (no text or symbols)

Crossed black-and-white diagram of a bottle partially submerged in water, with no text or symbols present.

Deutsch

Our products are engineered to meet the highest standards of quality, functionality and design. We hope you thoroughly enjoy your new Braun appliance.

Before use

Please read the use instructions carefully and completely before using the appliance.

Caution

• This appliance shall not be used by children.
  Keep the appliance and its cord out of reach of children. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

• The blades are very sharp!

To avoid injuries, please handle blades with utmost care.

- Before plugging into a socket, check whether your mains voltage corresponds to the voltage indicated on the appliance.

- Always unplug the appliance when it is left unattended and before assembling, disassembling, cleaning and storing.

- The appliance is constructed to process normal household quantities.

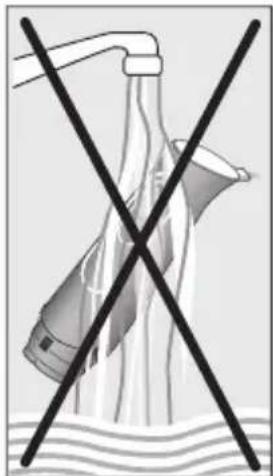

- Do not hold the motor part (3) under running water, nor immerse it in water.

- Braun electric appliances meet applicable safety standards. Repairs or the replacement of the mains cord must only be done by authorized service personnel. Faulty, unqualified repair work may cause considerable hazards to the user.

- The beaker (6) is not microwave-proof.

- The blades are very sharp! To avoid injuries, please handle blades with utmost care. - Before plugging into a socket, check whether your mains voltage corresponds to the voltage indicated on the appliance. - Always unplug the appliance when it is left unattended and before assembling, disassembling, cleaning and storing. - The appliance is constructed to process normal household quantities. - Do not hold the motor part (3) under running water, nor immerse it in water. - Braun electric appliances meet applicable safety standards. Repairs or the replacement of the mains cord must only be done by authorized service personnel. Faulty, unqualified repair work may cause considerable hazards to the user. - The beaker (6) is not microwave-proof.

Description (see page 3)

1 On switch: speed «l»
2 On switch: speed «II» (Turbo)
3 Motor part
4 Release buttons
5 Blender shaft
6 Beaker

Please clean all parts before using for the first time (see B).

How to use the appliance (see A)

The hand blender is perfectly suited for preparing dips, sauces, soups, mayonnaise and baby food as well as for mixing drinks, smoothies or milk shakes.

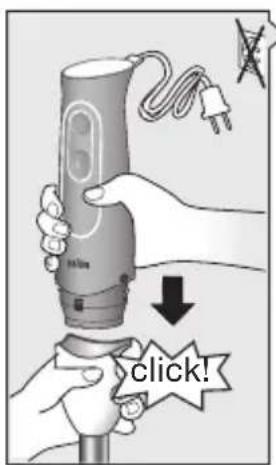

• Click the motor part (3) onto the blender shaft (5).

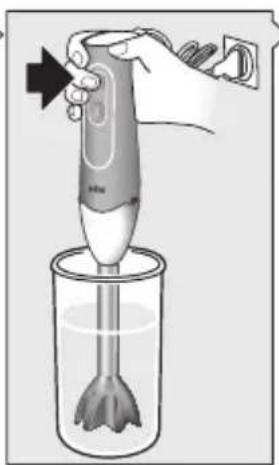

• Position the hand blender deep in a bowl or beaker. Only then, press switch (1) or (2) to operate. For best blending results use speed «ll».

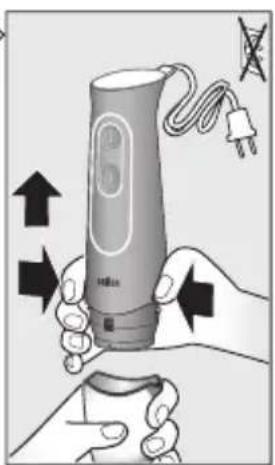

  • After use, press the release buttons (4) to detach the motor part.

When blending directly in a saucepan while cooking, remove the pan from the stove first to avoid splashing of the boiling liquid (risk of scalding).

Recipe example: Mayonnaise

250 g oil (e.g. sunflower oil),

1 egg and 1 extra egg yolk

1–2 tbsp. vinegar (approx. 15 g),

salt and pepper to taste

Place all ingredients (at room temperature) into the beaker in the order as above.

Place the hand blender on the bottom of the beaker. Operate the hand blender at maximum speed, keep it in this position until the oil starts emulsifying.

Then without switching off slowly raise the shaft to the top of the mixture and back down to incorporate the rest of the oil. Processing time: from 1 minute (for salad) up to 2 minutes for more stiffness (e.g. for dip).

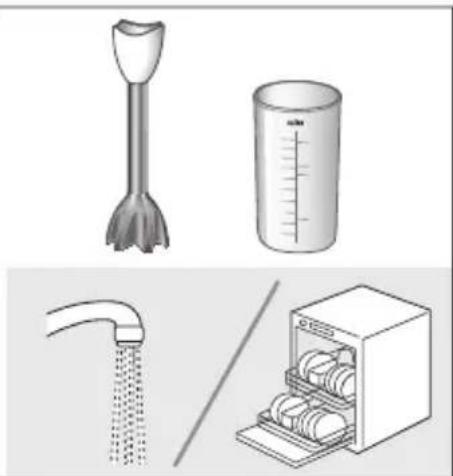

Cleaning (see B)

Clean the motor part (3) with a damp cloth only. All other parts can be cleaned in a dishwasher.

When processing foods with high pigment content (e.g. carrots) the accessories may become discoloured. Wipe these parts with vegetable oil before cleaning them.

Accessories

(can be bought individually, not available in every country)

MQ 10: Whisk for beating cream, egg-whites, ready-mix desserts.

MQ 20: 350 ml compact chopper to chop herbs, onions, garlic, chillies, nuts etc.

MQ 40: 1000 ml chopper to chop, mix, blend and crush ice.

MQ 70: Compact kitchen machine accessory to chop, mix, slice and shred. Kneading function not available with Multiquick 5.

Subject to change without notice.

Please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Centre or at appropriate collection points provided in your country.

Français

Country of origin: Poland

Year of manufacture

To determine the year of manufacture, refer to the 5-digit production code located near the type plate. The first digit of the production code refers to the last digit of the year of manufacture. The next 2 digits refer to the calendar week in the year of manufacture. And the last 2 digits show the print date automatically calculated since 1992.

Example : 30421 - The product was manufactured in week 4 of 2013.
