VG 200 - Barbecue STEBA - Free user manual and instructions

Product type	Electric barbecue
Brand	Steba
Model	VG 200
Power supply	Mains (plug with protective contact)
Adjustable temperature	Yes, 5-position thermostat (keep warm to max grilling)
Cooking plate	Non-stick, removable
Hood	Place or hang as a windscreen
Reflector tray	Included for grease collection
Indicator light	Indicates the appliance is heating
Plate maintenance	Brush and dish soap, soak if heavily soiled
Housing maintenance	Damp cloth with a little dish soap
Do not immerse	The regulator housing must not be submerged in water
Child safety	Keep out of reach of children under 8 years
Authorized use	From 8 years under supervision
Prohibition	Do not use with charcoal or flammable liquids
Prohibition	Do not cover the grid with aluminum foil
Safety distance	At least 70 cm from flammable materials
Repairs	Reserved for a qualified electrician
Warranty	Contact Steba customer service
Country of origin	Not specified

Frequently Asked Questions - VG 200 STEBA

How to adjust the temperature of the Steba VG 200?

Use the rotary thermostat: position 1 = on, 2 = keep warm, 3 = low (fish), 4 = medium (delicate meats), 5 = max. The indicator light goes out when the temperature is reached.

Can I use charcoal with this barbecue?

No, the appliance is electric and must not be used with charcoal or flammable liquids.

How to clean the non-stick plate?

Let it cool, remove the plate. Clean it with a dish brush and dish soap. For heavy soiling, soak it in soapy water before cleaning.

What to do if the plate is no longer non-stick?

The more the plate is cleaned, the less the non-stick effect becomes. Ensure regular cleaning appropriate. Avoid abrasive products.

Can the appliance be left on unattended?

No, operate the appliance only under constant supervision. Unplug it after use.

Can I use aluminum foil on the grid?

No, never cover the grid with aluminum foil, as it prevents heat from being transferred and may damage the appliance.

How to install the hood?

You can place the hood on the plate or hang it as a windscreen. On the table, simply place it.

What to do in case of breakdown?

Electrical repairs must be carried out by a qualified electrician. Contact Steba customer service.

Can I leave the appliance outside after use?

No, never leave the appliance outside after use. Store it in a dry place protected from the weather.

How to dispose of the appliance at end of life?

Do not dispose of it with household waste. Take it to a collection point for electrical appliances or return it to the point of sale.

USER MANUAL VG 200 STEBA

Black and white photo of a Steha stainless steel grater with a curved handle and side panel (no visible text or symbols)

230V; 50/60Hz; 2200 Watt

BBQ-Tischgrill

VG 200

Instructions for use 23

Mode d'emploi 27

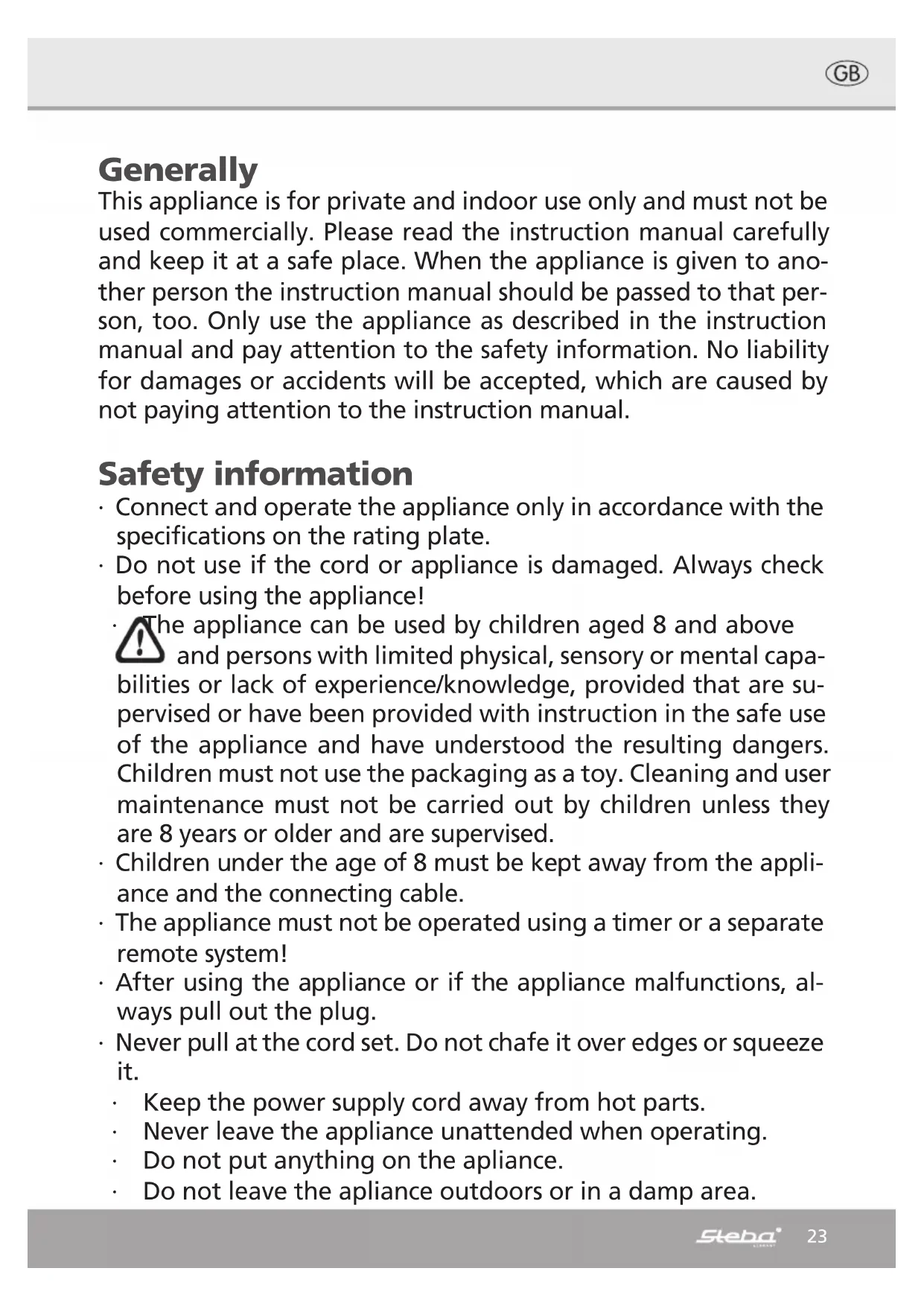

This appliance is for private and indoor use only and must not be used commercially. Please read the instruction manual carefully and keep it at a safe place. When the appliance is given to another person the instruction manual should be passed to that person, too. Only use the appliance as described in the instruction manual and pay attention to the safety information. No liability for damages or accidents will be accepted, which are caused by not paying attention to the instruction manual.

Safety information

- Connect and operate the appliance only in accordance with the specifications on the rating plate.

- Do not use if the cord or appliance is damaged. Always check before using the appliance!

The appliance can be used by children aged 8 and above and persons with limited physical, sensory or mental capabilities or lack of experience/knowledge, provided that are supervised or have been provided with instruction in the safe use of the appliance and have understood the resulting dangers. Children must not use the packaging as a toy. Cleaning and user maintenance must not be carried out by children unless they are 8 years or older and are supervised.

- Children under the age of 8 must be kept away from the appliance and the connecting cable.

- The appliance must not be operated using a timer or a separate remote system!

- After using the appliance or if the appliance malfunctions, always pull out the plug.

- Never pull at the cord set. Do not chafe it over edges or squeeze it.

• Keep the power supply cord away from hot parts.
• Never leave the appliance unattended when operating.
• Do not put anything on the apliance.

• Do not leave the apliance outdoors or in a damp area.

• Never immerse the appliance in water.

• Do not operate the appliance if it is damaged (for example if it felt down).
• The manufacturer is not liable for damage occurred by using the appliance in another way than described or if a mistake in operating has been made
• The apliance becomes very hot. Do not move the apliance until it has cooled down!
• To prevent injury, repairs such as replacing a damaged cord, should only be carried out by customer service.

Attention! Housing and glass get hot. Danger of burns! Do not place the appliance on a sensitive surface (e.g. painted furniture) and keep a distance of at least 70cm to burnable materials. The backside of the appliance must be positioned direct at the kitchen wall.

Cleaning and maintainance:

• The device should be cleaned after each use
• Unplug the device
• The device should cool down a little. It can be cleaned easier when it is not that hot.
• Never immerse the device in water!
• Use a humid cloth with a little bit of detergent to clean it. Resisting dirt should be covered with some oil, wait for ca 5 min and try to remove it again with a humid cloth. Do not use abherasive cleaners. When cleaning the oil tray, be careful, that the liquid in it is cooled down completely.

Working place:

Important:

Never place this device on or next to hot surfaces (e.g. hot stoves). Only use it on a even, stable and a heat resisting surface. It is important that no inflatable items are near to the device.

Safety requirements during usage:

- Only use the appliance at a safety plug socket. This should be connected to a earth leakage circuit breaker

- Use the appliance only when it is assembled.

- Do not use the grill plate outside of the appliance and never immerse into water.

- Never leave the appliance outdoors after usage.

- Fat and other grill food can spatter and drop. Therefore do not place the appliance not directly on sensitive surfaces, e.g. Polished table tops, parquet or carpet.

- When using the appliance with stand, be sure that the stand is standing stable, because the danger of burns when it falls

- Be sure that the cable is placed that way that it cannot be pulled or touched during usage.

- Always unplug the appliance and cool it down before the device is carried away. Never carry it when it is hot.

- Unplug the appliance after each usage or before cleaning.

• Always place the oil tray bellow the grill plate.

- Attention!

When the glass lid is in the position as a windshield then the lid must not be pushed to the front or to the back by force. To close the lid pull it carefully upwards and then close it.

- The device must not be operated with charcoal or flammable liquids.

Thermostat:

With the thermostat the temperature of the grill plate can be adjusted.

The Numbers on the thermostat knob have following meaning:

1 = thermostat switched on
2 = keeping warm
3 = grilling with low temperature (for fish etc.)
4 = grilling on medium temperature (for chicken etc.)
5 = grilling on max. temperature

Control Lamp:

When the appliance is plugged in and the thermostat is adjusted, the control lamp is shining. When the temperature is achieved, the lamp goes off.

Grill preparations:

Oil the grill slightly before the usage. This makes it more easy to turn the food. Then heat up the device for ca 10 min; the thermostat on maximum level. The food should be not frozen during grilling. Please use the appliance only with the drip tray.

Never cover the appliance with aluminium foil, because the heat cannot get away from the heating element.

Never cut on the grill surface because the coating can be damaged.

During grilling the glass lid can be closed or the glass lid can be used in an opened position as a windshield.

Careful!:

Steam from the food can emerge when the lid is opened. Danger of burns!

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Packaging disposal: Do not throw away the package materials. Please put it in the recycling bin.

PS

PP

PE

Gift box: Paper, should be put to the old paper collection point. Plastic packaging material and foils should be collected in the special collection containers.

Service and Repair:

If the appliance must be repaired, please get in touch with your trader or with the manufacturer:

When the glass lid is in the position as a windshield then the lid must not be pushed to the front or to the back by force. To close the lid pull it carefully upwards and then close it.

Термостат
