USER MANUAL DF 220 STEBA

Instructions for use

Mode d'emploi

Gebruiksaanwijzing

if the appliance is used without grease the protection overheating switches off the fryer.

Push the red button (13) to operate again with die fryer,

Should the fryer switch off again it must be repaired.

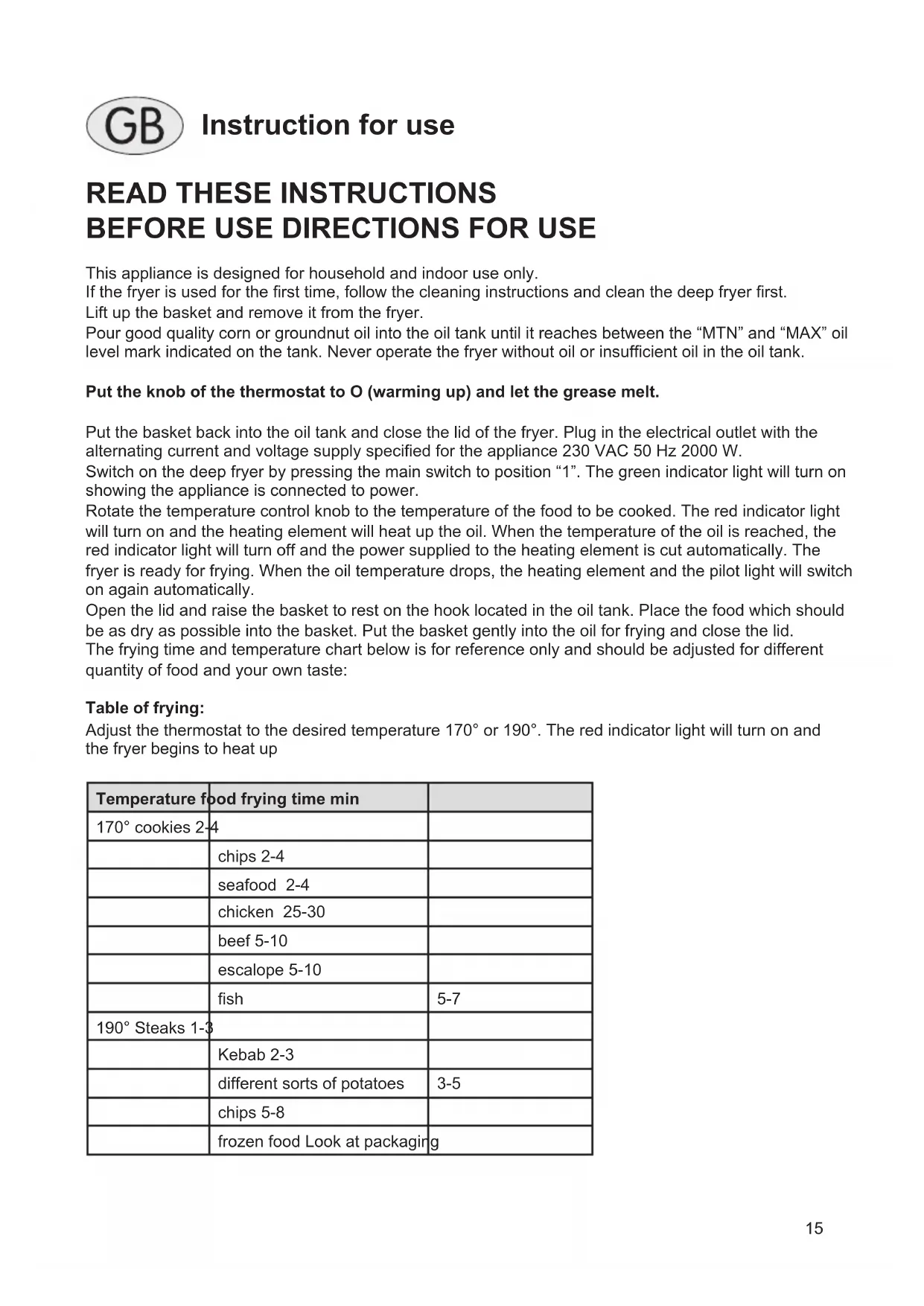

This appliance is designed for household and indoor use only.

If the fryer is used for the first time, follow the cleaning instructions and clean the deep fryer first.

Lift up the basket and remove it from the fryer.

Pour good quality corn or groundnut oil into the oil tank until it reaches between the "MTN" and "MAX" oil level mark indicated on the tank. Never operate the fryer without oil or insufficient oil in the oil tank.

Put the knob of the thermostat to O (warming up) and let the grease melt.

Put the basket back into the oil tank and close the lid of the fryer. Plug in the electrical outlet with the alternating current and voltage supply specified for the appliance 230 VAC 50 Hz 2000 W.

Switch on the deep fryer by pressing the main switch to position "1". The green indicator light will turn on showing the appliance is connected to power.

Rotate the temperature control knob to the temperature of the food to be cooked. The red indicator light will turn on and the heating element will heat up the oil. When the temperature of the oil is reached, the red indicator light will turn off and the power supplied to the heating element is cut automatically. The fryer is ready for frying. When the oil temperature drops, the heating element and the pilot light will switch on again automatically.

Open the lid and raise the basket to rest on the hook located in the oil tank. Place the food which should be as dry as possible into the basket. Put the basket gently into the oil for frying and close the lid.

The frying time and temperature chart below is for reference only and should be adjusted for different quantity of food and your own taste:

Table of frying:

Adjust the thermostat to the desired temperature 170^ or 190^ . The red indicator light will turn on and the fryer begins to heat up

Temperature food frying time min
170° cookies 2-4
	chips 2-4
	seafood 2-4
	chicken 25-30
	beef 5-10
	escalope 5-10
	fish
190° Steaks 1-3
	Kebab 2-3
	different sorts of potatoes
	chips 5-8
	frozen food Look at packaging

When the frying process is finished, lift up the basket to rest on the hook, and after some time open the lid. This allows the excessive oil to drop into the oil tank. The food is then ready for serve. To avoid early degradation of the oil, do not add salt or spices above the oil of during frying.

When the frying is finished, switch off the fryer by rotating the temperature control knob to its minimum position and press the main switch to position "0". Unplug the appliance to disconnect the power supply.

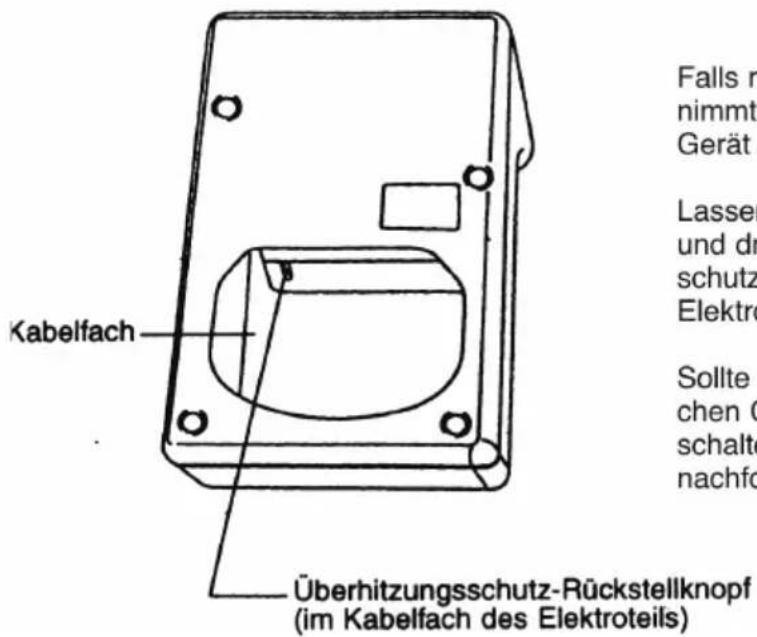

There is a reset button for safety limitation on the bottom of heater assembly. The safety limitation prevents the oil temperature from rising too high. If the fryer does not heat up, it is possible that the limitation is triggered and cut off the power supply. One of such situation is that the fryer has been operated without oil or insufficient oil in the oil tank. Pressing the reset button will put the safety limitation back to normal operation. There is also a protection device on the heater assembly to ensure that the fryer operates only when the heater assembly is seated properly on the fryer. Check the seating of the heater assembly if the fryer does not operate.

CLEANING INSTRUCTIONS

Always unplug the appliance and let the appliance and oil cool down to room temperature before cleaning.

Lift up the heater assembly from the fryer. Then lift up the oil tank by holding the rim of the tank. Be careful when there is oil in the tank. Drain the oil from the tank to a suitable container.

The basket lid and oil tank can be washed in warm soapy water or put in dish washing machine. Dry the parts thoroughly after cleaning and take care that there is no water in the lid. Never use sharp object to remove the dirt as it will damage the surface of the part.

Never immerse the heater assembly of the deep fryer in water. Clean the outer surface of the heater assembly including the heating element and body of deep fryer only with a damp cloth.

After cleaning, reassemble the oil tank, heater assembly and lid to the deep fryer. Make sure the heater assembly seats properly on the deep fryer, otherwise it cannot be operated..

IMPORTANT SAFEGUARDS:

The appliance is designed for household use only. It is not intended for commercial use. Do not use the appliance for other than intended to use.

Do not operate this appliance if it has a damaged cord or plug, is not working properly, has been dropped or damaged, or is dropped into water. Return the appliance to service centre for examination and repair.

Unplug the appliance from power outlet after use, before filling and emptying oil and before cleaning.

Do not let the cord hang over edges of tables or touch hot surfaces. If the supply cord of this appliance is damaged, it must only be replaced by an authorised service centre because special purpose tools are required.

To protect against electric shock do not immerse the heater assembly, the cord or the plug in water or other liquids.

Hot oil can cause very serious bums. The appliance is hot during operation and retains heat for some time after being switch off. Do not touch hot surface such as oil tank. Never move the appliance during use.

Damp food should be dried first. Remove any loose ice from frozen food. Close the lid during cooking the food. Lower the basket with food into the oil gently. Beware of oil spattering when food is put into the oil.

Place the appliance on a surface that is resistant to heat.

Never obstruct the air outlet vent on top of the lid with any objects. Beware of the hot escaping steam coming out from the air outlet vent.

The oil in the tank must be always above the minimum oil level. Never operate the appliance without or insufficient oil in the oil tank.

Ensure that there is no inflammable objects put over or close to the appliance. If the oil catches fire unplug the appliance and close the lid. Never use water to extinguish the fire. Close supervision is necessary when the appliance is used by or near children and disable persons.

Danger through splatter

To avoid splattering and foaming of the grease use food with less water and dry it up carefully. When using frozen food shake off the ice crystals. Dive the basket slowly into the grease It is necessary to wipe off the water from the lid before frying or before placing the lid again on the fryer.

Cleaning of the grease

Rests of food and crumbs should be regularly removed from the grease In this fryer rests of food and water are found on the bottom - below the heating element (cool zone) and do not burn.

After having finished with frying - let cool down the grease and then pour the grease prudently in a metal pot with handles
- Rests of food and water have absolutely be removed from the grease
Clean frying basket and oil tank
- Hook the basket in the oil tank (drain position and put disposable paper as filter in the basket.
- Pour the grease slowly back through the filter in the oil tank
- Use the filter only one time

Disposal:

Packaging disposal:

Do not throw away the package materials. Please put it in the recycling bin.

Gift box: Paper, should be put to the old paper collection point. material and foils should be collected in the

special collection containers.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other hold wastes throughout the EU. To prevent possible harm to the

nment or human health from uncontrolled waste disposal, recycle it

responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Service and Repair:

If the appliance must be repaired, plaese get in touch with your trader or with the manufacturer:

GARANTIE terms of guarantee

the manufacturer must be informed immediately after the damage had been proved and within 12 month after delivery to the end consumer if a damage at an appliance which was used in the right way occurs and a factory defect has been proved.

In this case the manufacturer will mend the appliance free of charge on the terms as follows:

The right to claim something under guarantee does not arise if only a slight discrepancy between the "should" quality, which is not important for the value and the use of the appliance as well as damage which occurs from not normal environmental influence.

The repair of the from us accepted defects during the guarantee period will be made through mending of the defect parts after our choice free of charge or through changing of parts without defects.

Appliances for which a removal of the defects is claimed must be packed properly and returned with the receipt of the purchase price to the manufacturer.

Replaced parts are the ownership of the manufacturer. The right to claim something under guarantee is not transferable and expires when a third person mends the appliance. It is independent whether the complaint is based on it or not. Guarantee performances do neither cause an extension of the guarantee period nor will there be a new guarantee period. The guarantee period for assembled spare parts expires at the same time as the guarantee period of the entire appliance.

Is it not possible to remove the defect or is the rework refused or will be delayed unreasonably, on desire the end consumer can get a replacement free of charge if the appliance has not been bought or delivered for more than 6 months or a reduced amount can be paid back or return the appliance against reimbursement of the purchase price.

Further claims especially such one occurred out of the appliance are excluded, expect that a liability is compellingly laid down by law.
