USER MANUAL 0412060021 WMF

wmf consumer electric in einer 500 ml-Flasche erhältlich.10

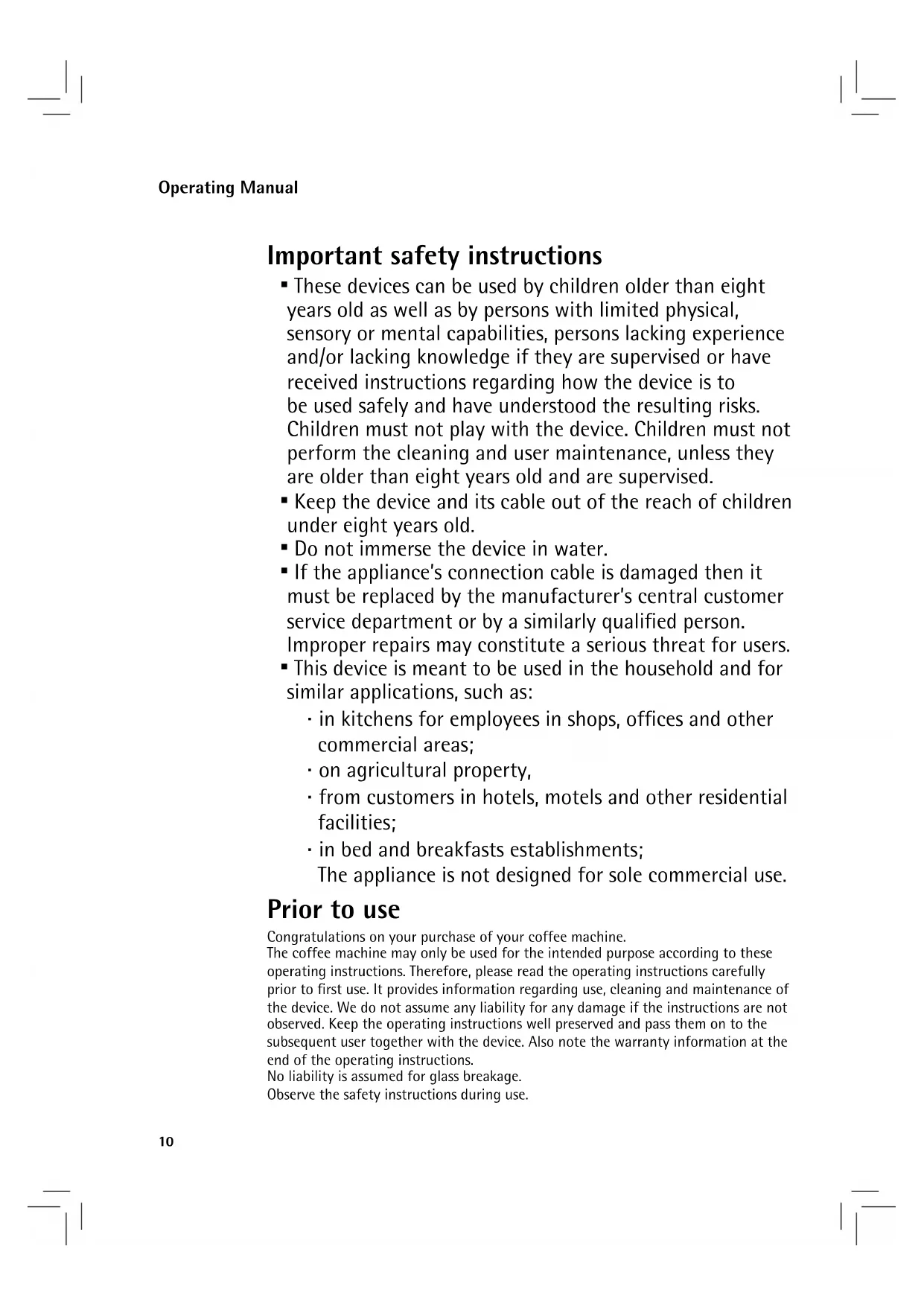

Important safety instructions

▪ These devices can be used by children older than eight

years old as well as by persons with limited physical,

sensory or mental capabilities, persons lacking experience

and/or lacking knowledge if they are supervised or have

received instructions regarding how the device is to

be used safely and have understood the resulting risks.

Children must not play with the device. Children must not

perform the cleaning and user maintenance, unless they

are older than eight years old and are supervised.

▪ Keep the device and its cable out of the reach of children

under eight years old.

▪ Do not immerse the device in water.

▪ If the appliance’s connection cable is damaged then it

must be replaced by the manufacturer’s central customer

service department or by a similarly qualified person.

Improper repairs may constitute a serious threat for users.

▪ This device is meant to be used in the household and for

similar applications, such as:

⋅ in kitchens for employees in shops, offices and other

⋅ on agricultural property,

⋅ from customers in hotels, motels and other residential

⋅ in bed and breakfasts establishments;

The appliance is not designed for sole commercial use.

Congratulations on your purchase of your coffee machine.

The coffee machine may only be used for the intended purpose according to these

operating instructions. Therefore, please read the operating instructions carefully

prior to first use. It provides information regarding use, cleaning and maintenance of

the device. We do not assume any liability for any damage if the instructions are not

observed. Keep the operating instructions well preserved and pass them on to the

subsequent user together with the device. Also note the warranty information at the

end of the operating instructions.

No liability is assumed for glass breakage.

Observe the safety instructions during use.

EN EN Technical data

Rated voltage: 220-240 V~ 50/60 Hz

Power consumption: 960 W (version with glass pot)

Power consumption: 900 W (version with vacuum jug)

Protection class: I Additional safety instructions

▪ Only connect the device to properly installed earthed sockets. The wire and plug

▪ Do not pull the connecting cable over sharp edges or clamp it. Do not let it hang

down and protect it from heat and oil.

▪ Only use extension cords that are in perfect condition.

▪ Never disconnect the mains plug from the socket by the cord or with wet hands.

▪ Do not carry the device by the cord.

▪ Do not place the coffee machine on hot surfaces, such as hot plates or similar, or

near open flames. The housing could melt.

▪ Do not place the device on water-sensitive surfaces. Water spray may damage

▪ Do not switch on the device without water. Fill the fresh water tank with cold

water only to the maximum possible number of cups at the most.

▪ Do not put any water in the device if it is switched on or still hot. Prior to filling,

switch the coffee machine off and allow to cool for five minutes.

▪ Caution, the device is hot. Risk of scalding from escaping steam. Never swing the

filter out or open the cap during operation.

▪ If the device will not be used for some time, disconnect the mains plug.

▪ Stop using the appliance and/or connect it from the mains plug immediately if:

⋅ The appliance or mains cable is damaged

⋅ There is any suspicion of a fault after dropping the appliance or similar.

In such cases, send the appliance to be repaired.

▪ Only operate the device under supervision.

▪ Descale the device regularly.

▪ The vacuum jug is not suitable for the microwave.

▪ The glass pot is not suitable for the microwave.

▪ No liability is assumed for damages in cases of misuse, improper operation, non-

observance of the descaling instructions or unprofessional repairs. Claims under

warranty are likewise excluded in such cases.

Prior to first use and after the device was not used for a long period of time, run a

cycle through with fresh water and no ground coffee. To do so, fill the tank to the

10-cup mark (version with glass pot) or to the 8-cup mark (version with vacuum

jug), as otherwise the pot can overflow.

Setting the current time

After connecting the mains plug to a socket, the display shows the time and Set.

Set the current time by pressing the h and min buttons. To advance the time quickly,

you can hold down the h or min buttons. Confirm by pressing the Set button.

As long as you do not confirm the time by pressing Set, the set time will blink.

Note: You can also brew coffee immediately after connecting the mains plug to a

socket by pressing the start / stop button briefly.12

Note: After a power failure or the mains plug was pulled out, the time must be

You can always adjust the set time.

Press the Set button and hold this down for approximately 4 seconds until the time

Now set the desired time by pressing the h and min buttons and confirm this by

pressing the Set button.

Setting the automatic switch-on time

The device’s switch-on system starts the brewing process automatically at the desired

time. The switch-on time can be set for up to 24 hours in advance.

Briefly press the Set button once. The display will show you Set and

switch-on time by pressing the h and min buttons and confirm the switch-on time

by pressing the Set button.

As long as you do not confirm the switch-on time by pressing Set, the set switch-on

time will blink. After approximately five seconds, the display switches back to the

time without saving the switch-on time.

Note: After a power failure or the mains plug was pulled out, the switch-on time

Information about the stainless steel pot

(version with vacuum jug only)

The pot is designed as a serving pot and best keeps coffee warm when filled to the

maximum. The keep-warm time can be drastically reduced if only filled partially or

with residual amounts. It is best if the pot is rinsed with hot water before prepara-

For technical reasons, the seal made by the drip-through lid is not 100 percent sealed

so that it can still easily be opened after the coffee has cooled down. To close, lightly

tighten the lid. Only use the filled pot in an upright position.

To pour, press the pour button on the handle.

To open the pot, lightly turn the lid in a counter-clockwise direction. Ensure that the

pour button is located over the handle once again after closing the lid.

The double-walled, stainless steel container is absolutely unbreakable. Nevertheless,

it should be protected from mechanical stresses.

Rinse the pot regularly. If iron particles from water set on the stainless steel surface,

it may lead to localised corrosion at that point. Therefore, remove these deposits

immediately with a stainless steel cleanser.

You can remove the water tank for easy filling. Open the water tank by pressing on

the lid. Only pour cold water into the tank. The water level display applies to the

fresh water quantity that is needed to brew the desired number of 125 ml cups of

Swing out the swing-out filter to fill with ground coffee. Place a 1 x 4 paper filter in

the filter, but fold the edge before doing so. The paper filter should not extend over

the edge of the filter, so it is therefore to be lightly pressed with your hand.

Fill with the required amount of ground coffee. Depending on personal test, figure

approximately 5-7 g medium-fine ground coffee per person. If the coffee is ground

too finely, the filter may overflow.

Close the swing-out filter until you hear an audible click.13

You can activate the aroma function if you want to prepare a stronger, more

aromatic coffee. It is particularly recommended for preparing small quantities. To

do so, press the aroma button

just before you start the brewing process with the

start / stop button or before you activate the automatic switch-on system.

symbol will be shown in the display until the preparation is complete.

Note: If you wait longer than approximately 5 seconds to start the brewing process

or activate the automatic switch-on system, the aroma function is deactivated

Please note that the preparation time takes slightly longer.

(version with vacuum jug only)

In order to achieve a particularly intense flavour, you can activate the pre-brew

. Only a small amount of water is advanced at first for the pre-brew.

After a brief pause, during which the coffee powder can swell, the brewing

continues. Press the

button just before you start the brewing process with the

start / stop button or before you activate the automatic switch-on system.

symbol will be shown in the display until the preparation is complete.

Note: If you wait longer than approximately 5 seconds to start the brewing process

or activate the automatic switch-on system, the pre-brew function is deactivated

Please note that the preparation time takes slightly longer.

If the preparation should start automatically at a programmed switch-on time,

button and will appear in the display.

The illuminated ring of the start / stop button illuminates with reduced brightness.

The preparation begins automatically at the programmed switch-on time and the

illuminated ring of the start / stop button illuminates with full brightness.

Note: As soon as the automatic switch-on time is confirmed, no other settings

can be made. In order to make changes, you must press the

deactivate the automatic switch-on.

You can cancel the preparation at any time by pressing the start / stop button.

Press the start / stop button briefly to prepare coffee immediately. The illuminated

ring illuminates with full brightness and the preparation begins.

You can cancel the preparation at any time by pressing the start / stop button.

Wait a few minutes until all of the coffee has run into the pot. Once the pot is

removed, a drip-stop valve prevents coffee from dripping out.

(version with vacuum jug only)

After being powered on, an automatic shutoff ensures that the device does not

overheat. The device switches off only once all of the water has drained completely.

It is possible to shut off the device earlier by pressing the start / stop button. This

could be necessary if you accidentally switch on the unit without water. Before

filling the hot device with water, it is necessary to wait a few minutes to allow the

coffee machine to cool down.14

(version with glass pot only)

Your device is equipped with a keep-warm function to keep the finish brewed coffee

at serving temperature. The keep-warm time is set to 20 minutes by default.

appears in the display during the brewing process.

Before the brewing process starts, you can increase the keep-warm time to 40 min-

utes by repeatedly pressing the

button or can deactivate the function by setting

The selected keep-warm time is confirmed by pressing the

button or the start /

Note: If you wait longer than approximately 5 seconds to confirm, it will return to

the 20 minute default.

Note: The changed keep-warm time only applies for that brewing process.

Allow the device to cool for 5 minutes before preparing more coffee.

The automatic scaling indicator determines the time for the due descaling. Depend-

ing on the coffee consumption and the set water hardness, you will be prompted to

descale after 4 to 6 weeks by the flashing CALC display during brewing.

After another approximately 50 cups of coffee, CALC appears permanently in the

display and no more coffee can be brewed. A descaling must now take place.

Setting the water hardness

Your appliance has an automatic scaling display. To protect against too much lime

scale, the appliance is pre-configured

for very hard water. Ask your local waterworks or local authorities about the water

hardness of your tap water. Change the setting when the water hardness is less than

21°dH. You will not be asked to descale as often as before.

To do so, hold the Set button approximately 7 seconds until Set CALC appears in the

display. The CALC display and the current set degree of hardness, e.g. H4, now flash

alternately. As long as the water hardness is flashing in the display, it can be changed

to water hardness 1, 2, 3 or 4 by pressing the

Confirm the setting by pressing the Set button.

1° dH corresponds to approximately 0.18 mmol/l Ca and Mg ions

Limescale deposits lead to losses of energy and impair the service life of the device.

We recommend using durgol® universal. It is highly effective and non-abrasive

without additional reaction time.

You can find this where the device was purchased, in select speciality stores or you

can order it directly from wmf consumer electric.15

EN Insert paper filter and place the pot in the machine. Place one dose of (125 ml)

durgol® universal into the water tank and fill with tap water to the 10-cup mark

(version with glass pot) or to the 8-cup mark (version with vacuum jug).

To start the descaling, press the

button and hold this down for approximately 4

seconds. CALC appears in the display, the descaling program starts automatically and

the illuminated ring for the start / stop button illuminates. The descaling program

ends automatically after approximately 40 minutes, the illuminated ring of the start

/ stop button turns off and the display shows the time again.

Note: The device switches on and off several times during the descaling process.

Important: Afterwards, fill the tank to the 10-cup mark (version with glass pot) or

to the 8-cup mark (version with vacuum jug) with fresh tap water to rinse and run

the cycle once through.

Using vinegar or vinegar concentrate could damage materials in the appliance.

When using descalers with citric acid bases, deposits could form during descaling

that seal the limescale layer or clog the lines in the device. In addition, descaling

with citric acids runs too slowly. A complete descaling process can therefore not be

Attention: there is no claim under warranty for damages caused by not observing

the descaling instructions.

Unplug the mains plug and allow the appliance to cool down.

Do not immerse the device in water, but rather clean the outside with a damp cloth16

with a little washing-up fluid and then wipe away.

Do not use any sharp and abrasive cleaning agents.

The filter, glass pot and vacuum jug can be cleaned under flowing water.

▪ This product is supplied with a 13 A plug conforming to BS 1363 fitted to the

mains lead. If the plug is unsuitable for your socket outlets or needs to be repla-

ced, please note the following. If the plug is a non-rewireable one, cut it from the

mains lead and immediately dispose of it. Never insert it into a socket outlet as

there is a very great risk of an electric shock.

▪ The replacement of the plug at the mains lead has to be done according to the

following instructions:

Warning - This appliance must be earthed

Important: The wires in this mains lead are coloured in accordance with the

As the colours of the wires in the mains lead of this appliance may not correspond

with the coloured markings identifying the terminals in your plug, proceed as

⋅ the wire which is coloured green and yellow must be connected to the

terminal which is marked with the letter E or by the earth symbol

coloured green or green and yellow,

⋅ the wire which is coloured blue must be connected to the terminal which is

marked the letter N or coloured black,

⋅ the wire which is coloured brown must be connected to the terminal which

is marked with the letter L or coloured red.

▪ If a 13 A (BS 1363) plug is used it must be fitted with a 13 A fuse conforming to

BS 1362 and be ASTA approved. If any other type of plug is used, the appliance

must be protected by a 15 A fuse either in the plug or adapter or at the distribu-

If in doubt - consult a qualified electrician.

▪ Never use the plug without closing the fuse cover.

The appliance complies with European directives 2006/95/EC, 2004/108/EC and

At the end of its life, this product must not be disposed of in normal household

waste but must instead be delivered to a collection point for recycling electric and

electronic appliances.

The materials are recyclable in accordance with their labelling. The reuse, recycling

and or other use of old appliances makes an important contribution to protecting

EN Please ask your local administration for the appropriate disposal point.

Subject to alterations

Universal rapid descaler

universal rapidly and easily frees all household items from limescale. Its

formula stands for efficient and simultaneously non-abrasive, food-safe and envi-

ronmentally friendly descaling.

universal is available in select speciality stores or at

wmf consumer electric in a 500 ml bottle.18

Consignes de sécurité importantes

⋅ in tenute agricole;

⋅ da clienti in hotel, motel e altri impianti di soggiorno;

⋅ in bed & breakfast.

⋅ maatalousalueilla;
