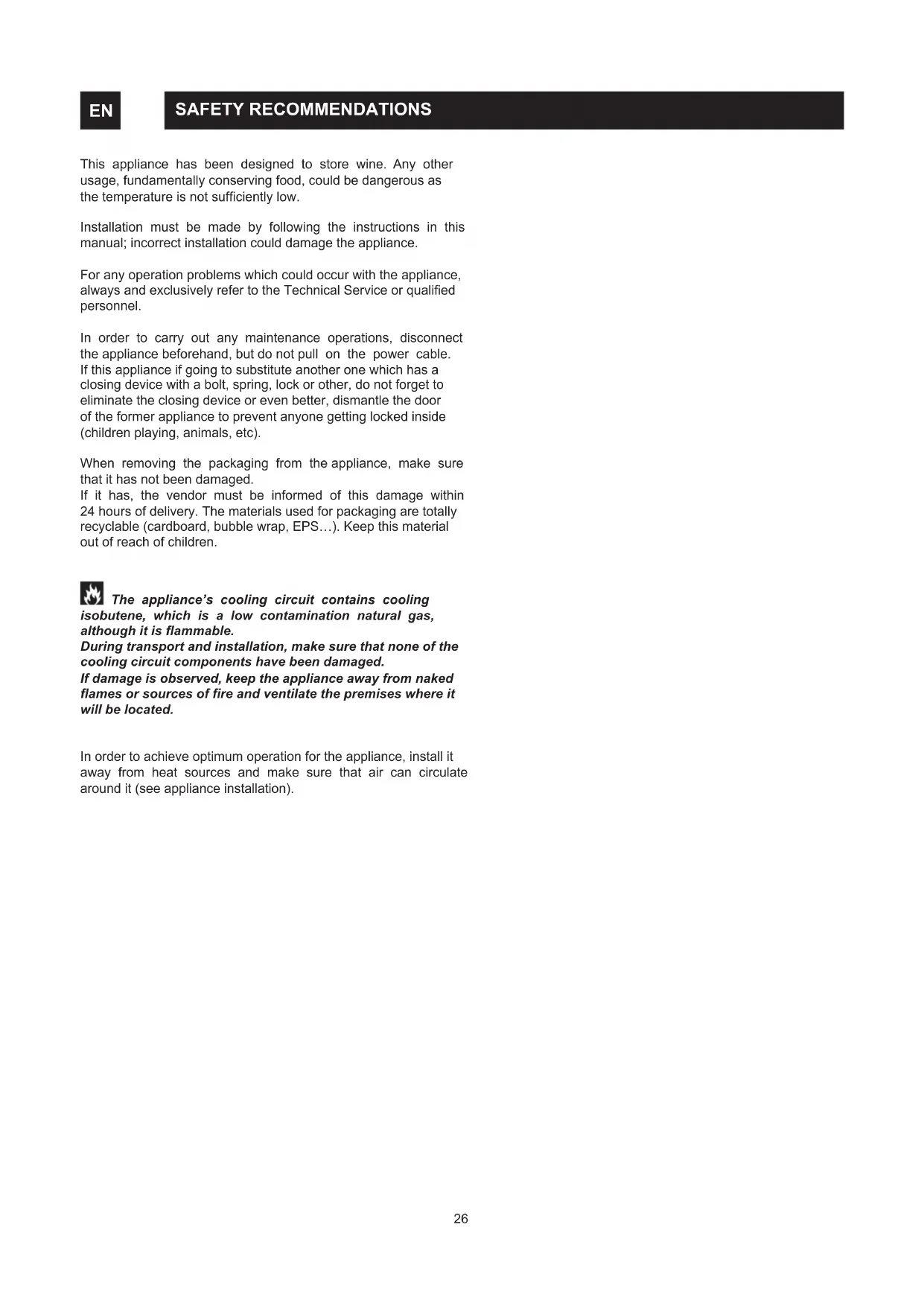

SAFETY RECOMMENDATIONS

This appliance has been designed to store wine. Any other usage, fundamentally conserving food, could be dangerous as the temperature is not sufficiently low.

Installation must be made by following the instructions in this manual; incorrect installation could damage the appliance.

For any operation problems which could occur with the appliance, always and exclusively refer to the Technical Service or qualified personnel.

In order to carry out any maintenance operations, disconnect the appliance beforehand, but do not pull on the power cable. If this appliance if going to substitute another one which has a closing device with a bolt, spring, lock or other, do not forget to eliminate the closing device or even better, dismantle the door of the former appliance to prevent anyone getting locked inside (children playing, animals, etc).

When removing the packaging from the appliance, make sure that it has not been damaged.

If it has, the vendor must be informed of this damage within 24 hours of delivery. The materials used for packaging are totally recyclable (cardboard, bubble wrap, EPS...). Keep this material out of reach of children.

The appliance's cooling circuit contains cooling ductene, which is a low contamination natural gas, though it is flammable.

During transport and installation, make sure that none of the cooling circuit components have been damaged.

If damage is observed, keep the appliance away from naked flames or sources of fire and ventilate the premises where it will be located.

In order to achieve optimum operation for the appliance, install it away from heat sources and make sure that air can circulate around it (see appliance installation).

Important:

Before starting the installation, read the safety recommendations carefully to avoid any problems.

Install the appliance in a place with no humidity and which is well ventilated, far from a heat source. Leave of minimum distance of 10cm between the top of the appliance and any furniture on top of it. If its installation does not permit this, leave 5cm between the top part of the chassis and any other piece of kitchen furniture which is fixed to the wall, and a distance of 2.5cm on both sides of the appliance.

If the appliance must be installed next to a fridge-freezer or a freezer, do not put them right next to each other to prevent condensation forming on the outside.

The climatic category of your wine cellar is indicated on the characteristic plate. This determines the ambient temperature range for which the fridge has been designed, guaranteeing correcting operation of the appliance.

Category Ambient temperatures

N 16^ to 32^

ST 18^ to 38^

T 18^ to 43^

ELECTRICAL CONNECTION

Characteristics of the connection: 220-240V with earth.

Avoid using adaptors or extension cords.

Make sure that the cable is not in contact with the compressor.

Make sure that the cable is not trapped under the appliance.

The appliance's electrical installation is earthed.

For your safety, connect the appliance to a power socket with efficient earthing (in accordance with the standards in force regarding electrical installation safety).

The manufacturer will not assume any responsibilities in the event of damage produced by an earthing fault.

BEFORE CONNECTING IT

• Clean inside the appliance with warm water and bicarbonate. Rinse and dry it carefully.
• Wait two hours before switching it on to guarantee stabilisation of the motor-compressor lubricants.

ENVIRONMENTAL PROTECTION

This appliance does not contain cooling gases which are harmful for the ozone layer in its cooling circuit and insulating materials.

It must not be thrown away with urban waste or scrap metal, to prevent damage to the cooling circuit, particularly the rear part of the appliance. Ask in your town hall for information on collecting this type of appliance.

RECYCLING

The packaging materials used for this appliance are recyclable.
Participate in recycling them and contribute to protecting the environment by taking it to the appropriate municipal containers.

Your appliance also contains many recyclable materials and so it has been marked with this logo which indicates that the old appliances should not be mixed with other waste. Therefore, recycling the appliance, which is organised by the manufacturer, can be done in the best possible conditions, in accordance with the European directive 2002/96/CE on electrical and electronic equipment waste.

Ask your town hall or vendor about collection points for old appliances close to your home.

Thank you for your collaboration in protecting the environment.

EN

1 / INSTALLING THE APPLIANCE

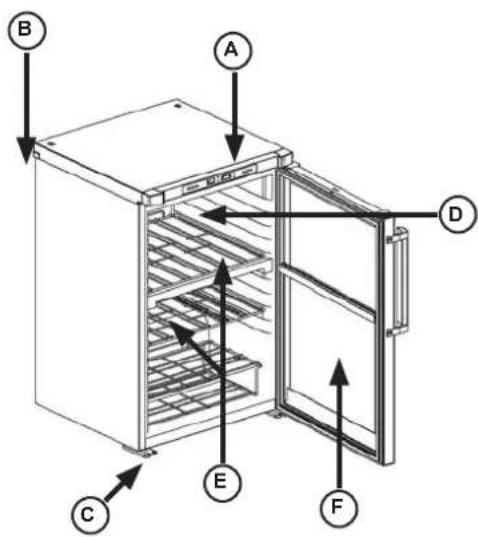

DESCRIPTION OF THE APPLIANCE (depending on the model)

REVERSING THE DOOR OPENING DIRECTION

The direction for door opening can be changed:

Important:

The appliance must always be disconnected when you change the opening direction.

• Dismantle the top of the wine cellar: loosen the 2 screwed down covers on the top, remove the two screws and slide the top forward.
• Tilt the appliance slightly backwards and wedge it in this position.
• Undo the screws on the door's top hinge and remove the support and its shaft.
• Open the door slightly and remove its base hinge.
• Undo the lower shaft and screw it back on the opposite side. Fit the door in the shaft and close it.
• Screw the top hinge back on firmly and the door shaft on the opposite side superior. Fit the top back on.

Digital screen
B Condenser
Adjustable feet
Light
E Adjustable grilles and runners
F Panneau vitre

ACCESSIONS

Your appliance is delivered with adjustable and detachable shelves, allowing you to store bottles of different capacities or sizes.

It is also fitted with a key lock.

Your wine cellar has 2 cavities, the temperatures of which can be adjusted independently of each other. In this way you may adapt the temperature of each cavity according to the type of wine you would like to store there (red, white, rose, sparkling).

• The dimensions of the bottles may vary, and this will effect the storage capacity of your appliance. The upper cavity of your wine cellar is intended to store 22 standard bottles, and the lower cavity, 24.

Ambient temperature plays an important role in the appliance's efficacy, so we recommend that you install your wine cellar in a place where the temperature is between 22 and 25^ .

The temperature inside can change depending on how you fit the shelves. The light can also vary the temperature so it is best not to turn the internal light on too often.

Advice:

• The internal temperature which is recommended for your wine cellar is between 7 and 18^ C.
• The temperatures recommended for wines, depending on the type, are:

Red wine: 15 - 18^
- Dry white wine: 10 - 15^ C
- Sparkling wine: 7 - 9^
Rose wine: 9-10°C

USING THE CONTROL PANEL

When you adjust the temperature for the first time, or after a long period when the appliance has been disconnected, a temperature of 10^ will automatically appear on the screen, this is the default temperature.

In order to adjust the temperature, use the 2 buttons adjust the temperature to the nearest degree.

to

If you choose the temperature for red wine, a light will come on next to the word Red. The same will occur with the other 2 types of wine which appear on the panel: White and Sparkling. There is no specific light for Rose.

You can also choose the unit of measurement for temperature: Fahrenheit or Centigrade, by pressing.

Finally, you can switch the light on or off with the SET control. In any case, the light will go out automatically after 2 hours.

e A Important:

For your safety, the appliance has a lock. The door closes when the key is removed to avoid any risk of being closed inside.

CLEANING

Caution:

Disconnect the wine cellar before cleaning it.

• Clean inside with warm water and bicarbonate, using a sponge or a cloth, to avoid unpleasant odours.
• Clean the grilles with a neutral detergent solution. This solution can also be used to clean the outside of the appliance.
• Dry the lower part of the appliance carefully to stop condensation forming.
• Do not use abrasive detergents, as they can damage the inside of the appliance. Do not wash the internal accessories in the dishwasher.
• It is recommended to wipe the back of the appliance with cloth once a year, as when it is dirty its performance is reduced and energy consumption increases.

CHANGING THE LIGHT BULB

Caution:

Disconnect the wine cellar before starting to change the bulb.

POWER CUTS AND PROVISIONAL STOPPAGE

In the event of a long power cut or the appliance being switched off (holidays...), you should:

• remove all the bottles,
• disconnect the appliance and clean inside it,
• leave the door open to prevent condensation and unpleasant odours.

MOVING THE APPLIANCE

2 If you have to move your cellar, follow these instructions to perform the operation in the best possible conditions:

a remove all the bottles from the appliance,
- fix the internal accessories to stop them breaking,
- screw the adjustable feet in the low position and lock the door closed.
- during transport, make sure that the appliance is always vertical.

• Remove the fixing screws
• Remove the grille (A) from the lower part.
• Remove the bulb by unscrewing it.
• Fit another bulb with the same wattage as before, replace the grille and fix it with the fixing screws.

OPERATION PROBLEMS

There are noises which are totally normal in a wine cellar:

• The cooling gas can bubble as it moves round the circuits.
• The compressor can produce a purring noise which can be stronger when it starts up.
• The "crack" caused by the materials used dilating.

Before calling the Technical service, use the table below to check that you cannot solve the problem yourself:

PROBLEM SOLUTION
The appliance does not work.	Check that it is properly plugged in, that the fuse has not blown or that a circuit breaker has not been tripped.
The temperature is too high.	Check the temperature and adjust it again if necessary. Make sure that the ambient temperature corresponds to what is recommended for optimum operation. Finally, do not open the door more than is strictly necessary.
The compressor only works occasionally.	Maybe there are too many bottles loaded in it: do not exceed the cellar's maximum capacity. Make sure that air can circulate freely around the appliance and that the seal is properly fitted. Also check the points given in the event that the temperature is too high.

If you have run all the checks given above and the problem continues, DO NOT CARRY OUT ANY REPAIRS YOURSELF. Call the closest Technical Assistance Service.

THIS APPLIANCE COMPLIES WITH EEC DIRECTIVES 73/23,93/68,89/336,96/57,92/31,94/62
