3WCI-8630N - Wine cellar FAGOR - Free user manual and instructions

Brand	Fagor
Model	3WCI-8630N
Product Type	Wine Cellar
Power Supply	AC 220-240V ~50Hz, 10A fuse
Temperature Range (Single Zone)	5°C to 20°C (adjustable)
Temperature Range (Dual Zone)	Upper: 5-10°C, Lower: 10-18°C
Optimal Wine Storage Temperature	12°C
Climate Class	SN (10°C-32°C), N (16°C-32°C), ST (16°C-38°C), T (16°C-43°C)
Interior Lighting	LED (adjustable auto-off or continuous)
Display Type	LED digital (flashing for actual, steady for set temp)
Alarm Functions	Door open alarm (5 min), temperature alarm (HI >23°C, LO <0°C)
Shelves	Removable (pull forward, lift out)
Door Hinge	Reversible (changing direction possible)
Installation	Free-standing or built-in with ventilation clearance
Adjustable Legs	2 front legs for leveling
Power Cord Length	Not specified (keep away from heat)
Refrigerant	Flammable (R600a or similar - not specified, but typical)
Energy Consumption	Not specified in manual
Noise Level	Cooling gas and fan noise normal
Cleaning	Mild soapy water, bicarbonate solution; no abrasives
Safety	Must be earthed; do not use adapters; keep away from children under 8
Warranty	As per warranty card; repairs by authorized service only

Frequently Asked Questions - 3WCI-8630N FAGOR

How do I set the temperature on my Fagor 3WCI-8630N wine cellar?

For single-zone models, press the ▲ or ▼ buttons to adjust. For dual-zone, press the zone button then adjust. The set temperature will be shown steadily, while actual temperature flashes.

What should I do if the wine cellar is not cooling properly?

Check that the appliance is not overloaded, the thermostat is set correctly, the door closes properly, the door gasket seals, and there is adequate ventilation. Ensure ambient temperature is between 16°C and 32°C.

Why is the wine cellar making noise?

Noise from cooling gas and the fan is normal, even when the compressor is off. Ensure the appliance is level and stable on the floor.

How do I clean the wine cellar?

Disconnect power first. Use mild soapy water for the exterior and door seal, and a solution of bicarbonate of soda and lukewarm water for the interior. Do not use abrasive products. Clean shelves by hand with soap and water.

What does the open door alarm mean?

If the door is left open or not closed properly for 5 minutes, the appliance will beep. Close the door correctly to stop the alarm.

How can I change the light to stay on permanently?

Press and hold the light button for 5 seconds until "LP" appears on the display. The light will stay on until you switch it off again. Press and hold again for 5 seconds to revert to auto-off ("LF").

What is the correct temperature for storing wine?

The optimal temperature for wine storage is 12°C. The adjustable range is 5°C to 20°C.

Can I install the wine cellar in an unheated room?

No, the appliance should be used within its climate class range (ambient temperature from 10°C to 43°C depending on class). Avoid cellars or unheated rooms in cold seasons.

What should I do if the display shows "HI" or "LO"?

"HI" indicates the internal temperature is above 23°C, and "LO" indicates below 0°C. An alarm will sound after one hour. Check the environment and door closure.

Can I replace the LED light myself?

No, the LED lighting cannot be replaced without a service call. Contact customer support if the light fails.

USER MANUAL 3WCI-8630N FAGOR

EN- Table of contents

GUIDELINES CONCERNING THE SAFETY OF USE 29

INSTALLATION AND OPERATING CONDITIONS OF THE APPLIANCE 31

CLIMATE RANGE 32

PRACTICAL EVERYDAY TIPS 32

UNPACKING

33

DISPOSAL OF OLD APPLIANCE 33

CONTROL ELEMENTS 34

CONTROL ELEMENTS - ONE AND TWO ZONES 34

REMOVING THE SHELVES

36

CLEANING

36

TROUBLESHOOTING

36

IF THE APPLIANCE IS NOT WORKING, CHECK

36

THE APPLIANCE IS WORKING, BUT NOT VERY WELL, CHECK

37

THE APPLIANCE IS NOISY, CHECK

37

THE LIGHT DOES NOT WORK, CHECK

37

THE DOOR WILL NOT CLOSE PROPERLY, CHECK

37

WARRANTY AND AFTER SALES SERVICE

38

WARRANTY

38

Estimado Cliente

SN from +10°C to +32°C

N from +16°C to +32°C

ST from +16°C to +38°C

T from +16°C to +43°C

CONSEJOS PRÁCTICOS

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a three chasing recycling symbol (no text or labels)

Symbol of a trash bin crossed with no visible text or labels

From now on, your daily housework will be easier than ever before. Your appliance is exceptionally easy to use and extremely efficient. After reading these Operating Instructions, operating the appliance will be easy.

Before being packaged and leaving the manufacturer, the appliance was thoroughly checked with regard to safety and functionality.

Before using the appliance, please carefully read these Operating Instructions. By following these instructions carefully you will be able to avoid any problems in using the appliance. It is important to keep these Operating Instructions and store them in a safe place so that they can be consulted at any time.

Follow these instructions carefully in order to avoid possible accidents.

Sincerely,

FAGOR

GUIDELINES CONCERNING THE SAFETY OF USE

- The appliance is intended for household use only.

- The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

- The Manufacturer shall not be held liable for damage arising from the failure to observe the instructions contained in this manual.

- Keep this manual for future reference, or to pass it over to the next user.

- This appliance is not intended for use by persons (including children) with limited physical or mental capabilities and persons who lack experience or familiarity with the appliance.

- Do not allow children to use the appliance. Do not allow them to play with the appliance. They must not climb inside the drawers and swing on the doors.

- The appliance operates properly at the ambient temperature (see product fiche). Do not use it in the cellar, unheated summer cottage during autumn and winter.

- When placing, moving, lifting the appliance, do not hold the door handles, do not pull the condenser at the rear part of the refrigerator and do not touch the compressor unit.

- Pull the plug out from the mains socket before each maintenance activity. Do not pull on the cord, but hold the body of the plug instead.

- The “cracking” sound, which the appliance may emit is caused by the expansion and contraction of parts as a result of temperature variations.

- For safety reasons do not repair the appliance yourself. Repairs carried out by persons who do not have the required qualifications may result in serious danger for the user of the appliance.

• Make sure you do not damage the cooling system, by puncturing the refrigerant pipes in the evaporator or breaking the pipes. The refrigerant is flammable. If the

refrigerant makes contact with the eyes, rinse them with clean water and call for medical assistance immediately.

- Important! If the power cord is damaged, it should be replaced by the manufacturer or specialist repair centre or a qualified person in order to avoid danger.

- When performing activities, such as cleaning, maintenance or moving, the appliance must be completely disconnected from power supply (by pulling the plug out from the socket)

- This appliance can be used by children aged 8 years and older or by persons with physical, mental or sensory handicaps, or by those who are inexperienced or unfamiliar with the appliance, provided they are supervised or have been instructed how to safely use the appliance and are familiar with risks associated with the use of the appliance. Ensure that children do not play with the appliance. Cleaning and maintenance of the appliance should not be performed by children unless they are 8 years or older and are supervised by a competent person.

- Do not clean the appliance with steam

- Keep the appliance and its power cord away from children under 8 years old.

- Do not immerse the power cord or plug in water.

- Keep cord away from heated surfaces.

- Do not allow the connection cord hanging over the edge of a table or counter.

- Do not use any electrical appliances inside the chamber

- Do not use any tools to speed up the defrosting process

- Regularly clean the ventilation openings (in case of built-in appliances or those installed under the worktop)

- This appliance is not designed to be controlled by electronic timers or other devices that cut off power directly or remotely.

- In case of accidental spillage of liquids on electrical components, immediately unplug your appliance from the power supply.

- Make sure that the power cord is not crushed or damaged during installation.

- Disable the appliance before disposing of it. Unplug the appliance from the power supply and cut off the power cord. To prevent children or animals from being trapped in the appliance, remove the doors, hinges and locks.

INSTALLATION AND OPERATING CONDITIONS OF THE APPLIANCE

• Connect the appliance to the power supply 24 hours after unpacking and setting in the final location.
  • Take the product out of the package, remove the scotch tape protecting the door and the equipment. Any remaining adhesive stains may be removed with a mild washing agent.
• Clean the interior surface of the cooler and the elements of the equipment with a washing agent dissolved in lukewarm water, then wipe it dry.
• Place the cooler on an even, flat and stable surface, in dry, aired and shaded room, far from the heat sources such as: oven, hob, central heating radiators, central heating pipes, hot water installation, etc.
• On the exterior surface of the product may be a protective foil, this foils should be removed.
• Make sure the appliance is placed in a horizontal position by screwing in the 2 adjustable front legs (fig. 1)

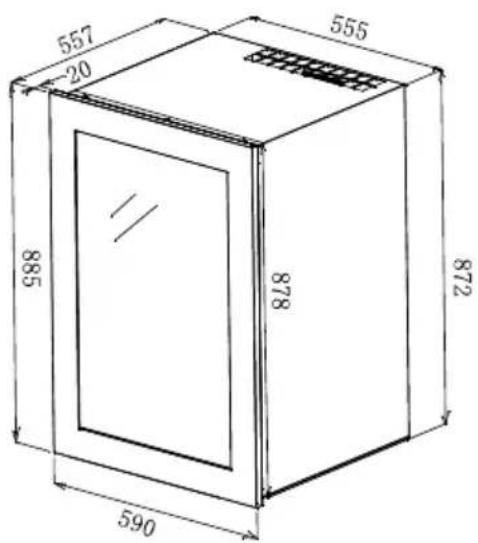

• Keep free space on the sides and rear of the appliance (see installation drawing)
• When you install your wine cooler inside a furniture cabinet, make sure that the ventilation grille located in the bottom of the appliance is not blocked.
• Odours may be released when you first start your appliance. It will dissipate when the interior of the appliance cools down
• When you first start your wine cooler, the compressor will run continuously until the desired temperature is reached inside the chamber
• When you unplug your appliance from the power supply, it is recommended to wait 5 minutes before you plug it back in. This will reduce the risk of damage to the compressor.
• On selected models, the correct temperature will be shown on the display only a few hours after the wine cooler has been put into operation
• This appliance should be connected to AC 220-240V 50Hz supply socket. The socket must be fitted properly, and must be supplied with an earthing conduit and a 10A fuse.
• It is a legal requirement that the appliance is properly earthed. The manufacturer will not be held liable for any damage or injury which may result from the failure to fulfil this requirement.
• Do not use adapters, multiple sockets and two-wire extension leads. If it is necessary to use the extension lead, it must be equipped with a protection ring and a single socket and must have a VDE/GS safety certificate.
• If an extension lead is used (with a protection ring and safety certificate), its socket must be located at a safe distance, away from the sinks, and must not be in a place where it could be flooded by water or waste water.
• Make sure the appliance can be easily disconnected from the mains, either by pulling the plug out of the mains socket, or by switching the two-pole switch off.

Climate range

The information about the climate range of the appliance is provided on the rated plate. It indicates at which ambient temperature (that is, room temperature, in which the appliance is working) the operation of the appliance is optimal (proper).

Climate range Permissible ambient temperature

SN from +10°C to +32°C

N from +16°C to +32°C

ST from +16°C to +38°C

T from +16°C to +43°C

PRACTICAL EVERYDAY TIPS

- If the light inside the appliance remains turned on, keep in mind that the temperature inside the appliance will be higher

- Temperature inside the appliance depends on the amount and type of stored wine bottles

- To ensure user safety and high quality of stored wine, do not install the appliance in damp rooms

- Store wine bottles in designated spaces

- Your wine cooler has a limited capacity. Do not place more bottles in your wine cooler than recommended in specification

- Do not open the wine cooler door if it is not necessary

- Do not cover the shelves with aluminium foil or other material. This blocks the air circulation inside the appliance

- To avoid damage to the 'door seal, make sure that the door is completely open before pulling out the shelf. The shelves should be inserted as far as possible, otherwise the shelf may deform and damage the door seal.

- Do not extend the loaded shelves beyond the extension limit (about 1/3 of the shelf length)

- This appliance is designed for storing bottles of wine. Do not use it for any other purpose.

- Temperature stability is very important when storing wine.

- Exposing your wine cooler to sunlight, significant temperature fluctuations, high humidity and vibrations may cause the wine to go bad.

- In periods of high humidity, condensed water vapour may appear on the outer surfaces of the glass door. To prevent this, install the appliance in a dry, adequately ventilated room.

- Selected models have an external handle. You need to install it on your own. Do not use electric tools for this purpose (fig. 3*).

- The maximum capacity of the appliance is given in the product sheet enclosed with the wine cooler. This capacity applies to standard 0.75 litre bottles of Bordeaux.

- Selected models have an Anti-tip kit. Install it according to the enclosed diagram (fig. 6*).

*According to the model

UNPACKING

Simple line drawing of a three chasing recycling symbol (no text or labels)

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appli- ance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol.

Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

CONTROL ELEMENTS

Control elements - one and two zones

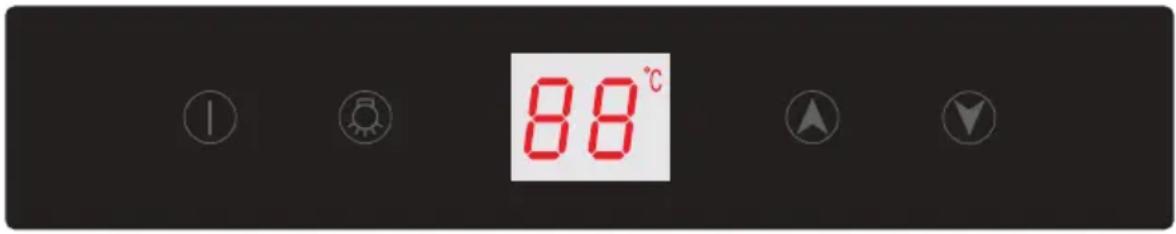

The control panel is shown in Figure 5. It is also shown below:

Single zone

Two zones

Press to turn on the appliance. Press and hold the button for 3 seconds to turn off the appliance.

Note: It will take about 3 seconds for all LED displays to turn off.**

Press to turn the interior LED lighting on/off. Interior lighting is not controlled by opening and closing the door.

To reduce energy consumption, LED lighting will turn off automatically after 3-4 seconds.*

If you want the interior lighting to remain on, press and hold for 5 seconds — the display will show “LP”. After 4 seconds, the display will show the temperature again and the light will be on until it is switched off again. Press and hold for 5 seconds to set the light is to switch off automatically after few seconds (recommended), The display will show “LF”. After 4 seconds, the display will show the temperature again and the light will be on for only 3-4 seconds.

Set the temperature — single-zone refrigerator

Press ▲to increase the temperature in the chamber by 1°C*.

Press ▼to decrease the temperature in the chamber by 1°C*

• The range of temperature that can be set varies between 5^ and 20^ .
• The optimal temperature for wine storage is 12^ .
• To check the current temperature inside the chamber, press and hold or for 3 seconds and the display will show the current temperature. After 5 seconds, the

set (target) temperature will be shown on the display.

- The display is flashing — the temperature inside the refrigerator is shown. The display is steady — the set (target) temperature is shown.

Set the temperature — two-zone refrigerator

Press to adjust the temperature in the upper refrigeration zone by 1°C**
Press to adjust the temperature in the lower refrigeration zone by 1°C**

The range of temperature that can be set varies as follows:

Upper zone: 5-10°C

Lower zone: 10-18°C

• Each time the button is pressed, the temperature in the zone increases by 1°C. When the temperature reaches the upper limit (10°C for the upper zone or 18°C for the lower zone), the temperature will cycle back to the lowest possible setting, ie 5°C for the upper zone or 10°C for the lower zone.
• To check the current temperature inside the chamber, press and hold for 3 seconds (for the upper zone) or for the lower zone. The display will show the current temperature. After 5 seconds, the set (target) temperature will be shown on the display.
• The display is flashing — the temperature inside the refrigerator is shown. The display is steady — the set (target) temperature is shown.

Note:

• If the appliance is disconnected from the power supply or if there is a power outage, wait 3 to 5 minutes before reconnecting the appliance to the power supply. It will not be possible to start the appliance earlier.
• When you plug in the appliance for the first time, there may be a difference between the temperature shown on the display and the actual temperature. This is normal and after a few hours of operation, the temperature displayed should be accurate.

Save settings function

If power will lose, the set temperature values will be remembered until the power returns.

Open door alarm

If you forget to close the door or it is closed incorrectly, after 5 minutes the appliance will beep. Close the door correctly.

The wrong temperature alarm

If the temperature inside the chamber is higher than 23^ C, the display shows “HI”, an hour later an beep signal will appear. If the temperature drops below 0^ C inside the chamber, the display shows “LO” and the alarm will sound.

CARE AND CLEANING

Always disconnect the appliance from the mains electrical supply before any cleaning or maintenance.

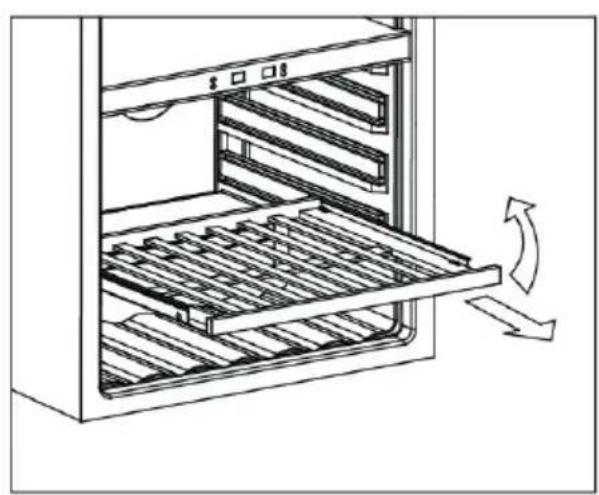

Removing the shelves

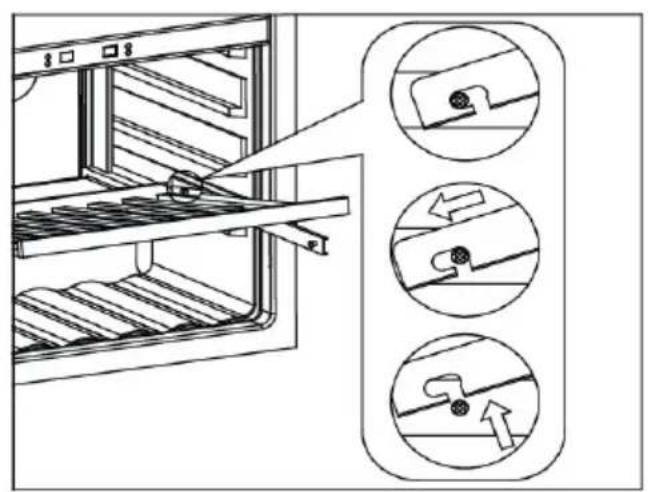

• To remove a shelf from the wine cooler, first remove all bottles from the shelf, then pull the shelf forwards until the groove on either side of the shelf is level with the plastic peg on either side of the cabinet (as shown in fig 2). Then lift the shelf up and pull forwards.
• To replace the shelves, follow the steps above in reverse order.

Cleaning

• Do not use abrasive products or detergents. After washing, rinse and dry thoroughly.
• The exterior of the appliance and the door seal should be cleaned using mild soapy water and dried thoroughly.
• The interior cabinet should be cleaned using a solution of bicarbonate of soda and lukewarm water.
• Clean the shelves separately by hand using soap and water. Do not put them in the dishwasher.
• Ensure that the cloth is only moist when cleaning the control panel and electrical parts, and that all water is thoroughly dried off before reconnecting the power.
• Once cleaning is complete, reconnect the mains electrical supply.
• If the appliance is not to be used for prolonged periods of time, unplug and clean the appliance thoroughly. The door should be left slightly ajar to prevent the formation of odours or condensation

TROUBLESHOOTING

If you have any problems with your appliance, you should check the troubleshooting guide prior to calling Call Center to prevent unnecessary service calls and potential cost.

If the appliance is not working, check

• There is power to the appliance
- The house fuses or circuit breakers are intact and the fuse in the plug has not blown.
- The plug socket is functioning correctly. To check this, plug another electrical appliance in to see if the socket is working.
- The ambient temperature is between 16^ to 32^ .

The appliance is working, but not very well, check

• The appliance is not overloaded.
- The thermostat is set to an appropriate temperature.
• The door is closing properly.
• The door gasket is sealing properly
- There is enough ventilation at the side and rear walls.
- The ambient temperature is between 16^ to 32^ .

The appliance is noisy, check

• The appliance is level and stable.
- The cooling gas will make some noise, even when the compressor is not running.
- During operation, it is normal for the fan to run, even when the compressor is not running.

The light does not work, check

• There is power to the appliance.
- The house fuses or circuit breakers are intact and the fuse in the plug has not blown.
• The light button is not set to off.

Please note:

The LED lighting cannot be replaced without a service call

The door will not close properly, check

• The appliance is level and stable.
- If the door has been removed, it may not have been correctly refitted.
• The door seal is dirty.
- The shelves are not positioned correctly.

WARRANTY AND AFTER SALES SERVICE

Warranty

Warranty service as stated on the warranty card. The manufacturer shall not be held liable for any damage caused by improper use of the product.

The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. Repairs should be carried out by a qualified technician only.

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

• Low Voltage Directive 2014/35/EC
• Electromagnetic Compatibility (EMC) Directive 2014/30/EC
• ErP Directive 2009/125/EC
• Directive RoHS 2011/65/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

EN An example of how to arrange bottles is shown below. The arrangement depends on the type and design of your wine cooler

3WCI-4630N

3WCI-6630N

3WCI-8630N

3WCI-8630N

3WCI-4630N

3WCI-6630N

ES- CAMBIO DEL SENTIDO DE APERTURA DE PUERTA / EN- CHANGING THE DIRECTION OF THE DOOR OPENING / PT- ALTERAÇÃO DO SENTIDO DE ABERTURA DA PORTA

3WCI-4630N

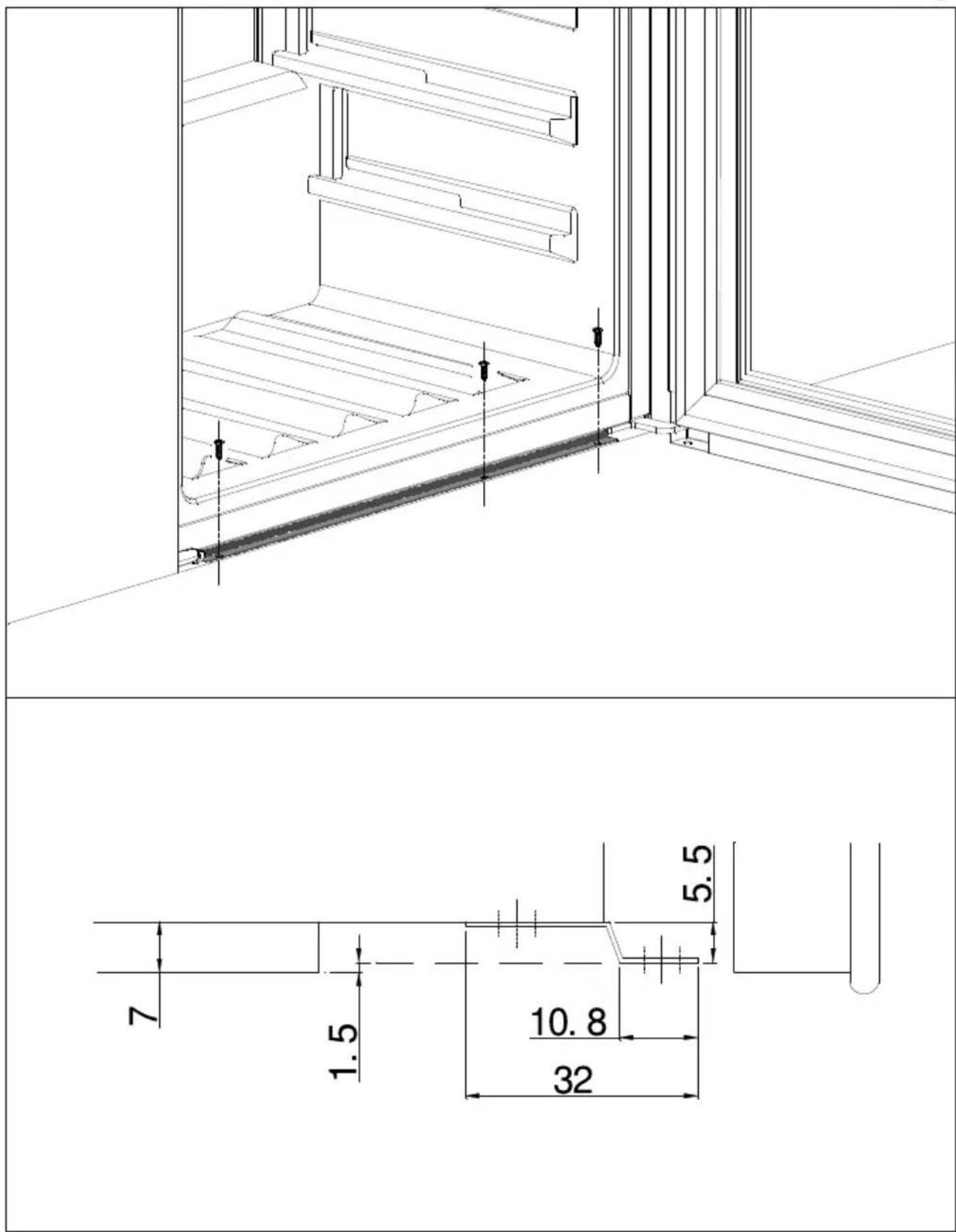

Line drawing of a refrigerator interior showing tray, shelves, and door (no text or symbols)

2

5

Electrodomésticos Iberia S.L.
