Product type	Cooker hood
Brand	Fagor
Model	CFP60AX
Use	Extraction version (external evacuation) or recirculation version (internal recycling)
Number of speeds	4 (speeds 1 to 4)
Lighting	Halogen, 12 V, 20 W max, G4 base
Power supply	220-240 V ~ 50 Hz (check rating label)
Connection diameter	150 mm
Minimum distance to cooking surface (electric)	50 cm
Minimum distance to cooking surface (gas/mixed)	65 cm
Grease filter	Metallic, washable (at least once a month)
Activated carbon filter	For recirculation version, replacement every 4 months maximum (not washable)
Exterior cleaning	Damp cloth with neutral liquid detergent; do not use alcohol or abrasive products
Lamp replacement	Unplug the appliance; use a halogen lamp G4 12 V 20 W max
Safety	Unplug before maintenance; do not use without grille; avoid open flames; respect minimum distances
External evacuation version	Evacuation pipe not supplied (diameter 150 mm), slightly upward slope of about 10°
Recirculation version	Requires an activated carbon filter (not supplied)
Spare parts available	Grease filter, carbon filter, halogen lamps G4 12 V 20 W

Frequently Asked Questions - CFP60AX FAGOR

How to install the Fagor CFP60AX hood?

Installation must respect minimum distances: 50 cm for an electric cooker, 65 cm for a gas or mixed cooker. Use the supplied wall plugs suitable for your wall. For the extraction version, connect a 150 mm diameter pipe with a slight upward slope. For the recirculation version, install an activated carbon filter (not supplied). Unplug the appliance before any manipulation.

What is the minimum distance between the hood and the cooker?

The minimum distance between the cooking surface and the lowest part of the hood is 50 cm for electric cookers and 65 cm for gas or mixed cookers. If the cooker instructions specify a greater distance, follow those.

How to clean the Fagor CFP60AX hood?

Unplug the hood. Clean the exterior with a damp cloth and neutral liquid detergent. Do not use alcohol or abrasive products. The metallic grease filter can be washed by hand or in the dishwasher at low temperature once a month. The carbon filter (recirculation version) is not washable; it must be replaced every 4 months.

How often should the carbon filter be changed?

The activated carbon filter must be changed every 4 months maximum, or more often with heavy use. It cannot be cleaned or regenerated. This filter is only used in recirculation version.

How to change the hood bulbs?

First unplug the hood. Make sure the bulbs are cool. Using a small flat-blade screwdriver, remove the protector. Replace the defective bulb with a halogen bulb 12 V - 20 W max - G4. Do not touch the bulb with bare hands. Snap the ceiling light back into place.

What to do if the hood does not work?

First check that there is no power cut and that a speed has been selected. If the hood stops during operation, check the circuit breaker. If the problem persists, contact a qualified technician.

The hood is noisy, what to do?

Excessive noise can come from a poorly installed exhaust duct (too many bends, diameter less than 150 mm) or a dirty grease filter. Also check that the hood is properly fixed. A too high speed can also increase noise.

Can the hood be used without the grease filter?

No, it is imperative to use the hood with the grease filter correctly fitted. Using without filter can damage the motor and creates a fire risk.

How to switch from extraction version to recirculation version?

To use the hood in recirculation version, you must first remove the carbon filter if present (for extraction). Then install a new activated carbon filter on each side of the hood (not supplied). The air will be degreased and deodorized before being blown back into the room through the upper grille.

Where to find spare parts for the Fagor CFP60AX hood?

Spare parts (grease filter, carbon filter, halogen bulbs) are available from your usual retailer or from the Fagor authorized after-sales service. Use only original or recommended compatible parts.

USER MANUAL CFP60AX FAGOR

EN Instruction on mounting and use

Technical line drawing of a mechanical component with alignment guides and no visible text or symbols

Technical line drawing of a mechanical device with a threaded base and housing, labeled '21' (no text or symbols on the diagram itself)

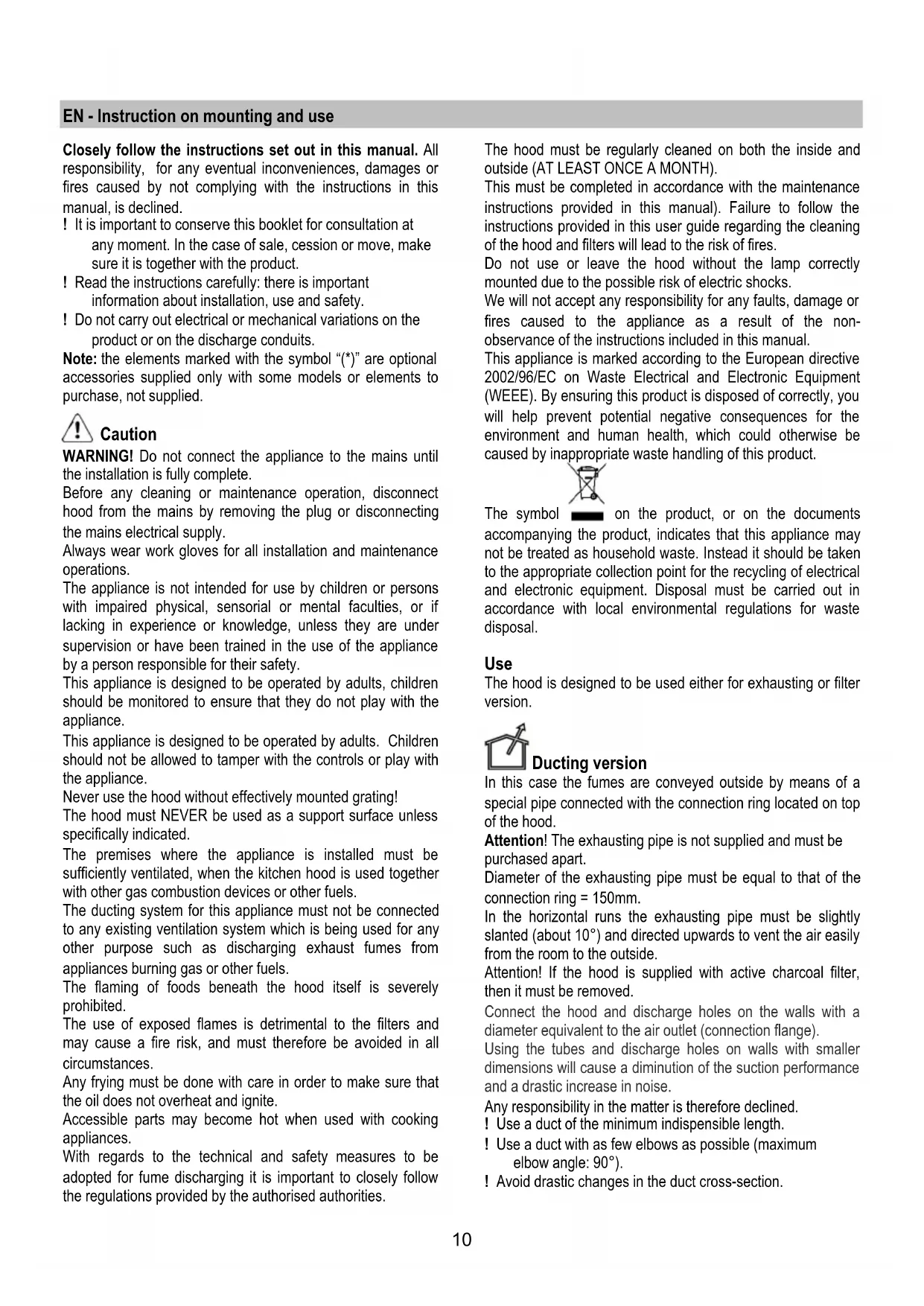

EN - Instruction on mounting and use

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined.

! It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.

! Read the instructions carefully: there is important information about installation, use and safety.

! Do not carry out electrical or mechanical variations on the product or on the discharge conduits.

Note: the elements marked with the symbol “(*)” are optional accessories supplied only with some models or elements to purchase, not supplied.

Caution

WARNING! Do not connect the appliance to the mains until the installation is fully complete.

Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations.

The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or knowledge, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.

This appliance is designed to be operated by adults, children should be monitored to ensure that they do not play with the appliance.

This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance.

Never use the hood without effectively mounted grating!

The hood must NEVER be used as a support surface unless specifically indicated.

The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.

The ducting system for this appliance must not be connected to any existing ventilation system which is being used for any other purpose such as discharging exhaust fumes from appliances burning gas or other fuels.

The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

Accessible parts may become hot when used with cooking appliances.

With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the authorised authorities.

The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).

This must be completed in accordance with the maintenance instructions provided in this manual). Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.

We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observance of the instructions included in this manual.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.

Use

The hood is designed to be used either for exhausting or filter version.

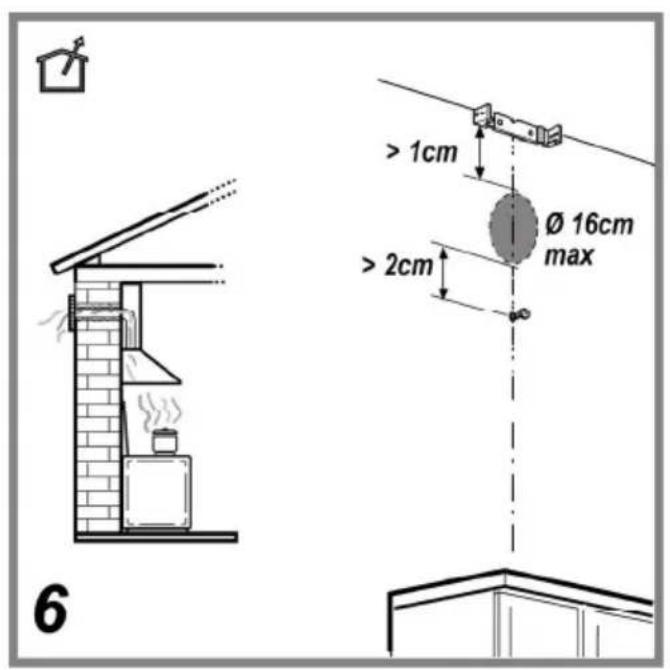

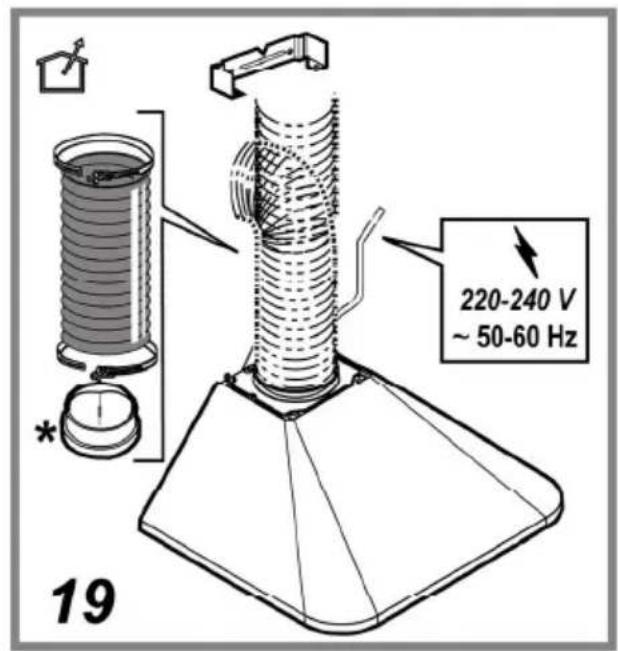

Ducting version

In this case the fumes are conveyed outside by means of a special pipe connected with the connection ring located on top of the hood.

Attention! The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring = 150mm.

In the horizontal runs the exhausting pipe must be slightly slanted (about 10^ ) and directed upwards to vent the air easily from the room to the outside.

Attention! If the hood is supplied with active charcoal filter, then it must be removed.

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

! Use a duct of the minimum indispensable length.

! Use a duct with as few elbows as possible (maximum elbow angle: 90°).

! Avoid drastic changes in the duct cross-section.

! Use a duct with an as smooth as possible inside.
! The duct must be made of certified material.

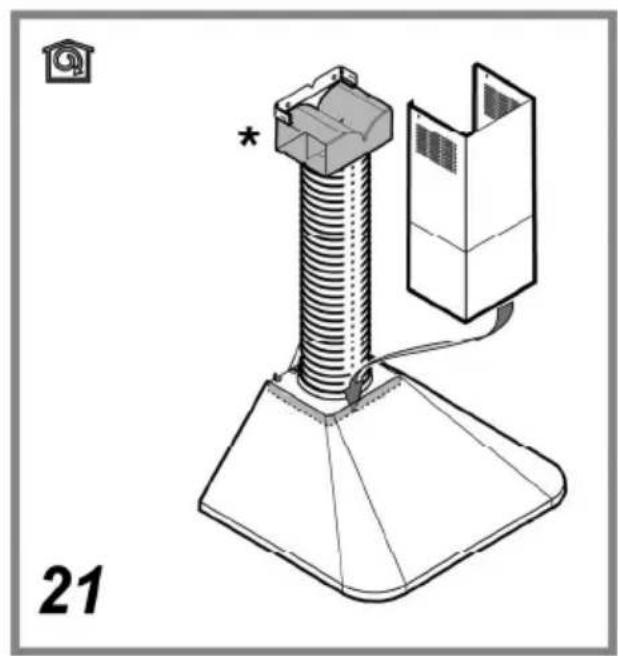

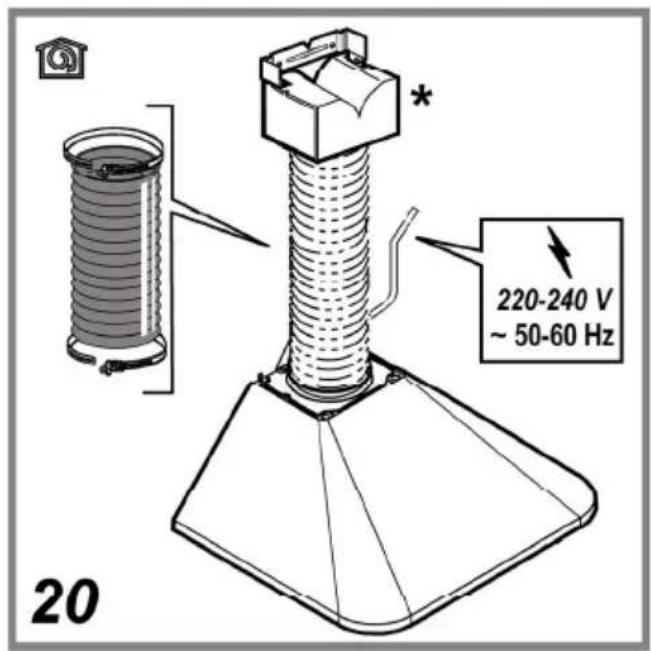

Filter version

One active charcoal filter is needed for this and can be obtained from your usual retailer.

The filter removes the grease and smells from the extracted air before sending it back into the room through the upper outlet grid.

The models with no suction motor only operate in ducting mode, and must be connected to an external suction device (not supplied).

The connecting instructions are supplied with the peripheral suction unit.

Installation

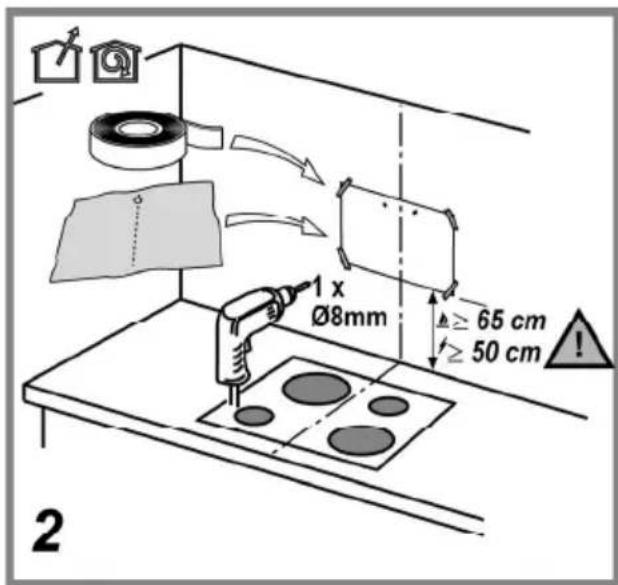

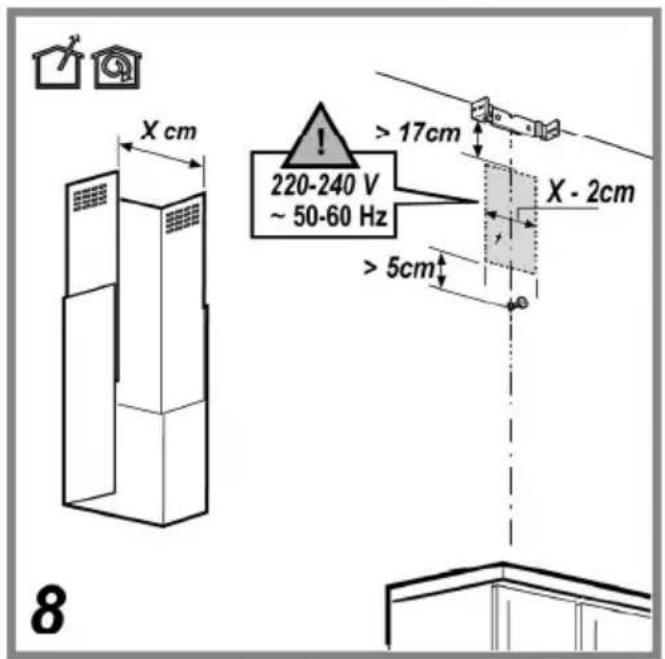

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 65cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

Warning! Power cable replacement must be undertaken by the authorised service assistance centre or similar qualified person.

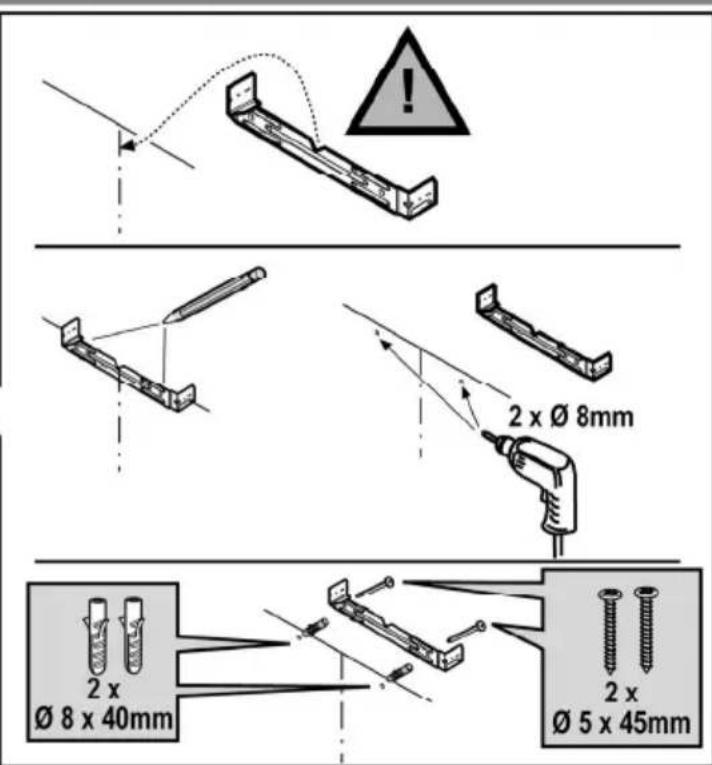

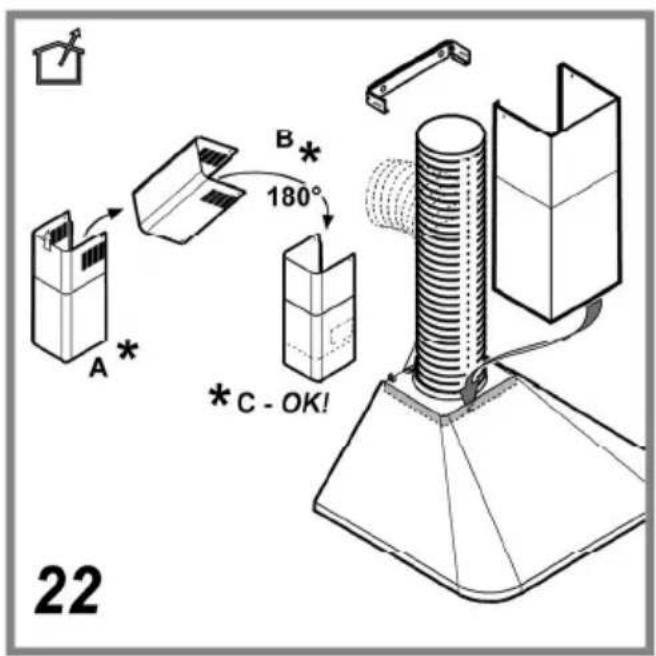

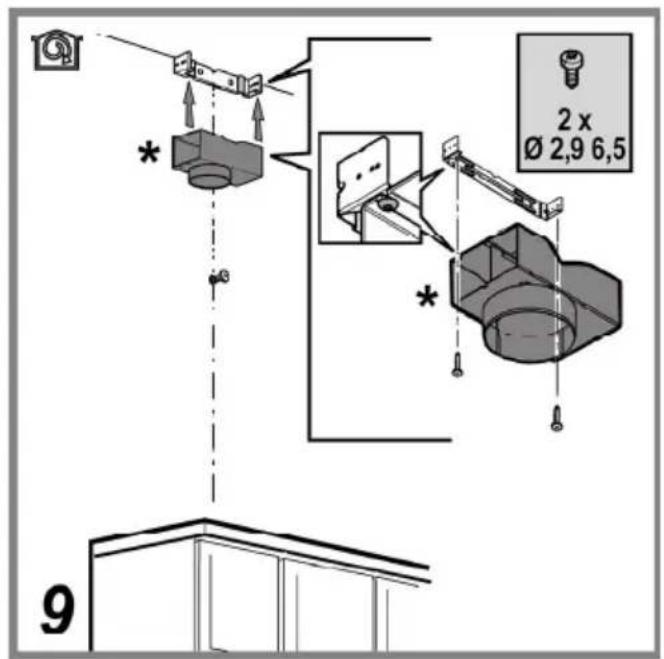

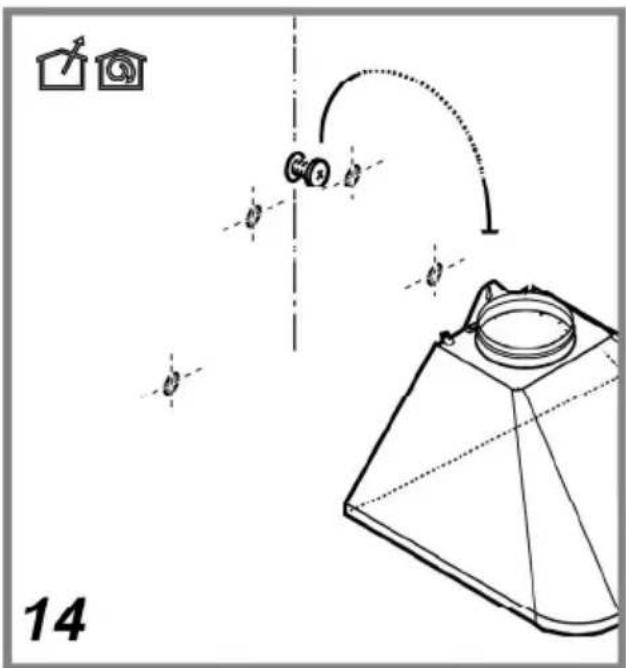

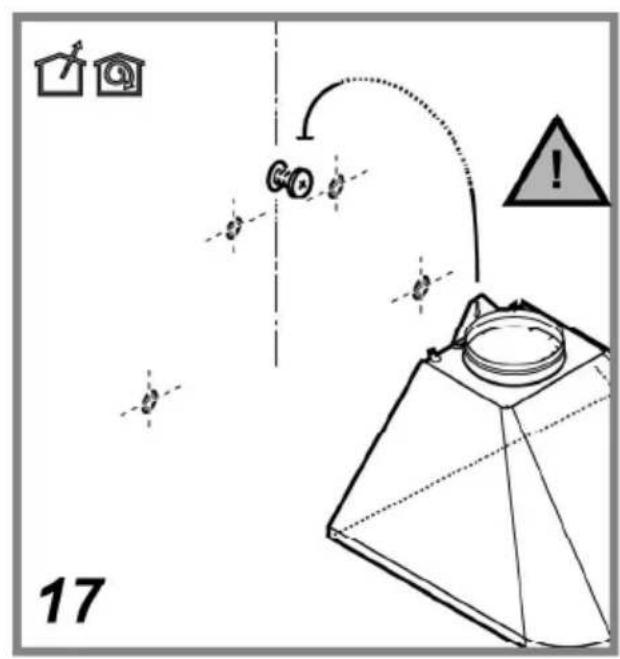

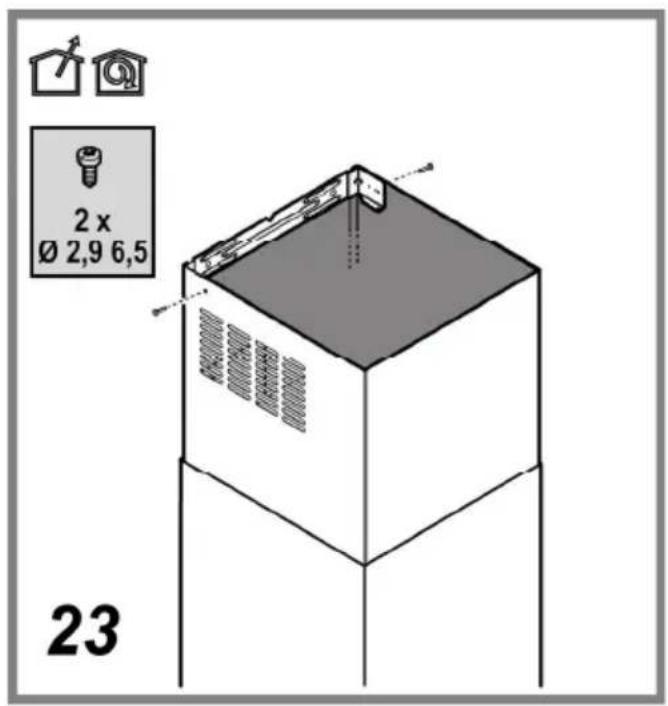

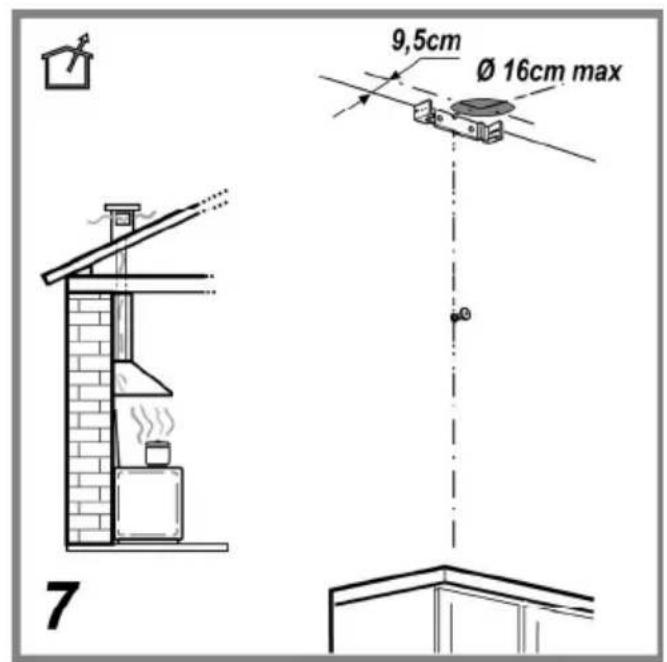

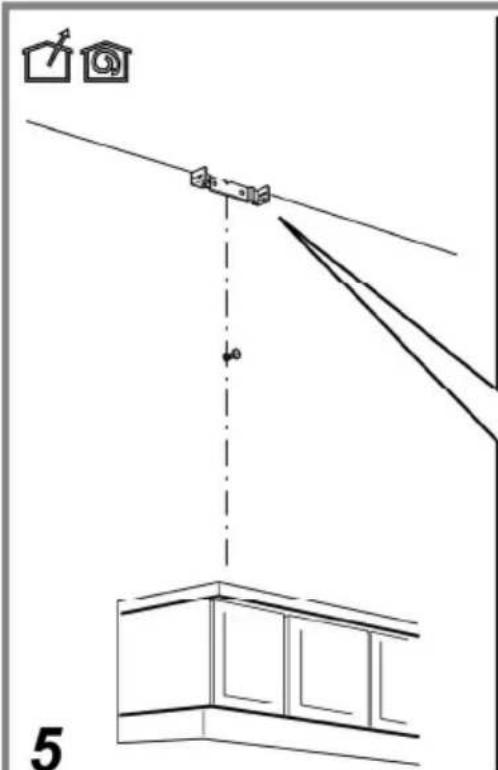

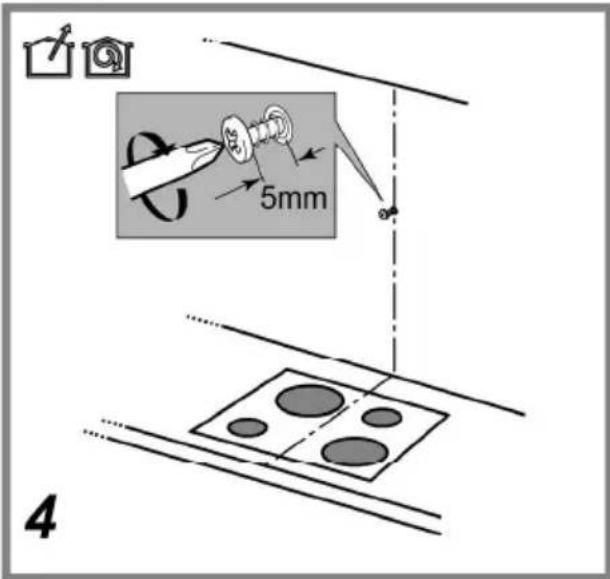

Mounting

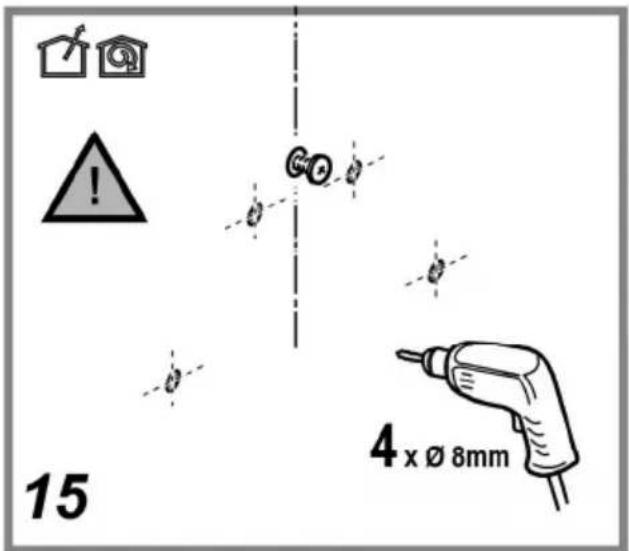

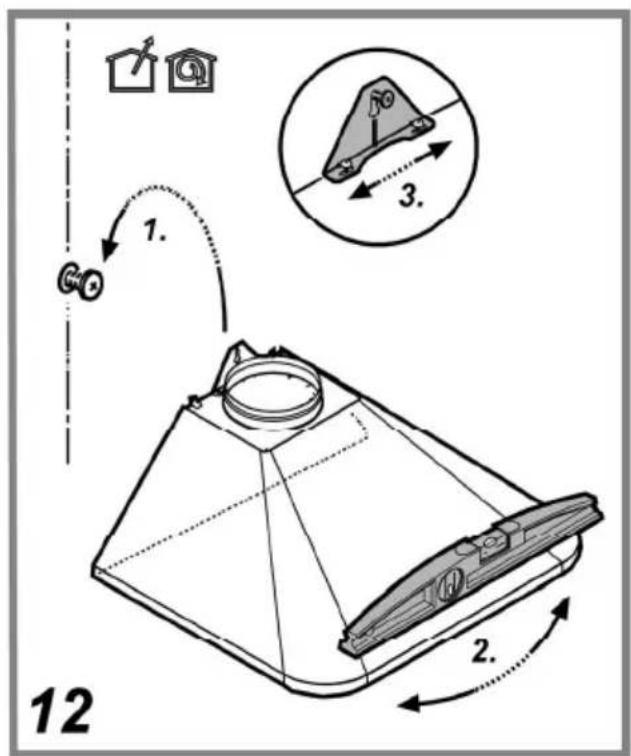

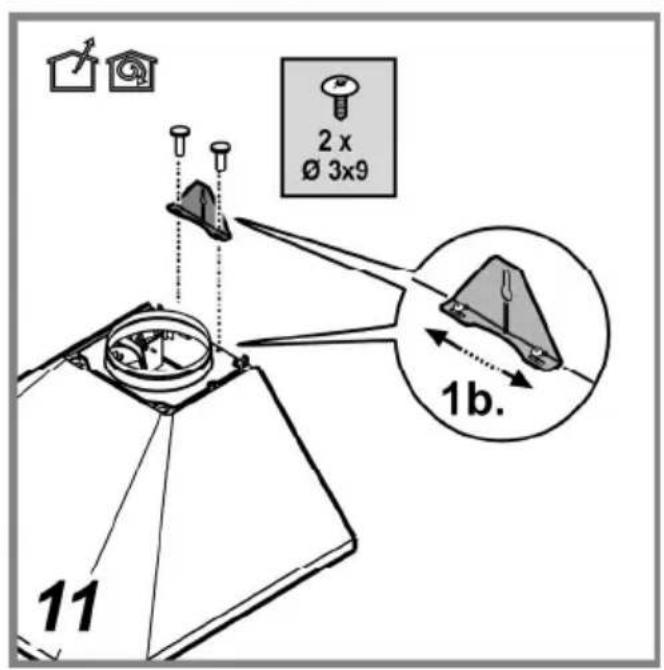

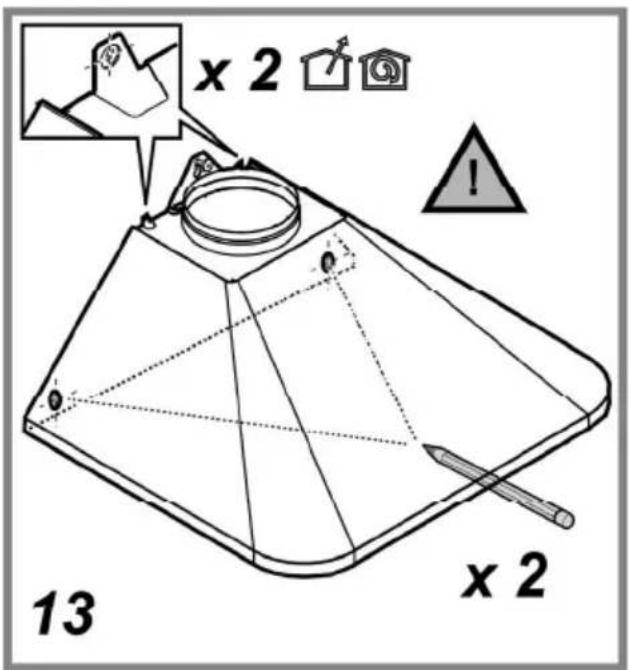

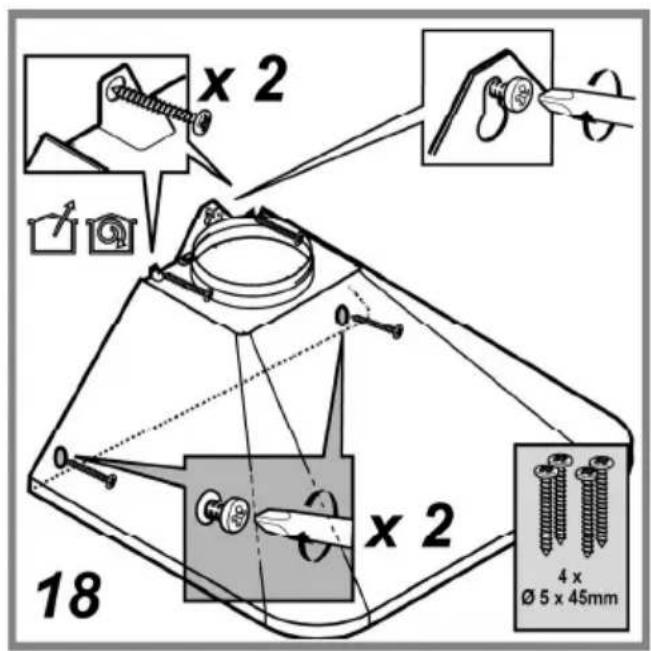

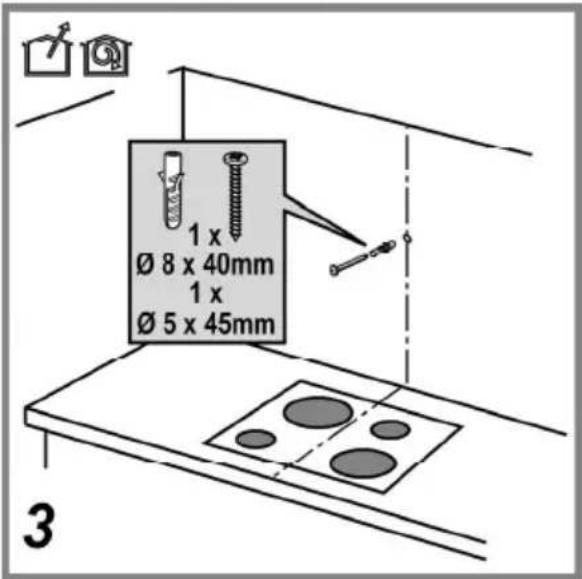

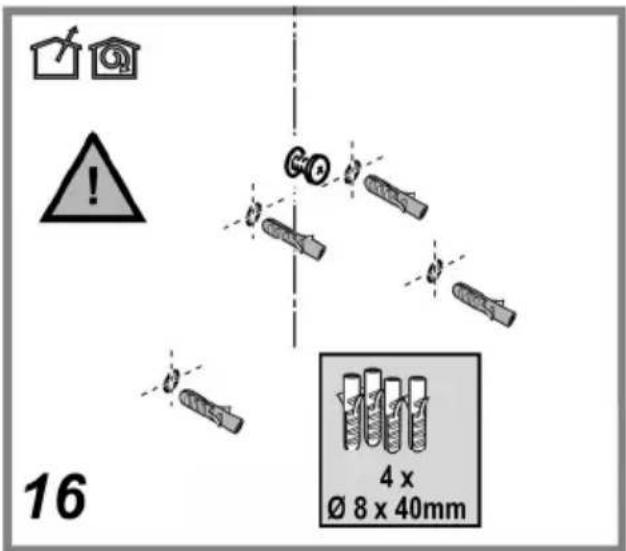

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

Operation

Use the high suction speed in cases of concentrated kitchen vapours. It is recommended that the cooker hood suction is switched on for 5 minutes prior to cooking and to leave in operation during cooking and for another 15 minutes approximately after terminating cooking.

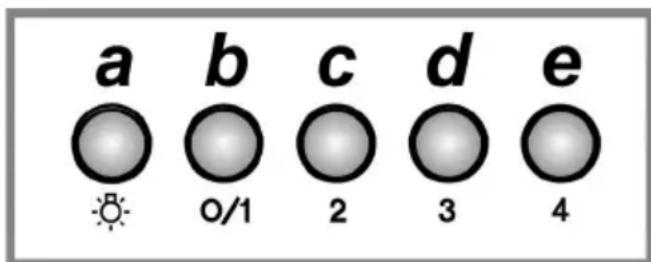

a. ON/OFF light switch
b. Speed 1/OFF switch
c. 2-speed selection
d. 3-speed selection
e. 4-speed selection

Troubleshooting

SYMPTOMS SOLUTIONS
The hood is not working...	Ensure that:• The power is not cut off.• A speed has been selected.
The hood is not operating effectively...	Ensure that:• The selected motor speed is sufficient for the quantity of smoke and vapours to be cleared.• The kitchen is sufficiently ventilated to allow for fresh air intake.• The air pipe circuit involves a lack of efficiency of the cooker hoods. Contact a qualified technician.• The carbon filter is not worn (hood operating in recycling mode).
The hood stopped working	Ensure that:• The power is not cut off.• The single-pole cut-off device was not activated.

Maintenance

ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.

Cleaning

The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using the cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!

WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks.

Therefore, we recommend oserving these instructions.

The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.

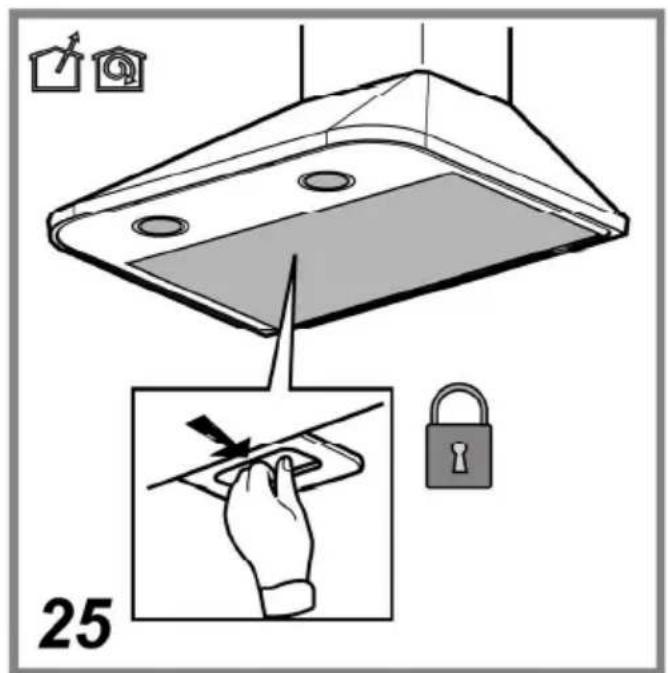

Grease filter

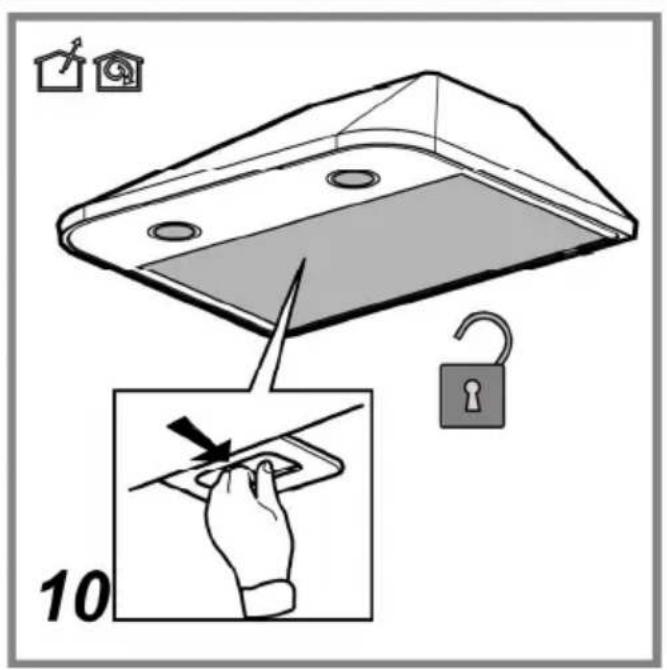

Fig. 10-25

Traps cooking grease particles.

This must be cleaned once a month using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

To remove the grease filter, pull the spring release handle.

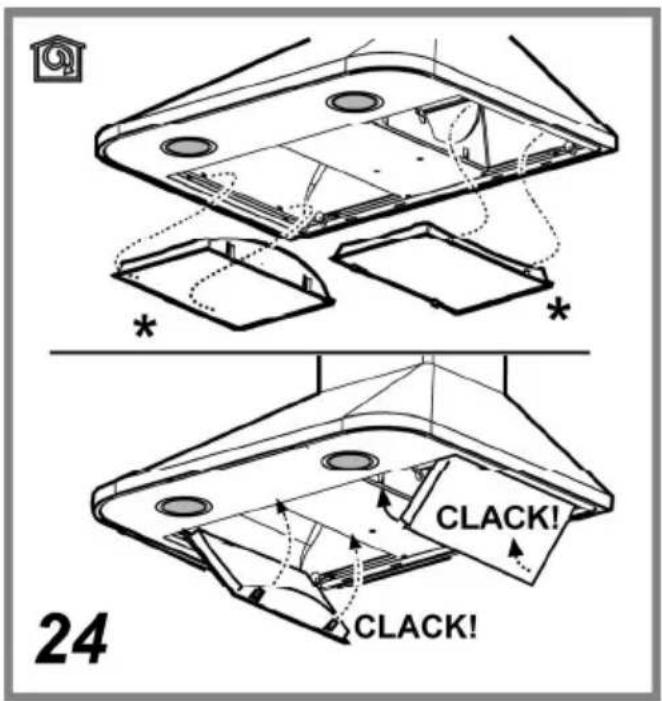

Charcoal filter (filter version only)

Fig. 24

It absorbs unpleasant odours caused by cooking.

The saturation of the activated charcoal occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The carbon filter may NOT be washed or regenerated.

Remove grease filter.

Apply a side coal filter and hook in onto the hood.

Put back the grease filter.

Replacing lamps

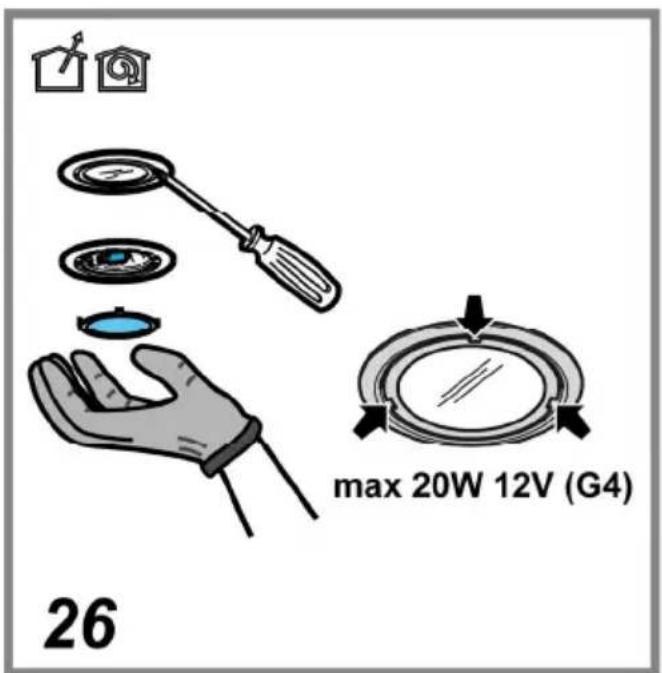

Fig. 26

Disconnect the hood from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

1. Using a flat head screwdriver or equivalent tool, carefully pry loose the light cover.
2. Remove the damaged light and replace with a new 12 Volt, 20 Watt (Maximum) halogen light made for a G-4 base SUITABLE FOR USE IN OPEN LUMINAIRES. Follow package directions and do not touch new light with bare hands.
3. Reinstall the light cover. (it will snap shut).

If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.
