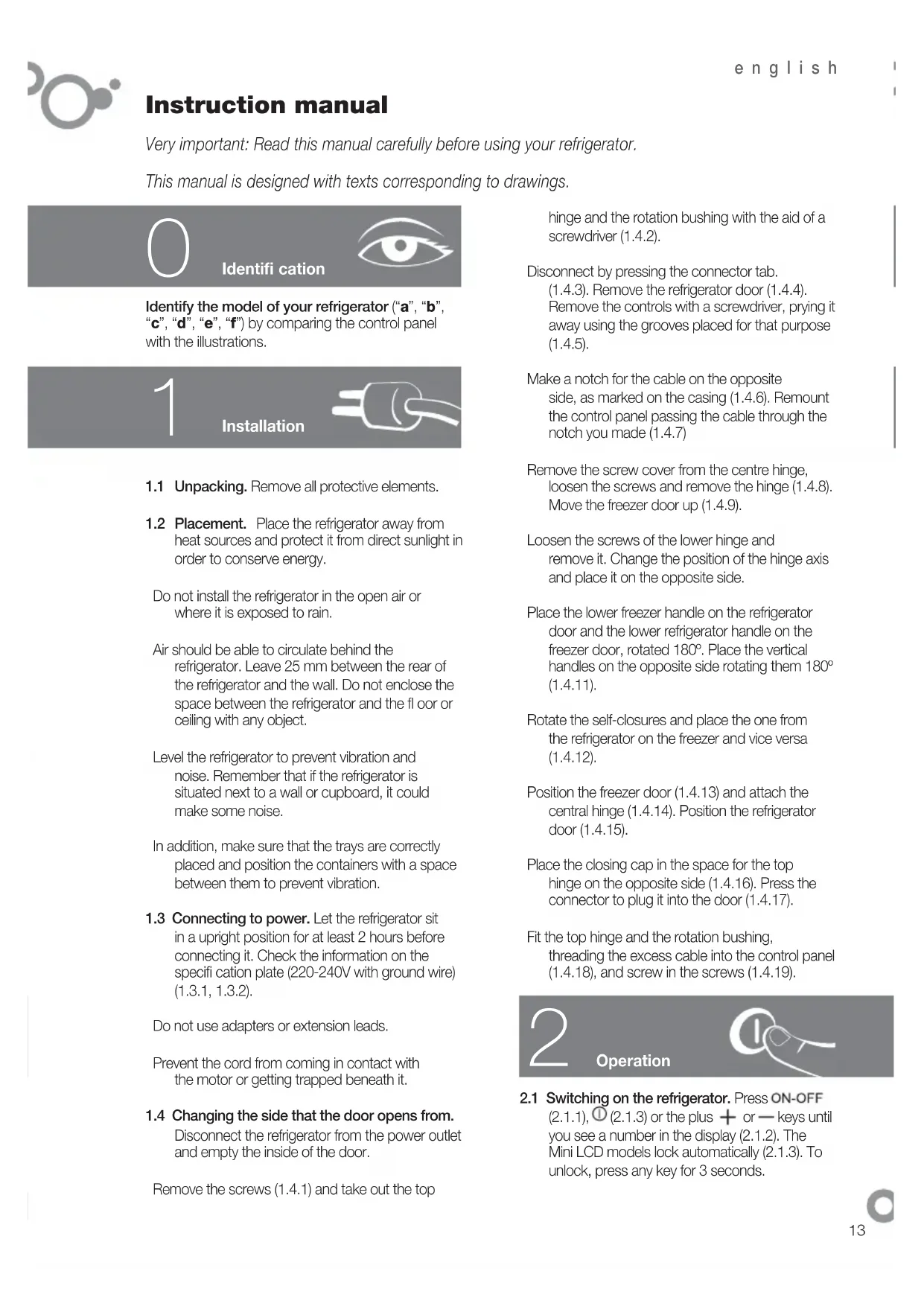

Very important: Read this manual carefully before using your refrigerator.

This manual is designed with texts corresponding to drawings.

Identify the model of your refrigerator (“a”, “b”,

“c”, “d”, “e”, “f”) by comparing the control panel

with the illustrations.

1.1 Unpacking. Remove all protective elements.

1.2 Placement. Place the refrigerator away from

heat sources and protect it from direct sunlight in

order to conserve energy.

Do not install the refrigerator in the open air or

where it is exposed to rain.

Air should be able to circulate behind the

refrigerator. Leave 25 mm between the rear of

the refrigerator and the wall. Do not enclose the

space between the refrigerator and the fl oor or

ceiling with any object.

Level the refrigerator to prevent vibration and

noise. Remember that if the refrigerator is

situated next to a wall or cupboard, it could

In addition, make sure that the trays are correctly

placed and position the containers with a space

between them to prevent vibration.

1.3 Connecting to power. Let the refrigerator sit

in a upright position for at least 2 hours before

connecting it. Check the information on the

specifi cation plate (220-240V with ground wire)

Do not use adapters or extension leads.

Prevent the cord from coming in contact with

the motor or getting trapped beneath it.

1.4 Changing the side that the door opens from.

Disconnect the refrigerator from the power outlet

and empty the inside of the door.

Remove the screws (1.4.1) and take out the top

hinge and the rotation bushing with the aid of a

screwdriver (1.4.2).

Disconnect by pressing the connector tab.

(1.4.3). Remove the refrigerator door (1.4.4).

Remove the controls with a screwdriver, prying it

away using the grooves placed for that purpose

Make a notch for the cable on the opposite

side, as marked on the casing (1.4.6). Remount

the control panel passing the cable through the

notch you made (1.4.7)

Remove the screw cover from the centre hinge,

loosen the screws and remove the hinge (1.4.8).

Move the freezer door up (1.4.9).

Loosen the screws of the lower hinge and

remove it. Change the position of the hinge axis

and place it on the opposite side.

Place the lower freezer handle on the refrigerator

door and the lower refrigerator handle on the

freezer door, rotated 180º. Place the vertical

handles on the opposite side rotating them 180º

Rotate the self-closures and place the one from

the refrigerator on the freezer and vice versa

Position the freezer door (1.4.13) and attach the

central hinge (1.4.14). Position the refrigerator

Place the closing cap in the space for the top

hinge on the opposite side (1.4.16). Press the

connector to plug it into the door (1.4.17).

Fit the top hinge and the rotation bushing,

threading the excess cable into the control panel

(1.4.18), and screw in the screws (1.4.19).

2.1 Switching on the refrigerator. Press

you see a number in the display (2.1.2). The

Mini LCD models lock automatically (2.1.3). To

unlock, press any key for 3 seconds.

2.2 Selecting the compartment. In combination

refrigerators, the refrigeration compartment

and the freezer compartment

independently. On model

compartments work together .

2.3 Temperature selection. Turn the control (2.3.1,

keys, fi rst for the freezer

and then for the refrigerator

(2.3.3), or press for the

freezer compartment and for the refrigerator

compartment (2.3.4, 2.3.5).

Once the temperature is selected, you can see the

current temperature of the compartment with the

lighted indicator (2.3.6) or by pressing the

or keys of the appropriate compartment

for 5 seconds. The compartment temperature will

blink. This function is not available on model .

Recommendation: The recommended

temperatura for the refrigeration compartment

is and the freezer compartment for

already frozen food. If you want to freeze, the

recommended temperature is .

Remember that the interior temperature

depends on the temperature of the environment,

placement, and frequency with which the door is

2.4 Refrigerator functions.

Rapid cooling mode: This function sets

refrigeration to the coldest temperature for 6

hours. It should be used if you put a large quantity

of food in the refrigerator.

To activate and deactivate: Press (2.4.1),

press (2.4.2) or (2.4.3).

Holiday mode: The vacation function is very

useful when the refrigerator will not be used for

a long period of time, but you want to keep food

in the freezer. With this function, your refrigerator

will use little power and smells won’t develop in its

interior. Model does not have this function.

Warning: To use this function, the refrigerator door

To activate and deactivate: Press

keys until you see on the

display (2.4.5) or for 3 seconds (2.4.6). To

cancel, repeat this operation. Some models allow

the refrigeration compartment to be shut off.

Press (2.4.7), or the

(2.4.9), keys, until no number can be seen.

2.5 Freezer functions.

Rapid cooling mode: This function sets the

coldest freezer temperature for 52 hours. The

function should be activated 24 hours before

putting a large quantity of food in the freezer.

To enable and disable this function: Hold down

for 3 seconds (2.5.1), press

Quick cooling function: Place the bottle(s) in the

freezer and hold down

icon appears on the display (2.5.5). The

freezer will cool down for 15 minutes. The function

will then be complete and

display and a beep will sound for 20 minutes. The

alarm can be disabled by pressing any button. If

there is a power outage and this function is cut

off, when the power returns the function will be

considered fi nished and the beep will sound.

ECO function: The ECO function allows the

freezer to remain at a stable temperature of -17

ºC, providing signifi cant power savings. This

function continues to run even if the electricity

To enable / disable it, press

Connecting / disconnecting the freezer: Press

(2.5.9) until no temperatura can be seen on the

display, or for 3 seconds (2.5.10). Shutting

off the freezer also shuts off the refrigeration

2.6 Usage recommendations.

• Don’t leave the door open more time than

necessary and don’t put hot foods in the

refrigerator. This will provide the most effi cient

use of the refrigerator and avoid increasing

• If your refrigerator is of the NO FROST variety,

don’t block the ventilation grille and try leave

space between food items so that air circulates

• Don’t put carbonated drinks or glass bottles

containing liquid in the freezer, they can burst.

• Store food in hermetically sealed containers to

• Do not eat extremely cold ices or food as they

can produce burns in the mouth.english

3.1 Interior cleaning. To clean the interior, use

a sponge or cloth soaked in water with

bicarbonate in order to prevent odours

developing. In no case use steam cleaning

machines, solvents, or abrasive detergents.

3.2 Exterior cleaning. Do not clean the screens

with a steam cleaning machine.

It is advisable to clean the back vent once a

year with a vacuum cleaner.

3.3 Cleaning the accessories. Accessories

are not suitable for automatic dishwashers.

Clean them by hand with a sponge or cloth.

3.4 Changing the lamp. In the case that the

lamp goes out: disconnect the refrigerator.

Remove the cover by pressing the tab (3.4.1,

3.4.3) and remove the burnt out lamp (3.4.2,

3.4.4). Replace it with another with the same

type of thread, E14, 220-240V, 15/25W or

according to fi xture instructions.

3.5 Changing the carbon fi lter. The refrigerator

may incorporate a carbon fi lter that absorbs

the odours of certain foods and retains

microorganisms (fungus and bacteria)

circulating in the air.

The fi lter keeps its properties for 6 months.

After that time, it is recommended to replace

it. Its location varies based on model.

To activate the fi lter: Press the tab and

remove the cover to access the fi lter (3.5.1,

3.5.3). Separate the fi lter from the tab (3.5.2,

3.5.4) and remove the seals (3.5.5).

Press the BIOFILTER viewer until hearing

a click (3.5.6) and in a few seconds the

duration scale will become coloured. Place

the new fi lter in the original location.

Keep the old fi lters and the replacements

out of the reach of children: Ingesting a

large quantity could be dangerous.

Don’t get the fi lter wet, as it will lose it

3.6 S.P.A. salus per aquam (optional)

accessory which maintains a constant level

4.1 Door open. If the door stays open for more

than 2 minutes, an alarm will sound and

the refrigerator light will go off. The alarm is

disconnected when the door is closed.

4.2 Freezer not cold enough.

• If the temperature of the freezer is unusually

high, a warning light will appear (4.2.1,

4.2.2) or a blinking icon

as a beeping alarm. Press

manually shut off the beeping (4.2.4, 4.2.5,

beeper manually (4.2.4, 4.2.5, 4.2.6).

• The fi rst time the refrigerator is connected,

the icon or the warning light will appear,

but the alarm won’t sound.

4.3 Loss of electrical power

Open the refrigerator doors as little as

possible. When the power returns, check if the

frozen food has thawed.

4.4 Normal refrigerator noises

It is perfectly normal for your refrigerator to

make certain noises while it is running and you

should not worry about them.

• The coolant gas can make a bubbling sound

• The compressor may make humming or

tapping sounds, especially at start-up.

• The expansion and contraction of material

used may make clicking or creaking sounds.

of humidity in the vegetable compartment,

It is located in the vegetable compartment

drawer separator. It consists of a receptacle

with a pouring container and a fullness level

indicator. When the S.P.A. needs water,

the level will become hidden. Take out

the container (3.6.2) and use it to refi ll the

The fi lter should be changed every 2 years

This refrigerator was designed with

environmental conservation in mind.

The appliance operates with coolant R600A,

which does not damage the environment.

Respect the environment. Use the

recommended temperatures for each

compartment. They will depend on the mode you

need for effi cient use of your refrigerator.

Disconnect the refrigerator or set it to holiday

mode when you will not be using it for a

prolonged period. You will reduce power

consumption and save energy.

• Keep the ventilation grille uncovered.

• Be careful not to damage refrigeration circuits.

• Don’t us electrical devices in the interior of the

refrigerator, unless they are recommended by

• Don’t use mechanical devices or means other

than those recommended by the manufacturer

to speed up the thawing process.

• This appliance is not intended for use by

people (including children) whose physical,

sensory, or mental capacities are reduced or

who lack experience or knowledge, except

under supervision or after receiving instruction

regarding use of the appliance from a person

responsible for their safety. Use by children

should be supervised to prevent them playing

• If the power cable is damaged, it should be

replaced by the manufacturer, by their after

sales service, or by personnel similarly qualifi ed

in order to prevent dangerous situations.

• The air that moves the freezer ventilator

may generate a light background sound.

Don’t try to repair the refrigerator. Call

Avoid leaving the doors open more time than

necessary. It causes an increase in power use.

Waste management of electrical and

electronic appliances.

indicates that the appliance must

not be disposed of in traditional bins for domestic

Deliver your refrigerator to a special collection

Recycling domestic appliances prevents negative

impacts on health and the environment and helps

save energy and resources.

For more information, contact your local

authorities or the establishment where you

purchased your refrigerator.17

1.3. ϞλϮϟ΍ ΔϜΒθϟΎΑ Δϴ΋ΎΑήϬϜϟ΍.

independent. Al model

Así mesmo, comproba que as bandexas
