USER MANUAL A55MHVS ASROCK

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identication or explanation and to the owners’ benet, without intent to infringe.

Specications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or tness for a particular purpose.

In no event shall ASRock, its directors, ofcers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of prots, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from

any defect or error in the manual or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-

lowing two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in Cali-

fornia, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

The terms HDMI™ and HDMI High-Denition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.2

ASRock A55M-HVS Motherboard

HDLED RESE T PLED PWRBT N

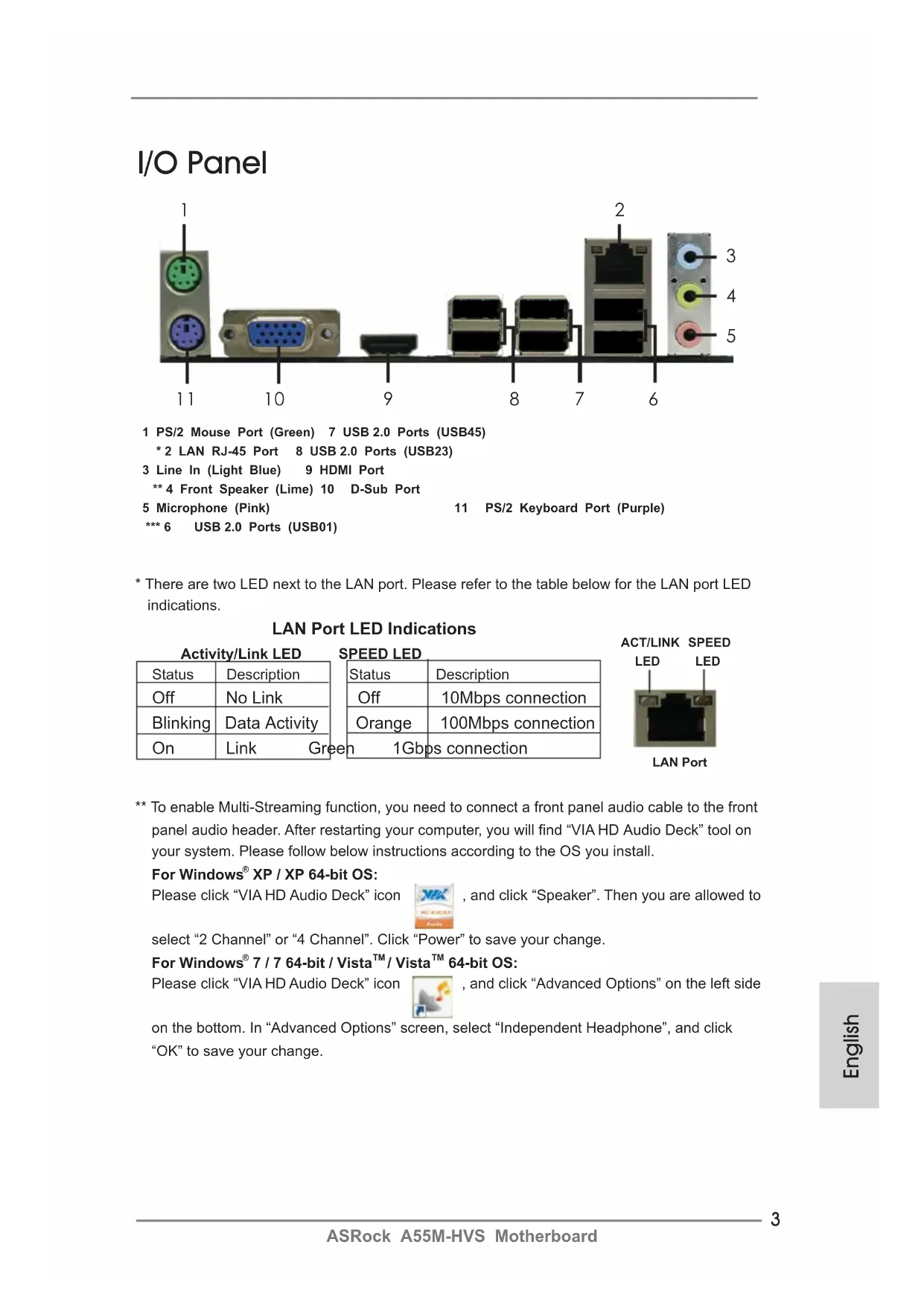

I/O Panel * There are two LED next to the LAN port. Please refer to the table below for the LAN port LED indications. LAN Port LED Indications Activity/Link LED SPEED LEDStatus Description Status Description Off No Link Off 10Mbps connection

** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will nd “VIA HD Audio Deck” tool on your system. Please follow below instructions according to the OS you install. For Windows ® XP / XP 64-bit OS: Please click “VIA HD Audio Deck” icon , and click “Speaker”. Then you are allowed to select “2 Channel” or “4 Channel”. Click “Power” to save your change. For Windows ® 7 / 7 64-bit / Vista TM / Vista TM 64-bit OS: Please click “VIA HD Audio Deck” icon , and click “Advanced Options” on the left side on the bottom. In “Advanced Options” screen, select “Independent Headphone”, and click “OK” to save your change.4

ASRock A55M-HVS Motherboard

Thank you for purchasing ASRock A55M-HVS motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard specications and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modications of this manual occur, the updated version

will be available on ASRock website without further notice. You may nd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specic information about the model you are using.

www.asrock.com/support/index.asp

1.1 Package Contents

(Micro ATX Form Factor: 8.9-in x 8.5-in, 22.6 cm x 21.6 cm)

ASRock A55M-HVS Support CD

1 x I/O Panel Shield

ASRock Reminds You...

To get better performance in Windows

bit, it is recommended to set the BIOS option in Storage Conguration to

AHCI mode. For the BIOS setup, please refer to the “User Manual” in our

support CD for details.

Platform - Micro ATX Form Factor: 8.9-in x 8.5-in, 22.6 cm x 21.6 cm

- Solid Capacitor for CPU power

CPU - Support for Socket FM1 100W processors

- Supports AMD’s Cool ‘n’ Quiet

Memory - Dual Channel DDR3 Memory Technology (see CAUTION 1)

- 2 x DDR3 DIMM slots

- Support DDR3 2400+(OC)/1866/1600/1333/

1066/800 non-ECC, un-buffered memory (see CAUTION 2)

- Max. capacity of system memory: 16GB (see CAUTION 3)

Expansion Slot - 1 x PCI Express 2.0 x16 slot

- 1 x PCI Express 2.0 x1 slot

- Supports AMD Dual Graphics

Graphics - AMD Radeon HD 65XX/64XX graphics

- DirectX 11, Pixel Shader 5.0

- Max. shared memory 512MB (see CAUTION 4)

- Dual VGA Output: support HDMI and D-Sub ports by

independent display controllers

- Supports HDMI 1.4a Technology with max. resolution up to

- Supports D-Sub with max. resolution up to 1920x1600 @

- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and

HBR (High Bit Rate Audio) with HDMI (Compliant HDMI

monitor is required) (see CAUTION 5)

- Supports Blu-ray Stereoscopic 3D with HDMI 1.4a

- Supports AMD Steady Video

capability for automatic jutter reduction on home/online

- Supports HDCP function with HDMI port

- Supports THX TruStudio

TM LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s

- Supports Wake-On-LAN6

ASRock A55M-HVS Motherboard

- Supports LAN Cable Detection

- Supports Energy Efcient Ethernet 802.3az

- Supports PXE Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jack: Line in/Front Speaker/Microphone

Connector - 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0,

RAID 1 and RAID 10), NCQ, AHCI and “Hot Plug” functions

- 1 x COM port header

- CPU/Chassis/Power FAN connector

- 24 pin ATX power connector

- 8 pin 12V power connector

- Front panel audio connector

- 3 x USB 2.0 headers (support 6 USB 2.0 ports)

BIOS Feature - 32Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- DRAM, VDDP, SB Voltage Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),

CyberLink MediaEspresso 6.5 Trial

Unique Feature - ASRock Extreme Tuning Utility (AXTU) (see CAUTION 6)

- ASRock Instant Boot

- ASRock Instant Flash (see CAUTION 7)

- ASRock APP Charger (see CAUTION 8)

- CPU/Chassis/Power Fan Tachometer

- CPU/Chassis Quiet Fan

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore

64-bit / XP SP3 / XP 64-bit compliant

Certications - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

WARNING Please realize that there is a certain risk involved with overclocking, including adjusting the

setting in the BIOS, applying Untied Overclocking Technology, or using the third-party over-

clocking tools. Overclocking may affect your system stability, or even cause damage to the

components and devices of your system. It should be done at your own risk and expense.

We are not responsible for possible damage caused by overclocking.8

ASRock A55M-HVS Motherboard

1. This motherboard supports Dual Channel Memory Technology. Before

you implement Dual Channel Memory Technology, make sure to read the

installation guide of memory modules on page 12 for proper installation.

2. Whether 2400/1866/1600MHz memory speed is supported depends on

the CPU you adopt. If you want to adopt DDR3 2400/1866/1600 memory

module on this motherboard, please refer to the memory support list on

our website for the compatible memory modules.

ASRock website http://www.asrock.com

3. Due to the operating system limitation, the actual memory size may be

less than 4GB for the reservation for system usage under Windows

64-bit OS with 64-bit CPU, there is no such

4. The maximum shared memory size is dened by the chipset vendor and

is subject to change. Please check AMD website for the latest informa-

5. xvYCC and Deep Color are only supported under Windows

in EDID. HBR is supported under Windows

6. ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to ne-tune

different system functions in a user-friendly interface, which is including

Hardware Monitor, Fan Control and IES. In Hardware Monitor, it shows

the major readings of your system. In Fan Control, it shows the fan speed

and temperature for you to adjust. In IES (Intelligent Energy Saver), the

voltage regulator can reduce the number of output phases to improve

efficiency when the CPU cores are idle without sacrificing computing

performance. Please visit our website for the operation procedures of

ASRock Extreme Tuning Utility (AXTU).

ASRock website: http://www.asrock.com

7. ASRock Instant Flash is a BIOS ash utility embedded in Flash ROM.

This convenient BIOS update tool allows you to update system BIOS

without entering operating systems rst like MS-DOS or Windows

this utility, you can press <F6> key during the POST or press <F2> key to

BIOS setup menu to access ASRock Instant Flash. Just launch this tool

and save the new BIOS le to your USB ash drive, oppy disk or hard

drive, then you can update your BIOS only in a few clicks without prepar-

ing an additional oppy diskette or other complicated ash utility. Please

be noted that the USB ash drive or hard drive must use FAT32/16/12 le

ASRock A55M-HVS Motherboard

8. If you desire a faster, less restricted way of charging your Apple devices,

such as iPhone/iPod/iPad Touch, ASRock has prepared a wonderful solu-

tion for you - ASRock APP Charger. Simply installing the APP Charger

driver, it makes your iPhone charged much quickly from your computer

and up to 40% faster than before. ASRock APP Charger allows you to

quickly charge many Apple devices simultaneously and even supports

continuous charging when your PC enters into Standby mode (S1), Sus-

pend to RAM (S3), hibernation mode (S4) or power off (S5). With APP Charger driver installed, you can easily enjoy the marvelous charging

experience than ever.

ASRock website: http://www.asrock.com/Feature/AppCharger/index.asp

9. ASRock XFast USB can boost USB storage device performance. The

performance may depend on the property of the device.

10. ASRock XFast LAN provides a faster internet access, which includes be-

low benets. LAN Application Prioritization: You can congure your appli-

cation priority ideally and/or add new programs. Lower Latency in Game:

After setting online game priority higher, it can lower the latency in game.

Traffic Shaping: You can watch Youtube HD video and download files

simultaneously. Real-Time Analysis of Your Data: With the status window,

you can easily recognize which data streams you are currently transfer-

11. While CPU overheat is detected, the system will automatically shutdown.

Before you resume the system, please check if the CPU fan on the moth-

erboard functions properly and unplug the power cord, then plug it back

again. To improve heat dissipation, remember to spray thermal grease

between the CPU and the heatsink when you install the PC system.

12. EuP, stands for Energy Using Product, was a provision regulated by Eu-

ropean Union to dene the power consumption for the completed system.

According to EuP, the total AC power of the completed system shall be

under 1.00W in off mode condition. To meet EuP standard, an EuP ready

motherboard and an EuP ready power supply are required. According to

Intel’s suggestion, the EuP ready power supply must meet the standard

of 5v standby power efciency is higher than 50% under 100 mA current

consumption. For EuP ready power supply selection, we recommend you

checking with the power supply manufacturer for more details.10

ASRock A55M-HVS Motherboard

This is a Micro ATX form factor (8.9-in x 8.5-in, 22.6 cm x 21.6 cm) motherboard.

Before you install the motherboard, study the conguration of your chassis to ensure

that the motherboard ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard

components or change any motherboard settings.

Before you install or remove any component, ensure that the

power is switched off or the power cord is detached from the

power supply. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

1. Unplug the power cord from the wall socket before touching any

2. To avoid damaging the motherboard components due to static elec-

tricity, NEVER place your motherboard directly on the carpet or the

like. Also remember to use a grounded wrist strap or touch a safety

grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded anti-

static pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the mother-

board to the chassis, please do not over-tighten the screws! Doing

so may damage the motherboard.

ASRock A55M-HVS Motherboard

2.1 CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90

Step 2. Position the CPU directly above the socket such that the CPU corner with

the golden triangle matches the socket corner with a small triangle.

Step 3. Carefully insert the CPU into the socket until it ts in place.

The CPU ts only in one correct orientation. DO NOT force the CPU

into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it rmly on the socket while you push

down the socket lever to secure the CPU. The lever clicks on the side tab

to indicate that it is locked.

2.2 Installation of CPU Fan and Heatsink

After you install the CPU into this motherboard, it is necessary to install a

larger heatsink and cooling fan to dissipate heat. You also need to spray

thermal grease between the CPU and the heatsink to improve heat dis-

sipation. Make sure that the CPU and the heatsink are securely fastened

and in good contact with each other. Then connect the CPU fan to the

CPU FAN connector (CPU_FAN1, see Page 2, No. 4). For proper instal-

lation, please kindly refer to the instruction manuals of the CPU fan and

Match The CPU Golden Triangle

2.3 Installation of Memory Modules (DIMM)

This motherboard provides two 240-pin DDR3 (Double Data Rate 3) DIMM slots,

and supports Dual Channel Memory Technology. For dual channel configuration,

you always need to install two identical (the same brand, speed, size and chip-

type) memory modules in the DDR3 DIMM slots to activate Dual Channel Memory

Technology. Otherwise, it will operate at single channel mode.

1. It is not allowed to install a DDR or DDR2 memory module into

DDR3 slot;otherwise, this motherboard and DIMM may be

2. If you install only one memory module or two non-identical

memory modules, it is unable to activate the Dual Channel

Installing a DIMM Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.

Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the

The DIMM only ts in one correct orientation. It will cause permanent

damage to the motherboard and the DIMM if you force the DIMM into the slot

at incorrect orientation.

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends

fully snap back in place and the DIMM is properly seated.13

ASRock A55M-HVS Motherboard

2.4 Expansion Slots (PCI and PCI Express Slots)

There are 1 PCI slot and 2 PCI Express slots on this motherboard.

PCI Slot: PCI slot is used to install expansion cards that have the 32-bit PCI

PCIE1 (PCIE x1 slot; White) is used for PCI Express cards with x1 lane

width cards, such as Gigabit LAN card and SATA2 card.

PCIE2 (PCIE x16 slot; Blue) is used for PCI Express x16 lane width

Installing an expansion card

Step 1. Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2. Remove the system unit cover (if your motherboard is already installed

Step 3. Remove the bracket facing the slot that you intend to use. Keep the

screws for later use.

Step 4. Align the card connector with the slot and press rmly until the card is

completely seated on the slot.

Step 5. Fasten the card to the chassis with screws.

Step 6. Replace the system cover.14

2.5 AMD Dual Graphics Operation Guide

This motherboard supports AMD Dual Graphics feature. AMD Dual Graphics brings

multi-GPU performance capabilities by enabling an AMD A55 FCH (Hudson-D2)

integrated graphics processor and a discrete graphics processor to operate

simultaneously with combined output to a single display for blisteringly-fast frame

rates. Currently, AMD Dual Graphics Technology is only supported with Windows

OS, and is not available with Windows

What does an AMD Dual Graphics system include?

An AMD Dual Graphics system includes an AMD Radeon HD 65XX/64XX graphics

processor and a motherboard based on an AMD A55 FCH (Hudson-D2) integrated

chipset, all operating in a Windows

7 environment. Please refer to below PCI Express graphics card support list for AMD Dual Graphics. For the future update of

more compatible PCI Express graphics cards, please visit AMD website for further

Enjoy the benefit of AMD Dual Graphics

Step 1. Please keep the default UEFI setting of “Dual Graphics“ option on [Auto].

Step 2. Install one AMD RADEON HD6670 / 6570 / 6450 PCI Express graphics

card to PCIE2 slot (blue).

Step 3. Connect the monitor cable to the onboard VGA port. Please be noted that

the current VGA driver / VBIOS can allow Dual Graphics output from on-

board display only. For any future update, please refer to our website for

further information.

Step 4. Boot into OS. Please remove the AMD driver if you have any VGA driver

installed in your system.

Step 5. Install the onboard VGA driver from our support CD to your system for

both the onboard VGA and the discrete graphics card.

Step 6. Restart your computer. Right-click the desktop. Click “AMD VISION Engine Control Center” to enter AMD VISION Engine Control Center.15

ASRock A55M-HVS Motherboard

* Dual Graphics appearing here is a registered trademark of AMD Technologies Inc., and is

used only for identication or explanation and to the owners’ benet, without intent to infringe.

* For further information of AMD Dual Graphics technology, please check AMD website for up

Step 9. Click “Enable CrossFire

” and click “Apply“ to save your change.

Step 10. Reboot your system. Then you can freely enjoy the benet of Dual

AMD VISION Engine Control Center

Step 7. You can also click “AMD VISION Engine Control Center” on your

Step 8. In AMD VISION Engine Control Center, please choose “Performance”.

2. If you have installed onboard VGA driver from our support CD to your system

already, you can freely enjoy the benets of dual monitor function after your

system boots. If you haven’t installed onboard VGA driver yet, please install

onboard VGA driver from our support CD to your system and restart your

2.6 Dual Monitor and Surround Display Features

Dual Monitor Feature

This motherboard supports dual monitor feature. With the internal VGA output sup-

port (D-Sub and HDMI), you can easily enjoy the benets of dual monitor feature

without installing any add-on VGA card to this motherboard. This motherboard also

provides independent display controllers for D-Sub and HDMI to support dual VGA

output so that D-sub and HDMI can drive same or different display contents.

To enable dual monitor feature, please follow the below steps:

1. Connect D-Sub monitor cable to D-Sub port on the I/O panel, or connect

HDMI monitor cable to HDMI port on the I/O panel.

Surround Display Feature

This motherboard supports surround display upgrade. With the internal VGA output

support (D-Sub and HDMI) and external add-on PCI Express VGA cards, you can

easily enjoy the benets of surround display feature.

Please refer to the following steps to set up a surround display environment:

1. Install the PCI Express VGA cards on PCIE2 slot. Please refer to page 13 for

proper expansion card installation procedures for details.

2. Connect D-Sub monitor cable to D-Sub port on the I/O panel, or connect

HDMI monitor cable to HDMI port on the I/O panel. Then connect other monitor

cables to the corresponding connectors of the add-on PCI Express VGA cards on

3. Boot your system. Press <F2> or <Del> to enter UEFI setup. Enter “Share

Memory” option to adjust the memory capability to [32MB], [64MB], [128MB],

[256MB] or [512MB] to enable the function of D-sub. Please make sure that

the value you select is less than the total capability of the system memory. If you

do not adjust the UEFI setup, the default value of “Share Memory”, [Auto], will

disable D-Sub function when the add-on VGA card is inserted to this

4. Install the onboard VGA driver and the add-on PCI Express VGA card driver to

your system. If you have installed the drivers already, there is no need to install

Right click the desktop, choose “Properties”, and select the “Settings” tab

so that you can adjust the parameters of the multi-monitor according to

A. Click the “Identify” button to display a large number on each monitor.

B. Right-click the display icon in the Display Properties dialog that you

wish to be your primary monitor, and then select “Primary”. When

you use multiple monitors with your card, one monitor will always be

Primary, and all additional monitors will be designated as Secondary.

C. Select the display icon identied by the number 2.

D. Click “Extend my Windows desktop onto this monitor”.

E. Right-click the display icon and select “Attached”, if necessary.

F. Set the “Screen Resolution” and “Color Quality” as appropriate for the

second monitor. Click “Apply” or “OK” to apply these new values.

G. Repeat steps C through E for the diaplay icon identied by the number

Right click the desktop, choose “Personalize”, and select the “Display

Settings” tab so that you can adjust the parameters of the multi-monitor

according to the steps below.

A. Click the number ”2” icon.

B. Click the items “This is my main monitor” and “Extend the desktop onto

C. Click “OK” to save your change.

D. Repeat steps A through C for the display icon identied by the number

6. Use Surround Display. Click and drag the display icons to positions representing

the physical setup of your monitors that you would like to use. The placement

of display icons determines how you move items from one monitor to another.

HDCP function is supported on this motherboard. To use HDCP

function with this motherboard, you need to adopt the monitor

that supports HDCP function as well. Therefore, you can enjoy

the superior display quality with high-denition HDCP

encryption contents. Please refer to below instruction for more

details about HDCP function.

HDCP stands for High-Bandwidth Digital Content Protection,

a specication developed by Intel

for protecting digital

entertainment content that uses the DVI interface. HDCP is a

copy protection scheme to eliminate the possibility of

intercepting digital data midstream between the video source,

or transmitter - such as a computer, DVD player or set-top box -

and the digital display, or receiver - such as a monitor, television

or projector. In other words, HDCP specication is designed to

protect the integrity of content as it is being transmitted.

Products compatible with the HDCP scheme such as DVD

players, satellite and cable HDTV set-top-boxes, as well as few

entertainment PCs requires a secure connection to a compliant

display. Due to the increase in manufacturers employing HDCP

in their equipment, it is highly recommended that the HDTV or

LCD monitor you purchase is compatible.19

ASRock A55M-HVS Motherboard

* ASRock Smart Remote is only supported by some of ASRock motherboards. Please refer to

ASRock website for the motherboard support list: http://www.asrock.com

2.7 ASRock Smart Remote Installation Guide

ASRock Smart Remote is only used for ASRock motherboard with CIR header.

Please refer to below procedures for the quick installation and usage of ASRock

Step1. Find the CIR header located next

to the USB 2.0 header on ASRock

Step2. Connect the front USB cable to the

USB 2.0 header (as below, pin 1-5)

and the CIR header. Please make

sure the wire assignments and the

pin assignments are matched

the front USB port. If Multi-Angle

CIR Receiver cannot successfully

receive the infrared signals from

MCE Remote Controller, please try

to install it to the other front USB

3 CIR sensors in different angles

1. Only one of the front USB port can support CIR function. When the

CIR function is enabled, the other port will remain USB function.

2. Multi-Angle CIR Receiver is used for front USB only. Please do not

use the rear USB bracket to connect it on the rear panel. Multi-Angle

CIR Receiver can receive the multi-direction infrared signals (top,

down and front), which is compatible with most of the chassis on the

3. The Multi-Angle CIR Receiver does not support Hot-Plug function.

Please install it before you boot the system.20

ASRock A55M-HVS Motherboard

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose

pin1 and pin2 are “Short” when jumper cap

is placed on these 2 pins.

Jumper Setting Description

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a

jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,

please do not clear the CMOS right after you update the BIOS. If you need

to clear the CMOS when you just nish updating the BIOS, you must boot

up the system rst, and then shut it down before you do the clear-CMOS ac-

tion. Please be noted that the password, date, time, user default prole, 1394

GUID and MAC address will be cleared only if the CMOS battery is removed.

2.9 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

Serial ATA2 Connectors These six Serial ATA2

(SATA2) connectors support

(SATA_2: see p.2, No. 11)

SATA data cables for internal

(SATA_3: see p.2, No. 7)

storage devices. The current

(SATA_4: see p.2, No. 10)

SATA2 interface allows up to

(SATA_5: see p.2, No. 8)

3.0 Gb/s data transfer rate.

(SATA_6: see p.2, No. 9)

ports on the I/O panel, there

are three USB 2.0 headers on

this motherboard. Each USB 2.0

header can support two USB

Print Port Header This is an interface for print

port cable that allows

convenient connection of printer

Data Cable cable can be connected to the

SATA / SATAII hard disk or the

SATAII connector on this

and receiving infrared module.

Front Panel Audio Header This is an interface for the front

panel audio cable that allows

convenient connection and

control of audio devices.

Consumer Infrared Module Header This header can be used to

controller receiver.

+5VSBDUMMY IRRX GND J _SENSEO UT2_L 1 M IC_RETP RESENCE# GND O UT2_RM IC2_RM IC2_LOUT_RET 1. High Denition Audio supports Jack Sensing, but the panel wire on

the chassis must support HDA to function correctly. Please follow the

instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

A. Connect Mic_IN (MIC) to MIC2_L.

B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

C. Connect Ground (GND) to Ground (GND).

D. MIC_RET and OUT_RET are for HD audio panel only. You don’t

need to connect them for AC’97 audio panel.

System Panel Header This header accommodates

several system front panel

Connect the power switch, reset switch and system status indicator

on the chassis to this header according to the pin assignments below.

Note the positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may con-

gure the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset

switch to restart the computer if the computer freezes and fails to per-

form a normal restart.23

ASRock A55M-HVS Motherboard

PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The

LED is on when the system is operating. The LED keeps blinking

when the sys-tem is in S1 sleep state. The LED is off when the system

is in S3/S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The

LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module

mainly consists of power switch, reset switch, power LED, hard drive

activity LED, speaker and etc. When connecting your chassis front

panel module to this header, make sure the wire assignments and the

pin assign-ments are matched correctly.

Chassis Speaker Header Please connect the chassis

speaker to this header.

Chassis and Power Fan Connectors Please connect the fan cables

to the fan connectors and

match the black wire to the

cable to the connector and

match the black wire to the

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

CPU fan still can work successfully even without the fan speed control function.

If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this

motherboard, please connect it to Pin 1-3.

3-Pin Fan Installation

GND + 12VCPU_FAN_SPEEDFAN_SPEED_CONTROL1 2 3 4 ATX Power Connector Please connect an ATX power

supply to this connector.

Though this motherboard provides 24-pin ATX power connector,

it can still work if you adopt a traditional 20-pin ATX power supply.

To use the 20-pin ATX power supply, please plug your power

supply along with Pin 1 and Pin 13.

ATX 12V Power Connector Please connect an ATX 12V

power supply to this connector.

Though this motherboard provides 8-pin ATX 12V power connector, it can still work

if you adopt a traditional 4-pin ATX 12V power supply. To use the

4-pin ATX power supply, please plug your power supply along with

20-Pin ATX Power Supply Installation

2.10 Driver Installation Guide

To install the drivers to your system, please insert the support CD to your optical

drive rst. Then, the drivers compatible to your system can be auto-detected and

listed on the support CD driver page. Please follow the order from up to bottom side

to install those required drivers. Therefore, the drivers you install can work properly.

2.11 Installing Windows

XP 64-bit With RAID Functions

If you want to install Windows

64-bit / XP / XP 64-bit

on your SATA / SATAII HDDs with RAID functions, please refer to the document at

the following path in the Support CD for detailed procedures:

..\ RAID Installation Guide

Using SATA / SATAII HDDs without NCQ and Hot Plug functions (IDE mode)

XP / XP 64-bit OS on your system.

If you want to install Windows

64-bit / XP / XP 64-

bit OS on your SATA / SATAII HDDs without RAID functions, please follow below

procedures according to the OS you install.

2.12.1 Installing Windows

If you want to install Windows

XP / XP 64-bit on your SATA / SATAII HDDs without

RAID functions, please follow below steps.26

ASRock A55M-HVS Motherboard

Using SATA / SATAII HDDs without NCQ and Hot Plug functions (IDE mode)

If you want to install Windows

64-bit on your SATA /

SATAII HDDs without RAID functions, please follow below steps.

Using SATA / SATAII HDDs with NCQ and Hot Plug functions (AHCI mode)

STEP 1: Set up UEFI.

A. Enter UEFI SETUP UTILITY Advanced screen Storage

B. Set the “SATA Mode” option to [AHCI].

The Flash Memory on the motherboard stores BIOS Setup Utility. When you start up

the computer, please press <F2> or <Del> during the Power-On-Self-Test (POST)

to enter BIOS Setup utility; otherwise, POST continues with its test routines. If you

wish to enter BIOS Setup after POST, please restart the system by pressing <Ctl>

+ <Alt> + <Delete>, or pressing the reset button on the system chassis. The BIOS Setup program is designed to be user-friendly. It is a menu-driven program, which

allows you to scroll through its various sub-menus and to select among the prede-

termined choices. For the detailed information about BIOS Setup, please refer to the

User Manual (PDF le) contained in the Support CD.

4. Software Support CD information

This motherboard supports various Microsoft

operating systems: 7 / 7

64-bit / XP SP3 / XP 64-bit. The Support CD that came with

the motherboard contains necessary drivers and useful utilities that will enhance

motherboard features. To begin using the Support CD, insert the CD into your CD-

ROM drive. It will display the Main Menu automatically if “AUTORUN” is enabled in

your computer. If the Main Menu does not appear automatically, locate and double-

click on the le “ASSETUP.EXE” from the BIN folder in the Support CD to display

(CLRCMOS1, 3-Pin jumper)

- Gestion jumperless

Certications - FCC, CE, WHQL

(Micro ATX Form Factor: 8.9-in x 8.5-in, 22.6 cm x 21.6 cm)

- Supporto DDR3 2400+(OC)/1866/1600/1333/1066

- Supporta AMD Dual Graphics

- Supporta Wake-On-LAN

- Supporta il rilevamento cavo LAN

- Supporto di Energy Efcient Ethernet 802.3az

- Supporta PXE Pannello I/O Panel

- Supporta “Plug and Play”

- Compatibile con ACPI 1.1 wake up events

- Supporta jumperfree

Sito ASRock: http://www.asrock.com/Feature/AppCharger/index.asp

GND DUMMYU SB _P WRP +1 0

- ACPI 1.1 compliance wake up events

treme Tuning Utility (AXTU).

asrock.com/Feature/AppCharger/index.asp

U SB _P WR P-10GNDDUMMY U SB _P WR P +1 0GNDP-11P +1 1

Sertikalar - FCC, CE, WHQL

64-bit CPU'lu Windows

ASRock internet sitesi: http://www.asrock.com/Feature/AppCharger/index.

(CLRCMOS1, 3-pinli jumper)

SATA2 arayüzü 3,0 Gb/sn veri

Feature/AppCharger/index.asp

64-bit/XP SP3/XP 64-bit compliant

asrock.com/Feature/AppCharger/index.asp

GND DUMMYU SB _P WRP +1 0

- ACPI 1.1 Compliance Wake Up Events

Installing OS on a HDD Larger Than 2TB in AHCI Mode

This motherboard is adopting UEFI BIOS that allows Windows

on a large size HDD (>2TB). Please follow below procedure to install the operating

1. Please make sure to use Windows

64-bit (with SP1 or above) or

2. Press <F2> or <Delete> at system POST. Set AHCI Mode in UEFI Setup Utility >

Advanced > Storage Conguration > SATA Mode.

3. Choose the item “UEFI:xxx“ to boot in UEFI Setup Utility > Boot > Boot Option #1.

(“xxx” is the device which contains your Windows

installation les. Normally it is

an optical drive.) You can also press <F11> to launch boot menu at system POST

and choose the item “UEFI:xxx“ to boot.

This motherboard is adopting UEFI BIOS that allows Windows

on a large size HDD (>2TB). Please follow below procedure to install the operating

1. Please make sure to use Windows

64-bit (with SP1 or above) or

2. Press <F2> or <Delete> at system POST. Set RAID Mode in UEFI Setup Utility >

Advanced > Storage Conguration > SATA Mode.

3. Choose onboard RAID 3TB+ unlocker > UEFI Mode For GPT partition. Press

<F10> to save the change and exit.

4. Press <F11> to enter Boot Manual. Choose UEFI : Built - in EFI Shell.

5. Key in drvcfg, for example you will see below:

7. And then key in drvcfg –s [Drv number] [Ctrl number] to enter Raid Utility.

For example: key in drvcfg –s 4E B5.

8. Choose Logical Drive Main Menu to set up Raid Drive.

11. Press Space on keyboard to toggle checkbox.

12. Choose Ld Size setting, and key in the Raid size.

13. After set up Raid size, please click Start to Create.

14. Press <F10> to exit Utility.

15. During reboot, please press <F11> to enter Boot Manual. Choose UEFI: SCSI CD/DVD Drive.

* This option only shows on Windows

64-bit in a large hard disk (ex. Disk

volume > 2TB), it may take more time to boot into Windows

utilities. If you encounter this problem, you will need to following instructions

does not provide hotfix for this problem. Below steps are

b. De-select Local Disks for System Restore. Then Click “Turn System

Restore Off” to conrm. Then Press “Ok”.161

ASRock A55M-HVS Motherboard

B. Disable “Volume Shadow Copy” service.

a. Type “computer management” in the Start Menu, then press “Enter”.

b. Go to “Services and Applications>Services”; Then double click “Volume

c. Set “Startup type” to “Disable” then Click “OK”.162

C. Reboot your system.

D. After reboot, please start to install motherboard drivers and utilities.

A. Please request the hotx KB2505454 thru this link:

B. After installing Windows

7 64-bit, install the hotx kb2505454.

(This may take long time; >30 mins.)

C. Reboot your system. (It may take about 5 mins to boot.)

will install this hotx then reboot by itself.

E. Please start to install motherboard drivers and utilities.
