USER MANUAL SP5000P VISION

Congratulations on your choice of the Vision SP-5000. In order to obtain the best performance please be sure to read this owner's manual and use your product only in accordance with the instructions. An electronic version of this manual and further information can be found on www.visionaudiovisual.com

CONFORMITY

The product described in this owners manual is in compliance with RoHS (EU directive 2002/95/EC), and WEEE (EU directive 2002/96/EC) standards. Certificates including SGS reports are available on request. This product should be returned to the place of purchase at the end of its useful life for recycling.

WARNING

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

Vision is a partner in the TÜV SÜD product certification system. All applicable certification is provided by TÜV. All products are designed and imported into the EU by 'Vision' who is wholly owned by Azlan Logistics Ltd, Registered in England Nr. 04625566 at 'Lion House, Pioneer Business Park, Clifton Moor, York, YO30 4GH'

USE ONLY DOMESTIC AC OUTLETS

Connecting the unit to an outlet supplying a higher voltage may create a fire hazard.

HANDLE THE POWER CORD WITH CARE

Do not disconnect the plug from the AC outlet by pulling the cord; always pull the plug itself. Pulling the cord may damage it. If you do not intend to use your unit for any considerable length of time, unplug the unit. Do not place furniture or other heavy objects on the cord, and try to avoid dropping heavy objects on it. Do not tie a knot in the power cord. Not only could the cord be damaged, but a short circuit could also be caused with a consequent fire hazard.

PLACE OF INSTALLATION

Avoid installing this product under the following conditions:

• Moist or humid places
• Places exposed to direct sunlight or close to heating equipment
• Extremely cold locations
• Places subject to excessive vibration or dust
  Poorly ventilated places

Do not expose this product to dripping or splashing. DO NOT PLACE OBJECTS FILLED WITH LIQUIDS ON OR NEAR THIS PRODUCT!

MOVING THE UNIT

Before moving the unit, be sure to pull out the power cord from the AC outlet and disconnect the interconnection cords with other units.

WARNING SIGNS

If you detect an abnormal smell or smoke, turn this product off immediately and unplug the power cord. Contact your reseller or Vision.

PACKAGING

Save all packing material. It is essential for shipping in the event the unit ever needs repair. IF ORIGINAL PACKAGING IS NOT USED TO RETURN THE UNIT TO THE SERVICE CENTRE, DAMAGE IN TRANSIT WILL NOT BE COVERED BY WARRANTY.

POWER HANDLING

The power rating given denotes the "power handling" of the speaker (not power output). These speakers are rated to accept up to 20 watts RMS each.

Care should be taken to use an amplifier which has a power output of 10-100w RMS. An amplifier which is too small may send loudspeakers a distorted signal which is causes damage very quickly and WITHOUT any obvious signs such as audible distortion, whereas an amplifier which is too large may send a signal which is too powerful and will cause damage if sustained over a period of time.

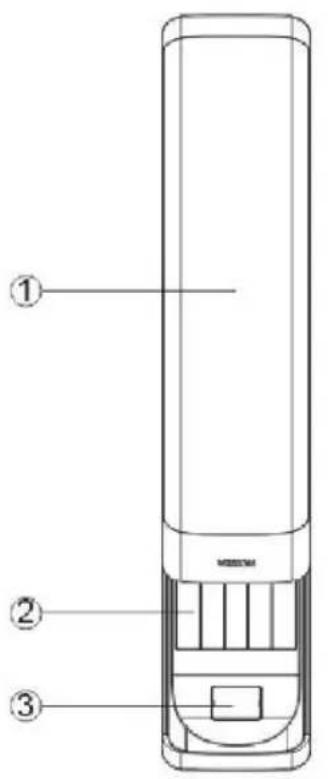

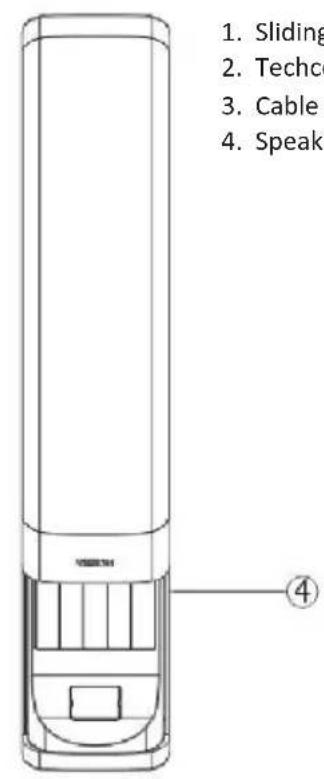

FRONT

1. Sliding grille
2. Techconnect modules
3. Cable exit cover
4. Speaker Chassis

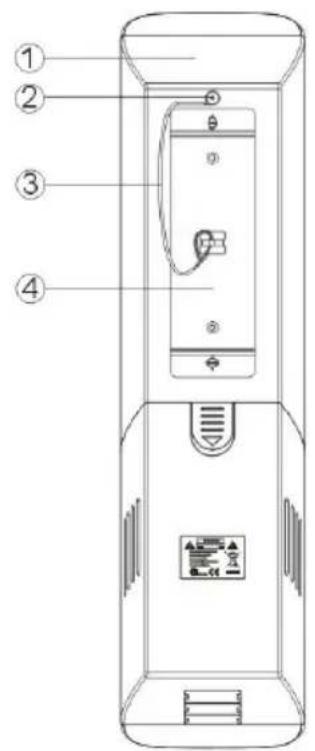

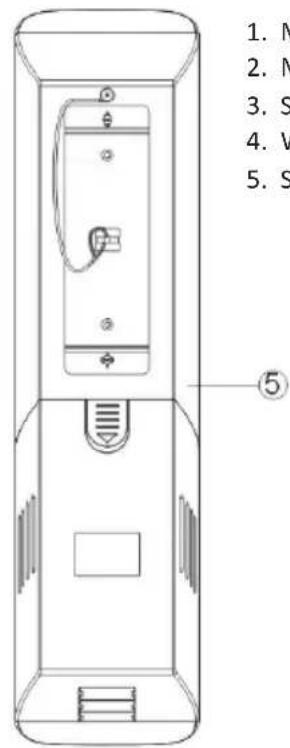

REAR

1. Master speaker
2. M4× 8 safety cable screw
3. Safety cable
4. Wall brackets
5. Slave speaker

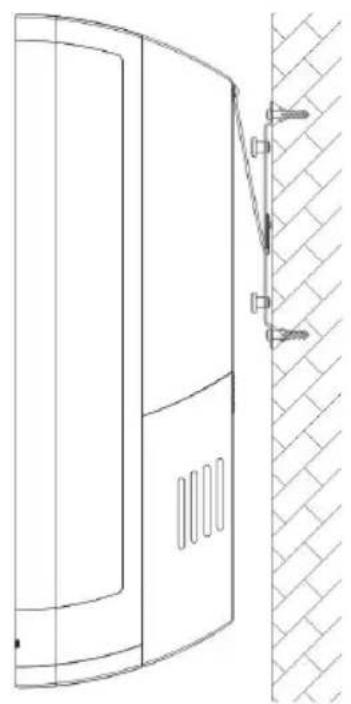

INSTALLATION INSTRUCTIONS

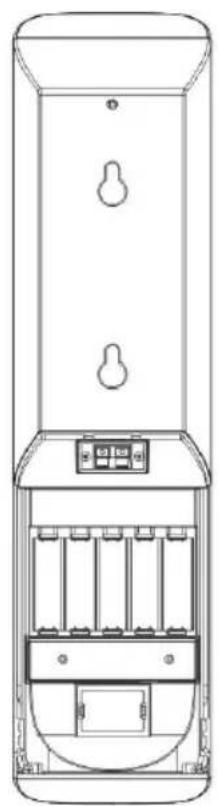

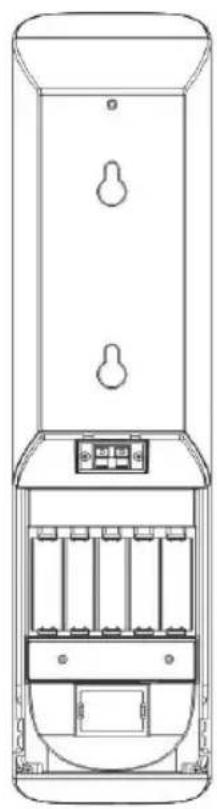

1. Fix wall brackets

Attach wall brackets each side of screen or interactive whiteboard. Ensure they are the same height and level.

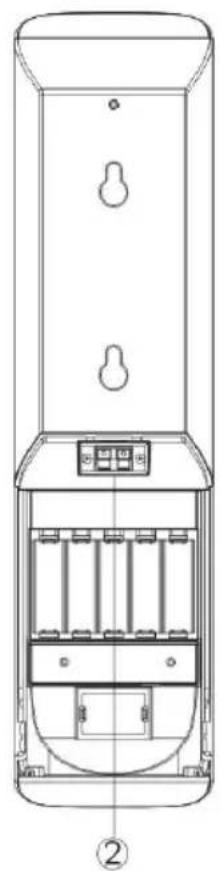

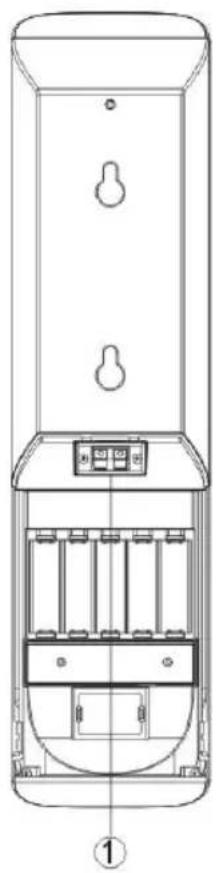

2. Remove rear cover from loudspeakers

The lower half of the rear panels are held in place by clips. Remove them to disassemble the chassis.

3. Connect cables to the loudspeakers

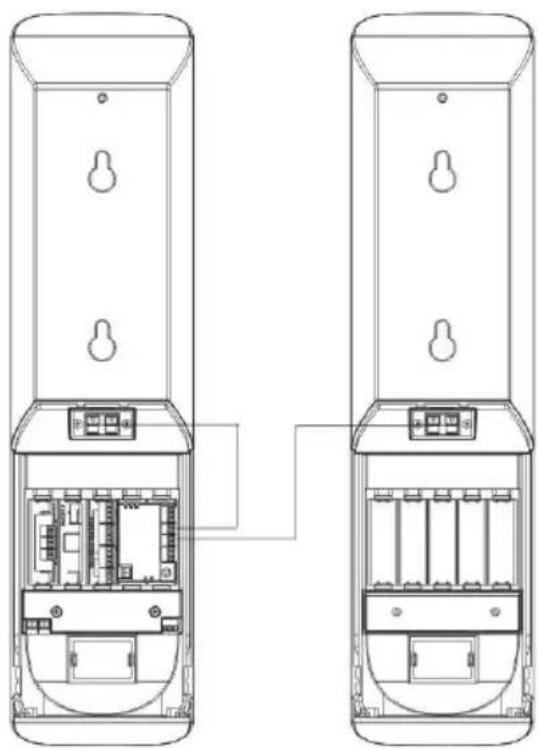

A) NOT USING TECHCONNECT MODULES

If using separate connectivity faceplate and amplifier then only speaker cable needs to be connected to the bare-wire terminals shown (1, 2).

B) USING TECHCONNECT MODULES

If installing with Techconnect modules, then follow these steps:

Step 1:

Install required Techconnect modules.

Step 2:

Connect audio from rear of connectivity modules to inputs on rear of Techconnect Amplifier.

Step 3:

Connect the loudspeaker outputs of the amplifier module to the bare-wire speaker terminals as shown.

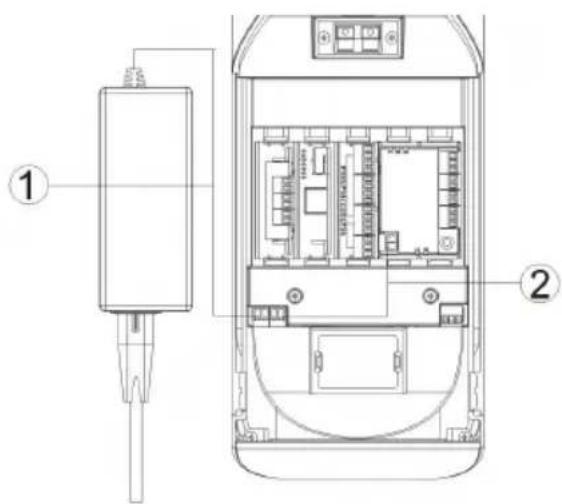

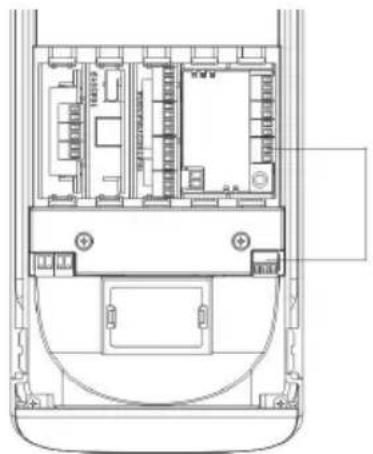

4. Using Audio-over-USB decoder

To install these loudspeakers so that a PC will recognise it as an audio output device follow these steps:

Step 1: Connect USB to the decoder.

If using a Techconnect connectivity faceplate USB from the PC will plug into the front of the USB-B module. Then use the short USB cable included to connect from the rear of the USB-B module into the decoder (2).

The decoder has a USB-A connector which (1) is connected to an interactive whiteboard.

Step 2: Connect audio output (green connector) on the decoder to the input on the amplifier as shown.

NOTE: The USB decodes outputs line-level signal which can be input into any low impedance amplifier

Step 3: Connect power to power input (black connector) on decoder.

NOTE: Power is ONLY required if the USB signal continues on to another device such as an interactive whiteboard. If no other device is connected then the power carried on the USB input cable is sufficient to power the decoder.

If using a Techconnect amplifier plug the power supply into the decoder (1), use power patch cable provided to connect the decoder power output connector to the Techconnect Amplifier module power input (2).

If you are not using a Techconnect Amplifier then spare power supplies for the Techconnect Control are available which will also work. The power requirement is DC, 12V, 0.5A.

SAFETY WARNING: Ensure polarity is connected correctly. Incorrect connection can damage the product and is not covered by warranty.

5. Replace the rear cover and hang on bracket

Re-attach the rear covers, and hang in place. Cable exit covers are included which allow variable sized exit holes.

TROUBLESHOOTING

If your system is not operating properly, please refer to the following information. If the problem persists, disconnect from power and contact your AV reseller immediately.

Problem Correction
Sounds Hollow / No Bass	Check that you’ve connector the speaker cable polarity positive-to-positive and negative-to-negative.
Distortion / No treble	Distortion can be caused by poor gain structure. Ensure the gain (volume) on your source device is at 100%, and turn the amplifier down. If the problem still persists determine if both speakers are distorting the sound. If it is only one it is likely you have a damaged driver and you should contact your AV reseller immediately. If both are outputting distorted sound the problem is more likely to lie with the amplifier.
No sound / Sound only coming out on one side	You should take these steps to narrow down where the problem lies: Step 1: Bypass the faceplate inputs by plugging an audio source directly into the amplifier. In the case of the Techconnect Amplifier for example plug in iPod into the front input, ensuring that the iPod is turned to full volume. If the problem has gone away the fault is with your input connections. Step 2: If the problem still persists then swap the Left and Right output connectors on the amplifier. a) If only the left speaker was working, and now only the right speaker is working, you know the speakers both work and the problem is with the amplifier. b) If only the left speaker was working, and after switching the left speaker is still the only one working, then you know the problem is with the right speaker.

SPECIFICATIONS

Product Dimensions (single chassis):

Frequency Response: 90Hz-20KHz

Power handling: 20 watts RMS

Tweeter: 1" silk

Woofer: 3.5"

Nominal impedance: 8 ohms

Sensitivity: 86dB

USB decoder power requirements: DC, 12V, 0.5A

ACCESSIONS INCLUDED

1 x USB Patch cable 200mm long

1 x Power Patch cable

10 x Techconnect Blank modules

6 x Cable Exit Covers

2 x Wall Brackets

1 x Safety Cable

Note: Because we are committed to improving our products, the details above may change without prior warning.

WARRANTY

This product comes with a 2-year return to base warranty, effective from the date of purchase. This warranty applies only to the original purchaser and is not transferable. For the avoidance of doubt, this will be taken from the information held by the appointed national distributor at the point of sale. If the product is DOA (dead on arrival), you have 21 days from purchase date to notify the national distributor via your AV reseller. The liability of the manufacturer and its appointed service company is limited to the cost of repair and/or replacement of the faulty unit under warranty, except for death or injury (EU85/374/EEC). This warranty protects you against the following:

• Failure of any components, including the power supply.
• Damage when the product is first removed from its packaging if reported within 24 hours of purchase.

If you find you do have a problem with this product, you should contact the AV reseller you purchased this product from. The original purchaser is responsible for shipment of the product to the manufacturer's appointed service centre for repair.

We will endeavour to return repaired units within 5 working days, however this may not always be possible, in which case it will be returned as soon as practicably possible. In line with our WEEE commitments, the manufacturer endeavours to replace the faulty parts of the product rather than replacing the whole unit. This warranty does not protect this product against faults caused by abuse, misuse, incorrect installation, unstable or faulty power input, which might be caused by ignoring the guidelines set out in this manual.
