Product type	Passive speaker
Brand	Vision
Model	SP1300B
Dimensions (H x W x D)	230 x 160 x 120 mm
Weight (per pair)	3.5 kg
Power handling (RMS)	70 W
Nominal impedance	8 Ω
Sensitivity	90 dB (1 W/1 m)
Frequency response	80 Hz - 20 kHz
Woofer	4 inches (102 mm)
Tweeter	3/4 inch (19 mm) silk
Connection type	Spring terminals (bare wire)
Recommended amplifier	30-100 W RMS
Included accessories	2 safety cables, mounting bracket
Warranty	2 years (parts and labor)
Certifications	RoHS, WEEE
Maintenance and cleaning	Clean with a dry, soft cloth. Avoid moisture and abrasive products.
Safety precautions	Do not exceed maximum power. Use only with a suitable amplifier.
Spare parts and repairability	Contact the dealer for spare parts. Warranty repair provided by the manufacturer.

Frequently Asked Questions - SP1300B VISION

What is the recommended amplifier power?

An amplifier between 30 and 100 W RMS is recommended for these speakers. The maximum speaker power is 70 W RMS.

What is the impedance of the SP1300B speakers?

The nominal impedance is 8 Ω, which is compatible with most home amplifiers.

How to connect these speakers to an amplifier?

Use the spring terminals on the back to connect bare wires. Respect polarity (+/-) for correct sound reproduction.

What are the dimensions and weight of the speakers?

Each speaker measures 230 x 160 x 120 mm and weighs approximately 1.75 kg (3.5 kg per pair).

Can I use these speakers outdoors?

No, these speakers are designed for indoor use only. They are not water or moisture resistant.

How to clean the speakers?

Use a soft, dry cloth to dust. Do not use chemicals or liquids that could damage the cabinet.

What is the warranty for this product?

The product comes with a 2-year warranty from the date of purchase, covering manufacturing defects. Keep the receipt as proof of purchase.

What to do if the speaker does not work?

Check connections and amplifier. If the problem persists, contact the dealer for warranty repair within 21 days of purchase.

Are these speakers magnetically shielded?

No, the cable is unshielded. Keep speakers away from CRT screens or sensitive magnetic media.

Can I use a subwoofer with these speakers?

Yes, you can add a subwoofer with an amplifier that has a dedicated output, as these speakers go down to 80 Hz.

USER MANUAL SP1300B VISION

Congratulations on your choice of the Vision SP-1300. In order to obtain the best performance, please be sure to read this owner's manual and use your product only in accordance with instructions. An electronic version of this manual and further information can be found on www.visionaudiovisual.com

CONFORMITY

The product described in this owners manual is in compliance with RoHS (EU directive 2002/95/EC), and WEEE (EU directive 2002/96/EC) standards. Certificates including SGS reports are available on request. This product should be returned to the place of purchase at the end of its useful life for recycling.

WARNING

Power Handling

Power rating with regards to loudspeakers denotes the "power handling" of the speaker, not the "power output". These speakers are rated to accept up to 70 watts RMS.

Watt measurement standards

There are various ways of measuring an amplifier wattage output. The most accurate standards are "Program Power" and "RMS" (Root Mean Squared) because these standards measure average sustained levels, but even for these standards there are different ways of measuring them. Amplifiers between 30 to 100w are suitable for these speakers.

PACKAGING

Save all packing material. It is essential for shipping in the event the unit ever needs repair. IF ORIGINAL PACKAGING IS NOT USED TO RETURN THE UNIT TO THE SERVICE CENTRE, DAMAGE IN TRANSIT WILL NOT BE COVERED BY WARRANTY.

SPECIFICATIONS

• Speaker Dimensions: 230 × 160 × 120 mm
• Speaker weight: 3.5kg per pair
  Power Handling: 70w RMS
• Woofer: 4''
• Tweeter: 3 / 4'' Silk
• Speaker Terminals: Bare-wire spring type
  Nominal Impedance: 8 Ω
• Sensitivity: 90dB (1w/1m)
  Frequency Response: 80Hz - 20kHz

ACCESSIONS INCLUDED

• Bracket: Ball-style
• 2 × Fall-arrest safety cable

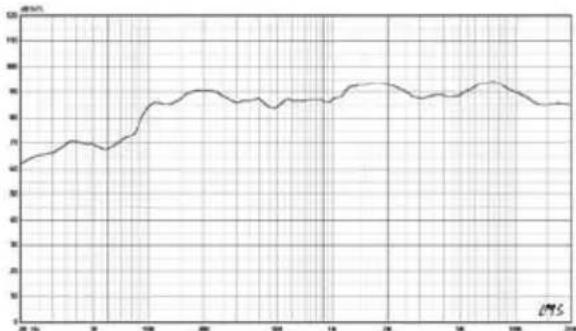

Frequency Response Graph:

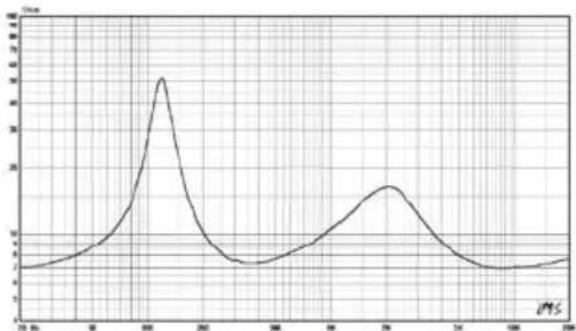

Impedance Graph:

Note: Because we are committed to improving our products, the details above may change without prior warning.

WARRANTY

This product comes with a 2-year return to base warranty, effective from the date of purchase. This warranty applies only to the original purchaser and is not transferable.

For the avoidance of doubt, this will be taken from the information held by the appointed national distributor at the point of sale. If the product is DOA (dead on arrival), you have 21 days from purchase date to notify the national distributor via your AV reseller. The liability of the manufacturer and its appointed service company is limited to the cost of repair and/or replacement of the faulty unit under warranty, except for death or injury (EU85/374/EEC).

This warranty protects you against the following:

• Failure of any components.
• Damage when the product is first removed from its packaging if reported within 24 hours of purchase.

If you find you do have a problem with this product, you should contact the AV reseller you purchased this product from. The original purchaser is responsible for shipment of the product to the manufacturer's appointed service centre for repair.

We will endeavour to return repaired units within 5 working days, however this may not always be possible in which case it will be returned as soon as practicably possible. In line with our WEEE commitments, the manufacturer endeavours to replace the faulty parts of the product rather than replacing the whole unit. This warranty does not protect this product against faults caused by abuse, misuse, or incorrect installation which might be caused by ignoring the guidelines set out in this manual.

If failure is not covered by this warranty, the owner will be given the option to pay for labour and parts to repair the unit at the service company's standard rate.
