INTRODUCTION

Thank you for having chosen a FUTURELIGHT PSX-575. You will see you have acquired a powerful and versatile device.

Unpack your PSX-575.

SAFETY INSTRUCTIONS

CAUTION!

Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires!

This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems.

English

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

Please make sure that there are no obvious transport damages. Should you notice any damages on the A/C connection cable or on the casing, do not take the device into operation and immediately consult your local dealer.

This device falls under protection-class I. The power plug must only be plugged into a protection class I outlet. The voltage and frequency must exactly be the same as stated on the device. Wrong voltages or power outlets can lead to the destruction of the device and to mortal electrical shock.

Always plug in the power plug last. The power plug must always be inserted without force. Make sure that the plug is tightly connected with the outlet.

Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! Never touch them with wet hands, as this could lead to mortal electrical shock.

Never modify, bend, strain mechanically, put pressure on, pull or heat up the power cord. Never operate next to sources of heat or cold. Disregard can lead to power cord damages, fire or mortal electrical shock.

The cable insert or the female part in the device must never be strained. There must always be sufficient cable to the device. Otherwise, the cable may be damaged which may lead to mortal damage.

Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-cord from time to time.

If extension cords are used, make sure that the core diameter is sufficient for the required power consumption of the device. All warnings concerning the power cords are also valid for possible extension cords.

Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord. Otherwise, the cable or plug can be damaged leading to mortal electrical shock. If the power plug or the power switch is not accessible, the device must be disconnected via the mains.

If the power plug or the device is dusty, the device must be taken out of operation, disconnected and then be cleaned with a dry cloth. Dust can reduce the insulation which may lead to mortal electrical shock. More severe dirt in and at the device should only be removed by a specialist.

There must never enter any liquid into power outlets, extension cords or any holes in the housing of the device. If you suppose that also a minimal amount of liquid may have entered the device, it must immediately be disconnected. This is also valid, if the device was exposed to high humidity. Also if the device is still running, the device must be checked by a specialist if the liquid has reduced any insulation. Reduced insulation can cause mortal electrical shock.

There must never be any objects entering into the device. This is especially valid for metal parts. If any metal parts like staples or coarse metal chips enter into the device, the device must be taken out of operation and disconnected immediately. Malfunction or short-circuits caused by metal parts may cause mortal injuries.

During the initial start-up some smoke or smell may arise. This is a normal process and does not necessarily mean that the device is defective.

Caution: During the operation, the housing becomes very hot.

Do not switch the device on and off in short intervals as this would reduce the lamp's life.

HEALTH HAZARD!

Never look directly into the light source, as sensitive persons may suffer an epileptic shock (especially meant for epileptics)!

Keep away children and amateurs!

Never leave this device running unattended.

OPERATING DETERMINATIONS

This device is a lighting effect for creating decorative effects. This product is only allowed to be operated with an alternating voltage of 230V , 50Hz and was designed for indoor use only.

This device is designed for professional use, e.g. on stages, in discotheques, theatres etc.

Lighting effects are not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects.

Do not shake the device. Avoid brute force when installing or operating the device.

When choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust. There should not be any cables lying around. You endanger your own and the safety of others!

The symbol ·s - m determines the minimum distance from lighted objects. The minimum distance between light-output and the illuminated surface must be more than 0.5 meters.

This device is only allowed for suspended installation via the mounting bracket. In order to safeguard sufficient ventilation, leave 50~cm of free space around the device.

Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture.

Always fix the fixture with an appropriate safety-rope.

Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.

The lamp must never be ignited if the objective-lens or any housing-cover is open, as discharge lamps may explode and emit a high ultraviolet radiation, which may cause burns.

The maximum ambient temperature T_a = 45^ must never be exceeded.

Operate the device only after having become familiarized with its functions. Do not permit operation by persons not qualified for operating the device. Most damages are the result of unprofessional operation!

Never use solvents or aggressive detergents in order to clean the device! Rather use a soft and damp cloth.

Please use the original packaging if the device is to be transported. Make sure that you pack the device in the original state.

Please consider that unauthorized modifications on the device are forbidden due to safety reasons!

Never remove the serial barcode from the device as this would make the guarantee void.

If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

DESCRIPTION OF THE DEVICE

Features

Professional scanner with multi-step zoom

• 8 brilliant, dichroic colours plus white
• Switchable colour change (mode 1: only full colours, mode 2: colour-change at every position)
• Rainbow-effect with adjustable speed in both directions
• Slot-in gobo-system for exchanging gobos without tools
  Gobo-wheel 1 with 6 rotating gobos plus open
• All gobos can be interchanged
• Gobo-wheel 2 with 7 static metal gobos plus open
• With gobo-shake function
• Effect-wheel with rotating 3-facet prism
• Stepless frost-filter for fading the projections in or out
• Macro-function for rotating gobos/rotating prism combinations
• Motorized focus
• Motorized Multistep-Zoom (18^, 20^, 22^)
• Steplessly adjustable iris
• Strobe-effect with 1-13 flashes per second via shutter
• Mechanic dimmer
• Exact positioning via 16 bit Pan/Tilt movement resolution
  Control-Board with 4-digit display and foil-keyboard for adjusting the DMX-starting address, Pan/Tilt-Reverse, Program, Reset, lamp on/off, operating hours
• DMX-controlled operation or stand alone operation with Master/Slave-function
• 48 preprogrammed scenes in Program Run for stand alone operation
• Number of scenes in Program Run can be changed individually
  The scenes in Program Run can be modified via the Control Board or via an external controller and loaded into the memory
• 8 built-in programs can be called up via DMX-controller
  Sound-controlled via built-in microphone
  For extremely bright MSR 575/2 lamp
• DMX-control via every standard DMX-controller

English

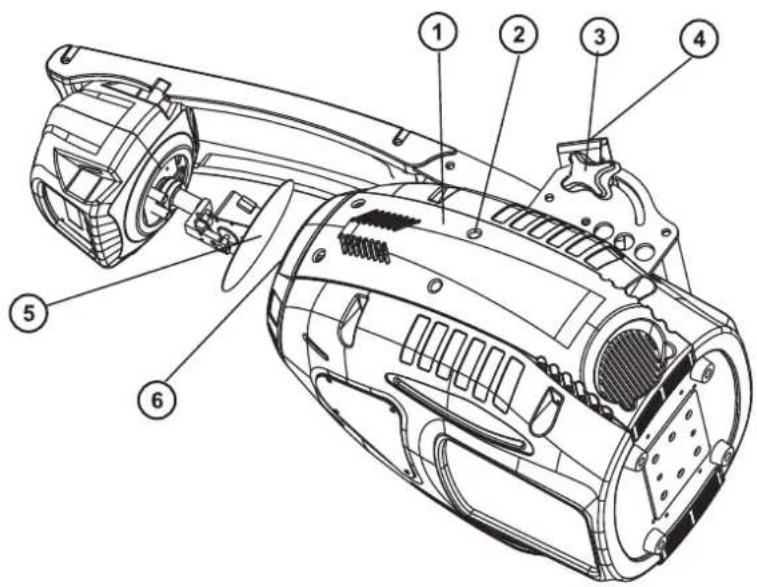

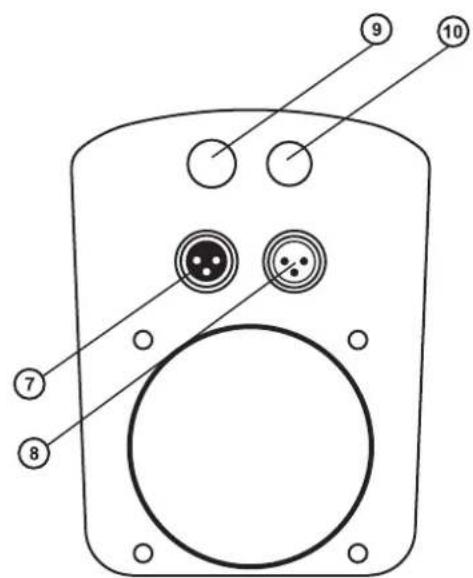

Overview

(1) Housing cover
(2) Housing screws
(3) Fixation screw
(4) Mounting bracket
(5) Mirror
(6) Objective-lens/Focus

(7) DMX-Out socket
(8) DMX-In socket
(9) Power supply
(10) Fuseholder

INSTALLATION

Installing/Replacing the lamp

DANGER TO LIFE!

Only install the lamp with the device switched off! Unplug from mains before!

For the installation, you need one MSR-575/2 lamp.

The lamp must only be changed when wearing appropriate protective clothing (protection glasses, protection gloves, helmet with sight, leather apron).

CAUTION!

The lamp has to be replaced when it is damaged or deformed due to the heat!

The lamp life given by the manufacturer must never be exceeded. This is why you need to take notes on the operational time of the lamp or check the operating hour meter regularly and replace the lamp in time. Keep exchanged lamp in a protective container and remove accordingly. During the operation, the lamp reaches temperatures of up to 600^ C.

Before replacing the lamp, unplug mains lead and let the lamp cool down (approx. 10 minutes).

During the installation do not touch the glass-bulbs bare-handed! Please follow the lamp manufacturer's notes!

Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the device was not designed for. Damages caused by non-observation are not subject to warranty.

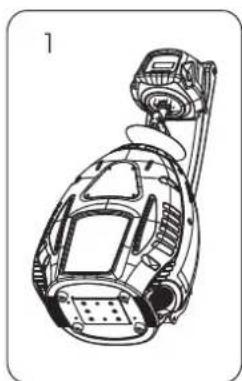

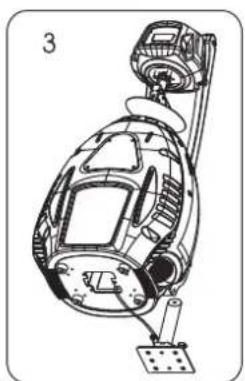

Procedure:

Step 1: Unscrew the fixation screws A, B, C of the lamp system and carefully remove it from the housing.
Step 2: If replacing the lamp, remove the old lamp from the lamp holder.
Step 3: Insert the lamp into the lamp holder.
Step 4: Replace the lamp system in the housing and tighten the fixation screws.
Step 5: Adjust the lamp as described under lamp adjustment.

Do not operate this device with opened cover!

English

Lamp adjustment

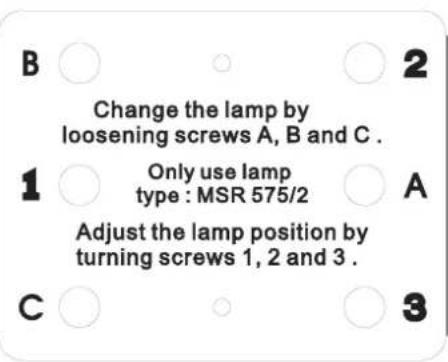

The lampholder is aligned at the factory. Due to differences between lamps, fine adjustment may improve light performance.

Strike the lamp, open the shutter, set the dimmer intensity onto 100 % and direct the light towards a flat surface (wall). Center the hot-spot (the brightest part of the beam) using the 3 adjustment screws "1, 2, 3". Turn one screw at a time to drag the hot-spot diagonally across the projected image. If you cannot detect a hot-spot, adjust the lamp until the light is even.

To reduce a hot-spot, pull the lamp in by turning all three screws "1, 2, 3" clockwise 14 -turn at a time until the light is evenly distributed.

If the light is brighter around the edge than it is in the center, or if light output is low, the lamp is too far back in the reflector. "Push" the lamp out by turning the screws "1, 2, 3" counterclockwise 14 -turn at a time the light is bright and evenly distributed.

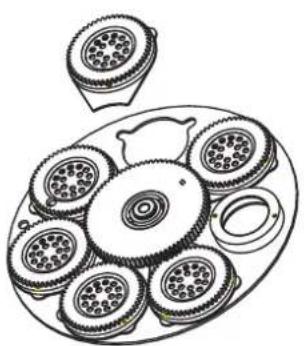

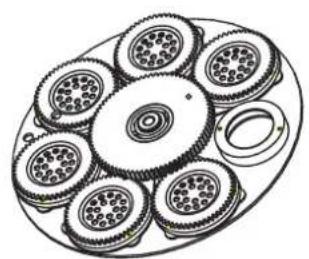

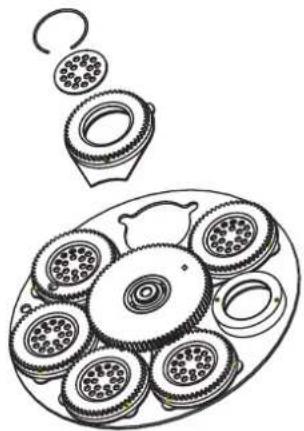

Inserting/Exchanging gobos

DANGER! Install the gobos with the device switched off only. Unplug from mains before!

If you wish to use other forms and patterns as the standard-gobos, or if gobos are to be exchanged, please follow the instructions below:

CAUTION! Never unscrew the screws of the rotating gobo as the ball bearing will otherwise be opened!

Remove the fixation-ring with an appropriate tool. Remove the gobo and insert the new gobo. Press the fixation-ring together and insert it in front of the gobo.

When installing metal gobos, please make sure that the mirror-inverted side points to the lamp. When installing glas-gobos, please make sure that the coated side points away from the lamp.

Notes! Slot-in gobo-system for exchanging gobos without tools! Inserting/Exchanging gobos as described above.

Overhead rigging

DANGER TO LIFE!

Please consider the EN 60598-2-17 and the respective national norms during the installation! The installation must only be carried out by an authorized dealer!

The installation of the projector has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.

The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.

When rigging, derigging or servicing the fixture staying in the area below the installation place, on bridges, under high working places and other endangered areas is forbidden.

The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the first time and after changes before taking into operation another time.

The operator has to make sure that safety-relating and machine-technical installations are approved by an expert after every four year in the course of an acceptance test.

The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year.

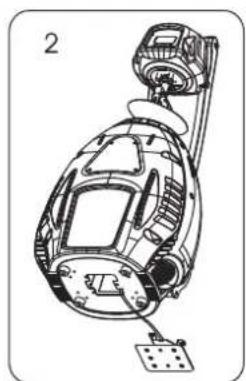

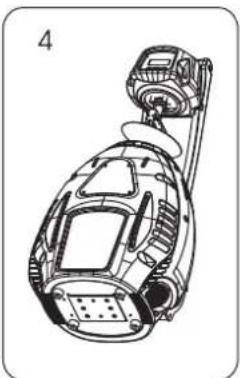

Procedure:

The projector should be installed outside areas where persons may walk by or be seated.

IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to) calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the projector. If you lack these qualifications, do not attempt the installation yourself, but instead use a professional structural rigger. Improper installation can result in bodily injury and/or damage to property.

The projector has to be installed out of the reach of people.

If the projector shall be lowered from the ceiling or high joists, professional trussing systems have to be used. The projector must never be fixed swinging freely in the room.

Caution: Projectors may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do NOT install the projector!

Before rigging make sure that the installation area can hold a minimum point load of 10 times the projector's weight.

DANGER OF FIRE!

When installing the device, make sure there is no highly-inflammable material (decoration articles, etc.) within a distance of min. 0.5m

Mount the projector with the mounting-bracket to your trussing system using an appropriate clamp.

For overhead use, always install an appropriate safety bond.

You must only use safety bonds complying with DIN 56927, quick links complying with DIN 56926, shackles complying with DIN EN 1677-1 and BGV C1 carbines. The safety bonds, quick links, shackles and the carbines must be sufficiently dimensioned and used correctly in accordance with the latest industrial safety regulations (e.g. BGV C1, BGI 810-3).

English

Please note: for overhead rigging in public or industrial areas, a series of safety instructions have to be followed that this manual can only give in part. The operator must therefore inform himself on the current safety instructions and consider them.

The manufacturer cannot be made liable for damages caused by incorrect installations or insufficient safety precautions!

Pull the safety bond through the hole in the mounting-bracket and over the trussing system or a safe fixation spot. Insert the end in the quick link and tighten the safety screw.

The maximum drop distance must never exceed 20~cm

A safety bond which already held the strain of a crash or which is defective must not be used again.

Adjust the desired inclination-angle via the mounting-bracket and tighten the fixation screws.

DANGER TO LIFE!

Before taking into operation for the first time, the installation has to be approved by an expert!

DMX-512 connection / connection between fixtures

The wires must not come into contact with each other, otherwise the fixtures will not work at all, or will not work properly.

Please note, the starting address depends upon which controller is being used.

Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller with the fixture or one fixture with another.

English

Occupation of the XLR-connection:

DMX-output

XLR mounting-socket:

1: Ground
2: Signal (-)
3: Signal (+)

DMX-input

XLR mounting-plug:

1:Ground
2: Signal (-)
3: Signal (+)

If you are using controllers with this occupation, you can connect the DMX-output of the controller directly with the DMX-input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-outputs, you need to use adapter-cables.

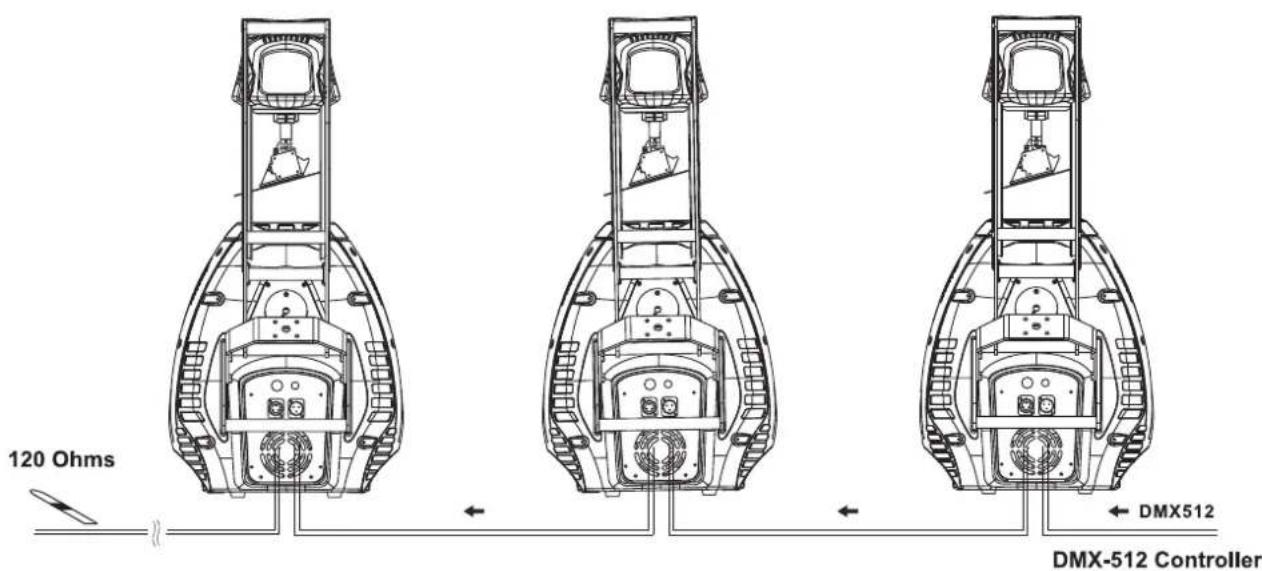

Building a serial DMX-chain:

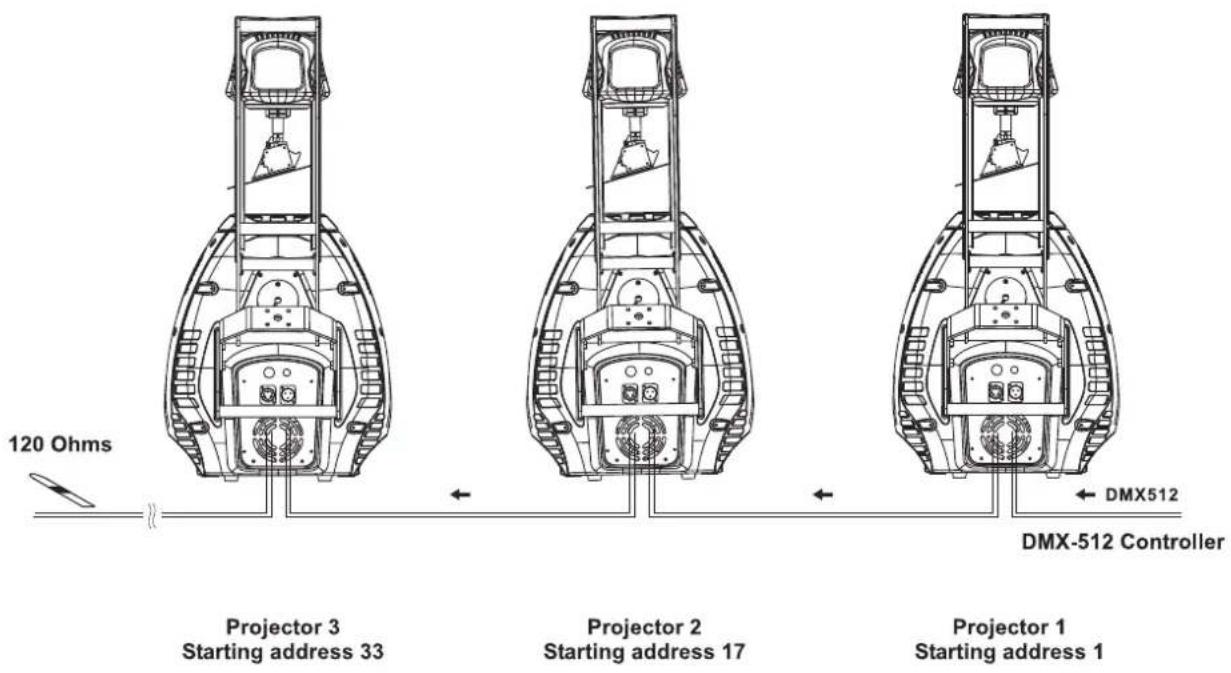

Connect the DMX-output of the first fixture in the DMX-chain with the DMX-input of the next fixture. Always connect one output with the input of the next fixture until all fixtures are connected.

Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ω resistor between Signal (-) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.

Connection with the mains

Connect the device to the mains with the enclosed power supply cable.

The occupation of the connection-cables is as follows:

Cable Pin International
Brown Live L
Blue Neutral N
Yellow/Green Earth

The earth has to be connected!

If the device will be directly connected with the local power supply network, a disconnection switch with a minimum opening of 3mm at every pole has to be included in the permanent electrical installation.

The device must only be connected with an electric installation carried out in compliance with the IEC-standards. The electric installation must be equipped with a Residual Current Device (RCD) with a maximum fault current of 30mA .

Lighting effects must not be connected to dimming-packs.

OPERATION

After you connected the effect to the mains, the PSX-575 starts running. During the Reset, the motors are trimmed and the device is ready for use afterwards.

Stand Alone operation

In the Stand Alone mode, the PSX-575 can be used without controller. Disconnect the PSX-575 from the controller and call the internal program

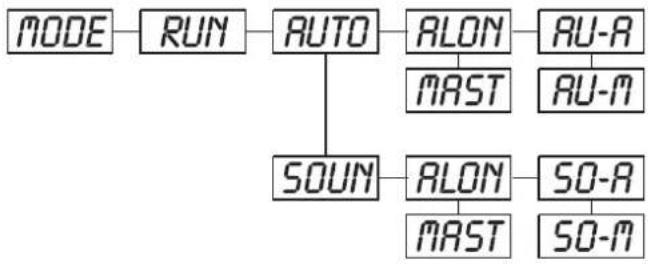

1. Press [MODE/ENTER] button to enter the main menu "MODE" (display flashing)
2. Press [MODE/ENTER] and select "RUN" by pressing [UP] button.
3. Press [MODE/ENTER] and select "AUTO" by pressing [UP] button.
4. Press [MODE/ENTER] and select "ALONE" by pressing [UP] button.
5. Press 3 x [EXIT] to confirm, the display shows "AU-A".

Please refer to the instructions under Control Board, Main functions, menus Run and Edit.

DMX-controlled operation

You can control the projectors individually via your DMX-controller. Every DMX-channel has a different occupation with different features. The individual channels and their features are listed under DMX-protocol.

Addressing

The Control Board allows you to assign the DMX starting address, which is defined as the first channel from which the PSX-575 will respond to the controller.

Please, be sure that you don't have any overlapping channels in order to control each PSX-575 correctly and independently from any other fixture on the DMX-chain.

If several PSX-575 are addressed similarly, they will work synchronically.

Press the Up/Down buttons for setting the desired starting address. Now you can start operating the PSX-575 via your lighting controller.

Note:

The modes of DMX 512 data and lamp are shown via the display:

1. After switching on, the device will automatically detect whether DMX 512 data is received or not. If the data is received, the display will show "A.001" with the actually set address. If there is no data received at the DMX-input, the display will flash "A001" with the actually set address.

This situation can occur if:

• the 3 PIN XLR plug (cable with DMX signal from controller) is not connected with the input of the device.
• the controller is switched off or defective, if the cable or connector is defective or the signal wires are swap in the input connector.

Note:

It's necessary to insert the XLR termination plug (with 120 Ohm) in the last lighting in the link in order to ensure proper transmission on the DMX data link.

1. If the lamp is on, the display will show "A00.1" with the actually set address. If the lamp is off, the display will show "A001" with the actually set address.

DMX-protocol

Control-channel 1 - Horizontal movement (Pan)

Push slider up in order to move the head horizontally (PAN).

Gradual head adjustment from one end of the slider to the other (0-255, 128-center).

The head can be stopped at any position you wish.

Control-channel 2 - Vertical movement (Tilt)

Push slider up in order to move the head vertically (TILT).

Gradual head adjustment from one end of the slider to the other (0-255, 128-center).

The head can be stopped at any position you wish.

Control-channel 3 - Pan/Tilt-speed

Decimal Hexad. Percentage S/F Feature

0	225	00 E1 0%	88% F	Decreasing	speed
226	235	E2 E8 89%	92%	S Blackout	at Pan/Tilt-movement
236	245	EC F5 93%	96%	S Blackout	at colour/gobo-change
246	255	F6 FF 96%	100%	S No functon	on

Control-channel 4 - Colour-wheel

Linear colour change following the movement of the slider.

In this way you can stop the colour-wheel in any position.

Decimal Hexad. Percentage S/F Feature

0	13	00	0D	0%	5%	S	O	pen / white
14	27	0E	1B	5%	1%	S	Red
28	41	1C	29	11%	16%	S	Blue
42	55	2A	37	16%	22%	S	Green
56	69	3B	45	22%	27%	S	Yellow
70	83	4G	53	27%	33%	S	Rose
84	97	5F	61	33%	38%	S	Salmon	pink
98	111		62	6F	38%	44%	S	Purple
112	127		70	7F	44%	50%	S	Pink
128	187		80	BB	50%	73%	F	Forwards rainbow effect with decreasing speed
188	193		BC	C1	74%	76%	S	No rotation
194	255		C2	FF	76%	100%	F	Backwards rainbow effect with increasing speed

Control-channel 5 - Static gobo-wheel, gobo shake

Decimal Hexad. Percentage S/F Feature

0	13 0	0D	0%	5%	S O	pen
14	27	0E	1B	5%	11%	S Gobo	1
28	41	1C	29	11%	16%	S Gobo	2
42	55	2A	37	16%	22%	S Gobo	3
56	69	38	45	22%	27%	S Gobo	4
70	83	46	53	27%	33%	S Gobo	5
84	97	54	61	33%	38%	S Gobo	6
98	111	62	6F	38%	44%	S	Gobo 7
112	127	70	7F	44%	50%	F	Gobo 1 shake with increasing speed
128	143	80	8F	50%	56%	F	Gobo 2 shake with increasing speed
144	159	90	9F	56%	62%	F	Gobo 3 shake with increasing speed
160	175	A0	AF	63%	69%	F	Gobo 4 shake with increasing speed
176	191	B0	BF	69%	75%	F	Gobo 5 shake with increasing speed
192	207	C0	CF	75%	81%	F	Gobo 6 shake with increasing speed
208	223	D0	DF	82%	87%	F	Gobo 7 shake with increasing speed
224	255	E0	FF	88%	100%	F	Cont. gobo-wheel rotation with increasing speed

Control-channel 6 - Rotating gobo-wheel, gobo shake

Decimal Hexad. Percentage S/F Feature

0	9 00	09	0% 4% $ Open
10	19	0A	13	4%	7%	S	Rot. gobo 1
20	29 14	1D	8%	1% S Rot. gobo 2
30	39	1E	27 12% 15% S Rot. gobo 3
40	49 28	31	16%	19% S Rot. gobo 4
50	59 32	3B	20%	23% S Rot. gobo 5
60	69	3C	45 24% 27% S Rot. gobo 6
70	89	46	59	27%	35%	F	Gobo 1 shake with increasing speed
90	109	5A	6D	35%	43%	F	Gobo 2 shake with increasing speed
110	129	6E	81	43%	51%	F	Gobo 3 shake with increasing speed
130	149	82	95	51%	58%	F	Gobo 4 shake with increasing speed
150	169	96	A9	59%	66%	F	Gobo 5 shake with increasing speed
170	189	AA	BD	67%	74%	F	Gobo 6 shake with increasing speed
190	255	BE	FF	75%	100%	F	Cont. gobo-wheel rotation with increasing speed

Control-channel 7 - Rotating gobo index, gobo rotation

Decimal Hexad. Percentage S/F Feature
0	127	00 7F 0%	50% S	Gobo	indexing
128	187	30 BB 50%	73%	F Forwards	gobo rotation with decreasing speed
188	193	BC C1 74%	76%	S No rotation
194	255	C2 FF 76%	100%	F Backwards gobo rotation with increasing speed

Control-channel 8 - Rotating 3-facet-prism, macros

Decimal Hexad. Percentage S/F Feature
0	3 00	03	0% 1%	S Open
4	63 04	3F	2% 25% F	Forwards rotation with decreasing speed
64	67 40	43	25% 26% S No	rotation
68	127	44 7F	27% 50% F Backwards rotation with increasing speed
128	135	80 87	50% 53% S Macro	1
136	143	88 8F	53% 56% S Macro	2
144	151	90 97	56% 59% S Macro	3
152	159	98 9F	60% 62% S Macro	4
160	167	A0	A7	63%	65%	S Macro 5
168	175	A8	AF	66%	69%	S Macro 6
176	183	B0	B7	69%	72%	S Macro 7
184	191	B8	BF	72%	75%	S Macro 8
192	199	C0	7 75%	78%	S Macro 9
200	207	C8	78%	81%	S Macro 10
208	215	D0	7 82%	84%	S Macro 11
216	223	D8	F 85%	87%	S Macro 12
224	231	E0	E7	88%	91%	S Macro 13
232	239	E8	EF	91%	94%	S Macro 14
240	247	F0 F7		94%	97% S Macro	15
248	255	F8 FF	97%	100%	S Macro 16

Control-channel 9 - Focus & Zoom

Decimal Hexad. Percentage S/F Feature
0	85	00	55	0%	33%	F	Zoom 1 & Continuous adjustment from near to far
86	171	56	A B	34%	67%	F Zoom	2 & Continuous adjustment from near to far
172	255	AC		FF	67%	100%	F Zoom 3 & Continuous adjustment from near to far

Control-channel 10 - Shutter, strobe

Decimal Hexad. Percentage S/F Feature
0	31 00	1F	0%	12% S	shutter	closed
32	63 20	3F	13%	25% S	No function (shutter open)
64	95 40	5F	25%	37% F	Strobe-effect with increasing speed
96	127	60 7F	38%	50% S	No function (shutter open)
128	159	80 9F	50%	62% F	Pulse effect in sequence
160	191	A0	BF	63%	75%	S No function (shutter open)
192	223	C0 D	75%	87%	F Random strobe-effect with increasing speed
224	255	E0	FF	88%	100%	S No function (shutter open)

Control-channel 11 - Dimmer intensity

Decimal Hexad. Percentage S/F Feature
0	255 00 FF 0%	100% F Gradual adjustment of the dimmer intensity from 0 to 100 %

Control-channel 12 - Iris

Decimal Hexad. Percentage S/F Feature
0	191	00 BF 0%	75% F	Max. diameter to min. diameter
192	223	C0 DF 75%	87%	F Pulse closing with decreasing speed
224	255	E0 FF 88%	100%	F Pulse opening with increasing speed

Control-channel 13 - Frost

Decimal Hexad. Percentage S/F Feature
0	191	00	BF	0%	75%	Frost	from 0 to 100 %
192	223	C0	DF	75%	87%	F Pulse opening with decreasing speed
224	254	E0	FE	88%	100%	F	Pulse closing with increasing speed
255	255	FF	FF	100%	100%	S 100 %	Frost

Control-channel 14 - Switching the lamp, Reset, internal programs

Decimal Hexad. Percentage S/F Feature
0	31	00	1F	0%	12%	S	Normal colour- and gobo-change, search position via shortest distance
32	47	20	2F	13%	18%	S	Colour-change at every position, search position via shortest distance
48	63	30	3F	19%	25%	S	Colour- and gobo-change at every position, search position via shortest distance
64	79	40	4F	25%	31%	S Lamp on
80	95	50	5F	31%	37%	S Reset
96	111	60	6F	38%	44%	S Internal program 1
112	127	70	7F	44%	50%	S Internal program 2
128	143	80	8F	50%	56%	S Internal program 3
144	159	90	9F	56%	62%	S Internal program 4
160	175	A0	AF	63%	69%	S Internal program 5
176	191	B0	BF	69%	75%	S Internal program 6
192	207	C0	CF	75%	81%	S Internal program 7
208	223	D0	DF	82%	87%	S Internal program 8
224	239	E0	EF	88%	94%	S Lamp off
240	255	F0	FF	94%	100%	S No functon

Control-channel 15 - Pan-movement with 16 Bit-resolution

Control-channel 16 - Tilt-movement with 16 Bit-resolution

English

Control Board

The Control Board offers several features: you can simply set the starting address, switch on and off the lamp, run the pre-programmed program or make a reset.

The main menu is accessed by pressing the Mode/Enter-button until the display starts flashing. Browse through the menu by pressing Up or Down. Press the Mode/Enter-button in order to select the desired menu. You can change the selection by pressing Up or Down. Confirm every selection by pressing the Mode/Enter-button. You can leave every mode by pressing the Exit-button. The functions provided are described in the following sections.

Default settings shaded.

	Main menu	Sub menu	Extension Display Function
0	MODE	ADDR	VALU A001 ~	AXXX DMX address setting
			SLAV ON/OFF (SLAV) Slave setting
			EBOC ON/OFF Change DMX address via external controller
		RUN		ALON (AU-A) Automatic Program Run in Stand AloneAUTO
				MAST (AU-M) Automatic Program Run as Master
			SOUN	ALON (SO-A) Sound-control Program Run in Stand Alone
				MAST (SO-M) Sound-controlled Program Run as Master

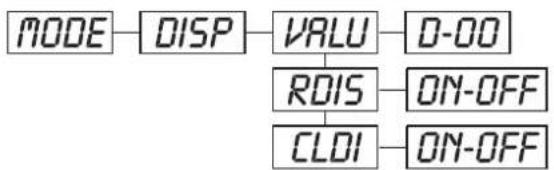

		DISP	VALU D-XX ~	D-00 (DXXX) Dispay the DMX 512 value of each channel
			RDIS	ON/OFF	Reverse display
			CLDI	ON/OFF	Shut off LED display

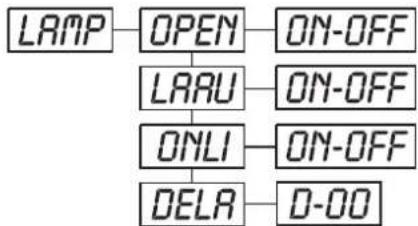

1	LAMP	OPEN	ON/OFF		Lamp on/off
		LAAU	ON/OFF		Lamp on/off/Power switch
		ONLI	ON/OFF		Lamp on/off via controller
		DELA	D-XX ~ D-05		Delay lamp on

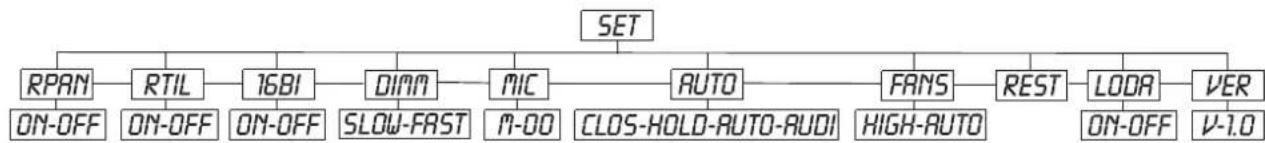

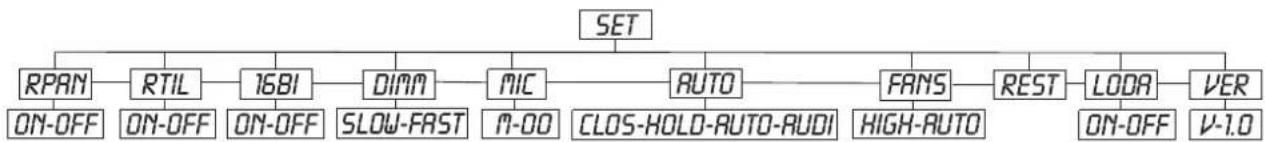

2	SET	RPAN	ON/OFF		Pan Reverse
		RTIL	ON/OFF		Tilt Reverse
		16BI	ON/OFF		Switch 16 bit/8 bit
		DIMM	SLOW/FAST		Dimming speed select
		MIC	M-XX ~ M-70		Mic sensitivity
		AUTO	CLOS/HOLD/AUTO/AUDI		Status if no DMX-signal
		FANS	HIGH/AUTO		Fan's mode select
		REST			Reset
		LODA	ON/OFF		Restore factory settings
		VER	V-1.0~V-9.9		Software version

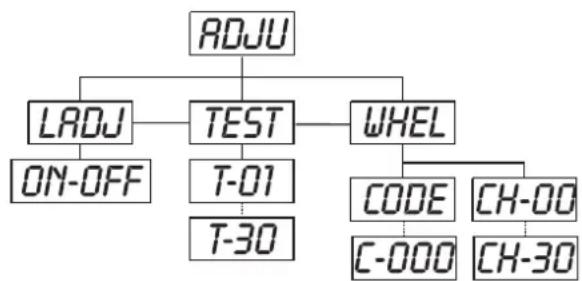

3	ADJU	LADJ	ON/OFF		Lamp adjustment
		TEST	T-01 ~ T-30		Test function of each channel
		WHEL	CODE	CXXX	Calibrate and adjust the effect wheels
			CH01~ CH30	XXXX (-128 ~ 127)	Select channel

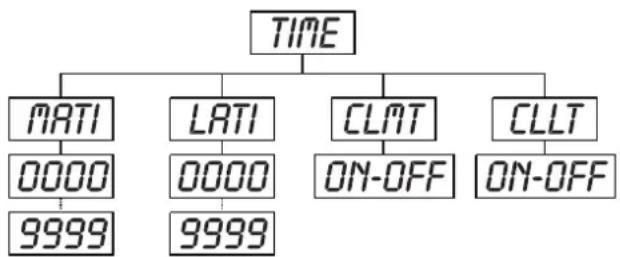

4	TIME	MATI	0000~9999 (hours)		Fixture running time
		LATI	0000~9999 (hours)		Lamp running time
		CLMT	ON/OFF		Service-function
		CLLT	ON/OFF		Clear lamp time

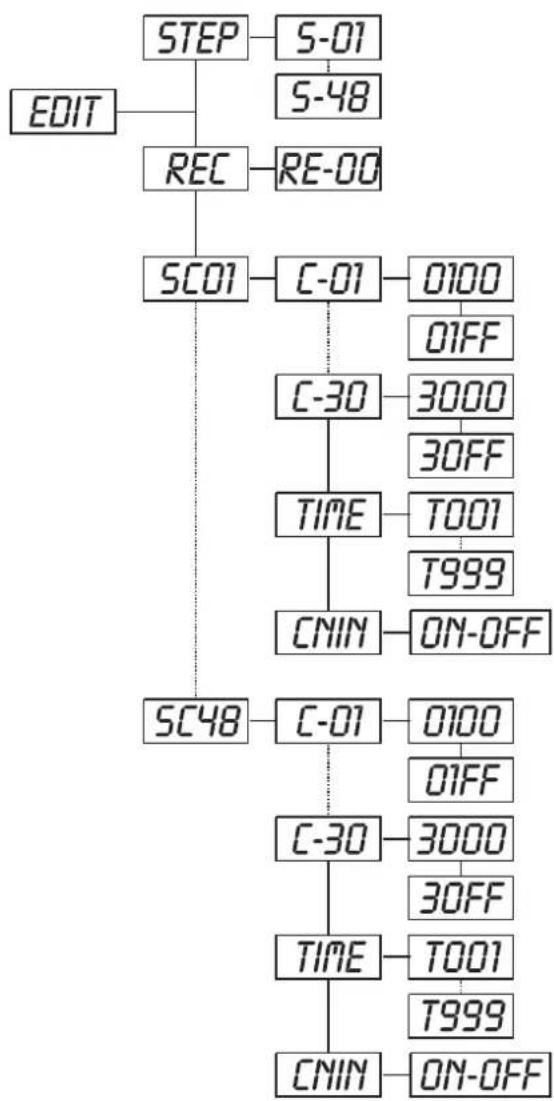

5	EDIT	STEP	S-01 ~ S-48		Steps of Program Run
		REC	RE-XX		Auto scenes rec
		SC01~SC48	C01 ~ C30	01XX (00~FFH)30XX (00~FFH)	Edit the channels of each scene
			TIME (sec.)	T XXX (001~999)	Time for each scene
			CNIN	ON/OFF	Edit program via controller

Main functions

MODE -Main menu 0

• Press [MODE/ENTER] to enter the main menu "MODE" (display flashing)
• Press [MODE/ENTER] and select "ADDR", "RUN" or "DISP" by pressing [UP] or [DN].
• Press [MODE/ENTER] for selecting the desired sub menu.

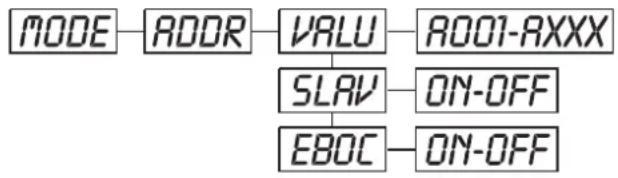

ADDR - DMX address setting, Slave setting

VALU - DMX address setting

With this function, you can adjust the desired DMX-address via the Control Board.

• Select "VALU" by pressing [UP] or [DN].
• Press [MODE/ENTER], adjust the DMX address by pressing [UP] or [DN].
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to main menu.

SLAV - Slave setting

With this function, you can define the device as slave.

• Select "SLAV" by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "ON" or "OFF".
• Press [UP] to select "ON" if you wish to enable this function or [DN] to select "OFF" if you don't.
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

EBOC - DMX address setting via controller

With this function, you can adjust the desired DMX-address via an external controller.

This function can only be activated when the DMX-value of all other channels is set to "0" on the controller.

• Select "EBOC" by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "ON" or "OFF".
• Press [UP] to select "ON" if you wish to enable this function or [DN] to select "OFF" if you don't.
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.
• On the controller, set the DMX-value of channel 1 to "7".
• Set the DMX-value of channel 2 to "7" or "8". When set to "7" you can adjust the starting address between 1 and 255. When set to "8" you can adjust the starting address between 256 and 511.
• Set the DMX-value of channel 3 to the desired starting address. If you want to set the starting address to 57, set channel 1 to "7", channel 2 to "7" and channel 3 to "57". If you want to set the starting address to 420, set channel 1 to "7", channel 2 to "8" and channel 3 to "164" (256+164=420).
• Wait for approx. 20 seconds and the unit will carry out a reset. After that, the new starting address is set.

English

RUN

- Program Run, Master setting

With the function "RUN", you can run the internal program. You can set the number of steps under Step. You can edit the individual scenes under Edit. You can run the individual scenes either automatically (AUTO), i.e. with the adjusted Step-Time or sound-controlled (SOUN). The selection "ALON" means Stand Alone-mode and "MAST" that the device is defined as master.

• Select "AUTO" or "SOUN" by pressing [UP] or [DN].
• Press [MODE/ENTER] for selecting the desired extension menu.
• Select "ALON" or "MAST" by pressing [UP] or [DN].
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

DISP

• Display the DMX-value, Reverse display, Shut off LED display

VALU

-Display the DMX 512 value of each channel

With this function you can display the DMX 512 value of each channel.

• Select "VALU" by pressing [UP] or [DN].

• Press [MODE/ENTER] to confirm; the display shows "D-00". In this setting, the DMX-adjustment of every channel will be displayed.

• Press [UP] in order to select the desired channel. If you select "D-14" the display will only show the DMX-value of the 14^th channel.

• Press [MODE/ENTER] to confirm.

• The display shows "D-XX", "X" stands for the DMX-value of the selected channel.

• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

ROIS

- Reverse display

With this function you can rotate the display by 180^ .

• Select "RDIS" by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "ON" or "OFF".
• Press [UP] to select "ON" if you wish to enable this function (the display will rotate by 180^ ) or [DN] to select "OFF" if you don't.
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

CLDI

- Shut off LED display

With this function you can shut off the LED display after 2 minutes.

• Select "CLDI" by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "ON" or "OFF".
• Press [UP] to select "ON" if you wish to enable this function (the display will rotate by 180^ ) or [DN] to select "OFF" if you don't.
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

English

LAMP

• Main menu 1

• Press [MODE/ENTER] to enter the main menu (display flashing).
• Press [UP] or [DN] to select "LAMP".

OPEN - Lamp on/off

With this function you can switch the lamp on or off via the Control Board.

• Select "OPEN" by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "ON" or "OFF".
• Press [UP] to select "ON" if you wish to enable this function or [DN] to select "OFF" if you don't.
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

LARR - Lamp on/off via power switch

With this function you can switch the lamp on or off via the power switch.

• Select "LAAU" by pressing [UP] or [DN].
• Press [ENTER], the display shows "ON" or "OFF".
• Press [UP] to select "ON" if you wish to enable this function or "OFF" if you don't.
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

ONLI - Lamp on/off via external controller

With this function you can switch the lamp on or off via an external controller.

• Select "ONLI" by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "ON" or "OFF".
• Press [UP] to select "ON" if you wish to enable this function or [DN] to select "OFF" if you don't.
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

DEL - Delay lamp on

With this function you can delay the lamp ignition.

• Select "DELA" by pressing [UP] or [DN].
• Press [MODE/ENTER] to confirm; the display shows "D-00". In this setting, the lamp will be ignited immediately.
• Press [UP] to select the desired delay between "00" and "59" minutes. If you select "D-03" the lamp will be ignited after 3 minutes.
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

SET -Main menu 2

• Press [MODE/ENTER] to enter the main menu (display flashing).
• Press [UP] or [DN] to select "SET".

English

Rpan -Pan Reverse

With this function you can reverse the Pan-movement.

• Select "RPAN" by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "ON" or "OFF".
• Press [UP] to select "ON" if you wish to enable this function or [DN] to select "OFF" if you don't.
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

RTIL - Tilt Reverse

With this function you can reverse the Tilt-movement.

• Select "RTIL" by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "ON" or "OFF".
• Press [UP] to select "ON" if you wish to enable this function or [DN] to select "OFF" if you don't.
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

15BI-Switch 16 bit/8 bit

With this function you can switch the device from 16 bit to 8 bit resolution.

• Select "16Bl" by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "ON" or "OFF".
• Press [UP] or [DN] to select "ON" in order to set 16 bit, or "OFF" in order to set 8 bit. The channels PAN Fine and TILT Fine will be disabled.
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

DIN - Adjust dimming speed

With this function you can adjust the dimming speed.

• Select "DIMM" by pressing [UP] or [DN].
• Press [MODE/ENTER] to confirm; the display shows "FAST".
• Press [UP] to select "SLOW" or "FAST".
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

Caution:

If several connected devices should be dimmed and there are devices with older software-versions, the dimm speed SLOW must be selected in order to maintain compatibility!

MIC - Mic sensitivity

With this function, you can select the desired microphone sensitivity between 0% and 99% .

• Select "MIC" by pressing [UP] or [DN].
• Press [MODE/ENTER] to confirm; the display shows "M-70".
• Press [UP] to select the desired sensitivity.
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

RUTO - Status if no DMX-signal

With this function, you can select the status for the case that there is no DMX-signal. You can choose between „CLOS" for Blackout, „HOLD" for holding the last position, „AUTO" for running the internal program and „AUDI" for the sound-controlled program-run.

• Select "AUTO" by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "CLOS".
• Press [[UP] or [DN] to select between "CLOS", "HOLD", "AUTO" and "AUDI".
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

English

With this function, you can adjust the ventilation fan.

• Select "FANS" by pressing [UP] or [DN].
• Press [MODE/ENTER] to confirm; the display shows "AUTO".
• Press [UP] to select "HIGH" or "AUTO".
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

REST -Reset

With this function you can Reset the device via the Control Board.

• Select "REST" by pressing [UP] or [DN].
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

LOOR -Restore factory settings

With this function you can restore the factory settings of the device. All settings will be set back to the default values (shaded). Any edited scenes will be lost.

• Select "LODA" by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "ON" or "OFF".
• Press [UP] to select “ON” if you wish to enable this function or [DN] to select “OFF” if you don’t.
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

VER - Software version

With this function you can display the software version of the device.

• Select "VER" by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "V-X.X", "X.X" stands for the version number, e.g. "V-1.0", "V-2.6".
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

ADJU -Main menu 3

• Press [MODE/ENTER] to enter the main menu (display flashing).
• Press [UP] or [DN] to select "ADJU".

LADJ - Lamp adjustment

With this function you can adjust the lamp via the Control Board. The shutter opens and the lamp can be adjusted. In this mode, the device will not react to any control signal.

• Select "LADJ" by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "ON" or "OFF".
• Press [UP] or [DN] to select "ON" if you wish to enable this function or "OFF" if you don't.
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

English

TEST - Test function of each channel

With this function you can test each channel on its (correct) function.

• Select "TEST" by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "T-XX", "X" stands for the channel number.
• The current channel will be tested.
• Select the desired channel by pressing [UP] or [DN].
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

WHEEL - Wheel adjustment

With this function, you can calibrate and adjust the effect wheels to their correct positions.

• Select "WHEL" by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "CODE".
• Press [MODE/ENTER], the display shows "CXXX".
• Enter the password "C050" by pressing [UP] or [DN].
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.
• Press [MODE/ENTER], the display shows "CH-XX", "X" stands for the channel number.
• Select the desired channel by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "XXXX", "X" stands for the calibration value.
• Adjust the desired calibration value between -128 and 127 by pressing [UP] or [DN].
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

TIME -Main menu 4

• Press [MODE/ENTER] to enter the main menu (display flashing).
• Press [UP] or [DN] to select "TIME".

MRTI - Fixture running time

With this function you can display the running time of the device.

• Select "MATI" by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "XXXX", "X" stands for the number of hours.
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

LRTI - Lamp running time

With this function you can display the running time of the lamp.

• Select "LATI" by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "XXXX", "X" stands for the number of hours.
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

CLLT - Clear lamp time

• With this function you can clear the running time of the lamp. Please clear the lamp time every time you replace the lamp.
• Select "CLLT" by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "ON" or "OFF".
• Press [UP] or [DN] to select "ON" if you wish to enable this function or "OFF" if you don't.
• Press [MODE/ENTER] to confirm.
• Press [EXIT] in order to return to the main menu.

Ed t - Main menu 5

• Press [MODE/ENTER] to enter the main menu (display flashing).
• Press [UP] to select "EDIT".

STEP - Define the number of steps in Run

With this function you can define the number of steps in the Program Run.

• Select "STEP" by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "S-XX", "X" stands for the total amount of steps you want to save, so you can call up to 48 scenes in "RUN". For example if the "XX" is 05, it means that "RUN" will run the first 5 scenes you saved in "EDIT".
• Press [MODE/ENTER] to save and exit.

REC - Auto scenes rec

With this function you can automatically record new scenes.

• Select "REC" by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "RE-XX", "X" stands for the total amount of memorizable scenes, you can call up in "RUN". For example if the "XX" is 05, it means that "RUN" will run the first 5 scenes you saved in "EDIT".
• Press [MODE/ENTER] to save and exit.

SC01 - Editing the channels of the individual scenes

With this function you can edit the program to be called up in Run.

a) Editing via the Control Board

• Select "SC01" by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "SCXX", "X" stands for the scene no. to be edited.
• Change the scene no. by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "C-XX", "XX" stands for the channel no. Such as "C-01", it means you are editing channel 1 of the selected scene.

• Select the channel no. you would like to edit by pressing [UP].

• Press [MODE/ENTER] to enter editing for the selected channel, the fixture reacts to your settings. The display shows the DMX value of the edited channel. Such as "11XX", it stands for channel 11 of the current scene, the DMX value is XX, XX is a hexadecimal number value "01-FF".

• Adjust the desired DMX value by pressing [UP] or [DN].
• Press [MODE/ENTER] in order to edit other channels of this scene.
• Repeat above steps until you finish setting all the DMX values for all channels of this scene.
• Once all the channels completed, the display will flash "TIME".
• Press [MODE/ENTER] to edit the time needed, the display shows "TXXX", "XXX" stands for the time needed to run the current scene, value "001-999". For example, "T002" means you need 0.4 ms (002 x 0.2 ms) to run the current scene.
• Adjust the desired time by pressing [UP] or [DN].
• Press [MODE/ENTER] to save the settings for the scene you are editing, the display will change to the next scene automatically.
• Repeat above steps to edit and other scenes, you can edit and save a maximum of 48 scenes.
• Press [EXIT] to exit. The number of steps can be defined under "STEP" and the scenes can be called up under "RUN"

English

b) Editing via the external controller

• Call up the first scene in your controller now.
• Select "SC01" by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "SC01".
• Press [MODE/ENTER], the display shows "C-01".
• Select "CNIN" by pressing [UP] or [DN].
• Press [MODE/ENTER], the display shows "OFF".
• Press [UP], the display shows "ON".
• Press [MODE/ENTER], the display shows "SC02". You successfully downloaded the first scene.
• Adjust the Step-time as described above.
• Call up the second scene in your controller now.
• Repeat steps 5-11 until all desired scenes are downloaded.
• Press [EXIT] to exit. The number of steps can be defined under "STEP" and the scenes can be called up under "RUN"

Error Messages

When you turn on the fixture, it will make a reset first. The display may show "XXEr" while there are problems with one or more channels. "XX" stands for the channels equipped with a testing sensor. For example, when the display shows "04Er", it means there is some error in channel 4. If there are some errors on channel 4, channel 5, channel 6 at the same time, you may see the error message "04Er", "05Er", "06Er" flash repeatedly for 5 times, and then the fixture will generate a reset signal, all the stepper motors will reset. If the error messages maintain after performing reset more than 3 times, it will detect whether the fixture has more than 3 errors. If the fixture has more than 3 errors (including 3 errors), all the channels can not work properly; but if the fixture has less than 3 errors, only the channels which have errors can not work properly, others can work as usual.

04Er:

(Color-wheel error) This message will appear after the reset of the fixture if the magnetic-indexing circuit malfunctions (sensor failed or magnet missing) or the stepping-motor is defective (or its drive circuit on the main PCB). The color wheel is not located in the default position after the reset.

05Er:

(Static gobo-wheel error) This message will appear after the reset of the picture if the magnetic-indexing circuit malfunctions (sensor failed or magnet missing) or the stepping-motor is defective (or its drive circuit on the main PCB). The static gobo-wheel is not located in the default position after the reset.

06Er:

(Rotating gobo-wheel error) This message will appear after the reset of the fixture if the magnetic-indexing circuit malfunctions(sensor failed or magnet missing) or the stepping-motor is defective (or its drive circuit on the main PCB). The rotating gobo-wheel is not located in the default position after the reset.

07Er:

(Rotating gobo indexing error) This message will appear after the reset of the fixture and if the magnetic-indexing circuit malfunctions (sensor failed or magnet missing) or the stepping-motor is defective (or its driver circuit on the main PCB). The rotating gobo is not located in the default position after the reset.

08Er:

(Effect-wheel error) This message will appear after the reset of the fixture and if the magnetic-indexing circuit malfunctions (sensor failed or magnet missing) or the stepping-motor is defective (or its driver circuit on the main PCB). The effect-wheel is not located in the default position after the reset.

09Er:

Zoom error. This message will appear after the reset of the fixture and if the magnetic-indexing circuit malfunctions (sensor failed or magnet missing) or the stepping-motor is defective (or its driver circuit on the main PCB). The zoom is not located in the default position after the reset.

12Er:

(Iris error) This message will appear after the reset of the fixture and if the magnetic-indexing circuit malfunctions (sensor failed or magnet missing) or the stepping-motor is defective (or its driver circuit on the main PCB). The iris is not located in the default position after the reset.

CLEANING AND MAINTENANCE

The operator has to make sure that safety-relating and machine-technical installations are inspected by an expert after every four years in the course of an acceptance test.

The operator has to make sure that safety-relating and machine-technical installations are inspected by a skilled person once a year.

The following points have to be considered during the inspection:

1) All screws used for installing the devices or parts of the device have to be tightly connected and must not be corroded.
2) There must not be any deformations on housings, fixations and installation spots (ceiling, suspension, trussing).
3) Mechanically moved parts like axles, eyes and others must not show any traces of wearing (e.g. material abrading or damages) and must not rotate with unbalances.
4) The electric power supply cables must not show any damages, material fatigue (e.g. porous cables) or sediments. Further instructions depending on the installation spot and usage have to be adhered by a skilled installer and any safety problems have to be removed.

DANGER TO LIFE!

Disconnect from mains before starting maintenance operation!

We recommend a frequent cleaning of the device. Please use a moist, lint-free cloth. Never use alcohol or solvents!

CAUTION!

The lens has to be replaced when it is obviously damaged, so that its function is impaired, e. g. due to cracks or deep scratches!

The objective lens will require weekly cleaning as smoke-fluid tends to building up residues, reducing the light-output very quickly. The cooling-fans should be cleaned monthly.

The gobos may be cleaned with a soft brush. The interior of the fixture should be cleaned at least annually using a vacuum-cleaner or an air-jet.

The dichroic colour-filters, the gobo-wheel and the internal lenses should be cleaned monthly.

To ensure a proper function of the gobo-wheel, we recommend lubrication in six month intervals. The quantity of oil must not be excessive in order to avoid that oil runs out when the gobo-wheel rotates.

There are no serviceable parts inside the device. Maintenance and service operations are only to be carried out by authorized dealers.

Please refer to the instructions under "Installing/Replacing the lamp".

Replacing the fuse

If the fine-wire fuse of the device fuses, only replace the fuse by a fuse of same type and rating.

Before replacing the fuse, unplug mains lead.

Procedure:

Step 1: Open the fuseholder on the rearpanel with a fitting screwdriver.
Step 2: Remove the old fuse from the fuseholder.
Step 3: Install the new fuse in the fuseholder.
Step 4: Replace the fuseholder in the housing.

Should you need any spare parts, please use genuine parts.

If the power supply cable of this device becomes damaged, it has to be replaced by a special power supply cable available at your dealer.

Should you have further questions, please contact your dealer.

TECHNICAL SPECIFICATIONS

Power supply: 230 V AC, 50 Hz ~
Power consumption: 950 W
DMX-control-channels: 16
DMX-512-connection: 3-pin XLR
Flash-rate: 13 Hz
Colour-wheel: 8 dichroic filters and open
Static gobo-wheel: 7 gobos and open
Rotating gobo-wheel: 6 gobos and open
Outside diameter of the gobos: 27 mm
Image diameter of the gobos: 23 mm
Maximum PAN-movement 180°: in 0.85 s
Maximum TILT-movement 50°: in 0.83 s
Dimensions (LxWxH): 800 x 395 x 350 mm
Weight: 29 kg
Maximum ambient temperature Ta:	45°C
Maximum housing temperature TB (steady state):	97°C
Mindistance from flammable surfaces:	0.5 m
Min(distance to lighted object:	0.5 m
Fuse:	T 6.3 A, 250 V
Accessory:
GE CSR575/2 SE 95V/575W GX-9,5 1000h	No. 89107000
PHILIPS MSR575/2 95V/575W GX-9.5 1000h	No. 89107015
SYLVANIA BA575/2 SE NHR 95V/575W GX-9,5	No. 89107020
OSRAM HSR 575/72 95V/575W GX-9.5 1000h	No. 89107210
FUTURELIGHT CP-240 controller	No. 51834265
FUTURELIGHT CP-256/64 controller 16bit	No. 51834288
FUTURELIGHT CP-512/64 controller 16bit	No. 51834295
Wizard-512 USB DMX-Software + Interface	No. 51860102
Wizard-1024 USB DMX-Software + Interface	No. 51860110
FUTURELIGHT DES-3 DMX-terminator 3-pin	No. 51834001

Please note: Every information is subject to change without prior notice. 30.10.2007 ©

Français

MODE D'EMPLOI

Futurelight

PSX-575

DMX-Scanner

ATTENTION!

Change the lamp by loosening screws A, B and C.

1

Only use lamp type: MSR 575/

Adjust the lamp position by turning screws 1, 2 and 3.

C

2

A

SET -Menu principal 2

Selection 16 bit/8 bit

a) Editor via Control Board

Scanner professional con multi-step zoom

Change the lamp by loosening screws A, B and C.

1

Only use lamp type:MSR575/2

A

Adjust the lamp position by turning screws 1, 2 and 3.

C

3

Projector 3 Starting address 33
Projector 2 Starting address 17
Projector 1 Starting address 1

SET - Menu principal 2

Ed - Menu principal 5
