USER MANUAL PHW1200E Futurelight

MULTI-LANGUAGE-INSTRUCTIONS

Delivery includes 34

SAFETY INSTRUCTIONS 35

OPERATING DETERMINATIONS 36

DESCRIPTION OF THE DEVICE 38

Features 38

Overview 39

INSTALLATION 41

Installing/Replacing the lamp 41

Lamp adjustment. 42

Transport securing 42

Rigging 43

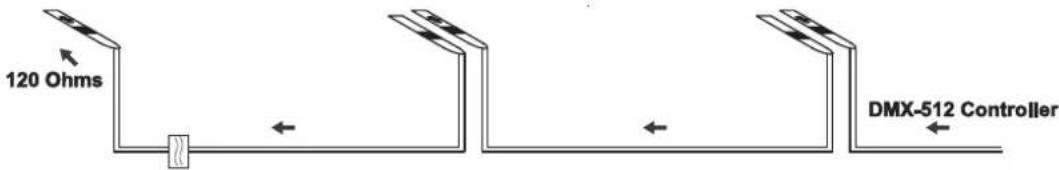

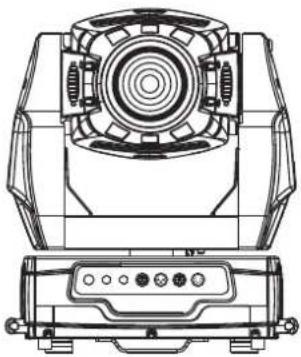

DMX-512 connection / connection between fixtures 45
Connection with the mains 46

OPERATION 46

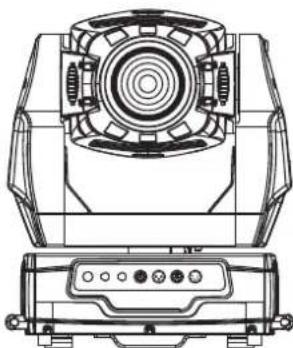

Stand Alone operation 46
DMX-controlled operation 46
Wireless DMX 46
Meaning of the LEDs and their colours 46
Installation of a wireless DMX-system 47
Log out one wireless receiver 47
Log out all wireless receivers from the sender 47
Addressing 47
DMX-protocol 48
Control Board 51
Function Mode 53
Information 53
Lamp Control. 55
Personality 55
Reset function 57
Effect Adjust 57
Users mode set 57
Edit program 57
Error Messages 59

CLEANING AND MAINTENANCE 60

Replacing the fuse 61

TECHNICAL SPECIFICATIONS 61

Français

INTRODUCTION 62

Features 66
Apercuedes parties 67

INSTALLATION 69

You can find the latest update of this user manual in the Internet under:

High-Power Multi-Functions Washlight

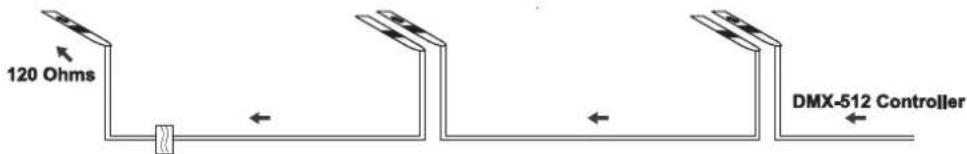

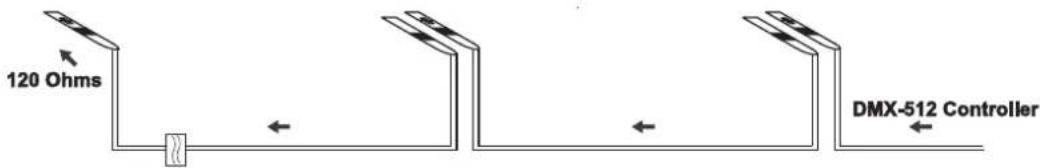

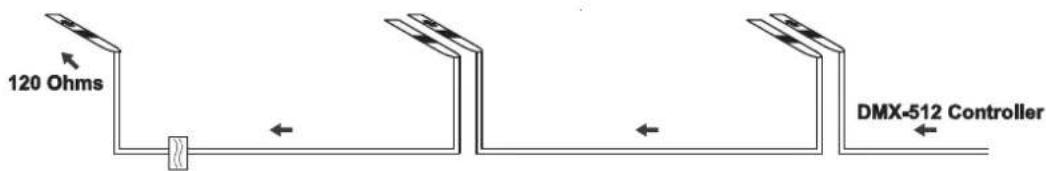

Projector 3 Starting address 35
Projector 2 Starting address 18
Projector 1 Starting address 1

CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing!

For your own safety, please read this user manual carefully before you initially start-up.

Every person involved with the installation, operation and maintenance of this device has to

• be qualified
• follow the instructions of this manual
• consider this manual to be part of the total product
• keep this manual for the entire service life of the product
• pass this manual on to every further owner or user of the product
• download the latest version of the user manual from the Internet

INTRODUCTION

Thank you for having chosen a FUTURELIGHT PHW-1200E. You will see you have acquired a powerful and versatile device.

Unpack your PHW-1200E and take it out of the flightcase.

Delivery includes

1 Device
1 User manual
1 Cable MC-50, 5m, black, XLR m/f,balanced 3022050N
1 PHILIPS MSR 1200SA/DE GOLD SFC 10-4 750h 89313015
1 Flightcase for 1x PHS-1200 incl.reelboard 51836869
2 FUTURELIGHT OC-1 Omega-clamp 51836995

SAFETY INSTRUCTIONS

CAUTION!

Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires!

This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

Please make sure that there are no obvious transport damages. Should you notice any damages on the A/C connection cable or on the casing, do not take the device into operation and immediately consult your local dealer.

This device falls under protection-class I. The power plug must only be plugged into a protection class I outlet. The voltage and frequency must exactly be the same as stated on the device. Wrong voltages or power outlets can lead to the destruction of the device and to mortal electrical shock.

Always plug in the power plug last. The power plug must always be inserted without force. Make sure that the plug is tightly connected with the outlet.

Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! Never touch them with wet hands, as this could lead to mortal electrical shock.

Never modify, bend, strain mechanically, put pressure on, pull or heat up the power cord. Never operate next to sources of heat or cold. Disregard can lead to power cord damages, fire or mortal electrical shock.

The cable insert or the female part in the device must never be strained. There must always be sufficient cable to the device. Otherwise, the cable may be damaged which may lead to mortal damage.

Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-cord from time to time.

If extension cords are used, make sure that the core diameter is sufficient for the required power consumption of the device. All warnings concerning the power cords are also valid for possible extension cords.

Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord. Otherwise, the cable or plug can be damaged leading to mortal electrical shock. If the power plug or the power switch is not accessible, the device must be disconnected via the mains.

If the power plug or the device is dusty, the device must be taken out of operation, disconnected and then be cleaned with a dry cloth. Dust can reduce the insulation which may lead to mortal electrical shock. More severe dirt in and at the device should only be removed by a specialist.

There must never enter any liquid into power outlets, extension cords or any holes in the housing of the device. If you suppose that also a minimal amount of liquid may have entered the device, it must immediately be disconnected. This is also valid, if the device was exposed to high humidity. Also if the device is still

English

running, the device must be checked by a specialist if the liquid has reduced any insulation. Reduced insulation can cause mortal electrical shock.

There must never be any objects entering into the device. This is especially valid for metal parts. If any metal parts like staples or coarse metal chips enter into the device, the device must be taken out of operation and disconnected immediately. Malfunction or short-circuits caused by metal parts may cause mortal injuries.

During the initial start-up some smoke or smell may arise. This is a normal process and does not necessarily mean that the device is defective.

Danger of burning! Never install the device on a highly flammable surfaces (e.g. fair carpet)!

Caution: During the operation, the housing becomes very hot.

Do not switch the device on and off in short intervals as this would reduce the lamp's life.

HEALTH HAZARD!

Never look directly into the light source, as sensitive persons may suffer an epileptic shock (especially meant for epileptics)!

Keep away children and amateurs!

Never leave this device running unattended.

OPERATING DETERMINATIONS

This device is a moving-head spot for creating decorative effects. This product is only allowed to be operated with an alternating current of 230V , 50Hz and was designed for indoor use only.

This device is designed for professional use, e.g. on stages, in discotheques, theatres etc.

Lighting effects are not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects.

Do not shake the device. Avoid brute force when installing or operating the device.

Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always hold the fixture at the transport handles.

When choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust. There should not be any cables lying around. Please make sure that the unit cannot be touched or bumped. You endanger your own and the safety of others!

This device must never be operated or stockpiled in sourroundings where splash water, rain, moisture or fog may harm the device. Moisture or very high humidity can reduce the insulation and lead to mortal electrical shocks. When using smoke machines, make sure that the device is never exposed to the direct smoke jet and is installed in a distance of 0.5 meters between smoke machine and device. The room must only be saturated with an amount of smoke that the visibility will always be more than 10 meters.

The ambient temperature must always be between -5^ and +45^ . Keep away from direct insulation (particularly in cars) and heaters.

The relative humidity must not exceed 50% with an ambient temperature of 45^

This device must only be operated in an altitude between -20 and 2000 m over NN.

Never use the device during thunderstorms. Over voltage could destroy the device. Always disconnect the device during thunderstorms.

English

The symbol - -m determines the minimum distance from lighted objects. The minimum distance between light-output and the illuminated surface must be more than this value.

The device must only be installed on a non-flammable surface. In order to safeguard sufficient ventilation, leave 50~cm of free space around the device. Please note that heat-sensitive objects may be deformed or damaged by the emitted heat.

Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture.

For overhead use (mounting height >100~cm ), always fix the fixture with an appropriate safety-rope. Fix the safety-rope at the correct fixation points only. The safety-rope must never be fixed at the transport handles!

Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.

The lamp must never be ignited if the objective-lens or any housing-cover is open, as discharge lamps may explode and emit a high ultraviolet radiation, which may cause burns.

The maximum ambient temperature T_a = 45^ must never be exceeded.

Operate the device only after having familiarized with its functions. Do not permit operation by persons not qualified for operating the device. Most damages are the result of unprofessional operation!

Please use the original packaging if the device is to be transported.

Please consider that unauthorized modifications on the device are forbidden due to safety reasons!

Never remove the serial barcode from the device as this would make the guarantee void.

If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

DESCRIPTION OF THE DEVICE

Features

High-Power Multi-Funktions Washlight

• With electronic ballast
• With integrated wireless receiver for W-DMX operation
• Extreme light output of 1200 W
• Variable colour temperature correction via CTO-filter
• CMY colour mixture for indefinite colour variations
  Colour-wheel 1 with 2 different, dichroic colour-filters and white and additionally with correction-filter CTB and UV-filter
  Colour-wheel 2 with 4 different, dichroic colour-filters and white
• Switchable colour change (mode 1: only full colours, mode 2: colour-change at every position)
• Rainbow-effect with adjustable speed in both directions
• Macro-function for combinations between CMY-colour mixture and colour-wheel
• Strobe-effect with 1-13 flashes per second via shutter
• Random strobe-effect
  Lightbeam with 11^ - 45^ radiation angle
• Coloured LCD-display
• ESDC-Function (Easy Service Data Check) with battery-buffered Control Board for operation time readouts etc.
  Control-Board with LCD-display and encoder for adjusting the DMX-starting address, Pan/Tilt-Reverse, Program, Reset, lamp on/off, operating hours
• DMX-controlled operation or stand alone operation with Master/Slave-function
• Software-update possible via optional accessory
• 64 preprogrammed scenes in Program Run for stand alone operation
• Number of scenes in Program Run can be changed individually
• The scenes in Program Run can be modified via the Control Board or via an external controller and loaded into the memory
• 8 built-in programs can be called up via DMX-controller
  Sound-controlled via built-in microphone
  Automatic position correction
  8 or 16 bit resolution
• Remotely switching of the lamp
  Built-in demo sequence
• Preprogrammed variable/random strobe and dimmer pulse effects
• Black-out while Head moving or colour changing
• Remotely controllable speed of PAN /TILT movement for easy programming (vector mode)
• Remote reset function
• Motorized zoom
• Mechanic dimmer
• Lamp already installed and adjusted from factory
• DMX-control via every standard DMX-controller

English

Overview

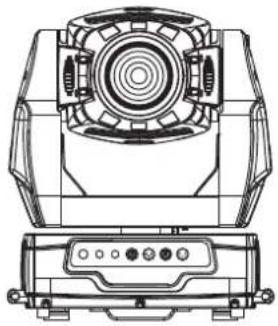

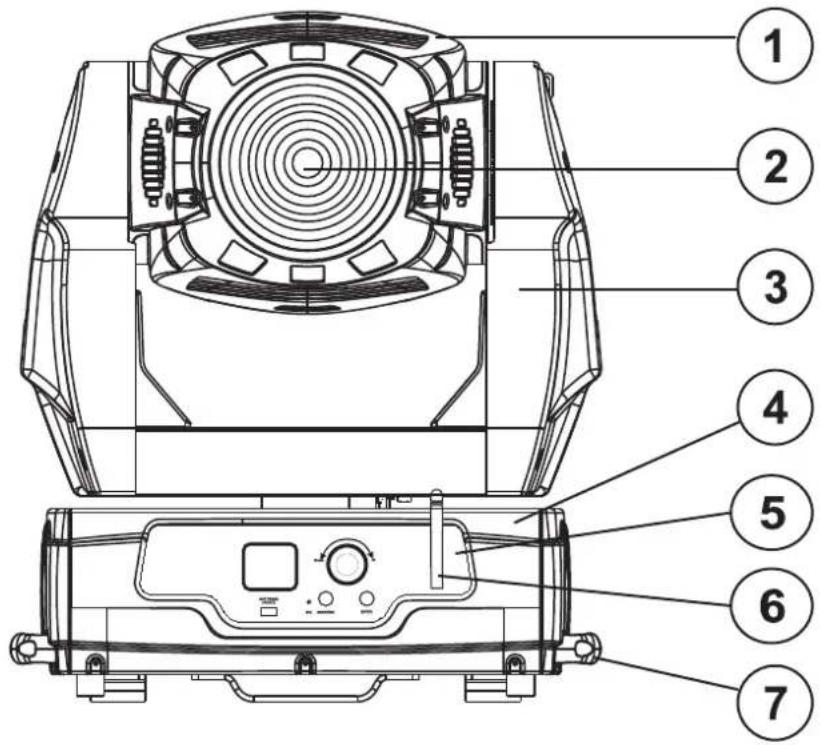

Faceplate

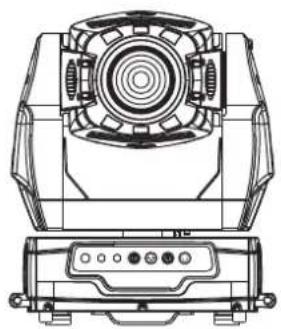

1. Projector head
2. Fresnell-lens
   3.Yoke
3. Base
4. Control Board
5. DMX antenna
6. Carrying handle

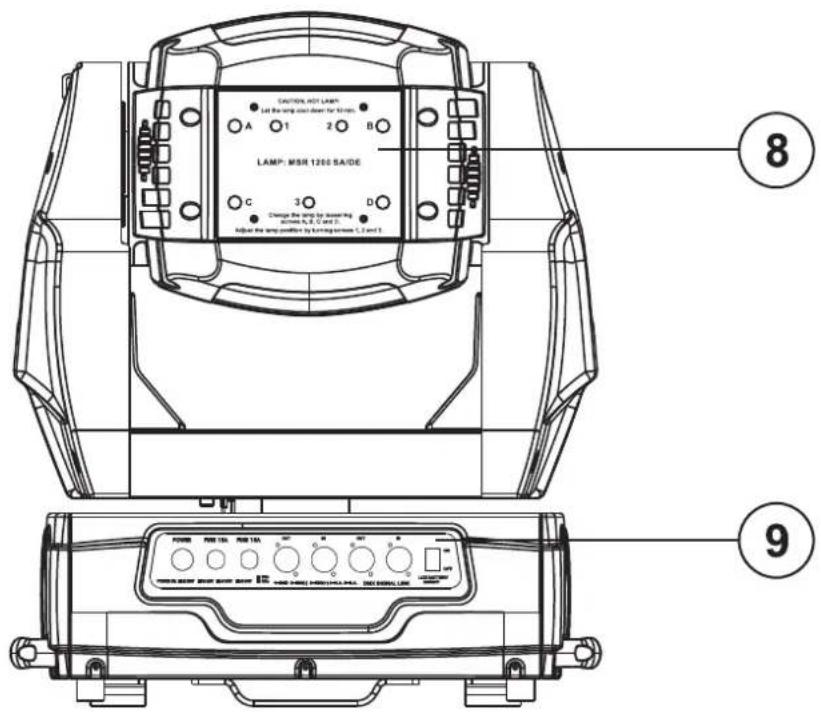

Rear panel

1. Lamp system
2. Connection panel

English

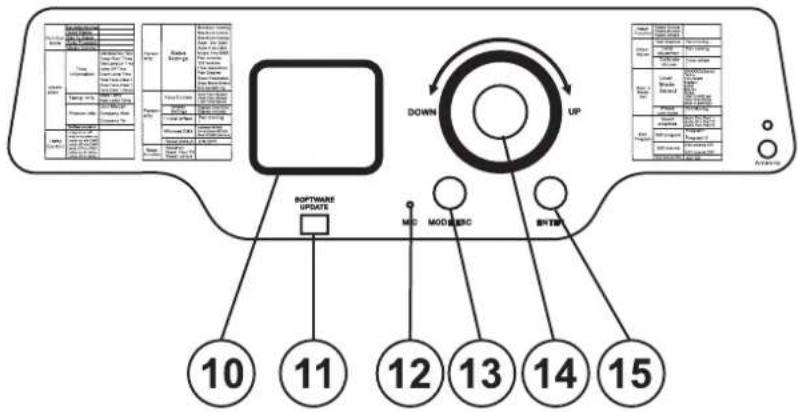

Control Board

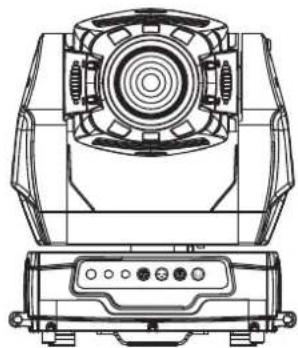

1. LCD-Display
2. Update-socket
3. Microphone
   13.Mode/Escape button
   14.Encoder
4. Enter button

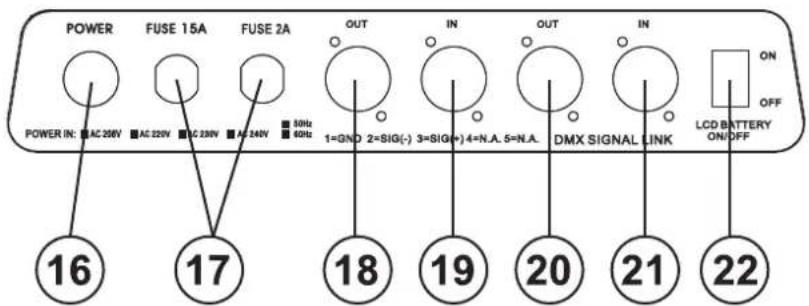

Connection panel

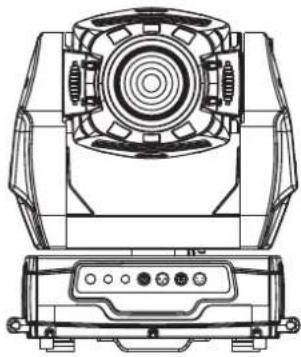

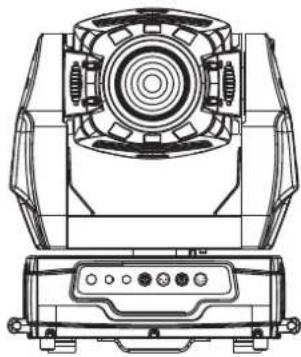

1. Power supply socket
2. Fuse holder
3. 3-PIN DMX output socket
4. 3-PIN DMX input socket
5. 5-PIN DMX output socket
6. 5-PIN DMX input socket
7. LCD battery selector

INSTALLATION

Installing/Replacing the lamp

DANGER TO LIFE!

Only install the lamp with the device switched off! Unplug from mains before!

For the installation, you need one MSR 1200 SA/DE lamp.

The lamp must only be changed when wearing appropriate protective clothing (protection glasses, protection gloves, helmet with sight, leather apron).

CAUTION!

The lamp has to be replaced when it is damaged or deformed due to the heat!

The lamp life given by the manufacturer must never be exceeded. This is why you need to take notes on the operational time of the lamp or check the operating hour meter regularly and replace the lamp in time.

Keep exchanged lamp in a protective container and remove accordingly.

During the operation, the lamp reaches temperatures of up to 600^ .

Before replacing the lamp, unplug mains lead and let the lamp cool down (approx. 10 minutes).

During the installation do not touch the glass-bulbs bare-handed! Please follow the lamp manufacturer's notes!

Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the device was not designed for. Damages caused by non-observance are not subject to warranty.

Procedure:

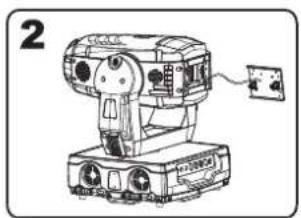

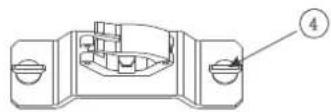

Step 1: Unscrew the fixation screws A, B, C, D of the lamp system and carefully remove it from the housing.

Step 2: If replacing the lamp, remove the old lamp from the lamp holder.
Step 3: Insert the lamp into the lamp holder.
Step 4: Replace the lamp system in the housing and tighten the fixation screws.
Step 5: Adjust the lamp as described under lamp adjustment.

Do not operate this device with opened cover!

English

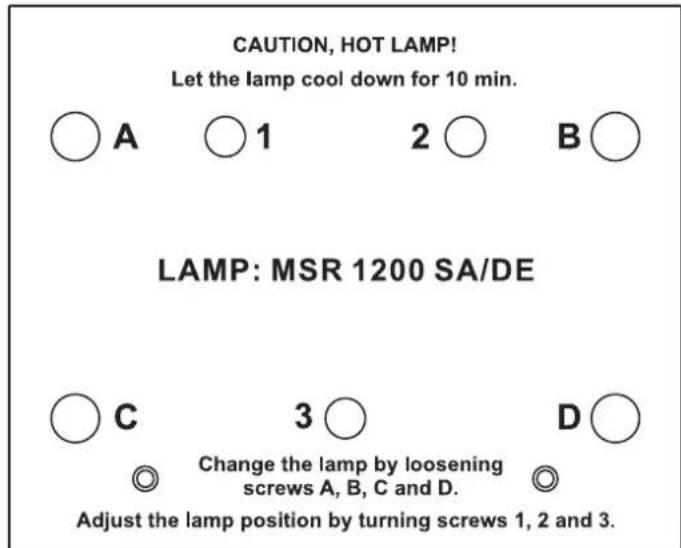

Lamp adjustment

The lampholder is aligned at the factory. Due to differences between lamps, fine adjustment may improve light performance.

Strike the lamp, open the shutter, set the dimmer intensity onto 100% and direct the light towards a flat surface (wall). Center the hot-spot (the brightest part of the beam) using the 3 adjustment screws "1,2,3". Turn one screw at a time to drag the hot-spot diagonally across the projected image. If you cannot detect a hot-spot, adjust the lamp until the light is even.

To reduce a hot-spot, pull the lamp in by turning all three screws "1, 2, 3" clockwise 14 -turn at a time until the light is evenly distributed.

If the light is brighter around the edge than it is in the center, or if light output is low, the lamp is

too far back in the reflector. "Push" the lamp out by turning the screws "1, 2, 3" counterclockwise 14 -turn at a time the light is bright and evenly distributed.

Transport securing

The PHW-1200E comes with locked transport securings in order to avoid damages.

Please note: All transport securing must be unlocked before operating the device!

TILT-securing:

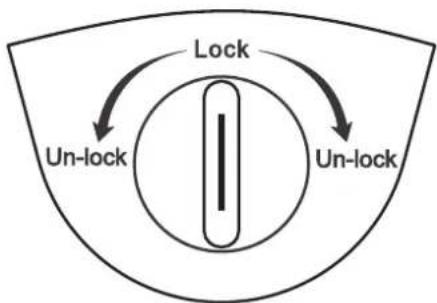

Turn the two stop levers at the projector head from Lock to Unlock. Now, the projector head can be freely moved in the Y-direction.

PAN-SECURING:

Turn the stop levers at the bottom of the projector arm from Lock to Unlock. Now, the projector head can be freely moved in the X-direction.

Before transporting the device, please turn all stop levers from Unlock to Lock.

Rigging

DANGER TO LIFE!

Please consider the EN 60598-2-17 and the respective national norms during the installation! The installation must only be carried out by an authorized dealer!

The installation of the projector has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.

The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.

When rigging, derigging or servicing the fixture staying in the area below the installation place, on bridges, under high working places and other endangered areas is forbidden.

The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the first time and after changes before taking into operation another time.

The operator has to make sure that safety-relating and machine-technical installations are approved by an expert after every four year in the course of an acceptance test.

The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year.

Procedure:

The projector should be installed outside areas where persons may walk by or be seated.

IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to) calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the projector. If you lack these qualifications, do not attempt the installation yourself, but instead use a professional structural rigger. Improper installation can result in bodily injury and/or damage to property.

The projector has to be installed out of the reach of people.

If the projector shall be lowered from the ceiling or high joists, professional trussing systems have to be used. The projector must never be fixed swinging freely in the room.

Caution: Projectors may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do NOT install the projector!

Before rigging make sure that the installation area can hold a minimum point load of 10 times the projector's weight.

DANGER OF FIRE!

When installing the device, make sure there is no highly-inflammable material (decoration articles, etc.) within a distance of min. 0.5m

CAUTION!

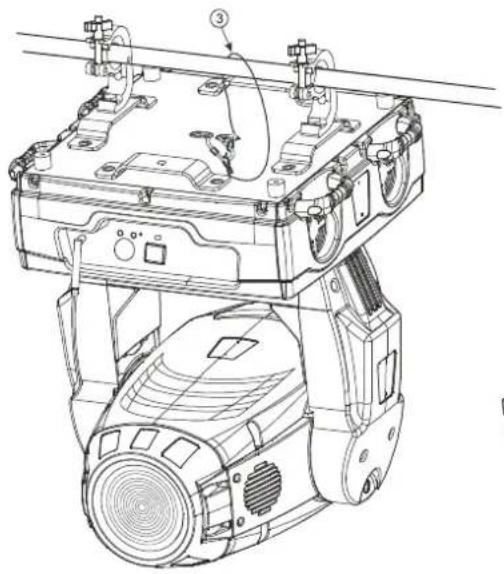

Use 2 appropriate clamps to rig the fixture on the truss. Follow the instructions mentioned at the bottom of the base. Make sure that the device is fixed properly! Ensure that the structure (truss) to which you are attaching the fixtures is secure.

English

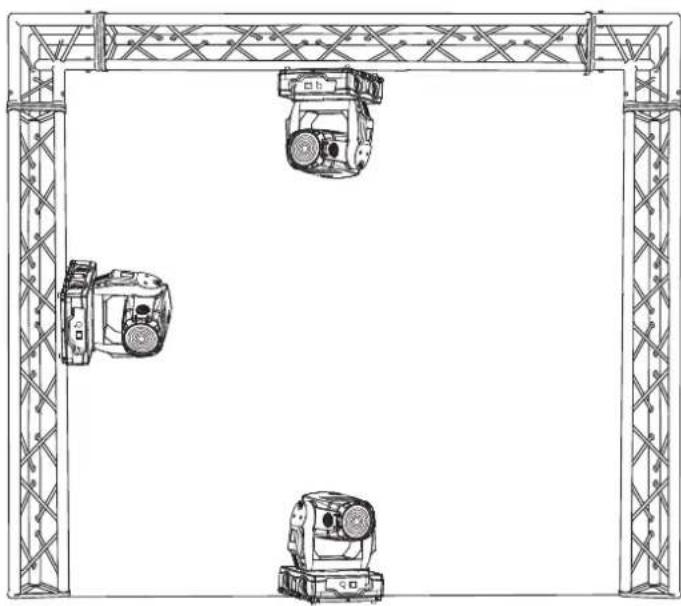

The Moving-Head can be placed directly on the stage floor or rigged in any orientation on a truss without altering its operation characteristics (see the drawing).

The fixture's base enables to be mounted in two ways.

For overhead use (mounting height >100~cm always install a safety-rope that can hold at least 12 times the weight of the fixture. You must only use safety-ropes with quick links with screw cap. Pull the safety-rope through the hole on the bottom of the base and over the trussing system etc. Insert the end in the quick link and tighten the fixation screw.

The maximum drop distance must never exceed 20~cm

A safety rope which already hold the strain of a crash or which is defective must not be used again.

DANGER TO LIFE!

Before taking into operation for the first time, the installation has to be approved by an expert!

Screw one clamp each via a M12 screw and nut onto the Omega-holders.

Insert the quick-lock fasteners of the first Omega-holder into the respective holes on the bottom of the device. Tighten the quicklock fasteners fully clockwise. Install the second Omega-holder.

(1) Omega-holders
(2) Clamp
(3) Safety-rope
(4) Quick-lock fastener

DMX-512 connection / connection between fixtures

Projector 3
Starting address 35
Projector 2
Starting address 18
Projector 1
Starting address 1

The wires must not come into contact with each other, otherwise the fixtures will not work at all, or will not work properly.

Please note, the starting address depends upon which controller is being used.

Only use a stereo shielded cable and 3-pin or 5-pin XLR-plugs and connectors in order to connect the controller with the device or one device with another.

Occupation of the XLR-connection:

DMX-output
XLR mounting-socket:
1:Ground
2: Signal (-)
3: Signal (+)

DMX-input
XLR mounting plug:
1: Ground
2: Signal (-)
3: Signal (+)

DMX-output
XLR mounting-socket:
1:Ground
2: Signal (-)
3: Signal (+)

DMX-input
XLR mounting plug:
1:Ground
2: Signal (-)
3: Signal (+)

If you are using controllers with this occupation, you can connect the DMX-output of the controller directly with the DMX-input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-outputs, you need to use adapter-cables.

Building a serial DMX-chain:

Connect the DMX-output of the first fixture in the DMX-chain with the DMX-input of the next fixture. Always connect one output with the input of the next fixture until all fixtures are connected.

Caution: At the last device, the DMX-cable has to be terminated with a terminator. Solder a 120 resistor between Signal (-) and Signal (+) into an XLR-plug and plug it in the DMX-output of the last device.

English

Connection with the mains

Connect the device to the mains with the power-plug.

The occupation of the connection-cables is as follows:

Cable Pin International
Brown Live L
Blue Neutral N
Yellow/Green Earth

The earth has to be connected!

If the device will be directly connected with the local power supply network, a disconnection switch with a minimum opening of 3mm at every pole has to be included in the permanent electrical installation.

The device must only be connected with an electric installation carried out in compliance with the IEC standards. The electric installation must be equipped with a Residual Current Device (RCD) with a maximum fault current of 30mA .

OPERATION

After you connected the effect to the mains, the PHW-1200E starts running. During the Reset, the motors are trimmed and the device is ready for use afterwards.

Stand Alone operation

In the Stand Alone mode, the PHW-1200E can be used without controller.

Disconnect the PHW-1200E from the controller and call the internal program.

Please refer to the instructions under Control Board, Functions, menu Auto program.

DMX-controlled operation

You can control the projectors individually via your DMX-controller. Every DMX-channel has a different occupation with different features. The individual channels and their features are listed under DMX-protocol.

Wireless DMX

For wireless data transmission you need a DMX-controller, a wireless sender and a wireless receiver or devices with wireless receiver, respectively.

If a device with wireless receiver is connected with a DMX-controller via cable, the device will be controlled by the cabled controller and not by the wireless transmitter.

Please note: Never connect a cabled controller if the device with wireless receiver is controlled by the wireless transmitter! Otherwise danger of interferences.

The wireless receiver has an internal memory function. If the device is switched off and on again, the receiver automatically logs into the transmitter.

Meaning of the LEDs and their colours

Wireless sender status-LED

Red/green flashes rapidly: Login-mode, every free wireless receiver is logging into the wireless sender.

Green permanently lit: the DMX-signal is present and transmitted.

Red/green flashes slowly: no DMX-signal, the radio link is being held.

English

Wireless receiver sender status-LED

Red permanently lit: not logged into a wireless sender (free).

Red/green flashes rapidly: Login-mode, the wireless receiver is logging into the wireless sender.

Green permanently lit: The wireless receiver is logged into the wireless sender. The DMX-signal is present and received.

Red/green flashes slowly: no DMX-signal, the radio link is being held.

Installation of a wireless DMX-system

1. Connect the DMX-controller with the wireless sender.
2. Switch on the DMX-controller, den the wireless sender and the wireless receiver or the devices with wireless receiver, respectively.
3. Press and hold the sender's Function-button for less than 3 seconds. During the Login-mode, the sender's and receiver's red/green LEDs flash rapidly for approx. 5-10 seconds. As soon as the DMX-signal is transmitted, the sender's and receiver's green LED is permiently lit. If there is no DMX-signal, the sender's and receiver's red/green LEDs flash slowly.
4. Control the device via your DMX-controller.

Log out one wireless receiver

The procedure of logging out one wireless receiver depends on the respective device. The FUTURELIGHT projectors with wireless receiver are logged out via the Control Board, menu Set-WDMX-Rest. The FUTURELIGHT WDR-1 wireless receiver logs out by pressing and holding the receiver's Function-button for more than 5 seconds. As soon as the wireless receiver is logged out, the receiver's red LED is permiently lit.

Log out all wireless receivers from the sender

Press and hold the sender's Function-button for at least 5 seconds. As soon as the wireless receivers are logged out, the receiver's red LED is permently lit.

Addressing

The Control Board allows you to assign the DMX starting address, which is defined as the first channel from which the PHW-1200E will respond to the controller.

If you set, for example, the address to channel 18, the PHW-1200E will use the channel 18 to 34 for control. Please, be sure that you don't have any overlapping channels in order to control each PHW-1200E correctly and independently from any other fixture on the DMX-chain.

If several PHW-1200E are addressed similarly, they will work synchronically.

Trun the encoder for setting the desired starting address. Now you can start operating the PHW-1200E via your lighting controller.

Note:

After switching on, the device will automatically detect whether DMX 512 data is received or not. If there is no data received at the DMX-input, the display will flash.

This situation can occur if:

• the XLR plug (cable with DMX signal from controller) is not connected with the input of the device.
• the controller is switched off or defective, if the cable or connector is defective or the signal wires are swap in the input connector.

Note:

It's necessary to insert the XLR termination plug (with 120 Ohm) in the last lighting in the link in order to ensure proper transmission on the DMX data link.

DMX-protocol

Control-channel 1 - Horizontal movement (Pan) (within 630^ )

Push slider up in order to move the head horizontally (PAN).

Gradual head adjustment from one end of the slider to the other (0-255, 128-center).

The head can be stopped at any position you wish.

Control-channel 2 - Vertical movement (Tilt) (within 265^ )

Push slider up in order to move the head vertically (TILT).

Gradual head adjustment from one end of the slider to the other (0-255, 128-center).

The head can be stopped at any position you wish.

Control-channel 3 - Pan/Tilt-speed

Decimal Hexad. Percentage S/F Feature

0	225	00 E1	0%	88% F	Decreasing speed
226	235	E2 EB	89%	92%	S Blackout at Pan/Tilt-movement
236	245	EC F5	93%	96%	S Blackout at colour-change
246	255	F6 FF	96%	100%	S No function

Control-channel 4 - Colour-wheel 1

Linear colour change following the movement of the slider.

In this way you can stop the colour-wheel in any position.

Decimal Hexad. Percentage S/F Feature

0	24	00	18	0%	9%	S	Open / white
25	49	19	31	10%	19%	S Red
50	74	32	4A	20%	29%	S Dark yellow
75	99	4B	63	29%	39%	S	Correction-filter 5,600 K
100	127	64	7F	39%	50%	S UV
128	187	80	BB	50%	73%	F Forwards	rainbow effect with decreasing speed
188	193	BC	C1	74%	76%	S No rotation
194	255	C2	FF	76%	100%	F	Backwards rainbow effect with increasing speed

Control-channel 5 - Colour-wheel 2

Linear colour change following the movement of the slider.

In this way you can stop the colour-wheel in any position.

Decimal Hexad. Percentage S/F Feature

0	24	00	18	0%	9%	S	Open / white
25	49	19	31	10%	19%	S	Dark Orange
50	74	32	4A	20%	29% S	Blue
75	99	4B	63	29%	39% S Green
100	127	64	7F	39%	50% S Pink
128	187	80	BB	50%	73% F Forwards rainbow effect with decreasing speed
188	193	BC	C1	74%	76% S No rotation
194	255	C2	FF	76%	100% F Backwards rainbow effect with increasing speed

Control-channel 6 - Cyan

Decimal Hexad. Percentage S/F Feature

0

255

00

FF

0%

100%

F

Cyan (0=white, 255=cyan)

Control-channel 7 - Magenta

Decimal Hexad. Percentage S/F Feature

0

255

00

FF

0%

100%

F

Magenta (0=white, 255=magenta)

Control-channel 8 - Yellow

Decimal Hexad. Percentage S/F Feature

0 255 0 F F 0% 100% F Yellow (0=white, 255=yellow)

Control-channel 9 - CTO (Convert to orange)

Decimal Hexad. Percentage S/F

Feature

0|255 0FF 0% |100%|FCTO|(0=white,255=CTO)

Control-channel 10 - CMY and dimmer speed

Decimal Hexad. Percentage S/F Feature

0255 00 FF 0% 100% F Speed adjustment max to min

Control-channel 11 - CMY colour macros

Decimal Hexad. Percentage S/F Feature

0	7 00	07 0%	3%	S Neutral
8	15 08	0F	3%	6%	S Macro 1
16	23 10	17	6%	9%	Macro 2
24	31	18	1F	9%	12%	S Macro 3
32	39	20	27	13%	15%	S Macro 4
40	47	28	2F	16%	18%	S Macro 5
48	55	30	37	19%	22%	S Macro 6
56	63	38	3F	22%	25%	S Macro 7
64	71	40	47	25%	28%	S Macro 8
72	79	48	4F	28%	31%	S Macro 9
80	87	50	57	31%	34%	S Macro 10
88	95	58	5F	35%	37%	S Macro 11
96	103	60	67	38%	40%	S Macro 12
104	111	68	6F	41%	44%	S Macro 13
112	119	70	77	44%	47%	S Macro 14
120	127	78	7F	47%	50%	S Macro 15
128	135	80	87	50%	53%	S Macro 16
136	143	88	8F	53%	56%	S Macro 17
144	151	90	97	56%	59%	S Macro 18
152	159	98	9F	60%	62%	S Macro 19
160	167	A0	A7	63%	65%	S Macro 20
168	175	A8	AF	66%	69%	S Macro 21
176	183	B0	B7	69%	72%	S Macro 22
184	191	B8	BF	72%	75%	S Macro 23
192	199	C0	75%	78%	S Macro	24
200	207	C8	CF	78%	81%	S Macro 25
208	215	D0	782%	84%	S Macro	26
216	223	D8	DF	85%	87%	S Macro 27
224	231	E0	E7	88%	91%	S Macro 28
232	239	E8	EF	91%	94%	S Macro 29
240	247	F0	F7	94%	97%	S Macro 30
248	255	F8	FF	97%	100%	S Random CMY

Control-channel 12 - Shutter, strobe

Decimal Hexad. Percentage S/F Feature
0	31 00	1F	0%	12%	S	Shutter closed
32	63 20	3F	13%	25%	S	No function (shutter open)
64	95 40	5F	25%	37%	F	Strobe-effect with increasing speed
96	127	60 7F	38%	50%	S	No function (shutter open)
128	159	80 9F	50%	62%	F	Pulse-effect in sequences
160	191	A0 BF	63%	75%	S	No function (shutter open)
192	223	C0 DF	75%	87%	F	Random strobe-effect with increasing speed
224	255	E0 FF		88%	100%	S	No function (shutter open)

Control-channel 13 - Dimmer intensity

Decimal Hexad. Percentage S/F Feature
0	255	00	FF	0%	100%	F Gradual adjustment of the dimmer intensity from 0 to 100 %

Control-channel 14 - Stepless Zoom

Decimal Hexad. Percentage S/F Feature
0	255	00	FF	0%	100%	F
Zoom adjustment from small to big

Control-channel 15 - Switching the lamp, Reset, internal programs

Decimal Hexad. Percentage S/F Feature
0	31	00	1F	0%	12%	S	Normal colour-change, search position via shortest distance
32	63	20	3F	13%	25%	S	Colour-change at every position, search position via shortest distance
64	79	40	4F	25%	31%	S Lamp on
80	85	50	55	31%	33%	S Reset all motors
86	87	56	57	34%	34%	S Reset only Pan/Tilt
88	89	58	59	35%	35%	S Reset only colors
90	91	5A	5B	35%	36%	S	No function
92	93	5C	5D	36%	36%	S	Reset only shutter and/or dimmer
94	95	5E	5F	37%	37%	S Reset other motors
96	111	60	6F	38%	44%	S Internal program 1 (Edit Program Scene 1 - 8)
112	127	70	7F	44%	50%	S Internal program 2 (Edit Program Scene 9 - 16)
128	143	80	8F	50%	56%	S Internal program 3 (Edit Program Scene 17 - 24)
144	159	90	9F	56%	62%	S Internal program 4 (Edit Program Scene 25 - 32)
160	175	A0	AF	63%	69%	S Internal program 5 (Edit Program Scene 33 - 40)
176	191	B0	BF	69%	75%	S Internal program 6 (Edit Program Scene 41 - 48)
192	207	C0	CF	75%	81%	S Internal program 7 (Edit Program Scene 49 - 56)
208	223	D0	DF	82%	87%	S Internal program 8 (Edit Program Scene 57 - 64)
224	239	E0	EF	88%	94%	S Lamp off
240	255	F0	FF	94%	100%	S Music control

Control-channel 16 - Pan-movement with 16 Bit-resolution

Control-channel 17 - Tilt-movement with 16 Bit-resolution

Control Board

The Control Board offers several features: you can simply set the starting address, switch on and off the lamp, run the pre-programmed program or make a reset.

The main menu is accessed by pressing Mode/Esc until the display is lit. Browse through the menu by turning the encoder. Press Enter in order to select the desired menu. You can change the selection by turning the encoder. Press Enter in order to confirm. You can leave every mode by pressing Mode/Esc-. The functions provided are described in the following sections.

Default settings shaded.

	Main menu Sub	menu Display Function
Function Mode	Set DMX address A001~ AXXX DMX address	setting
	Value display PAN Moving ... DMX value display
	Set to Slave	Slave 1, Slave 2, Slave 3		Slave setting
	Auto program Master/Alone Auto program
	Music control Master/Alone Music control
Information	Time information	Individual run time XXX (hours)		Individual fixture running time
		Total run time XXX (hours) Fixture running time
		Total lamp on time XXX (hours) Lamp running time
		Lamp off time XXX (minutes) Lamp off time
		Clear lamp time	ON/OFF	Clear lamp time
		Total fans clear t. XXX (days)		Fan operating days since last cleaning
		Clear fans clear t.	ON/OFF	Clear fan operating days
		Fans clear t. setup	OFF/250 (days)	Select fan maintenance interval
	Temp. info.	Base Temp	XX°C	Ambient temperature
		Near lamp Temp	XXX°C	Inside temperature
	Product info.	Unit model		Unit model
		Company WEB		Company WEB
		Company Tel		Company Tel
	Software version	Display ... Ver. 1.0 ...		Software version of each IC
Lamp Control	Lamp on or off ON/OFF		Lamp on/off
	Lamp on by power on	ON/OFF		Lamp on/off / Power
	Lamp on via DMX	ON/OFF		Lamp on via DMX
	Lamp off via DMX	ON/OFF		Lamp off via DMX
	Lamp off if no DMX	OFF, OFF~19M		Lamp off if no DMX
	Lamp on at temp.	45°C, 20-79C		Lamp restart at temp.
	Lamp off at temp.	130°C, 80-139C		Lamp off at temp.

Personality	Status settings	Blackout moving	ON/OFF		Blackout with PAN/TILT movement or color wheel moving
		Blackout colors ON/OFF
		Addr. via DMX ON/OFF	Addr. via DMX
		Run if no DMX Auto/Music	c/Close/Hold		Run if no DMX
		Battery Charge ON/OFF			Battery charger
		PAN Reverse ON/OFF			Reverse movement
		TILT Reverse ON/OFF
		Fine resolution ON/OFF			16-bit movement switch from 16 bit to 8 bit resolution
		PAN degree 630/540			Select PAN-angle 630° or 540°
		Movement feedback ON/OFF			Automatic PAN/TILT calibration
		Movement speed	Movement Speed 1 ~ 4		Adjust PAN/TILT speed
		Mic sensitivity	70 %, 0~99%		Mic sensitivity
	Fans Control	Auto fans speed			Adjust fan speed
		High fans speed
		Low fans speed
	Display settings	Display close time 05 M, 02-59 Display shutoff time
		Display intensity	70 %, 50~99% LCD brightness
	Initial effect	PAN Moving ...	PAN Moving=XXX ...		Initial effect position
	Wireless DMX	Activate WDMX			Activate W-DMX
		De-activate WDMX			De-activate W-DMX
		Rest WDMX Memory			Logout from sender
	Reset default ON/OFF		Restore factory sett.
Reset function	Reset All				Reset all motors
	Reset PAN/TILT				Reset only PAN/TILT
	Reset Colors				Reset only colors/ CMY + CTO module
	Reset Shutter				Reset only shutter and/or dimmer
	Reset Others				Reset other motors
Effect Adjust	Test channel	PAN Moving ...			Test function
	Lamp adjustment	PAN Moving ...	PAN Moving=XXX ...		Lamp adjustment
	Calibrate Values	--Password-- Color wheel ...	Password=XXX Color wheel=XXX		Wheel adjustment to standard position password „050"
User's Mode Set	User mode select	XXXXXX (Band) F, E, S, M, R, User mode A, User mode B, User mode C			User's mode to change channel numbers
	Preset user mode	PAN Moving ...	PAN Mov. = CH01 ...		Preset User modes

English

Edit Program	Select Programs	Auto Pro Part 1 Auto Pro Part 2 Auto Pro Part 3	Progr. 1-10 Progr. 1-10 Progr. 1-10	Program 1 Program 2 Program 3	Select programs to be run
	Edit program	Program 1: : Program 10	Program Test Start step End step	("Step XX") Start step=xxx End step=xxx	Testing program Program in loop Save and exit
	Edit scenes	Edit scene 001 : Edit scene 250	Pan,Tilt, ... --Scene Time-- Input by outside	Pan=XXX TIME=XX. XS	Save and automatically return manual scenes edit
	Auto scenes Rec. XXX~XXX Automat. scenes rec

Function Mode

DMX address setting

With this function, you can adjust the desired DMX-address via the Control Board.

• Select "Set DMX address" via the encoder.
• Press the Enter-button, adjust the DMX address by turning the encoder.
• Press the Enter-button to confirm.
• Press the Mode/Esc-button in order to return to the main menu.

Display the DMX 512 value of each channel

With this function you can display the DMX 512 value of each channel. The display automatically shows the channel with a value changing.

Slave setting

With this function, you can define the device as slave. You can choose one of three different Slave programs. For further information see „Edit Program" - „Select Programs"

Auto program

With this function, you can run the internal program. You can select the desired program under "Select program". You can set the number of steps under "Edit program". You can edit the individual scenes under "Edit scenes". With this function, you can run the individual scenes either automatically, i.e. with the adjusted Step-Time. The selection "Alone" means Stand Alone-mode and "Master" that the device is defined as master.

Music control

With this function, you can run the internal program sound-controlled. The selection "Alone" means Stand Alone-mode and "Master" that the device is defined as master.

Information

Time information

Individual run time

With this function, you can display the temporary running time of the device from the last power on. The display shows "XXXX", "X" stands for the number of hours. The counter is reset after turning the device off.

Total run time

With this function, you can display the running time of the device. The display shows "XXXX", "X" stands for the number of hours.

Total lamp on time

With this function, you can display the running time of the lamp. The display shows "XXXX", "X" stands for the number of hours.

English

Lamp off time (in minutes)

With this function, you can display the temporary running time of the lamp from the last lamp on. The display shows "XXXX", "X" stands for the number of minutes. The counter is reset after turning the lamp off.

Clear lamp time

With this function you can clear the running time of the lamp. Please clear the lamp time every time you replace the lamp.

• Select "Clear lamp time" by turning the encoder.
• Press the Enter button, the display shows "ON" or "OFF".
• Press the Enter button to confirm.
• Press the Mode/Esc button in order to return to the main menu.

Fan operating days since last cleaning

With this function you can display the operating days since the fan/anti-dust filter was cleaned last.

The display shows "XXXX", "X" stands for the number of days.

Clear fan operating days

With this function you can clear the operating days of the fan. Please effect this function after every cleaning procedure of the fan/anti-dust filter.

• Select "Clear fans clear t." by turning the encoder.
• Turn the encoder, the display indicates "ON" or "OFF".
• Press the Enter button to confirm.
• Press the Mode/Esc button in order to return to the main menu.

Select fan maintenance interval

With this function you can select the desired maintenance interval of the fan/anti-dust filter.

You can select either OFF or 1-250 days. We recommend a cleaning procedure every 90 days.

• Select "Fans clear t. setup" by turning the encoder.

• Press the Enter button, the display indicates "OFF".

• Turn the encoder, to adjust the desired number of days or "OFF".
• Press the Enter button to confirm.
• Press the Mode/Esc button in order to return to the main menu.

Temp. Info.

Base Temp

With this function you can display the temperature in the projector base (near LCD-display) in Celsius.

Near lamp Temp

With this function you can display the temperature in the projector-head (near CMY-filter) in Celsius.

Product Info.

Within this menu, you can find the data concerning the type, Internet and phone number.

Software version

With this function you can display the software version of the device.

• Select "Software version" by turning the encoder.
• Press the enter-button, the display shows "V-X.X", "X.X" stands for the version number, e.g. "V-1.0", "V-2.6".
• Press the Mode/Esc-button in order to return to the main menu.

English

Lamp Control

Lamp on or off

With this function you can switch the lamp on or off via the Control Board.

• Select "Lamp on or off" by turning the encoder.
• Press the enter-button, the display shows "ON" or "OFF".
• Turn the encoder to select "ON" if you wish to strike the lamp or "OFF" in order to switch it off.
• Press the enter-button to confirm.
• Press the Mode/Esc-button in order to return to the main menu.

Lamp on by power on

With this function you can select if the lamp will be switched on when switching the power on. Select "ON" by turning the encoder if you wish to enable this function or "OFF" if you don't.

Lamp on via external controller

With this function you can select if you can switch the lamp on via an external controller (DMX-channel 15, value 64-79). Select "ON" by turning the encoder if you wish to enable this function or "OFF" if you don't.

Lamp off via external controller

With this function you can select if you can switch the lamp off via an external controller (DMX-channel 15, value 224-239). Select "ON" by turning the encoder if you wish to enable this function or "OFF" if you don't.

Lamp off if no DMX

With this function you can select to switch off the lamp off automatically if there is no DMX signal.

Lamp on at temp.

With this function you can set the inside temperature from which the projector will strike the lamp after automatic lamp shutoff.

Lamp off at temp.

With this function you can set the inside temperature at which the projector will automatically switch the lamp off. Turn the encoder to select the maximum inside temperature between 80^ C and 139^ C. Inside temperatures below 90^ C are not critical. 90^ C and more should lead to the lamp being switched off. Please note that the outside temperature should not exceed 45^ C.

Personality

Status settings

Blackout moving

With this function, you can switch the DMX-function Blackout with Pan/Tilt-movement (DMX-channel 3, values 226-235) on or off.

Blackout colors

With this function, you can switch the DMX-function Blackout at colour-change (DMX-channel 3, values 236-245) on or off.

Addr. via DMX

With this function, you can adjust the desired DMX-address via an external controller.
- Select "Addr. via DMX" by turning the encoder.
- Press the enter-button, the display shows "ON" or "OFF".
- Turn the encoder to select "ON" if you wish to enable this function or "OFF" if you don't.
- Press the enter-button to confirm.
- Press the Mode/Esc-button in order to return to the main menu.
- On the controller, set the DMX-value of channel 1 to "7".
- Set the DMX-value of channel 2 to "7" or "8". When set to "7" you can adjust the starting address between 1 and 255. When set to "8" you can adjust the starting address between 256 and 511.
- Set the DMX-value of channel 3 to the desired starting address. If you want to set the starting address to 57, set channel 1 to "7", channel 2 to "7" and channel 3 to "57". If you want to set the starting address to 420, set channel 1 to "7", channel 2 to "8" and channel 3 to "164" (256+164=420).
- Wait for approx. 20 seconds and the unit will carry out a reset. After that, the new starting address is set.

English

Run if no DMX

With this function, you can set different modes if there is no DMX-signal.

• Select "Close, Hold, Auto or Music if no DMX" by turning the encoder.
• Press the enter-button, the display shows "ON" or "OFF".
• Turn the encoder to select "ON" if you wish to enable this function or "OFF" if you don't.
• Press the Enter-button to confirm.
• Press the Mode/Esc-button in order to return to the main menu.

Close if no DMX

With this function, you can close the shutter and set the device to center position if there is no DMX-signal. This mode equals the settings Auto if no DMX = OFF and Music if no DMX = OFF.

Hold if no DMX

With this function, the device remains in the last received DMX-program if there is no DMX-signal.

Auto run if no DMX

With the function "Auto run if no DMX", you can set the device to auto run if there is no DMX-signal.

Music control if no DMX

With the function "Music control if no DMX", you can set the device to sound-controlled program-run if there is no DMX-signal.

Battery charger

With this function, the rechargeable battery in the Control Board can be charged. Please note that continued recharging shortens the battery life substantially. This is why we recommend to charge the battery only when needed. Please set this option to ON for charging the battery.

PAN Reverse

With this function you can reverse the Pan-movement.

TILT Reverse

With this function you can reverse the Tilt-movement.

Fine resolution

With this function you can switch the device from 16 bit to 8 bit resolution.

• Select "Fine resolution" by turning the encoder.
• Press the Enter-button, the display shows "ON" or "OFF".
• Turn the encoder to select "ON" in order to set 16 bit, or "OFF" in order to set 8 bit. The channels PAN Fine and TILT Fine will be disabled.
• Press the Enter-button to confirm.
• Press the Mode/Esc-button in order to return to the main menu.

PAN degree

With this function you can select the PAN-degree.
- Select "PAN degree" by turning the encoder.
- Press the Enter-button, the display shows "630".
- Turn the encoder to select the desired degree between "630" and "540".
- Press the Enter-button to confirm.
- Press the Mode/Esc-button in order to return to the main menu.

Automatic PAN/TILT calibration

With this function you can calibrate the PAN/TILT movement to the correct starting position.

Adjust PAN/TILT speed

With this function you can define the PAN/TILT speed. You can select one of 4 different modes.

Mic sensitivity

With this function, you can select the desired microphone sensitivity between 0% and 99% .

• Select "Mic sensitivity" by turning the encoder.
• Press the Enter-button, the display shows "M-70".
• Turn the encoder to select the desired sensitivity.
• Press the Enter-button to confirm.
• Press the Mode/Esc-button in order to return to the main menu.

English

Adjust fan speed

With this function you can adjust the speed of the fan.

Display settings

Display close time

With this function you can shut off the LED display after 2 to 59 minutes. Turn the encoder in order to select the desired shut off time.

Display intensity

With this function, you can adjust the display-intensity from 50% to 99% . Turn the encoder in order to select the desired intensity.

Initial effect

With this function, you can adjust with which value the respective channels will start.

Wireless DMX

From factory, this projector is prepared for wireless data transmission (W-DMX). If you wish to de-activate WDMX control, you can select the function "De-activate WDMX" by turning the encoder. With the function "Rest", you can log out the projector from the wireless sender.

Reset function

With this function you can reset the device via the Control Board. You can select the different Reset-functions by turning the encoder.

Restore factory settings

With this function you can restore the factory settings of the device. All settings will be set back to the default values (shaded). Any edited scenes will be lost.

Effect Adjust

Test function of each channel

With this function you can test each channel on its (correct) function.

Lamp adjustment

With this function, you can adjust the lamp more easily. All effects will be cancelled, the shutter opens and the dimmer intensity will be set to 100% . With the individual functions, you can focus the light on a flat surface (wall) and perform the fine lamp adjustment.

Calibrate Values

With this function, you can calibrate and adjust the effect wheels to their correct positions. The password for this function is .050".

Users mode set

User mode

With this function, you can create user defined channel orders.

Preset User mode

With this function, you can adjust the Preset user defined channel order.

Edit program

Select program for auto program

With this function, you can select the program for the Program Run.

Edit program

With this function, you can edit the internal programs.

Edit scenes

With this function, you can edit the scenes of the internal programs.

Auto scenes rec

The device features an integrated DMX-recorder by which you can transmit the programmed scenes from your DMX-controller to the device. Adjust the desired scene numbers via the encoder (from - to). When you call up the scenes at your controller, they will automatically be transmitted to the device.

Excursion:

A Master unit can send up to 3 different data groups to the Slave units, i.e. a Master unit can start 3 different Slave units, which run 3 different programs. The Master unit sends the 3 program parts in a continuous loop.

Auto Pro Part 1

Auto Pro Part 2

Auto Pro Part 3

→

Auto Pro Part 1

Auto Pro Part 2

Auto Pro Part 3

→

Auto Pro Part 1

Auto Pro Part 2

Auto Pro Part 3

The Slave unit receives data from the Master unit according to the group which the Slave unit was assigned to. If e.g. a Slave unit is set to „Slave 1" in the menu „Set to Slave", the Master unit sends „Auto Program Part 1" to the Slave unit. If set to „Slave 2“, the Slave unit receives „Auto Program Part 2".

To start a Auto Program please proceed as follows:

1.Slave-Setting

• Select "Function Mode" by turning the encoder.
• Press the Enter button to confirm.
• Select "Set to slave" by turning the encoder.
• Press the Enter button to confirm.
• Turn the encoder to select "Slave 1", "Slave 2" or "Slave 3".
• Press the Enter button to confirm.

• Press the Mode/Esc button in order to return to the main menu.

• Automatic Program Run

• Select "Function Mode" by turning the encoder.

• Press the Enter button to confirm.
• Select "Auto Program" by turning the encoder.
• Press the Enter button to confirm.
• Turn the encoder to select "Master" or "Alone". The selection "Alone" means Stand Alone-mode and "Master" that the device is defined as master.
• Press the Enter button to confirm.

• Press the Mode/Esc button in order to return to the main menu.

• Program selection for Auto Pro Part

• Select "Edit program" by turning the encoder.

• Press the Enter button to confirm.
• Select "Select programs" by turning the encoder.
• Press the Enter button to confirm.
• Turn the encoder to select "Auto Pro Part 1", "Auto Pro Part 2" or "Auto Pro Part 3", and thus select which Slave program is to be sent. Selection „Part 1" means, that the Slave unit runs the same program as the master units.
• Press the Enter button to confirm.

• Press the Mode/Esc button in order to return to the main menu.

• Program selection for Edit Program

• Select "Edit program" by turning the encoder.

• Press the Enter button to confirm.
• Select "Edit program" by turning the encoder.
• Press the Enter button to confirm.
• Turn the encoder to select the desired program. With this function you can edit specific scenes into a specific program.
• Press the Enter button to confirm.
• Press the Mode/Esc button in order to return to the main menu.

English

5. Automatic Scene Recording

• Select "Edit program" by turning the encoder.
• Press the Enter button to confirm.
• Select "Edit scenes" by turning the encoder.
• Press the Enter button to confirm.
• Turn the encoder to select the desired scene numbers. You can program a maximum number of 250 scenes.
• Press the Enter button to confirm.
• Turn the encoder to select the desired value.
• Press the Enter button to confirm.
• Press the Mode/Esc button in order to return to the main menu.

Example:

Program 2 includes scenes: 10, 11, 12, 13;

Program 4 includes scenes: 8, 9, 10 and

Program 6 includes scenes: 12, 13, 14, 15, 16

Auto Pro Part 1 is Program 2;

Auto Pro Part 2 is Program 3;

Auto Pro Part 3 is Program 6

The 3 Slave groups run the Auto Program in certain time segments, as shown in the following picture:

Part 1:

Part 2:

Part 3:

Error Messages

When you turn on the fixture, it will make a reset first. The display may show an error message while there are problems with one or more channels. The error message stands for the channels equipped with a testing sensor.

For example, when the display shows "Color Wheel", it means there is some error in the color wheel channel. If there are some errors on several channels at the same time, you may see the error messages flash repeatedly for 5 times, and then the fixture will generate a reset signal, all the stepper motors will reset. If the error messages maintain after performing reset more than 3 times, it will detect whether the fixture has more than 3 errors. If the fixture has more than 3 errors (including 3 errors), all the channels can not work properly; but if the fixture has less than 3 errors, only the channels which have errors can not work properly, others can work as usual.

The respective error message will appear after the reset of the fixture if the channels magnetic-indexing circuit malfunction (sensor failed or magnet missing) or the stepping-motor is defective (or its driving IC on the main PCB). The channel feature is not located in the default position after the reset.

The different error messages are:

PAN Moving Magenta COLOR

TILT Moving Yellow COLOR

COLOR Wheel 1 CTO COLOR

COLOR Wheel 2 Strobe

Cyan COLOR Stepless zoom

CLEANING AND MAINTENANCE

The operator has to make sure that safety-relating and machine-technical installations are inspected by an expert after every four years in the course of an acceptance test. The operator has to make sure that safety-relating and machine-technical installations are inspected by a skilled person once a year.

The following points have to be considered during the inspection:

1) All screws used for installing the devices or parts of the device have to be tightly connected and must not be corroded.
2) There must not be any deformations on housings, fixations and installation spots (ceiling, suspension, trussing).
3) Mechanically moved parts like axles, eyes and others must not show any traces of wearing (e.g. material abrading or damages) and must not rotate with unbalances.
4) The electric power supply cables must not show any damages, material fatigue (e.g. porous cables) or sediments. Further instructions depending on the installation spot and usage have to be adhered by a skilled installer and any safety problems have to be removed.

DANGER TO LIFE!

Disconnect from mains before starting maintenance operation!

We recommend a frequent cleaning of the device. Please use a moist, lint-free cloth. Never use alcohol or solvents!

CAUTION!

The lens has to be replaced when it is obviously damaged, so that its function is impaired, e. g. due to cracks or deep scratches!

The清新-lens will require weekly cleaning as smoke-fluid tends to building up residues, reducing the light-output very quickly. The cooling-fans should be cleaned monthly.

The PHW-1200E is equipped with two dust protection filters inside the projector head. These must be cleaned in six month intervals in order to guarantee perfect air circulation.

Procedure:

Step 1: Unscrew the fixation screws of the housing cover.
Step 2: Remove the housing cover.
Step 3: Remove the dust protection filters and clean them.
Step 4: Replace the dust protection filters in the housing and tighten the fixation screws.
Step 5: Replace the housing cover and tighten the fixation screws.

Do not operate this device with opened cover!

The interior of the fixture should be cleaned at least annually using a vacuum-cleaner or an air-jet.

The dichroic colour-filters should be cleaned monthly.

To ensure a proper function of the rotating parts, we recommend lubrication in six-month intervals. The quantity of oil must not be excessive in order to avoid that oil runs out during the rotation.

There are no serviceable parts inside the device except for the lamp and the fuse. Maintenance and service operations are only to be carried out by authorized dealers.

Please refer to the instructions under "Installing/Replacing the lamp".

Replacing the fuse

If the lamp burns out, the fine-wire fuse of the device might fuse, too. Only replace the fuse by a fuse of same type and rating.

Before replacing the fuse, unplug mains lead.

Procedure:

Step 1: Unscrew the fuseholder on the rearpanel with a fitting screwdriver from the housing (anticlockwise).
Step 2: Remove the old fuse from the fuseholder.
Step 3: Install the new fuse in the fuseholder.
Step 4: Replace the fuseholder in the housing and fix it.

Should you need any spare parts, please use genuine parts.

If the power supply cable of this device becomes damaged, it has to be replaced by authorized dealers only in order to avoid hazards.

Should you have further questions, please contact your dealer.

TECHNICAL SPECIFICATIONS

Power supply: 230 V AC, 50 Hz ~
Power consumption: 1400 W
DMX-control-channels: 17
DMX-512-connection: 5-pin and 3-pin XLR
Flash-rate: 13 Hz
Colour-system: CMY colour-mixture
Colour-wheel 1: 2 dichroic, correction-filter	CTB, UV-filter + white
Colour-wheel 2: 4 dichroic + white
Maximum PAN-movement 630°: in 3.5 s
Maximum TILT-movement 265°: in 2.5 s
Length of base (including handles): 535 mm
Width of yoke: 540 mm
Height (head horizontal): 620 mm
Weight (net): 48.5 kg
Maximum ambient temperature Ta: 45°C
Maximum housing temperature TB (steady state):	140°C
Min(distance from flammable surfaces):	0.5 m
Min(distance to lighted object):	1 m
Fuse:	F 15 A, 250 V + F 2 A, 250 V
Accessory:
PHILIPS MSR 1200SA/DE GOLD SFC 10-4 750h	No. 89313015
FUTURELIGHT CP-240 controller	No. 51834265
FUTURELIGHT CP-256/64 controller 16bit	No. 51834288
FUTURELIGHT CP-512/64 controller 16bit	No. 51834295
Wizard-512 USB DMX-Software + Interface	No. 51860102
Wizard-1024 USB DMX-Software + Interface	No. 51860110
FUTURELIGHT UDB 1 USB Update Box	No. 51836901
Flightcase for 1x PHS-1200 incl.reelboard	No. 51836869
FUTURELIGHT DES-3 DMX-terminator 3-pin	No. 51834001

Please note: Every information is subject to change without prior notice. 06.08.2007 ©

Français

MODE D'EMPLOI

Futurelight

PHW-1200E Pro-Head-Wash

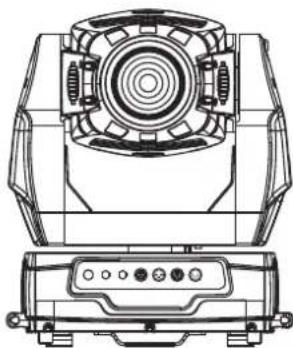

ATTENTION!

Projector 3 Starting address 35
Projector 2 Starting address 18
Projector 1 Starting address 1

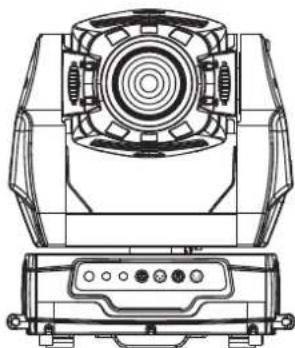

Operation Stand Alone

Projector 3 Starting address 35
Projector 2 Starting address 18
Projector 1 Starting address 1
