USER MANUAL PHW575 Futurelight

Technical line drawing of a mechanical device with no visible text or symbols

Keep this manual for future needs!

MULTI-LANGUAGE-INSTRUCTIONS

Delivery includes 32

SAFETY INSTRUCTIONS.... 32

OPERATING DETERMINATIONS....34

DESCRIPTION OF THE DEVICE 35

Features 35

Overview 36

INSTALLATION 37

Installing/Replacing the lamp 37

Lamp adjustment.... 38

Inserting/Exchanging colour filtres 38

Transport securing 39

Rigging 39

DMX-512 connection / connection between fixtures.... 42

Connection with the mains 43

OPERATION......43

Stand Alone operation....43

DMX-controlled operation 43

Addressing 43

DMX-protocol 44

Control Board 47

Function Mode 49

Information 49

Lamp Control....50

Personality....50

Reset function 52

Effect Adjust 52

Users mode set 52

Edit program....53

Error Messages....55

CLEANING AND MAINTENANCE 55

Replacing the fuse 56

TECHNICAL SPECIFICATIONS....57

Français

INTRODUCTION 58

Users mode set.... 105

Edit program.... 106

Avisos de error 108

LIMPIEZA Y MANTENIMIENTO 108

This user manual is valid for the article number 51838720

You can find the latest update of this user manual in the Internet under:

Technical diagram of a device rear panel with numbered component labels

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with mounting base and internal components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

CAUTION, HOT LAMP! Let the lamp cool down for 10 min. A 1 B LAMP: MSR GOLD 575 SA/2 DE 2 Change the lamp by loosening screws A,B,C and D. Adjust the lamp position by turning screws 1, 2 and 3. C 3 D Tₐ=45°C Tₙ=125°C

Top-down schematic of a large industrial or construction site with three vehicle-mounted units, enclosed by a truss structure (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Deutsch

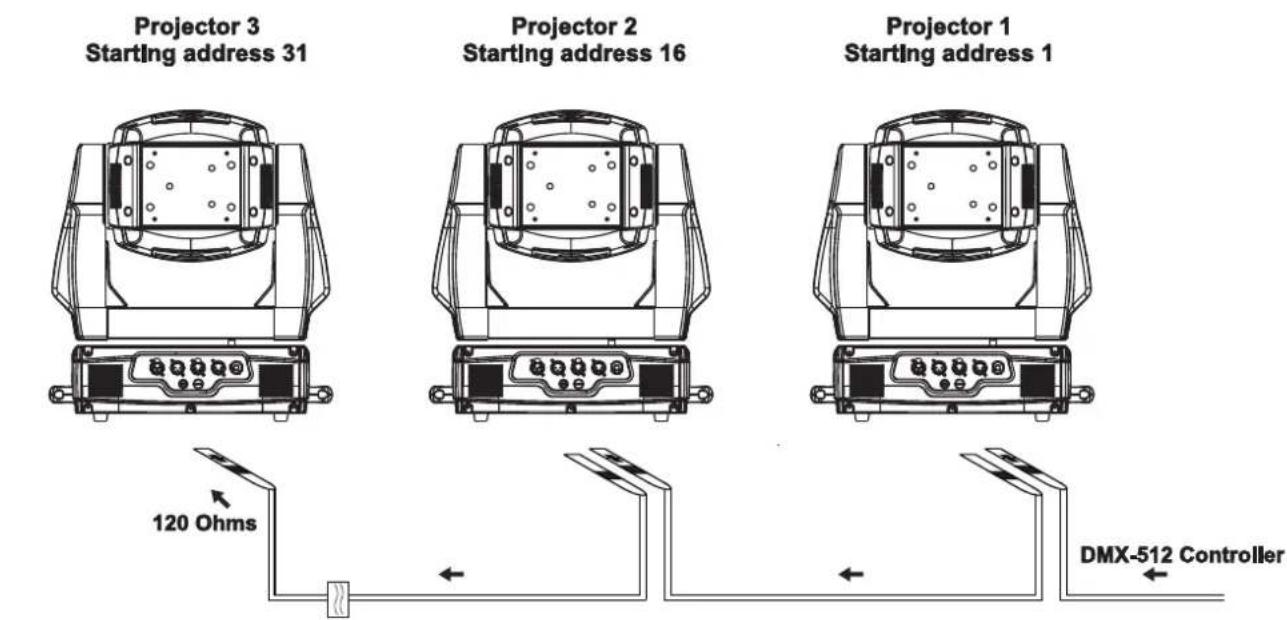

Projector 3 Starting address 31 Projector 2 Starting address 16 Projector 1 Starting address 1 120 Ohms DMX-512 Controller

Keep this device away from rain and moisture! Unplug mains lead before opening the housing!

For your own safety, please read this user manual carefully before you initially start-up.

Every person involved with the installation, operation and maintenance of this device has to

• be qualified
• follow the instructions of this manual
• consider this manual to be part of the total product
• keep this manual for the entire service life of the product
• pass this manual on to every further owner or user of the product
• download the latest version of the user manual from the Internet

INTRODUCTION

Thank you for having chosen a FUTURELIGHT PHW-575. You will see you have acquired a powerful and versatile device.

Unpack your PHW-575 and take it out of the flightcase.

Delivery includes

1 Device
1 User manual
1 Cable MC-50, 5m, black, XLR m/f,balanced 3022050N
2 FUTURELIGHT OC-1 Omega-clamp 51836995

SAFETY INSTRUCTIONS

CAUTION!

Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires!

English

This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.

Important:

Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

Please make sure that there are no obvious transport damages. Should you notice any damages on the A/C connection cable or on the casing, do not take the device into operation and immediately consult your local dealer.

This device falls under protection-class I. The power plug must only be plugged into a protection class I outlet. The voltage and frequency must exactly be the same as stated on the device. Wrong voltages or power outlets can lead to the destruction of the device and to mortal electrical shock.

Always plug in the power plug last. The power plug must always be inserted without force. Make sure that the plug is tightly connected with the outlet.

Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! Never touch them with wet hands, as this could lead to mortal electrical shock.

Never modify, bend, strain mechanically, put pressure on, pull or heat up the power cord. Never operate next to sources of heat or cold. Disregard can lead to power cord damages, fire or mortal electrical shock.

The cable insert or the female part in the device must never be strained. There must always be sufficient cable to the device. Otherwise, the cable may be damaged which may lead to mortal damage.

Make sure that the power-cord is never crimped or damaged by sharp edges. Check the device and the power-cord from time to time.

If extension cords are used, make sure that the core diameter is sufficient for the required power consumption of the device. All warnings concerning the power cords are also valid for possible extension cords.

Always disconnect from the mains, when the device is not in use or before cleaning it. Only handle the power-cord by the plug. Never pull out the plug by tugging the power-cord. Otherwise, the cable or plug can be damaged leading to mortal electrical shock. If the power plug or the power switch is not accessible, the device must be disconnected via the mains.

If the power plug or the device is dusty, the device must be taken out of operation, disconnected and then be cleaned with a dry cloth. Dust can reduce the insulation which may lead to mortal electrical shock. More severe dirt in and at the device should only be removed by a specialist.

There must never enter any liquid into power outlets, extension cords or any holes in the housing of the device. If you suppose that also a minimal amount of liquid may have entered the device, it must immediately be disconnected. This is also valid, if the device was exposed to high humidity. Also if the device is still running, the device must be checked by a specialist if the liquid has reduced any insulation. Reduced insulation can cause mortal electrical shock.

There must never be any objects entering into the device. This is especially valid for metal parts. If any metal parts like staples or coarse metal chips enter into the device, the device must be taken out of operation and disconnected immediately. Malfunction or short-circuits caused by metal parts may cause mortal injuries.

Danger of burning! Never install the device on a highly flammable surfaces (e.g. fair carpet)!

Caution: During the operation, the housing becomes very hot.

Do not switch the device on and off in short intervals as this would reduce the lamp's life.

HEALTH HAZARD!

Never look directly into the light source, as sensitive persons may suffer an epileptic shock (especially meant for epileptics)!

Keep away children and amateurs!

Never leave this device running unattended.

OPERATING DETERMINATIONS

This device is a moving-head spot for creating decorative effects. This product is only allowed to be operated with an alternating current of 230 V, 50 Hz and was designed for indoor use only.

This device is designed for professional use, e.g. on stages, in discotheques, theatres etc.

Lighting effects are not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects.

Do not shake the device. Avoid brute force when installing or operating the device.

Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always hold the fixture at the transport handles.

When choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust. There should not be any cables lying around. Please make sure that the unit cannot be touched or bumped. You endanger your own and the safety of others!

This device must never be operated or stockpiled in sourroundings where splash water, rain, moisture or fog may harm the device. Moisture or very high humidity can reduce the insulation and lead to mortal electrical shocks. When using smoke machines, make sure that the device is never exposed to the direct smoke jet and is installed in a distance of 0.5 meters between smoke machine and device. The room must only be saturated with an amount of smoke that the visibility will always be more than 10 meters.

The ambient temperature must always be between -5^ C and +45^ C. Keep away from direct insulation (particularly in cars) and heaters.

The relative humidity must not exceed 50 % with an ambient temperature of 45^ C.

This device must only be operated in an altitude between -20 and 2000 m over NN.

Never use the device during thunderstorms. Over voltage could destroy the device. Always disconnect the device during thunderstorms.

The symbol ·s m determines the minimum distance from lighted objects. The minimum distance between light-output and the illuminated surface must be more than this value.

The device must only be installed on a non-flammable surface. In order to safeguard sufficient ventilation, leave 50 cm of free space around the device. Please note that heat-sensitive objects may be deformed or damaged by the emitted heat.

Make sure that the area below the installation place is blocked when rigging, derigging or servicing the fixture.

For overhead use (mounting height >100 cm), always fix the fixture with an appropriate safety-rope. Fix the safety-rope at the correct fixation points only. The safety-rope must never be fixed at the transport handles!

English

Only operate the fixture after having checked that the housing is firmly closed and all screws are tightly fastened.

The lamp must never be ignited if the objective-lens or any housing-cover is open, as discharge lamps may expose and emit a high ultraviolet radiation, which may cause burns.

The maximum ambient temperature T_a = 45^ C must never be exceeded.

Operate the device only after having become familiarized with its functions. Do not permit operation by persons not qualified for operating the device. Most damages are the result of unprofessional operation!

Please use the original packaging if the device is to be transported.

Please consider that unauthorized modifications on the device are forbidden due to safety reasons!

Never remove the serial barcode from the device as this would make the guarantee void.

If this device will be operated in any way different to the one described in this manual, the product may suffer damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

DESCRIPTION OF THE DEVICE

Features

Multi-function Washlight

• Colour-wheel with 5 different, dichroic colour-filtres and white and additionally with UV-filter, correction-filters 3,200 K and 5,600 K
• Switchable colour change (mode 1: only full colours, mode 2: colour-change at every position)
• Slot-in system for exchanging colour-filtres without tools
  • Coloured LCD-display
• Rainbow-effect with adjustable speed in both directions
  • CMY colour mixture for indefinite colour variations
• Macro-function for combinations between CMY-colour mixture and colour-wheel
• Strobe-effect with 1-13 flashes per second via shutter
• Random strobe-effect
• Control-Board with LCD-display and foil-keyboard for adjusting the DMX-starting address, Pan/Tilt-Reverse, Program, Reset, lamp on/off, operating hours
• Remotely switching of the lamp
  • Built-in demo sequence
• Preprogrammed variable/random strobe and dimmer pulse effects
• Black-out while Head moving or CMY/colour/beam-shaping changing
• Remotely controllable speed of PAN /TILT movement for easy programming
• Remote reset function
• Motorized zoom
• Mechanic dimmer
• Exact positioning via 16 bit Pan/Tilt movement resolution
• PAN-angle switchable between 630^ and 540^
• DMX-controlled operation or stand alone operation with Master/Slave-function
• 56 preprogrammed scenes in Program Run for stand alone operation
  • Number of scenes in Program Run can be changed individually
• The scenes in Program Run can be modified via the Control Board or via an external controller and loaded into the memory
• 7 built-in programs can be called up via DMX-controller
  • Sound-controlled via built-in microphone
  • For MSR 575SA/2 DE GOLD lamp
• DMX-control via every standard DMX-controller
• Software-update possible via optional accessory

Overview

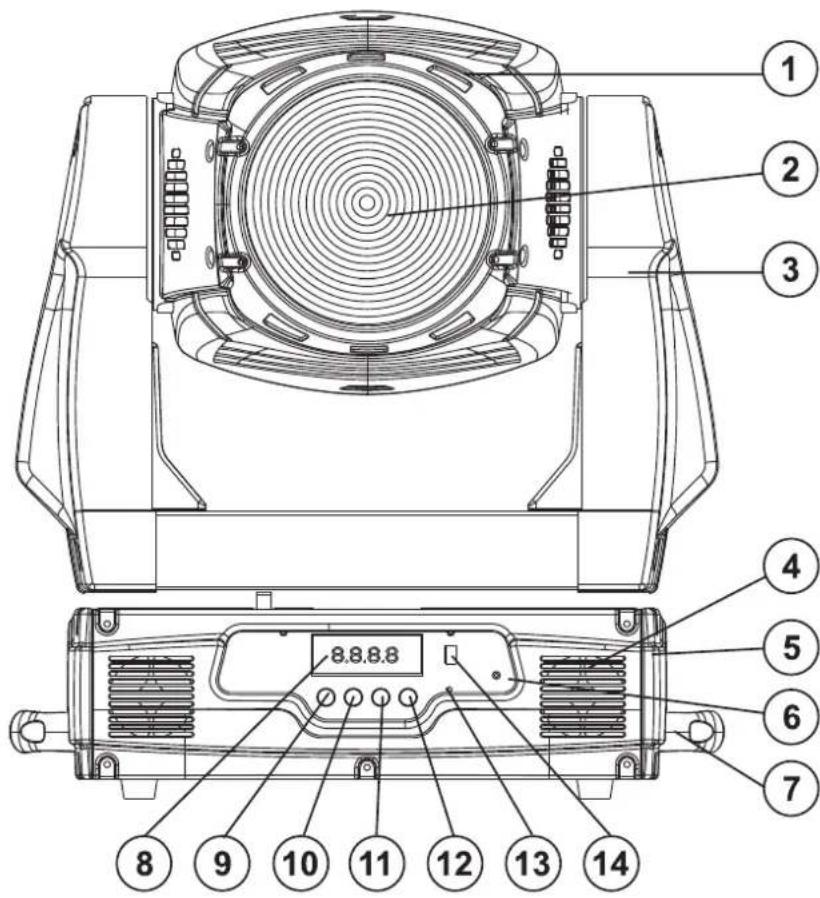

1 2 3 4 5 6 7 8 9 10 11 12 13 14 8.8.8.8

(1) Projector head
(2) Fresnell-lens
(3) Yoke
(4) Ventilation fan
(5) Base
(6) Control Board
(7) Carrying handle
(8) LCD-Display
(9) Mode/Esc-button
(10) Up-button
(11) Down-button
(12) Enter-button
(13) Microphone
(14) Update-socket

Technical diagram of a device rear panel with numbered component labels

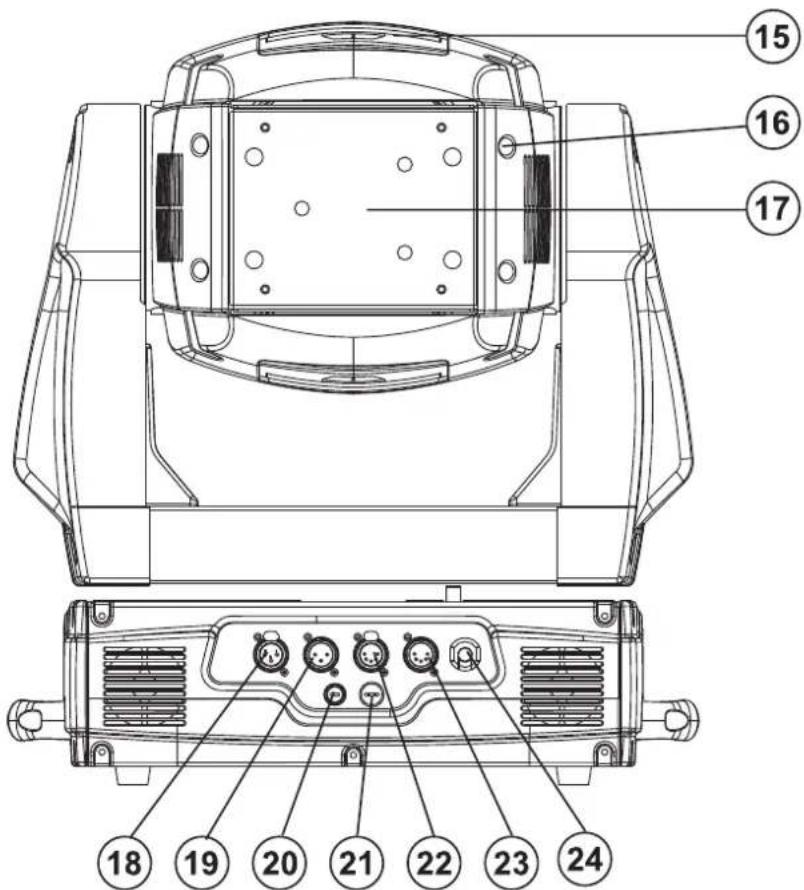

(15) Ventilation grille
(16) Housing screw
(17) Lamp system

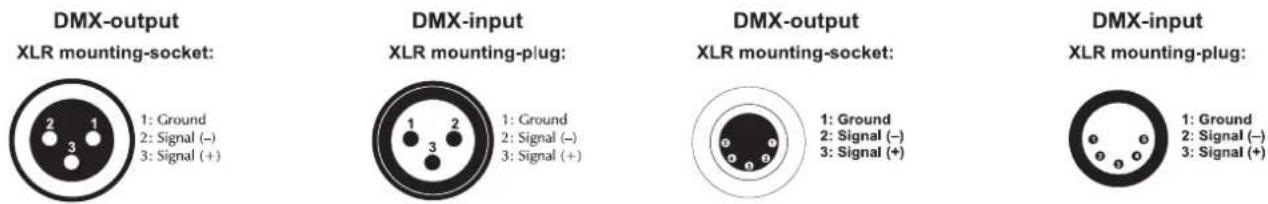

(18) 3-PIN DMX output socket
(19) 3-PIN DMX input socket
(20) Fuse holder 1
(21) Fuse holder 2
(22) 5-PIN DMX output socket
(23) 5-PIN DMX input socket
(24) Power supply

INSTALLATION

Installing/Replacing the lamp

DANGER TO LIFE!

Only install the lamp with the device switched off! Unplug from mains before!

For the installation, you need one MSR 575SA/2 DE GOLD lamp.

The lamp must only be changed when wearing appropriate protective clothing (protection glasses, protection gloves, helmet with sight, leather apron).

CAUTION!

The lamp has to be replaced when it is damaged or deformed due to the heat!

The lamp life given by the manufacturer must never be exceeded. This is why you need to take notes on the operational time of the lamp or check the operating hour meter regularly and replace the lamp in time.

Keep exchanged lamp in a protective container and remove accordingly. During the operation, the lamp reaches temperatures of up to 600°C.

Before replacing the lamp, unplug mains lead and let the lamp cool down (approx. 10 minutes).

During the installation do not touch the glass-bulbs bare-handed! Please follow the lamp manufacturer's notes!

Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the device was not designed for. Damages caused by non-observance are not subject to warranty.

Procedure:

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with base and housing (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

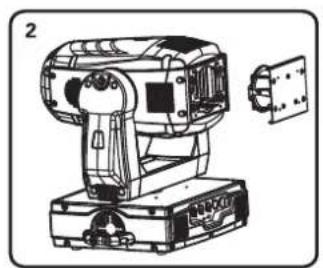

Step 1: Unscrew the fixation screws A, B, C, D of the lamp system and carefully remove it from the housing.

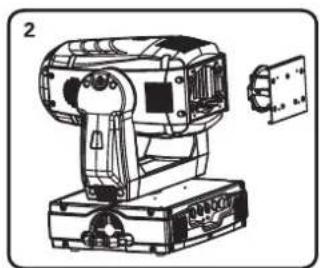

Step 2: If replacing the lamp, remove the old lamp from the lamp holder.

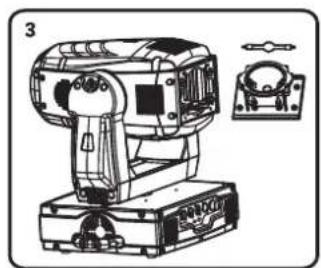

Step 3: Insert the lamp into the lamp holder.

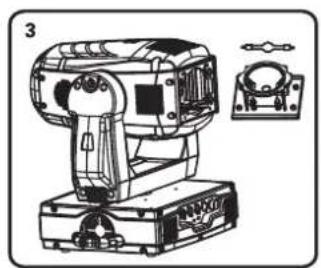

Step 4: Replace the lamp system in the housing and tighten the fixation screws.
Step 5: Adjust the lamp as described under lamp adjustment.

Do not operate this device with opened cover!

Lamp adjustment

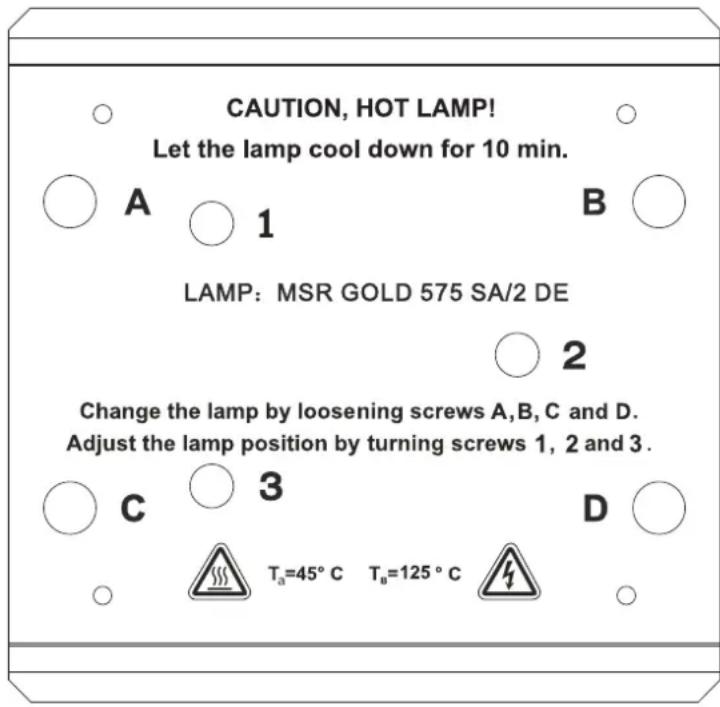

CAUTION, HOT LAMP! Let the lamp cool down for 10 min. A 1 B LAMP: MSR GOLD 575 SA/2 DE 2 Change the lamp by loosening screws A,B,C and D. Adjust the lamp position by turning screws 1, 2 and 3. C 3 D Tₐ=45° C Tₑ=125° C

bright and evenly distributed.

The lampholder is aligned at the factory. Due to differences between lamps, fine adjustment may improve light performance.

Strike the lamp, open the shutter, set the dimmer intensity onto 100 % and direct the light towards a flat surface (wall). Center the hot-spot (the brightest part of the beam) using the 3 adjustment screws „1, 2, 3“ Turn one screw at a time to drag the hot-spot diagonally across the projected image. If you cannot detect a hot-spot, adjust the lamp until the light is even.

To reduce a hot-spot, pull the lamp in by turning all three screws „1, 2, 3“ clockwise 14 -turn at a time until the light is evenly distributed.

If the light is brighter around the edge than it is in the center, or if light output is low, the lamp is too far back in the reflector. "Push" the lamp out by turning the screws „1, 2, 3“ counterclockwise 14 -turn at a time the light is

Inserting/Exchanging colour filtres

DANGER! HIGH VOLTAGE DANGER! Install the colour filtres with the device switched off only. Unplug from mains before!

If you wish to use other colour-filtres, or if colour-filtres are to be exchanged, please follow the instructions below:

Procedure:

Step 1: Adjust the head of the device until the lens points away from the base.
Step 2: Turn the colour-wheel until the desired colour-filtre appears and press carefully through the colour-wheel from below to loosen the colour-filtre.
Step 3: Use the other hand to pull out the colour-filtre from the colour-wheel.
Step 4: Replace the desired colour-filtre in reversed order.

Do not operate this device with opened cover!

Please note! Slot-in system for exchanging colour-filters without tools! Inserting/Exchanging colour-filters as described above.

Transport securing

The PHW-575 comes with locked transport securings in order to avoid damages.

Please note: All transport securing must be unlocked before operating the device!

TILT-securing:

Turn the two stop levers at the projector head from Lock to Unlock. Now, the projector head can be freely moved in the Y-direction.

PAN-securing:

Turn the stop levers at the bottom of the projector arm from Lock to Unlock. Now, the projector head can be freely moved in the X-direction.

Lock ←→ Un-lock

Before transporting the device, please turn all stop levers from Unlock to Lock.

Rigging

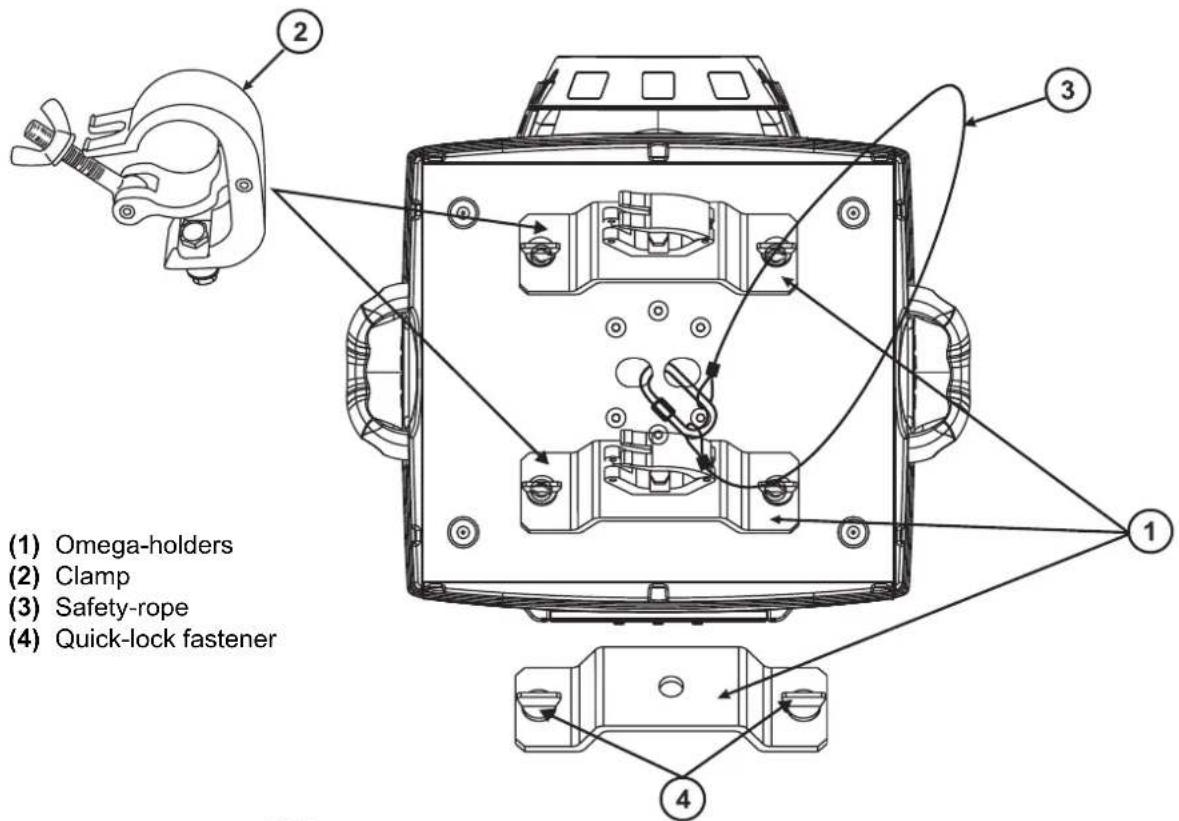

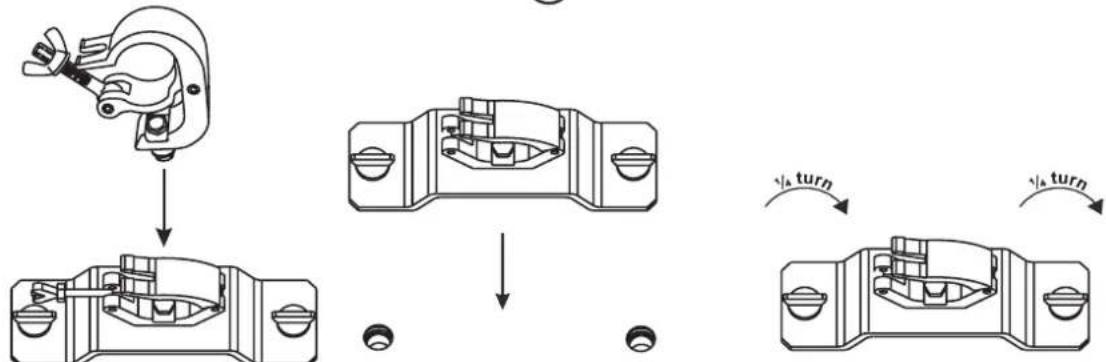

DANGER TO LIFE!

Please consider the EN 60598-2-17 and the respective national norms during the installation! The installation must only be carried out by an authorized dealer!

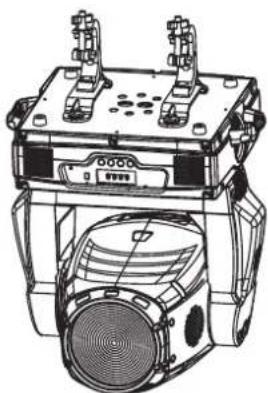

The installation of the projector has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation.

The installation must always be secured with a secondary safety attachment, e.g. an appropriate catch net. This secondary safety attachment must be constructed in a way that no part of the installation can fall down if the main attachment fails.

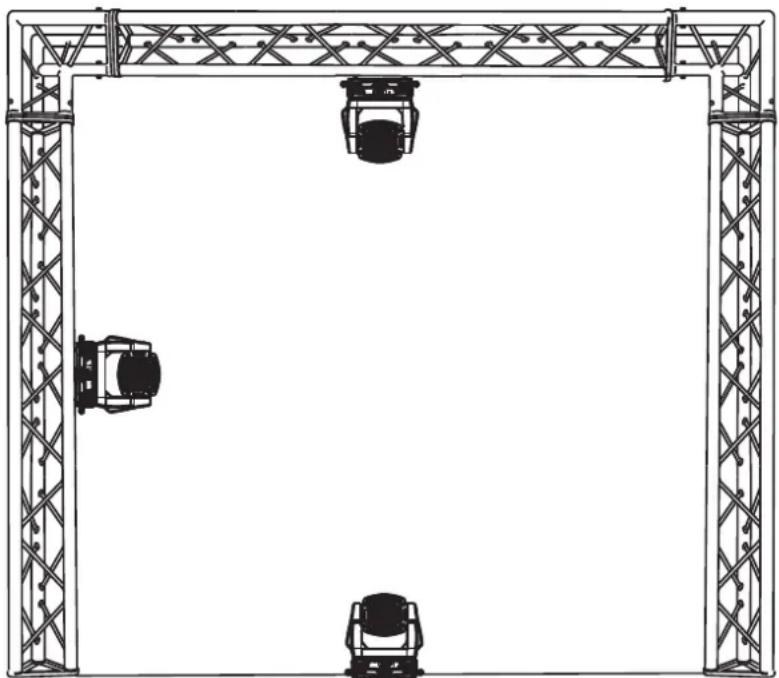

When rigging, derigging or servicing the fixture staying in the area below the installation place, on bridges, under high working places and other endangered areas is forbidden.

The operator has to make sure that safety-relating and machine-technical installations are approved by an expert before taking into operation for the first time and after changes before taking into operation another time.

The operator has to make sure that safety-relating and machine-technical installations are approved by an expert after every four year in the course of an acceptance test.

The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year.

Procedure:

The projector should be installed outside areas where persons may walk by or be seated.

IMPORTANT! OVERHEAD RIGGING REQUIRES EXTENSIVE EXPERIENCE, including (but not limited to) calculating working load limits, installation material being used, and periodic safety inspection of all

English

installation material and the projector. If you lack these qualifications, do not attempt the installation yourself, but instead use a professional structural rigger. Improper installation can result in bodily injury and/or damage to property.

The projector has to be installed out of the reach of people.

If the projector shall be lowered from the ceiling or high joists, professional trussing systems have to be used. The projector must never be fixed swinging freely in the room.

Caution: Projectors may cause severe injuries when crashing down! If you have doubts concerning the safety of a possible installation, do NOT install the projector!

Before rigging make sure that the installation area can hold a minimum point load of 10 times the projector's weight.

DANGER OF FIRE!

When installing the device, make sure there is no highly-inflammable material (decoration articles, etc.) within a distance of min. 0.5 m.

CAUTION!

Use 2 appropriate clamps to rig the fixture on the truss. Follow the instructions mentioned at the bottom of the base. Make sure that the device is fixed properly! Ensure that the structure (truss) to which you are attaching the fixtures is secure.

Technical line drawing of a mechanical assembly with three vehicle-mounted components mounted on a truss structure (no text or symbols)

The Moving-Head can be placed directly on the stage floor or rigged in any orientation on a truss without altering its operation characteristics (see the drawing).

The fixture's base enables to be mounted in two ways.

For overhead use (mounting height >100 cm), always install an appropriate safety bond.

You must only use safety bonds complying with DIN 56927, quick links complying with DIN 56926, shackles complying with DIN EN 1677-1 and BGV C1 carbines. The safety bonds, quick links, shackles and the carbines must be sufficiently dimensioned and used correctly in accordance with the latest industrial safety regulations (e.g. BGV C1, BGI 810-3).

Please note: for overhead rigging in public or industrial areas, a series of safety instructions have to be followed that this manual can only give in part. The operator must therefore inform himself on the current safety instructions and consider them.

The manufacturer cannot be made liable for damages caused by incorrect installations or insufficient safety precautions!

Install the safety bond by inserting the quick link in the hole on the bottom of the base Pull the safety bond over the trussing system etc. Insert the end in the quick link and tighten the fixation screw.

English

The maximum drop distance must never exceed 20 cm.

A safety bond which already hold the strain of a crash or which is defective must not be used again.

DANGER TO LIFE!

Before taking into operation for the first time, the installation has to be approved by an expert!

(1) Omega-holders (2) Clamp (3) Safety-rope (4) Quick-lock fastener

Screw one clamp each via a M12 screw and nut onto the Omega-holders.

Insert the quick-lock fasteners of the first Omega-holder into the respective holes on the bottom of the device. Tighten the quick-lock fasteners fully clockwise. Install the second Omega-holder.

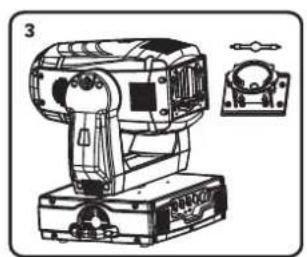

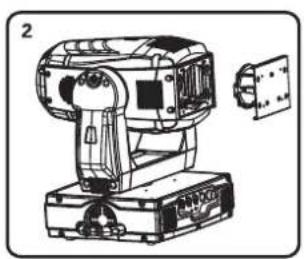

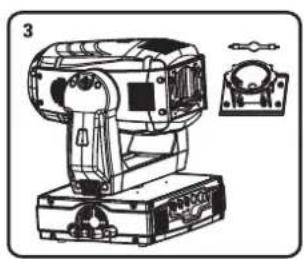

Technical line drawing of a mechanical device with mounting brackets and a circular component (no text or symbols)

DMX-512 connection / connection between fixtures

Projector 3 Starting address 31 Projector 2 Starting address 16 Projector 1 Starting address 1 120 Ohms DMX-512 Controller

The wires must not come into contact with each other, otherwise the fixtures will not work at all, or will not work properly.

Please note, the starting address depends upon which controller is being used.

Only use a stereo shielded cable and 3-pin or 5-pin XLR-plugs and connectors in order to connect the controller with the device or one device with another.

Occupation of the XLR-connection:

DMX-output XLR mounting-socket: 1: Ground 2: Signal (−) 3: Signal (+) DMX-input XLR mounting-plug: 1: Ground 2: Signal (−) 3: Signal (+) DMX-output XLR mounting-socket: 1: Ground 2: Signal (−) 3: Signal (+) DMX-input XLR mounting-plug: 1: Ground 2: Signal (−) 3: Signal (+)

If you are using controllers with this occupation, you can connect the DMX-output of the controller directly with the DMX-input of the first fixture in the DMX-chain. If you wish to connect DMX-controllers with other XLR-outputs, you need to use adapter-cables.

Building a serial DMX-chain:

Connect the DMX-output of the first fixture in the DMX-chain with the DMX-input of the next fixture. Always connect one output with the input of the next fixture until all fixtures are connected.

Caution: At the last device, the DMX-cable has to be terminated with a terminator. Solder a 120 Ω resistor between Signal (−) and Signal (+) into an XLR-plug and plug it in the DMX-output of the last device.

Connection with the mains

Connect the device to the mains with the power-plug.

The occupation of the connection-cables is as follows:

Cable Pin International
Brown Live L
Blue Neutral N
Yellow/Green Earth

The earth has to be connected!

If the device will be directly connected with the local power supply network, a disconnection switch with a minimum opening of 3 mm at every pole has to be included in the permanent electrical installation.

The device must only be connected with an electric installation carried out in compliance with the IEC-standards. The electric installation must be equipped with a Residual Current Device (RCD) with a maximum fault current of 30 mA.

Lighting effects must not be connected to dimming-packs.

OPERATION

After you connected the effect to the mains, the PHW-575 starts running. During the Reset, the motors are trimmed and the device is ready for use afterwards.

Stand Alone operation

In the Stand Alone mode, the PHW-575 can be used without controller.

Disconnect the PHW-575 from the controller and call the internal program.

Please refer to the instructions under Control Board, Functions, menu Auto program.

DMX-controlled operation

You can control the projectors individually via your DMX-controller. Every DMX-channel has a different occupation with different features. The individual channels and their features are listed under DMX-protocol.

Addressing

The Control Board allows you to assign the DMX starting address, which is defined as the first channel from which the PHW-575 will respond to the controller.

If you set, for example, the address to channel 16, the PHW-575 will use the channel 16 to 30 for control.

Please, be sure that you don't have any overlapping channels in order to control each PHW-575 correctly and independently from any other fixture on the DMX-chain.

If several PHW-575 are addressed similarly, they will work synchronically.

Press the Up/Down-buttons for setting the desired starting address. Now you can start operating the PHW-575 via your lighting controller.

Note:

After switching on, the device will automatically detect whether DMX 512 data is received or not. If there is no data received at the DMX-input, the display will flash.

This situation can occur if:

• the XLR plug (cable with DMX signal from controller) is not connected with the input of the device.
• the controller is switched off or defective, if the cable or connector is defective or the signal wires are swap in the input connector.

Note:

It's necessary to insert the XLR termination plug (with 120 Ohm) in the last lighting in the link in order to ensure proper transmission on the DMX data link.

English

DMX-protocol

Control-channel 1 - Horizontal movement (Pan)

Push slider up in order to move the head horizontally (PAN).

Gradual head adjustment from one end of the slider to the other (0-255, 128-center).

The head can be stopped at any position you wish.

Control-channel 2 - Vertical movement (Tilt)

Push slider up in order to move the head vertically (TILT).

Gradual head adjustment from one end of the slider to the other (0-255, 128-center).

The head can be stopped at any position you wish.

Control-channel 3 - Pan/Tilt-speed

Decimal Hexad. Percentage S/F Feature
0	225	00 E1	0%	88% F	Decreasing speed
226	235	E2 EB	89%	92%	Blackout at Pan/Tilt-movement
236	245	EC F5	93%	96%	Blackout at colour-change
246	255	F6	FF	96%	100%	S	No function

Control-channel 4 - Colour-wheel

Linear colour change following the movement of the slider.

In this way you can stop the colour-wheel in any position.

Decimal Hexad. Percentage S/F Feature
0	13	00	0D	0%	5%	S	Open / white
14	27	0E	1B 5%	11%	S Red
28	41	1C	29	11%	16%	S	Blue
42	55	2A	37	16%	22%	S	Green
56	69	38	45	22%	27%	S	Light yellow
70	83	46	53	27%	33%	S	Rose
84	97	54	61	33%	38%	S	UV-filter
98	111	62	6F	38%	44%	S	Correction-filter 3,200 K
112	127	70	7F	44%	50%	S	Correction-filter 5,600 K
128	187	80 BB	50%	73% F	Forwards	rainbow effect with decreasing speed
188	195	BC C3	74%	76%	S No rotation
196	255	C4	FF	77%	100%	F	Backwards rainbow effect with increasing speed

Control-channel 5 - Cyan

Decimal Hexad. Percentage S/F Feature
0	255	00	FF	0%	100%	F	Cyan (0=white, 255=cyan)

Control-channel 6 - Magenta

Decimal Hexad. Percentage S/F Feature
0	255	00	FF	0%	100%	F	Magenta (0=white, 255=magenta)

Control-channel 7 - Yellow

Decimal Hexad. Percentage S/F Feature
0	255	00	FF	0%	100%	F	Yellow (0=white, 255=yellow)

Control-channel 8 - CMY and dimmer speed

Decimal Hexad. Percentage S/F Feature
0	255	00	FF	0%	100%	F	Speed adjustment max to min

Control-channel 9 - CMY colour macros

Decimal Hexad. Percentage S/F Feature
0	7 00	07 0%	3%	S Neutral
8	15 08	0F	3%	6% S Macro 1
16	23 10	17	6%	9% S Macro 2
24	31 18	1F	9%	12% S Macro 3
32	39 20	27	13%	15% S Macro 4
40	47 28	2F	16%	18% S Macro 5
48	55 30	37	19%	22% S Macro 6
56	63 38	3F	22%	25% S Macro 7
64	71 40	47	25%	28% S Macro 8
72	79 48	4F	28%	31% S Macro 9
80	87 50	57	31%	34% S Macro 10
88	95 58	5F	35%	37% S Macro 11
96	103	60	67	38% 40% S Macro 12
104	111	68	6F	41% 44% S Macro 13
112	119	70	77	44% 47% S Macro 14
120	127	78	7F	47% 50% S Macro 15
128	135	80	87	50% 53% S Macro 16
136	143	88	8F	53% 56% S Macro 17
144	151	90	97	56% 59% S Macro 18
152	159	98	9F	60% 62% S Macro 19
160	167	A0	A7	63%	65%	S	Macro 20
168	175	A8	AF	66%	69%	S	Macro 21
176	183	B0	B7	69%	72%	S	Macro 22
184	191	B8	BF	72%	75%	S	Macro 23
192	199	C0	C7	75% 78% S Macro 24
200	207	C8	CF	78% 81% S Macro 25
208	215	D0	D7	82% 84% S Macro 26
216	223	D8	DF	85% 87% S Macro 27
224	231	E0	E7	88%	91%	S	Macro 28
232	239	E8	EF	91%	94%	S	Macro 29
240	247	F0	F7	94% 97% S Macro 30
248	255	F8	FF	97%	100%	S	Random CMY

Control-channel 10 - Zoom

Decimal		Hexad.		Percentage S/F Feature
0	255	00	FF	0%	100%	F	Zoom adjustment from small to big

Control channel 11 - Shutter, strobe

Decimal Hexad. Percentage S/F Feature
0	31 00	1F	0%	12% S	shutter closed
32	63 20	3F	13%	25% S	No function (shutter open)
64	95 40	5F	25%	37%	F Strobe-effect with increasing speed
96	127	60	7F	38%	50%	S	No function (shutter open)
128	159	80	9F	50%	62%	F	Pulse-effect in sequences
160	191	A0	BF	63%	75%	S	No function (shutter open)
192	223	C0	DF	75%	87%	F	Random strobe-effect with increasing speed
224	255	E0	FF	88%	100%	S	No function (shutter open)

Control-channel 12 - Dimmer intensity

Decimal Hexad. Percentage S/F Feature
0	255	00	FF	0%	100%	F	Gradual adjustment of the dimmer intensity from 0 to 100 %

Control-channel 13 - Switching the lamp, Reset, internal programs

Decimal Hexad. Percentage S/F Feature
0	19	00	13	0%	7%	S	Normal colour-change, search position via shortest distance
20	39	14	27	8%	15%	S	Colour-change at every position, search position via shortest distance
40	59	28	3B	16%	23%	S	Lamp on
60	79	3C	4F	24%	31%	S	Lamp off
80	84	50	54	31%	33%	S	Reset all motors
85	87	55	57	33%	34%	S	Reset only Pan/Tilt
88	90	58	5A	35%	35%	S	Reset only colors
91	93	5B	5D	36%	36%	S	No function
94	96	5E	60	37%	38%	S	Reset only shutter and/or dimmer
97	99	61	63	38%	39%	S	Reset other motors
100	119	64	77	39%	47%	S	Internal program 1 (Edit Program Scene 1 - 8)
120	139	78	8B	47%	55%	S	Internal program 2 (Edit Program Scene 9 - 16)
140	159	8C	9F	55%	62%	S	Internal program 3 (Edit Program Scene 17 - 24)
160	179	A0	B3	63%	70%	S	Internal program 4 (Edit Program Scene 25 - 32)
180	199	B4	C7	71%	78%	S	Internal program 5 (Edit Program Scene 33 - 40)
200	219	C8	DB	78%	86%	S	Internal program 6 (Edit Program Scene 41 - 48)
220	239	DC	EF	86%	94%	S	Internal program 7 (Edit Program Scene 49 - 56)
240	255	F0	FF	94%	100%	S	Music control

Control-channel 14 - Pan-movement with 16 Bit-resolution

Control-channel 15 - Tilt-movement with 16 Bit-resolution

Control Board

The Control Board offers several features: you can simply set the starting address, switch on and off the lamp, run the pre-programmed program or make a reset.

The main menu is accessed by pressing Mode/Esc until the display is lit. Browse through the menu by pressing Up or Down. Press Enter in order to select the desired menu. You can change the selection by pressing Up or Down. Press Enter in order to confirm. You can leave every mode by pressing Mode/Esc. The functions provided are described in the following sections.

Default settings shaded.

	Main menu Sub	menu Display Function
Function Mode	Set DMX address A001~ AXXX DMX address		setting
	Value display PAN DMX value display
	Set to Slave	Slave 1, Slave 2, Slave 3		Slave setting
	Auto program Master/Alone Auto program
	Music control Master/Alone Music control
Information	Time information	Current time XXXX (hours)		Individual fixture running time
		Total run time XXXX (hours) Fixture running time
		Total lamp time XXXX (hours) Lamp running time
		Lamp off time XXXX (minutes) Lamp off time
		Clear lamp time	ON/OFF	Clear lamp time
	Temperature info	Base Temperature	XX °C/°F	Ambient temperature
		Head Temperature	XXX °C/°F Inside temperature
	Software version	Ver. 1.0		Software version of each IC
Lamp Control	Lamp on or off	ON/OFF		Lamp on/off
	Automatic La-on	ON/OFF		Lamp on/off / Power
	Lamp on via DMX	ON/OFF		Lamp on via DMX
	Lamp off via DMX	ON/OFF		Lamp off via DMX
	Lamp off no DMX	OFF, OFF~19M		Lamp off if no DMX
	Lamp on at temp.	20-79°C, 45°C / 68-174°F, 113°F		Lamp restart at temp.
	Lamp off at temp.	80-139°C, 130°C / 176-282°F, 266°F		Lamp off at temp.
Personality	Status settings	Address via DMX	ON/OFF	Addr. via DMX
		No DMX status	Close/Hold/Auto/Music	Run if no DMX
		PAN reverse	ON/OFF	Reverse movement
		TILT reverse	ON/OFF
		Fine resolution	ON/OFF	16-bit movement switch from 16 bit to 8 bit resolution
		PAN degree	630/540	Select PAN-angle 630° or 540°
		Feedback	ON/OFF	Automatic PAN/TILT calibration
		Movement speed	Speed 1 ~ 4	Adjust PAN/TILT speed
		Mic sensitivity	70 %, 0~99%	Mic sensitivity
	Service setting	Service Password	Password=XXX	password „050“
		Fan voltage	HIGH/LOW	Fans mode select
Personality	Fans Control	Auto fans speed			Adjust fan speed
		High fans speed
		Low fans speed
	Display setting	Shutoff time	05M, 01M-59M		Display shutoff time
	Temperature C/F	Celsius			Select temperature designation °C or °F
		Fahrenheit
	Initial effect	PAN ... PAN = XXX ... Initial effect position
	Reset default ON/OFF Restore factory sett.
Reset function	Reset All				Reset all motors
	Reset PAN/TILT Reset only PAN/TILT
	Reset Colors				Reset only colors/ CMY + CTO module
	Reset Shutter				Reset only shutter and/or dimmer
	Reset Others				Reset other motors
Effect Adjust	Test channel PAN ... Test function
	Manual control PAN ... PAN = XXX ... Lamp adjustment
	Calibrate Values	--Password--Color wheel ...	Password=XXXColor wheel=XXX		Wheel adjustment to standard position password „050“
User's Mode Set	User mode	XXXXXX (Band)User mode AUser mode BUser mode C			User's mode to change channel numbers
	Edit user mode	PAN ... PAN = CH01 ...	Preset User modes
Edit Program	Select Programs	Auto Pro Part 1Auto Pro Part 2Auto Pro Part 3	Progr. 1-10Progr. 1-10Progr. 1-10	Program 1Program 2Program 3	Select programs to be run
	Edit program	Program 1:Program 10	Program TestStep 01 = SCXXXStep 64 = SCXXX	("Step XX")	Testing programProgram in loopSave and exit
	Edit scenes	Edit scene 001:Edit scene 250	Pan,Tilt, ...--Scene Time--Input by outside	Pan=XXXTIME=XX.XS	Save and automatically return manual scenes edit
	Rec. Controller XXX~XXX Automat. scenes rec

English

Function Mode

DMX address setting

With this function, you can adjust the desired DMX-address via the Control Board.

• Select "Set DMX address" by pressing Up or Down.
• Press the Enter-button, adjust the DMX address by pressing Up or Down.
• Press the Enter-button to confirm.
• Press the Mode/Esc-button in order return to the main menu.

Display the DMX 512 value of each channel

With this function you can display the DMX 512 value of each channel. The display automatically shows the channel with a value changing.

Slave setting

With this function, you can define the device as slave. You can choose one of three different Slave programs. For further information see „Edit Program“ - „Select Programs“

Auto program

With this function, you can run the internal program. You can select the desired program under "Select program". You can set the number of steps under "Edit program". You can edit the individual scenes under "Edit scenes". With this function, you can run the individual scenes either automatically, i.e. with the adjusted Step-Time. The selection "Alone" means Stand Alone-mode and "Master" that the device is defined as master.

Music control

With this function, you can run the internal program sound-controlled. The selection "Alone" means Stand Alone-mode and "Master" that the device is defined as master.

Information

Time information

Current time

With this function, you can display the temporary running time of the device from the last power on. The display shows "XXXX", "X" stands for the number of hours. The counter is reset after turning the device off.

Total run time

With this function, you can display the running time of the device. The display shows "XXXX", "X" stands for the number of hours.

Total lamp time

With this function, you can display the running time of the lamp. The display shows "XXXX", "X" stands for the number of hours.

Lamp off time (in minutes)

With this function, you can display the temporary running time of the lamp from the last lamp on. The display shows "XXXX", "X" stands for the number of minutes. The counter is reset after turning the lamp off.

Clear lamp time

With this function you can clear the running time of the lamp. Please clear the lamp time every time you replace the lamp.

• Select "Clear total time" by pressing Up or Down.
• Press the Enter-button to confirm.
• Press Up or Down, the display shows "ON" or "OFF".
• Press the Enter-button to confirm.
• Press the Mode/Esc-button in order to return to the main menu.

Temperature info

Base Temperature

With this function you can display the temperature in the projector base (near LCD-display) in degree Celsius/degree Fahrenheit.

English

Head Temperature

With this function you can display the temperature in the projector-head (near CMY-filter) in degree Celsius/degree Fahrenheit.

Software version

With this function you can display the software version of the device.

- Select "Software version" by pressing Up or Down.

- Press the Enter-button, the display shows "V-X.X", "X.X" stands for the version number, e.g. "V-1.0", "V-2.6".

- Press the Mode/Esc-button in order to return to the main menu.

Lamp Control

Lamp on or off

With this function you can switch the lamp on or off via the Control Board.

• Select "Lamp on or off" by pressing Up or Down.
• Press the Enter-button, the display shows "ON" or "OFF".
• Press Up or Down to select "ON" if you wish to strike the lamp or "OFF" in order to switch it off.
• Press the Enter-button to confirm.
• Press the Mode/Esc-button in order to return to the main menu.

Automatic Lamp on

With this function you can select if the lamp will be switched on when switching the power on. Select "ON" by pressing Up or Down if you wish to enable this function or "OFF" if you don't.

Lamp on via external controller

With this function you can select if you can switch the lamp on via an external. Select "ON" by pressing Up or Down if you wish to enable this function or "OFF" if you don't.

Lamp off via external controller

With this function you can select if you can switch the lamp off via an external. Select "ON" by pressing Up or Down if you wish to enable this function or "OFF" if you don't.

Lamp off no DMX

With this function you can select to switch off the lamp off automatically if there is no DMX signal.

Lamp on at temp.

With this function you can set the inside temperature from which the projector will restrike the lamp after automatic lamp shutoff.

Lamp off at temp.

With this function you can set the inside temperature at which the projector will automatically switch the lamp off. Press Up or Down to select the maximum inside temperature between 80 °C and 139 °C. Inside temperatures below 90 °C are not critical. 90 °C and more should lead to the lamp being switched off. Please note that the outside temperature should not exceed 45 °C.

Personality

Status settings

Address via DMX

With this function, you can adjust the desired DMX-address via an external controller.

• Select "Address via DMX" by pressing Up or Down.
• Press the Enter-button, the display shows "ON" or "OFF".
• Press Up or Down to select "ON" if you wish to enable this function or "OFF" if you don't.
• Press the Enter-button to confirm.
• Press the Mode/Esc-button in order to return to the main menu.
• On the controller, set the DMX-value of channel 1 to "7".
• Set the DMX-value of channel 2 to "7" or "8". When set to "7" you can adjust the starting address between 1 and 255. When set to "8" you can adjust the starting address between 256 and 511.

English

• Set the DMX-value of channel 3 to the desired starting address. If you want to set the starting address to 57, set channel 1 to "7", channel 2 to "7" and channel 3 to "57". If you want to set the starting address to 420, set channel 1 to "7", channel 2 to "8" and channel 3 to "164" (256+164=420).
• Wait for approx. 20 seconds and the unit will carry out a reset. After that, the new starting address is set.

No DMX status

With the function "No DMX status", you can set different modes if there is no DMX-signal.

• Select "Close, Hold, Auto or Music" by pressing Up or Down.
• Press the Enter-button, the display shows "ON" or "OFF".
• Press Up or Down to select "ON" if you wish to enable this function or "OFF" if you don't.
• Press the Enter-button to confirm.
• Press the Mode/Esc-button in order to return to the main menu.

Close

With this function, you can close the shutter and set the device to center position if there is no DMX-signal. This mode equals the settings Auto = OFF and Music = OFF.

Hold

With this function, the device remains in the last received DMX-program if there is no DMX-signal.

Auto

With the function "Auto", you can set the device to auto run if there is no DMX-signal.

Music

With the function "Music", you can set the device to sound-controlled program-run if there is no DMX-signal.

PAN Reverse

With this function you can reverse the Pan-movement.

TILT Reverse

With this function you can reverse the Tilt-movement.

Fine resolution

With this function you can switch the device from 16 bit to 8 bit resolution.

• Select "Fine resolution" by pressing Up or Down.
• Press the Enter-button, the display shows "ON" or "OFF".
• Press Up or Down to select "ON" in order to set 16 bit, or "OFF" in order to set 8 bit. The channels PAN Fine and TILT Fine will be disabled.
• Press the Enter-button to confirm.
• Press the Mode/Esc-button in order to return to the main menu.

PAN degree

With this function you can select the PAN-degree.

• Select "PAN degree" by pressing Up or Down.
• Press the Enter-button, the display shows "540".
• Press Up or Down to select the desired degree between "540" and "630".
• Press the Enter-button to confirm.
• Press the Mode/Esc-button in order to return to the main menu.

Automatic PAN/TILT calibration

With this function you can calibrate the PAN/TILT movement to the correct starting position.

Adjust PAN/TILT speed

With this function you can define the PAN/TILT speed. You can select one of 4 different modes.

Mic sensitivity

With this function, you can select the desired microphone sensitivity between 0 % and 99 %.

• Select "Mic sensitivity" by pressing Up or Down.
• Press the Enter-button, the display shows "M-70".
• Press Up or Down to select the desired sensitivity.
• Press the Enter-button to confirm.
• Press the Mode/Esc-button in order to return to the main menu.

English

Service setting

The password for this function is „050“.

Adjust ventilation fans mode

With this function, you can adjust the ventilation fans mode.

• Select "Fan Voltage" by pressing Up or Down.
• Press Enter to confirm; the display shows "LOW".
• Press Up or Down to select "LOW" or "HIGH".
• Press the Enter-button to confirm.
• Press the Mode/Esc-button in order to return to the main menu.

Adjust fan speed

With this function you can adjust the fan voltage selected under ventilation fan mode even further. In this way, you can select „Auto fans speed“, „High fans speed“ and „Low fans speed“.

Display close time

With this function you can shut off the LED display after 1 to 59 minutes.

Select temperature designation

With this function you can select the temperature designation.

• Select "Temperature C/F" by pressing Up or Down.
• Press the Enter-button, the display shows "Celsius".
• Press Up or Down to select the desired degree between "Celsius" and "Fahrenheit".
• Press the Enter-button to confirm.
• Press the Mode/Esc-button in order to return to the main menu.

Initial effect

With this function, you can adjust with which value the respective channels will start.

Reset function

With this function you can reset the device via the Control Board. You can select the different Reset-functions by pressing Up or Down.

Restore factory settings

With this function you can restore the factory settings of the device. All settings will be set back to the default values (shaded). Any edited scenes will be lost.

Effect Adjust

Test function of each channel

With this function you can test each channel on its (correct) function.

Manual Control

With this function, you can adjust the lamp more easily. All effects will be cancelled, the shutter opens and the dimmer intensity will be set to 100 %. With the individual functions, you can focus the light on a flat surface (wall) and perform the fine lamp adjustment.

Calibrate Values

With this function, you can calibrate and adjust the effect wheels to their correct positions. The password for this function is „050“.

Users mode set

User mode

With this function, you can create user defined channel orders.

Edit User mode

With this function, you can adjust the Preset user defined channel order.

Edit program

Select program for auto program

With this function, you can select the program for the Program Run.

Edit program

With this function, you can edit the internal programs.

Edit scenes

With this function, you can edit the scenes of the internal programs.

Rec. Controller

The device features an integrated DMX-recorder by which you can transmit the programmed scenes from your DMX-controller to the device. Adjust the desired scene numbers by pressing Up or Down (from - to). When you call up the scenes at your controller, they will automatically be transmitted to the device.

Excursion:

A Master unit can send up to 3 different data groups to the Slave units, i.e. a Master unit can start 3 different Slave units, which run 3 different programs. The Master unit sends the 3 program parts in a continuous loop.

The Slave unit receives data from the Master unit according to the group which the Slave unit was assigned to. If e.g. a Slave unit is set to „Slave 1“ in the menu „Set to Slave“, the Master unit sends „Auto Program Part 1“ to the Slave unit. If set to „Slave 2“, the Slave unit receives „Auto Program Part 2“.

To start a Auto Program please proceed as follows:

1. Slave-Setting

• Select "Function Mode" by pressing Up or Down.
• Press the Enter-button to confirm.
• Select "Set to slave" by pressing Up or Down.
• Press the Enter-button to confirm.
• Press Up or Down to select "Slave 1", "Slave 2" or "Slave 3".
• Press the Enter-button to confirm.
• Press the Mode/Esc-button in order to return to the main menu.

2. Automatic Program Run

• Select "Function Mode" by pressing Up or Down.
• Press the Enter-button to confirm.
• Select "Auto Program" by pressing Up or Down.
• Press the Enter-button to confirm.
• Press Up or Down to select "Master" or "Alone". The selection "Alone" means Stand Alone-mode and "Master" that the device is defined as master.
• Press the Enter-button to confirm.
• Press the Mode/Esc-button in order to return to the main menu.

3. Program selection for Auto Pro Part

• Select "Edit program" by pressing Up or Down.
• Press the Enter-button to confirm.
• Select "Select programs" by pressing Up or Down.
• Press the Enter-button to confirm.
• Press Up or Down to select “Auto Pro Part 1”, “Auto Pro Part 2” or “Auto Pro Part 3”, and thus select which Slave program is to be sent. Selection „Part 1“ means, that the Slave unit runs the same program as the master units.
• Press the Enter-button to confirm.
• Press the Mode/Esc-button in order to return to the main menu.

English

4. Program selection for Edit Program

• Select "Edit program" by pressing Up or Down.
• Press the Enter-button to confirm.
• Select "Edit program" by pressing Up or Down.
• Press the Enter-button to confirm.
• Press Up or Down to select the desired program. With this function you can edit specific scenes into a specific program.
• Press the Enter-button to confirm.
• Press the Mode/Esc-button in order to return to the main menu.

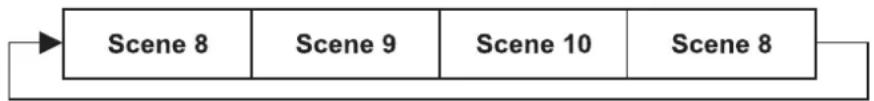

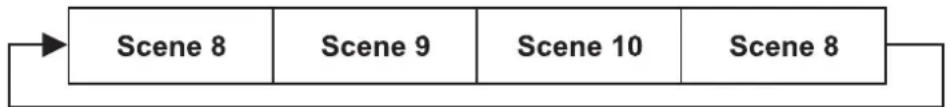

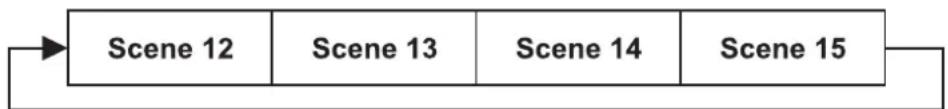

5. Automatic Scene Recording

• Select "Edit program" by pressing Up or Down.
• Press the Enter-button to confirm.
• Select "Edit scenes" by pressing Up or Down.
• Press the Enter-button to confirm.
• Press Up or Down to select the desired scene numbers. You can program a maximum number of 250 scenes.
• Press the Enter-button to confirm.
• Press Up or Down to select the desired value.
• Press the Enter-button to confirm.
• Press the Mode/Esc-button in order to return to the main menu.

Example:

Program 2 includes scenes: 10, 11, 12, 13;

Program 4 includes scenes: 8, 9, 10 and

Program 6 includes scenes: 12, 13, 14, 15, 16

Auto Pro Part 1 is Program 2;

Auto Pro Part 2 is Program 3;

Auto Pro Part 3 is Program 6

The 3 Slave groups run the Auto Program in certain time segments, as shown in the following picture:

Part 1:

Part 2:

Part 3:

Error Messages

When you turn on the fixture, it will make a reset first. The display may show an error message while there are problems with one or more channels. The error message stands for the channels equipped with a testing sensor.

For example, when the display shows “Color Wheel”, it means there is some error in the color wheel channel. If there are some errors on several channels at the same time, you may see the error messages flash repeatedly for 5 times, and then the fixture will generate a reset signal, all the stepper motors will reset. If the error messages maintain after performing reset more than 3 times, it will detect whether the fixture has more than 3 errors. If the fixture has more than 3 errors (including 3 errors), all the channels can not work properly; but if the fixture has less than 3 errors, only the channels which have errors can not work properly, others can work as usual.

The respective error message will appear after the reset of the fixture if the channels magnetic-indexing circuit malfunction (sensor failed or magnet missing) or the stepping-motor is defective (or its driving IC on the main PCB). The channel feature is not located in the default position after the reset.

The different error messages are:

PAN Moving Magenta COLOR

TILT Moving Yellow COLOR

COLOR Wheel Stepless zoom

Cyan COLOR Strobe

CLEANING AND MAINTENANCE

The operator has to make sure that safety-relating and machine-technical installations are inspected by an expert after every four years in the course of an acceptance test.

The operator has to make sure that safety-relating and machine-technical installations are inspected by a skilled person once a year.

The following points have to be considered during the inspection:

1) All screws used for installing the devices or parts of the device have to be tightly connected and must not be corroded.
2) There must not be any deformations on housings, fixations and installation spots (ceiling, suspension, trussing).
3) Mechanically moved parts like axles, eyes and others must not show any traces of wearing (e.g. material abrading or damages) and must not rotate with unbalances.
4) The electric power supply cables must not show any damages, material fatigue (e.g. porous cables) or sediments. Further instructions depending on the installation spot and usage have to be adhered by a skilled installer and any safety problems have to be removed.

DANGER TO LIFE!

Disconnect from mains before starting maintenance operation!

We recommend a frequent cleaning of the device. Please use a moist, lint-free cloth. Never use alcohol or solvents!

CAUTION!

The lens has to be replaced when it is obviously damaged, so that its function is impaired, e. g. due to cracks or deep scratches!

The fresnell-lens will require weekly cleaning as smoke-fluid tends to building up residues, reducing the light-output very quickly. The cooling-fans should be cleaned monthly.

The PHW-575 is equipped with two dust protection filters inside the projector head. These must be cleaned

English

in six month intervals in order to guarantee perfect air circulation.

Procedure:

Step 1: Unscrew the fixation screws of the housing cover.
Step 2: Remove the housing cover.
Step 3: Remove the dust protection filters and clean them.
Step 4: Replace the dust protection filters in the housing and tighten the fixation screws.
Step 5: Replace the housing cover and tighten the fixation screws.

Do not operate this device with opened cover!

The interior of the fixture should be cleaned at least annually using a vacuum-cleaner or an air-jet.

The dichroic colour-filters and the internal lenses should be cleaned monthly.

To ensure a proper function of the rotating parts, we recommend lubrication in six-month intervals. The quantity of oil must not be excessive in order to avoid that oil runs out during the rotation.

There are no serviceable parts inside the device except for the lamp and the fuse. Maintenance and service operations are only to be carried out by authorized dealers.

Please refer to the instructions under "Installing/Replacing the lamp".

Replacing the fuse

If the lamp burns out, the fine-wire fuse of the device might fuse, too. Only replace the fuse by a fuse of same type and rating.

Before replacing the fuse, unplug mains lead.

Procedure:

Step 1: Unscrew the fuseholder on the rearpanel with a fitting screwdriver from the housing (anti-clockwise).
Step 2: Remove the old fuse from the fuseholder.
Step 3: Install the new fuse in the fuseholder.
Step 4: Replace the fuseholder in the housing and fix it.

Should you need any spare parts, please use genuine parts.

If the power supply cable of this device becomes damaged, it has to be replaced by authorized dealers only in order to avoid hazards.

Should you have further questions, please contact your dealer.

TECHNICAL SPECIFICATIONS

Power supply: 230 V AC, 50 Hz ~
Power consumption: 850 W
DMX-control-channels: 15
DMX-512-connection: 5-pin and 3-pin XLR
Flash-rate: 13 Hz
Colour-system: CMY colour-mixture
Colour-wheel: 5 dichroic + white, UV-filter, 2 correction filters
Maximum PAN-movement 630°: in 3.5 s
Maximum TILT-movement 265°: in 2.5 s
Length of base (including handles): 470 mm
Width of yoke: 350 mm
Height (head horizontal): 520 mm
Weight (net): 32 kg
Maximum ambient temperature T_a : 45°C
Maximum housing temperature T_B (steady state):	125°C
Min.distance from flammable surfaces:	0.5 m
Min.distance to lighted object:	0.5 m
Fuse:	T 2 A, 250 V + T 6.3 A, 250 V
Accessory:
PHILIPS MSR 575SA/2 DE GOLD SFC 11 750h	No. 89311115
GE CSR 575/ss/DE Sockel SFc 11.4 7500K	No. 89301000
FUTURELIGHT CP-240 controller	No. 51834265
FUTURELIGHT CP-256/64 controller 16bit	No. 51834288
FUTURELIGHT CP-512/64 controller 16bit	No. 51834295
FUTURELIGHT CP-1024 controller 16bit	No. 51834310
Wizard-512 USB DMX-Software + Interface	No. 51860102
Wizard-1024 USB DMX-Software + Interface	No. 51860110
Cable FP-100 XLR 5pol M/F black 10,0m	No. 30220770
Flightcase for 1x PHx-575/750E	No. 51836875
Flightcase for 2x PHx-575/750E	No. 51836876
FUTURELIGHT DES-3 DMX-terminator 3-pin	No. 51834001
FUTURELIGHT DES-5 DMX-terminator 5-pin	No. 51834002

Please note: Every information is subject to change without prior notice. 13.12.2007 ©

MODE D'EMPLOI

Futurelight®

PHW-575

Pro-Head-Wash

ATTENTION!

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with base and mounting base (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

CAUTION, HOT LAMP! Let the lamp cool down for 10 min. A 1 B LAMP: MSR GOLD 575 SA/2 DE 2 Change the lamp by loosening screws A,B,C and D. Adjust the lamp position by turning screws 1, 2 and 3. C 3 D Tₐ=45°C T₈=125°C

Top-down schematic of a large-scale industrial or construction site with two vehicle-mounted platforms and a truss structure (no text or symbols)

Projector 3 Starting address 31 Projector 2 Starting address 16 Projector 1 Starting address 1 120 Ohms DMX-512 Controller

Part 2:

Part 3:

Français

Technical diagram of a device rear panel with numbered component labels

(15) Rejilla de ventilación
(16) Tornillos de caja
(17) Sistema de lámpara
(18) Salida DMX 3 polos
(19) Entrada DMX 3 polos
(20) Portafusible 1
(21) Portafusible 2
(22) Salida DMX 5 polos
(23) Entrada DMX 5 polos
(24) Alimentación

INSTALACIÓN

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with mounting base and housing (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

CAUTION, HOT LAMP! Let the lamp cool down for 10 min. A 1 B LAMP: MSR GOLD 575 SA/2 DE 2 Change the lamp by loosening screws A,B,C and D. Adjust the lamp position by turning screws 1, 2 and 3. C 3 D Tₐ=45°C Tₐ=125°C

Bloqueo PAN:

Top-down schematic of a large industrial or construction site with two vehicle-mounted units and a truss structure (no text or symbols)

Technical diagram showing mechanical assembly steps with labeled components and directional arrows

1/4 turn 1/4 turn

Technical line drawing of a mechanical device with no visible text or symbols

Español

Projector 3 Starting address 31 Projector 2 Starting address 16 Projector 1 Starting address 1 120 Ohms DMX-512 Controller

Part 2:

Part 3:

Español

Avisos de error
