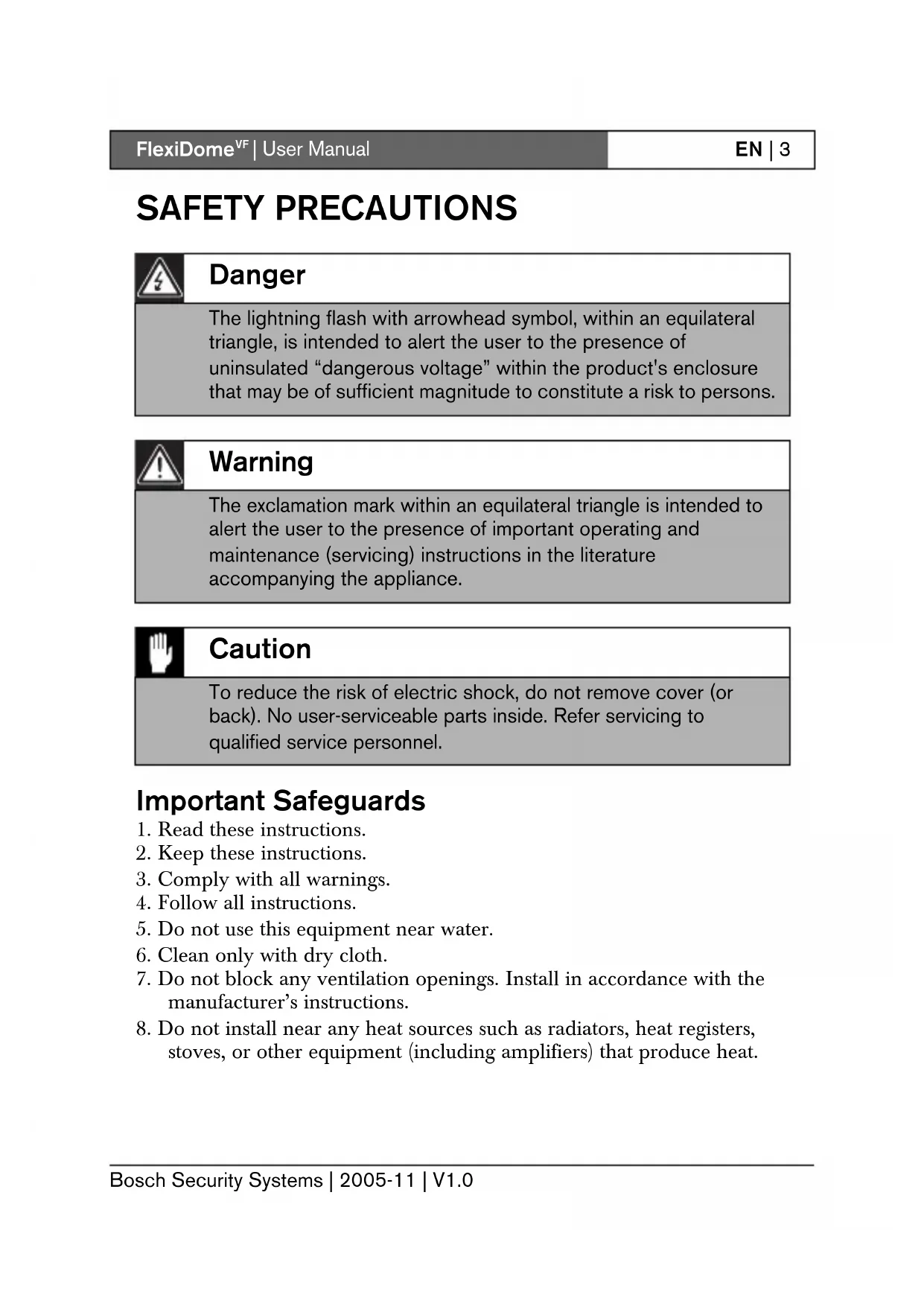

Introduction

The FlexiDome ^VF camera is a small, discreet, surveillance dome camera containing a high-performance 1/3-inch CCD camera with integral varifocal lens. The integrated unit is mounted to an electrical box or to a wall or ceiling. The sturdy construction of the enclosure and polycarbon dome protect the camera module from damage.

The camera incorporates advanced digital signal processing for outstanding picture performance under all lighting conditions. The FlexiDome ^VF camera is easy to install and ready to use, and offers the best solution for demanding indoor scene conditions.

Features include:

• Polycarbonate dome
• 540 TVL resolution for color cameras
  N i g h t S e n s e
• On-screen setup menu
• Bilinx™ bi-directional coaxial communications

The FlexiDome^VF camera is available in color and monochrome versions.

Type number overview

FlexiDomevF Monochrome

Type number VDM-345V03-10		VDM-345V04-10	VDM-345V03-20	VDM-345V04-20
Lens Varifocal	2.6-6 mmF1.4-360	Varifocal4-9 mmF1.6-360	Varifocal2.6-6 mmF1.4-360	Varifocal4-9 mmF1.6-360
Standard CCIR EIA
Supply voltage 24 Vac, 50Hz or 12 Vdc 24 Vac, 60Hz or 12 Vdc
CCD type 1/3"

FlexiDomevF Color

Type number VDC-445V03-10		VDC-445V04-10	VDC-445V03-20	VDC-445V04-20
Lens Varifocal	2.6-6 mmF1.4-360	Varifocal4-9 mmF1.6-360	Varifocal2.6-6 mmF1.4-360	Varifocal4-9 mmF1.6-360
Standard Color PAL Color NTSC
Supply voltage 24 Vac, 50Hz or 12 Vdc 24 Vac, 60Hz or 12 Vdc
CCD format 1/3"

Unpacking

Unpack carefully and handle the equipment with care. The packaging contains:

• Integrated FlexiDome camera
• Mounting hardware kit
  Installation manual

Note

If equipment appears to have been damaged during shipment, repack it in the original packaging and notify the shipping agent or supplier.

Caution

Installation should only be performed by qualified service personnel in accordance with the National Electrical Code or applicable local codes.

Disassembly

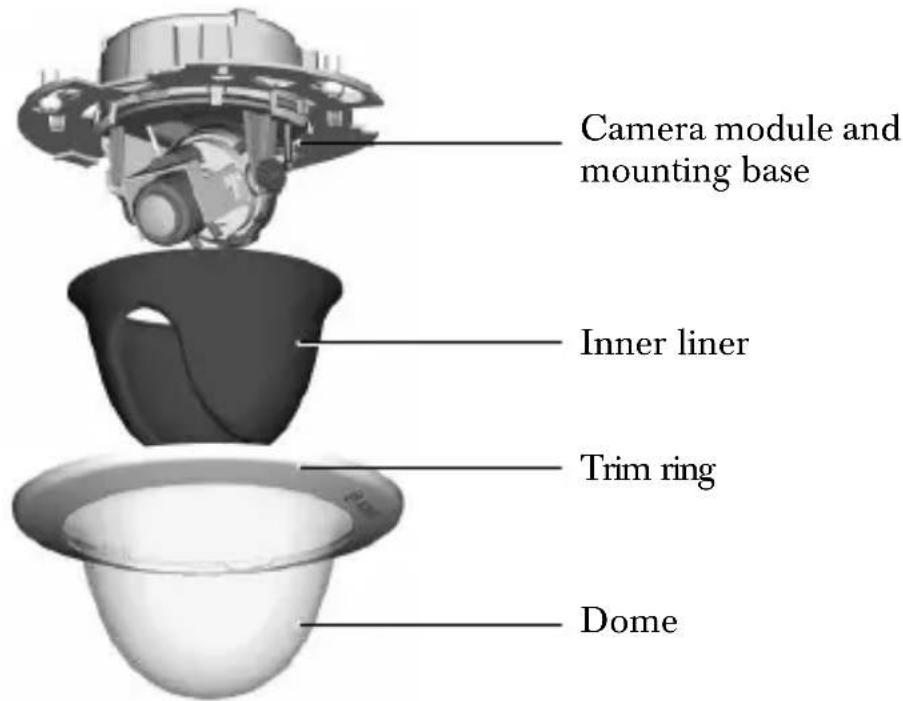

The camera/housing unit consists of the following parts:

Caution

The camera module is a sensitive device and must be handled carefully. Do not drop when disassembling the unit.

To disassemble the unit proceed as follows:

• Rotate the trim ring counterclockwise to release it from its bayonet on the camera base.
• Remove the trim ring with dome.
• Remove the inner liner by pulling it off of the base.

Mounting the unit

The unit may be mounted in several different ways depending on the type of surface, whether an electrical box is used and whether the connection is via the rear or the side (surface mounted).

Caution

Installation should only be performed by qualified service personnel in accordance with the National Electrical Code or applicable local codes.

If the unit is surface mounted, use the separately available surface mounting box (VDA-445SMB) and mount the unit onto this base.

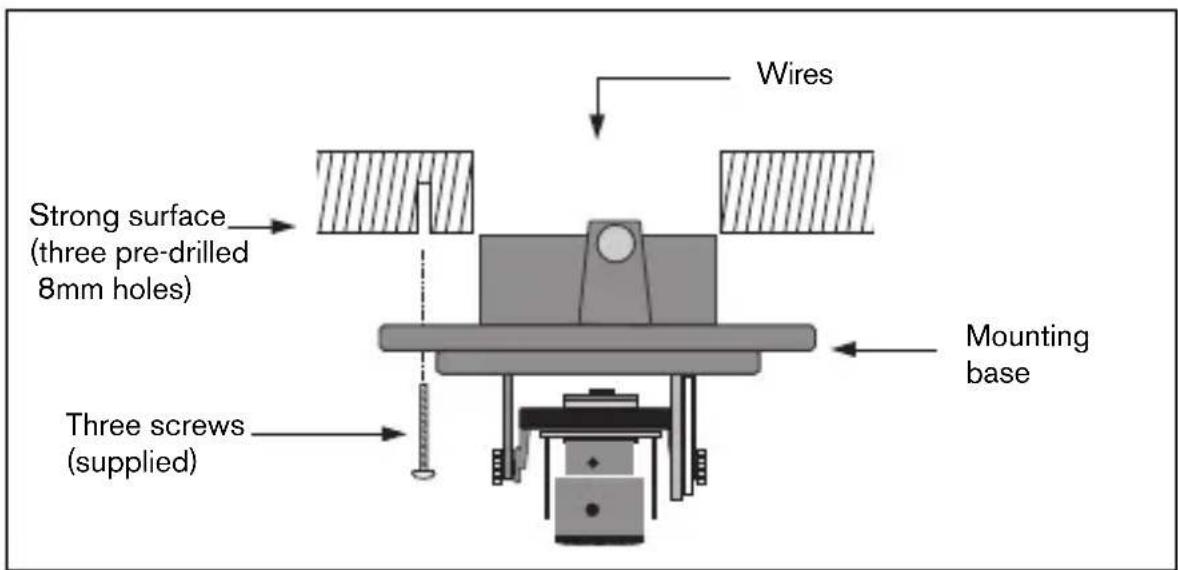

Tips

• Refer to the dimensions drawing to find the exact position of the screw holes and the entry hole for the wires.

• Partially screw in two screws for the keyholes and use them to temporarily hang the camera while the connections are made.

The following figures show the different ways of mounting the unit.

Figure 1 Rear connection - hollow surface

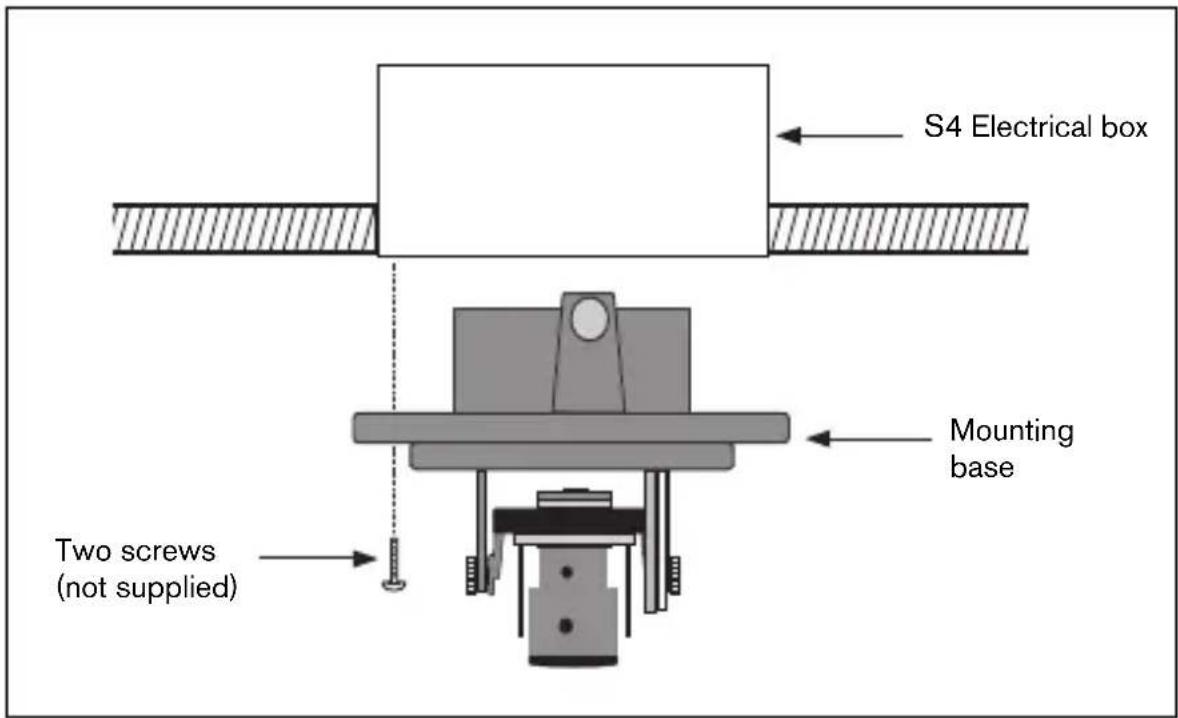

Figure 2 Connection to an electrical box (4S)

Figure 3 Surface mounting - side connection

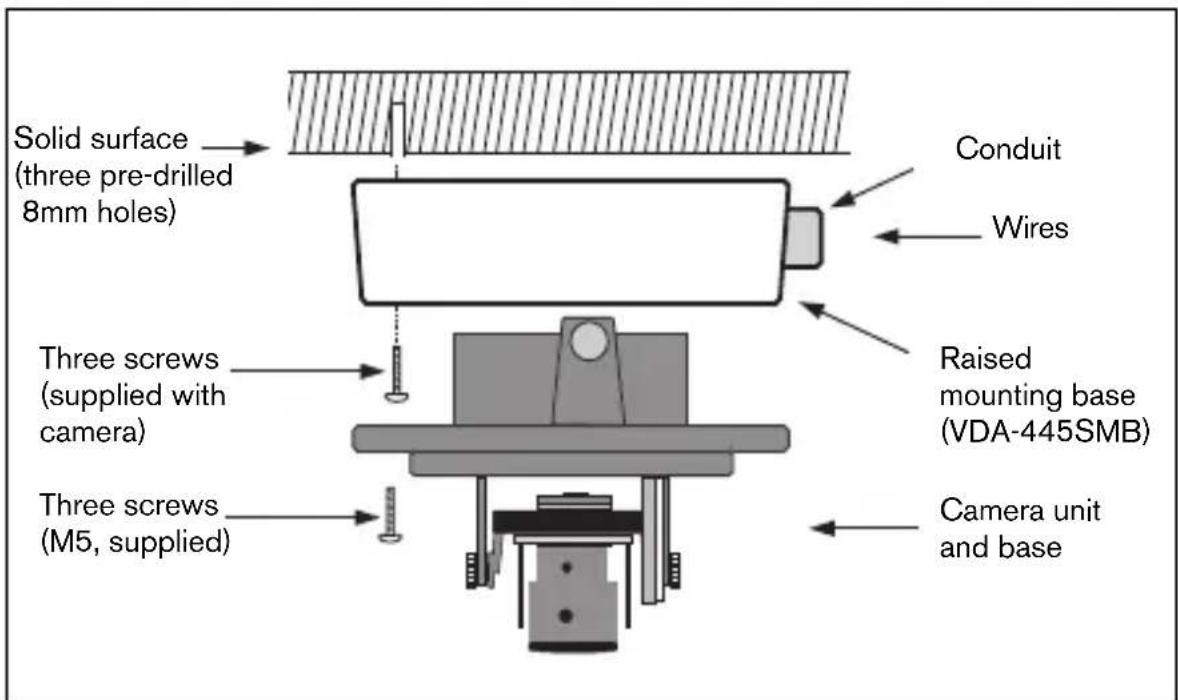

Figure 4 Surface mounting - rear connection

Raised mounting

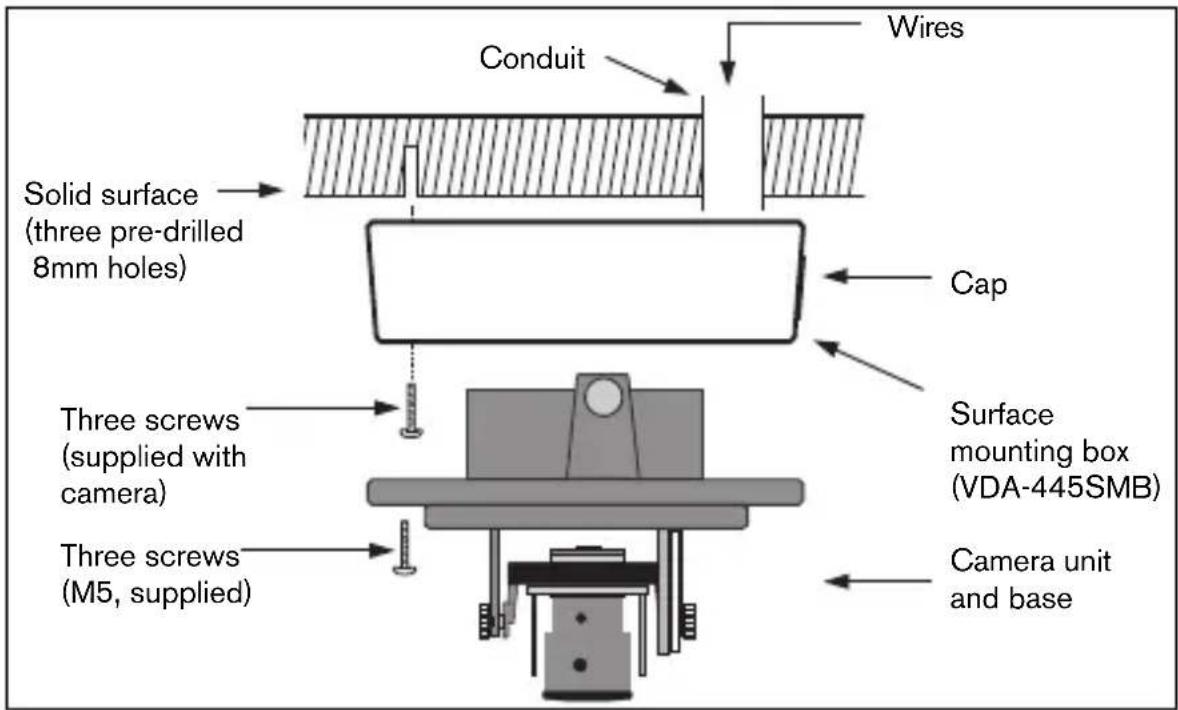

When using the surface mounting box:

• With a side connection, remove the cap covering the side entrance.
  With a rear connection, leave the cap in place.
• Attach the conduit to the mounting base.
• Make the connection inside the mounting case.

Connection and set-up

Power and video connections

The wiring harness has a BNC connector to accept the video coax cable (with male BNC connector) and two stripped low voltage power wires for connection to a power connector. (A UTP adapter is available as an accessory to allow a UTP video cable to be connected to the BNC connector.)

Caution

Before proceeding, be sure to disconnect the power from the cable to be installed into the unit. Be sure that the unit is of the proper voltage type for the line power being used.

The easiest way to connect the low voltage power lines and the video connection is as follows:

• Bring the building connections through the surface wire hole so that they hang clear.
• Partially insert two screws into the pre-drilled holes.
• Using the keyholes, hang the mounting base on one screw temporarily and tilt the base slightly to gain access to the cable connections.
• Connect the BNC connector of the camera module to the video coax cable.
• Connect the stripped power wires to the power supply connector.

Note

For a DC supply the polarity is not important. For an AC supply try to maintain a consistent wiring polarity in multiple camera systems to help avoid rolling when switching.

• Push the connections back through the surface wire hole.
• Secure the mounting base to the surface with three screws.

Setting up the camera

You can connect a monitor to the miniature 2.5mm jack socket on the printed circuit board to help set up the camera. This socket provides a composite video signal (with sync). An optional cable (code number S1460) is available for making this connection.

Camera positioning

The physical default position of the camera is that the top of the image corresponds to the indication TOP.

Caution

The CCD image sensors are highly sensitive and require special care for proper performance and extended lifetime. Do not expose them to direct sunlight or bright spotlights in operating and non-operating conditions. Avoid bright lights in the field of view of the camera.

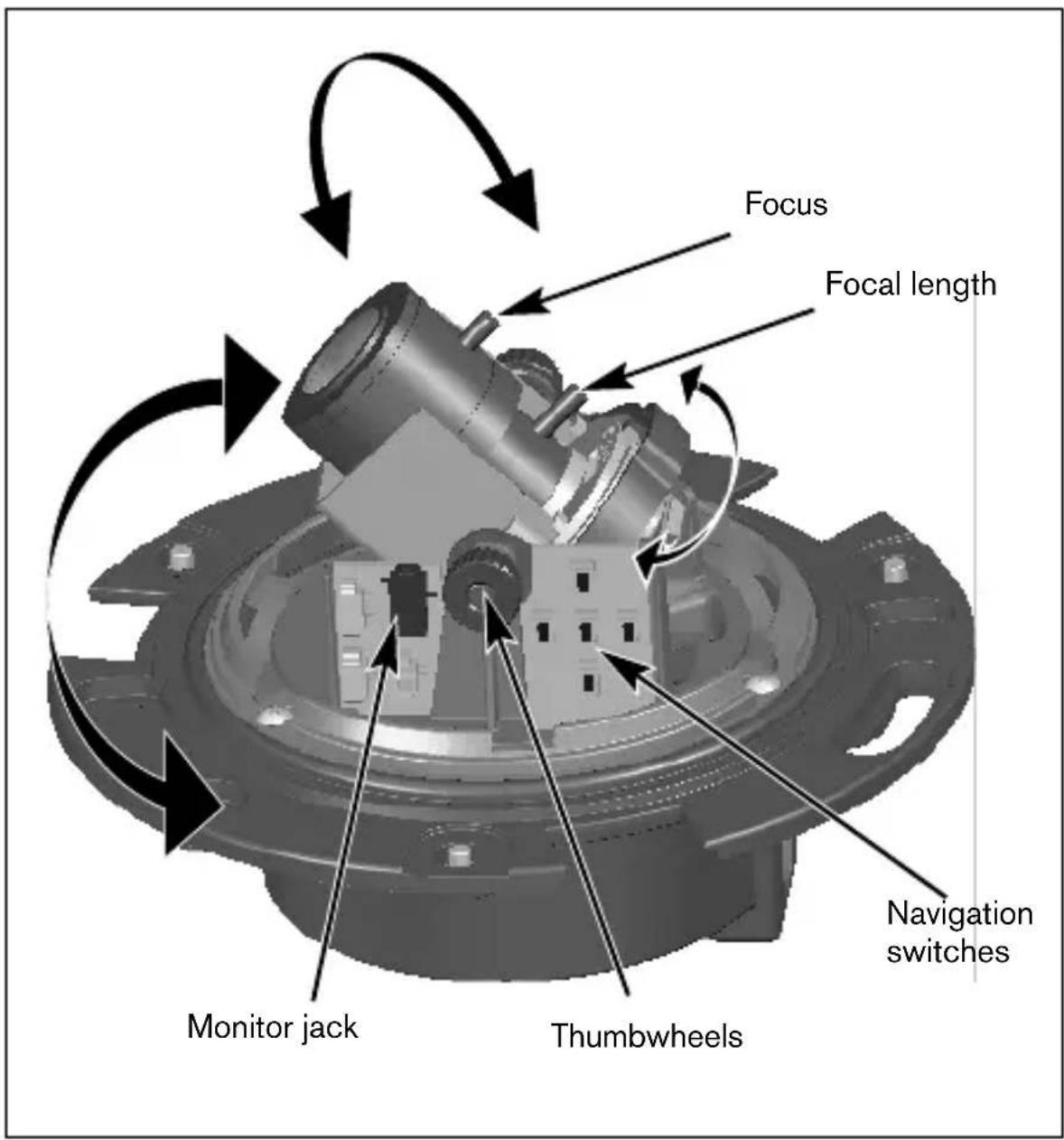

The camera module position can be adjusted along three axes. When adjusting the camera position ensure that the picture display on the monitor is level. Set the camera to the desired position by performing the following steps:

• For horizontal adjustment (pan), rotate the camera module in the base. Do not rotate more than 360^ .
• For vertical adjustment (tilt), loosen thumbscrews, position camera, then gently tighten thumbscrews to secure camera.
• To obtain a horizontal horizon (for tilted ceilings or sidewall mounting), rotate the base of the lens as necessary to align the picture shown on the monitor. Do not rotate more than 340^ .

Focal length and focus

• To set the field of view of the varifocal lens, loosen the focal length screw and turn the mechanism until the required view is displayed on the monitor. (Image goes out of focus.)
• Focus the image on the monitor by loosening the focus screw and turning the mechanism until the image is in focus.
• Readjust the focal length if necessary.
• Repeat these two adjustments until the desired view is in focus.
• Tighten both screws.

Verify that the image stays in focus when the dome is held in place. Refocus if necessary.

Closing the unit

When the camera position is set and all adjustments have been made, close the unit.

• Place the inner liner in position aligning its fin with the bracket on the base.
• Place the trim ring with dome onto the base. (If necessary clean its surface with a soft cloth.)
  Fix the trim ring onto the camera base by rotating clockwise.

Advanced Set-up

The FlexiDome ^VF normally provides an optimal picture without the need for further adjustments. However, advanced set-up options are available for getting the best results from the camera under special circumstances. There are two menus; a Main menu and an Installer menu.

The Main menu allows you to select and set-up the picture enhancement functions for each mode. If you are not happy with your changes, you can always recall the default values for the mode.

The camera also has an Installer menu in which the installation settings can be set.

The Main and Installer menus have functions that can be selected directly or submenus for more detailed set-up.

Accessing and navigating menus

Five keys are used for navigating through the various menus. To access the set-up menus, press the menu/select key (center). The main menu appears on the OSD. Use the arrow keys for navigation.

When the Bilinx^TM communications link is active, the buttons on the camera are disabled. You can also set up Bilinx^TM so that the camera buttons remain disabled even when Bilinx^TM is not actively controlling the camera. This prevents unauthorized change of the camera settings.

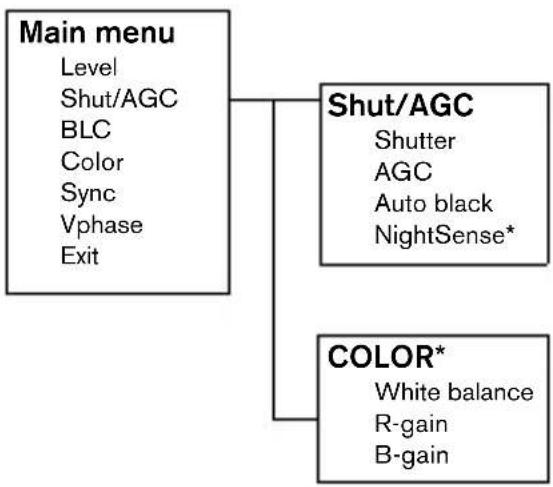

Menu Structure

* Only for the Color version of the camera.

Hints for menu navigation

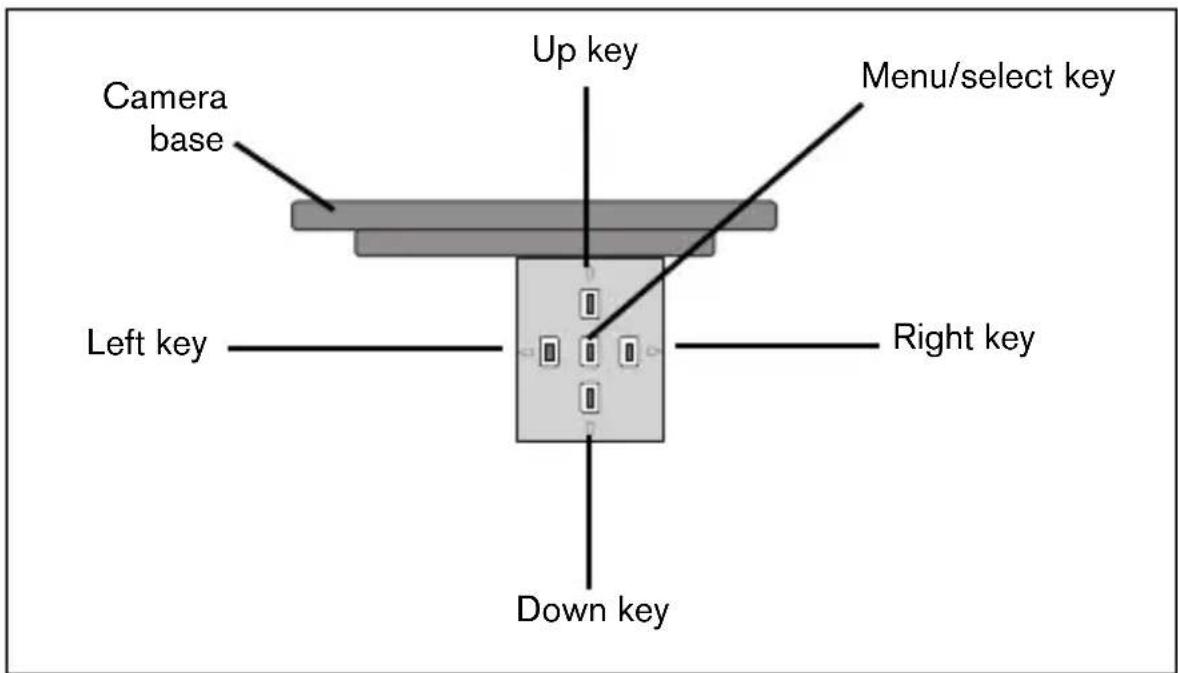

How to use the 5 keys

• Press the menu/select key to access the menus or to move to the next or previous menu.
• Press the menu/select key for approximately 1.5 seconds to open the Installer menu.
• Use the up or down keys to scroll up or down through a menu.
• Use the left or right keys to move through options or to set parameters.
• When in a menu, quickly pressing the menu/select key twice restores the selected item to its factory default.
• To close all menus at once from any menu, select the Exit item and hold down the menu/select key until the menu display disappears.

Main menu

Function Selection Description
LEVEL -15 - 0 - +15 Adjusts the video output level
SHUT/AGC	Select submenu	Select to access the Shutter / Automatic Gain Control menu
BLC ON, OFF When ON, the video		level is optimized for the selected area of the image. Parts outside this area may be underexposed or overexposed (this is normal).
COLOR* ATV	ATB HOLD	Select to access the color menu.
	Select submenu
SYNC LINE LOCK	INTERNAL	Select LINE LOCK to synchronize with the power supply frequency. Select INTERNAL for use with internal synchronization (automatically selected with DC supply).
VPHASE	0, 2, ... 358°	Adjusts the vertical phase offset (when in LINE LOCK mode and a valid power supply frequency is detected).
EXIT Exit the menu

• Only in color version of camera. If a color camera is in monochrome mode, all color related menu items are disabled and cannot be accessed.

Shutter/AGC submenu

Function	Selection	Description
SHUTTER AES, FL • AES - auto-shutter - the camera automatically sets the optimum shutter speed •FL - flickerless mode avoids interference from light sources (recommended for use with video iris or DC iris lenses only)
AGC	ON/OFF	Automatic gain control
AUTOBLACK	ON/OFF	Autoback automatically increases the visibility of details.
NIGHTSENSE*	AUTO FORCED OFF	Nightsense™ extends the low-light performance of the camera. •In AUTO mode, the camera automatically inches to monochrome in low-light conditions. •In FORCED mode, the camera remains in high-sensitivity monochrome operation.
EXIT Exit the menu

• Only in color version of camera.

Note

If NightSense™ is active, some noise or spots may appear in the picture. This is normal camera behavior.

If a color camera is in monochrome mode, all color related menu items are disabled and cannot be accessed.

Color submenu*

Function Selection Description
WHITE BALANCE	ATW AWB HOLD	•ATW: Auto tracking white balance allows the camera to constantly adjust for optimal color reproduction. •AWB HOLD: Puts the ATW on hold and saves the color settings.
RED gain**	-5 - 0 - +5	Offset factory white point alignment (reducing red introduces more cyan).
BLUE gain**	-5 - 0 - +5 Offset factory	ry white point alignment (reducing blue introduces more yellow).
EXIT Exit the	menu

• Only in color version of camera.
  ** It is only necessary to change the white point offset for special scene conditions.

Installer Settings

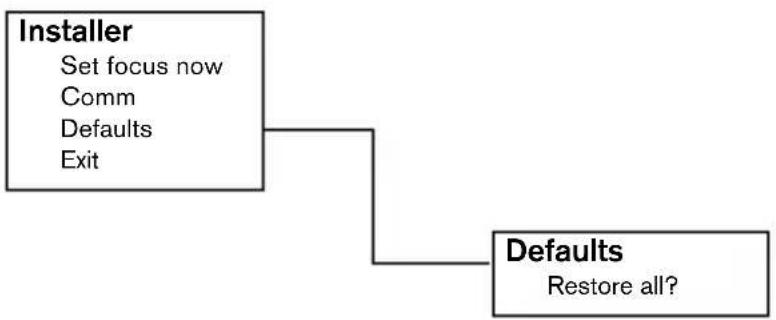

Install menu

Function Selection Description
SET FOCUS NOW		Forces the lens to fully open the iris. Adjust the lens focus now.
COMM ON,	OFF Bilinx commun	cation ON/OFF
DEFAULTS	Select submenu Retu	rn all settings for all modes to factory defaults
EXIT Exit the	menu

Adjustment procedure DC-iris Lens:

1. Unlock the focus locking screw.
2. SET BACK FOCUS NOW is highlighted in the menu.
3. Turn the focus adjustment as required.
4. Lock the focus locking screw.
5. Exit the menu selection.

Defaults submenu

Function Selection Description
ALL DEFAULTS		Select to restore the factory defaults. A confirmation screen appears. Allow 5 seconds for the camera to optimize the picture after a mode reset.
EXIT Exit the	menu

Camera control communication

This camera is equipped with a coaxial communications transceiver. In combination with VP-CFGSFT, the camera can be adjusted from the head-end side of the coaxial cable. All menus can be accessed remotely giving full control of the camera. With this communication it is also possible to disable the local keys on the camera. To avoid loss of communication on an installed camera, the Communication ON/OFF selection is not available while using remote control. This function can only be accessed with the camera buttons.

Technical specification

Type number VDC-445V0x-10		VDC-445V0x-20	VDC-345V0x-10	VDC-345V0x-20
Standard PAL NTSC CCIR EIA
Active pixels 752x582 768x492 752x582 768x492
Min illumination <1.0 lux<0.4 lux (NightSense On)			<0.2 lux
Resolution 540 TVL 570 TVL
Rated supplyvoltage	24 VAC or 12 VDC12-28 VAC (50/60 Hz)11-36 VDC

All versions

Imager	Interline CCD
SNR	>50 dB
Video output	1 Vpp, 75 Ohm
Synchronization	Internal or Line Lock selectable
Shutter	AES (1/60 (1/50) to 1/100000), Flickerless selectable
Auto black	On, Off selectable
AGC	AGC On (20 dB) or Off selectable
Contour	Sharpness enhancement
BLC	BLC On or Off selectable
White balance* Automatic 2500 - 9000K (with AWB hold mode)
Lens	Integrated Varifocal with DC iris
Power consumption	<5 W
Dimensions	58 x 66 x 122 mm (HxWxL)
Weight	550g
Operating temperature	-10° to 45°C
Controls	OSD with softkey operation

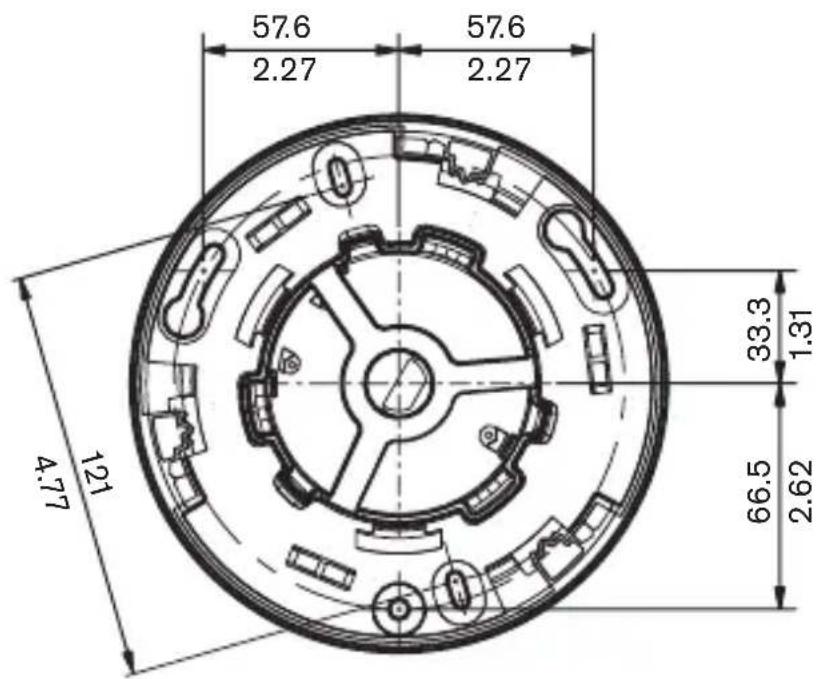

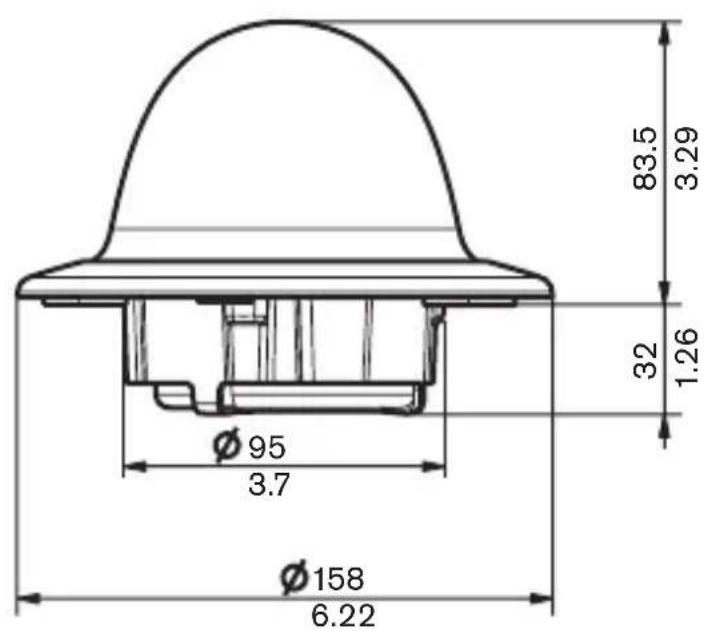

Dimensions (mm/inches)

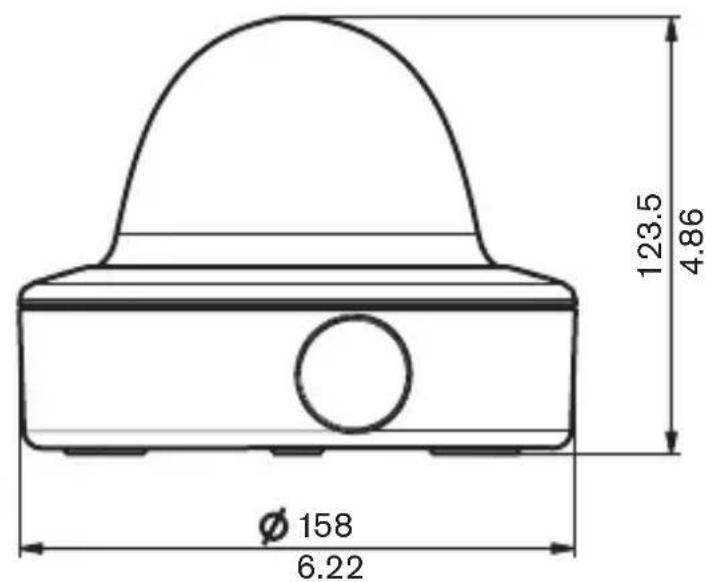

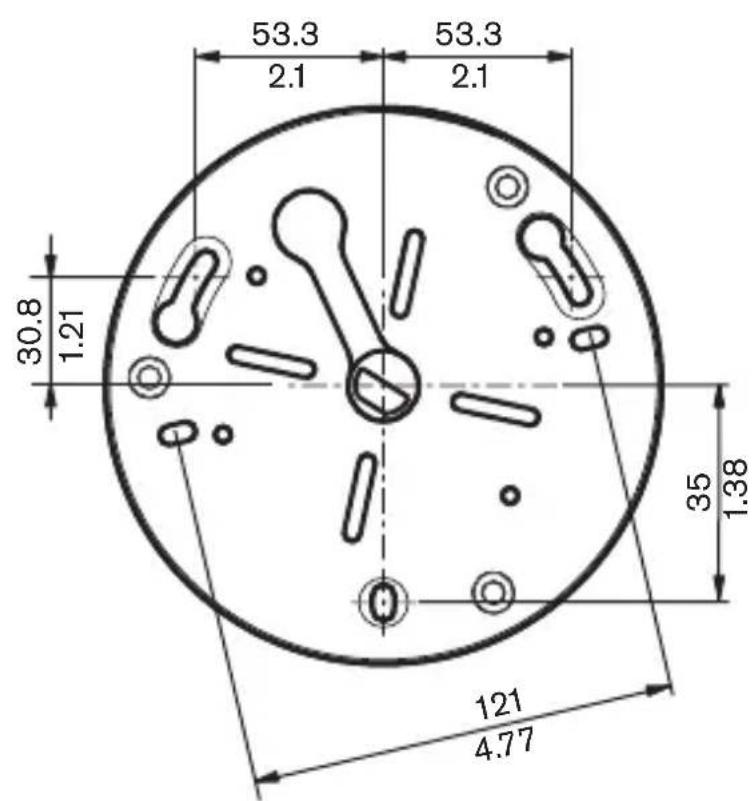

Dimensions with surface mount box (mm/inch)

Accessories

Power transformers

• TC1334 120VAC, 60Hz - 24VAC, 30VA
• TC120PS 120VAC, 60Hz - 15VDC, 9VA
• TC220PSX-24 220-240VAC, 50/60Hz - 24VAC, 30VA
• TC220PS 220-240VAC, 50/60Hz - 15VDC, 9VA

Interface box:

• VP-CFGSFT Bilinx™ communication interface box and software
