USER MANUAL PowerShot SD990 IS CANON

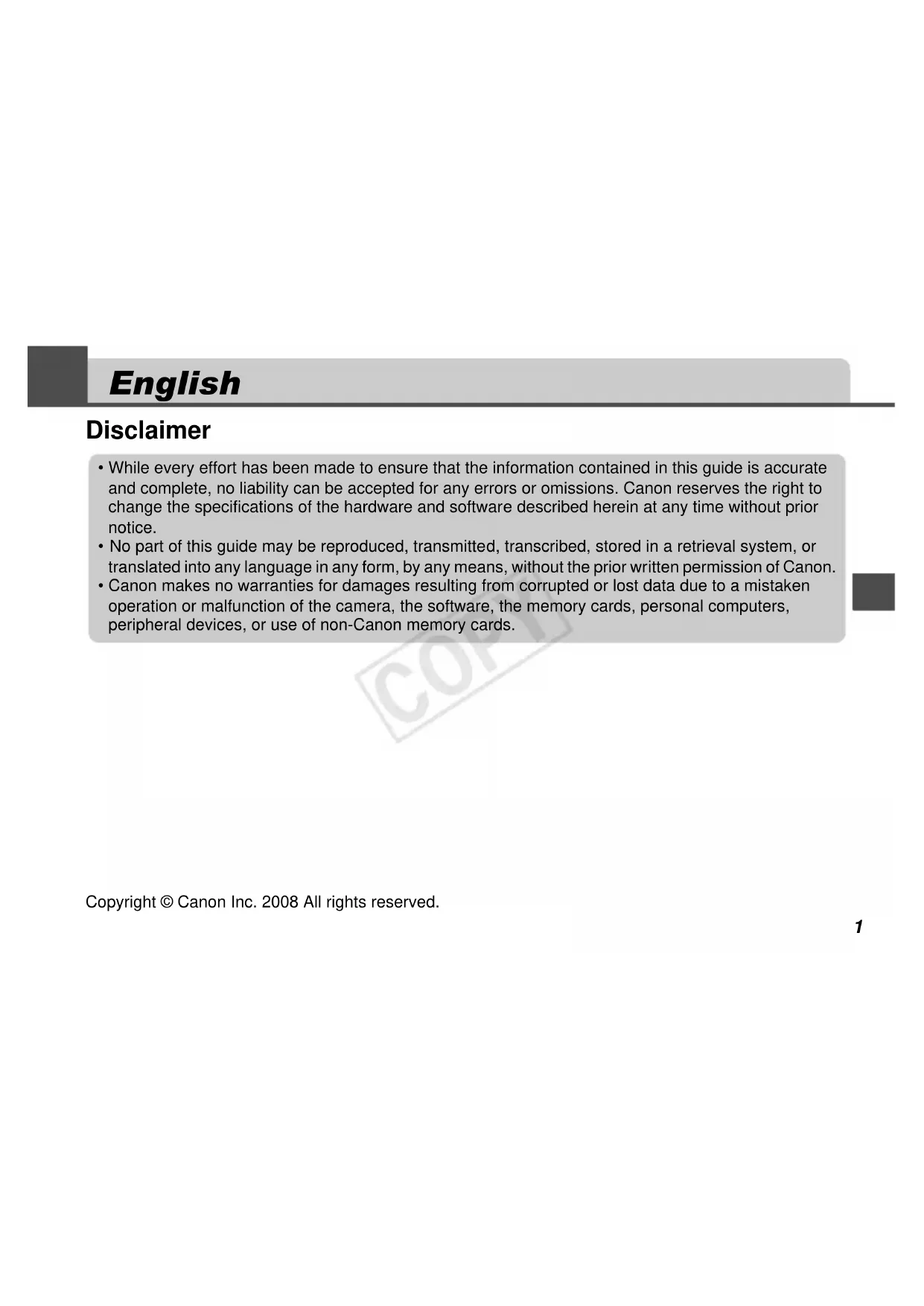

• While every effort has been made to ensure that the information contained in this guide is accurate and complete, no liability can be accepted for any errors or omissions. Canon reserves the right to change the specifications of the hardware and software described herein at any time without prior notice.

• No part of this guide may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form, by any means, without the prior written permission of Canon.

• Canon makes no warranties for damages resulting from corrupted or lost data due to a mistaken operation or malfunction of the camera, the software, the memory cards, personal computers, peripheral devices, or use of non-Canon memory cards. English COPY2 Please read this manual carefully to operate the Waterproof Case correctly. Store this manual in a safe place for further reference once you have read it. Introduction

• Thank you for purchasing this Waterproof Case. Once installed in the Waterproof Case, you can use your Canon Digital Camera in the rain, at the beach or on the ski slopes. You can also use it underwater at depths down to 40 meters (130 ft.) and in wet or dusty environments.

• Canon Inc., its subsidiaries and affiliates, and distributors of the Waterproof Case are not liable for any consequential damages arising from corrupted or lost data due to mistaken operation or malfunction of the Waterproof Case, the camera, the battery or the memory card that results in the failure of an image to be recorded.

• Please carefully read the Camera User Guide supplied with your camera also.

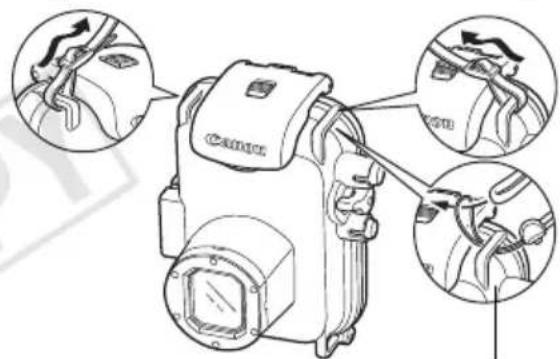

• Before you use the Waterproof Case, please make sure the case is functioning correctly and does not leak. Close the Waterproof Case before putting the camera inside it, and hold it underwater at an approximate depth of 15 cm (5.9 in.) for around three minutes to check for leaks. Perform a similar check after you have put the camera into the case. If it leaks, contact your Canon Customer Support Help Desk. COPY3 Unpacking The Waterproof Case is shipped with the items listed below. Please check your package now to confirm that it is complete. Contact your Canon dealer if anything is missing.

• Silicone Grease for the Waterproof Seal

• User Guide (this guide) Separately Sold Products

• Canon Waterproof Case Weight WW-DC1 When using the Waterproof Case to take photographs underwater, the weights prevent the case from floating. Please refer to the specifications (p. 20) for information regarding the number of weights recommended for installation. For information regarding attachment methods, please refer to the user guide for the weights. COPY4 Safety Precautions Before you use the Waterproof Case, thoroughly read these precautions to ensure correct use. The precautions described below are for ensuring safe use of the Waterproof Case and for preventing danger and damage to yourself and others. Thoroughly understand the details of these precautions before reading the rest of this manual.

• After you use the Waterproof Case, be sure to remove the camera from it. If you leave the Waterproof Case containing the camera in direct sunlight or in a high-temperature place, this may cause a fire or the case to burst.

• Do not use the Waterproof Case in place of a personal flotation device (life jacket).

• Do not use the neck strap underwater. Remove the neck strap and attach the wrist strap before use underwater. There is danger that the neck strap will become entangled and cause strangulation or another mishap.

• Do not use the Waterproof Case at water depths exceeding 40 meters (130 ft.). The case may malfunction, suffer damage or leak.

• Do not press the buttons or the lever of the Waterproof Case with unnecessary force when in the water. This may warp the casing and cause leaks.

• When cleaning the case, do not spray water at the waterproof seal under pressure. This may cause leaks.

• Do not disassemble or modify the Waterproof Case. This may cause leaks.

• Do not damage the waterproof seal, scratch its contact surfaces, or allow dirt, sand, hair or other debris to accumulate between the waterproof seal and the case. This may cause leaks.

• Do not use the Waterproof Case in water at temperatures above 40 °C (104 °F). Heat may warp the casing and cause leaks.

• Do not leave the Waterproof Case in direct sunlight, inside a car in hot weather, or near a heater. Heat may warp the casing and cause leaks. Cover it with a towel, for example, if you have to leave it in the sun. COPY5 Handling Precautions

• Do not drop or throw the Waterproof Case.

• Use only the supplied silicone grease. Use of other waterproofing products may impair the strength of the Waterproof Case. If any other waterproofing product is mistakenly applied, wipe it off immediately.

• Avoid opening or closing the Waterproof Case near water. When you are installing the camera or changing the memory card or the battery, choose a place with low humidity well away from salty sea air.

• Avoid using the Waterproof Case for long periods of time in hot temperatures.

• Battery life is reduced in cold temperatures. When you use the Waterproof Case in very cold places, keep it warm by putting it in a bag whenever you are not shooting. It is not advisable to use the Waterproof Case in temperatures below the freezing point.

• Moving the Waterproof Case rapidly between hot and cold temperatures may cause condensation (water droplets) to form on its internal surfaces. If this occurs, stop using the camera immediately as the condensation may cause a malfunction. Remove the camera from the Waterproof Case and wipe off the condensation from the Waterproof Case and the camera with a soft and dry cloth, and wait until the moisture evaporates completely before resuming use. About Water Leakage Stop shooting immediately if the Waterproof Case leaks. If you use the camera in this state, this may cause a fire or electric shocks. Never use it in this state. Thoroughly wipe the Waterproof Case interior and the camera dry. Please contact your Canon Customer Support Help Desk. COPY6 Waterproof Seal

• Debris (e.g. sand, dirt or hair) stuck to the waterproof seal may cause water leakage. Catching a single strand of hair or a tiny grain of sand in the seal can cause leaks.

• Be careful not to apply too much grease. Applying too much grease to the seal may cause water leakage (about a droplet is sufficient).

• Do not use paper or cloth to apply the grease to the seal.

• A damaged or cracked waterproof seal may cause leaks. Please contact your Canon Customer Support Help Desk.

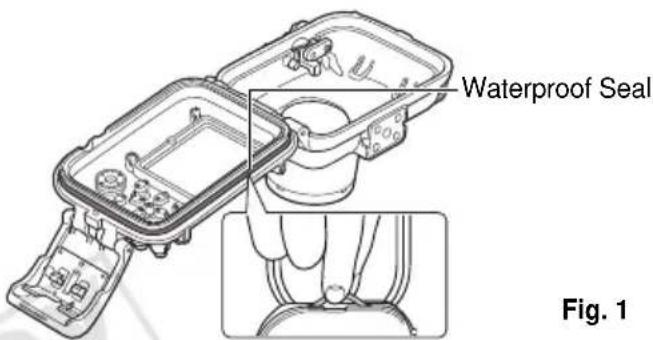

• When removing the seal from your Waterproof Case, use your fingers so you do not damage the waterproof seal (as shown in Fig 1.). Do not dig your fingernails into it or use pointed or metallic objects to remove it.

• Do not pull the waterproof seal. Pulling the seal may overstretch it, which may cause the case to not close properly and cause leaks.

• While mounting the waterproof seal, do not twist or pull the seal with force. Extreme care should be taken to ensure the waterproof seal is level around the mounting groove. Please check to ensure that the waterproof seal is working. Waterproof Seal Fig. 1 To ensure that the Waterproof Case remains waterproof, it is recommended to replace the seal once a year. Please contact your Canon Customer Support Help Desk. COPY7 Care and Maintenance

• Wash the exterior of the Waterproof Case with enough clean fresh water (tap water under 30 °C/ 86 °F, etc.) as soon as possible after using it. It is particularly advisable to soak it in fresh water for several hours after use in salt water to remove salt deposits. Please check that you have locked the catch securely to prevent water from entering the case. Wipe it dry with a soft cloth after washing. To avoid scratching the Waterproof Case, do not wipe it while any sand or grit remains on it. The metal parts may rust or the buttons may become hard to press if salt deposits remain. Wipe the interior of the case with a soft, dry cloth. Do not wash it with water. COPY8 Front Back Components Strap MountsShutter ButtonZoom LeverGrip/CatchTripod SocketLens WindowDiffusion PlatePower Button Lens WindowSince dirt or smudges on the lens window may show in photographs, keep the lens window clean by wiping it gently with a soft, dry cloth. Lock Release Switch (Print/Share) Button /(Jump)/ Button (Flash)/ Button FUNC./SET(Function/Set) Button Button (Display) Button (Continuous Shooting)/ (Self-timer)/ (Single Image Erase)/ Button (Macro)/ (Manual Focus)/ (Infinity)/ ButtonMode Dial (Playback) Button COPY9 Preparing the Camera 1 Insert the battery (Battery Pack NB-5L), and the memory card.

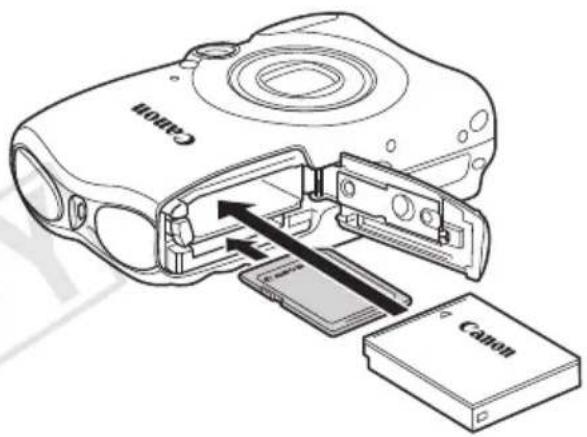

• Please confirm the installation methods for the battery and memory card in the Camera User Guide for your camera.• Use a battery that is adequately charged.• Check the estimated capacity (recordable images) of your memory card and ensure there is enough storage space on the memory card to record your images. Preparations COPY10 2 Remove the strap from the camera. If you put the camera in the Waterproof Case without first removing the strap, the strap may catch in the waterproof seal when opening or closing the Waterproof Case. This can cause leaks. Preparing the Waterproof Case 3 Fasten both ends of the neck strap to the strap mounts as shown, and adjust it to a comfortable length. Strap When attaching the wrist strap of the Waterproof Case COPY11 4 Slide the lock release switch as shown, and release the catch to open the back cover.

• When using commercially available anticondensation products, the anticondensation solution should only be applied to the inside surface of the lens window using a soft cloth. If anticondensation solution comes in contact with any surface other than the inside of the lens window, wipe it off immediately with a soft, dry cloth, as it could lead to deterioration of the Waterproof Case. Use the neck strap when carrying the camera on the beach. Remove the neck strap and attach the wrist strap before use underwater. There is danger that the neck strap will become entangled and cause strangulation or another mishap. Do not use the strap included with the camera with the Waterproof Case. Apply a thin coat of grease to the entire seal before using the Waterproof Case in order to prevent abrasion and deterioration. For waterproof seal handling precautions, see Waterproof Seal (p. 6).

1. Remove the waterproof seal.

2. Using a cotton swab, wipe off any debris

(e.g. sand, dirt or hair) which is present on the waterproof seal and on the seal mounting groove of the Waterproof Case.

3. Apply a small amount (droplet) of grease to

4. Evenly coat the entire surface of the

waterproof seal, taking care not to scratch the surface.

5. Place the waterproof seal back in the seal

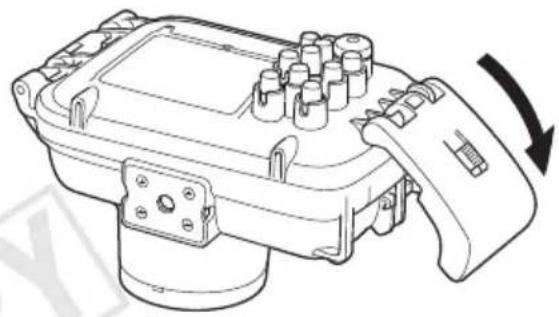

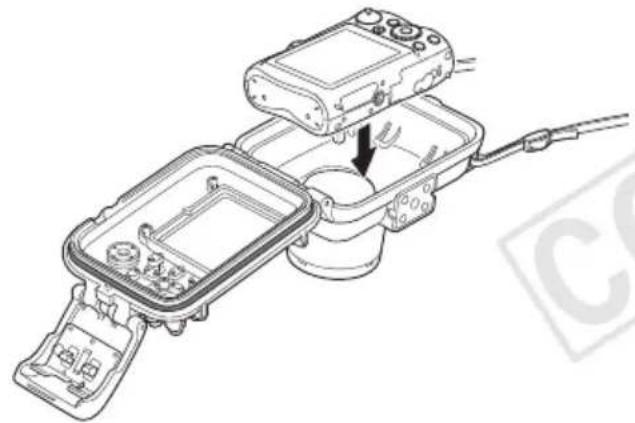

mounting groove of the Waterproof Case. COPY12 Putting the Camera In the Waterproof Case 5 Insert the camera into the Waterproof Case as shown. 6 Close the Waterproof Case.

• Make sure that the waterproof seal and its contact surfaces are free of debris (e.g. sand, dirt or hair). Catching a single strand of hair or a tiny grain of sand in the seal can cause leaks.• Make sure that the catch is fastened properly. 7 Turn the mode dial in the direction of the arrow to engage the camera’s mode dial. COPY13 1 Press the power button to turn on the power. 2 Turn the mode dial to the desired mode. 3 Press the l button to turn on the screen.

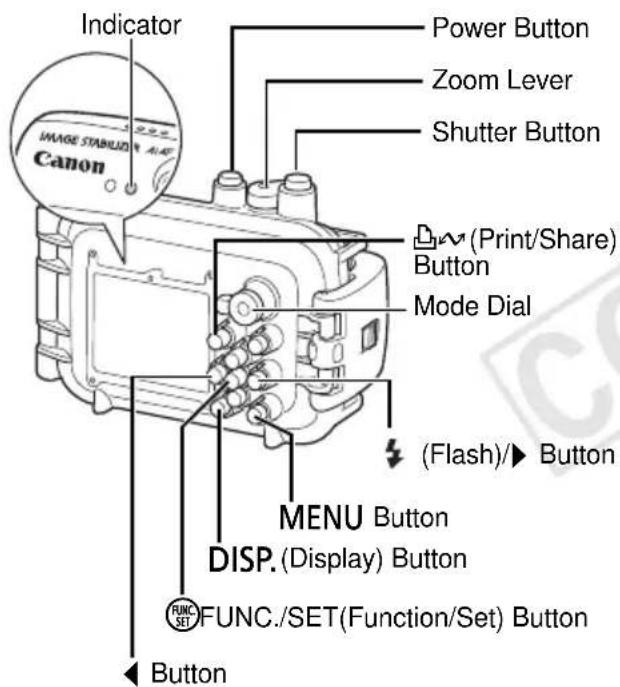

• Adjust settings as required.• You can adjust the zoom with the zoom lever. Shooting Power ButtonZoom LeverShutter Button (Flash)/ ButtonMode DialIndicator (Print/Share) Button FUNC./SET(Function/Set) Button Button

(Display) Button Button Using the Control Dial Operation of the camera’s Control Dial is slightly different.1. When you want to rotate the control dial clockwise, press the r button while keeping the button pressed down.2. When you want to rotate the control dial counterclockwise, press the q button while keeping the button pressed down. COPY14 4 Use the screen to compose the shot. Press the shutter button halfway and wait until the indicator lights green or orange. After it lights, press the shutter button all the way.

• Make sure that the lens window is always clean.

• Ensure that your fingers do not obstruct the lens window, flash or diffusion plate when shooting. Setting the Special Scene mode to (Underwater) You can obtain more natural appearing coloration underwater if you set the Special Scene mode to . This mode selects the optimal white balance for marine lighting and tones down the blue colors.

1. Turn the mode dial to K (Special Scene

2. While keeping the

button pressed, use the q or r button to select . When shooting in the following modes, note that you can set the white balance manually with the press of a single button if you assign the (Custom White Balance) function to the

button. This is recommended for adjusting the white balance to the shooting conditions.

• If the power saving function activates and shuts off the power, press the power button again.

• You cannot take pictures using the finder.

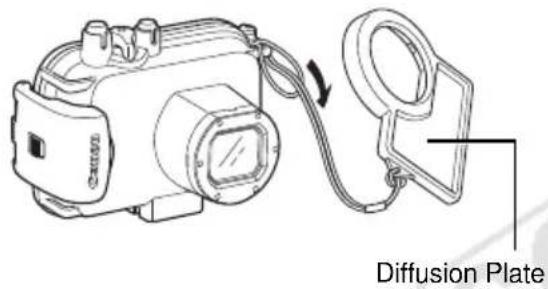

• Even if you set the mode dial to 8, you will not be able to take pictures correctly since you cannot use the finder. COPY15 5 When you are finished, press the power button to turn off the camera. Using the Flash In order to evenly distribute light from the flash, please attach the diffusion plate.

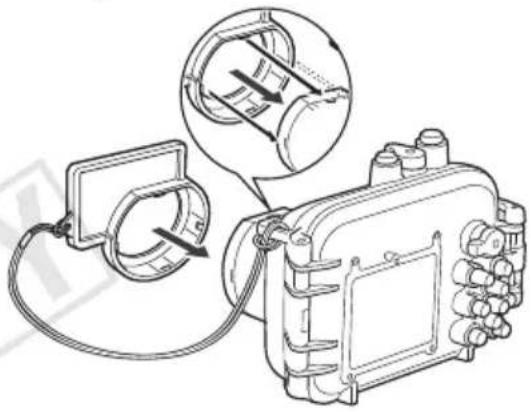

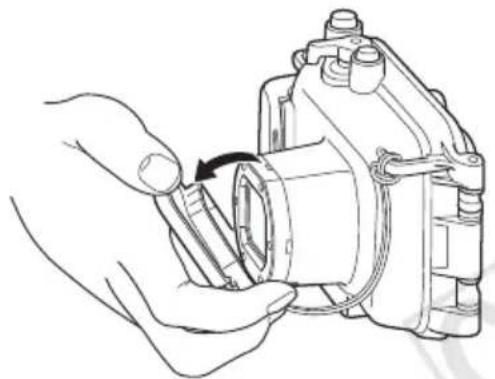

• Do not scratch the surface of the diffusion plate, as this may prevent flash light from being diffused properly.• Attach the diffusion plate for flash photography because image edges may darken otherwise. Please note, however, that the effectiveness of the diffusion plate may be impaired if the subject is too close to the camera. COPY16 Attaching the Diffusion Plate 1 Thread the cord of the diffusion plate through the strap mount. 2 Fit the diffusion plate onto the Waterproof Case. Diffusion Plate COPY17 Removing the Diffusion Plate Grip the diffusion plate and detach it by pulling in the direction shown by the arrow. 1 Press the 1 (Playback) button. 2 When you have finished using the camera, turn the camera off. Playback

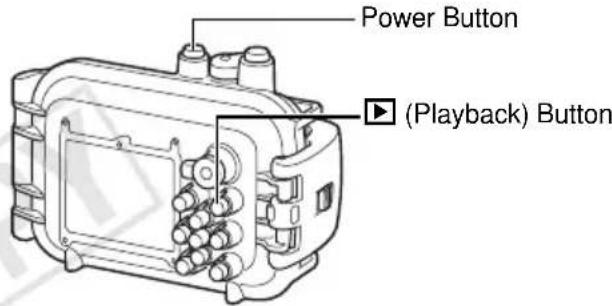

(Playback) ButtonPower Button After you use the Waterproof Case, be sure to remove the camera from it. If you leave the Waterproof Case containing the camera in direct sunlight or in a high-temperature place, this may cause a fire or the case to burst. COPY18 1 After use, be sure to completely dry all the water from the Waterproof Case.

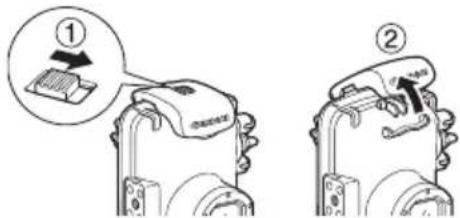

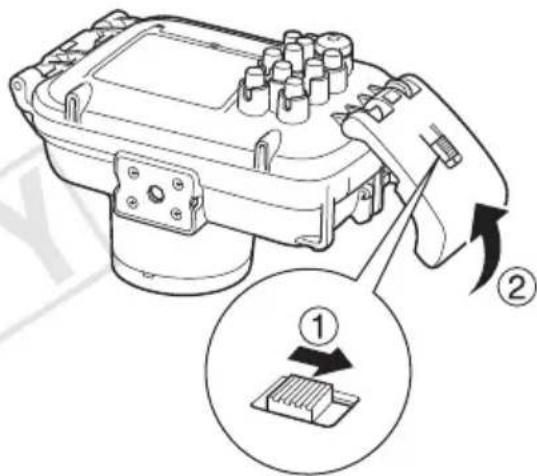

• Remove any dirt, sand, hair or other debris from the Waterproof Case, and wash it with clean, running tap water to remove salt deposits. 2 Slide the lock release switch as shown, and release the catch to open the back cover. Remove the camera from the case.
• Be careful not to allow drops of water from your hair or body to fall on the camera or Waterproof Case interior when the case is open.• Do not wash the interior of the Waterproof Case with water. Wipe it with a soft, dry cloth. Removing the Camera COPY19

• Store your Waterproof Case carefully, in an opened state to prevent the waterproof seal from deforming and to maintain its waterproof effect.

• Protect the waterproof seal from dust or scratches during storage.

• Do not store the Waterproof Case in hot, cold or humid places, or near substances such as naphthalene or insecticides. Storage COPY20 Specifications

• Including diffusion plate

• All data noted here are based on Canon's testing standards.

• Product specifications and appearance are subject to change without prior notice. Maximum Depth: 40 m (130 ft.) (Meets JIS protection class 8 for waterproofing.) Waterproofing: Seal, O-ring, etc. Main Materials: Polycarbonate, ABS, clear plate glass, EPDM, etc. Camera’s Operating Temperature: 0 to 40 °C (32 to 104 °F) Dimensions: 133.2 x 85.4 x 78.0 mm (5.24 x 3.36 x 3.07 in.) (excluding protrusions) Volume: Approx. 465 cm
