Product Type	Washing Machine
Brand	Teka
Model	TKD 1270 T
Maximum Load Capacity	7 kg
Dimensions (H x W x D)	84.5 x 59.6 x 52.7 cm
Supply Voltage	220-240 V / 50 Hz
Rated Current	10 A (recommended fuse)
Required Water Pressure	0.1 - 1 MPa (1-10 bar)
Wash Programs	Cotton 90°C, Eco 80°C, Cotton 60°C, Synthetics 60°C, Synthetics 40°C, Wool 40°C, Silk/Delicate 30°C, Mix 30°C, Quick 60 min, Super Quick 12 min, Rinse, Spin, Drain
Additional Functions	Pre-wash, Easy Iron, Stop with Full Tank, Quick Wash, Delayed Start, Child Lock
Detergent Distribution System	Twinjet with direct injection
Load Detection	Automatic (adjusts program)
Spin Speed	Adjustable from 0 to max (depending on program)
Display	Electronic indicator (temperature, remaining time, error codes)
Loading Type	Front-loading (porthole)
Noise Level	Not specified
Energy Class	Not specified
Water Consumption	Variable depending on program
Maintenance	Cleaning of water inlet filters, pump filter, detergent drawer, siphon, drum and body
Safety	Child lock, automatic stop in case of error, overheating protection (general)
Included Accessories	Plastic transport locking screws, water inlet hose, drain hose
Available Spare Parts	Filters, hoses, seals (via authorized service)
Repairability	Must be carried out by an authorized technician
Intended Use	Domestic only (warranty void for professional use)
Standards	Compliant with EN60456

Frequently Asked Questions - TKD 1270 T TEKA

How to install the Teka TKD 1270 T washing machine?

Remove the transport locking screws at the back, adjust the feet to level the machine, connect the water inlet hose (pressure 0.1-1 MPa), connect the drain hose at 60-100 cm from the floor, and plug the power cord into a grounded outlet (10A).

What to do if the machine does not start?

Check that the machine is plugged in, the fuses are working, power is present, the door is properly closed (click), and the program selector is not on the Stop (O) position. Press the Start/Pause button.

How to clean the drain pump filter?

Unplug the machine and close the tap. Let the water cool, open the filter flap, unscrew the filter, clean it under water, then put it back. Perform this operation every 2 to 3 months.

How to activate the child lock?

Press the first two buttons on the control panel simultaneously for more than 3 seconds. The display shows 0:-n to confirm. To deactivate, repeat the same operation.

What is the maximum laundry capacity of the machine?

The maximum capacity is 7 kg of dry laundry. Do not exceed this load to avoid vibrations and inefficient washing.

How to clean the detergent drawer?

Pull out the detergent drawer until it stops, then press the siphon cover while removing the drawer. Clean it with an old toothbrush and water. Also clean the fabric softener siphon.

What to do in case of excessive foam formation?

Press Start/Pause to stop the program. Dilute a tablespoon of fabric softener in 1/2 liter of water and pour into the detergent drawer. Wait 5 to 10 minutes, then restart. Use less detergent in the future.

How to use the delayed start function?

Select the desired program and functions. Press the Menu button twice to access the start time setting. Use the Select button to set the delay (up to 23h). Wait 5 seconds to confirm.

What does error code E01 mean?

Code E01 indicates that the door is not properly closed. Close the door by pushing until you hear a click. If the problem persists, unplug the machine and contact an authorized service.

How to descale the washing machine?

The manual does not mention specific descaling. However, you can use a suitable descaling product for washing machines, following the manufacturer's instructions. Regularly clean the filters to prevent limescale buildup.

USER MANUAL TKD 1270 T TEKA

WASHING MACHINE USER MANUAL TKD 1270 T

MODE D'EMPLOI DE MACHINE A LAVER TKD 1270 T

MANUAL DE INSTRUCÇÕES DA MAQUINA DE LAVAR TKD 1270 T

SPANISH....1

GERMAN....36

ENGLISH....66

FRENCH....100

PORTUGUESE....133

CONTENIDOS

Simple line drawing of a door with a black dot on the left and a separate hand holding a small object (no text or symbols)

Illustration of a hand holding a small object with a curved arrow indicating rotation (no text or symbols)

CONEXION A LA TOMA DE DESAGÜE

mode

BOTON DE MENU

SECCION 5: COMO LAVAR SU ROPA

Sistema Twinjet

SECTION 6: MAINTENANCE AND CLEANING

Illustration of a person interacting with a device, showing abstract line drawings and a magnified view (no text or symbols)

FILTRO DE LA BOMBA

Simple line drawing of a human ear and ear with no text or symbols

Illustration of a human figure with a hand holding a tool, showing a mechanical component and motion arrow (no text or symbols)

FUNKTIONSTASTEN

- In Italian for Missouri, it also works with a special condition. For this condition

Twinjet-System

Diagram showing three abstract line drawings with no text or symbols, depicting a mechanical or architectural concept (no readable text or symbols)

PUMPENFILTER

• Removal of transportation screws
• Adjustment of feet
• Electrical connection
• Water supply connection

SECTION 3:TECHNICAL SPECIFICATIONS

SECTION 4:CONTROL PANEL

• Start/Pause button
  • Function indicator lights
  • Function buttons
  • Spin speed selector
• Program knob

SECTION 5:WASHING YOUR LAUNDRY

• Before washing
• Running the machine

SECTION 6: MAINTENANCE AND CLEANING

• Water inlet filters
- Pump filter

SECTION 1: BEFORE USING

SAFETY WARNINGS

• Do not use a multiple socket or extension cord.
• Do not insert a plug with damaged or broken cord into the socket.
• If the cord is damaged it should be replaced by the manufacturer or appointed service agent in order to avoid a hazard.
• Never remove the plug from the socket by pulling from the cord section. Remove the plug by holding.
• Do not plug the power supply with wet hands.
• Never touch the machine with wet hands or feet.
• Never open the detergent drawer while the device is running.
• Never force to open the door of the machine while the machine is running.
• Since the machine can reach high temperatures while running, do not touch the drain hose and water during draining.
• In case of any failure, first unplug the device and close the water tap. Do not attempt to repair. Please apply to the nearest authorized service station.
• Do not forget that the packing material of your machine may be hazardous for children.
  • Do not let your children play with the washing machine.

• Keep your net away from your machine

• If you will not use your machine for a long time, unplug your machine, close the water supply and leave the door open in order to keep the inside of the machine dry and for prevention from unpleasant odour.

• As a result of the quality control procedures, a certain amount of water may remain in your machine. This is not harmful for your machine.

SECTION 2: INSTALLATION

You must pay attention to the following issues before using your washing machine.

REMOVAL OF TRANSPORTATION SCREWS

• Transportation screws, which are located at the back side of the machine, must be removed before running the machine.
• Loosen the screws by rotating counterclockwise by a suitable wrench. (DIAGRAM-1)
• Remove the screws by pulling them.(DIAGRAM-2)
• To the holes where the transport screws have been removed, insert the plastic transport screw taps found in the accessories bag. (DIAGRAM-3)
• The transportation screws, that have been removed from the machine should be kept in hand for any other transportation necessities.

ADJUSTMENT OF FEET

• Do not install your machine on rugs or similar surfaces.
- For your machine to work silently and without any vibration, it should be settled on a flat, non-slippery and tough ground.
• You can adjust the balance of your machine from its feet.
• First, loosen the plastic adjustment nut.
- Adjust by rotating the feet upwards or downwards.
- After the balance has been reached, tighten the plastic adjustment nut again by rotating it upwards.
- Never put cartons, wooden blocks or similar materials under the machine to balance the irregularities on the level of the ground.

ELECTRICAL CONNECTION

• Your washing machine works with 220-240V and 50Hz.
• A special grounded plug has been attached to the network cable of your washing machine. This plug must definitely be inserted to a grounded socket with 10 ampere. The fuse flow value of the

electrictic line attached to this should also be 10 amper. If you have

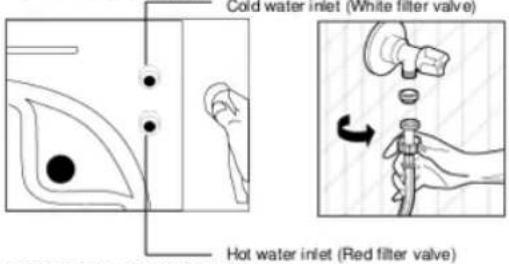

• Water pressure of 0,1-1 MPa from your tap will enable your machine to work more efficiently.(0,1 MPa pressure means water flow of more than 8 liters in 1 minute from a fully opened tap)
  • After connections are completed, check for the non-leakage of the connection joints by turning on your tap completely.
• Be sure that water inlet hoses are not folded, broken or crushed.

- Mount the water inlet hoses to a 3 ^1/4 , geared water tap.

WATER DRAIN CONNECTION

• Be sure that water inlet hoses are not folded, twisted, crushed or elongated by stretching.
  • Water drain hose should be mounted at a height of minimum 60 cm, maximum 100 cm from the ground.
• The end of the water drain hose may directly be fitted to the dirty water outlet hole or a special apparatus mounted on the outlet

SECTION 3: TECHNICAL SPECIFICATIONS

Maximum dry laundry capacity (kg)	7
Recommended loading (kg)	6,5
Height (cm) 84,5
Width (cm) 59,6
Depth (cm) 52,7

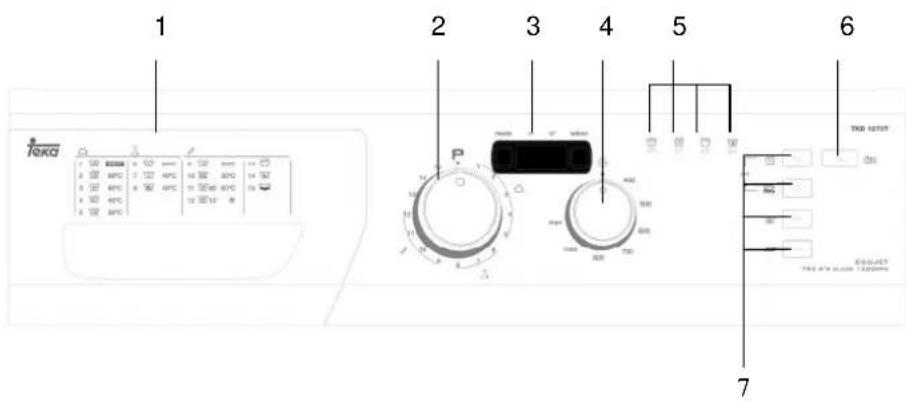

SECTION 4:CONTROL PANEL

1- Detergent drawer 6- Start/pause and cancel button
2- Program knob 7- Function buttons
3-Electronic indicator
4-Spin speed selector
5- Washing operation light

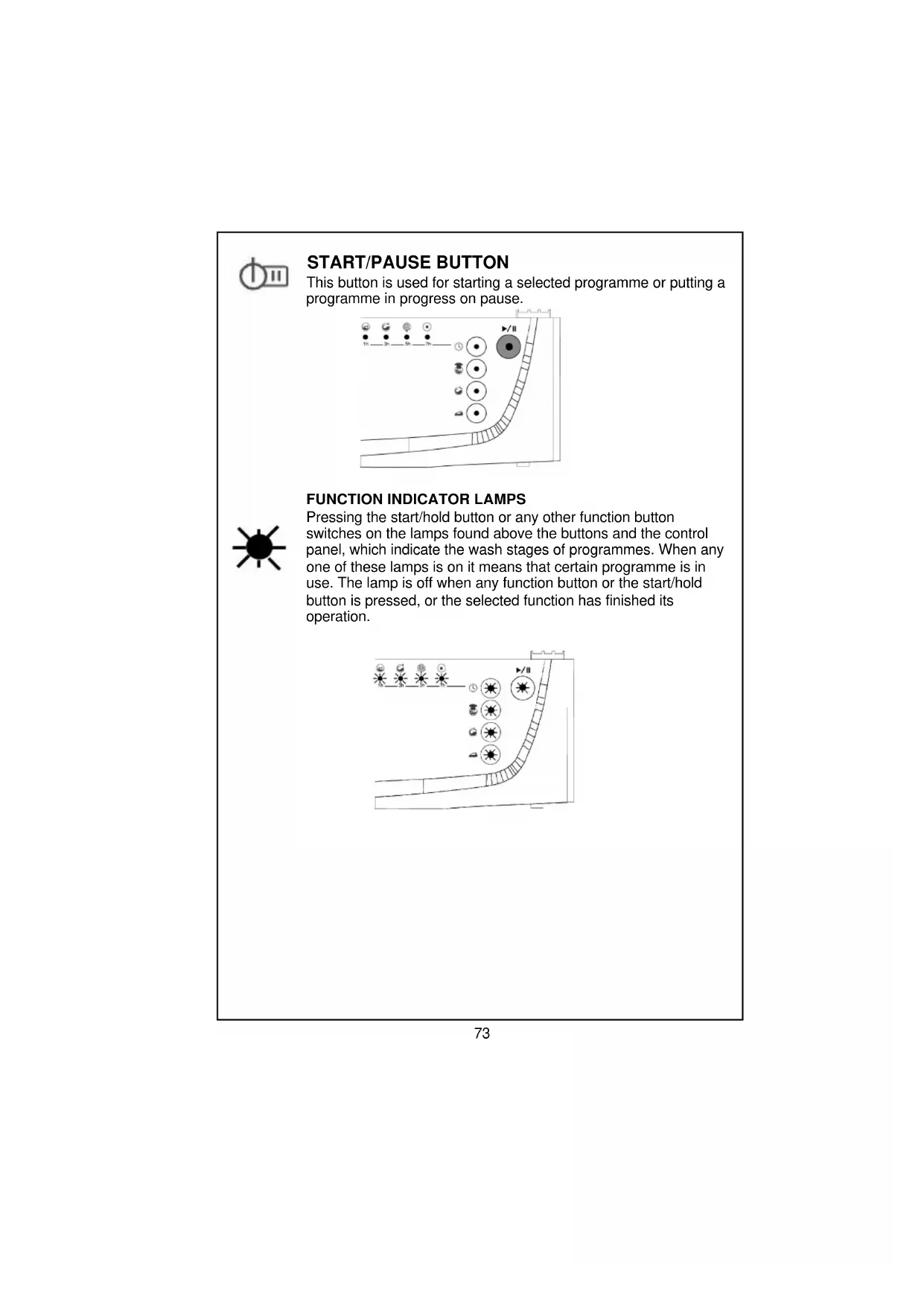

START/PAUSE BUTTON

This button is used for starting a selected programme or putting a programme in progress on pause.

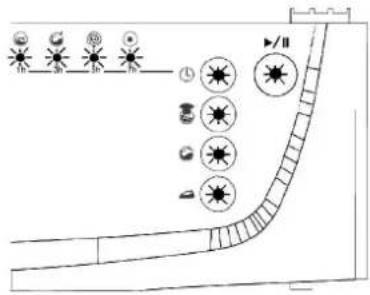

FUNCTION INDICATOR LAMPS

Pressing the start/hold button or any other function button switches on the lamps found above the buttons and the control panel, which indicate the wash stages of programmes. When any one of these lamps is on it means that certain programme is in use. The lamp is off when any function button or the start/hold button is pressed, or the selected function has finished its operation.

MENU BUTTON

mode

Using the menu button you can access the functions for setting the temperature and the programme startup time of your machine.

SELECT BUTTON

select

With the select button you can change the functions for setting the temperature and the programme startup time of your machine any way you wish.

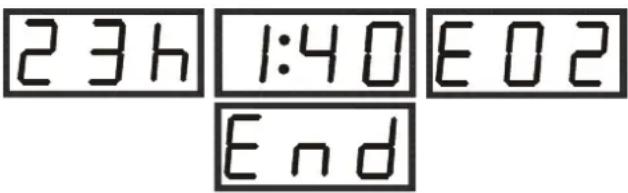

ELECTRONIC INDICATOR

With the help of the electronic indicator you can adjust the temperature and the programme startup time, and also see the time the machine will complete the wash. The electronic indicator will warn you by showing an error icon on its indicator in case there should be any errors during the operation of your machine, and at the same time inform you of the completion of the selected wash programme by reading “END” on its indicator.

FUNCTION BUTTONS

Rinse hold

This function is recommended to be used when the clothes cannot be taken immediately after the end of the program. This will prevent occurrence of wrinkles. When this button is pressed, the last rinsing water is not drained. For the program to continue from the start pause, repress the start pause button

If you do not want your sensitive clothes to be spinned or you want them to be spinned sensitively, turn the program knob to O (off) position. Bring the program knob on one of the draining or spinning programs you desire and press the start/pause button. If the program you have selected is a drain program, your machine will draining the water inside. If you have selected a spinning program, your machine will perform a spinning operation and then end the program.

Easy ironing

By using this function, you can ensure your clothes to come out less wrinkled after the washing.

PREWASH BUTTON

With this function you can start an additional wash operation for heavily soiled laundry. When you use this function you must put detergent into the prewash compartment of the detergent drawer. If the additional function features of your machine contain this option and you will wash your laundry in a prewash programme, the lamp above the function button will automatically light up. Even if you press the function button to cancel this feature it will not be cancelled at a wash function with a prewash operation.

Economy wash

Your machine is equipped with a child lock in order to prevent a programme's operation from being affected by a push on a button during a wash operation. The child lock will become active after the first and second function buttons on the control panel are pressed at the same time and for longer than three seconds. When it becomes active the electronic indicator will flash "0:-n" and the indicator will return to its previous position. In case any button is pressed the electronic indicator will warn you by flashing "0:-n". In order to deactivate it you will have to press the same buttons for longer than three seconds. When the lock is no longer active the electronic indicator will read "0:-n" for a short while. When the programme has finished, child lock will automatically be deactivated.

WARNING!

If you have forgotten to use an additional function and the machine has started the wash operation press the button of the additional function you wish to select; if the indicator lamp above it keeps lighting the additional function you selected will become active. If the lamp stays lit for a certain while and then goes out the additional function you selected will not become active.

NOTE: Our products contain electronic cards and touchscreen buttons. Lightly pressing on the buttons will suffice to activate the functions.

SPIN SPEED SELECTOR

By the spin speed selector knob, you can make the adjustment of speed for the process of spinning your clothes. The speed adjustment interval is between O (No spin) and the maximum spinning speed of your machine.

NOTE: Do the spinning process of your sensitive and delicate clothes in the most appropriate mode.

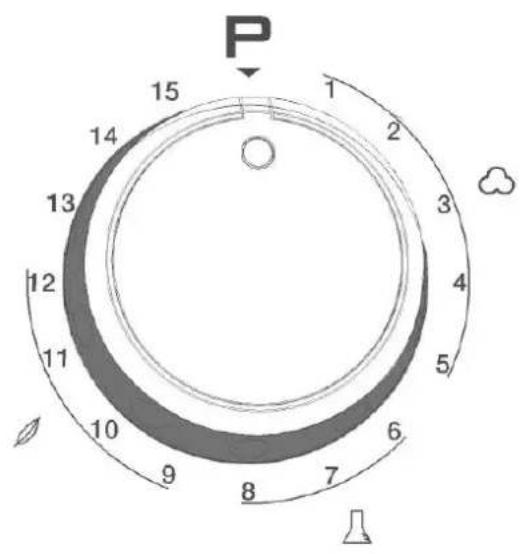

PROGRAM KNOB

With the program knob, you can select the program with which you desire to wash your clothes. You can adjust the program selection process by turning the program knob in both directions. You must be careful that the adjustment sign of the program knob is exactly on the program you want to select. When you bring the programme knob to P (off) position, your machine will carry out the drain operation in order to finish (cancel) programme cycle. After drain is finished, machine will go into Standby Mode. You can now select another programme you wish to start.

SECTION 5: WASHING YOUR LAUNDRY

• Plug the machine.
- Open the tap water.

First wash cycle

There may be water left inside your machine after factory tests and trials. It is recommended that the first wash cycle should be made without any laundry so that carry out this water; pour half a measuring cup of normal all-purpose detergent into compartment 2 and select cotton program at 95^ .

BEFORE WASHING

Discrimination of your laundry

• Discriminate your clothes according to their types (cotton, synthetic, sensitive, woolen, etc.), washing temperatures and level of dirtiness.
  • Never wash your white and coloured clothes together.
• Since your new coloured clothes may shed dye on the first wash, wash them separately.
• Be careful that no metal pieces are found on or in the pockets of your clothes, remove if there is any.
  • Zip and button your clothes.

• Remove the plastic or metal hooks of the curtains and laces or place them inside a washing bag and tie.

• Pull the textiles like trousers, knitted fabric, t-shirt and sweat shirt inside out.

• Wash your small clothes like socks and handkerchiefs in a washing bag.

Wash up tol 90 °C Wash up to 60 °C Wash up to 30 °C Not washable in washing machine

Placement of the clothes into the machine

• Open the door of your machine.
  • Fill your clothes in your machine in a well-spread manner.
• Place each cloth separately.
• When you shut the door of your machine, be careful that no cloth is jammed between the cover and the gasket.
• Shut the door of your machine tightly otherwise your machine will not start the washing process.

Filling detergent in the machine

The quantity of the detergent that you will fill in your machine depends on the following criteria:

• Your detergent consumption will change according to the dirtiness level of your clothes. For your slightly dirty clothes, do not pre-wash and put a small amount of detergent in the compartment no.2 of the detergent drawer.
• For your excessively dirty clothes, select a program with pre-washing, fill ¼ portion of the detergent you will put in compartment 1 in the detergent drawer and the remaining portion in compartment 2.
• In your machine, use the detergents developed especially for automatic washing machines. The quantities that will be used for your clothes are written on the packing of the detergents.
• As the hardness of your water increases, the amount of the detergent to be consumed will also increase.
• As the amount of your clothes increases, the amount of the

- You can use fluid detergents in all programs without pre-washing. For this, mount the fluid detergent level plate in the second compartment of the detergent drawer and arrange the amount of fluid detergent according to the levels on this plate.

RUNNING THE MACHINE

Program selection and features

Select programmes and additional functions appropriate for your laundry with the help of the tables shown on pages 87.

Start/Pause button

Pressing this button you can start the programme you selected or put the programme in progress on pause.

When the programme you selected starts its operation the lamp above the start/pause button will start lighting.

When you wish to put the selected programme on pause press the start/pause button once. The lamp above it will start to flash. In order to restart the programme from the point it was put on pause at you will have to press the start/pause button once again.

Starting the program

- Adjust the programme button to a programme you wish to select.

- If the programme you selected is a wash programme the wash operation lamp will flash.

- If the programme you selected is a rinse/spin or drain programme the lamps indicating the related selection will flash.

Selecting an additional function button

- Adjust the programme button to a programme you wish to select.

- If the programme you selected is a wash programme the wash operation lamp will light up.

- If the programme you selected is a rinse/spin or drain programme the lamps indicating the related selection will light up.

In order to select an additional function:

- Press once the additional function button you wish to select.

- If the lamp above the function button keeps lighting it means you have selected the function you wished to select

Cancelling a programme

If you wish a certain programme in progress to finish early:

• The programme knob to P (off) position.

• Your machine will carry out the drain operation necessary for the programme to finish, and then end the programme.
  • The electronic indicator will show "END".

Programme end

- Your machine will stop automatically when the programme you selected has finished.

• The electronic indicator will read "END".

• Bring the programme button to the P (off) position.
• The door lock of your machine will automatically release about two minutes after the programme has finished. You can open the door and take out the laundry by pulling the door handle towards yourself.
  • After you have taken out the laundry leave the door open so that the machine interior can dry.
  • Unplug the machine.
  • Turn off the water tap.

ADJUSTING THE WASH WATER TEMPERATURE

In order to adjust the temperature:

• Press the menu button once after selecting the programme and the (additional) function(s) you will use.
• The electronic indicator will show the wash temperature for the programme you selected.
• You can reduce this temperature value down to the wash temperature value you prefer by using the select button.

- If you wish to wash your laundry in cold water press the select button until the electronic indicator will read "CLD".

- If you have skipped the temperature level you prefer you can readjust it by continuously pressing the select button.

If you wait for longer than five seconds without pressing any button on this menu the electronic indicator will return to the start.

SETTING THE PROGRAMME STARTUP TIME

In order to set the programme startup time of your machine:

- Press the menu button twice after selecting the programme and the (additional) function(s) you will use.

If you have skipped the delay time you prefer you can readjust it by pressing the select button.

If you wait for longer than five seconds without pressing any button on this menu the electronic indicator will return to the start.

Child lock

Your machine is equipped with a child lock in order to prevent a programme's operation from being affected by a push on a button during a wash operation. The child lock will become active after the first and second function buttons on the control panel are pressed at the same time and for longer than three seconds. When it becomes active the electronic indicator will flash "0:-n" and the indicator will return to its previous position. In case any button is pressed the electronic indicator will warn you by flashing "0:-n". In order to deactivate it you will have to press the same buttons for longer than three seconds. When the lock is no longer active the electronic indicator will read "0:-n" for a short while. When the programme has finished, child lock will automatically be deactivated.

Twinjet system

With Twinjet system, water mixed with detergent, will be injected on your clothing with the help of 2 spraying mechanism and a better washing performance is obtained.

PROGRAM	Detergent Compart.	Max. Dry Load Capacity (kg)	Type of Laundry Explanations
1-COTTON 95°(ANTI-BACTERIAL)	2	7	You can operate your machine not loaded at this program and deactivate the impacts of microorganisms. Dirty, high temperature resistant cotton and linen textiles.	Underwears, sheet, table cloth, t-shirt, shirt, towel
2-SCILED 60°(PREWASH)	1:2.7		Very dirty cotton and linen textiles.
3-ECO WASH 60°	2	7	Dirty colored and linen textiles.
4-COTTON 40° A= A 2 7			High washing performance with low energy consumption. Dirty colored and linen textiles.
5-HYGIENE 30° 2 5			This program can kill the bacteria at 30°C and used for less dirty colored, linen textiles and baby clothing.
6-SYNTHETICS 60° 2 3.5			Very dirty, synthetic or synthetic mixed textiles.	Nylon socks, blouse
7-SYNTHETICS 40° 2 3.5			Dirty, synthetic or synthetic mixed sensitive textiles.
8-WOOL/HAND WASH 40°	2 2.5		Less dirty, hand washable cotton, wool, synthetic or synthetic mixed clothing.	Hand wash to all laundry
9-SILK/DELICATE 30° 2 2.5			Very light dirt, cold water, hand and machine washable wool, silk mixed clothing.	Silk mixture, shirt, blouse, polyester, poliamid, mixture textile
10 MIX WASH 30° 2 3.5			Dirty, stained cotton, synthetic, colored and linen textiles can be washed together.	Underwears, sheet, table cloth, t-shirt, shirt, towel
11-FAST 60° 60 MIN. 2 3			In 60 minutes and at 60°C temperature, dirty, cotton, colored and linen textiles can be washed.
12-SUPER RAPID 12 MIN.	2	2	In 12 minutes short time less dirty, cotton, colored and linen textiles can be washed.Note: Since the washing time is short, the detergent amount put should be less when compared to other programs. If your machine perceives uneven load program duration extends longer. You can open the door of your machine after 2 minutes it is finished. (2 minute for door opening is not included in the washing period.)
13 RINSE	When you need an additional rinsing to be done to your clothes after the washing process, you can use this program for all kinds of clothes.
14 SPIN	You can use this program, when you need an additional spinning to be done to your clothes after the washing process. Please do not use this program for your delicate or woolen laundry.
15 DRAIN	This program is used to drain the dirty water inside after the washing process of your machine. If you want the water inside your machine to be drained before the program ends, you can use this program.

* Energy label data based on programme tested in accordance with EN60456.

SECTION 6: MAINTENANCE AND CLEANING

• Unplug your machine.

WATER INLET FILTERS

On the tap part of your machine's water inlet hose and at the ends of water inlet valves, there are filters to prevent entrance of the dirt and foreign materials in the water to the machine. If the machine is unable to receive sufficient water although your water tap is opened, these filters should be cleaned.

• Remove the water inlet hose.
• Remove the filters found on the water inlet valves by using a pinoer and wash thoroughly with a brush.
• Clean the filters of the water inlet hoses located on the tap side by removing manually together with the seal.
• After you clean the filters, you can fit them the same way as you have removed.

Three-panel illustration showing a hand holding a small object, with no visible text or symbols.

PUMP FILTER

The pump filter system elongates the life of your pump, which is used to drain

WARNING!

Danger of being scalded!

Since the water inside the pump maybe hot, wait for it to cool.

DETERGENT DRAWER

Detergents may cause residue buildup in the detergent drawer and in its slot over time. Take out the detergent drawer periodically to clean up the accumulated residue. In order to take out the drawer:

• Pull the drawer to its end (DIAGRAM-1).
- Keep pulling by pressing on the siphon lid inside the drawer pulled to
its end, and remove the drawer from its place (DIAGRAM-2).
- Wash it up with water with the help of an old toothbrush.

Collect the making inside the drawer slot without letting them down

SIPHON PLUG

Pull out the detergent drawer. Remove the siphon plug and clean the residues of the softener thoroughly. Fit the cleaned siphon plug in its location. Check if it placed properly.

THE CABINET

Clean the exterior surface of the cabinet of your machine with lukewarm water and a cleaning substance that will not irritate the cabinet. After rinsing with clean water, wipe it with a soft and dry cloth.

WARNING!

If the machine is installed in a location where the ambient temperature can fall below 0 °C, do the following when it will not be in use:

• Plug in the machine.
- Close the water tap and pull out the water inlet hose or hoses from the tap.
- Place the ends of the water drain and water inlet hoses in a cup on the ground.
- Adjust the program knob to "Draining" program.
• The program ready light will be on.
• Run the program by pressing the start/pause button.
- Unplug your machine when the program is over (program end light is on).

SECTION 7: PRACTICAL INFORMATION

Alcoholic beverages: The stain point, should first be washed with cold water, than should be wiped with glycerine and water and be rinsed with water mixed with vinegar.

Shoe Polish: The stain should be slightly scratched without ruining the cloth, rubbed with detergent and rinsed. In case it is not eliminated, it should be rubbed with 1 unit of pure alcohol (96 degrees) mixed in 2 units of water and then washed with lukewarm water.

Tea and coffee: Stretch the stained area of your cloth on the top of a container and pour water as hot as the type of your cloth can endure on it. If the type of your cloth is suitable, wash it with lye.

Chocolate and cocoa: By leaving your clothes in cold water and rubbing with soap or detergent, wash it in the highest temperature that the type of your cloth can endure. If there is still a stain of oil left, wipe with oxygenated water (in proportion of 3%).

Tomato paste: After scraping the dried pieces without ruining the cloth, leave in cold water for about 30 minutes and wash by rubbing with detergent.

Meat broth-egg: Eliminate the dried stain residues and wipe with a sponge or soft cloth wetted in cold water. Rub with detergent and wash with diluted lye.

Grease and oil stains: First wipe the residues. Rub the stain with detergent and then wash with lukewarm soapy water.

Mustard: First apply glycerine to the stained area. Rub with detergent and then wash. If the stain still does not disappear, wipe with alcohol (On synthetic and coloured cloth, a mixture of 1 unit alcohol, 2 units water should be used)

Blood stain: Lay your clothes in cold water for 30 minutes. If the stain still does not disappear, lay in mixture of water and ammonia (3 table-spoons of ammonia in 4 liters of water) for 30 minutes.

Cream, ice-cream and milk: Lay your clothes in cold water and rub the stained area with detergent. If the stain has still not disappeared, apply lye on the fabric of your clothes in proper proportion.(Do not use lye on coloured clothes.)

Mould: Mould stains should be cleaned as soon as possible. The stain should be washed with detergent, and if it does not disappear, it should be wiped with oxygenated water (in proportion of 3%).

Ink: Hold the stained area under cold water and wait until the inky water completely runs off. Then rub with water diluted with lemon juice and detergent, wash after waiting for 5 minutes.

Fruit: Stretch the stained area of your clothes on the top of a container and pour cold water on it. Do not pour hot water on the stain. Wipe with cold water and apply glycerine. Wait for 1-2 hours and rinse after wiping with a few drops of white vinegar.

Grass stain: Rub the stained part with detergent. If the type of fabric is suitable for use of lye, wash it with lye. Rub your woolen clothes with alcohol.(For coloured ones, a mixture of 1 unit pure alcohol and 2 units of water).

Oil Paint: The stain should be eliminated before it dries by applying thinner on it. Then it should be rubbed with detergent and washed.

Burnt stain: If your cloth is suitable for use of lye, you can add lye into your washing water. For woolen fabric, a cloth damped in oxygenated water should be covered on the stain and it should be imposed with a dry cloth as it. It should be washed after drying well.

FAILURE PROBABLE CAUSE		METHODS OF ELIMINATION
Your machine does not operate.	It is unplugged.	Insert the plug into the socket.
	Your fuse is defected.	Change your fuse.
	The electric power is off.	Check the electric power.
	Start/pause button has not been pressed.	Press the start/pause button.
	The program knob is in O(off) status.	Bring the program knob on the desired status.
	The door is not shut properly.	Shut the door properly. You should hear the click.
Your machine does not receive water.	Water tap is closed. Open water tap.
	The water inlet hose may be bent.	Check the water inlet hose.
	The water inlet hose is obstructed.	Clean the filters of water inlet hose. (*)
	The valve inlet filter is obstructed.	Clean the valve inlet filters. (*)
	The door is not shut properly.	Shut the door properly. You should hear the click.
Your machine is not draining water.	The drain hose is obstructed or bent.	Check the drain hose.
	The pump filter is obstructed.	Clean the pump filter. (*)
	The clothes are not placed inside the machine in a well-balanced manner.	Spread the clothes inside the machine in an orderly and well-balanced manner.
Your machine is vibrating.	The feet of your machine are not adjusted.	Adjust the feet. (**)
	Transportation screws are not removed.	Remove transportation screws. (**)

(*)See the section concerning the maintenance and cleaning of your machine.

(**)See the section concerning installations your machine.

FAILURE PROBALE CAUSE		METHODS OF ELIMINATION
Your machine is vibrating.	There is a small amount of clothes in the device.	It does not prevent operation of the machine.
	Excessive amount of clothes are filled in the machine or the clothes are not placed in a well-balanced manner.	Do not exceed the recommended quantity of clothes and spread your clothes in the machine in a well-balanced manner.
	Your machine touches a ripid object.	Prevent your machine's leaning on a tough place .
Excessive foam in the detergent drawer.	Too much detergent has been used.	Press the start/pause button.In order to stop the foam,dilute one table-spoon of softener in half liter of water and pour it in the detergent drawer.Press the start/pause button after 5-10 minutes.Arrange the amount of the detergent properly in the next washing process.
	Wrong detergent has been used.	Use only the detergents produced for full automatic machines.
The washing result is bad.	Your laundry too dirty for the program you have selected.	Select a suitable program. (see Table-1)
	The amount of detergent used is not sufficient.	Use more detergent according to the detergent.
The washing result is not good.	Clothes exceeding the maximum capacity has been filled in your machine.	Put the clothes in your machine in a manner not to exceed its maximum capacity.
	Your water may be hard.	Use the amount of detergent according to the declaration of the detergent producer.
	Distribution of the clothes in your machine is not well-balanced.	Spread the clothes inside the machine in an orderly and well-balanced manner .
The water is drained from the machine as soon as it is filled.	The end of the water drain hose is in a position too low according to the machine.	Place the water drain hose in an appropriate height.(**)
No water is seen in the drum during washing.	No failure. The water is at the lower part of the drum.	-
There are residues of detergent on the clothes.	The pieces of some detergents which do not dissolve in water may stick to your clothes as white stains.	By calibrating your machine for “Rinsing” program,make an additional rinsing or eliminate the stains After drying with the help of a brush.
There are gray stains on the clothes.	These stains may be caused by oil,cream or ointment .	In the next washing operation, use the maximum detergent amount declared by the detergent producer.

(**) See the section concerning installations your machine.

FAILURE PROBABLE CAUSE		METHODS OF ELIMINATION
The spinning process is not done or starts with delay.	No failure. The unbalanced load control may works in that way.	The unbalanced load control system will try to distribute your clothes in a homogenous manner. After your clothes are distributed, passage to spinning process will be realized.In the next washing process,place your clothes into the machine in a well-balanced manner.

SECTION 9: AUTOMATIC FAILURE DETECTION SYSTEM

Your machine is equipped with systems which will both take the necessary precautions and warn you in case of any failure by controlling it self constantly during the washing processes.

(*) See the section regarding the maintenance and cleaning of your machine.

FAILURE CODE	PROBABLE FAILURE	THE PROCESS TO BE DONE
	The door is not shut properly.	Shut the door properly so that you hear the click. If the problem persists, turn off the machine unplug and apply to the nearest authorized service immediately.
FAILURE CODE	PROBABLE FAILURE THE	PROCESS TO BE DONE
	The water level in your machine is below heater. The pressure of your water supply may be low or locking.	Turn on the tap to the end.Water may be cut, check it.If the problem is still continuing,your machine will automatically stop after a while.Unplug your machine, turn off the tap and apply to the nearest authorized service.
	The pump has failed or the pump filter is obstructed or drain pump is in open circuit.	Clean the pump filter.If the problem persists,apply to the nearest authorized service.(*)
	There is an excessive amount of water in your machine.	Your machine will automatically drain the water. After your machine has completed the draining process,shut down your machine and unplug. Close the tap and apply to the nearest authorized service.

FAILURE CODE	PROBABLE FAILURE THE	PROCESS TO BE DONE
	The motor has failed.	Shut down your machine and unplug. Turn off the tap and apply to the nearest authorized service.

SECTION 10: INTERNATIONAL WASHING SIGNS

Washing temperature.	Do not wash (hand wash)	Lukewarm iron.	Medium hot iron.

Hot iron. Do not iron.		Do not tumble dry.	Hang to dry.

Drip dry. Dry flat. Do not bleach. Handy to bleach.

F	P	A
All of these are dry cleaning symbols. The letters are to instruct the cleaner what type of solvent to be used.Garments bearing these symbols should not be washed in your machine unless the label says otherwise.

SOMMAIRE

SECTION 1 : AVANT UTILISATION

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols)

Fig.7

RACCORDEMENT DU TUYAU DE VIDANGE

TOUCHE MENU

Fonction Eco-Rapid wash

Three-panel illustration showing a fish being pulled into a pan, with no visible text or symbols.

Fig.10
Fig.11

POMPE FILTRE

(*) See the section regarding the maintenance and cleaning of your machine.

Simple line drawing of a bird's head and tail (no text or symbols)

Illustration of a hand holding a small object with a curved arrow indicating rotation (no text or symbols)

mode

BOTÃO DO MENU

Sistema de jacto duplo

SECCAO 6: MANUTENCAO E LIMPEZA

Three-panel illustration showing a hand holding a black object, with abstract line drawings and no visible text or symbols.

FILTRO DA BOMBA

Teka Industrial S.A.

C/ Cajo, 17

39011 Santander (Spain)

Tel.: [phone]

Fax [phone]

http://www.teka.es

35708 Haiger (Germany)

Tel.: [phone]

Fax: [phone]

http://www.teka.com

52023762
