USER MANUAL KULT 04 1604 0071 WMF

Änderungen vorbehalten8

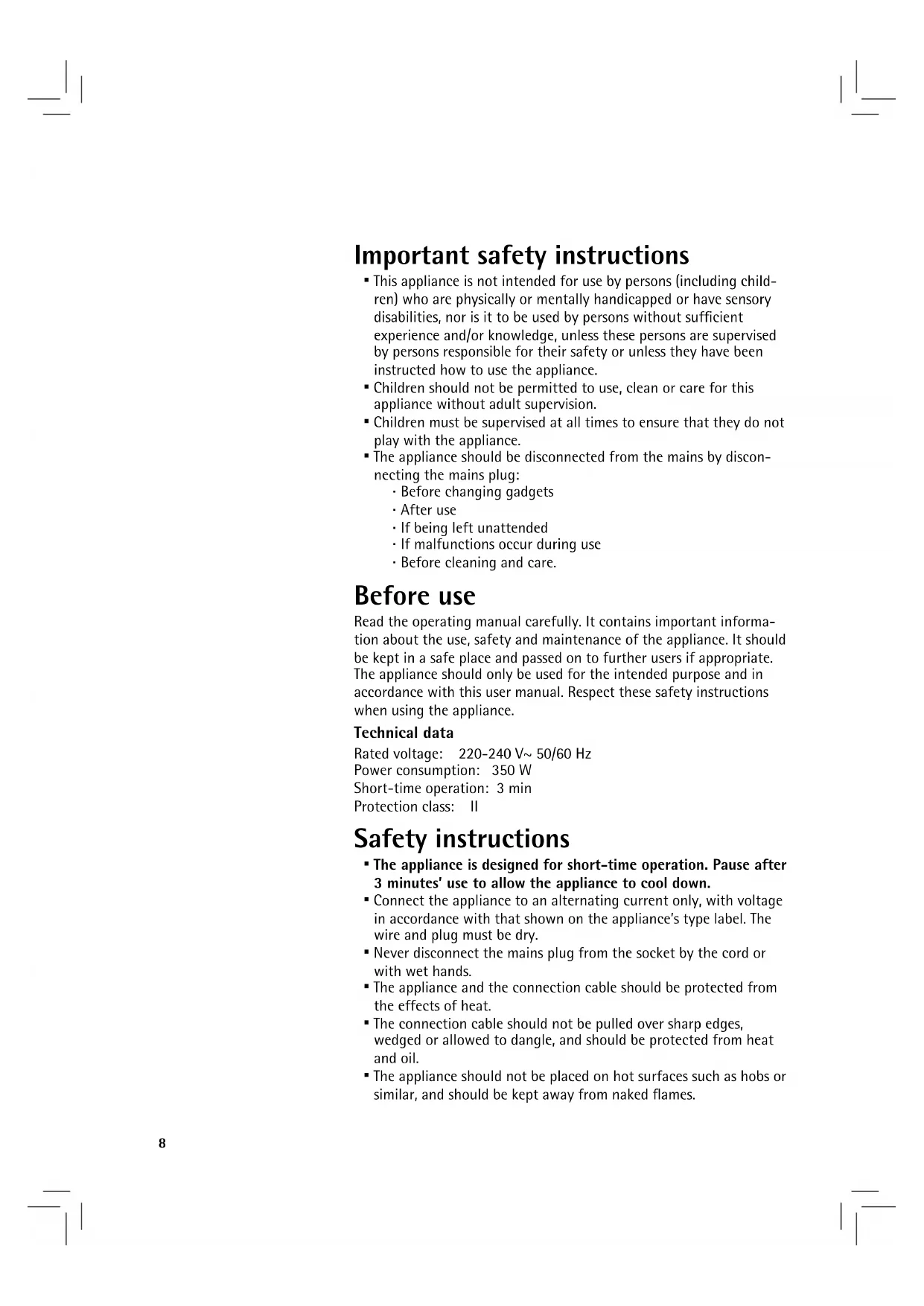

Important safety instructions

▪ This appliance is not intended for use by persons (including child-

ren) who are physically or mentally handicapped or have sensory

disabilities, nor is it to be used by persons without sufficient

experience and/or knowledge, unless these persons are supervised

by persons responsible for their safety or unless they have been

instructed how to use the appliance.

▪ Children should not be permitted to use, clean or care for this

appliance without adult supervision.

▪ Children must be supervised at all times to ensure that they do not

play with the appliance.

▪ The appliance should be disconnected from the mains by discon-

necting the mains plug:

⋅ Before changing gadgets

⋅ If being left unattended

⋅ If malfunctions occur during use

⋅ Before cleaning and care.

Read the operating manual carefully. It contains important informa-

tion about the use, safety and maintenance of the appliance. It should

be kept in a safe place and passed on to further users if appropriate.

The appliance should only be used for the intended purpose and in

accordance with this user manual. Respect these safety instructions

when using the appliance.

Power consumption: 350 W Short-time operation: 3 min

Protection class: II Safety instructions

▪ The appliance is designed for short-time operation. Pause after

3 minutes’ use to allow the appliance to cool down.

▪ Connect the appliance to an alternating current only, with voltage

in accordance with that shown on the appliance’s type label. The

wire and plug must be dry.

▪ Never disconnect the mains plug from the socket by the cord or

▪ The appliance and the connection cable should be protected from

the effects of heat.

▪ The connection cable should not be pulled over sharp edges,

wedged or allowed to dangle, and should be protected from heat

▪ The appliance should not be placed on hot surfaces such as hobs or

similar, and should be kept away from naked flames.9

DEGBFRITESNLDASVFINO

▪ CAUTION: always disconnect the mains plug before inserting or

removing the mixing gadgets. The mixing gadgets should only ever

be used in matching pairs. Never use two different mixing gadgets

▪ CAUTION: never lift, move or hold the appliance from the dough

hook or whisk or by the mains cable. Always hold the appliance by

the handle when moving or using it.

▪ Do not keep the turbo button held down for more than three

minutes to prevent the appliance from overheating.

▪ Use the appliance for foodstuffs only. Never use the appliance to

process solvent-based liquids (such as paint or varnish)! The solvent

fumes may ignite on the appliance’s motor and explode!

▪ Stop using the appliance and/or disconnect it from the mains plug

⋅ The appliance or mains cable is damaged

⋅ There is any suspicion of a fault after dropping the appliance

In such cases, send the appliance to be repaired.

▪ Do not immerse the appliance in water.

▪ Do not use the appliance outdoors.

▪ No liability is accepted for damages resulting from misuse,

incorrect operation, improper repairs or the use of accessories not

designed for this appliance. Claims under warranty are likewise

excluded in such cases.

▪ The appliance is not designed for commercial use.

▪ If the appliance’s connection cable is damaged then it must be

replaced by the manufacturer’s central customer service depart-

ment or by a similarly qualified person. Improper repairs may

constitute a serious threat for users.10

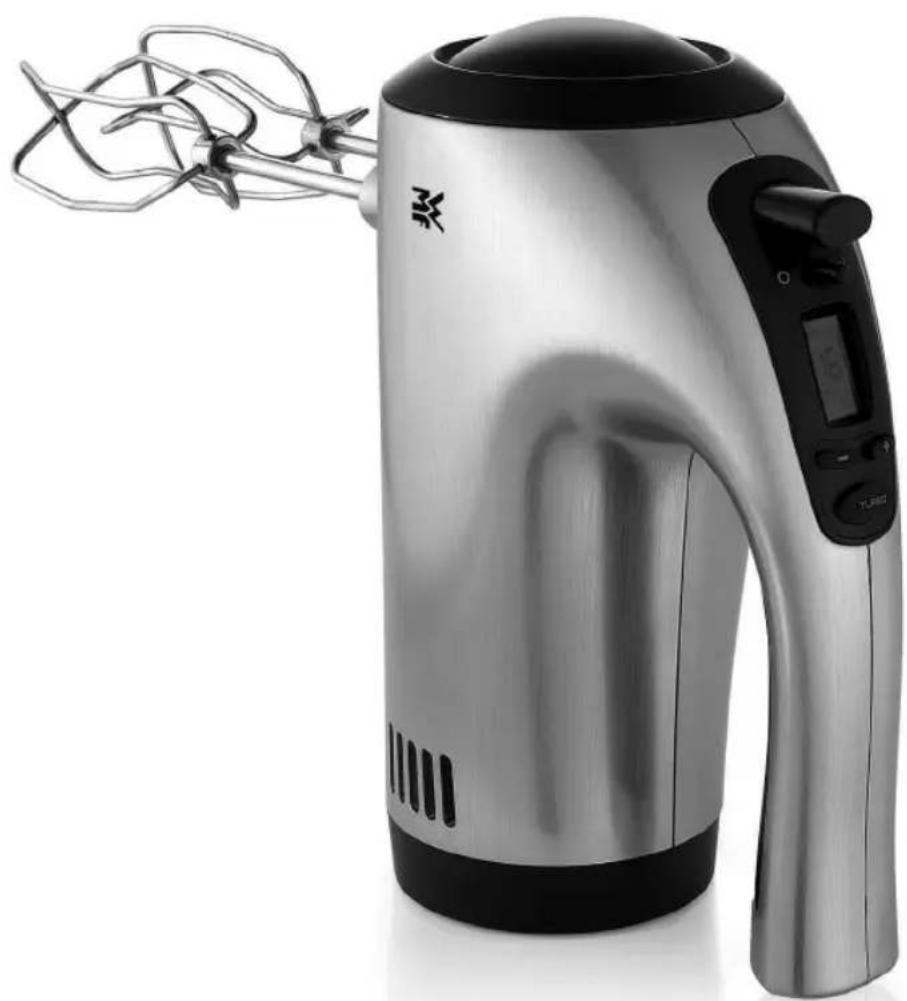

The hand mixer is used to mix, beat and blend soft foods and liquids

and to knead soft dough.

The hand mixer is supplied with two matching pairs of mixing gadgets.

Whisk: for thin liquid foodstuffs (e.g. beverages, sauces, pancake

batter, creamed desserts, whipped cream etc.)

Dough hook: for dough, mashed potato, butter

The hand mixer is equipped with 16 different speed settings.

Speed settings Mixing gadget Examples of use

1-3 Dough hook Butter, mashed potato

4-6 Whisk Sauces, beverages

7-9 Dough hook Soft dough

10-12 Whisk Creamed desserts

13-16 Whisk Whipped cream, egg whites

Switch the appliance on using the on/off switch, the display is

illuminated in blue and 0 is shown. The speed settings are selected by

pressing + and -. If you would like to use a higher speed setting then

it can be increased in steps by pressing +, to prevent the foodstuffs

from spattering too much.

The speed setting selected is shown in the display.

Please clean all parts as described in the ‘cleaning and care’ section

before allowing them to come into contact with foodstuffs.

DEGBFRITESNLDASVFINO Make sure that the appliance is off and disconnected from the

Place the mixing gadgets in the two openings on the base of the

appliance. Each mixing gadget may only be placed in one of the two

openings. Place the mixing gadget with the ring on the stem in the

large opening only. The mixing gadgets without a ring may only

be placed in the small opening. Twist the mixing gadgets slightly as

you insert them – there should be an audible click as they fit into the

Use the mixing gadgets in matching pairs only. Never use a dough

hook and a whisk together, as this risks damaging the appliance.

Place the desired foodstuff in a stable receptacle. Ensure that this is

sufficiently large and tall.

Now connect the mains plug to the socket.

Place the mixing gadgets in the foodstuff and switch the appliance on

using the on/off switch.

Select the desired mixing speed setting using + and -.

In order to reduce any food spattering, begin mixing using a lower

speed setting and increase this gradually as required.

Caution: do not place the mixing gadgets too deep in the foodstuff.

No liquid or other substance (e.g. dough) should be allowed to reach

the appliance. If using hot foodstuffs, be careful not to hold the

appliance in the steam to avoid any condensation forming on it. Wipe

any condensation off the housing immediately.

As soon as your foodstuff reaches the desired consistency, and after a

maximum of 3 minutes, power down the appliance using the on/off

switch. Wait until the motor stops spinning and remove the mixing

gadgets from the receptacle. Always remove the mains plug from the

socket before placing the appliance on a suitable surface.

Clean the appliance as soon as possible after use. Do not allow any

foodstuffs to dry on the appliance or mixing gadgets.

The hand mixer is equipped with an additional timer function.

Once you have selected a speed setting and the appliance is running,

the display will show a timer counting down in seconds. This can be

used to see how long the appliance has been in use and how long you

need to blend a particular substance. When you switch the appliance

OFF the timer automatically returns to 00:00.

The appliance will automatically shut down after 60 minutes. If the

appliance has automatically shut down it can be switched back on by

If you need a short burst at a higher speed setting when processing

food, then you can press the turbo button. The speed of the mixing

gadget is increased whilst this button is depressed.

Do not keep the turbo button held down for more than three minutes

to prevent the appliance from overheating.12

Cable recoil function

Any length of cable not required can be stowed away using the cable

recoil function. To do so, turn the cable recoil slowly in a clockwise

Disconnect the mains plug immediately after use.

Clean the appliance as soon as possible after use. Do not allow any

foodstuffs to dry on the appliance or mixing gadgets.

The mixing gadgets can only be removed when the appliance is

switched off (position 0).

To remove the mixing gadgets, press the discharge button.

Clean the mixing gadgets in warm soapy water or in the cutlery

compartment of a dishwasher.

Any remaining food which has dried onto the mixing gadgets can be

soaked in lukewarm soapy water before cleaning.

CAUTION: never clean the appliance or mains cable in the dish-

Never immerse the appliance, mains cable or mains plug in water or

other liquids. Never pour water or other liquids over the appliance or

place the appliance on wet or damp surfaces.

Wipe the appliance and mains cable with a damp (but not too wet)

Dry the appliance and the mixing gadgets carefully. Leave the compo-

nents to air dry for a few minutes if required.

Do not use any abrasive cleaning agents.13

DEGBFRITESNLDASVFINO For UK use only

▪ This product is supplied with a 13 A plug conforming to BS 1363

fitted to the mains lead. If the plug is unsuitable for your socket

outlets or needs to be replaced, please note the following. If the

plug is a non-rewireable one, cut it from the mains lead and imme-

diately dispose of it. Never insert it into a socket outlet as there is a

very great risk of an electric shock.

▪ The replacement of the plug at the mains lead has to be done

according to the following instructions:

Important: The wires in this mains lead are coloured in accordance

with the following code:

As the colours of the wires in the mains lead of this

appliance may not correspond with the coloured markings

identifying the terminals in your plug, proceed as follows:

⋅ the wire which is coloured blue must be connected to the

terminal which is marked with the letter N or coloured black,

⋅ the wire which is coloured brown must be connected to the

terminal which is marked with the letter L or coloured red.

Do not connect any wire to the terminal which is marked

with the letter E or by the earth symbol

, or coloured green or green

▪ If a 13 A (BS 1363) plug is used it must be fitted with a 3 A fuse

conforming to BS 1362 and be ASTA approved. If any other type of

plug is used, the appliance must be protected by a 5 A fuse either

in the plug or adapter or at the distribution board. If in doubt -

consult a qualified electrician.

▪ Never use the plug without closing the fuse cover.

The appliance complies with European directives 2006/95/EC,

2004/108/EC and 2009/125/EC.

At the end of its life, this product must not be disposed of in normal

household waste but must instead be delivered to a collection point

for recycling electric and electronic appliances.

The materials are recyclable in accordance with their labelling. The

reuse, recycling and or other use of old appliances makes an important

contribution to protecting our environment.

Please ask your local administration for the appropriate disposal point.

Subject to alterations14
