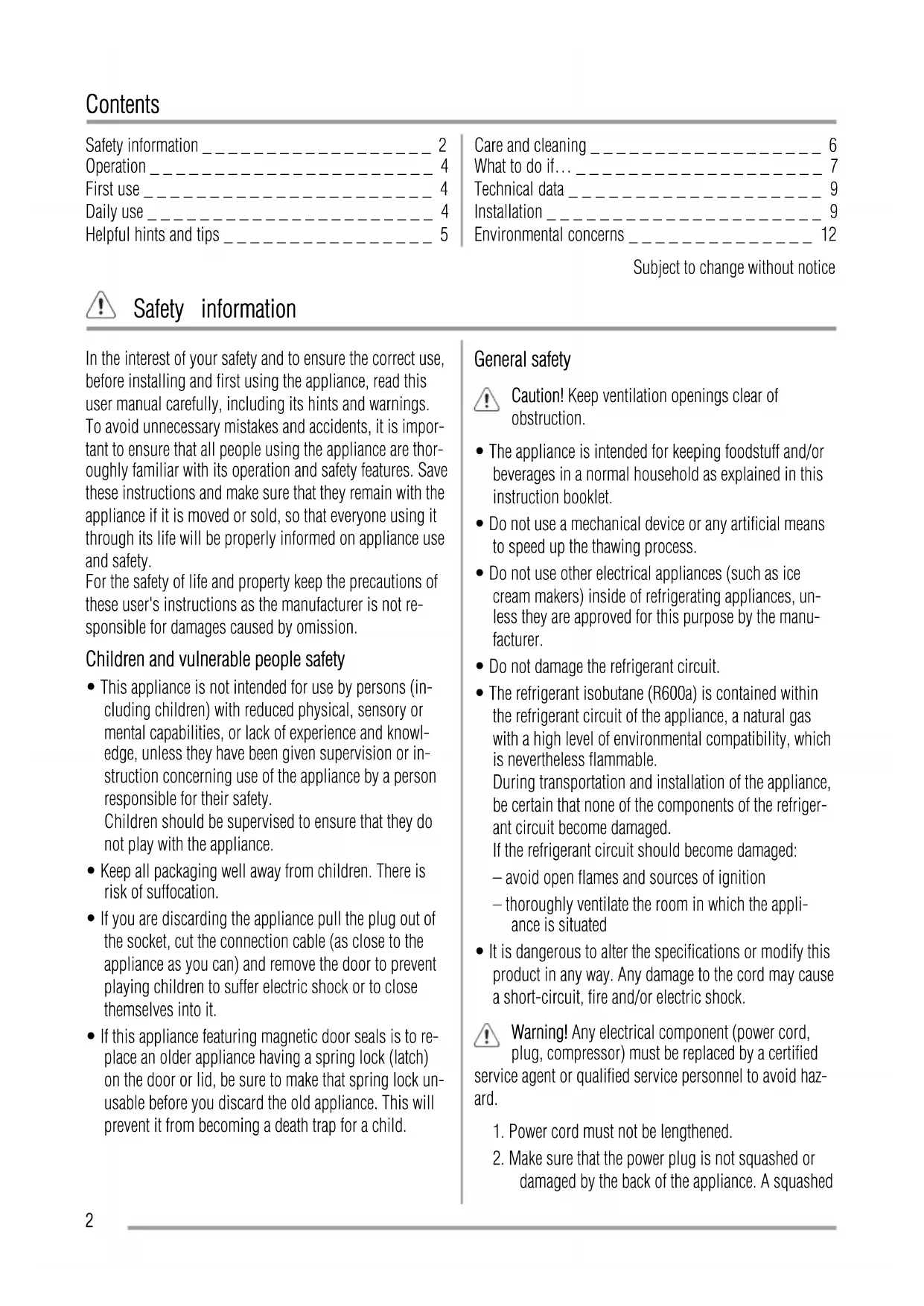

USER MANUAL ZBT 6284 ZANUSSI

Subject to change without notice

In the interest of your safety and to ensure the correct use,

before installing and first using the appliance, read this

user manual carefully, including its hints and warnings.

To avoid unnecessary mistakes and accidents, it is impor-

tant to ensure that all people using the appliance are thor-

oughly familiar with its operation and safety features. Save

these instructions and make sure that they remain with the

appliance if it is moved or sold, so that everyone using it

through its life will be properly informed on appliance use

For the safety of life and property keep the precautions of

these user's instructions as the manufacturer is not re-

sponsible for damages caused by omission.

Children and vulnerable people safety

• This appliance is not intended for use by persons (in-

cluding children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowl-

edge, unless they have been given supervision or in-

struction concerning use of the appliance by a person

responsible for their safety.

Children should be supervised to ensure that they do

not play with the appliance.

• Keep all packaging well away from children. There is

risk of suffocation.

• If you are discarding the appliance pull the plug out of

the socket, cut the connection cable (as close to the

appliance as you can) and remove the door to prevent

playing children to suffer electric shock or to close

• If this appliance featuring magnetic door seals is to re-

place an older appliance having a spring lock (latch)

on the door or lid, be sure to make that spring lock un-

usable before you discard the old appliance. This will

prevent it from becoming a death trap for a child.

Caution! Keep ventilation openings clear of

• The appliance is intended for keeping foodstuff and/or

beverages in a normal household as explained in this

instruction booklet.

• Do not use a mechanical device or any artificial means

to speed up the thawing process.

• Do not use other electrical appliances (such as ice

cream makers) inside of refrigerating appliances, un-

less they are approved for this purpose by the manu-

• Do not damage the refrigerant circuit.

• The refrigerant isobutane (R600a) is contained within

the refrigerant circuit of the appliance, a natural gas

with a high level of environmental compatibility, which

is nevertheless flammable.

During transportation and installation of the appliance,

be certain that none of the components of the refriger-

ant circuit become damaged.

If the refrigerant circuit should become damaged:

– avoid open flames and sources of ignition

– thoroughly ventilate the room in which the appli-

• It is dangerous to alter the specifications or modify this

product in any way. Any damage to the cord may cause

a short-circuit, fire and/or electric shock.

Warning! Any electrical component (power cord,

plug, compressor) must be replaced by a certified

service agent or qualified service personnel to avoid haz-

1. Power cord must not be lengthened.

2. Make sure that the power plug is not squashed or

damaged by the back of the appliance. A squashed

2or damaged power plug may overheat and cause a

3. Make sure that you can come to the mains plug of

4. Do not pull the mains cable.

5. If the power plug socket is loose, do not insert the

power plug. There is a risk of electric shock or fire.

6. You must not operate the appliance without the

of interior lighting.

• This appliance is heavy. Care should be taken when

• Do not remove nor touch items from the freezer com-

partment if your hands are damp/wet, as this could

cause skin abrasions or frost/freezer burns.

• Avoid prolonged exposure of the appliance to direct

used in this appliance are special pur-

pose lamps selected for household appliances use on-

ly. They are not suitable for household room illumina-

• Do not put hot pot on the plastic parts in the appliance.

• Do not store flammable gas and liquid in the appliance,

because they may explode.

• Do not place food products directly against the air out-

let on the rear wall.

• Frozen food must not be re-frozen once it has been

• Store pre-packed frozen food in accordance with the

frozen food manufacturer's instructions.

• Appliance's manufacturers storage recommendations

should be strictly adhered to. Refer to relevant instruc-

• Do not place carbonated or fizzy drinks in the freezer

compartment as it creates pressure on the container,

which may cause it to explode, resulting in damage to

• Before maintenance, switch off the appliance and dis-

connect the mains plug from the mains socket.

• Do not clean the appliance with metal objects.

• Do not use sharp objects to remove frost from the ap-

pliance. Use a plastic scraper.

• Regularly examine the drain in the refrigerator for de-

frosted water. If necessary, clean the drain. If the drain

is blocked, water will collect in the bottom of the appli-

Important! For electrical connection carefully follow the

instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages

on it. Do not connect the appliance if it is damaged.

Report possible damages immediately to the place you

bought it. In that case retain packing.

• It is advisable to wait at least four hours before con-

necting the appliance to allow the oil to flow back in

• Adequate air circulation should be around the appli-

ance, lacking this leads to overheating. To achieve suf-

ficient ventilation follow the instructions relevant to in-

• Wherever possible the back of the product should be

against a wall to avoid touching or catching warm parts

(compressor, condenser) to prevent possible burn.

• The appliance must not be located close to radiators or

• Make sure that the mains plug is accessible after the

installation of the appliance.

Connect to potable water supply only.

• Any electrical work required to do the servicing of the

appliance should be carried out by a qualified electri-

cian or competent person.

• This product must be serviced by an authorized Service

Centre, and only genuine spare parts must be used.

1) If the lamp cover is foreseen.

2) If the lamp is foreseen.

3) If the appliance is Frost Free.

4) If a water connection is foreseen.

3Environment Protection

This appliance does not contain gasses which could

damage the ozone layer, in either its refrigerant cir-

cuit or insulation materials. The appliance shall not be

discarded together with the urban refuse and rubbish. The

insulation foam contains flammable gases: the appliance

shall be disposed according to the applicable regulations

to obtain from your local authorities. Avoid damaging the

cooling unit, especially at the rear near the heat exchang-

er. The materials used on this appliance marked by the

Insert the plug into the wall socket.

Turn the Temperature regulator clockwise to a medium

To turn off the appliance, turn the Temperature regulator

to the "O" position.

Temperature regulation

The temperature is automatically regulated.

To operate the appliance, proceed as follows:

• turn the Temperature regulator toward lower settings to

obtain the minimum coldness.

• turn the Temperature regulator toward higher settings

to obtain the maximum coldness.

A medium setting is generally the most suitable.

However, the exact setting should be chosen keeping in

mind that the temperature inside the appliance depends

• how often the door is opened

• the quantity of food stored

• the location of the appliance.

Important! If the ambient temperature is high or the

appliance is fully loaded, and the appliance is set to the

lowest temperatures, it may run continuously causing

frost to form on the rear wall. In this case the dial must be

set to a higher temperature to allow automatic defrosting

and therefore reduced energy consumption.

Cleaning the interior

Before using the appliance for the first time, wash the inte-

rior and all internal accessories with lukewarm water and

some neutral soap so as to remove the typical smell of a

brand-new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as

these will damage the finish.

The freezer compartment is suitable for freezing fresh food

and storing frozen and deep-frozen food for a long time.

To freeze fresh foods it is not necessary to change the me-

However, for a faster freezing operation, turn the tempera-

ture regulator toward higher settings to obtain the maxi-

Important! In this condition, the refrigerator compartment

temperature might drop below 0°C. If this occurs reset the

temperature regulator to a warmer setting.

Place the fresh food to be frozen on the top compartment.

Storage of frozen food

When first starting-up or after a period out of use, before

putting the products in the compartment let the appliance

run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for

example due to a power failure, if the power has been off

for longer than the value shown in the technical

characteristics chart under "rising time", the defrosted

food must be consumed quickly or cooked immediately

and then re-frozen (after cooling).

4Frozen Food Calendar

The symbols show different types of frozen goods.

The numbers indicate storage times in months for the ap-

propriate types of frozen goods. Whether the upper or

lower value of the indicated storage time is valid depends

on the quality of the foods and treating before freezing.

Deep-frozen or frozen food, prior to being used, can be

thawed in the refrigerator compartment or at room temper-

ature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly

from the freezer: in this case, cooking will take longer.

This appliance is equipped with one or more trays for the

production of ice-cubes. Fill these trays with water, then

put them in the freezer compartment.

Important! Do not use metallic instruments to remove the

trays from the freezer.

The walls of the refrigera-

tor are equipped with a

series of runners so that

the shelves can be posi-

Positioning the door shelves

To permit storage of food

packages of various sizes,

the door shelves can be

placed at different heights.

Gradually pull the shelf in

the direction of the arrows

until it comes free, then

reposition as required.

Helpful hints and tips

Hints for energy saving

• Do not open the door frequently or leave it open longer

than absolutely necessary.

• If the ambient temperature is high and the Temperature

Regulator is set to low temperature and the appliance is

fully loaded, the compressor may run continuously,

causing frost or ice on the evaporator. If this happens,

set the Temperature Regulator toward warmer settings

to allow automatic defrosting and so a saving in elec-

tricity consumption.

Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquids in the

• do cover or wrap the food, particularly if it has a strong

• position food so that air can circulate freely around it

Hints for refrigeration

Meat (all types) : wrap in polythene bags and place on the

glass shelf above the vegetable drawer.

For safety, store in this way only one or two days at the

Cooked foods, cold dishes, etc..: these should be covered

and may be placed on any shelf.

Fruit and vegetables: these should be thoroughly cleaned

and placed in the special drawer(s) provided.

Butter and cheese: these should be placed in special air-

tight containers or wrapped in aluminium foil or polythene

bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be stor-

ed in the bottle rack on the door.

5Bananas, potatoes, onions and garlic, if not packed, must

not be kept in the refrigerator.

To help you make the most of the freezing process, here

are some important hints:

• the maximum quantity of food which can be frozen in

24 hrs. is shown on the rating plate;

• the freezing process takes 24 hours. No further food to

be frozen should be added during this period;

• only freeze top quality, fresh and thoroughly cleaned,

• prepare food in small portions to enable it to be rapidly

and completely frozen and to make it possible subse-

quently to thaw only the quantity required;

• wrap up the food in aluminium foil or polythene and

make sure that the packages are airtight;

• do not allow fresh, unfrozen food to touch food which

is already frozen, thus avoiding a rise in temperature of

• lean foods store better and longer than fatty ones; salt

reduces the storage life of food;

• water ices, if consumed immediately after removal from

the freezer compartment, can possibly cause the skin to

• it is advisable to show the freezing in date on each in-

dividual pack to enable you to keep tab of the storage

Hints for storage of frozen food

To obtain the best performance from this appliance, you

• make sure that the commercially frozen foodstuffs were

adequately stored by the retailer;

• be sure that frozen foodstuffs are transferred from the

foodstore to the freezer in the shortest possible time;

• not open the door frequently or leave it open longer

than absolutely necessary.

• Once defrosted, food deteriorates rapidly and cannot be

• Do not exceed the storage period indicated by the food

Caution! Unplug the appliance before carrying out

any maintenance operation.

This appliance contains hydrocarbons in its cooling

unit; maintenance and recharging must therefore

only be carried out by authorized technicians.

The equipment has to be cleaned regularly:

• clean the inside and accessories with lukewarm water

and some neutral soap.

• regularly check the door seals and wipe clean to ensure

they are clean and free from debris.

• rinse and dry thoroughly.

Important! Do not pull, move or damage any pipes and/or

cables inside the cabinet.

Never use detergents, abrasive powders, highly perfumed

cleaning products or wax polishes to clean the interior as

this will damage the surface and leave a strong odour.

Clean the condenser (black grill) and the compressor at

the back of the appliance with a brush or a vacuum clean-

er. This operation will improve the performance of the ap-

pliance and save electricity consumption.

Important! Take care of not to damage the cooling system.

Many proprietary kitchen surface cleaners contain chemi-

cals that can attack/damage the plastics used in this appli-

ance. For this reason it is recommended that the outer

casing of this appliance is only cleaned with warm water

with a little washing-up liquid added.

After cleaning, reconnect the equipment to the mains sup-

Defrosting of the refrigerator

Frost is automatically eliminated from the evaporator of

the refrigerator compartment every time the motor com-

pressor stops, during normal use. The defrost water

drains out through a trough into a special container at the

back of the appliance, over the motor compressor, where

It is important to periodically clean the defrost water drain

hole in the middle of the refrigerator compartment channel

to prevent the water overflowing and dripping onto the

6food inside. Use the special cleaner provided, which you

will find already inserted into the drain hole.

Defrosting the freezer

A certain amount of frost will always form on the

freezer shelves and around the top compartment.

Important! Defrost the freezer when the frost layer reaches

a thickness of about 3-5 mm.

To remove the frost, do these steps:

1. Switch off the appliance.

2. Remove any stored food, wrap it in several layers of

newspaper and put it in a cool place.

3. Leave the door open.

4. When defrosting is completed, dry the interior thor-

oughly and refit the plug.

5. Switch on the appliance.

6. Set the temperature regulator to obtain the maximum

coldness and run the appliance for two or three hours

7. Reload the previously removed food into the compart-

Important! Never use sharp metal tools to scrape off frost

from the evaporator as you could damage it. Do not use a

mechanical device or any artificial means to speed up the

thawing process other than those recommended by the

manufacturer. A temperature rise of the frozen food packs,

during defrosting, may shorten their safe storage life.

Periods of non-operation

When the appliance is not in use for long periods, take the

following precautions:

• disconnect the appliance from electricity supply

and clean the appliance and all accessories

• leave the door/doors ajar to prevent unpleasant smells.

If the cabinet will be kept on, ask somebody to check it

once in a while to prevent the food inside from spoiling in

case of a power failure.

Warning! Before troubleshooting, disconnect the

mains plug from the mains socket.

Only a qualified electrician or competent person must do

the troubleshooting that is not in this manual.

Important! There are some sounds during normal use

(compressor, refrigerant circulation).

Problem Possible cause Solution

The appliance does not operate.

The lamp does not operate.

The appliance is switched off. Switch on the appliance.

The mains plug is not connected to the

mains socket correctly.

Connect the mains plug to the mains

The appliance has no power. There is

no voltage in the mains socket.

Connect a different electrical appliance

to the mains socket.

Contact a qualified electrician.

The lamp does not work. The lamp is in stand-by. Close and open the door.

The lamp is defective. Refer to "Replacing the lamp".

The compressor operates contin-

The temperature is not set correctly. Set a higher temperature.

7Problem Possible cause Solution

The door is not closed correctly. Refer to "Closing the door".

The door has been opened too fre-

Do not keep the door open longer than

The product temperature is too high. Let the product temperature decrease to

room temperature before storage.

The room temperature is too high. Decrease the room temperature.

Water flows on the rear plate of

During the automatic defrosting proc-

ess, frost defrosts on the rear plate.

Water flows into the refrigerator. The water outlet is clogged. Clean the water outlet.

Products prevent that water flows into

the water collector.

Make sure that products do not touch

Water flows on the ground. The melting water outlet does not flow

in the evaporative tray above the com-

Attach the melting water outlet to the

The temperature in the appliance

The temperature regulator is not set

Set a higher temperature.

The temperature in the appliance

The temperature regulator is not set

Set a lower temperature.

The door is not closed correctly. Refer to "Closing the door".

The product temperature is too high. Let the product temperature decrease to

room temperature before storage.

Many products are stored at the same

Store less products at the same time.

There is no cold air circulation in the

Make sure that there is cold air circula-

tion in the appliance.

Caution! Disconnect the plug from the mains

power and specifically designed for household appli-

ances (the maximum power is shown on the lamp

4. Install the lamp cover.

5. Tighten the screw to the lamp cover.

6. Connect the plug to the mains socket.

7. Open the door. Make sure that the light comes on.

1. Clean the door gaskets.

2. If necessary, adjust the door. Refer to "Installation".

3. If necessary, replace the defective door gaskets. Con-

tact the Service Center.

Dimension of the recess

Voltage 230-240 V Frequency 50 Hz

The technical information are situated in the rating plate

on the internal left side of the appliance and in the energy

Caution! Read the "Safety Information" carefully for

your safety and correct operation of the appliance

before installing the appliance.

Install this appliance at a location where the ambient tem-

perature corresponds to the climate class indicated on the

rating plate of the appliance:

SN +10°C to + 32°C N +16°C to + 32°C ST +16°C to + 38°C T +16°C to + 43°C Electrical connection

Before plugging in, ensure that the voltage and frequency

shown on the rating plate correspond to your domestic

The appliance must be earthed. The power supply cable

plug is provided with a contact for this purpose. If the do-

mestic power supply socket is not earthed, connect the

appliance to a separate earth in compliance with current

regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above

safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

The door of the appliance opens to the right. If you want to

open the door to the left, do these steps before you install

• Remove the lower door.

• Loosen the lower pin.

On the opposite side:

• Install the lower pin.

• Install the lower door.

• Tighten the middle

• Install the upper door.

• Tighten the spacer and

tighten the upper pin.

Ventilation requirements

The airflow behind the ap-

pliance must be sufficient.

Installing the appliance

Caution! Make sure that the mains cable can move

Do the following steps:

If necessary cut the adhe-

sive sealing strip and then

apply it to the appliance as

Install the appliance in the

Push the appliance in the

direction of the arrows (1)

until the upper gap cover

stops against the kitchen

Push the appliance in the

direction of the arrows (2)

against the cupboard on the

opposite side of the hinge.

Adjust the appliance in the

Make sure that the distance

between the appliance and

the cupboard front-edge is

The lower hinge cover (in

the accessories bag) makes

sure that the distance be-

tween the appliance and the

kitchen furniture is correct.

Make sure that the clear-

ance between the appliance

and the cupboard is 4 mm.

Open the door. Put the low-

er hinge cover in position.

I I Attach the appliance to the

niche with 4 screws.

Remove the correct part

from the hinge cover (E).

Make sure to remove the

part DX, in the case of right

hinge, SX in opposite case.

B E E C D Attach the covers (C, D) to

the lugs and the hinge

Install the vent grille (B).

Attach the hinge covers (E)

G H Connect the appliance lat-

erally to the kitchen furni-

1. Loosen the screws of

the part (G) and move

the part (G) till the fur-

2. Tighten the screws of

3. Attach the part (H) to

Disconnect the parts (Ha),

(Hb), (Hc) and (Hd).

11ca. 50 mmca. 50 mm21 mm 90° 21 mm 90° Install the part (Ha) on theinner side of the kitchenfurniture. Ha

Hc Push the part (Hc) on thepart (Ha). Ha

8 mm Open the appliance doorand the kitchen furnituredoor at an angle of 90°.Insert the small square (Hb)into guide (Ha).Put together the appliancedoor and the furniture doorand mark the holes. Ha

8 mm Remove the brackets andmark a distance of 8 mmfrom the outer edge of thedoor where the nail must befitted (K). Hb Place the small square onthe guide again and fix itwith the screws supplied.Align the kitchen furnituredoor and the appliancedoor by adjusting the part Hb.

Hd Press the part (Hd) on thepart (Hb).

Do a final check to make sure that:• All screws are tightened.• The magnetic sealing strip is attached tightly to thecabinet.Important! If the ambient temperature is low (for example,in the Winter), the size of the gasket decreases. The size ofthe gasket increases when the ambient temperatureincreases. Environmental concerns The symbol on the product or on its packagingindicates that this product may not be treated ashousehold waste. Instead it should be taken to theappropriate collection point for the recycling of electricaland electronic equipment. By ensuring this product isdisposed of correctly, you will help prevent potentialnegative consequences for the environment and humanhealth, which could otherwise be caused by inappropriatewaste handling of this product. For more detailedinformation about recycling of this product, please contactyour local council, your household waste disposal serviceor the shop where you purchased the product. 12Sommaire

Consignes de sécurité _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 13

instructions respectives.

B E E C D Encaixe as tampas (C, D)
