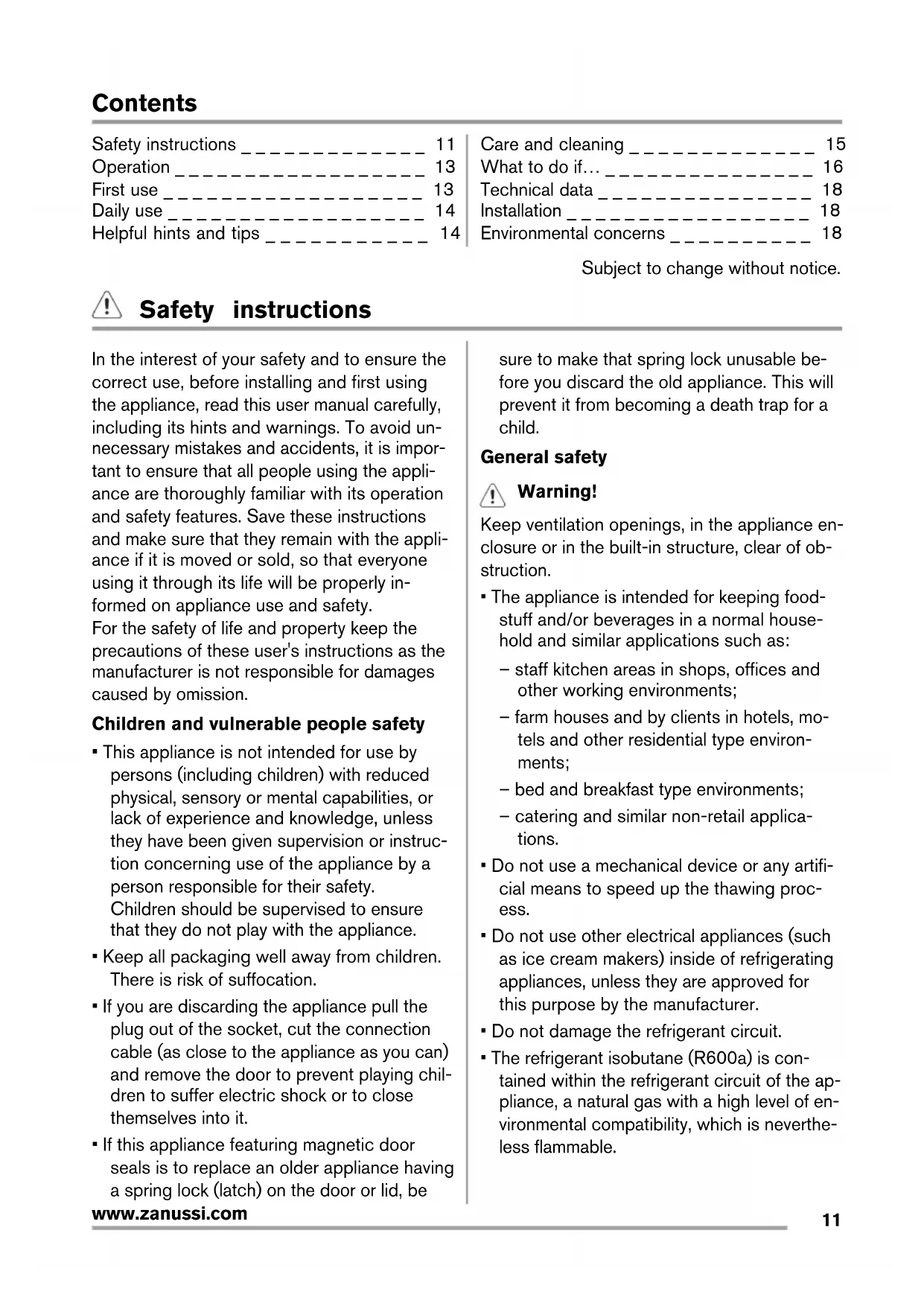

www.zanussi.comContents Safety instructions _ _ _ _ _ _ _ _ _ _ _ _ _ 11 Operation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 13 First use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 13 Daily use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 14 Helpful hints and tips _ _ _ _ _ _ _ _ _ _ _ 14 Care and cleaning _ _ _ _ _ _ _ _ _ _ _ _ _ 15 What to do if… _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 16 Technical data _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 18 Installation _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 18 Environmental concerns _ _ _ _ _ _ _ _ _ _ 18 Subject to change without notice. Safety instructions In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid un- necessary mistakes and accidents, it is impor- tant to ensure that all people using the appli- ance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appli- ance if it is moved or sold, so that everyone using it through its life will be properly in- formed on appliance use and safety. For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission. Children and vulnerable people safety

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruc- tion concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Keep all packaging well away from children. There is risk of suffocation.

• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing chil- dren to suffer electric shock or to close themselves into it.

• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable be- fore you discard the old appliance. This will prevent it from becoming a death trap for a child. General safety Warning! Keep ventilation openings, in the appliance en- closure or in the built-in structure, clear of ob- struction.

• The appliance is intended for keeping food- stuff and/or beverages in a normal house- hold and similar applications such as: – staff kitchen areas in shops, offices and other working environments; – farm houses and by clients in hotels, mo- tels and other residential type environ- ments; – bed and breakfast type environments; – catering and similar non-retail applica- tions.

• Do not use a mechanical device or any artifi- cial means to speed up the thawing proc- ess.

• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.

• Do not damage the refrigerant circuit.

• The refrigerant isobutane (R600a) is con- tained within the refrigerant circuit of the ap- pliance, a natural gas with a high level of en- vironmental compatibility, which is neverthe- less flammable.

www.zanussi.comDuring transportation and installation of the appliance, be certain that none of the com- ponents of the refrigerant circuit become damaged. If the refrigerant circuit should become damaged: – avoid open flames and sources of ignition – thoroughly ventilate the room in which the appliance is situated

• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock. Warning! Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or quali- fied service personnel to avoid hazard.

1. Power cord must not be lengthened.

2. Make sure that the power plug is not

squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.

3. Make sure that you can come to the

mains plug of the appliance.

4. Do not pull the mains cable.

5. If the power plug socket is loose, do not

insert the power plug. There is a risk of electric shock or fire.

6. You must not operate the appliance

without the lamp cover (if foreseen) of interior lighting.

• This appliance is heavy. Care should be tak- en when moving it.

• Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abra- sions or frost/freezer burns.

• Avoid prolonged exposure of the appliance to direct sunlight.

• Bulb lamps (if foreseen) used in this appli- ance are special purpose lamps selected for household appliances use only. They are not suitable for household room illumination. Daily use

• Do not put hot pot on the plastic parts in the appliance.

• Do not store flammable gas and liquid in the appliance, because they may explode.

• Appliance's manufacturers storage recom- mendations should be strictly adhered to. Refer to relevant instructions. Care and cleaning

• Before maintenance, switch off the appli- ance and disconnect the mains plug from the mains socket.

• Do not clean the appliance with metal ob- jects.

• Regularly examine the drain in the refrigera- tor for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance. Installation Important! For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appli- ance if it is damaged. Report possible dam- ages immediately to the place you bought it. In that case retain packing.

• It is advisable to wait at least four hours be- fore connecting the appliance to allow the oil to flow back in the compressor.

• Adequate air circulation should be around the appliance, lacking this leads to over- heating. To achieve sufficient ventilation fol- low the instructions relevant to installation.

• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, con- denser) to prevent possible burn.

• The appliance must not be located close to radiators or cookers.

• Make sure that the mains plug is accessible after the installation of the appliance.

• Connect to potable water supply only (If a water connection is foreseen).

• Any electrical work required to do the serv- icing of the appliance should be carried out by a qualified electrician or competent per- son.

• This product must be serviced by an author- ized Service Centre, and only genuine spare parts must be used. Environment Protection This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materi- als. The appliance shall not be discarded to- gether with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symbol are recyclable. Operation Switching on Insert the plug into the wall socket. Turn the Temperature regulator clockwise to a medium setting. Switching off To turn off the appliance, turn the Temperature regulator to the "O" position. Temperature regulation The temperature is automatically regulated. To operate the appliance, proceed as follows:

• turn the Temperature regulator toward lower settings to obtain the minimum coldness.

• turn the Temperature regulator toward high- er settings to obtain the maximum coldness. A medium setting is generally the most suitable. However, the exact setting should be chosen keeping in mind that the temperature inside the appliance depends on:

• how often the door is opened

• the quantity of food stored

• the location of the appliance. Important! If the ambient temperature is high or the appliance is fully loaded, and the appliance is set to the lowest temperatures, it may run continuously causing frost to form on the rear wall. In this case the dial must be set to a higher temperature to allow automatic defrosting and therefore reduced energy consumption. First use Cleaning the interior Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand- new product, then dry thoroughly. Important! Do not use detergents or abrasive powders, as these will damage the finish.

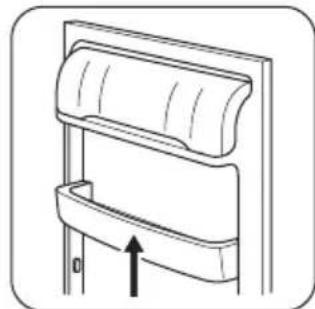

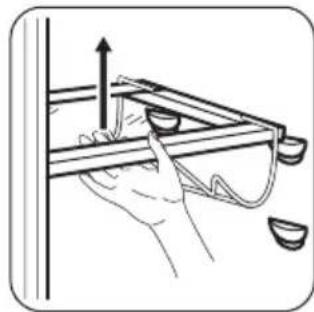

www.zanussi.comDaily use Movable shelves The walls of the re- frigerator are equip- ped with a series of runners so that the shelves can be posi- tioned as desired. Important! Do not move the glass shelf above the vegetable drawer and the bottle shelf to ensure cor- rect air circulation. Positioning the door shelves To permit storage of food packages of various sizes, the door shelves can be placed at different heights. Gradually pull the shelf in the direction of the arrows until it comes free, then re- position as required. Bottle holder The bottle holder hooked onto one of the internal shelves can be used to store bottles or cans. To remove this hold- er, lift the back of the shelf, press and pull it out. Slide the holder out and refit the shelf. Helpful hints and tips Normal Operating Sounds

• You may hear a faint gurgling and a bub- bling sound when the refrigerant is pumped through the coils or tubing. This is correct.

• When the compressor is on, the refrigerant is being pumped around and you will hear a whirring sound and a pulsating noise from the compressor. This is correct.

• The thermic dilatation might cause a sudden cracking noise. It is natural, not dangerous physical phenomenon. This is correct.

• When the compressor switches on or switches off, you will hear a faint "click" of the temperature regulator. This is correct. Hints for energy saving

• Do not open the door frequently or leave it open longer than absolutely necessary.

• If the ambient temperature is high and the Temperature Regulator is set to low temper- ature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this hap- pens, set the Temperature Regulator toward

www.zanussi.comwarmer settings to allow automatic defrost- ing and so a saving in electricity consump- tion. Hints for fresh food refrigeration To obtain the best performance:

• do not store warm food or evaporating liq- uids in the refrigerator

• do cover or wrap the food, particularly if it has a strong flavour

• position food so that air can circulate freely around it Hints for refrigeration Useful hints: Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable drawer. For safety, store in this way only one or two days at the most. Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf. Fruits and vegetables: these should be thor- oughly cleaned and placed in the special drawer(s) provided. When in contact, lemon juice can discolor the plastic parts of your fridge. It is therefore recommended to keep citruses in separate containers. Butter and cheese: these should be placed in special airtight containers or wrapped in alumi- nium foil or polythene bags to exclude as much air as possible. Bottles: these should have a cap and should be stored in the bottle rack on the door. Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator. Care and cleaning Caution! Unplug the appliance before carrying out any maintenance operation. This appliance contains hydrocarbons in its cooling unit; maintenance and re- charging must therefore only be carried out by authorized technicians. Periodic cleaning The equipment has to be cleaned regularly:

• clean the inside and accessories with luke- warm water and some neutral soap.

• regularly check the door seals and wipe clean to ensure they are clean and free from debris.

• rinse and dry thoroughly. Important! Do not pull, move or damage any pipes and/or cables inside the cabinet. Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour. Clean the condenser (black grill) and the com- pressor at the back of the appliance with a brush. This operation will improve the perform- ance of the appliance and save electricity con- sumption. Important! Take care of not to damage the cooling system. Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added. After cleaning, reconnect the equipment to the mains supply. Defrosting of the refrigerator Frost is automatically eliminated from the evaporator of the refrigerator compartment ev- ery time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor com- pressor, where it evaporates. It is important to periodically clean the defrost water drain hole in the middle of the refrigera- tor compartment channel to prevent the water overflowing and dripping onto the food inside.

www.zanussi.comUse the special cleaner provided, which you will find already inserted into the drain hole. Periods of non-operation When the appliance is not in use for long peri- ods, take the following precautions:

• disconnect the appliance from electric- ity supply

• defrost (if foreseen) and clean the appliance and all accessories

• leave the door/doors ajar to prevent un- pleasant smells. If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food in- side from spoiling in case of a power failure. What to do if… Warning! Before troubleshooting, disconnect the mains plug from the mains socket. Only a qualified electrician or competent person must do the troubleshooting that is not in this manual. Important! There are some sounds during normal use (compressor, refrigerant circulation). Problem Possible cause Solution The appliance does not operate. The lamp does not operate. The appliance is switched off. Switch on the appliance. The mains plug is not connected to the mains socket correctly. Connect the mains plug to the mains socket correctly. The appliance has no power. There is no voltage in the mains socket. Connect a different electrical appli- ance to the mains socket. Contact a qualified electrician. The lamp does not work. The lamp is in stand-by. Close and open the door. The lamp is defective. Refer to "Replacing the lamp". The compressor operates continually. The temperature is not set correct- ly. Set a higher temperature. The door is not closed correctly. Refer to "Closing the door". The door has been opened too fre- quently. Do not keep the door open longer than necessary. The product temperature is too high. Let the product temperature de- crease to room temperature before storage. The room temperature is too high. Decrease the room temperature.

www.zanussi.comProblem Possible cause Solution Water flows on the rear plate of the refrigerator. During the automatic defrosting process, frost defrosts on the rear plate. This is correct. Water flows into the re- frigerator. The water outlet is clogged. Clean the water outlet. Products prevent that water flows into the water collector. Make sure that products do not touch the rear plate. Water flows on the ground. The melting water outlet does not flow in the evaporative tray above the compressor. Attach the melting water outlet to the evaporative tray. The temperature in the ap- pliance is too low. The temperature regulator is not set correctly. Set a higher temperature. The temperature in the ap- pliance is too high. The temperature regulator is not set correctly. Set a lower temperature. Replacing the lamp Caution! Disconnect the plug from the mains socket. At the same time, with the fingers ex- pand up and down the transparent cover and unhook it in the direction of the ar- rows. Replace the lamp with one of the same power and shape, specifically designed for household appli- ances. (the maximum power is shown on the light bulb cover). Reassemble the lamp cover. Connect the plug to the mains socket. Open the door. Make sure that the light comes on.

2. If necessary, adjust the door. Refer to "In-

gaskets. Contact the Service Center.

www.zanussi.comTechnical data Dimension of the recess Height 873 mm Width 540 mm Depth 549 mm Voltage 230 V Frequency 50 Hz The technical information are situated in the rating plate on the internal left side of the ap- pliance and in the energy label. Installation Caution! Read the "Safety Information" carefully for your safety and correct operation of the appliance before installing the appliance. Positioning This appliance should be installed in a dry, well ventilated indoor where the ambient tem- perature corresponds to the climate class indi- cated on the rating plate of the appliance: Climate class Ambient temperature SN +10°C to + 32°C N +16°C to + 32°C ST +16°C to + 38°C T +16°C to + 43°C Some functional problems might occur for some types of models when operating outside of that range. The correct operation can only be guaranteed within the specified tempera- ture range. If you have any doubts regarding where to install the appliance, please turn to the vendor, to our customer service or to the nearest Service Centre Electrical connection Before plugging in, ensure that the voltage and frequency shown on the rating plate cor- respond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician. The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Direc- tives. Environmental concerns Recycle the materials with the symbol . Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
