USER MANUAL ZRG714SW ZANUSSI

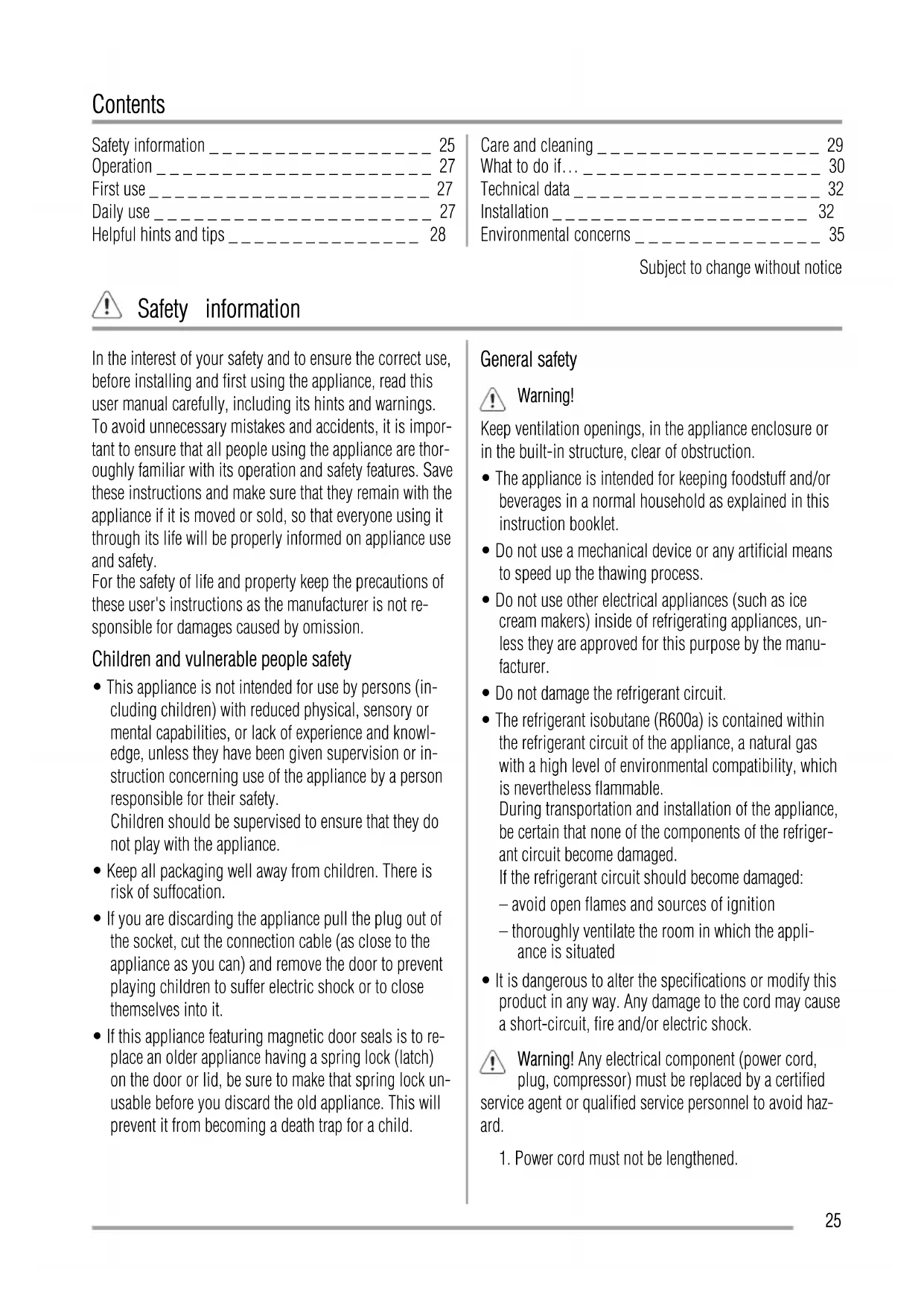

• This appliance is not intended for use by persons (in- cluding children) with reduced physical, sensory or mental capabilities, or lack of experience and knowl- edge, unless they have been given supervision or in- struction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

• Keep all packaging well away from children. There is risk of suffocation.

• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

• If this appliance featuring magnetic door seals is to re- place an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock un- usable before you discard the old appliance. This will prevent it from becoming a death trap for a child. General safety Warning! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• The appliance is intended for keeping foodstuff and/or beverages in a normal household as explained in this instruction booklet.

• Do not use a mechanical device or any artificial means to speed up the thawing process.

• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, un- less they are approved for this purpose by the manu- facturer.

• Do not damage the refrigerant circuit.

• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable. During transportation and installation of the appliance, be certain that none of the components of the refriger- ant circuit become damaged. If the refrigerant circuit should become damaged: – avoid open flames and sources of ignition – thoroughly ventilate the room in which the appli- ance is situated

• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock. Warning! Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or qualified service personnel to avoid haz- ard.

1. Power cord must not be lengthened.

252. Make sure that the power plug is not squashed or

damaged by the back of the appliance. A squash- ed or damaged power plug may overheat and cause a fire.

3. Make sure that you can come to the mains plug of

5. If the power plug socket is loose, do not insert the

power plug. There is a risk of electric shock or fire.

6. You must not operate the appliance without the

of interior lighting.

• This appliance is heavy. Care should be taken when moving it.

• Do not remove nor touch items from the freezer com- partment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

• Avoid prolonged exposure of the appliance to direct sunlight.

Bulb lamps 10) used in this appliance are special pur- pose lamps selected for household appliances use on- ly. They are not suitable for household room illumina- tion. Daily Use

• Do not put hot pot on the plastic parts in the appliance.

• Do not store flammable gas and liquid in the appliance, because they may explode.

• Do not place food products directly against the air out- let on the rear wall. 11)

• Frozen food must not be re-frozen once it has been thawed out.

• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.

• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instruc- tions.

• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.

• Ice lollies can cause frost burns if consumed straight from the appliance. Care and cleaning

• Before maintenance, switch off the appliance and dis- connect the mains plug from the mains socket.

• Do not clean the appliance with metal objects.

• Do not use sharp objects to remove frost from the ap- pliance. Use a plastic scraper.

• Regularly examine the drain in the refrigerator for de- frosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appli- ance. Installation Important! For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.

• It is advisable to wait at least four hours before con- necting the appliance to allow the oil to flow back in the compressor.

• Adequate air circulation should be around the appli- ance, lacking this leads to overheating. To achieve suf- ficient ventilation follow the instructions relevant to in- stallation.

• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.

• The appliance must not be located close to radiators or cookers.

• Make sure that the mains plug is accessible after the installation of the appliance.

Connect to potable water supply only. 12) Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electri- cian or competent person.

• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.

9) If the lamp cover is foreseen.

10) If the lamp is foreseen.

11) If the appliance is Frost Free.

12) If a water connection is foreseen.

26Environment Protection This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant cir- cuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchang- er. The materials used on this appliance marked by the symbol are recyclable. Operation Switching on Insert the plug into the wall socket. Turn the Temperature regulator clockwise to a medium setting. Switching off To turn off the appliance, turn the Temperature regulator to the "O" position. Temperature regulation The temperature is automatically regulated. To operate the appliance, proceed as follows:

• turn the Temperature regulator toward lower settings to obtain the minimum coldness.

• turn the Temperature regulator toward higher settings to obtain the maximum coldness. A medium setting is generally the most suitable. However, the exact setting should be chosen keeping in mind that the temperature inside the appliance depends on:

• how often the door is opened

• the quantity of food stored

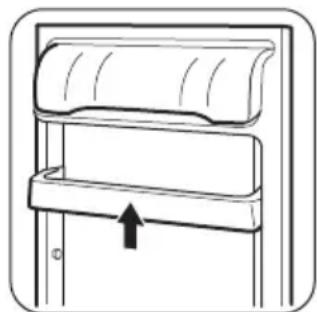

• the location of the appliance. Important! If the ambient temperature is high or the appliance is fully loaded, and the appliance is set to the lowest temperatures, it may run continuously causing frost to form on the rear wall. In this case the dial must be set to a higher temperature to allow automatic defrosting and therefore reduced energy consumption. First use Cleaning the interior Before using the appliance for the first time, wash the inte- rior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly. Important! Do not use detergents or abrasive powders, as these will damage the finish. Daily use Freezing fresh food The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time. To freeze fresh foods it is not necessary to change the me- dium setting. However, for a faster freezing operation, turn the tempera- ture regulator toward higher settings to obtain the maxi- mum coldness. Important! In this condition, the refrigerator compartment temperature might drop below 0°C. If this occurs reset the temperature regulator to a warmer setting. Storage of frozen food When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours on the higher settings. Important! In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooling). 27Thawing Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temper- ature, depending on the time available for this operation. Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer. Movable shelves The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired. Positioning the door shelves To permit storage of food packages of various sizes, the door shelves can be placed at different heights. Gradually pull the shelf in the direction of the arrows until it comes free, then reposition as required. Helpful hints and tips Normal Operating Sounds

• You may hear a faint gurgling and a bubbling sound when the refrigerant is pumped through the coils or tubing. This is correct.

• When the compressor is on, the refrigerant is being pumped around and you will hear a whirring sound and a pulsating noise from the compressor. This is correct.

• The thermic dilatation might cause a sudden cracking noise. It is natural, not dangerous physical phenomen- on. This is correct.

• When the compressor switches on or switches off, you will hear a faint "click" of the temperature regulator. This is correct. Hints for energy saving

• Do not open the door frequently or leave it open longer than absolutely necessary.

• If the ambient temperature is high and the Temperature Regulator is set to low temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warmer settings to allow automatic defrosting and so a saving in elec- tricity consumption. Hints for fresh food refrigeration To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator

• do cover or wrap the food, particularly if it has a strong flavour

• position food so that air can circulate freely around it Hints for refrigeration Useful hints: Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable drawer. For safety, store in this way only one or two days at the most. Cooked foods, cold dishes, etc..: these should be covered and may be placed on any shelf. Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided. Butter and cheese: these should be placed in special air- tight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible. Milk bottles: these should have a cap and should be stor- ed in the bottle rack on the door. Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator. Hints for freezing To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;

• the freezing process takes 24 hours. No further food to be frozen should be added during this period;

• only freeze top quality, fresh and thoroughly cleaned, foodstuffs; 28• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subse- quently to thaw only the quantity required;

• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;

• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;

• lean foods store better and longer than fatty ones; salt reduces the storage life of food;

• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

• it is advisable to show the freezing in date on each in- dividual pack to enable you to keep tab of the storage time. Hints for storage of frozen food To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;

• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;

• not open the door frequently or leave it open longer than absolutely necessary.

• Once defrosted, food deteriorates rapidly and cannot be refrozen.

• Do not exceed the storage period indicated by the food manufacturer. Care and cleaning Caution! Unplug the appliance before carrying out any maintenance operation. This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians. Periodic cleaning The equipment has to be cleaned regularly:

• clean the inside and accessories with lukewarm water and some neutral soap.

• regularly check the door seals and wipe clean to ensure they are clean and free from debris.

• rinse and dry thoroughly. Important! Do not pull, move or damage any pipes and/or cables inside the cabinet. Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour. Clean the condenser (black grill) and the compressor at the back of the appliance with a brush. This operation will improve the performance of the appliance and save elec- tricity consumption. Important! Take care of not to damage the cooling system. Many proprietary kitchen surface cleaners contain chemi- cals that can attack/damage the plastics used in this appli- ance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added. After cleaning, reconnect the equipment to the mains sup- ply. Defrosting of the refrigerator Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor com- pressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates. It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping onto the food inside. Use the special cleaner provided, which you will find already inserted into the drain hole. Defrosting the freezer A certain amount of frost will always form on the freezer shelves and around the top compartment. 29Important! Defrost the freezer when the frost layer reaches a thickness of about 3-5 mm. To remove the frost, do these steps:

1. Switch off the appliance.

2. Remove any stored food, wrap it in several layers of

newspaper and put it in a cool place.

3. Leave the door open.

4. When defrosting is completed, dry the interior thor-

oughly and refit the plug.

5. Switch on the appliance.

6. Set the temperature regulator to obtain the maximum

coldness and run the appliance for two or three hours using this setting.

7. Reload the previously removed food into the com-

partment. Important! Never use sharp metal tools to scrape off frost from the evaporator as you could damage it. Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer. A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life. Periods of non-operation When the appliance is not in use for long periods, take the following precautions:

1. disconnect the appliance from electricity supply

3. defrost and clean the appliance and all accessories

4. leave the door/doors open to prevent unpleasant

smells. Important! If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure. What to do if… Warning! Before troubleshooting, disconnect the mains plug from the mains socket. Only a qualified electrician or competent person must do the troubleshooting that is not in this manual. Important! There are some sounds during normal use (compressor, refrigerant circulation). Problem Possible cause Solution The appliance is noisy The appliance is not supported prop- erly Check if the appliance stands stable (all the four feet should be on the floor) The appliance does not operate. The lamp does not operate. The appliance is switched off. Switch on the appliance. The mains plug is not connected to the mains socket correctly. Connect the mains plug to the mains socket correctly. The appliance has no power. There is no voltage in the mains socket. Connect a different electrical appliance to the mains socket. Contact a qualified electrician. The lamp does not work. The lamp is in stand-by. Close and open the door. The lamp is defective. Refer to "Replacing the lamp". The compressor operates contin- ually. The temperature is not set correctly. Set a higher temperature. The door is not closed correctly. Refer to "Closing the door". The door has been opened too fre- quently. Do not keep the door open longer than necessary. 30Problem Possible cause Solution The product temperature is too high. Let the product temperature decrease to room temperature before storage. The room temperature is too high. Decrease the room temperature. Water flows on the rear plate of the refrigerator. During the automatic defrosting proc- ess, frost defrosts on the rear plate. This is correct. Water flows into the refrigerator. The water outlet is clogged. Clean the water outlet. Products prevent that water flows into the water collector. Make sure that products do not touch the rear plate. Water flows on the ground. The melting water outlet does not flow in the evaporative tray above the com- pressor. Attach the melting water outlet to the evaporative tray. The temperature in the appliance is too low. The temperature regulator is not set correctly. Set a higher temperature. The temperature in the appliance is too high. The temperature regulator is not set correctly. Set a lower temperature. The door is not closed correctly. Refer to "Closing the door". The product temperature is too high. Let the product temperature decrease to room temperature before storage. Many products are stored at the same time. Store less products at the same time. The temperature in the refrigera- tor is too high. There is no cold air circulation in the appliance. Make sure that there is cold air circula- tion in the appliance. The temperature in the freezer is too high. Products are too near to each other. Store products so that there is cold air circulation. There is too much frost. Food is not wrapped correctly. Wrap the food correctly. The door is not closed correctly. Refer to "Closing the door". The temperature regulator is not set correctly. Set a higher temperature. Replacing the lamp Caution! Disconnect the plug from the mains socket.

from the lamp cover.

cover (refer to the illustration).

lamp with a new lamp of the same power and specifically designed for household ap- pliances (the maximum power is shown on the lamp cover).

314. Install the lamp cover.

5. Tighten the screw to the lamp cover.

6. Connect the plug to the mains socket.

7. Open the door. Make sure that the light comes on.

2. If necessary, adjust the door. Refer to "Installation".

3. If necessary, replace the defective door gaskets.

Contact the Service Center. Technical data Dimension Height 850 mm Width 550 mm Depth 612 mm Rising Time 11 h Voltage 230 V Frequency 50 Hz The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label. Installation Caution! Read the "Safety Information" carefully for your safety and correct operation of the appliance before installing the appliance. Positioning This appliance can be installed in a dry, well ventilated in- door (garage or cellar) also, but for optimum performance install this appliance at a location where the ambient tem- perature corresponds to the climate class indicated on the rating plate of the appliance: Climate class Ambient temperature SN +10°C to + 32°C N +16°C to + 32°C ST +16°C to + 38°C T +16°C to + 43°C Levelling When placing the appli- ance ensure that it stands level. This can be achieved by two adjustable feet at the bottom in front (2). If necessary adjust the feet by removing the spacer (1).

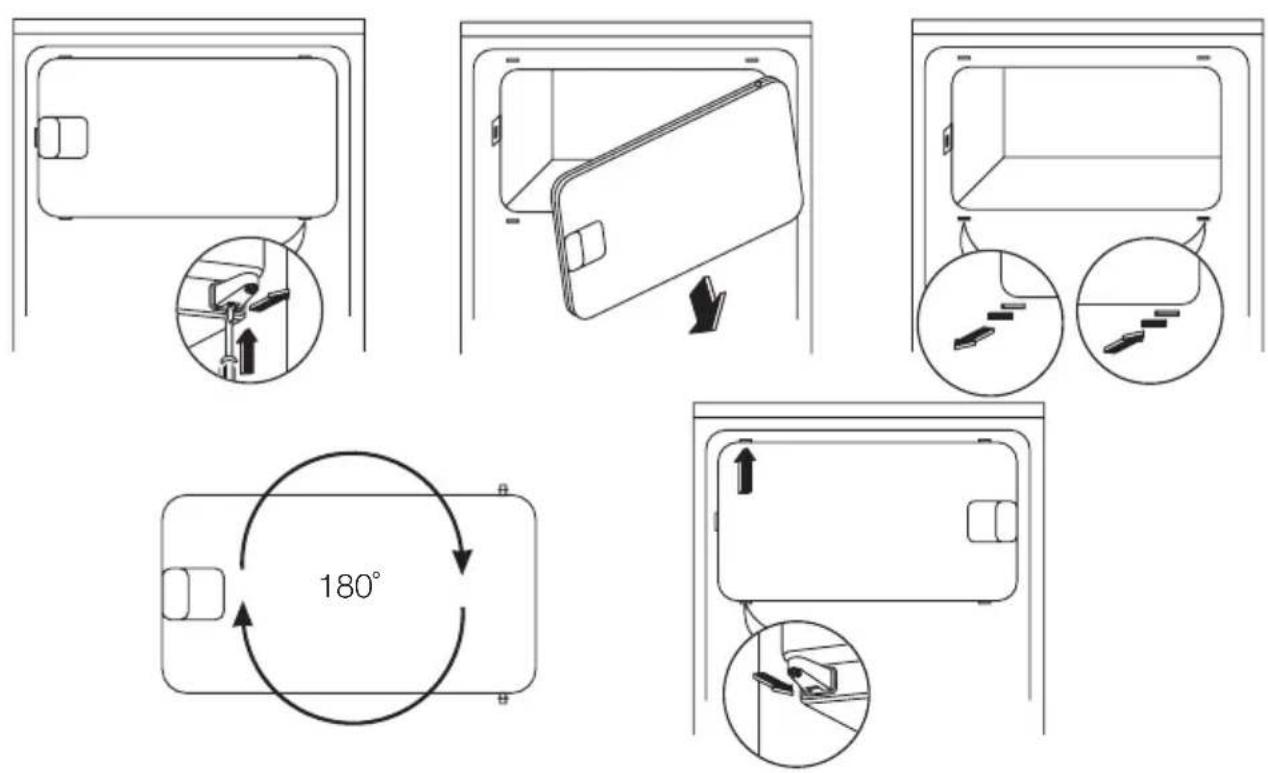

32Location The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. En- sure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100 mm . Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate levelling is ensured by one or more adjustable feet at the base of the cabinet. If the cabinet is placed in a corner and the side with the hinges facing the wall, the distance between the wall and the cabinet must be at least 10 mm to allow the door to open enough so that the shelves can be removed. Warning! min.100 mm 15 mm 15 mm It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily ac- cessible after installation. Door reversibility Important! To carry out the following operations, we suggest that this be made with another person that will keep a firm hold on the doors of the appliance during the operations. To change the opening direction of the door, do these steps:

331. Remove the plug from

carefully so that the com- pressor cannot touch the floor.

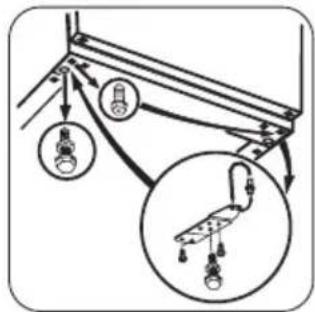

3. Unscrew both adjustable

4. Unscrew the screws of

the door bottom hinge. Re- move the hinge. Put over the pin in the direction of the arrow.

5. Unscrew and install the

screw on the opposite side.

6. Install the hinge on the

7. Screw both adjustable

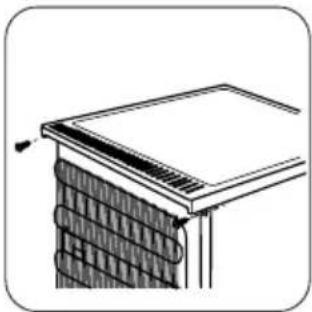

8. Unscrew both screws on

9. Push back the top and

lift it from the fixing ele- ments.

10. Unscrew the screws of

over the pin in the direction of the arrow. Install the hinge on the opposite side.

12. Tighten the hinge.

13. Put the top in position.

14. Pull it forward.

15. Screw both screws on

16. Remove and install the

on the opposite side.

17. Reposition, level the

appliance, wait for at least four hours and then con- nect it to the power socket.

Do a final check to make sure that:

• All screws are tightened.
