ZBT27430SA - Fridge ZANUSSI - Free user manual and instructions

Product Type	Freestanding Fridge-Freezer
Brand	Zanussi
Model	ZBT27430SA
Total Net Capacity	270 L (approx.)
Fridge Net Capacity	190 L (approx.)
Freezer Net Capacity	80 L (approx.)
Height	185.0 cm
Width	59.5 cm
Depth	63.0 cm
Weight	62 kg
Energy Efficiency Class	E
Annual Energy Consumption	280 kWh/year
Noise Level	39 dB(A)
Climate Class	N-ST (16°C to 38°C)
Freezer Star Rating	****
Freezing Capacity	4 kg/24h
Storage Time during Power Failure	16 hours
Control Type	Thermostat dial
Interior Light	Yes (LED)
Adjustable Shelves	Yes
Egg Tray	Yes
Ice Cube Tray	Yes
Reversible Doors	Yes
Defrost Type	Fridge: Automatic; Freezer: Manual
Refrigerant	R600a (Isobutane)
Door Alarm	Yes

Frequently Asked Questions - ZBT27430SA ZANUSSI

How do I adjust the temperature on my Zanussi ZBT27430SA fridge-freezer?

Use the thermostat dial located inside the fridge compartment. Turn it clockwise for colder temperatures and counterclockwise for warmer. Typically, the middle position is recommended for optimal cooling.

What does the 'Fast Freeze' function do and how do I activate it?

The Fast Freeze function rapidly lowers the freezer temperature to freeze fresh food quickly. When activated (usually by a switch or button), it runs for about 24 hours then automatically returns to normal operation.

How often should I defrost the freezer?

Defrost the freezer when frost buildup exceeds 5-10 mm (0.2-0.4 inches). Manual defrost models require you to empty the freezer, turn it off, and let the ice melt. Never use sharp tools to scrape off ice.

Why is my fridge not cooling properly?

Check if the door is fully closed and not obstructed, ensure the thermostat is set to a colder setting, clean the condenser coils (usually at the back or bottom), and verify that the appliance is not in direct sunlight or near a heat source.

Can I reverse the door opening direction?

Yes, the doors are reversible. Refer to the user manual for detailed instructions. Typically, you need to remove the door hinges and handles, then reinstall them on the opposite side. Tools required: screwdriver and possibly a spanner.

What is the recommended temperature setting for the fridge and freezer?

For optimal food preservation, set the fridge temperature to 4°C (39°F) and the freezer to -18°C (0°F). Use a thermometer to verify actual temperatures.

How do I clean the interior of my fridge?

Empty the fridge, remove shelves and drawers, and wash them with warm soapy water. Wipe interior surfaces with a mild detergent solution and dry thoroughly. Avoid abrasive cleaners. Clean the door gaskets regularly.

Why is there water dripping inside the fridge?

This may occur if the defrost drain is clogged. Clean the drain hole (usually at the back of the fridge interior) with a pipe cleaner or cotton swab. Also check that the door gasket is sealing properly.

How do I replace the interior light bulb?

Unplug the appliance. Locate the light cover (typically at the top of the fridge compartment), remove it by pulling or unscrewing, replace the LED bulb with a compatible one (usually 1.5W or 2W, screw base), and reattach the cover.

What should I do if the appliance makes unusual noises?

Clicking or buzzing sounds are normal when the compressor starts or stops. If you hear rattling, check that the appliance is level and that bottles or items are not touching each other. Gurgling noises are from refrigerant flow. If sounds are loud or persistent, contact customer support.

USER MANUAL ZBT27430SA ZANUSSI

Safety instructions ____ 2
Operation 4
First use 4
Daily use 5
Helpful hints and tips ____ 6

Care and cleaning ____ 7
What to do if... 8
Technical data 9
Installation 10
Environmental concerns 13

Subject to change without notice.

Safety instructions

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

- Keep all packaging well away from children. There is risk of suffocation.

- If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

- If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be

sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

Warning!

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- The appliance is intended for keeping food-stuff and/or beverages in a normal household and similar applications such as:

– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
– catering and similar non-retail applications.

• Do not use a mechanical device or any artificial means to speed up the thawing process.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

If the refrigerant circuit should become damaged:

- avoid open flames and sources of ignition

– thoroughly ventilate the room in which the appliance is situated

- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock.

Warning! Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or qualified service personnel to avoid hazard.

1. Power cord must not be lengthened.

2. Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.

3. Make sure that you can come to the mains plug of the appliance.

4. Do not pull the mains cable.

5. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

6. You must not operate the appliance without the lamp cover (if foreseen) of interior lighting.

- This appliance is heavy. Care should be taken when moving it.

- Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

- Avoid prolonged exposure of the appliance to direct sunlight.

- Bulb lamps (if foreseen) used in this appliance are special purpose lamps selected for household appliances use only. They are not suitable for household room illumination.

Daily Use

- Do not put hot pot on the plastic parts in the appliance.

- Do not store flammable gas and liquid in the appliance, because they may explode.

• Do not place food products directly against the air outlet on the rear wall. (If the appliance is Frost Free)
• Frozen food must not be re-frozen once it has been thawed out.
• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance.

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.

• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.

• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.

• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Connect to potable water supply only (If a water connection is foreseen).

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.

Operation

Switching on

Insert the plug into the wall socket.

Turn the Temperature regulator clockwise to a medium setting.

Switching off

To turn off the appliance, turn the Temperature regulator to the "O" position.

Temperature regulation

The temperature is automatically regulated. To operate the appliance, proceed as follows:

• turn the Temperature regulator toward lower settings to obtain the minimum coldness.
• turn the Temperature regulator toward higher settings to obtain the maximum coldness.

A medium setting is generally the most suitable.

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in e-its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symbol 🌐 are recyclable.

However, the exact setting should be chosen keeping in mind that the temperature inside the appliance depends on:

• room temperature
• how often the door is opened
• the quantity of food stored
• the location of the appliance.

Important! If the ambient temperature is high or the appliance is fully loaded, and the appliance is set to the lowest temperatures, it may run continuously causing frost to form on the rear wall. In this case the dial must be set to a higher temperature to allow automatic defrosting and therefore reduced energy consumption.

as to remove the typical smell of a brand-new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

To freeze fresh foods it is not necessary to change the medium setting.

However, for a faster freezing operation, turn the temperature regulator toward higher settings to obtain the maximum coldness.

Important! In this condition, the refrigerator compartment temperature might drop below 0^ C. If this occurs reset the temperature regulator to a warmer setting.

Place the fresh food to be frozen on the top compartment.

Storage of frozen food

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooling).

Thawing

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

Ice-cube production

This appliance is equipped with one or more trays for the production of ice-cubes. Fill these trays with water, then put them in the freezer compartment.

Important! Do not use metallic instruments to remove the trays from the freezer.

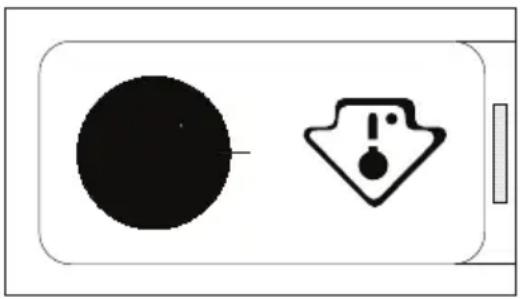

Important! this appliance is sold in France. In accordance with regulations valid in this country it must be provided with a special device (see figure) placed in the lower compartment of the fridge to indicate the coldest zone of it.

Simple diagram showing a black circle and a warning symbol with exclamation mark (no text or labels)

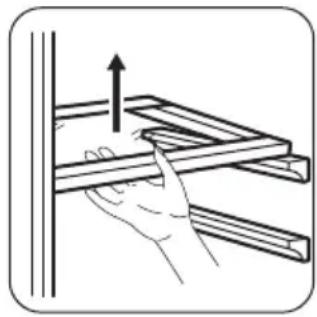

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Illustration of a hand using a tool to lift or lift a wooden beam, with an upward arrow indicating force (no text or symbols present)

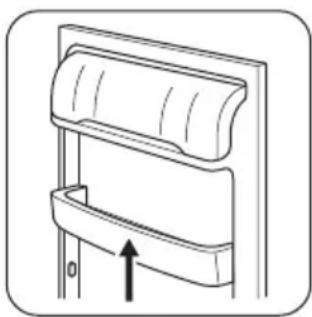

Positioning the door shelves

To permit storage of food packages of various sizes, the door shelves can be placed at different heights.

Diagram of a door handle with a scroll and an arrow indicating upward motion (no text or symbols)

Gradually pull the shelf in the direction of the arrows until it comes free, then re-position as required.

Hints for energy saving

• Do not open the door frequently or leave it open longer than absolutely necessary.
• If the ambient temperature is high and the Temperature Regulator is set to low temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Temperature Regulator toward warmer settings to allow automatic defrosting and so a saving in electricity consumption.

Hints for fresh food refrigeration

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator
• do cover or wrap the food, particularly if it has a strong flavour
• position food so that air can circulate freely around it

Hints for refrigeration

Useful hints:

Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable drawer.

For safety, store in this way only one or two days at the most.

Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.

Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen food-stuffs were adequately stored by the retailer;
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;
• not open the door frequently or leave it open longer than absolutely necessary;
• once defrosted, food deteriorates rapidly and cannot be refrozen;
• do not exceed the storage period indicated by the food manufacturer.

Caution! Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

Periodic cleaning

The equipment has to be cleaned regularly:

• clean the inside and accessories with lukewarm water and some neutral soap.
• regularly check the door seals and wipe clean to ensure they are clean and free from debris.
• rinse and dry thoroughly.

Important! Do not pull, move or damage any pipes and/or cables inside the cabinet.

Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour.

Clean the condenser (black grill) and the compressor at the back of the appliance with a brush. This operation will improve the performance of the appliance and save electricity consumption.

Important! Take care of not to damage the cooling system.

Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added.

After cleaning, reconnect the equipment to the mains supply.

Defrosting the refrigerator

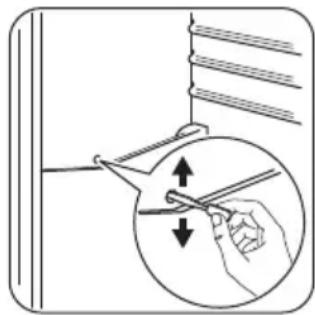

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a drain hole into a special container at the back of the appliance, over the motor compressor, where it evaporates.

It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping onto the food inside.

Illustration of a hand using scissors to cut a piece of paper or tape, with an inset showing the process (no text or symbols present)

Defrosting the freezer

A certain amount of frost will always form on the freezer shelves and around the top partment.

Important! Defrost the freezer when the frost layer reaches a thickness of about 3-5 mm.

To remove the frost, do these steps:

1. Switch off the appliance.
2. Remove any stored food, wrap it in several layers of newspaper and put it in a cool place.
3. Leave the door open.
4. When defrosting is completed, dry the interior thoroughly and refit the plug.
5. Switch on the appliance.
6. Set the temperature regulator to obtain the maximum coldness and run the appliance for two or three hours using this setting.
7. Reload the previously removed food into the compartment.

Important! Never use sharp metal tools to scrape off frost from the evaporator as you could damage it. Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer. A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

• disconnect the appliance from electricity supply
• remove all food
• defrost (if foreseen) and clean the appliance and all accessories

- leave the door/doors ajar to prevent unpleasant smells.

If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

What to do if...

Warning! Before troubleshooting, disconnect the mains plug from the mains socket.

Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem Possible cause Solution
The appliance does not operate. The lamp does not operate.	The appliance is switched off. Switch on the appliance.
The mains plug is not connected to the mains socket correctly.		Connect the mains plug to the mains socket correctly.
The appliance has no power. There is no voltage in the mains socket.		Connect a different electrical appli-ance to the mains socket.Contact a qualified electrician.
The lamp does not work.	The lamp is in stand-by.	Close and open the door.
	The lamp is defective.	Refer to "Replacing the lamp".
The compressor operates continually.	The temperature is not set correctly. Set a higher temperature.
	The door is not closed correctly.	Refer to "Closing the door".
The door has been opened too frequently.		Do not keep the door open longer than necessary.
The product temperature is too high.		Let the product temperature de-crease to room temperature before storage.
		Decrease the room temperature.
Water flows on the rear plate of the refrigerator.	During the automatic defrosting process, frost defrosts on the rear plate.	This is correct.
Water flows into the refrigerator.	The water outlet is clogged. Clean the water outlet.
Products prevent that water flows into the water collector.		Make sure that products do not touch the rear plate.
Water flows on the ground.	The melting water outlet does not flow in the evaporative tray above the compressor.	Attach the melting water outlet to the evaporative tray.
Problem Possible cause Solution
The temperature in the appliance is too low.	The temperature regulator is not set correctly.	Set a higher temperature.
The temperature in the appliance is too high.	The temperature regulator is not set correctly.	Set a lower temperature.

Replacing the lamp

Caution! Disconnect the plug from the mains socket.

Remove the screw from the lamp cover. Remove the lamp cover (refer to the illustration). Replace the used lamp with a new lamp of the same power and specifically designed for household appliances (the maximum power is shown on the lamp cover). Install the lamp cover. Tighten the screw to the lamp cover. Connect the plug to the mains socket. Open the door. Make sure that the light comes on.

Illustration of a hand holding a tool with arrows indicating motion or force direction (no text or symbols)

Closing the door

1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to "Installation".
3. If necessary, replace the defective door gaskets. Contact the Service Center.

Technical data

Dimension of the recess
Height 1580 mm
Width 560 mm
Depth 550 mm
Rising Time 20 h
Voltage 230-240 V
Frequency 50 Hz

The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label.

Installation

Caution! Read the "Safety Information" carefully for your safety and correct

operation of the appliance before installing the appliance.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class	Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C

Technical diagram showing a tool interacting with a mechanical component, no text or symbols present

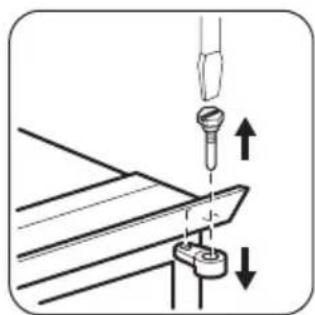

- Loosen the upper pin and remove the spacer.

- Remove the upper pin and the upper door.

Technical line drawing of a mechanical clamp or bracket assembly with screws and mounting holes (no text or symbols)

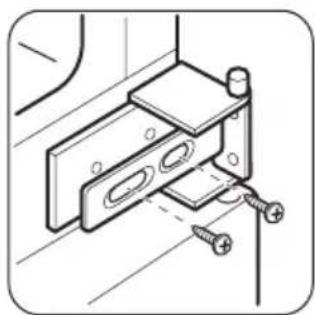

- Loosen the middle hinge.

Diagram showing a mechanical assembly with a rotating component and directional arrows, no text or symbols present.

- Remove the lower door.

- Loosen the lower pin.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.

The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives.

Door reversibility

The door of the appliance opens to the right. If you want to open the door to the left, do these steps before you install the appliance:

On the opposite side:

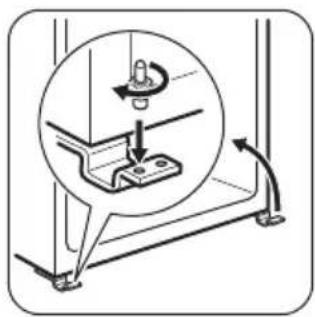

- Install the lower pin.

- Install the lower door.

- Tighten the middle hinge.

- Install the upper door.

- Tighten the spacer and tighten the upper pin.

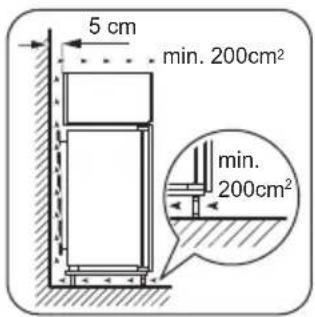

Ventilation requirements

The airflow behind the appliance must be sufficient.

Installing the appliance

Caution! Make sure that the mains cable can move freely.

Do the following steps:

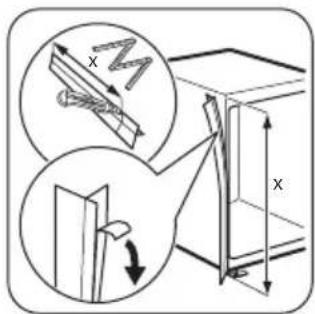

If necessary cut the adhesive sealing strip and then apply it to the appliance as shown in figure.

Install the appliance in the niche.

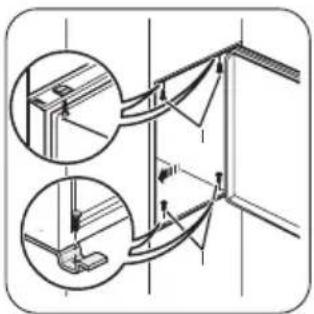

Push the appliance in the direction of the arrows (1) until the upper gap cover stops against the kitchen furniture.

Push the appliance in the direction of the arrows (2) against the cupboard on the opposite side of the hinge.

Adjust the appliance in the niche.

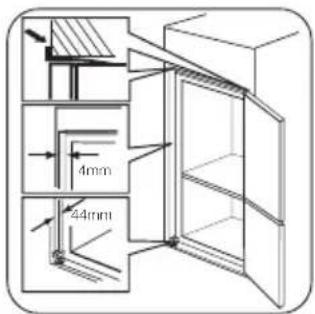

Make sure that the distance between the appliance and the cupboard front-edge is 44 mm.

The lower hinge cover (in the accessories bag) makes sure that the distance between the appliance and the kitchen furniture is correct.

Make sure that the clearance between the appliance and the cupboard is 4 mm.

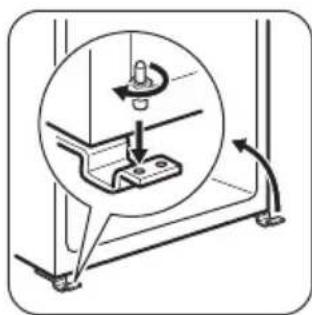

Open the door. Put the lower hinge cover in position.

Technical diagram showing two views of a structural frame with hinged elements and supports (no text or labels)

Attach the appliance to the niche with 4 screws.

Illustration of a hand using a tool to cut a box with an arrow indicating rotation (no text or symbols)

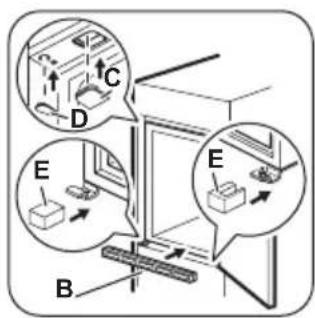

Remove the correct part from the hinge cover (E). Make sure to remove the part DX, in the case of right hinge, SX in opposite case.

Attach the covers (C, D) to the lugs and the hinge holes. Install the vent grille (B).

Attach the hinge covers (E) to the hinge.

Connect the appliance laterally to the kitchen furniture sidewall:

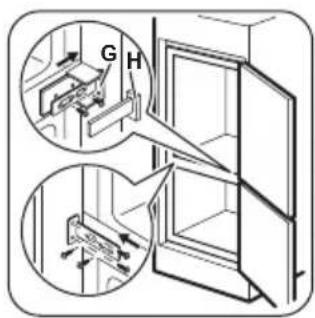

1. Loosen the screws of the part (G) and move the part (G) till the furniture sidewall.

2. Tighten the screws of the part (G) again.

3. Attach the part (H) to the part (G).

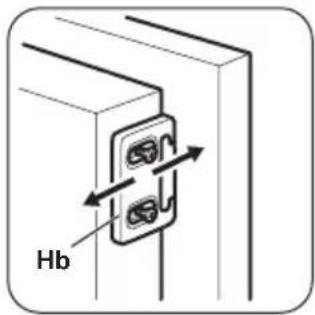

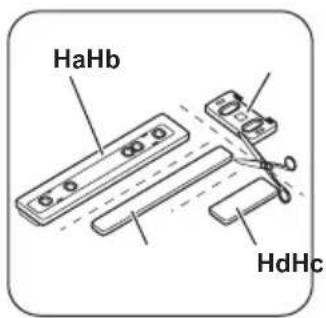

Disconnect the parts (Ha), (Hb), (Hc) and (Hd).

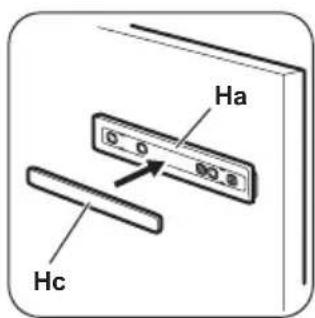

Install the part (Ha) on the inner side of the kitchen furniture.

Push the part (Hc) on the part (Ha).

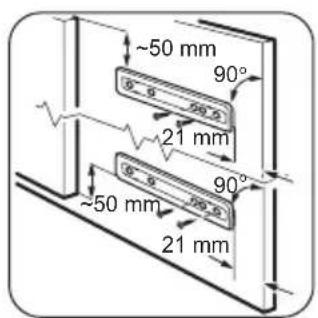

Open the appliance door and the kitchen furniture door at an angle of 90^ . Insert the small square (Hb) into guide (Ha). Put together the appliance door and the furniture door and mark the holes.

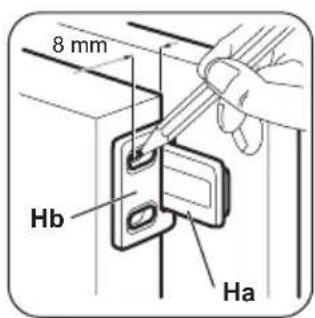

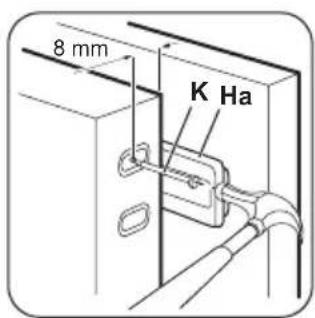

Remove the brackets and mark a distance of 8 mm from the outer edge of the door where the nail must be fitted (K).

Place the small square on the guide again and fix it with the screws supplied.

Align the kitchen furniture door and the appliance door by adjusting the part Hb.

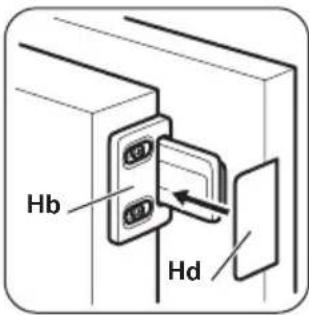

Press the part (Hd) on the part (Hb).

Do a final check to make sure that:

• All screws are tightened.
• The magnetic sealing strip is attached tightly to the cabinet.

Important! If the ambient temperature is low (for example, in the Winter), the size of the

gasket decreases. The size of the gasket increases when the ambient temperature increases.

Environmental concerns

The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent

potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Inhalt

Simple diagram with a black circle and a warning symbol (no text or labels)

Illustration of a hand using a tool to lift or lift a wooden beam, with an upward arrow indicating force (no text or symbols present)

Diagram of a door handle mechanism with an arrow indicating upward motion (no text or symbols)

Illustration of a hand using a tool to cut a piece of paper or tape, with an inset showing the process (no text or symbols present)

Illustration of a hand holding a tool with arrows indicating motion or force (no text or symbols)

Schließen der Tür

Technical diagram showing a screw being inserted into a metal bracket with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly with screws and mounting holes (no text or symbols)

Diagram showing a mechanical assembly with a rotating component and directional arrows indicating motion (no text or symbols)

Technical diagram showing two views of a structural joint or bracket assembly (no text or symbols present)

Illustration of a hand using a tool to lift a box with an arrow indicating rotation (no text or symbols)

Simple diagram showing a black circle and a warning symbol with exclamation mark (no text or labels)

Ripiani mobili

Illustration of a hand using a tool to lift or press a wooden beam (no text or symbols)

Diagram of a door handle assembly with an arrow indicating upward motion (no text or symbols)

Illustration of a hand cutting a piece of paper with scissors, showing alignment and cutting direction (no text or symbols)

Illustration of a hand holding a tool with arrows indicating motion or force direction (no text or symbols)

Dati tecnici

Diagram showing a tool inserted into a component with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly with screws and mounting holes (no text or symbols)

Diagram showing a mechanical assembly with rotating components and directional arrows (no text or symbols)

Technical diagram showing two views of a structural component with internal connections (no text or symbols)

Illustration of a hand using a tool to cut a box with an arrow indicating rotation (no text or symbols)

Simple diagram showing a black circle and a warning symbol with an exclamation mark (no text or labels)

Prateleiras móveis

Illustration of a hand holding a wooden beam with an upward arrow, no text or symbols present

Diagram of a door handle mechanism with an arrow indicating upward motion (no text or symbols)

Illustration of a hand using a tool to cut a circular object with arrows indicating direction (no text or symbols)

Descongelar o congelador

Illustration of a hand holding a tool with arrows indicating motion or force direction (no text or symbols)

Fechar a porta

Diagram showing a screwdriver inserted into a wooden plank with a base, indicating mechanical assembly (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly with screws and mounting holes (no text or symbols)

Diagram showing a mechanical assembly with a rotating component and directional arrows indicating motion (no text or symbols)

- Remova a porta inferior.

- Desaperte o pino inferior.

No lado oposto:

- Instale o pino inferior.

- Instale a porta inferior.

Technical diagram showing two views of a structural component with arrows indicating direction (no text or symbols)

Illustration of a hand using a tool to lift a box with an arrow indicating rotation (no text or symbols)

Simple diagram showing a black circle and a warning symbol with an exclamation mark (no text or labels)

Estantes móviles

Illustration of a hand using a tool to lift or adjust a wooden beam (no text or symbols present)

Diagram of a door handle with an arrow indicating upward motion (no text or symbols)

Illustration of a hand using scissors to cut a piece of paper or tape, with an inset showing the process (no text or symbols present)

Illustration of a hand holding a tool with arrows indicating motion or force direction (no text or symbols)

Datos técnicos

Diagram showing a tool inserted into a component with arrows indicating direction (no text or symbols)

Technical line drawing of a mechanical clamp or bracket assembly with screws and mounting holes (no text or symbols)

- Afloje la bisagra intermedia.

Diagram showing a mechanical assembly with an inset circular view of a rotating component (no text or symbols)

Technical diagram showing two views of a structural component with internal connections (no text or symbols)

Illustration of a hand using a tool to cut a box with an arrow indicating rotation (no text or symbols)

www.zanussi.com/shop
