USER MANUAL ZRT628W1 ZANUSSI

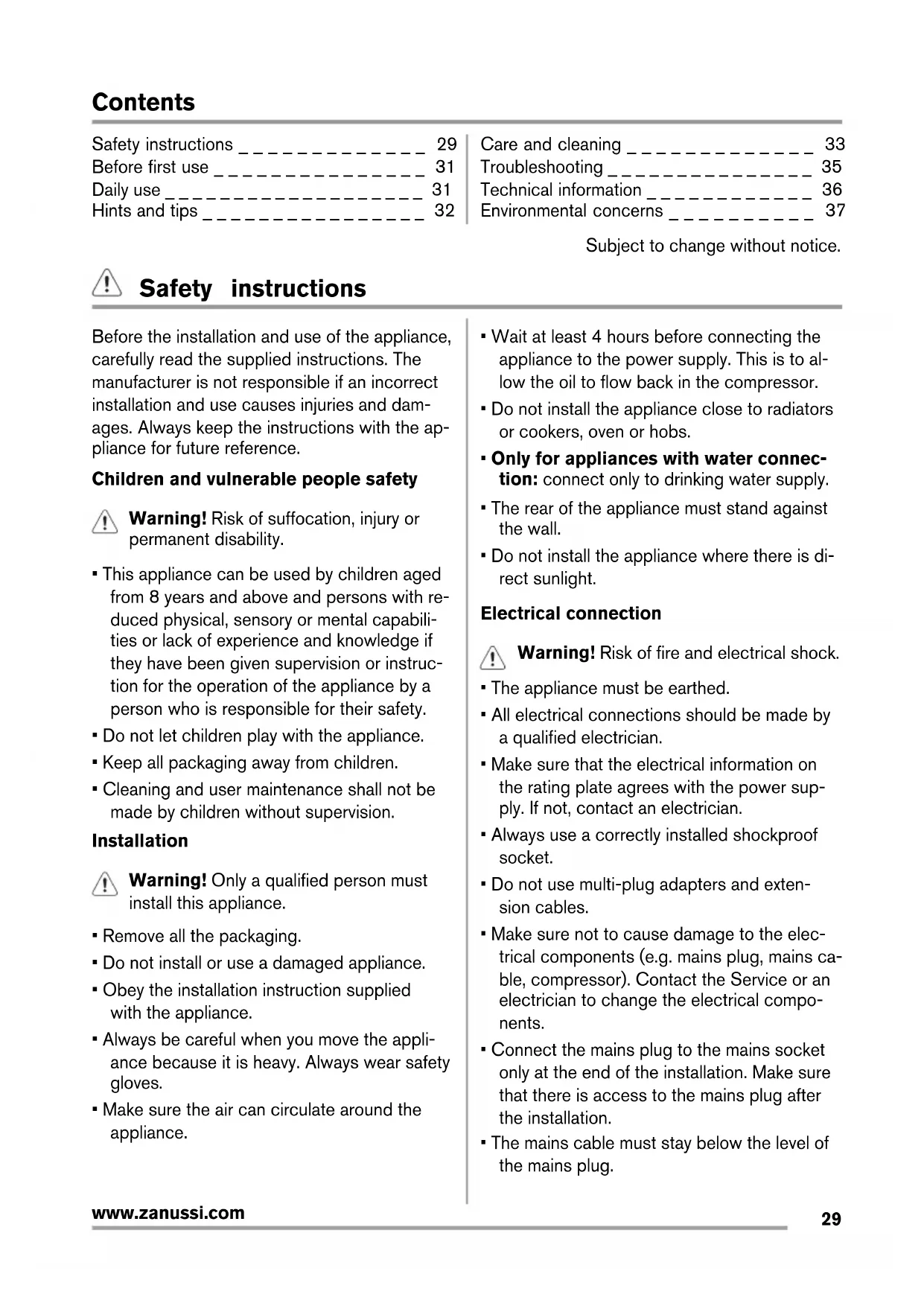

www.zanussi.comContents Safety instructions _ _ _ _ _ _ _ _ _ _ _ _ _ 29 Before first use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 31 Daily use _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 31 Hints and tips _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 32 Care and cleaning _ _ _ _ _ _ _ _ _ _ _ _ _ 33 Troubleshooting _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 35 Technical information _ _ _ _ _ _ _ _ _ _ _ _ 36 Environmental concerns _ _ _ _ _ _ _ _ _ _ 37 Subject to change without notice. Safety instructions Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and dam- ages. Always keep the instructions with the ap- pliance for future reference. Children and vulnerable people safety Warning! Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with re- duced physical, sensory or mental capabili- ties or lack of experience and knowledge if they have been given supervision or instruc- tion for the operation of the appliance by a person who is responsible for their safety.

• Do not let children play with the appliance.

• Keep all packaging away from children.

• Cleaning and user maintenance shall not be made by children without supervision. Installation Warning! Only a qualified person must install this appliance.

• Remove all the packaging.

• Do not install or use a damaged appliance.

• Obey the installation instruction supplied with the appliance.

• Always be careful when you move the appli- ance because it is heavy. Always wear safety gloves.

• Make sure the air can circulate around the appliance.

• Wait at least 4 hours before connecting the appliance to the power supply. This is to al- low the oil to flow back in the compressor.

• Do not install the appliance close to radiators or cookers, oven or hobs.

• Only for appliances with water connec- tion: connect only to drinking water supply.

• The rear of the appliance must stand against the wall.

• Do not install the appliance where there is di- rect sunlight. Electrical connection Warning! Risk of fire and electrical shock.

• The appliance must be earthed.

• All electrical connections should be made by a qualified electrician.

• Make sure that the electrical information on the rating plate agrees with the power sup- ply. If not, contact an electrician.

• Always use a correctly installed shockproof socket.

• Do not use multi-plug adapters and exten- sion cables.

• Make sure not to cause damage to the elec- trical components (e.g. mains plug, mains ca- ble, compressor). Contact the Service or an electrician to change the electrical compo- nents.

• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

• The mains cable must stay below the level of the mains plug.

• This appliance is intended to be used in household and similar applications such as: – Staff kitchen areas in shops, offices and other working environments – Farm houses – By clients in hotels, motels and other resi- dential type environments – Bed and breakfast type environments. Warning! Risk of injury, burns, electrical shock or fire.

• Use this appliance in a household environ- ment.

• Do not change the specification of this appli- ance.

• Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.

• Be careful not to cause damage to the refrig- erant circuit. It contains isobutane (R600a), a natural gas with a high level of environmental compatibility. This gas is flammable.

• If damage occurs to the refrigerant circuit, make sure that there are no flames and sour- ces of ignition in the room. Ventilate the room.

• Do not let hot items to touch the plastic parts of the appliance.

• Do not put fizzy drinks in the freezer com- partment. This will create pressure on the drink container.

• Do not store flammable gas and liquid in the appliance.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

• Do not touch the compressor or the con- denser. They are hot.

• Do not remove or touch items from the freez- er compartment if your hands are wet or damp.

• When you remove an ice lolly from the appli- ance, do not eat it immediately. Wait a few minutes.

• Do not freeze again food that has been thawed.

• Obey the storage instructions on the pack- aging of frozen food. Care and Cleaning Warning! Risk of injury and damage to the appliance.

• Before maintenance, deactivate the appli- ance and disconnect the mains plug from the mains socket.

• Do not use water spray and steam to clean the appliance.

• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

• Regularly examine the drain of the refrigera- tor and if necessary, clean it. If the drain is blocked, defrosted water collects in the bot- tom of the appliance.

• This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit. Internal light

• The type of light bulb or halogen lamp used for this appliance, is only for household appli- ances. Do not use it for house lighting. Disposal Warning! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.

• Cut off the mains cable and discard it.

• Remove the door catch to prevent children and pets to be closed in the appliance.

• The refrigerant circuit and the insulation ma- terials of this appliance are ozone-friendly.

• The insulation foam contains flammable gas. Contact your municipal authority for informa-

www.zanussi.comtion on how to discard the appliance correct- ly.

• Do not cause damage to the part of the cool- ing unit that is near the heat exchanger. Before first use

1. Clean the inner parts of the appliance and

all the accessories with warm water and neutral detergent.

2. Make sure that the appliance and the ac-

cessories are fully dry.

3. Connect the mains plug to the mains sock-

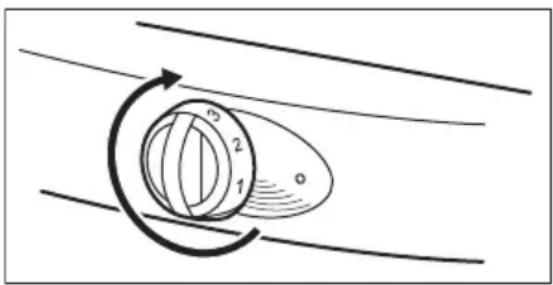

ture. Do not use abrasive products, abrasive cleaning pads or solvents to clean the ap- pliance and the accessories. Activating the appliance and setting the temperature Turn the temperature knob clockwise to acti- vate the appliance and, at the same time, to set the temperature. The numbers that are on the knob refer to dif- ferent temperatures of cold. Turn the temperature knob to lower settings to obtain minimum cold temperature. Turn the temperature knob to higher settings to obtain maximum cold temperature. We recommend that you set a medium cold temperature. The conditions that follow can have an effect on the temperature setting.

• The room temperature and the location where the appliance is installed.

• How frequently the opening of the appliance door occurs.

• The quantity of food that is in the appliance. Daily use Freezing the fresh food The freezer is applicable to freeze fresh food and for the storage of frozen food and of deep- frozen food. If the temperature knob is set at a medium position, it is not necessary to change the setting. If you want to freeze the food more quickly, set the temperature knob at a higher position. In this condition, the temperature of the fridge can decrease to 0 °C and more. If this occurs, set the temperature knob to a lower position. Storage of frozen food Do not put immediately frozen food in the freez- er if the appliance is new or was deactivated for a period of time. Set the temperature knob at the highest posi- tion and let the appliance operate for minimum 2 hours.

www.zanussi.comA power failure can cause the defrosting of the freezer. If the power was off, for a period of time longer than the “Rising Time” value, you must use or cook immediately the defrosted food. Refer to “TECHNICAL INFORMATION” for the value. You can freeze the cooked food when it be- comes cool. Thawing Before you cook frozen food or deep-frozen food, thaw the food in the fridge or at room temperature. It is possible to cook small quantities of frozen food directly from the freezer, but this increases the cooking time. Glass shelves You can put the glass shelves at different heights. Positioning the door shelves You can put the door shelf at different heights.

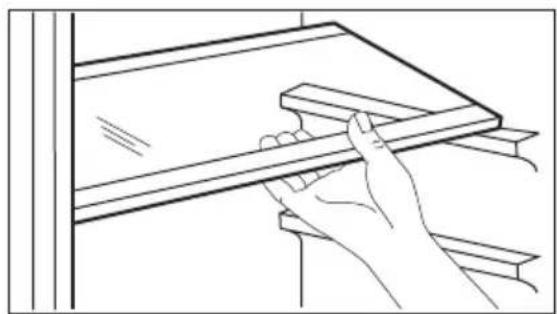

1. Pull the shelf in the direction of the arrow

until it disengages.

2. Put the shelf in the new position.

Hints and tips Energy saving

• Do not to open the door of the fridge or of the freezer frequently .

• Do not keep the door of the fridge or of the freezer open for more than the necessary time.

• If the appliance operates continuously and there is frost on the internal rear part, the cause can be: – The temperature knob is set at the lowest position. – The room temperature, where the appli- ance is installed, is too warm. – The appliance is full. Set the temperature knob at a higher posi- tion. The automatic defrosting starts and the energy consumption decreases. Refrigeration

• Do not put hot food in the fridge. Wait until it becomes cool.

• Do not put in the fridge liquids that evapo- rate.

• Put all the food, that has a strong flavour or odour, in containers.

• Make sure that there is air circulation around the food.

• Put all types of meat in polythene bags. Put them on the glass shelf above the vegetable

www.zanussi.comdrawer. Do not keep the meat in the fridge for more than 2 days.

• Put a cover on cooked food and cold dishes and put them on one of the shelves.

• Wash fruit and vegetables and put them in the vegetable drawer.

• Put butter and cheese in special airtight con- tainers, aluminium foil or polythene bags.

• Make sure that milk bottles have a cap and put them in the bottle shelf on the appliance door.

• Do not keep in the fridge bananas, potatoes, onions and garlic that are without packaging. Freezing

• The rating plate gives the indication of the maximum quantity of food that the freezer can freeze in 24 hours.

• The freezing of the food is completed in 24 hours. Do not put other food in the freezer during this time.

• Put the food in small quantities in the freezer. This helps to freeze quickly the food and to thaw only the necessary quantity.

• Wrap the food in aluminium foil or put it in polythene bags. Make sure that the packag- ing is airtight.

• Do not put fresh food together with frozen food. This to prevent the temperature of the frozen food to increase.

• The storage time for fat food is shorter than for non-fat food or for low-fat food. The salt decreases the storage time of the food.

• We recommend that you write, on each packaging, the date of when the food was frozen. Storage of the frozen food

• When you buy frozen food, make sure that you put it in the freezer in a very short time.

• When you thaw frozen food, you must cook it in a very short time. It is not possible to freeze again food that was frozen before.

• Make sure that the use-by date is not ex- pired. You can find the information on the packaging of the food. Care and cleaning Caution! Before maintenance, disconnect the mains plug from the mains socket. Cleaning

• Clean the appliance and the accessories regularly.

• Clean all the parts of the appliance and all the accessories only with warm water and neutral detergent. Make sure that the appli- ance and the accessories are fully dry.

• Clean the gasket of the door regularly. To re- place a damaged gasket, contact the Serv- ice.

• Clean the grill of the condenser and the compressor, that are behind the appliance, with a brush. This helps to decreases the en- ergy consumption and keeps the appliance in good conditions. Important!

• Be careful not to pull, move or to cause dam- age to the pipes or the cables.

• Be careful not to cause damage to the cool- ing unit.

• Do not clean the appliance with abrasive products, abrasive cleaning pads, solvents, detergents with perfume or wax polish. After maintenance, connect the mains plug to the mains socket.

www.zanussi.comAutomatic defrosting of the fridge The removal of frost occurs automatically when the motor compressor stops during operation. The water drains out through the drain hole and collects in the water container where it evapo- rates. The water container is behind the appliance, above the motor compressor. The drain hole is in the fridge on the rear part. To prevent water to collect in other parts of the fridge, make sure that the drain hole is always clean. Use the cleaning tool that is in the drain hole. Defrosting of the freezer There can be frost on the freezer shelves and around the top compartment. Defrost the freezer when the layer of frost has a thickness of 3 or 5 mm. Caution! Do not use sharp metal tools to remove the frost. Do not use mechanical devices to defrost the freezer.

1. Deactivate the appliance.

2. Remove all the food from the freezer. Wrap

the food in newspaper and keep it at a cold temperature.

3. Keep the appliance door open until defrost-

4. Clean and fully dry the freezer.

5. Connect the mains plug to the mains sock-

6. Activate the appliance.

7. Set the temperature knob at the highest po-

sition and let the appliance operate for 2 or 3 hours with this setting.

8. Put back the food in the freezer.

When the appliance is not used for long periods

1. Deactivate the appliance and disconnect

the mains plug from the mains socket.

2. Remove all the food.

3. Defrost the appliance.

4. Fully clean and dry the appliance and all the

5. Keep the doors open to prevent unpleasant

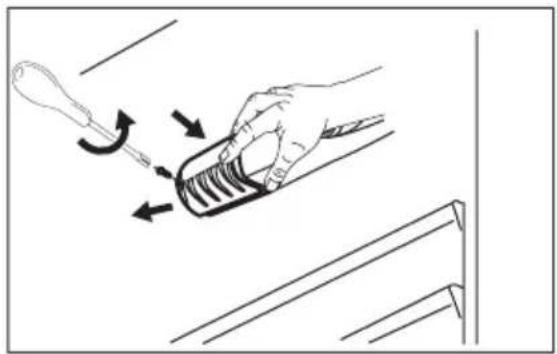

1. Disconnect the mains plug from the mains

2. Remove the screw from the lamp cover.

3. Remove the lamp cover

4. Replace the old lamp with a new one. Use

only lamps for household appliances. The lamp cover shows the maximum power of the lamp.

5. Install again the lamp cover.

6. Connect the mains plug to the mains sock-

et. The type of light bulb or halogen lamp used for this appliance, is only for house- hold appliances. Do not use it for house light- ning. Troubleshooting Warning! Disconnect the mains plug from the mains socket before you do the check. For problems that are not in the table, contact the Service. Problem Possible solution The appliance makes noise during operation. Some sounds are normal when the appliance is operating. Refer to the leaflet supplied with the appliance. The appliance does not operate. Make sure that the appliance is activated. Make sure that the mains plug is connected to the mains socket. Do a check and see if there is voltage. Connect a different appliance to the same mains socket. To repair a mains socket, contact a quali- fied electrician. The lamp does not come on. Close and open the door to make sure that the lamp is not in standby. The lamp is defective. Replace the lamp. The compressor operates continu- ously. Set the temperature knob at a lower position. Make sure that the appliance door is closed. Make sure not to open and close the appliance door too frequently. Make sure not to put hot food in the appliance. Wait until it becomes cool. Make sure that the room temperature is not too warm. Water collects on the rear plate of the fridge. It is normal that this occurs when the automatic defrosting operates. Water collects in the fridge. Make sure that the drain hole is not clogged.

www.zanussi.comProblem Possible solution Make sure that food or packaging do not prevent the water to collect in the water container. There is water on the floor. The melting water outlet does not flow in the evaporative tray above the compressor. Attach the melting water outlet to the evaporative tray. The temperature in the appliance is too cold Set the temperature knob to a lower position. The temperature in the appliance is not sufficiently cold. Set the temperature knob to a higher position. Make sure that the appliance door is closed. Make sure not to put hot food in the appliance. Wait for the food to become cool. Make sure that the appliance is not too full. The temperature in the fridge is not sufficiently cold. Make sure that there is cold air circulation. There is too much frost. Make sure that the food is closed in special containers or packaging. Make sure that the appliance door is closed. Set the temperature knob to a lower position. Technical information Positioning This appliance can be installed in a dry, well ventilated indoor (garage or cellar) also, but for optimum performance install this appliance at a location where the ambient temperature corre- sponds to the climate class indicated on the rating plate of the appliance: Climate class Ambient temperature SN +10°C to + 32°C N +16°C to + 32°C ST +16°C to + 38°C T +16°C to + 43°C

www.zanussi.comEnvironmental concerns The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.
