Product Type	Drip coffee maker
Brand	Taurus
Model	Livorno 6
Capacity	6 cups (approx. 0.9 L)
Power supply	220-240 V ~ 50-60 Hz
Power	1000 W
Weight	Approx. 1.5 kg
Dimensions (L x W x H)	25 x 20 x 30 cm
Reservoir material	Plastic
Carafe material	Glass
Filter type	Permanent filter included (reusable)
Anti-drip system	Yes
Indicator light	Yes (on switch)
Main functions	Filter coffee preparation, keep warm
Measuring spoon	Yes, included
Water levels	Min: 4 cups, Max: 12 cups (according to Livorno 12 model, adjust for 6 cups)
Care and cleaning	Clean with a damp cloth; do not immerse; descale regularly
Safety	Unplug before cleaning; do not touch hot surfaces
Spare parts available	Permanent filter and carafe (subject to availability)
Country of origin	Not specified (Spanish brand Taurus)

Frequently Asked Questions - Livorno 6 TAURUS

How to prepare the first coffee with the Taurus Livorno 6?

Before first use, run two cycles with only water to rinse the system. Then fill the reservoir with cold water to the desired level (between 4 and 12 cups), add ground coffee to the filter (6-7 g per cup), then turn on the appliance using the switch.

How much ground coffee to use per cup?

Use 6 to 7 grams of ground coffee per cup. The provided measuring spoon can help you measure.

What to do if the coffee does not flow?

Check that the water reservoir is filled, the filter is correctly placed, and the carafe is properly positioned on the hot plate. The anti-drip system prevents flow if the carafe is missing.

How to clean the coffee maker?

Unplug the appliance and wait for it to cool down. Clean the exterior with a damp cloth. Never immerse the appliance in water. The permanent filter can be washed with soapy water.

Can I use store-bought ground coffee?

Yes, the machine is designed for standard ground coffee. Use the provided permanent filter to retain the grounds.

How to descale the coffee maker?

Use a suitable descaling agent or diluted white vinegar. Run the solution through the reservoir, but do not ingest it. Then rinse several times with clean water before making coffee.

Can the carafe go in the microwave?

The carafe is made of glass, but it is not recommended to put it in the microwave as it may not be suitable.

Why is the coffee cold after brewing?

Make sure the carafe is properly placed on the hot plate. Leave the appliance on to keep the coffee warm.

Can the permanent filter be replaced with paper filters?

Yes, you can use paper filters of suitable size (type 1x4 or 2 cups). Place them in the filter holder before adding coffee.

What is the power of the appliance?

The power is about 1000 W, which allows for rapid water heating.

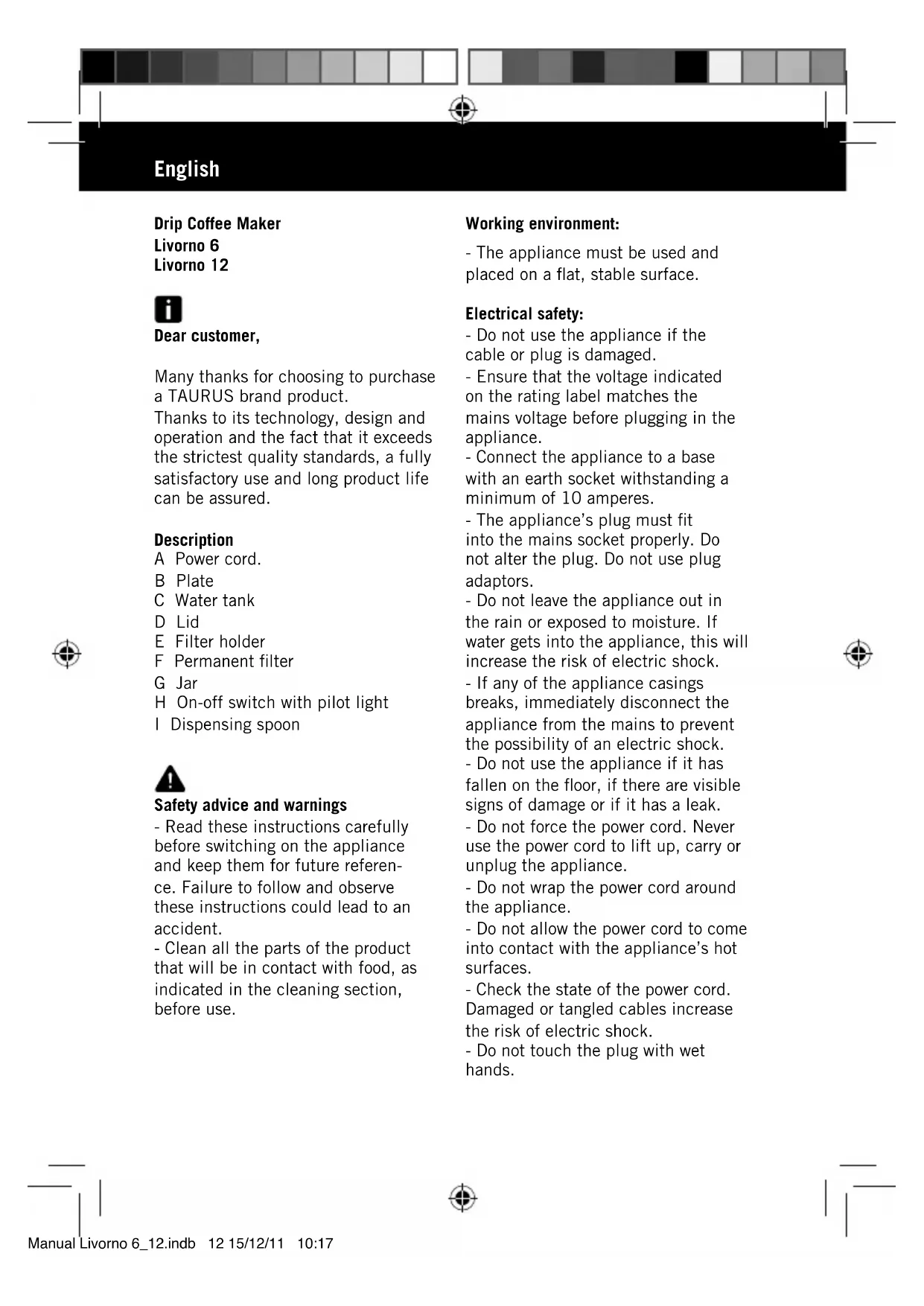

USER MANUAL Livorno 6 TAURUS

Line drawing of two types of coffee kettles with handles and control knobs, shown from different angles (no text or symbols)

Abstract grayscale gradient bar with a central crosshair symbol (no text or labels)

Color gradient bar with a central crosshair symbol (no text or labels)

Español

Cafetera de goteo

Livorno 6

Livorno 12

Many thanks for choosing to purchase a TAURUS brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

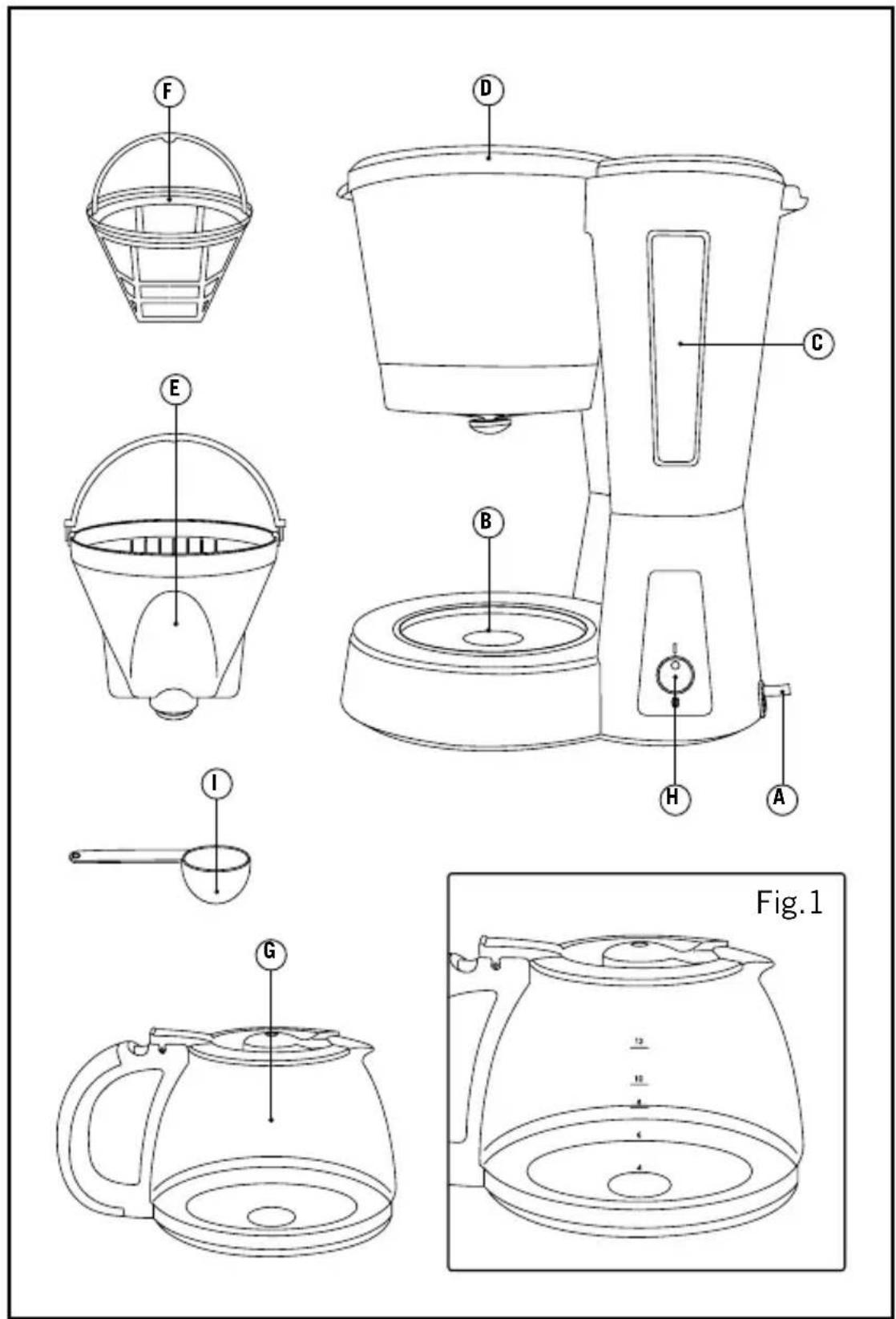

Description

A Power cord.

B Plate

C Water tank

D Lid

E Filter holder

F Permanent filter

G Jar

H On-off switch with pilot light

I Dispensing spoon

Safety advice and warnings

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.

- Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.

Working environment:

- The appliance must be used and placed on a flat, stable surface.

Electrical safety:

- Do not use the appliance if the cable or plug is damaged.

- Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.

- Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.

- The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.

- Do not leave the appliance out in the rain or exposed to moisture. If water gets into the appliance, this will increase the risk of electric shock.

- If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.

- Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.

- Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.

- Do not wrap the power cord around the appliance.

- Do not allow the power cord to come into contact with the appliance's hot surfaces.

- Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.

- Do not touch the plug with wet hands.

Personal safety:

- Do not touch the heated parts of the appliance, as it may cause serious burns.

Use and care:

- Fully unroll the appliance's power cable before each use.

- Do not switch the appliance on without water.

- Do not use the appliance if the on/off switch does not work.

- Do not move the appliance while in use.

- Respect the MAX (12 cups) and MIN (4 cups) levels. (Fig.1)

- Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.

- This appliance is for household use only, not professional, industrial use.

- This appliance is only for domestic use, not for industrial or professional use. It is not intended to be used by guests in hospitality environments such as bed and breakfast, hotels, motels, and other types of residential environments, even in farm houses, areas of the kitchen staff in shops, offices and other work environments.

- This appliance is intended for adult use. Ensure that this product is not used by the disabled, children or people unused to its handling.

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- This appliance should be stored out of reach of children and/or the disabled.

- Any misuse or failure to follow the instructions for use renders the

guarantee and the manufacturer's liability null and void.

Instructions for use

Before use:

- Before making coffee for the first time, it is advisable to use the coffee maker twice with water only to clean the system.

Filling with water:

- You must fill the water compartment before turning on the appliance.

-Lift the lid

- Fill the compartment with cold water.

- Fill the compartment with as many cups of water as cups of coffee you would like to make.

- Fill the deposit taking care to observe the MIN (4 cups) and MAX (12 cups) level (Fig.1).

- Close the lid.

Filling with Coffee:

- Open the lid of the filter holder.

- Remove the filter holder.

- Fill the removable filter with ground coffee (use 6-7 grams of ground coffee for each cup to be made).

- Check that the removable filter is correctly placed in the filter holder.

- Replace the filter holder in the appliance.

- The dispensing spoon can be used to pour the coffee.

-Close the lid and place the jar on the plate.

Use:

- Unroll the cable completely before plugging it in.

- Connect the appliance to the mains.

- Turn the appliance on, by using the on/off switch.

-The pilot indicator will light up.

- Follow the "filling with water" and "filling with coffee" procedures.

-The jar can be removed while the coffee is made. The anti- drip system prevents coffee spills while the jar is not in place. However, if the jar is not put back in time, coffee may spill over the upper part of the filter-holder.

-If you wish to keep the coffee hot, place the jar on the plate and do not switch off the coffee maker.

Once you have finished using the appliance:

- Turn the appliance off using the on/off switch.

- Unplug the appliance from the mains.

- Clean the appliance.

Cleaning

- Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.

- Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.

- Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

- Never submerge the appliance in

water or any other liquid or place it under running water.

Anomalies and repair

- Take the appliance to an authorised technical support service if product is damaged or other problems arise. Do not attempt to disassemble or repair the appliance yourself as this may be dangerous.

- If the connection to the mains has been damaged, it must be replaced and you should proceed as you would in the case of damage.

For EU product versions and/or in case that it is requested in your country:

Ecology and recyclability of the product

- The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment.

- This appliance contains, or could contain, oil. Remember that one should abide by the regulations concerning the elimination of this type of contaminant.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of Waste from Electric and Electronic Equipment (WEEE).

This appliance complies with Directive 2006/95/EC on Low Voltage and Directive 2004/108/EC on Electromagnetic Compatibility.
