USER MANUAL HWH7501 SAMSUNG

Imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/register

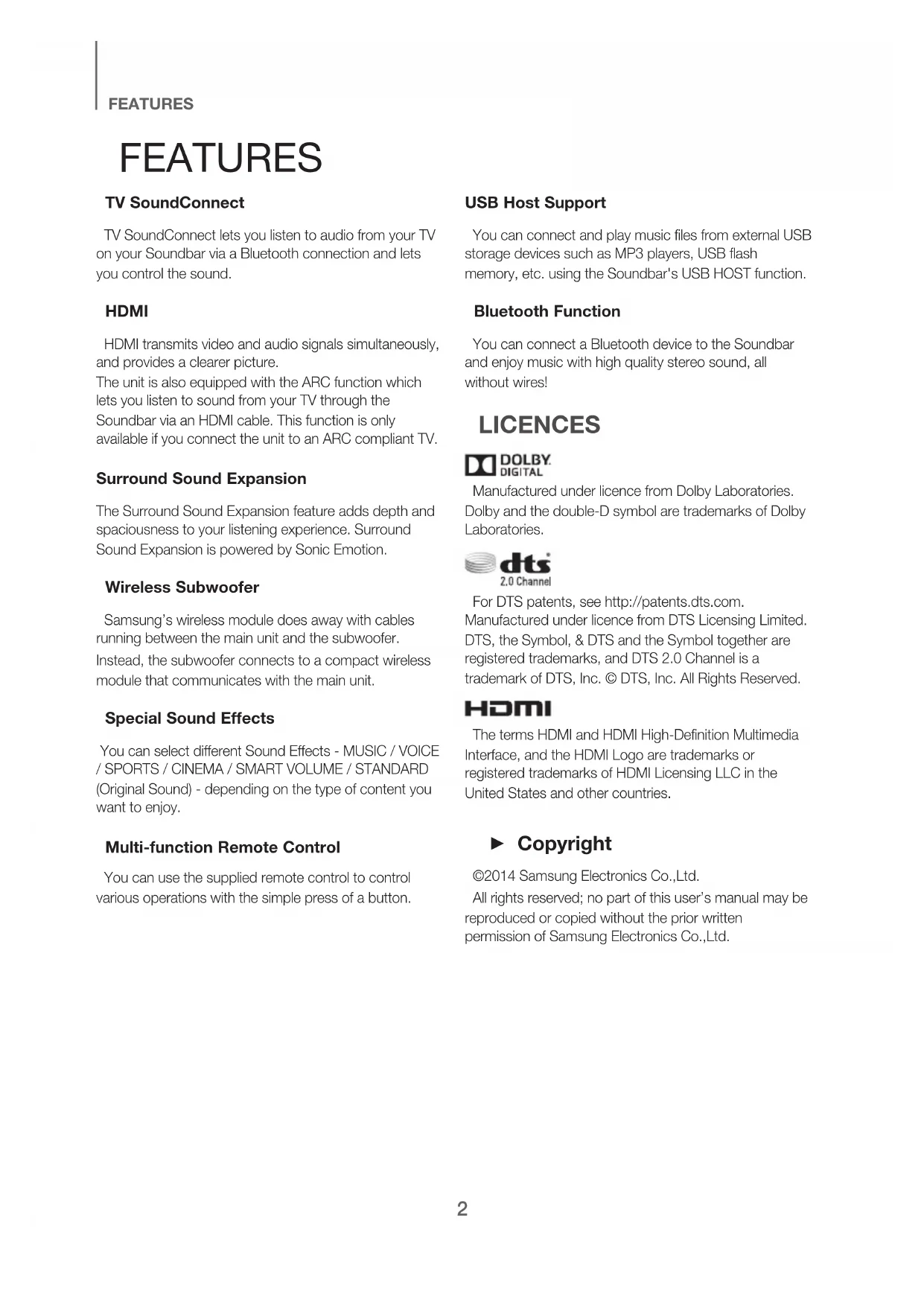

FEATURES FEATURES TV SoundConnect

TV SoundConnect lets you listen to audio from your TV

on your Soundbar via a Bluetooth connection and lets

you control the sound.

HDMI HDMI transmits video and audio signals simultaneously,

and provides a clearer picture.

The unit is also equipped with the ARC function which

lets you listen to sound from your TV through the

Soundbar via an HDMI cable. This function is only

available if you connect the unit to an ARC compliant TV.

Surround Sound Expansion

The Surround Sound Expansion feature adds depth and

spaciousness to your listening experience. Surround

Sound Expansion is powered by Sonic Emotion.

Samsung’s wireless module does away with cables

running between the main unit and the subwoofer.

Instead, the subwoofer connects to a compact wireless

module that communicates with the main unit.

Special Sound Effects

You can select different Sound Effects - MUSIC / VOICE

(Original Sound) - depending on the type of content you

Multi-function Remote Control

You can use the supplied remote control to control

various operations with the simple press of a button.

You can connect and play music files from external USB

storage devices such as MP3 players, USB flash

memory, etc. using the Soundbar's USB HOST function.

You can connect a Bluetooth device to the Soundbar

and enjoy music with high quality stereo sound, all

LICENCES Manufactured under licence from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby

For DTS patents, see http://patents.dts.com.

Manufactured under licence from DTS Licensing Limited.

DTS, the Symbol, & DTS and the Symbol together are

registered trademarks, and DTS 2.0 Channel is a

trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia

Interface, and the HDMI Logo are trademarks or

registered trademarks of HDMI Licensing LLC in the

United States and other countries.

©2014 Samsung Electronics Co.,Ltd.

All rights reserved; no part of this user’s manual may be

reproduced or copied without the prior written

permission of Samsung Electronics Co.,Ltd.

HW-H7500_H7501_XU_ENG_20141113.indd 2HW-H7500_H7501_XU_ENG_20141113.indd 2 2014-11-14  11:58:452014-11-14  11:58:453

ENG SAFETY INFORMATION SAFETY INFORMATION SAFETY WARNINGS TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.

This symbol indicates important instructions accompanying the product. WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.

• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable. CAUTION • Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus. • To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times. Wiring the Main Power Supply Plug (UK Only) IMPORTANT NOTICE The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used. Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the same colour as the fuse fitted in the plug. Replacement covers are available from your dealer. If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance. However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a

mains socket as there is a risk of shock hazard from the bared flexible cord. Never attempt to insert bare wires directly into a mains socket. A plug and fuse must be used at all times. IMPORTANT The wires in the mains lead are coloured in accordance with the following code:– BLUE = NEUTRAL BROWN = LIVE As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:– The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED. WARNING : DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E OR BY THE EARTH SYMBOL , OR COLOURED GREEN OR GREEN AND YELLOW. HW-H7500_H7501_XU_ENG_20141113.indd 3HW-H7500_H7501_XU_ENG_20141113.indd 3 2014-11-14  11:58:452014-11-14  11:58:454

SAFETY INFORMATION PRECAUTIONS

mm 99.1mm Ensure that the AC power supply in your house complies with the power requirements listed on the identification

sticker located on the back of your product. Install your product horizontally, on a suitable base (furniture), with enough

space around it for ventilation 7~10 cm. Make sure the ventilation slots are not covered. Do not place the unit on

amplifiers or other equipment which may become hot. This unit is designed for continuous use. To fully turn off the

unit, disconnect the AC plug from the wall outlet. Unplug the unit if you intend to leave it unused for a long period of

During thunderstorms, disconnect the AC plug from the

wall outlet. Voltage peaks due to lightning could damage

Protect the product from moisture (i.e. vases), and excess

heat (e.g. a fireplace) or equipment creating strong

magnetic or electric fields. Disconnect the power cable

from the AC supply if the unit malfunctions. Your product

is not intended for industrial use. It is for personal use

only. Condensation may occur if your product has been

stored in cold temperatures. If transporting the unit during

the winter, wait approximately 2 hours until the unit has

reached room temperature before using.

Do not expose the unit to direct sunlight or other heat

sources. This could lead to overheating and cause the

unit to malfunction.

The batteries used with this product contain chemicals

that are harmful to the environment. Do not dispose

of batteries in the general household trash. Do not

dispose of batteries in a fire. Do not short circuit,

disassemble, or overheat the batteries. There is

a danger of explosion if the battery is incorrectly

replaced. Replace only with the same or equivalent

WARNING: DO NOT INGEST BATTERY. CHEMICAL BURN HAZARD.

The remote control that comes with this product is powered by a coin/button cell battery.

If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can

lead to death. Keep new and used batteries away from children. If the battery compartment does not

close securely, stop using the product and keep it away from children. If you think batteries might have been

swallowed or placed inside any part of the body, seek immediate medical attention.

HW-H7500_H7501_XU_ENG_20141113.indd 4HW-H7500_H7501_XU_ENG_20141113.indd 4 2014-11-14  11:58:452014-11-14  11:58:455

6 Before reading the User’s Manual

8 Rear / Bottom Panel

9 Remote Control Buttons and Functions

12 TV-mounted Installation

13 Standing Installation

14 Assembling the Clamp-wire

15 Connecting the Wireless Subwoofer

16 Connecting an External Device using an

● Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. ● An administration fee may be charged if either (a) an engineer is called out at your request and there is no defect with the product (i.e. where the user manual has not been read). (b) you bring the unit to a repair centre and there is no defect with the product (i.e. where the user manual has not been read). ● You will be informed of the administration fee amount before a technician visits. HW-H7500_H7501_XU_ENG_20141113.indd 5HW-H7500_H7501_XU_ENG_20141113.indd 5 2014-11-14  11:58:462014-11-14  11:58:466

GETTING STARTED GETTING STARTED BEFORE READING THE USER’S MANUAL Note the following terms before reading the user manual.

+ Icons used in this manual

Icon Term Definition

Indicates a situation where a function does not operate or settings may be cancelled.

Indicates tips or instructions on the page that help you operate a function.

+ Safety Instructions and Troubleshooting

1) Be sure to familiarise yourself with the Safety Instructions before using this product. (See page 3)

2) If a problem occurs, check Troubleshooting. (See page 25)

WHAT’S INCLUDED Check for the supplied accessories shown below.

Remote Control / Lithium Battery

AUX Cable Holder-Screw 1 : 4EA Holder-Screw 2 : 8EA USB Converter

● The appearance of the accessories may differ slightly from the illustrations above.

● Use the dedicated USB cable to connect external USB devices to the unit.

HW-H7500_H7501_XU_ENG_20141113.indd 6HW-H7500_H7501_XU_ENG_20141113.indd 6 2014-11-14  11:58:462014-11-14  11:58:467

ENG DESCRIPTIONS DESCRIPTIONS TOP / FRONT PANEL

(Power) Button Turns the power on and off. VOL. - / + Controls the volume level.The numeric value of the volume level appears in the front panel display. Display Displays the current mode. (Function) Button Selects the D.IN, AUX, HDMI, BT, TV, or USB input. ● While the unit is powered on, pressing

the (Function) button for more than 3 seconds sets the button to act as the ( Mute) button. To cancel the ( Mute) button setup, press the (Function) button for more than 3 seconds again. ● When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

● If you want to enjoy the sound only from the Soundbar, you must turn off the TV's speakers in the Audio Setup menu of your TV. Refer to the owner's manual supplied with your TV. HW-H7500_H7501_XU_ENG_20141113.indd 7HW-H7500_H7501_XU_ENG_20141113.indd 7 2014-11-14  11:58:492014-11-14  11:58:498

DESCRIPTIONS REAR / BOTTOM PANEL AUX INOPTICAL INHDMI INHDMI OUT (TV)

HDMI OUT (TV)HDMI INOPTICAL INAUX IN DC 24V (Power Supply In)

Connect the DC power adaptor to

the power supply jack, and then

connect the AC power adaptor

plug to a wall outlet.

Connect USB devices such as

MP3 players here to play files on

Outputs digital video and audio signals simultaneously using an

HDMI IN Inputs digital video and audio signals simultaneously using an HDMI

cable. Use when connecting a supported external device.

Connect to the digital (optical) output of an external device.

AUX IN Connect to the Analogue output of an external device.

● When disconnecting the power cable of the AC power adaptor from a wall outlet, pull the plug. Do not pull

● Do not connect this unit or other components to an AC outlet until all connections between components

HW-H7500_H7501_XU_ENG_20141113.indd 8HW-H7500_H7501_XU_ENG_20141113.indd 8 2014-11-14  11:58:562014-11-14  11:58:569

ENG REMOTE CONTROL REMOTE CONTROL REMOTE CONTROL BUTTONS AND FUNCTIONS Anynet+Press the Anynet+ button to turn the Anynet+ function on or off. (Auto Power Link : Default OFF, Anynet+ ON / Power Link OFF or Anynet+ OFF / Power Link ON) The Anynet+ function lets you control the Soundbar with the remote from an Anynet+ compatible Samsung TV. The Soundbar must be connected to the TV via an HDMI cable.* Auto Power LinkSynchronizes the Soundbar to a connected Optical source via the Optical jack so it turns on automatically when you turn on your TV. (See page 24) Repeat Press to set the Repeat function during music playback from a USB device. REPEAT OFF : Cancells Repeat Playback. REPEAT FILE : Repeatedly play a track. REPEAT ALL : Repeatedly play all tracks. REPEAT RANDOM : Plays tracks in random order. (A track that has already been played may be played again.) Mute You can turn the volume down to 0 with the push of a button.Press again to restore the sound to the previous volume level. SOURCE Press to select a source connected to the Soundbar. Skip Forward If there is more than one file on the device you are playing, and you press the $ button, the next file is selected. AUDIO SYNC If the Soundbar is connected to a digital TV and the video appears out of sync with the audio, press the AUDIO SYNC buttons to sync the audio with the video. Use the #,$ buttons to set the audio delay between 0 ms and 300 ms. In USB mode, TV mode, and BT mode, the Audio Sync function may not work. HW-H7500_H7501_XU_ENG_20141113.indd 9HW-H7500_H7501_XU_ENG_20141113.indd 9 2014-11-14  11:59:002014-11-14  11:59:0010

REMOTE CONTROL Bluetooth POWER Press the Bluetooth POWER button on the remote to turn the Bluetooth

POWER On function on and off.

See pages 20 and 22 for details.

Surr.Sound (Surround Sound Expansion)

Surr.Sound adds depth and spaciousness to the sound.

Pressing the Surr.Sound button repeatedly cycles through the Surr.Sound

settings: AUTO, ON, OFF.

EQUALIZER WOOFER Press to select TREBLE, BASS, or SW. Then, use the

adjust the Treble, Bass, or Subwoofer volume from -6 to +6.

Press and hold the EQUALIZER WOOFER button for about 5 seconds to

adjust the sound for each frequency band. 150Hz, 300Hz, 600Hz, 1.2KHz,

2.5KHz, 5KHz, 10KHz, and SW are selectable and each can be adjusted to

a setting between -6 and +6.

● Adjusting TREBLE, BASS, or SW affects the 10KHz band, the 150Hz

band, and SW respectively. For example, when you adjust TREBLE, you

are actually adjusting the 10KHz frequency band.

Adjusts the volume level of the unit.

Turns the Soundbar on and off.

SOUND EFFECT You can select from 5 different sound modes - MUSIC, VOICE, SPORTS,

CINEMA, SMART VOLUME, and STANDARD - depending on the

content you want to listen to.

Select the STANDARD mode if you want to enjoy the original sound.

Smart Volume regulates and stabilizes the volume level and prevents

drastic volume changes caused by a channel change or scene

Press the & button to pause the playing of a file temporarily.

Press the & button again to play the selected file.

If there is more than one file on the device you are playing, and you press

the # button, the previous file is selected.

HW-H7500_H7501_XU_ENG_20141113.indd 10HW-H7500_H7501_XU_ENG_20141113.indd 10 2014-11-14  11:59:012014-11-14  11:59:0111

● Soundbar is a Samsung proprietary name.

● Operate the TV using the TV's remote control.

+ Installing the Batteries in the Remote Control

1. Use a suitable coin to turn

the remote control's battery

cover counterclockwise to

remove it as shown in the

2. Insert a 3V lithium battery. Keep the

positive (+) pole facing up when

inserting the battery. Put the battery

cover on and align the '' marks side

by side as shown in the figure above.

3. Use a suitable coin to turn the

remote control battery cover

clockwise as far as it will go to

HW-H7500_H7501_XU_ENG_20141113.indd 11HW-H7500_H7501_XU_ENG_20141113.indd 11 2014-11-14  11:59:012014-11-14  11:59:0112

INSTALLATION INSTALLATION ● This Soundbar can be compatible with 2014 HU7, HU8 and HU9 series of Samsung UHD curved TVs (except HU7100 models). For a detailed list of compatible TV models, please refer to the Samsung web site. TV-MOUNTED INSTALLATION For a TV-mounted installation with a physically compatible, wall-mounted Samsung TV.NOT recommended for installation on curved TVs 78" or larger. 

● The TV-mounted installation is for compatible wall-mounted Samsung TVs only and requires that you remove the TV's stand. If you remove the TV's stand and replace it with the Curved Soundbar, and then stand the TV on a flat surface, the TV may tip over. ● Do not place objects on top of the Soundbar if it is TV mounted.AUX IN OPTI C AL INHDMI INHDMI OUT (TV) AUX INOPTICAL INHDMI INHDMI OUT (TV) 1. Place the Soundbar as shown in the illustration, ensuring that none of its buttons touch the surface it is lying on.

AU X I N OPTIC AL IN H DMI INHDMI OUT (

2. If the Holder-Foot is attached, remove it first to install the TV-Mount. 3. Fasten the four Holder-Screws 1 and four of the Holder-Screws 2 to the four holes in the Soundbar, as shown in the illustration. TV 4. Place the TV screen-side down on the curved packaging foam that came with the TV. ● Do not place the TV screen-side down on a flat surface. You can crack the panel.5. Remove the TV's stand if the stand is attached, and then insert the bracket guide into the notches on the bottom of the TV. Make sure the screw holes in the Bracket-Mount line up with the screw holes in the TV.

HW-H7500_H7501_XU_ENG_20141113.indd 12HW-H7500_H7501_XU_ENG_20141113.indd 12 2014-11-14  11:59:022014-11-14  11:59:0213

6. Fasten the Bracket-Mount to the TV using the

remaining 4 Holder-Screws 2.

7. After attaching the Bracket-Mount, mount the TV

● When handling a TV, do not touch the screen

and do not subject it to excessive pressure or

a sudden impact. HDMI OUT (TV) Soundbar base

TV base, with Bracket-Mount attached

8. With the TV mounted on the wall, align the

Soundbar’s centre with the Bracket-Mount on the

bottom of the TV, and then push it onto the

Bracket-Mount as far as it will go, as shown in the

9. Fasten the Holder-Fix Mount to the Soundbar, and

then turn it clockwise by hand to fix the Soundbar to

10. The TV-mounted installation is complete.

STANDING INSTALLATION Method 1. For a standing installation with a

compatible Samsung TV

Align the Soundbar’s centre with the centre of the base

of the TV, and then carefully push it onto the stand as far

as it will go, as shown in the illustration. Be careful not to

Method 2. If using the Soundbar as a standalone

 AUX IN O PTICAL INHDMI INHDMI OUT (TV )

AUX INOPTICAL INHDMI INHDMI OUT (TV)

1. Place the Soundbar as shown in the illustration,

ensuring that none of the buttons touch the surface it

2. Fasten two Holder-Screws 2 to the Holder-

Supports as shown in the illustration.

HW-H7500_H7501_XU_ENG_20141113.indd 13HW-H7500_H7501_XU_ENG_20141113.indd 13 2014-11-14  11:59:092014-11-14  11:59:0914

3. Centre the Soundbar on the flat area in front of the

Installing the Soundbar at an adjusted

 AUX INOPTICAL INHDMI INHDMI OUT (TV) 1. Lay the Soundbar so that the buttons make no

physical contact with the floor surface, as shown in

2. Fasten two Holder-Foot and two Holder-Screws 2

to the holes of the Soundbar as shown in the

● Do not place a heavy thing or step on the

ASSEMBLING THE CLAMP-

WIRE HDMI OUT (TV)HDMI INOPTICAL INAUX INHDMI OUT (TV)HDMI INOPTICAL INAUX IN Clamp-Wire

Attach the clamp-wire to the unit as shown, and then run

the cables through the clamp-wire to keep them neat.

HW-H7500_H7501_XU_ENG_20141124.indd 14HW-H7500_H7501_XU_ENG_20141124.indd 14 2014-11-24  5:17:022014-11-24  5:17:0215

ENG CONNECTIONS CONNECTING THE WIRELESS SUBWOOFER The Subwoofer's linking ID is preset at the factory and the main unit and subwoofer should link (connect wirelessly) automatically when the main unit and subwoofer are turned on. If the Link indicator ( ) does not light when the main unit and subwoofer are turned on, please set the ID by following the procedure below.ID SETID SET1. Plug the power cords of the main unit and subwoofer into an AC wall outlet. 2. Press the ID SET button on the back of the subwoofer with a small, pointed object for 5 seconds.• The STANDBY indicator is turned off and the LINK indicator (Blue LED) blinks quickly.3. While the main unit is powered off (in STANDBY mode), press and hold the (

) on the remote control for 5 seconds. 4. The ID SET message appears on the Soundbar's display.5. To finalise the link, turn the main unit’s power on while the subwoofer’s Blue LED blinks.• The main unit and the subwoofer should now be linked (connected).• The Link indicator (Blue LED) on the subwoofer should be on.• If the Link indicator is not solid blue, the linking process has failed. Turn off the main unit and start again from Step 2.• You can enjoy better sound from the wireless subwoofer by selecting a Sound Effect. (See page 10) ● Before moving or installing the product, be sure to turn off the power and disconnect the power cord. ● If the main unit is powered off, the wireless subwoofer will be in standby mode and the STANDBY LED on the upper side will come on after the Link indicator (Blue LED) blinks for 30 seconds. ● If you use a device that uses the same frequency (2.4GHz) as the Soundbar near the Soundbar, interference may cause some sound interruption. ● The transmission distance of the wireless signal between the main unit and subwoofer is about 10 m, but may vary depending on your operating environment. If a steel-concrete or metallic wall is between the main unit and the wireless subwoofer, the system may not operate at all, because the wireless signal cannot penetrate metal. ● If the main unit doesn't make a wireless connection, follow steps 1-5 in the left hand column to re-set the connection between the main unit and wireless subwoofer. ● The wireless receiving antenna is built into the wireless subwoofer. Keep the unit away from water and moisture. ● For optimal listening performance, make sure that the area around the wireless subwoofer location is clear of any obstructions.

CONNECTIONS HW-H7500_H7501_XU_ENG_20141113.indd 15HW-H7500_H7501_XU_ENG_20141113.indd 15 2014-11-14  11:59:182014-11-14  11:59:1816

CONNECTIONS CONNECTING AN EXTERNAL DEVICE USING AN HDMI CABLE HDMI is the standard digital interface for connecting to TVs, projectors, DVD players, Blu-ray players, set top boxes,

HDMI prevents any degradation to the signal due to conversion to analogue and maintains the video and audio quality

of the original digital source.

AUX INOPTICAL INHDMI INHDMI OUT HDMI OUT (TV)HDMI IN HDMI OUT HDMI IN HDMI OUT (TV)

HDMI IN Connect an HDMI cable (not supplied) from the HDMI IN

jack on the back of the product to the HDMI OUT jack

on your digital device.

Connect an HDMI cable (not supplied) from the HDMI OUT (TV) jack on the back of the product to the HDMI IN jack on your TV.

● HDMI is an interface that enables the digital

transmission of video and audio data with just

● We recommend you use a coreless HDMI

cable if possible. If you use a cored HDMI

cable, use one whose diameter is less than

HDMI OUT (ARC) port.

It can be enabled only when the Soundbar is connected

to a TV that supports the ARC function.

● Anynet+ must be turned on.

● This function is not available if the HDMI cable

does not support ARC.

HW-H7500_H7501_XU_ENG_20141113.indd 16HW-H7500_H7501_XU_ENG_20141113.indd 16 2014-11-14  11:59:192014-11-14  11:59:1917

ENG CONNECTIONS CONNECTING AN EXTERNAL DEVICE USING AUDIO

(ANALOGUE) CABLE OR OPTICAL (DIGITAL) CABLE This unit comes equipped with one optical in digital jack and one audio Analogue in jack, giving you two ways to connect it to a TV. or

AUX INOPTICAL INHDMI INHDMI OUT OPTICAL INAUX IN OPTICAL IN AUX IN OPTICAL OUT AUX OUT Audio Cable Optical Cable (not supplied) BD / DVD player / Set-top box / Game console AUX IN Connect AUX IN (Audio) on the main unit to the AUDIO OUT jack of the TV or Source Device.Change the function to AUX. or,

OPTICAL IN Connect OPTICAL IN (Audio) on the main unit to the OPTICAL OUT jack of the TV or Source Device.Change the function to D.IN. ● Do not connect the power cord of this product or your TV to a wall outlet until all connections between components are complete. ● Before moving or installing this product, be sure to turn off the power and disconnect the power cord. HW-H7500_H7501_XU_ENG_20141113.indd 17HW-H7500_H7501_XU_ENG_20141113.indd 17 2014-11-14  11:59:192014-11-14  11:59:1918

FUNCTIONS FUNCTIONS INPUT MODE Press the (Function) button on the main unit’s top panel or the SOURCE button on the remote control to select

The unit turns off automatically in the following situations.

● D.IN / HDMI / BT / TV / USB / ARC Mode

- If there is no audio signal for 25 minutes.

- If the AUX cable is disconnected for 25 minutes.

- If there is no KEY input for 8 hours when the AUX

cable is connected. (Auto Power Down function

can be turned off only in that case.)

To turn off Auto Power Down function, while in AUX

mode, press and hold the

button for 5 seconds.

AUTO POWER DOWN ON / OFF appears on the

1. Connect a TV supporting ARC to the Soundbar with an HDMI cable.

2. Turn on the TV, and then turn on the Soundbar’s Anynet+ function.

3. Press the (Function) button on the main unit’s top panel or the SOURCE button on the remote control to

select the D.IN mode.19

● If the HDMI cable does not support the ARC feature, ARC will not work.

● To turn off the ARC function, turn Anynet+ off.

BLUETOOTH You can connect a Bluetooth device to the Soundbar and enjoy music with high quality stereo sound, all without wires!

+ To connect the Soundbar to a Bluetooth device

Check if the Bluetooth device supports the Bluetooth compliant stereo headset function.

(Function) button on the main unit’s top panel or the SOURCE button on the remote control to

• You will see BT READY on the front display of the Soundbar.

2. Select the Bluetooth menu on the Bluetooth device you want to connect. (Refer to the Bluetooth device's user

3. Select the Stereo headset menu on the Bluetooth device.

• You will see a list of scanned devices.

4. Select "[Samsung] Soundbar" from the list.

• When the Soundbar is connected to the Bluetooth device, it will display [Bluetooth Device Name]

• The device name can only be displayed in English. An underline " _ " will be displayed if the name is not in

• If the Bluetooth device has failed to pair with the Soundbar, delete the previous "[Samsung] Soundbar" found

by the Bluetooth device and have it search for the Soundbar again.

5. Play music on the connected device.

• You can listen to the music playing on the connected Bluetooth device over the Soundbar.

• In BT mode, the Play / Pause / Next / Prev functions are not available. However, these functions are available

in Bluetooth devices supporting AVRCP.

● If asked for PIN code when connecting a Bluetooth device, enter <0000>.

● Only one Bluetooth device can be paired at a time.

● The Bluetooth connection will be terminated when you turn the Soundbar off.

HW-H7500_H7501_XU_ENG_20141113.indd 19HW-H7500_H7501_XU_ENG_20141113.indd 19 2014-11-14  11:59:212014-11-14  11:59:2120

● The Soundbar may not perform Bluetooth search or connection correctly under the following

- If there is a strong electrical field around the Soundbar.

- If several Bluetooth devices are simultaneously paired with the Soundbar.

- If the Bluetooth device is turned off, not in place, or malfunctions.

- Note that such devices as microwave ovens, wireless LAN adaptors, fluorescent lights, and gas stoves

use the same frequency range as the Bluetooth device, which can cause electric interference.

● The Soundbar supports SBC data (44.1kHz, 48kHz).

● Connect only to a Bluetooth device that supports the A2DP (AV) function.

● You cannot connect the Soundbar to a Bluetooth device that supports only the HF (Hands Free) function.

● Once you have paired the Soundbar to a Bluetooth device, selecting "[Samsung] Soundbar" from the

device's scanned devices list will automatically change the Soundbar to BT mode.

+ Bluetooth POWER On (Bluetooth POWER)

When the Bluetooth POWER On function is on and the Soundbar is turned off, if a previously paired Bluetooth device

tries to pair with the Soundbar, the Soundbar turns on automatically.

ress the Bluetooth POWER on the remote while the Soundbar is turned on.

2. BLUETOOTH POWER ON appears on the Soundbar's display.

● Available only if the Soundbar is listed among the Bluetooth device’s paired devices. (The Bluetooth device

and the Soundbar must have been previously paired at least once.)

● Soundbar will appear in the Bluetooth device’s searched devices list only when the Soundbar is displaying

● In the TV SoundConnect mode, the Soundbar cannot be paired to another Bluetooth device.

+ To disconnect the Bluetooth device from the Soundbar

You can disconnect the Bluetooth device from the Soundbar. For instructions, see the Bluetooth device's user manual.

● The Soundbar will be disconnected.

● When the Soundbar is disconnected from the Bluetooth device, the Soundbar will display BT DISCONNECTED

on the front display.

HW-H7500_H7501_XU_ENG_20141113.indd 20HW-H7500_H7501_XU_ENG_20141113.indd 20 2014-11-14  11:59:212014-11-14  11:59:2121

+ To disconnect the Soundbar from the Bluetooth device

Press the SOURCE button on the remote control or the (Function) button on the product's top panel to switch

from BT to another mode or turn off the Soundbar.

● The connected Bluetooth device will wait a certain amount of time for a response from the Soundbar before

terminating the connection. (Disconnection time may differ, depending on the Bluetooth device)

● In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Soundbar

and the Bluetooth device exceeds 5m.

● The Soundbar automatically turns off after 25 minutes in the Ready state.

More About Bluetooth

Bluetooth is a technology that enables Bluetooth-compliant devices to interconnect easily with each other using a

short wireless connection.

● A Bluetooth device may cause noise or malfunction, depending on usage, when:

- A part of your body is in contact with the receiving/transmitting system of the Bluetooth device or the

- It is subject to electrical variation from obstructions caused by a wall, corner, or office partition.

- It is exposed to electrical interference from same frequency-band devices including medical equipment,

microwave ovens, and wireless LANs.

● Pair the Soundbar with the Bluetooth device while they are close together.

● The further the distance between the Soundbar and Bluetooth device, the worse the quality is.

If the distance exceeds the Bluetooth operational range, the connection is lost.

● In poor reception areas, the Bluetooth connection may not work properly.

● The Bluetooth connection only works when it is close to the unit. The connection will be automatically cut off if the

Bluetooth device is out of range. Even within range, the sound quality may be degraded by obstacles such as

● This wireless device may cause electric interference during its operation.

TV SOUNDCONNECT You can enjoy TV sound through your Soundbar when it is connected to a Samsung TV that supports the TV SoundConnect function.

+ Connecting a TV to the Soundbar

1. Turn on the TV and Soundbar.

• Turn on the menu of the TV.

• Move to Speaker Settings on "Sound" tab.

• Set the "Add New Device" menu to "On".

(Function) button on the main unit’s top panel or the SOURCE button on the remote control to

3. On the TV, a message asking whether to enable the TV SoundConnect function appears. "[Samsung] Soundbar"

is also displayed on the TV screen.

4. Select <Yes> to finish connecting the TV and Soundbar using the TV's remote control.

● Switching the Soundbar’s mode from TV to another mode automatically terminates TV SoundConnect.

● To connect the Soundbar to another TV, the existing connection must be terminated.

● Terminate the connection to the existing TV, and then press the

button on the remote control for 5

seconds to connect to another TV.

● The TV SoundConnect (SoundShare) function is supported by some Samsung TVs released from 2012 on.

Check whether your TV supports the TV SoundConnect (SoundShare) function before you begin.

(For further information, refer to the TV’s user manual.)

● If your Samsung TV was released before 2014, check the SoundShare setting menu.

● If the distance between the TV and Soundbar exceeds 5m, the connection may not be stable or the audio

may stutter. If this occurs, relocate the TV or Soundbar so that they are within operational range, and then

re-establish the TV SoundConnect connection.

● TV SoundConnect Operational Ranges:

- Recommended pairing range: within 50cm

- Recommended operational range: within 5m

● The Play/Pause, Next, and Prev buttons on the Soundbar or Soundbar's remote do not control the TV.

+ Using the Bluetooth POWER On function

The Bluetooth POWER On function is available after you have successfully connected the Soundbar to a Bluetooth

compatible TV using TV SoundConnect. When the Bluetooth POWER On function is ON, turning the connected TV on

or off will turn the Soundbar's power on and off as well.

1. Connect the TV to your Soundbar using the TV SoundConnect function.

2. Press the Bluetooth POWER button on the Soundbar remote. BLUETOOTH POWER ON appears on the

• BLUETOOTH POWER ON : The Soundbar turns on and off when you turn the TV on or off.

• BLUETOOTH POWER OFF : The Soundbar only turns off when you turn the TV off.

● This function is supported by some Samsung TVs released from 2013 on.

HW-H7500_H7501_XU_ENG_20141113.indd 22HW-H7500_H7501_XU_ENG_20141113.indd 22 2014-11-14  11:59:222014-11-14  11:59:2223

ENG FUNCTIONS USB You can play music files located on USB storage devices through the Soundbar.

1. Connect the USB device to the USB port on the

back of the product.

(Function) button on the main unit’s

top panel or the SOURCE button on the remote

control to select the USB mode.

3. USB appears on the display screen.

• The Soundbar connection to the USB device is

• The Soundbar automatically turns off (Auto

Power Off) if no USB device has been connected

for more than 25 minutes.

+ Before you connect a USB device

Be aware of the following:

● If the file name of a file or folder on a USB device

exceeds 10 characters, it is not displayed on the

● This product may not be compatible with certain

types of USB storage media.

● The Soundbar supports the FAT16 and FAT32 file

- The NTFS file system is not supported.

● Connect USB devices directly to the USB port of the

product. Otherwise, you may encounter a USB

compatibility problem.

● Do not connect multiple storage devices to the

product via a multi-card reader. It may not operate

● Digital camera PTP protocols are not supported.

● Do not remove the USB device while it is transferring

● DRM-protected music files (MP3, WMA) from

commercial web sites cannot be played.

● External HDDs are not supported.

● Mobile phone devices are not supported.

● File Format Type Compatibility list:

● If there are too many folders and files stored

in the USB device, reading may take some

HW-H7500_H7501_XU_ENG_20141113.indd 23HW-H7500_H7501_XU_ENG_20141113.indd 23 2014-11-14  11:59:222014-11-14  11:59:2224

FUNCTIONS SOFTWARE UPDATE AUX I N O P T I C A L I N HDMI I N HDMI O UT

Samsung may offer updates for the Soundbar's system

firmware in the future.

If an update is offered, you can update the firmware by

connecting a USB device with the firmware update

stored on it to the USB port on your Soundbar.

Note that if there are multiple update files, you must load

them onto the USB device singly and use them to

update the firmware one file at a time.

Please visit samsung.com or contact the Samsung call

centre to receive more information about downloading

● I nsert a USB device containing the firmware

update into the USB port on the main unit.

● Updating firmware may not work properly if

audio files supported by the Soundbar are

stored in the USB storage device.

● Do not disconnect the power or remove the

USB device while updates are being applied.

The main unit will turn off automatically after

completing the firmware update.

● After the update, all settings are reset to their

factory default settings. We recommend you

write down your settings so that you can

easily reset them after the update. Note that

updating firmware resets the subwoofer

connection too. If connection to the

subwoofer is not re-established automatically

after the update, refer to page 15.

If the firmware fails to update, we recommend

formatting the USB device in FAT16 and

● Once the software update is completed, turn

off the product and then press and hold the

) button on the remote control for more

than 5 seconds. “INIT” appears on the

display and the unit is powered off. The

updgrade is complete.

● Do not format the USB device in the NTFS

format. The Soundbar does not support the

● Depending on the manufacturer, some USB

devices may not be supported.

AUTO POWER LINK If you have connected the main unit to a TV with a

digital optical cable, set the Auto Power function ON

to have the Soundbar turn on automatically when you

1. Connect the Soundbar and an External Device with

(Function) button on the main unit’s

top panel or the SOURCE button on the remote

control to select the

3. Press the Anynet+ button on the remote control

to toggle the Auto Power Link function on and off.

● Depending on the connected device, Auto

Power Link may not function.

HW-H7500_H7501_XU_ENG_20141113.indd 24HW-H7500_H7501_XU_ENG_20141113.indd 24 2014-11-14  11:59:222014-11-14  11:59:2225

ENG TROUBLESHOOTING TROUBLESHOOTING Before requesting service, please check the following.

The unit will not turn on.

• Is the power cord plugged into the outlet?  Connect the power plug to the outlet.

A function does not work when the button is pressed.

• Is there static electricity in the air?  Disconnect the power plug and connect it again.

Sound is not produced.

• Is the Mute function on?

• Is the volume set to minimum?

( Mute) button to cancel the function.

 Adjust the Volume.

The remote control does not work.

• Are the batteries drained?

• Is the distance between the remote control and main

 Replace with new batteries.

 Move closer to the unit.

The TV SoundConnect (TV pairing) failed.

• Does your TV support TV SoundConnect?

• Is your TV firmware the latest version?

• Does an error occur when connecting?

• Reset the TV mode and connect again.

 TV SoundConnect is supported by some Samsung

TVs released from 2012 on. Check your TV to see if it

supports TV SoundConnect.

 Update your TV with the latest firmware.

 Contact the Samsung call centre.

 Press and hold the

button for 5 seconds to reset

the TV SoundConnect connection.

The red LED on the subwoofer blinks and the subwoofer is not producing sound.

• Your subwoofer may not be connected to the main

body of the product.

 Try to connect your subwoofer again.

The subwoofer drones and vibrates noticeably.

• Try to adjust the vibration of your subwoofer.  Press the EQUALIZER WOOFER button on your

remote control to adjust its value (between SW-6 and

Operating Temperature Range

+5 °C to +35 °C Operating Humidity Range

AMPLIFIER Rated Output

160W, 3ohm, THD=10%, 100Hz

65 dB Separation (1kHz)

* S/N ratio, distortion, separation, and usable sensitivity are based on measurements using AES (Audio Engineering

Society) guidelines.

* Nominal specification

- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.

- Weight and dimensions are approximate.

- For the power supply and Power Consumption, refer to the label attached to the product.

a Open Source Licence Notice

- To send inquiries and requests regarding open sources, contact Samsung via Email

(oss.request@samsung.com).

Hereby, Samsung Electronics, declares that this equipment is in compliance with the essential requirements and other

relevant provisions of Directive 1999/5/EC.

The original Declaration of Conformity may be found at http://www.samsung.com, go to Support > Search Product

Support and enter the model name.

This equipment may be operated in all EU countries.

HW-H7500_H7501_XU_ENG_20141113.indd 26HW-H7500_H7501_XU_ENG_20141113.indd 26 2014-11-14  11:59:232014-11-14  11:59:23Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care

[Correct disposal of batteries in this product]

(Applicable in countries with separate collection systems)

This marking on the battery, manual or packaging indicates that the

batteries in this product should not be disposed of with other household

waste at the end of their working life. Where marked, the chemical

symbols Hg, Cd or Pb indicate that the battery contains mercury,

cadmium or lead above the reference levels in EC Directive 2006/66.

If batteries are not properly disposed of, these substances can cause

harm to human health or the environment.

To protect natural resources and to promote material reuse, please

separate batteries from other types of waste and recycle them through

your local, free battery return system.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that

the product and its electronic accessories (e.g. charger, headset,

USB cable) should not be disposed of with other household waste at

the end of their working life. To prevent possible harm to the

environment or human health from uncontrolled waste disposal,

please separate these items from other types of waste and recycle

them responsibly to promote the sustainable reuse of material

Household users should contact either the retailer where they

purchased this product, or their local government office, for details of

where and how they can take these items for environmentally safe

Business users should contact their supplier and check the terms and

conditions of the purchase contract. This product and its electronic

accessories should not be mixed with other commercial wastes for

(+30) 210 6897691 from mobile and land

www.samsung.com/ro/support

3 INFORMATIONS RELATIVES

AU X I N OPTIC AL IN H DMI INHDMI OUT (

FONCTIONS SOFTWARE UPDATE AUX I N O P T I C A L I N HDMI I N HDMI O UT

(+30) 210 6897691 from mobile and land

www.samsung.com/ro/support

Surround Sound Expansion

Surr.Sound (Surround Sound Expansion)

AU X I N OPTIC AL IN H DMI INHDMI OUT (

20W/CH, 8 OHM, THD = 10%,

160W, 3 OHM, THD = 10%,

(+30) 210 6897691 from mobile and land

www.samsung.com/ro/support

Surr.Sound (Espansione audio surround)

AU X I N OPTIC AL IN H DMI INHDMI OUT (

160W, 3 OHM, THD = 10%, 100Hz

AES (Audio Engineering Society).

(+30) 210 6897691 from mobile and land

www.samsung.com/ro/support

Surround Sound Expansion

AU X I N OPTIC AL IN H DMI INHDMI OUT (

160W, 3 OHM, THD = 10%, 100Hz

(+30) 210 6897691 from mobile and land

www.samsung.com/ro/support

AU X I N OPTIC AL IN H DMI INHDMI OUT (

160W, 3 OHM, THD = 10%, 100Hz

(+30) 210 6897691 from mobile and land

www.samsung.com/ro/support

AU X I N OPTIC AL IN H DMI INHDMI OUT (

160W, 3 OHM, THD = 10%, 100Hz

(+30) 210 6897691 from mobile and land

www.samsung.com/ro/support

AU X I N OPTIC AL IN H DMI INHDMI OUT (

(+30) 210 6897691 from mobile and land

www.samsung.com/ro/support

SPORTS, CINEMA, SMART VOLUME, in STANDARD – odvisno od

AU X I N OPTIC AL IN H DMI INHDMI OUT (

160W, 3 OHM, THD = 10%, 100Hz

(+30) 210 6897691 from mobile and land

www.samsung.com/ro/support

Surround Sound Expansion

AU X I N OPTIC AL IN H DMI INHDMI OUT (

160W, 3 OHM, THD = 10%, 100Hz

(+30) 210 6897691 from mobile and land

www.samsung.com/ro/support

Surr.Sound (Surround Sound Expansion)

AU X I N OPTIC AL IN H DMI INHDMI OUT (

160W, 3 OHM, THD = 10%, 100Hz

directive AES (Audio Engineering Society).

Directivei 1999/5/EC.

(+30) 210 6897691 from mobile and land

www.samsung.com/ro/support

VOICE, SPORTS, CINEMA, SMART VOLUME, и STANDARD в

AU X I N OPTIC AL IN H DMI INHDMI OUT (

A U X I N OP TICAL I N H D MI IN H DM I OUT

AUX IN O P T I C A L I N HDMI I N HDMI O UT

160W, 3 OHM, THD = 10%, 100Hz

(+30) 210 6897691 from mobile and land

www.samsung.com/ro/support

AU X I N OPTIC AL IN H DMI INHDMI OUT (

(+30) 210 6897691 from mobile and land

www.samsung.com/ro/support

Surr.Sound (Surround Sound Expansion (Proširenje surround

AU X I N OPTIC AL IN H DMI INHDMI OUT (

160W, 3 OHM, THD = 10%, 100Hz

(+30) 210 6897691 from mobile and land

www.samsung.com/ro/support
