USER MANUAL Soup Blender PRINCESS

Safety instructions General safety Read the manual carefully • before use. Keep the manual for future reference. If you ignore the safety • instructions, the manufacturer cannot be hold responsible for the damage. Only use the appliance and • the accessories for their intended purposes. Do not use the appliance and the accessories for other purposes than described in the manual. Do not use the appliance if • any part or any accessory is damaged or defective. If a part or an accessory is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent. The appliance can be used by • children from 8 years and above and by persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge if they are supervised or instructed on how to use the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and maintenance shall not be made by children unless they are older than 8 years and supervised. Keep the appliance and the mains cable out of the reach of children younger than 8 years. Do not use the appliance • near bathtubs, showers, basins or other vessels containing water. Do not immerse the • appliance in water or other liquids. If the appliance is immersed in water or other liquids, do not remove the appliance with your hands. Immediately remove the mains plug from the wall socket. If the appliance is immersed in water or other liquids, do not use the appliance again. Clean the appliance and the • accessories. Refer to the section "Cleaning and maintenance". Electrical safety Before use, always check that • the mains voltage is the same9

as the voltage on the rating plate of the appliance. The appliance is not intended • to be operated by means of an external timer or separate remote-control system. Connect the appliance to an • earthed wall socket. If necessary, use an earthed extension cable of a suitable diameter (at least 3 x 1 mm

For additional protection, • install a residual current device (RCD) with a rated residual operating current that does not exceed 30 mA. Do not immerse the connector • in water or other liquids. Make sure that water cannot • enter the contact plugs of the mains cable and the extension cable. Always fully unwind the mains • cable and the extension cable. Make sure that the mains • cable does not hang over the edge of a worktop and cannot be caught accidentally or tripped over. Keep the mains cable away • from heat, oil and sharp edges. Do not use the appliance if • the mains cable or the mains plug is damaged or defective. If the mains cable or the mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent. Do not pull the mains cable • to disconnect the mains plug from the mains. Disconnect the mains plug • from the mains when the appliance is not in use, before assembly or disassembly and before cleaning and maintenance. Safety instructions for soup makers The appliance is suitable for • domestic use only. Do not use the appliance • outdoors. Place the appliance on a • stable and flat surface. Place the appliance on a • heat-resistant and splash- proof surface. Make sure that there is • sufficient space around the appliance to allow heat to escape and provide sufficient ventilation. Do not cover the appliance.•10

Make sure that the appliance • does not come into contact with flammable material. Keep the appliance away • from heat sources. Do not place the appliance on hot surfaces or near open flames. Do not use the appliance • with an empty jug. Always mount the motor • unit before switching on the appliance. Make sure that your hands • are dry before touching the appliance. Beware of hot parts. Wait • until the appliance has cooled down before touching the housing and the parts of the appliance. The appliance becomes hot during use. Be careful with hot water • and steam to avoid burns. Beware of sharp parts. Keep • your hands away from the moving parts during use and during cleaning and maintenance. The appliance uses a sharp blade. Be extra careful during • cleaning and maintenance. Be extra careful when emptying the jug. Be extra careful when handling the sharp blade. Do not move the appliance • while it is switched on. Do not leave the appliance • unattended during use. Store the appliance in a dry • place when not in use. Make sure that children do not have access to stored appliances. Cleaning and maintenance Warning! - Before cleaning or maintenance, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down. - Do not immerse the appliance in water or other liquids. Do not immerse the accessories in water or other liquids. - Always be careful when cleaning the blade. The blade is very sharp. Risk of personal injury. Caution! - Do not use aggressive or abrasive cleaning agents to clean the appliance. - Do not use sharp objects to clean the appliance. - Do not use scouring pads to clean the appliance. - Do not clean the appliance and the accessories in the dishwasher. Regularly check the appliance for possible • damage. Clean the motor unit after each use:• - Clean the upper part of the motor unit with a soft, damp cloth. - Clean the blade and the overflow sensor under running water11

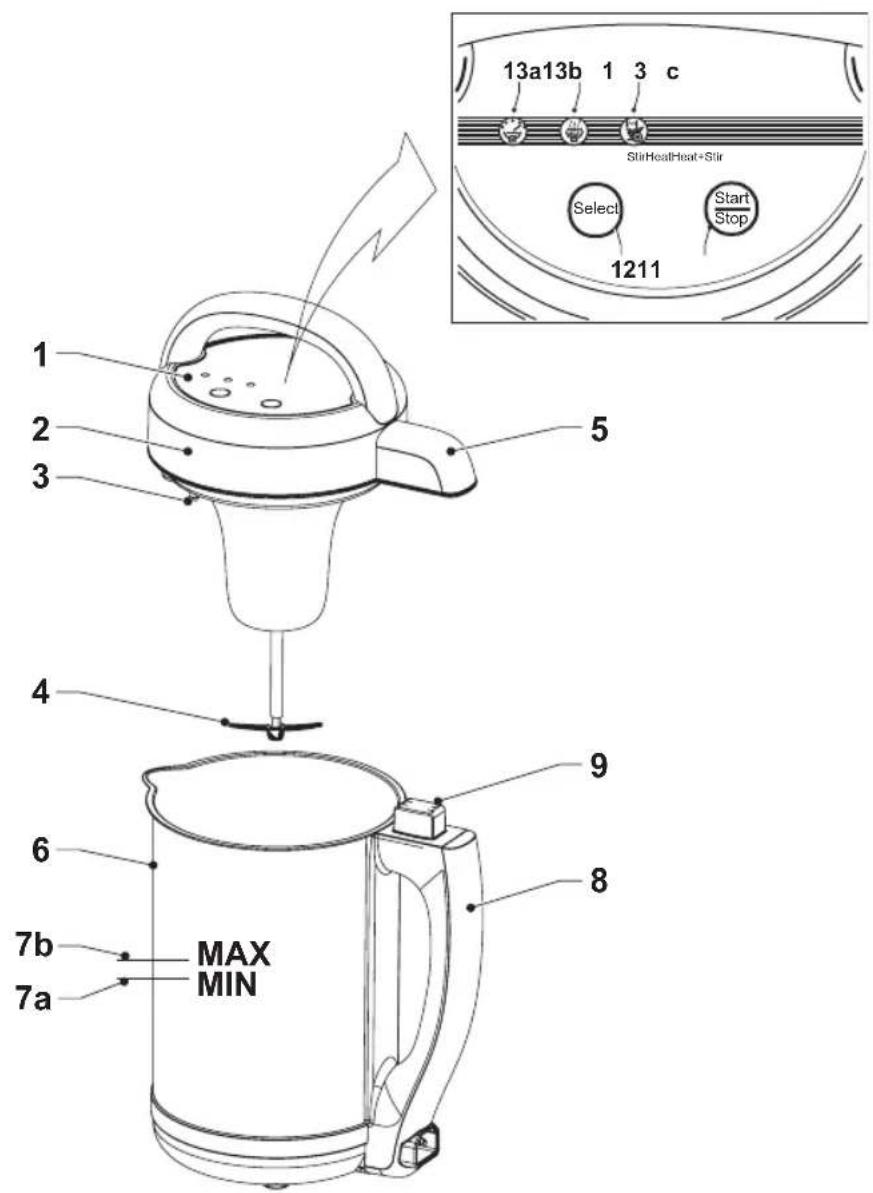

- Thoroughly dry the motor unit with a clean, dry cloth. Clean the jug after each use:• - Clean the outside of the jug with a soft, damp cloth. - Clean the inside of the jug under running water. If necessary, use a soft brush. - Thoroughly dry the jug with a clean, dry cloth. Description (fig. A) Your 212040 Princess soup maker has been designed for making soups. The appliance is suitable for indoor use only. The appliance is suitable for domestic use only. Fig. A1

13a. Heating/blending indicator ("HEAT+STIR") 13b. Heating indicator ("HEAT") 13c. Blending indicator ("STIR") Use Setting the program (fig. A) Press the program selection button (12) 1x • to heat and blend the ingredients. The heating/blending indicator (13a) comes on. The process takes approximately 25 minutes. (Note: The appliance first heats the ingredients, but does not directly start blending the ingredients.) Press the program selection button (12) 2x • to heat the ingredients. The heating indicator (13b) comes on. The process takes approximately 35 minutes. Press the program selection button (12) 3x • to blend the ingredients. The blending indicator (13c) comes on. The process takes approximately 60 seconds. Hints for use (fig. A) Warning! - Before assembly or disassembly, switch off the appliance, remove the mains plug from the wall socket and wait until the appliance has cooled down. - Always make sure that the ingredients are between the minimum level indicator ("MIN") and the maximum level indicator ("MAX"). - Do not switch on the appliance when the jug is empty. - Do not overload the appliance. If the motor stops, immediately switch off the appliance, remove the mains plug from the wall socket and allow the appliance to cool down. Prepare the ingredients. Make sure that • the ingredients fit in the jug. Place the jug (6) on a stable and flat • surface. Put the ingredients into the jug (6).• Mount the motor unit (2) onto the jug (6).• Insert the mains plug into the wall socket.• Set the program. Refer to the section • "Setting the program". The corresponding program indicator (13) comes on. Press the start/stop button (11) to start the • process. To interrupt the process, press the start/• stop button (11) again. If the process is completed, the appliance • will beep. The corresponding program indicator (13) starts flashing. Press the start/stop button (11) to stop the • process. Remove the mains plug from the wall • socket. Allow the appliance to cool down • completely.12
