USER MANUAL Aeris 124 HSCB SWISSVOICE

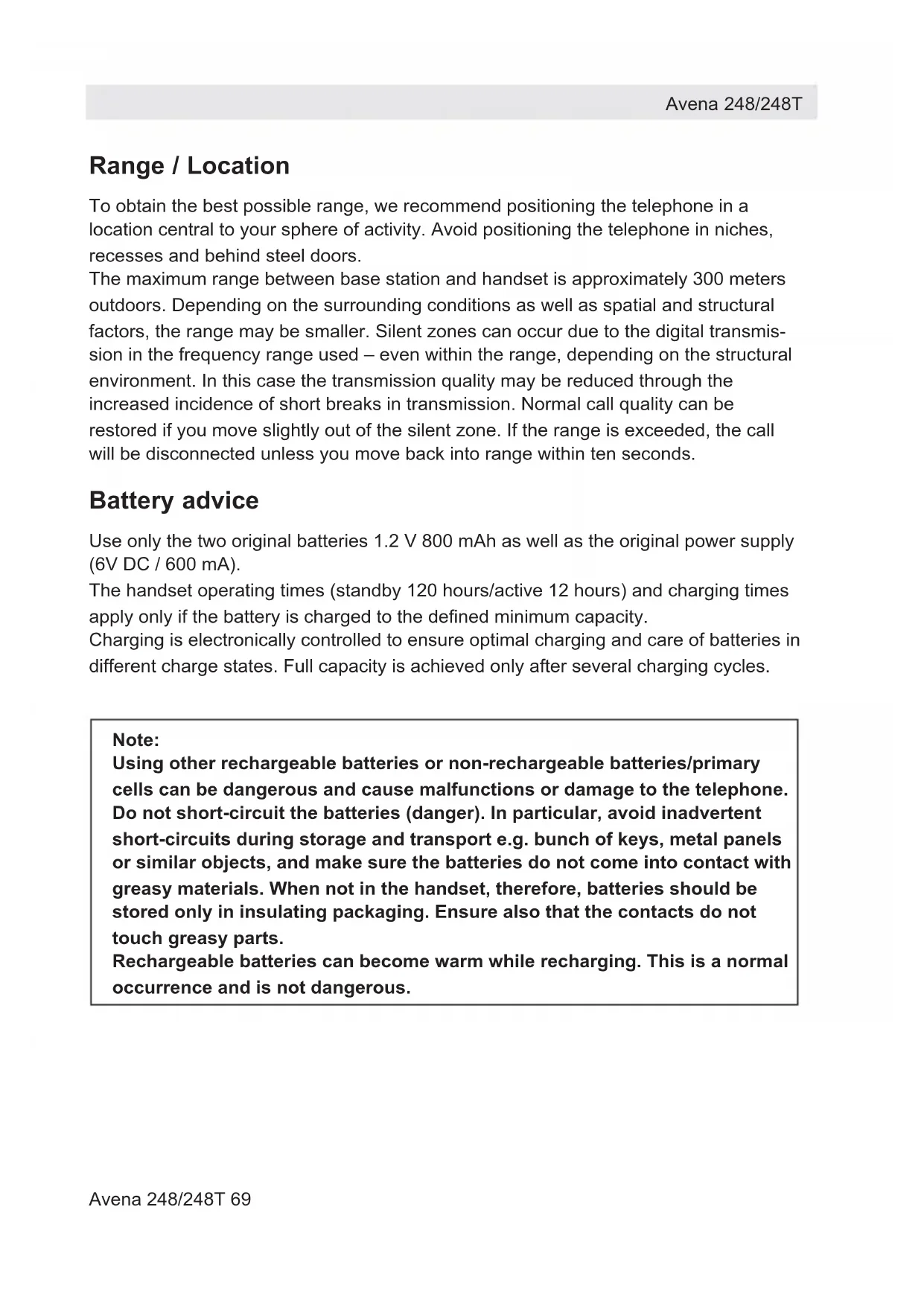

3Avena 248/248T Avena 248/248T 69 Range / Location To obtain the best possible range, we recommend positioning the telephone in a location central to your sphere of activity. Avoid positioning the telephone in niches, recesses and behind steel doors. The maximum range between base station and handset is approximately 300 meters outdoors. Depending on the surrounding conditions as well as spatial and structural factors, the range may be smaller. Silent zones can occur due to the digital transmis- sion in the frequency range used – even within the range, depending on the structural environment. In this case the transmission quality may be reduced through the increased incidence of short breaks in transmission. Normal call quality can be restored if you move slightly out of the silent zone. If the range is exceeded, the call will be disconnected unless you move back into range within ten seconds. Battery advice Use only the two original batteries 1.2 V 800 mAh as well as the original power supply (6V DC / 600 mA). The handset operating times (standby 120 hours/active 12 hours) and charging times apply only if the battery is charged to the defined minimum capacity. Charging is electronically controlled to ensure optimal charging and care of batteries in different charge states. Full capacity is achieved only after several charging cycles. Note: Using other rechargeable batteries or non-rechargeable batteries/primary cells can be dangerous and cause malfunctions or damage to the telephone. Do not short-circuit the batteries (danger). In particular, avoid inadvertent short-circuits during storage and transport e.g. bunch of keys, metal panels or similar objects, and make sure the batteries do not come into contact with greasy materials. When not in the handset, therefore, batteries should be stored only in insulating packaging. Ensure also that the contacts do not touch greasy parts. Rechargeable batteries can become warm while recharging. This is a normal occurrence and is not dangerous.Connecting the phone

• Before you can start using your telephone you must plug in the telephone connector cable and the mains cable.

• Insert the batteries in the battery compartment. Make sure the polarity is correct.

• To charge the batteries, insert the handset in the base station. The animated battery symbol on the handset signals the charging procedure. The batteries will take around 24 hours to fully charge (initial charge). Display symbols Symbol is displayed when the handset is within range of the base station. Keypad locked. Ringer switched off. Alarm set. Handsfree/loudspeaker activated. Call in progress. Battery charge indicator. New SMS message. New call(s) in the calls list. Only Avena 248T: Answer machine on. Set language To change the language:

HS Settings ) and press OK.

• Scroll through the list using π/†. Press the navigation key †.

• Enter date and time and press OK.

• Press the Talk key. End the call Press the End call key. Accepting a call

• Incoming calls are signalled by a ring tone on the handset.

• Press the Talk key and conduct your conversation. End the call Press the End call key. Switch ringer off Press the softkey under QuietMode. The ringer is switched off for this call. Please note that when handsfree speaking is activated, call partners should speak alternately and avoid speaking simultaneously. This telephone sup- presses the first call signal in order to evaluate the incoming number signal and verify whether the number is stored in the phonebook. Calls cannot be made if the battery is almost discharged or the handset is out of range of the base station. Avena 248/248T Avena 248/248T 71Set speaker/loudspeaker volume You can adjust the speaker/loudspeaker volume during a conversation (5 levels available). Select the desired volume during a conversation using the navigation keys

Switch handset off Press and hold the End call key (approx. 3 sec). The handset is switched off. Press and hold again the End call key to reactivate the handset. Redial The Redial list contains up to 50 entries. Press the navigation key π and select the desired entry using π/†. Press the Talk key. Mute the handset microphone (secrecy) You can temporarily mute the handset microphone to talk to someone else in the room without the caller hearing. Press the softkey under Secrecy. Keypad lock Activate keypad lock

• Press the Hash key approx. 2 sec. Deactivate keypad lock

• Press again the Hash key approx. 2 sec. Paging – Locate mislaid handsets All registered handsets ring for one minute, when the Paging key on the base is pressed. To stop the ring press the End call key on the handset or the Paging key on the base. Phonebook You can store up to 200 names and numbers in the phonebook. Names can be up to 16 letters long and numbers up to 24 digits. You can combine different numbers in groups with the same ringer melody. Avena 248/248T 72 Avena 248/248TDigits / Characters Different characters are printed on each key. The entries in the phonebook are sorted alphabetically. Key 1 Insert a space. Key 0 Press and hold key to insert a pause inside a phone number (“P” appears). Add new entries in the phonebook

• Press the softkey under Names.

• Select New entry and press OK.

• Enter the desired name and press the navigation key † for further input options.

• Press OK to save the entry. Edit phonebook

• Press the softkey under Names.

• Select the desired entry using the navigation keys π/† or enter the first letter of the name.

• Press the Talk key to call the number or press the softkey under Options and select a function from the list: - Call number - Edit entry - View entry - View additional information of the selected entry. - SIM copy - Copy entries from/to the SIM card (function only available with TAM unit). - Delete / Delete all - Capacity - View the number of free space. - Edit call group - Modify the group names. - Speed dial - Allocate directory entries to numerical keys 2 to 9: Select a key in the list, press OK. Select the desired directory entry, press OK. Avena 248/248T Avena 248/248T 73Avena 248/248T 74 Avena 248/248T Shared phonebook The shared phonebook can contain up to 10 entries. Any handset registered to the base can use the shared phonebook. On delivery of your Avena 248/248T the shared phonebook is empty.

• Select the desired entry using the navigation keys

• Press softkey Options.

• Select Edit entry and press OK.

• Enter the name and press OK.

• Enter the number including the area code and press OK. To call a number from the shared phonebook:

• Select the desired entry using the navigation keys

• Press the Talk key. The number is called. SIM card (function only available with TAM unit) Copying to the SIM card You can copy entries from your mobile phone SIM card to your telephone (and vice versa). Copied entries are added to entries already saved. Copying from the SIM card

• Insert the SIM card in the SIM card reader on the base station.

• Press the softkey under Names, followed by Options.

• Scroll to SIM Copy and press OK to confirm.

Phone to SIM and copy individual entries or all entries. If you choose to copy only individual entries, a confirmation message is dis- played. You can now copy additional entries. If the entire directory is to be copied, every entry is displayed and copied until the procedure is completed or the directory is full. If you enter a SIM card PIN incorrectly twice in succession, an error message is displayed and the telephone returns to standby mode.Calls list The caller’s number is displayed on the handset. The calls list can contain up to 50 entries. New calls are displayed by . Call a number from the calls lists

• Press the navigation key † and select the desired entry using the navigation keys

• Press the Talk key, the number is dialled or press the softkey under Options and select a function from the list. Edit calls list

• Press the navigation key †.

• Select Settings using the navigation keys π/† and press OK.

• Select a function from the list and press OK: Calls list type All calls or only missed calls are saved in the calls list. New call alert A sound is emitted when you have new calls in the calls list. SMS – Short Messaging Service You can receive, save and send SMS messages with your Avena 248/248T. Your telephone supports SMS messages up to 612* characters in length. You can save up to 40 SMS messages. When receiving a new SMS message New SMS and the symbol ist displayed. To use this function, the caller's number must be transmitted (CLIP). Contact your network operator for further information. If the caller's number is suppressed, only Withheld is displayed. If the number is not available for other reasons External call appears. For both situations, the call is not entered in the call list. Avena 248/248T Avena 248/248T 75

• Select the desired SMS message. Press Read.

• You can now read the message. Press Options.

• Select a function from the list.

• Press OK and follow the instructions on the display. Write and send SMS messages

• Press Menu, select SMS and press OK.

• Select Write Message and press OK.

• Enter the text using the keypad. Key 1 Enter a space Key Commutation between upper and lower case (Abc/abc/Abc).

• Press the softkey under Options. Select a function from the list. Press OK.

• Enter the destination number with the exchange access number or press the softkey under Options, to get a number from the phonebook.

• Press Send. Service centres Before you can send and receive SMS messages, an SMS service centre must be pro- grammed on your Avena 248/248T with the associated access number. You can pro- gram max. 4 SMS centers. Set service centers

• Press Menu, select SMS and press OK.

• Select Settings and press OK.

• Select SMS Centre and press OK.

• Select the desired center and press OK.

• Enter the associated service center number and press OK. Sending and receiving SMS messages is a network function. To send and receive SMS messages, your telephone line must have active Caller Identification Presentation* (CLIP). Check with your network operator to find out whether the SMS network function is available and about charges, if applicable. Avena 248/248T 76 Avena 248/248T• Send Service designates which service centre you want to use for sending the next SMS message. New SMS alert If activated, a brief beep is heard every time a new SMS message is received.

• Press Menu, select SMS and press OK.

• Select Settings and press OK.

• Select New SMS Alert and press OK.

• Select a function from the list using the navigation keys †/π and press OK. - Ringer - Select the melody and volume for your handset ringers. - Tones - Select the tones for Key Tone (every time a key is pressed, a brief beep is heard), Confirmation Tone, Low Battery Tone and Out of Range (sounds when max. range is exceeded). Settings

• Press Menu, select Settings and press OK.

• Select a function from the list using the navigation keys †/π and press OK. - Date & Time - See page 71. - Alarm - The activated alarm is displayed in standby mode by . The alarm sounds for 30 seconds or can be deactivated immediately by pressing the softkey under Stop. - Display

Handset name - To better distinguish between handsets, you can give each handset a name.

• Select HS Settings and press Select.

• Select a function from the list using the navigation keys †/π and press OK. Please note: the default Send Center is SMS Center 1. Avena 248/248T Avena 248/248T 77- Select Base - Select the desired base station. - Language - Select the desired display language. - Auto Answer - Just pick up the handset from the base to answer a call (without pressing any key). - Register - Accessory handsets must be registered to the base station (see chapter “Register new handsets”). - De-register - Select the handset you want to deregister. - Reset handset Base station settings

• Press Menu, select Settings and press OK.

• Select BS Settings and press Select.

• Select a function from the list using the navigation keys †/π and press OK. - Ringer - Select the ringer melody and volume for the base. - Ring Priority - If several handsets are registered to your base station, all handsets ring at the same time. You can select a single handset to ring first and assign the number of rings (2, 4, 6 or 8 rings). - Dial Mode - Tone: Normal dialling procedure on analog lines. Pulse: May be required for connecting older telephone systems. Please refer to the relevant documentation. - Flash Time - Select the flash time for the analogue network functionalities in your country (100 ms in Switzerland). - System PIN - You can modify the PIN code (0000 on delivery). - PBX Access Code - If you are connected to a PBX, you may need to enter an access code to allow the public exchange to assign an external line for external calls. - Manual ECO Mode - Select the desired ECO Mode range (big/small room). - Full ECO Mode - When Full ECO Mode is set to ON, the handset’s power trans- mission is regulated and a radiation reduction is achieved when it is near the base station. - Reset base Avena 248/248T 78 Avena 248/248TExtending the Avena 248/248T The delivered handset is already registered on to base station. In standby the internal number of the handset is displayed. You can register up to 5 handsets to your base station. If you register your Avena 248/248T handset with a "third party" base station or a "third party" handset on your Avena 248/248T base station (GAP), you may not be able to use some functions or only to a limited extent. Register new handsets Accessory handsets must be registered to the base station.

• Press Menu, select Settings press OK.

• Select HS Settings and press OK.

• Select Register and press OK.

• Select the desired base station. Press OK.

• Enter the system PIN (0000 on delivery). Press OK.

• Press and hold the paging key on the base station.

• If the registration is successful you will hear a confirmation signal. Telephoning with several call partners During a call you can make a second internal call (enquiry call), switch between call partners (brokering) or simultaneously converse (3-way conference call) without the need for two telephone lines. Internal conversation / Internal call

• Select the desired internal party using the navigation keys and press OK. If you receive an external call while you are on the phone to an internal call partner, you will hear an incoming call alert. End the internal call by pressing the End call key. Press the Talk key. You are connected to the external party. Avena 248/248T Avena 248/248T 79Call transfer to another handset You are conducting an external call and you want to transfer it to another handset.

• Call the desired internal party (see above).

• Press the End call key to transfer the call to the other handset. Brokering / Conference Use the softkeys displayed: Switch - Switch between two call parties. Conf - Set up a three-way conference with 2 call parties. Single - End conference call, back to initial call. End - Leave conference call. The remaining call partners are automatically connected with each other. Answer machine (Aeris 248T only) Your Aeris 248T features an integrated digital answer machine with a max. recording capacity of 15 minutes. You can operate your answer machine from the base and from any handset registered to the base. On delivery the answer machine is ready to use. Switch answer machine on/off Press key on the base station to switch the answer machine on or off. Two dashes are displayed when the answer machine is switched off. Flashing dashes when answer machine is switched on = date and time are not set. Switch on the answer machine from the handset

• Press Menu, select Answer Machine and press OK.

• Select Answer On/Off and press OK.

• Select the desired setting using the navigation keys †/π and press OK. Avena 248/248T 80 Avena 248/248TOutgoing message You can select 2 operating modes:

• Answer & record: Callers can leave a message.

• Answer only: Callers cannot leave a message. Your answer machine comes with two standard pre-recorded outgoing messages. You can replace the standard outgoing message with a personal one (max. 1 minute long).

• Speak your outgoing message into the handset microphone.

• Press the softkey under Save to end recording. The recorded outgoing message is played back. Call Screening Incoming messages are played back over the base station loudspeaker. You can adjust the volume by pressing the keys Vol + / - . Press the left softkey Yes on the handset to listen in. Press the Talk key to answer an incoming call. Operating the answer machine on the base station If you have new messages, the message counter is flashing. The messages are played back beginning with the most recent.

• Press to start playback.

• During playback the following options are available: Key Function Repeat message/return to previous message Skip to next message End playback Delete message during playback Adjust volume Delete all old messages Impossible during playback. Press key twice to delete all old messages. Avena 248/248T Avena 248/248T 81Operating the answer machine from the handset If you have new messages on your answer machine New Message(s) and the symbol appears. The messages are played back beginning with the most recent.

• Press the End call key to end playback. Key Function 2 End playback 4 Repeat message/return to previous message 5 Delete message during playback 6 Skip to next message Deactivate/activate loudspeaker †/π Adjust volume Delete all old messages

• Press Menu, select Answer Machine and press OK.

• Select Delete Msgs and press OK.

• Confirm by pressing the softkey under Yes. Answer machine settings

• Press Menu, select Answer Machine and press OK.

• Select Answer Settings and press OK.

• Select the desired function by pressing the navigation keys †/π and press OK. - Answer Mode - Answer&Record or Answer only mode - Answer Delay - Select 2, 4, 6, 8 rings or Time saver mode - Recording Time - Set the maximum length for incoming message - Call Screening - see page 81. - Activation - Select the desired frequency and the activation time. - Remote Access - Switch remote access on or off If you set the answer delay to Time Saver, your answer machine will answer after 2 rings if you have new messages. If you do not have new messages it will not answer until 6 rings. This enables you to save costs by hanging up before you are connected. Avena 248/248T 82 Avena 248/248TAvena 248/248T Avena 248/248T 83 Memory full The recording capacity of your answer machine is 15 minutes (including outgoing messages). If the memory is full, Memory full! appears on the handset display and

flashes on the base station display. No more messages can be recorded. The answer machine switches to Answer only mode automatically. You must delete old messages. Remote Access / Setting the remote access PIN code Remote operation can only be performed after changing the default remote access PIN code before activating the function. Any 4-digit PIN code is allowed apart from 0000:

• Press Menu, select Answer Machine and press OK.

• Select Answer Settings and press OK.

• Select Remote Access and press OK.

by using the navigation keys †/π and press OK.

• Enter the PIN code (0000 on delivery) and press OK.

• Enter the new PIN code and press OK.

• Enter the PIN code again and press OK. Remote activation of the answer machine

• After 10 rings the TAM automatically answers.

• Enter your remote access PIN code. If the PIN is correct you will hear a confirmation tone.

• If there are new messages, these are played back. Press key 1 to end message playback.

• Press key 0 (off=2 short beeps, on=1 short beep).

• End the call.Remote access the answer machine from an external telephone You can remote access your answer machine from any telephone with DTMF or multifrequency dialling function.

• Press when you hear your outgoing message.

• Enter your remote access PIN code. If the PIN is correct you will hear a confirmation tone.

• All new messages are played back. Press key 1 to end message playback.

• You can now perform a number of functions by entering the relevant digits (see the following table).

• End the call. Key Function 1 End playback 2 Play all messages 3 Play new messages 4 Repeat message/Press twice to return to previous message 5 Delete message during playback 6 Skip to next message 7 Select the answer mode (Answer&Record=2 short beeps, Anwer only=1 short beep). 8 Listen to outgoing message 9 Record a new outgoing message. End recording by pressing #. 0 Switch answer machine on/off (off=2 short beeps, on=1 short beep). Note: If your answer machine doesn't accept the remote access commands, try to press the numerical keys longer or shorter. Your answer machine is sensitive to tone lengths of 0,5 to 1 second. Avena 248/248T 84 Avena 248/248TAppendix Using Internet/cable telephone adapters on an analog port When using an analog telephone on the analog connection of an Internet or cable tele- phone adapter, not all the described features (in particular calling line display) may function in the same way as with a standard analog telephone line. This does not cause the Avena 248/248T to malfunction. Several factors can cause a failure of specific features to function:

• The Internet/cable telephony provider may not provide the function on its Internet/cable telephony connection.

• The adapter used to convert Internet/cable telephony to analog telephony (usually supplied by the provider) may not forward the functions to connected telephones or may forward them in a non-analog format. If this happens, please check the Avena 248/248T on an analog fixed line and/or con- tact your Internet/cable telephony provider. Care Your telephone is a sophisticated product in terms of design and construction, and should therefore be handled with care. To clean the telephone, wipe first with an antistatic cloth or a damp, soft leather cloth and then dry using a dry cloth. Recycling (environmental protection) At the end of the product's life cycle, the telephone must not be disposed of in normal domestic waste. Please take it to a collection point for processing elec- trical and electronic equipment: see symbol on the product, in the user manual and/or packaging. Some materials used in this product can be recycled if you take it to a recycling depot. By recycling parts or raw materials from used products you will be making an important contribution to environmental protection. Please contact your local authority if you require information about collection points in your neighbourhood. Avena 248/248T Avena 248/248T 85Disposing of the rechargeable battery By law, all used batteries and accumulators must be recycled and not disposed of in domestic waste. Please dispose of them according to the official regulations. Take them to a recycling depot. The batteries/accumulators will be recycled since they may, for example, contain nickel cadmium (Ni - Cd), lead (Pb), cadmium (Cd) or mercury (Hg). The batteries and accumulators are labelled with symbols and information on their contents, e.g.: Warranty conditions Your telephone is subject to a guarantee from the date of purchase in accordance with the legal provisions of the country in which the telephone was purchased. As evidence of the date of purchase, please keep the receipt or the warranty card completed by the retailer. All defects attributable to material and manufacturing faults will be corrected free of charge within the warranty period, either by repairing or replacing the defective equipment. The warranty does not cover expendable materials (battery cells), defects which affect the value or use of the equipment only insignificantly, and damage caused by incorrect use, ordinary wear and tear, or manipulation by third parties. This warranty does not cover consequential damage caused by the use, failure or defectiveness of the product. In particular, no liability whatsoever is accepted for dam- age to property and pecuniary loss. To claim under this warranty, please contact the retailer where you purchased your telephone. Warranty information for Germany If the good evinces a defect due to manufacturing or materials faults within 24 months of purchase, please send the entire product including accessories and sales receipt to Swissvoice Service Center Im Frauental 14 92224 Amberg. The Swissvoice Service Center will replace it with and equivalent good or perform a repair. In the case of components subject to wear (e. g. batteries) this period lasts for 6 months from the date of purchase. Avena 248/248T 86 Avena 248/248TTechnical Support telephone number (Germany) For Hotline, repairs, spare parts, technical support and warranty From Monday to Friday from 09:00 AM to 06:00 PM Please call 0180 55 82 888 (Euro 0,14 / Minute) E-mail: support-de@swissvoice.net Approval and conformity This analog telephone DECT complies with the basic requirements contained in the R&TTE Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and is suitable for connection and operation in the member state indicated on the base station and/or packaging. The declaration of conformity may be viewed at: www.swissvoice.net
