Imagine the possibilities Thank you for purchasing this Samsung product.To receive more complete service, please register your product at www.samsung.com/register

Safety Warnings TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPENThis symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.This symbol indicates important instructions accompanying the product. WARNING • To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION • Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.• The Mains plug is used as a disconnect device and shall stay readily operable at any time.• This apparatus shall always be connected to an AC outlet with a protective grounding connection. • To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.CLASS 1 LASER PRODUCTKLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITEKLASS 1 LASER APPARATPRODUCTO LÁSER CLASE 1CLASS 1 LASER PRODUCTThis Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. CAUTION • INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.2 English

Check for the supplied accessories below.

Video Cable FM Antenna

Remote Control/Batteries (AAA

• Ensure that the AC power supply in your house complies with the identification sticker located on the back of your product.

• Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5~10cm).

• Do not place the product on amplifiers or other equipment which may become hot.

Make sure the ventilation slots are not covered.

• Do not stack anything on top of the product.

• Before moving the product, ensure the Disc Insert Hole is empty.

• In order to disconnect the product completely from the power supply, remove the AC plug from the wall outlet, especially when left

unused for a long period of time.

• During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the

• Do not expose the product to direct sunlight or other heat sources. This could lead to overheating and malfunction of the

• Protect the product from moisture, and excess heat or equipment creating strong magnetic or electric fields (i.e.

• Disconnect the power cable from the AC supply if the product malfunctions.

• Your product is not intended for industrial use. Use of this product is for personal use only.

• Condensation may occur if your product or disc has been stored in cold temperatures. If transporting the product during

the winter, wait approximately 2 hours until the product has reached room temperature before using.

• The batteries used with this product contain chemicals that are harmful to the environment.

Do not dispose of batteries in the general household trash.

Cautions on Handling and Storing DiscsSmall scratches on the disc may reduce sound and picture quality or cause skipping.Be especially careful not to scratch discs when handling them. Holding discs • Do not touch the playback side of the disc. • Hold the disc by the edges so that fingerprints will not get on the surface.• Do not stick paper or tape on the disc. Disc Storage • Do not keep in direct sunlight• Keep in a cool ventilated area• Keep in a clean Protection jacket. Store vertically. ✎ NOTE ` Do not allow the discs to become contaminated with dirt. ` Do not load cracked or scratched discs. Handling and Storing Discs If you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.• When cleaning, wipe gently from the inside to the outside of the disc ✎ NOTE ` Condensation may form if warm air comes into contact with cold parts inside the product. When condensation forms inside the product, it may not operate correctly. If this occurs, remove the disc and let the product stand for 1 or 2 hours with the power on.Licence• Dolby and the double-D symbol are registered trademarks of Dolby Laboratories.• ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX,LLC,a subsidiary of Rovi Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for more information and software tools to convert your files into DivX videos.• ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. • DivX Certified® to play DivX® video, including premium content.• DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.• Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274.• HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.• This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.• This product uses some software programs which are distributed under the Independent JPEG Group.• This product uses some software programs which are distributed under the OpenSSL Project.Copyright© 2012 Samsung Electronics Co., Ltd. All rights reserved.Copy Protection• Many DVD discs are encoded with copy protection. Because of this, you should only connect your product directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs. Safety Information4 English

2 2 Safety Warnings3 Precautions3 Accessories4 Cautions on Handling and Storing Discs4 Licence4 Copyright4 Copy Protection GETTING STARTED

7 7 Icons that will be used in manual7 Disc Types and Characteristics10 Description10 Front Panel 11 Rear Panel12 Remote control CONNECTIONS

13 13 Connecting the Speakers16 Connecting the Video Out to your TV18 Connecting the FM Antenna 18 Connecting Audio from External Components SETUP

19 19 Before Starting (Initial Settings)19 Setting the Setup menu20 Display20 TV Aspect20 BD Wise20 Resolution20 HDMI Format20 Video Out Signal21 Audio21 Speaker Setting22 DRC (Dynamic Range Compression)22 AUDIO SYNC23 Speaker Selection23 User EQ23 Audio Return Ch.(ARC)23 System23 Initial Settings23 DivX(R) Registration23 DivX(R) Deactivation24 Language24 Security24 Parental Rating24 Change Password24 Support24 Product InformationENGLISH6 English

34 34 Troubleshooting35 Language code list36 Specifications38 OpenSSL License Contents

• Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.• An administration fee may be charged if eithera. an engineer is called out at your request and there is no defect in the product (i.e. where you have failed to read this user manual) b. you bring the unit to a repair centre and there is no defect in the product (i.e. where you have failed to read this user manual). • The amount of such administration charge will be advised to you before any work or home visit is carried out.6 English English 7 01 Getting Started Getting Started Icons that will be used in manualMake sure to check the following terms before reading the user manual.Icon Term Definition d

DVD This involves a function available with DVD-Video or DVD±R/±RW discs that have been recorded and finalised in Video Mode.

B CD This involves a function available with a data CD (CD DA, CD-R/-RW).

A MP3 This involves a function available with CD-R/-RW discs.

G JPEG This involves a function available with CD-R/-RW discs.

D DivX This involves a function available with MPEG4 discs. (DVD±R/±RW, CD-R/-RW) ! CAUTIONThis involves a case where a function does not operate or settings may be cancelled. ✎

NOTE This involves tips or instructions on the page that help each function operate.Shortcut Key This function provides direct and easy access pressing the button on the remote control.Disc Types and CharacteristicsRegion CodeThe product and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.Disc TypeRegion Code

Area DVD-VIDEO 1 The U.S., U.S. territories and Canada 2 Europe, Japan, the Middle East, Egypt, South Africa, Greenland 3 Taiwan, Korea, the Philippines, Indonesia, Hong Kong 4 Mexico, South America, Central America, Australia, New Zealand, Pacific Islands, Caribbean 5 Russia, Eastern Europe, India, most of Africa, North Korea, Mongolia 6 China8 English

Disc Types and Characteristics

Disc types that can be played Disc Types & Mark (Logo)Recorded Signals CharacteristicsDVD-VIDEOVIDEODVD videoDVD-R/DVD-RW IN DVD video FORMATDVD+R/DVD+RW IN DVD video FORMATAUDIO-CDAUDIO AUDIO CD DivX AUDIO + VIDEOAUDIO CDCD-R/CD-RW in AUDIO CD FORMATDATA CDCD-R/CD-RW in DATA CD FORMAT that contains the following kinds of files and conforms to ISO 9660 LEVEL 1/LEVEL 2, OR JOLIET (EXTENDED FORMAT)-MP3 files-JPEG Image files-MPEG 4 VIDEO filesDATA DVDDVD-ROM/DVD-R/DVD-RW DVD+R/DVD+RW IN DATA DV FORMAT that contains the following kinds of files and conforms to UDF(*Universal Disk Format)-MP3 files-JPEG Image files-MPEG 4 VIDEO filesUSB DeviceUSB Device that contains the following kinds of files.-MP3 FILE OR WMA/WMV files-JPEG Image files-MPEG 4 Video files Do not use the following type of discs! • LD, CD-G, CD-I, CD-ROM, DVD-ROM and DVD-RAM discs cannot be played on this product. If such discs are played, a <WRONG DISC FORMAT> message appears on the TV screen.• DVD discs purchased abroad may not play on this product. If such discs are played, a <Wrong Region. Please check Disc.> message appears on the TV screen. Disc Types And Disc Format This product does not support Secure (DRM) Media files. CD-R Discs • Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition of the disc. • Use a 650MB/74 minute CD-R disc. Do not use CD-R discs over 700MB/80 minutes as they may not be played back.• Some CD-RW (Rewritable) media, may not be playable. • Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you may not be able to fully play the disc. CD-R MP3 Discs • MP3 file names should contain no blank spaces or special characters (. / = +).• Use discs recorded with a compression/decompression data rate greater than 128Kbps.• If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.• For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate (e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.• A maximum of 500 tracks can be played per CD. • A maximum of 300 folders can be played per CD. CD-R JPEG Discs • A maximum of 999 images can be stored on a folder.• When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.• Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.8 English

• Software updates for incompatible formats are not

(Example : QPEL, GMC, resolutions higher than

800 x 600 pixels, etc.)

• If a DVD-R/-RW disc has not been recorded

properly in DVD Video format, it will not be

Supported Formats (DivX)

This product only supports the following media formats.If both

video and audio formats are not supported, the user may

experience problems such as broken images or no sound.

Supported Video Formats

Format Supported Versions

AVI DivX3.11~DivX6.8

Supported Audio Formats

128~384kbps 44.1/48khz

• Aspect Ratio : This product supports up to 720x576

pixels. TV screen resolutions higher than 800 will not

• When you play a disc whose sampling frequency is

higher than 48khz or 320kbps, you may experience

shaking on the screen during playback.

• Sections with a high frame rate might not be played

while playing a DivX file.

• Since this product only provides encoding formats

authorized by DivX Networks, Inc., a DivX file

created by the user might not play.

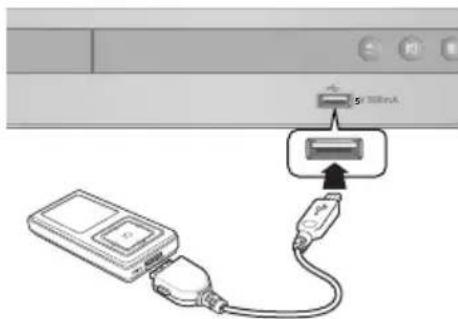

Notes on USB connection

Supported devices: USB storage media, MP3

player, digital camera

1) If a folder or file name is longer than 10

characters, it may not properly display or

2) A subtitle file bigger than 300KB may not be

3) A certain USB/digital camera device, USB card

reader is not supported.

4) FAT16 and FAT32 file systems are supported.

5) Photo (JPEG), music (MP3, WMA) and video file

should have their names in Korean or English.

Otherwise, the file may not played.

6) Connect directly to the product's USB port.

Connecting through another cable may raise

problems with USB compatibility.

7) Inserting more than one memory device to a

multi-card reader may not operate properly.

8) PTP protocol for digital camera is not supported.

9) Do not disconnect USB device during a

10) Bigger the image resolution, the longer the delay

11) DRM applied MP3/WMA or video files

downloaded from a commercial site are not

12) External HDD device is not supported.

13) The maximum current supported by the USB

port for an external device is 500 mA (at 5V DC).

14) Supported file formats FormatStill PictureMusic MovieFile nameJPG MP3 WMA WMV DivXFile extension JPG .JPEG.MP3 .WMA .WMV .AVIBit rate – 80~320 kbps 56~128 kbps 4Mbps 4MbpsVersion– – V8 V1,V2,V3,V7DivX3.11~DivX6.8Pixel640x480– –720x576Sampling Frequency – 44.1kHz 44.1kHz44.1KHz~ 48KHz10 English

Description Front Panel

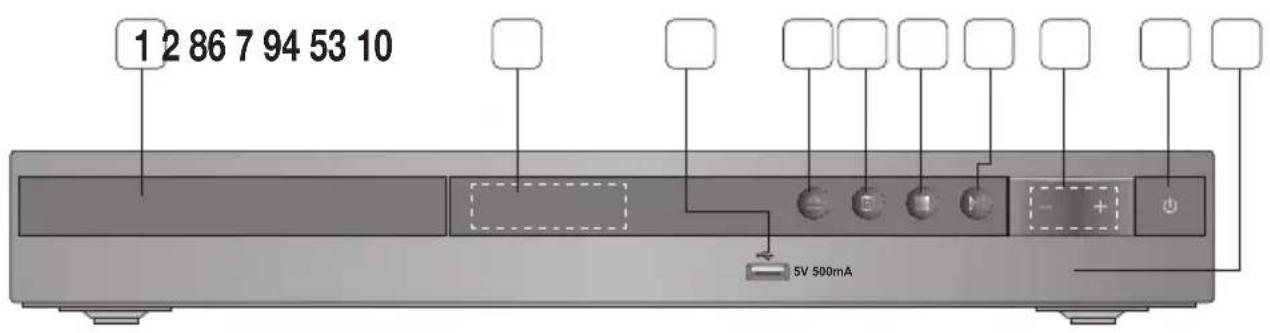

1 DISC TRAYInsert disc here. 2 DISPLAYDisplays the playing status, time, etc. 3 USB PORTConnect here and play files from external USB storage devices such as MP3 players, USB flash memory, etc. The USB memory that requires high power (more than 500mA at 5V) may not be supported. 4 OPEN/CLOSE BUTTON (

) Opens and closes the disc tray. 5 FUNCTION BUTTON (

) The mode switches as follows : DVD/CD ➞ ARC ➞ AUX ➞ USB ➞ FM

) Stops disc playback. 7 PLAY / PAUSE BUTTON (

) Plays a disc or pauses playback. 8 VOLUME CONTROL BUTTON ( , )Volume adjustment. 9 POWER BUTTON (

) Turns the product on and off. 10 REMOTE CONTROL SENSORDetects signals from the remote control.5V 500mA 1 2 86 7 94 53 1010 English

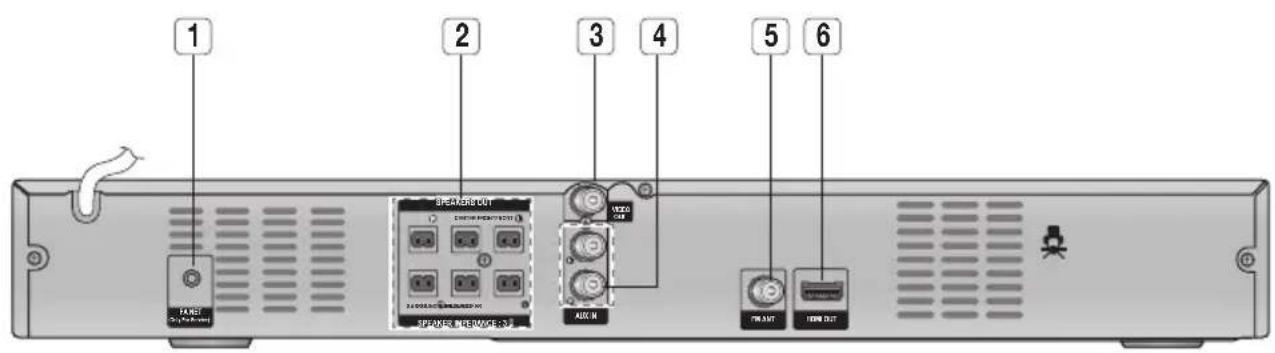

English 11 01 Getting Started 1 FA NET (Only for Service)Used for the service repair. 2 SPEAKERS OUTPUT CONNECTORS Connect the front, center,surround speakers and subwoofer. 3 VIDEO OUT JACK Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack. 4 AUX IN JACKSConnect to the 2CH Analog output of an external device (such as a VCR). 5 FM ANTENNA JACKConnect the FM antenna. 6 HDMI OUT JACKUsing an HDMI cable, connect this HDMI output jack to the HDMI input jack on your TV for the best quality picture. Rear Panel

SURROUND SURROUNDSUBWOOFERCENTER FRONTFRONTSPEAKERS OUTSPEAKER IMPEDANCE : 3FM ANTHDMI OUT VIDEO OUT FA NET (Only For Service) AUX IN 1 2 3 4 6512 English

Installing batteries in the Remote Control

` Place batteries in the remote control so they match the polarity : (+) to (+) and (–) to (–). ` Always replace both batteries at the same time. ` Do not expose the batteries to heat or flame. ` The remote control can be used up to approximately 23 feet (7 meters) in a straight line.* Battery size: AAA

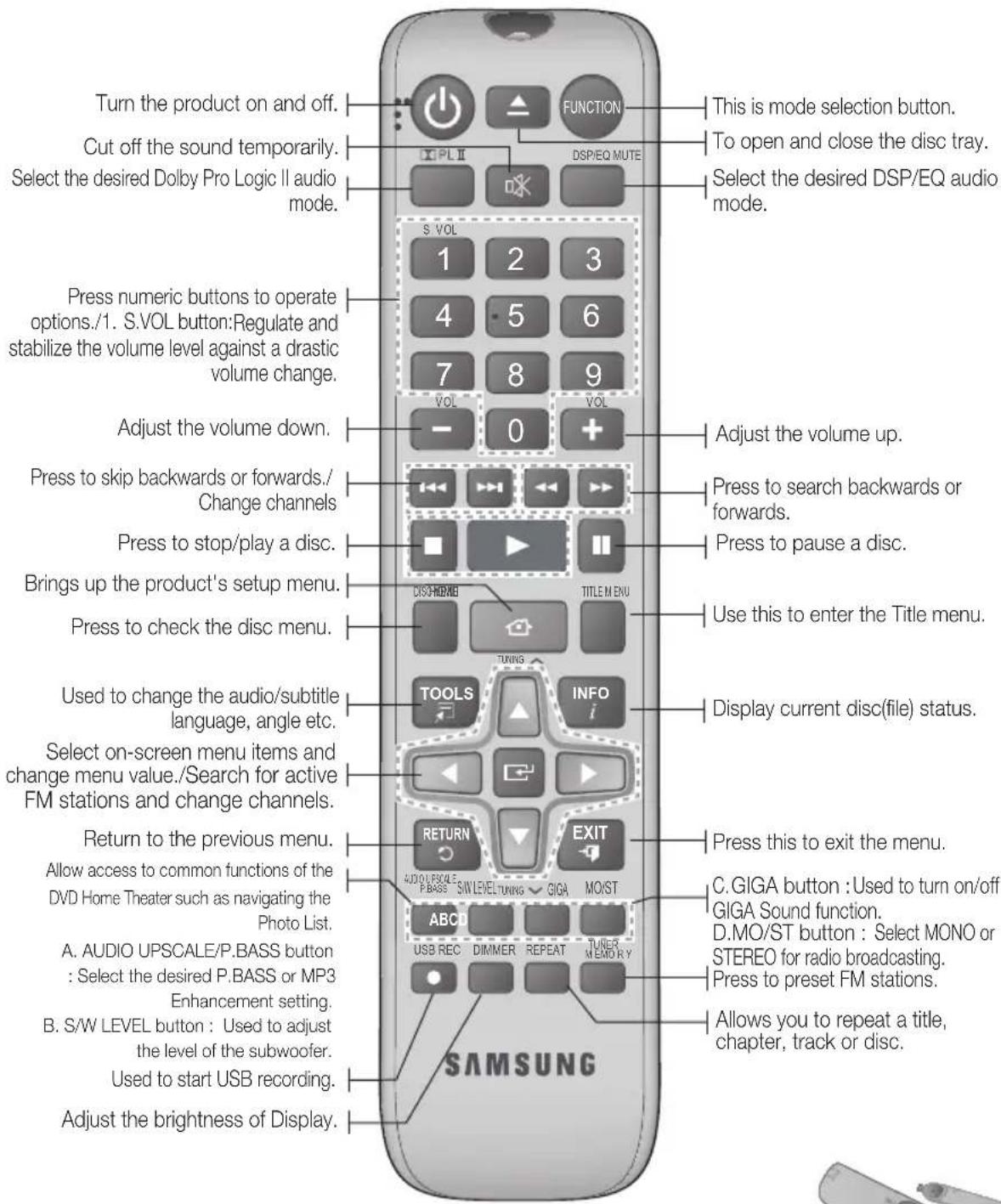

DSP/EQ MUTE VOL VOL TOOLS RETURN EXIT INFO MO/ST S/W LEVEL TUNER M EMO R Y AUDIO U PSCAL E DIMMER A B C D P.BASS TUNING TUNING HOME TITLE M ENU DISC ME NU REPEAT GIGA USB REC FUNCTION S．VOL Remote control Tour of the Remote Control

To open and close the disc tray.

Turn the product on and off.

Press numeric buttons to operate

stabilize the volume level against a drastic

This is mode selection button.

Press to skip backwards or forwards./

Press to search backwards or

Press to pause a disc.

Cut off the sound temporarily.

Allows you to repeat a title,

chapter, track or disc.

Press to check the disc menu.

Select on-screen menu items and

change menu value./Search for active

FM stations and change channels.

Return to the previous menu.

Press this to exit the menu.

Used to change the audio/subtitle

language, angle etc.

Adjust the brightness of Display.

Press to preset FM stations.

Press to stop/play a disc.

Used to start USB recording.

STEREO for radio broadcasting.

Select the desired DSP/EQ audio

Adjust the volume down.

Adjust the volume up.

Allow access to common functions of the

such as navigating the

A. AUDIO UPSCALE/P.BASS button

Enhancement setting.

B. S/W LEVEL button : Used to adjust

the level of the subwoofer.12 English

English 1302 ConnectionsThis section involves various methods of connecting the product to other external components. Before moving or installing the product, be sure to turn off the power and disconnect the power cord.Connecting the SpeakersFront Speakers ei Place these speakers in front of your listening position, facing inwards (about 45°) toward you. Place the speakers so that their tweeters will be at the same height as your ear. Align the front face of the front speakers with the front face of the center speaker or place them slightly in front of the center speakers.Center Speaker f It is best to install it at the same height as the front speakers. You can also install it directly over or under the TV.Surround SpeakershjPlace these speakers to the side of your listening position.

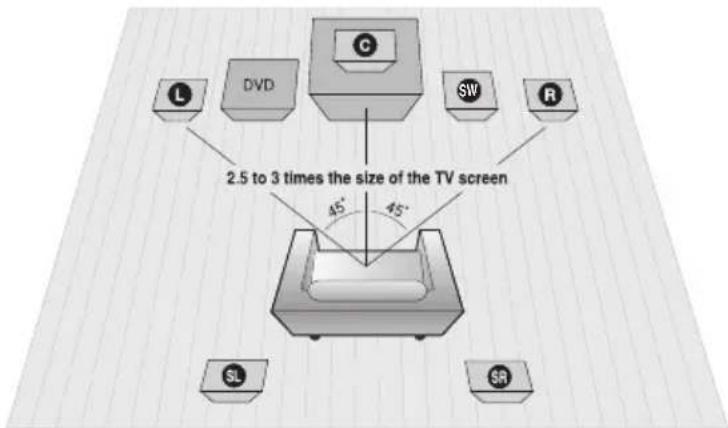

If there isn't enough room, place these speakers so they face each other. Place them about 60 to 90cm above your ear, facing slightly downward. * Unlike the front and center speakers, the surround speakers are used to handle mainly sound effects and sound will not come from them all the time.Subwoofer g The position of the subwoofer is not so critical. Place it anywhere you like.Position of the productPlace it on a stand or cabinet shelf, or under the TV stand.Selecting the Listening PositionThe listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV. Example : For 32" TV's 2~2.4m For 55" TV's 3.5~4m SW

` Do not let children play with or near the speakers. They could get hurt if the speaker falls.

` When connecting the speaker wires to the speakers, make sure that the polarity (+/ –) is correct.

` Keep the subwoofer out of the reach of children so as to prevent them from inserting their hands or alien substances into the duct (hole) of the subwoofer. ` Do not hang the subwoofer on the wall through the duct (hole).

` If you place a speaker near your TV set, screen colour may be distorted because of the magnetic field generated by the speaker. If this occurs, place the speaker away from your TV set. Connections14 English

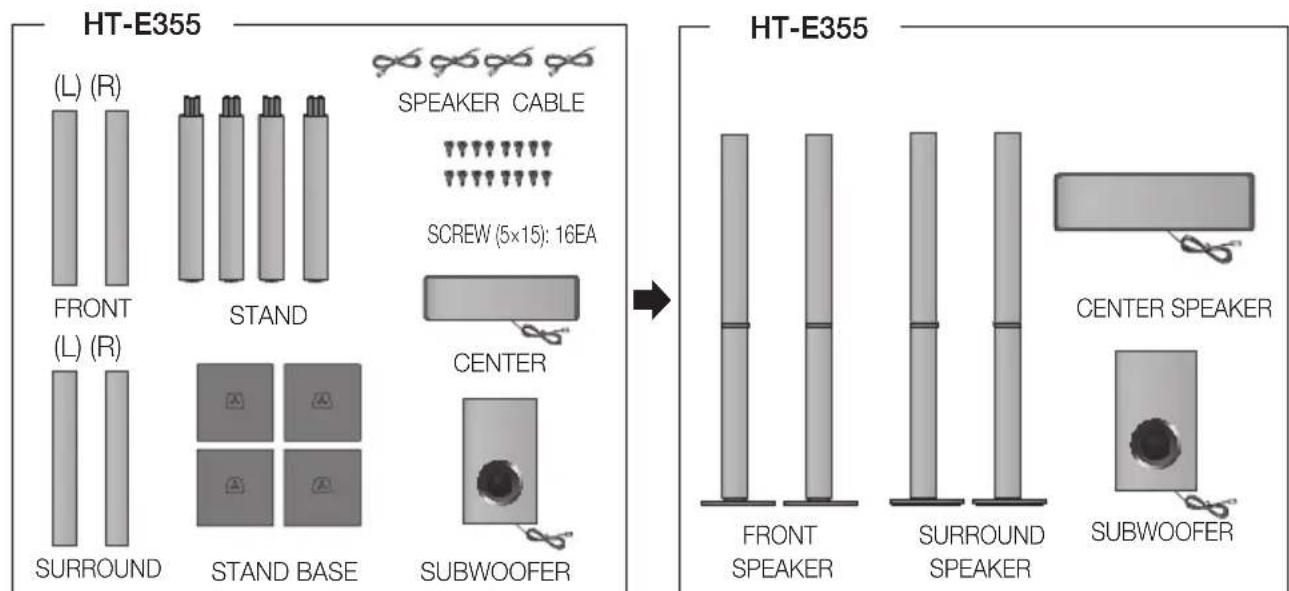

HT-E350Assembled SpeakersSpeaker ComponentsSURROUNDCENTERSUBWOOFERFRONT(L) (R)(L) (R)Speaker Components  HT-E355CENTER SPEAKERSURROUND SPEAKERSUBWOOFER FRONT SPEAKERFRONT(L) (R)STANDSTAND BASESPEAKER CABLE SURROUND (L) (R)HT-E355CENTERSUBWOOFERSCREW (5×15): 16EAInstalling the Speakers on the Tallboy Stand* HT-E355 - Front/Surround Speakers1. Turn the Stand Base upside-down and connect it to the Stand.2. Insert three screws (5*15, For connecting Stand & Stand Base) clockwise into the three holes marked using a screwdriver as shown in the illustration. ! CAUTION : When you use a torque screwdriver, be careful not to put excessive force. Otherwise, it runs idle or can be damaged. (torque screwdriver- below 7 kg.f.cm)3. Straighten a supplied speaker wire and put in the hole on the centre of Stand Base. 4. Connect the upper Speaker to the assembled Stand.5. Insert another large screw (5*15, For connecting Speaker & Stand)

clockwise into the hole on the rear of the speaker using a screwdriver.6. This is the appearance after the speaker is installed. Follow this steps to install other speaker. 5

English 15 02 Connections Connecting The Speakers 1. Press down the terminal tab on the back of the speaker. (HT-E355 Only)2. Insert the black wire into the black terminal (–) and the red wire into the red terminal (+), and then release the tab.(HT-E355 Only)3. Connect the connecting plugs to the back of the product by matching the colours of the speaker plugs to the speaker jacks.Black Red

In case of HT-E350 Front Speaker (R)SubwooferSurround Speaker (R)Surround Speaker (L)Front Speaker (L)Center Speaker* Refer to page 14 for the speakers of HT-E355. SURROUND SURROUNDSUBWOOFERCENTER FRONTFRONTSPEAKERS OUTSPEAKER IMPEDANCE : 3FM ANTAUX INHDMI OUT VIDEO OUT FA NET (Only For Service)

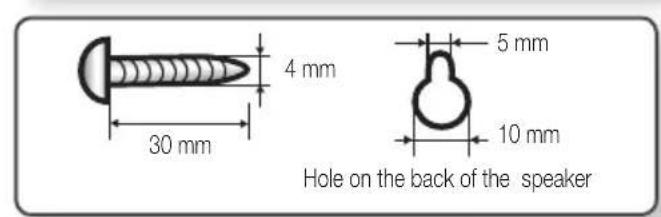

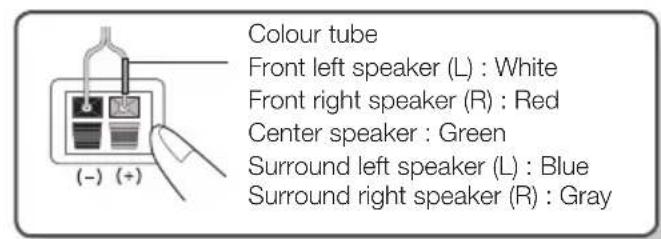

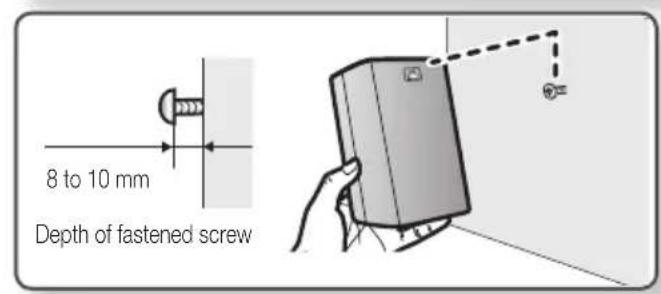

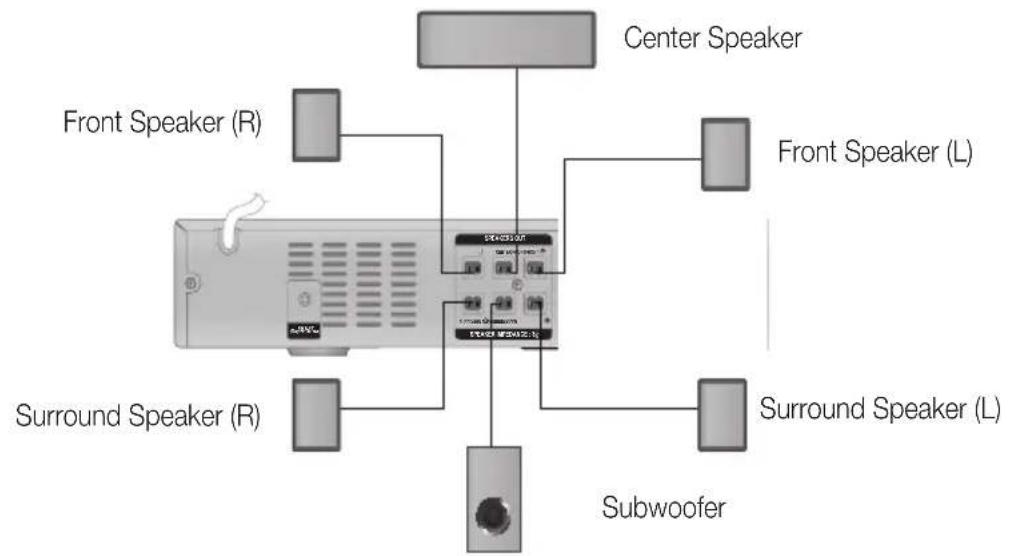

Connecting the wall mount 1. Connect the speaker cord with the colour tube to (+), and the speaker cord without the colour tube to (–).2. Prepare screws (not supplied) that are suitable for the hole on the back of each speaker. See the illustrations below.3. Fasten the screws to the wall, then hang the speaker on the wall.Colour tubeFront left speaker (L) : WhiteFront right speaker (R) : RedCenter speaker : GreenSurround left speaker (L) : BlueSurround right speaker (R) : Gray 5 mm 10 mmHole on the back of the speaker30 mm 4 mm 8 to 10 mmDepth of fastened screw16 English

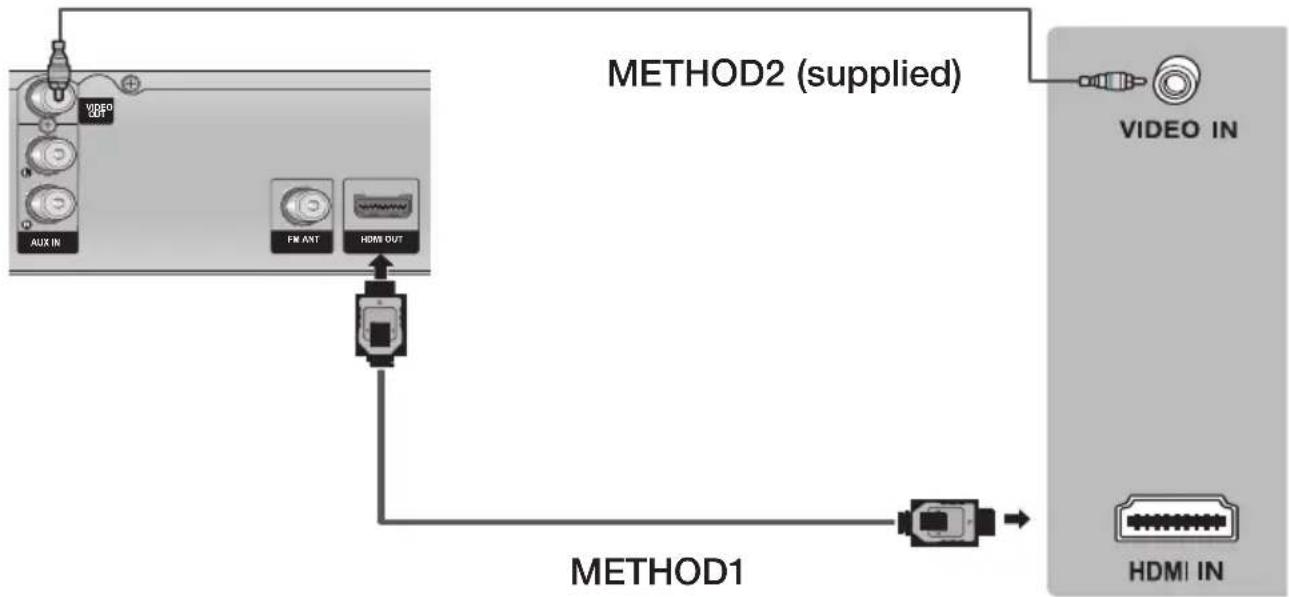

Connecting the Video Out to your TV Choose one of the two methods for connecting to a TV.

Connect the supplied Video cable from the VIDEO OUT jack on the back of the product to the VIDEO IN jack

` Resolutions available for the HDMI output are 576p(480p), 720p,1080i/1080p. See page 20 for the resolution

` This product operates in Interlace scan mode 576i(480i) for composite output.

` After making the video connection, set the Video input source on your TV to match the corresponding Video

output mode on your product.

Turn this product on first before you set the video input source on your TV. See your TV owner's manual for

more information on how to select the TV's Video Input source.

` Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by copyright

protection systems and the picture will be distorted on the television.

METHOD2 (supplied)16 English

English 17 02 Connections

HDMI FUNCTION HDMI Auto Detection Function If your TV is Samsung TV and it supports CEC function.The product's video output will automatically change to HDMI mode when connecting an HDMI cable while power is on.• HDMI (High Definition Multimedia Interface)HDMI is an interface that enables the digital transmission of video and audio data with just a single connector. Using HDMI, the product transmits a digital video and audio signal and displays a vivid picture on a TV having an HDMI input jack.• HDMI connection description - HDMI outputs only a pure digital signal to the TV.

- If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen.• What is the HDCP? • HDCP (High-band width Digital Content Protection) is a system for protecting DVD content outputted via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a display device (TV, projector. etc). Content is encrypted at the source device to prevent unauthorized copies from being made. Using Anynet+(HDMI-CEC) Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control. Anynet + can be used by connecting this product to a SAMSUNG TV using a HDMI Cable. This is only available with SAMSUNG TV's that support Anynet+.1. Connect the product to a Samsung TV with an HDMI cable. (See page 16)2. Set the Anynet+ function on your TV. (See the TV instruction manual for more information.) ✎ NOTE

` The Anynet+ function supports some buttons of the remote control.

` This function is not available if an HDMI cable does not support CEC.

` Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user’s manual of your TV. ` Please check the

logo (If your TV has an

logo, then it supports Anynet+ function.)18 English

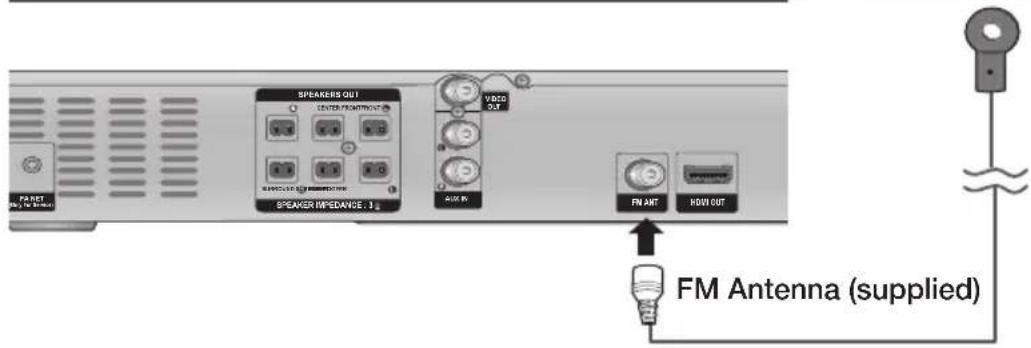

Connecting the FM Antenna1. Connect the FM antenna supplied to the FM Antenna jack. 2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface. ✎ NOTE

` This product does not receive AM broadcasts.

SURROUND SURROUNDSUBWOOFERCENTER FRONTFRONTSPEAKERS OUTSPEAKER IMPEDANCE : 3VIDEO OUT FA NET

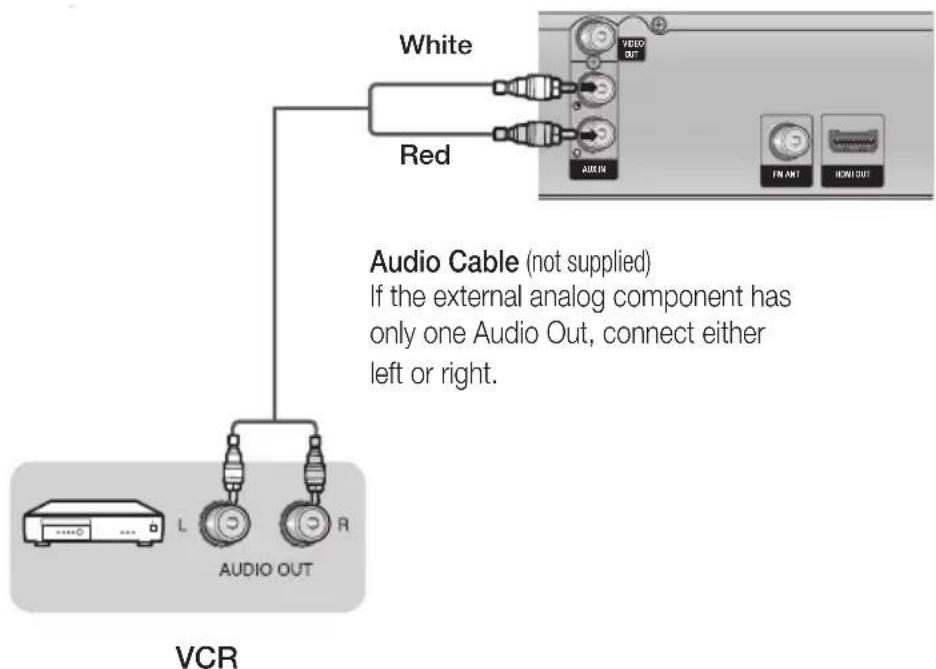

AUX IN FM ANT HDMI OUT FM Antenna (supplied)Connecting Audio from External Components AUX : Connecting an External Analog Component Analog signal components such as a VCR. 1. Connect AUX IN (Audio) on the back of the product to the Audio Out of the external Analog component. • Be sure to match the colors of the connecting jacks. 2. Press the FUNCTION button to select AUX input. • The mode switches as follows : DVD/CD ➞ ARC ➞ AUX ➞ USB ➞ FM

` You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the VCR to this product.

AUX IN FM ANT HDMI OUT Audio Cable (not supplied)

If the external analog component has

only one Audio Out, connect either

English 19 03 Setup Before Starting (Initial Settings)

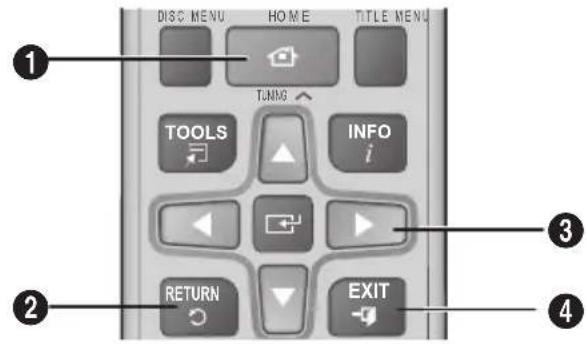

1. Press the POWER button when it is plugged in TV for the first time. Initial Settings screen will be displayed.2. Press the ▲▼ buttons to select the desired language, then press the ENTER button.3. Press the ▲▼ buttons to select desired TV Aspect, then press the ENTER button. ` If the HDMI cable is connected to the product, TV aspect does not appear. ✎ NOTE

` If you have not selected a preferred language in the initial settings, you will see a language selection window next time you turn on the product. ` Your language selection will apply to all menus: On-Screen Menu, Disc Menu, Audio, Subtitle. ` If you want to move to the previous screen, press the A(PREVIOUS) or RETURN button. ` Once you select a menu language, you can change it by

pressing the STOP (@) button on the remote control or the main set for more than 5 seconds in no disc state. ` When the Initial Settings screen does not appear, refer to the Initial Settings. (see page 23) Setting the Setup menu The access step may differ depending on the selected menu. The GUI (Graphical User Interface) in this manual may differ, depending on the firmware version. 1 HOME BUTTON : Display the home menu. 2 RETURN BUTTON : Return to the previous setup menu. 3 ENTER / DIRECTION BUTTONMove the cursor and select an item. Select the currently selected item.Confirm the setting. 4 EXIT BUTTON : Exit the setup menu.Function DVD/CD Settings1. Press the POWER button.2. Press the _+ buttons to select Settings, then press the ENTER button.3. Press the ▲▼ buttons to select the desired menu, then press the ENTER button.4. Press the ▲▼ buttons to select the desired sub-menu, then press the ENTER button.5. Press the ▲▼ buttons to select the desired item, then press the ENTER button. 6. Press the EXIT button to exit the setup menu.

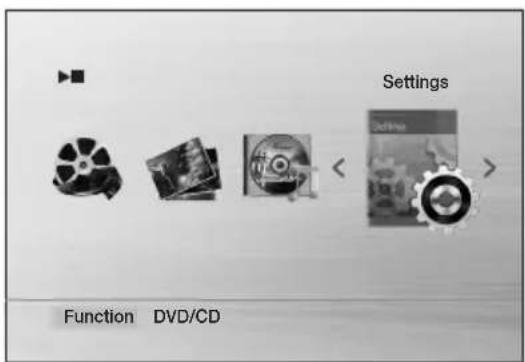

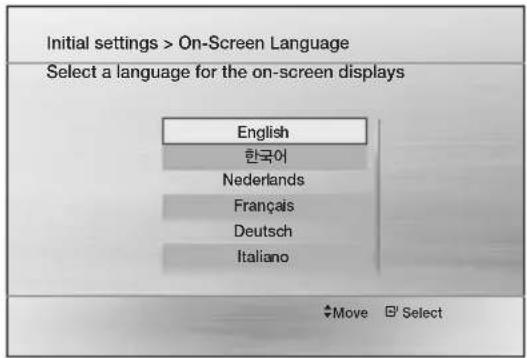

> Move " Select Initial settings > On-Screen LanguageSelect a language for the on-screen displays English

DisplayYou can configure various display options such as the TV Aspect, Resolution, etc.TV AspectDepending on the type of television you have, you may want to adjust the screen setting.• 4:3 Pan-ScanSelect when you want to see the 16:9 video supplied by the DVD without the black bars on top and bottom, even though you have a TV with a 4:3 ratio screen(extreme left and right portion of the movie picture will be cut off).• 4:3 Letter BoxSelect when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.• 16:9 WideYou can view the full 16:9 picture on your widescreen TV. ✎ NOTE

` When using HDMI, the screen is automatically converted to the 16:9 Wide mode and TV Aspect is deactivated. ` If a DVD is in the 4:3 ratio, you cannot view it in the wide screen.

` Since DVD discs are recorded in various image formats, they will look different depending on the software, the type of TV, and the TV aspect ratio setting. BD Wise (Samsung products only)BD Wise is Samsung's latest inter-connectivity feature. When you connect Samsung products with BD-Wise to each other via HDMI, the optimum resolution will be set automatically.

• On : The original resolution of the DVD disc will be output to the TV direct.• Off : The output resolution will be fixed according to the Resolution previously set, regardless of the resolution of the disc. ✎ NOTE ` This will optimize the picture quality according to the content (In the DVD disc, etc) that you want to play and the product or your BD Wise-compliant Samsung TV. ` If you want to change the resolution in BD Wise mode, you must set BD mode to Off in advance. ` BD Wise will be disabled if the product is connected to a device that does not support BD Wise. Resolution Sets the output resolution of the HDMI video signal. The number in 576p(480p), 720p, 1080i and 1080p indicates the number of lines of video. The i and p indicate interlace and progressive scan, respectively.• 576p(480p) : Outputs 576(480) lines of progressive video.• 720p : Outputs 720 lines of progressive video.• 1080i : Outputs 1080 lines of interlaced video.• 1080p : Outputs 1080 lines of progressive video.• BD Wise : Automatically sets the optimal resolution when connected via HDMI to a TV with the BD Wise feature. (The BD Wise menu item appears only if BD Wise is set to On.) ✎ NOTE ` If Composite is connected, the resolution supports only 576i(480i). ` 1080P may not appear depending on TV.HDMI FormatYou can optimize the color setting from the HDMI output. Select a connected device Type.• Monitor : Select if connected to a Monitor via HDMI.• TV : Select if connected to a TV via HDMI.Video Out Signal

Different countries apply different TV standard. You can select from NTSC or PAL.• NTSC : You can select the NTSC video format• PAL : You can select the PAL video format20 English

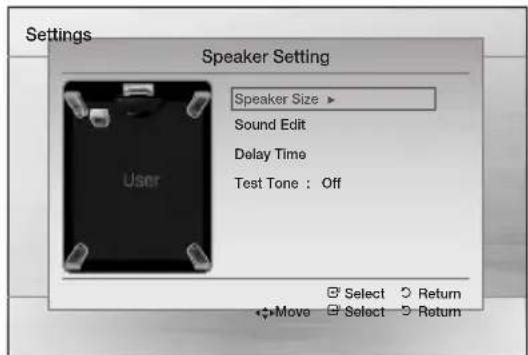

English 2103 SetupAudio Speaker Setting Speaker SizeYou can set the Speaker Size of the Center and Surround Speakers, as well as Test Tone in this mode.Settings m Move " Select ' Return" Select ' ReturnSpeaker SettingSpeaker Size ▶Sound EditDelay TimeTest Tone : Off• For the Front, the mode is set to Small.• For the Subwoofer, the mode is set to Present.• For the Center and Surround, you can switch the mode to Small or None.- Small : Select this when using the speakers.- None : Select this when no speaker is connected. ✎ NOTE

` The speaker mode may vary depending on the Dolby Pro Logic and Stereo settings.Sound EditYou can adjust the balance and level for each speaker.Settings m Move " Select ' ReturnSound Edit < Change " Select ' Return dB

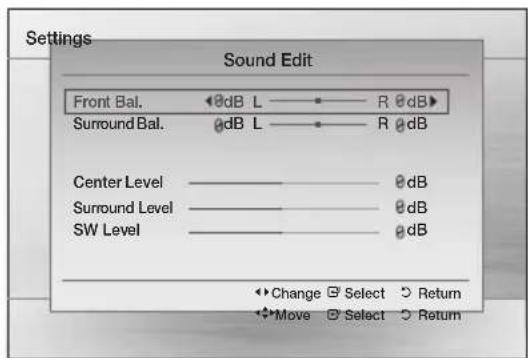

R R L L Press the $% buttons to select and adjust the desired speaker. Press the _+ buttons to adjust the settings.Adjusting Front/Surround Bal. ` You can select between 0 and -6.

` The volume decreases as you move closer to –6. Adjusting Center/Surround/Subwoofer Level ` The volume level can be adjusted in steps from +6dB to –6dB. ` The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.Delay TimeIf the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the Center and Surround speakers. You can also set the Test Tone in this mode.Setting up the Speaker Delay TimeWhen 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each speaker is the same. Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can adjust this difference by adding a delay effect to the Center and Surround Speakers. ✎ NOTE

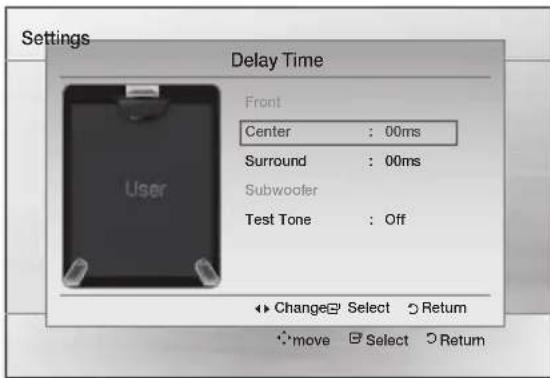

` The Delay Time menu will be activated only when a 5.1 channel source is played. ` You can not set Center and Surround in this mode when their Speaker Size is set to NONE. Settings

Test Tone : Off22 English

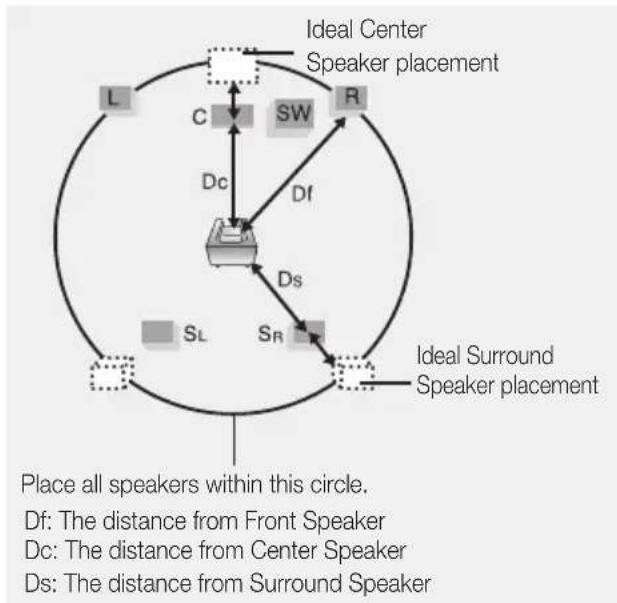

Ideal Center Speaker placementDf: The distance from Front SpeakerDc: The distance from Center SpeakerDs: The distance from Surround SpeakerPlace all speakers within this circle.Ideal Surround Speaker placementSetting the Center SpeakerIf the distance of Dc is equal to or longer than the distance of Df in the figure, set the mode as 0ms. Otherwise, change the setting according to the table.Distance between Df and Dc 0.00m 0.34m 0.68m 1.06m 1.40m 1.76mDelay Time 00 ms 01 ms 02 ms 03 ms 04 ms 05 msSetting the Surround SpeakerIf the distance of Dc is equal to or longer than the distance of Ds in the figure, set the mode as 0ms. Otherwise, change the setting according to the table.Distance between Ds and Dc 0.00m 1.06m 2.11m 3.16m 3.62m 5.29mDelay Time 00 ms 03 ms 06 ms 09 ms 12 ms 15 ms ✎ NOTE

` With PL II (Dolby Pro Logic II), the delay time may be different for each mode. ` With AC-3 , the delay time can be set between 00 and 15mSEC. ` The Center channel is only adjustable on 5.1 channel discs.Test ToneSettings m Move " Select ' ReturnSpeaker SettingSpeaker SizeSound EditDelay TimeTest Tone : On ▶ " Select ' ReturnUse the Test Tone feature to check the speaker connections.• Press the _+ buttons to select On. • The test tone will be sent to Front Left ➞ Center ➞ Front Right ➞ Surround Right ➞ Surround Left ➞ Subwoofer in order. To stop the test tone, press the ENTER button. DRC (Dynamic Range Compression) This feature balances the range between the loudest and quietest sounds. You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.• You can select either Full, 6/8, 4/8, 2/8, off. AUDIO SYNC Video and audio sync may not match with digital TV. If this occurs, adjust the audio delay time tomatch the video• You can set the audio delay time between 0 ms and 300 ms. Set it to the optimal status.22 English

English 2303 Setup Speaker Selection The audio signals transmitted over the HDMI Cable can be changed Home Theater/TV Speaker.• Home Theater : Video is transmitted over the HDMI connection cable only, and audio is output through the product speakers only.• TV Speaker : Both video and audio signals are transmitted over the HDMI connection cable, and audio is output through your TV speakers only. ✎ NOTE

` The default setting of this function is Home Theater . ` HDMI Audio is automatically down-mixed to 2ch for TV speakers. ` When TV Selection is set to TV Speaker, PL II / DSP EQ/P.BASS/GIGA/S.VOL doesn't work. ` With Speaker Selection set to 'TV Speaker', the volume can be adjusted only using the TV remote control. User EQ You can configure the equalizer settings manually to your preference.Settings m Move " Select ' Return a Reset > Adjust < Move ' ReturnUser EQ dB

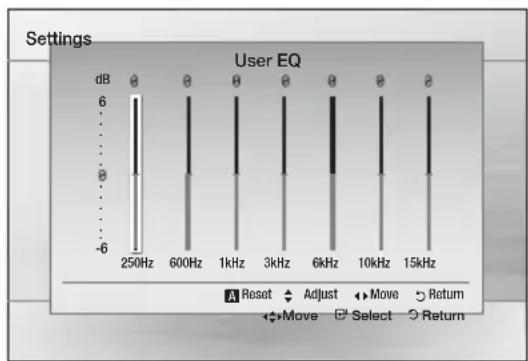

-6 250Hz 600Hz 1kHz 3kHz 6kHz 10kHz 15kHz Audio Return Ch.(ARC) You can enjoy TV sound from the Home Cinema speakers by using just one HDMI cable.• Off : Turn the Audio Return Channel function off.• Auto : Listen to TV sound from the Home Cinema speakers if your TV is compatible with the Audio Return Channel function.

` When Anynet+ (HDMI-CEC) is Off, the Audio Return Channel function is not available. ` Using an ARC (Audio Return Channel)- uncertified HDMI cable may cause a problem in compatibility. ` ARC function is only available if an ARC- compliant TV is connected. System Initial Settings By using the Initial Settings, you can set the language and TV aspect . ✎ NOTE

` If an HDMI cable is connected to the product, the TV aspect does not appear and it is set to 16:9 Wide automatically. DivX(R) Registration View DivX(R) VOD Registration Code to purchaseand play DivX(R) VOD content.

` This option is not activated if you select OK.To activate this option, please activate the DivX(R) Deactivation. ` Even after you reset the system, the settings of DivX Registration will not be reset. DivX(R) Deactivation Select this to get a new registration code.24 English

LanguageYou can select the language you prefer for on-screen menu, disc menu, etc.

OSD LanguageSelect the language for the on-screen displays.Disc MenuSelect the language for the disc menu displays.AudioSelect the language for disc audio.SubtitleSelect the language for disc subtitles.a To select a language that does not appear in the menu, select OTHERS in the Disc Menu, Audio and Subtitle, and enter the language code of your country (see page 35). a You cannot select OTHERS in the OSD Language menu. ✎ NOTE ` The selected language will only appear if it is supported on the disc.SecurityThe Parental Lock function works in conjunction with DVDs that have been assigned a rating, which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc. Parental Rating Select the rating level you want to set. A larger number indicates that the program is intended for adult use only. For example, if you select up to Level 6, discs that contain Level 7, 8 will not play.Enter the password and then press the ENTER button.- The password is set to "0000" by default.- Once the setup is complete, you will be taken to the previous screen. Change Password Select Change and enter the 4-digit password to set the parental lock using the number buttons on the remote control. m Move " Select ' ReturnSettings Parental Rating : Off

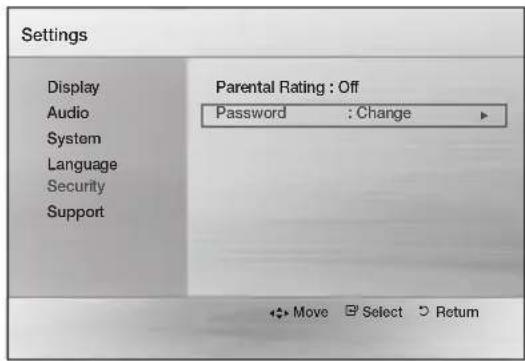

Support If you forgot your password1. Remove the disc. 2. Press and hold the STOP (@) button on the remote control for 5 seconds or more. All settings will revert to the factory settings.Support Product Information Provide the product information such as Model code, Softrware Version, etc.24 English

English 2504 Basic FunctionsDisc Playback 1. Press the OPEN/CLOSE (^) button. 2. Place a disc gently into the tray with the disc's label facing up. 3. Press the OPEN/CLOSE (^) button to close the disc tray. ✎ NOTE `Resume function: When you stop disc play, the product remembers where you stopped, so when you press PLAY button again, it will pick up where you left off. (This function works only with DVDs.) Press the STOP button twice during playback to disable the Resume function. `If no buttons are pressed on the product or remote control for more than 3 minutes when the product is in Pause mode, it will change to STOP mode. `The initial screen may appear different, depending on the content of the disc. `Pirated discs will not play in this product because they violate the CSS(Content Scrambling System: a copy protection system) recommendations.a

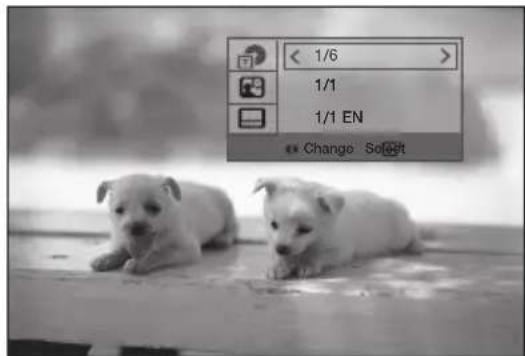

will appear when an invalid button is pressed. TV Screen Saver/Power Saving Function • If no button input is made for more than 5 minutes in Stop or Play (music) mode, the screen saver will get activated.• If the product is left in the screen saver mode for more than 20 minutes, the power will automatically turn off. (Except during play a music)

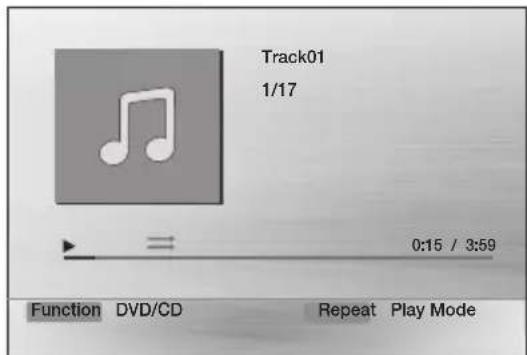

Audio CD(CD-DA)/MP3/WMA Playback BA Track01 1/17 0:15 / 3:59Function DVD/CD Repeat Play Mode1. Insert an Audio CD(CD-DA) or an MP3 Disc into the disc tray.• For an Audio CD, the first track will be played automatically. - Press the [] buttons to move to the previous/next track.• For the MP3/WMA disc, press the _+ buttons to select Music, then press the ENTER button.- Press the ▲▼_+ buttons to select a desired file and press the ENTER button. - Press the () buttons to move to theprevious/next pages. 2. Press the STOP (@) button to stop playback.

✎ NOTE ` Some MP3/WMA-CDs may not play, depending on the recording mode. ` Table of contents of a MP3-CD varies depending on the MP3/WMA track format recorded on the disc. ` WMA-DRM files cannot be played. ` When MP3/WMA/CD playing, number key doesn't work.26 English

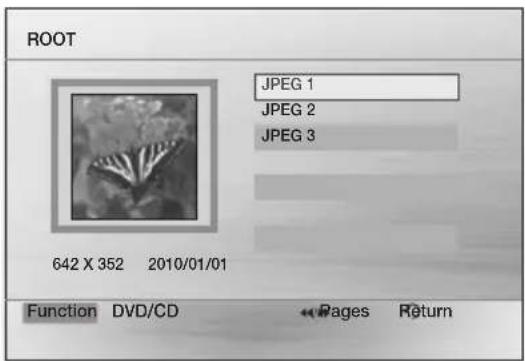

JPEG File PlaybackImages captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this product.1. Insert a JPEG disc on the disc tray.2. Press the _+ buttons to select Photo, and then press the ENTER button.3. Press the ▲▼ buttons to select the folder you want to play, and then press the ENTER button.4. Press the ▲▼ buttons to select the photo you want to play, and then press the ENTER button.• The selected file will play and slide show will start. • To stop slide show, press the PAUSE (#) button.• You can view the previous/next file by pressing the ◀,▶ buttons during the slideshow mode.2010/01/01JPEG 1JPEG 2JPEG 3Function DVD/CD Pages Return642 X 352

ROOT Rotate Function

G Press the GREEN(B) or YELLOW(C) button during the PAUSE mode. • GREEN(B) Button: Rotate 90° counterclockwise. • YELLOW(C) Button: Rotate 90° clockwise. ✎ NOTE ` The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel) for standard JPEG files and 2048 x 1536 (or 3.0 MPixel) for progressive image files. Using the Playback Function Forward/Reverse Search

) 1 ➞ ) 2 ➞ ) 3 ➞ ) 4

✎ NOTE ` No sound is played in search mode. ` The playback search produces sound only when searching at )1 and )2 speed.This function is available only for the CD-DA. Skipping Scenes/Songs

dBAD Press the [] buttons.• Each time the button is pressed during playback, the previous or next chapter, track or directory (file) will be played.• You cannot skip chapters consecutively. Slow Motion Play

dD Press the PAUSE (#) button and then ) button for Slow Motion play. d

✎ NOTE ` No sound is heard during slow playback. ` Reverse slow playback does not work.26 English

English 2704 Basic FunctionsStep Motion Play dD Press the PAUSE button repeatedly.• The picture moves forward one frame each time the button is pressed during playback. ✎ NOTE ` No sound is heard during step motion playback.5 Minute Skip function D During playback, press the _,+ button.• Playback skips 5 minutes forward whenever you press the + button.• Playback skips 5 minutes backward whenever you press the _ button. ✎ NOTE ` This function is available only for the DivX that contains time information.Using the Disc Menu d You can view the menus for the audio language, subtitle language, profile, etc. 1. During playback, press the DISC MENU button on the remote control.2. Press the ▲▼_+ buttons to make the desired selection, then press the ENTER button. ✎ NOTE ` Depending on the disc, menu setup items may vary and this menu may not be available.

Using the Title Menu d For DVDs containing multiple titles, you can view the title of each movie. 1. During playback, press the TITLE MENU button on the remote control.2. Press the ▲▼_+ buttons to make the desired selection, then press the ENTER button. ✎ NOTE ` Depending on the disc, menu setup items may vary and this menu may not be available.Repeat Playback dBAD DVD/DivX RepeatYou can repeat the title, chapter or the section(A-B Repeat) of the DVD/DivX.Repeat OFF 1. During DVD/DivX playback, press the REPEAT button on the remote control.2. Press the ▲▼ buttons to select a desired repeat mode, then press the ENTER button. 3. Press the ▲▼ buttons to select OFF to return to normal play, then press the ENTER button.

CD/MP3 Repeat1. During the CD/ MP3 playback, press the REPEAT button repeatedly to select the repeat mode you want. B

dB You can repeatedly play back a designated section of a DVD or CD.1. During the DVD disc or CD playback, press the REPEAT button on the remote control. 2. For DVD, press the ▲▼ buttons to select A-. For CD press the REPEAT button repeatedly until appears. 3. Press the ENTER button at the point where you want repeat play to start (A). 4. Press the ENTER button at the point where you want repeat play to stop (B).5. To return to normal playback, For DVD, press the REPEAT button ,then press the ▲▼ buttons to select to OFF. For CD, press the REPEAT button to select to . ✎ NOTE ` The A-B Repeat function does not operate with DivX, MP3 or JPEG discs. Displaying Disc Information

2/20 0:05:211/1 EN 5.1CH1/1 EN 1/1

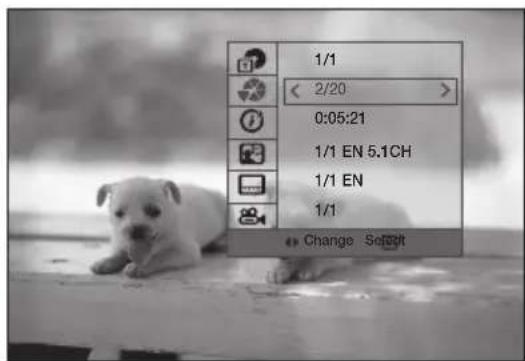

1/1 1/1 EN1. During playback, press the TOOLS button on the remote control.2. Press the ▲▼ buttons to select the desired item.3. Press the _+ buttons to make the desired setup change and then press the ENTER button. - You may use the number buttons of the remote control to control some items.4. To make Disc information disappear, press the TOOLS button again. ✎ NOTE ` If you are playing contents from the tools menu, some functions may not be enabled depending on the disc. ` You can also select Dolby Digital or Pro Logic, depending on the disc. ` Some tools menus may differ depending on discs and files.

English 2904 Basic FunctionsTOOLS menu ` Title( ) : To access the desired title when there is more than one in the disc. For example, if there is more than one movie on a DVD, each movie will be identified as a Title. ` Chapter( ) : Most DVD discs are recorded in chapters so that you can quickly find a specific chapter. ` Playing time( ) : Allows playback of the film from a desired time. You must enter the starting time as a reference. The time search function does not operate on some discs. ` Audio( ): Refers to the film's soundtrack language. A DVD Disc can contain up to 8 audio languages. ` Subtitle( ): Refers to the subtitle languages available in the disc. You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. A DVD Disc can contain up to 32 subtitle languages. ` Angle( ): When a DVD contains multiple angles of a particular scene, you can use the Angle function. Selecting the Audio Language

dD 1. Press the TOOLS button. 2. Press the ▲▼ buttons to select AUDIO ( ) display. 3. Press the _+ buttons to select the desired audio language.• Depending on the of languages on a DVD disc, a different audio language is selected each time the button is pressed. Selecting the Subtitle Language

dD 1. Press the TOOLS button. 2. Press the ▲▼ buttons to select SUBTITLE (

) display. 3. Press the _+ buttons to select the desired subtitle language.• Depending on the languages on a DVD disc, a different subtitle language is selected each time the button is pressed. ✎ NOTE

` Depending on the disc, the Subtitle and Audio Language functions may not be available.Caption Function D • You must have some experience with video extraction and editing in order to use this feature properly. • To use the caption function, save the caption file (*.smi) in the same file name as that of the DivX media file (*.avi) within the same folder. Example. Root Samsung_007CD1.avi Samsung_007CD1.smi• Up to 100 alphanumeric characters or 50 East Asian characters (2 byte characters such as Korean and Chinese) for the file name.• The subtitle of DivX files are *.smi, *.sub, *.srt over 148 kbyte is not supported. Angle Function

d This function allows you to view the same scene in different angles.1. Press the TOOLS button. 2. Press the ▲▼ buttons to select ANGLE ( ) display. 3. Press the _+ buttons to select the desired angle. ✎ NOTE

` The Angle function works only with discs on which multiple angles have been recorded.30 English

DIMMER You can adjust the brightness of the display on the main unit.Press the DIMMER button.Sound Mode P.BASS The P.BASS function provides a bass boost to reinforce the low frequencies.The MP3 ENHANCE function provides better sound quality by upscaling the sampling frequency.Press the P.BASS button.2 ChannelLPCM sourcePOWER BASS ON ➞ POWER BASS OFFMP3 file MP3 ENHANCE ON ➞POWER BASS ON ➞POWER BASS OFF ✎ NOTE ` The P.BASS function is only available with 2 channel LPCM sources such as MP3, DivX, CD and WMA. ` The MP3 Enhancement function is only available MP3 file. GIGA The GIGA Sound Function amplifies bass and improves bass twice as much for you to appreciate powerful real sound. The GIGA Sound feature will be applied only to the subwoofer.Press the GIGA button. ✎ NOTE ` The GIGA Sound works when in 2-channel LPCM mode only. S/W LEVEL You can also press the S/W LEVEL button on the remote control and use the _ or + buttons to adjust the level of subwoofer.Press the S/W LEVEL button. S.VOL (SMART VOLUME) This will regulate and stabilize the volume level against a drastic volume change when changing channels or during a scene transition.Press the S.VOL button.• Each time the button is pressed, the selection changes as follows : SMART VOLUME ON

English 3104 Basic Functions DSP (Digital Signal Processor)/EQ • DSP (Digital Signal Processor) : DSP modes have been designed to simulate different acoustic environments. • EQ : You can select POPS, JAZZ , ROCK, or USER to optimize the sound for the genre of music you are playing . Press the DSP/EQ button.POPS, JAZZ, ROCK Select POPS, JAZZ, or ROCK, depending on the genre of music you're listening to.USER You can enjoy music as you set in “EQ:USER ”.If you press ENTER in the “EQ:USER” menu, you will see a window where you can change the EQ settings to your preference.STUDIOProvides a sense of presence as if in a studio. CLUB Simulates the sound of a dance club with a throbbing bass beat. HALL Provides a clear vocal as if listening in a concert hall.MOVIEProvides the feeling of a movie cinema.CHURCHProvides the feeling of being in a grand church. OFF Select this for normal listening. ✎ NOTE

` The DSP/EQ function is only available in Stereo mode. ` The DSP/EQ function is not available while playing AC3 signal in 2.1 channel mode. Dolby Pro Logic II Mode You can select the desired Dolby Pro Logic II audio mode.Press the PL II button.MUSICWhen listening to music, you can experience sound effects as if you are listening to the actual performance.MOVIEAdds realism to the movie soundtrack.PROLOGYou can listen to a 2CH sound source in 5.1CH surround sound with all speakers active.- A specific speaker(s) may not be output depending on the input signal.MATRIXYou will hear multi-channel surround sound.STEREOSelect this to listen to sound from the front left and right speakers and the subwoofer only. ✎ NOTE

` When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks (L and R) on the product. If you connect to only one of the inputs (L or R), you cannot listen to surround sound. ` The Pro Logic II function is only available in Stereo mode.

FUNCTIONTV SOURCEPOWERDVD RECEIVER/TV SLEEPDISC MENU MENUTITLE MENUMUTEREPEATVOLTUNING/CHTOOLSRETURNEXITINFO A B C D TUNER MEMORY DIMMER S . VOL AUDIO UPSCALE P .BASSMO/ST CD RIPPINGDSP /EQ 1 2 3

Using buttons on the Remote Control

1. Press the FUNCTION button to select FM. 2. Tune in to the desired station.• Preset Tuning 1 : You must first add a desired frequency as a preset. Press the STOP (@) button to select PRESET and then press the TUNING/CH ( ) button to select the preset station. • Manual Tuning : Press the STOP (@) button to

select MANUAL and then press the TUNING/CH ( ) button to tune in to a lower or higher frequency. • Automatic Tuning : Press the STOP (@) button to select MANUAL and then press and hold the TUNING/CH ( ) button to automatically search the band. Setting Mono/Stereo Press the MO/ST button. • Each time the button is pressed, the sound switches between STEREO and MONO. • In a poor reception area, select MONO for a clear, interference-free broadcast. Presetting Stations Example : Presetting FM 89.10 in the memory 1. Press the FUNCTION button to select FM. 2. Press the TUNING/CH ( ) button to select <89.10>.3. Press the TUNER MEMORY button. • Number flashes on the display.4. Press the TUNING/CH ( ) buttons

to select preset number.• You can select between 1 and 15 presets.5. Press the TUNER MEMORY button again.• Press the TUNER MEMORY button before number disappears from the display.• Number disappears from the display and the station is stored in memory.6. To preset another station, repeat steps 2 to 5.32 English

English 33 05 Advanced FunctionsUSB Function Playing Media Files using the

USB Host Feature You can enjoy media files such as pictures, movies and music saved on an MP3 player, USB memory stick or digital camera in high quality video with 5.1 channel sound by connecting the storage device to the USB port of the product.1. Connect the USB device to the USB port on the front panel of the product.2. Press the FUNCTION button to select USB.• USB appears on the display screen and then disappears.3. Press the _+ buttons to select Videos, Photos or Music.- Select a file to play.Safe USB RemovalTo prevent damage to the memory stored in the USB device, perform safe removal before disconnecting the USB cable.• Press the YELLOW(C) button.- REMOVE will appear on the display.• Remove the USB cable. ✎ NOTE

` To listen to your music files with 5.1 channel sound, you must set the Dolby Pro Logic II mode to Matrix. (See page 31) ` Remove the USB cable from the USB port slowly. Otherwise, it may cause damage to the USB port. USB RecordingWhile playing CD-DA (Compact Disc Digital Audio) using the USB Recording function or listening to the FM radio or receiving audio source from an external device, you can record the audio source in the USB memory. Ex) USB recording of CD-DA audio contents1. Connect the USB device to your product.2. Insert the CD-DA disc into the CD tray. 3. Press the USB REC button on the remote control. • To start recording the current track, press the USB REC button on the remote control while the system is playing a track or stopped temporarily.• To record the entire CD, press and hold the USB REC button on the remote control. - "FULL RECORDING" appears on the display and recording starts. 4. Press the STOP (@) button to stop recording. • When USB recording of a CD is completed, you will find a new folder named “RECORDING” in the USB drive. The contents will be saved in the folder in the MP3 format.• When USB recording of FM radio or AUX

source is completed, you will find a new folder named “TUNER RECORDING or AUX RECORDING” in the USB drive. The contents will be saved in the folder in the MP3 format. ✎ NOTE

` Do not disconnect the USB connection or the power cable during the USB Recording. Otherwise, it may cause damage to the data. To stop USB Recording, press the STOP button and disconnect the USB device after the system stops playing the CD completely. ` If you disconnect the USB connection during the USB Recording, the system will turn off and you will not be able to delete the recorded file. ` If you connect the USB device to the system while it is playing a CD, the system stops temporarily and will play again. ` If the recording duration is less than 5 seconds, a recording file may not be created. ` USB Recording works only if the USB device is formatted in the FAT file system. (The NTFS file system is not supported.) ` The audio signal will not be output during USB recording of the CD. ` When Speaker selection is set to TV Speaker, the USB Recording function is not supported.5V 500mA34 English

Troubleshooting Refer to the chart below when this product does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the product, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Centre. Symptom Check/Remedy I cannot eject the disc.• Is the power cord plugged securely into the outlet?• Turn off the power and then turn it back on.Playback does not start.• Check the region number of the DVD. DVD discs purchased from abroad may not be playable.• CD-ROMs and DVD-ROMs cannot be played on this product.• Make sure that the rating level is correct.Playback does not start immediately when the Play/Pause button is pressed.• Are you using a deformed disc or a disc with scratches on the surface?• Wipe the disc clean.Sound is not produced. • No sound is heard during fast playback, slow playback, and step motion playback. • Are the speakers connected properly? Is the speaker setup correctly customized?• Is the disc severely damaged?Sound can be heard only from a few speakers and not all 6.• On certain DVD discs, sound is output from the front speakers only.• Check if the speakers are connected properly.• Adjust the volume.• When listening to a CD, radio or TV, sound is output to the front speakers only. Select "PROLOG" by pressing PL II (Dolby Pro Logic II) on the remote control to use all six speakers.Dolby Digital 5.1 CH Surround Sound is not produced. • Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1 CH Surround Sound is produced only if the disc is recorded with 5.1 channel sound.• Is the audio language correctly set to Dolby Digital 5.1-CH in the information display?The remote control does not work. • Is the remote control being operated within its operation range of angle and distance?• Are the batteries drained? • Have you selected the correct mode (RECEIVER DVD/TV)?• Disc is rotating but no picture is produced.• Picture quality is poor and picture is shaking.• Is the TV power on?• Are the video cables connected properly?• Is the disc dirty or damaged?• A poorly manufactured disc may not be playable.Audio language and subtitles do not work. • Audio language and subtitles will not work if the disc does not contain them.The Disc/Title menu screen does not appear even when the Disc/Title function is selected.• Are you using a disc that does not contain menus?Aspect ratio cannot be changed.• You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3 ratio only. Refer to the DVD disc jacket and then select the appropriate function.34 English

06 Other Information

Symptom Check/Remedy

• The product is not working.

(Example: The power goes out or

the front panel key doesn't work

or a strange noise is heard.)

• The product is not working

• Press and hold the STOP (@) button on the remote control for longer than

5 seconds with no disc (reset function).

Using the RESET function will erase all stored settings.

Do not use this unless necessary.

The rating level password has been

• While “NO DISC” message appears on the display of the product, press and hold the

for longer than 5 seconds. “INIT” appears on the

display and all settings will return to the default values.

And then press the POWER button.

Using the RESET function will erase all stored settings.

Do not use this unless necessary.

Can't receive radio broadcast.

• Is the antenna connected properly?

• If the antenna's input signal is weak, install an external FM antenna in an area with good

Front speaker output

Center speaker output

Surround speaker output

S/N Ratio 65dB Channel separation 60dB Input sensitivity (AUX)800mV *: Nominal specification- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.- Weight and dimensions are approximate.- Design and specifications are subject to change without prior notice.- For the power supply and Power Consumption, refer to the label attached to the product.36 English

The OpenSSL toolkit stays under a dual license, i.e. both the conditions of the OpenSSL License and the

original SSLeay license apply to the toolkit. See below for the actual license texts. Actually both licenses

are BSD-style Open Source licenses. In case of any license issues related to OpenSSL please contact

openssl-core@openssl.org.

Copyright (c) 1998-2007 The OpenSSL Project. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that

the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the

following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the

following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or use of this software must display the following

acknowledgment: "This product includes software developed by the OpenSSL Project for use in the

OpenSSL Toolkit. (http://www.openssl.org/)"

4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or promote

products derived from this software without prior written permission. For written permission, please contact

openssl-core@openssl.org.

5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL" appear in their

names without prior written permission of the OpenSSL Project.

6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product

includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.

OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

This product includes cryptographic software written by Eric Young (eay@cryptsoft.com). This product

includes software written by Tim Hudson (tjh@cryptsoft.com).

Original SSLeay License

Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com) All rights reserved.

This package is an SSL implementation written by Eric Young (eay@cryptsoft.com).

The implementation was written so as to conform with Netscapes SSL.

This library is free for commercial and non-commercial use as long as the following conditions are aheared

to. The following conditions apply to all code found in this distribution, be it the RC4, RSA, lhash, DES,

etc., code; not just the SSL code. The SSL documentation included with this distribution is covered by the

same copyright terms except that the holder is Tim Hudson (tjh@cryptsoft.com).38 English

Copyright remains Eric Young's, and as such any Copyright notices in the code are not to be removed. If this

package is used in a product, Eric Young should be given attribution as the author of the parts of the library

used. This can be in the form of a textual message at program startup or in documentation (online or textual)

provided with the package.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the

following conditions are met:

1. Redistributions of source code must retain the copyright notice, this list of conditions and the following

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the

following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or use of this software must display the following

"This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)"

The word 'cryptographic' can be left out if the rouines from the library being used are not cryptographic related

4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code)

you must include an acknowledgement: "This product includes software written by Tim Hudson (tjh@cryptsoft.

LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

The licence and distribution terms for any publically available version or derivative of this code cannot be

changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.]Area Contact Centre

South Africa 0860-SAMSUNG (726-7864 ) www.samsung.com

Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG

customer care centre.Correct Disposal of This Product (Waste Electrical & Electronic

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g.

charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these

items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office,

for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract.

This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not

be disposed of with other household waste at the end of their working life. Where marked, the chemical

symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference

levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm

to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of

waste and recycle them through your local, free battery return system.

Code No. AH68-02259B Code No. AH68-02460F (00)Système Home

(http://www.openssl.org/) »

6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes

software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)"

CE LOGICIEL EST FOURNI PAR LE PROJET OpenSSL « EN L'ÉTAT » ET SANS QU’AUCUNE GARANTIE,

Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com)

Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com)

Copyright (C) 1995-1998 Eric Young (eay@cryptsoft.com)
