Safety Information

SafetyWarnings

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

3	CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN	4
This symbol indicates "dangerous voltage" inside the product that presents a risk of electric shock or personal injury.	CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.	This symbol indicates important instructions accompanying the product.

WARNING

• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION

• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
• The Mains plug is used as a disconnect device and shall stay readily operable at any time.
• This apparatus shall always be connected to an AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KCLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product.

Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION

• INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.

Precautions

• Ensure that the AC power supply in your house complies with the identification sticker located on the back of your product.
  Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5~10cm).
• Do not place the product on amplifiers or other equipment which may become hot. Make sure the ventilation slots are not covered.
• Do not stack anything on top of the product.
  Before moving the product, ensure the Disc Insert Hole is empty.
• In order to disconnect the product completely from the power supply, remove the AC plug from the wall outlet, especially when left unused for a long period of time.
• During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the product.
• Do not expose the product to direct sunlight or other heat sources. This could lead to overheating and malfunction of the product.
• Protect the product from moisture, and excess heat or equipment creating strong magnetic or electric fields (i.e., speakers.).
• Disconnect the power cable from the AC supply if the product malfunctions.
• Your product is not intended for industrial use. Use of this product is for personal use only.
• Condensation may occur if your product or disc has been stored in cold temperatures. If transporting the product during the winter, wait approximately 2 hours until the product has reached room temperature before using.
• The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash.

Accessories

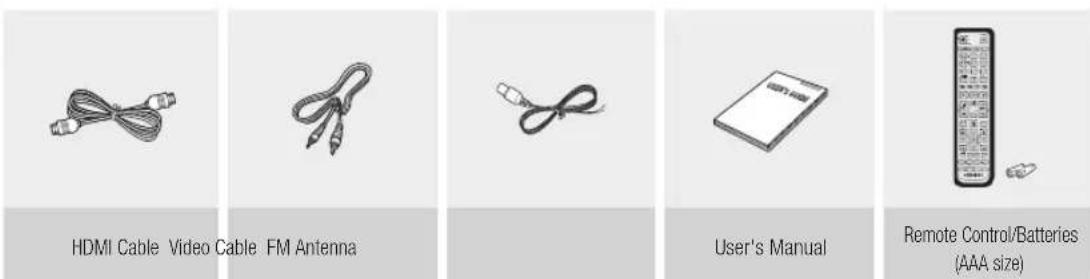

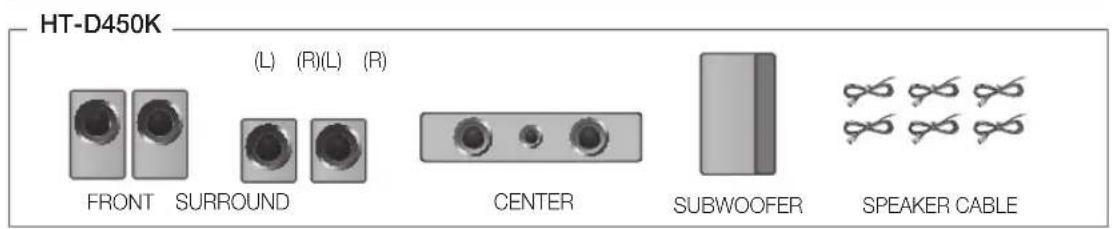

Check for the supplied accessories below.

Safety Information

Cautions on Handling and Storing Discs

Small scratches on the disc may reduce sound and picture quality or cause skipping.

Be especially careful not to scratch discs when handling them.

Holding discs

• Do not touch the playback side of the disc.
• Hold the disc by the edges so that fingerprints will not get on the surface.
• Do not stick paper or tape on the disc.

Disc Storage

• Do not keep in direct sunlight
• Keep in a cool ventilated area
• Keep in a clean Protection jacket. Store vertically.

NOTE

Do not allow the discs to become contaminated with dirt.
- Do not load cracked or scratched discs.

Handling and Storing Discs

If you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.

• When cleaning, wipe gently from the inside to the outside of the disc

NOTE

• Condensation may form if warm air comes into contact with cold parts inside the product. When condensation forms inside the product, it may not operate correctly. If this occurs, remove the disc and let the product stand for 1 or 2 hours with the power on.

License

ABOUT DIVXVIDEO:Divx@is a digital video format created by DivX, Inc. This is an official DivX Certified®

device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

DivX Certified® to play DivX® video, including premium content
DivX®, DivX Certified® and associated logos are trademarks of DivX, Inc.
and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274

HDMI, the HDMI Logo, and High-Definition

Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

This item incorporates copy protection technology that is protected by U. S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

• Dolby, Pro Logic, and the double-D symbol are registered trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent #s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents

issued & pending. DTS and the Symbol are registered trademarks & DTS Digital Surround and the DTS logos are trademarks of DTS, Inc. Product includes software© DTS, Inc. All Rights Reserved.

Copyright

© 2011 Samsung Electronics Co., Ltd. All rights reserved.

Copy Protection

• Many DVD discs are encoded with copy protection. Because of this, you should only connect your product directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.

Contents

SAFETY INFORMATION

2

2 Safety Warnings
3 Precautions
3 Accessories
4 Cautions on Handling and Storing Discs
4 License
4 Copyright
4 Copy Protection

GETTING STARTED

7

7 Icons that will be used in manual

1. Disc Types and Characteristics

11 Description
11 Front Panel
12 Rear Panel
13 Remote control

CONNECTIONS

15

15 Connecting the Speakers
19 Connecting the Video Out to your TV

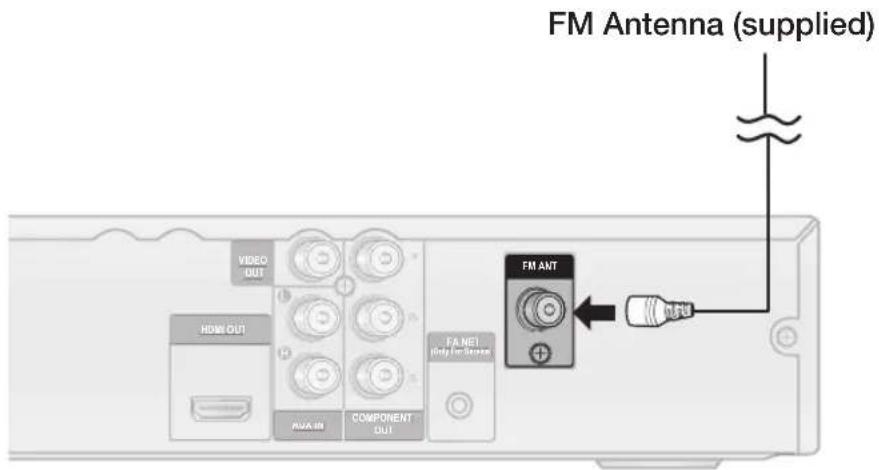

21 Connecting the FM Antenna
21 Connecting Microphone
22 Connecting Audio from External Components

SETUP

23

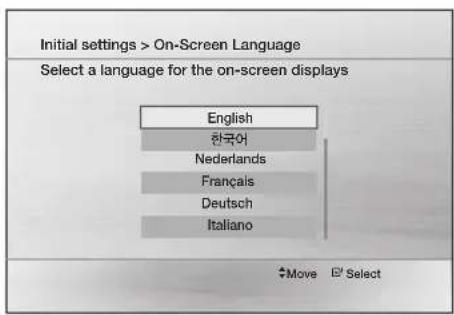

23 Before Starting (Initial Setting)
23 Setting the Setup menu
24 Display
24 TV Aspect
24 BD Wise
24 Resolution
24 HDMI Format
24 Video Out Signal
25 Audio

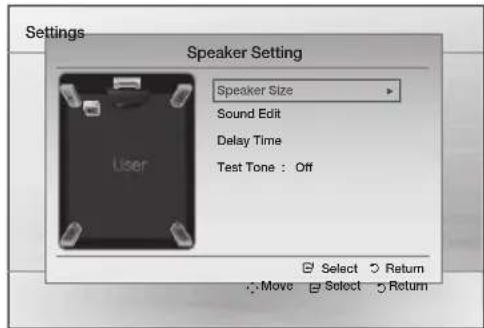

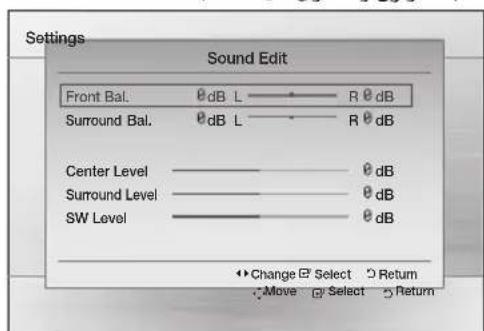

25 Speaker Setting
26 DRC (Dynamic Range Compression)

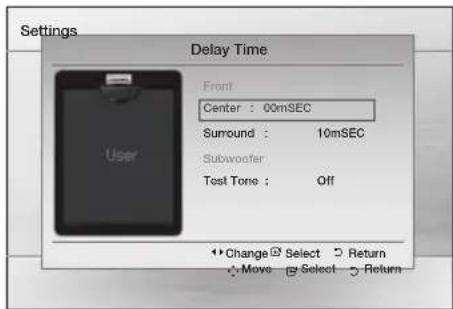

26 AUDIO SYNC
27 HDMI A
27 User EQ
27 Audio Return Ch.
27 Karaoke scoring
27 System
27 Initial Setting
27 DivX(R) Registration
27 DivX(R) Deactivation
28 Language
28 Security
28 Parental Rating
28 Change Password
28 Support
28 Product Information

Contents

BASIC FUNCTIONS

29 Disc Playback
29 Audio CD(CD-DA)/MP3/WMA Playback
30 JPEG File Playback
30 Using the Playback Function
34Sound Mode
36 Listening to Radio

ADVANCED FUNCTIONS

37 USB Function
37 USB Recording

OTHER INFORMATION

38 Troubleshooting
39 Language code list
40 Specifications

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.

Getting Started

Icons that will be used in manual

Make sure to check the following terms before reading the user manual.

Icon	Term Definition
SD	DVD	This involves a function available with DVD-Video or DVD±R/±RW discs that have been recorded and Finalized in Video Mode.
CD	CD	This involves a function available with a data CD (CD DA, CD-R/-RW).
MP3	MP3	This involves a function available with CD-R/-RW discs.
JPEG	JPEG	This involves a function available with CD-R/-RW discs.
DX	DivX	This involves a function available with MPEG4 discs. (DVD±R/±RW, CD-R/-RW)
!	CAUTION	This involves a case where a function does not operate or settings may be canceled.
	NOTE	This involves tips or instructions on the page that help each function operate.
	Shortcut Key	This function provides direct and easy access pressing the button on the remote control.

Disc Types and Characteristics

Region Code

The product and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.

Disc Type	Region Code	Area
DVD-VIDEO	1	The U.S., U.S. territories and Canada
	2	Europe, Japan, the Middle East, Egypt, South Africa, Greenland
	3	Taiwan, Korea, the Philippines, Indonesia, Hong Kong
	4	Mexico, South America, Central America, Australia, New Zealand Pacific Islands, Caribbean
	5	Russia, Eastern Europe, India, most of Africa, North Korea, Mongolia
	6	China

Getting Started

Disc types that can be played

Disc Types & Mark (Logo)	Recorded Signals	Disc Size	Max. Playing Time
DVD VIDEO	AUDIO + VIDEO	12 cm	Approx. 240 min. (single-sided)
			Approx. 480 min. (double-sided)
		8 cm	Approx. 80 min. (single-sided)
			Approx. 160 min. (double-sided)
AUDIO-CD	AUDIO	12 cm	74 min.
		8 cm 20 min.
DIVX, DivX	AUDIO + VIDEO	12 cm	-
		8 cm	-

Do not use the following type of discs!

• LD, CD-G, CD-I, CD-ROM, DVD-ROM and DVD-RAM discs cannot be played on this product. If such discs are played, a message appears on the TV screen.
  DVD discs purchased abroad may not play on this product. If such discs are played, a message appears on the TV screen.

Disc Types And Disc Format

This product does not support Secure (DRM) Media files.

CD-R Discs

Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition of the disc.
Use a 650MB/74 minute CD-R disc. Do not use CD-R discs over 700MB/80 minutes as they may not be played back.
- Some CD-RW (Rewritable) media, may not be playable.
Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you may not be able to fully play the disc.

CD-R MP3 Discs

Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
- MP3 file names should contain no blank spaces or special characters (. / = +) .
- Use discs recorded with a compression/decompression data rate greater than 128Kbps.
- Only files with the ".mp3" and ".MP3" extensions can be played.
Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession disc, the disc can be played only up to the blank segment.
If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
- For files encoded in Variable Bitrate (VBR) format, i.e. files encoded in both low Bitrate and high Bitrate (e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.
- A maximum of 500 tracks can be played per CD.
- A maximum of 300 folders can be played per CD.

CD-R JPEG Discs

• Only files with the "jpg" extensions can be played.
• If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
  Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
• JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +) .
  Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the disc can be played only up to the blank segment.
• A maximum of 999 images can be stored on a folder.
• When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
  Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.

DVD±R/±RW, CD-R/RW Discs

• Software updates for incompatible formats are not supported. (Example: QPEL, GMC, resolutions higher than 800 x 600 pixels, etc.)
  If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be playable.

DivX (Digital internet video express)

DivX® is a video file format developed by DivX, Incand is based on MPEG4 compression technology to provide audio and video data over the Internet in real-time.

MPEG4 is used for video encoding and MP3 for audio encoding, enabling to watch a movie at near DVD-quality video and audio.

Supported Formats (DivX)

This product only supports the following media formats. If both video and audio formats are not supported, the user may experience problems such as broken images or no sound.

Supported Video Formats

Format Supported Versions
AVI	DivX3.11~DivX5.1
WMV	V1/V2/V3/V7

Supported Audio Formats

Format Bitrate		Sampling Frequency
MP3	80~320kbps	44.1khz
WMA	56~128kbps
AC3	128~384kbps 44.1	/48khz
DTS	1.5Mbps 44.1khz

• DivX files, including audio and video files, created in the DTS format can only support up to 6Mbps.

• Aspect Ratio : Although the default DivX resolution is 640x480 pixels, this product supports up to 720x480 pixels. TV screen resolutions higher than 800 will not be supported.

• When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may experience shaking on the screen during playback.
  Sections with a high frame rate might not be played while playing a DivX file.

• Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the user might not play.

Getting Started

Notes on USB connection

Supported devices: USB storage media, MP3 player, digital camera

1) If a folder or file name is longer than 10 characters, it may not properly display or operate.
2) A subtitle file bigger than 300KB may not be properly displayed.
3) A certain USB/digital camera device, USB card reader is not supported.
4) FAT16 and FAT32 file systems are supported.
5) Photo (JPEG), music (MP3, WMA) and video file should have their names in Korean or English. Otherwise, the file may not played.
6) Connect directly to the product's USB port. Connecting through another cable may raise problems with USB compatibility.
7) Inserting more than one memory device to a multi-card reader may not operate properly.
8) PTP protocol for digital camera is not supported.
9) Do not disconnect USB device during a "Reading" process.
10) Bigger the image resolution, the longer the delay to displaying.
11) DRM applied MP3/WMA or video files downloaded from a commercial site are not played back.
12) External HDD device is not supported.
13) The maximum current supported by the USB port for an external device is 500mA (at 5V DC).

14) Supported file formats

Format	Still Picture	Music Movie
File name	JPG MP3 WMA WMV DivX
File extension	JPG .JPEG	.MP3 .WMA .WMV	.AVI
Bitrate	-	80~320 kbps	56~128 kbps	4Mbps 4Mbps
Version	-	-	V8	V1,V2, V3,V7	DivX3.11~DivX5.1
Pixel	640x480	-	-	720x480
Sampling Frequency	-	44.1KHz	44.1KHz	44.1KHz~48KHz

Description

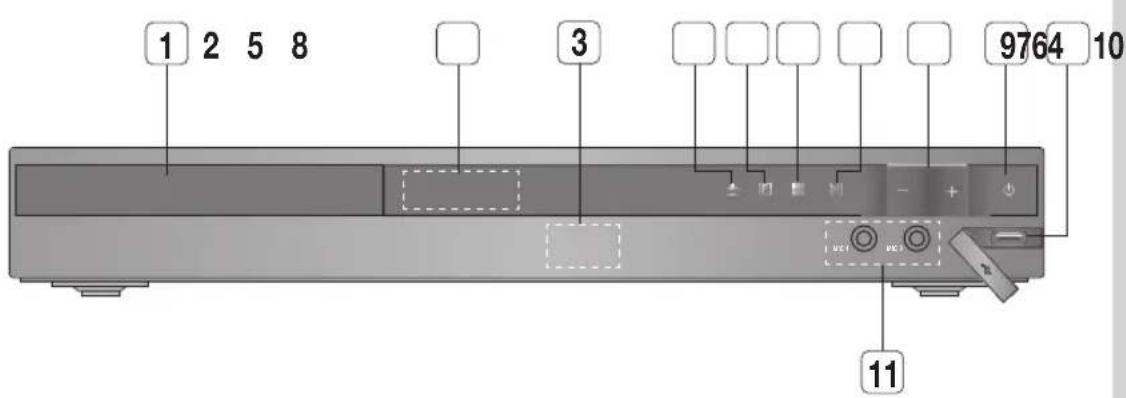

Front Panel

1	DISC TRAY	Insert disc here.
2	DISPLAY	Displays the playing status, time, etc.
3	REMOTE CONTROL SENSOR	Detects signals from the remote control.
4	OPEN/CLOSE BUTTON(▲)	Opens and closes the disc tray.
5	FUNCTION BUTTON(▲)	The mode switches as follows: DVD/CD→D.IN→AUX→USB→FM
6	STOP BUTTON(▲)	Stops disc playback.
7	PLAY/ PAUSE BUTTON(▲)	Plays a disc or pauses playback.
8	VOLUME CONTROL BUTTON(▲)+	Volume adjustment.
9	POWER BUTTON(▲)	Turns the product on and off.
10	USB PORT	Connect here and play fi les from external USB storage devices such as MP3 players, USB fI ash memory, etc.
11	MIC JACKS	Connects to the microphone.

Getting Started

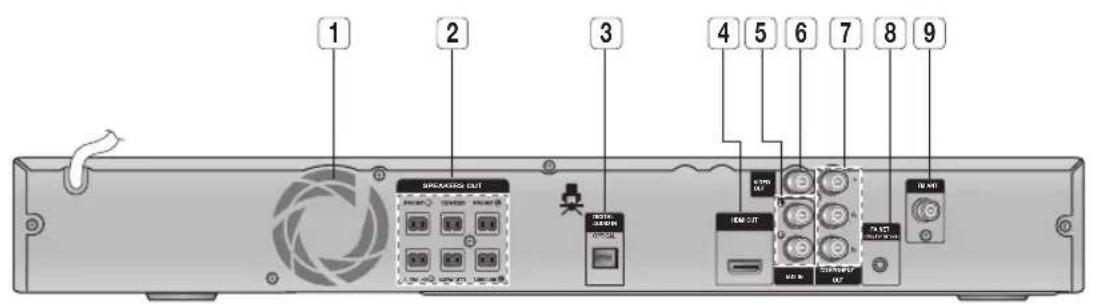

Rear Panel

1	COOLING FAN	The fan always revolves when the power is on. Ensure a minimum of 10cm of clear space on all sides of the fan when installing the product.
2	SPEAKERS OUTPUT CONNECTORS	Connect the front, Center, surround speakers and subwoofer.
3	EXTERNAL DIGITAL OPTICAL IN JACK (DIGITAL AUDIO IN)	Use this to connect external equipment capable of digital output.
4	HDMI OUT JACK	Using an HDMI cable, connect this HDMI output jack to the HDMI input jack on your TV for the best quality picture.
5	AUX IN JACK	Connect to the 2CH Analog output of an external device (such as a VCR).
6	VIDEO OUT JACK	Connect your TV's Video Input jack (VIDEO IN) to theVIDEO OUT jack.
7	COMPONENT VIDEO OUTPUT JACKS	Connect a TV with Component video inputs to these jacks.
8	FA NET (Only for Service)	Used for the service repair.
9	FM ANTENNA JACK	Connect the FM antenna.

Remote control

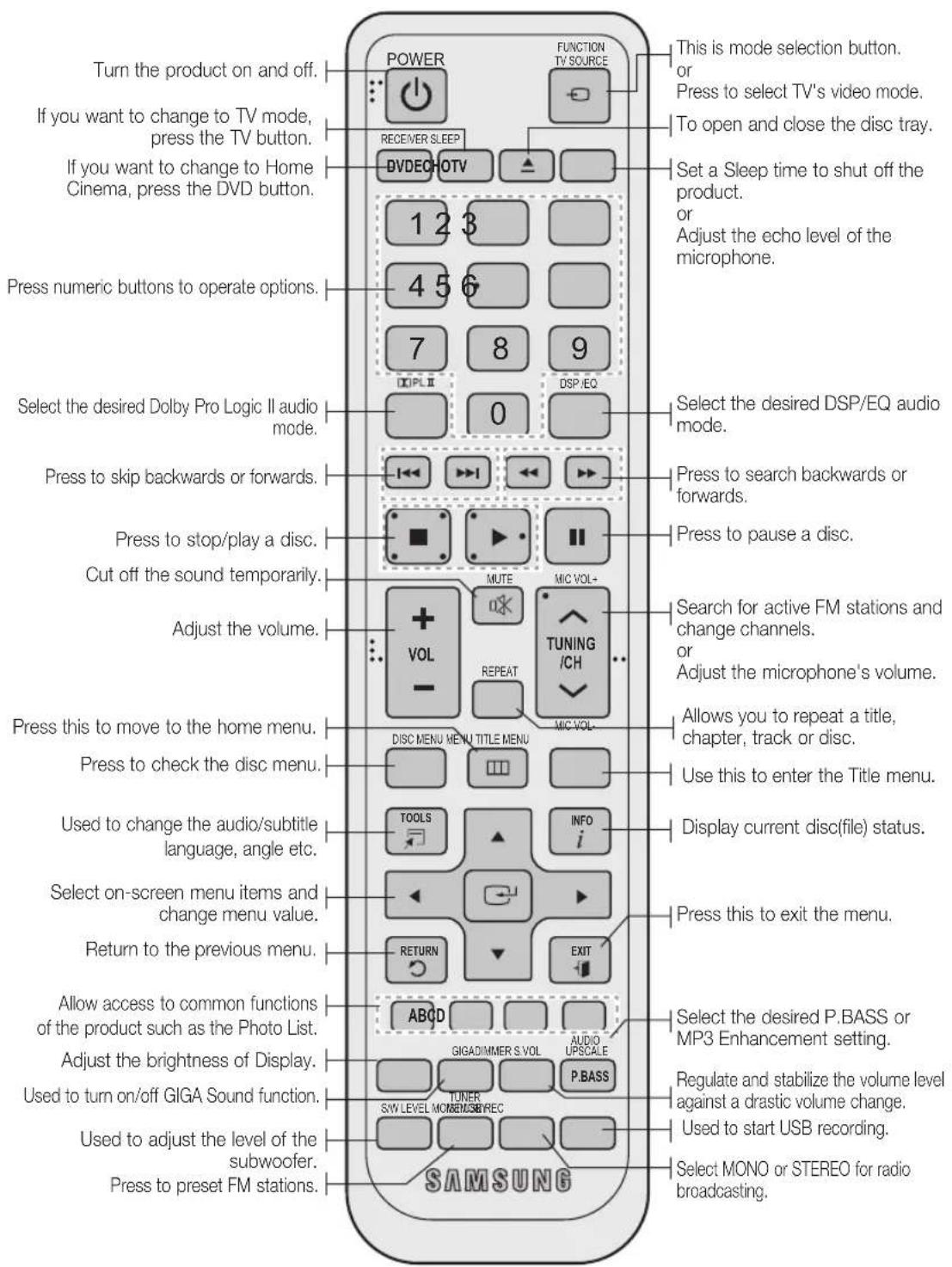

Tour of the Remote Control

Getting Started

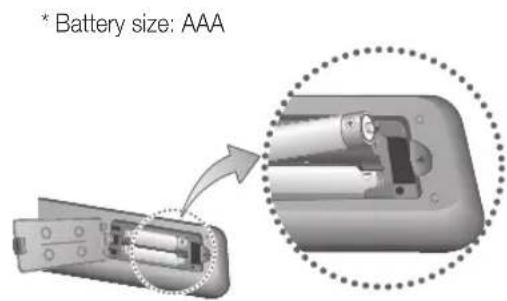

Installing batteries in the Remote Control

NOTE

• Place batteries in the remote control so they match the polarity: (+) to (+) and (-) to (-).
  Always replace both batteries at the same time.
• Do not expose the batteries to heat or flame.
  The remote control can be used up to approximately 7 meters in a straight line.

Setting the Remote Control

You can control certain functions of your TV with this remote control.

When operating a TV with the remote control

1. Press the TV button to set the remote control to TV mode.
2. Press the POWER button to turn on the TV.

3. While holding down the POWER button, enter the code corresponding to your brand of TV.

4. If there is more than one code listed for your TV in the table, enter one at a time to determine which code works.
   Example:For a Samsung TV

While holding down the POWER button, use the number buttons to enter 00, 15, 16, 17 and 40.

1. If the TV turns off, the setting is complete.
2. You can use the TV POWER, VOLUME, CHANNEL, and Numeric buttons (0~9).

NOTE

The remote control may not work or some operations may not be possible with some brands of TVs.
The remote control will work on a Samsung TV by default.

TV Brand Code List

Brand Code Brand Code
Admiral(M.Wards)	56, 57, 58	MTC	18
A Mark	01, 15	NEC	18, 19, 20, 40, 59, 60
Anam	01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14	Nikkei	03
AOC	01, 18, 40, 48	Onking	03
Bell & Howell(M.Wards)	57, 58, 81	Onwa	03
Broosonic	59, 60	Panasonic	06, 07, 08, 09, 54, 66, 67, 73, 74
Candle	18	Penney	18
Catronic	03	Phico	03, 15, 17, 18, 46, 54, 59, 62, 69, 90
Citizen	03, 18, 25	Phillips	15, 17, 18, 40, 48, 54, 62, 72
Cinema	97	Pioneer	63, 66, 80, 91
Classic	03	Portland	15, 18, 59
Concerto	18	Proton	40
Contac	46	Quasar	06, 66, 67
Coronado	15	Radio Shack	17, 48, 56, 60, 61, 75
Craig	03, 05, 61, 82, 83, 84	RCA/Proscan	18, 59, 67, 76, 77, 78, 92, 93, 94
Croslex	62	Realistic	03, 19
Crown	03	Sampo	40
Curtis Mates	59, 61, 63	Samsung	00, 15, 18, 17, 40, 43, 46, 47, 48, 49
CXC	03	Sanyo	19, 61, 65
Daewoo	02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 42, 59, 90	Scott	03, 40, 60, 61
Daytron	40	Sears	15, 18, 19
Dynasty	03	Sharp	15, 57, 64
Emerson	03, 15, 40, 46, 59, 61, 64, 62, 83, 84, 85	Signature2000(M.Wards)	57, 58
Fisher	18, 65	Sony	50, 51, 52, 53, 55
Funai	03	Soundesign	03, 40
Futurotech	03	Speclifcon	01
General Electric (GE)	06, 40, 56, 59, 66, 67, 68	SSS	18
Hall Mark	40	Sylvania	18, 40, 48, 54, 59, 60, 62
Hitachi	15, 18, 50, 59, 69	Symphonic	61, 95, 96
Inkel	45	Tatuung	06
JC Penny	56, 59, 67, 86	Techwood	18
JWC	70	Telnikka	03, 15, 18, 25
KTV	59, 61, 87, 88	TMK	18, 40
KEC	03, 15, 40	Toshiba	19, 57, 63, 71
KMC	15	Victech	18
LG (Goldstar)	01, 15, 18, 17, 37, 38, 39, 40, 41, 42, 43, 44	Videch	59, 60, 69
Luxman	18	Wards	15, 17, 18, 40, 48, 54, 60, 64
LXI (Seers)	19, 54, 56, 59, 60, 62, 63, 65, 71	Yamaha	18
Magnavox	15, 17, 18, 48, 54, 59, 60, 62, 72, 89	York	40
Marantz	40, 54	Yupteru	03
Matsui	54	Zenith	58, 79
MGA	18, 40	Zondia	01
Mitsubishi/MGA	18, 40, 59, 60, 75	Dongyang	03, 54

Connections

This section involves various methods of connecting the product to other external components. Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

Connecting the Speakers

Position of the product

Place it on a stand or cabinet shelf, or under the TV stand.

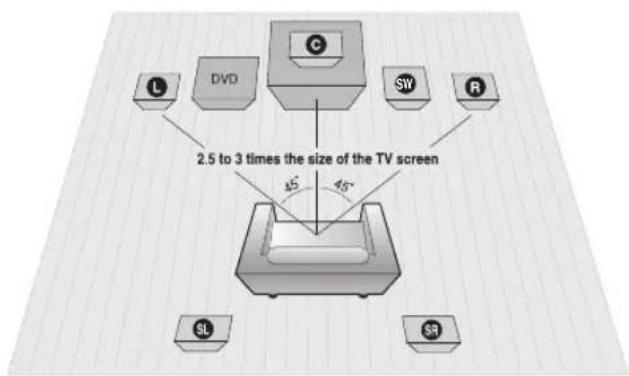

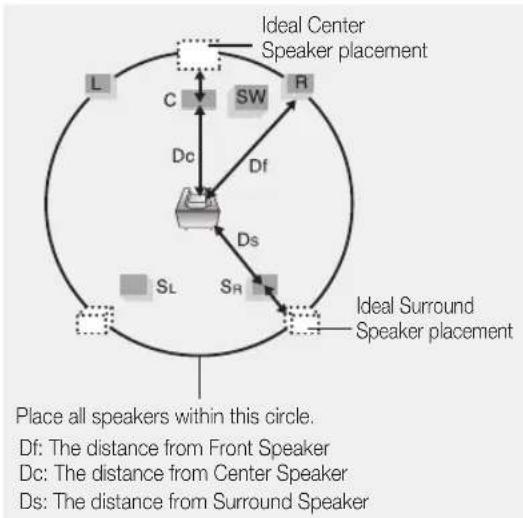

Selecting the Listening Position

The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV.

Example: For 32" TV's 2~2.4m

For 55TV's 3.5~4m

Front Speakers L R	Place these speakers in front of your listening position, facing inwards (about 45°) toward you. Place the speakers so that their tweeters will be at the same height as your ear. Align the front face of the front speakers with the front face of the Center speaker or place them slightly in front of the Center speakers.
Center Speaker C	It is best to install it at the same height as the front speakers. You can also install it directly over or under the TV.
Surround Speakers SL SR	Place these speakers to the side of your listening position. If there isn't enough room, place these speakers so they face each other. Place them about 60 to 90cm above your ear, facing slightly downward. * Unlike the front and Center speakers, the surround speakers are used to handle mainly sound effects and sound will not come from them all the time.
Subwoofer SW	The position of the subwoofer is not so critical. Place it anywhere you like.

！CAUTION

Do not let children play with or near the speakers. They could get hurt if the speaker falls.
- When connecting the speaker wires to the speakers, make sure that the polarity (+/-) is correct.
- Keep the subwoofer out of the reach of children so as to prevent them from inserting their hands or alien substances into the duct (hole) of the subwoofer.
Do not hang the subwoofer on the wall through the duct (hole).

NOTE

If you place a speaker near your TV set, screen Color may be distorted because of the magnetic field generated by the speaker. If this occurs, place the speaker away from your TV set.

Connections

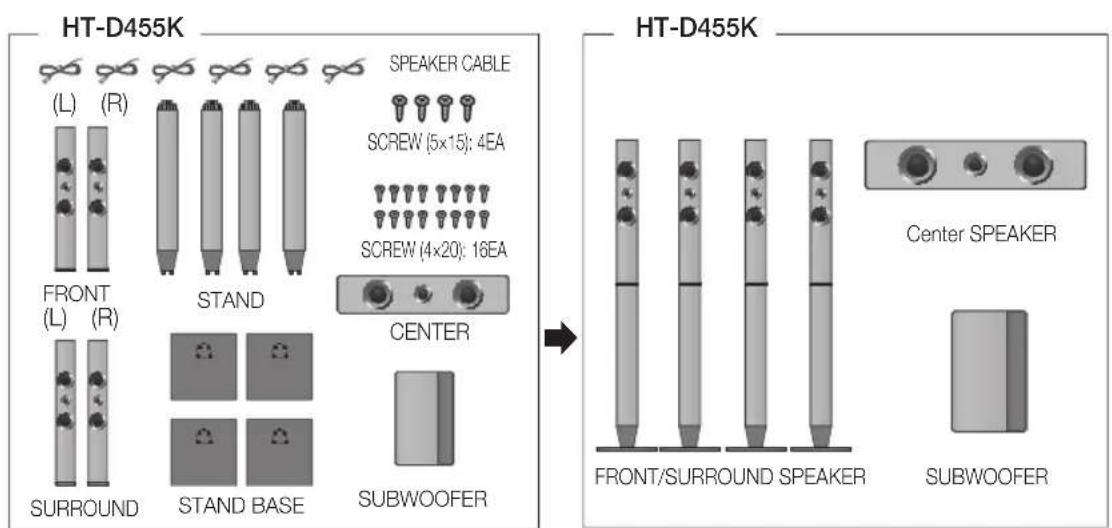

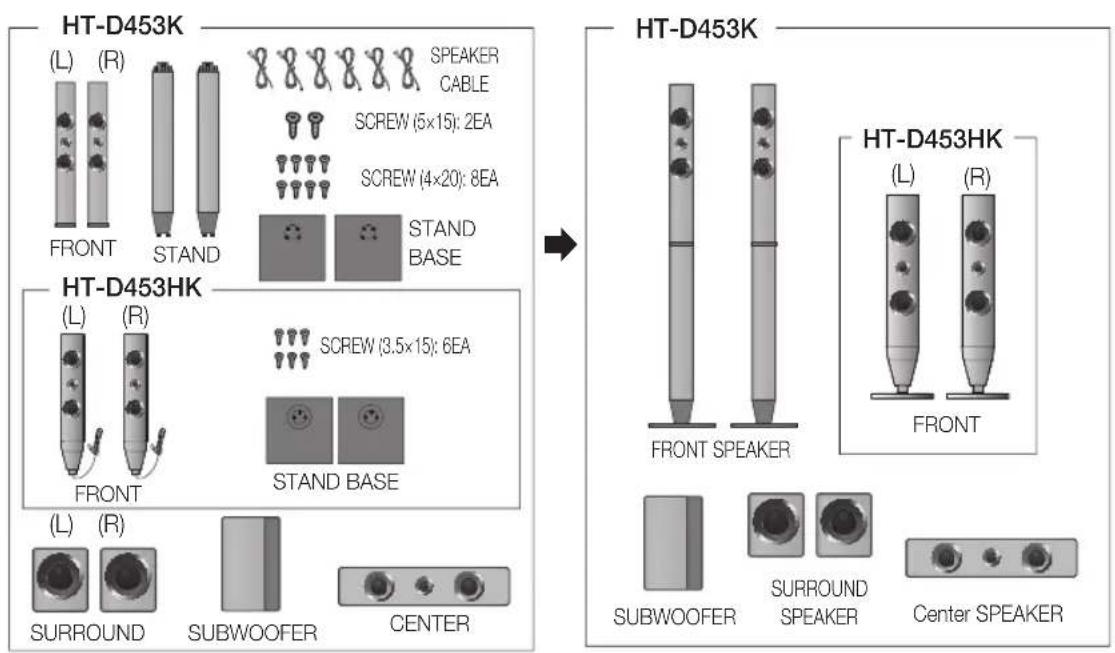

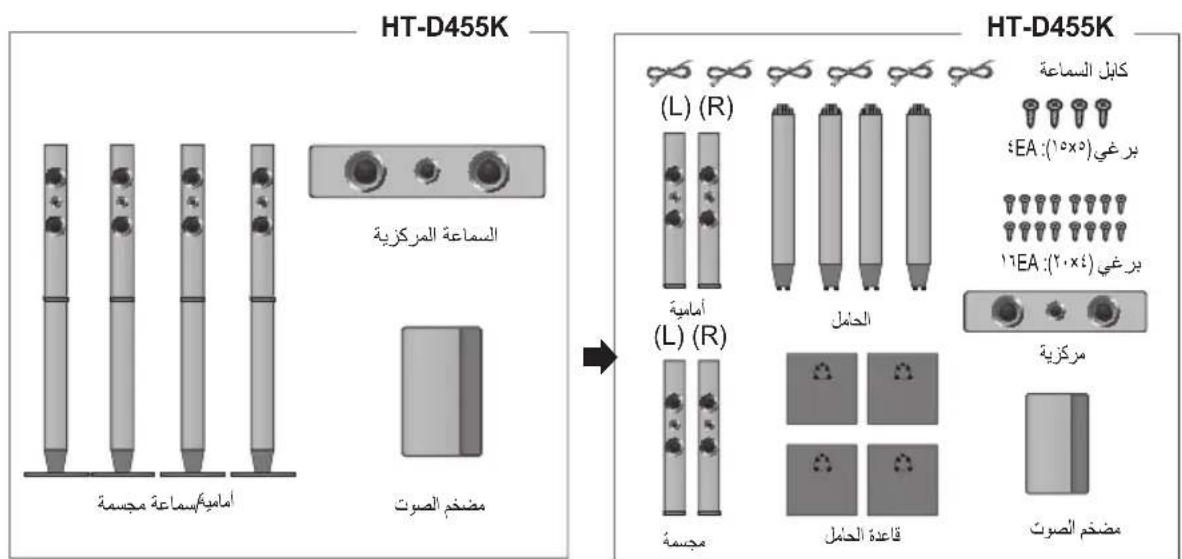

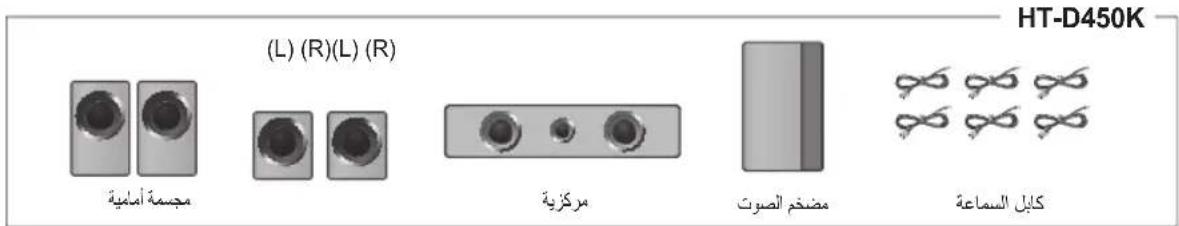

Speaker Components

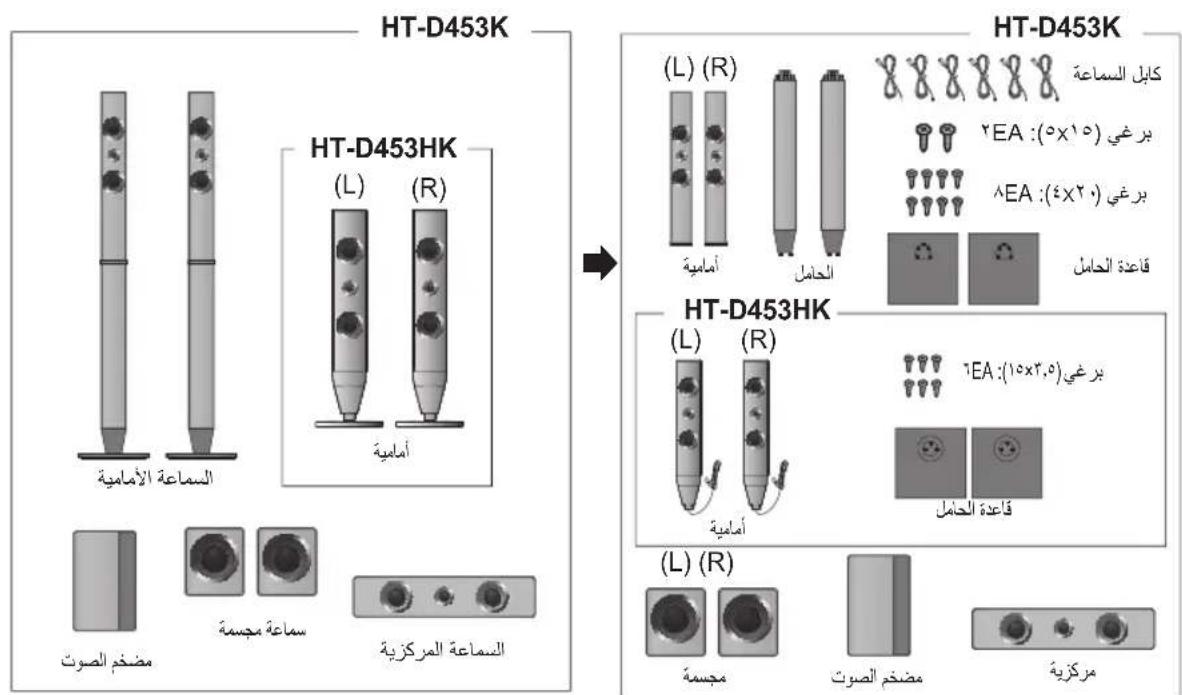

Speaker Components Assembled Speakers

NOTE

Refer to page 17 to install the Speakers on the Tallboy Stand.

16 English

Installing the Speakers on the Tallboy Stand

• HT-D453K only - Front Speakers

• HT-D455K only - Front/Surround Speakers

• Turn the Stand Base upside-down and connect it to the Stand.

• Insert small screws (4*20, For connecting Stand & Stand Base) clockwise into the four holes marked using a screwdriver as shown in the illustration.

CAUTION: When you use a torque screwdriver, be careful not to put excessive force. Otherwise, it runs idle or can be damaged. (torque screwdriver below 15 kg.f.cm)

1. Connect the upper Speaker to the assembled Stand.
2. Insert another largescrew (5*15, For connecting Speaker & Stand) clockwise into the hole on the rear of the speaker using ascrewdriver.
3. This is the appearance after the speaker is installed. Follow this steps to install other speaker.

Installing the Speakers on the Half Tallboy

• HT-D453HK only - Front Speakers

• Stretch out the speaker cables as shown and arrange it through the hole of the stand base.

• When done, use the screw driver to tighten the screw (C) in each of 3 screw holes as shown.
• This is the appearance after the speaker is installed. Follow these steps to install other speaker.

Connections

Adjusting the height of the Half Tallboy Speaker

* HT-D453HK only - Front Speakers

1. If you want to adjust the height of the speaker, loosen 3 screws on the rear of the speaker base first.
2. Pull up the speaker in the arrow direction. (See figure 2)
   ! CAUTION: Be careful as an excessive force may result in a physical damage.
3. Fit the speaker in a height adjusting hole of your choice. For the height information, check the following examples. (570mm for the default height)

Ex) Hole 1:650mm in the speaker height Hole 2:635mm in the speaker height

1. Close the cover as shown and tighten back the 3 screws.
2. This is after the height of the speaker is adjusted. You can repeat these steps above at any time if you want to readjust the height.

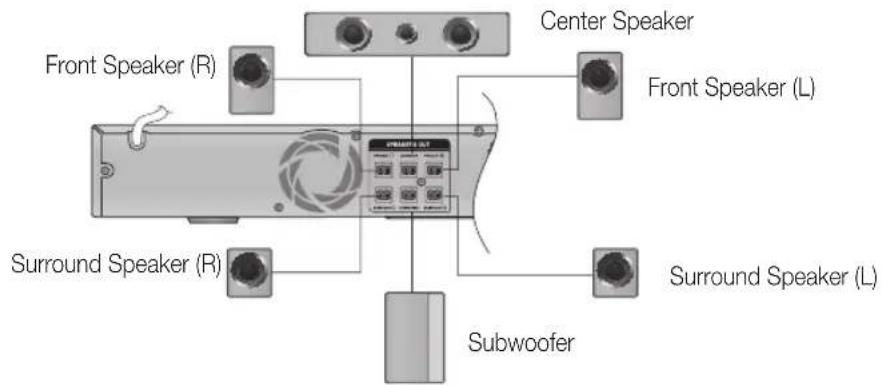

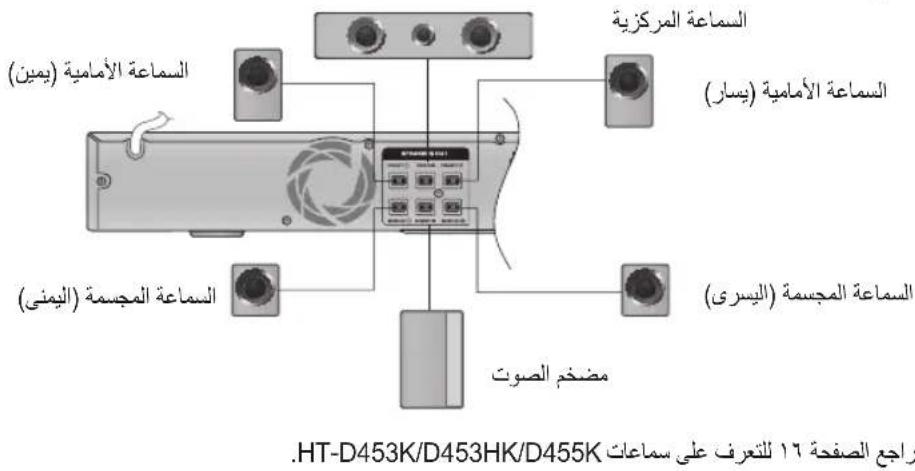

Connecting The Speakers

1. Press down the terminal tab on the back of the speaker.
2. Insert the black wire into the black terminal (-) and the red wire into the red terminal (+) , and then release the tab.
3. Connect the connecting plugs to the back of the product by matching the Colors of the speaker plugs to the speaker jacks.

In case of HT-D450K

• Refer to page 16 for the speakers of HT-D453K/D453HK/D455K.

18 English

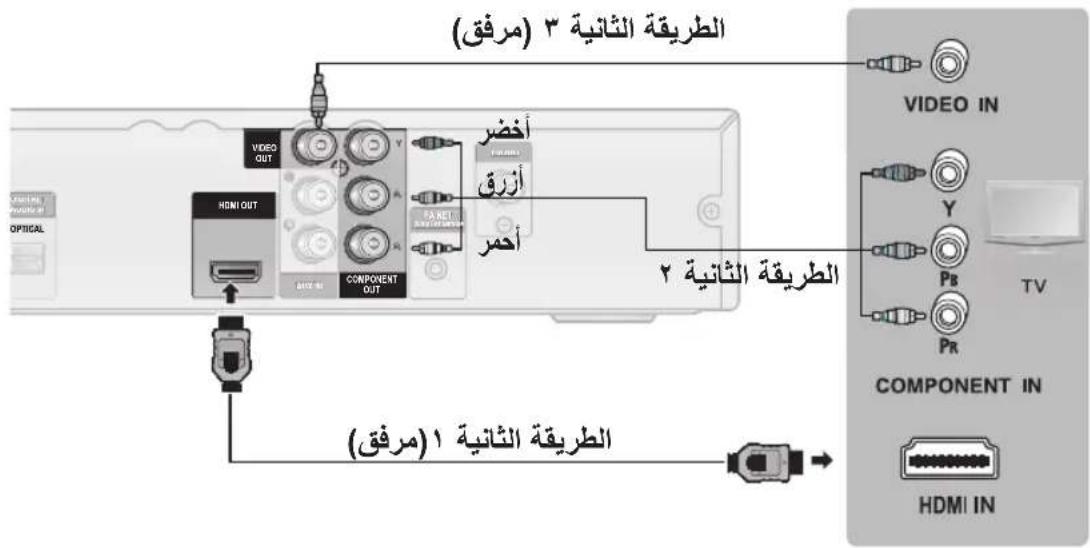

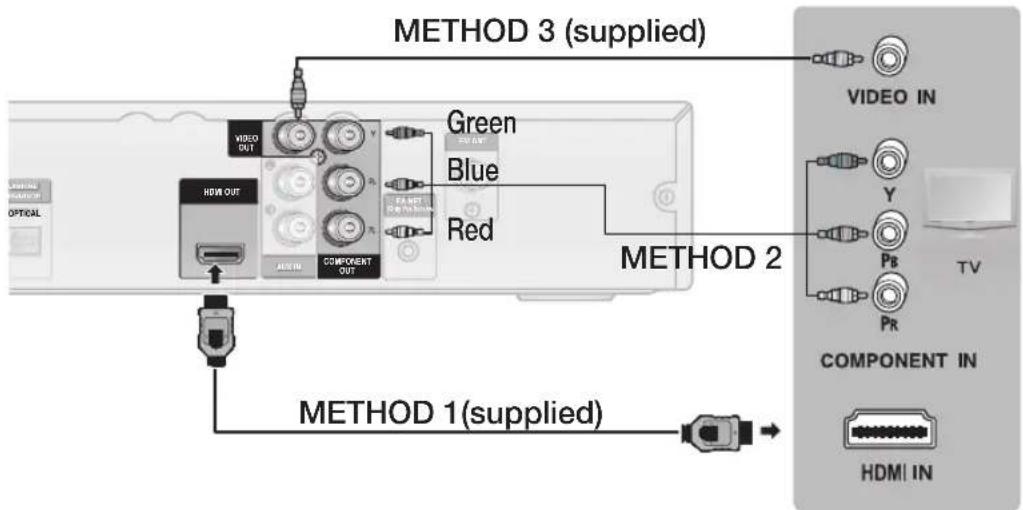

Connecting the Video Out to your TV

Choose one of the three methods for connecting to a TV.

METHOD 1 : HDMI

Connect an HDMI cable (supplied) from the HDMI OUT jack on the back of the product to the HDMI IN jack on your TV.

METHOD 2 : Component Video

If your television is equipped with Component Video inputs, connect a Component video cable(not supplied) from the COMPONENT OUT (Y, PB and PR) jacks on the back of the product to the Component Video Input jacks on your TV.

METHOD 3 : Composite Video

Connect the supplied Video cable from the VIDEO OUT jack on the back of the product to the VIDEO IN jack on your TV.

NOTE

Resolutions available for the HDMI output are 480p(576p), 720p, 1080i/1080p. See page 24 for the resolution setting.
This product operates in Interlace scan mode 480i(576i) for component/composite output.
After making the video connection, set the Video input source on your TV to match the corresponding Video output mode on your product.

Turn this product on first before you set the video input source on your TV. See your TV owner's manual for more information on how to select the TV's Video Input source.

！CAUTION

• Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by copyright protection systems and the picture will be distorted on the television.

Connections

HDMI FUNCTION

HDMI Auto Detection Function

If your TV is Samsung TV and it supports CEC function. The product's video output will automatically change to HDMI mode when connecting an HDMI cable while power is on.

• HDMI (High Defi nition Multimedia Interface)
• HDMI is an interface that enables the digital transmission of video and audio data with just a single connector. Using HDMI, the product transmits a digital video and audio signal and displays a vivid picture on a TV having an HDMI input jack.

• HDMI connection description

• HDMI outputs only a pure digital signal to the TV.

• If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen.

• What is the HDCP?

• HDCP (High-band width Digital Content Protection) is a system for protecting DVD content outputted via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD, etc) and a display device (TV, projector, etc). Content is encrypted at the source device to prevent unauthorized copies from being made.

Using Anynet+ (HDMI-CEC)

Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control. Anynet + can be used by connecting this product to a SAMSUNG TV using a HDMI Cable. This is only available with SAMSUNG TV's that support Anynet+.

1. Connect the product to a Samsung TV with an HDMI cable. (See page 19)
2. Set the Anynet+ function on your TV. (See the TV instruction manual for more information.)

NOTE

The Anynet+ function supports some buttons of the remote control.
This function is not available if an HDMI cable does not support CEC.
Depending on your TV, certain HDMI output resolutions may not work. Please refer to the user's manual of your TV.
Please check the Anynet ^+ logo (If your TV has anAnynet ^+ logo, then it supports Anynet ^+ function.)

Connecting the FM Antenna

1. Connect the FM antenna supplied to the FM Antenna jack.
2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface.

NOTE

This product does not receive AM broadcasts.

Connecting Microphone

You can enjoy the feeling of a karaoke bar in the comfort of your home. Watch the video and sing along the lyrics displayed on the TV screen against the accompaniment.

1. Connect the microphone to the MIC jack on the front of the product.
2. Press the MIC VOL button to adjust the volume of the microphone.
3. Press the ECHO button to adjust the echo level of the microphone.

NOTE

If you hear strange noises (squealing or howling) while using the Karaoke feature, move the microphone away from the speakers. Turning down the microphone's volume or the speaker volume is also effective.
The microphone does not operate in the AUX and TUNER mode.

Connections

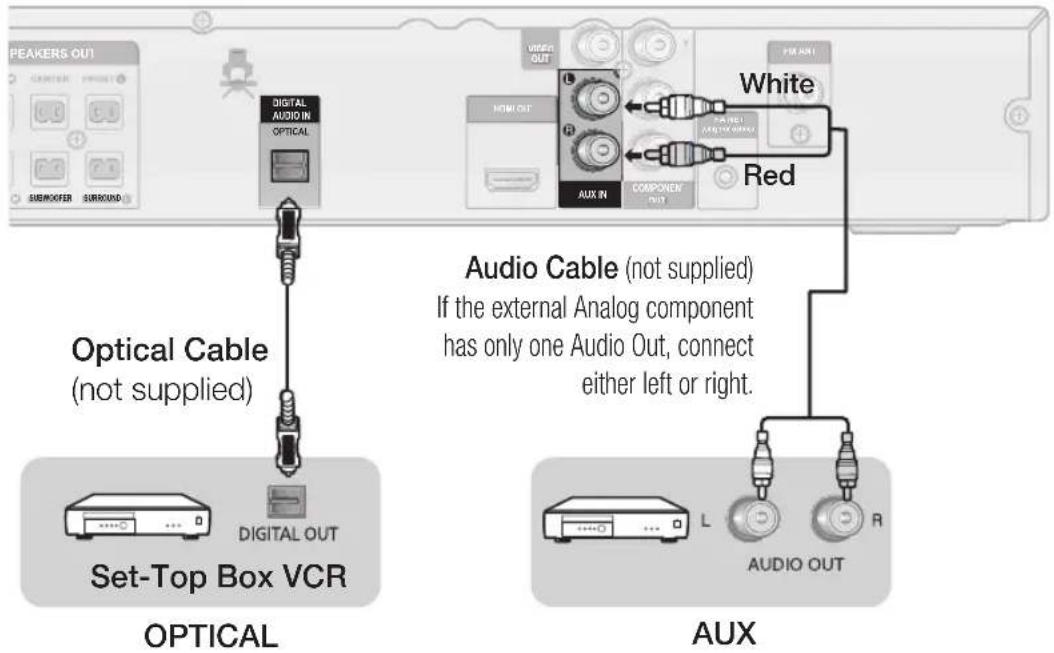

Connecting Audio from External Components

AUX: Connecting an External Analog Component

Analog signal components such as a VCR.

1. Connect AUX IN (Audio) on the back of the product to the Audio Out of the external Analog component.

2. Be sure to match the Colors of the connecting jacks.

3. Press the FUNCTION button to select AUX input.

The mode switches as follows: DVD/CD D.IN AUX USB FM

NOTE

• You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the VCR to this product.

OPTICAL : Connecting an External Digital Component

Digital signal components such as a Cable Box/Satellite receiver (Set-Top Box).

1. Connect the DIGITAL AUDIO IN (OPTICAL) on the back of the product to the Digital Output of the external digital component.
2. Press the FUNCTION button to select D.IN.

The mode switches as follows: DVD/CD D.IN AUX USB FM

22 English

Setup

Before Starting (Initial Setting)

1. Press the POWER button when it is plugged in TV for the first time. Initial Setting screen will be displayed.

1. Press the buttons to select the desired language, then press the ENTER button.
2. Press the ENTER button to select Start button.
3. Press the buttons to select desired TV Aspect, then press the ENTER button.

If the HDMI cable is connected to the product, TV Zspect does not appear.

NOTE

If you have not selected a preferred language in the initial settings, you will see a language selection window next time you turn on the product.
- Your language selection will apply to all menus: On-Screen Menu, Disc Menu, Audio, Subtitle.
If you want to move to the previous screen, press the RETURN button.
Once you select a menu language, you can change it by pressing the STOP (■) button on the remote control for more than 5 seconds with no disc inserted.
- When the Initial Setting screen does not appear, refer to the Initial Setting. (see page 27)

Setting the Setup menu

The access step may differ depending on the selected menu. The GUI (Graphical User Interface) in this manual may differ, depending on the firmware version.

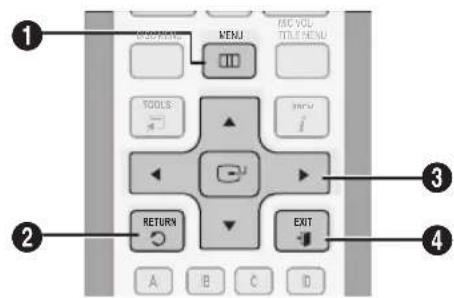

MENUBUTTON:Displaythome menu.

RETURN BUTTON : Return to the previous setup menu.

ENTER/DIRECTION BUTTON

Move the cursor and select an item. Select the currently selected item. Confirm the setting.

EXIT BUTTON:Exit the setup menu.

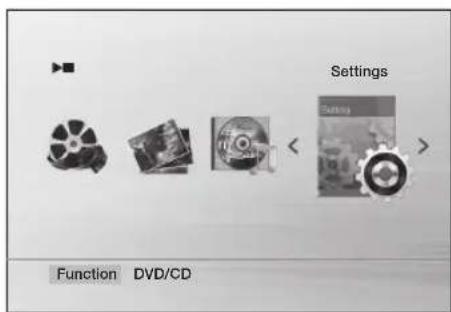

1. Press the POWER button.
2. Press the buttons to select Settings, then press the ENTER button.
3. Press the buttons to select the desired menu, then press the ENTER button.
4. Press the buttons to select the desired sub-menu, then press the ENTER button.
5. Press the buttons to select the desired item, then press the ENTER button.
6. Press the EXIT button to exit the setup menu.

Setup

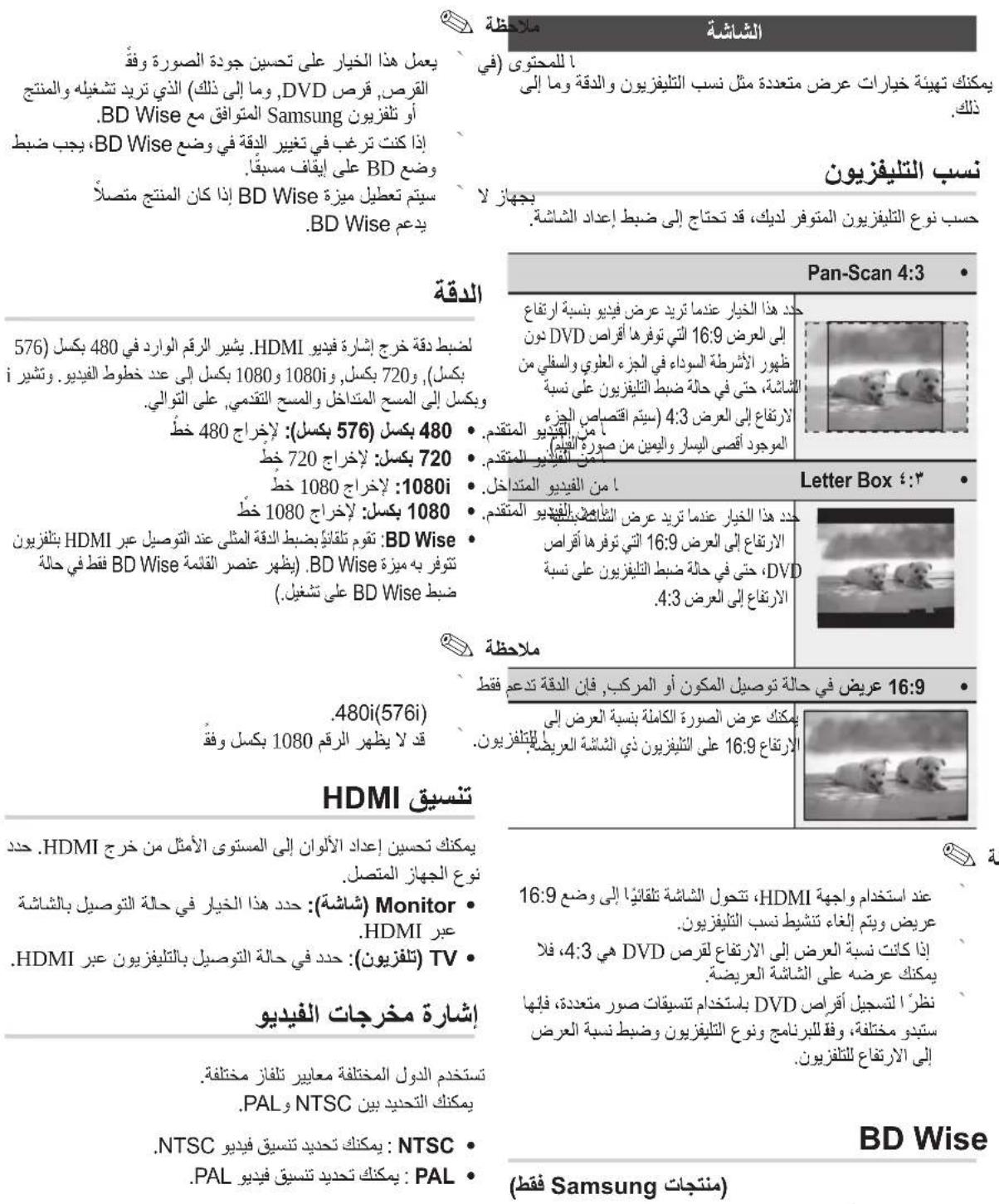

Display

You can configure various display options such as the TV Aspect, Resolution, etc.

TV Aspect

Depending on the type of television you have, you may want to adjust the screen setting.

4:3 Pan-Scan

Select when you want to see the 16:9 video supplied by the DVD without the black bars on top and bottom, even though you have a TV with a 4:3 ratio screen(extreme left and right portion of the movie picture will be cut off).

4:3 Letter Box

Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.

16:9 Wide

You can view the full 16:9 picture on your widescreen TV.

NOTE

When using HDMI, the screen is automatically converted to the 16:9 Wide mode and TV Aspect is deactivated.
If a DVD is in the 4:3 ratio, you cannot view it in the wide screen.
Since DVD discs are recorded in various image formats, they will look different depending on the software, the type of TV, and the TV aspect ratio setting.

BD Wise

(Samsung products only)

BD Wise is Samsung's latest inter-connectivity feature. When you connect Samsung products with BD-Wise to each other via HDMI, the optimum resolution will be set automatically.

• On : The original resolution of the DVD disc will be output to the TV direct.
• Off: The output resolution will be fixed according to the Resolution previously set, regardless of the resolution of the disc.

24 English

NOTE

This will optimize the picture quality according to the content (In the DVD disc, etc) that you want to play and the product or your BD Wise-compliant Samsung TV.
If you want to change the resolution in BD Wise mode, you must set BD mode to Off in advance.
BD Wise will be disabled if the product is connected to a device that does not support BD Wise.

Resolution

Sets the output resolution of the HDMI video signal. The number in 480p(576p), 720p, 1080i and 1080p indicates the number of lines of video.

The i and p indicate interlace and progressive scan, respectively.

• 480p(576p) : Outputs 480 lines of progressive video.
• 720p : Outputs 720 lines of progressive video.
• 1080i: Outputs 1080 lines of interlaced video.
• 1080p : Outputs 1080 lines of progressive video.
• BD Wise: Automatically sets the optimal resolution when connected via HDMI to a TV with the BD Wise feature. (The BD Wise menu item appears only if BD Wise is set to On.)

NOTE

If Component or Composite is connected, the resolution supports only 480i(576i).
1080P may not appear depending on TV.

HDMI Format

You can optimize the Color setting from the HDMI output. Select a connected device Type.

Monitor: Select if connected to a Monitor via HDMI.
- TV: Select if connected to a TV via HDMI.

Video Out Signal

Different countries apply different TV standard. You can select from NTSC or PAL.

• NTSC: You can select the NTSC video format.
• PAL: You can select the PAL video format.

Audio

Speaker Setting

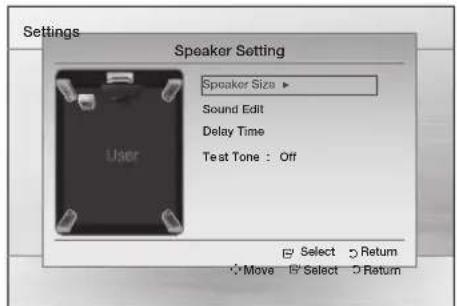

Speaker Size

You can set the Speaker Size of the Center and Surround Speakers, as well as Test Tone in this mode.

• For the Front, the mode is set to Small.
• For the Subwoofer, the mode is set to Present.

• For the Center and Surround, you can switch the mode to Small or None.

• Small: Select this when using the speakers.

• None: Select this when no speaker is connected.

NOTE

The speaker mode may vary depending on the Dolby Pro Logic and Stereo settings.

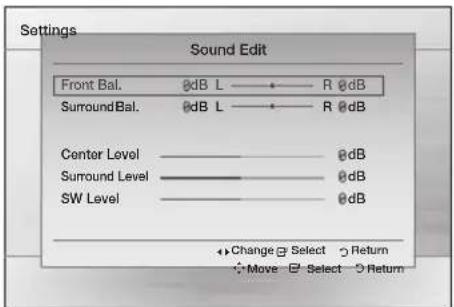

Sound Edit

You can adjust the balance and level for each speaker.

Press the buttons to select and adjust the desired speaker.

Press the buttons to adjust the settings.

Adjusting Front/Surround Bal.

You can select between 0 and -6.
The volume decreases as you move closer to -6.

Adjusting Center/Surround/Subwoofer Level

The volume level can be adjusted in steps from +6dB to -6dB .
The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB .

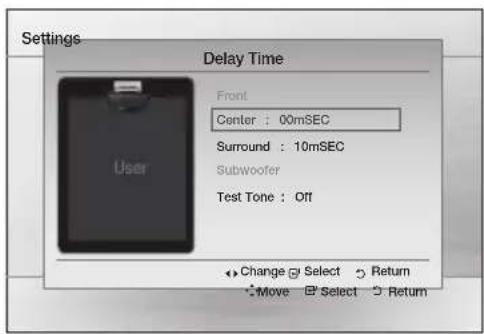

Delay Time

If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the Center and Surround speakers. You can also set the Test Tone in this mode.

Setting up the Speaker Delay Time

When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each speaker is the same.

Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can adjust this difference by adding a delay effect to the Center and Surround Speakers.

NOTE

The Delay Time menu will be activated only when the 5.1 channel source is played.
- You can not set Center and Surround in this mode when their Speaker Size is set to None.

Setup

Setting the Center Speaker

If the distance of Dc is equal to or longer than the distance of Df in the figure, set the mode as Oms. Otherwise, change the setting according to the table.

Distance between Df and Dc	0.00m	0.34m	0.68m 1	06m 1.4	0m 1.7	6m
Delay Time	00 ms	01 ms	02 ms	03 ms	04 ms	05 ms

Setting the Surround Speaker

If the distance of Dc is equal to or longer than the distance of Ds in the figure, set the mode as Oms. Otherwise, change the setting according to the table.

Distance between Ds and Dc	0.00m	1.06m	2.11m	3.16m	4.62m	5.29m
Delay Time	00 ms	03 ms	06 ms	09 ms	12 ms	15 ms

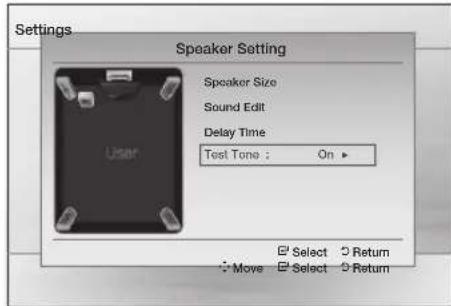

Test Tone

Use the Test Tone feature to check the speaker connections.

Press the buttons to select On.
- The test tone will be sent to Front Left Center Front Right Surround Right Surround Left Subwoofer in order.

To stop the test tone, press the ENTER button.

DRC (Dynamic Range Compression)

This feature balances the range between the loudest and quietest sounds. You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.

• You can select either Full, 6/8, 4/8, 2/8, off.

AUDIO SYNC

Video and audio sync may not match with digital TV. If this occurs, adjust the audio delay time to match the video

• You can set the audio delay time between 0 mSec and 300 mSec. Set it to the optimal status.

NOTE

With DL II (Dolby Pro Logic II), the delay time may be different for each mode.
With AC-3 and DTS, the delay time can be set between 00 and 15mSEC.
The Center channel is only adjustable on 5.1 channel discs.

HDMI Audio

The audio signals transmitted over the HDMI Cable can be toggled On/Off.

• Off: Video is transmitted over the HDMI connection cable only, and audio is output through the product speakers only.
• On: Both video and audio signals are transmitted over the HDMI connection cable, and audio is output through your TV speakers only.

NOTE

The default setting of this function is HDMI Audio Off.
HDMI Audio is automatically down-mixed to 2ch for TV speakers.
- When HDMI Audio is set to On, PL II /DSP EQ /P.BASS doesn't work.
With HDMI AUDIO set to 'On', the volume can be adjusted only using the TV remote control.

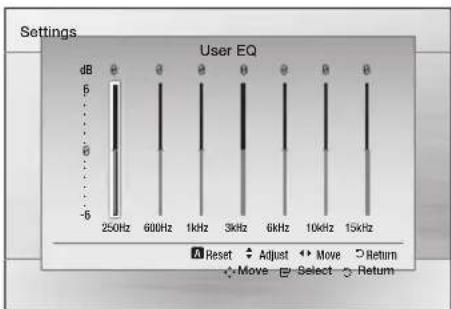

User EQ

You can confi gure the equalizer settings manually to your preference.

NOTE

This can be also done using the DSP/EQ button. (see page 35)

Audio Return Ch.

You can enjoy TV sound from the Home Cinemascueakers by using just one HDMI cable.

• Off: Turn the Audio Return Channel function off.
• Auto : Listen to TV sound from the Home Cinemasketers if your TV is compatible with the AudioReturn Channel function.

NOTE

• When Anynet+ (HDMI-CEC) is Off, the Audio Return Channel function is not available.
  Using an ARC (Audio Return Channel)uncertified HDMI cable may cause a problem in compatibility.
  ARC function is only available if an ARCcompliant TV is connected.

KARAOKE SCORING

Karaoke score display can be toggled On or Off.

• Off: Turns off the karaoke score display.
• On: After the singing, the score is displayed on the screen.

NOTE

This function is available only for the CD-DA/DVD.
- Karaoke score may be affected by ambient noise.

System

Initial Settings

By using the Initial Setting, you can set the language and TV aspect.

NOTE

If the HDMI cable is connected to the product, TV aspect does not appear and it is set to 16:9 Wide automatically.

DivX(R) Registration

View DivX(R) VOD Registration Code to purchase and play DivX(R) VOD content.

NOTE

This option is not activated if you select OK.To activate this option, please activate the DivX(R) Deactivation.
Even after you reset the system, the settings of DivX Registration will not be reset.

DivX(R) Deactivation

Select this to get a new registration code.

English

Setup

Language

You can select the language you prefer for on-screen menu, disc menu, etc.

OSD Language	Select the language for the on-screen displays.
Disc Menu	Select the language for the disc menu displays.
Audio	Select the language for disc audio.
Subtitle	Select the language for disc subtitles.

To select a language that does not appear in the menu, select OTHERS in the Disc Menu, Audio and Subtitle, and enter the language code of your country (see page 39).
※ You cannot select OTHERS in the OSD Language menu.

NOTE

The selected language will only appear if it is supported on the disc.

Security

The Parental Lock function works in conjunction with DVDs that have been assigned a rating, which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

Parental Rating

Select the rating level you want to set.

A larger number indicates that the program is intended for adult use only. For example, if you select up to Level 6, discs that contain Level 7, 8 will not play.

Enter the password and then press the ENTER button.

• The password is set to "0000" by default.
• Once the setup is complete, you will be taken to the previous screen.

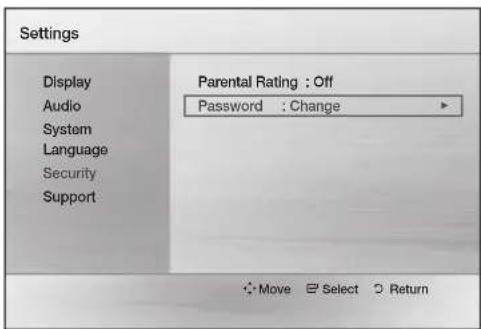

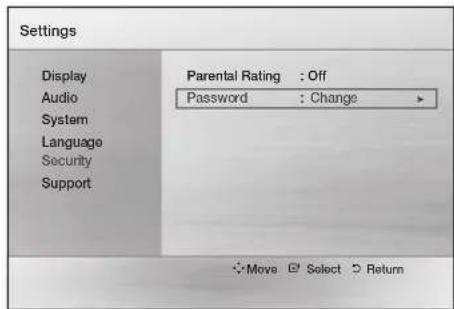

Change Password

Select Change and enter the 4-digit password to set the parental lock using the number buttons on the remote control.

If you forgot your password

1. Remove the disc.
2. Press and hold the STOP (■) button on the remote control for 5 seconds or more. All settings will revert to the factory settings.

Support

Product Information

Provide the product information such as Model code, Software Version, etc.

Basic Functions

DiscPlayback

1. Press the OPEN/CLOSE (▲) button.
2. Place a disc gently into the tray with the disc's label facing up.
3. Press the OPEN/CLOSE (▲) button to close the disc tray.

NOTE

• Resume function: When you stop disc play, the product remembers where you stopped, so when you press PLAY button again, it will pick up where you left off. (This function works only with DVDs.)
  Press the STOP button twice during playback to disable the Resume function.
  If no buttons are pressed on the product or remote control for more than 3 minutes when the product is in Pause mode, it will change to STOP mode.
  The initial screen may appear different, depending on the content of the disc.
• Pirated discs will not play in this product because they violate the CSS(Content Scrambling System: a copy protection system) recommendations.

※ will appear when an invalid button is pressed.

TV Screen Saver/Power Saving Function

• If no button input is made for more than 5 minutes in Stop or Play mode, the screen saver will get activated.
• If the product is left in the screen saver mode for more than 20 minutes, the power will automatically turn off. (Except when playing music)

Audio CD(CD-DA)/MP3/WMA Playback

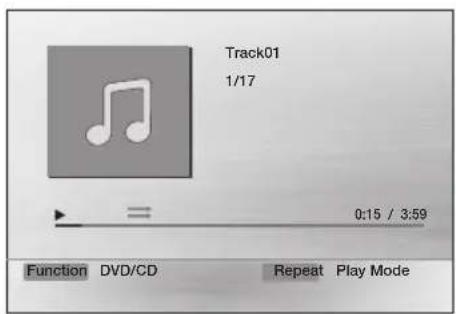

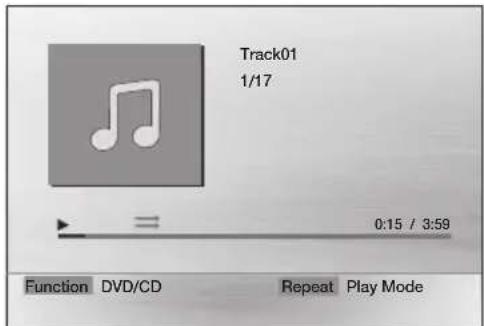

1. Insert an Audio CD(CD-DA) or an MP3 Disc into the disc tray.

2. For an Audio CD, the first track will be played automatically.

3. Press the 山山山 buttons to move to the previous/next track.

For the MP3/WMA disc, press the buttons to select Music, then press the ENTER button.

• Press the buttons to select a desired file and press the ENTER button.

• Press the buttons to move to the previous/next pages.

• Press the STOP (■) button to stop playback.

NOTE

Some MP3/WMA-CDs may not play, depending on the recording mode.
Table of contents of a MP3-CD varies depending on the MP3/WMA track format recorded on the disc.
WMA-DRM files cannot be played.

Basic Functions

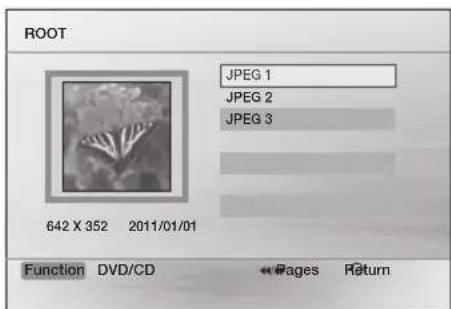

JPEG File Playback

Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this product.

1. Insert a JPEG disc on the disc tray.
2. Press the buttons to select Photo, and then press the ENTER button.
3. Press the buttons to select the folder you want to play, and then press the ENTER button.

4. Press the buttons to select the photo you want to play, and then press the ENTER button.

5. The selected file will play and slide show will start.

6. To stop slide show, press the PAUSE (II) button.
7. You can view the previous/next file by pressing the , buttons during the slideshow mode.

Rotate Function

Press the GREEN(B) or YELLOW(C) button during the PAUSE mode.

GREEN(B) Button: Rotate 90^ counterclockwise.
YELLOW(C) Button:Rotate 90^ clockwise.

NOTE

The maximum resolutions supported by this product are 5120 × 3480 (or 19.0 MPixel) for standard JPEG files and 2048 × 1536 (or 3.0 MPixel) for progressive image files.

Using the Playback Function

Forward/Reverse Search

Press the buttons for Search Function.

←1→2→3→4

1→2→3→4

NC

No sound is played in search mode.
The playback search produces sound only when searching at 1 and 2 speed.
This function is available only for the CD-DA.

Skipping Scenes/Songs

Press the 卡 buttons.

Each time the button is pressed during playback, the previous or next chapter, track or directory (file) will be played.
- You cannot skip chapters consecutively.

Slow Motion Play

Press the PAUSE (II) button and then button for Slow Motion play.

1→12→3

1→12→3

NC

No sound is heard during slow playback.
Reverse slow playback does not work.

Step Motion Play

Press the PAUSE button repeatedly.

• The picture moves forward one frame each time the button is pressed during playback.

NOTE

No sound is heard during step motion playback.

5 Minute Skip function

During playback, press the button.

• Playback skips 5 minutes forward whenever you press the button.
• Playback skips 5 minutes backward whenever you press the button.

NOTE

This function is available only for the DivX that contains time information.

Using the Disc Menu

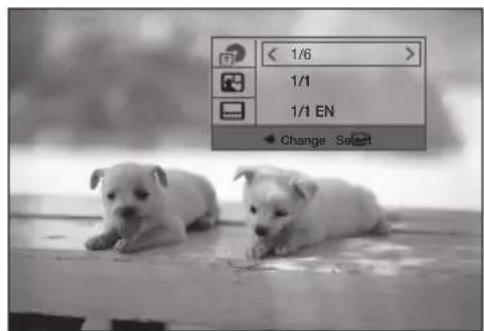

You can view the menus for the audio language, subtitle language, profi le, etc.

1. During playback, press the DISC MENU button on the remote control.

1. Press the buttons to make the desired selection, then press the ENTER button.

NOTE

Depending on the disc, menu setup items may vary and this menu may not be available.

Using the Title Menu

For DVDs containing multiple titles, you can view the title of each movie.

1. During playback, press the TITLE MENU button on the remote control.
2. Press the buttons to make the desired selection, then press the ENTER button.

NOTE

Depending on the disc, menu setup items may vary and this menu may not be available.

Repeat Playback

DVD/DivX Repeat

You can repeat the title, chapter or the section(A-B Repeat) of the DVD/DivX.

1. During DVD/DivX playback, press the REPEAT button on the remote control
2. Press the buttons to select a desired repeat mode, then press the ENTER button.
3. Press the buttons to select OFF to return to normal play, then press the ENTER button.

Title Chapter A- Off

Title Folder All Off

Basic Functions

CD/MP3 Repeat

1. During the CD/ MP3 playback, press the REPEAT button repeatedly to select the repeat mode you want.

CC	→ → CD → ALL → x→ A-B (Repeat Off → Repeat Disc → Repeat All → Random → Repeat Section A-B)
NPI	→ → CD → x→ ALL → x (Repeat Off → Repeat Disc → Repeat Dir (Directory) → Repeat All → Random)

A-B Repeat Playback

You can repeatedly play back a designated section of a DVD or CD.

1. During the DVD disc or CD playback, press the REPEAT button on the remote control.

1. For DVD, press the buttons to select A-. For CD press the REPEAT button repeatedly until appears.
2. Press the ENTER button at the point where you want repeat play to start (A).
3. Press the ENTER button at the point where you want repeat play to stop (B).
4. To return to normal playback, For DVD, press the buttons to select to OFF. For CD, press the REPEAT button to select to

. NOTE

The A-B Repeat function does not operate with DivX, MP3 or JPEG discs.

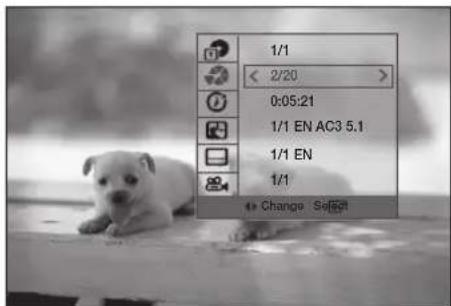

Displaying Disc Information

1. During playback, press the TOOLS button on the remote control.
2. Press the buttons to select the desired item.

3. Press the buttons to make the desired setup change and then press the ENTER button.

4. You may use the number buttons of the remote control to control some items.

5. To make Disc information disappear, press the TOOLS button again.

NOTE

If you are playing contents from the tools menu, some functions may not be enabled depending on the disc.
- You can also select DTS, Dolby Digital or Pro Logic, depending on the disc.
Some tools menus may differ depending on discs and files.

TOOLS menu

• Title: To access the desired title when there is more than one in the disc. For example, if there is more than one movie on a DVD, each movie will be identified as a Title.
  Chapter: Most DVD discs are recorded in chapters so that you can quickly find a specific chapter.
• Playing time(0) : Allows playback of the film from a desired time. You must enter the starting time as a reference. The time search function does not operate on some discs.
  Audio(3): Refers to the film's soundtrack language. A DVD Disc can contain up to 8 audio languages.
• Subtitle( ): Refers to the subtitle languages available in the disc. You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. A DVD Disc can contain up to 32 subtitle languages.
  Angle( 品 ):When a DVD contains multiple angles of a particular scene, you can use the Angle function.

Selecting the Audio Language

1. Press the TOOLS button.
2. Press the buttons to select AUDIO (4) display.
3. Press the buttons to select the desired audio language.

Depending on the of languages on a DVD disc, a different audio language is selected each time the button is pressed.

Selecting the Subtitle Language

1. Press the TOOLS button.

2. Press the buttons to select SUBTITLE (□) display.

3. Press the buttons to select the desired subtitle language.
   Depending on the languages on a DVD disc, a different subtitle language is selected each time the button is pressed.

NOTE

Depending on the disc, the Subtitle and Audio Language functions may not be available.

Caption Function

• You must have some experience with video extraction and editing in order to use this feature properly.
• To use the caption function, save the caption file (.smi) in the same file name as that of the DivX media file (.avi) within the same folder. Example. Root Samsung_007CD1.avi Samsung_007CD1.smi
• Up to 100 alphanumeric characters or 50 East Asian characters (2 byte characters such as Korean and Chinese) for the file name.
• The subtitle of DivX files are .smi, .sub, *.srt over 148 kbyte is not supported.

Angle Function

This function allows you to view the same scene in different angles.

1. Press the TOOLS button.
2. Press the buttons to select ANGLE ( ) display.
3. Press the buttons to select the desired angle.

NOTE

The Angle function works only with discs on which multiple angles have been recorded.

Basic Functions

SLEEP

You can set the time that the Home Cinema will shut itself off.

Press the SLEEP button.

Each time the button is pressed, the selection changes as follows

SLP 10 SLP 20 SLP 30 SLP 60

SLP 90 SLP 120 SLP 150 OFF.

DIMMER

You can adjust the brightness of the display on the main unit.

Press the DIMMER button.

Sound Mode

P.BASS

The P.BASS function provides a bass boost to reinforce the low frequencies.

The MP3 ENHANCE function provides better sound quality by upscaling the sampling frequency.

Press the P.BASS button.

2 Channel LPCM source	POWER BASS ON→ POWER BASS OFF
MP3 file	MP3 ENHANCE ON→ POWER BASS ON→ POWER BASS OFF

NOTE

The P.BASS function is only available with 2 channel LPCM sources such as MP3, DivX, CD and WMA.
The P.BASS function does not work with GIGA SOUND or Dolby Pro Logic II modes. If you press P.BASS in the DSP/EQ mode, the DSP/ EQ mode is automatically shut off and the P. BASS function will be turned on.
The MP3 Enhancement function is only available MP3 file.

GIGA

The GIGA Sound Function amplifies bass and improves bass twice as much for you to appreciate powerful real sound.

The GIGA Sound feature will be applied only to the

subwoofer.

Press the GIGA button.

NOTE

If GIGA Sound is set to 'ON', other sound field effects will not be applied.
If DOLBY PLII is set to 'ON', the GIGA Sound effect will not be applied.
The GIGA Sound works when in 2-channel LPCM mode only.

S.VOL (SMART VOLUME)

This will regulate and stabilize the volume level against a drastic volume change when changing channels or during a scene transition.

Press the S.VOL button.

Each time the button is pressed, the selection changes as follows:

SMART VOLUME ON SMART VOLUME OFF

S/W LEVEL

You can also press the S/W LEVEL button on the remote control and use the or buttons to adjust the level of subwoofer.

Press the S/W LEVEL button.

DSP (Digital Signal Processor)/EQ

• DSP (Digital Signal Processor): DSP modes have been designed to simulate different acoustic environments.
• EQ: You can select POPS, JAZZ, ROCK, or USER etc. to optimize the sound for the genre of music you are playing.

Press the DSP/EQ button.

POPS, JAZZ, ROCK	Select POP, JAZZ, or ROCK, depending on the genre of music you're listening to.
USER	You can enjoy music as you set in "EQ:USER". If you press ENTER in the "EQ:USER" menu, you will see a window where you can change the EQ settings to your preference.
STUDIO	Provides a sense of presence as if in a studio.
CLUB	Simulates the sound of a dance club with a throbbing bass beat.
HALL	Provides a clear vocal as if listening in a concert hall.
MOVIE	Provides the feeling of a movie cinema.
CHURCH	Provides the feeling of being in a grand church.
RANCHERA, SAMBA, CUMBIA, HABANERA, BOOMBA, REGGAE	Select RANCHERA, SAMBA, CUMBIA, HABANERA, BOOMBA or REGGAE, depending on the genre of music you're listening to.
OFF	Select this for normal listening.

Dolby Pro Logic II Mode

You can select the desired Dolby Pro Logic II audio mode.

Press the PL II button.

MUSIC	When listening to music, you can experience sound effects as if you are listening to the actual performance.
MOVIE	Adds realism to the movie soundtrack.
PROLOG	You can listen to a 2CH sound source in 5.1CH surround sound with all speakers active. - A specific speaker(s) may not be output depending on the input signal.
MATRIX	You will hear multi-channel surround sound.
STEREO	Select this to listen to sound from the front left and right speakers and the subwoofer only.

NOTE

• When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks (L and R) on the product. If you connect to only one of the inputs (L or R), you cannot listen to surround sound.
  The Pro Logic II function is only available in Stereo mode.
  The Pro Logic II function is not available while playing AC3 signal in 2.1 channel mode.

NOTE

The menu may vary depending on the region.
The DSP/EQ function is only available in Stereo mode.
The DSP/EQ function is not available while playing AC3 signal in 2.1 channel mode.

Basic Functions

Listening to Radio

Using buttons on the Remote Control

1. Press the FUNCTION button to select FM.

2. Tune in to the desired station.

3. Preset Tuning 1: You must first add a desired frequency as a preset. Press the STOP (■) button to select PRESET and then press the TUNING/CH (▲▼) button to select the preset station.

4. Manual Tuning: Press the STOP (■) button to select MANUAL and then press the TUNING/CH ( ) button to tune in to a lower or higher frequency.
   Automatic Tuning: Press the STOP (■) button to select MANUAL and then press and hold the TUNING/CH (▲▼) button to automatically search the band.

Setting Mono/Stereo

Press the MO/ST button.

Each time the button is pressed, the sound switches between STEREO and MONO.
- In a poor reception area, select MONO for a clear, interference-free broadcast.

Presetting Stations

Example : Presetting FM 89.10 in the memory

1. Press the FUNCTION button to select FM.
2. Press the TUNING/CH ( ) button to select < 89.10>

3. Press the TUNER MEMORY button.

4. Number flashes on the display.

5. Press the buttons to select preset number.

6. You can select between 1 and 15 presets.

1. Press the TUNER MEMORY button again.

2. Press the TUNER MEMORY button before number disappears from the display.

3. Number disappears from the display and the station is stored in memory.

4. To preset another station, repeat steps 2 to 5.

To tune in to a preset station, press the TUNING/CH (buttons) on the remote control to select a channel.

Advanced Functions

USB Function

Playing Media Files using the USB Host Feature

You can enjoy media files such as pictures, movies and music saved on an MP3 player, USB memory stick or digital camera in high quality video with 5.1 channel sound by connecting the storage device to the USB port of the product.

1. Connect the USB device to the USB port on the front panel of the product.

2. Press the FUNCTION button to select USB.

3. USB appears on the display screen and then disappears.

4. Press the buttons to select Videos, Photos or Music.

5. Select a file to play.

Safe USB Removal

To prevent damage to the memory stored in the USB device, perform safe removal before disconnecting the USB cable.

• Press the YELLOW(C) button.
• REMOVE will appear on the display.
• Remove the USB cable.

NOTE

To listen to your music files with 5.1 channel sound, you must set the Dolby Pro Logic II mode to Matrix. (See page 35)
Remove the USB cable from the USB port slowly. Otherwise, it may cause damage to the USB port.

USB Recording

While playing CD-DA (Compact Disc Digital Audio) using the USB Recording function or listening to the FM radio or receiving audio source from an external device, you can record the audio source in the USB memory.

Ex) USB recording of CD-DA audio contents

1. Connect the USB device to your product.

2. Insert the CD-DA disc into the CD tray.

3. Press the USB REC button on the remote control.

To start ripping the current track, press the USB REC button on the remote control while the system is playing a track or stopped temporarily.
- To record the entire CD, press and hold the USB REC button on the remote control. - "FULL CD RIPPING" appears on the display and recording starts.

1. Press the STOP (■) button to stop recording.

2. When USB recording of a CD is completed, you will find a new folder named "RECORDING" in the USB drive. The contents will be saved in the folder in the MP3 format.

3. When USB recording of FM radio or AUX source is completed, you will find a new folder named "TUNER RECORDING or AUX RECORDING" in the USB drive. The contents will be saved in the folder in the MP3 format.

NOTE

• Do not disconnect the USB connection or the power cable during the USB Recording. Otherwise, it may cause damage to the data.
  To stop USB Recording, press the STOP button and disconnect the USB device after the system stops playing the CD completely.
  If you disconnect the USB connection during the USB Recording, the system will turn off and you will not be able to delete the recorded file.
  If you connect the USB device to the system while it is playing a CD, the system stops temporarily and will play again.
  DTS-CDs cannot be recorded.
  If the recording duration is less than 5 seconds, a recording file may not be created.
  USB Recording works only if the USB device is formatted in the FAT file system. (The NTFS file system is not supported.)
  The audio signal will not be output during USB recording of the CD.
  When HDMI AUDIO is set to On, the USB Recording function is not supported.
  Do not insert the MIC while CD Ripping.

Other Information

Troubleshooting

Refer to the chart below when this product does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the product, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Center.

Symptom Check/Remedy
I cannot eject the disc.	·Is the power cord plugged securely into the outlet? ·Turn off the power and then turn it back on.
Playback does not start.	·Check the region number of the DVD. DVD discs purchased from abroad may not be playable. ·CD-ROMs and DVD-ROMs cannot be played on this product. ·Make sure that the rating level is correct.
Playback does not start immediately when the Play/Pause button is pressed.	·Are you using a deformed disc or a disc with scratches on the surface? ·Wipe the disc clean.
Sound is not produced.	·No sound is heard during fast playback, slow playback, and step motion playback. ·Are the speakers connected properly? Is the speaker setup correctly customized? ·Is the disc severely damaged?
Sound can be heard only from a few speakers and not all 6.	·On certain DVD discs, sound is output from the front speakers only. ·Check if the speakers are connected properly. ·Adjust the volume. ·When listening to a CD, radio or TV, sound is output to the front speakers only. Select "PROLOG" by pressingPL II (Dolby Pro Logic II) on the remote control to use all six speakers.
Dolby Digital 5.1 CH Surround Sound is not produced.	·Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1 CH Surround Sound is produced only if the disc is recorded with 5.1 channel sound. ·Is the audio language correctly set to Dolby Digital 5.1-CH in the information display?
The remote control does not work.	·Is the remote control being operated within its operation range of angle and distance? ·Are the batteries drained? ·Have you selected the correct mode (RECEIVER DVD/TV)?
·Disc is rotating but no picture is produced. ·Picture quality is poor and picture is shaking.	·Is the TV power on? ·Are the video cables connected properly? ·Is the disc dirty or damaged? ·A poorly manufactured disc may not be playable.
Audio language and subtitles do not work.	·Audio language and subtitles will not work if the disc does not contain them.
The Disc/Title menu screen does not appear even when the Disc/Title function is selected.	·Are you using a disc that does not contain menus?
Aspect ratio cannot be changed.	·You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3 ratio only. Refer to the DVD disc jacket and then select the appropriate function.
Symptom Check/R	Remedy
The product is not working. (Example: The power goes out or the front panel key doesn't work or a strange noise is heard.) The product is not working normally.	Press and hold the STOP (■) button on the remote control for longer than 5 seconds with no disc (reset function). Using the RESET function will erase all stored settings. Do not use this unless necessary.
The rating level password has been forgotten.	While “NO DISC” message appears on the display of the product, press and hold the remote control's STOP (■) button for longer than 5 seconds. “INIT” appears on the display and all settings will return to the default values. And then press the POWER button. Using the RESET function will erase all stored settings. Do not use this unless necessary.
Can't receive radio broadcast.	Is the antenna connected properly? If the antenna's input signal is weak, install an external FM antenna in an area with good reception.

Language code list

Enter the appropriate code number for OTHERS in the Disc Menu, Audio and Subtitle. (See page 28).

Code Language Code	Language	Code Language	Code Language	Language Code	Language	Language
1027	Afar	1142	Greek	1239	Interlingue	1345	Malagasy	1482	Kirundi	Tajik
1028	Abkhazian	1144	English	1245	Inupiak	1347	Maori	1483	Romanian	Thai
1032	Afrikaans	1145	Esperanto	1248	Indonesian	1349	Macedonian	1489	Russian	Tigrinya
1039	Amharic	1149	Spanish	1253	Icelandic	1350	Malaysalam	1491	Kinyarwanda	1531	Turkmen
1044	Arabic	1150	Estonian	1254	Italian	1352	Mongolian	1496	Sanskrit	1532	Tagalog
1045	Assamese	1151	Basque	1257	Hebrew	1353	Moldavian	1498	Sindhi	1534	Setswana
1051	Aymara	1157	Persian	1261	Japanese	1356	Marathi	1501	Sangro	1535	Tonga
1052	Azerbaijani	1165	Finnish	1269	Yiddish	1357	Malay	1502	Serbo-Croatian	1538	Turkish
1053	Bashkir	1166	Fiji	1283	Javanese	1358	Matese	1503	Singhalese	1539	Tsonga
1057	Byelorussian	1171	Faeroese	1287	Georgian	1363	Burmese	1505	Slovak	1540	Tatar
1059	Bulgarian	1174	French	1297	Kazakh	1365	Nauru	1506	Slovenian	1543	Twi
1060	Bihari	1181	Frisian	1298	Greenlandic	1369	Nepali	1507	Samoan	1557	Ukrainian
1069	Bislama	1183	Irish	1299	Cambodian	1376	Dutch	1508	Shona	1564	Urdu
1066	Bengali;Bangla	1186	Scots Gaelic	1300	Canada	1379	Norwegian	1509	Somali	1572	Uzbek
1067	Tibetan	1194	Galician	1301	Korean	1393	Occitan	1511	Albanian	1581	Vietnamese
1070	Breton	1196	Guarani	1305	Kashmin	1403	(Atan) Oromo	1512	Serbian	1587	Volapuk
1079	Catalan	1203	Gujarati	1307	Kurdish	1408	Oriya	1513	Siswati	1613	Wolof
1093	Corsican	1209	Hausa	1311	Kirghiz	1417	Punjabi	1514	Sesotho	1632	Xhosa
1097	Czech	1217	Hindi	1313	Latin	1428	Polish	1515	Sundanese	1665	Yoruba
1103	Welsh	1228	Croatian	1326	Lingala	1435	Pashto, Pushto	1516	Swedish	1684	Chinese
1105	Danish	1229	Hungarian	1327	Laothian	1436	Portuguese	1517	Swahili	1697	Zulu
1109	German	1233	Armenian	1332	Lithuanian	1463	Quechua	1521	Tamil
1130	Bhutani	1235 Intelingua 1334		Latvian, Lettish		1481	Rhaeto-Romance	1525 Tegulu

Other Information

Specifications
General	Weight	2.76 Kg
	Dimensions	430 (W) x 59 (H) x 249 (D) mm
	Operating Temperature Range	+5°C~+35°C
	Operating Humidity Range	10 % to 75 %
FM Tuner	Signal/noise ratio	70 dB
	Usable sensitivity	10 dB
	Total harmonic distortion	0.5 %
Disc	DVD (Digital Versatile Disc)	Reading Speed : 3.49 ~ 4.06 m/sec.
		Approx. Play Time (Single Sided, Single Layer Disc) : 135 min.
	CD : 12 cm (COMPACT DISC)	Reading Speed : 4.8 ~ 5.6 m/sec.
		Maximum Play Time : 74 min.
	CD : 8cm (COMPACT DISC)	Reading Speed : 4.8 ~ 5.6 m/sec.
		Maximum Play Time : 20 min.
Video Output	Composite Video	480i(576i)
		1 channel : 1.0 Vp-p (75 Ω load)
	Component Video	480i(576i)
		Y : 1.0 Vp-p (75 Ω load)
		Pr : 0.70 Vp-p (75 Ω load)
		Pb : 0.70 Vp-p (75 Ω load)
Video/Audio HDMI		1080p, 1080i, 720p, 480p(576p)
Amplifier	Front speaker output	142W x 2(3Ω)
	Center speaker output	142W(3Ω)
	Surround speaker output	141W x 2(3Ω)
	Subwoofer output	142W(3Ω)
	Frequency range	20Hz~20KHz
	S/N Ratio 65dB
	Channel separation 60dB
	Input sensitivity (AUX)800mV

*: Nominal specification
Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.
- Design and specifications are subject to change without prior notice.
- For the power supply and Power Consumption, refer to the label attached to the product.

HT-D450K

Speaker	Speaker system	5.1ch speaker system
		Front	Surround	Center	Subwoofer
	Impedance	3 Ω	3 Ω	3 Ω	3 Ω
	Frequency range	140Hz~20KHz	140Hz~20KHz	140Hz~20KHz	40Hz~160Hz
	Output sound pressure level	86dB/W/M	86dB/W/M	86dB/W/M	88dB/W/M
	Rated input	142W	141W	142W	142W
	Maximum input	284W	282W	284W	284W
	Dimensions (W x H x D)	Front: 90 x 141.5 x 68.5 mmSurround: 84 x 104.5 x 68.5 mmCenter: 360 x 74.5 x 68.5 mmSubwoofer: 200 x 390 x 350 mm
	Weights	Front: 0.58 Kg, Center: 0.96 KgSurround: 0.40 Kg, Subwoofer: 5.0 Kg

HT-D453K

Speaker	Speaker system	5.1ch speaker system
		Front	Surround	Center	Subwoofer
	Impedance	3 Ω	3 Ω	3 Ω	3 Ω
	Frequency range	140Hz~20KHz	140Hz~20KHz	140Hz~20KHz	40Hz~160Hz
	Output sound pressure level	86dB/W/M	86dB/W/M	86dB/W/M	88dB/W/M
	Rated input	142W	141W	142W	142W
	Maximum input	284W	282W	284W	284W
	Dimensions (W x H x D)	Front : 90 x 1200 x 119 mm (stand base : 250 x 250)Surround : 84 x 104.5 x 68.5 mmCenter : 360 x 74.5 x 68.5 mmSubwoofer : 200 x 390 x 350 mm
	Weights	Front : 3.69 Kg, Center : 0.96 KgSurround : 0.4 Kg, Subwoofer : 5.0 Kg

HT-D453HK

Speaker	Speaker system	5.1ch speaker system
		Front	Surround	Center	Subwoofer
	Impedance	3 Ω	3 Ω	3 Ω	3 Ω
	Frequency range	140Hz~20KHz	140Hz~20KHz	140Hz~20KHz	40Hz~160Hz
	Output sound pressure level	86dB/W/M	86dB/W/M	86dB/W/M	88dB/W/M
	Rated input	142W	141W	142W	142W
	Maximum input	284W	282W	284W	284W
	Dimensions (W x H x D)	Front: 90 x 660 x 92 mm (stand base: 176 x 176)Surround: 84 x 104.5 x 68.5 mmCenter: 360 x 74.5 x 68.5 mmSubwoofer: 200 x 390 x 350 mm
	Weights	Front: 1.75 Kg, Center: 0.96 KgSurround: 0.4 Kg, Subwoofer: 5.0 Kg

HT-D455K

Speaker	Speaker system	5.1ch speaker system
		Front	Surround	Center	Subwoofer
	Impedance	3 Ω	3 Ω	3 Ω	3 Ω
	Frequency range	140Hz~20KHz	140Hz~20KHz	140Hz~20KHz	40Hz~160Hz
	Output sound pressure level	86dB/W/M	86dB/W/M	86dB/W/M	88dB/W/M
	Rated input	142W	141W	142W	142W
	Maximum input	284W	282W	284W	284W
	Dimensions (W x H x D)	Front/Surround :90 x 1200 x 119 mm (stand base : 250 x 250) Center :360 x 74.5 x 68.5 mm Subwoofer : 200 x 390 x 350 mm
	Weights	Front/Surround : 3.69 Kg, Center : 0.96 Kg Subwoofer : 5.0 Kg

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Area Contact Center	Web Site
■ North America
Canada 1-800-SAMSUNG (726-7864) www.samsung.com
Mexico 01-800-SAMSUNG (726-7864) www.samsung.com
U.S.A 1-800-SAMSUNG (726-7864) www.samsung.com
■ Latin America
Argentine 0800-333-3733 www.samsung.com
Brazil 0800-124-421 / 4004-0000 www.samsung.com
Chile 0800-SAMSUNG (726-7864) www.samsung.com
Colombia 01-8000112112 www.samsung.com
Costa Rica 0-800-507-7267 www.samsung.com
Dominica 1-800-751-2676 www.samsung.com
Ecuador 1-800-10-7267 www.samsung.com
El Salvador 800-6225 www.samsung.com
Guatemala 1-800-299-0013 www.samsung.com
Honduras 800-7919267 www.samsung.com
Jamaica 1-800-234-7267 www.samsung.com
Nicaragua 00-1800-5077267 www.samsung.com
Panama 800-7267www.samsung.com
Peru 0-800-777-08www.samsung.com
Puerto Rico 1-800-682-3180 www.samsung.com
Trinidad & Tobago 1-800-SAMSUNG (726-7864) www.samsung.com
Venezuela 0-800-100-5303 www.samsung.com
■ Europe
Albania 42275755	-
Austria 0810 - SAMSUNG (7267864, € 0.07/min)	www.samsung.com
Belgium 02-20124-18	www.samsung.com/be (Dutch)www.samsung.com/be_fr(French)
Bosnia 05 133 1999	-
Bulgaria 070013311www.samsung.com
Croatia 062 SAMUNG (062 726 7864) www.samsung.com
Czech 800-SAMSUNG (800-726786)	www.samsung.com
Samsung Zrt., Ceska organizačni složka, Oasis Florec, Soko-lovská394/17, 180 00, Praha 8
Denmark 70 70 19 70	www.samsung.com
Finland 030 - 6227 515	www.samsung.com
France 01 48 63 00 00	www.samsung.com
Germany 01805 - SAMUNG (726-7864 € 0,14/Min)	www.samsung.com
Hungary 06-80-SAMSUNG (726-7864) www.samsung.com
Italia 800-SAMSUNG (726-7864) www.samsung.com
Kosovo [phone]	-
Luxemburg 261 03 710	www.samsung.com
Macedonia 023 207 777	-
Mortenegro 020 405 888	-
Netherlands 0900-SAMSUNG (0900-7267864) (€ 0,10/Min)	www.samsung.com
Norway 815-56 480	www.samsung.com
Poland 0 801 1SAMSUNG (172678) / 022-607-93-33	www.samsung.com
Portugal 80820-SAMSUNG (726-7864) www.samsung.com
Rumania 1. 08010 SAMSUNG (72678) - doar din reteaua Romtelecom, tariff local 2. 021.206.01.10 - din orice retea, tariff normal	www.samsung.com

Area Contact Center		Web Site
Serbia	0700 Samsung (0700 726 7864)	www.samsung.com
Slovakia 0800-SAMSUNG (726-7864) www.samsung.com
Spain 902-1-SAMSUNG (902 172 678) www.samsung.com
Sweden	0771 726 7864 (SAMSUNG)	www.samsung.com
Switzerland	0848-SAMSUNG (7267864, CHF 0.08/min)	www.samsung.com/ch/fr/French)
U.K	0330 SAMSUNG (7267864)	www.samsung.com
Eire	0818 717100	www.samsung.com
Lithuania	8-800-77777	www.samsung.com
Latvia	8000 7267	www.samsung.com
Estonia	800-7267	www.samsung.com
■ CIS
Russia	8-800-555-55-55	www.samsung.com
Georgia 8-800-555-555	-
Armenia	0-800-05-555	-
Azerbaijan	088-55-55-555	-
Kazakhstan	8-10-800-500-55-500 (GSM: 7799)	www.samsung.com
Uzbekistan	8-10-800-500-55-500 www.samsung.com
Kyrgyzstan	00-800-500-55-500	www.samsung.com
Tadjikistan	8-10-800-500-55-500 www.samsung.com
Ukraine 0-800-502-000	www.samsung.ua www.samsung.com/ua.ru
Belarus 810-800-500-55-500	-
Moldova	00-800-500-55-500	-
■ Asia Pacific
Australia	1300 362 603	www.samsung.com
New Zealand	0800 SAMSUNG (0800 726 786)	www.samsung.com
China	400-810-5858 / 010-6475 1880	www.samsung.com
Hong Kong	(852) 3698 4698	www.samsung.com/hk www.samsung.com/hk_en/
India	3030 8282 / 1800 110011 / 1800 3000 8282 / 1800 266 8282	www.samsung.com
Indonesia	0800-112-8888 / 021-5699-7777	www.samsung.com
Japan	0120-327-527	www.samsung.com
Malaysia	1800-88-9999	www.samsung.com
Philippines	1-800-10-SAMSUNG(726-7864)/ 1-800-3-SAMSUNG(726-7864)/ 1-800-8 SAMSUNG(726-7864)/ 02-5805777	www.samsung.com
Singapore	1800-SAMSUNG (726-7864) www.samsung.com
Thailand	1800-29-3232 / 02-689-3232	www.samsung.com
Taiwan	0800-329-999	www.samsung.com
Vietnam 1 800 588 889 www.sainsung.com
■ Middle East
Bahrain 8000-4726 www.sainsung.com
Egypt 08000-726786 www.samsung.com
Jordan	800-22273	www.samsung.com
Morocco	080 100 2255	www.samsung.com
Oman	800-SAMSUNG (726-7864) www.samsung.com
Saudi Arabia 9200-21230 www.samsung.com
Turkey	444 77 11	www.samsung.com
U.A.E 800-SAMSUNG (726-7864) www.samsung.com
■ Africa
Nigeria 0800-SAMSUNG (726-7864) www.samsung.com
South Africa	0860-SAMSUNG (726-7864)	www.samsung.com

SAMSUNG

HT-D450K

HT-D453K

HT-D453HK

HT-D455K

a jll jll laiuill p

piaiial

L

Samsung

aal aal alal alal alal alal alal alal alal

!

###

###

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

LUOKAN 1 LASER LAITE

KCLASS 1 LASER APPARAT

PRODUCTO LASERCLASE1

1 1

1 1 aaii jn rjnl giaaaiy jai yai i jai naiy ai

#

S OBC = S COD + S_ BOC

yjbjd jjzll

a

y

j j j j j j

aJy jI 1000000000000000000000000000000000000000

A

aai 1

Jll

J 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

CuiLi

gall jjly yall gai jial 1jally jiall jil

.（10）7.5）a#ill a#aa#alue a#e (）a#aa#

DivX Certified, jLj, jLj, jLj, jLj, jLj, jLj, jLj, jLj, jLj, jLj, jLj, jLj, jLj, jLj, jLj, jLj, jLj, jLj, jLj, jLj, jLj, jLj, jLj, jLj, jLj, jLJ

juyuele www.divx.com juyuejuiDivX

DivX y 111111111111111

DivX Certified DIVX

（VOD）.DivX

vod.divx.com 1

Jusll Jus Ljsschall jy

j 1

8DivX Certified, 8DivX

DivX, Inc

Y, 190, 7V: aIaII aIyI yI yI yI yI yI yI yI yI

y019,7V2;y010,7V1；y57.7

High-Definition, HDMI, HDMI

Multimedia Interface

JLH HDMILicensingLLC

(3)

12 13

. Rovi Corporation 45

jlll lal aai 2aai ll al j

DOLBY.

DIGITAL

PROLOGIC

Digital Surveys

d D Pro Logic, Dolby

Dolby Laboratories

y

0.9V2,7A.；0.907,7V2;0.801,959.#

yj1j1j1j1j1j1j1j1j1j1j1j1j1j1j1j1j1j1j1j1j1j1j1j1j1j1j1j1j1j1j1j1j1j1j1j1j1j1

ailll 1

DTS Digital, jj j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j j

DTS, Inc 45

.DTS,Inc 25

ab jia jia jia jia jia

j 3

Samsung Electronics Co., Ltd 2011 ©

.

eannnnnne

DvDD

y.VCR y jy

DVD 2000000000000000000000000000000000000000000

yjss yal jdy a Jdaill d

8 8

Jaa Jaaill aol jaiy y 1

J

.

-

a1 = 23,an + 1 = an - an - 1

.

#

a
S ACD = S COD + S DCE - S CDE
ai = bi = 12

设 x_0

A
Aaasall

y jzjg 1

jilipnniy iipnip 100 jill gij jil jil

Auci jiaa aai iiae eae aee

.

设

J 1

1. jy J 100

21 × 20 × 21

#

1 9

WMA/ (CD-DA)/MPr 1

JPEG

Juaaia jai, aai

swial

USB 4.0, TV

USB Jy

auiu

aieae

sji Clogj

1

AaJI JooJooJIg

Jolalg 1

gai

jdll galalil jgill jgall

psuall jduoljduaull cllaal aal yae

1

y 1

g. gall, gall, gill, gill, gill, gill, gill, gill, gill, gill, gill, gill, gill, gill, gill, gill, gill, gill, gill, gill, gill, gill, gill, gill, gill, gill, gill,

Jd DTS

A 1

xxyy y

A. …… 100

j 1

Jai 1

DVD±R/±RW·CD-R/RW

.

600×800GMCQPEL

(5)

DVD-R/-RW

DVD

• 1

.DivX

DivX .DivX Networks, Inc

aaii i j 0j

(）DivX

• 等差数列 Sn = na1 + ( n - 1) 2d = ( n - 1) d = 2

DivX, Inc 25

g jyj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj yj

MP3,MPEG4

a) DVD 25 g Alai i Gg 10 g 10 g 10 g 10 g 10 g 10 g

(2) ( x^2 + 1) ( x^2 + 3x) = ( x - 1) ( x^2 + 3x)

(DivX)

aaii iaii iaii iaii iaii 100

aill 4y y ci yll yll jck pck

aegdall gaiell cay

	الإستعمال IMMEDIATELY
	AVIDivX3.11~DivX5.1
	WMVV1/V2/V3/V7

aegdallgall

y = 2x

FATF,FATI

JPG) 0

（WMAMP3）

Jusssuill. jiuulusll USB 1

J (J) POWER jll 1aill yjaiyol.

a aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa aaa

中

图

图

（a）

aellal gaae 11 aelal na al jiall ygblzlll Jall yagjil jia jy jay aellal gaa

y

#

LalilgSo

aegsll cleslal
Lalai LiSs

边 a_2 边

Arabic

Cclallll lclllllllllllllllllllllllllll

。

HT-D450K

Arabic

1

1

y jilj y jil j j j j j j j j j j

HDMI:

HDMI Jd j 10 HDMI OUT (J) HDMI

#

j)COMPONENT OUT 10000000000000000000000000000000000000000000000000000000000000

1

a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a a

ab 为正比

1080i/1080,720,(J5y576)J5y480HDMI jj

5661/2048(576i)480i jai 111

a a a a a a a a a a a a a a a a a a a a a a a

y j 1

A 1

j j j j j j j j j j j j j j j j j j j j j j j j j j j

1

y 1

j 100

#

HDMI

HDMI

HDMI HDMI 15

( G + G) + D = 8 + 4t

HDMI 1000000000000000000000000000000000000000000

HDMI

HDMI

HDCP 1

HDCP

HDMI 1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789

(HDMI-CEC)+Anynet

Samsung Samsung Samsung +Anynet SAMSUNG HDMI SAMSUNG +Anynet

a a a a a a a a a a a a a a a a a a a a a a a

Jg

21 × 20 × 21

Samsung no Jdall Jdall BDB Wise
Samsung Samsung HDMI yBD-Wise DVD 1000000000000000000000000000000000000000000000000000000000000000000000000

paal/daalj jglb

1. g . 令 L1 , L2 , L_3

1- jiu jui LkS gull s iua

#

aLwU 120

Ciyallipaiia/laia/sra/sina

1

aclawil

Jy+Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn Jn

J

与

sikag e laaal gao jia ylae caleo ie caleell gao jai 1
aaagall ayjsslln lalwll no gail jai jai s

a

5.1 500 all 500
4eLau 5n nn yie aee alal 12 300
4eLau 5n nn yie aee alal 12 300
12a bia 5iay cie laill gol gol gol gol
gaiy iay cie laill gol gol gol

5.1

J 1

Dolby Pro Logic 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60,

#

Aeau 51 gsiuall, jjll bia k

Laiuclauo: (A) Auto Audio Return aolj gao jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia j

yall aais

J 4 nssnssnnss (） Change

g

（）（）STOP 5d5

山

aai 1

J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15 J 15

auiu 1 aai

(CD-DA)/MP3/WMA

MP3 (CD-DA)

1

A. 1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789

gblal all ydi 1 ▲ ▲ jzjla l bai - (J) ENTER 2 j dzai p /aiuall caiuall 1 Juiu u 4 1 1 1 1

Ldcl (）（）STOP

PMP3/WMA

B,di,1000MP3Jyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyjyj

WMA-DRM

Jai jai jai

. ()(j^(1) / j^(2)) OPEN/CLOSE

1.

1

（△）（/）OPEN/CLOSE 1

设

gao zai jiyu wai jia xuyi xie:

y（）PLAYjjLbaiLoiei

aiai iia (Jai), aie cai gill alalg jwiy waiil p

.DVD

a 100000000000000000000000000000000000000000000000000000

aill 1y jil ylll l jy jil jle baiiie a

aaii aiee iieae eae ee eae

JSSA (C) (PAAUSE JSSBAI

lailll g y j 1j 1j 1j 1j

1. jie bai jiali, jia jil ei jil

设 x_0

1

5

，

.5j5n

1

DVD/DivX

AaB (A-B) aaaa aaaa aaaa

.DVD/DivX

jjie biai DVD/DivX jai jui

REPEAT

.（J）ENTER JJ

（）OFF 1

ENTER jie biai jie all jie jie

.（）

Title Chapter A- Off

Title Folder All Off

Arabic

A

jilie cibiaolal 5 j
jllc biaolksal 5

设 x_0

Cgl 1

aai

A-B → A← → AL← → CD→ → Normal → Repeat Track → Repeat All) (Random → Repeat Section A-B)	CD
X← → ALL → CD → CD→ → Normal → Repeat Track) (Repeat All → Random → (J-1)) Repeat Dir	MP3

A-B

JbDvD

J DVD J 1 (J) REPEAT J bai aiaa

V△i jie bai, DVD 1y

REPEAT jzge biaiaiaaiaai

（）

Soll ss (c) TOOLS jsc bial, jsc c

(1) ENTER 256
(2) pssll 256
(3) pssll 256
(4) pssll 256
(5) pssll 256
(6) pssll 256
(7) pssll 256
(8) pssll 256
(9) TOOLS 256

A B C D E F G H I J K L M N O P Q R S T U V A B C D E F G H I J K L M N O P Q R S T U V A B C D E F G H I J K L M N O P Q R S T U V A B C D E F G H I J K L M N O P Q R S T U V A B C D E F G H I J K L M N O P Q R S T U V A B C D E F G H I J K L

Jd D 100000000000000000000000000000000000000000000000000000000000000

中

JMP3,DivX A-B JPG

1

Aolal aJill 1000000000000000000000000000000000000000000000000000000000000000000

aaiia aaii jaaaii aai iaii aai

（）TOOLS jie bai

（）ANGLE 1

Aaal 1yjj 1

yj j jni pi gill yj jil bjj jll jj jao

（）TOOLS jjie bai

(A) AUDIO

.（）

yall aal yai jll jj 1

A

jll lde laeal gaiy jg

a

（）TOOLS jjie bai

SUBTITLE

.

Arabic

auiy 1

GIGA

SLEEP

GIGA GIGA Sound

GIGA jie biai

jdiail laiill jiaai iai jao

.SLEEP

（）ON'leGIGASound 1

JON DOLBY PLI1

LPCM GIGA Sound

四边形 AOBC 为正方形

OFF→SLP→SLP→SLP

• 1. j ill li: sIe lai

DIMMER

A

.DIMMER

S.VOL

y j 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

（）S.VOL

Ls y

SMART VOLUME OFF SMART VOLUME ON

S/W LEVEL

S/WLEVEL 1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789

.S/W LEVEL JJ (

#

#

aiaaii aii iie gai iigai paaiaipai aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii aaii

（）P.BASS

Jb: (s) Manual Tuning p (s) MANUAL (a) STOP

(1) TUNING/CH

Automatic Tuning (s) MANUAL (f) (T) STOP

TUNING/CH 1000000000000000000000000000000000000000000000000000000000

g jyj/ g dai i gaa

MO/ST

MONO 5 (y) STEREO

J 100000000000000000000000000000000000000000000000

S BCD = S COD + S BDO - S BOC

,

Lauus Cilbocall buo

FM89.10a

FM (A) FUNCTION

（）TUNING/CH 2

.89.10>

a) TUNER MEMORY

auii jao (il)

A

(81/2)TUNING/CH

1. 1. ( x,y) = ( ab + 2, - ab - 2) .

15,1jla

aai

USB

a a a a a a a a a a a a a a a a a

USB

aas 8jra pala bilw cale USB

gall glll lal 1k 1111111111111111111111111111111111111111111111

aalalalalalalalalalalalalalalalalalalalalalalalalalalalalal

.USB (A) FUNCTION

(s) Videos 3 (s) Music (s) Photos

USB

USB

(C) (j) YELLOW

A

• .USB

a_b = 1

5.1

Dolby Pro Logic II (10

1. USB 1234567890. USB 1234567890. USB 1234567890

G

Samsung Galaxy S 4.0 LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTELTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE LTE
DVD
DVD-ROM
DVD-ROM-DVD-ROM
DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-ROM-DVD-DDV-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DVD-DWD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LDLD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-LD-
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
？
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
!
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?
?

PRODUIT LASER DE CLASSE 1

Marque Code Marque Code
Admiral(M.Wards)	56, 57, 58	MTC	18
A Mark	01, 15	NEC	18, 19, 20, 40, 59, 60
Anam	01, 02, 03, 04, 05, 06,07,08,09,10,11,12,13,14	Nikoi	03
AOC	01, 18, 40, 48	Onking	03
Bal & Howell(M.Wards)	57, 58, 81	Onwa	03
Brosonic	59, 60	Parasonic	06, 07, 08, 09, 54, 66,67, 73, 74
Candle	18	Penney	18
Cetronic	03	Phico	03, 15, 17, 18, 46, 54,59,62,69,90
Citizen	03, 18, 25	Philips	15, 17, 18, 40, 48,54, 62, 72
Cinema	97	Pioneer	63, 66, 80, 91
Classic	03	Portland	15, 18, 59
Concerto	18	Proton	40
Contec	46	Quasar	06, 66, 67
Coronado	15	Radio Shack	17, 48, 56, 60, 61, 75
Craig	03, 05, 61, 82, 83, 84	RCA/Proscan	18, 59, 67, 76, 77, 78,92, 93, 94
Croslex	62	Realistic	03, 19
Crown	03	Sampo	40
Curtis Mates	59, 61, 63	Samsung	00, 15, 16, 17, 40, 43, 46,47, 48, 49
CXO	03	Sanyo	19, 61, 65
Daewoo	02, 03, 04, 15, 16, 17, 18,19, 20, 21, 22, 23, 24, 25,26, 27, 28, 29, 30, 32, 34,35, 36, 48, 59, 90	Scott	03, 40, 60, 61
Daytron	40	Sears	15, 18, 19
Dynasty	03	Sharp	15, 57, 64
Emerson	03, 15, 40, 46, 59, 61,64, 82, 83, 84, 85	Signature2000(M.Wards)	57, 58
Fisher	19, 65	Sony	50, 51, 52, 53, 55
Funai	03	Sounddesign	03, 40
Futuretech	03	Spectricon	01
General Electric (GE)	06, 40, 56, 59, 66,67, 68	SSS	18
Hall Mark	40	Sylvania	18, 40, 48, 54, 59,60,62
Hitachi	15, 18, 50, 59, 69	Symphonic	61, 95, 96
Inkei	45	Tatung	06
JC Penny	56, 59, 67, 86	Techwood	18
JVC	70	Toknika	03, 15, 18, 25
KTV	59, 61, 87, 88	TMK	18, 40
KEC	03, 15, 40	Toshiha	19, 57, 63, 71
KMC	15	Vidtch	18
LG (Coldstar)	01, 15, 16, 17, 37, 38,39, 40, 41, 42, 43, 44	Videch	59, 60, 69
Luxman	18	Wards	15, 17, 18, 40, 48,54, 60,64
LXI (Seers)	19, 54, 56, 59, 60, 62,63, 65, 71	Yamaha	18
Magnavox	15, 17, 18, 48, 54, 59,60,62,72,89	York	40
Marantz	40, 54	Yupitru	03
Matsui	54	Zenith	58, 79
MGA	18, 40	Zondia	01
Mitsubishi/MGA	18, 40, 59, 60, 75	Dongyang	03, 54

Connexions

CO	→ CO → ALL → x → A-B (Repeat Off → Repeat Disc → Repeat Al → Random → Repeat Section A-B)
RPN	→ CO → x → ALL → x (Repeat Off → Repeat Disc → Repeat Dir (Directory) → Repeat All → Random)

SMART VOLUME ON SMART VOLUME OFF

S/W LEVEL
