USER MANUAL HT-D555WK SAMSUNG

Entertainment System user manual

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service,

please register your product at

www.samsung.com/register

SAMSUNG

Safety Information

Safety Warnings

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.	CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.	This symbol indicates important instructions accompanying the product.

WARNING

- To reduce the risk of fi re or electric shock, do not expose this appliance to rain or moisture.

CAUTION

• Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
• The Mains plug is used as a disconnect device and shall stay readily operable at any time.
• This apparatus shall always be connected to an AC outlet with a protective grounding connection.
• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

LUOKAN 1 LASER LAITE

KLASS 1 LASER APPARAT

PRODUCTO LÁSER CLASE 1

CLASS 1 LASER PRODUCT

This Compact Disc player is classified as a CLASS 1 LASER product.

Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

CAUTION

• INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.

Wiring the Main Power Supply Plug (UK Only)

IMPORTANT NOTICE

The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be used. Never use the plug with the fuse cover removed. If the cover is detachable and a replacement is required, it must be of the same colour as the fuse fitted in the plug. Replacement covers are available from your dealer. If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance. However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains socket as there is a risk of shock hazard from the bared flexible cord. Never attempt to insert bare wires directly into a mains socket. A plug and fuse must be used at all times.

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:– BLUE = NEUTRAL BROWN = LIVE As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:–The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.

WARNING : DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH LETTER E OR BY THE EARTH SYMBOL, OR COLOURED GREEN OR GREEN AND YELLOW.

2 English

Precautions

• Ensure that the AC power supply in your house complies with the identification sticker located on the back of your product.
  • Install your product horizontally, on a suitable base (furniture), with enough space around it for ventilation (7.5\~10cm).
• Do not place the product on amplifiers or other equipment which may become hot. Make sure the ventilation slots are not covered.
• Do not stack anything on top of the product.
• Before moving the product, ensure the Disc Insert Hole is empty.
• In order to disconnect the product completely from the power supply, remove the AC plug from the wall outlet, especially when left unused for a long period of time.
• During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could damage the product.
• Do not expose the product to direct sunlight or other heat sources. This could lead to overheating and malfunction of the product.
• Protect the product from moisture, and excess heat or equipment creating strong magnetic or electric fields (i.e. speakers.).
• Disconnect the power cable from the AC supply if the product malfunctions.
• Your product is not intended for industrial use. Use of this product is for personal use only.
• Condensation may occur if your product or disc has been stored in cold temperatures. If transporting the product during the winter, wait approximately 2 hours until the product has reached room temperature before using.
• The batteries used with this product contain chemicals that are harmful to the environment. Do not dispose of batteries in the general household trash.

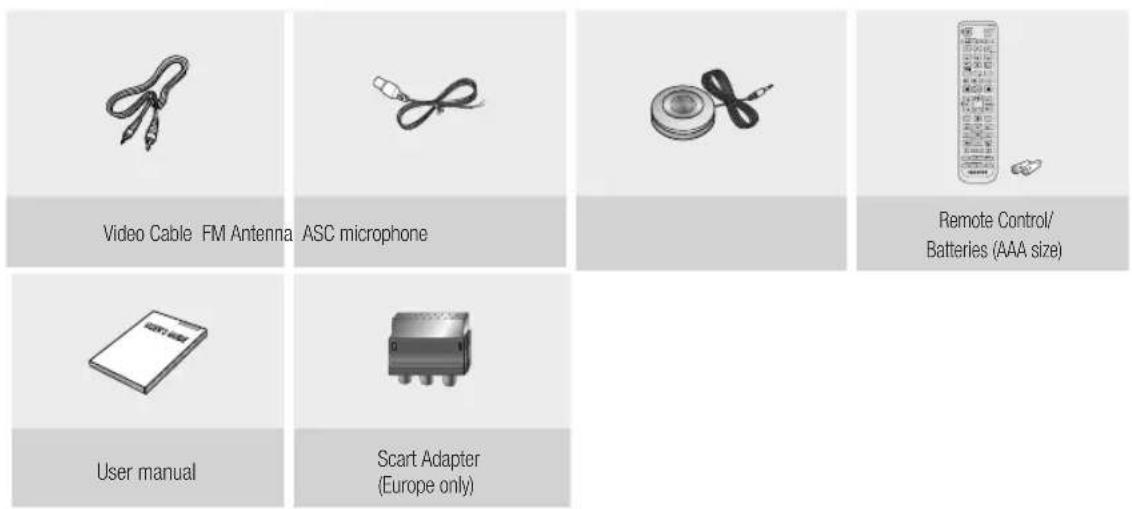

Accessories

Check for the supplied accessories below.

Video Cable FM Antenna ASC microphone Remote Control/ Batteries (AAA size) User manual Scart Adapter (Europe only)

Safety Information

Cautions on Handling and Storing Discs

Small scratches on the disc may reduce sound and picture quality or cause skipping.

Be especially careful not to scratch discs when handling them.

Holding discs

• Do not touch the playback side of the disc.
• Hold the disc by the edges so that fingerprints will not get on the surface.
• Do not stick paper or tape on the disc.

Disc Storage

• Do not keep in direct sunlight
• Keep in a cool ventilated area
• Keep in a clean Protection jacket.
  Store vertically.

NOTE

• Do not allow the discs to become contaminated with dirt.
  ■ Do not load cracked or scratched discs.

Handling and Storing Discs

If you get fingerprints or dirt on the disc, clean it with a mild detergent diluted in water and wipe with a soft cloth.

- When cleaning, wipe gently from the inside to the outside of the disc

NOTE

- Condensation may form if warm air comes into contact with cold parts inside the product. When condensation forms inside the product, it may not operate correctly. If this occurs, remove the disc and let the product stand for 1 or 2 hours with the power on.

Licence

- Dolby, Pro Logic, and the double-D symbol are registered trademarks of Dolby Laboratories.

4

English

dts ^TM

Digital Surround

- Manufactured under licence under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS Digital Surround and the DTS logos are trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

DIVX™

- ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, Inc. This is an offi cial DivX Certifi ed® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your fi les into DivX video. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certifi ed® device must be registered in order to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod. divx.com for more information on how to complete your registration.

DivX Certifi ed® to play DivX® video, including premium content DivX®, DivX Certifi ed® and associated logos are trademarks of DivX, Inc. and are used under licence.

Covered by one or more of the following U.S. patents : 7,295,673; 7,460,668; 7,515,710; 7,519,274

HDMI

- The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

- This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation. Reverse engineering and disassembly are prohibited.

- iPod is a trademark of Apple Inc., registered in the U.S. and other countries. iPhone is a trademark of Apple Inc.

Copyright

© 2011 Samsung Electronics Co., Ltd. All rights reserved.

Copy Protection

- Many DVD discs are encoded with copy protection. Because of this, you should only connect your product directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.

Contents

SAFETY INFORMATION

2

2 Safety Warnings
3 Precautions
3 Accessories
4 Cautions on Handling and Storing Discs
4 Licence
4 Copyright
4 Copy Protection

GETTING STARTED

7

7 Icons that will be used in manual
7 Disc Types and Characteristics

11 Description
11 Front Panel

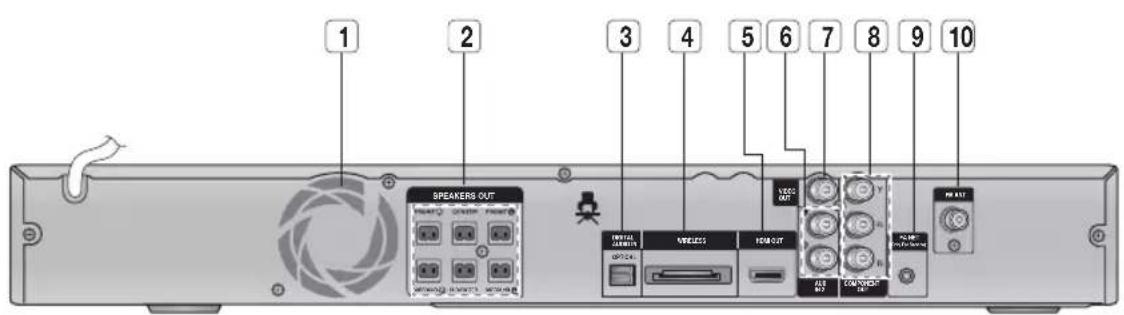

12 Rear Panel

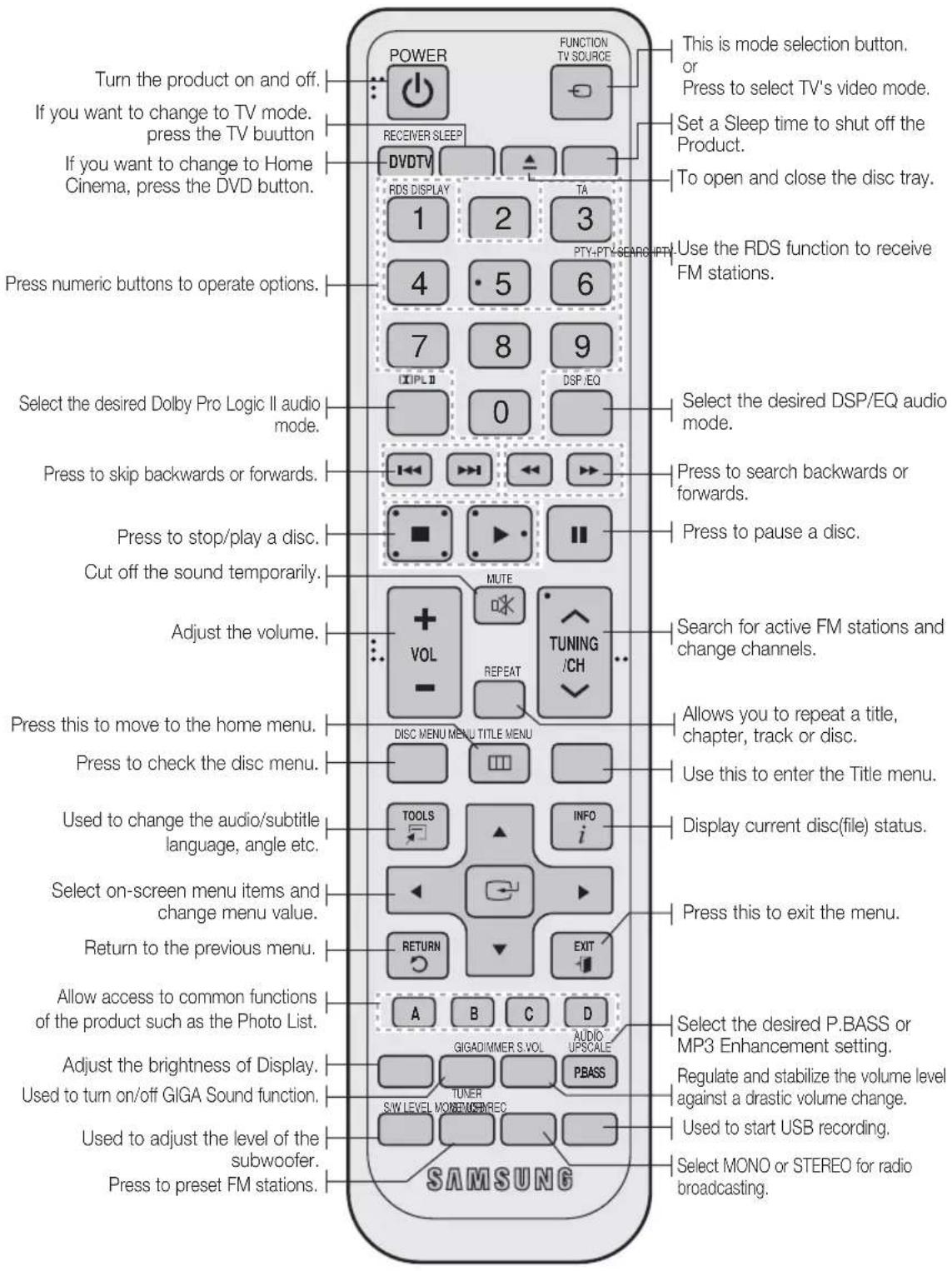

13 Remote control

CONNECTIONS

15

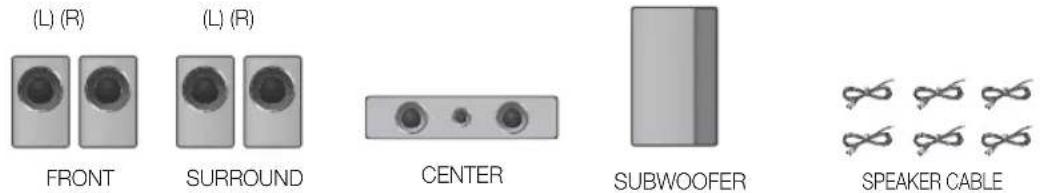

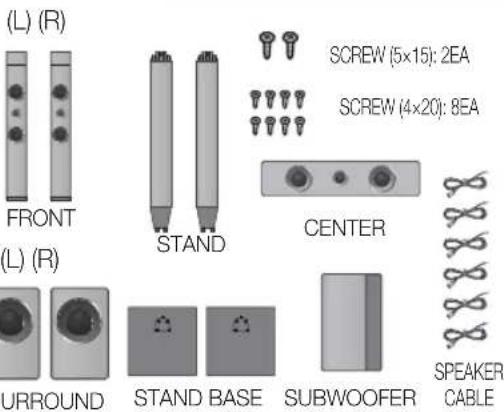

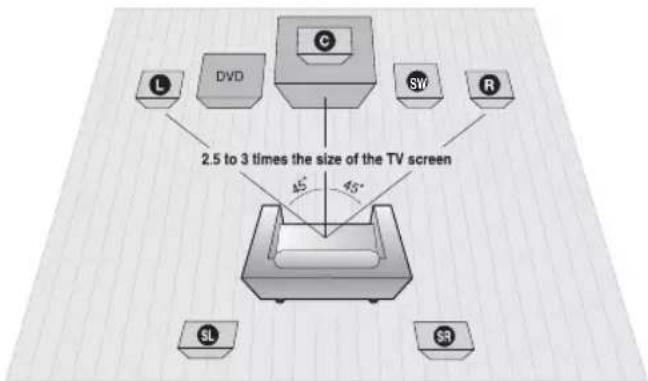

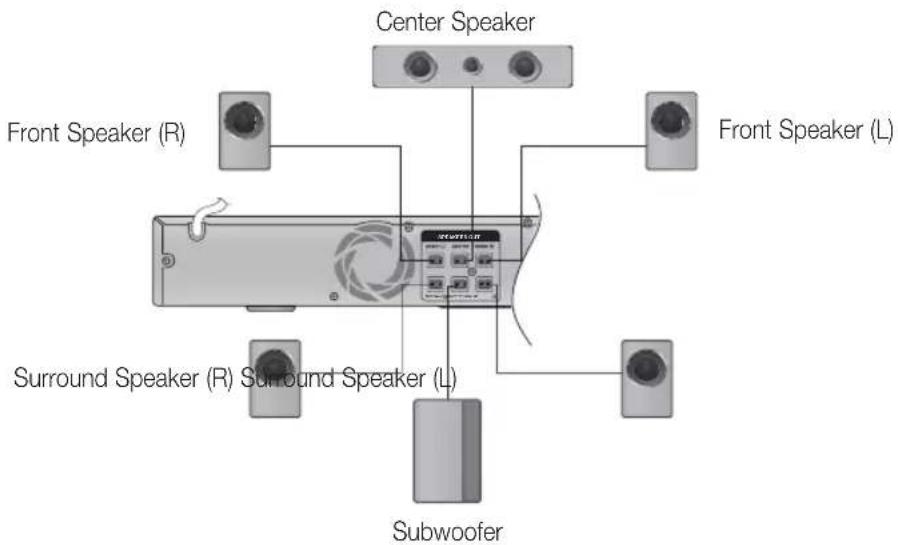

15 Connecting the Speakers

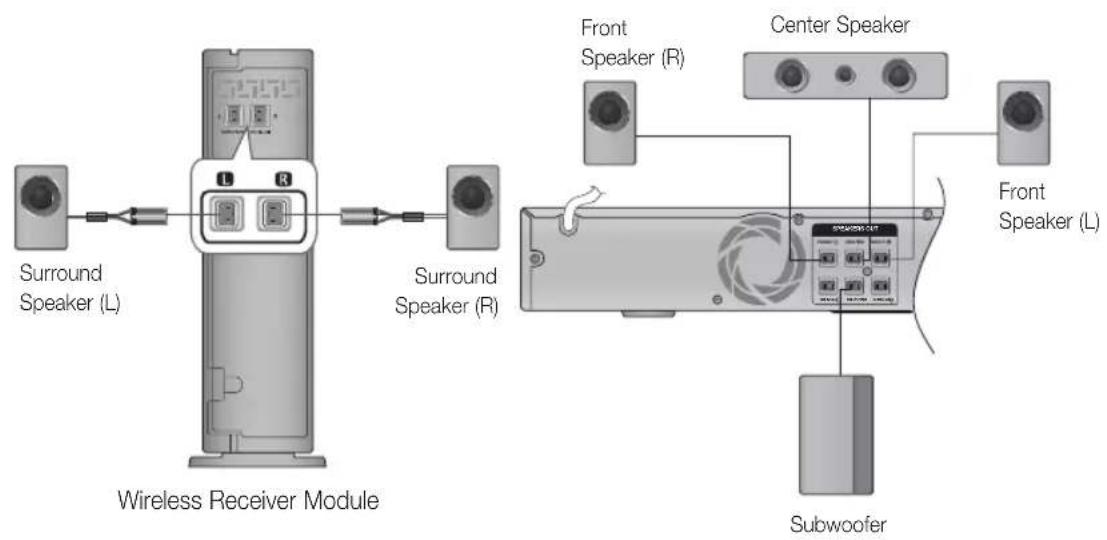

19 Connecting the Optional Wireless Receiver Module

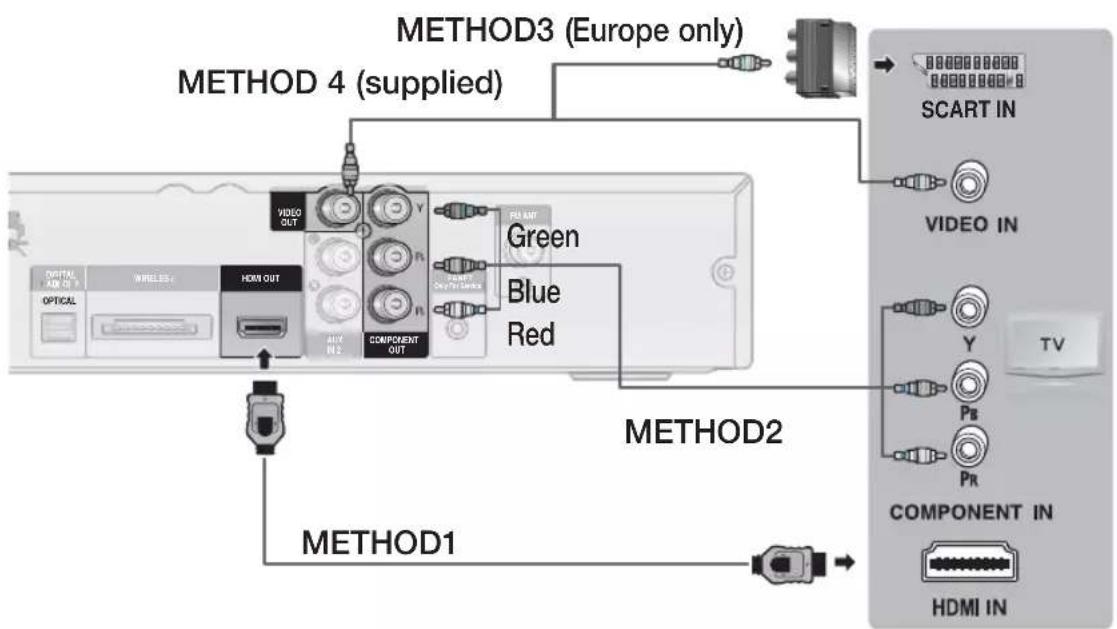

21 Connecting the Video Out to your TV

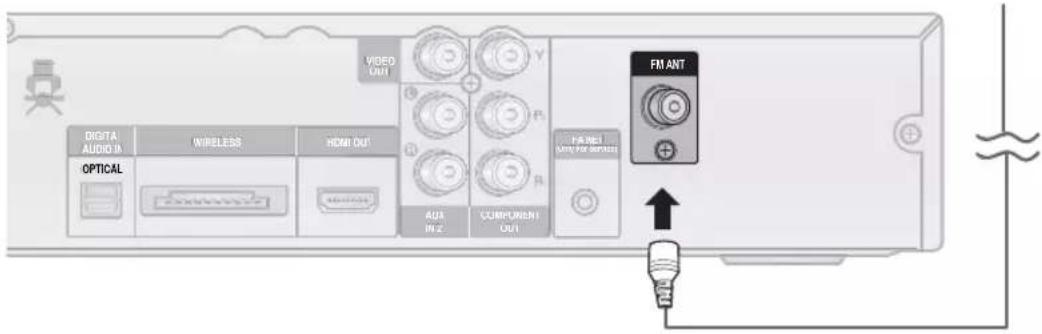

23 Connecting the FM Antenna

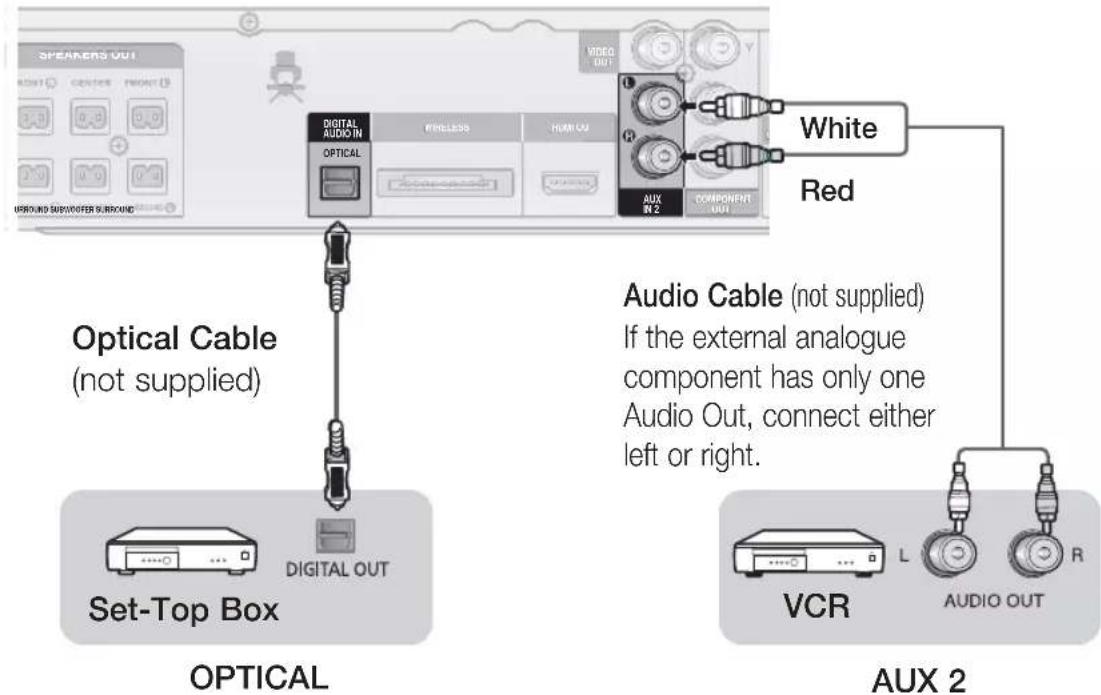

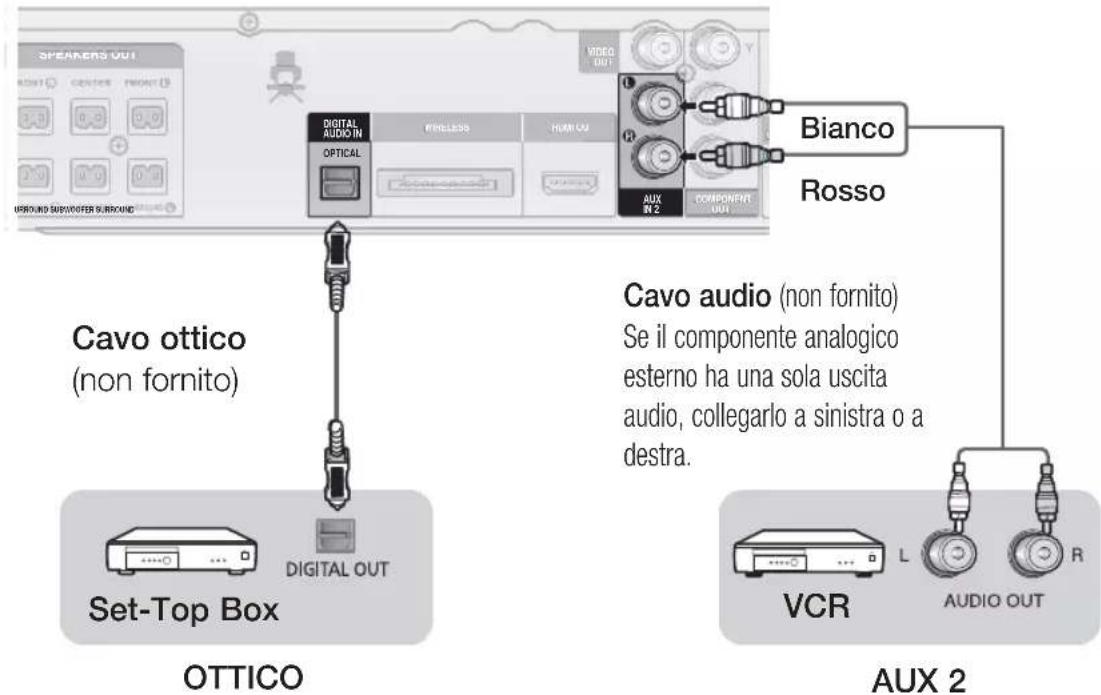

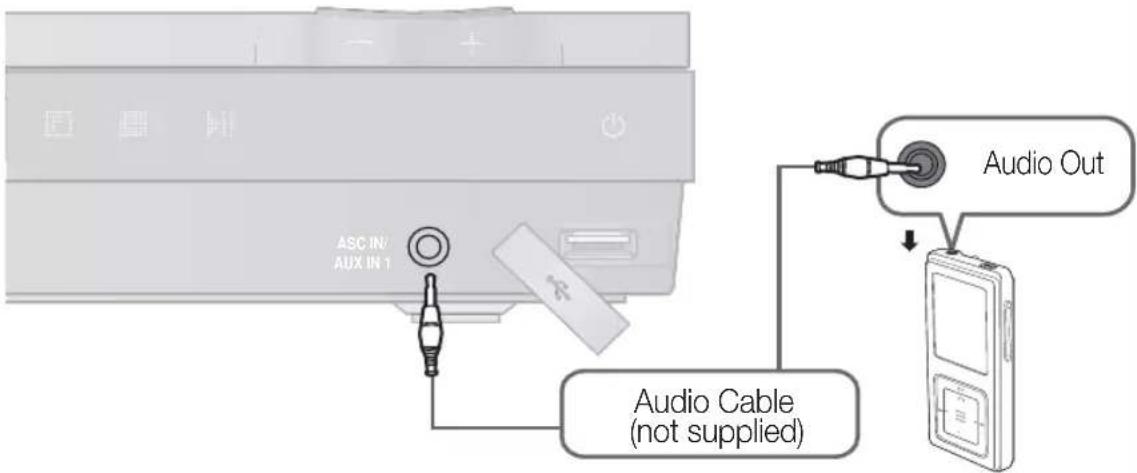

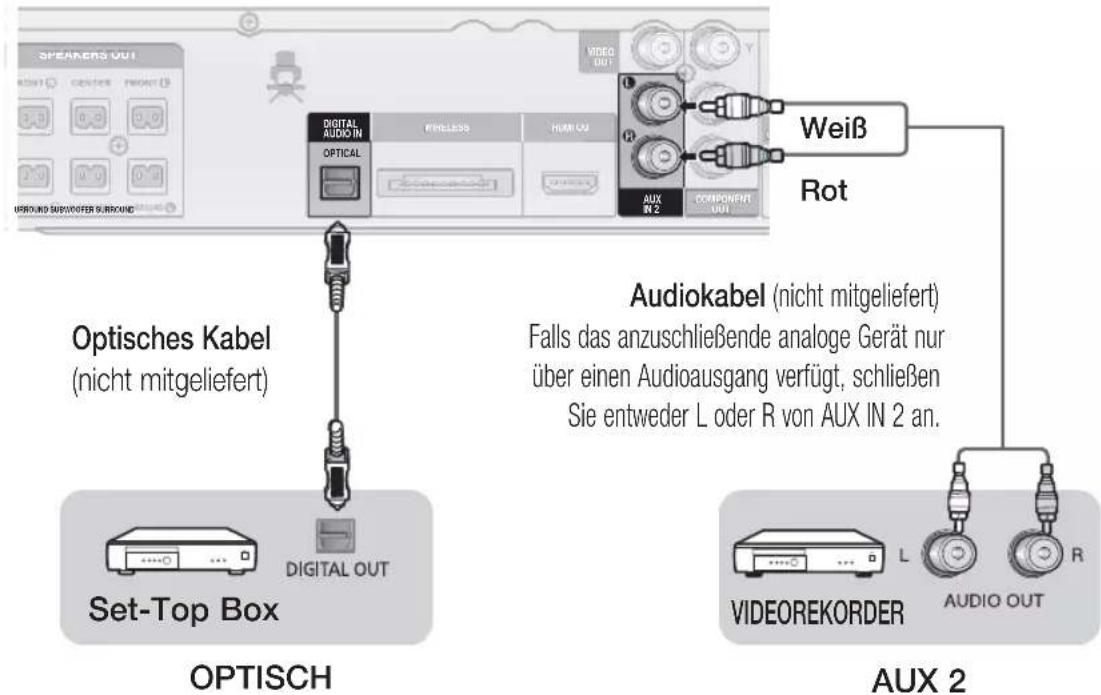

23 Connecting Audio from External Components

SETUP

25

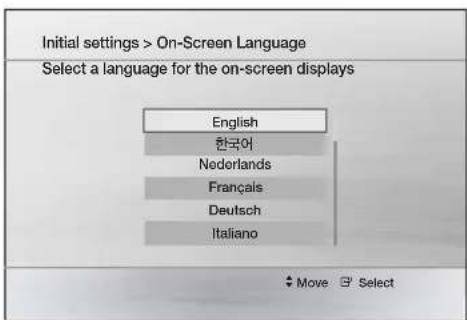

25 Before Starting (Initial Settings)

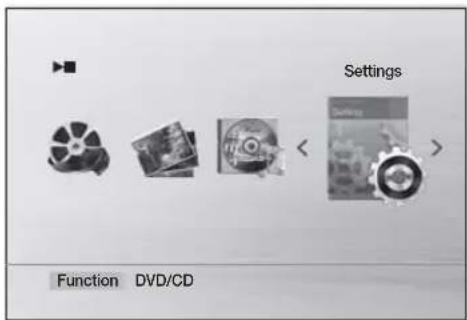

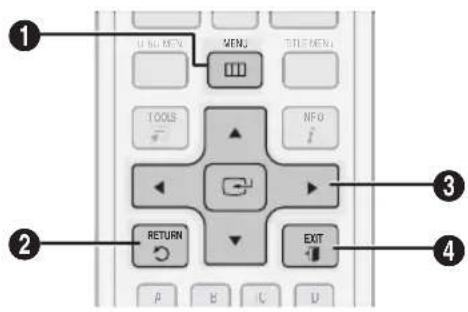

25 Setting the Setup menu
26 Display
26 TV Aspect
26 BD Wise
26 Resolution
26 HDMI Format
26 Video Out Signal
27 Audio

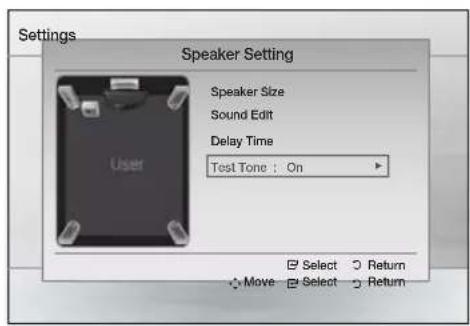

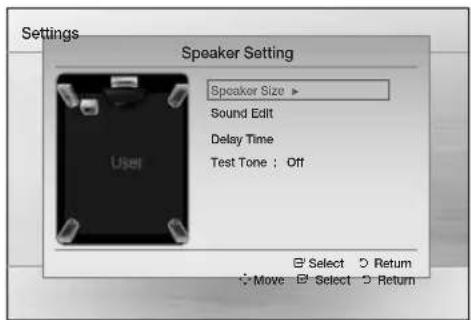

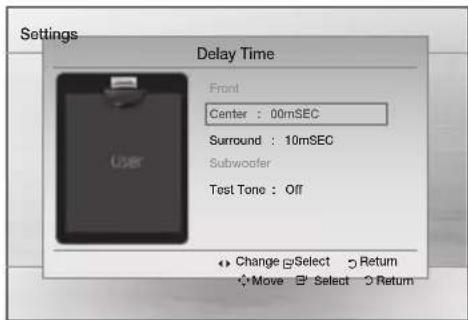

27 Speaker Setting

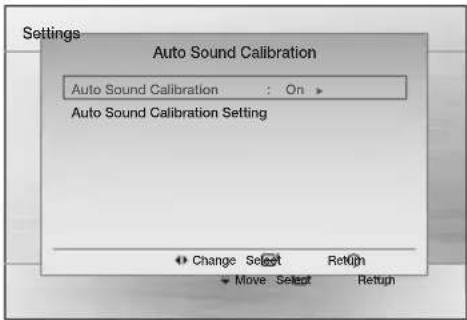

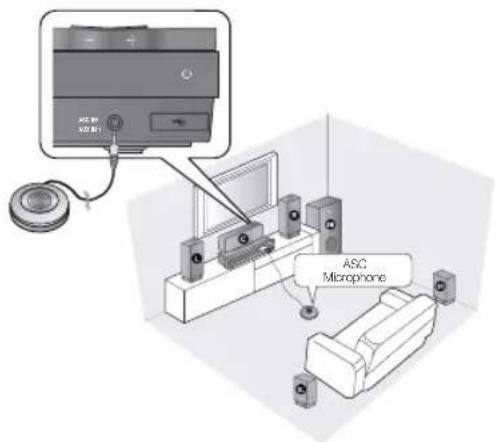

28 ASC (Auto Sound Calibration) Setting
29 DRC (Dynamic Range Compression)
29 AUDIO SYNC
30 HDMI AUDIO

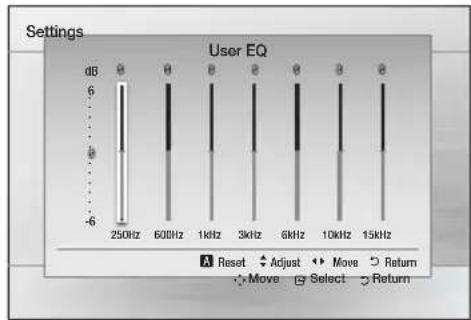

30 User EQ
30 Audio Return Ch.
30 System
30 Initial Settings
30 DivX(R) Registration
30 DivX(R) Deactivation
31 Language
31 Security
31 Parental Rating

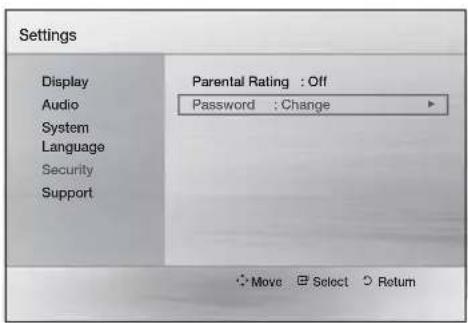

31 Change Password
31 Support
31 Product Information

Contents

BASIC FUNCTIONS

32

32 Disc Playback

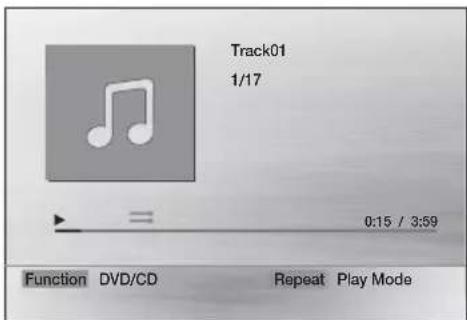

32 Audio CD(CD-DA)/MP3/WMA Playback

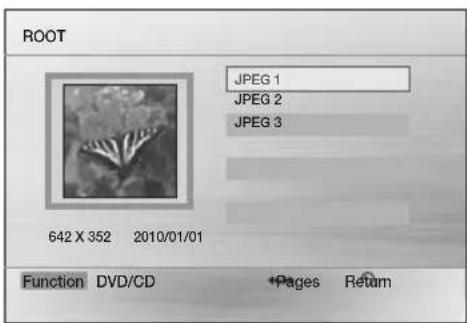

33 JPEG File Playback
33 Using the Playback Function
37 Sound Mode
39 Listening to Radio

ADVANCED FUNCTIONS

41

41 USB Function

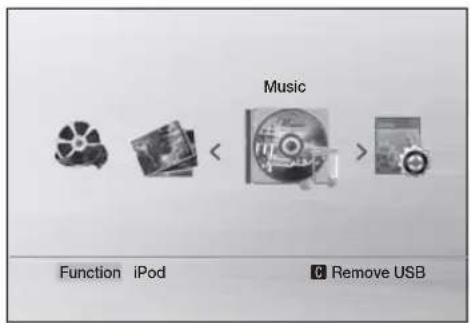

41 Using an iPod/iPhone
43 USB Recording

OTHER INFORMATION

44

44 Troubleshooting
45 Language code list
46 Specifications

• Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance.
  • An administration fee may be charged if either

a. an engineer is called out at your request and there is no defect in the product (i.e. where you have failed to read this user manual)
b. you bring the unit to a repair centre and there is no defect in the product (i.e. where you have failed to read this user manual).
- The amount of such administration charge will be advised to you before any work or home visit is carried out.

Getting Started

Icons that will be used in manual

Make sure to check the following terms before reading the user manual.

Icon Term Defi nition
	DVD	This involves a function available with DVD-Video or DVD±R/±RW discs that have been recorded and fi nalised in Video Mode.
	CD	This involves a function available with a data CD (CD DA, CD-R/-RW).
	MP3	This involves a function available with CD-R/-RW discs.
	JPEG	This involves a function available with CD-R/-RW discs.
	DivX	This involves a function available with MPEG4 discs. (DVD±R/±RW, CD-R/-RW)
	CAUTION	This involves a case where a function does not operate or settings may be cancelled.
	NOTE	This involves tips or instructions on the page that help each function operate.
	Shortcut Key	This function provides direct and easy access pressing the button on the remote control.

Disc Types and Characteristics

Region Code

The product and the discs are coded by region. These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.

Disc Type	Region Code	Area
DVD-VIDEO		The U.S., U.S. territories and Canada
		Europe, Japan, the Middle East, Egypt, South Africa, Greenland
		Taiwan, Korea, the Philippines, Indonesia, Hong Kong
		Mexico, South America, Central America, Australia, New Zealand, Pacific Islands, Caribbean
		Russia, Eastern Europe, India, most of Africa, North Korea, Mongolia
		China

Getting Started

Disc types that can be played

Disc Types & Mark (Logo)	Recorded Signals	Disc Size	Max. Playing Time
DVD-VIDEO	AUDIO + VIDEO	12 cm	Approx. 240 min. (single-sided)
			Approx. 480 min. (double-sided)
		8 cm	Approx. 80 min. (single-sided)
			Approx. 160 min. (double-sided)
AUDIO-CD	AUDIO	12 cm	74 min.
		8 cm	20 min.
DivX	AUDIO + VIDEO	12 cm	—
		8 cm	—

Do not use the following type of discs!

- LD, CD-G, CD-I, CD-ROM, DVD-ROM and DVD-RAM discs cannot be played in this unit. If such discs are played, a message appears on the TV screen.

- DVD discs purchased abroad may not play on this product. If such discs are played, a message appears on the TV screen.

Disc Types And Disc Format

This product does not support Secure (DRM) Media files.

CD-R Discs

- Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the condition of the disc.

- Use a 650MB/74 minute CD-R disc. Do not use CD-R discs over 700MB/80 minutes as they may not be played back.

- Some CD-RW (Rewritable) media, may not be playable.

- Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you may not be able to fully play the disc.

8 English

CD-R MP3 Discs

- Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.

- MP3 fi le names should contain no blank spaces or special characters (. / = +).

- Use discs recorded with a compression/decompression data rate greater than 128Kbps.

- Only fi les with the ".mp3" and ".MP3" extensions can be played.

- Only a consecutively written multisession disc can be played. If there is a blank segment in the Multisession disc, the disc can be played only up to the blank segment.

- If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.

- For fi les encoded in Variable Bit Rate (VBR) format, i.e. fi les encoded in both low bit rate and high bit rate (e.g., 32Kbps \~ 320Kbps), the sound may skip during playback.

• A maximum of 500 tracks can be played per CD.

- A maximum of 300 folders can be played per CD.

CD-R JPEG Discs

- Only files with the "jpg" extensions can be played.

- If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.

- Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.

- JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).

- Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the disc can be played only up to the blank segment.

- A maximum of 999 images can be stored on a folder.

- When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.

- Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.

DVD±R/±RW, CD-R/RW Discs

• Software updates for incompatible formats are not supported.
  (Example : QPEL, GMC, resolutions higher than 800 x 600 pixels, etc.)
• If a DVD-R/-RW disc has not been recorded properly in DVD Video format, it will not be playable.

Supported Formats (DivX)

This product only supports the following media formats. If both video and audio formats are not supported, the user may experience problems such as broken images or no sound.

Supported Video Formats

Format Supported Versions
AVI	DivX3.11~DivX5.1
WMV	V1/V2/V3/V7

Supported Audio Formats

Format Bit	Rate	Sampling Frequency
MP3	80~320kbps	44.1khz
WMA	56~128kbps
AC3	128~384kbps 44.1/48khz
DTS	1.5Mbps 44.1khz

• DivX fi les, including audio and video fi les, created in the DTS format can only support up to 6Mbps.
• Aspect Ratio : Although the default DivX resolution is 640x480 pixels, this product supports up to 720x480 pixels. TV screen resolutions higher than 800 will not be supported.
• When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may experience shaking on the screen during playback.
• Sections with a high frame rate might not be played while playing a DivX file.
• Since this product only provides encoding formats authorized by DivX Networks, Inc., a DivX file created by the user might not play.

Getting Started

Notes on USB connection

Supported devices: USB storage media, MP3 player, digital camera

1) If a folder or file name is longer than 10 characters, it may not properly display or operate.
2) A subtitle fi le bigger than 300KB may not be properly displayed.
3) A certain USB/digital camera device, USB card reader is not supported.
4) FAT16 and FAT32 file systems are supported.
5) Photo (JPEG), music (MP3, WMA) and video fi le should have their names in Korean or English. Otherwise, the fi le may not played.
6) Connect directly to the product's USB port. Connecting through another cable may raise problems with USB compatibility.
7) Inserting more than one memory device to a multi-card reader may not operate properly.
8) PTP protocol for digital camera is not supported.
9) Do not disconnect USB device during a "Reading" process.
10) Bigger the image resolution, the longer the delay to displaying.
11) DRM applied MP3/WMA or video files downloaded from a commercial site are not played back.
12) External HDD device is not supported.
13) The maximum current supported by the USB port for an external device is 500 mA (at 5V DC).

14) Supported file formats

Format	Still Picture	Music Movie
File name	JPG MP3	WMA W	MV DivX
File extension	JPG .JPEG	.MP3 .	WMA .WMV	.AVI
Bit rate	-	80~320 kbps	56~128 kbps	4Mbps	4Mbps
Version	-	-	V8	V1,V2,V3,V7	DivX3.11~DivX5.1
Pixel	640x480	-	-	720x480
Sampling Frequency	-	44.1kHz	44.1kHz	44.1KHz~ 48KHz

Description

Front Panel

1 2 4 3 95 6 87 11 10

1	DISC TRAY	Insert disc here.
2	DISPLAY	Displays the playing status, time, etc.
3	REMOTE CONTROL SENSOR	Detects signals from the remote control.
4	OPEN / CLOSE BUTTON ( [IMAGE] )	Opens and closes the disc tray.
5	FUNCTION BUTTON ( [IMAGE] )	The mode switches as follows :DVD/CD → D. IN → AUX 1 → AUX 2 → USB → REMOTE IPOD → IPOD → FM
6	STOP BUTTON ( [IMAGE] )	Stops disc playback.
7	PLAY / PAUSE BUTTON ( [IMAGE] )	Plays a disc or pauses playback.
8	VOLUME CONTROL BUTTON ( -, - ) +	Volume adjustment.
9	POWER BUTTON ( [IMAGE] )	Turns the product on and off.
10	USB PORT	Connect here and play fi les from external USB storage devices such as MP3 players, USB fl ash memory, etc.The USB memory that requires high power (more than 500mA at 5V) may not be supported. (except iPod/iPhone which is compatible with 1A at 5V).
11	ASC IN / AUX IN 1 CONNECTOR	Connect external components such as an MP3 player.Connect to use the ASC (Auto Sound Calibration) function.

Getting Started

Rear Panel

1 2 3 4 5 6 7 8 9 10 SPEAKERS OUT INPUTS CHANNELS TOMES OUT OFFOUT COM/CONTROL ON/OFF PM KAT

1	COOLING FAN	The fan always revolves when the power is on. Ensure a minimum of 10cm of clear space on all sides of the fan when installing the product.
2	SPEAKERS OUTPUT CONNECTORS	Connect the front, center, surround speakers and subwoofer.
3	EXTERNAL DIGITAL OPTICAL IN JACK (DIGITAL AUDIO IN)	Use this to connect external equipment capable of digital output.
4	TX CARD CONNECTION (WIRELESS)	The TX card enables communication between the product and the wireless receiver module.
5	HDMI OUT JACK	Using an HDMI cable, connect this HDMI output jack to the HDMI input jack on your TV for the best quality picture.
6	AUX IN 2 JACKS	Connect to the 2CH Analogue output of an external device (such as a VCR).
7	VIDEO OUT JACK	Connect your TV's Video Input jack (VIDEO IN) to the VIDEO OUT jack.
8	COMPONENT VIDEO OUTPUT JACKS	Connect a TV with Component video inputs to these jacks.
9	FA NET (Only for Service)	Used for the service repair.
10	FM ANTENNA JACK	Connect the FM antenna.

12 English

Remote control

Tour of the Remote Control

Turn the product on and off. If you want to change to TV mode. press the TV button If you want to change to Home Cinema, press the DVD button. Press numeric buttons to operate options. Select the desired Dolby Pro Logic II audio mode. Press to skip backwards or forwards. Press to stop/play a disc. Cut off the sound temporarily. Adjust the volume. Press this to move to the home menu. Press to check the disc menu. Used to change the audio/subtitle language, angle etc. Select on-screen menu items and change menu value. Return to the previous menu. Allow access to common functions of the product such as the Photo List. Adjust the brightness of Display. Used to turn on/off GIGA Sound function. Used to adjust the level of the subwoofer. Press to preset FM stations. SAMSUNG POWER FUNCTION TV SOURCE RECEIVER SLEEP DVDTV RDS DISPLAY 1 2 3 TA PTY-PTV SEARCH This is mode selection button. or Press to select TV's video mode. Set a Sleep time to shut off the Product. To open and close the disc tray. Use the RDS function to receive FM stations. 7 8 9 DIP LII DSP.EQ Select the desired DSP/EQ audio mode. Press to search backwards or forwards. Press to pause a disc. MUTE TUNING /CH READ Search for active FM stations and change channels. DISC MENU MENU TITLE MENU Allows you to repeat a title, chapter, track or disc. Use this to enter the Title menu. TOOLS INFO i Display current disc(file) status. RETURN EXIT A B C D GIGADIMMER.S.VOL AUDIO UPSCALE PBASS Select the desired P.BASS or MP3 Enhancement setting. Regulate and stabilize the volume level against a drastic volume change. Used to start USB recording. SWS LEVEL MONO/STEREO REC Select MONO or STEREO for radio broadcasting.

English

Getting Started

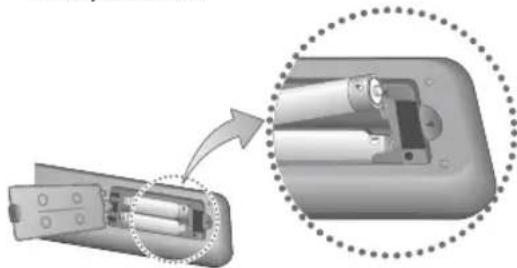

Installing batteries in the Remote Control

* Battery size: AAA

Diagram showing a device being inserted into a motor, with an arrow indicating the process (no text or symbols present)

NOTE

• Place batteries in the remote control so they match the polarity: (+) to (+) and (−) to (−).
  ■ Always replace both batteries at the same time.
  ■ Do not expose the batteries to heat or flame.
  ■ The remote control can be used up to approximately 23 feet (7 meters) in a straight line.

Setting the Remote Control

You can control certain functions of your TV with this remote control.

When operating a TV with the remote control

1. Press the TV button to set the remote control to TV mode.
2. Press the POWER button to turn on the TV.

3. While holding down the POWER button, enter the code corresponding to your brand of TV.

4. If there is more than one code listed for your TV in the table, enter one at a time to determine which code works.
   • Example : For a Samsung TV

While holding down the POWER button, use the number buttons to enter 00, 15, 16, 17 and 40.

1. If the TV turns off, the setting is complete.

- You can use the TV POWER, VOLUME, CHANNEL, and Numeric buttons (0\~9).

NOTE

■ The remote control may not work or some operations may not be possible with some brands of TVs.
■ The remote control will work on a Samsung TV by default.

TV Brand Code List

Brand Code Brand Code
Admiral (M.Wards)	56, 57, 58	MTC	18
A Mark	01, 15	NEC	18, 19, 20, 40, 59, 60
Anam	01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14	Nikei	03
AOC	01, 18, 40, 48	Onking	03
Bell & Howell (M.Wards)	57, 58, 81	Onwa	03
Brocsonic	59, 60	Panasonic	06, 07, 08, 09, 54, 86, 67, 73, 74
Candle	18	Penney	18
Cetronic	03	Philco	03, 15, 17, 18, 48, 54, 58, 82, 89, 90
Citizen	03, 18, 25	Philips	15, 17, 18, 40, 48, 54, 62, 72
Cinema	97	Pioneer	63, 66, 80, 91
Classic	03	Portland	15, 18, 59
Concerto	18	Proton	40
Contec	46	Quasar	06, 66, 67
Coronado	15	Radio Shack	17, 48, 66, 60, 61, 75
Craig	03, 05, 61, 82, 83, 84	RCA/Proscan	18, 59, 67, 76, 77, 78, 92, 93, 94
Croslex	62	Realistic	03, 19
Crown	03	Sampo	40
Curtis Mates	59, 61, 63	Samsung	00, 16, 16, 17, 40, 43, 46, 47, 48, 49
CXC	03	Sanyo	19, 61, 65
Daewoo	02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90	Scott	03, 40, 60, 61
Daytron	40	Soars	15, 18, 19
Dynasty	03	Sharp	15, 57, 64
Emerson	03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85	Signature2000(M.Wards)	57, 58
Fisher	19, 85	Sony	50, 51, 52, 53, 55
Funai	03	Soundesign	03, 40
Futuretech	03	Spectricon	01
General Electric (GE)	06, 40, 56, 59, 66, 67, 68	SSS	18
Hall Mark	40	Sylvania	18, 40, 48, 54, 59, 60, 62
Hitachi	15, 18, 50, 59, 69	Symphonic	61, 95, 96
Inkel	45	Tatung	06
JC Penny	56, 59, 67, 86	Techwood	18
JVC	70	Teknika	03, 15, 18, 25
KTV	59, 61, 87, 88	TMK	18, 40
KEC	03, 15, 40	Toshiba	19, 57, 63, 71
KMC	15	Vidtech	18
LG (Goldstar)	01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44	Videch	59, 60, 69
Luxman	18	Wards	15, 17, 18, 40, 48, 54, 60, 64
LXI (Sears)	19, 54, 56, 59, 60, 62, 63, 65, 71	Yamaha	18
Magnavox	15, 17, 18, 48, 54, 59, 60, 62, 72, 89	York	40
Marentz	40, 54	Yupitoru	03
Matsui	54	Zenith	58, 79
MGA	18, 40	Zonda	01
Mitsubishi/MGA	18, 40, 59, 60, 75	Dongyang	03, 54

14

English

Connections

This section involves various methods of connecting the product to other external components. Before moving or installing the product, be sure to turn off the power and disconnect the power cord.

Connecting the Speakers

2.5 to 3 times the size of the TV screen 45° 45°

Position of the product

Place it on a stand or cabinet shelf, or under the TV stand.

Selecting the Listening Position

The listening position should be located about 2.5 to 3 times the distance of the TV's screen size away from the TV.

Example : For 32" TV's 2\~2.4m

For 55" TV's 3.5\~4m

Front Speakers L R	Place these speakers in front of your listening position, facing inwards (about 45°) toward you. Place the speakers so that their tweeters will be at the same height as your ear. Align the front face of the front speakers with the front face of the center speaker or place them slightly in front of the center speakers.
Center Speaker C	It is best to install it at the same height as the front speakers. You can also install it directly over or under the TV.
Surround Speakers SL SR	Place these speakers to the side of your listening position. If there isn't enough room, place these speakers so they face each other. Place them about 60 to 90cm above your ear, facing slightly downward.★ Unlike the front and center speakers, the surround speakers are used to handle mainly sound effects and sound will not come from them all the time.
Subwoofer SW	The position of the subwoofer is not so critical. Place it anywhere you like.

! CAUTION

• Do not let children play with or near the speakers. They could get hurt if the speaker falls.
• When connecting the speaker wires to the speakers, make sure that the polarity (+/−) is correct.
• Keep the subwoofer out of the reach of children so as to prevent them from inserting their hands or alien substances into the duct (hole) of the subwoofer.
  Do not hang the subwoofer on the wall through the duct (hole).

NOTE

If you place a speaker near your TV set, screen colour may be distorted because of the magnetic field generated by the speaker. If this occurs, place the speaker away from your TV set.

English

Connections

Speaker Components

HT-D550

Speaker Components
HT-D553

SURROUND

Assembled Speakers
HT-D553

Two vertical cylindrical structures with circular features on top, no text or symbols visible

FRONT SPEAKER

SURROUND SPEAKER

CENTER SPEAKER

SUBWOOFER

HT-D555
(L) (R)

FRONT

STAND

SCREW (5×15): 4EA

SCREW (4×20): 16EA

(L) (R)

SURROUND

STAND BASE

CENTER

SUBWOOFER

SPEAKER CABLE

HT-D555

Four identical vertical cylindrical structures with black circular elements on each side, no text or symbols present.

■ Refer to page 17 to install the Speakers on the Tallboy Stand.

16

English

Installing the Speakers on the Tallboy Stand

* HT-D553 only - Front Speakers
* HT-D555 only - Front/Surround Speakers

1. Turn the Stand Base upside-down and connect it to the Stand.

2. Insert small screws (4*20, For connecting Stand & Stand Base) clockwise into the four holes marked using a screwdriver as shown in the illustration.
   ! CAUTION: When you use a torque screwdriver, be careful not to put excessive force. Otherwise, it runs idle or can be damaged. (torque screwdriver- below 15 kg.f.cm)

3. Connect the upper Speaker to the assembled Stand.
4. Insert another large screw (5*15, For connecting Speaker & Stand) clockwise into the hole on the rear of the speaker using a screwdriver.
5. This is the appearance after the speaker is installed. Follow this steps to install other speaker.

1 Stand Base Stand

Illustration of a hand using a tool to press or install a component on a flat surface (no text or symbols visible)

3 Speaker Stand

4

Simple vertical cylindrical object with three dots and a base, no text or symbols visible

Connections

Connecting The Speakers

1. Press down the terminal tab on the back of the speaker.
2. Insert the black wire into the black terminal (-) and the red wire into the red terminal (+), and then release the tab.
3. Connect the connecting plugs to the back of the product by matching the colors of the speaker plugs to the speaker jacks.

(-) (+) Black Red (-) (+)

In case of HT-D550

Center Speaker Front Speaker (R) Front Speaker (L) Surround Speaker (R) Surround Speaker (L) Subwoofer

* Refer to page 16 for the HT-D553/D555 speakers.

Connecting the Optional Wireless Receiver Module

To connect the surround speakers wirelessly, you have to purchase the wireless receiver module and TX card from your Samsung retailer.

* This product should be connected with the SWA-5000 only.

In case of HT-D550

Surround Speaker (L) Wireless Receiver Module Surround Speaker (R) Front Speaker (R) Center Speaker Front Speaker (L) Subwoofer

* Refer to page 16 for the HT-D553/D555 speakers.

1. Press down the terminal tab on the back of the speaker.
2. Insert the black wire into the black terminal (-) and the red wire into the red terminal (+), and then release the tab.
3. Connect the connecting plugs to the back of the product by matching the colors of the speaker plugs to the speaker jacks.

4. With the product turned off, insert the TX card into the TX Card Connection (WIRELESS) on the back of the product.

5. Hold the TX card so that the label "WIRELESS" faces upward and insert the card into the port.

6. The TX card enables communication between the product and the wireless receiver module.

7. Connect the left and right surround speakers to the wireless Receiver module.

8. Plug the power cord of the wireless Receiver module in the wall outlet.

(-) (+) Black Red (-) (+)

English

19

Connections

NOTE

Place the wireless receiver module at the rear of the listening position. If the wireless receiver module is too close to the product, some sound interruption may be heard due to interference.
If you use a device such as a microwave oven, wireless LAN Card, Bluetooth equipment, or any other device that uses the same frequency (2.4/5.8GHz) near the product, some sound interruption may be heard due to interference.
The transmission distance from the product to the wireless receiver module is about 33 feet (10m), but may vary depending on your operating environment. If a steel-concrete wall or metallic wall is between the product and the wireless receiver module, the system may not operate at all, because the radio wave cannot penetrate metal.
If the product doesn't make wireless connection, the product needs ID Setting between the product and wireless receiver module. Insert the TX card in the rear of the product before entering Standby mode. Press "0"→"1"→"3"→"5", and "5" using the numeric buttons on the remote control. You will see a message of "W INT" on the screen.
- With the wireless receiver module turned on, press "ID SET" button on the back of the wireless receiver module for 5 seconds.

CAUTION

• Use the provided TX card only. If a different TX card is used, the product may be damaged or the card may not be removed easily.
• Do not insert the TX card upside down or in the reverse direction.
• Insert the TX card when the product is turned off. Inserting the card when it is turned on may cause a problem.
  If the TX Card is inserted and wireless receiver module setting is complete, sound is not output from the surround Speaker connectors on the product.
  ■ The wireless receiver antenna is built into the wireless receiver module. Keep it away from water and moisture.
• For optimal listening performance, make sure that the area around the wireless receiver module location is clear of any obstructions.
  If no sound is heard from the wireless receiver module, switch the mode to DVD 5.1 channel or Dolby ProLogic II.
  In 2-CH mode, no sound will be heard from the wireless receiver module.

Connecting the Video Out to your TV

Choose one of the four methods for connecting to a TV.

METHOD 1 : HDMI

Connect an HDMI cable (not supplied) from the HDMI OUT jack on the back of the product to the HDMI IN jack on your TV.

METHOD 2 : Component Video

If your television is equipped with Component Video inputs, connect a Component video cable (not supplied) from the COMPONENT OUT (Y, PB and PR) Jacks on the back of the product to the Component Video Input Jacks on your TV.

METHOD 3 : Scart (Europe only)

If your television is equipped with a SCART input, connect the supplied video cable from the VIDEO OUT jack on the back of the product to the VIDEO jack on the Scart adapter (Europe only), then connect the SCART adapter's jack to the SCART IN jack on your television.

METHOD 4 : Composite Video

Connect the supplied Video cable from the VIDEO OUT jack on the back of the product to the VIDEO IN jack on your TV.

English 21

Connections

NOTE

■ Resolutions available for the HDMI output are 480p(576p), 720p, 1080i/1080p. See page 26 for the resolution setting.
This product operates in Interlace scan mode 480i for component/composite output.
■ After making the video connection, set the Video input source on your TV to match the corresponding Video output (HDMI, Component or Composite) on your product.
Turn this product on first before you set the video input source on your TV. See your TV owner's manual for more information on how to select the TV's Video Input source.

CAUTION

Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by copyright protection systems and the picture will be distorted on the television.

HDMI FUNCTION

HDMI Auto Detection Function

If your TV is samsung TV and it supports CEC function. The product's video output will automatically change to HDMI mode when connecting an HDMI cable while power is on.

• HDMI (High Definition Multimedia Interface)
- HDMI is an interface that enables the digital transmission of video and audio data with just a single connector. Using HDMI, the product transmits a digital video and audio signal and displays a vivid picture on a TV having an HDMI input jack.
• HDMI connection description

- HDMI outputs only a pure digital signal to the TV.

- If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen.

• What is the HDCP?

- HDCP (High-band width Digital Content Protection) is a system for protecting DVD content outputted via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD, etc) and a display device (TV, projector, etc). Content is encrypted at the source device to prevent unauthorized copies from being made.

Using Anynet+(HDMI-CEC)

Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control. Anynet + can be used by connecting this product to a SAMSUNG TV using a HDMI Cable. This is only available with SAMSUNG TV's that support Anynet+.

1. Connect the product to a Samsung TV with an HDMI cable. (See page 21)
2. Set the Anynet+ function on your TV. (See the TV instruction manual for more information.)

NOTE

The Anynet+ function supports some buttons of the remote control.
This function is not available if an HDMI cable does not support CEC.
■ Depending on your TV, certain HDMI output resolutions may not work.
Please refer to the user's manual of your TV.
Please check the Anynet ^+ logo (If your TV has an Anynet ^+ logo, then it supports Anynet+ function.)

22

English

Connecting the FM Antenna

FM Antenna (supplied)

VIDEO OUT VIDEO OUT FM ANT DIGITA AUDIO IN WIRELESS HDMI OUT OPTICAL AQA IN 2 COMPONENT OUT FARREI Audio For Services

1. Connect the FM antenna supplied to the FM Antenna jack.
2. Slowly move the antenna wire around until you find a location where reception is good, then fasten it to a wall or other rigid surface.

NOTE

This product does not receive AM broadcasts.

Connecting Audio from External Components

ASC IN/ AUX IN 1 Audio Cable (not supplied) Audio Out

AUX1 : Connecting an External Component/MP3 player

Components such as an MP3 Player.

1. Connect ASC IN / AUX IN 1 (Audio) on the front of the product to the Audio Out of the external component/ MP3 player.

2. Press the FUNCTION button to select AUX1 input.

- The mode switches as follows: DVD/CD → D. IN → AUX 1 → AUX 2 → USB → REMOTE IPOD → IPOD → FM

English

23

Connections

SPEAKERS OUT AUDIO CACADE MOUNT V Ground Supporter S B G R O U C OPTICAL Set-Top Box DIGITAL OUT VCR AUDIO OUT AUDIO Cable (not supplied) White Red AUDIO Cable (not supplied) If the external analogue component has only one Audio Out, connect either left or right. AUX 2 VCR AUDIO OUT

AUX2 : Connecting an External Analogue Component

Analogue signal components such as a VCR.

1. Connect AUX IN 2 (Audio) on the back of the product to the Audio Out of the external Analogue component.

- Be sure to match the colors of the connecting jacks.

1. Press the FUNCTION button to select AUX 2 input.

• The mode switches as follows :

DVD/CD → D. IN → AUX 1 → AUX 2 → USB → REMOTE IPOD → IPOD → FM

NOTE

- You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of the VCR to this product.

OPTICAL : Connecting an External Digital Component

Digital signal components such as a Cable Box/Satellite receiver (Set-Top Box).

1. Connect the DIGITAL AUDIO IN (OPTICAL) on the back of the product to the Digital Output of the external digital component.

2. Press the FUNCTION button to select D. IN.

• The mode switches as follows :

DVD/CD → D. IN → AUX 1 → AUX 2 → USB → REMOTE IPOD → IPOD → FM

24

English

Setup

Before Starting (Initial Settings)

1. Press the POWER button when it is plugged in TV for the first time. Initial Settings screen will be displayed.

Initial settings > On-Screen Language Select a language for the on-screen displays English 한국어 Nederlands Français Deutsch Italiano Move Select

1. Press the ▲▼ buttons to select the desired language, then press the ENTER button.
2. Press the ENTER button to select Start button.
3. Press the ▲▼ buttons to select desired TV Aspect, then press the ENTER button.

If the HDMI cable is connected to the product, TV aspect does not appear.

1. Plug the ASC microphone into the ASC IN jack on the product.

- Auto Sound Calibration screen will be displayed.

1. Press the ENTER button to select Start button.

NOTE

If you have not selected a preferred language in the initial settings, you will see a language selection window next time you turn on the product.
- Your language selection will apply to all menus: On-Screen Menu, Disc Menu, Audio, Subtitle.
If you want to move to the previous screen, press the RETURN button.
■ Once you select a menu language, you can change it by pressing the STOP (■) button on the remote control for more than 5 seconds with no disc inserted.
- When the Initial Settings screen does not appear, refer to the Initial Settings. (see page 30)

Setting the Setup menu

The access step may differ depending on the selected menu. The GUI (Graphical User Interface) in this manual may differ, depending on the firmware version.

1 2 3 4

1	MENU BUTTON : Display the home menu.
2	RETURN BUTTON : Return to the previous setup menu.
3	ENTER / DIRECTION BUTTONMove the cursor and select an item.Select the currently selected item.Confirm the setting.
4	EXIT BUTTON : Exit the setup menu.

Settings Function DVD/CD

1. Press the POWER button.
2. Press the ◀▶ buttons to select Settings, then press the ENTER button.
3. Press the ▲▼ buttons to select the desired menu, then press the ENTER button.
4. Press the ▲▼ buttons to select the desired sub-menu, then press the ENTER button.
5. Press the ▲▼ buttons to select the desired item, then press the ENTER button.
6. Press the EXIT button to exit the setup menu.

English

Setup

Display

You can confi gure various display options such as the TV Aspect, Resolution, etc.

TV Aspect

Depending on the type of television you have, you may want to adjust the screen setting.

• 4:3 Pan-Scan

Select when you want to see the 16:9 video supplied by the DVD without the black bars on top and bottom, even though you have a TV with a 4:3 ratio screen(extreme left and right portion of the movie picture will be cut off).

• 4:3 Letter Box

Select when you want to see the total 16:9 ratio screen DVD supplies, even though you have a TV with a 4:3 ratio screen. Black bars will appear at the top and bottom of the screen.

• 16:9 Wide

You can view the full 16:9 picture on your widescreen TV.

NOTE

• When using HDMI, the screen is automatically converted to the 16:9 Wide mode and TV Aspect is deactivated.
  If a DVD is in the 4:3 ratio, you cannot view it in the wide screen.
  Since DVD discs are recorded in various image formats, they will look different depending on the software, the type of TV, and the TV aspect ratio setting.

BD Wise

(Samsung products only)

BD Wise is Samsung's latest inter-connectivity feature. When you connect Samsung products with BD-Wise to each other via HDMI, the optimum resolution will be set automatically.

• On: The original resolution of the DVD disc will be output to the TV direct.
• Off: The output resolution will be fixed according to the Resolution previously set, regardless of the resolution of the disc.

26

English

NOTE

This will optimize the picture quality according to the content (In the DVD disc, etc) that you want to play and the product or your BD Wise-compliant Samsung TV.
If you want to change the resolution in BD Wise mode, you must set BD mode to Off in advance.
■ BD Wise will be disabled if the product is connected to a device that does not support BD Wise.

Resolution

Sets the output resolution of the HDMI video signal. The number in 480p(576p), 720p, 1080i and 1080p indicates the number of lines of video.

The i and p indicate interlace and progressive scan, respectively.

• 480p(576p) : Outputs 480 lines of progressive video.
• 720p : Outputs 720 lines of progressive video.
• 1080i : Outputs 1080 lines of interlaced video.
• 1080p : Outputs 1080 lines of progressive video.
- BD Wise : Automatically sets the optimal resolution when connected via HDMI to a TV with the BD Wise feature. (The BD Wise menu item appears only if BD Wise is set to On.)

NOTE

If Component or Composite is connected, the resolution supports only 480i.
■ 1080P may not appear depending on TV.

HDMI Format

You can optimize the colour setting from the HDMI output. Select a connected device Type.

• Monitor : Select if connected to a Monitor via HDMI.
• TV: Select if connected to a TV via HDMI.

Video Out Signal

Different countries apply different TV standard. You can select from NTSC or PAL.

• NTSC: You can select the NTSC video format
• PAL : You can select the PAL video format
- NTSC: You can select the NTSC video format - PAL: You can select the PAL video format

Audio

Speaker Setting

Speaker Size

You can set the Speaker Size of the Center and Surround Speakers, as well as Test Tone in this mode.

Settings Speaker Setting Speaker Size > Sound Edit Delay Time Test Tone : Off Select Return Move Select Return

• For the Front, the mode is set to Small.
• For the Subwoofer, the mode is set to Present.
• For the Center and Surround, you can switch the mode to Small or None.

- Small : Select this when using the speakers.

- None : Select this when no speaker is connected.

NOTE

■ The speaker mode may vary depending on the Dolby Pro Logic and Stereo settings.

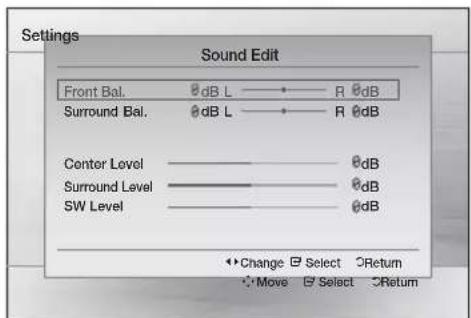

Sound Edit

You can adjust the balance and level for each speaker.

Settings Sound Edit Front Bal. 0 dB L R 0 dB Surround Bal. 0 dB L R 0 dB Center Level 0 dB Surround Level 0 dB SW Level 0 dB Change Select Return Move Select Return

Press the ▲▼ buttons to select and adjust the desired speaker.

Press the ◀▶ buttons to adjust the settings.

Adjusting Front/Surround Bal.

■ You can select between 0 and -6.
The volume decreases as you move closer to -6.

Adjusting Center/Surround/Subwoofer Level

The volume level can be adjusted in steps from +6dB to -6dB.
The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.

Delay Time

If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of the audio signals from the Center and Surround speakers. You can also set the Test Tone in this mode.

Setting up the Speaker Delay Time

When 5.1CH Surround Sound is played, you can enjoy the best sound if the distance between you and each speaker is the same.

Since the sounds arrive at the listening position at different times depending on the placement of speakers, you can adjust this difference by adding a delay effect to the Center and Surround Speakers.

Settings Delay Time Front Center : 00mSEC Surround : 10mSEC Subwoofer Test Tone : Off Change Select Return Move Select Return

NOTE

The Delay Time menu will be activated only when a 5.1 channel source is played.
- You can not set Center and Surround in this mode when their Speaker Size is set to NONE.

English

27

Setup

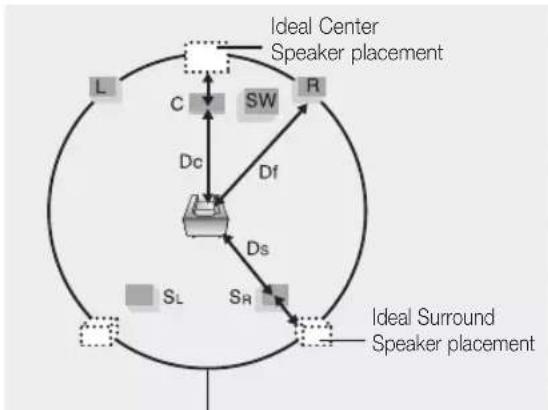


Place all speakers within this circle.
Df: The distance from Front Speaker
Dc: The distance from Center Speaker
Ds: The distance from Surround Speaker

Setting the Center Speaker

If the distance of Dc is equal to or longer than the distance of Df in the figure, set the mode as 0ms. Otherwise, change the setting according to the table.

Distance between Df and Dc	0.00m	0.34m	0.68m	1.06m	1.40m	1.76m
Delay Time	00 ms	01 ms	02 ms	03 ms	04 ms	05 ms

Setting the Surround Speaker

If the distance of Dc is equal to or longer than the distance of Ds in the figure, set the mode as 0ms. Otherwise, change the setting according to the table.

Distance between Ds and Dc	0.00m	1.06m	2.11m	3.16m	3.62m	5.29m
Delay Time	00 ms	03 ms	06 ms	09 ms	12 ms	15 ms

NOTE

■ With DL II (Dolby Pro Logic II), the delay time may be different for each mode.
■ With AC-3 and DTS, the delay time can be set between 00 and 15mSEC.
The Center channel is only adjustable on 5.1 channel discs.

Test Tone

Settings Speaker Setting Speaker Size Sound Edit Delay Time Test Tone : On Select Return Move Select Return

Use the Test Tone feature to check the speaker connections.

• Press the ◀▶ buttons to select On.
• The test tone will be sent to Front Left → Center → Front Right → Surround Right → Surround Left → Subwoofer in order.
  To stop the test tone, press the ENTER button.

ASC (Auto Sound Calibration) Setting

By setting the Auto Sound Calibration(ASC) function just once when you relocate or install the product, you can have the product automatically recognize the distance between speakers, levels between channels, and frequency characteristics to create a 5.1-channel sound fi eld optimized for your environment.

ASC Microphone ASC Microphone

L: Front Left

R: Front Right

C: Center

SW: Subwoofer

SL: Surround Left

SR: Surround Right

28

English

NOTE

• ASC setup can be made when there is no disc in the product.
• You cannot adjust the volume during the ASC setup.
  If the auto sound microphone is disconnected during the ASC setup, the setup will be cancelled.
• When ASC function is activated, the DSP/EQ, Dolby Pro Logic II and P. BASS sound effects will not work.
  If the product is connected to external devices or other components (such as an iPod, AUX, D. IN), the ASC Setup may not work exactly.
• Noise may result in wrong measurement. So please proceed with the measurement in a quiet room to obtain proper calibration.
• Place the microphone on the main listening position.
  ■ Nothing should get in the way between speakers and microphone.
  Note that the test tone of the speaker may be loud when conducting the test.
• Do not place the microphone behind the furniture or too close to the wall. Otherwise, it can produce an incorrect test result.

Auto Sound Calibration

You will hear either the ASC mode or the User Speaker Settings.

• On: You will hear sound in the Auto Sound Calibration(ASC) mode.
• Off: You will hear sound in the Speaker Setting value you set.

Settings Auto Sound Calibration Auto Sound Calibration : On > Auto Sound Calibration Setting Change Select Return Move Select Return

Auto Sound Calibration Setting

1. Plug the ASC microphone into the ASC input jack.
2. Place the ASC microphone at the listening position.
3. Auto Sound Calibration will be automatically set up in the following sequence:
4. Press the RETURN button to cancel the Auto Sound Calibration Setting.
5. When the message "REMOVE MIC" appears on the display, unplug the ASC microphone.

Front Left → Center → Front Right → Surround Right → Surround Left → Subwoofer

NOTE

Setting the Auto Sound Calibration function takes about 3 minutes.

DRC (Dynamic Range Compression)

This feature balances the range between the loudest and quietest sounds. You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.

- You can select either Full, 6/8, 4/8, 2/8, off.

AUDIO SYNC

Video and audio sync may not match with digital TV. If this occurs, adjust the audio delay time to match the video

- You can set the audio delay time between 0 ms and 300 ms. Set it to the optimal status.

Setup

HDMI AUDIO

The audio signals transmitted over the HDMI Cable can be toggled On/Off.

- Off: Video is transmitted over the HDMI connection cable only, and audio is output through the product speakers only.

- On: Both video and audio signals are transmitted over the HDMI connection cable, and audio is output through your TV speakers only.

NOTE

■ The default setting of this function is HDMI Audio Off.

■ HDMI Audio is automatically down-mixed to 2ch for TV speakers.

- When HDMI Audio is set to On, PL II /DSP EQ /P.BASS doesn't work.

In the iPod mode, this menu is not available.

- With HDMI AUDIO set to 'On', the volume can be adjusted only using the TV remote control.

User EQ

You can configure the equalizer settings manually to your preference.

NOTE

This can be also done using the DSP/EQ button. (see page 38)

Audio Return Ch.

You can enjoy TV sound from the Home Cinema speakers by using just one HDMI cable.

- Off : Turn the Audio Return Channel function off.

- Auto : Listen to TV sound from the Home Cinema speakers if your TV is compatible with the Audio Return Channel function.

NOTE

- When Anynet+ (HDMI-CEC) is Off, the Audio Return Channel function is not available.

■ Using an ARC (Audio Return Channel)-uncertifi ed HDMI cable may cause a problem in compatibility.

■ ARC function is only available if an ARC-compliant TV is connected.

System

Initial Settings

By using the Initial Settings, you can set the language, TV aspect and ASC(Auto Sound Calibration) setting. Check if the ASC microphone is connected to the product.

NOTE

If an HDMI cable is connected to the product, the TV aspect does not appear and it is set to 16:9 Wide automatically.

DivX(R) Registration

View DivX(R) VOD Registration Code to purchase and play DivX(R) VOD content.

NOTE

This option is not activated if you select OK. To activate this option, please activate the DivX(R) Deactivation.

Even after you reset the system, the settings of DivX(R) Registration will not be reset.

DivX(R) Deactivation

Select this to get a new registration code.

30

English

Language

You can select the language you prefer for on-screen menu, disc menu, etc.

OSD Language	Select the language for the on-screen displays.
Disc Menu	Select the language for the disc menu displays.
Audio	Select the language for disc audio.
Subtitle	Select the language for disc subtitles.

※ To select a language that does not appear in the menu, select OTHERS in the Disc Menu, Audio and Subtitle, and enter the Language code (see page 45).
※ You cannot select OTHERS in the OSD Language menu.

NOTE

■ The selected language will only appear if it is supported on the disc.

Security

The Parental Lock function works in conjunction with DVDs that have been assigned a rating, which helps you control the types of DVDs that your family watches. There are up to 8 rating levels on a disc.

Parental Rating

Select the rating level you want to set.

A larger number indicates that the program is intended for adult use only. For example, if you select up to Level 6, discs that contain Level 7, 8 will not play.

Enter the password and then press the ENTER button.

• The password is set to "0000" by default.
• Once the setup is complete, you will be taken to the previous screen.

Change Password

Select Change and enter the 4-digit password to set the parental lock using the number buttons on the remote control.

Settings Display Audio System Language Security Support Parental Rating : Off Password : Change Move Select Return

If you forgot your password

1. Remove the disc.
2. Press and hold the STOP (■) button on the remote control for 5 seconds or more. All settings will revert to the factory settings.

Support

Product Information

Provide the product information such as Model code, Software Version, etc.

Basic Functions

Disc Playback

1. Press the OPEN/CLOSE (▲) button.
2. Place a disc gently into the tray with the disc's label facing up.
3. Press the OPEN/CLOSE (▲) button to close the disc tray.

NOTE

Resume function: When you stop disc play, the product remembers where you stopped, so when you press PLAY button again, it will pick up where you left off. (This function works only with DVDs.)

Press the STOP button twice during playback to disable the Resume function.

If no buttons are pressed on the product or remote control for more than 3 minutes when the product is in Pause mode, it will change to STOP mode.
■ The initial screen may appear different, depending on the content of the disc.
- Pirated discs will not play in this unit because they violate the CSS(Content Scrambling System: a copy protection system) recommendations.

※ ∅ will appear when an invalid button is pressed.

TV Screen Saver/Power Saving Function

• If no button input is made for more than 5 minutes in Stop or Play mode, the screen saver will get activated.
• If the product is left in the screen saver mode for more than 20 minutes, the power will automatically turn off. (Except during play a music)

Audio CD(CD-DA)/MP3/WMA Playback

Track01 1/17 0:15 / 3:59 Function DVD/CD Repeat Play Mode

1. Insert an Audio CD(CD-DA) or an MP3 Disc into the disc tray.

- For an Audio CD, the first track will be played automatically.

- Press the ◀◀◀▶I buttons to move to the previous/next track.

- For the MP3/WMA disc, press the ◀▶ buttons to select Music, then press the ENTER button.

• Press the ▲▼◀▶ buttons to select a desired file and press the ENTER button.

• Press the ◀◀▶▶ buttons to move to the previous/next pages.

• Press the STOP (■) button to stop playback.

NOTE

Some MP3/WMA-CDs may not play, depending on the recording mode.
■ Table of contents of a MP3-CD varies depending on the MP3/WMA track format recorded on the disc.
■ WMA-DRM fi les cannot be played.

32

English

JPEG File Playback

Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then played back with this product.

1. Insert a JPEG disc on the disc tray.
2. Press the ◀▶ buttons to select Photo, and then press the ENTER button.

3. Press the ▲▼ buttons to select the folder you want to play, and then press the ENTER button.

4. Press the ▲▼ buttons to select the photo you want to play, and then press the ENTER button.

5. The selected file will play and slide show will start.

6. To stop slide show, press the PAUSE (II) button.
7. You can view the previous/next file by pressing the ◀,▶ buttons during the slideshow mode.

ROOT JPEG 1 JPEG 2 JPEG 3 642 X 352 2010/01/01 Function DVD/CD Pages Return

Rotate Function

Press the GREEN(B) or YELLOW(C) button during the PAUSE mode.

• GREEN(B) Button: Rotate 90^ counterclockwise.
• YELLOW(C) Button: Rotate 90^ clockwise.

NOTE

The maximum resolutions supported by this product are 5120 x 3480 (or 19.0 MPixel) for standard JPEG fi les and 2048 x 1536 (or 3.0 MPixel) for progressive image fi les.

Using the Playback Function

Forward/Reverse Search

Press the ◀◀▶▶ buttons to use the Search Function.

NOTE

■ No sound is played in search mode.
The playback search produces sound only when searching at ▶▶1 and ▶▶2 speed.
This function is available only for the CD-DA.

Skipping Scenes/Songs

Press the ◀◀▶▶I buttons.

• Each time the button is pressed during playback, the previous or next chapter, track or directory (fi le) will be played.
- You cannot skip chapters consecutively.

Slow Motion Play

Press the PAUSE (II) button and then ▶ button for Slow Motion play.

DVD	1→2→3
GivX	1→2→3

NOTE

■ No sound is heard during slow playback.
■ Reverse slow playback does not work.

English

33

Basic Functions

Step Motion Play

Press the PAUSE button repeatedly.

- The picture moves forward one frame each time the button is pressed during playback.

NOTE

No sound is heard during step motion playback.

5 Minute Skip function

During playback, press the ◀,▶ button.

- Playback skips 5 minutes forward whenever you press the ▶ button.

- Playback skips 5 minutes backward whenever you press the ◀ button.

NOTE

This function is available only for the DivX that contains time information.

Using the Disc Menu

You can view the menus for the audio language, subtitle language, profi le, etc.

1. During playback, press the DISC MENU button on the remote control.

2. Press the ▲▼◀▶ buttons to make the desired selection, then press the ENTER button.

NOTE

■ Depending on the disc, menu setup items may vary and this menu may not be available.

34

English

Using the Title Menu

For DVDs containing multiple titles, you can view the title of each movie.

1. During playback, press the TITLE MENU button on the remote control.
2. Press the ▲▼◀▶ buttons to make the desired selection, then press the ENTER button.

NOTE

■ Depending on the disc, menu setup items may vary and this menu may not be available.

Repeat Playback

DVD/DivX Repeat

You can repeat the title, chapter or the section(A-B Repeat) of the DVD/DivX.

Repeat OFF

1. During DVD/DivX playback, press the REPEAT button on the remote control.

2. Press the ▲▼ buttons to select a desired repeat mode, then press the ENTER button.

3. Press the ▲▼ buttons to select OFF to return to normal play, then press the ENTER button.

	Title → Chapter → A - → Off
	Title → Folder → All → Off

CD/MP3 Repeat

1. During the CD/MP3 playback, press the REPEAT button repeatedly to select the repeat mode you want.

	→ → → → → → → → (Repeat Off → Repeat Disc → Repeat All → Random → Repeat Section A-B)
	→ → → → → → → → → (Repeat Off → Repeat Track → Repeat Dir (Directory) → Repeat All → Random)

A-B Repeat Playback

You can repeatedly play back a designated section of a DVD or CD.

1. During the DVD disc or CD playback, press the REPEAT button on the remote control.
2. For DVD, press the ▲▼ buttons to select A-. For CD press the REPEAT button repeatedly until Ⓐ appears.
3. Press the ENTER button at the point where you want repeat play to start (A).
4. Press the ENTER button at the point where you want repeat play to stop (B).
5. To return to normal playback, For DVD, press the ▲▼ buttons to select to OFF. For CD, press the REPEAT button to select to ⇌

NOTE

The A-B Repeat function does not operate with DivX, MP3 or JPEG discs.

Basic Functions

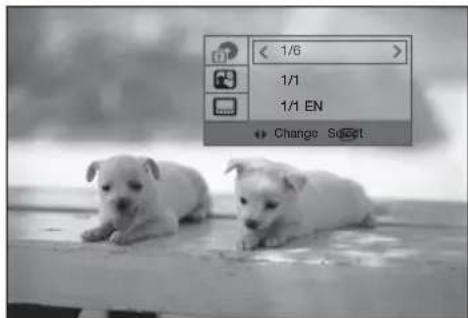

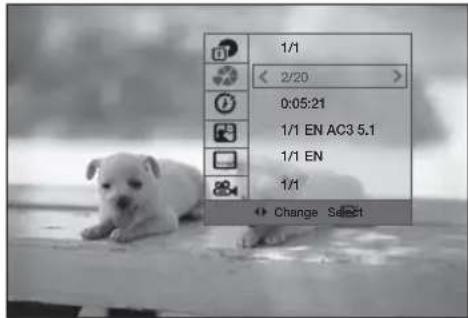

Displaying Disc Information

1/1 << 2/20 > 0:05:21 1/1 EN AC3 5.1 1/1 EN 1/1 Change Select

< 1/6 > 1/1 1/1 EN Change Select:

1. During playback, press the TOOLS button on the remote control.

1. Press the ▲▼ buttons to select the desired item.

2. Press the ◀▶ buttons to make the desired setup change and then press the ENTER button.

- You may use the number buttons of the remote control to control items.

1. To make Disc information disappear, press the TOOLS button again.

NOTE

If you are playing contents from the tools menu, some functions may not be enabled depending on the disc.
- You can also select DTS, Dolby Digital or Pro Logic, depending on the disc.
Some tools menus may differ depending on discs and files.

36 English

TOOLS menu

• Title( ) : To access the desired title when there is more than one in the disc. For example, if there is more than one movie on a DVD, each movie will be identified as a Title.
• Chapter(✗): Most DVD discs are recorded in chapters so that you can quickly find a specific chapter.
• Playing time(⑧): Allows playback of the film from a desired time. You must enter the starting time as a reference. The time search function does not operate on some discs.
  ■ Audio( ) : Refers to the film's soundtrack language. A DVD Disc can contain up to 8 audio languages.
• Subtitle(☐): Refers to the subtitle languages available in the disc. You will be able to choose the subtitle languages or, if you prefer, turn them off from the screen. A DVD Disc can contain up to 32 subtitle languages.
  ■ Angle( ⚠️ ): When a DVD contains multiple angles of a particular scene, you can use the Angle function.

Selecting the Audio Language

1. Press the TOOLS button.
2. Press the ▲▼ buttons to select AUDIO (☐).
3. Press the ◀▶ buttons to select the desired audio language.

- Depending on the of languages on a DVD disc, a different audio language is selected each time the button is pressed.

Selecting the Subtitle Language

1. Press the TOOLS button.

2. Press the ▲▼ buttons to select SUBTITLE (☐).

3. Press the ◀▶ buttons to select the desired subtitle language.

- Depending on the languages on a DVD disc, a different subtitle language is selected each time the button is pressed.

NOTE

■ Depending on the disc, the Subtitle and Audio Language functions may not be available.

Caption Function

• You must have some experience with video extraction and editing in order to use this feature properly.
• To use the caption function, save the caption fi le (*.smi) in the same fi le name as that of the DivX media fi le (*.avi) within the same folder. Example. Root Samsung_007CD1.avi Samsung_007CD1.smi
• Up to 100 alphanumeric characters or 50 East Asian characters (2 byte characters such as Korean and Chinese) for the file name.
• The subtitle of DivX fi les are *.smi, *.sub, *.srt over 148 kbyte is not supported.

Angle Function

This function allows you to view the same scene in different angles.

1. Press the TOOLS button.
2. Press the ▲▼ buttons to select ANGLE ( 🔊 ).
3. Press the ◀▶ buttons to select the desired angle.

NOTE

■ The Angle function works only with discs on which multiple angles have been recorded.

SLEEP

You can set the time that the Home Cinema will shut itself off.

Press the SLEEP button.

• Each time the button is pressed, the selection changes as follows

SLP 10 → SLP 20 → SLP 30 → SLP 60 →

SLP 90 → SLP 120 → SLP 150 → OFF.

DIMMER

You can adjust the brightness of the display on the main unit.

Press the DIMMER button.

Sound Mode

P.BASS

The P.BASS function provides a bass boost to reinforce the low frequencies.

The MP3 ENHANCE function provides better sound quality by upscaling the sampling frequency.

Press the P.BASS button.

2 ChannelLPCM source	POWER BASS ON → POWER BASS OFF
MP3 fi le	MP3 ENHANCE ON → POWER BASS ON → POWER BASS OFF

NOTE

The P.BASS function is only available with 2 channel LPCM sources such as MP3, DivX, CD and WMA.
The P.BASS function does not work with GIGA SOUND or Dolby Pro Logic II modes. If you press P.BASS in the DSP/EQ mode, the DSP/EQ mode is automatically shut off and the P. BASS function will be turned on.
■ The MP3 Enhancement function is only available with MP3 fi les.

English

37

Basic Functions

GIGA

The GIGA Sound Function amplifies bass and improves bass twice as much for you to appreciate powerful real sound.

The GIGA Sound feature will be applied only to the subwoofer.

Press the GIGA button.

NOTE

If GIGA Sound is set to 'ON', other sound field effects will not be applied.
If DOLBY PLII is set to 'ON', the GIGA Sound effect will not be applied.
The GIGA Sound works when in 2-channel LPCM mode only.

S.VOL (SMART VOLUME)

This will regulate and stabilize the volume level against a drastic volume change when changing channels or during a scene transition.

Press the S.VOL button.

• Each time the button is pressed, the selection changes as follows :

SMART VOLUME ON → SMART VOLUME OFF

S/W LEVEL

You can also press the S/W LEVEL button on the remote control and use the ◀ or ▶ buttons to adjust the level of subwoofer.

Press the S/W LEVEL button.

DSP (Digital Signal Processor)/EQ

• DSP (Digital Signal Processor): DSP modes have been designed to simulate different acoustic environments.
• EQ: You can select POPS, JAZZ, ROCK, or USER to optimize the sound for the genre of music you are playing.

Press the DSP/EQ button.

POPS, JAZZ, ROCK	Select POPS, JAZZ, or ROCK, depending on the genre of music you're listening to.
USER	You can enjoy music as you set in “EQ:USER”.If you press ENTER in the “EQ:USER” menu, you will see a window where you can change the EQ settings to your preference.
STUDIO	Provides a sense of presence as if in a studio.
CLUB	Simulates the sound of a dance club with a throbbing bass beat.
HALL	Provides a clear vocal as if listening in a concert hall.
MOVIE	Provides the feeling of a movie cinema.
CHURCH	Provides the feeling of being in a grand church.
OFF	Select this for normal listening.

NOTE

■ The DSP/EQ function is only available in Stereo mode.
■ The DSP/EQ function is not available while playing AC3 signal in 2.1 channel mode.

Dolby Pro Logic II Mode

You can select the desired Dolby Pro Logic II audio mode.

Press the ☐ PL II button.

MUSIC	When listening to music, you can experience sound effects as if you are listening to the actual performance.
MOVIE	Adds realism to the movie soundtrack.
PROLOG	You can listen to a 2CH sound source in 5.1CH surround sound with all speakers active.- A specifi c speaker(s) may not be output depending on the input signal.
MATRIX	You will hear multi-channel surround sound.
STEREO	Select this to listen to sound from the front left and right speakers and the subwoofer only.

NOTE

• When selecting Pro Logic II mode, connect your external device to the AUDIO INPUT jacks (L and R) on the product. If you connect to only one of the inputs (L or R), you cannot listen to surround sound.
  ■ The Pro Logic II function is only available in Stereo mode.
  The Pro Logic II function is not available while playing AC3 signal in 2.1 channel mode.

Listening to Radio

Using buttons on the Remote Control

1. Press the FUNCTION button to select FM.
2. Tune in to the desired station.

- Preset Tuning 1: You must first add a desired frequency as a preset. Press the STOP (■) button to select PRESET and then press the TUNING/CH (↑) button to select the preset station.

• Manual Tuning : Press the STOP (■) button to select MANUAL and then press the TUNING/CH (↑) button to tune in to a lower or higher frequency.
• Automatic Tuning : Press the STOP (■) button to select MANUAL and then press and hold the TUNING/CH (^) button to automatically search the band.

Setting Mono/Stereo

Press the MO/ST button.

• Each time the button is pressed, the sound switches between STEREO and MONO.
- In a poor reception area, select MONO for a clear, interference-free broadcast.

Presetting Stations

Example : Presetting FM 89.10 in the memory

1. Press the FUNCTION button to select FM.
2. Press the TUNING/CH ( ) button to select <89.10>.
3. Press the TUNER MEMORY button.

• Number fl ashes on the display.

1. Press the TUNING/CH (↑↓ buttons to select preset number.

- You can select between 1 and 15 presets.

1. Press the TUNER MEMORY button again.

2. Press the TUNER MEMORY button before number disappears from the display.

3. Number disappears from the display and the station is stored in memory.

4. To preset another station, repeat steps 2 to 5.

About RDS broadcasting

Using the RDS (Radio Data System) to receive FM stations

RDS allows FM stations to send an additional signal along with their regular program signals. For example, the stations send their station names, as well as information about what type of program they broadcast, such as sports or music, etc. When tuned to an FM station which provides the RDS service, the RDS indicator lights up on the display.

English

39

Basic Functions

Description on RDS function

• PTY (Program Type) : Displays the type of programme currently being broadcast.
• PS NAME (Program Service Name) : Indicates the name of broadcasting station and is composed of 8 characters.
• RT (Radio Text) : Decodes the text broadcast by a station (if any) and is composed of maximum 64 characters.
• CT (Clock Time) : Decodes the real time clock from the FM frequency. Some stations may not transmit PTY, RT or CT information therefore this may not be displayed in all cases.
  • TA (Traffi c Announcement) : TA ON/OFF it shows that the traffic announcement is in progress.

NOTE

■ RDS may not operate correctly if the station tuned is not transmitting RDS signal properly or if the signal strength is weak.

To show the RDS signals

You can see the RDS signals the station sends on the display.

Press the RDS DISPLAY button while listening to an FM station.

• Each time you press the button, the display change to show you the following information :

PS NAME → RT → CT → Frequency

PS(Program Service)	While searching,appears and then the station names will be displayed.appears if no signal is sent.
RT(RadioText)	While searching,appears and then text messages the station sends will be displayed.appears if no signal is sent.
Frequency	Station frequency (non-RDS service)

About characters shown in the display

When the display shows PS, or RT signals, the following characters are used.

• The display window cannot differentiate upper case and lower case letters and always uses upper case letters.
• The display window cannot show accented letters, for instance, may stands for accented like <À, Â, Ä, Á, Å and Ã.>

40

English

PTY (Program Type) indication and

PTY-SEARCH function

One of the advantages of the RDS service is that you can locate a particular kind of program from the preset channels by specifying the PTY codes.

To search for a program using the PTY

codes

Before you start!

• The PTY Search is only applicable to preset stations.
• To stop searching any time during the process, press PTY SEARCH button while searching.
• There is a time limit in doing the following steps. If the setting is cancelled before you fi nish, start from step 1 again.
• When pressing the buttons on the primary remote control, make sure that you have selected the FM station using the primary remote control.

RDS DISPLAY 1 3 2 TA 4 · 5 6 FTY-PTY SEARCH-IFTY-

1. Press the PTY SEARCH button while listening to an FM station.

2. Press the PTY- or PTY+ button until the PTY code you want appears on the display.

- The display gives you the PTY codes described to the right.

1. Press the PTY SEARCH button again, while the PTY code selected in the previous step is still on the display.

- The centre unit searches 15 preset FM stations, stops when it finds the one you have selected, and tunes in that station.

Advanced Functions

USB Function

Playing Media Files using the USB Host Feature

You can enjoy media fi les such as pictures, movies and music saved on an MP3 player, USB memory stick or digital camera in high quality video with 5.1 channel sound, by connecting the storage device to the USB port of the product.

Diagram showing a device connected to a USB cable, with an external connector (no text or symbols visible)

1. Connect the USB device to the USB port on the front panel of the product.
2. Press the FUNCTION button to select USB.

- USB appears on the display screen and then disappears.

1. Press the ◀▶ buttons to select Videos, Photos or Music.

- Select a file to play.

Safe USB Removal

To prevent damage to the memory stored in the USB device, perform safe removal before disconnecting the USB cable.

• Press the YELLOW(C) button.
• REMOVE will appear on the display.
• Remove the USB cable.

NOTE

To listen to your music fi les with 5.1 channel sound, you must set the Dolby Pro Logic II mode to Matrix. (See page 39)
■ Remove the USB cable from the USB port slowly. Otherwise, it may cause damage.

Using an iPod/iPhone

If the system is connected to iPod/iPhone using the USB cable (not included), you can play music in iPod/iPhone using the system.

Close-up of a camera module with an attached power plug and an iPod (no visible text or symbols)

1. Connect iPod/iPhone using the USB cable to the front USB port.

- Your iPod is automatically turned on.

1. You should press the Function button to switch to REMOTE IPOD or IPOD mode.

REMOTE IPOD	No video will be displayed on the TV. You can just adjust the volume using the remote control. Play and Search will be enabled only in your iPod player.
IPOD	File selection will be enabled on the TV. The remote control can be used for adjusting the volume or playback settings.

Listening to Music (IPOD mode)

You can play music files stored in the iPod by connecting it to the product.

Music Function iPod Remove USB

1. Press the FUNCTION button to select IPOD.
2. Press the ◀▶ buttons to select Music.

English

Advanced Functions

3. Select the music file to play.

- You can use the remote control or product to control simple playback functions such as the PLAY, PAUSE, STOP, ◄/▶, ◄/▶ and REPEAT buttons. See page 13.

NOTE

• When you are on the phone and also the iPhone is connected with the product, don't press the PLAY(▶) button.
• Adjust the volume to a moderate level before you connect your iPod and product.
• When the product is powered on and you connect an iPod, the product will charge your iPod's battery.

iPod Music categories

File information including the artist name, album name, music title and genre will be displayed according to the ID3 Tag information on the appropriate music file.

Artist	To play by artist.
Generic	To play by genre.
Composers	To play by composer.
Playlist	To play by Playlist.
Album	To play by album.
Songs	To play in numeric or alphabetical order

NOTE

■ The category list may differ, depending on the iPod model.
What is an ID3 Tag? This is what is attached to an MP3 to carry information relevant to the fi le such as the title, artist, album, year, genre and a comment fi eld.

iPod/iPhone models that can be used with this product

■ iPod touch (3rd generation)
■ iPod touch (2nd generation)
■ iPod touch (1st generation)
- iPod classic - iPod with video
- iPod with dock connector - iPod with Click Wheel
■ iPod nano (5th generation)
■ iPod nano (4th generation)
■ iPod nano (3rd generation)
■ iPod nano (2nd generation)
■ iPod nano (1st generation)
iPhone 3GS
iPhone 3G
iPhone

NOTE

■ "Made for iPod" means that an electronic accessory has been designed to connect sp been certifi ed by the de performance standards
■ "Made for iPhone" means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards.
■ Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.
The volume control may not operate normally with iPod and iPhone models not listed above. If you have a problem with any of the models listed above, please update the software of the iPod/ iPhone to the latest version.
■ Depending on the software version of the iPod, control problems may occur. This is not a malfunction of the Home Cinema.
■ Depending on the software version or the type of the iPod, some operations may differ. Install the latest iPod software. (recommended)
■ Playback of applications' contents through the product may not be guaranteed. We recommend playing contents downloaded on the iPod.
If you have a problem using iPod, please visit www.apple.com/support/ipod
This product does not support a video file.

42

English

USB Recording

While playing CD-DA (Compact Disc Digital Audio) using the USB Recording function or listening to the FM radio or receiving audio source from an external device, you can record the audio source in the USB memory.

Ex) USB recording of CD-DA audio contents

1. Connect the USB device to your product.
2. Insert the CD-DA disc into the CD tray.
3. Press the USB REC button on the remote control.

- To start ripping the current track, press the USB REC button on the remote control while the system is playing a track or stopped temporary

- To record the entire CD, press and hold the USB REC button on the remote control. - "FULL CD RIPPING" appears on the display and recording starts.

1. Press the STOP (■) button to stop recording.

2. When USB recording of a CD is completed, you will find a new folder named "RECORDING" in the USB drive. The contents will be saved in the folder in the MP3 format.

3. When USB recording of FM radio or AUX source is completed, you will find a new folder named "TUNER RECORDING or AUX RECORDING" in the USB drive. The contents will be saved in the folder in the MP3 format.

NOTE

• Do not disconnect the USB connection or the power cable during the USB Recording. Otherwise, it may cause damage to the data. To stop USB Recording, press the STOP button and disconnect the USB device after the system stops playing the CD completely.
  If you disconnect the USB connection during the USB Recording, the system will turn off and you will not be able to delete the recorded file.
  If you connect the USB device to the system while it is playing a CD, the system stops temporarily and will play again.
  ■ DTS-CDs cannot be recorded.
  If the recording duration is less than 5 seconds, a recording file may not be created.

■ USB Recording works only if the USB device is formatted in the FAT fi le system. (The NTFS fi le system is not supported.)
■ The audio signal will not be output during USB recording of the CD.
■ When HDMI AUDIO is set to On, the USB Recording function is not supported.
■ USB Recording works only if the USB device is formatted in the FAT fi le system. (The NTFS fi le system is not supported.)
■ The audio signal will not be output during USB recording of the CD.
■ When HDMI AUDIO is set to On, the USB Recording function is not supported.

Other Information

Troubleshooting

Refer to the chart below when this product does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn off the product, disconnect the power cord, and contact the nearest authorized dealer or Samsung Electronics Service Centre.

Symptom Check/Remedy
I cannot eject the disc.	Is the power cord plugged securely into the outlet?Turn off the power and then turn it back on.
The iPod fails to connect.	Check the condition of the iPod connector.Keep the iPod S/W version up to date.
Playback does not start.	Check the region number of the DVD.DVD discs purchased from abroad may not be playable.CD-ROMs and DVD-ROMs cannot be played on this product.Make sure that the rating level is correct.
Playback does not start immediately when the Play/Pause button is pressed.	Are you using a deformed disc or a disc with scratches on the surface?Wipe the disc clean.
Sound is not produced.	No sound is heard during fast playback, slow playback, and step motion playback.Are the speakers connected properly? Is the speaker setup correctly customized?Is the disc severely damaged?
Sound can be heard only from a few speakers and not all 6.	On certain DVD discs, sound is output from the front speakers only.Check if the speakers are connected properly.Adjust the volume.When listening to a CD, radio or TV, sound is output to the front speakers only.Select "PROLOG" by pressing PL II (Dolby Pro Logic II) on the remote control to use all six speakers.
Dolby Digital 5.1 CH Surround Sound is not produced.	Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1 CH Surround Sound is produced only if the disc is recorded with 5.1 channel sound.Is the audio language correctly set to Dolby Digital 5.1-CH in the information display?
The remote control does not work.	Is the remote control being operated within its operation range of angle and distance?Are the batteries drained?Have you selected the correct mode(RECEVER DVD/TV)?
Disc is rotating but no picture is produced.Picture quality is poor and picture is shaking.	Is the TV power on?Are the video cables connected properly?Is the disc dirty or damaged?A poorly manufactured disc may not be playable.
Audio language and subtitles do not work.	Audio language and subtitles will not work if the disc does not contain them.
The Disc/Title menu screen does not appear even when the Disc/Title function is selected.	Are you using a disc that does not contain menus?
Aspect ratio cannot be changed.	You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3 ratio only. Refer to the DVD disc jacket and then select the appropriate function.

44

English

Symptom Check/Remedy
The product is not working.(Example: The power goes out or the front panel key doesn't work or a strange noise is heard.)The product is not working normally.	Press and hold the STOP (■) button on the remote control for longer than 5 seconds with no disc (reset function).Using the RESET function will erase all stored settings.Do not use this unless necessary.
The rating level password has been forgotten.	While “NO DISC” message appears on the display of the product, press and hold the remote control's STOP (■) button for longer than 5 seconds. “INIT” appears on the display and all settings will return to the default values.And then press the POWER button.Using the RESET function will erase all stored settings.Do not use this unless necessary.
Can't receive radio broadcast.	Is the antenna connected properly?If the antenna's input signal is weak, install an external FM antenna in an area with good reception.

Language code list

Enter the appropriate code number for OTHERS in the Disc Menu, Audio and Subtitle. (See page 31).

Code Language Code		Language Code Language		Code Language Code Language Code		Language
1027 Afar 1142 Greek 1239 Interlingue 1345 Malagasy 1482 Kirundi 1527 Tajik
1028	Abkhazian	1144	English	1245	Inupiak	1347	Maori	1483	Romanian	1528	Thai
1032	Afrikaans	1145	Esperanto	1248	Indonesian	1349	Macedonian	1489	Russian	1529	Tigrinya
1039	Amharic	1149	Spanish	1253	Icelandic	1350	Malayalam	1491	Kinyarwanda	1531	Turkmen
1044	Arabic	1150	Estonian	1254	Italian	1352	Mongolian	1495	Sanskrit	1532	Tagalog
1045	Assamese	1151	Basque	1257	Hebrew	1353	Moldavian	1498	Sindhi	1534	Setswana
1051	Aymara	1157	Persian	1261	Japanese	1356	Marathi	1501	Sangro	1535	Tonga
1052	Azerbaijani	1165	Finnish	1269	Yiddish	1357	Malay	1502	Serbo-Croatian	1538	Turkish
1053	Bashkir	1166	Fiji	1283	Javanese	1358	Maïtese	1503	Singhalese	1539	Tsonga
1057	Byelorussian	1171	Faeroese	1287	Georgian	1363	Burmese	1505	Slovak	1540	Tatar
1059	Bulgarian	1174	French	1297	Kazakh	1365	Nauru	1506	Slovenian	1543	Twi
1060	Bhari	1181	Frisian	1298	Greenlandic	1369	Nepali	1507	Samoan	1557	Ukrainian
1069	Bislama	1183	Irish	1299	Cambodian	1376	Dutch	1508	Shona	1564	Urdu
1066	Bengali; Bangla	1186	Scotts Gaelic	1300	Canada	1379	Norwegian	1509	Somali	1572	Uzbek
1067	Tibetan	1194	Galician	1301	Korean	1393	Occitan	1511	Albanian	1581	Vietnamese
1070	Breton	1196	Guarani	1305	Kashmiri	1403	(Alan) Oromo	1512	Serbian	1587	Volapuk
1079	Catalan	1203	Gujarati	1307	Kurdish	1408	Oriya	1513	Siswali	1613	Wolof
1093	Corsican	1209	Hausa	1311	Kirghiz	1417	Punjabi	1514	Sesotho	1832	Xhosa
1097	Czech	1217	Hindi	1313	Latin	1428	Polish	1515	Sundanese	1665	Yoruba
1103	Welsh	1226	Croatian	1326	Lingala	1435	Pashto, Pushto	1516	Swedish	1684	Chinese
1105	Danish	1229	Hungarian	1327	Laothian	1436	Portuguese	1517	Swahili	1697	Zulu
1109	German	1233	Armenian	1332	Lithuanian	1463	Quechua	1521	Tamil
1130	Bhutani	1235 Interlingua 1334			Latvian, Lettish	1481	Rhaeto-Romance	1525 Tegulu

Other Information

Specifications

General	Weight	2.7 Kg
	Dimensions	430 (W) x 59 (H) x 249 (D) mm
	Operating Temperature Range	+5°C~+35°C
	Operating Humidity Range	10 % to 75 %
FM Tuner	Signal/noise ratio	70 dB
	Usable sensitivity	10 dB
	Total harmonic distortion	0.5 %
Disc	DVD (Digital Versatile Disc)	Reading Speed: 3.49 ~ 4.06 m/sec.
		Approx. Play Time (Single Sided, Single Layer Disc): 135 min.
	CD: 12 cm (COMPACT DISC)	Reading Speed: 4.8 ~ 5.6 m/sec.
		Maximum Play Time: 74 min.
	CD: 8cm (COMPACT DISC)	Reading Speed: 4.8 ~ 5.6 m/sec.
		Maximum Play Time: 20 min.
Video Output	Composite Video	480i(576i)
		1 channel: 1.0 Vp-p (75 Ω load)
	Component Video	480i(576i)
		Y: 1.0 Vp-p (75 Ω load)
		Pr: 0.70 Vp-p (75 Ω load)
		Pb: 0.70 Vp-p (75 Ω load)
Video/Audio HDMI		1080p, 1080i, 720p, 480p(576p)
Amplifier	Front speaker output	167W x 2(3Ω)
	Center speaker output	167W(3Ω)
	Surround speaker output	166W x 2(3Ω)
	Subwoofer output	167W(3Ω)
	Frequency range	20Hz~20KHz
	S/N Ratio	65dB
	Channel separation	60dB
	Input sensitivity	(AUX)800mV

*: Nominal specification
- Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
- Weight and dimensions are approximate.
- Design and specifications are subject to change without prior notice.
- For the power supply and Power Consumption, refer to the label attached to the product.

HT-D550

Speaker	Speaker system	5.1ch speaker system
		Front	Surround	Center	Subwoofer
	Impedance	3 Ω	3 Ω	3 Ω	3 Ω
	Frequency range	140Hz~20KHz	140Hz~20KHz	140Hz~20KHz	40Hz~160Hz
	Output sound pressure level	86dB/W/M	86dB/W/M	86dB/W/M	88dB/W/M
	Rated input	167W	166W	167W	167W
	Maximum input	334W	332W	334W	334W
	Dimensions (W x H x D)	Front/ Surround : 90 x 141.5 x 68.5 mmCenter : 360 x 74.5 x 68.5 mmSubwoofer : 168 x 350 x 285 mm
	Weights	Front/ Surround : 0.58 Kg, Center : 0.96 Kg, Subwoofer : 3.6 Kg

HT-D553

Speaker	Speaker system	5.1ch speaker system
		Front	Surround	Center	Subwoofer
	Impedance	3 Ω	3 Ω	3 Ω	3 Ω
	Frequency range	140Hz~20KHz	140Hz~20KHz	140Hz~20KHz	40Hz~160Hz
	Output sound pressure level	86dB/W/M	86dB/W/M	86dB/W/M	88dB/W/M
	Rated input	167W	166W	167W	167W
	Maximum input	334W	332W	334W	334W
	Dimensions (W x H x D)	Front: 90 x 1300 x 119 mm (stand base: 250 x 250)Surround: 90 x 141.5 x 68.5 mmCenter: 360 x 74.5 x 68.5 mmSubwoofer: 168 x 350 x 285 mm
	Weights	Front: 3.8 Kg, Surround: 0.58 KgCenter: 0.96 Kg, Subwoofer: 3.6 Kg

HT-D555

Speaker	Speaker system	5.1ch speaker system
		Front	Surround	Center	Subwoofer
	Impedance	3 Ω	3 Ω	3 Ω	3 Ω
	Frequency range	140Hz~20KHz	140Hz~20KHz	140Hz~20KHz	40Hz~160Hz
	Output sound pressure level	86dB/W/M	86dB/W/M	86dB/W/M	88dB/W/M
	Rated input	167W	166W	167W	167W
	Maximum input	334W	332W	334W	334W
	Dimensions (W x H x D)	Front/Surround : 90 x 1300 x 119 mm (stand base : 250 x 250)Center : 360 x 74.5 x 68.5 mmSubwoofer : 168 x 350 x 285 mm
	Weights	Front/Surround : 3.8 Kg, Center : 0.96 KgSubwoofer : 3.6 Kg

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Area Contact Centre		Web Site
▪ North America
Canada 1-800-SAMSUNG (726-7864) www.samsung.com
Mexico 01-800-SAMSUNG (726-7864) www.samsung.com
U.S.A 1-800-SAMSUNG (726-7864) www.samsung.com
▪ Latin America
Argentine 0800-333-3733 www.samsung.com
Brazil 0800-124-421 / 4004-0000 www.samsung.com
Chile 800-SAMSUNG (726-7864) www.samsung.com
Colombia 01-800-0112112 www.samsung.com
Costa Rica 0-800-507-7267 www.samsung.com
Dominica 1-800-751-2676 www.samsung.com
Ecuador 1-800-10-7267 www.samsung.com
El Salvador	800-6225	www.samsung.com
Guatemala 1-800-299-0013 www.samsung.com
Honduras	800-7919267	www.samsung.com
Jamaica	1-800-234-7267 www.samsung.com
Nicaragua	00-1800-5077267	www.samsung.com
Panama 800-7267 www.samsung.com
Peru	0-800-777-08	www.samsung.com
Puerto Rico	1-800-682-3180 www.samsung.com
Trinidad & Tobago	1-800-SAMSUNG (726-7864) www.samsung.com
Venezuela	0-800-100-5303 www.samsung.com
▪ Europe
Albania	42 27 5755	-
Austria	0810 - SAMSUNG (7267864, € 0.07/min)	www.samsung.com
Belgium 02-201-24-18		www.samsung.com/be (Dutch)www.samsung.com/be_tr (French)
Bosnia	05 133 1999	-
Bulgaria 07001 33 11 www.samsung.com
Croatia 062 SAMSUNG (062 726 7864) www.samsung.com
Czech	800-SAMSUNG (800-726786)	www.samsung.com
	Samsung Zrt., česká organizační složka, Oasis Florenc, Soko-lovská394/17, 180 00, Praha 8
Denmark	70 70 19 70	www.samsung.com
Finland	030 - 6227 515	www.samsung.com
France	01 48 63 00 00	www.samsung.com
Germany	01805 - SAMSUNG (726-7864 € 0,14/Min)	www.samsung.com
Hungary	06-80-SAMSUNG (726-7864) www.samsung.com
Italia	800-SAMSUNG (726-7864) www.samsung.com
Kosovo	[phone]	-
Luxemburg	261 03 710	www.samsung.com
Macedonia	023 207 777	-
Montenegro	020 405 888	-
Netherlands	0900-SAMSUNG (900-7267864) (€ 0,10/Min)	www.samsung.com
Norway	815-56 480	www.samsung.com
Poland	0 801 1SAMSUNG (172678) / 022-607-93-33	www.samsung.com
Portugal	80820-SAMSUNG (726-7864)	www.samsung.com
Rumania	1. 08010 SAMSUNG (72678) - doar din rejeaua Romtelecom, tarif local2. 021.206.01.10 - din orice rejea, tarif normal	www.samsung.com

Area Contact Centre		Web Site
Serbia	0700 Samsung (0700 726 7864)	www.samsung.com
Slovakia 0800-SAMSUNG (726-7864) www.samsung.com
Spain 902-1-SAMSUNG (902 172 678) www.samsung.com
Sweden	0771 726 7864 (SAMSUNG)	www.samsung.com
Switzerland	0848-SAMSUNG (7267864, CHF 0.08/min)	www.samsung.com/chwww.samsung.com/ch_fr/(French)
U.K	0330 SAMSUNG (7267864)	www.samsung.com
Eire	0818 717100	www.samsung.com
Lithuania	8-800-77777	www.samsung.com
Latvia	8000-7267	www.samsung.com
Estonia	800-7267	www.samsung.com
CIS
Russia	8-800-555-55-55	www.samsung.com
Georgia 8-800-555-555	-
Armenia	0-800-05-555	-
Azerbaijan	088-55-55-555	-
Kazakhstan	8-10-800-500-55-500 (GSM: 7799)	www.samsung.com
Uzbekistan	8-10-800-500-55-500 www.samsung.com
Kyrgyzstan	00-800-500-55-500	www.samsung.com
Tadjikistan	8-10-800-500-55-500 www.samsung.com
Ukraine 0-800-502-000		www.samsung.uawww.samsung.com/ua_ru
Belarus 810-800-500-55-500	-
Moldova	00-800-500-55-500 -
Asia Pacific
Australia	1300 362 603	www.samsung.com
New Zealand	0800 SAMSUNG (0800 726 786)	www.samsung.com
China	400-810-5858 / 010-6475 1880	www.samsung.com
Hong Kong	(852) 3698 4698	www.samsung.com/hkwww.samsung.com/hk_en/
India	3030 8282 / 1800 110011 / 1800 3000 8282 / 1800 266 8282	www.samsung.com
Indonesia	0800-112-8888 / 021-5699-7777	www.samsung.com
Japan	0120-327-527	www.samsung.com
Malaysia	1800-88-9999	www.samsung.com
Philippines	1-800-10-SAMSUNG(726-7864) / 1-800-3-SAMSUNG(726-7864) / 1-800-8-SAMSUNG(726-7864) / 02-5805777	www.samsung.com
Singapore	1800-SAMSUNG (726-7864) www.samsung.com
Thailand	1800-29-3232 / 02-689-3232	www.samsung.com
Taiwan	0800-329-999	www.samsung.com
Vietnam 1 800 588 889 www.samsung.com
Middle East
Bahrain 8000-4726 www.samsung.com
Egypt 08000-726786 www.samsung.com
Jordan	800-22273	www.samsung.com
Morocco	080 100 2255	www.samsung.com
Oman	800-SAMSUNG (726-7864) www.samsung.com
Saudi Arabia 9200-21230 www.samsung.com
Turkey	444 77 11	www.samsung.com
U.A.E 800-SAMSUNG (726-7864) www.samsung.com
Africa
Nigeria 0800-SAMSUNG (726-7864) www.samsung.com
South Africa	0860-SAMSUNG (726-7864 )	www.samsung.com

SAMSUNG

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

HT-D550

HT-D553

HT-D555

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

LUOKAN 1 LASER LAITE

KLASS 1 LASER APPARAT

PRODUCTO LÁSER CLASE 1

PRODUIT LASER DE CLASSE 1

1 2 3 4 5 6 7 8 9 10 SPEAKERS OUT INPUTS CHANNELS FEBEOUT ACCESS OUT COM/CONTROL OUT PM KST

Mechanical component diagram showing a cylindrical assembly with an arrow indicating rotation or assembly (no text or symbols present)

REMARQUE

Marque Code Marque Code
Admiral (M.Wards)	56, 57, 58	MTC	18
A Mark	01, 15	NEC	18, 19, 20, 40, 59, 60
Anam	01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14	Nikel	03
AOC	01, 18, 40, 48	Onking	03
Bell & Howell (M.Wards)	57, 58, 81	Onwa	03
Brocsonic	59, 60	Panasonic	06, 07, 08, 09, 54, 66, 67, 73, 74
Candle	18	Penney	18
Cetronic	03	Philco	03, 15, 17, 18, 48, 54, 58, 62, 69, 90
Citizen	03, 18, 25	Philips	15, 17, 18, 40, 48, 54, 62, 72
Cinema	97	Pioneer	63, 66, 80, 91
Classic	03	Portland	15, 18, 59
Concerto	18	Proton	40
Contec	46	Quasar	06, 66, 67
Coronado	15	Radio Shack	17, 48, 66, 60, 61, 75
Craig	03, 05, 61, 82, 83, 84	RCA/Proscan	18, 59, 67, 76, 77, 78, 92, 93, 94
Croslex	62	Realistic	03, 19
Crown	03	Sampo	40
Curtis Mates	59, 61, 63	Samsung	00, 16, 16, 17, 40, 43, 46, 47, 48, 49
CXC	03	Sanyo	19, 61, 65
Daewoo	02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90	Scott	03, 40, 60, 61
Daytron	40	Soars	15, 18, 19
Dynasty	03	Sharp	15, 57, 64
Emerson	03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85	Signature 2000 (M.Wards)	57, 58
Fisher	19, 65	Sony	50, 51, 52, 53, 55
Funai	03	Soundesign	03, 40
Futuretech	03	Spectricon	01
General Electric (GE)	06, 40, 56, 59, 66, 67, 68	SSS	18
Hall Mark	40	Sylvania	18, 40, 48, 54, 59, 60, 62
Hitachi	15, 18, 50, 59, 69	Symphonic	61, 95, 96
Inkel	45	Tatung	06
JC Penny	56, 59, 67, 86	Techwood	18
JVC	70	Teknika	03, 15, 18, 25
KTV	59, 61, 87, 88	TMK	18, 40
KEC	03, 15, 40	Toshiba	19, 57, 63, 71
KMC	15	Vidtech	18
LG (Goldstar)	01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44	Videch	59, 60, 69
Luxman	18	Wards	15, 17, 18, 40, 48, 54, 60, 64
LXI (Sears)	19, 54, 56, 59, 60, 62, 63, 65, 71	Yamaha	18
Magnavox	15, 17, 18, 48, 54, 59, 60, 62, 72, 89	York	40
Marentz	40, 54	Yupitoru	03
Matsui	54	Zenith	58, 79
MGA	18, 40	Zonda	01
Mitsubishi/MGA	18, 40, 59, 60, 75	Dongyang	03, 54

14

Français

Connexions

Illustration of a hand using a tool to press or install a component on a flat surface (no text or symbols visible)

3 Enceinte Socie

4

Vertical cylindrical object with three small dots and a base, labeled '5' in the top-left corner (no other text or symbols)

Français

17

Connexions

DIGITA AUDIO IN OPTICAL WIRELESS HDMI OUT VIDEO OUT VIBED R1 R2 R3 AQA IN Z COMPONENT OUT FM ANT UNITED BY: CNTNCE ↑

VCC VCC Microphone ASIC

L: Avant gauche

R: Avant droite

C: Centre

SW: Caisson basses

SL: Ambiance gauche

SR: Ambiance droite

28

Français

REMARQUE

Répartition ♦ Non

< 1/6 > 1/1 1/1 EN ← Changer Select.

SMART VOLUME ON → SMART VOLUME OFF

S/W LEVEL

Diagram showing connection between a device via USB cable and a card, with Chinese labels indicating ports and connectors.

Close-up of a device with an attached power plug and an iPod icon, no visible text or symbols

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

LUOKAN 1 LASER LAITE

KLASS 1 LASER APPARAT

PRODUCTO LÁSER CLASE 1

LASERPRODUKT DER KLASSE 1

Diagram showing a device with a cylindrical component inserted into a housing, enclosed in a dotted circle (no text or symbols)

HINWEIS

Marke Code Marke Code
Admiral(M.Wards)	56, 57, 58	MTC	18
A Mark	01, 15	NEC	18, 19, 20, 40, 59, 60
Anam	01, 02, 03, 04, 05, 06,07, 08, 09, 10, 11,12, 13, 14	Nikel	03
AOC	01, 18, 40, 48	Onking	03
Bell & Howel(M.Wards)	57, 58, 81	Onwa	03
Brocsonic	59, 60	Panasonic	06, 07, 08, 09, 54, 66,67, 73, 74
Candle	18	Penney	18
Cetronic	03	Philco	03, 15, 17, 18, 48, 54,58, 82, 69, 90
Citizen	03, 18, 25	Philips	15, 17, 18, 40, 48,54, 62, 72
Cinema	97	Pioneer	63, 66, 80, 91
Classic	03	Portland	15, 18, 59
Concerto	18	Proton	40
Contec	46	Quasar	06, 66, 67
Coronado	15	Radio Shack	17, 48, 66, 60, 61, 75
Craig	03, 05, 61, 82, 83, 84	RCA/Proscan	18, 59, 67, 76, 77, 78,92, 93, 94
Croslex	62	Realistic	03, 19
Crown	03	Sampo	40
Curtis Mates	59, 61, 63	Samsung	00, 16, 16, 17, 40, 43, 46,47, 48, 49
CXC	03	Sanyo	19, 61, 65
Daewoo	02, 03, 04, 15, 16, 17, 18,19, 20, 21, 22, 23, 24, 25,26, 27, 28, 29, 30, 32, 34,35, 36, 48, 59, 90	Scott	03, 40, 60, 61
Daytron	40	Soars	15, 18, 19
Dynasty	03	Sharp	15, 57, 64
Emerson	03, 15, 40, 46, 59, 61,64, 82, 83, 84, 85	Signature2000(M.Wards)	57, 58
Fisher	19, 85	Sony	50, 51, 52, 53, 55
Funai	03	Soundesign	03, 40
Futuretech	03	Spectricon	01
GeneralElectric (GE)	06, 40, 56, 59, 66,67, 68	SSS	18
Hall Mark	40	Sylvania	18, 40, 48, 54, 59,60, 62
Hitachi	15, 18, 50, 59, 69	Symphonic	61, 95, 96
Inkel	45	Tatung	06
JC Penny	56, 59, 67, 86	Techwood	18
JVC	70	Teknika	03, 15, 18, 25
KTV	59, 61, 87, 88	TMK	18, 40
KEC	03, 15, 40	Toshiba	19, 57, 63, 71
KMC	15	Vidtech	18
LG (Goldstar)	01, 15, 16, 17, 37, 38,39, 40, 41, 42, 43, 44	Videch	59, 60, 69
Luxman	18	Wards	15, 17, 18, 40, 48,54, 60, 64
LXI (Sears)	19, 54, 56, 59, 60, 62,63, 65, 71	Yamaha	18
Magnavox	15, 17, 18, 48, 54, 59,60, 62, 72, 89	York	40
Marentz	40, 54	Yupitoru	03
Matsui	54	Zenith	58, 79
MGA	18, 40	Zonda	01
Mitsubishi/MGA	18, 40, 59, 60, 75	Dongyang	03, 54

Anschlüsse

Illustration of a hand using a tool to press or install a component on a flat surface (no text or symbols visible)

Simple vertical cylindrical object with three small dots on its top, mounted on a base (no text or symbols)

Deutsch

Anschlüsse

DVD/CD → D.IN → AUX 1 → AUX 2 → USB → REMOTE IPOD → IPOD → FM

Deutsch

23

Anschlüsse

DRC (Dynamic Range Compression)

SLP 10 → SLP 20 → SLP 30 → SLP 60 → SLP 90 → SLP 120 → SLP 150 → OFF.

DIMMER

SMART VOLUME ON → SMART VOLUME OFF

S/W PEGEL

DSP (Digital Signal Processor)/EQ

Diagram showing a device with an attached USB cable and a card, connected to a monitor (no text or symbols visible)

Close-up of a CD-ROM interface with an attached power plug and an iPod (no visible text or symbols)

Marca Codice Marca Codice
Admiral (M.Wards)	56, 57, 58	MTC	18
A Mark	01, 15	NEC	18, 19, 20, 40, 59, 60
Anam	01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14	Nikei	03
AOC	01, 18, 40, 48	Onking	03
Bell & Howol (M.Wards)	57, 58, 81	Onwa	03
Brocsonic	59, 60	Panasonic	06, 07, 08, 09, 54, 66, 67, 73, 74
Candle	18	Penney	18
Cetronic	03	Philco	03, 15, 17, 18, 48, 54, 58, 62, 69, 90
Citizen	03, 18, 25	Philips	15, 17, 18, 40, 48, 54, 62, 72
Cinema	97	Pioneer	63, 66, 80, 91
Classic	03	Portland	15, 18, 59
Concerto	18	Proton	40
Contec	46	Quasar	06, 66, 67
Coronado	15	Radio Shack	17, 48, 66, 60, 61, 75
Craig	03, 05, 61, 82, 83, 84	RCA/Proscan	18, 59, 67, 76, 77, 78, 92, 93, 94
Croslex	62	Realistic	03, 19
Crown	03	Sampo	40
Curtis Mates	59, 61, 63	Samsung	00, 15, 16, 17, 40, 43, 46, 47, 48, 49
CXC	03	Sanyo	19, 61, 65
Daewoo	02, 03, 04, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 32, 34, 35, 36, 48, 59, 90	Scott	03, 40, 60, 61
Daytron	40	Sears	15, 18, 19
Dynasty	03	Sharp	15, 57, 64
Emerson	03, 15, 40, 46, 59, 61, 64, 82, 83, 84, 85	Signature 2000 (M.Wards)	57, 58
Fisher	19, 85	Sony	50, 51, 52, 53, 55
Funai	03	Soundesign	03, 40
Futuretech	03	Spectricon	01
General Electric (GE)	06, 40, 56, 59, 66, 67, 68	SSS	18
Hall Mark	40	Sylvania	18, 40, 48, 54, 59, 60, 62
Hitachi	15, 18, 50, 59, 69	Symphonic	61, 95, 96
Inkel	45	Tatung	06
JC Penny	56, 59, 67, 86	Techwood	18
JVC	70	Teknika	03, 15, 18, 25
KTV	59, 61, 87, 88	TMK	18, 40
KEC	03, 15, 40	Toshiba	19, 57, 63, 71
KMC	15	Vidtech	18
LG (Goldstar)	01, 15, 16, 17, 37, 38, 39, 40, 41, 42, 43, 44	Videch	59, 60, 69
Luxman	18	Wards	15, 17, 18, 40, 48, 54, 60, 64
LXI (Sears)	19, 54, 56, 59, 60, 62, 63, 65, 71	Yamaha	18
Magnavox	15, 17, 18, 48, 54, 59, 60, 62, 72, 89	York	40
Marentz	40, 54	Yupitoru	03
Matsui	54	Zenith	58, 79
MGA	18, 40	Zonda	01
Mitsubishi/MGA	18, 40, 59, 60, 75	Dongyang	03, 54

Collegamenti

Two vertical cylindrical structures with circular holes, mounted on bases (no text or symbols visible)

DIFFUSORE
ANTERIORI

DIFFUSORE
SURROUND

DIFFUSORE CENTRO

SUBWOOFER

HT-D555
(L) (R)

ANTERIORI

SUPPORTI

VITI (5×15): × 4

VITI (4×20): x 16

(L) (R)

SURROUND

BASI SUPPORTI

CENTRO

SUBWOOFER

CAVI DIFFUSORI

HT-D555

Four identical vertical cylindrical structures with circular elements on each top, mounted on a base (no text or symbols visible)

DIFFUSORI ANTERIORI / SURROUND

DIFFUSORE CENTRO

SUBWOOFER

NOTA

1 Base supporto Supporto

Illustration of a hand using a tool to press or install a component on a flat surface (no text or symbols visible)

Simple vertical cylindrical object with three dots and a base, no text or symbols visible

Collegamenti

Antenna FM (fornita)

VIDEO OUT1 V P OPTICAL DIGITA AUDIO IN WIRELESS HDMI OUT AUX IN 2 COMPONENT OUT1 FM ANT UNIT AIR ACCESS ↑

DVD/CD → D.IN → AUX 1 → AUX 2 → USB → REMOTE IPOD → IPOD → FM

Italiano

23

Collegamenti

SPEAKERS OUT AUDIO COTATO RHOUST 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 1. Bianco Rosso Cavo ottico (non fornito) Set-Top Box OTTICO Cavo audio (non fornito) Se il componente analogico esterno ha una sola uscita audio, collegarlo a sinistra o a destra. VCR AUX 2 AUDIO OUT

SLP 10 → SLP 20 → SLP 30 → SLP 60 → SLP 90 → SLP 120 → SLP 150 → OFF.

DIMMER

S.VOL (SMART VOLUME, VOLUME INTELLIGENTE)

VOLUME SMART ATT → VOLUME SMART DISAT

S/W LEVEL

DSP (Digital Signal Processor)/EQ

Diagram showing a device connected to a card via cable, with no visible text or symbols

Close-up of a device with an attached power plug and an iPod icon, no visible text or symbols on the main components.
