DWER 7880 IN - Basket BAUKNECHT - Free user manual and instructions

Product type	Range hood
Brand	Bauknecht
Model	DWER 7880 IN
Installation	Wall-mounted, recirculation version (charcoal filter included) or ducted
Dimensions (W x D x H)	Approximately 78 x 50 x 30 cm (estimated)
Weight	Approximately 15 kg (estimated)
Power supply	220-240 V ~ 50/60 Hz
Motor power	Not specified, but compatible with standard installation
Lighting	2 halogen bulbs G4, 20 W max each
Controls	Touch panel with buttons: on/off, speed, timer, light, display
Suction speeds	Multiple speeds (not specified, probably 3 or 4)
Special functions	Timer (delayed shut-off 5 min), thermal safety sensor, filter saturation indicator
Grease filters	Metal, dishwasher safe (once a month)
Charcoal filter	Active, replacement every 4 months (recirculation model)
Noise level	Not specified, estimated 55-65 dB(A)
Maintenance	Clean surfaces with damp cloth, avoid abrasives
Safety	Grounding mandatory, automatic shut-off in case of overheating
Spare parts	Available through authorized after-sales service (bulbs, filters)
Reparability	Reparability index not provided, estimated 7-8/10
Warranty	2 years (according to legislation), extension possible

Frequently Asked Questions - DWER 7880 IN BAUKNECHT

How to clean the grease filters of the Bauknecht DWER 7880 IN range hood?

The metal grease filters should be cleaned once a month. Open the suction panel, pull the handle to remove the filter. Wash by hand or in a dishwasher at low temperature (short cycle). Reassemble after drying. Washing may dull the filter but does not affect its efficiency.

When to replace the charcoal filter and how to proceed?

The charcoal filter must be replaced every 4 months (recirculation model). Unplug the hood, open the suction panel, remove the grease filters. Apply a charcoal filter on each side of the motor grille and turn clockwise to lock. Reassemble.

How to change a halogen bulb of the hood?

Use exclusively halogen G4 bulbs of 20 W max. Unplug the hood. Extract the light cover using a small flat screwdriver by prying next to one of the three points. Remove the defective bulb from the socket and insert the new one. Close the light cover by clipping it back.

Why does my hood not work?

First check that there is no power cut and that the plug is properly connected. Turn the hood off and on again. If the problem persists, contact authorized after-sales service.

What to do if the hood suction is weak?

Check the selected suction speed. Clean the grease filters (if clogged). Make sure the air outlets are not obstructed. If the problem continues, consult the troubleshooting section in the manual.

How to activate the charcoal filter saturation indicator function?

This function is normally disabled. To activate it (recirculation version), turn off the hood, press and hold the 1 (OFF/low speed) and 3 (Timer) buttons simultaneously until the indicator changes from flashing to steady. Release. To deactivate, repeat the operation.

How to reset the filter saturation indicator after maintenance?

After cleaning or replacing the filters, press and hold button 3 (Timer) until the corresponding indicator turns off.

What is the minimum distance between the cooktop and the hood?

For electric cookers: 40 cm. For gas or mixed cookers: 65 cm. Also check the recommendations of your cooker manual.

How to install the hood in recirculation mode?

The hood is supplied in recirculation mode. Mount the supplied charcoal filter at the end of installation (see manual). The filtered air is recirculated into the room. Ensure easy air circulation. If you want a ducted version, consult an installer.

Where is the service code (serial number) of the hood?

The service code (number after the word 'Service') is on the rating plate inside the hood, under the grease filters. It is also indicated in the warranty booklet. Note it before any call to after-sales service.

USER MANUAL DWER 7880 IN BAUKNECHT

Line drawing of a rectangular electronic device with two mounting holes (no text or symbols)

GB User and maintenance manual

Diagram of a mechanical device showing internal components and rotation arrows (no text or symbols)

AUSWECHSELN DER HALOGENLAMPEN

HINWEIS:

Illustration of a hand holding a circular object with a tool, and another hand holding a ring with a pointer (no text or symbols)

IM LIEFERUMFANG INBEGRIFFENES MATERIAL

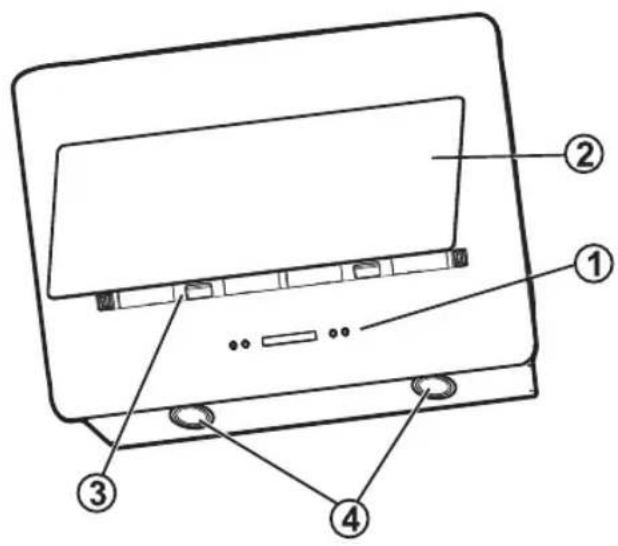

Bedienfeld

IMPORTANT SAFETY INSTRUCTIONS

YOUR SAFETY AND THAT OF OTHERS IS PARAMOUNT

This manual and the appliance itself provide important safety warnings, to be read and observed at all times.

This is the attention symbol, pertaining to safety, which alerts users to potential risks to themselves and others.

All safety warnings are preceded by the attention symbol and the following terms:

DANGER:

indicates a hazardous situation which, if not avoided, will cause serious injury.

WARNING:

Indicates a hazardous situation which, if not avoided, could cause serious injury.

All safety warnings give specific details of the potential danger/warning present and indicate how to reduce risk of injury, damage and electric shock resulting from improper use of the appliance. Carefully observe the following instructions:

• Installation and maintenance must be carried out by a qualified technician, in compliance with the manufacturer's instructions and local safety regulations. Do not repair or replace any part of the appliance unless specifically stated in the user manual.

- The appliance must be disconnected from the power supply before carrying out any installation work.

- Earthing of the appliance is compulsory. (Not possible for class II hoods identified by the symbol on the dataplate).

• The power cable must be long enough for connecting the appliance, once fitted in its housing, to the power supply socket.

- Do not pull the power supply cable in order to unplug the appliance.

- The electrical components must not be accessible to the user after installation.

- Do not touch the appliance with any wet part of the body and do not operate it when barefoot.

- The appliance is not intended for use by persons (including children) with any physical, sensory or mental impairment, or without experience and knowledge of the appliance, unless supervised or previously instructed in its use by those responsible for their safety.

- Do not repair or replace any part of the appliance unless specifically indicated in the manual. All other maintenance services must be carried out by a specialised technician.

- Children must be supervised to ensure they do not play with the appliance.

- When drilling through the wall pay attention not to damage electric connections and/or pipes:

• Air vents must always discharge to the outside.

- The manufacturer rejects all responsibilities for any damage caused by improper use or wrong settings.

- Appropriate maintenance and cleaning ensure the good working order and the best performance of the appliance. Regularly clean all stubborn surface dirt to avoid grease build up. Remove and clean or change the filter regularly.

- Never flame cook food (flambé) under the appliance. Using free flames might cause fire.

- Failure to observe the instructions for cleaning the hood and replacing the filters may result in a fire.

- Exhaust air must not be vented through a flue used for removal of fumes produced by gas combustion appliances or other combustible materials, but must have a separate outlet. All national regulations governing extraction of fumes must be observed.

- If the hood is being used at the same time as other appliances using gas or other combustible materials, the negative pressure of the room must not exceed 4 Pa (4x 10-5 bars). For this reason ensure that the room is well ventilated.

- Do not leave frying pans unattended when frying, as the frying oil may catch fire.

- Before touching the light bulbs, ensure that they are cold.

- Do not use or leave the hood without the light bulb correctly fitted, as this may cause electric shock.

- The hood is not a worktop, therefore do not place any objects on top of it or overload it.

- During all installation and maintenance operations wear appropriate working gloves.

• This appliance is not suitable for outdoor use.

- When the hob is in use, accessible parts of the hood may become hot.

Scrapping of household appliances

• This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. Before scrapping, cut off the power supply cable.
• For further information on the treatment, recovery and recycling of household electrical appliances, contact your competent local authority, the collection service for household waste or the store where you purchased the appliance.

KEEP THIS BOOKLET FOR FUTURE CONSULTATION.

INSTALLATION

After unpacking the appliance, check for any transport damage. In the event of problems, contact the dealer or your nearest After-sales Service. To prevent any damage, only remove the appliance from its polystyrene foam packaging at the time of installation.

PREPARING FOR INSTALLATION

WARNING:

this is a heavy product; the hood should only be lifted and installed by two or more people.

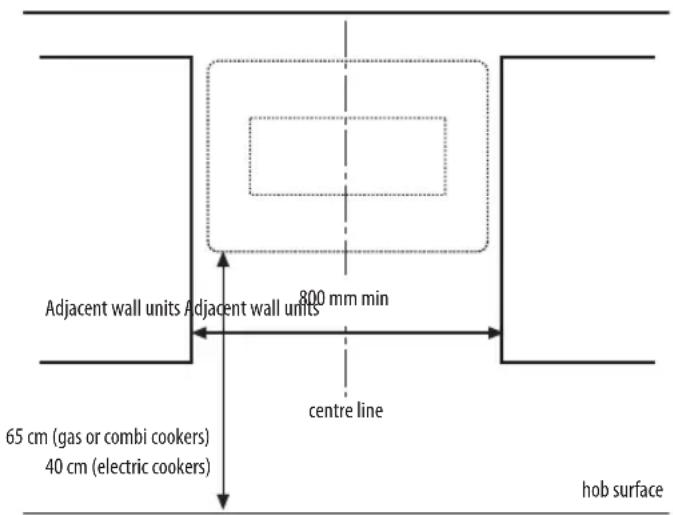

The minimum distance between the support of the cooking pans on top of the cooker and the bottom of the hood must not be less than 40 cm for electric cookers and 65 cm for gas or mixed cookers.

Before installation also check the minimum distances stated in the manual of the cooker.

If the installation instructions for the cooker specify a greater distance between cooker and hood, this distance must be observed.

ELECTRICAL CONNECTION

Make sure the power voltage specified on the appliance rating plate is the same as the mains voltage.

This information may be found on the inside of the hood, under the grease filter.

Power cable replacement (type H05 VV-F 3 x 0,75 mm ^2 ) must be carried out by a qualified electrician. Contact an authorized service centre.

If the hood is fitted with an electric plug, connect the plug to a socket complying with current regulations, located in an accessible place after installation. If no plug is fitted (direct wiring to the mains), or if the socket is not located in an accessible place, install a standardised double pole power switch that will enable complete isolation from the mains in case of category III overvoltage conditions, in accordance with installation rules.

GENERAL RECOMMENDATIONS

Before use

Remove cardboard protection pieces, protective film and adhesive labels from accessories.

Check the appliance for any transport damage.

During use

To avoid any damage do not place any weights on the appliance.

Do not expose the appliance to atmospheric agents.

SAFEGUARDING THE ENVIRONMENT

Disposal of packing

iThe packing material is 100% recyclable and is marked with the recycle symbol ⬆. The various parts of the packing must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

Scrapping the product

• This appliance is marked in compliance with European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE).
• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
• The symbol 🐘 on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection centre for the recycling of electrical and electronic equipment.

TROUBLESHOOTING GUIDE

The appliance does not work:

• Check for the presence of mains electrical power and if the appliance is connected to the electrical supply.
• Turn off the appliance and restart it to see if the fault persists.

The hood's suction level is not sufficient:

• Check the suction speed and adjust as necessary:
• Check that the filters are clean:
• Check the air vents for any obstructions.

The light does not work;

• Check the light bulb and replace if necessary;
• Check that the light bulb has been correctly fitted;

AFTER-SALES SERVICE

Before calling the After-Sales Service:

1. See if you can solve the problem yourself with the help of the suggestions given in the "Troubleshooting guide".
2. Switch the appliance off and back on again it to see if the fault persists.

If after the above checks the fault still occurs, get in touch with the nearest After-Sales Service.

Always specify:

• A brief description of the fault;
  • The exact type and model of the appliance;
• Your full address;
• Your telephone number.

- The service number (number after the word "Service" on the rating plate), located on the inside of the appliance. The service number is also indicated on the guarantee booklet;

SERVICE

0000 000 00000

If any repairs are required, please contact an authorised After-sales Service (to guarantee that original spare parts will be used and repairs carried out correctly).

CLEANING

• Never use steam cleaning equipment.
• Disconnect the appliance from the power supply.

IMPORTANT: do not use corrosive or abrasive detergents. If any of these products accidentally comes into contact with the appliance, clean immediately with a damp cloth.

- Clean the surfaces with a damp cloth. If it is very dirty, add a few drops of washing up detergent to the water. Finish off with a dry cloth.

IMPORTANT: do not use abrasive sponges or metallic scrapers or scourers. Over time, these can ruin the enamel surface.

- Use detergents specifically designed for cleaning the appliance and follow the manufacturer instructions.

IMPORTANT: clean the filters at least monthly to remove any oil or grease residuals.

MAINTENANCE

ATTENTION:

• use protective gloves.
• disconnect the appliance from the power supply.

GREASE FILTERS

The metal grease filter has an unlimited life and should be cleaned once a month by hand or in a dishwasher at low temperature and with a short cycle. Cleaning in a dishwasher may cause discoloring of the grease filter, but its filtering efficiency is unaffected.

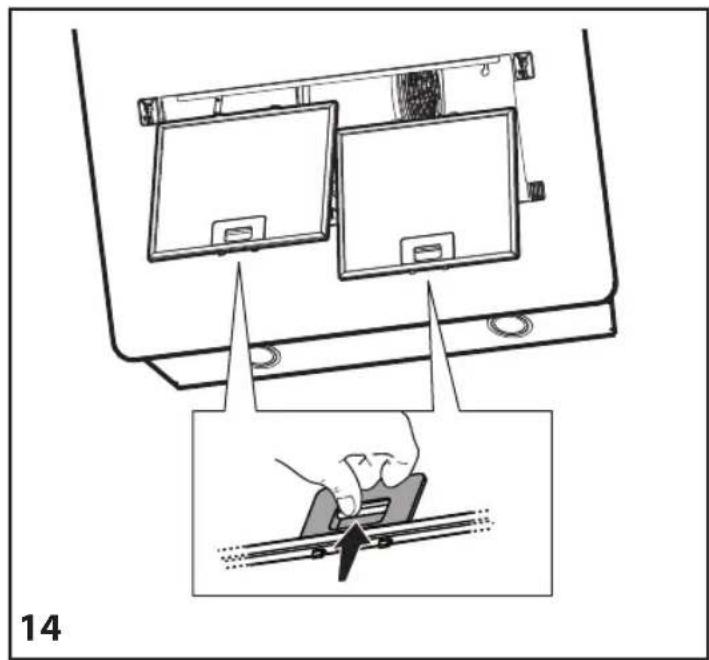

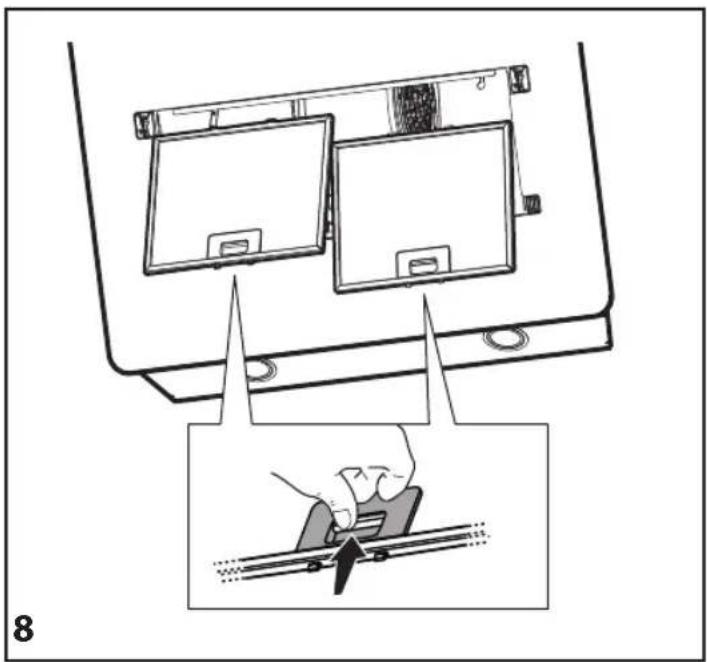

Open the extraction panel (twist upwards).

Note: the panel does not need to be removed.

Pull out the handle to remove the filter.

Wash the filter and leave it to dry, proceeding in reverse order to refit.

CARBON FILTER (filter hoods only)

It retains the unpleasant odors produced during cooking.

Change the carbon filter every 4 months

Fitting or changing the carbon filter

1. Disconnect the hood from the power supply.
2. Open the extraction panel and remove it.
3. Remove the grease filters.

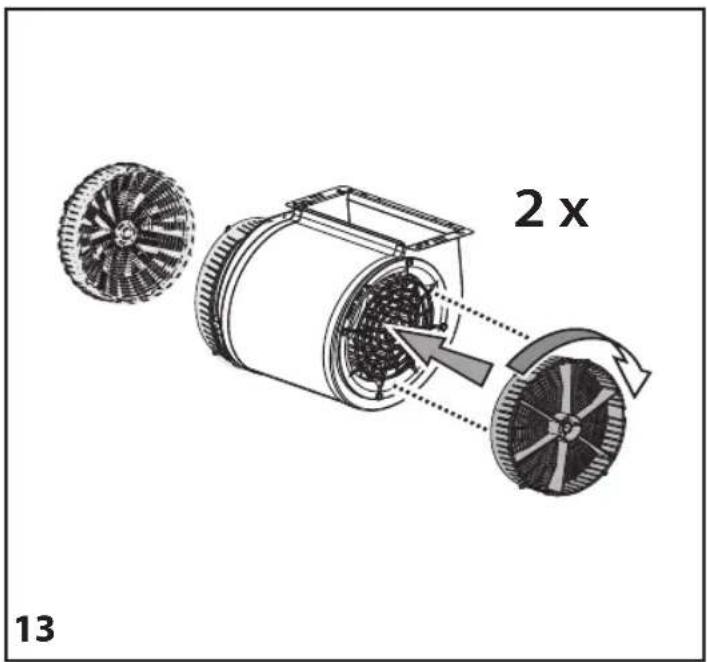

4. Fit one carbon filter each side, covering both protection grilles of the motor impeller. Turn the filters clockwise to secure them to the middle pins.

Proceed in reverse order to remove.

Re-fit the grease filters and extraction panel.

REPLACING HALOGEN LAMPS

ATTENTION:

- Only use 20W MAX - G4 halogen lamps.

1. Disconnect the hood from the household power supply.

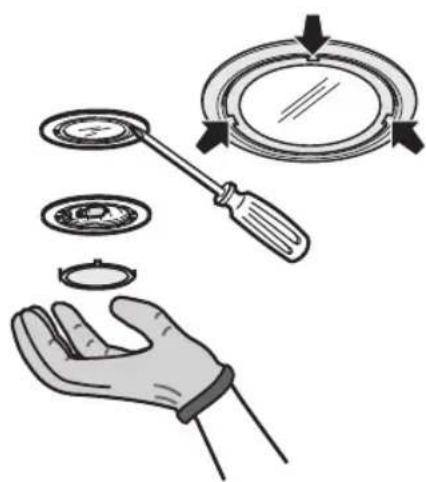

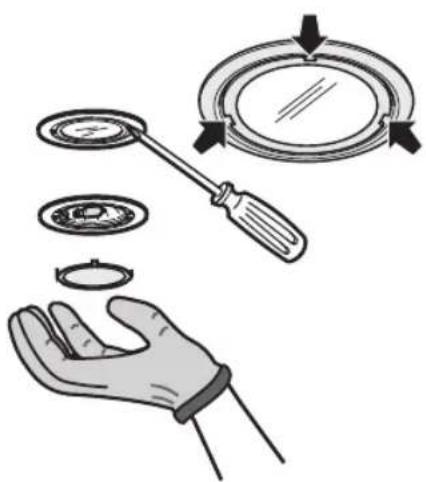

2. Use a small screwdriver to gently prise (at the three points indicated) the lamp cover off.
3. Remove the burnt-out lamp and fit a new one.
4. Re-fit (snap-on) the lamp cover.

Diagram of a mechanical device showing internal components and rotation arrows (no text or symbols)

Illustration of a hand holding a circular object with a tool, alongside a magnifying glass and a separate open palm (no text or symbols)

MATERIAL SUPPLIED

Remove all the components from the packets. Check that all the components are included.

• Hood assembled with motor, lamps and grease filters fitted (1 or 2 grease filters, depending on the model).
• Instructions for assembly and use
• 1 Assembly template
  • 1 - adapter Torx T10
  • 1 - adapter Torx T20
• 1 deflector
• 3 wall plugs ∅ 8mm
• 3 screws ∅ 5x45
• 3 screws ∅ 3.5x9.5
• 1 washer ∅ 5.3x2
• 1 cable clamp
• Power cable
• 2 carbon filters

INSTALLATION - PRELIMINARY ASSEMBLY INSTRUCTIONS

The hood is designed for installation in "Filter version".

Filter Version

Air is filtered through the carbon filter/s and recycled into the surrounding environment.

IMPORTANT: Check that air recirculation is ensured.

If the hood does not have the carbon filter/s, order one/them and fit before use.

Install the hood away from very dirty areas, windows, doors and heat sources.

The hood comes with all the materials necessary for installation on the majority walls/ceilings. However, a qualified technician must ensure that the materials are suitable according to the type of wall/ceiling.

INSTALLATION DIMENSIONS

INSTALLATION - ASSEMBLY INSTRUCTIONS

The instructions below, to be carried out in the order in which they are numbered, refer to the figures (with the same step numbers) given on the last pages of this manual.

IMPORTANT: The hood comes as a filter version.

The carbon filter is supplied and must be fitted after installation.

1. Mark a vertical centre line on the wall.

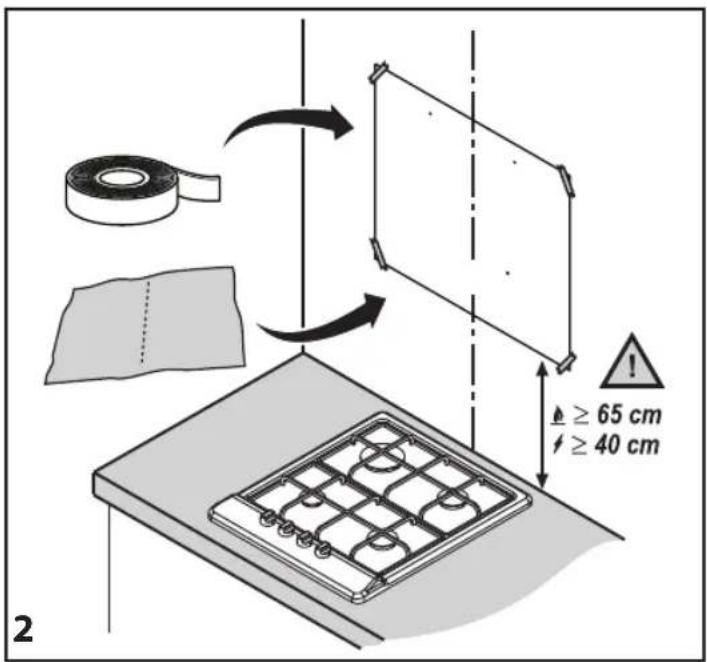

2. Place the drilling diagram against the wall (fix it with adhesive tape): the vertical centre line printed on the drilling diagram must match the centre line drawn on the wall.

Note: the bottom edge of the drilling diagram corresponds to the bottom edge of the hood.

IMPORTANT: The bottom edge of the drilling diagram must have a min. distance of 40 cm (for electric hobs) or 65 cm (for gas hobs).

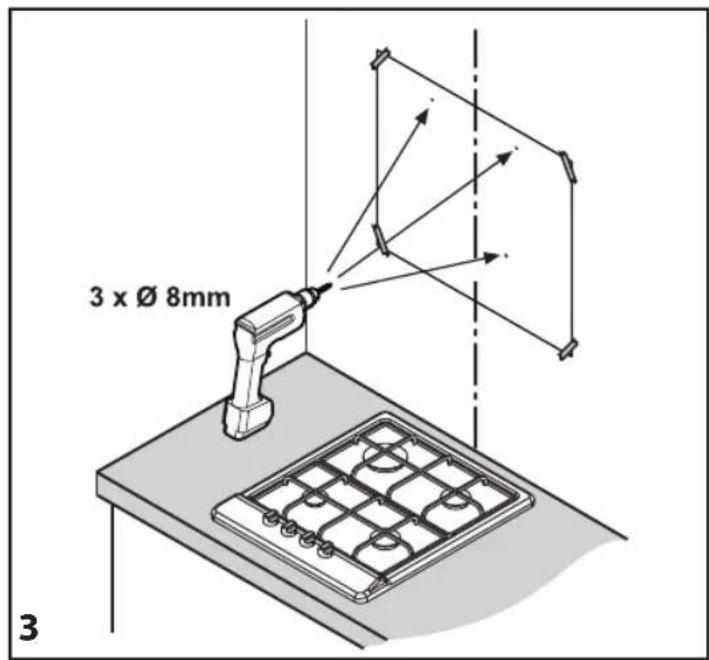

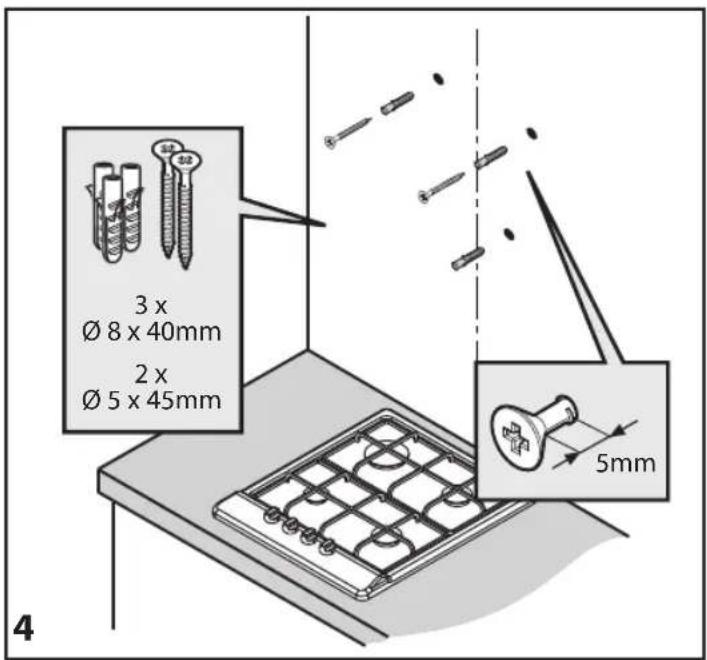

1. Drill the 3 holes as shown on the drawing.

2. Remove the drilling diagram from the wall, insert the 2 plugs and the 2 screws in the wall, making sure they protrude about 5 mm; insert the third plug in the bottom hole.

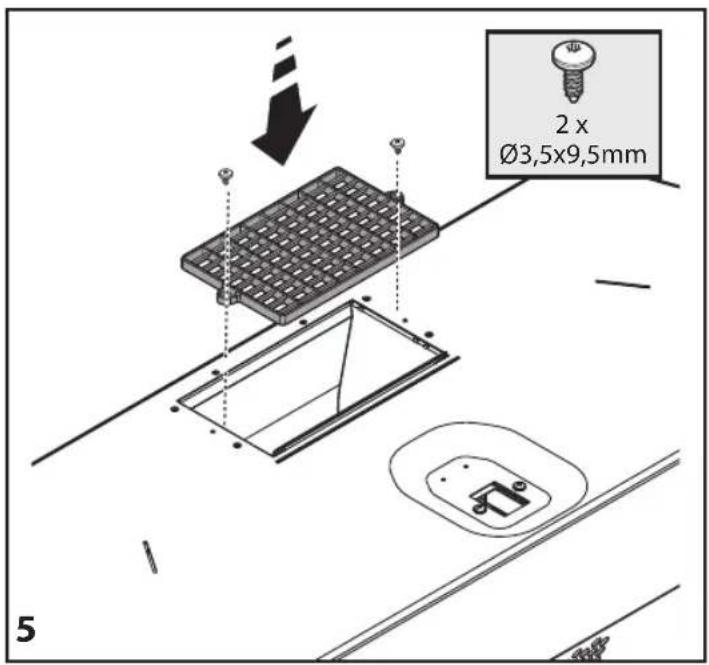

3. Fit the plastic grille on the hood air outlet hole

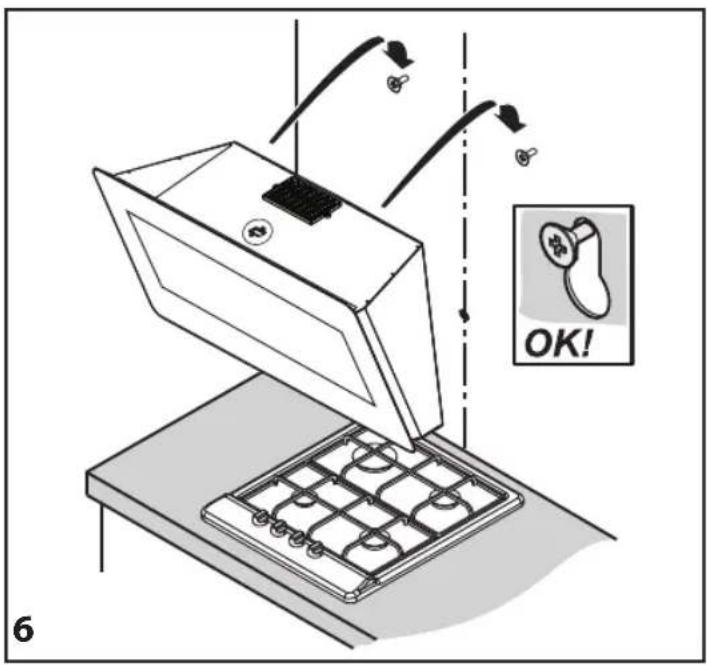

4. Hook the hood on the fixing screws through the special rear perforation.

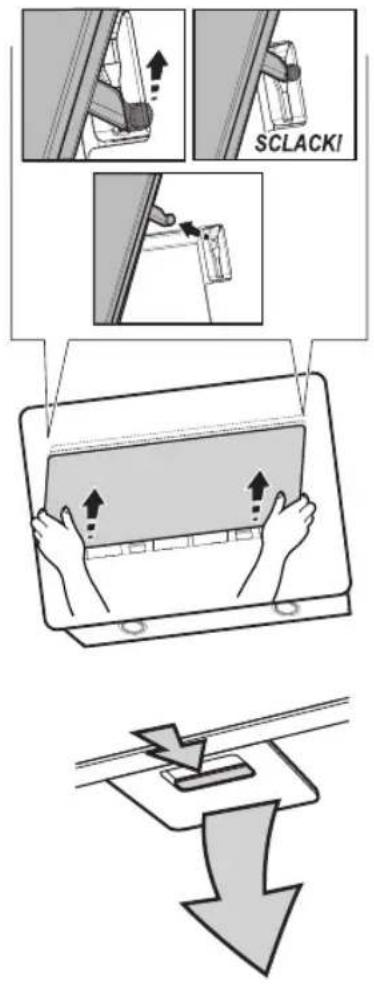

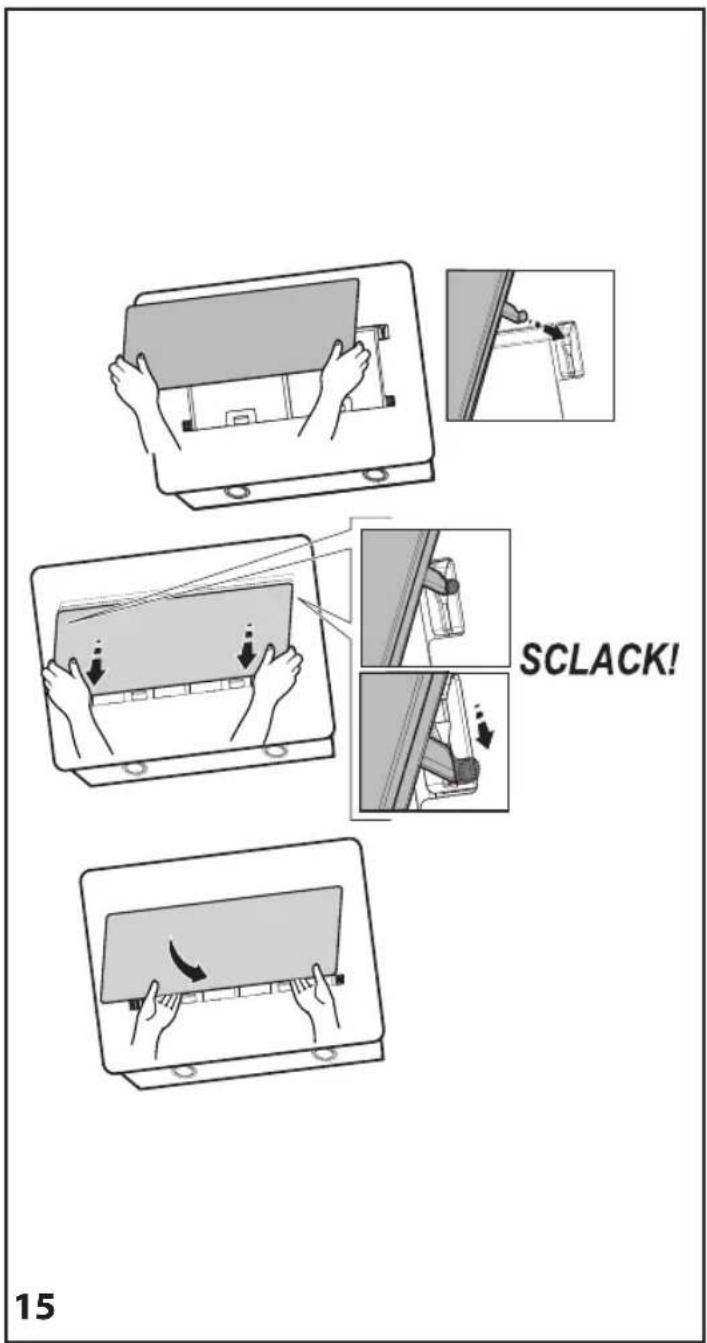

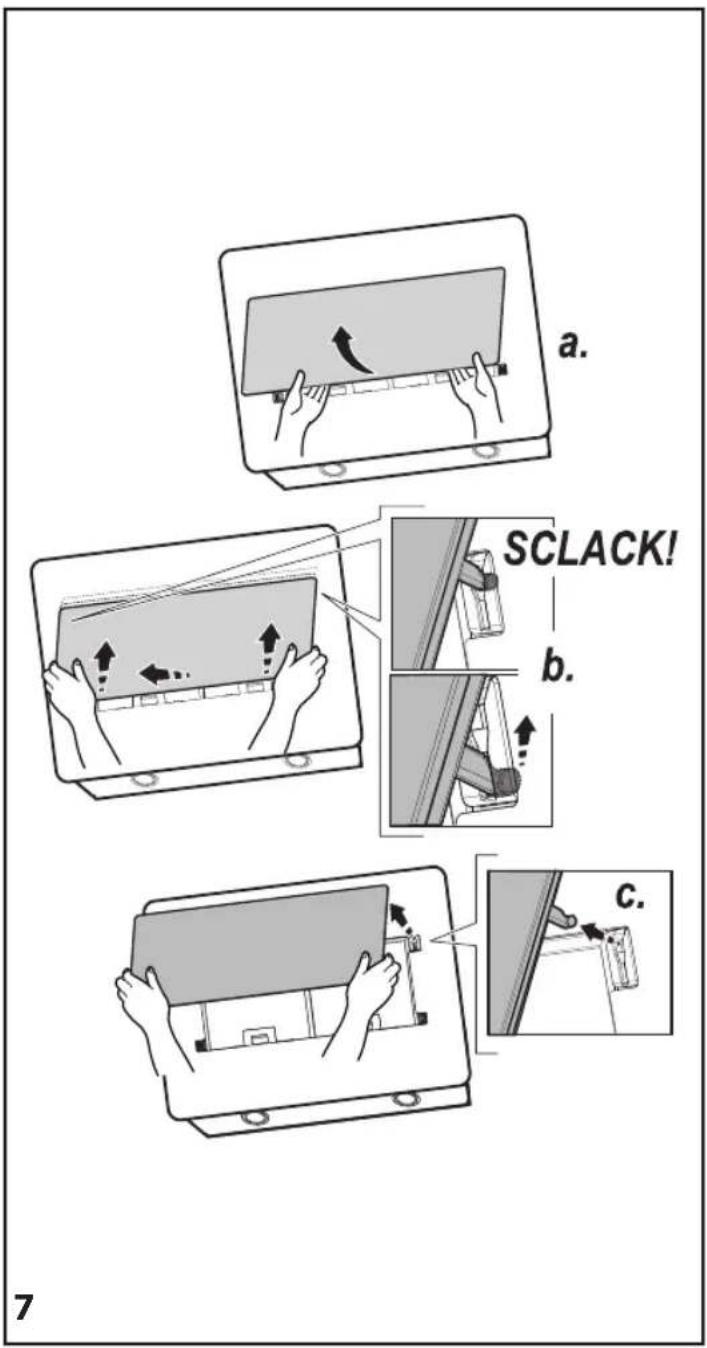

5. Remove the extraction panel:

a. twist the panel upwards.
b. push the panel upwards firmly
c. remove the panel completely

1. Remove the grease filters.

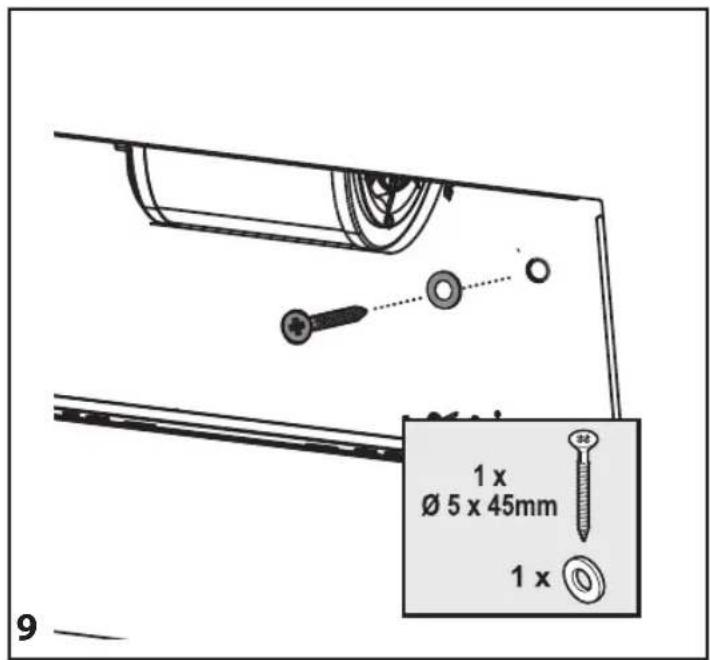

2. Insert the washer and safety screw in the bottom hole.

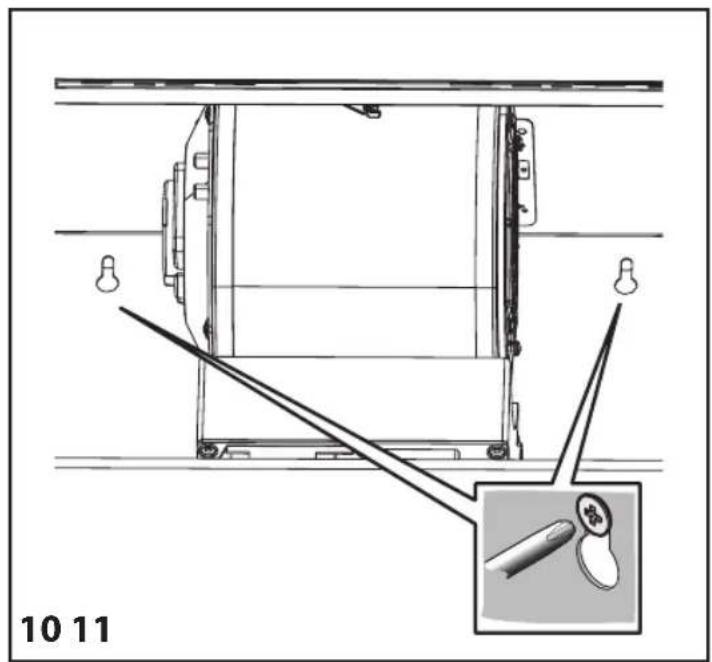

3. Secure the hood to the wall by tightening down the fixing screws.

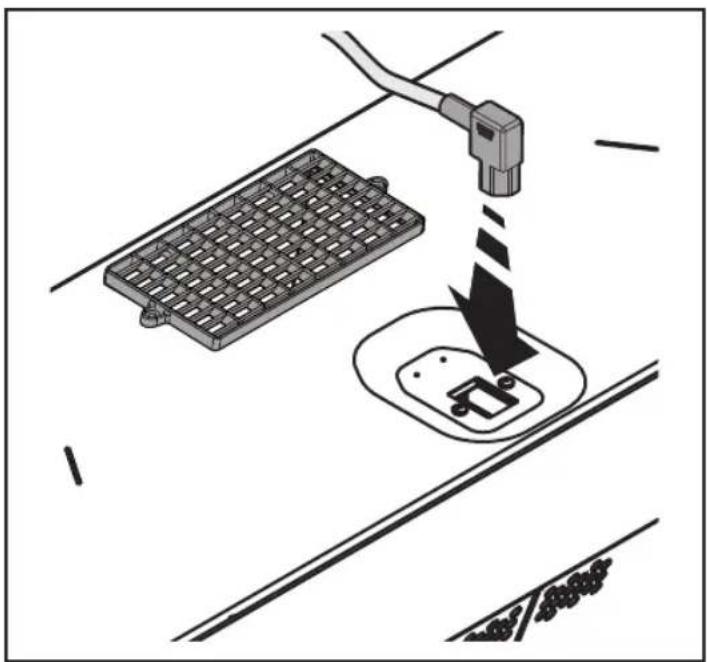

4. Fit the power cable in its special place.

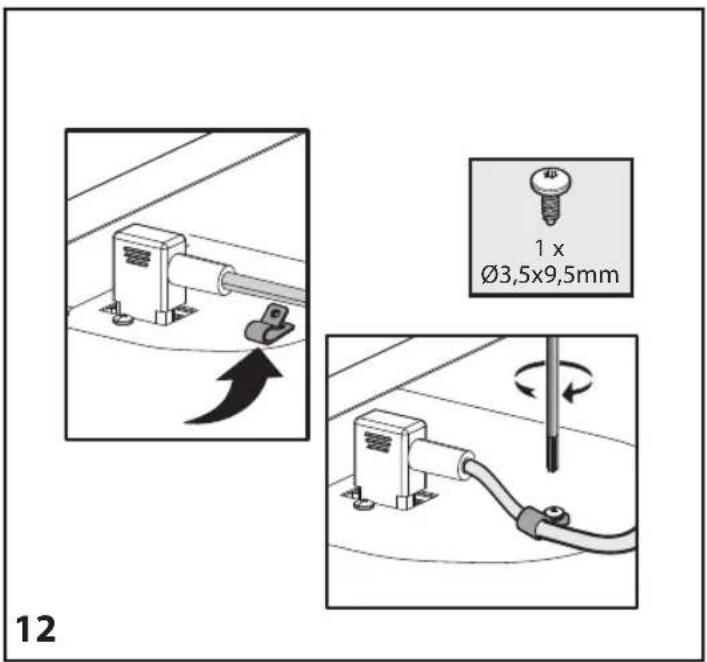

5. Secure the cable to the cable clamp.

IMPORTANT: This operation is compulsory. It will prevent accidental disconnection of the power cable.

Carry out the connection to the household electrical system.

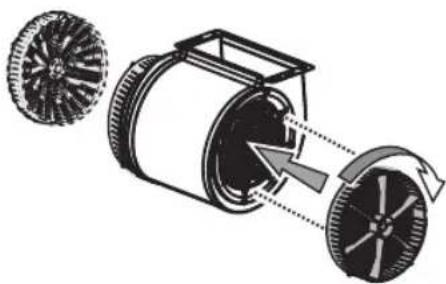

1. Fit the carbon filters over the motor covering. Turn the filters to secure them to the middle pins.
2. Re-fit the grease filters.
3. Re-fit the panels.

Check hood operation, referring to the section giving a description of the hood and its use.

DESCRIPTION AND USE OF HOOD

1. Control panel.
2. Extraction panel.
3. Grease filters.
4. Halogen lamps.

Control panel

1. OFF / Extraction speed (power) decrease button

2. ON / Extraction speed (power) increase button

3. ON/OFF Timer button: delays the deactivation of the selected extraction speed (power) by 5 minutes.

Note: the button is also used for the "Filter saturation signal reset" function

1. Light ON/OFF button

2. Display, shows:

a. Extraction speed (power): the indicator rotates according to the selected extraction speed (power).

Safety operation: the indicator flashes.

b. Grease filter saturation: comes on when filter maintenance is required.

c. Timer

d. Active carbon filter saturation: comes on when filter maintenance is required.

Note: this function is normally disabled and should only be activated if he hood is used as a filter version (with carbon filter fitted).

To do so, proceed as follows:

- switch off the hood

- press and hold buttons 1 and 3 at the same time, until the indicator stops flashing (indicator disabled) and is lit steadily (indicator enabled).

- release the buttons.

To deactivate it, repeat the procedure: the indicator will no longer be lit steadily (indicator enabled) and will flash instead (indicator disabled).

e. Lighting

Safety operation

The hood has a sensor which, in the event of a sudden increase in temperature, activates the appliance until the temperature drops significantly.

Filter saturation signal reset

After carrying out filter maintenance, press and hold button 3 until indicator.

INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ

VOTRE SÉCURITÉ AINSI QUE CELLE D'AUTRUI EST PARTICULIÈREMENT IMPORTANTE

Diagram of a mechanical device showing internal components and rotation arrow (no text or symbols)

Illustration of a hand holding a circular object with a magnifying glass above it, no text or symbols present.

MATÉRIEL FOURNI AVEC L'APPAREIL

Bandeau de commande

Diagram of a mechanical device showing internal components and rotation arrows (no text or symbols)

Illustration of a hand holding a circular object with a magnifying glass above it, no text or symbols present.

BIJGELEVERD MATERIAAL

Bedieningspaneel

Diagram of a mechanical device showing internal components and rotation arrows (no text or symbols)

Illustration of a hand holding a circular object with a tool, alongside another hand holding a magnifying glass (no text or symbols)

MATERIAL SUMINISTRADO ADJUNTO

Panel de mandos

Diagram of a mechanical device showing internal components and rotation arrow (no text or symbols)

SUBSTITUIÇÃO DAS LÂMPADAS DE HALOGÉNEO

ADVERTÊNCIA

- Utilize apenas lâmpadas de halogéneo de 20 W MÁX. - G4.

Illustration of a hand holding a circular object with a tool, alongside a magnifying glass (no text or symbols)

MATERIAL FORNECIDO

Painel de controlo

GUIDA RICERCA GUASTI

Diagram of a mechanical device with two rotors and a housing, showing internal components and rotation arrows (no text or symbols)

Illustration of a hand holding a circular component with a magnifying glass above it, no text or symbols present.

MATERIALE A CORREDO

Pannello comandi

Diagram of a mechanical device showing internal components and rotation arrows (no text or symbols)

Illustration of a hand holding a circular component with a magnifying glass above it, no text or symbols present.

ΠΑΡΕΧΟΜΕΝΑ ΥΛΙΚΑ

Πίνακας διακοπτών

Diagram showing a device with two panels mounted on a base, and a close-up of a hand using a tool to press or install a component (no text or symbols present)

Technical line drawing of a mechanical assembly with an inset showing a close-up of a component (no text or symbols present)

Diagram showing a device being inserted into a socket, with no visible text or symbols

Diagram showing a device with two panels mounted on a base, and a magnified view of a hand holding a small object (no text or symbols present)

Printed in Italy

02/2013

5019 418 33373
