EN60312-1) ermittelt.

Please keep this instruction manual. When passing the

vacuum cleaner on to a third party, please also pass

on this instruction manual.

This vacuum cleaner is intended for domestic use and

not for commercial use. Only use this vacuum cleaner

in accordance with the instructions in this instruc-

tion manual. The manufacturer will not accept any

responsibility for damage caused by improper use or

incorrect operation.

Therefore, please note the following points!

The vacuum cleaner must only be operated with:

 Original replacement parts, accessories or special

In order to prevent injuries and damage, the vacuum

cleaner must not be used for:

 Vacuum-cleaning persons or animals

− insects or spiders.

− hazardous, sharp-edged, hot or glowing substan-

− damp or liquid substances.

− highly flammable or explosive substances and

− ash, soot from tiled stoves and central heating

− toner dust from printers and copiers.

This vacuum cleaner complies with the re-

cognised rules of technology and the rele-

vant safety regulations.

 The appliance may be used by children

over the age of 8 years and by persons

with reduced physical, sensory or mental

capacity or by persons with a lack of ex-

perience or knowledge if they are super-

vised or have been instructed on the safe

use of the appliance and the have under-

stood the potential dangers of using the

 Children must never play with the appli-

 Cleaning and user maintenance must ne-

ver be carried out by children without su-

 Plastic bags and films must be kept out

of the reach of children before disposal.

>= Risk of suffocation.

 Only connect and use the vacuum cleaner in ac-

cordance with the specifications on the rating plate.

 Never vacuum without the dust bag or dust container,

motor protection or exhaust filter.

>= This may damage the vacuum cleaner.

 Always keep the vacuum cleaner away from your head

when using nozzles and tubes.

>= This could cause injury!

 When vacuuming stairs, the appliance must always be

positioned below the user.

 Do not use the power cord or the hose to carry or

transport the vacuum cleaner.

 For safety reasons, if this appliance's mains power

cable becomes damaged, it must be replaced by the

manufacturer, their after-sales service department or

a similarlyqualified person.

 If using the appliance for longer than 30 minutes, pull

out the power cord completely.

 When disconnecting the appliance from the mains,

pull on the plug itself to remove it; do not pull on the

 Do not pull the power cord over sharp edges or allow

it to become trapped.

 When the cable is being automatically rewound, en-

sure that the mains plug is not thrown towards per-

sons, body parts, animals or objects.

>= Use the mains plug to guide the power cord.

 Pull out the mains plug before carrying out any work

on the vacuum cleaner.

 Do not operate the vacuum cleaner if it is damaged.

Unplug the appliance from the mains if a fault is de-

 For safety reasons, only authorised after-sales service

personnel are permitted to carry out repairs and fit

replacement parts to the vacuum cleaner.

 Protect the vacuum cleaner from the weather, moistu-

re and sources of heat.

 Do not pour flammable substances or substances con-

taining alcohol onto the filters (dust bag, motor pro-

tection filter, exhaust filter, etc.).

 The vacuum cleaner is not suitable for use on con-

>= Vacuuming up building rubble could damage the

 When not in use, switch off the appliance and pull out

 At the end of its life, the appliance should immediately

be rendered unusable, then disposed of in an appro-

The mains socket must be protected by at least a

16 amp circuit breaker.

If a circuit breaker is tripped when you switch on

the vacuum cleaner, this may be because other

electrical appliances which have a high current

draw are connected to the same power circuit.

To prevent the circuit breaker from tripping, select

the lowest power setting before switching the

appliance on, and increase the power only once it is

Disposal information

The packaging is designed to protect the vacuum

cleaner from being damaged during transportation.

It is made of environmentally friendly materials and

can therefore be recycled. Dispose of packaging

that is no longer required at an appropriate recyc-

Old appliances still contain many valuable mate-

rials. Therefore, please take appliances that have

reached the end of their service life to your retailer

or recycling centre so that they can be recycled.

For current disposal methods, please enquire at a

retailer or your local council.

 Disposal of filters and dust bags

Filters and dust bags are manufactured from

environmentally friendly materials. Provided they

do not contain substances that are not permitted

in household waste, you can dispose of them with

your normal household waste.

Notes on the energy label

This vacuum cleaner is a general purpose vacuum

To achieve the declared energy efficiency and cleaning

performance class on carpet and hard floor, please

use the interchangeable universal nozzle.

The values provided on the energy label have been

determined according to the prescribed measuring

process (in accordance with EN60312-1).5

Congratulations on your purchase of the Bosch Relyy`y

This instruction manual describes various Relyy`y mo-

dels, meaning that some of the equipment features

and functions described may not be available on your

model. You should only use original Bosch accessories,

which have been specially developed for your vacuum

cleaner, in order to achieve the best possible vacu-

Please keep this instruction manual for future refe-

rence. When passing the vacuum cleaner on to a third

party, also pass on this instruction manual.

Fold out the picture pages.

1 Adjustable floor tool* (For the same functions, the

appearance of the nozzle may differ from the picture)

2 Telescopic tube with sliding switch but without acces-

3 Telescopic tube with adjusting sleeve and accessory

7 Parking aid on the back of the appliance

12 On/off button with electronic suction regulator

13 Filter control display (Sensor Control)

14 Dust container with carrying handle

15 Storage aid on the underside of the appliance

16 Fluff filter cover

17 Professional upholstery nozzle*

18 Professional crevice nozzle*

22 Brush ring (for fitting on the upholstery nozzle)*

Replacement parts and special accesso-

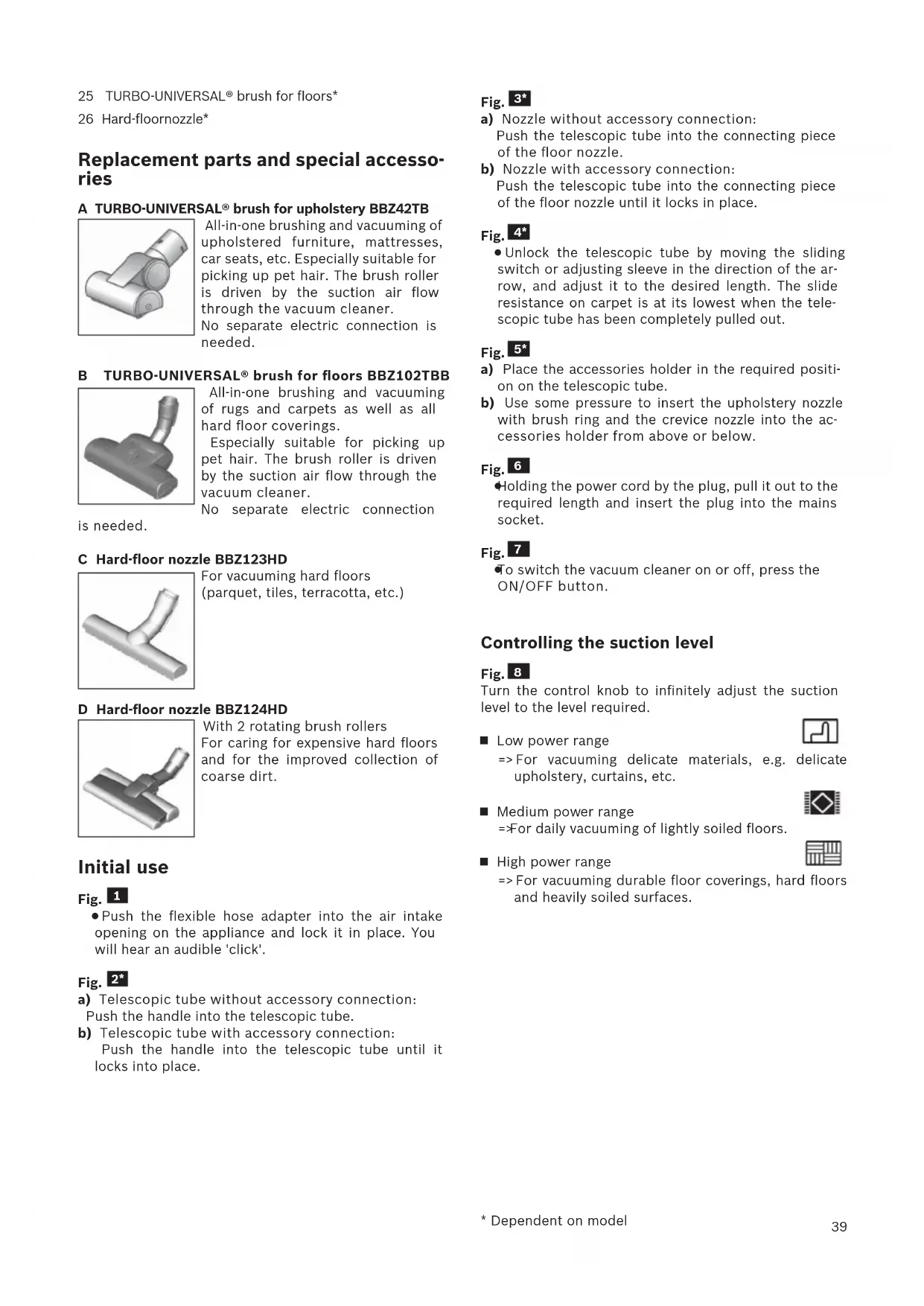

A TURBO-UNIVERSAL® brush for upholstery BBZ42TB All-in-one brushing and vacuuming of

upholstered furniture, mattresses,

car seats, etc. Especially suitable for

picking up pet hair. The brush roller

is driven by the suction air flow

through the vacuum cleaner.

No separate electric connection is

B TURBO-UNIVERSAL® brush for floors BBZ102TBB All-in-one brushing and vacuuming

of rugs and carpets as well as all

hard floor coverings.

Especially suitable for picking up

pet hair. The brush roller is driven

by the suction air flow through the

No separate electric connection

D Hard-floor nozzle BBZ124HD With 2 rotating brush rollers

For caring for expensive hard floors

and for the improved collection of

Push the flexible hose adapter into the air intake

opening on the appliance and lock it in place. You

will hear an audible 'click'.

a) Telescopic tube without accessory connection:

Push the handle into the telescopic tube.

b) Telescopic tube with accessory connection:

Push the handle into the telescopic tube until it

a) Nozzle without accessory connection:

Push the telescopic tube into the connecting piece

b) Nozzle with accessory connection:

Push the telescopic tube into the connecting piece

of the floor nozzle until it locks in place.

Unlock the telescopic tube by moving the sliding

switch or adjusting sleeve in the direction of the ar-

row, and adjust it to the desired length. The slide

resistance on carpet is at its lowest when the tele-

scopic tube has been completely pulled out.

a) Place the accessories holder in the required positi-

on on the telescopic tube.

b) Use some pressure to insert the upholstery nozzle

with brush ring and the crevice nozzle into the ac-

cessories holder from above or below.

Holding the power cord by the plug, pull it out to the

required length and insert the plug into the mains

To switch the vacuum cleaner on or off, press the

Controlling the suction level

Turn the control knob to infinitely adjust the suction

level to the level required.

>= For vacuuming delicate materials, e.g. delicate

upholstery, curtains, etc.

 Medium power range

>= For daily vacuuming of lightly soiled floors.

>= For vacuuming durable floor coverings, hard floors

and heavily soiled surfaces.

Floor nozzles are subject to a certain amount of

wear, depending on the type of hard floors you have

(e.g. rough, rustic tiles). You must therefore check

the underside of the floor nozzle at regular intervals.

Worn undersides of floor nozzles may have sharp

edges that can damage sensitive hard floors, such as

parquet or linoleum. The manufacturer does not ac-

cept any responsibility for damage caused by worn

 Rugs and carpets =>

 Hard floors/parquet =>

If you are vacuuming up relatively large particles, make

sure that you vacuum them up successively and careful-

ly to ensure that the vacuum channel of the floor nozzle

does not become blocked.

If necessary, you should raise the nozzle in order to

better vacuum up the dirt particles.

Vacuuming with accessories

Attach the nozzles to the suction pipe or handle as re-

a) Crevice nozzle for vacuuming crevices and corners,

b) Upholstery nozzle for vacuuming upholstered furni-

ture, curtains, etc.

c) Upholstery nozzle with fixed brush ring for vacu-

uming window frames, cupboards, profiles, etc.

After use, reinsert the crevice nozzle and upholstery

nozzle into the accessories holder.

d) Professional crevice nozzle

Extra-long crevice nozzle for cleaning crevices, cor-

ners and narrow spaces, e.g. in a car.

e) Professional upholstery nozzle

For gently and thoroughly cleaning upholstered fur-

niture, curtains, etc.

For cleaning the professional upholstery nozzle, sim-

ply vacuum it using the handle.

f) Hard-floor nozzle for vacuuming hard floor coverings

a) Vacuum the nozzle from below to clean it.

b) Use scissors to cut through threads and hairs wound

round the rollers and then vacuum them away.

Fasten the drill dust nozzle onto the handle and po-

sition it on the wall so that the drill hole opening on

the nozzle is placed directly over where the hole is

Set the appliance to the lowest power level and then

The drill dust nozzle is held in the required position

by suction. Depending on the condition of the wall to

be drilled, you may need to adjust to a higher power

setting to ensure that the drill dust nozzle remains

During drilling, the fine dust is automatically vacu-

If your appliance is equipped with a turbo brush, refer

to the accompanying instruction manual for instruc-

tions on its use and maintenance.

You can use the parking aid on the back of the vacuum

cleaner if you want to stop vacuuming for a short time.

After switching off the appliance, slide the hook on

the floor nozzle into the parking aid.

When vacuuming stairs, the appliance must be positi-

oned at the bottom of the stairs. If it does not reach

far enough, the appliance can also be carried using the

carrying handle or the handle on the dust container.

Switch off the appliance.

Remove the main plug.

Briefly pull on the power cord and then let go.

Unlock the telescopic tube by moving the sliding

switch in the direction of the arrow, and slide one

tube into the other.

To store the appliance, use the storage aid on the un-

a) Prop up the appliance with the hose or dust contai-

b) Slide the hook on the floor nozzle into the storage

To remove the flexible hose, press the two catches

together and pull out the hose from the appliance's

a) Telescopic tube without accessory connection:

To release the connection, turn the handle slightly

and pull it out of the telescopic tool.

b) Telescopic tube with accessory connection:

To release the connection, press the locking collar

on the telescopic tube and and pull out the handle.

a) Nozzle without accessory connection:

To release the connection, turn the telescopic tube

slightly and pull it out of the floor nozzle.

b) Nozzle with accessory connection:

To release the connection, press the locking collar

and pull the telescopic tube out of the floor nozzle.

In order to achieve the best possible vacuuming re-

sults, the dust container should be emptied after every

use or, at the latest, when dust in the dust container

has reached the marking at any point.

The dust container can only be removed when the

appliance is in a horizontal position. Therefore,

place the appliance on the floor to unlock the re-

a) Press the release button and pull the dust container

out of the appliance using the handle.

b) Remove the lid from the dust container and empty

c) Put the lid back on the dust container.

d) Remove any dirt which may have been lodged under-

neath the container ejector opening.

e) Insert the dust container in the appliance, so that it

'clicks' audibly into place.

Maintaining the dust separation system

Your appliance is equipped with a Sensor Control indi-

cator. This function constantly monitors whether your

vacuum cleaner is working at its optimum power level. Fig. 23

The indicator (blue ring) flashes red when the foam fil-

ter needs to be cleaned. The appliance is automatically

adjusted to the lowest power level.

Cleaning the foam filter

Switch off the appliance.

a) Open the lid of the foam filter by pulling on the lo-

b) Remove the filter cartridge with foam filter using the

Remove the foam filter from the filter cartridge and

c) If they are very dirty, the foam filter and filter cart-

ridge should be cleaned under running water.

Alternatively, the unit can be cleaned in the

washing machine at max. 30 °C using a gentle pro-

gramme and the lowest spin speed.

TIP: To protect other laundry items, put the filter

unit into a laundry bag.

d) Allow the foam filter and filter cartridge to dry com-

pletely (at least 24 hours) and then reinsert the foam

filter into the filter cartridge.

e) Insert the filter cartridge with foam filter back into

the appliance. Close the lid of the foam filter.

The lid will only close if a filter has been inserted.

In the event of a fault

The Sensor Control indicator also flashes after the

foam filter has been cleaned:

Removing a blockage from the dust separation unit

Switch off the appliance.

a) Hold the appliance lid by the recessed handle and

b) Unlock the cover by turning it anti-clockwise, and

remove it from the appliance.

>= Remove the blockage from the collecting unit.

c) Put the cover back on and lock it in place by turning

>= Close the appliance lid.

If the Sensor Control indicator continues to flash red,

check whether the nozzle, suction pipe or flexible hose

are blocked. This can also trigger the Sensor Control

Depending on the model, your appliance is equipped

with either a HEPA filter Fig.

Depending on the model, your appliance has additional

sound insulation behind the HEPA or micro filter. This

does not have to be cleaned..

You can determine with which HEPA filter your appli-

ance is equipped by looking at the imprint on the filter

frame next to the reference number:

"washable" – the filter can be washed.

No additional imprint – the filter must be replaced.

* Dependent on model42

Cleaning a washable HEPA filter

The HEPA filter with the "washable" imprint is designed

so that it does not need to be replaced, provided the

appliance is used as intended in the household.

To ensure that the vacuum cleaner is working at its op-

timum power level, the exhaust filter should be rinsed

out after one year. The filtering action of the filter re-

mains intact, even if the filter surface becomes disco-

a) Open the lid of the exhaust filter by pushing and

pulling on the locking tab.

b) Unlock the HEPA filter and remove it from the ap-

c) Tap out the filter unit and rinse it under running wa-

Alternatively, the unit can be cleaned in a washing

machine at max. 30 °C using a gentle programme

and the lowest spin speed.

TIP: To protect other laundry items, put the filter

unit into a laundry bag.

d) Once the HEPA filter has dried completely (at least

24 hours), insert it back into the appliance and lock

>= Close the exhaust filter lid. In doing so, push the

lock bar upwards until it audibly clicks into place.

Replacing the HEPA filter

(only for appliances without a washable HEPA filter)

To ensure that the vacuum cleaner can work at its op-

timum power level, the HEPA filter should be replaced

a) Open the lid of the exhaust filter by pushing and

pulling on the locking tab.

b) Unlock the HEPA filter and remove it from the ap-

c) Dispose of the old HEPA filter with your household

d) Insert the new HEPA filter into the appliance and

>= Close the exhaust filter lid. In doing so, push the

lock bar upwards until it audibly clicks into place.

Cleaning the micro filter

The micro filter is designed so that it does not need to

be replaced, provided the appliance is used as inten-

ded in the household.

To ensure that the vacuum cleaner is working at its op-

timum power level, the exhaust filter should be rinsed

out after one year. The filtering action of the filter re-

mains intact, even if the filter surface becomes disco-

a) Open the lid of the exhaust filter by pushing and

pulling on the locking tab.

b) Pull the locking tab to unlock the filter unit with foam

filter and microfilter and remove it from the appli-

c) Remove the foam filter and microfilter from the filter

d) Rinse the foam filter and micro filter under run-

ning water. Alternatively, they can be cleaned

in the washing machine at max. 30 °C using a

gentle programme and the lowest spin speed.

TIP: To protect other laundry items, put the unit into

e) Once the foam filter and microfilter have dried com-

pletely (at least 24 hours), insert them back into the

f) Insert the filter unit in the appliance and ensure that

the locking tabs audibly click into place.

g) Close the exhaust filter lid. In doing so, push the lock

bar upwards until it audibly clicks into place.

Cleaning instructions

Always switch off the vacuum cleaner and disconnect

the power cord from the mains before cleaning the va-

cuum cleaner. The vacuum cleaner and plastic acces-

sories can be cleaned with an ordinary plastic cleaner.

Do not use abrasive materials, glass-cleaning

agents or all-purpose cleaning products. Never im-

merse the vacuum cleaner in water.

Subject to technical modifications.

* Dependent on model43

ger (fliser, parket, etc.)

sacuda ambas as partes.

BSH Home Appliances FZE Round About 13,

HEATHERTON, Victoria 3202

mailto:bshau-as@bshg.com

www.bosch-home.com.au

European Trade Center Building,

Milton Keynes MK12 5PT To arrange an engineer visit, to

order spare parts and accessories

or for product advice please visit

www.bosch-home.co.uk

Tel.: 0844 892 8979* *Calls from a BT landline will be charged at up to 3 pence per minute. A call set-up fee of up to 6 pence may apply.

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

BSH Home Appliances Limited

Unit 1 & 2, 3rd Floor

North Block, Skyway House

www.bosch-home.com/hr

IE Republic of Ireland

BSH Home Appliances Ltd.

Unit F4, Ballymount Drive

Ballymount Industrial Estate

Spares and Accessories

Industrial Park North

BSH Customer Service Front Office

Shop No.4,Everest Grande,

Opp. Shanti Nagar Bus Stop,

Mahakali Caves Road, Andheri East

www.bosch-home.com/it

General Serviss Limited

S.R.L. "Rialto-Studio"

Bin Hamran Commercial Centr.

4th floor, No. 112 Sec 1

gama-electronics.com

15th Road Randjespark

Rücknahme und Verwertung der Altgeräte vor.

This appliance is labelled in accordance with European

Directive 2012/19/EU concerning used electrical and

electronic appliances (waste electrical and electronic

equipment - WEEE). The guideline determines the fra-

mework for the return and recycling of used applian-

ces as applicable throughout the EU.

Cet appareil est marqué selon la directive européenne

electronic equipment - WEEE).

tronic equipment – WEEE).

electronic equipment - WEEE).

electronic equipment - WEEE).

electrical and electronic equipment - WEEE).

electronic equipment - WEEE).

electrical and electronic equipment - WEEE).

((waste electrical and electronic equipment - WEEE

GB Conditions of guarantee

For this appliance the guarantee conditions as set

out by our representatives in the country of sale

apply. Details regarding same may be obtained

from the dealer from whom the appliance was

purchased. For claims under guarantee the sales

receipt must be produced.

FR Conditions de garantie
