USER MANUAL CineMate 120 BOSE

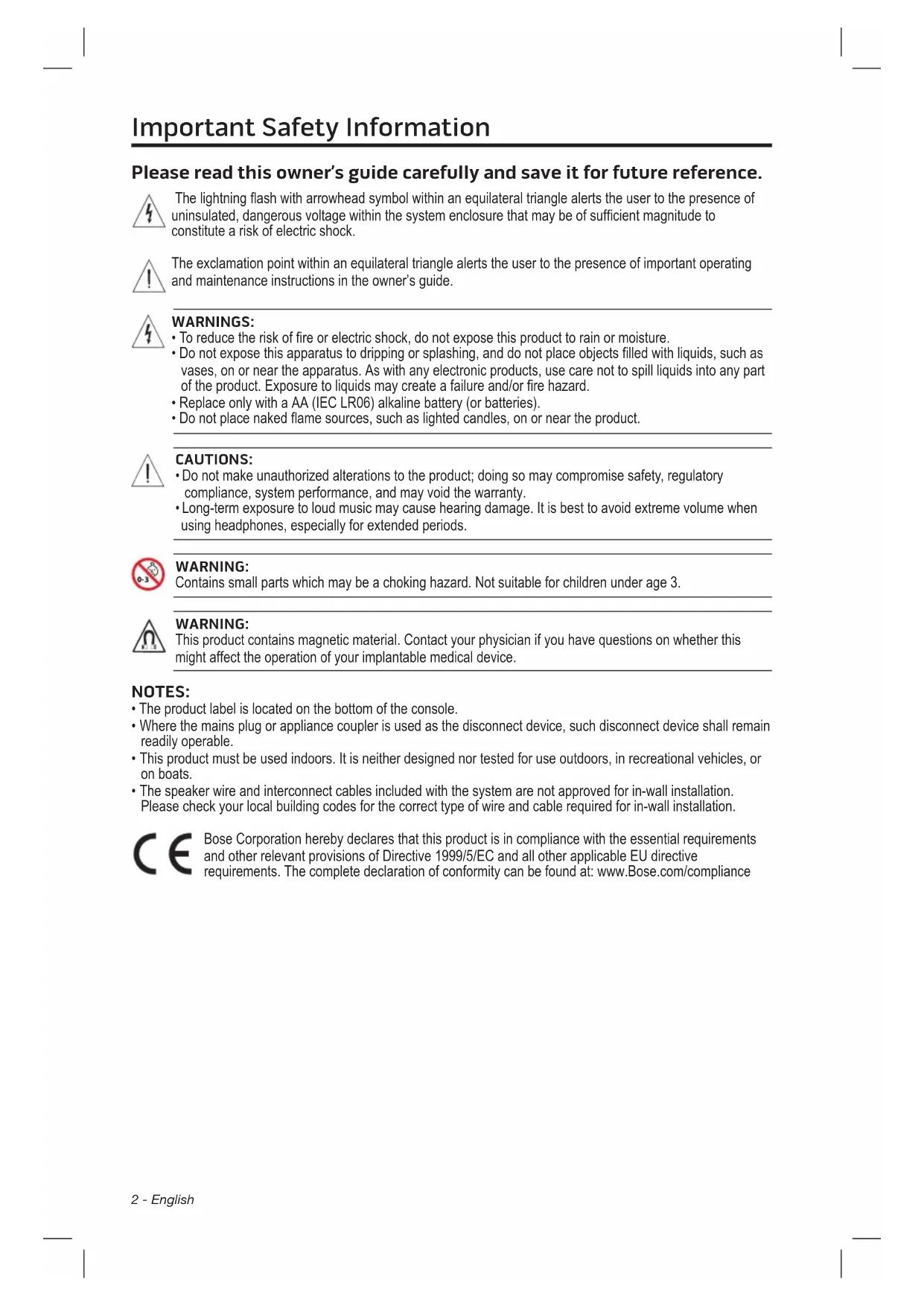

Important Safety Information

Please read this owner’s guide carefully and save it for future reference.

The lightning ash with arrowhead symbol within an equilateral triangle alerts the user to the presence of

uninsulated, dangerous voltage within the system enclosure that may be of sufcient magnitude to

constitute a risk of electric shock.

The exclamation point within an equilateral triangle alerts the user to the presence of important operating

and maintenance instructions in the owner’s guide.

• To reduce the risk of re or electric shock, do not expose this product to rain or moisture.

• Do not expose this apparatus to dripping or splashing, and do not place objects lled with liquids, such as

vases, on or near the apparatus. As with any electronic products, use care not to spill liquids into any part

of the product. Exposure to liquids may create a failure and/or re hazard.

• Replace only with a AA (IEC LR06) alkaline battery (or batteries).

• Do not place naked ame sources, such as lighted candles, on or near the product.

• Do not make unauthorized alterations to the product; doing so may compromise safety, regulatory

compliance, system performance, and may void the warranty.

• Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when

using headphones, especially for extended periods.

Contains small parts which may be a choking hazard. Not suitable for children under age 3.

This product contains magnetic material. Contact your physician if you have questions on whether this

might affect the operation of your implantable medical device.

• The product label is located on the bottom of the console.

• Where the mains plug or appliance coupler is used as the disconnect device, such disconnect device shall remain

• This product must be used indoors. It is neither designed nor tested for use outdoors, in recreational vehicles, or

• The speaker wire and interconnect cables included with the system are not approved for in-wall installation.

Please check your local building codes for the correct type of wire and cable required for in-wall installation.

Bose Corporation hereby declares that this product is in compliance with the essential requirements

and other relevant provisions of Directive 1999/5/EC and all other applicable EU directive

requirements. The complete declaration of conformity can be found at: www.Bose.com/complianceEnglish - 3

Important Safety Information

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources, such as radiators, heat registers, stoves, or other apparatus (including ampliers)

9. Protect the power supply or cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

10. Only use attachments/accessories specied by the manufacturer.

11. Unplug this apparatus during lightning storms or when unused for long periods of time.

12. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way:

such as power supply or cord is damaged; liquid has been spilled or objects have fallen into the apparatus; the apparatus

has been exposed to rain or moisture, does not operate normally, or has been dropped.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modications not expressly approved by Bose Corporation could void the user’s authority to operate

This device complies with part 15 of the FCC Rules and Industry Canada license-exempt RSS standard(s).

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003.

CAN ICES-3 (B) / NMB-3 (B)

This device complies with FCC and Industry Canada RF radiation exposure limits set forth for general population.

It must not be co-located or be operating in conjunction with any other antennas or transmitters.

The temperature range of this product is 32ºF (0ºC) to 113ºF (45ºC).

This symbol means the product must not be discarded as household waste, and should

be delivered to an appropriate collection facility for recycling. Proper disposal and

recycling helps protect natural resources, human health and the environment. For more

information on disposal and recycling of this product, contact your local municipality,

disposal service, or the shop where you bought this product.4 - English

Names and Contents of Toxic or Hazardous Substances or Elements

Toxic or Hazardous Substances and Elements

PCBs X O O O O O Metal parts X O O O O O Plastic parts O O O O O O Speakers X O O O O O Cables X O O O O O O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit

requirement in SJ/T 11363-2006.

X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is

above the limit requirement in SJ/T 11363-2006.

Please complete and retain for your records:

Serial numbers can be found on the Acoustimass

module’s connector panel and on the

packaging for the remote control.

Module serial number: ________________________________________________________________

We suggest you keep your receipt with this owner’s guide.

Important Safety Information

Blu-ray Disc™ and Blu-ray™ are trademarks of the Blu-ray Disc Association.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are

trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent #’s: 5,956,674; 5,974,380 and 6,487,535 & other

worldwide patents issued & pending. DTS, the DTS Symbol and DTS + the DTS Symbol are

registered trademarks & the DTS logos are trademarks of DTS, Inc. Product includes software. ©2010 DTS, Inc.

All Rights Reserved.

HDMI is a trademark or registered trademark of HDMI Licensing LLC in the United States and other countries.

SoundTouch and the wireless note design are trademarks of Bose Corporation in the U.S. and other countries.

Wi-Fi is a registered mark of the Wi-Fi Alliance.

©2014 Bose Corporation. No part of this work may be reproduced, modied, distributed, or otherwise used without

prior written permission.English - 5

120 home theater system 7

Introducing SoundTouch™ from Bose

Unpacking the system 8

Placement guidelines 9

Sample system placement 9

Setting Up the Soundbar

Connecting the soundbar 12

Wall mounting the soundbar 12

Setting Up the Console

Connecting the console to your TV’s HDMI ARC connector 13

TVs without an HDMI ARC connector 14

Use a secondary connection in the following configurations 14

Connecting the console to other sources 14

Connecting to non-HDMI compatible sources 15

Audio-only sources 15

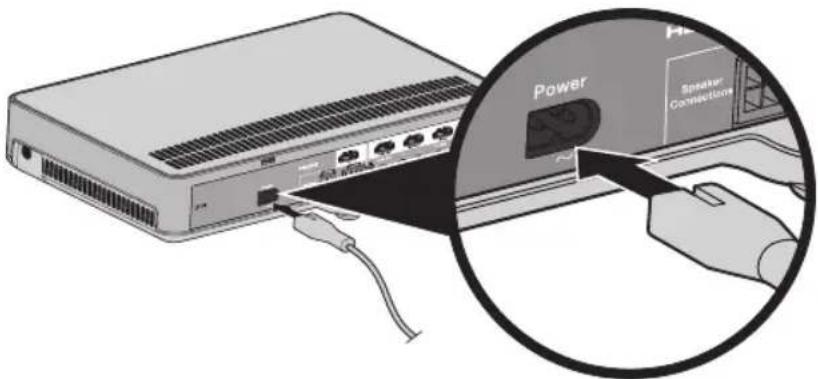

Connecting the console to power 15

Starting Up the System

Installing the remote control’s batteries 16

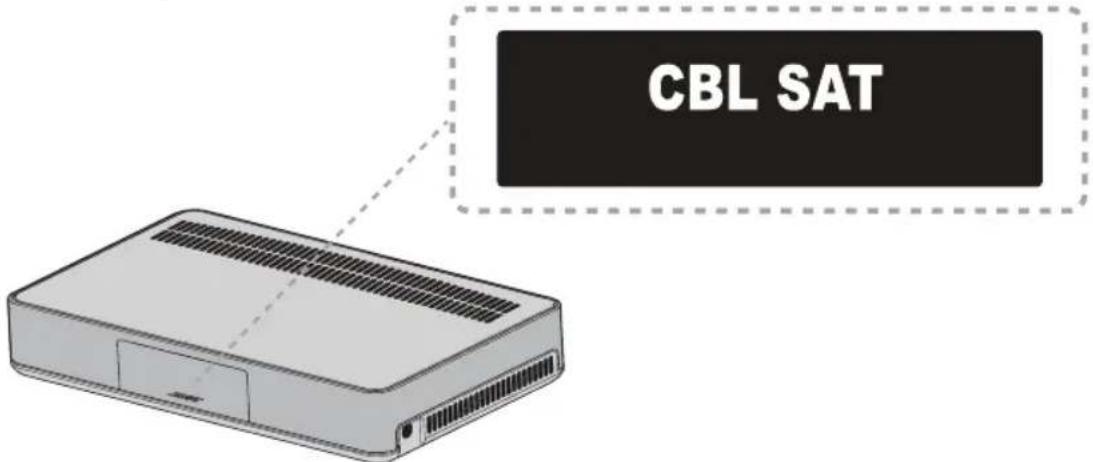

Powering on the system 16

Checking for sound 17

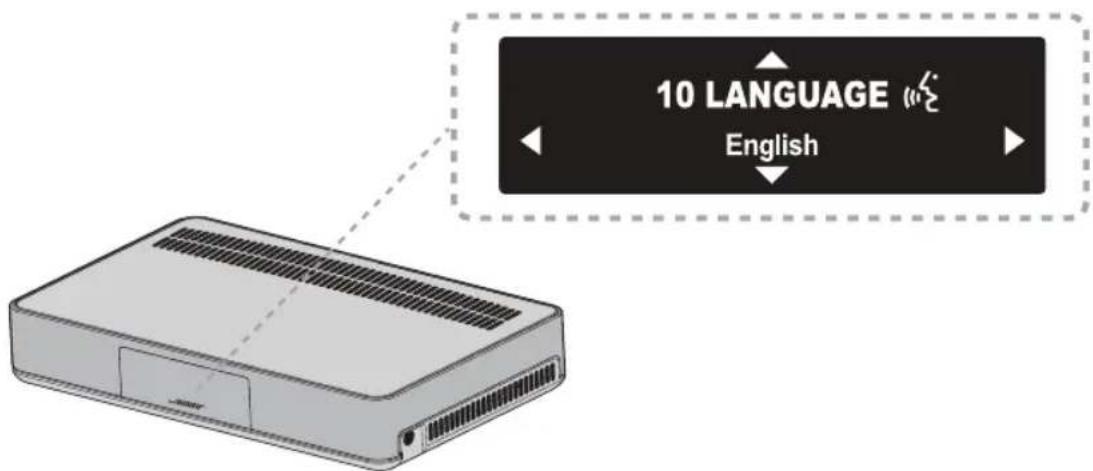

Changing the language on the console 17

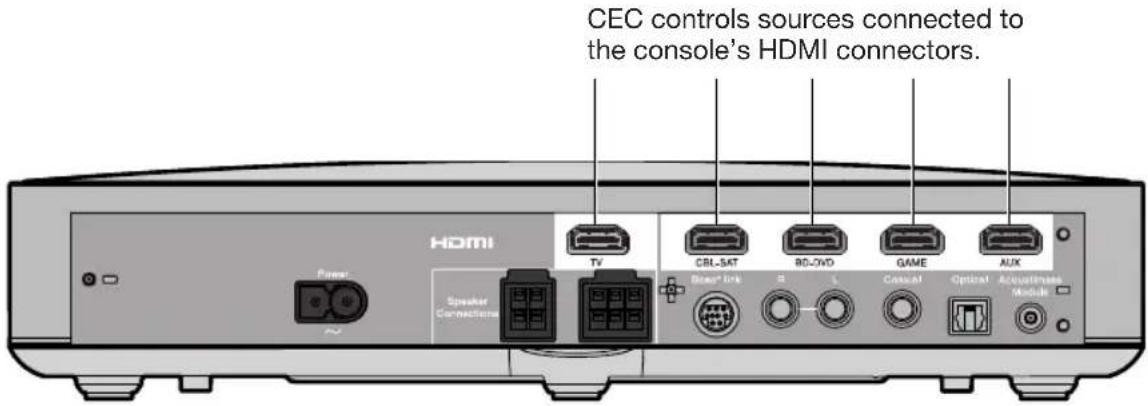

Consumer Electronics Control 20

Test your sources for CEC 21

Program the remote to control your source 22

Source selection 23

Select a source connected to the system 23

Select a source connected to your TV 23

Universal source buttons and console connectors 23

Adjusting the volume 24

Function buttons 24

Programming a non-Bose remote control 24

Getting System Information from the Display

Understanding messages on the display 25

Care and Maintenance

Factory reset the system 30

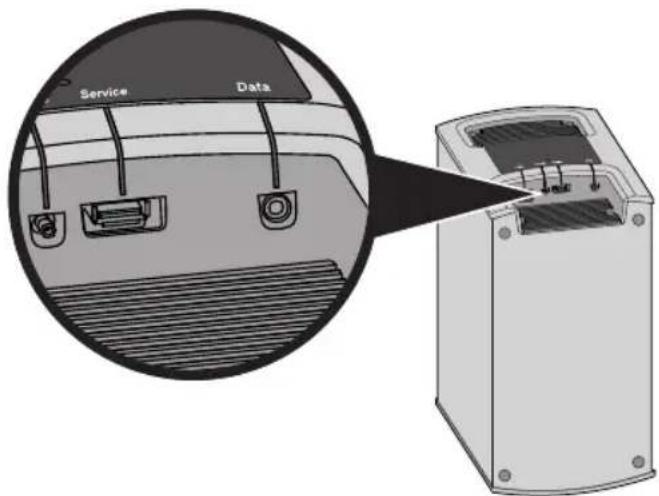

Service connectors on the Acoustimass module 30

Customer service 31

Limited warranty 31

Technical information 31

ContentsEnglish - 7 About your CineMate

home theater system The CineMate 120 system delivers spacious, detailed sound from one compact soundbar. System Features • Advanced Bose audio processing provides natural and lifelike sound.• ADAPTiQ ® audio calibration optimizes sound quality.• Display provides access to system settings and information.• HDMI ™ connectivity allows easy setup and ensures high-quality audio from your connected sources.• Supports Consumer Electronics Control (CEC).• Programmable universal remote can control your TV, cable/satellite box and other connected sources.• Hideaway wireless Acoustimass ® module provides impactful bass sound.• Soundbar can be mounted on the wall (kit available separately).• Supports the SoundTouch ™ wireless adapter (available separately). Introducing SoundTouch™ from Bose

® With the SoundTouch ™ wireless adapter (available separately), you can stream Internet radio, music services (where available) and your music library. If you have Wi-Fi ® at home, you’re ready to enjoy your favorite music in any room you want. Key Benefits • Enjoy wireless access to Internet radio, music services and your music library.• Stream your favorite music easily with personalized Presets.• Works with your existing Wi-Fi ® network.• Free SoundTouch ™ app for your computer, smartphone or tablet provides more powerful control.• Simply add additional systems at any time for a multi-room listening experience.• Wide selection of Bose

audio systems lets you choose the right solution for any room. Introduction8 - English

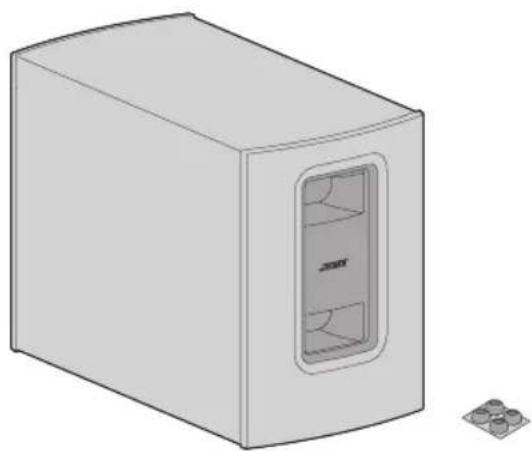

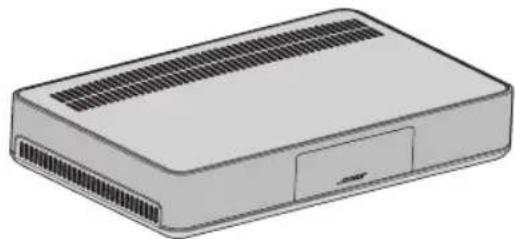

Unpacking the system

Carefully unpack the carton and confirm that the following parts are included:

Universal remote control

(batteries provided)

The appropriate power cords for your region are supplied.

Note: If part of the system is damaged, do not use it. Contact your authorized

dealer or Bose customer service. Refer to the contact sheet in

IntroductionEnglish - 9 Placement guidelines

To avoid wireless interference, keep other wireless equipment away from the

system. Place the system outside of and away from metal cabinets, away from

other audio/video components and away from direct heat sources.

• Stand the Acoustimass module on its rubber feet along the same wall

as your TV, or along any other wall in the front third of the room.

• Choose a stable and level surface. Vibration can cause the

Acoustimass module to move, particularly on smooth surfaces like

marble, glass or highly polished wood.

• Make sure there is an AC (mains) outlet nearby.

Soundbar • Place the soundbar in front of your TV.

• Do not place the soundbar inside a cabinet.

Console • Place the console near your TV. Do NOT place the TV on top of

• Make sure there is an AC (mains) outlet nearby.

wireless adapter within 1−6 ft. (.3−1.8 m) of

• If you have the SoundTouch

wireless adapter, you can begin set up.

Refer to the SoundTouch

wireless adapter’s owner’s guide for

Note: Do not connect the adapter to the console until prompted by the

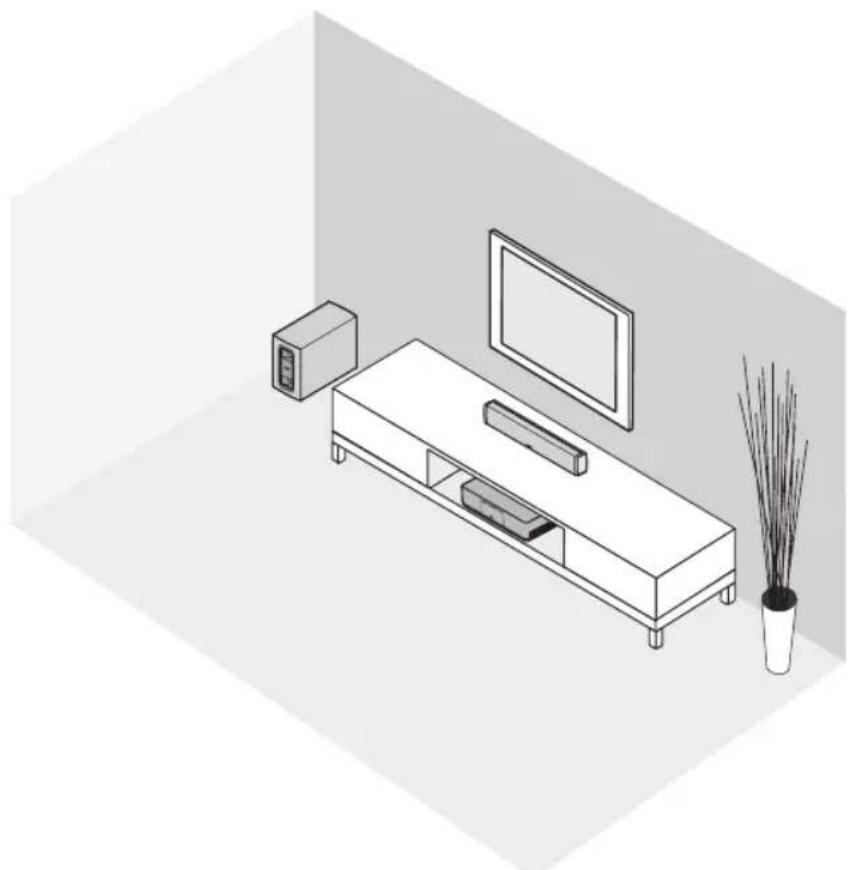

Sample system placement

Introduction10 - English

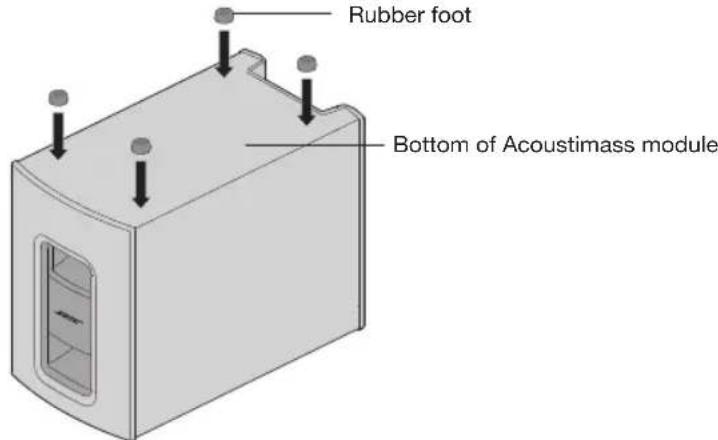

Attaching the rubber feet to the

2. Attach the rubber feet to the bottom of the Acoustimass module. Bottom of Acoustimass moduleRubber foot

3. Place the Acoustimass module on its feet.

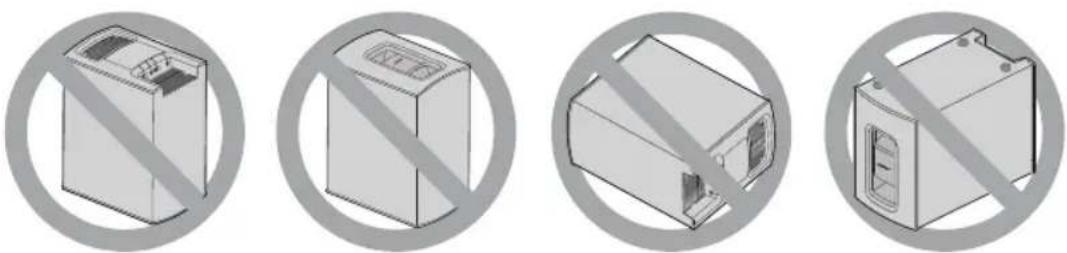

Caution: Do not place the Acoustimass module on its front, back end, side or

4. Remove all protective films. These may affect acoustic performance if left

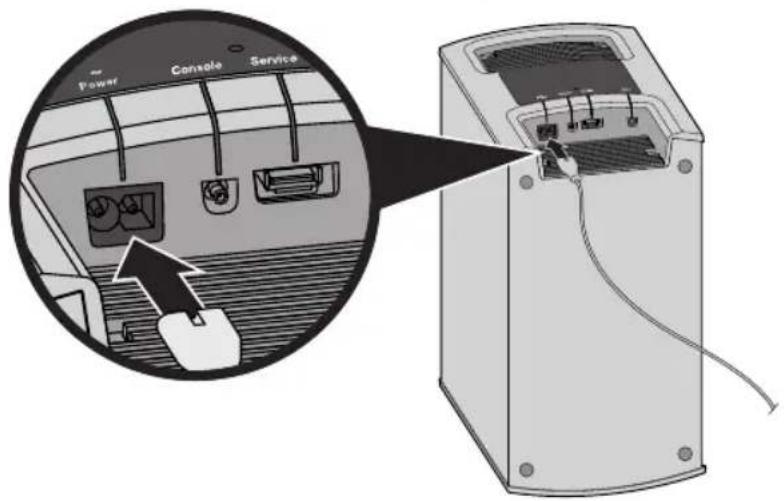

1. Plug the power cord into the connector on the Acoustimass module.

2. Plug the power cord into an AC (mains) outlet.

Setting Up the Acoustimass

Connecting the soundbar

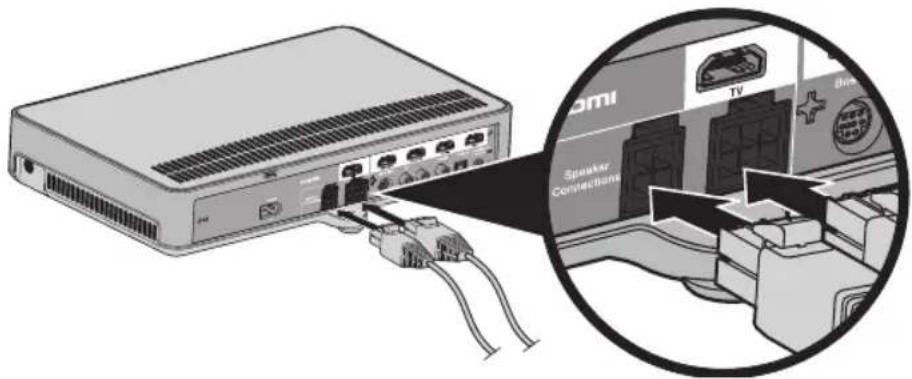

1. Insert the two-pronged end of the speaker cable into the

Speaker Connections connectors on the console.

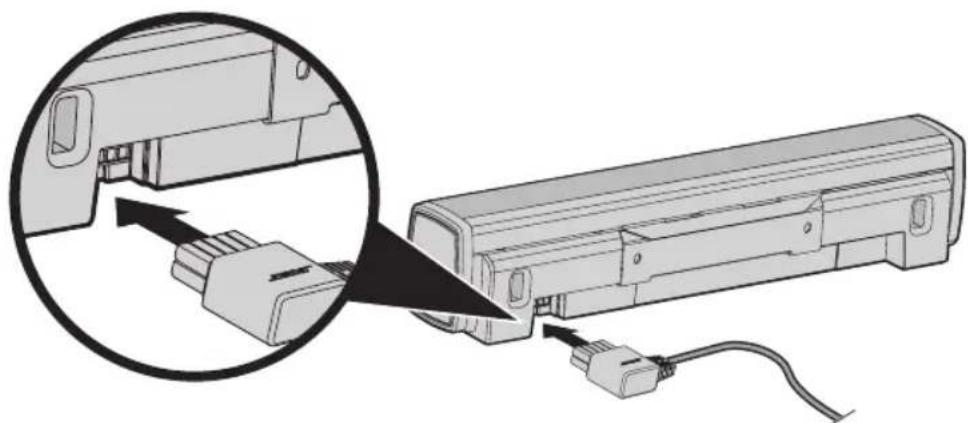

2. Insert the other end of the speaker cable into the 10-pin connector on

Wall mounting the soundbar

You can mount the soundbar on a wall. To purchase the WB-120 Wall Mount Kit,

contact your local Bose dealer or visit www.Bose.com

CAUTION: Do not use any other hardware to mount the soundbar.

Setting Up the SoundbarEnglish - 13

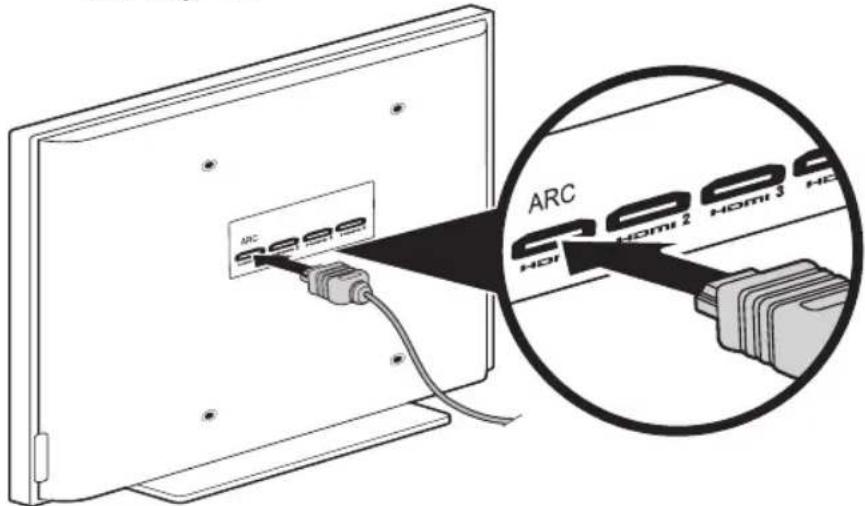

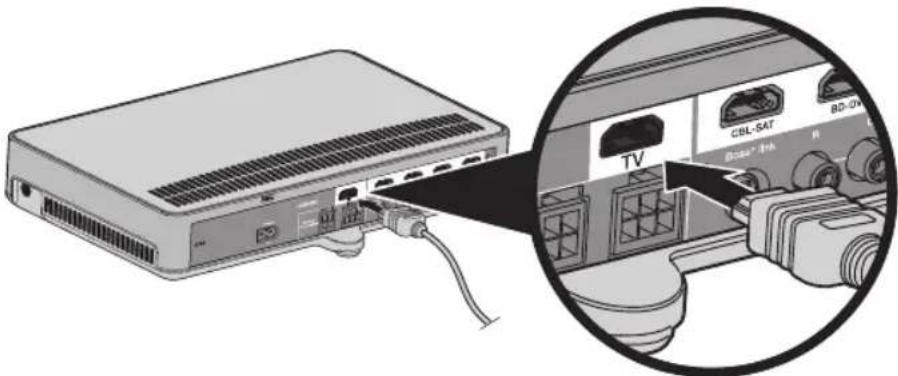

Connecting the console to your TV’s

HDMI cable to connect the console to your TV.

1. Disconnect your HDMI-connected sources, such as a cable/satellite box, DVD

player or game system, from your TV.

2. Insert one end of the Bose

HDMI cable into the TV connector on the console.

3. Insert the other end of the HDMI cable into your TV’s HDMI connector.

Note: Use your TV’s HDMI connector labeled ARC or Audio Return Channel

if available. If your TV does not have an HDMI ARC connector,

Setting Up the Console14 - English TVs without an HDMI ARC connector

If your TV does not have an HDMI ARC connector, you may need to make a

secondary connection to the console with an optical, coaxial or analog stereo

audio cable. Without this secondary connection, you may not hear audio from the

Use a secondary connection in the following configurations

• You are using internal sources (such as Internet applications or an

over-the-air antenna).

• You are connecting sources to your TV.

Refer to your TV owner’s guide for more information.

Tip: If your TV has IN and OUT audio connector panels, use audio OUT for your

secondary connection.

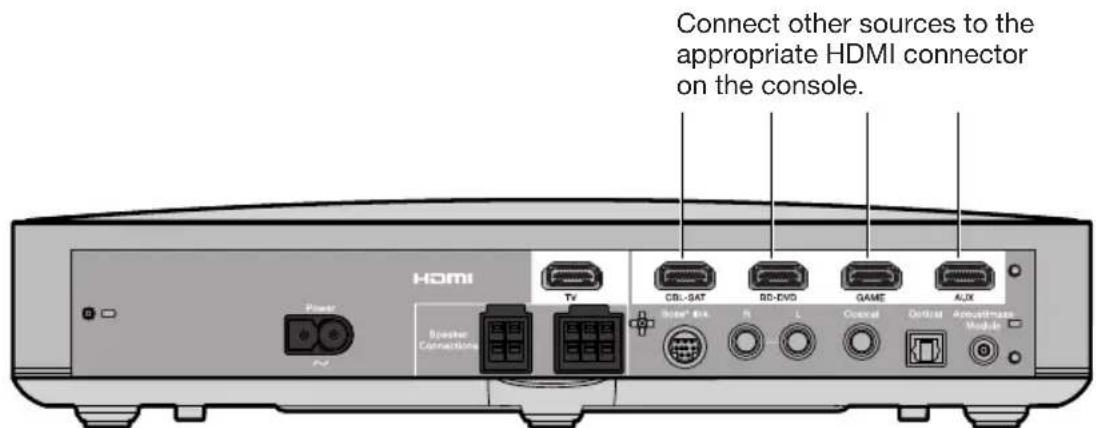

Connecting the console to other sources

You can connect the console to other sources, such as a cable/satellite box, DVD

player or game system with an HDMI cable (available separately).

If your source is non-HDMI compatible, use different audio and video cables

1. Insert one end of an HDMI cable into your source’s HDMI (OUT) connector.

2. Insert the other end of an HDMI cable into the appropriate HDMI connector on

the console. For example, to connect a game system, connect an HDMI cable

to the GAME connector.

Connect other sources to the

appropriate HDMI connector

Setting Up the ConsoleEnglish - 15

Connecting to non-HDMI compatible sources

If your source is non-HDMI compatible, connect it to your TV using audio and video

cables (available separately). Refer to your TV owner’s guide for more information.

Tip: If your source has IN and OUT audio connector panels, use audio OUT.

If your audio-only device, such as a media or CD player, is non-HDMI compatible,

connect it to the console’s optical, coaxial or analog connector. You can use an

optical, coaxial or analog cable (available separately).

Note: After connecting your audio-only source, you must set the optical, coaxial or

analog input to the appropriate source. You can access these settings using

the System menu (see page 25).

Connecting the console to power

1. Plug the power cord into the Power connector on the console.

2. Plug the power cord into an AC (mains) outlet.

Setting Up the Console16 - English

Starting Up the System

Installing the remote control’s batteries

1. Slide open the battery compartment cover on the back of the remote control.

2. Insert the two provided AA (IEC-LR6) 1.5V batteries. Match the + and –

symbols on the batteries with the + and – markings inside the compartment.

3. Slide the battery compartment cover back into place.

Powering on the system

Press on the remote.

The console powers on.

The display defaults to CBL SAT for first time power on. Otherwise, the display

defaults to your last used source.

Note: The system powers off after sixteen minutes of inactivity. You can disable

AUTO OFF using the System menu (see page 25).English - 17

1. Power on your TV.

2. If you are using a cable/satellite box or other secondary source, power on

Tip: If your secondary source is connected to your TV, select the appropriate

TV input. You may need to use a different remote.

3. Power on the system.

4. Press the appropriate source button.

5. Check if sound is coming from the soundbar.

Note: If you do not hear sound from the soundbar, see “Troubleshooting” on

on the remote. Check that no sound is coming from the TV speakers.

Note: If you hear sound coming from your TV speakers, see “Troubleshooting”

Changing the language on the console

Use the remote control to change the language on the console.

1. Power on the system.

on the remote control.

until 10 LANGUAGE appears on the display.

4. Press and to select your language.

icon in the System menu if you select the wrong

Finishing Setup18 - English

The ADAPTiQ audio calibration customizes the sound of the system to the

acoustics of your listening area by taking five audio measurements. To perform an

audio calibration, you need 10 minutes when the room is quiet.

1. Put the ADAPTiQ headset on your head.

During the ADAPTiQ audio calibration, a microphone on the top of the

headset measures the sound characteristics of your room to determine

optimal sound quality.

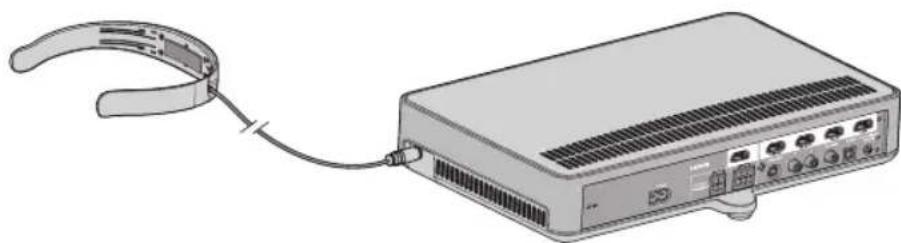

2. Insert the ADAPTiQ

headset cable into the connector on the console.

on the remote control.

until 14 ADAPTiQ appears on the display.

6. Follow the voice prompts until the system completes the process.

7. Unplug the ADAPTiQ headset from the console and store it in a safe place.

Note: If you move the system or any furniture, run ADAPTiQ again to ensure

optimal sound quality.English - 19

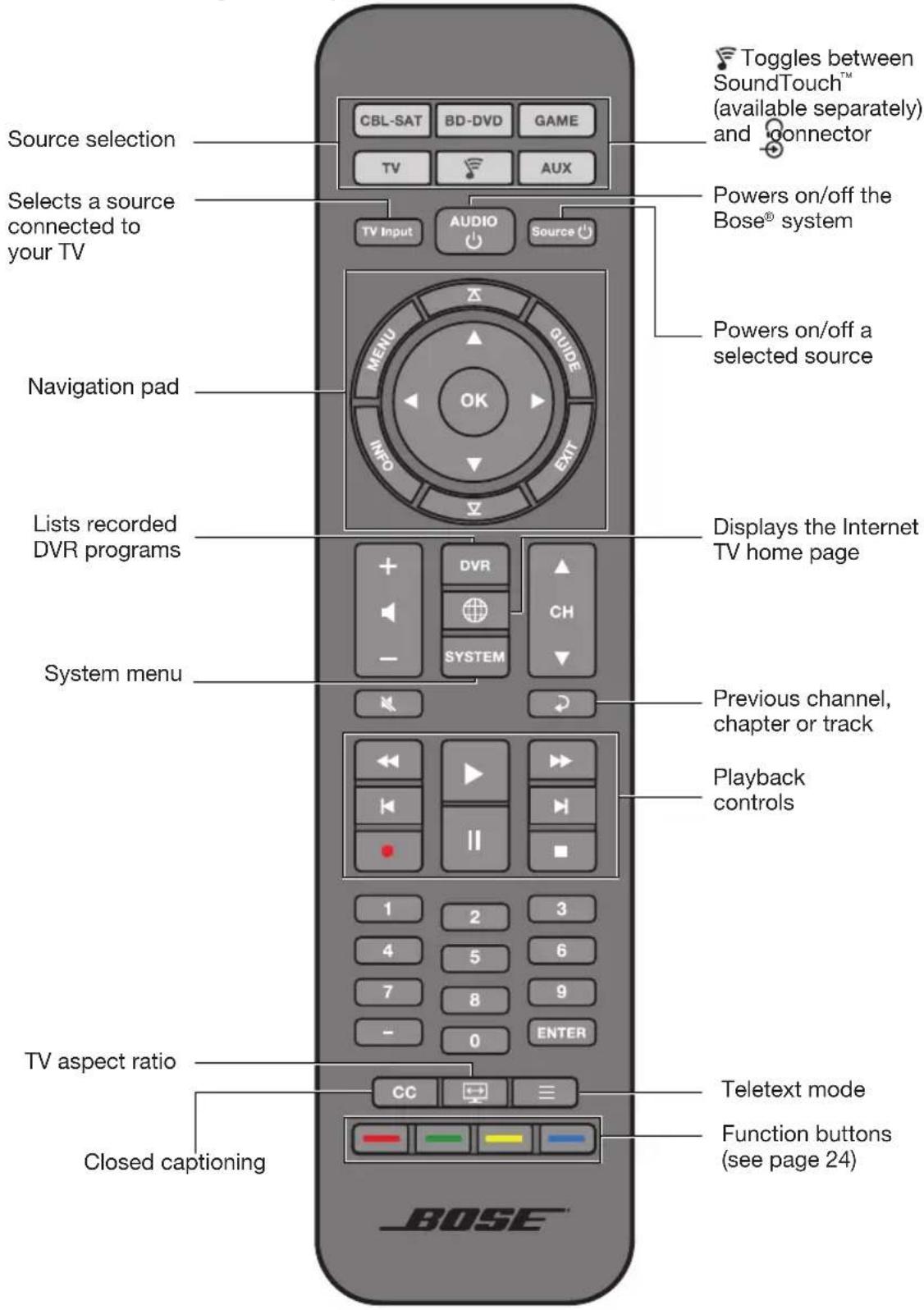

Use the remote to control sources connected to your system, adjust the system

your TV Function buttons

chapter or track20 - English Using the System

Programming the universal remote control

You can use the remote to control your TV, cable/satellite box, DVD or Blu-ray

player, game system, DVR or other auxiliary source.

Consumer Electronics Control

The system supports Consumer Electronics Control (CEC). CEC allows you to

control multiple HDMI-connected sources without programming the remote. You

can turn on/off CEC using the System menu (see page 25).

Your source may support CEC, but refer to it with a different name. Refer to your

source owner’s guide for more information.

CEC controls sources connected to

the console’s HDMI connectors.

Tip: You may need to use your source’s system menu to enable CEC. Refer to your

source owner’s guide for more information.English - 21

Test your sources for CEC Test each of your sources for CEC using the remote control.

Note: Your HDMI-connected source may not support CEC. Refer to your source

owner’s guide for more information.

1. Power off the Bose

2. Prepare your source:

• If you are testing your TV, power off your TV.

• If you are testing another source, power off the source. Power on your TV.

3. Press the button for the source you are testing.

The source button glows. The source and system power on.

4. To ensure your source works properly with your remote control, press a variety

of buttons that correspond with your source’s functions.

If your source does not perform one of the functions, program the remote

control (see page 22).22 - English

Program the remote to control your source

If your source does not support CEC, you can program the remote to control

1. Power on your source.

2. Locate the code for your source’s brand in the Universal Remote Device Codes

3. On the remote control, press and hold the appropriate source button until all

six source buttons glow, then release.

For example, to program your TV, press and hold

Only the appropriate source button glows.

4. On the number keypad, enter the code for your source’s brand.

Note: If all six buttons blink three times, you entered an invalid code.

Repeat steps 3 and 4.

5. Press + on the volume button.

6. Test the source for basic functions:

• TV: press the channel buttons. Press

. The settings menu appears.

. The programming guide appears.

player: press . The settings menu appears.

and to navigate through your menu.

If your source does not respond

Use the remote control’s code scanner to find the code for your source.

1. Press + on the volume button to try another code.

Note: If all six buttons blink three times, you have cycled through all codes for

2. Test the source for basic functions (see step 6 in “Program the remote to

control your source”).

3. Repeat steps 1 and 2 until your source responds.

to save your settings.

Note: Your source may not be compatible with universal remote controls. Refer to

your source owner’s guide for more information.

Using the SystemEnglish - 23

You can switch between sources by pressing the appropriate source button on the

remote control. Before you begin, program the remote to control your source

Select a source connected to the system

If your source is connected to the console and does not use CEC, follow this

procedure to set the console to the appropriate mode and turn on the source.

1. Power on the system.

2. Press the button for the source you want to control.

The source button glows.

The source powers on.

Select a source connected to your TV If your source is connected to your TV, follow this procedure to select the

appropriate TV input.

1. Power on the system, your TV and the appropriate source.

to select the correct input on your TV.

You may need to press

several times to select the TV input for

Universal source buttons and

The source buttons on your remote control correspond with the connectors on the

back of the console. For example,

corresponds with the BD-DVD HDMI

Your source buttons work with any source that is connected to the corresponding

connector. If you have a secondary DVD or Blu-ray Disc

player and connect it to

the CBL-SAT connector, it can be programmed to work with

If you are using the optical, coaxial, or analog connectors, you must set the input

for the appropriate source. You can access these settings using the System menu

Using the System24 - English

Adjusting the volume

On the remote control:

• Press + to increase the volume.

• Press – to decrease the volume.

to mute or unmute the audio.

Note: If you hear sound coming from your TV, see “Troubleshooting” on page 28.

The red, green, yellow and blue buttons on the remote control correspond with the

color-coded function buttons on your cable/satellite box or teletext functions.

• Cable/satellite box functions: refer to your cable/satellite box owner’s guide.

• Teletext functions: correspond with color-coded page numbers, headings or

shortcuts on a teletext display.

Programming a non-Bose remote control

You can program a non-Bose remote control, such as your cable/satellite box

remote, to control the system. Refer to your non-Bose remote control owner’s

guide or cable/satellite website for instructions.

Once programmed, the non-Bose remote controls basic functions such as power

on/off and volume.English - 25 Understanding messages on the display

The display on the front of the console allows you to access the System menu and

shows system information and icons.

Using the System menu

Use the System menu to adjust audio levels, turn on/off features (such as

AUTO OFF), change the language, set the coaxial, analog and optical inputs for a

particular source, run ADAPTiQ

or factory reset the system.

and to scroll through the System menu.

and to adjust the settings.

Display System state

1 AUDIO COMP Off: (Default) No change to audio track.

Enhance dialogue: Increases the level of dialogue and

sound effects at low volume settings while

providing full audio impact at high volume settings.

Smart volume: Reduces the range of volume levels in a

movie soundtrack so the difference between extremely

loud outbursts and soft sounds is less noticeable.

2 AUDIO/VIDEO SYNC Adjusts the audio delay to synchronize audio and video.

3 HDMI-CEC On: (Default) Enables CEC (see page 20).

4 AUTO OFF Enable: (Default) The system powers off after sixteen

minutes of inactivity (no sound coming from the system).

Disable: The system will not automatically power off.

5 SIDE AUX Audio in: (Default) Sets the

connector for an auxiliary

Headphones: Sets the

connector as a headphones

Note: If set to Headphones input and a cable is

connected, the soundbar is muted.

Disconnect your headphones when not in use.

6 BASS LEVEL Adjusts bass level.

7 TREBLE LEVEL Adjusts treble level.

8 CENTER LEVEL Increases or decreases the level of dialogue for movies

Getting System Information from the Display26 - English

Display System state

9 SURROUND LEVEL NOT AVAILABLE.

10 LANGUAGE Changes the language on the console and ADAPTiQ

11 SET OPTICAL INPUT Sets the optical connector to Auto/TV (Default),

CBL SAT, BD DVD, GAME or AUX source.

12 SET COAXIAL INPUT Sets the coaxial connector to Auto/TV (Default),

CBL SAT, BD DVD, GAME or AUX source.

13 SET ANALOG INPUT Sets the analog connector to Auto/TV (Default),

Display System state ERROR Cannot find AcoustimassThe Acoustimass ® module is not connected to the console.<SOURCE> No signalThe source is not connected to the console, or the source is connected to the console and powered off.SIDE AUX Nothing connectedThe source is not connected to the connector on the console.ERROR Call BoseCall Bose ® customer service. Refer to the contact sheet in the carton. Acoustimass

Indicator activity Acoustimass module state Amber Connected to the console.Blinking amber Disconnected from the console.Slow blinking amber Available to make a wireless connection to the console.Red System error. Getting System Information from the Display28 - English

Care and Maintenance

• Reconnect the Acoustimass module’s and console’s power cords firmly

into an AC (mains) outlet.

• Use the remote control to power on the system.

• Factory reset the system (see page 30).

• Plug the Acoustimass module and console into a live AC (mains) outlet.

• Insert the HDMI cable into a connector on your TV labeled ARC or Audio

Return Channel. If your TV does not have an HDMI ARC connector, use a

secondary audio cable in addition to the HDMI cable (see page 14).

• If using a secondary audio cable, insert the cable into a connector on your

TV labeled Output or OUT, not Input or IN.

• Secure all cable connections on the soundbar, TV and connected sources.

• If your source is connected to your TV, select the correct TV input

• Disconnect headphones when not in use.

• If connecting your source through the

connector, enable Audio in

using the System menu (see page 25).

• If you are connecting headphones to the connector, enable

• Insert the HDMI cable into a connector on your TV labeled ARC or

Audio Return Channel (if available).

• Turn off your TV speakers (refer to your TV owner’s guide).

• Decrease your TV volume to its lowest setting.

• Match the + and – symbols on the batteries with the + and – markings

inside the compartment (see page 16).

• Replace the battery (see page 16).

• Press the volume button on the remote control and see if the correct

source button flashes.

- Point the remote control at the console.

- Program the remote to control your source (see page 22).

• If you have programmed the remote to control your source:

- Point the remote control at the appropriate source.

- Ensure you have entered the correct code for your source’s brand.

- Program the remote with another code (see page 22).English - 29

Care and Maintenance

• Remove all protective films from the system.

• Secure all cable connections on the soundbar, TV, and connected sources.

• If you see the error message Cannot find Acoustimass:

- Pair the Acoustimass module with the console (see “If your console

• Factory reset the system (see page 30) and run the ADAPTiQ

• Secure all cable connections on the soundbar, TV, and connected sources.

• Move system away from potential interference, such as a wireless router,

cordless phone, television, microwave, etc.

If your console cannot find the Acoustimass

The Acoustimass module and console are paired at the factory. However, if you

on the remote control.

until 15 PAIR ACOUSTIMASS appears on the display.

Plug in Acoustimass appears on the display.

5. Plug the AC power cord into an AC (mains) outlet.

After the Acoustimass module connects to the console, Pairing complete

appears on the display.30 - English

Care and Maintenance

Factory reset the system

To troubleshoot problems, reset the System menu and ADAPTiQ

on the remote control.

until 16 FACTORY RESET appears on the display.

Reset a source button on the remote control

If you are experiencing problems with a source button on the remote control, reset

the source button to the factory settings.

Note: After performing this procedure, your source button is in CEC mode.

1. On the remote control, press and hold the appropriate source button until all

six source buttons glow, then release.

Only the appropriate source button glows.

2. On the number keypad, enter 0140.

Service connectors on the Acoustimass module

The Service and Data connectors are for service use only. Do not insert any cables

into these connectors.English - 31

• Clean the surface of the system with a soft, dry cloth.

• Do not use any sprays near the system. Do not use any solvents, chemicals, or

cleaning solutions containing alcohol, ammonia or abrasives.

• Do not allow liquids to spill into any openings.

For additional help, contact Bose

Customer Service. Refer to the contact sheet in

Your system is covered by a limited warranty. Details of the limited warranty are

provided on the product registration card that is in the carton. Please refer to the

card for instructions on how to register. Failure to register will not affect your limited

The warranty information provided with this product does not apply in Australia and

New Zealand. See our website at www.bose.com.au/warranty or

www.bose.con.nz/warranty for details of the Australia and New Zealand warranty.

Technical information

CEC (Consumer Electronics Control)

SIDE AUX Nothing connected

Framingham, MA 01701-9168 USA AM715107 Rev. 01
