USER MANUAL LED3213 LENCO

Operating Instruction

LED-3213

Please read these instructions before operating your set and retain them for future reference.

WWW.LENCO.COM

EUCY00-H249

PRECAUTION

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. This apparatus with CLASS II construction.
6. Do not use this apparatus near water, the apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
7. Clean only with dry cloth.
8. Do not install this apparatus in windtight places such as the wall-unit. Do not block any ventilation openings.
9. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
10. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
11. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
12. Only use attachments/accessories specified by the manufacturer.
13. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
14. Unplug this apparatus during lightning storms or when unused for long periods of time.
15. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type.

Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

Used batteries should not be thrown into the garbage can, please leave them at an appropriate depot.

CAUTION

Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

CAUTION

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

Attention:

Motionless picture might cause permanent destruction to the display.

Be sure not to display motionless picture on the L D TV for more than 2 hours, because it would cause picture remnants to appear, which is called "screen burns". To avoid such picture remnants, please decrease the "contrast" and "brightness" of the display when displaying motionless picture.

While watching TV program in 4:3 size mode for a long time, there would be traces on the edge of the screen's left, right and center parts because of different transmission of the light on the screen. Similar impact on the screen will occur when playing DVD or connecting games control. Products destroyed by these reasons can't be guaranteed for maintenance.

It might cause picture remnants to display electronic games and motionless picture of PC more than a period of time. To avoid such effect, please decrease the "contrast" and "brightness" when displaying motionless picture.

IMPORTANT INFORMATION

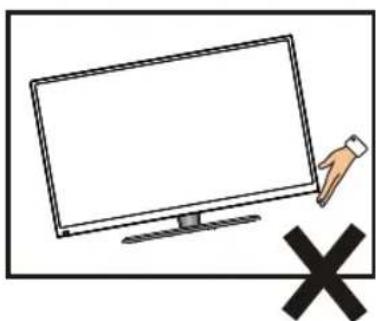

If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television.
• Only using furniture that can safely support the television.
• Ensuring the television is not overhanging the edge of the supporting furniture.
• Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television to a suitable support.
• Not standing the televisions on cloth or other materials placed between the television and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television or its controls.
• The each USB terminal should be loaded with 0.5 A under normal operation;
• Do not attach candle to accessible opening area, to avoid flammable foreign material from entering the TV

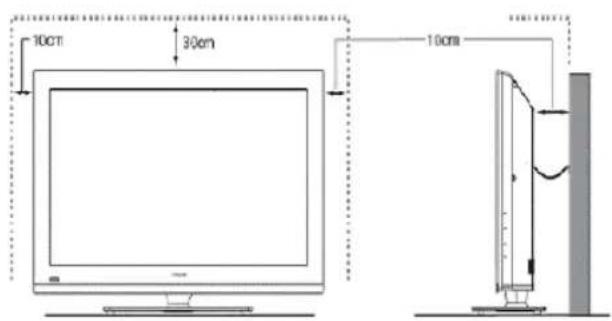

• Minimum distances around the apparatus for sufficient ventilation;
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.;
• No naked flame sources, such as lighted candles, should be placed on the apparatus;
• Attention should be drawn to the environmental aspects of battery disposal;
• The use of apparatus in tropical and/or moderate climates.
• Put the TV in the environment of moderate temperature,not to lay aside the Air Conditioner outlet or stove to avoid damage.

• Use both hands when carrying TV, make TV suffer stable outside force.

• Place the TV on a firm and flat surface,leaving a space of at lease 10cm around the set and 30cm from the top of the set to the wall or cabinet. Ensure the TV is positioned close to the wall to avoid it falling when pushed.

• To avoid the TV overturning, when installed, it must with screw through screw hole on the base for fixing TV on the desk

Top view

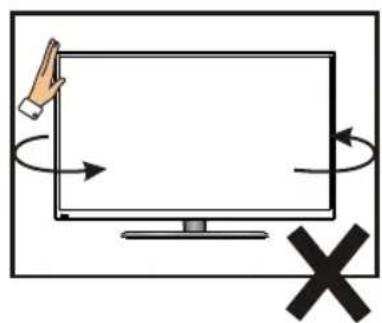

• When you turning the TV set, do not hold the top side of the TV set, you should hold the bottom side.

• When you lifting the TV set,do not use one hand to handle it,you shoud lift the TV set by two hands.

L D COLOR TV

CONTENTS

1. Connection and Preparation of TV 2

1.1 Accessories 2
1.2 Installation of Stand 2
1.3 Installation of Wall Mount Kit(Optional) 2
1.4 Keys and Interfaces 3
1.5 Remote Control 4
1.6 Installation of Batteries 5

1. Basic Operation 5

2.1 Power ON/OFF 5
2.2 Setting of Standby Mode 5
2.3 Selection of Input Mode 5
3. Select input source 6

1. First-time-setup 7
2. Main Menu Operation 8

5.1 Picture menu 8
5.2Sound menu 10
5.3 Channel menu 12
5.4 Lock system menu 16
5.5 Setup menu 17

1. USB Operation 22

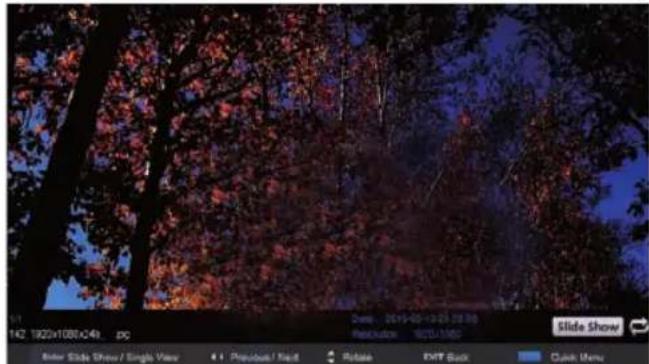

6.1 Photo 22
6.2 Music 22
6.3 Movie 23
6.4 Text 23

1. Technical Specification 24
2. Supported Signal Modes 25

3. Simple Troubleshooting 26

4. Service and support 27
   11.WEE 28

5. CE. 28

1. Connection and Preparation of TV

1.1 Accessories

*User Manual x 1
Remote Control x 1
★ Battery (UM-4/R03P/AAA) x 2
* Wall Mount Kit x 1 (Pre-assembled)(Optional)

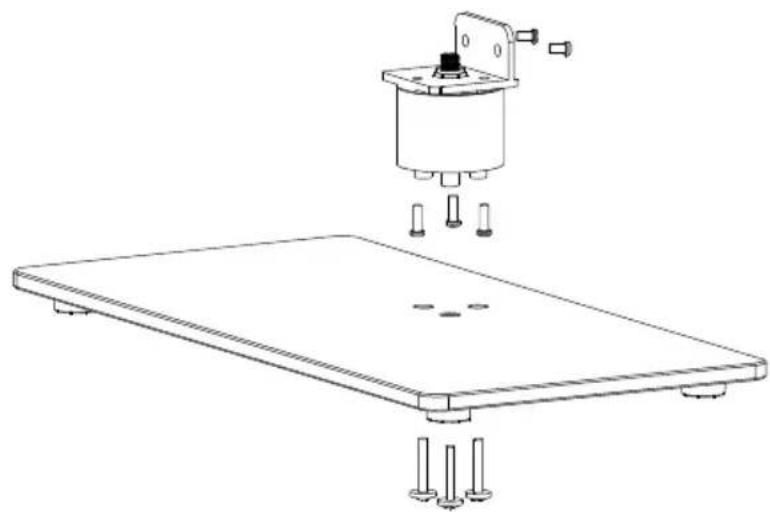

1.2 Installation of Stand

1. Place the TV with the front panel facing downwards on the soft cloth or soft pads on a desk.
2. Please put the PVC sticker on the turning axle fristly
3. Insert the stand into the bottom socket of the TV.
4. Insert the screws into the sockets and tighten them.

1.3 Installation of Wall Mount Kit(Optional)

The Wall Mount Kit can help install the TV on the wall.

For more information about wall mounting, please refer to the instructions provided along with the wall mount kit.

When wall mounting the product, please contact qualified personnel.

If users choose to install the TV by themselves, the producer is irresponsible for any possible damages caused either to the product or to persons.

L D COLOR TV

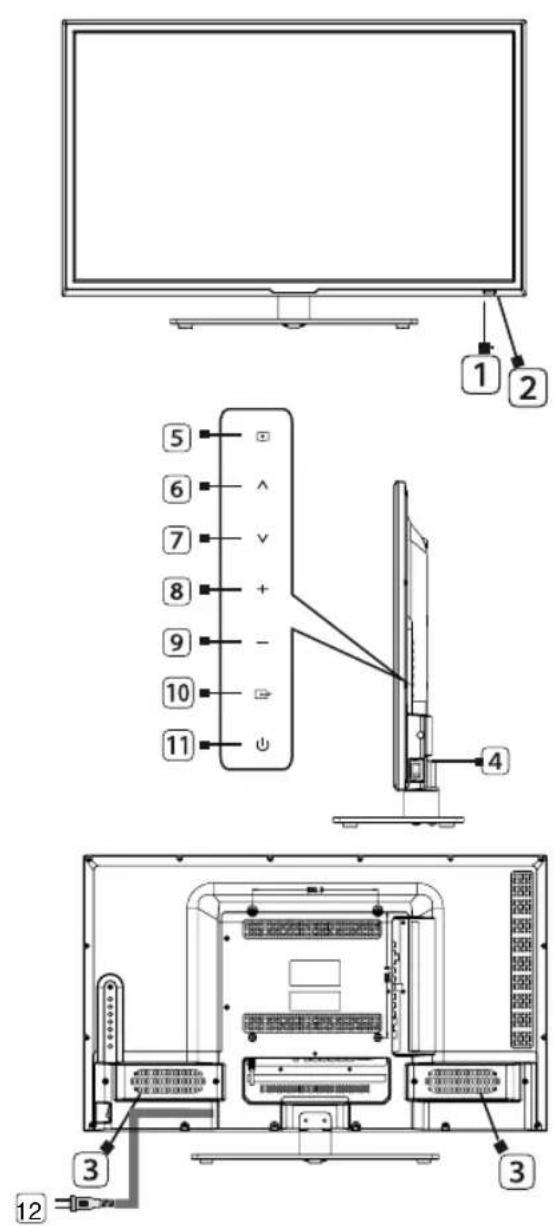

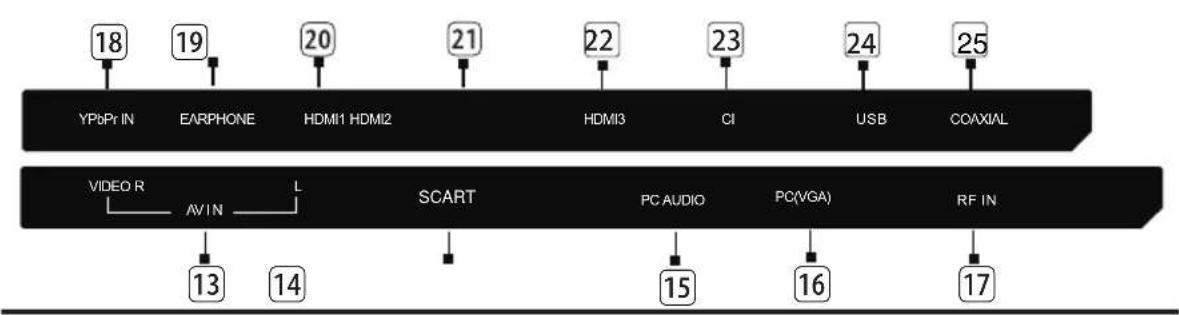

1.4 Keys and Interfaces

The design and specification takes actual products as the standard

1. Remote sensor window
2. Power indicator
3. Speaker
4. Power switch
5. Menu key
6. Program “+” key
7. Program "key
8. Volume "+" key
9. Volume "--" key
10. Source key
11. Standby key
12. Power plug input
13. AV input
    14.Scart input
    15.PCAUDIO input
    16.PC(VGA) input
    17.RF input
    18.YPbPr IN
    19.EARPHONE output
    2.HDMI1
    21.HDMI2
    22.HDMI3
    23.CI card
    24.USB
    25.Coaxial

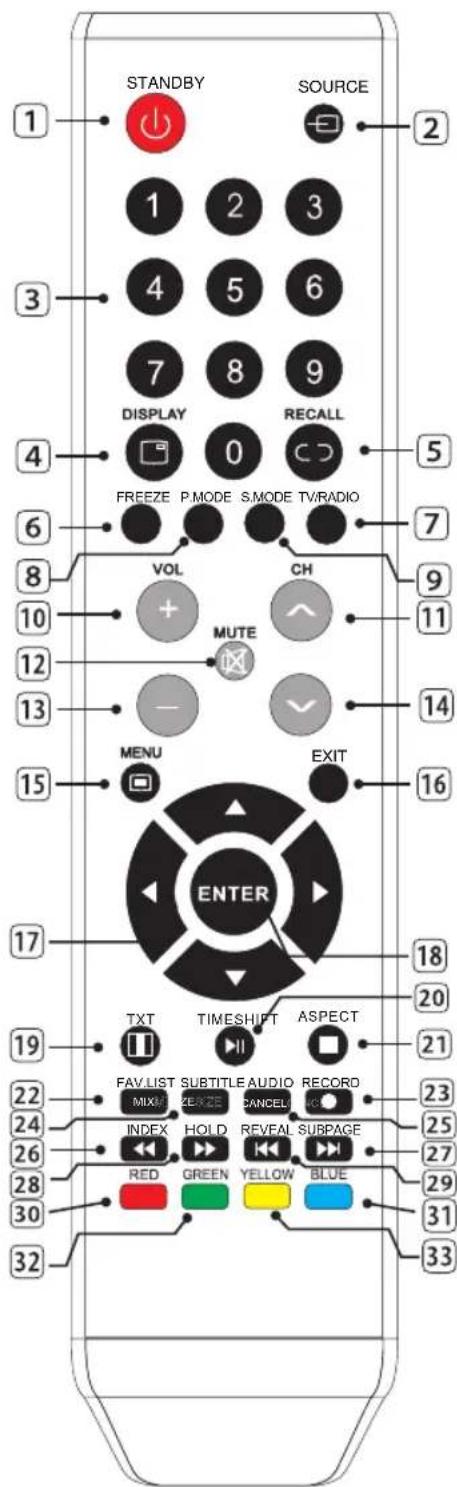

1.5 Remote Control

1. STANDBY( ): Standby turn on and off.
2. SOURCE: Select the signal source.
3. 0~9: Continue to press the keys to select a channel.
4. DISPLAY: Display the information of current video and audio.
5. RECALL: Return to previous channel.
6. FREEZE: Freeze the picture.
7. TV/RADIO:Select the TV or Radio mode.
8. P.MODE: Select the picture mode.
9. S.MODE: Select the sound mode.
10. VOL+: Increase the volume.
11. CHA: Select the channel forward.
12. MUTE: Mute sound.
13. VOL: Decrease the volume.
14. CHV: Select the channel backward.
15. MENU: Enter or exit menu.
16. EXIT:Exit current function.
17. , , , key: The menu item selection.
18. ENTER: Confirm or enter.
    19.TXT:Enter or exit teletext
    20.TIMESHIFT:DTV mode time shift. MEDIA mode: less one time to pause, press again to playback.
19. ASPECT:Select picture size.
20. FAV.LIST: Favorite channel list
21. RECORD:DTV mode record data USB disk.
22. SUBTITLE:DTV mode select subtitle mode.
23. AUDIO: Select TV audio mode.
24. INDEX: Display the index page. MEDIA mode: Fast Backward
25. SUBPAGE: Enter the sub page mode. MEDIA mode▶Next
26. HOLD: Hold the current page.
    MEDIA mode: Fast Forward
27. REVEAL: Reveal the hidden information. MEDIA mode: Previous.
28. RED: Access the red item or page.
29. BLUE: Access the blue item or page.
30. GREEN: Access the green item or page.
31. YELLOW: Access the yellow item or page.

1.6 Installation of Batteries

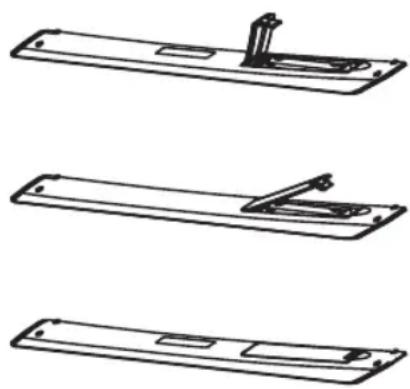

1. Open the back lid of the remote control.

2. Install two 7#(AAA)1.5V batteries. Ensure the correct polarity of the batteries.

3. Cover the back lid. Please take out of the batteries from the remote control for long time of no use.

If the remote control doesn't work properly, please carry out the following checks.

• Check the TV is turned on.
• Check the polarity of the batteries are correct.
• Check the batteries are not drained.
• Check the power supply is normal or the power cord is correctly connected.
• Check there are no special fluorescent light or neon light around.

2. Basic Operation

2.1 Power ON/OFF

• Connect the power cord to the AC input. Insert the power cord into the appropriate socket.
• Press the Power switch to switch on the TV, then press Power button to turn on the unit.
• Press the Power switch again to switch off the TV.

Note: After switch off the TV, please don't immediately re-open the power switch,should be delayed one minute more to re-open the power switch.

2.2 Setting of Standby Mode

• Press (按钮 to turn on the unit.
• Press ( button again to return the display to standby mode. The power indicator turns red.
• Be sure not to set your TV in standby mode for a long period of time.

2.3 Selection of Input Mode

This set has different signal source modes, you may continue to press the Source button to select a signal source.

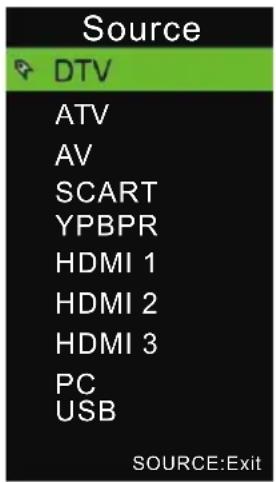

Select input Source

Select input Source

Press SOURCE button to display the input source list,

Press / or SOURCE button to select the input source you want to,

Press ENTER button to enter the input source,

Press EXIT button to quit.

First Time Setup

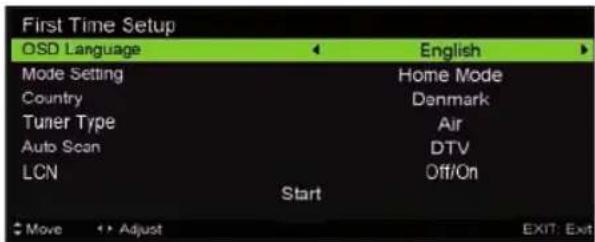

4. First Time Setup

Connect an RF cable from the TV's input called "RF-In" and to your TV Aerial socket.

OSD Language

Press / button to select the language to be used for menus and message.

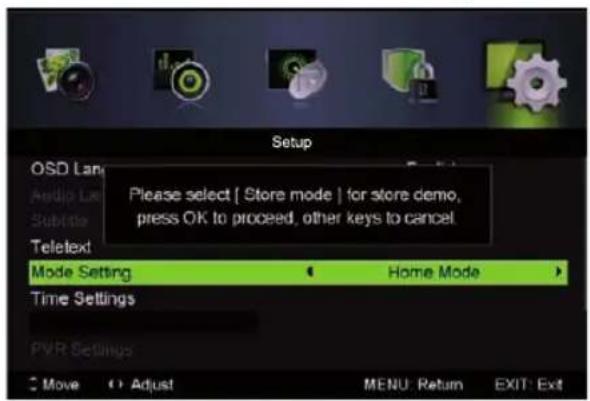

Mode Setting

Press / button to select mode.

Country

Press / button to select the country you want to.

Tuner Type

Press / button to select Air or Cable.

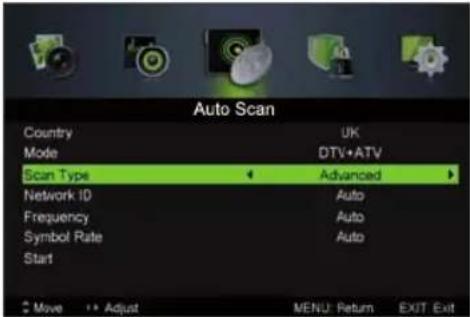

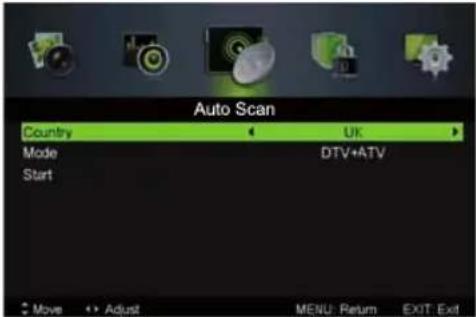

Auto Scan

Press button to select Mode: DTV+ATV, DTV, ATV.

Auto Tuning Status

First tuning digital, press MENU button to skip digital tuning, Second tuning analogue, press MENU button to skip analogue tuning.

Main Menu Operation

5. Main Menu Operation

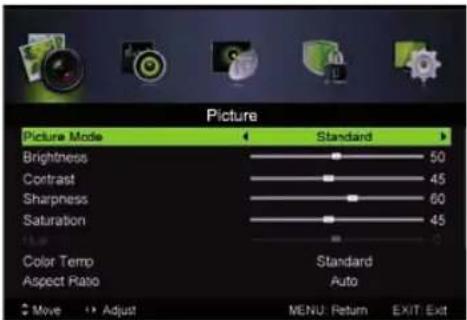

5.1 Picture Menu

Press MENU button to display the main menu.

Press / button select PICTURE in the main menu, then press ENTER / to enter.

1. Press / button to select the option that you want to adjust in the PICTURE menu.
   2 Press Enter/ button to adjust.
   3 After finishing your adjustment, Press MENU button to save and return back to the previous menu.

Picture MODE

Press / button to select Picture Mode, then press / button to select.

(Available Picture mode: Standard, Mild, Personal, Dynamic).

Brightness/Contrast/ Sharpness/Saturation/Hue

Press / button to select option, then press / button to adjust.

Brightness Adjust the optical fiber output of the entire picture, it will effect the dark region of the picture.

Contrast Adjust the highlight intensity of the picture, but the shadow of the picture is invariable.

Sharpness Aadjust the peaking in the detail of the picture.

Saturation Adjust the saturation of the color based on your own like.

Hue Use in compensating color changed with the transmission in the NTSC code.

Color Temp

Change the overall color cast of the picture.

Press / button to select Color Temp, then press button to select Standard/Cool/Warm.

Standard Produces a vivid image.

Cool Produces a gentle blue-hued image.

Warm Produces a red-hued image.

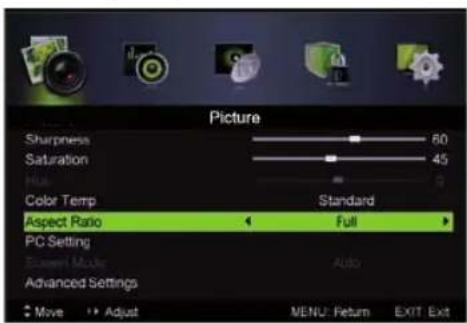

Aspect Ratio

Press / button to select Aspect Ratio, then press / button to select.

Auto Automatically adjust Aspect Ratio based on TV size and TV program.

Full/4:3 /Zoom1/Zoom2 To select the available display format.

PC Setting

Press Source PC source.

Press MENU to enter the main menu, then press button to select PICTURE menu.

Press ENTER / to enter and press to select PC Setting.

Main Menu Operation

Press / button to select PC Settings, then press / button to adjust.

Auto Adjust Press MENU / button to adjust to the screen automatically to the optimal position of the picture.

H Position Adjust the horizontal position of the picture.

V Position Adjust the vertical position of the picture.

Phase Minimize horizontal distortion.

Clock Minimize vertical stripes in the screen image.

Screen Mode

Press / button to select HDMI Mode, then press / button to select Auto, Video or PC. It is available in HDMI Input only.

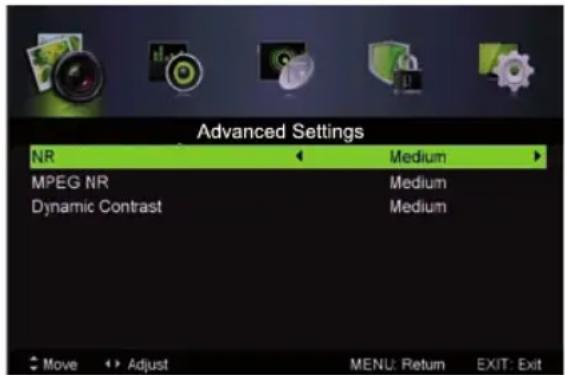

Advanced Settings

Adjust advanced video features to fine tune the picture.

Press / button to select Advanced Settings, then press Enter button to enter sub-menu.

NR

Set options to reduce video noise.

Press / button to select NR, then press / button to select.

Off Select to turn off video noise detection.

Week Detect and reduce low video noise.

Medium Detect and reduce moderate video noise.

Strong Detect and reduce enhanced video noise.

Mpeg NR

Set options to reduce MPEG noise.

Press / button to select Mpeg NR, then press / button to select.

Off Select to turn off MPEG noise detection.

Week Detect and reduce low MPEG noise.

Medium Detect and reduce moderate MPEG noise.

Strong Detect and reduce enhanced MPEG noise.

Dynamic Contrast

Automatically adjust picture detail and brightness.

Press / button to select Dynamic Contrast, then press / button to select.

(Available Dynamic Contrast: Off, Week, Medium, Strong).

Main Menu Operation

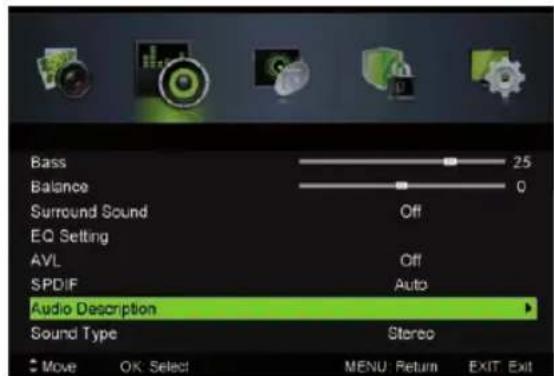

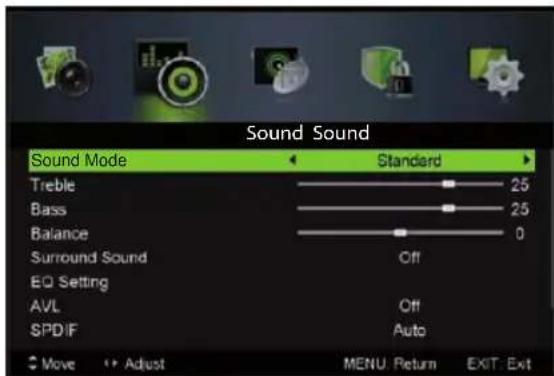

5.2 Sound Menu

Press MENU button to display the main menu.

Press / button select SOUND in the main menu, then press ENTER / to enter.

1. Press / button to select the option that you want to adjust in the SOUND menu.
2. Press Enter/ / button to adjust.
3. After finishing your adjustment, Press MENU button to save and return back to the previous menu.

Sound Mode

Press / button to select Sound Mode, then press / button to select.

(Available Sound mode:StansitatPersonal, Movie).

Treble/Bass/Balance

Press / button to select option, then press / button to adjust.

Treble Adjust the treble effect. Increases or decreases high-pitched sounds.

Bass Adjust the bass effect. Increases or decreases lower-pitched sounds.

Balance Adjust the balance between left and right speakers to adapt to your listening position.

Surround Sound

Press / button to select Surround Sound, then press button to select On or Off.

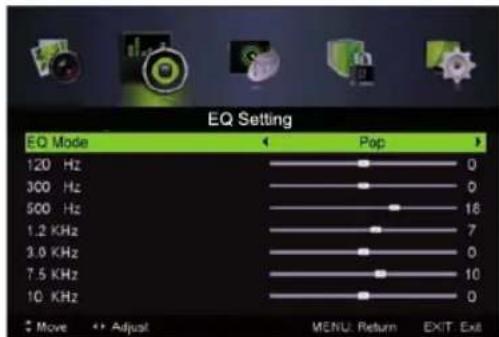

EQ Setting

Adjust the curve of 7 bands equalizer.

Press / button to select EQ Setting, then press Enter / button to enter sub-menu.

EQ Mode

Press / button to select EQ Mode, then press / button to select.

(Available EQ mode: Off, Rock, Pop, Jazz, User).

AVL

Set the auto volume control.

Press / button to select AVL, then press / button to select On or Off.

L D COLOR TV

Main Menu Operation

SPDIF

Press / button to select SPDIF, then press button to select Off / Auto/PCM.

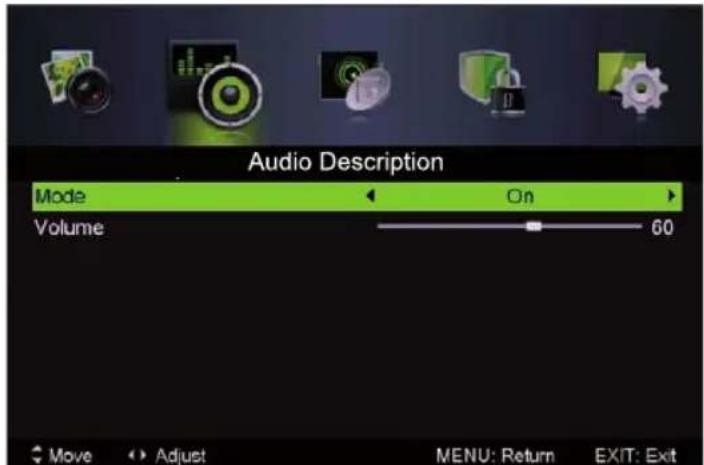

Audio Description

Press / button to select Audio Description, then press Enter / button to enter sub-menu.

Mode

Press / button to select Mode, then press / button to select On or Off. When the mode is On, Volume can be adjust by users.

Sound Type

Press / button to select Sound Type, then press / button to select. (Available Sound Type: Stereo, Dual I, Dual II, Mixed).

Main Menu Operation

5.3 Channel Menu

Press MENU button to display the main menu.

Press button to select CHANNEL in the main menu, then press ENTER / to enter.

1. Press / button to select the option that you want to select in the CHANNEL menu.
2. Press Enter button to enter sub-menu.
3. Press MENU button to return back to the previous menu.

Tuner Type

Press / button to select Tuner Type, then press / button to select Antenna or Cable.

Auto Scan

Press / button to select Auto Scan, then press Enter / button to enter sub-menu. Tuner type is Antenna Tuner type is Cable

Country

Press / button to select country

Mode

Press button to select Mode: DTV+ATV, DTV, ATV.

Scan Type

Press button to select Scan Type: Advanced, Quick, Full.

NetworkID

Press / button to select Network ID: Auto or enter digital numbers.

Frequency

Press / button to select Frequency: Auto or enter digital numbers.

Symbol Rate

Press / button to select Symbol Rate: Auto or enter digital numbers.

Start

Press Enter / button to start the auto searching.

It will search digital channels first, then analog channels.

Before execute auto channel search, please confirm your antenna type is Air or Cable.

Wrong setting of Signal Type maybe cause finding no channel. Found numbers do not include encryption programs.

Main Menu Operation

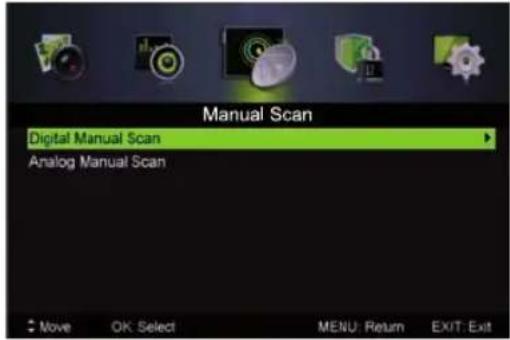

Manual Scan

Press / button to select Manual Scan, then press Enter / button to enter sub-menu.

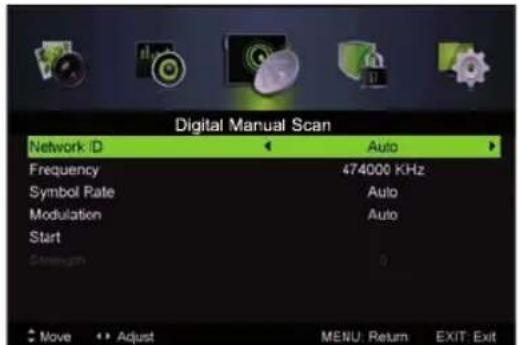

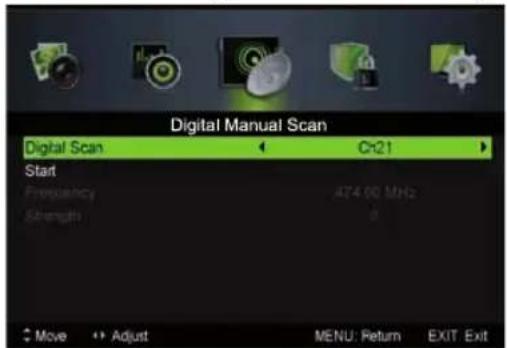

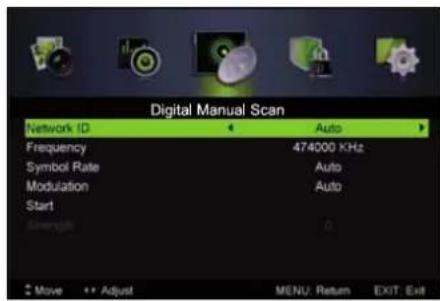

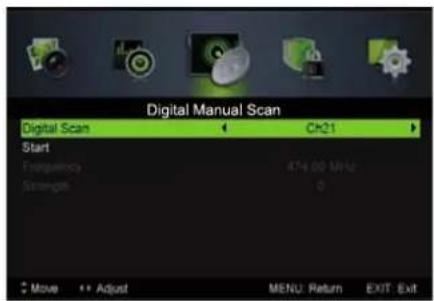

Digital Manual Scan

Press / button to select Digital Manual Scan, then press Enter / button to enter sub-menu. Tuner type is Antenna Tuner type is Cable

Network ID

Press / button to select Network ID: Auto or enter digital numbers.

Frequency

Press / button to select Frequency: Auto or enter digital numbers.

Symbol Rate

Press / button to select Symbol Rate: Auto or enter digital numbers.

Modulation

Press / button to select Modulation: Auto, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM.

Start

Press Enter / button to start the channel searching.

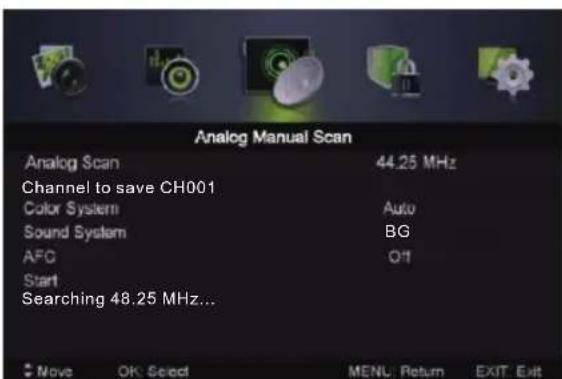

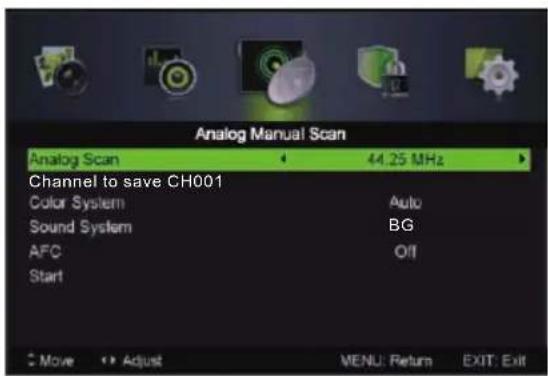

Analog Manual Scan

Press / button to select Analog Manual Scan, then press Enter / button to enter sub-menu.

Main Menu Operation

Analog Scan

Press / button to select Analog Scan.

Color System

Press button to select Color System: Auto, PAL or SECAM.

Sound System

Press / button to select Sound System: Auto, DK, BG, I or L.

Modulation

Press / button to select Modulation: Auto, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM.

AFC

Automatic Fine tuning.

Press / button to select On or Off.

Start

Press Enter / button to start the channel searching.

Main Menu Operation

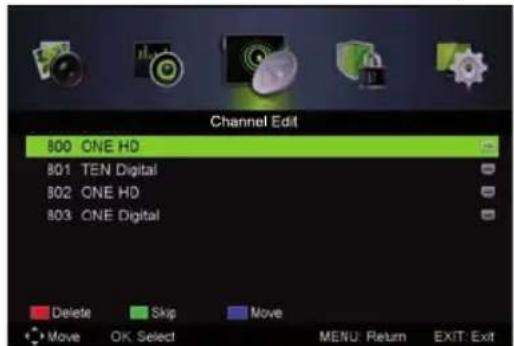

Channel Edit

Press / button to select Channel Edit, then press Enter / button to enter sub-menu.

The three colored keys are the shortcut key for programming the channel.

First press / to highlight the channel you want to delete or move or skip, then:

• Press the Red button to delete the channel.
• Press the Green button to skip the select channel.
• (Your TV set will skip the channel automatically when using CH + / - to view the channels.)
• Press the Blue button to set the channel to moving state. Then press / to move it to the position you want to put.

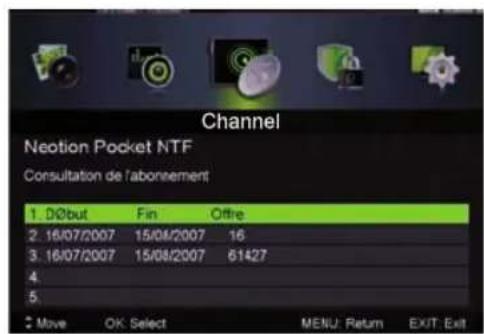

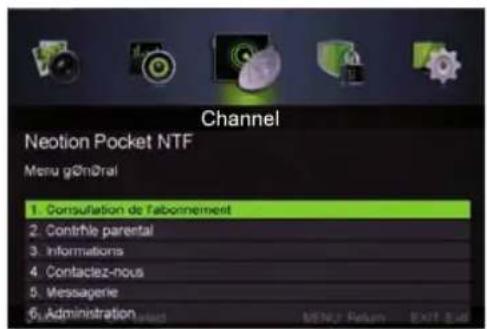

Common interface

Press / button to select Common interface, then press Enter button to enter sub-menu. Only available when there is CI card under DTV.

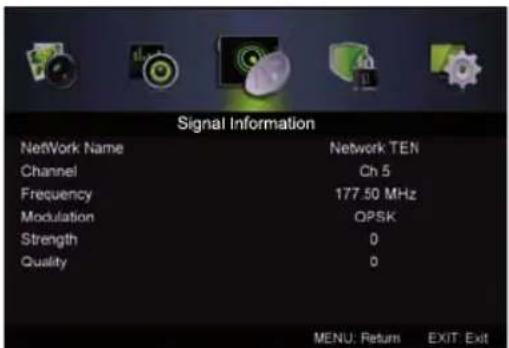

Signal Information

Press / button to select Signal Information, then press the Enter button to see the detail information about the signal. Only available when there is signal under DTV.

Main Menu Operation

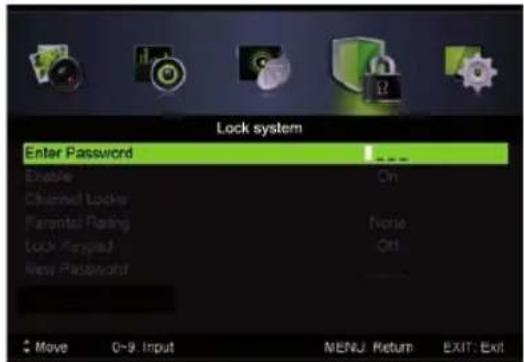

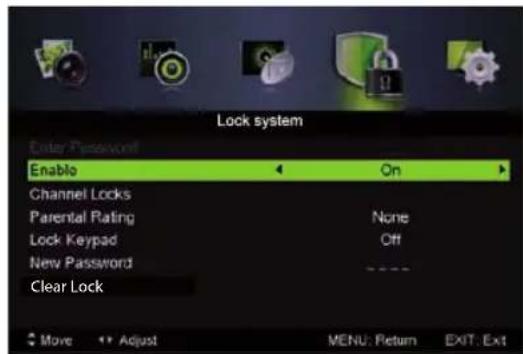

5.4 Lock system Menu

Press MENU button to display the main menu.

Press / button select Lock system in the main menu, then press ENTER/▼ to enter.

1. Press / button to select the option that you want to adjust in the PARENTAL menu.
2. Press Enter/ / button to adjust.
3. After finishing your adjustment, press MENU button to save and return back to the previous menu.

Default password is 0000, and if forget what you set, please call the service center.

Enable

Press / button to select Enable, then press / button to select On or Off.

Channel Locks, Parental Rating and Lock Keypad are available when Enable is On.

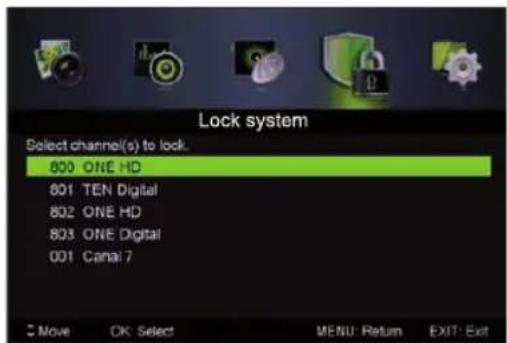

Channel Locks

Press / button to select Channel Locks, then press Enter / button to enter sub-menu.

Parental Rating

Press / button to select Parental Rating, then press / button to select.

Lock Keypad

Set to prevent it from being used by young children, or other unexpected usage.

Press / button to select Lock Keypad, then press / button to select On or Off.

New Password

Press / ▲ button to select New Password, then enter a 4-digital number you want to set twice.

Clear Lock

Press / button to select Cleankoeks

Enter / button to enter.

Main Menu Operation

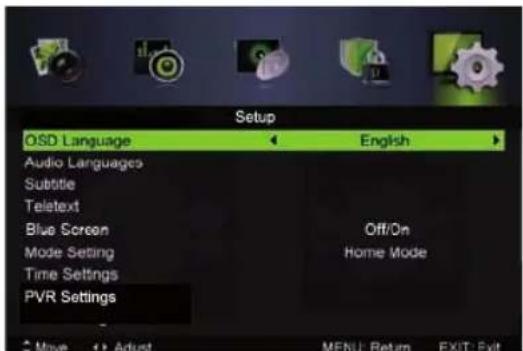

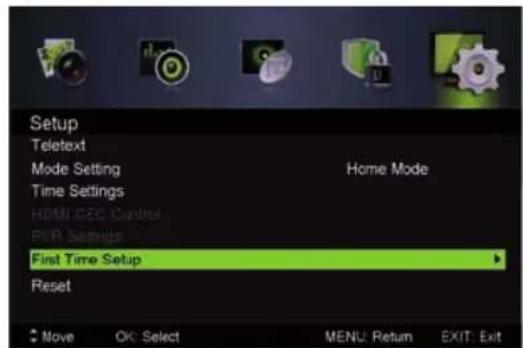

5.5 Setup Menu

Press MENU button to display the main menu.

Press button select SETUP in the main menu, then press ENTER / to enter.

1. Press / button to select the option that you want to adjust in the SETUP menu.
2. Press Enter/ button to adjust.
3. After finishing your adjustment, press MENU button to save and return back to the previous menu.

OSD Language

Press / button to select OSD Language, then press / button to select.

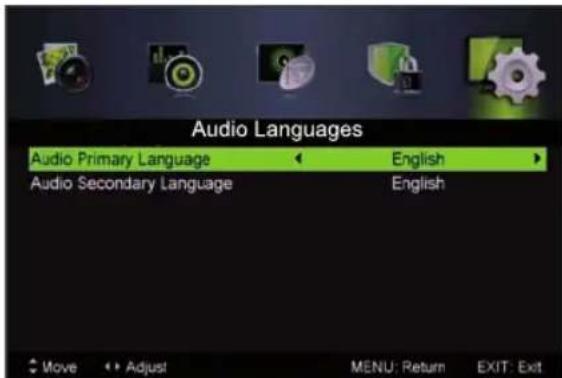

Audio Languages

Press / button to select Audio Languages, then press Enter button to enter sub-menu.

Press / / /> button to select the Audio Primary Language and Audio Secondary Language.

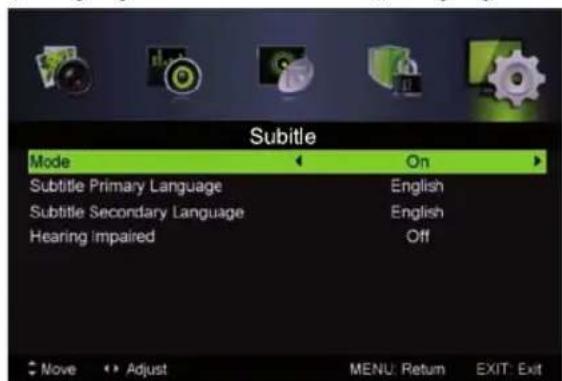

Subtitle

Press / button to select Subtitle, then press Enter button to enter sub-menu.

Mode

Press / button to select Mode, then press / button to select On or Off.

Press / / / button to select the Subtitle Primary Language and Subtitle Secondary Language.

Hearing Impaired

Press / button to select Hearing Impaired, then press button to select On or Off.

L D COLOR TV

Main Menu Operation

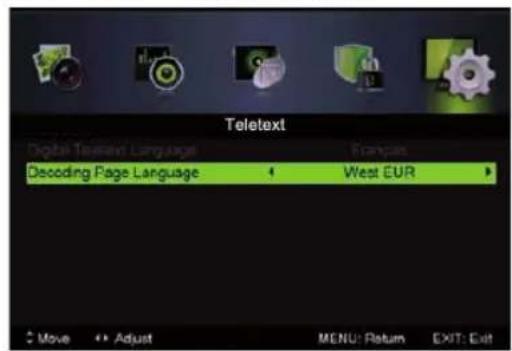

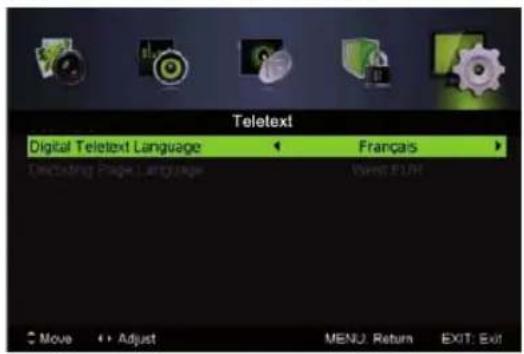

Teletext

Adjust Teletext settings. Only available under DTV and ATV source. Press / button to select Teletext, then press Enter / button to enter sub-menu.

Under DTV source, press / button to select Digital Teletext Language. Under ATV source, press / button to select Decoding Page Language.

Mode Setting

Press / button to select Mode Setting.

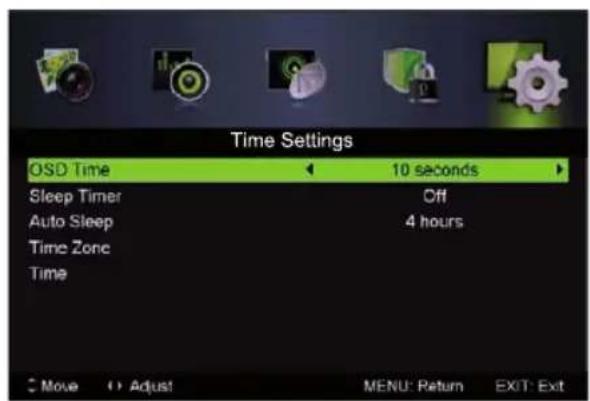

Time Settings

Press / ▲ button to select Time Settings, then press Enter / button to enter sub-menu.

Main Menu Operation

OSD Time

Press / button to select OSD Time, press / button to select.

(Available OSD Time: Off, 10 seconds, 20 seconds, 30 seconds, 60 seconds).

Sleep Timer

Set a timer for the TV to turn off automatically.

Press / button to select Sleep Timer, press / button to select.

(Available Sleep Timer: Off, 5 mins, 15 mins, 30 mins, 60 mins, 90 mins, 120 mins, 240 mins).

Auto Sleep

Press / button to select Auto Sleep, press / button to select Off, 3 hours, 4 hours or 5 hours.

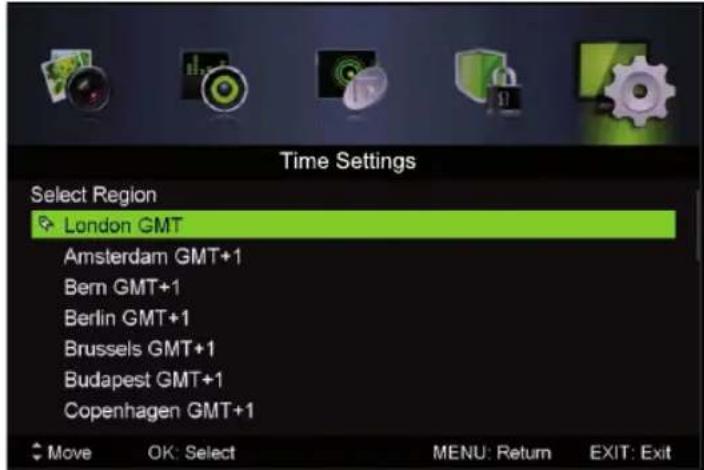

Time Zone

Select your time zone.

Press / ▲ button to select Time Zone, then press Enter / button to enter sub-menu.

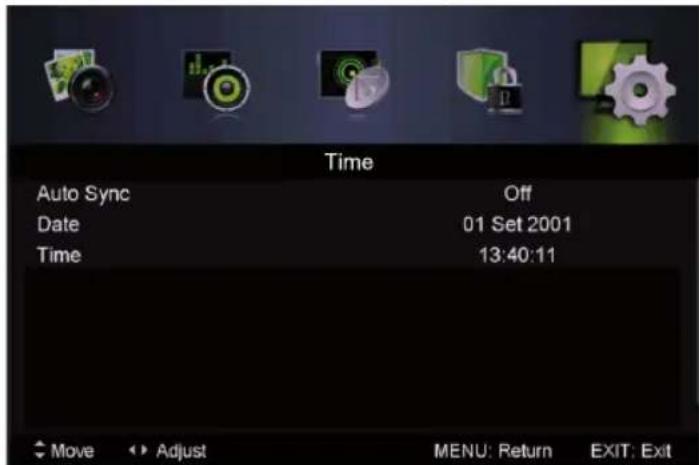

Time

Press / button to select Time, then press Enter / button to enter sub-menu.

Set Auto Sync to Off, Power On/Off Timer to On, then you can set the time manually.

Note: In the case of loss of power, the clock setting will be lost.

L D COLOR TV

Main Menu Operation

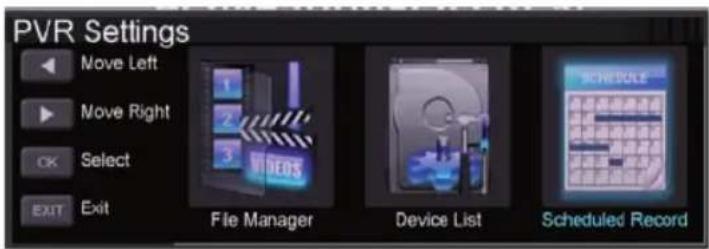

PVR Settings

Press / button to select PVR Settings, then press Enter button to enter sub-menu. It will check the USB.

First Time Setup

Press / button to select First time Setup, then press Enter button to enter.

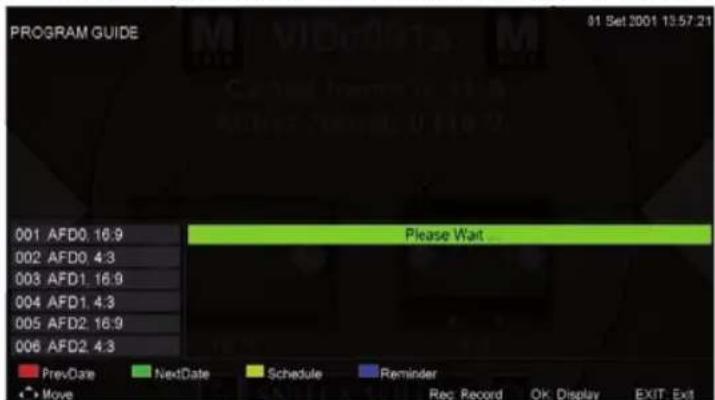

EPG Menu

Press the button EPG in the remote control to enter EPG menu.

Note:

Broadcaster of the channel is responsible for EPG information.

Main Menu Operation

ATV/HDMI/AV/YPbPr/PC

1. PC Setting in PICTURE menu is availiable in PC Input only. Screen Mode in PICTURE menu and HDMI CEC Control in SETUP menu is availiable in HDMI Input only.
2. Audio Description and Sound Type in AUDIO menu is invalid.
3. SCART/HDMI/AV/YPbPr/PC mode has no CHANNEL menu.
4. Parental Rating and Channel Locks in PARENTAL RATING menu is invalid for SCART/HDMI/ AV/YPbPr mode. Parental Rating is invalid for ATV mode. PC mode has no PARENTAL RATING menu.
5. Audio Languages, Subtitle and PVR Settings in SETUP option are invalid for SCART/ AV/PC mode. Audio Languages, Subtitle, Teletext PVR Settings in SETUP option are invalid for HDMI/ YPbPr mode.

L D COLOR TV

USB Operation

6. USB Operation

Note: Before operating USB menu, Plug in USB device, then press INPUT button to set the Input Source to USB.

Press / button to select USB in the Source menu, then press Enter button to enter.

Press / button to select the option you want to adjust in the main USB menu, then press Enter button to enter.

6.1 Photo

Press / button to select PHOTO in the main menu, then press Enter button to enter. Press / button to select drive disk you want to watch, then press Enter button to enter. Press / button to select return option to back to the previous menu.

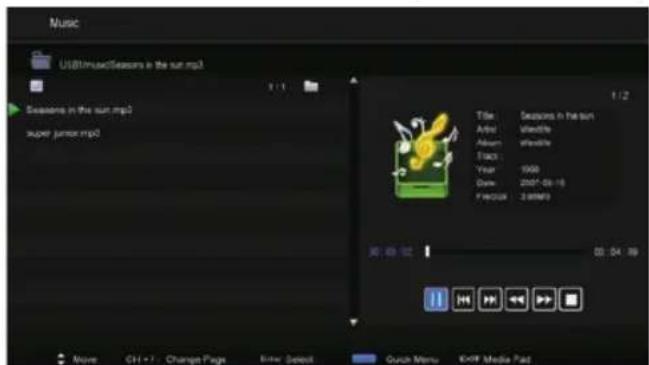

6.2 Musfc

Press button to select MUSIC in the main menu, then press Enter button to enter. Press / button to select drive disk you want to watch, then press Enter button to enter. Press / button to select return option to back to the previous menu.

L D COLOR TV

USB Operation

When highlighting the option you select, the fi le information will appear on the right.

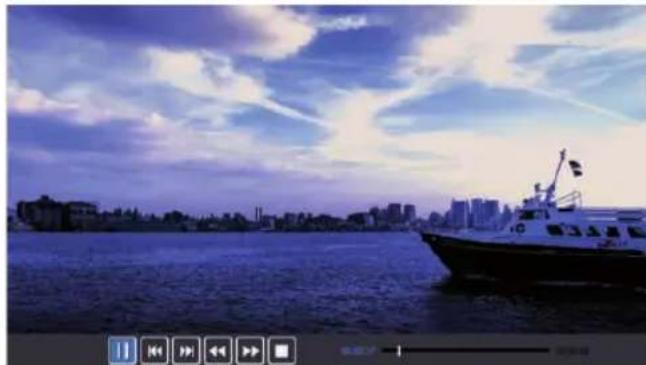

6.3 MOVIE

Press button to select MOVIE in the main menu, then press Enter button to enter. Press / button to select drive disk you want to watch, then press Enter button to enter. Press / button to select return option to back to the previous menu.

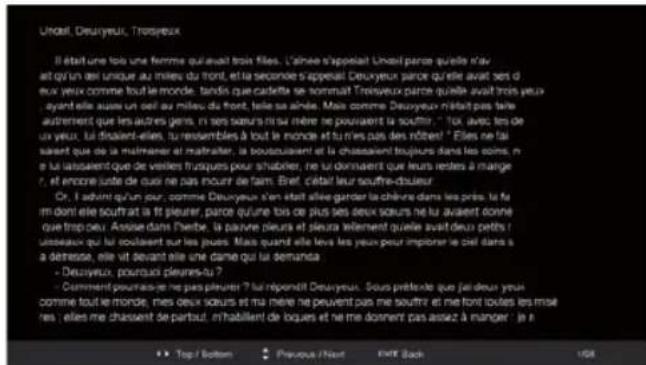

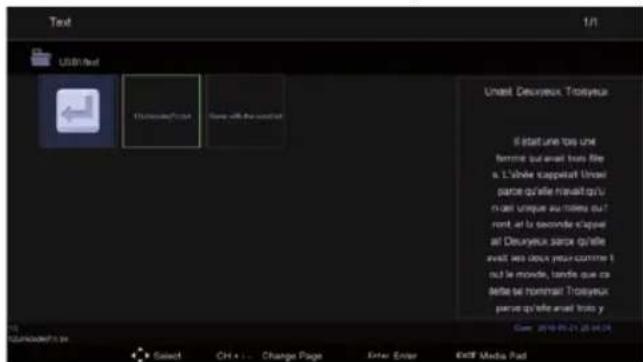

6.4 Text

Press / button to select TEXT in the main menu, then press Enter button to enter. Press / button to select drive disk you want to watch, then press Enter button to enter. Press / button to select return option to back to the previous menu.

When highlighting the option you select, the fi le information will appear on the right.

L D COLOR TV

1. Technical Specification

Product Model	LED-3213
Screen Size	32" diagonal
Aspect Ratio	16:9
Power Supply	AC 100-240V~, 50/60 Hz
Power Consumption	60W
TV System	PAL B/G D/K I, SECAM B/G D/K,DVB-T
Audio Output Power (Internal)	8Wx2
Input Terminal	Antenna Input (D Type) x 1 + VGA (D-Sub 15 Pin Type) x 1 + HDMI Connector x 3 + Y Pb Pr Input Terminals x 1 + Video Input RCA Terminals x 1 + Stereo Audio x 1 RCA,x1(Phone ack for VGA)+ USB x 1 + Cl x 1 + SCART x 1 +
Output Terminal	+1 set of Earphone jack. +1 set of Coaxial output.
Outline Size (LxWxH)(mm) without stand with stand	740x59x441 740x149x491
Working Temperature	0℃~40℃
Working Humidity	20% ~ 80% Non-condensing

Note: The specifications shown above may change without notice for quality improvement.

8. Supported Signal Modes

A. VGA Mode

Resolution	Horizontal Frequency (KHz)	Vertical Frequency (Hz)
640 x 480 31.50 60	0.00
800 x 600	35.16 56.25
	37.90 60.00
1024 x 768 48.40	60.00

Note: You're suggested to use the VGA connecting cord of not more than 5 meters to ensure the appropriate picture quality.

B. YPbPr Mode

Resolution	Horizontal Frequency (KHz)	Vertical Frequency (Hz)
480i 15.734 59.94
480p(720x480) 31.468 59.94
576i 15.625 50.00
576p(720x576) 31.25 50.00
720p(1280x720)	37.50 50.00
	45.00 60.00
1080i	28.13 50.00
	33.75 60.00
1080P(1920x1080)	67.50 60.00
	56.25 50.00

C. HDMI Mode

Resolution	Horizontal Frequency (KHz)	Vertical Frequency (Hz)
480p	31.468	59.94
576p	31.25	50.00
720P	45.00	60.00
1080i	33.75	60.00
1080P(1920x1080)	67.50	60.00

• When the signal received by the Display exceeds the allowed range, a warning message will appear on the screen.
• You can confirm the input signal format onscreen.

9. Simple Troubleshooting

If the display fails or the performance changes dramatically, check the Display in accordance with the following instructions. Remember to check the peripherals to pinpoint the source of the failure.

Symptom Solution
Power cannot be turned on.(Power indicator does not light.)	-Check that both ends of the power cable are plugged into the socket appropriately and the wall socket is operational.
No Input Signal message appears.	-Check that the signal line is connected properly. -Check that the power of the relevant peripherals is turned on. -Check that the Input option that has been selected matches with the input signal.
The remote control does not function properly.	-Check the batteries are not drained.(Use new batteries.) -Check that the remote control is within the operating range. -Check that the remote control is pointed to the remote control window on the display. -Check that there are no obstacles between the remote control and the remote control window.
Flashing spots or stripes appear on the screen.	-Check that there are no emission (Car, HV cable or Neon lamp) or other possible interference sources.
Image colour or quality deteriorates.	-Check that all the video settings are adjusted appropriately, such as brightness, contrast, colour etc. -For more information about video settings, refer to OSD Functions in Chapter 2.
Screen position and size are incorrect.	-Check that the screen position and size is adjusted appropriately.
Image or colour is incorrect.	-Check that the signal line is connected properly. -When connecting to a PC, you can change the resolution of the PC to acquire the correct image. The discrepancy of the PC output signal may affect the display of the image.
Display warning message.	-Check that the input signal line is properly fixed. -Select the correct input signal. -For more information, refer to Supported Signal Modes in Chapter 4.

10. Service and support

For information: www.lenco.com

For support: http://lencosupport.zendesk.com

Lenco helpdesk:

Germany 0900-1520530 (Local charges)

The Netherlands 0900-23553626 (Local charges + 1ct p/min)

Belgium 02-6200115 (Local charges)

France 03-81484280 (Local charges)

The helpdesk is accessible from Monday till Friday from 9 AM till 6 PM. When contacting Lenco, you will always be asked for the model and serial number of your product. The serial number can be found on the back of the device. Please write down the serial number below:

Model:LED-3213

Serial number:

Lenco offers service and warranty in accordance to European law, which means that in case of repairs (both during and after the warranty period) you should contact your local dealer.

Important note: It is not possible to send products that need repairs to Lenco directly.

Important note: If this unit is opened or accessed by a non-official service center in any way, the warranty expires.

This device is not suitable for professional use. In case of professional use, all warranty obligations of the manufacturer will be voided.

11.WEE

This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries. In so doing, you will help to conserve natural resources and improve standards of environmental protection in treatment and disposal of electrical waste (Waste Electrical and Electronic Equipment Directive).

12. CE

CE Products with the CE marking comply with the EMC Directive (2004/108/EC) and the Low Voltage Directive (2006/95/EC) issued by the Commission of the European Community.

All rights reserved

Bedienungsanleitung

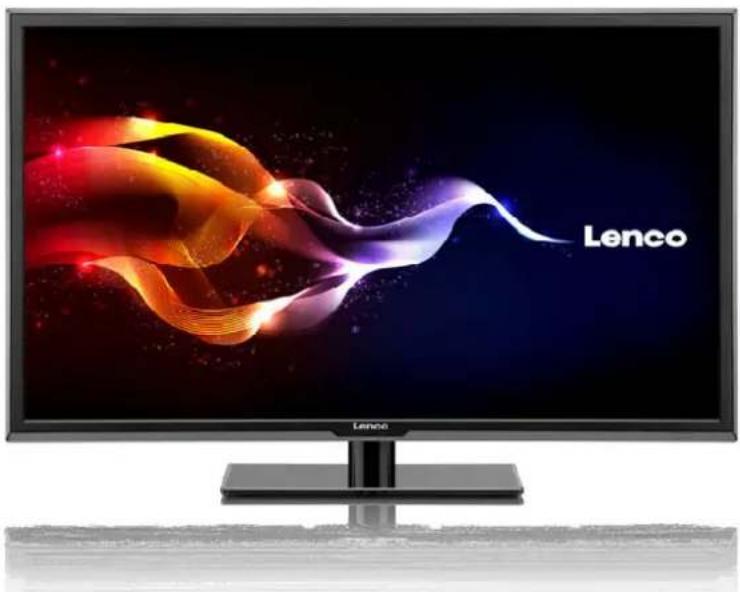

LED-FARBFERNSEHER

Modell:LED-3213

Hochton/Tiefton/Balance

VOORZORGSGMAATREGELEN

Tunertype (Tuner Type)

Druk op emlucht (Air) of kabel (Cable) te selecteren.

Helderheid/Contrast/Scherpte/Verzadiging/Tint (Brightness/Contrast/ Sharpness/Saturation/Hue)

Treble/Bass/Balans (Treble/Bass/Balance)

Equalizer (EQ Setting)

Tunertype (Tuner Type)

Tunertype is antennae

Tunertype is kabel

Land (Country)

Scantype (Scan Type)

Frequentie (Frequency)

Tunertype is antenna

Tunertype is kabel

Network-ID (Network ID)

Druk op om Network ID te selecteren: Auto of voer digitale nummers in.

Frequentie (Frequency)

Druk op om de frequentie te selecteren: Auto of voer digitale nummers in. Symbolrate (Symbol Rate)

Audiotalen (Audio Languages)

Teletekst (Teletext)

PVR-installingen (PVR Settings)

Aigus/Graves/Balance

Agudos/Graves/Balance
