I INSTRUCTION BOOK DYH 9913NA1X Heat Pump Tumble Dryer

Environmental Issues

Controls and Indicators

Selecting the Programme

Delay Start Function

Cancelling and Resetting the Programme

Cleaning and Routine Maintenance

Technical Specifications

Drain Hose Kit: Fitting Instructions

Please check that the following items are

delivered with the appliance:

Ⴠ Instruction manual

Remove the machine from

its packaging close to the

final location of the

1- Cut carefully around the

base of the packaging and

2- Remove the polythene

sleeve and lift the dryer off

the polystyrene base.

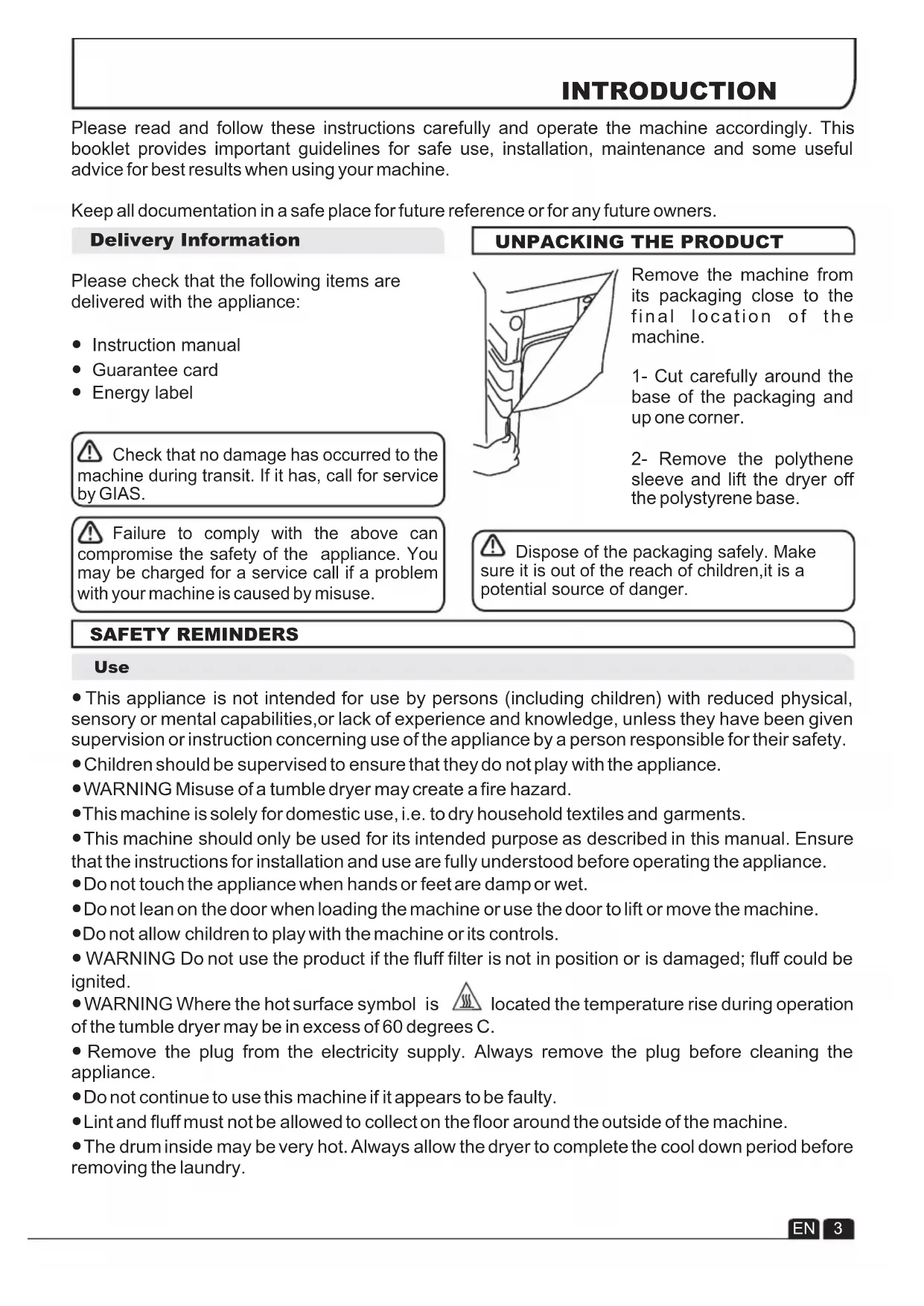

Please read and follow these instructions carefully and operate the machine accordingly. This

booklet provides important guidelines for safe use, installation, maintenance and some useful

advice for best results when using your machine.

Keep all documentation in a safe place for future reference or for any future owners.

Delivery Information

UNPACKING THE PRODUCT Dispose of the packaging safely. Make

sure it is out of the reach of children,it is a

potential source of danger.

Failure to comply with the above can

compromise the safety of the appliance. You

may be charged for a service call if a problem

with your machine is caused by misuse.

Check that no damage has occurred to the

machine during transit. If it has, call for service

Ⴠ Thisapplianceisnotintendedforusebypersonsincludingchildrenwith reduced physical,

sensory or mental capabilities,or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their safety.

Ⴠ Childrenshouldbesupervisedtoensurethattheydonotplaywiththeappliance

ჀWARNING Misuseofatumbledryermaycreateafirehazard

that the instructions for installation and use are fully understood before operating the appliance.

Ⴠ WARNING Wherethehotsurfacesymbol is locatedthetemperaturerise during operation

of the tumble dryer may be in excess of 60 degrees C.

Ⴠ Remove the plug from the electricity supply Always remove the plug before cleaning the

ჀThedruminsidemaybeveryhotAlwaysallowthedryertocompletethecool down period before

removing the laundry.SAFETY REMINDERS EN 4

This appliance is marked according

to the European directive

2002/96/EC on Waste Electrical and

Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly,

you will help prevent potential negative

consequences for the environment and human

health, which could otherwise be caused by

inappropriate waste handling of this product.

The symbol on the product indicates that this

product may not be treated as household waste.

Instead it shall be handed over to the applicable

collection point for the recycling of electrical and

electronic equipment.

For more detailed information about treatment,

recovery and recycling of this product, please

contact your local city office,your household

waste disposal service or the shop where you

purchased the product. Disposal must be

carried out in accordance with local

environmental regulations for waste disposal.

European Directive 2002/96/EC

Ⴠ To ensure the continued safe and efficient

operation of this appliance we recommend that

any servicing or repairs are only carried out by

an authorised GIAS service engineer.

If the appliance is not running properly or

breaks down, switch it off and disconnect the

plug from the socket. Consult GIAS Service for

Ⴠ All packaging materials used are

environmentally-friendly and recyclable.

Please help dispose of the packaging via

environmentally-friendly means. Your local

council will be able to give you details of current

Ⴠ To ensure safety when disposing of an old

tumble dryer disconnect the mains plug from

the socket, cut the mains power cable and

destroy this together with the plug. To prevent

children shutting themselves in the machine

break the door hinges or the door lock.

Environmental Issues

Ⴠ Check that the product has no visible signs of

damage before use. If damaged do not use and

please call GIAS Service.

Ⴠ Do not use adapters, multiple connectors

Ⴠ Never install the dryer against curtains and be

sure to prevent items from falling or collecting

Ⴠ The appliance must not be installed behind a

lockable door, a sliding door or a door with a

hinge on the opposite side to that of the tumble

ჀWARNING Foamrubbermaterialscanunder

certain circumstances when heated become

ignited by spontaneous combustion. Items

such as foam rubber (latex foam), shower caps,

waterproof textiles, rubber backed articles and

clothes or pillows fitted with foam rubber pads

MUST NOT be dried in the tumble dryer.

Ⴠ Alwaysrefertothelaundrycarelabelsfor

directionsonsuitabilityfordrying

Clothes that are dripping wet should not be put

garments are contaminated with the glass

ჀItemsthathavebeensoiledwith substances

such as cooking oil acetone alcohol petrol,

kerosene, spot removers, turpentine, waxes

and wax removers should be washed in hot

water with an extra amount of detergent before

being dried in the tumble dryer.

Ⴠ Fabricsoftenersorsimilar

The LaundryAir Outlets in the Base EN 5

INSTALLATION Tumble dryers are supplied to operate at a

voltage of 220-240V, 50 Hz single phase. Check

that the supply circuit is rated to at least 6A.

Electricity can be extremely dangerous.

This appliance must be earthed.

The socket outlet and the plug on the

appliance must be of the same type.

Do not use multiple adapters and/or

The plug should be accessible for

disconnection after the appliance has been

CE Appliance complies with European Directive

2004/108/EC, 2006/95/EC and subsequent

Electrical Requirements

If the mains cord on this appliance is

damaged, it must be replaced by a special cord

which is ONLY obtainable from the spares

service. It must be installed by a competent

You may be charged for a service call if a

problem with your machine is caused by

incorrect installation.

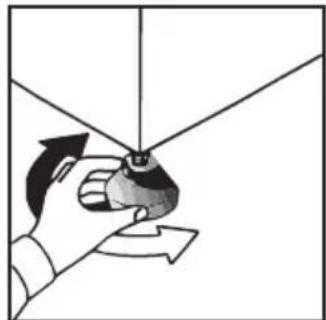

Once the machine is in

place the feet should

be adjusted to ensure

Adequate ventilation must be provided in the

room where the tumble dryer is located to

prevent gases from appliances burning other

fuels, including open fires, being drawn into the

room during operation of the tumble dryer.

Ⴠ Exhaust air must not be discharged into a

flue which is used for exhausting fumes from

appliances burning gas or other fuels.

Ⴠ Check regularly that the air flowing through

the dryer is not restricted.

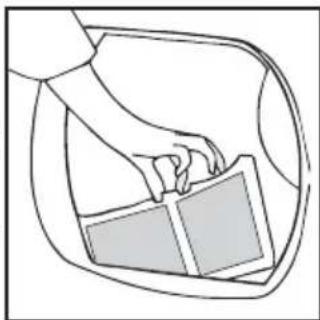

Ⴠ Check the fluff filter after use, and clean, if

ჀThe inlet and outlets should be kept free from

obstructions. To ensure adequate ventilation

the space between the bottom of the machine

and the floor must not be obstructed. There

should be a gap of at least 12mm between the

machine and any obstructions.

Ⴠ Prevent items from falling or collecting behind

the dryer as these may obstruct the air inlet and

Ⴠ NEVER install the dryer up against curtains.

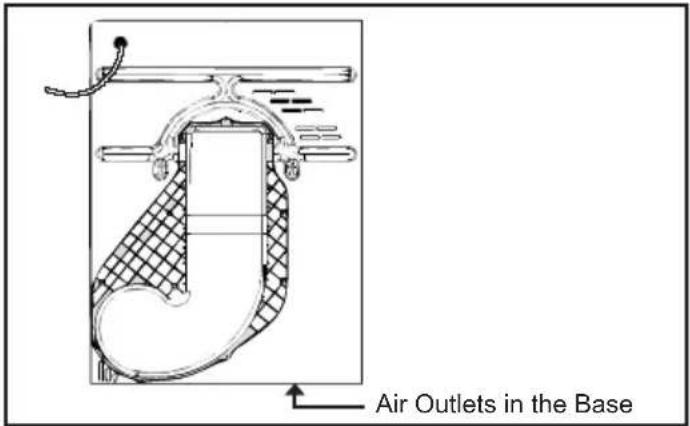

VENTILATION Do not plug the machine in and switch it

on at the mains until the installation is

completed.For your safety, this dryer must be

correctly installed. If there is any doubt about

installation, call GIAS Service for advice.

Important: During transport ensure that the

dryer is in an upright position, if it's necessary

you can only flip in the side shown;

Caution: If the product is in different side, wait

at least 4 hours before switching on so that the

oil can flow back into the compressor. Failure to

do this could result in damage to the

DRAIN HOSE : FITTING INSTRUCTIONS WARNING! Switch off and remove the

tumble dryer plug from the electricity supply

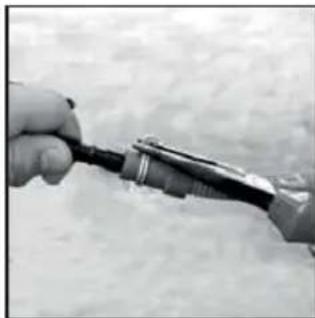

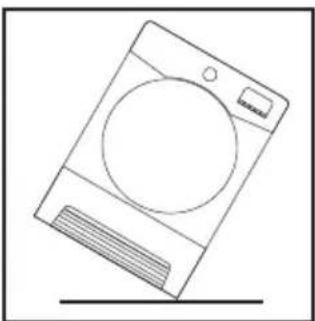

before carrying out any work. Fit the Hose as Follows: 1.Flip the machine

slowly to the right side.

pipe is situated at the

right-hand side of the

picture). A grey hose

connects to the bridge

at the left hand side of

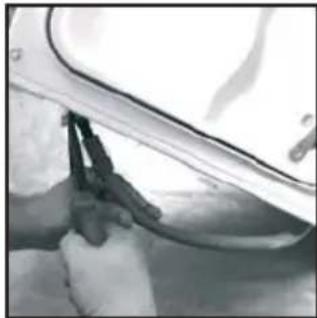

pliers, remove the pipe

retaining clip from the

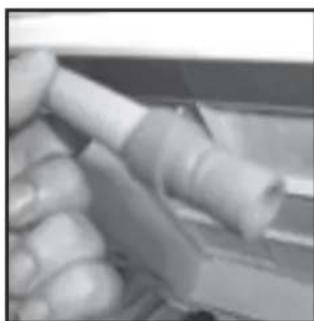

3. Pull the hose off the

(using the connector

supplied), to the hose

5. Once the machine is

bottom to ensure that

the new hose does not

kink when pushing the

drain hose to the waste

Caution: If the product

is in different side, wait

at least 4 hours before

switching on so that the

oil can flow back into

Failure to do this could

result in damage to the

To avoid emptying the water container after

each drying cycle, the water can be

discharged directly to a waste water drain pipe

(the same drainage system as household

sinks). Water Bye-Laws prohibit connection to

a surface water drain. The waste water drain

pipe should be located adjacent to the tumble

The kit consists of:1 hose and 1 tap.

Do not install the product in a room where

there is a risk of frost occurring. At temperature

around freezing point the product may not be

able to operate properly: there is a risk of

damage if the water is allowed to freeze in the

hydraulic circuit (valves, hoses, pumps).

For a better product performance the ambient

room temperature must be between +2°C and

DRAIN HOSE KIT: FITTING INSTRUCTIONSEN 7

PREPARING THE LOAD Before using the tumble dryer for the first time:ჀPlease read this instruction book thoroughly.ჀRemove all items packed inside drum.Ⴠ Wipe the inside of the drum and door with a damp cloth to remove any dust which may have settled in transit.Make sure that the laundry you are going to dry is suitable for drying in a tumble dryer, as shown by the care symbols on each item.Check that all fastenings are closed and that pockets are empty. Turn the articles inside out. Place clothes loosely in the drum to make sure that they don't get tangled. Clothes Preparation

Ⴠ Synthetics Max. 4 kg

Maximum Drying Weight Do not overload the drum, large items when wet can exceed the maximum admissible clothes load (for example: sleeping bags, duvets). Sort the Load as Follows

ჀBycaresymbols 7KHVHFDQEHIRXQGRQWKHFROODURULQVLGHVHDP Suitable for tumble drying. Tumble drying at high temperature. Tumble drying at low temperature only. Do not tumble dry.,IWKHLWHPGRHVQRWKDYHDFDUHODEHOLWPXVWEHDVVXPHGWKDWLWLVQRWVXLWDEOHIRUWXPEOHGU\LQJ ჀByamountandthickness :KHQHYHU WKH ORDG LV ELJJHU WKDQ WKH GU\HUFDSDFLW\ VHSDUDWH FORWKHV DFFRUGLQJ WRWKLFNQHVVHJWRZHOVIURPWKLQXQGHUZHDU ჀBytypeoffabric Cottons/linen: 7RZHOVFRWWRQMHUVH\EHGDQGWDEOHOLQHQSynthetics:Blouses, shirts, overalls, etc. made of polyester or polyamid, as well as for cot-ton/synthetic mixes. ჀBydryinglevel 6RUWLQWRLURQGU\FXSERDUGGU\HWF)RUGHOLFDWHDUWLFOHVSUHVVWKHEXWWRQWRVHOHFWORZGU\LQJWHPSHUDWXUHWoollens, silk, delicate fabrics, nylon stockings, delicate embroidery, fabrics with metallic dec-orations, garments with PVC or leather trimmings, training shoes, bulky items such as sleeping bags, etc. Do Not Tumble Dry: IMPORTANT: Do not dry articles which have been treated with a dry cleaning fluid or rubber clothes (danger of fire or explosion).Only put into the tumble dryer laundry which has been thoroughly wrung or spin-dried. The drier the laundry the shorter the drying time thus saving electricity.ALWAYSჀ Try to dry the maximum weight of laundry, this will save time and electricity.Ⴠ Check that the filter is clean before every drying cycle.NEVERჀ Exceed the maximum weight, this will waste time and electricity.Ⴠ Put dripping wet items into the tumble dryer, this may damage the appliance. Energy Saving During the last 15 minutes (roughly) the load is always tumbled in cool airEN 8

Time selection : To modify the drying timing of required programme; it works only with certain

Delay start :To delay the start of the drying cycle and to dry your laundry when electricity costs

less (please see dedicated section).

Delicate fabrics (symbol): When pulled, this indicator turns off and this new one turns on;

with this special function, the drying temperature is lower to better protect your delicate clothes.

Anti-crease : Select the anti-crease function at the end of drying cycle. The drum keeps

moving at regular phases to refresh the laundry.

Cool down : This indicator turns on during the final cool phase of the cycle.

Start/Pause : To start the programme required or to pause the cycle.

Automatic programmes: Depending on desired programme, specific indicators turn on (please

see “programme list”); ECO indicator turns on when you select a low consumption programme.

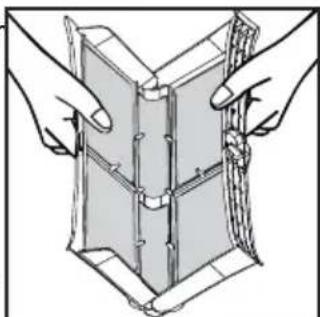

Filter care : When on, please clean the filters.

Full water tank : When on, please empty the water tank.

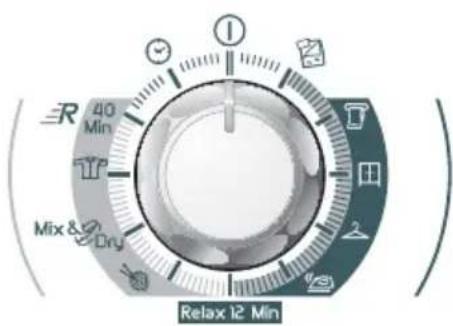

You can turn it in both directions to choose the required programme.

This machine has a special Sensor Dry to help you choose your

preferred programme simply by selecting the level of dryness

For small loads and pre-dried clothes, please use a Timing

programme and select “Delicate fabrics” button to lower the

temperature inside the drum.

If the Sensor does not detect any item, this Dryer will work for only

10 minutes before starting the Cool down phase.

If the load is too big or too wet, this Dryer will automatically work for

3 hours and then start the Cool down phase.

At the end of each programme, there is always the Cool Down

phase: it is a cool-air refresh phase of around 15 minutes.

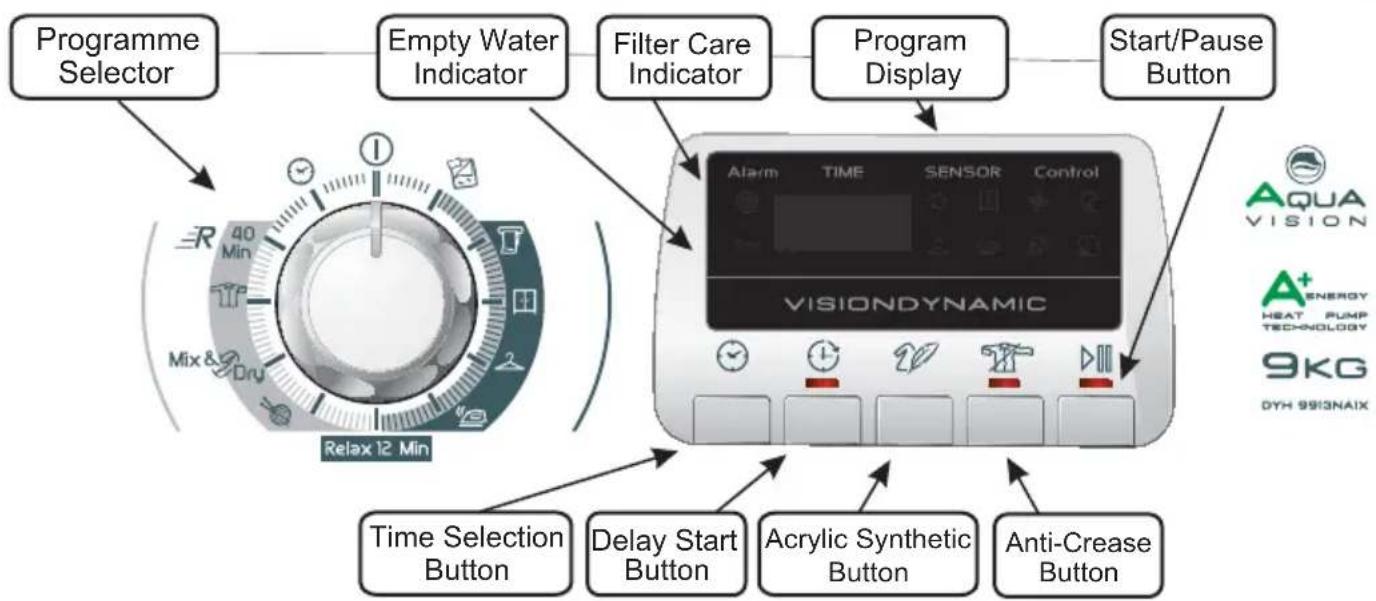

CONTROLS AND INDICATORS Control Panel and Indicator Lights

IDEAL FOR Leave clothes slightly damp to allow easier ironing. Time: around 1h and

Clothes you don’t need to iron, but just hang after the drying cycle. Time:

around 2h and 30 min.

Clothes you want to fold and store without ironing, e.g. shirts in mixed

fabrics, socks, baby clothes. Time: around 2h and 45 min.

Clothes you want completely dryed, e.g. towels, bathrobes, table clothes

or sheet. Time: around 3h.

To soften your woollen clothes or to simply refresh them after a long time in

the wardrobe. Time: 12 min.

To dry mixed cotton and synthetic clothes: save time and no need to

separate the washing and dry them in different cycles. Time: around 2h

To dry shirts both cotton and synthetic fabrics. Time: 1h for 2kg of synthetic

shirts (around 10 shirts); 1h and 20 min for 3 kg of cotton shirts (around 10

If you want to choose drying times, from 30 to 180 minutes. By selecting “20

min” you choose a “cool programme”, ideal to refresh clothes and to remove

For single duvet or quilted jackets; please do not dry double or bigger duvet.

Please do not dry damaged items as filling may block filters and air duct. This

programme works for around 2h, but time can change according to

dimensions, density of load or washing spin speed. At the end of the cycle,

the duvet is ready for use; if some parts are slightly wet, please shake the

load and re-start the programme for few minutes. If you need to dry a duvet

filled with synthetic fabrics, please push “Delicate fabrics” button.

Clothes you just need to refresh. Good for items of clothing which have been

left prior to ironing or if they have been dried outside or on radiators. This

programme has a specific Anti-Crease function that relaxes fibres and

makes easier ironing. Time: 9 min + 3 min cool down.

For dry, refreshed and ready to dress clothes in onyl 40 minutes. Sensor

system keeps under control the temperature to have always the best result.

Max 2 kg.DOOR and FILTER EN 10

Pull on handle to open

WARNING! When the tumble dryer is in

use the drum and door may be VERY HOT.

Never stop a tumble dryer before the end of the

drying cycle unless all items are quickly

removed and spread out so that the heat is

Filter Care Indicator

Lights when the filter

main filter in the door

filters allocated in the

bottom of the dryer,If

drying check that the

filter is not clogged.

DO NOT USE WATER TO CLEAN THE FILTER.

IMPORTANT: To maintain the efficiency of the

dryer check that the fluff filter is clean before

Do not operate the dryer without the filters.

Clogged filters can increase the drying time

and cause damage which may result in

expensive repair costs.

2. Open filter as shown.

3.Gently remove lint

using a soft brush or

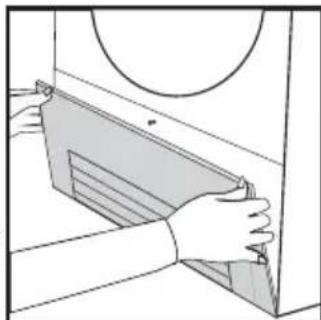

2. Turn the two locking

levers anti-clockwise

and pull out the front

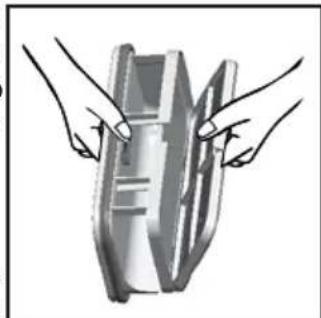

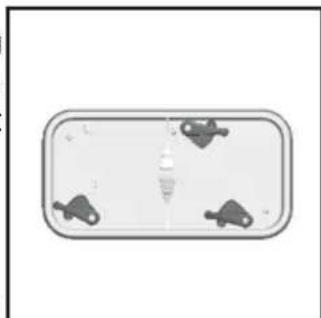

3. Gently remove the

filter frame and clean

any dust or fluff with a

cloth from the filter. Do

not use water to clean

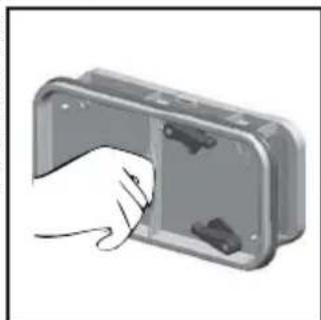

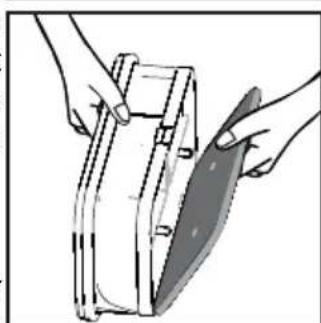

4. Remove the sponge

gently from its place

sponge by holding it

turning it so to remove

5. Refit the front cover

ensuring it is in the

indicated by the arrow)

and pushed firmly into

levers by turning them

6. Refit the kickplate.WATER CONTAINER EN 11

1. Open the door and load the drum with

laundry. Ensure that garments do not hinder

closure of the door.

2. Gently close the door pushing it slowly until

you hear the door 'click' shut.

3. Turn the Programme Selector dial to select

the required drying programme (see

4. If drying synthetics, acrylics or delicate items,

press the button to reduce the heat level.

The indicator will light up when the machine is in

low heat setting. To deselect in the first few

minutes of the programme, press the button

, after this time reset the machine to change the

5. Press the button. The dryer will start

automatically and the indicator above the

button will be continuously lit.

6. If the door is opened during the programme to

check the laundry, it is necessary to press to

recommence drying after the door has been

7. When the cycle is nearing completion the

machine will enter the cool down phase, the

clothes will be tumbled in cool air allowing the

8. Following the completion of the cycle the

drum will rotate intermittently to minimize

creasing. This will continue until the machine is

switched OFF or the door is opened.

Do not open the door during the automatic

programs in order to obtain a proper drying.

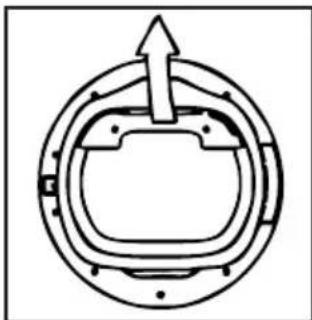

1. Gently pull out the

water container will

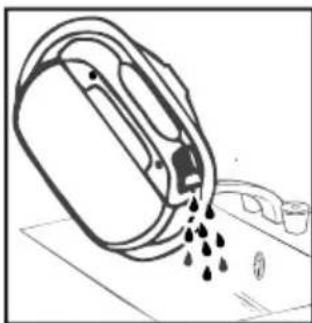

container to empty the

water out through the

back as shown; first

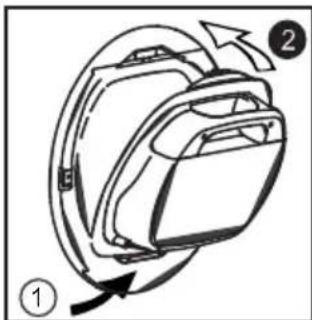

insert the base of the

container into position

as shown then gentle

NOTE: If you have the

near to the dryer you

for the water collected

in the container of the

dryer. This means that

The water removed from the laundry during

the drying cycle is collected in a container

inside the door of the dryer. When the

container is full the indicator on the control

panel will light, and the container MUST be

emptied. However, we recommend that the

container is emptied after each drying cycle.

NOTE: Very little water will collect during the

first few cycles of a new machine as an internal

reservoir is filled first.

To Remove the Container

WARNING! If you open the door mid cycle,

before the cool-down cycle has completed,the

handle may be hot. Please use extreme caution

when attempting to empty the water reservoir

during the cycle.IMPORTANT Always switch off and remove

the plug from the electricity supply before

cleaning this appliance.

For electrical data refer to the rating label on

the front of the dryer cabinet (with the door

Technical Specifications

Energy Label Band A +

Ⴠ Clean the filter and empty the water

container after every drying cycle.

Ⴠ Regularly clean the filters.

Ⴠ After each period of use, wipe the inside of

the drum and leave the door open for a while to

allow circulation of air to dry it.

Ⴠ Wipe the outside of the machine and the

door with a soft cloth.

Ⴠ DO NOT use abrasive pads or cleaning

Ⴠ To prevent the door sticking or the build up

of fluff clean the inner door and gasket with a

damp cloth after every drying cycle.

WARNING! The Drum, door and load may

CLEANING AND ROUTINE MAINTENANCE Delay Start Function

The Delay Start Function allows the user to delay the start of the drying cycle by 1 to 24 hours.

When the function is first selected the display will show a delay of 1 hour, subsequent presses of

the button will increase the delay with 1 hour steps.

To commence the programme press and the appliance will complete the drying cycle at the

end of this time. The indicator light will flash to indicate that the start delay is in progress.

Cancelling and Resetting the Programme

To cancel a programme press the button for 3 seconds. In the TIME CONTROL display 0:00

Light will flash to indicate that it has been reset.

TROUBLESHOOTING What Might be the Cause of...

Defects you can remedy yourself

Before calling GIAS Service for technical

advice please run through the following

checklist. A charge will be made if the machine

is found to be working or has been installed

incorrectly or used incorrectly.

If the problem persists after completing the

recommended checks, please call GIAS Service, they may be able to assist you over the

Time display to end could change during

drying cycle. The time to end is

continuously checked during the drying

cycle and the time is adjusted to give the

best estimation time. The displayed time

may increase or decrease during the cycle

Drying time is too long/clothes are not dry

Ⴠ Have you selected the correct drying

Ⴠ Were the clothes too wet? Were the clothes

thoroughly wrung or spindried?

Ⴠ Does the filter need cleaning?

Ⴠ Is the dryer overloaded?

Ⴠ Has the option been selected from a

The dryer does not operate…

Ⴠ Is there a working electricity supply to the

dryer? Check using another appliance such as

Ⴠ Is the plug properly connected to the mains

Ⴠ Is there a power failure?

Ⴠ Has the fuse blown?

Ⴠ Is the door fully closed?

Ⴠ Is the dryer switched on, both at the mains

supply and at the machine?

Ⴠ Has the drying time or the programme been

Ⴠ Has the machine been switched on again after

CUSTOMER SERVICE Spares

Should there still be a problem with your dryer

after completing all the recommended checks,

please call GIAS Service for advice.

They may be able to assist you over the

telephone or arrange for a suitable appointment

for an engineer to call under the terms of your

guarantee. However, a charge may be made if

any of the following applies to your machine:

Ⴠ Is found to be in working order.

Ⴠ Has not been installed in accordance with the

installation instructions.

Ⴠ Has been used incorrectly.

Always use genuine spares, available direct

For service and repairs call your local GIAS Service engineer.

ჀSwitch off the dryer and contact GIAS Service

The Indicator is on…

ჀDoes the filter need cleaning?

The Indicator is on…

ჀDoes the water container need emptying?

The manufacturer declines all responsibility

in the event of any printing mistakes in this

booklet. The manufacturer also reserves the

right to make appropriate modifications to

its products without changing the essential

characteristics.Introduktion

minutters cool down.

SIKKERHETSPÅMINNELSER

justeres for å sikre at

(Waste Electrical and Electronic

Ⴠ 9DUPLVWD DLQD WXRWWHHQ VRYHOWXYXXV

ne soit pas encrassé.

Be careful we understand this sentence

refers to cleaning the Filter and not cleaning

European Directive 2002/96/EC

Program traja pribl. 3 ure.

bombaža (pribl. 10 srajc).

For dry, refreshed and ready to dress clothes in onyl 40 minutes. Sensor

system keeps under control the temperature to have always the best result.

149 Air Outlets in the Base 5

WARNING! If you open the door mid cycle,

before the cool-down cycle has completed,the

handle may be hot. Please use extreme caution

when attempting to empty the water reservoir

during the cycle.BELANGRIJK Voor u dit apparaat

schoonmaakt, moet u het altijd uitschakelen en
