USER MANUAL NB4540 LG

Please read this manual carefully before operating your set and retain it for future reference.

NB5540 (NB5540, S54A1-D)

NB5540D (NB5540D, S54A1-D)

NB4540 (NB4540, S44A1-D)

NB4540D (NB4540D, S44A1-D)

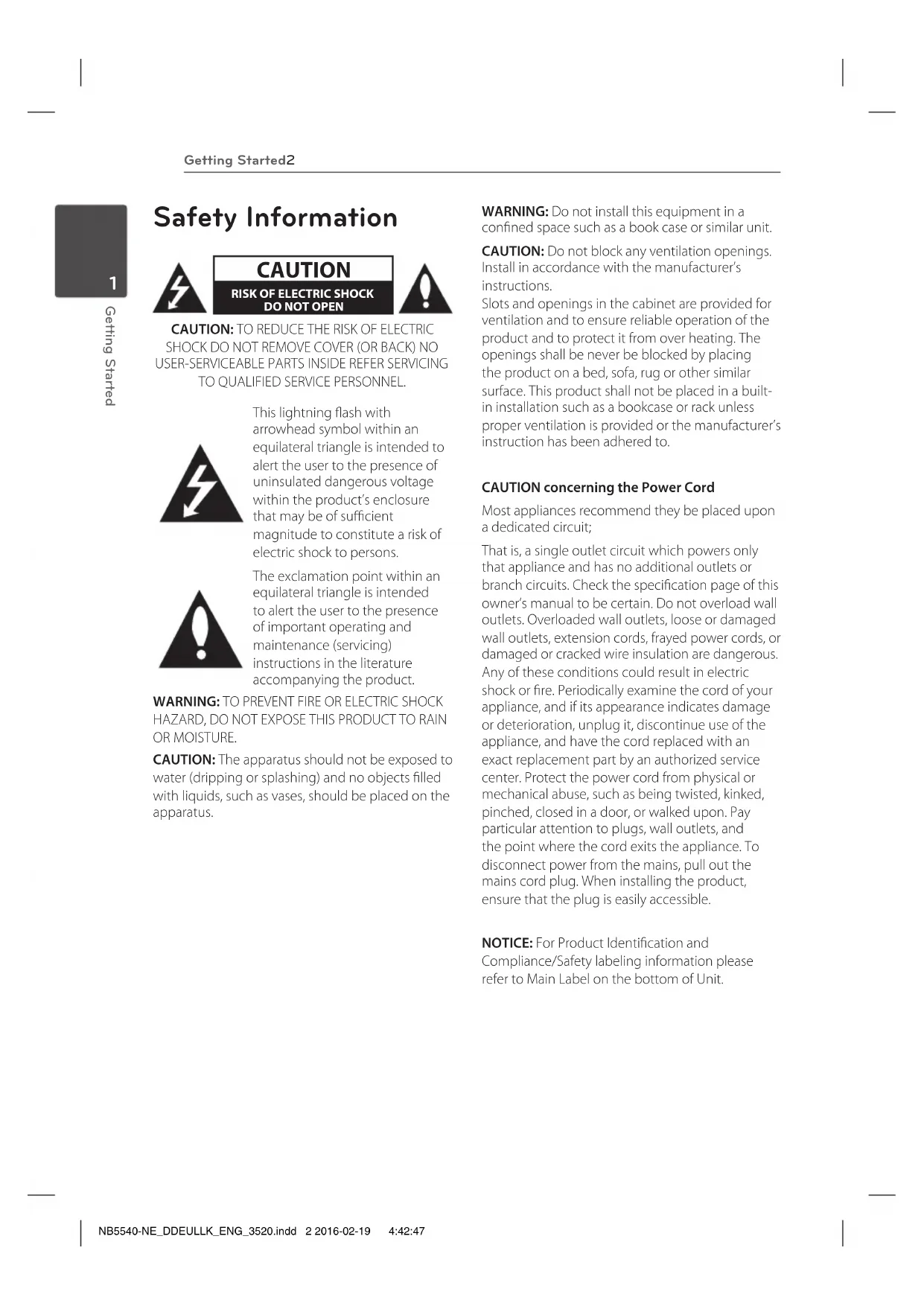

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK) NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, should be placed on the apparatus.

WARNING: Do not install this equipment in a confined space such as a book case or similar unit.

CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating. The openings shall be never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instruction has been adhered to.

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit;

That is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service center. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. To disconnect power from the mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

NOTICE: For Product Identification and Compliance/Safety labeling information please refer to Main Label on the bottom of Unit.

This device is equipped with a portable battery or accumulator.

Safety way to remove the battery from the equipment: Remove the old battery or battery pack, follow the steps in reverse order than the assembly. To prevent contamination of the environment and bring on possible threat to human and animal health, the old battery or the battery put it in the appropriate container at designated collection points. Do not dispose of batteries or battery together with other waste. It is recommended that you use local, free reimbursement systems batteries and accumulators. The battery should not be exposed to excessive heat such as sunshine, fire or the like.

Disposal of your old appliance

1. This crossed-out wheeled bin symbol indicates that waste electrical and electronic products (WEEE) should be disposed of separately from the municipal waste stream.
2. Old electrical products can contain hazardous substances so correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. Your old appliance may contain reusable parts that could be used to repair other products, and other valuable materials that can be recycled to conserve limited resources.
3. You can take your appliance either to the shop where you purchased the product, or contact your local government waste office for details of your nearest authorised WEEE collection point. For the most up to date information for your country please see www.lg.com/global/recycling

Disposal of waste batteries/accumulators

Pb

1. This symbol may be combined with chemical symbols for mercury (Hg), cadmium (Cd) or lead (Pb) if the battery contains more than 0.0005% of mercury, 0.002% of cadmium or 0.004% of lead.
2. All batteries/accumulators should be disposed separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old batteries/accumulators will help to prevent potential negative consequences for the environment, animal and human health.
4. For more detailed information about disposal of your old batteries/ accumulators, please contact your city office, waste disposal service or the shop where you purchased the product. (http://www.lg.com/global/sustainability/environment/take-back-recycling/global-network-europe)

Europe Notice

CE 0197

LG Electronics hereby declares that this/these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

Please contact to the following address for obtaining a copy of the DoC (Declaration of Conformity).

Contact office for compliance of this product:

LG Electronics Inc.

EU Representative, Krijgsman 1, 1186 DM Amstelveen, The Netherlands

- Please note that this is NOT a Customer Service contact point. For Customer Service Information, see Warranty Card or contact the dealer that you purchased this product.

Indoor Use Only

RF Radiation Exposure Statement

This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body.

Table of Contents

1 Getting Started

2 Safety Information
6 Unique features
6 Introduction
6 - Symbols used in this manual
6 Accessories
7 Remote control
8 Front panel
8 Rear panel
9 Installing the sound bar
10 Mounting the main unit on a wall

2 Connecting

12 Connecting the AC adapter
12 Wireless subwoofer connection
13 Connecting to your TV
13 - Using an OPTICAL cable
14 - Using an HDMI cable
14 - Enjoy rich sound broadcast of the channel with the sound bar
14 - What is SIMPLINK?
15 - ARC (Audio Return Channel) function
15 - Additional information for HDMI
16 Optional equipment connection
16 - HDMI connection
17 - PORT. (Portable) IN connection
17 - OPTICAL IN connection
17 - USB connection
18 - Compatible USB devices
18 - USB device requirement
18 - Playable file

3 Operating

19 Basic operations
19 - USB operation
19 Other operations
19 - DRC (Dynamic Range Control)
19 - AV Sync
19 - Turn off the sound temporarily
19 - Displaying file and input source
20 - AUTO POWER On/Off
20 - Auto power down
20 - Sleep timer setting
21 - LG Sound Sync
22 Using Bluetooth technology
23 - Listening to music stored on the Bluetooth devices
24 Sound adjustment
24 - Setting sound effect
24 - Adjust volume level automatically
24 - Adjust the woofer level settings
25 Controlling a TV with the supplied remote control
25 - Setting up the remote to control your TV

4 Troubleshooting

26 Troubleshooting

5 Appendix

27 Specifications
29 Trademarks and licenses
29 Maintenance
29 - Handling the unit

Unique features

Auto power down

This unit will turn off by itself for energy saving consumption.

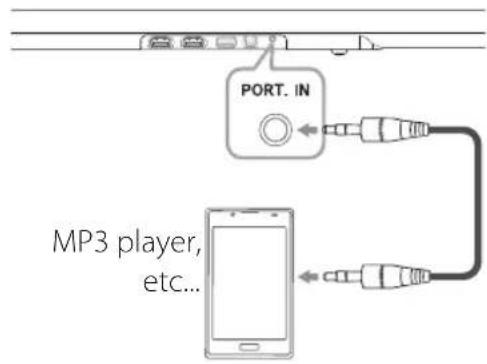

Portable In

Listen to music from your portable device. (MP3, Notebook, etc)

Speaker (easy) setup

Listen to sound from TV, DVD or Digital device with vivid 4.1 ch mode.

LG Sound Sync

Controls volume level of this unit by the remote control of your LG TV that is compatible with LG Sound Sync.

Introduction

Symbols used in this manual

Note

Indicates special notes and operating features.

Caution

Indicates cautions for preventing possible damages from abuse.

Accessories

Please check and identify the supplied accessories. Designs and specifications of the accessories are subject to change without prior notice.

Line drawing of a classic electronic device with no text or symbols

Simple line drawing of two cylindrical batteries with one partially open and marked with a plus sign (no text or symbols)

Remote control (1) Batteries (2)

Line drawing of a rectangular electronic device with a coiled cable and connector (no text or symbols)

Coiled cable with two connectors, no text or symbols visible

AC adapter (1) Power cord (1)

Simple line drawing of two nail tips (no text or symbols)

Diagram of two USB connectors with a central connector (no text or symbols)

Cable ties for arranging cables (2)
USB gender changer (1)

Technical line drawing of a mechanical bracket or clamp (no text or symbols)

Simple line drawing of a rectangular box with two internal compartments (no text or symbols)

Wall bracket (2) Wall bracket install guide (1)

Simple line drawing of a screw with a star-shaped head (no text or symbols)

Screws (2)

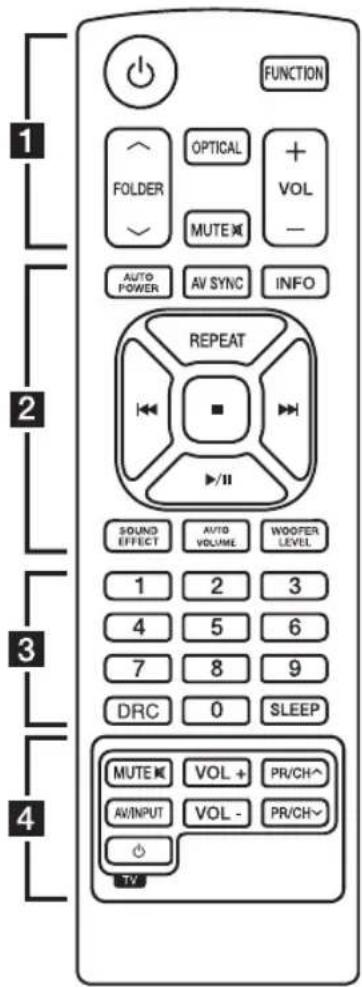

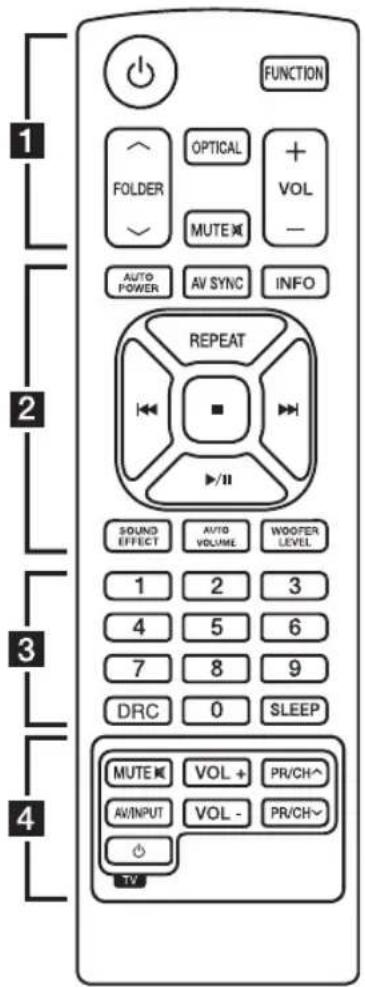

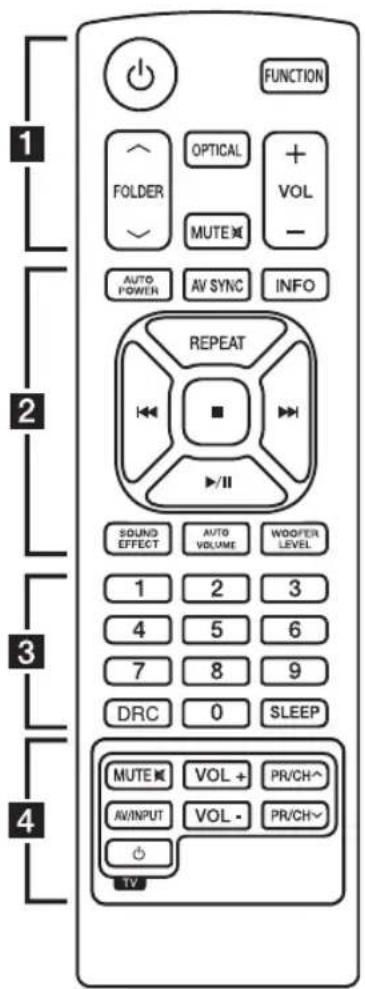

Remote control

FUNCTION FOLDER OPTICAL + VOL MUTE - AUTO POWER AV SYNC INFO REPEAT SOUND EFFECT AUTO VOLUME WOOFER LEVEL 1 2 3 4 5 6 7 8 9 DRC 0 SLEEP MUTE VOL + PR/CH~ AV/INPUT VOL - PR/CH~ TV

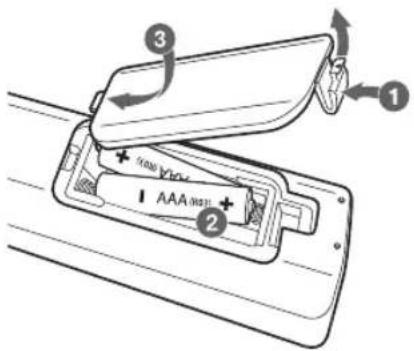

Replacement of battery

Remove the battery cover on the rear of the Remote Control, and insert two (size AAA) batteries with +nd ratched correctly.

Diagram of a battery pack with labeled components and directional arrows indicating movement or assembly.

1

(Power): Switches the unit ON or OFF.

FUNCTION : Selects the function and the input source.

FOLDER ∧ / V : Searches a folder on USB device.

OPTICAL: Changes input source to OPTICAL directly.

MUTE ☒: Mutes the sound.

VOL + /— : Adjusts speaker volume.

2

AUTO POWER : Turns on or off AUTO POWER function. (Refer to the page 20.)

AV SYNC : Synchronizes the audio and video.

INFO : Displays the information of a file or an input source.

REPEAT : Listen to your files repeatedly or randomly.

◀◀/▶▶ (Skip/Search):

- Skips Fast backward or Forward.

- Searches for a section within a file.

■ (Stop): Stops playback.

▶/Ⅱ (Play/Pause): Starts playback. / Pauses playback.

SOUND EFFECT : Selects a sound effect mode.

AUTO VOLUME : Turns on and off the AUTO VOLUME mode.

WOOFER LEVEL : Sets the sound level of woofer.

3

0 to 9 numerical buttons: Selects a file directly.

DRC : Turns on or off DRC function.

SLEEP: Sets the system to turn off automatically at a specified time.

4

TV Control buttons : See page 25.

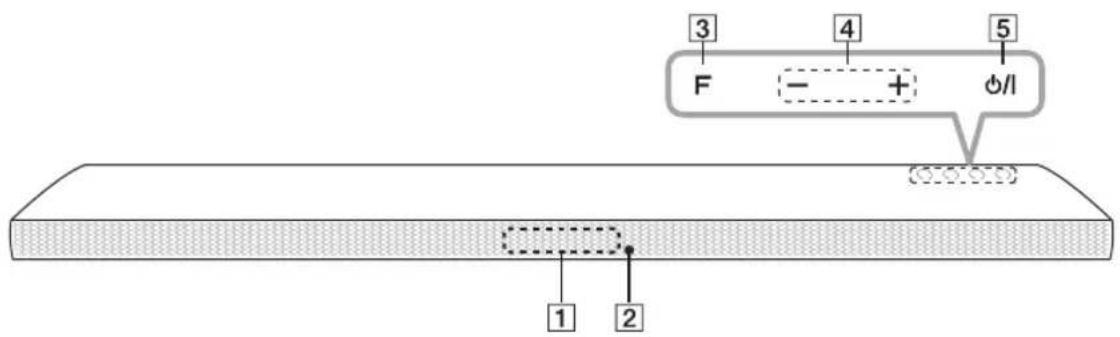

Front panel

3 4 5 F - + Ø/1 1 2

1 Display window
2 Remote sensor

Standby LED

It lights up in red on standby mode.

3 F (Function)
Selects the function and input source.
4 - / + (Volume)
Adjusts volume level.
5 ⏻/1 (Standby/On)

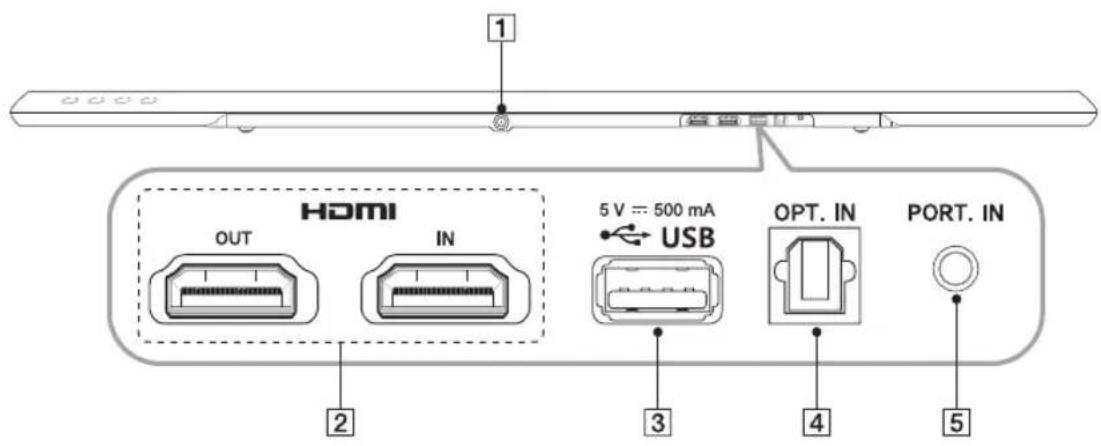

Rear panel

1 O O O O HDMI OUT IN 5 V = 500 mA USB OPT. IN PORT. IN 2 3 4 5

1 DC. IN 25 V== 2 A
② HDMI IN / OUT : HDMI input / output
3 USB port

4 OPT. IN: Optical input
5 PORT. IN: Portable input

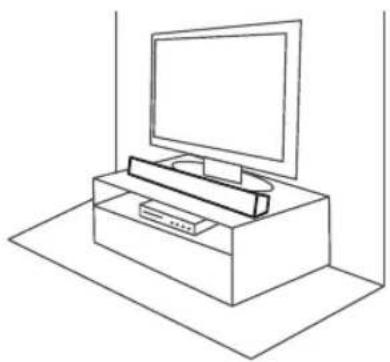

Installing the sound bar

You can hear the sound by connecting the unit to the other device: TV, Blu-ray disc player, DVD player, etc.

Place the unit in front of the TV and connect it to the device you want. (Refer to pp. 13 - 18.)

Line drawing of a simple TV setup with monitor, tower, and base (no text or symbols)

Caution

For best performance of wireless connection such as Bluetooth or wireless subwoofer, do not install the unit on Metallic furniture because wireless connection communicates through a module positioned on the bottom of the unit.

Mounting the main unit on a wall

You can mount the main unit on a wall.

Preparation materials

Unit Wall bracket install guide

Wall bracket

(Not supplied)

Note

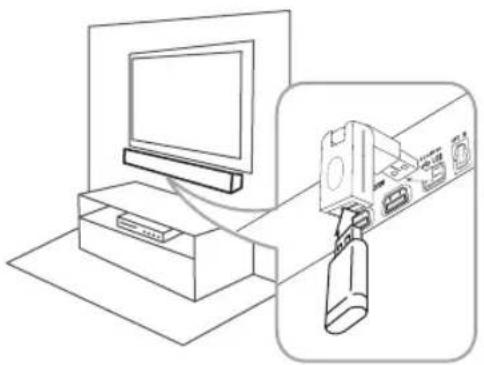

You should connect the supplied USB gender changer in advance of mounting the unit on the wall for using a USB connection.

Diagram of an electronic device showing ports and connectors (no text or symbols)

1. Match the TV's BOTTOM EDGE of Wall bracket install guide with the bottom of TV and attach to the position.

Simple line drawing of a rectangular TV mounted on a base, with no text or symbols present.

1. When you mount it on a wall (concrete), use the wall plugs. You should drill some holes. A guide sheet (Wall bracket install guide) is supplied to drill. Use the sheet to check the point to drill.

WALL BRACKET INSTALL GUIDE

1. Remove the Wall bracket install guide.

2. Fix the brackets with screws (A) as shown in the illustration below.

Pure technical line drawing of two mechanical components with dashed alignment lines, no text or symbols present

Note

Screws (A) and Wall Plugs are not supplied for mounting the unit. We recommend the Hilti (HUD-1 6 x 30) for the mounting.

1. Put the unit on the brackets to match screw holes on the bottom of the unit.

Diagram showing a curved arrow between two rectangular blocks, one above a blank screen (no text or symbols)

1. Fix the unit with the screws firmly.

Simple line drawing of a rectangular beam with two supports and a vertical support, no text or symbols present.

Note

To detach the unit, perform it in reverse order.

Caution

• Do not install this unit upside down. It can damage the parts of this unit or be the cause of personal injury.
• Do not hang onto the installed unit and avoid any impact to the unit.
• Secure the unit firmly to the wall so that it does not fall off. If the unit falls off, it may result in an injury or damage to the product.
• When the unit is installed on a wall, please make sure that a child does not pull any of connecting cables, as it may cause it to fall.

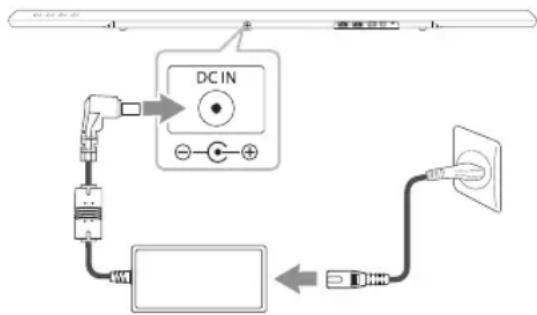

Connecting the AC adapter

1. Connect the supplied AC power cord to the AC adapter.
2. Connect the AC adapter cable to DC. IN adapter input.
3. Plug the AC power cord into an AC outlet.

Caution

Only use the AC adapter supplied with this device. Do not use a power supply from another device or manufacturer. Using any other power cable or power supply may cause damage to the device and void your warranty.

Wireless subwoofer connection

LED indicator of wireless subwoofer

LED Color Status
Yellow-green (Blink)	The connection is trying.
Yellow-green The connection is completed.
Red The wireless subwoofer is in standby mode or the connection is failed.
Off (No display)	The power cord of wireless subwoofer is disconnected.

Setting up the wireless subwoofer for the first time

1. Connect the power cord of the wireless subwoofer to the outlet.
2. Turn on the main unit: The main unit and wireless subwoofer will be automatically connected.

Manually pairing wireless subwoofer

When your connection is not completed, you can see the red LED or the blinking of yellow-green LED on the wireless subwoofer and the subwoofer does not make sound. To solve the problem, follow the below steps.

1. Adjust volume level of the main unit to minimum.
2. "VOL MIN" appears on the display window.
3. Press and hold MUTE (Mute) on the remote control for about 3 seconds.

4. "W RESET" appears on the display window briefly.

5. If the LED of the wireless subwoofer already blinks in yellow-green continually, you can skip this step.

Press and hold PAIRING on the back of the wireless subwoofer for more than 5 seconds.

• The LED of the wireless subwoofer lights up alternately in red and yellow-green.
• Disconnect the power cord of the main unit and the wireless subwoofer.
• Connect them again after the LED of the main unit and the wireless subwoofer is fully turned off.

The main unit and the wireless subwoofer will be paired automatically when you turn on the main unit.

- When the connection is completed, you can see the yellow-green LED on the subwoofer.

Note

• It takes a few seconds (and may take longer) for the main unit and the subwoofer to communicate with each other and make sounds.

• The closer the main unit and the subwoofer, the better sound quality. It is recommended to install the main unit and the subwoofer as close as possible (within 5 m) and avoid the cases below.

• There is a obstacle between the main unit and the subwoofer.

• There is a device using same frequency with this wireless connection such as a medical equipment, a microwave or a wireless LAN device.

Connecting to your TV

Please connect with this unit and TV using the optical digital cable or HDMI cable considering the state of the TV.

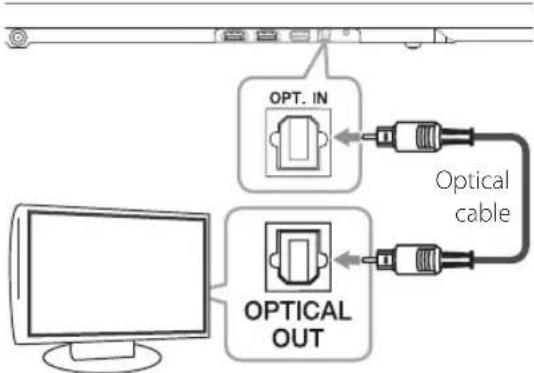

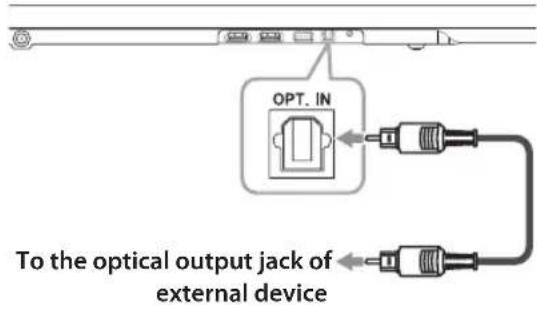

Using an OPTICAL cable

1. Connect the OPT. IN jack on the back of the unit to OPTICAL OUT jack on the TV using an OPTICAL cable.

1. Set the INPUT source to OPTICAL. Press repeatedly FUNCTION on the remote control or F on the unit until the function is selected.

To directly select the OPTICAL function, press OPTICAL on the remote control.

Note

You can enjoy the TV audio through the speakers of this unit. In the case of some TV models, you must select the external speaker option from the TV menu. (For details, reference your TV user manual.)

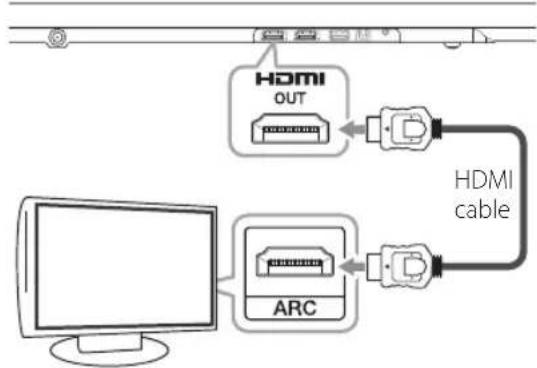

Using an HDMI cable

If you connect this unit to a TV that supports HDMI CEC and ARC (Audio Return Channel), you can enjoy the TV audio through the speakers of this unit without connecting the optical cable.

Note

• HDMI CEC (Consumer Electronics Control): Using a single remote control, you have the ability to operate CEC compatible devices (TV, Sound Bar, Blue-ray player, etc.)
• You can also enjoy extra functions such as USB / Bluetooth with FUNCTION on remote control or F on this unit. When you go back to live TV channel after using the extra functions (USB / Bluetooth) of this audio system, you should choose your preferred speaker on TV to enjoy the sound from this audio system again.

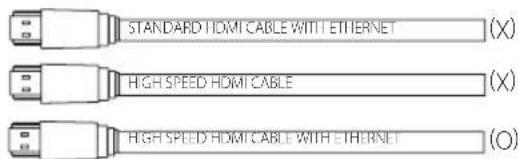

HDMI cable Checklist

Some HDMI cables do not support the ARC function, this can result in no sound output.

When connecting this unit to the TV, if there is no sound, there might be a problem with the HDMI cable. Therefore connect this unit to the TV and check whether the Type A, High speed HDMI™ Cable with Ether net.

STANDARD HDMI CABLE WITH ETHERNET (X) HIGH SPEED HDMI CABLE (X) HIGH SPEED HDMI CABLE WITH ETHERNET (O)

Enjoy rich sound broadcast of the channel with the sound bar

Connection through HDMI Cable

Your television must support the newest HDMI features (HDMI CEC ^1) / ARC (Audio Return Channel)) to fully enjoy the Live broadcasting channel with audio system through an HDMI cable. Unless your TV supports these HDMI features, the audio system should be connected through an OPTICAL cable.

1) HDMI CEC (High-Definition Multimedia Interface Consumer Electronics Control)

Consumer Electronics Control (CEC) is an HDMI feature designed to allow the user to command and control the CEC-enabled devices, that are connected through HDMI by using only one of their remote controls.

※ Trade names for CEC are SimpLink (LG), Anynet+ (Samsung), BRAVIA Sync (Sony), EasyLink (Philips), etc.

What is SIMPLINK?

SIMPLINK

Some functions of this unit are controlled by the TV's remote control when this unit and LG TV's with SIMPLINK are connected through HDMI connection.

Controllable functions by LG TV's remote control: Power on/off, volume up/down, etc.

Refer to the TV owner's manual for the details of SIMPLINK function.

LG TV's with SIMPLINK function has the logo as shown above.

Note

• Depending on the state of the unit, some SIMPLINK operation may differ from your purpose or not work.
• Depending on a TV or a player which is connected with this unit, SIMPLINK operation may differ from your purpose.

ARC (Audio Return Channel) function

The ARC function enables an HDMI capable TV to send the audio stream to HDMI OUT of the unit.

To use this function :

• Your TV must support the HDMI-CEC and ARC function and the HDMI-CEC and ARC must be set to On.
• The setting method of HDMI-CEC and ARC may differ depending on the TV. For details about ARC function, refer to your TV manual.
• You must use the HDMI cable (Type A, High Speed HDMI™ cable with Ethernet).
• You must connect the HDMI OUT on the unit with HDMI IN of the TV that supports ARC function using an HDMI cable.
• You can connect only one Sound bar to TV compatible with ARC.

Note

ARC function is automatically selected when ARC signal comes in from TV, no matter what kind of the function you are using.

Additional information for HDMI

• When you connect an HDMI or DVI compatible device make sure of the following:
• Try switching off the HDMI/DVI device and this player. Next, switch on the HDMI/DVI device and leave it for around 30 seconds, then switch on this player.
• The connected device's video input is set correctly for this unit.
• The connected device is compatible with 720 x 576p, 1280 x 720p, 1920 x 1080i or 1920 x 1080p video input.
• Not all HDCP-compatible HDMI or DVI devices will work with this player.
• The picture will not be displayed properly with non-HDCP device.

Note

• If a connected HDMI device does not accept the audio output of the player, the HDMI device's audio sound may be distorted or may not output.
• Changing the resolution when the connection has already been established may result in malfunctions. To solve the problem, turn off the player and then turn it on again.
• When the HDMI connection with HDCP is not verified, TV screen is changed to black screen. In this case, check the HDMI connection, or disconnect the HDMI cable.
• If there are noises or lines on the screen, please check the HDMI cable (length is generally limited to 4.5 m(15 ft).
• You cannot change the video resolution in the HDMI IN mode. Change the video resolution of the connected component.
• If the video output signal is abnormal when your personal computer is connected to HDMI IN jack, change the resolution of your personal computer to 576p, 720p, 1080i or 1080p.

Optional equipment connection

HDMI connection

For enjoying sound only

You can enjoy the sound from the external device you connect.

HDMI IN

To the Blu-ray disc player, DVD player, etc.

1. Connect HDMI IN jack on the back of the unit to HDMI OUT jack on the audio device such as Blu-ray disc player, DVD player, etc.
2. Set the INPUT source to HDMI IN. Press repeatedly FUNCTION on the remote control or F on the unit until the function is selected.

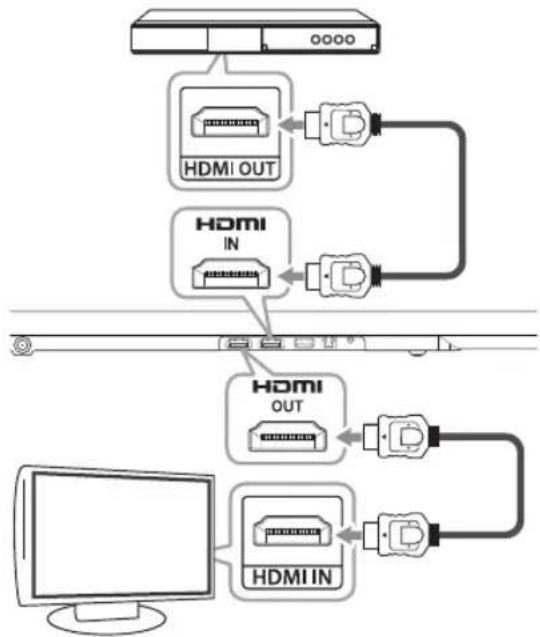

For enjoying both sound and picture

You can enjoy both sound and picture from the external device you connect.

1. Connect HDMI IN jack on the back of the unit to HDMI OUT jack on the external device such as Blu-ray disc player, DVD player, etc.
2. Connect HDMI OUT jack on the back of the unit to HDMI IN jack on the TV.
3. Set the INPUT source to HDMI IN. Press repeatedly FUNCTION on the remote control or F on the unit until the function is selected.

Note

• With the unit connected to external devices and TV as above illustration, TV will output picture and sound from external devices when the unit is turned off in HDMI IN mode.
• HDMI OUT jack is for TV connection. Even though PCM multi channel is inputted to the unit through an HDMI cable, the unit can only output 2 channel to TV.
• Audio sources without any transformation pass through this unit when this unit is turned off.

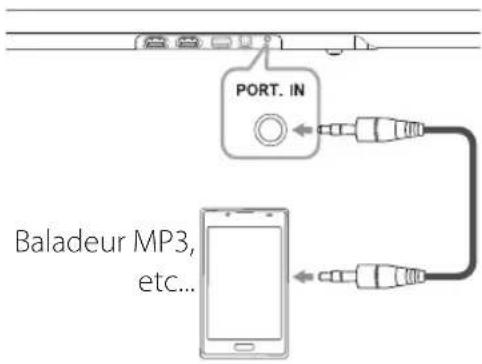

PORT. (Portable) IN connection

PORT. IN MP3 player, etc...

Listening to music from your portable player

The unit can be used to play the music from many types of portable players or external devices.

1. Connect the portable player to the PORT. (Portable) IN connector of the unit.
2. Turn the power on by pressing ⏻ (Power).
3. Select the PORTABLE function by pressing FUNCTION on the remote control or F on the unit until the function is selected.
4. Turn on the portable player or external device and start playing it.

OPTICAL IN connection

Connect an optical output jack of external devices to the OPT. IN jack.

OPT. IN To the optical output jack of external device

Speaker (easy) setup

Listens to sound from TV, DVD or Digital Device with 4.1 or 4 ch mode.

1. Connect the OPT. IN jack on the back of the unit to optical out jack of your TV (or digital device etc.)
2. Select the input source to OPTICAL by pressing FUNCTION on the remote control or F on the unit until the function is selected.

To directly select the OPTICAL function, press OPTICAL on the remote control.

1. Listen to sound with 4.1 or 4 ch speaker.

2. Press OPTICAL to exit from OPTICAL. Function is returned to previous one.

USB connection

Connect USB memory device to the USB port on the back of the unit.

25V → 500 mA USB

Connect a USB to the USB gender changer when the unit is mounted on the wall.

Line drawing of a computer setup with monitor, tower, and device (no text or symbols)

For more information of playing files on a USB, refer to the page 19.

Removing the USB Device from the unit.

1. Choose a different function/mode or press

■ twice in a row.

1. Remove the USB device from the unit.

Compatible USB devices

• MP3 Player : Flash type MP3 player.
• USB Flash Drive : Devices that support USB 1.1.
- The USB function of this unit does not support some USB devices.

playable file

File Extension Sampling Frequency Bitrate
MP3 within 32 to 48 kHz within 80 to 320 kbps
WMA within 32 to 48 kHz within 56 to 128 kbps
OGG within 32 to 48 kHz within 50 to 500 kbps
FLAC within 32 to 192 kHz within 500 to 5000 kbps
WAV within 32 to 48 kHz within 500 to 5000 kbps

• Maximum files : Under 999
- A protected file by DRM (Digital rights management) cannot be played on the unit.
• Video files in the USB storage device can not be played.
- Depending on the performance of your USB device, playback may not work well.

USB device requirement

• Devices which require additional program installation connected to a computer, are not supported.
- Do not extract the USB device while in operation.
- For a large capacity USB, it may take longer than a few minutes to be searched.
• To prevent data loss, back up all data.
- This unit is not supported when the total number of files is 1000 or more.
- The unit's USB Port cannot be connected to PC. The unit can not be used as a storage device.
- The exFAT file system is not supported on this unit.
- Depending on some devices, it may not available to recognize the followings on this unit.

• External HDD
• Card readers
• Locked devices
• Hard type USB devices
• USB hub
• Using USB extension cable
• iPhone/iPod/iPad
• Android device

Basic operations

USB operation

1. Connect the USB device to the USB port.
2. Select the USB function by pressing FUNCTION on the remote control or F on the unit until the function is selected.

To Do this
Stop Press	■.
Playback Press	►/II.
Pause	During playback, press ►/II.
Skip to the next/ previous file	During playback, press ►►I on the remote control to go to the next file.Playing less than 2 seconds, press ◀◀◀ on the remote control to go to the previous file.Playing after 3 seconds, press ◀◀◀ on the remote control to go to the beginning of the file.
Search for a section within a file	Press and hold ◀◀◀/►►Iduring playback and release it at the point you want to listen to. (except FLAC and OGG files)
Play repeatedly or randomly	Press REPEAT on the remote control repeatedly, the display will be changed in the following order, OFF → RPT 1 → RPT DIR (DIRECTORY) →RPT ALL →RANDOM.
Select a file directly	Press 0 to 9 numerical buttons on the remote control to go to the desired file directly.
Search a folder	Press FOLDER ∧/V on the remote control.
Resume playback	This unit memorizes a current song which is played before changing the function or turning off the unit.

Note

The resume point may be cleared when you pull out the power cord or removing the USB device from the unit.

Other operations

DRC (Dynamic Range Control)

Make the sound clear when the volume is turned down (Dolby Digital only). Set to [DRC ON] by using DRC.

AV Sync

When receiving audio signals from TV, sound and images may not be matched. In the case, this function can adjust the delay time.

1. Press AV SYNC.
2. Use ◀◀/▶◀ to scroll up and down through the delay amount, which you can set at anything between 0 and 300 ms.

Note

This function does not operate on USB function.

Turn off the sound temporarily

Press MUTEX to mute your unit.

You can mute your unit, for example, to answer the telephone, "MUTE" is displayed in the display window.

To cancel it, press MUTEN again on the remote control or change the volume level.

Displaying file and input source

You can display various information of the input source by pressing INFO.

USB : File information contained on a USB (MP3/WMA/OGG/FLAC/WAV)

OPTICAL/ARC/HDMI IN : Audio format, Audio channel

AUTO POWER On/Off

This function automatically turns on/off the unit when you turn on/off the TV or the external device (DVD Player, Blu-ray Disc Player, etc.) connected to this unit.

It is supported only on OPTICAL and LG TV functions.

This function turns on or off each time you press AUTO POWER.

Note

• After the unit is turned on by AUTO POWER function, it will be automatically turned off if there is no signal for a certain period of time from the TV connected by LG Sound Sync (Optical/Wireless).
• After the unit is turned on by AUTO POWER function, it will be automatically turned off if there is no signal for a certain period of time from the external device connected by an optical cable.
• If you turned off the unit directly, it cannot be turned on automatically by AUTO POWER function. However the unit can be turned on by AUTO POWER function when optical signal comes in after 5 seconds of no signal.
• Depending on the connected device, this function may not operate.
• In Bluetooth mode, this unit may be turned on by AUTO POWER setting depending on the connected Bluetooth device and then LG TV function is selected. In this case the unit will be turned off automatically and when you restart the unit it will be turned on by LG TV function.
• If you want to use AUTO POWER, SIMPLINK must be turned off. It takes for about 30 seconds to switch on or off SIMPLINK.
• AUTO POWER function does not operate when this unit is connected with TV through HDMI OUT jack because SIMPLINK signal takes priority over AUTO POWER function.

Auto power down

This unit will be off itself to save electric consumption in the case main unit is not connected to external device and is not used for 20 minutes.

So does this unit after six hours since Main unit has been connected to other device using analog input.

Sleep timer setting

Press SLEEP repeatedly to select the desired time period options (in minutes):

DISPLAY OFF (display window will turns off) -> DIMMER (display window will be darkened by half) -> Sleep timer value -> Display on

To check the remaining time, press SLEEP.

To cancel the sleep function, press SLEEP repeatedly until "10MIN" appears, and then press SLEEP once again while "10MIN" is displayed.

! Note

You can check the remaining time before the unit turns off. Press SLEEP the remaining time appears in the display window.

LG Sound Sync

Sound Sync Wireless

You can control some functions of this unit by your TV's remote control with LG Sound Sync. It is compatible with the LG TV that is supported LG Sound Sync. Make sure of the LG Sound Sync logo on your TV.

Controllable function by LG TV's remote control : Volume up/down, mute

Refer to the TV's instruction manual for the details of LG Sound Sync.

Make one of the following connections, depending on the capabilities of your equipment.

Note

• You can also use the remote control of this unit while using LG Sound Sync. If you use TV's remote control again, the unit synchronizes with the TV.
• When the connection fails, make sure of the condition of the TV and power.
• Make sure of the condition of this unit and the connection in the cases below when using LG Sound Sync.
• Turn off the unit.
• Changing the function to the others.
• Disconnecting the optical cable.
• Disconnecting the wireless connection caused by interference or a distance.
• The amount of time to turn off this unit is different depending on your TV when you set AUTO POWER function to ON.

With wired connection

1. Connect your LG TV to the unit by using an optical cable.

1. Set up LG Sound Sync (Optical) on the TV. Refer to the TV's instruction manual.
2. Turn on the unit by pressing ⏻ (Power) on the remote control.
3. Select OPTICAL function by using FUNCTION on the remote control or F on the unit until the function is selected.

You can see "LG OPT" on the display window if connecting normally between this unit and your TV.

With wireless connection

1. Turn on the unit by pressing ⏻ (Power) on the remote control.
2. Select LG TV function by using FUNCTION on the remote control or F on the unit until the function is selected.
3. Set up LG Sound Sync (Wireless) on the TV. Refer to the TV's instruction manual.

"PAIRED" appears on the display window for about 3 seconds and then you can see "LG TV" on the display window if connecting normally between this unit and your TV.

Note

If you turned off the unit directly by pressing ⏻ (Power), LG Sound Sync (Wireless) will be disconnected. To use this function again, you should reconnect the TV and the unit.

Using Bluetooth technology

About Bluetooth

Bluetooth is wireless communication technology for short range connection.

The sound may be interrupted when the connection interfered by the other electronic wave or you connect the bluetooth in the other rooms.

Connecting individual devices under Bluetooth ^® wireless technology does not incur any charges. A mobile phone with Bluetooth ^® wireless technology can be operated via the Cascade if the connection was made via Bluetooth ^® wireless technology.

Available Devices : Mobile phone, MP3, Laptop, PDA etc.

Bluetooth Profiles

In order to use Bluetooth ^® wireless technology, devices must be able to interpret certain profiles. This unit is compatible with following profile.

A2DP (Advanced Audio Distribution Profile)

Listening to music stored on the Bluetooth devices

Pairing your unit and Bluetooth device

Before you start the pairing procedure, make sure the Bluetooth feature is turned on in to your Bluetooth device. Refer to your Bluetooth device's user guide. Once a pairing operation is performed, it does not need to be performed again.

1. Select the Bluetooth function by using FUNCTION on the remote control or F on the unit until the function is selected. Appears "BT" and then "READY" in display window.
2. Operate the Bluetooth device and perform the pairing operation. When searching for this unit with the Bluetooth device, a list of the devices found may appear in the Bluetooth device display depending on the type of Bluetooth device. Your unit appears as "LG SOUND BAR (XX:XX)".

! Note

• XX:XX means the last four digits of BT address. For example, if your unit has a BT address such as 9C:02:98:4A:F7:08, you will see "LG SOUND BAR (F7:08)" on your Bluetooth device.

• Depending on the Bluetooth device type, some device have a different pairing way. Enter the PIN code (0000) as needed.

• When this unit is successfully connected with your Bluetooth device, "PAIRED" will appear on the display window.

• Listen to music. To play a music stored on your Bluetooth device, refer to your Bluetooth device's user guide.

Note

- When using Bluetooth® technology, you have to make a connection between the unit and the bluetooth device as close as possible and keep the distance. However it may not work well in the case below:

• There is a obstacle between the unit and the bluetooth device.
• There is a device using same frequency with Bluetooth® technology such as a medical equipment, a microwave or a wireless LAN device.

- This unit supports Bluetooth auto pairing. However it does not operate in the case below :

• When you restart this unit.

• When you return to Bluetooth function after using LG TV function.

• The sound may be interrupted when the connection interfered by the other electronic wave.

• You cannot control the Bluetooth device with this unit.
• Pairing is limited one Bluetooth device per one unit and multi-pairing is not supported.
• Depending on the type of the device, you may not be able to use the Bluetooth function.
• You can enjoy wireless system using phone, MP3, Notebook, etc..
• The more distance between the unit and the bluetooth device, the lower the sound quality becomes.
• Bluetooth connection will be disconnected when the unit is turned off or the bluetooth device gets far from the unit.
• When Bluetooth connection is disconnected, connect the bluetooth device to the unit again.
• When not connected the Bluetooth, "READY" appears on the display window.

Sound adjustment

Setting sound effect

This system has a number of pre-set surround sound fields. You can select a desired sound mode by using SOUND EFFECT.

The displayed items for the equalizer may be different depending on sound sources and effects.

On Display Description
STD (Standard)	You can enjoy the sound without equalizer effect.
NEWS	This program make voice sound clear, improving the quality of voice sound.
MUSIC	You can enjoy comfortable and natural sound.
CINEMA	You can enjoy more immersive and cinematic surround sound.
SPORTS	You can enjoy more dynamic sound.
BASS	The Bass is Bass Blast. During playback, reinforce the treble, bass and surround sound effect.

Note

• In some of surround modes, some speakers, there's no sound or low sound. It depends on the mode of surround and the source of audio, it is not defective.
• You may need to reset the surround mode, after switching the input, sometimes even after the sound file changed.
• Because this unit has an exclusive sound effect for FLAC file, the sound effect is fixed while playing FLAC file.

Adjust volume level automatically

This unit supports Auto volume function that automatically adjusts the volume level.

When the output sound is too loud or too low, press AUTO VOLUME on the remote control. So you can enjoy the sound with appropriate levels. To cancel this function, press the button again.

Adjust the woofer level settings

You can adjust the sound level of woofer from - 40 dB to 6 dB.

1. Press WOOFER LEVEL.
2. Press volt/— to adjust the sound level of the woofer.

Controlling a TV with the supplied remote control

You can control your TV using the buttons below.

MUTE VOL + PR/CH AWINPUT VOL - PR/CH

Button Operation
MUTE	Turn the TV's volume on or off.
AV/INPUT	Switch the TV's input source between the TV and other input sources.
(TV Power) Turn	the TV on or off.
VOL+/—	Adjust the volume of the TV.
PR/CH ∧ / V	Scan up or down through memorized channels.

Note

• Depending on the TV being connected, you may not be able to control your TV using some of the buttons.
• The remote control of the unit performs basic operation of your TV. Please use the TV's remote control to enjoy advanced operation of your TV.

Setting up the remote to control your TV

You can operate your TV with the supplied remote control.

If your TV is listed in the table below, set the appropriate manufacturer code.

1. While holding down ⏻ (TV Power) button, and press the manufacturer code for your TV with the numerical buttons (see the table below).

Manufacturer Code Number
LG 1(Default), 2
Zenith 1, 3, 4
GoldStar 1, 2
Samsung	6, 7
Sony	8, 9
Hitachi	4

1. Release the ⏻ (TV Power) button to complete setting.

Depending on your TV, some or all buttons may not function on the TV, even after entering the correct manufacturer code. When you replace the batteries of the remote, the code number you have set may be reset to the default setting. Set the appropriate code number again.

Troubleshooting

PROBLEM CAUSE & CORRECTION
The unit does not work properly.	Turn off the power of this unit and the connected external device (TV, Woofer, DVD-player, Amplifier, etc.) and turn it on again.Disconnect the power cord of this unit and the connected external device (TV, Woofer, DVD-player, Amplifier, etc.) and then try connecting again.
No Power	The power cord is unplaged.Plug in the power cord.Check the condition by operating other electronic devices.
No sound	Incorrect input source is selected.Check the input source and select the correct input source.The mute function is activated.Press MUTE or adjust the volume level to cancel the mute function.
No woofer sound	The power cord of the subwoofer is not connected.Plug the power cord into the wall outlet securely.Pairing between the unit and the subwoofer gets disconnected.Connect the unit and the subwoofer. (Refer to the page 12.)
No display	The DISPLAY OFF function is activated.Press SLEEP repeatedly to cancel the function. (Refer to the page 20.)
The remote control does not work properly.	The remote control is too far from the unit.Operate the remote control within about 7 m (23 ft).There is an obstacle in the path of the remote control and the unit.Remove the obstacle.The batteries in the remote control is exhausted.Replace the batteries with new one.
The AUTO POWER function does not work.	Check the state of SIMPLINK and turn off SIMPLINK.Depending on the connected device, this function may not operate.
When you feel the output sound of the unit is low.	Check the details below and adjust the unit according to them.Switch [ON] state of DRC function to [OFF] by using remote controller.With the sound bar connected with TV, change the AUDIO DIGITAL OUT setting on TV Setup Menu from [PCM] to [AUTO] or [BITSTREAM].With the sound bar connected with Player, change the AUDIO DIGITAL OUT setting on Player Setup Menu from [PCM] to [PRIMARY PASS-THROUGH] or [BITSTREAM].Change Audio DRC setting on Player setup menu to [OFF] state.

Specifications

NB5540 / NB5540D

General (NB5540 / NB5540D)
AC adapter requirements Refer to the main label on the unit.
Power consumption Refer to the main label on the unit.
Dimensions (W x H x D) (1020 x 35 x 82) mm
Net Weight (Approx.) 1.86 kg
Operating temperature 5 °C to 35 °C (41 °F to 95 °F)
Operating humidity 5 % to 90 %

Input/Output
OPT. IN 3 V (p-p), Optical jack x 1
PORT. IN 0.5 Vrms (3.5 mm stereo jack) x 1
HDMI IN 19 Pin (Type A, HDMITM connector) x 1
HDMI OUT 19 Pin (Type A, HDMITM connector) x 1
Available Digital Input Audio Sampling Frequency	32 kHz, 44.1 kHz, 48 kHz, 96 kHz

USB
Version 1.1
Bus Power Supply 5 V	--- 500 mA

Amplifier
Total	320 W
Front	40 W x 2 (8 Ω at 1 kHz)
Surround	40 W x 2 (8 Ω at 1 kHz)
Subwoofer	160 W (3 Ω at 80 Hz)
THD	10 %

Wireless subwoofer (S54A1-D)
Power requirements Refer to the main label on the subwoofer.
Power consumption Refer to the main label on the subwoofer.
Type	1 Way 1 Speaker
Impedance	3 Ω
Rated Input Power	160 W
Max. Input Power	320 W
Dimensions (W x H x D) (296 x 332 x 296) mm
Net Weight (Approx.) 7.6 kg

• Designs and specifications are subject to change without prior notice.

NB4540 / NB4540D

General (NB4540 / NB4540D)
AC adapter requirements Refer to the main label on the unit.
Power consumption Refer to the main label on the unit.
Dimensions (W x H x D) (840 x 35 x 82) mm
Net Weight (Approx.) 1.55 kg
Operating temperature 5 °C to 35 °C (41 °F to 95 °F)
Operating humidity 5 % to 90 %
Input/Output
OPT. IN 3 V (p-p), Optical jack x 1
PORT. IN 0.5 Vrms (3.5 mm stereo jack) x 1
HDMI IN 19 Pin (Type A, HDMI ^TM connector) x 1
HDMI OUT 19 Pin (Type A, HDMI ^TM connector) x 1
Available Digital Input Audio Sampling Frequency	32 kHz, 44.1 kHz, 48 kHz, 96 kHz
USB
Version 1.1
Bus Power Supply 5 V	--- 500 mA
Amplifier
Total	320 W
Front	40 W x 2 (8 Ω at 1 kHz)
Surround	40 W x 2 (8 Ω at 1 kHz)
Subwoofer	160 W (3 Ω at 80 Hz)
THD	10 %
Wireless subwoofer (S44A1-D)
Power requirements Refer to the main label on the subwoofer.
Power consumption Refer to the main label on the subwoofer.
Type	1 Way 1 Speaker
Impedance	3 Ω
Rated Input Power	160 W
Max. Input Power	320 W
Dimensions (W x H x D) (221 x 351.5 x 281) mm
Net Weight (Approx.) 7.32 kg

• Designs and specifications are subject to change without prior notice.

Trademarks and licenses

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS 2.0 Channel is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

Bluetooth ^® wireless technology is a system which allows radio contact between electronic. Connecting individual devices under Bluetooth ^® wireless technology does not incur any charges. A mobile phone with Bluetooth ^® wireless technology can be operated via the Cascade if the connection was made via Bluetooth ^® wireless technology.

The Bluetooth ^® word mark and logos are owned by the Bluetooth ^® SIG, Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Maintenance

Handling the unit

When shipping the unit

Please save the original shipping carton and packing materials. If you need to ship the unit, for maximum protection, re-pack the unit as it was originally packed at the factory.

Keeping the exterior surfaces clean

• Do not use volatile liquids such as insecticide spray near the unit.
• Wiping with strong pressure may damage the surface.
• Do not leave rubber or plastic products in contact with the unit for a long period of time.

Cleaning the unit

To clean the player, use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage the surface of the unit.

LG

Life's Good

BEDIENUNGSANLEITUNG

NB5540 (NB5540, S54A1-D) NB5540D (NB5540D, S54A1-D) NB4540 (NB4540, S44A1-D) NB4540D (NB4540D, S44A1-D)

www.lg.com

Sicherheitshinweise

Line drawing of a classic remote control device (no text or symbols)

Simple line drawing of two cylindrical batteries with one partially open and marked with a plus sign (no text or symbols)

Illustration of a rectangular electronic device with a cable attached, no visible text or symbols

Coiled cable with two connectors, no text or symbols visible

Simple line drawing of a pair of stylized writing tools (no text or symbols)

Line drawing of two USB devices connected to a rectangular device (no text or symbols)

USB-Invertieradapter (1)

Simple line drawing of a mechanical bracket or clamp (no text or symbols)

Simple line drawing of a rectangular box with two internal compartments (no text or symbols)

Simple line drawing of a screw with a star-shaped head (no text or symbols)

Schrauben (2)

Fernbedienung

FUNCTION FOLDER OPTICAL + VOL MUTE AUTO POWER AV SYNC INFO REPEAT SOUND EFFECT AUTO VOLUME WOOFER LEVEL 1 2 3 4 5 6 7 8 9 DRC 0 SLEEP MUTE VOL + PR/CH~ AV/INPUT VOL - PR/CH~ TV

Line drawing of a simple TV setup with monitor, tower, and base (no text or symbols)

Votsicht

Diagram of an electronic device showing ports and connectors (no text or symbols)

Simple line drawing of a rectangular panel with a TV label and a small inset box (no text or symbols on the panel itself)

Diagram showing a mechanical assembly with a rotating component and two mounting holes (no text or symbols)

Simple line drawing of a rectangular beam with supports and a vertical support, no text or symbols present.

! Hinweis

5 V = 500 mA USB

Line drawing of a computer setup with monitor, tower, and USB drive (no text or symbols)

A2DP (Advanced Audio Distribution Profile)

NB5540 (NB5540, S54A1-D)

NB5540D (NB5540D, S54A1-D)

NB4540 (NB4540, S44A1-D)

NB4540D (NB4540D, S44A1-D)

www.lg.com

Exposition aux radiations RF

Line drawing of a classic rectangular electronic device with no visible text or symbols

Simple line drawing of two cylindrical batteries with one partially open and marked with a plus sign (no text or symbols)

Illustration of a rectangular electronic device with a black cable and connector, no text or symbols present.

Coiled cable with two connectors, no text or symbols visible

Simple line drawing of two crossed nails (no text or symbols)

Line drawing of two connected electronic devices with ports, no text or symbols present

Technical line drawing of a mechanical bracket or clamp (no text or symbols)

Simple line drawing of a rectangular box with two internal compartments (no text or symbols)

Simple line drawing of a screw with a star-shaped head (no text or symbols)

Vis (2)

Télécommande

FUNCTION FOLDER OPTICAL + VOL MUTE - AUTO POWER AV SYNC INFO REPEAT SOUND EFFECT AUTO VOLUME WOOFER LEVEL 1 2 3 4 5 6 7 8 9 DRC 0 SLEEP MUTE VOL + PR/CH~ AV/INPUT VOL - PR/CH~ TV

Diagram of a battery pack assembly with labeled components and directional arrows indicating movement or force

1

Line drawing of a simple TV setup with monitor, tower, and base (no text or symbols)

Attention

Diagram of a device rear panel with ports and connectors, no text or symbols present

Simple line drawing of a rectangular TV mounted on a base (no text or symbols)

Pure technical line drawing of two mechanical components with dashed alignment lines, no text or symbols present

! Remarque

Diagram showing a curved arrow between two rectangular blocks, one above a blank screen (no text or symbols)

Simple line drawing of a rectangular beam with two supports and a vertical support, no text or symbols present.

! Remarque.

PORT Raccordement (Portable)

PORT. IN Baladeur MP3, etc...

Line drawing of a computer setup with monitor, tower, and USB drive (no text or symbols)

A2DP (Advanced Audio Distribution Profile)

MUTE VOL + PR/CH AV/INPUT VOL - PR/CH TV

LG Life's Good

GEBRUIKERSHANDLEIDING

4.1 ch Hi-Fi Sound Bar

NB5540 (NB5540, S54A1-D)

NB5540D (NB5540D, S54A1-D)

NB4540 (NB4540, S44A1-D)

NB4540D (NB4540D, S44A1-D)

www.lg.com

Line drawing of a classic rectangular electronic device with no visible text or symbols

Simple line drawing of two cylindrical batteries with one partially open and marked with a plus sign (no text or symbols)

Afstandsbediening (1) Batterijen (2)

Illustration of a rectangular electronic device with a cable and connector, no text or symbols present.

Coiled cable with two connectors, no text or symbols visible

AC adapter (1) Netkabel (1)

Simple line drawing of two crossed nails (no text or symbols)

Diagram of two USB devices connected to a rectangular device (no text or symbols)

Technical line drawing of a mechanical bracket or clamp (no text or symbols)

Simple line drawing of a rectangular box with two internal vertical lines (no text or symbols)

Muurbevestigingsbeugel (2)

Muurbeugel- installatiegeleider (1)

Simple line drawing of a screw with a star-shaped head (no text or symbols)

Schroeven (2)

Afstandsbediening

FUNCTION FOLDER OPTICAL + VOL MUTE - AUTO POWER AV SYNC INFO REPEAT SOUND EFFECT AUTO VOLUME WOOFER LEVEL 1 2 3 4 5 6 7 8 9 DRC 0 SLEEP MUTE VOL + PR/CH~ AV/INPUT VOL - PR/CH~ TV

Line drawing of a simple TV setup with monitor, tower, and base (no text or symbols)

Letop

Diagram of an electronic device showing ports and connectors (no text or symbols)

Simple line drawing of a rectangular panel with a TV label and a small inset box (no text or symbols on the panel itself)

Diagram showing a rotating arrow between two rectangular blocks, one above a blank screen (no text or symbols)

Simple line drawing of a rectangular beam with two supports and a vertical support, no text or symbols present.

! Opmerking

Line drawing of a computer setup with monitor, tower, and USB drive (no text or symbols)

A2DP (Advanced Audio Distribution Profile)

MUTE VOL + PR/CH AV/INPUT VOL - PR/CH

NB5540 (NB5540, S54A1-D)

NB5540D (NB5540D, S54A1-D)

NB4540 (NB4540, S44A1-D)

NB4540D (NB4540D, S44A1-D)

www.lg.com

Line drawing of a classic remote control device (no text or symbols)

Simple line drawing of two cylindrical batteries with one partially open and marked with a plus sign (no text or symbols)

Daljinski upravljalnik (1) Bateriji (2)

Line drawing of a rectangular electronic device with a coiled cable and connector (no text or symbols)

Coiled cable with connectors, no text or symbols visible

AC pretvornik (1) Napajalni kabel (1)

Simple line drawing of two nail tips (no text or symbols)

Diagram of two USB connectors with a central connector (no text or symbols)

Adapter USB (1)

Kabelske vezice za urejanje kablov (2)

Technical line drawing of a mechanical bracket or clamp (no text or symbols)

Simple line drawing of a rectangular box with two internal compartments (no text or symbols)

Simple line drawing of a screw with a star-shaped head (no text or symbols)

Vijaki (2)

Daljinski upravljalnik

FUNCTION FOLDER OPTICAL + VOL MUTE - AUTO POWER AV SYNC INFO REPEAT SOUND EFFECT AUTO VOLUME WOOFER LEVEL 1 2 3 4 5 6 7 8 9 DRC 0 SLEEP MUTE VOL + PR/CH~ AV/INPUT VOL - PR/CH~ TV

Zamenjava baterije

Diagram of a battery pack assembly with labeled components and directional arrows indicating flow or movement.

1

(Napajanje): Enoto VKLOPI ali IZKLOPI.

Line drawing of a simple TV setup with monitor, tower, and base (no text or symbols)

Pozor

Diagram of an electronic device showing ports and connectors (no text or symbols)

Simple line drawing of a rectangular TV mounted on a base (no text or symbols)

Diagram showing a mechanical assembly with a rotating component and a rectangular frame (no text or symbols)

1. Enoto pritrdite z vijaki.

Simple line drawing of a rectangular beam with supports and a vertical support, no text or symbols present.

! Opomba

Če želite demontirati enoto, ponovite v obratnem vrstnem redu.

Pozor

Connection through HDMI Cable

Line drawing of a computer setup with monitor, tower, and USB drive (no text or symbols)

NB5540 (NB5540, S54A1-D)

NB5540D (NB5540D, S54A1-D)

NB4540 (NB4540, S44A1-D)

NB4540D (NB4540D, S44A1-D)

Line drawing of a classic rectangular electronic device with no visible text or symbols

Simple line drawing of two cylindrical batteries with positive charge indicators (no text or symbols)

Illustration of a rectangular electronic device with a cable and connector, no text or symbols present.

Coiled cable with two connectors, no text or symbols visible

Simple line drawing of two crossed nails (no text or symbols)

Line drawing of two connected USB devices with a connector (no text or symbols)

Technical line drawing of a mechanical bracket or clamp (no text or symbols)

Simple line drawing of a rectangular box with two internal lines (no text or symbols)

Simple line drawing of a screw with a star-shaped head (no text or symbols)

Viti (2)

Telecomando

Line drawing of a simple TV setup with monitor, tower, and base (no text or symbols)

Precauzione

Diagram of an electronic device showing ports and connectors (no text or symbols)

Simple line drawing of a rectangular TV mounted on a wall, with no text or symbols present.

Pure technical line drawing of two mechanical components with dashed alignment lines, no text or symbols present

Nota

Simple line drawing of a window frame with a scroll and directional arrow, no text or symbols present

Simple line drawing of a rectangular beam with two supports and a vertical support, no text or symbols present.

Nota

5 V = 500 mA USB

Line drawing of a computer setup with monitor, tower, and device (no text or symbols)

Bluetooth ^® wireless.

A2DP (Advanced Audio Distribution Profile)

MUTE VOL + AV/INPUT VOL - PR/CH PR/CH

LG Life's Good

MANUAL DEL PROPIETARIO

NB5540 (NB5540, S54A1-D)

NB5540D (NB5540D, S54A1-D)

NB4540 (NB4540, S44A1-D)

NB4540D (NB4540D, S44A1-D)

Line drawing of a classic electronic device with no text or symbols

Simple line drawing of two cylindrical batteries with one partially open and marked with a plus sign (no text or symbols)

Mando a distancia (1) Pilas (2)

Illustration of a rectangular electronic device with a cable and connector, no text or symbols present.

Illustration of a cord with two connectors, no text or symbols present

Simple line drawing of two stylized writing tools (no text or symbols)

Line drawing of two connected electronic devices with ports, no text or symbols present

Technical line drawing of a mechanical bracket or clamp (no text or symbols)

Simple line drawing of a rectangular box with two internal compartments (no text or symbols)

Simple line drawing of a screw with a star-shaped head (no text or symbols)

Tornillos (2)

Mando a distancia

FUNCTION FOLDER OPTICAL + VOL MUTE - AUTO POWER AV SYNC INFO REPEAT SOUND EFFECT AUTO VOLUME WOOFER LEVEL 1 2 3 4 5 6 7 8 9 DRC 0 SLEEP MUTE VOL + PR/CH~ AV/INPUT VOL - PR/CH~ TV

Diagram of a battery pack with labeled components and directional arrows indicating movement or force

1

Line drawing of a simple TV setup with monitor, tower, and base (no text or symbols)

Precaución

Diagram of a device rear panel showing ports and connectors (no text or symbols)

Simple line drawing of a rectangular TV mounted on a wall, with no text or symbols present.

Diagram showing a rotating arrow on a rectangular base with two small clips, above a blank screen (no text or symbols)

Simple line drawing of a rectangular beam with supports and a vertical support, no text or symbols present.

! Nota

Line drawing of a computer setup with monitor, tower, and USB drive (no text or symbols)

A2DP (Advanced Audio Distribution Profile)

MUTE VOL + PR/CH AV/INPUT VOL - PR/CH TV

LG Life's Good

NB5540 (NB5540, S54A1-D)

NB5540D (NB5540D, S54A1-D)

NB4540 (NB4540, S44A1-D)

NB4540D (NB4540D, S44A1-D)

Line drawing of a classic remote control device (no text or symbols)

Simple line drawing of two cylindrical batteries with positive charges, no text or symbols present

Coiled cable with connectors, no text or symbols visible

Illustration of two connected USB devices (no text or symbols)

Εναλλάκτης USB (1)

Simple line drawing of a rectangular box with two internal lines (no text or symbols)

Bíδες (2)

Τηλεχειριστήριο

FUNCTION FOLDER OPTICAL + VOL - MUTE AUTO POWER AV SYNC INFO REPEAT 1 2 3 4 5 6 7 8 9 DRC 0 SLEEP MUTE VOL + PR/CH~ AV/INPUT VOL - PR/CH~ TV

Line drawing of a simple TV setup with a monitor, built-in box, and shelves (no text or symbols)

Προσοχή

Diagram of a device rear panel with ports and connectors, showing internal components (no text or symbols)

Simple line drawing of a rectangular panel with a TV label and a small inset box (no text or symbols on the panel itself)

Pure technical line drawing of two mechanical components with dashed alignment lines, no text or symbols present

! Σημείωση

Diagram showing a mechanical assembly with a rotating component and two attached parts, no text or symbols present.

Simple line drawing of a rectangular beam with two supports and a vertical support, no text or symbols present.

! Σημείωση

Line drawing of a computer setup with monitor, tower, and cable device (no text or symbols)

A2DP (Advanced Audio Distribution Profile)

NB5540 (NB5540, S54A1-D)

NB5540D (NB5540D, S54A1-D)

NB4540 (NB4540, S44A1-D)

NB4540D (NB4540D, S44A1-D)

Line drawing of a classic rectangular electronic device with no visible text or symbols

Simple line drawing of two cylindrical batteries with one partially open and marked with plus signs (no text or symbols)

Illustration of a rectangular electronic device with a coiled cable and connector (no text or symbols)

Illustration of a cord with two connectors, no text or symbols present

Simple line drawing of two crossed metal tools (no text or symbols)

Line drawing of two USB devices connected to a rectangular device (no text or symbols)

Adaptador USB M/F (1)

Technical line drawing of a mechanical bracket or clamp (no text or symbols)

Simple line drawing of a rectangular box with two internal vertical lines (no text or symbols)

Simple line drawing of a screw with a star-shaped head (no text or symbols)

Parafusos (2)

Controlo remoto

FUNCTION FOLDER OPTICAL + VOL MUTE - AUTO POWER AV SYNC INFO REPEAT 1 2 3 4 5 6 7 8 9 DRC 0 SLEEP MUTE VOL + PR/CH~ AV/INPUT VOL - PR/CH~ TV

Diagram of a battery pack with labeled components and directional arrows indicating movement or assembly.

1

Line drawing of a simple TV setup with monitor, tower, and base (no text or symbols)

ATENÇÃO

Diagram of a device rear panel with ports and connectors, no text or symbols present

Simple line drawing of a rectangular panel with a TV label and a small inset box (no text or symbols on the panel itself)

Diagram showing a curved arrow between two rectangular blocks, one above and one below, with no text or symbols present.

Simple line drawing of a rectangular beam with two supports and a horizontal support, no text or symbols present.

! Nota

Line drawing of a computer setup with monitor, tower, and device (no text or symbols)

A2DP (Advanced Audio Distribution Profile)

Manter as superfícies externas limpas

LG Life's Good
