Notice: Read the safety information and the operating instructions carefully before use.

Warning: This product may contain small parts and must be kept out of reach of children.

Electronic Devices

In order to prevent electromagnetic interference, please switch off the headset if you are required to do so by the relevant signage.

Note: Most modern electronic devices are sensitive to electromagnetic interference (EMI) if they are not adequately shielded or appropriately designed, or are otherwise confi gured to provide electromagnetic compatibility.

Aircraft

Switch off the headset on board aircraft. Using this headset may interfere with the electronic systems of the aircraft.

Vehicles

Please always observe the relevant road safety regulations when driving vehicles.

Medical devices

The function of medical devices may be affected. Please observe the technical conditions of the relevant area, e.g. doctor's surgery.

Charging device

Only use the plug-in mains unit which is included in the scope of delivery. Do not use any other plug-in mains units, as these may damage the device and the batteries. Ensure that the voltage of the plug socket corresponds to that of the mains unit. Damaged mains units must only be replaced with an original spare part.

Storage

Please store the headset so that it cannot be bent or damaged.

Otherwise there is a risk of injury to the user.

Batteries may explode if they are exposed to direct sunlight, fire, or other high temperatures, such as can occur in vehicles.

Service and Repair

The device and mains unit must not be opened, as this may result in electric shocks. Do NOT attempt to remedy the problem yourself if a device malfunctions. In this case, please contact the Gigaset hotline. Do not use a defective device, as it could interfere with other radio services.

Any attempt to remove any part of the headset results in the loss of the warranty.

1. Safety Information

Headsets ay emit sounds with a high volume and high frequency. Such sounds may cause permanent hearing loss. The volume may depend on the conditions under which the device is used. Please familiarise yourself with the following safety precautions before using the headset.

Carry out the following steps before using this product:

Set the volume to the minimum before putting on the headset.
Put on the headset and adjust it to a comfortable volume.

While using this product:

Set the volume as low as possible and avoid using the headset in a noisy environment, in which you could be tempted to increase the volume.

1.1 Content of the Package

Bluetooth headset

Ear clip

Headphone with USB connection cable (Micro-B USB)

USB charging cable (USB A -> Micro-B USB)

Mains charger unit with USB A socket

2. General Description

The Gigaset ZX530 is a Bluetooth, wireless hands-free headset for use in combination with Gigaset telephones as well as other mobile devices which are equipped with the headset or hands-free Bluetooth profle.

3. First steps

3.1 Quick guide

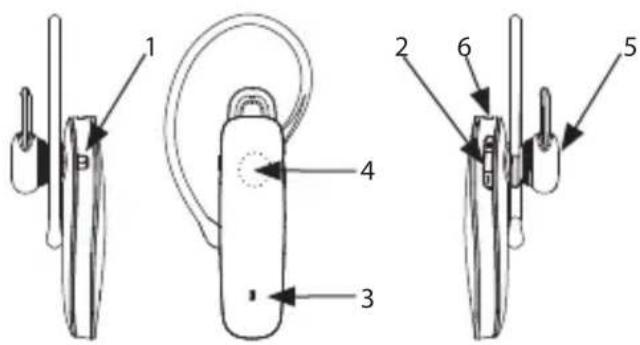

1 On/Off switch 4 Multi-function key
2 Volume +/- and audio title +/-	5 Earphone
3 Status LED (red/blue) 6 Micro-B		USB charging socket and headphone connection

Power "On"

Power

3.2 Adjusting the headset

The lightweight and comfortable Gigaset ZX530 is suitable for both ears. Please adjust the headset as shown in the following illustrations.

Wearing on left ear Wearing on right ear

3.3 Status LED

Headset status LED colour Status
Off	Red	Flashes
On Blue Flashes 3x
Pairing mode Red-b	Blue Alternate f	ashing
Pairing Blue Flashes	5x
Standby mode Blue	Flashes 1x every 7 seconds
Ringing Blue Flashes	3x every 7 seconds
Active call Blue Flashes	1x every 7 seconds
Charging Red Illumina	rates constantly
Charging complete	Blue Illumina	rates constantly

3

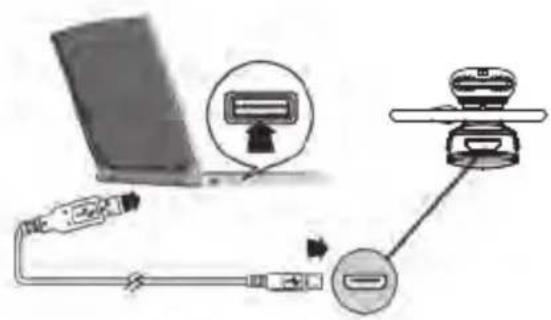

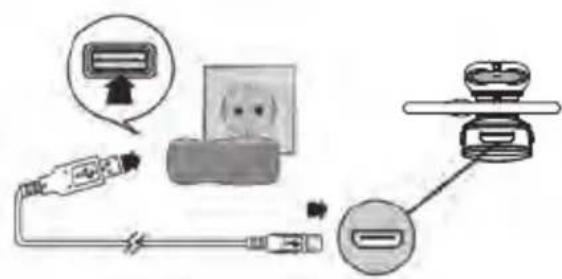

3.4 Charging the built-in batteries

The Gigaset ZX530 is equipped with a built-in battery, which must be fully charged before using the headset. Charging takes about 2 hours. You can either charge the headset with the mains charger or via a USB connection, e.g. to your PC.

Note:

Take care that the USB plug is in the correct position and do not use force. Use the USB symbol on the plug and in the illustration above as a guide. The headset must be set to off for charging. Set the sliding switch to the OFF position (down) to start charging.
The headset cannot be used while it is being charged.

4. Overview of Functions

Press briefly Press for less than 1 second

Press for a long time Press for longer than 1.5 seconds

Hold Press for longer than 4.5 seconds

Multi-function key Multi-function key (MFK)

Key (+) Increase volume / Previous title

Key (−) Reduce volume / Next title

Telephone mode:

Pair the headset with a telephone via Bluetooth

Before you can use your headset for telephoning, you must connect it to your telephone. Pairing establishes a secure connection between your telephone and the unique code of your headset. This procedure only needs to be carried out once.

1 To switch the headset to pairing mode, push the switch /1) to the "On" position. The LED flashes red/blue.
2 Search for the headset in the Bluetooth menu of your telephone. You can find the details for doing this in the instruction manual for your telephone.
3 After the search is complete, a list of the devices which have been found is displayed.

4 Select the entry ZX530 and enter the PIN (0000), when you are prompted to do so. If the pairing was successful, the LED indicator (res/blue) changes its status and flashes blue.

Note: You can connect your headset to up to eight Bluetooth devices. If you connect a ninth device, the oldest pairing is deleted. You can use the headset with 2 telephones simultaneously.

1 Log the headset on to the first telephone as described above, then switch off the headset and the Bluetooth connection of the telephone.
2 Switch the headset on again and log it on to the second telephone.
3 Switch the Bluetooth function of the first telephone on again. Select the headset from the Bluetooth connection menu and connect it again.
4 The headset should now connect to both telephones.

Using the second earphone to listen in stereo

If you wish to use the stereo function of your headset, you only need to connect the second earphone to the USB socket of your headset.

Please note that you are not allowed to use the stereo function when driving.

Accepting a further call (waiting call) during an active call

Press the multifunction button twice to accept the second call. The first call remains connected. Press the multifunction button twice to toggle between the calls. You can end the current call by briefly pressing the multifunction button. The other call remains connected, or can be ended by briefly pressing a second time.

Overview of Telephone Functions

Headset function	Headset status	Key Audio	response
Switching on Off Set the switch to the "On" position			"Power On"
Switching off	On	Set the switch to the "Off" position	"Power Off"
Pairing Off		"Pairing"
Paired On "Paired"
No connection			"Your device is disconnected"
Accepting an incoming call	Incoming call	Briefly press the multi-function key
Rejecting an incoming call	Incoming call	Hold the multi-function key pressed for a long time
Accepting an incoming call during an active call	Active call/Call waiting	Hold the multi-function key pressed for a long time
Switching between the active and the passive call	Active call/Passive call	Hold the multi-function key pressed for a long time
Ending the call	Active call Briefly press the multi-function key
Redialling the last number	Standby Briefly press the multi-function key twice		"Last number redial"
Playing music/Pause	Music playing	Briefly press the multi-function key
Increasing the volume	Music playing/Active call	Briefly press the +key
Reducing the volume	Music playing/ Active call	Briefly press the -key
Previous title Music playing		Press the + key for a long time
Next title Music playing		Press the -key for a long time
Low charge "Battery low"

Some of the described functions may not be supported, depending on the telephone used.

5. Technical Data

Battery type /Capacity / Dimensions	Li-Polymer/50mAh/ 4×9×23 mm
External mains unit Input: 100-240 V/AC Output: 5V·300mA DC
Charging time 2 hours
Charging voltage 5V
Charging current 300 +/- 50 mA	mA
Call time up to 5 hours
Standby time up to 120 hours
Range ~10 m
Frequency 2.402 - 2.480 GHz
Weight	7 g
Dimensions	61×14×8 mm
Bluetooth	V4.0 + EDR/Profi le: HSP/HFP/A2DP/AVRCP
Ambient conditions in operation	0°C to +50°C

6.1 Service

Do you have any questions? As a Gigaset customer, you benefit from our extensive service. You can obtain rapid help in these operating instructions and on the Service pages of our Gigaset online portal.

Please register your Gigaset product immediately after purchasing it, so that we can quickly help you if you have any questions or warranty claims. In your password-protected personal area you can manage your personal details and contact our Customer Service by email.

Our staff are available by telephone if you have any further questions or require personal assistance:

United Kingdom

www.gigaset.com/service

For repairs, guarantee or warranty claims:

Service Hotline:

Sun. 11 pm - Fri. 11 pm continuously under 084503 18190

(local call cost charge)

We must point out that Gigaset products which are not purchased by an authorised dealer in the country may possibly not be fully compatible with the national standard.

If the device or accessories are not used according to this information, the information in the instructions for use or the product itself, this may affect guarantee or warranty claims (repair or replacement of the product).

In order to make guarantee or warranty claims, the purchaser of the product is requested to enclose the proof of purchase, which includes the date of purchase and details of the purchased product.

6.2 Warranty

Regardless of any claims against the vendor, the consumer (customer) is granted a warranty of durability under the conditions stated below:

New devices and their components, which reveal defects due to manufacturing and/or material faults within 24 months of the date of purchase shall, at the discretion of Gigaset Communications, be replaced with a device which corresponds to the state-of-the-art or shall be repaired, free of charge. This warranty of durability applies to wearing parts (e.g. batteries, keyboards, housing) for a period of six months from the date of purchase.
This warranty does not apply if the fault is due to improper handling and/or failure to observe the manuals.
This warranty does not include services (e.g. installation, configuration, software downloads) which are performed by the authorised dealer or by the customer. Manuals and any software which is supplied on a separate, enclosed data carrier are also excluded from the warranty.
Proof of purchase with the date of purchase is deemed to be evidence for the warranty. Warranty claims must be made within two months of discovery of the cause for the warranty claim.
- Replaced devices or their components, which are returned to Gigaset Communications in the context of replacement become the property of Gigaset Communications.
This warranty only applies to new devices which are purchased in the European Union. The warrantor for devices purchased in United Kingdom is Gigaset Communications UK Limited, 2 White Friars, Chester, CH1 1NZ.
Further, or other claims from this manufacturer's warranty are excluded. Gigaset Communications shall not be liable for interruptions to business, loss of profits, loss of data or software or other information which is installed by the customer. Backup of the latter is the responsibility of the customer. This exclusion of liability does not apply in case of mandatory liability, e.g. under the Product Liability Act, in case of willful action or gross negligence or due to injury to life and limb or health, or due to the breach of signifi cant contractual obligations. Claims for damages due to the breach of signifi cant contractual obligations is however restricted to foreseeable damage which is typical for the contract insofar as this does not involve gross negligence or injury to life or limb or health, or liability under the Product Liability Act.
Performance of a service under warranty does not extend the warranty period.
Except in the case of a warranty claim, Gigaset Communications reserves the right to invoice the customer for the replacement or repair. Gigaset Communications will inform the customer of this in advance.
A change to the regulations for the burden of proof to the detriment of the customer is not associated with the above regulations.

Please address any warranty claims to Gigaset Communications. The telephone number can be found in these operating instructions.

6.3 Environment

Our environmental statement

We at Gigaset Communications GmbH are aware of our social responsibility. That is why we actively take steps to create a better world. In all areas of our business - from product planning and production to sales and waste of disposal - following our environmental conscience in everything we do is of utmost importance to us.

Learn more about our earth-friendly products and processes online at www.gigaset.com .

Environmental management system

Gigaset Communications GmbH is certifi ed pursuant to the international standards ISO 14001 and ISO 9001.

ISO 14001 (Environment): Certifi ed since September 2007 by TÜV SÜD Management Service GmbH.

ISO 9001 (Quality): Certified since 17/02/1994 by TÜV SÜD Management Service GmbH.

Disposal

Batteries should not be disposed of in general household waste. Observe the local waste disposal regulations, details of which can be obtained from your local authority.

All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

This crossed-out wheeled bin symbol on the product means the product is covered by the European Directive 2002/96/EC.

The correct disposal and separate collection of your old appliance will help prevent potential

negative consequences for the environment and human health. It is a precondition for reuse and recycling of used electrical and electronic equipment.

For more detailed information about disposal of your old appliance, please contact your local council refuse centre or the original supplier of the product.

6.4 Authorisation

This device is intended for use within the European Economic Area and Switzerland. If used in other countries, it must first be approved nationally in the country in question. Country-specific requirements have been taken into consideration.

We, Gigaset Communications GmbH, declare that this device meets the essential requirements and other relevant regulations laid down in Directive 1999/5/EC.

A copy of the Declaration of Conformity is available at this Internet address: www.gigaset.com/docs.

C∈0682

6.5 Care of your Device

Wipe the device with a damp cloth or an anti-static cloth. Do not use solvents or cleaning agents or microfi bre cloths. Never use a dry cloth. This may cause a static charge.
