USER MANUAL TVVR35011 ABUS

Version 1.0Notes on the operating instructions

English These user manual contains important information for in- stallation and operation. This should be also noted when this product is passed on to a third party. Therefore look after these operating instructions for future reference! A list of contents with the corresponding page number can be found in the index.

See System operation on page 80.

Pay attention to the information in the separate quick guide, plus the notes on the CD and in the accompanying documentation on “Web server control” and “Clients Software”. These can be found on the Internet under www.abus.com.Device overview

See System operation on page 80.

Pay attention to the information in the separate quick guide, plus the notes on the CD and in the accompanying documentation on “Web server control” and “Clients Software”. These can be found on the Internet under www.abus.com.

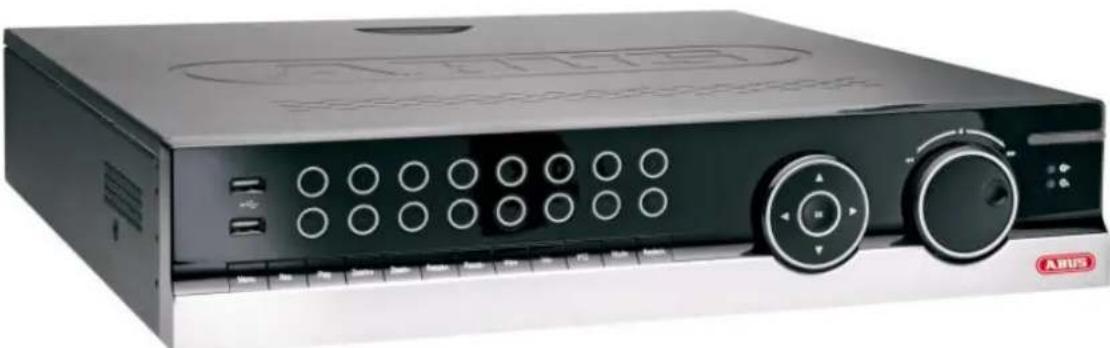

System operation General information The device can be controlled as follows: Using the operating elements on the front of the device Using the remote control Using the USB mouse Operating elements on the device

Note Pay attention to the overview on page 79.

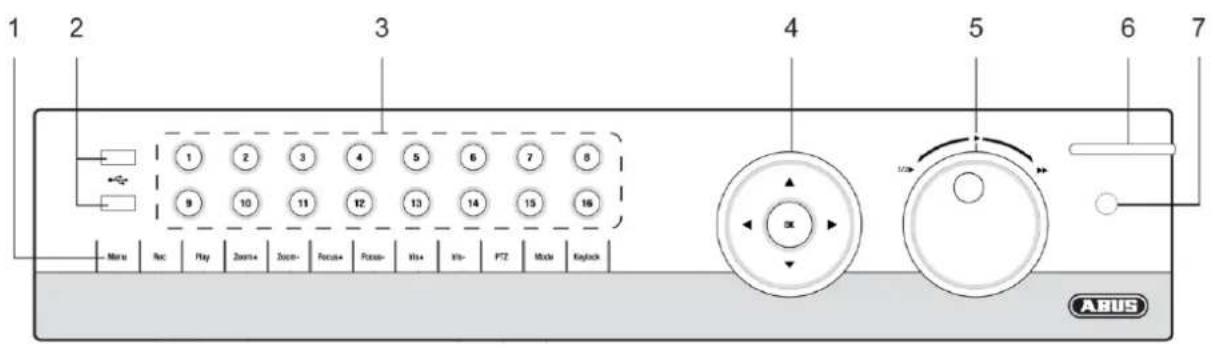

Recorder operating keys: MENU: Calls up the main menu Switches the key tones on and off (press and hold down for 5 seconds) REC: Calls up the menu for manual recording PLAY: Opens the playback menu ZOOM+: Zooms in on the image section in PTZ mode ZOOM-: Zooms out of the image section in PTZ mode Switches the video output in live mode: Moni- tor – Spot Monitor or Video Out – Video Spot Out FOCUS+: Sets the focus in PTZ mode FOCUS-: Sets the focus in PTZ mode IRIS+: Opens the iris IRIS-: Closes the iris in PTZ mode PTZ: Activates the PTZ control MODE: Switches the screen view KEYLOCK: Locks the control keys

USB ports: For external USB 2.0 devices (e.g. mouse, ex- ternal disk drive or DVR burner)

Camera selection keys (1, 2, 3...): Displays the camera status: White: Camera is connected Blue: Connected camera is recording Not lit: No camera connected In the live view: Selects the camera and displays the full-screen view

Directional keypad: During playback: , Sets the speed , Previous / next day In the live view: Selects the channel In menus: Navigation OK key: Press and hold for 5 seconds to switch the de- vice on and off Confirms the selection Ticks / unticks the boxes During playback: PLAY/PAUSE Increased/ decreased playback speed: Normal playback speed

Jog Shuttle: During playback: Outer ring (shuttle ring) change playback speed Inner ring to play single frames in single mode In menus: Inner ring moves the cursor upwards / down- wards Outer ring moves the cursor left / right In the live view: Selects the channel

NVR status LED: Displays the device status: White (constantly lit): System status is OK White (flashing): System status is OK, re- cording settings are stored, surveillance mode is active Blue (constantly lit): At least one camera is cur- rently recording Red (constantly lit): System maintenance re- quired

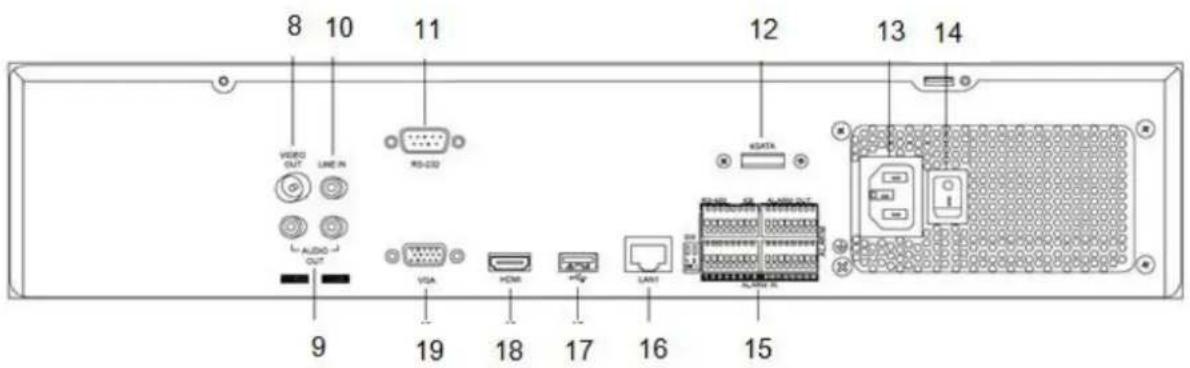

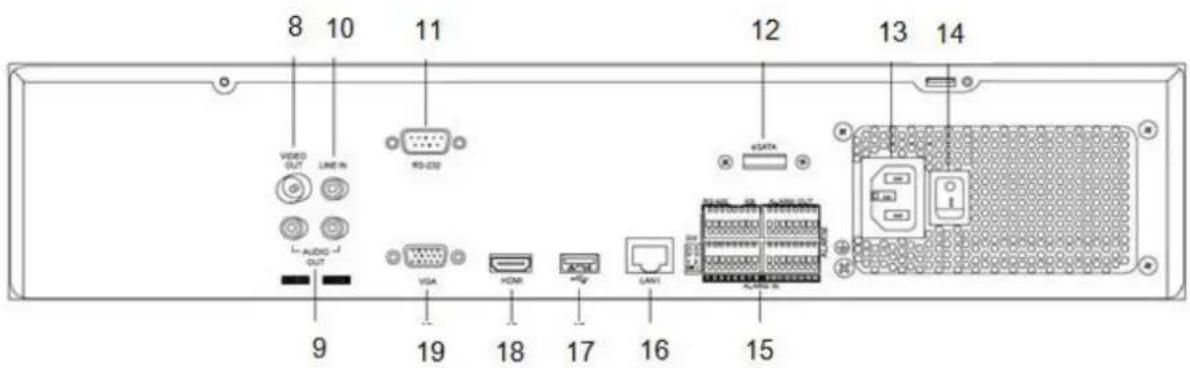

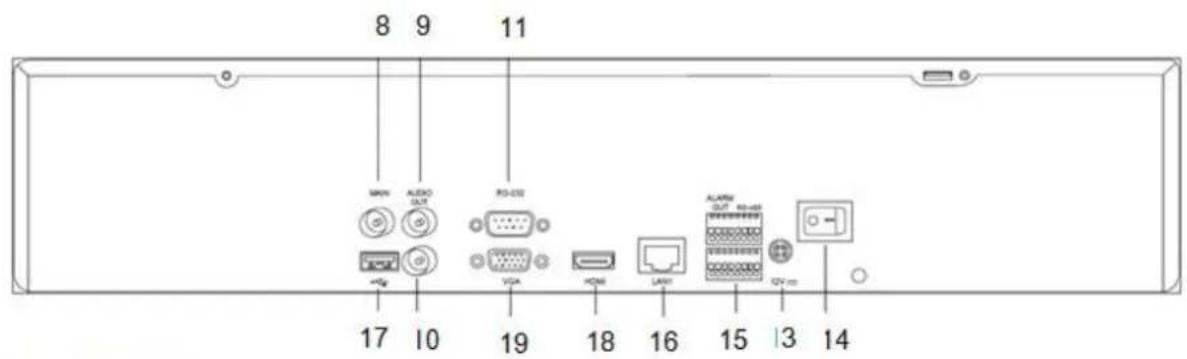

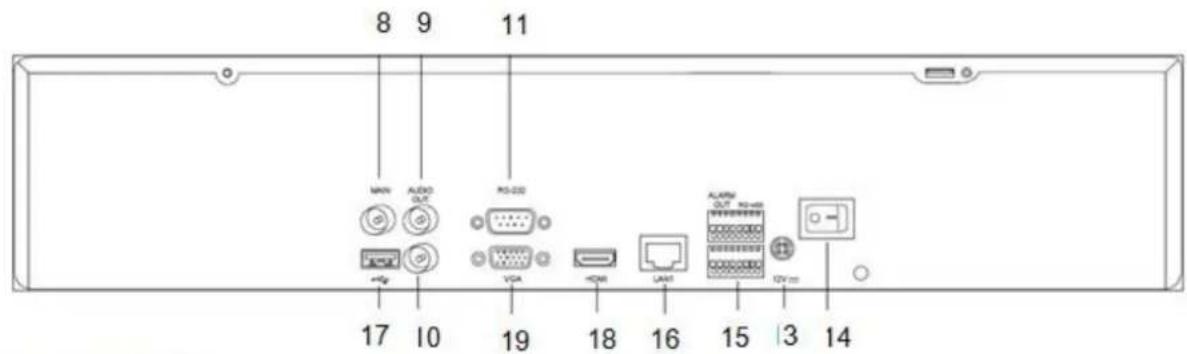

IR receiver: For the remote control81 Connections on the rear of the device

Note Pay attention to the overview on page 79.

VIDEO OUT: BNC video output BNC connector for video output for connecting a monitor as an alternative to VGA-/HDMI output (no. 18 / no. 19)

eSATA connection (TVVR45021 only) Serial connection for external SATA hard disk drive

VGA: VGA monitor connection (9-pin), video output signalNotes on the operating instructions

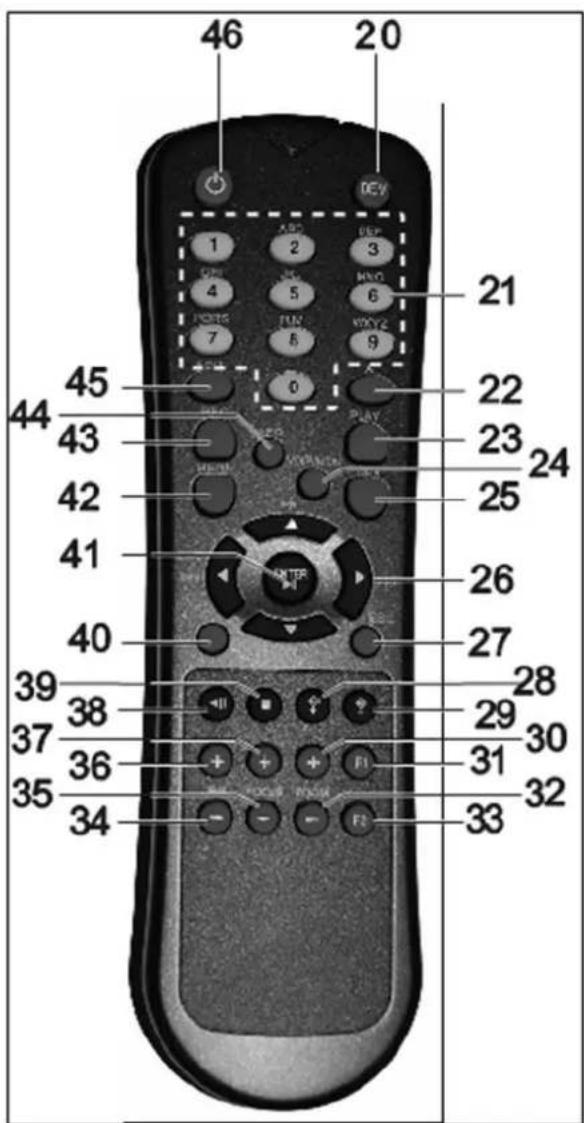

Remote control (TVAC40930)83 Operating elements on the remote control

Note Pay attention to the remote control diagram on page 67.

DEV: Assigns the remote control with the device ID

Alphanumeric keys: Selects the camera (channel) in the live view Entry of letters and digits in system fields

PLAY: Starts playback

Navigation keys: During playback: , Sets the speed , Previous / next day In the live view: Selects the camera (channel selection) In menus: Navigation

Zoom +: Zooms in on the image section in PTZ mode

F1: In lists: Selects all available options

Zoom -: Zooms out of the image section in PTZ mode

F2: Switches between tabs

IRIS-: In PTZ mode: Closes the iris

Focus-: In PTZ mode: Brings the image section into focus

IRIS+: In PTZ mode: Opens the iris

Focus+: In PTZ mode: Brings the image section into focus

PTZ: Switches on PTZ control

Enter II: Confirms the selection Ticks / unticks the boxes During playback: PLAY/PAUSE Single play mode: Advances by a single frame

MENU: Calls up the main menu Switches the key tones on and off (press and hold down for 5 seconds)

REC: Opens / starts manual recording

INFO: Switches to another monitor in the live view

EDIT: General use: Activates the text entry; backspace in text fields

POWER: Switches on/off (hold down for 5 seconds)

Note Further descriptions in these operating instruc- tions are made with the mouse. The device is suitable for use with a USB mouse. Connect the mouse to the USB port.

Button Function Left Single-click: Selection in menu, activation of an entry field or tab Double-click: Switches between the screen display of single and multiple images in the live view and during playback Click and drag: In PTZ mode: Camera control Set-up of alarm areas or zones Right Single-click: Calls up the pop-up menu Scroll wheel In the live view: Shows previous / next camera In menus: Scrolls through the menusContents

Quick guide Before you start The following preparatory steps must be made:

1. Pay attention to the general information, safety in-

formation and notes on setting up and connecting the device (see page 80).

2. Check the contents of the package for completeness

3. Insert the batteries into the remote control.

Note Pay attention to the information in the separate quick guide. Installing the HDD

Warning Switch off the device and disconnect it from the mains power supply. Pay attention to the required earthing of the de- vice to avoid static discharge.

1. Install one or more HDDs (see the separate quick

2. Firstly, establish the connection to the motherboard

using the red data cable (small connector).

3. Connect the power supply cable (large 5-pin connec-

4. Check that the connections are secure.

5. Close the housing.

Note Only use HDD’s that are approved for video re- cording and 24/7 usage.

Establishing the connections

Note Pay attention to the minimum radius when laying cables. Do not kink the cable.

1. Connect all network cameras with your network

2. Connect the audio connections.

3. Connect the sensors to the alarm inputs.

4. Connect the monitor to the HDMI/VGA or BNC con-

5. Connect the mouse to the USB port.

6. Establish a connection to the mains power supply.

7. Switch on the device using the POWER switch on

the rear. The DVR status display on the front of the device lights up.

Configuring the device

Note Pay attention to the information in the separate quick guide. Proceed through the individual steps in the setup wizard (see page 106). The following settings are configured in sequence: Language selection for the user interface Administrator setup General settings (date, time etc.) HDD management (initialisation etc.) Network settings Camera management

Note Subsequent changes to the date and time can lead to the loss of data!

Note Check the ABUS homepage (www.abus.com) if for this device any firmware updates are avail- able and install these Pay attention to the menu overview on page 114, plus the notes and explanations on basic system op- eration on page. Pay attention to the notes on the following: Live view Page 109 Playback Page 112 PTZ Page 128 Export Page 138 Troubleshooting Page 145Important safety information

Important safety information Explanation of symbols The following symbols are used in this manual and on the device: Symbol Signal word Meaning

Warning Indicates a risk of injury or health hazards.

Warning Indicates a risk of injury or health hazards caused by electrical voltage.

Important Indicates possible damage to the device/accessories.

The following labels are used in the text:

Set of tasks or instructions with a defined se- quence in the text

Set of points or warnings without a defined se- quence in the text Proper use Only use the device for the purpose which it was de- signed and built for. Any other use is considered inap- propriate. This device may only be used for the following pur- pose(s): This NVR recorder is used in combination with con- nected video signal sources (network cameras) and video output devices (CRT or TFT monitors) for ob- ject surveillance.

Note Data storage is subject to national data-protection guidelines. During installation, inform your customers regard- ing the existence of these guidelines.

General information Before using the device for the first time, read the follow- ing instructions carefully and pay attention to all warn- ings, even if you are already familiar with electronic de- vices.

Warning All guarantee claims become invalid for damages caused by non-compliance with these operating instructions. We cannot be held liable for resulting damages.

Warning We cannot be held liable in the event of material or personal damage caused by improper opera- tion or non-compliance with the safety information. All guarantee claims are invalid in such cases. Keep this manual in a safe place for future reference. If you pass on or sell the device, you must also include this user manual. This device has been manufactured in accordance with international safety standards. Power supply Only operate this device through a power source which supplies the mains power specified on the type plate. If you are unsure of the power supply at the installa- tion location, contact your power supply company.

Warning Avoid data loss! Always use an uninterruptible power supply (UPS) with overvoltage protection. Disconnect the device from the mains power supply before carrying out maintenance or installation work. The on/off switch does not completely disconnect the device from the mains power supply. To disconnect the device completely from the mains power supply, the plug must be disconnected from the mains socket. Therefore, the device should be positioned so that direct and unobstructed access to the mains socket is guaranteed at all times and the plug can be disconnected immediately in an emer- gency.Important safety information

To avoid the possibility of fires, the plug should always be disconnected from the network socket if the device is not used for long periods. Disconnect the device from the mains power supply before impending electrical storms, or use an uninterruptible power supply.

Warning Never open the device on your own! There is a risk of electric shocks! If it is necessary to open the device, consult trained personnel or your local maintenance spe- cialist. The installation or modification of a HDD should only be made by trained personnel or your local mainte- nance specialist.

Warning The installation of additional equipment or modifi- cation of the device invalidates your guarantee if not carried out by trained personnel. We recommend having the HDD installed by a maintenance specialist. Your guarantee is invalidated in the event of im- proper installation of the HDD. Overloading / overvoltage Avoid overloading of mains sockets, extension cables and adapters as this can result in fires or electric shocks. Use overvoltage protection to prevent damages caused by overvoltage (e.g. electrical storms). Cables Always hold cables by the connector, and do not pull the cable itself. Never touch the mains cable with wet hands, as this can lead to a short circuit or electric shock. Never position the device, furniture or other heavy items on the cable. Ensure that the cable does not become kinked, especially on the connector and sockets. Never knot the cable, and do not tie it to other cables. All cables should be laid so that they cannot be stepped on or cause an obstruction. A damaged mains cable can cause a fire or electric shock. Check the mains cable from time to time. Never modify or manipulate the mains cable or plug. Do not use plug adapters or extension cables that do not conform to the applicable safety standards, and do not make alterations to power supply cables or mains cables. Installation location / operating environ- ment Position the device on a firm, level surface and do not place any heavy objects on the device. The device is not designed for operation in rooms subject to high temperatures or moisture (e.g. bath- rooms), or in excessively dusty rooms. Operating temperature and ambient humidity: -10 °C to 55 °C, maximum 85% relative humidity. The device may only be operated in moderate climate conditions. Ensure the following: Sufficient ventilation must be present at all times (do not place the device in a storage rack, on thick car- pets, on a bed or anywhere where the ventilation slots are covered. Make sure that a gap of at least 10 cm is present on all sides). The device must not be exposed to direct heat sources (e.g. heaters). The device must not be exposed to direct sunlight or strong artificial light. The device must not be placed in close proximity to magnetic fields (e.g. loudspeakers). Naked flames (e.g. candles) must not be placed on or near the device. Contact with spraying or dripping water and aggres- sive liquids must be avoided. The device must not be operated in close proximity to water, and must not be submerged under any cir- cumstances (do not place objects containing water on or near the device, such as vases or drinks). Foreign objects must not penetrate the device. The device must not be exposed to strong variations in temperature, as this can lead to condensation and electrical short circuits. The device must not be exposed to excessive jolts or vibrations. Remote control Remove all batteries if the device will not be used for a sustained period, as these can leak and damage the device.Important safety information

Care and maintenance Maintenance is necessary if the device has been dam- aged. This includes damage to the plug, mains cable and housing, penetration of the interior by liquids or foreign objects, exposure to rain or moisture or when the device does not work properly or has fallen. Disconnect the device from the mains power supply before maintenance (e.g. cleaning). If smoke develops or unusual noises or odours are detected, then switch off the device immediately and pull the mains plug from the socket. In such cases, the device should not be used until it has been in- spected by a qualified technician. Maintenance work should only be carried out by qualified specialists. Never open the housing on the device or accesso- ries. There is a risk of fatal injury due to an electric shock when the housing is opened. Clean the device housing and remote control with a damp cloth. Do not use solvents, white spirit or thinners as these can damage the surface of the device. Do not use any of the following substances: Salt water, insecticides, solvents containing chlorine or acids (ammonium chloride) or scouring powder. Gently rub the surface with a cotton cloth until it is completely dry.

Warning The device works under dangerous voltages. The device must only be opened by authorised spe- cialists. All maintenance and service work must be carried out by authorised firms. Improper repairs can expose device users to the risk of fatal injury. Accessories Only connect devices that are suitable for the in- tended purpose. Otherwise, hazardous situations or damage to the device can occur.

Putting into operation Observe all safety and operating instructions before putting the device into operation for the first time. Only open the housing to install the HDD.

Warning When installing the device in an existing video surveillance system, ensure that all devices are disconnected from the mains power supply and low-voltage circuit.

Warning If in doubt, have a specialist technician carry out assembly, installation and connection of the de- vice. Improper or unprofessional work on the mains power supply or domestic installation puts both you and other persons at risk. Connect the installations so that the mains power circuit and low-voltage circuit always run sepa- rately from each other. They should not be con- nected at any point or become connected as a re- sult of a malfunction. Children and the device Do not allow children access to electrical devices. Never allow children to use electrical devices without supervision. Children may not be able to accurately detect possible risks. Small parts can be life- threatening if swallowed. Keep batteries away from small children. Call for medical assistance immediately if a battery is swal- lowed. Keep packaging materials away from children (dan- ger of suffocation). This device should not be used by children. If used improperly, spring-loaded parts can be ejected and cause injuries to children (e.g. eye injuries).Introduction

Introduction Dear customers, Thank you for purchasing this product. This product complies with current domestic and Euro- pean regulations. Conformity has been proven, and all related certifications are available from the manufacturer on request (www.abus.com). To maintain this status and to guarantee safe operation, it is your obligation to observe these operating instruc- tions! Read the entire operating manual carefully before putting the product into operation and pay attention to all operat- ing and safety information! All company names and product descriptions are trade- marks of the corresponding owner. All rights reserved. In the event of questions, please contact your local main- tenance specialist or dealer.

Disclaimer These operating instructions have been produced with the greatest care. Should you discover any missing information or inaccuracies, please con- tact us under the address shown on the back of the manual. ABUS Security-Center GmbH does not accept any liability for technical and typo- graphical errors, and reserves the right to make changes to the product and operating instructions at any time and without prior warning. ABUS Se- curity-Center GmbH is not liable or responsible for direct or indirect damages resulting from the equipment, performance and use of this product. No forms of guarantee are accepted for the con- tents of this document.

General information In order to use the device correctly, read this user man- ual carefully and keep it in a safe place for later use. This manual contains instructions on recorder operation and maintenance. Consult an authorised specialist if the device needs to be repaired. Unpacking the device Handle the device with extreme care when unpacking it. The packaging is made of reusable materials, and should always be passed on for recycling. We recommend the following: Paper, plastic packaging, cardboard and corrugated cardboard should be disposed of in the appropriate recy- cling containers. If recycling containers are not available in your local area, then you can dispose of these materials as domestic waste. If the original packaging has been damaged, inspect the device. If the device shows signs of damage, then return it in the original packaging and contact the manufacturer. Scope of delivery ABUS 16 channel NVR / 8 channel NVR Mains cable SATA cable and screws for HDD Bracket and screws for server racks Software CD User manual (On CD or enclosed) Quickguide (On CD or enclosed) Terminal connectors BNC/RCA adapter (TVVR35011 only)104 On-screen keyboard The on-screen keyboard appears after clicking on a text entry field with the mouse: The following screen keyboard appears during mere nu- merical entry: The keys have the same function as on a computer key- board. To enter the character, left-click the mouse. To finish data entry, press Enter. To delete the character in front of the cursor, click on

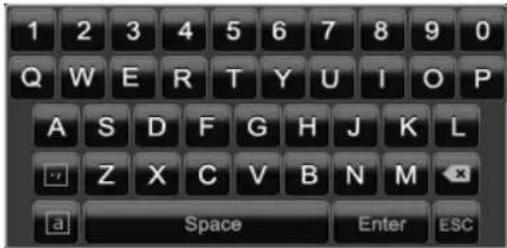

To switch between upper and lower case, click on the framed a symbol. The current setting is displayed above the keyboard. To cancel the entry or exit the field, press ESC. Starting the device

Important The device must only be operated with the mains power specified on the type plate. For safety reasons, use an uninterruptible power supply (UPS). After the device has been connected to the power supply and the main switch on the rear of the device is switched on, the DVR status LED lights up.

1. The device carries out a self-test during the start-up

2. The setup wizard appears. Exit the wizard to access

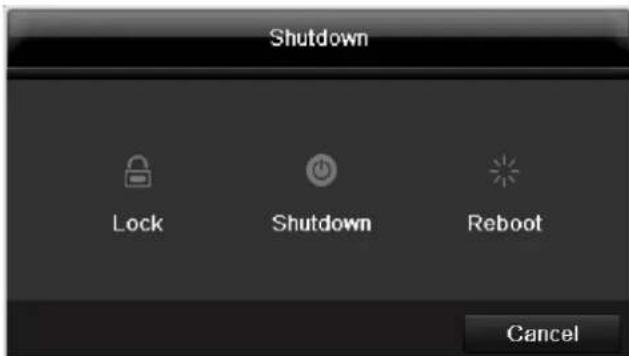

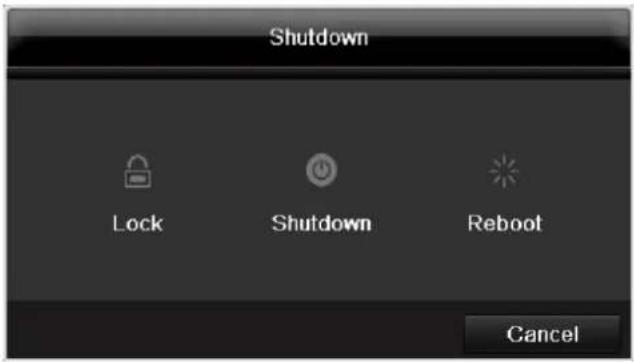

Switching off, locking and rebooting the device Click on “ShutDown” in the main menu. The overview appears.

1. To switch off the device, select ShutDown and con-

firm by pressing Yes. The device is then switched off. Do not press any keys during the shutdown pro- cedure.

2. To lock the system, select the corresponding Lock

symbol on the left. The user interface is now locked and a password must be entered to access the menu.

3. To reboot the device, select the corresponding Re-

boot symbol on the right. The device is then re- booted. Switching on the device Press and hold the OK key for 5 seconds to switch the device back on.Status displays

Status displays General information The following status displays indicate the current operat- ing state: LEDs on the front of the device Acoustic signal tones Icons (display elements) on the monitor

Note Pay attention to the information in the separate quick guide. DVR status LED

State Function White (constantly lit): System status is OK White (flashing): System status is OK, recording settings are stored, surveillance mode is active Blue (constantly lit): At least one camera is currently recording Red (constantly lit): System maintenance required

Camera selection keys – status LED

State Function Off: No camera connected White (constantly lit): Camera is connected Blue (constantly lit): Camera is currently recording

Displays on the monitor The device shows the date and time, camera name and whether a recording is in progress. Continuous recording: Blue “R” Alarm recording: Red “R” Motion recording: Yellow “R”Setup wizard

Setup wizard Setting up the system The setup wizard guides you through the necessary ba- sic system settings. The DVR is then set up for recording and surveillance.

Note All detailed settings can be found in the device menu (see overview on 114). The language selection appears after switching on for the first time:

1. Click the entry field and select the desired language

from the list. Click on Apply to continue. The follow- ing query appears: Click on Next to start the wizard.

Note After the system is set up, you can untick the box. The setup wizard is then no longer started auto- matically.

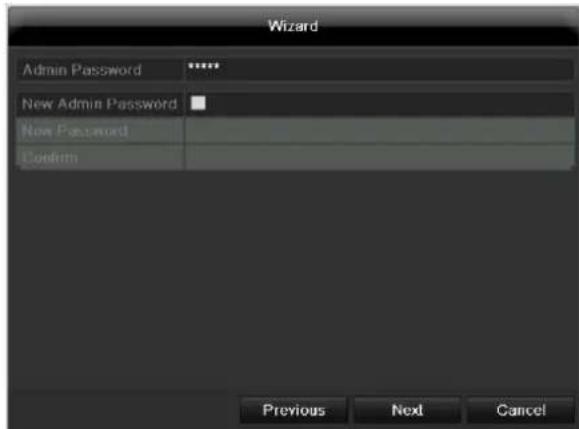

Setting up the administrator

Warning Note down the admin password. The following password is preset “1 2 3 4 5”

1. Click the entry field and enter your admin password.

2. To assign a new password, tick the box next to New

3. Enter the new password and confirm in the field be-

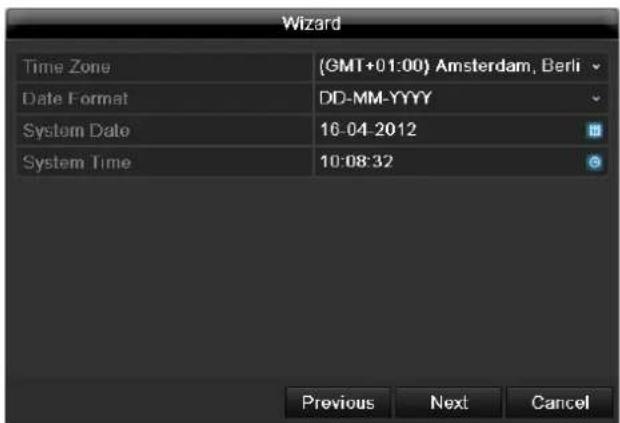

Time / Date Enter the system time (date and time). Click on Next to accept the data.Setup wizard

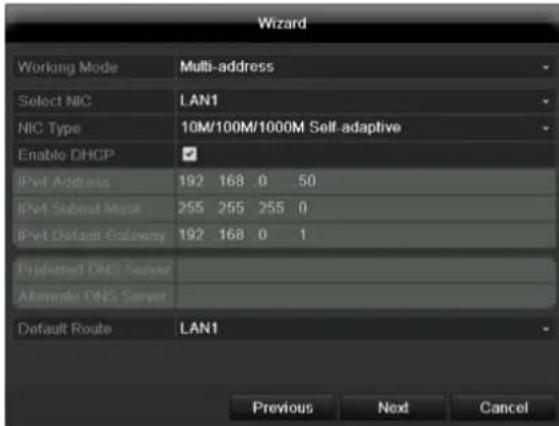

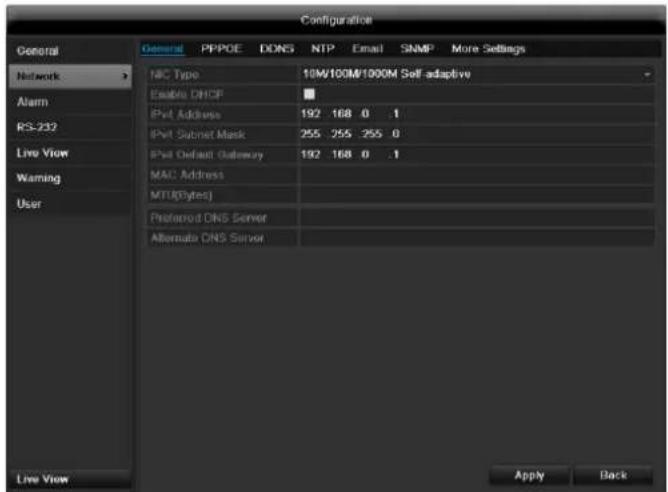

Note To check whether DHCP can be selected (or if you have to set the IP address and other settings manually), consult your network administrator.

1. DHCP activated: If DHCP is set up in the network

router, then tick the DHCP box. All network settings are then made automatically.

2. DHCP not activated: Enter the data manually (IPv4

address, IPv4 subnet mask and IPv4default gateway = IPv4 address of the router). You can also option- ally enter the address of the DNS server that you need for sending the E-mail. A typical address specification is as follows: IPv4 address: 192.168.0.50 IPv4 Subnet mask: 255.255.255.0 IPv4 Default gateway: 192.168.0.1 Preferred DNS server: 192.168.0.1 HDD Management

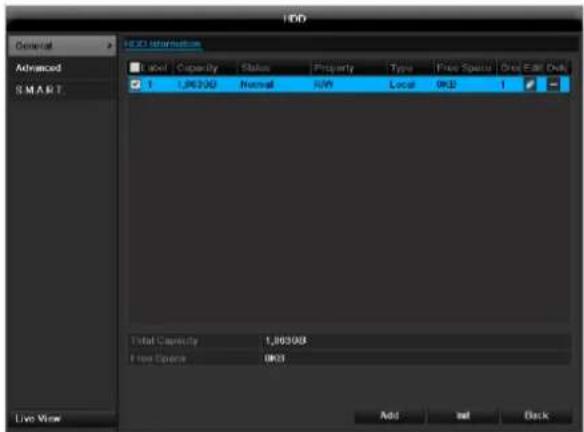

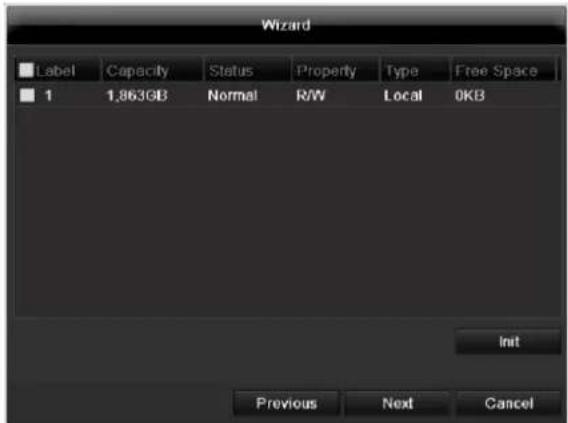

1. To set up a new hard disc, activate the “Check box”

with a left click and then click on Init.

Warning All data on the drive is deleted!

2. Confirm the prompt by pressing OK. The HDD is

then set up for operation. The progress is displayed on the status bar.

3. Exit the setting by pressing Next.

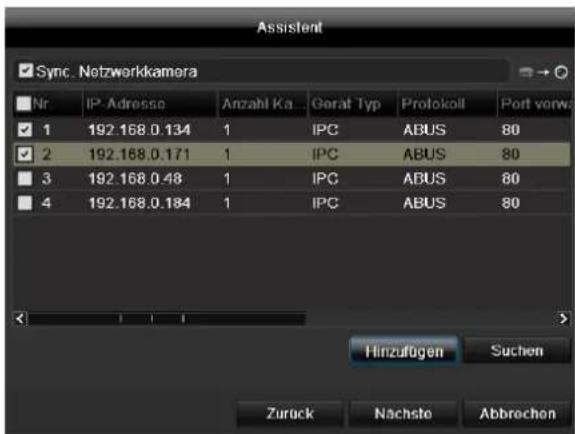

Setting up network cameras

1. To setup network cameras, click on Search.

2. You can find an overview of all the network cam-

3. Activate the “Checkbox” with a left-click to select

the network camera and then click on Add.

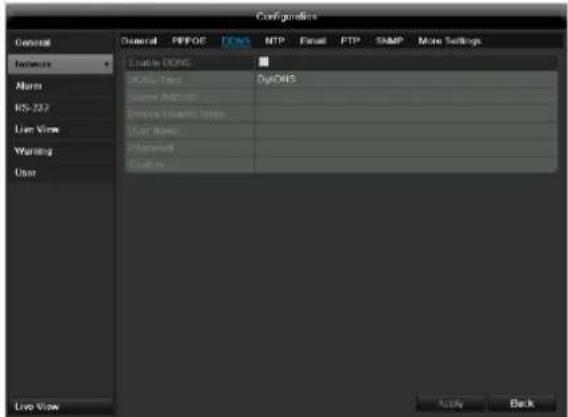

Note When the device is accessed remotely via the internet, it should be given a fixed network ad- dress.Setup wizard

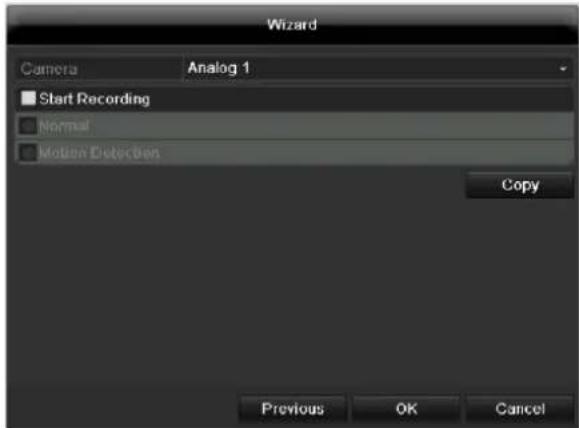

1. At “Camera” select a camera with which you would

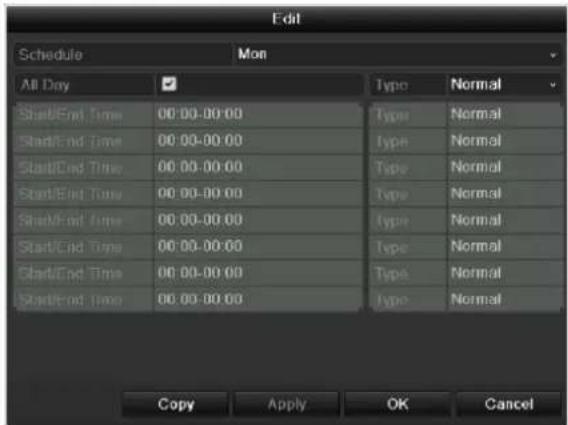

3. Select the type of recording. You can choose be-

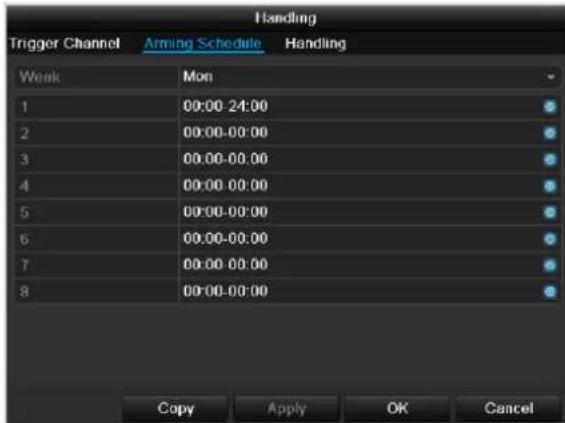

tween “Time plan” and “Motion recognition”. Arm the motion detection inside the camera for re- cording motion.

4. Press Copy to take on the setting for other cameras.

For this, select the cameras that appear in the new window. Activate the respective check box with a mouse click.

5. Finalize the setting and end the installation assistant

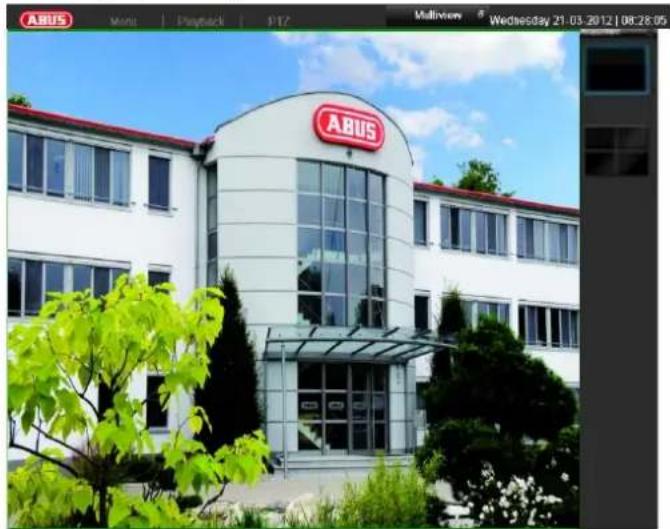

Live view Overview The live view starts automatically after the device is switched on. You can also go back to the live view by pressing the Menu key repeatedly. The following menus are found in the screen header: Menu Playback PTZ The view pop-up menu is found on the right. The time and date are displayed on the right. To open the view pop-up menu, click on the rectan- gular symbol at the top-right of the menu bar. Click on one of the symbols to switch between the dif- ferent views. The signals of the connected cameras are displayed on the main screen. By double-clicking the left mouse key, you can dis- play the camera image as a full-screen view or switch back to the original view. Status symbols The following symbols are displayed depending on the operating status of the device: Symbol Meaning

Red: Event Recording Event recording Yellow: Motion Recording Recording at motion detection Blue: Recording Continuous recording

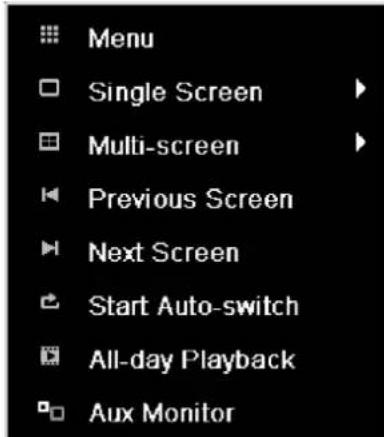

Pop-up menu for mouse operation

Note Press the right mouse button when the cursor is positioned on a live image. The following settings can be made. The arrow pointing to the right indicates that a sub-menu is opened for selec- tion:

Menu Opens the main menu Single Screen Full-screen view for selected cam- era Multi Screen Various camera layouts Previous Screen Changing the presentation of the previous camera Next Screen Displays the next camera(s) Start Auto-Switch Starts the camera sequence All-day Playback Switches to playback mode Aux Monitor to spot monitorLive view

Note Stop Auto-switch: Specify the delay in the image sequence in the display settings.

Note Activation of “AUX monitor” without a connected spot monitor: Mouse pointer function is deactivated. Selection bar in the camera image Click on the camera image in single or multi view. A se- lection bar appears:

(1) (2) (3) (4) (5) (6) (7) (8) Nr. Meaning of symbol (1) Area to move the miniature bar (2) Activate / deactivate manual recording (3) Immediate playback of the last 5 minutes (4) Activate / deactivate audio output of video output (5) Immediate image of selected channel (6) PTZ-control (7) digital zoom (8) Leaving the selection barLive view

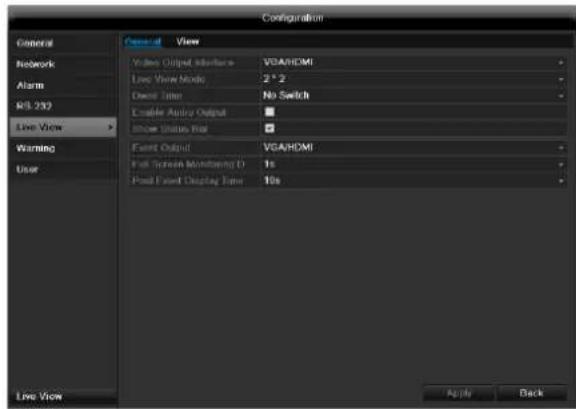

Note The live view can be set as follows. Open the main menu, then click on “Configuration”. Then click on “Liveview”: The following settings are available in the TAB “General”: Video Output In- terface VGA/HDMI, Main CVBS Select the connection where the set- tings are changed Live View Mode Different camera layouts Dwell Time Switching time between the individ- ual cameras and the sequence dis- play Enable Audio Output Activate/deactivate audio output of the video output The audio signal is only given if the corresponding cam- era input is presented as a full screen. Event Output Allocate monitor for the output of events Full Screen Moni- toring Duration in seconds, where the event on the allocated monitor will be displayed. Post Event Dis- play Time in seconds, the duration of the Pop- up window when an event occurs.

Note The recorder image can either be shown on an HDMI or a VGA monitor. The combination of HDMI and VGA output is supported. The BNC output can be used either for a spot monitor or a separate monitor.

Note VGA monitor connected: A connected HDMI/VGA monitor automatically becomes the main monitor where the audio output is also assigned. The BNC output Video Spot Out output displays the cameras in sequence and in full screen. If during the boot process of the DVR the HDMI/ VGA cable is not connected, the main video signal is displayed at BNC out- put MAIN. Connect the HDMI/VGA cable and reboot the DVR in order to display the main video signal at the VGA output. No HDMI/VGA monitor connected: The main video signal is displayed at BNC output MAIN. The BNC output Video Spot Out output displays the cameras in sequence and in full screen. Setting the camera output You can display a maximum of 8/16 cameras (TVVR35011/TVVR45021) in the live cast at the same time.

1. Click on the TAB “View”.

3. The camera signal is assigned to the corresponding

image section using the navigation keys. “X” means that this camera is not displayed.

4. Click on Apply to accept the settings.Playback

Playback General information Playback can be made in three different ways: Through the video search in the main menu From the live view Through the log file in the maintenance menu

Note The buttons “previous file/day/event” are used dif- ferently depending on the playback mode: Normal playback: By pressing the button the playback jumps to the previous/next day. Video Search: By pressing the button the playback jumps to the previous/next event day. Video Export: By pressing the button the playback jumps to the previous/next file.

Note It is possible to start a simultaneous playback with up to 4/8 cameras. Playback screen Playback is controlled on the control panel: No. Area

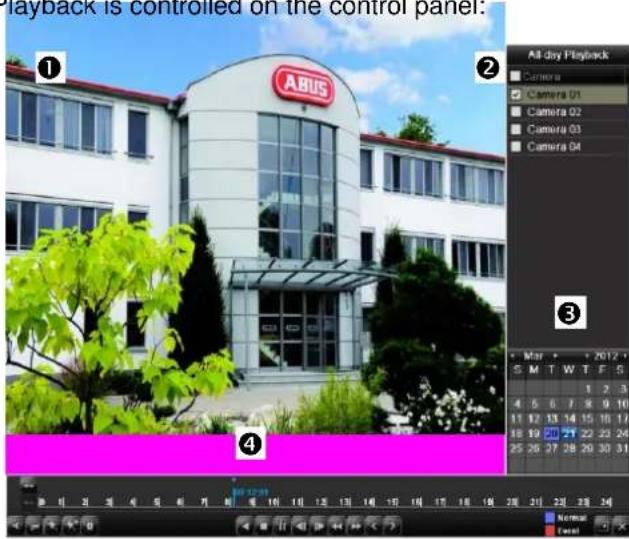

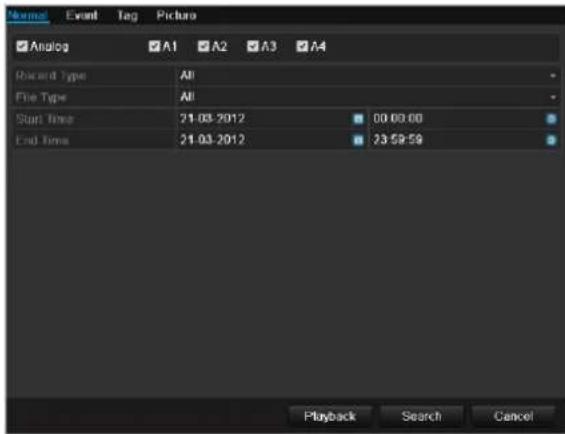

Running playback with date and time

Used to select the camera for feedback

Calendar with recording type

Control panel with time bar (see right) Using the control panel The control panel (4) is used for controlling the running playback. The symbols have the following meaning:

Zoom in / Zoom out the time line (24/12/1 hours)

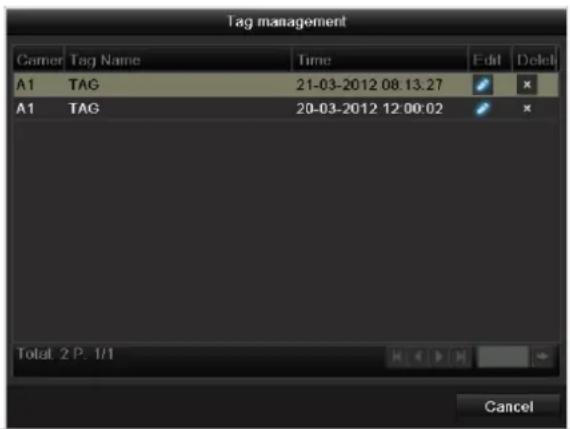

Add user-defined marking

Previous recording, previous day

Time bar: Click on the time bar with the mouse to con- tinue playback from another point To start playback from a specific time, click on the slider and drag it to the required time

Recording type Blue = Continuous recording Red = Event recording

Hides the control panel

Note You can zoom in on the screen image. Right-click in the running playback. Please choose ’Digital Zoom‘. The zoom mode is active. Shift the zoom area by means of the window in the miniature screen. Right-click the image to finish. Please klick on ‚Tag management‘ (6): In order to change the description of your marking, click on the process symbol. To remove, click on the delete symbol. Right click when playback is running Perform a right click on the playback image. The follow- ing options are available:

Camera Camera to be set Digital Zoom Enlarges the selected screen section digitally Control Panel Fades in/out the control field for playback control Exit Ends playbackMain menu

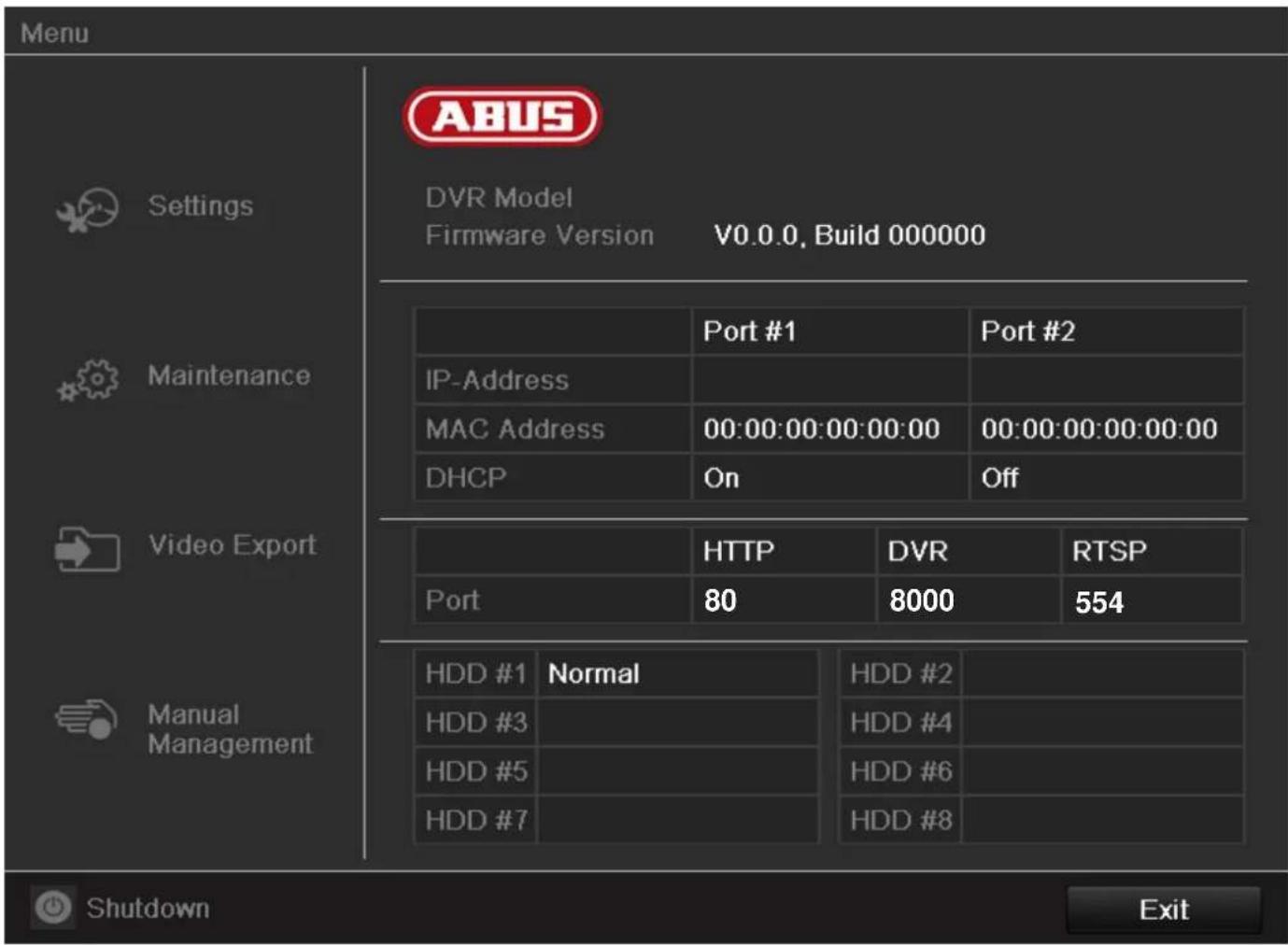

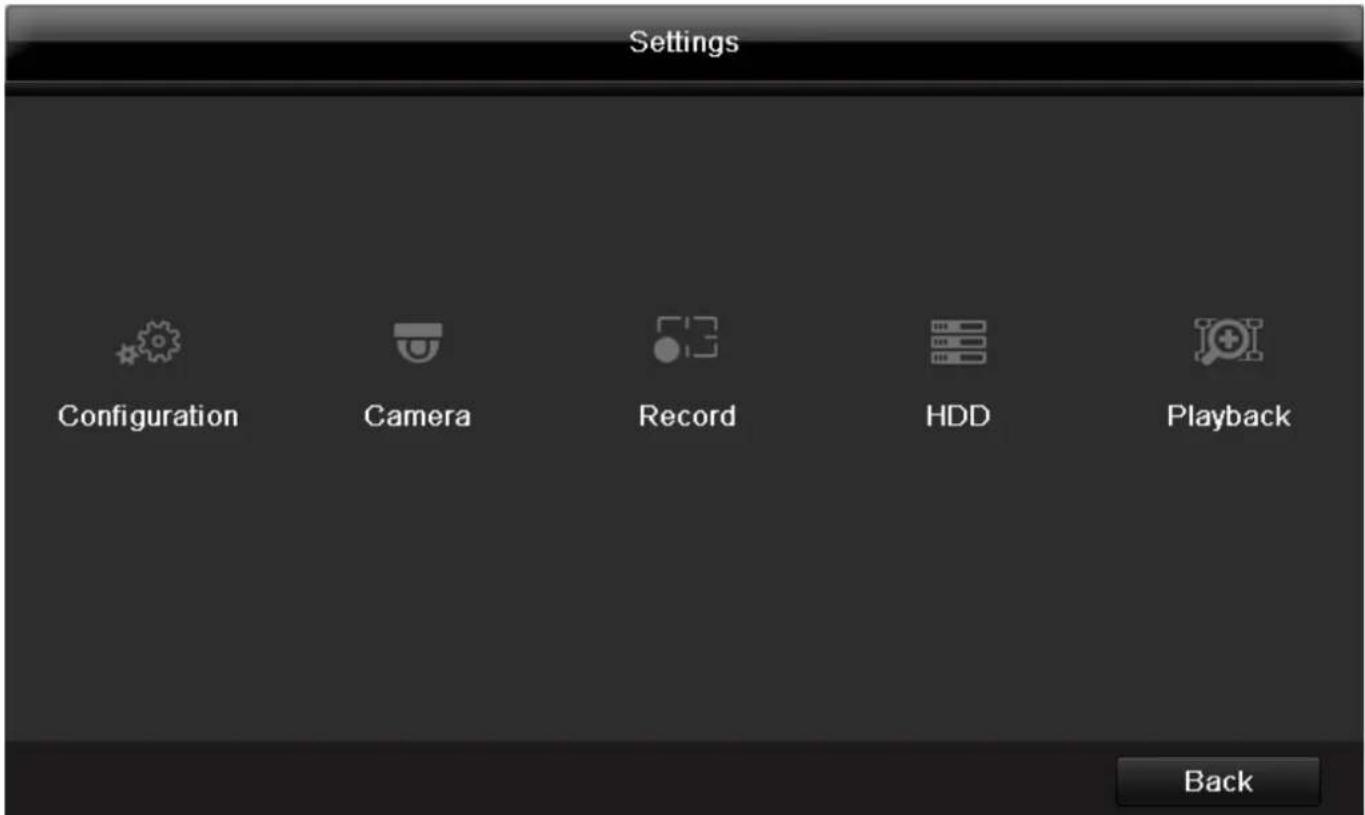

Main menu Menu overview The following overview shows the main menus used to set and control the device. Furthermore you can find important information regarding the devide on the right side of the menu. Click on the menu to open it. Click Exit to close the menu overview.

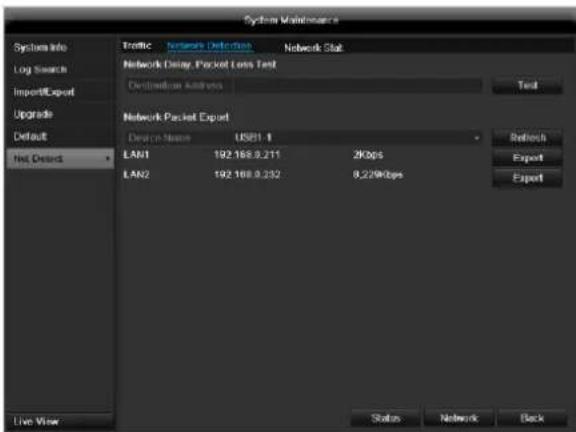

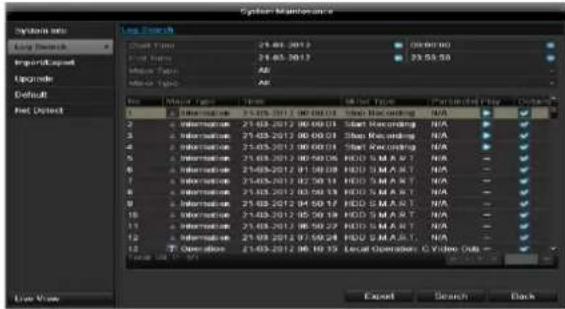

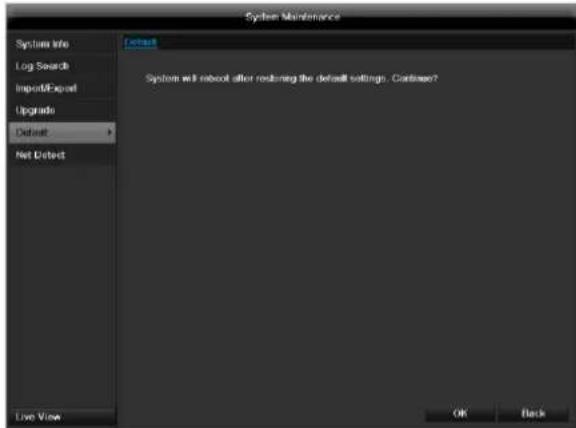

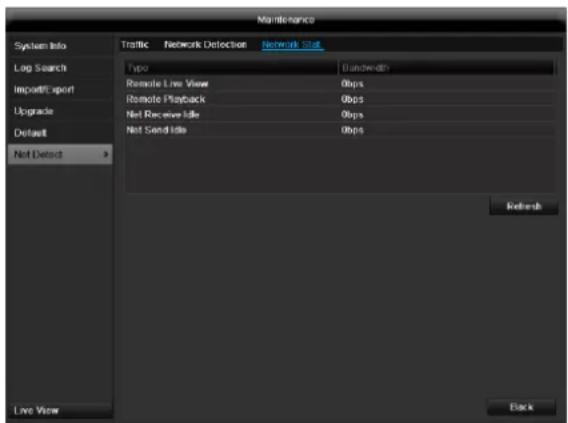

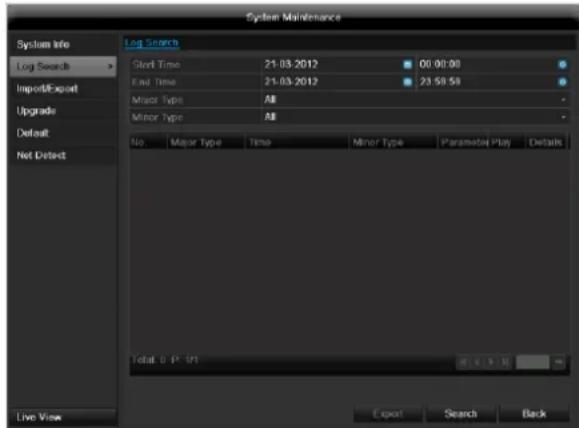

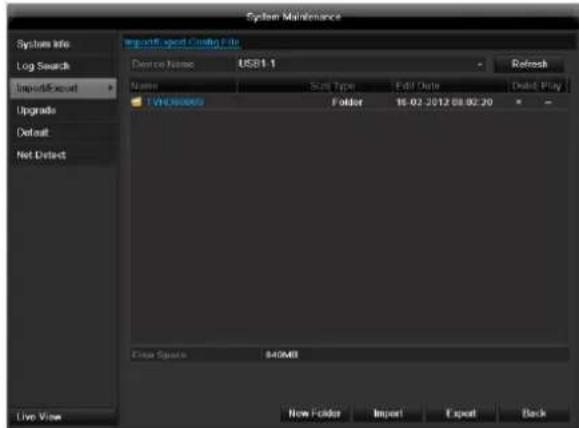

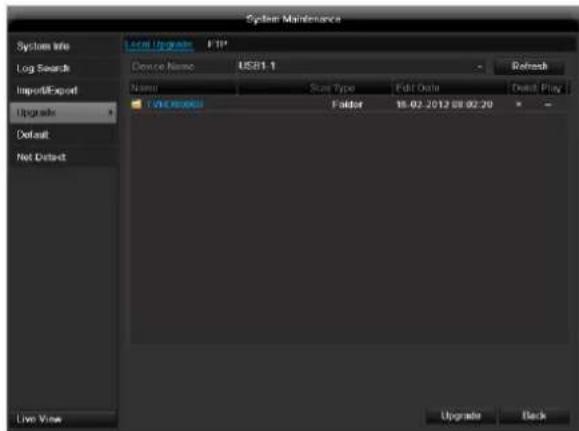

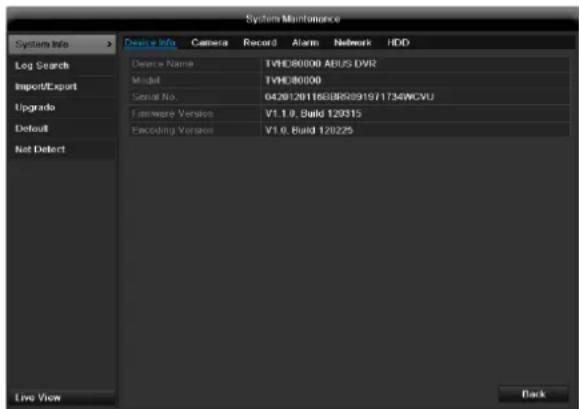

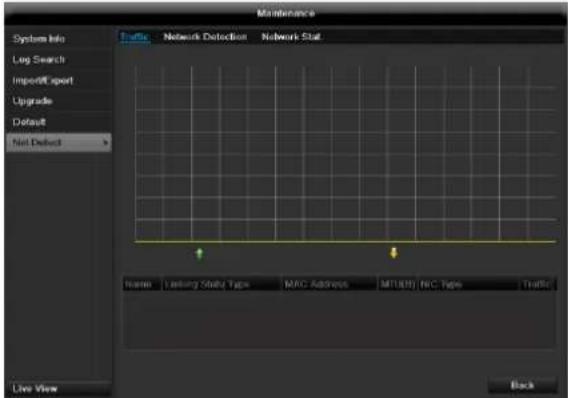

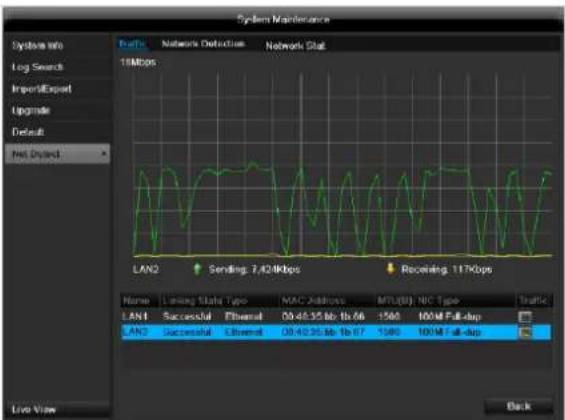

Maintenance Device maintenance (new firmware update, log search, import/export con- figuration, reset to factory defaults etc Display network utilization.

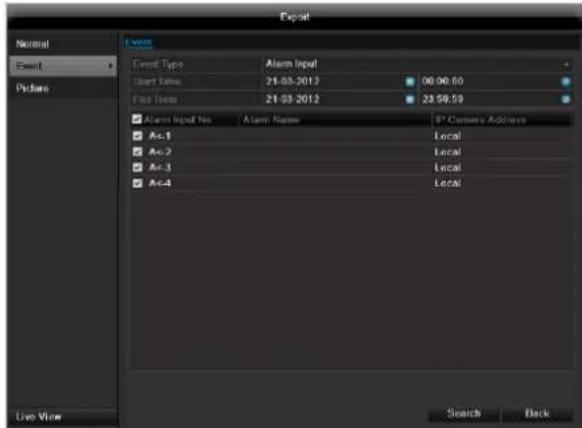

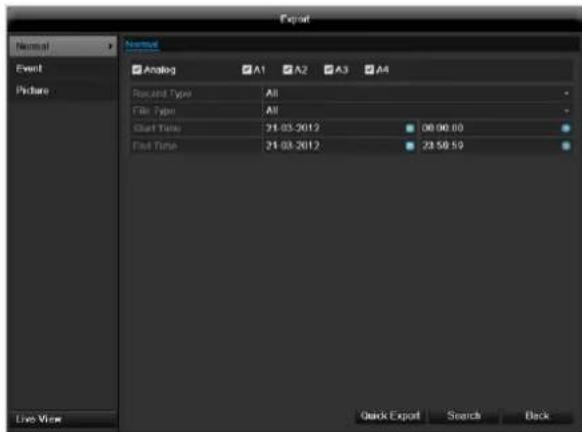

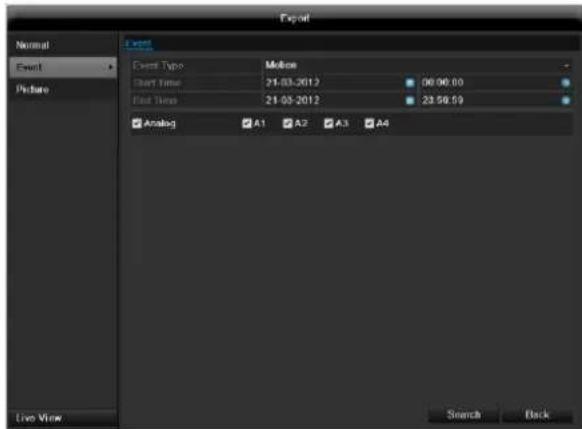

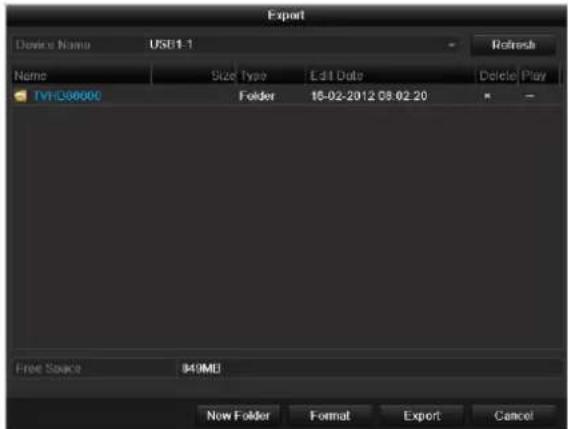

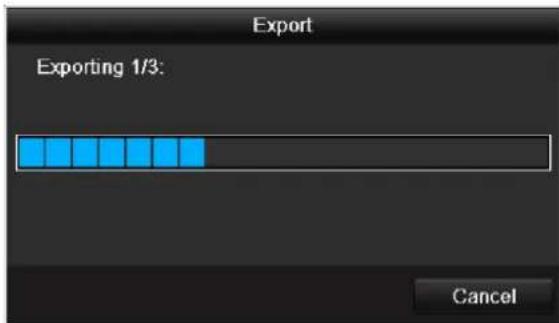

Video Export Feature for exporting saved recordings onto USB media.

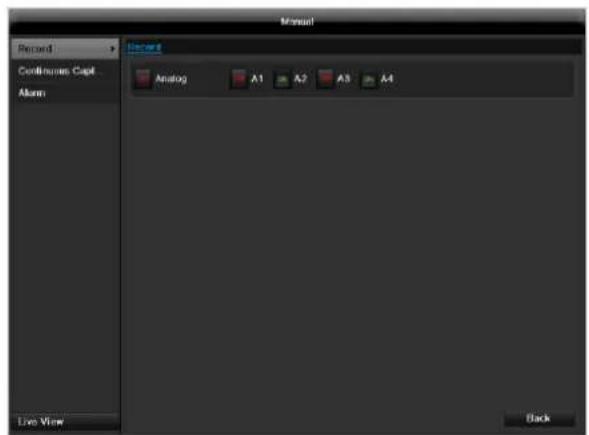

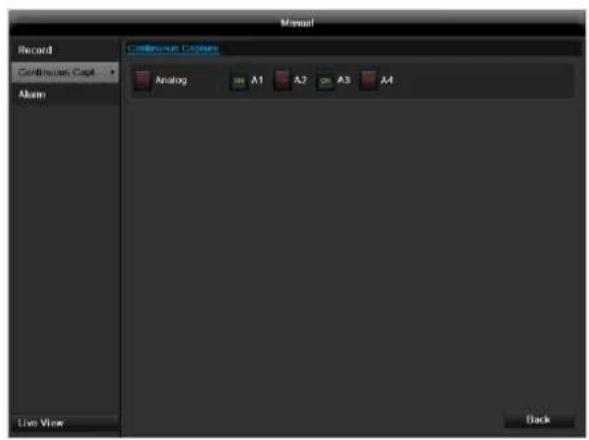

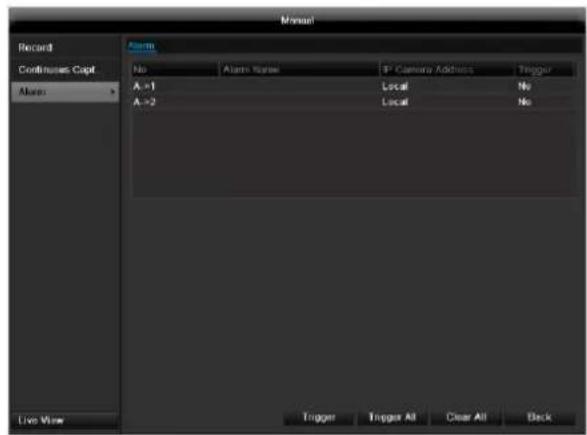

Manual Management Starts or ends the manual video and image recording of selected cameras, as well as the manual switching of alarm outputs.

Shutdown Lock, shutdown or restart the device.

Menu description page Configuration Used for managing all device settings (General, Camera, Record, Network, Alarm, PTZ, RS232, Display, Exception, User).

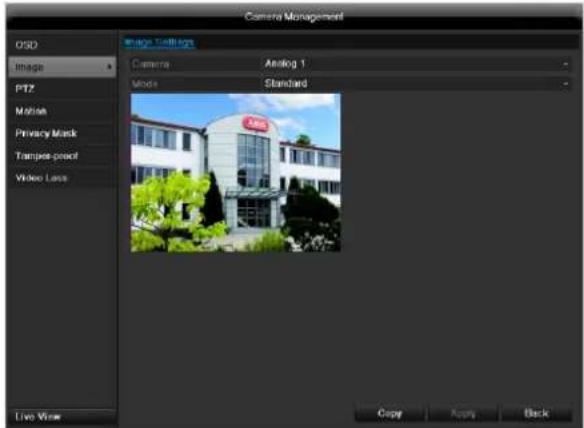

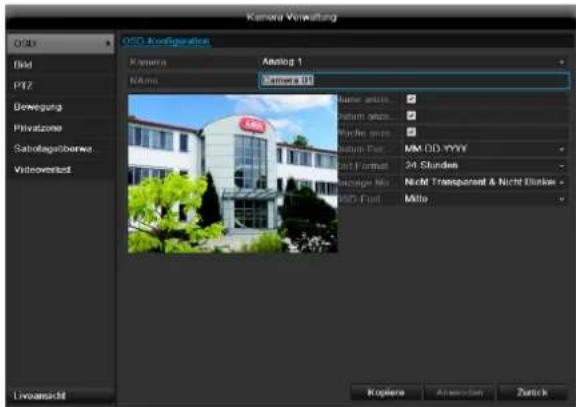

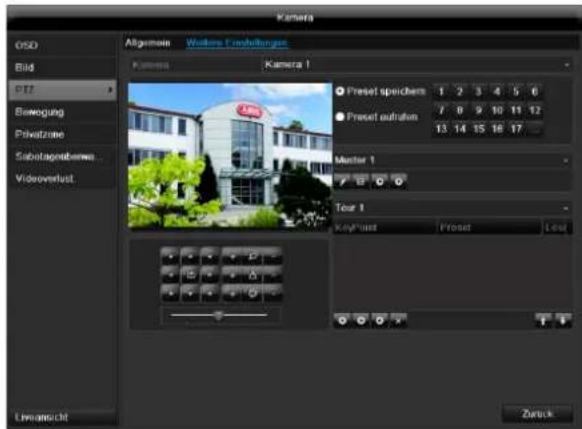

Camera Menu for setting camera parameters (OSD configuration, image mode, PTZ configuration, motion recognition etc.)

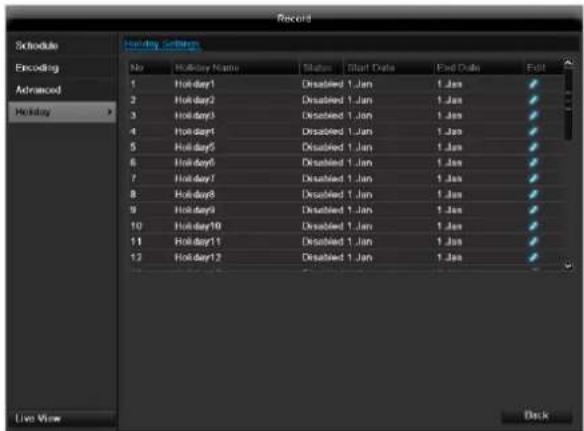

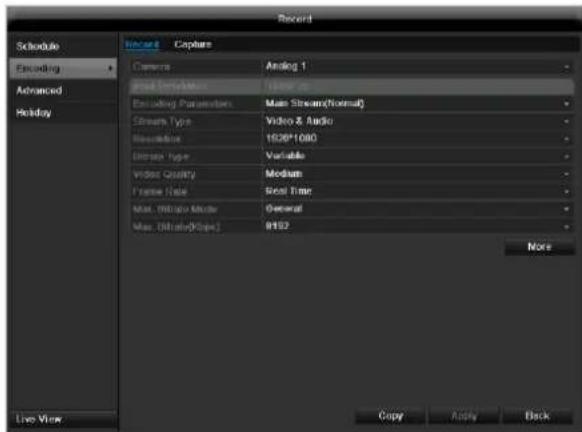

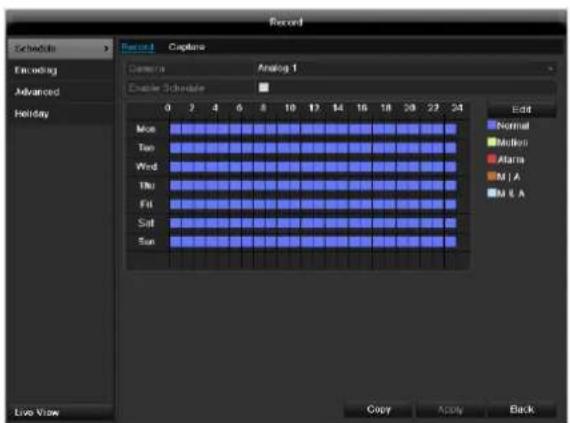

Record Menu to set recording parameters (time plan, camera resolution, camera stream etc.).

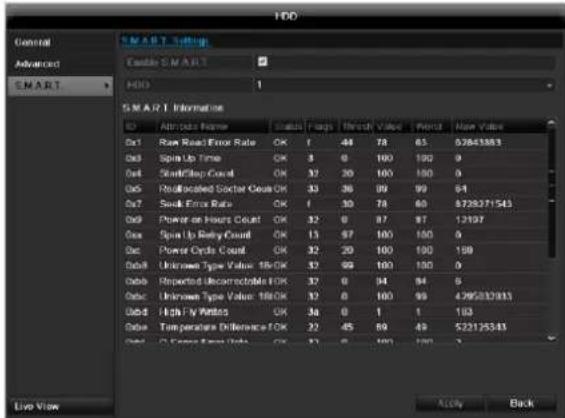

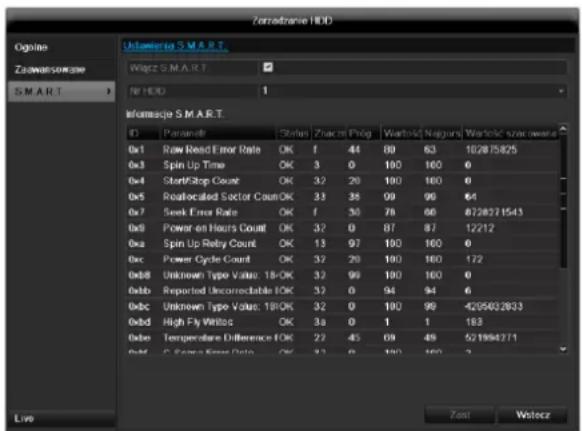

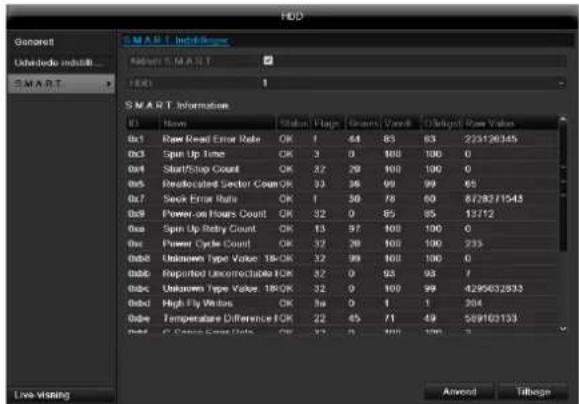

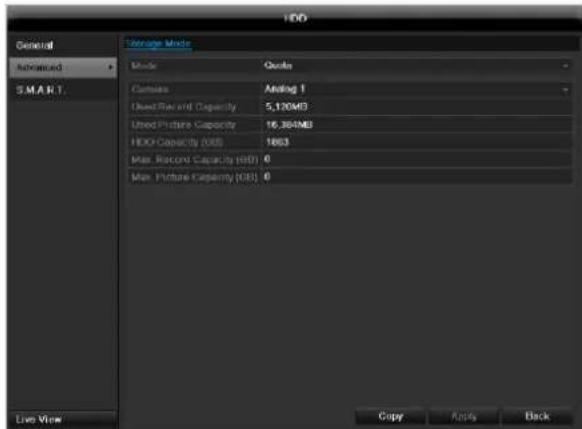

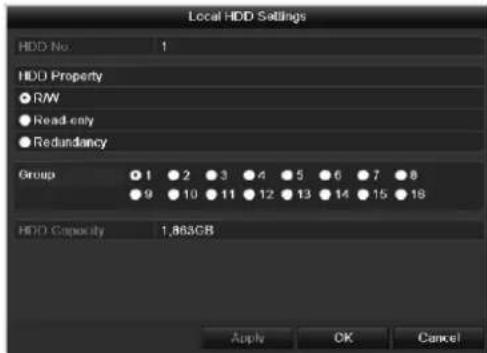

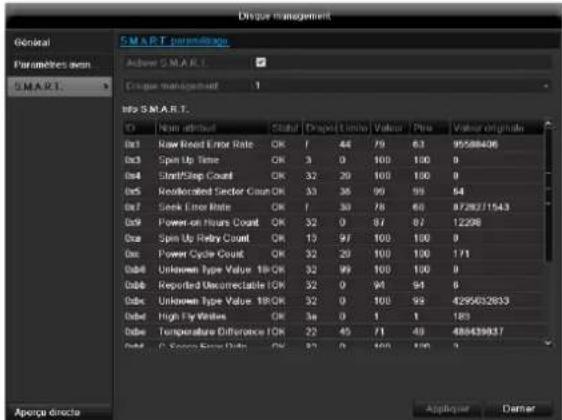

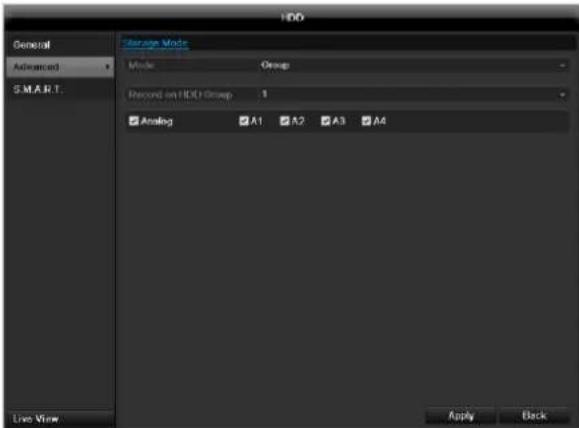

HDD Used for initialising or managing installed HDDs (assigning read/write func- tions, cameras, network HDD management etc.).

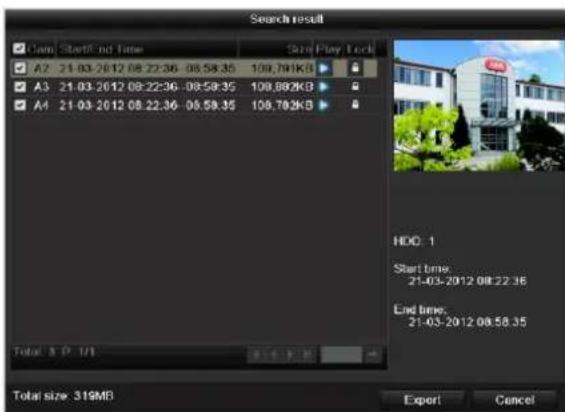

Playback Parameter-controlled search for video or image recordings which were started by events like alarms or motion recognition, as well as alarm events and markings set in playback. 136Settings

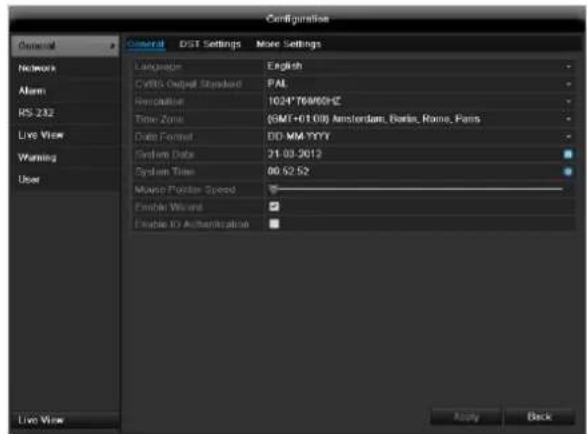

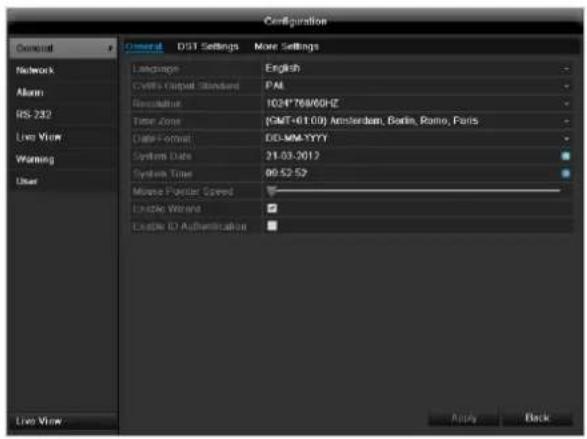

Note The “Configuration” menu is used to manage all device settings.

Warning Ensure that the date and time are set correctly. IMPORTANT: Subsequent changes to the settings can lead to data loss! Ensure a data backup has been made in good time beforehand. Overview Menu Setting Page General Language, video, time, date, mouse pointer, password, time zones and other settings

Live View Display settings and assign- ment of the event output

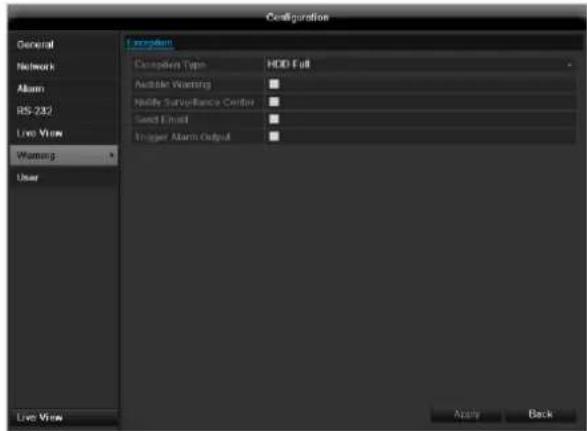

Warning Behaviour of the device in ex- ceptional cases (HDD full, network discon- nected etc.)

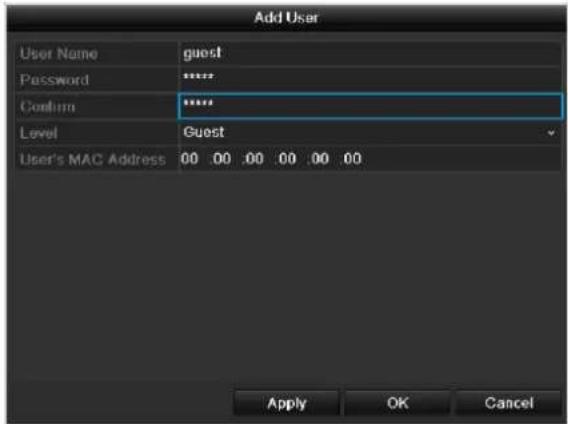

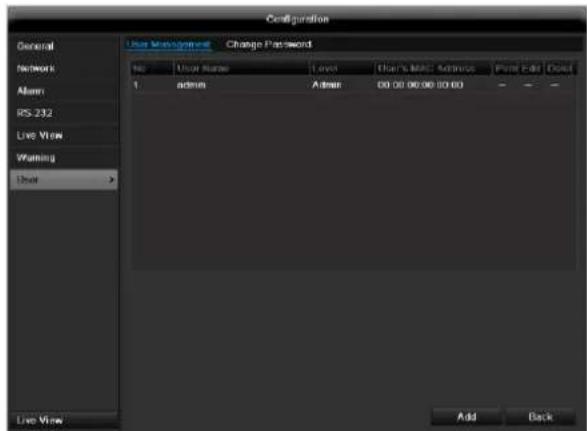

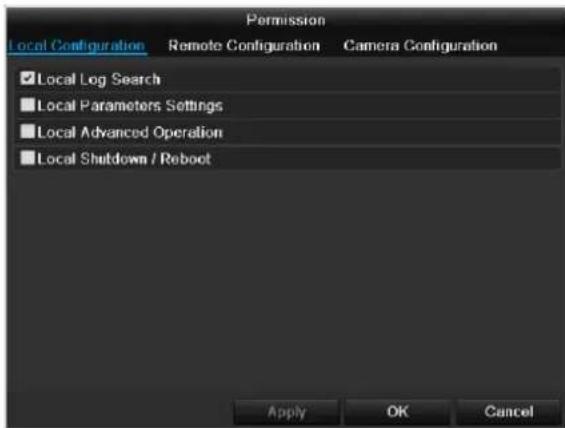

User Adding and changing users, assigning authorisation rights

Note Pay attention to the instructions in the correspond- ing sections.

General “General” tab Setting Language Language on the OSD CVBS Output Standard PAL / NTSC Resolution Resolution on the monitor Time Zone GMT (Greenwich Mean Time) Date Format MM-DD-YYYY, DD-MM-YYYY, YYYY-MM-DD System Date/Time Date and time Mouse Pointer Speed Set on the scroll bar (left = low speed; right = high speed) Enable Wizard Box not ticked: Wizard will not appear after restart of the device. Box ticked: Wizard will appear after restart of the device. Enable ID Au- thentification Box not ticked: In order to enter a menu no password has to be entered. At access by net- work the password has to be entered. Box ticked: Password must be entered in order toSettings

TAB “DST set- tings” Setting Auto DST Ad- justment With an activated check box, the de- vice converts automatically to summer time. Enable DST With an activated check box, an exact start / end date can be selected From / To Date of DST start / end DST Bias Daylight Saving Time Bias: Correc- tion of the DST to the reference time TAB “More Settings” Setting Device Name Unique specification of the device Device Number Used for unique identification when using remote control Output Mode Makes the image softer or sharper. CVBS Output Brightness Scroll bar (left = darker; right = brighter) Operation Timeout Never / 1 to 30 minutes – regulates how long the menu is shown

Confirm the settings by clicking Apply and leave the menu with OK. Network configuration Correct network settings are essential in the following cases: When using remote control of the device and surveil- lance over your server

Note Please read the following basic instructions before setting up the device. A network is a connection of at least two network-capable devices. Transmission types: Wired networks (e.g. CAT5 cable) Wireless networks (WLAN) Other transmission types (Powerline) All systems have certain similarities, but can also differ in many ways. Terms and definitions An overview of relevant terms when using the device in a network can be found below. Parameter Setting IP address An IP address is the unique address of a network device within a network. This address may only appear once within a network. Certain IP address ranges are reserved for public networks (e.g. the Internet). Private ad- dress range e.g. 10.0.0.0 – 10.255.255.255 Subnet mask: 255.0.0.0

Subnet mask: 255.255.255.0 Subnet mask A subnet mask is a bit mask used for making decisions and assignments dur- ing routing.

255.255.255.0 is the standard subnet

mask in home networks. Gateway A gateway is a network device which al- lows all other network devices to access the Internet. This can be the computer connected to the DSL modem or – usually – the router or access point within the network.

Parameter Setting Name server The name server is responsible for as- signing a unique IP address to a web ad- dress or URL (e.g. www.google.de). Also known as DNS (Domain Name Server). When a domain name is entered into a browser, the DNS searches for the cor- responding IP address of the server and forwards the query on. The IP of the provider’s DNS can be en- tered here. However, it is often sufficient to select the IP of the gateway. This then forwards the queries independently to the provider DNS. DHCP The DHCP server automatically assigns the IP address, subnet mask, gateway and name server to a network device. DHCPs are available in current routers. The DHCP service must be specially set and activated (see the corresponding manual for more information). Note: When using fixed IP addresses and a DHCP server, make sure that the fixed IP addresses are outside the address range assigned by DHCP. Otherwise, problems could occur.Settings

Port A port is an interface used for communi- cation by different programs. Certain ports are fixed (23: Telnet, 21: FTP), whilst others can be freely selected. Ports are important for different applica- tions (e.g. external access to the device over a browser). MAC ad- dress The MAC address (Media Access Con- trol or Ethernet ID) is the specific hard- ware address of the network adapter. This is used for the unique identification of the device in a computer network.

Network layout The device must be physically connected to the network over a CAT5 cable (see the connections on page 81).

Note Pay attention to the specific information and in- structions on the network devices. Several switches, routers and access points can be con- nected to each other. Firewalls and other security soft- ware can affect the network.

Warning When using a router, the network clients (e.g. the recorder) can be connected to the Internet and vice versa. Make sure to use protective measures to prevent unauthorised external access (e.g. firewall, chang- ing passwords, changing ports)! Network-configuration

TAB Settings General Settings for the local net and selecting the network mode. PPPOE PPPOE is used on ADSL connections and when using modems in Germany. Click on “Set” to enter the access data (ID and password) for your provider. DDNS Server for Dynamic Domain Name Sys- tem management. Used for updating host names or DNS entries NTP Network Time Protocol Server for time synchronisation Email Used to specify the e-mail settings which are sent as an e-mail to a spe- cific address in the event of an alarm. FTP Configure the address of an FTP server and the path for saving the files. SNMP Configure the parameters to receive in- formation about the device status. More Settings Communication and HTTP port.Settings

TAB General Parameter Setting Working Mode See explanation, p. 118 Select NIC Select the connection for which to make the network settings. NIC Typ Set the transmission speed of the in- stalled network card here. Tip: 10M/100/1000M self adaptive Enable DHCP Tick the box if the IP addresses are assigned dynamically via DHCP in the network. DHCP activated: Subsequent entry fields are inactive (parameters as- signed via DHCP). Note: If the IP addresses are assigned manually, ensure that DHCP is not ac- tive (box not ticked). IPv4 Adress Address of the network device in the network (manual assignment) IPv4 Subnet Mask Usually 255.255.255.0 IPv4 Default Gateway Address of the gateway for Internet ac- cess IPv6 Adress 1 Currently no functioning IPv6 Adress 2 Currently no functioning IPv6 Standard Gateway Currently no functioning MAC Adress Hardware address of the installed net- work card MTU (Bytes) Describes the max. size of the largest protocol data . Preferred DNS Server Address of the Domain Name Server (usually the IP address of the gateway) Alternate DNS IP address of the alternative DNS server Default Route LAN 1 or LAN 2

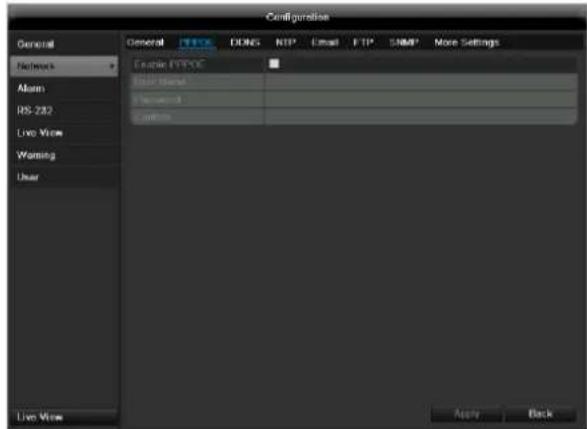

Note In certain modes some of these settings cannot be selected. PPPOE

1. Tick the PPPOE box, enter the user name (Internet

access ID) and password, then confirm the pass- word.

2. Confirm the settings by pressing Apply.

Warning Use PPPOE only if there is no router available. DDNS

1. To use the ABUS DDNS function, you must first set

up an account under www.abus-server.com. Please note the FAQs on the website when doing this.

2. Tick the “Enable DDNS” box, enter ‘ABUS DDNS’ as

the “DDNS Type”, then enter www.abus-server.com or “62.153.88.107” under “Server Address”.

3. Confirm the settings by pressing Apply. The IP ad-

dress of your Internet connection is now updated on the server every minute.Settings

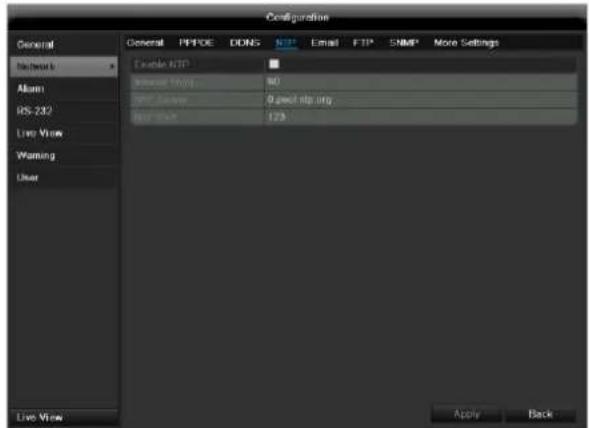

Note The recorder can synchronise the time with an ex- ternal server. Several server addresses are avail- able on the Internet for this purpose.

1. Tick the “Enable NTP” box and then enter the inter-

val at which the synchronisation should be made again. Enter the IP address of the NTP server and the NTP port.

2. Confirm the settings by pressing Apply.

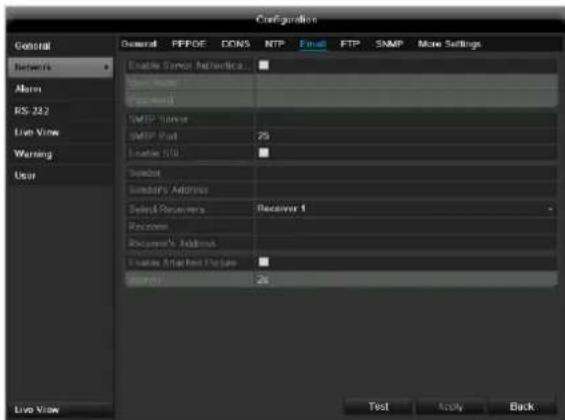

Email In the event of an alarm, the device can send a message by e-mail. Enter the e-mail configuration here: Parameter Setting Enable Server Authentica... Tick the box when authentication is made on the server of the Internet provider User Name E-mail account at the provider Password Password connected to the e-mail account SMTP Server SMTP server address of the provider SMTP Port Enter the SMTP port here (Default: 25) Enable SSL Tick the box to activate the e-mail encryption Sender Name of the sender Sender´s Adresse Corresponding e-mail address for the e-mail account Sender´s Re- ceiver Select three possible recipients for the e-mail Receiver Enter the name of the recipient here Receiver´s Adresse Enter the e-mail address of the recipient here Enable Attached Picture Tick the box when camera images should also be sent with the e-mail as photo files Interval Select the interval between the individual recordings (2 to 5 sec- onds)

2. Click on Test to send a test e-mail.

3. Please clarify if your settings are correct and you

have received a confirmation mail. Then click on Apply.

Note The device sends an e-mail to the specified re- cipients. If the e-mail is not received, check the settings and correct them. If necessary, check the spam filter of your e-mail client.

Note Because of the cause of compatibility please do only use E-Mail clients where a dial-up via SMTP is possible. SNMP Parameter Setting Enable SNMP Activate the checkbox to create a connection to SNMP software SNMP Version Version of the SNMP system SNMP Port Enter the SNMP port (Default: 161) Read Community Enter the “Key” according to the set- tings of your SNMP software.Settings

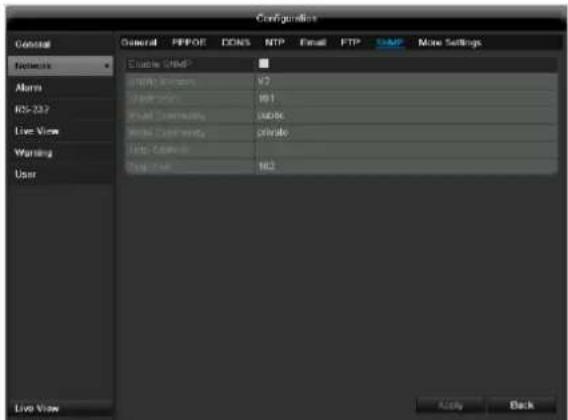

Write Community Enter the “Key” according to the set- tings of your SNMP software. Trap Adresse Enter the IP address of the SNMP manager Trap Port Enter the trap port (Default: 162)

Note SNMP is used for monitoring the device status. For this you need SNMP software not available from ABUS. Confirm the settings by clicking Apply and leave the menu with Back. More settings

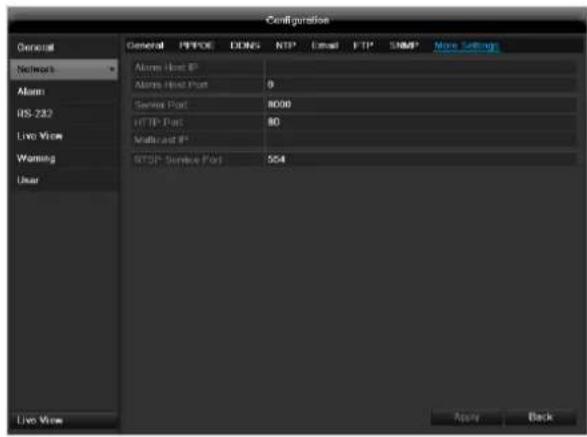

Parameter Setting Alarm Host IP Network address of the PC where the CMS is installed Alarm Host Port Port of your CMS Station Server Port Port for data communication (Gen- eral: 8000) HTTP Port Port for web server (General: 80) Multicast IP In order to minimize traffic you can enter a Multicast IP. The IP address has to match the IP address of the PC running the CMS software. RTSP Service Port RTSP-port (Default: 554)

Note Server port 8000 and HTTP port 80 are the stan- dard ports for remote clients and remote Internet browser access.

Note With Alarm Host IP/Port you configure the address of your CMS software. The CMS software is noti- fied when there is an alarm, and performs various reactions depending on the setting.Settings

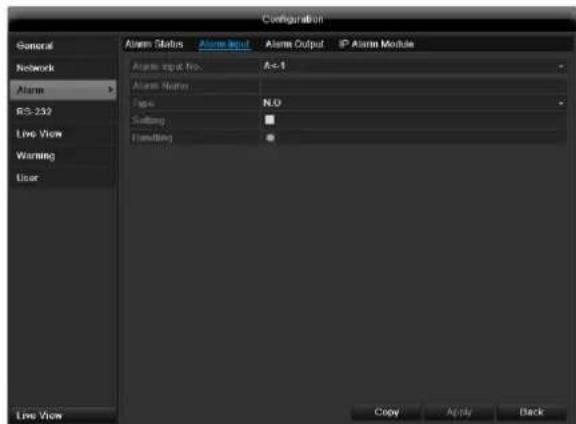

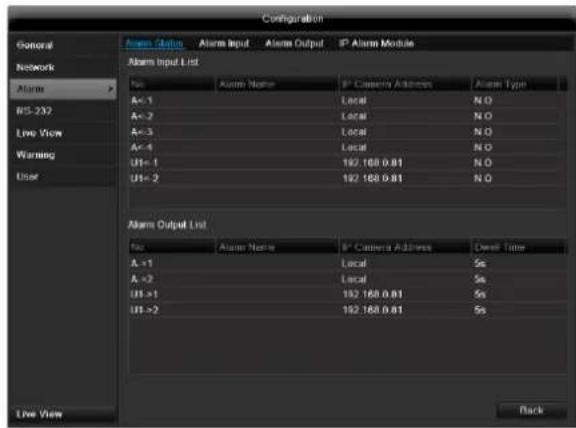

Alarm Alarm status Here you see a list with all the alarm inputs and outputs and their current status. Alarm input Select a reaction in the case of an alarm by clicking the ‘Setting’ symbol for “Handling”. Parameter Setting Alarm Input No. Select the alarm input to make the settings Alarm Name Enter a clear description here (e.g. door contact on warehouse) Type N.O.: Normally open circuit N.C.: Normally closed circuit Activate the alarm input by ticking the checkbox for “Setting”. Define the response of the recorder when there is an alarm under “Handling”. Click Copy to apply these settings for other cameras. Confirm the settings by clicking Apply and leave the menu with OK. Handling TAB Trigger channel Tick a checkbox to select which camera channel is trig- gered in the case of an alarm. TAB Arming schedule Define the time at which the responses selected in the TAB “Handling” are activated when there is an alarm. Click Copy to apply these settings for other days of the week or the entire week.Settings

TAB Handling Define the response in the case of an alarm: Parameter Setting Full Screen Monitoring A message appears on the monitor. Audible Warning The device emits a repeating tone. Notify Surveil- lance Center Sends an alarm signal to a PC with ABUS CMS software. The software must be enabled and the recorder set to surveillance mode on the PC. Send E-Mail An e-mail is sent to a specific e-mail address (see page 119). Trigger Alarm Output see also page Fehler! Textmarke nicht definiert. Confirm the settings by clicking Apply and leave the menu with OK. TAB PTZ Linking Currently no functioning. Alarm output

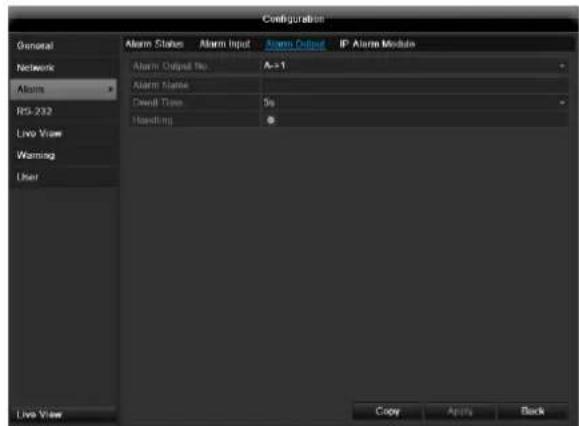

1. Select an alarm output to be configured in the

drop-down menu under “Alarm Output No.”.

2. Assign any name to the alarm output in “Alarm

3. In “Dwell Time”, select how long the alarm is trig-

4. In “Handling”, select the schedule for the alarm

5. Click Copy to apply these settings for other alarm

6. Confirm the settings by clicking Apply and leave

Note To record with the aid of an alarm, you must set up the schedule under Recording (see p. 130).Settings

RS-232 Currently no functioning. Live view See page 109. Warning

Note Enter the trigger under “Exception Type”, for ex- ample: HDD Full Disconnected After doing this, specify the device behaviour. Confirm the settings by clicking Apply and leave the menu with Back. User

Warning Note down the admin password. The following password is preset “1 2 3 4 5” You can add new users, delete existing users and change the settings in the “User Management” menu.

1. To add a new user, select Add.

Parameter Setting User Name Unique identification Password Access code for the device (device management) Note: Change all passwords on a regu- lar basis, using a combination of letters and numbers. Note down all pass- words in a safe place. Confirm Enter the access code again here Level IMPORTANT: More access rights can be set on the Manager level than on the User level. User's MAC Address MAC address of the network adapter on the PC of the corresponding user Note: This limits access to the PC whose MAC address is entered here!

2. Enter the name and password and confirm the

password in the field below.

3. Select the level and enter the MAC address.

4. Confirm the settings by clicking Apply.

Warning Pay attention to the instructions below on assign- ing access rights.

Permission Control the access rights of the user by clicking the “Permission” symbol. Only the access data of users added manually can be changed:Settings

Note The user can make the settings locally (i.e. on the device) or change the parameters. The user can access the device via the network connection. The “Camera Permission” tab is used to set ac- cess rights for individual cameras (network or lo- cal).

Parameter Setting Local Configuration Local Log Search Local Parameters Settings Local Advanced Operation Local Shutdown / Reboot Remote Confguration Remote Log Search Remote Parameters Settings Remote Serial Port Ctnrol Remote Video Output Cntrol Two-way Audio Remote Alarm Control Remote Advanced Operation Remote ShutDown / Reboot Camera Configuration Camera Permission

Warning Change the general settings of the user (name, password, level, MAC address) by clicking the “Edit” symbol or in the TAB “Change password”.Settings

Camera Camera No. Shows the camera number Camera address Shows the set IP address of the camera Log Selecting the log Managing the port Setting for http ports of the cam- era Channel no. Channel number display User name Enter the user names of the cam- era here Admin password Enter the administrator password here Display mode Settings for displaying the camera name and date

Click on Add to link a camera to the system. Click on “Search” to search the network for the available ABUS network cameras. Mark the required cameras and then click on “Quick Add” to link the cameras.

Note In some cases, you need to enter the user names, password and http port by hand afterwards. The available bandwidth shows you how much bandwidth is still available for setting up the network camera.

OSD Camera Camera to be set Camera Name Allocation of camera name Display Name Activate / deactivate display of camera name in the live view Display Date Activate / deactivate display of date in the live view Display Week Activate / deactivate display of week in the live view Date Format Selection of date display type Time Format 12 hours / 24 hours Display Mode Settings relating to the presenta- tion of camera name and date OSD font Changing the font size Image Select the camera channel to be processed at “Camera”. Adapt the camera image to light conditions at “Mode” by means of specified settings or with user-defined settings.Settings

Note Here you can set up presets and patrols for the TVIP2xxxx network cameras.

Saving and retrieving presets

1. Use the arrow buttons to move the network cam-

era to the required image section and save the position, for example as Preset 1

2. Click on Call up to move to Preset 1.

Setting up and calling up patrols

1. Create several presets to use for the patrol

2. Click on + to select a preset

3. Add more presets to set up the required patrol.

4. Then click on the play symbol to start the patrol.

Motion Select the camera channel under “Camera”.

Select the checkbox for motion detection. The motion detection in the network camera must also be activated. For further details, refer to the network camera manual.

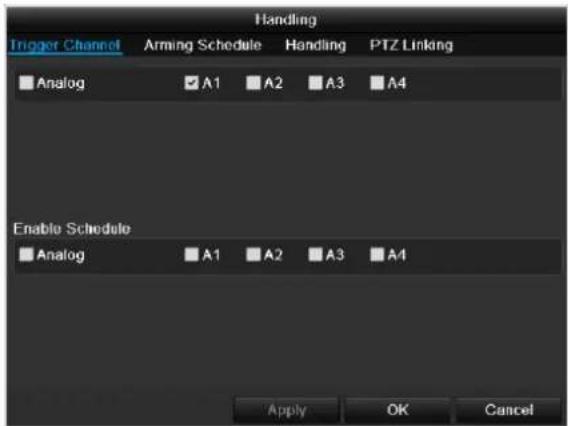

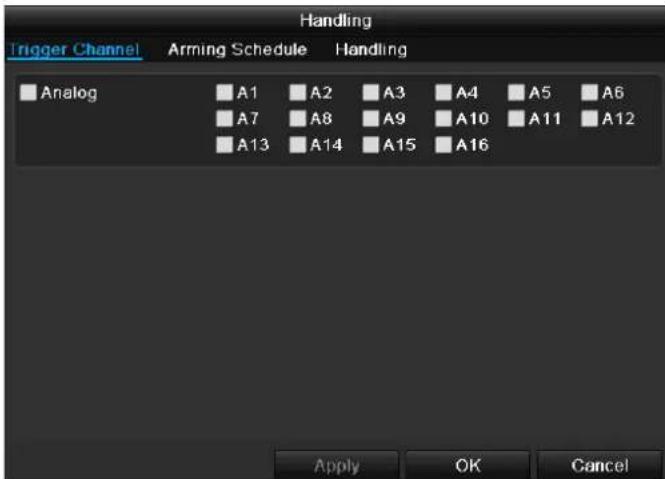

Handling Trigger Channel When “Reaction” is clicked, the TAB Trigger channel appears (only with motion recognition):

Select one or more camera channels that should carry out a reaction in the event of an alarm. Confirm the settings by clicking Apply and leave the menu with OK.

Note You can also start the patrol directly in the live im- age of the respective network camera.

Note In order to record using the motion recognition, you must set the time plan at recording (see p. 130).Settings

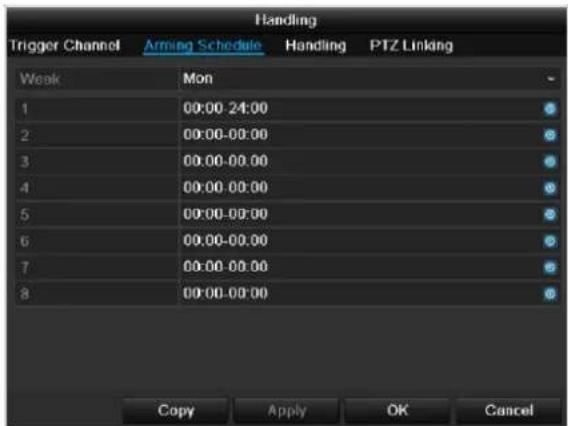

Armin Schedule Select the TAB Arming Schedule. Here you set the times when the reactions in the TAB Reaction are triggered.

1. Select the day and enter the schedule.

Note You can define up to 8 time periods (each from 00:00 to 00:00). The times in the individual peri- ods must not overlap.

2. Select whether the settings should be applied to all

days of the week with using Copy.

3. Confirm the settings by clicking Apply and leave the

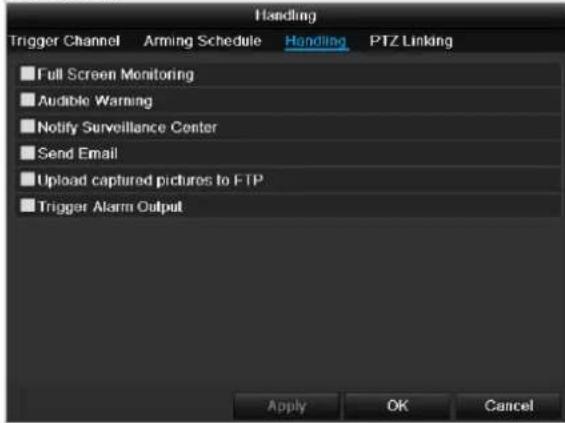

menu with OK. Handling Click on the TAB Handling. Here you can configure the behavior of the recorder dur- ing a detected event (for example: motion got detected) by clicking the respective check box. Parameter Notification Full Screen Monitoring The camera is displayed as a full-screen picture in live cast Audible Warning The device emits a repeat- ing tone Notify Surveillance Cen- ter Sends an alarm signal to a PC with the ABUS CMS software. For this, the soft- ware must be running and the recorder must be in sur- veillance mode. Send E-Mail An e-mail is sent to a spe- cific e-mail address (see page 119) Trigger Alarm Output see page 119

Confirm the settings by clicking Apply and leave the menu with OKSettings

Record Setting up Open the main menu and click on record: Schedule The schedule is used to specify the recording times and triggers (recording type) for the cameras. Click on the “Schedule” tab:

Note Because there is no difference between the set- tings for the TABs record and instant image, these are only listed once.

In the OSD, the hours of the respective days are listed from left to right (the days are listed from top to bottom). A colour key is shown underneath the days (i.e. the re- cording periods in the schedule are shown in colour ac- cording to the trigger (recording types)). Colour symbol Key Blue Normal recording: Period in hours Yellow Motion detection Light blue Motion detection and alarm Red Alarm Grey No selection Brown Motion or alarm

Select the camera and click on the check box En- able Schedule. Click on Edit to specify the type and duration of the time plan

1. Define the day to be set in the pull-down menu at

definite times can be entered as the setting is now valid for the whole day.

3. To make specific time settings, deactivate the “All

Time Motion detection Alarm Motion detection or alarm Motion detection and alarm

5. When making a specific time setting, you can define

up to 8 time periods (each from 00:00 to 24:00). The times in the individual periods must not overlap.

Note The “Time” recording type defines the time win- dow where a recording is made. The other events (e.g. motion detection and/or alarm) only trigger the recording after the specific event has occurred.

Application example Recording should run from 11:00 to 07:00. 2 time zones must be set up for this:

At Copy you can take on this setting for other days or the whole week.

6. Finalize your settings in the record screen with Apply

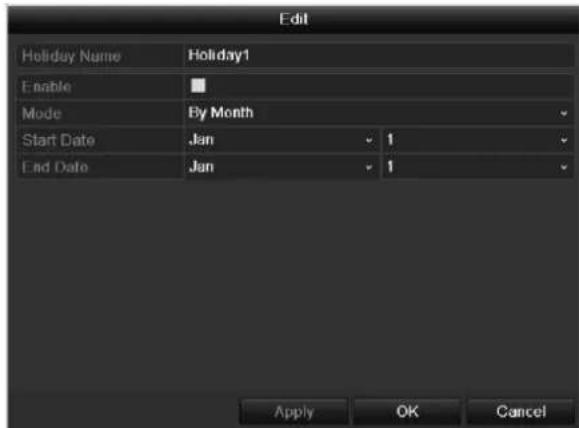

and then OK. Encoding TAB Record

The following setting options are available in this sub- menu: Confirm the settings by clicking on Apply and exit the menu with OK.

Confirm the settings by clicking on Apply and leave the menu with OK. Pre-record Recording period before an alarm (in seconds) Post-record Recording period after an alarm (in seconds) Record Audio Audio record yes/noSettings

TAB Captured The following parameters are adjustable: Camera Camera to be set Parameter Type Schedule or event Resolution Auto, 4CIF(704x576), CIF(352x288), QCIF(176x144) Picture Quality different qualities +++: middle quality +++++: high quality Interval Single images are saved every 1- 5 seconds according to event or time plan Confirm the settings by clicking Apply and leave the menu with Back. Advanced settings (only TVVR45021) Overwrite You can specify whether older re- cordings are deleted when the HDD memory is full eSATA Specify if an eSATA hard disc connected by USB should be used for exporting, or for additional re- cording/image storing. Holidays In this sub-menu, 32 different recording settings for vaca- tions or public holidays can be applied. To apply these settings click on the “Edit” symbol: Holiday Name Manual name entry of the vaca- tion or holiday Enable Activate or deactivate the set va- cation Mode According to date / week / month Start Date Selection of start date / start time End Date Selection of end date / end time Confirm your settings with Apply and OK.Settings

Note The device manages up to eight 3.5" SATA hard disk drives (only TVVR45021). For additional data security, an e-SATA hard disc can be optionally connected. Each of the installed HDDs must be initialised be- fore the device can be used for recording. The de- vice only detects the HDD and its assignment af- ter initialisation has been made.

Warning All data is deleted from the HDD during initialisa- tion. Ensure a data backup has been made in good time beforehand. Installing the HDD

1. Disconnect the device from the mains power and

2. Observe the applicable ESD guidelines when han-

dling electronic devices and ensure they are earthed.

3. Do not open the device in rooms with carpets or

other surfaces that can become electro statically charged.

4. Avoid bodily contact with all components on the

Warning If you have questions regarding the information or cannot find the information you need, please con- tact your maintenance specialist.

5. Install the HDD and then connect it.

6. Reattach the cover and connect the device to the

7. Switch on the device and start the HDD menu.

Click on “HDD” in the menu to define settings relating to hard disc administration HDD Management parameters HDD information

Label Shows the internal connection number Capacity HDD capacity (in GB) Status Shows the current status of the HDD: Not initialised Normal Error Property Redundancy: Works redun- dantly for data security Read-only: Read-only protec- tion R/W: Read and write Type Local: Device HDD NFS: Network HDD If possible, avoid using NFS stor- age due to compatibility problems that may occur. Free Space Shows the approximate free mem- ory for recordings Group HDD group (1 is preset) Recordings can be assigned to groups Edit Define hard disc settings (First ad- just the camera groups; see also p.32) Delete Removal of the hard disc

1. Select the HDD by ticking the corresponding box.

2. Start the process by clicking on Init.

3. Confirm the prompt by pressing OK.

Note If the initialised HDD is not displayed, check the connectionsSettings

HDD settings of the cameras Click on the sub-menu “Advanced”. Mode: Quote Specify the maximum recording size per camera on the hard disc. Mode: Group

eras should be saved on the hard disc group.

3. Click on Apply and confirm the restart in the next

window with OK. Hard disc setting

Note To be able to define these settings, you must have allocated cameras to a hard disc group (see HDD settings of cameras).

Click on the “Edit” symbol. A pop-up window appears: HDD No. Selecting hard disc by means of in- ternal connection number HDD Property R/W: Readable and writable Read-only: Write protection Redundant: operating redun- dantly for data security. Group Selection of hard disc group HDD Capacity Hard disc memory Confirm the settings by clicking Apply and leave the menu with OK.

If only one HDD is installed and this is set to “Read-only”, then the device cannot make re- cordings.

Redundancy: At least two HDDs are installed. The redundant HDD makes an extra copy of the recordings. This is used as a data backup.Settings

If you want to use redundancy you have to acti- vate the redundant storage in the recording menu (see also p. 131)

R/W At least one HDD must have the R/W status (Read/Write). Otherwise, no recordings are possi- ble.

Checking the HDD status The status of each HDD can be checked in the “Mainte- nance” menu. S.M.A.R.T. information (Self-Monitoring, Analysis and Reporting Technology) is stored in the log data. Call up the log file and search according to the infor- mation/S.M.A.R.T. HDD (see page 135). Setting up the HDD alarm You can specify alarms to inform you of HDD errors. To do this, call up Warning in the “System Settings” menu (see page 125). S.M.A.R.T. S.M.A.R.T. means Self-Monitoring Analysis and Report- ing Technology. Information on the hard disc status is displayed in this sub-menu. This information helps to recognize hard disc errors. For this reason, do not deactivate this feature if possible.

Note The log files saved for S.M.A.R.T. can be found in the menu Maintenance at “Log search” (see page 138).Settings

Playback Press Configuration in the main menu and then Play- back to search for video recordings after an event or a marking, or to view your saved images. Continous Recording The following settings are available: A1 - A4 Camera to be set Record Type Schedule, motion detection, alarm or mo- tion detection and/or alarm, manual re- cording, all File Type Locked, unlocked, all Start Time End Time Enter the date and time Click on Search to search for recordings with the cor- responding settings. The results are then shown: Select the recording by clicking on the line and then on “Play”-symbol.

Note You can return to events search at any time in the playback mode by performing a right click and se- lecting ‘Video Search’.

Note The sub-menus ‘Tag’ and ‘Picture’ are almost iden- tical with the menu described above and are there- fore not listed separately. In the sub-menu ‘Tag’, searching does not take place according to recording type, rather according to identification or a keyword of the markings’ name Event Please klick on the TAB „Event“. A list with all alarm inputs is displayed. Select at ‘Event type’ whether the search should take place at alarm ‘Alarm input’ or motion ‘Motion recognition’ after recording. Select one or more alarm inputs by activating the check box. Klick on Search. Select one of more alarm recordings on the list that ap- pears. Click on Details to receive more exact information on the recordings. Marking Click on the “Marking” tab. Select one or more network cameras by activating the checkbox. Click on Search. Select one or more markings from the list which appears. Click on Details to obtain more information about the markings. Image Click on the “Image” tab.Settings

Select one or more network cameras by activating the checkbox. Click on Search. Select one or more images from the list which appears. Click on Details to obtain more information about the im- ages.Maintenance

Note This menu is used for device maintenance, and should only be operated by experienced users.

Log Search A search of recordings or in- formation (S.M.A.R.T. HDD status) can be made in the log file according to certain criteria (alarms, exceptions, operation or information).

Upgrade Carries out a firmware upgrade

Network Displays the transmission and reception rate of the recorder

Note The information menu shows the technical data for the device and information on the various set- tings of the cameras, recording etc. This can be useful for support queries, for exam- ple. Log Search

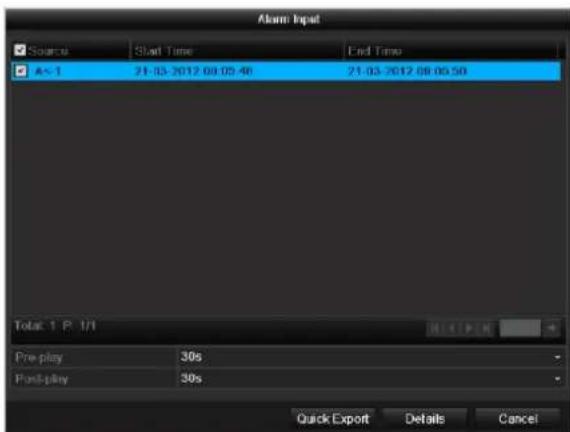

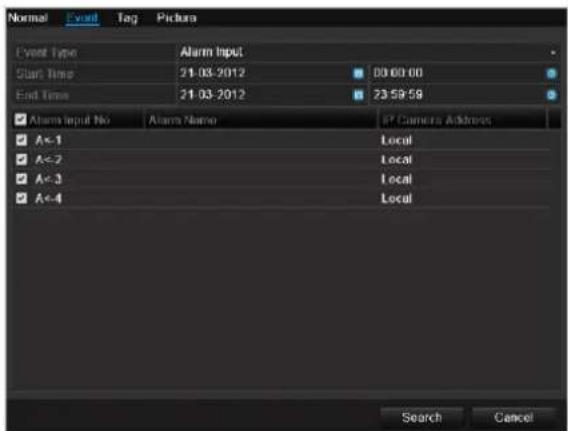

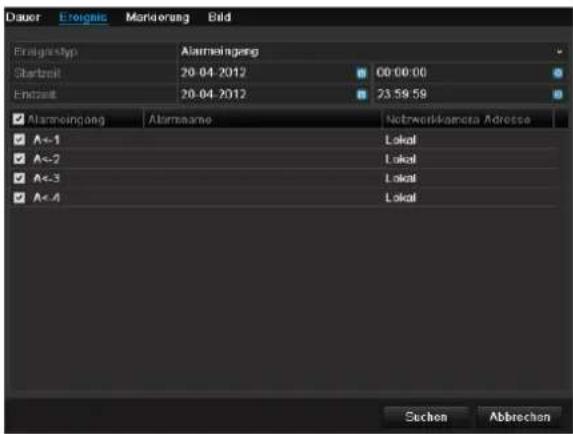

Note An event search can be made according to the fol- lowing main types, events and parameters: All Alarm Exception Operation Information

1. Select the event you wish to search for in the log,

then select the sub-parameter.

2. Enter the date and time under “Start Time” and “End

Time”, then click on Search.

3. The results are then displayed:

Note To scroll forwards or backwards press (3) or (2). To jump to the first or last page press (4) or (1). To go to a specific page number enter it in (5) and confirm by clicking (6). Click on Details to see more detailed information. Click on Play to start the recording for the event, when necessary. Click on Export to back up the log file on a USB me- dium. Import / Export

Note The configuration data contains all settings made on the device since the start of operation. This data can be saved on a USB medium. You can then configure another device identically, for ex- ample. Upgrade

Note A device upgrade can be made from a USB de- vice or over the network via FTP. Copy the upgrade file to the main directory of a USB stick. Connect the USB stick to a USB port on the device.

1. Select the USB port (click on Refresh, if necessary).

2. Select the upgrade file and click on Upgrade.

3. Wait until the device reboots.

4. Check the firmware status in the “Maintenance”

Note In this process, the device is reset to the factory de- fault settings.

Warning All settings made since the start of operation are deleted (cameras, recording settings, PTZ, alarms etc.)! Avoid data loss by backing up the settings in advance. These can be imported again follow- ing the system reset. Network

Note Information regarding the network traffic and net- work interfaces are shown here. TAB network load The amount of received and sent data is displayed graphically. Depending on the network settings, the status and infor- mation for one or two network connections is shown in the field underneath the graph. TAB Network DetectionMaintenance

In “Destination Address”, you can check the connection to another device, such as a computer (‘pinging’). Enter the network address of the device to be checked (e.g.

192.168.0.25) and press Test.

Information on two parameters appears: Parameter Setting Average delay The time the pinged device needs to reply. Packet loss Rate: Displays the percentage of packets that were not transmitted

Note If the packet loss rate is high, we recommend that the “Network Test” is repeated.

Note If the packet loss rate is still high, you should check that the cables are correct and not dam- aged. The higher the packet loss rate, the poorer the connection between the pinged device and re- corder.

For “Network Packet Export”, you can export the settings of the individual connections or – depending on the set- ting – the connection.

3. For “Device Name”, select a storage medium to save

After the progress display finishes and initializa- tion is successful, an information window ap- pears. Close it with OK. Click Status to display the status of the LAN connec- tions (connected/not connected). Click Network to change your network settings (see p. 119). TAB Network Stat. Displays all used in- and outcoming bandwidth.Video Export

Note The export function is used to store important re- cordings on connected external media, such as: USB media USB HDD DVD writer When “Quick export” is selected, all recordings of the selected time span are exported. Please note that not more than 24 hours can be exported.

1. Enter the parameters.

2. Click on “Details” to limit the search

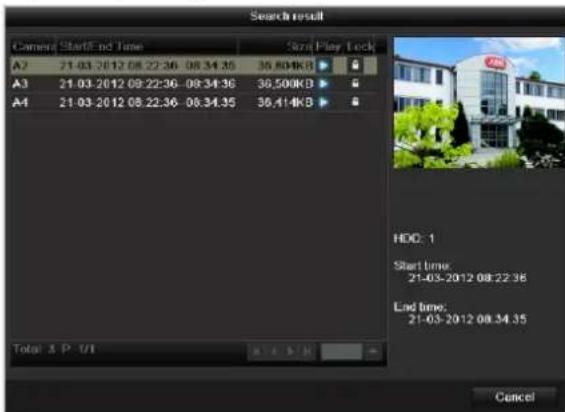

The file size of the individual recording and the total size of all found recordings are displayed. By clicking the “Playback” symbol you can view the respective recording. To block or unblock a file click on the “Lock” symbol.

3. Click on Export to access the export screen.

1. Select the connected medium used for data storage

from the drop-down menu.

2. If the medium is not displayed, click on Refresh.

If the medium is still not displayed, disconnect it from the device and reconnect the medium again. See also the manufacturer’s specifications.

3. Click on Export to start the export process. The pro-

gress of the export process is then displayed.

Note After the storage process is completed, the data on the medium can be selected and played on the player (which was also backed up). In this way, you can check whether the export has been made successfully.Video Export

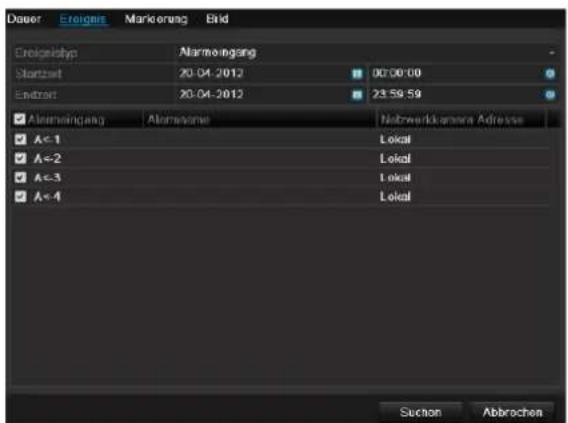

Event (event type ‘Alarm input’) Define the time span of the recording being searched for by means of the selection fields at “Start time” and “End time”. Select the alarm input by activating or deactivating the check box and click Search. Event (event type ‘Motion’) Define the time span of the recording being searched for by means of the selection fields at “Start time” and “End time”. Select the camera by activating or deactivating the check box and click Search. For both types of event, the following window appears af- ter activating the Search button: Select the files to be exported by activating or deactivat- ing the check box. You can set the pre-alarm and post- alarm time at “Pre-play” or “Post-play”. In this way you can define the length of your export video. Click on Details to view the selected video. For more ex- act information on the Details window, see DURATION (p. 142).

Note The “Pre-play” recordings can only be viewed when recording has been carried out before the alarm.

Note The sub-menus “Normal” and “Picture” are similar and are therefore not listed separately.Manual Management

Manual Management Press the REC button or go to panic recording in the main menu in order to start a manual image / video re- cording or to switch to an alarm output. Record Select the camera to start manual recording by click- ing the corresponding button.

Note Click “Analog” to record all connected cameras.

Continous Capture Select the camera to manually record continuous instant images. You can set the time interval in which these are recorded in the recording menu (see p. 130). Click the control button for this. Alarm In order to switch on one of the alarm outputs, select the alarm output with a left click and click on Trigger for one, or Trigger All, to switch on all outputs. To reset the out- put(s) again, click on Clear or Clear all.

Note Select “Lock” to lock the operating menu. Select “ShutDown” to switch off the device. Select “Reboot” to reboot the system (switch off and back on).Troubleshooting

Troubleshooting Before calling the Service department, read the following information to determine the possible cause of a malfunction. Malfunction Cause Solution No power Mains cable not connected Connect the mains cable securely to the socket Power switch set to OFF Turn the power switch to ON No current in the power socket Use another device on the socket, where necessary No image Screen not set for reception Set the correct video input mode until an image from the recorder appears Video cable not connected properly Connect the video cable securely Connected modem is switched off Switch on the monitor No sound Audio cables not connected properly Connect the audio cables securely Devices connected over the audio cables are not switched on Switch on the devices connected over the audio cables Audio connection cable is damaged Replace the cable HDD is not working Connection cables not connected properly Connect the cables securely HDD defective or not system-compatible Replace with a recommended HDD USB port not working Device not supported Connect a compatible USB medium (USB 2.0) USB hub is in use Connect the USB medium directly Network access not possible Network cable connections are loose Connect the network cable Network settings are incorrect (DHCP, IP address etc.) Check the network configuration and cor- rect it, ifnecessary (see page 119). Remote control is not working Batteries inserted with the wrong polarity or are empty Replace the batteries. To control the de- vice with the remote control, point it at the remote control sensor on the device Remote control too far away from the re- corder Use the remote controller within 7 metres from the device Signal blocked by obstruction between the remote control and recorder Remove the obstruction Lighting too bright or fluorescent tubes in use? Switch off strong fluorescent lighting in the immediate vicinity Recording not possible No HDD or HDD is not initialised Install and initialise the HDD Sudden deactivation of the device Temperature inside the device is too high Clean the device and remove any obstruc- tions from the ventilation area

Device cleaning and care Note Your device requires no maintenance. Protect the device from dust, dirt and moisture.Technical data

Technical data Subject is to alterations and errors. The dimensions are approximate values. ABUS digital recorder TVVR35011 TVVR45021 Video compression H.264 Hybrid-compatible

Compression levels Depends on used network camera Pre-alarm/post-alarm memory 0–30 sec. / 5–900 sec. Storage medium 2x SATA HDD 8x SATA HDD

Data backup 3 x USB 2.0 Views 1 / 4 1 / 4 / 6 / 8 / 9 / 16 Recording modes Manual, schedule, motion detection, alarm, motion detection and alarm, motion detection or alarm Search modes By event, date and time Alarm inputs (NO/NC)

Alarm outputs 2 (Loading capacity: 12VDC/1A) 4 (Loading capacity: 12VDC/1A) User levels 2 (max. 31 users) Network connection 2 x RJ45 10/100/1000 Mbps Parallel network access 128 camera connections Network functions Live view, playback, data export, settings DDNS

PTZ control RS-485 PTZ protocols PELCO-D, PELCO-P, Samsung, LG-MULTIX Alarms Acoustic warning, OSD signal, e-mail,CMS Audio Line In: 1 x BNC (2.0 V p-p, 1000 Ω) – only for network transmission Audio Out: 2 x BNC (600 Ω) Line In: 1 x Cinch (2.0 V p-p, 1000 Ω) – only for network transmission Audio Out: 2 x Cinch (600 Ω) Control USB Mouse, remote control Software ABUS CMS software OSD languages German, English, French, Dutch, Danish, Italian, Polish, Czech, Spanish Power supply 12 VDC, 3.0 A, 50~60 Hz 100~240VAC, 6.3A, 47~63Hz Power consumption <40W (without HDD) <55W (without HDD) Operating temperature -10 °C–+55 °C Dimensions (WxHxD) 470 x 90 x 445 mm Weight ≤ 8 kg (without HDD) Certification CETechnical data

HDD storage capacity In addition to the actual storage capacity of the installed HDD, the required storage space for recording and surveil- lance depends on the set resolution and frame rate of the recording. On the included CD you can find a program in order to calculate the required amount of memory. In addition you find this software for download on our homepage together with the ABUS CMS software. Overview monitor output combination HDMI

Disposal Information on the EU directive on waste electrical and electronic equipment To protect the environment, do not dispose of the device with domestic waste at the end of its service life. It can be disposed of at one of the appropriate collection points in your country. Please obey your local regulations when disposing of material.

Dispose of the device in accordance with EU di- rective 2002/96/EC – WEEE (Waste Electrical and Electronic Equipment). If you have any questions, please contact the department of your local authority which is responsible for waste disposal. Used equipment can be dis- posed of, for example, by your local or munici- pal authority, the local waste disposal company or your dealer. Information on handling batteries Always insert batteries with the correct polarity. Never attempt to recharge the batteries supplied and do not throw them into naked flames under any circum- stances. Do not use different batteries at the same time (old and new, alkaline and zinc-carbon etc.). Remove the batteries if the device is not used for a long period of time. If used improperly, there is a risk of explosion and leaking batteries! Take environmental protection into account – used batteries should not be disposed of in domestic waste! They must be taken to a collection point for used batteries. Make sure that batteries are kept away from small children. Children may put batteries in their mouths and swallow them. This can cause serious harm to their health. If this happens, consult a doctor immedi- ately. Do not charge normal batteries, heat them up or throw them into naked flames (they may explode).

Change low batteries in good time. Always change all the batteries at the same time and use batteries of the same type.

Important Leaky or damaged batteries can cause chemical burns on contact with the skin. In this case, wear protective gloves. Clean the battery compartment with a dry cloth.

Important information on disposing of batteries Your product uses batteries which are subject to the European directive 2006/66/EC and may not be disposed of with domestic waste. Find out about the regulations for the separate collection of batteries which apply in your country. Proper disposal of batteries helps prevent harm to health and the environment. Batteries that contain harmful chemicals are labelled with these signs:

Pb = battery contains lead Cd = battery contains cadmium Hg = battery contains mercury Information on the European RoHS directive The device complies with the RoHS directive. Compliance with the RoHS directive means that the product or component does not contain more than the fol- lowing maximum concentrations of the following sub- stances in homogeneous materials, unless the substance is part of an application that is excluded from the RoHS directive: a) 0.1% lead (by weight) b) Mercury c) Hexavalent chromium d) Polybrominated biphenyl (PBB) and polybrominated diphenyl ether e) 0.01% cadmium (by weight)Glossary

Glossary Overview of specialist terms 1080i HDTV image signal with 1080 pixels and interlaced dis- play. 16:9 Cinematographic aspect ratio on widescreen displays. 720p HDTV image signal with 1280 x 720 pixels and progres- sive display. CIF Common Intermediate Format Originally planned for converting PAL to the NTSC stan- dard. CIF corresponds to a video resolution of 352 x 288 pixels (2CIF = 704 x 288 pixels; 4CIF = 704 x 576 pixels). CINCH Socket type used for analogue audio or CVBS video sig- nals. CVBS Colour, Video, Blank and Sync – The simplest variation of video signals (also known as composite video). The image quality is comparatively low. DDNS Dynamic Domain Name System entry Network service which provides and updates IP ad- dresses of its clients in a database. DHCP Dynamic Host Configuration Protocol Network protocol which allows the automatic connection of devices (clients) in existing networks. DHCP servers (e.g. Internet routers) automatically assign the IP ad- dress, network mask, gateway, DNS server and WINS server (when required). Only the automatic acquisition of IP addresses must be activated for the client in this case. Domain Name used for the identification of websites on the Inter- net (e.g. www.abus-sc.de). Dual Stream Dual stream is a video transmission method. A high- resolution recording and lower-resolution transmission are made over the network, for example. The main stream has a 4CIF resolution and the sub-stream has a CIF resolution. DVR Digital Video Recorder – A device used for recording dif- ferent video and audio sources (analogue, digital). The data is compressed for recording and saved on hard disk drives (HDD). H.264 (MPEG-4 AVC) – Standard method for the highly-efficient compression of video signals. Used on Blu-ray discs or video conference systems, for example. HDD Hard Disk Drive Digital data storage on computers or DVRs. GIGABYTE Unit of capacity for storage media (HDD, USB, SD/MMC cards). HDVR Hybrid DVR – DVR used for recording analogue cameras and network cameras. http Hypertext Transfer Protocol Method for transmitting data across networks. Primarily used for displaying websites in a browser. INTERLACED Method for improving the picture quality of a video signal without consuming extra bandwidth (scan pattern on every second line). IP address An address in the computer network based on the Inter- net protocol. Allows different devices to identify them- selves in a network so that they are accessed specifi- cally. JPEG Compression method for photo images with minimal loss. Most digital cameras save photos in JPEG format.Glossary

MPEG Moving Picture Experts Group – International standard for the compression of moving images. On some DVDs, the digital audio signals are compressed and recorded in this format. NTP Network Time Protocol Method for synchronising the time across networks. SNTP (Simple Network Time Protocol) is also available, offering a simplified protocol. NTSC Standard television format in the USA. The method is dif- ferent from the European PAL system in certain ways. A full-screen NTSC image is comprised of 480 visible lines and a total of 525 lines. 60 half-images are displayed per second. Compared to PAL, the system is more suscepti- ble to colour errors. PAL Phase Alternating Line – European colour TV system. Uses 576 visible image lines. Together with the lines used for signal management, a full-screen image is com- prised of 625 lines. 50 half-images are displayed per second. The phase position of the colour signal changes from line to line in the image. PANEL Interior of a flatscreen display (e.g. LCD or plasma pan- els).

Personal Computer – Can be used as a remote site, ei- ther with the software supplied or over a browser. Pixel Short for “picture element”, the smallest unit for digital image transmission or display. PIP Picture in Picture – Where two signal sources are shown on the screen at the same time. The second signal source is stored above the first. PPPoE PPP over Ethernet (point-to-point protocol) Network transmission method used for establishing a connection over dial-up lines. Used in ADSL connections, for example). PROGRESSIVE Method for displaying, storing or transmitting moving im- ages in which all the lines of each frame are drawn in se- quence. This is in contrast to the interlacing used in tradi- tional television systems. PTZ Pan-Tilt-Zoom Pan, tilt and zoom function on motor-driven cameras. RESOLUTION Normal PAL television systems show images in 576 lines, normally with 768 pixels. HDTV works with at least 1280 x 720 pixels. SCREEN SIZE Size of the display from the bottom-left corner to the top- right corner in inches or centimetres. Browser Program for viewing websites on the Internet. USB Universal Serial Bus Serial bus connection, used for connecting media whilst in operation. Maximum data rate for USB 2.0: ca. 320 Mbit/s (ca. 40 MB/s). VGA Video Graphics Array – Standard interface for analogue video signals in PCs (primarily deals with RGB signals). ZOLL (inches) Typical unit of screen size. One inch is equivalent to 2.54 centimetres. The most common sizes of 16:9 displays are 26 inch (66 cm), 32 inch (81 cm), 37 inch (94 cm), 42 inch (106 cm), 50 inch (127 cm) and 65 inch (165 cm).Internal HDD

Internal HDD The internal hard disk drive (HDD) is very sensitive. Operate the device according to the following instructions in order to avoid drive errors. Important recordings should be backed up on external media to avoid unexpected data loss.

Note Do not move the device during operation. Moisture inside the device can condense and lead to HDD malfunctions. When the device is turned on, never remove the mains plug from the socket or interrupt the power supply us- ing the safety switch. Do not move the device immediately after switching it off. To move the device, carry out the following steps:

1. Wait until OFF has been shown on the display for at least two minutes.

2. Remove the mains plug from the socket.

Data on the HDD can be lost in the event of a power failure during operation. Use an uninterruptible power supply (UPS)! The HDD is very sensitive. Improper use or unsuitable surroundings can damage the HDD after some years of use. This may be indicated by the playback stopping unexpectedly or visible “mosaic” effects in the image. In some circumstances, there are no prior signs of a HDD malfunction. In the event of a malfunction, no recordings can be played. The HDD must be replaced in this case.ABUS Network video recorder NVR TVVR45021 / TVVR35011 Manufacturer: ABUS Security-Center GmbH & Co. KG Linker Kreuthweg 5 86444 Affing (Germany)Opmerkingen over de gebruikershandleiding
